USER MANUAL AD 4123 ADLER

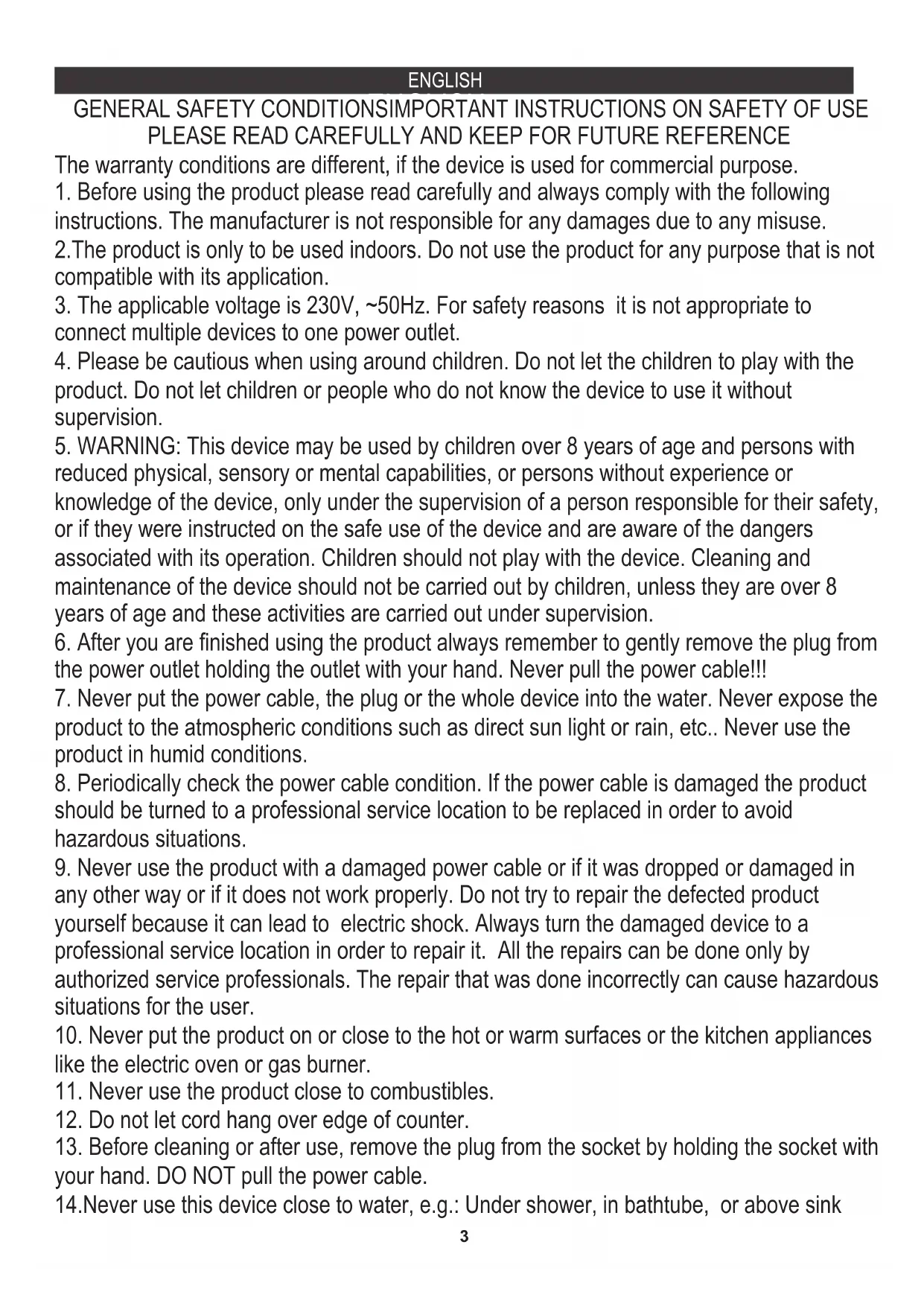

1. Before using the product please read carefully and always comply with the following

instructions. The manufacturer is not responsible for any damages due to any misuse. 2.The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The applicable voltage is 230V, ~50Hz. For safety reasons it is not appropriate to

connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the

product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with

reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from

the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the

product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product

should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in

any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances

like the electric oven or gas burner.

11. Never use the product close to combustibles.

12. Do not let cord hang over edge of counter.

13. Before cleaning or after use, remove the plug from the socket by holding the socket with

your hand. DO NOT pull the power cable. 14.Never use this device close to water, e.g.: Under shower, in bathtube, or above sink 3filled with water.

15. If using the device in bathroom after use remove the power plug from the

socket, because water proximity presents risk, even if the device is turned off.

16. Do not allow the device or power adaptor to wet. If the device falls into water,

immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.

17. Do not touch the device or power adaptor with wet hands.

18. The device has to be turned off after every use.

19. Never leave the product connected to the power source without supervision. Even when

use is interrupted for a short time, turn it off from the network, unplug the power.

20. In order to provide additional protection, it is recommended to install residue current

device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

21. If the device utilizes a power adaptor, do not cover it, because this can cause a

dangerous temperature rise and can damage the device. Always connect the power adaptor cable to the device, and then connect the power adaptor to the power socket.

22. Before you turn on your device, make sure that all parts are installed correctly. Plug it

only with put on cover (8), well established security arm (11), properly installed feeder (2).

23. Before each use, check out the juicer filter. If you see any cracks or damage, do not use

24. Use the device only when the safety lock is closed.

25. Do not touch the blades of small mesh filter and stainless steel grater.

26. Use only accessories supplied by the manufacturer.

27. Do not remove the container to a pulp during the operation.

28. During operation, do not put your hands or any objects into feeder (2). To push fruits,

use only the pusher (1).

29. Fruits should be put into feeder during operation, you can not fill feeder with fruit or

vegetable at a standstill.

30. Be careful not to overload the juicer, do not use too much force to push products

through the tray (2).

31. Always unplug the appliance and disconnect the power cord from the unit when not in

use, or want to start cleaning it.

32. Do not disassemble the juicer if it is plugged into a power outlet.

33. Open safety lock after switching off the appliance and filter stops.

34. Do not use abrasive cleaners or abrasive scouring pads.

35. Do not immerse the motor part in water or any other liquid.

36. The device can not work longer than 3 minutes without interruption. After three minutes,

37. During the extrusion of thick juice juicers do not switch on more than 1 minute.

5.3-position switch 6. Base with motor

9. Grater and filter basket 10. Juice and pulp separating bowl

11. Safety locking handle

8. If discoloration does occur, the plastic parts can be soaked in 10% lemon juice and water or they can be cleaned with a non abrasive cleaner. To assist with cleaning soak the stainless steel filter basket (9) in hot soapy water for approximately 10 minutes immediately after juicing is completed. If pulp is left to dry on the filter it may clog the fine pores of the filter mesh thereby lessening the effectiveness of the juicer. For your convenience a nylon cleaning brush has been included with your juicer. TECHNICAL DATA Voltage: 220-240 V ~ 50 Hz Power: 1000 W/150W Two speeds mode: Hi - switch in position ‘2’, Low - switch in position ‘1’. Safety switch Short term operation: 3min - 30 minut stop 1. Wash your selection of fruit and vegetables ready for juicing. Most fruit and vegetables such as apples, carrots and cucumbers will not need to be cut to size as these will fit into the feed chute whole. 2. Ensure the power juicer is correctly assembled. Ensure the stainless steel filter is thoroughly cleaned before each use. 3. Plug the power cord into a properly power outlet and turn the power '1'. Push the two speed switch either in ‘1’ position - for low speed or ‘2’position - for high speed, depending on the type of fruit or vegetable being juiced. Use the speed selector table as a guide for juicing different fruits and vegetable. 4. With the motor running, place food into the feed chute. Using the food pusher, gently guide food down the feed chute. To extract the maximum amount of juice, always push the food pusher down slowly. 5. Juice will flow into the juice jug and the separated pulp will accumulate in the pulp container. The pulp container can be emptied during juicing by turning off the Juicer and then carefully removing the pulp container. (Replace empty pulp container before continuing to juice). Do not allow the pulp container to overfill - that may damage the unit.

CLEANING AND MAINTENANCE

1. For easy cleaning - immediately after each use rinse removable parts under running water (to remove wet pulp). Allow parts to dry.

2. After disassembling the unit all removable parts may be washed in hot soapy water.

3. The juicer cover , filter bowl surround, pulp container, stainless steel filter basket and juice jar are dishwasher safe (top shelf only).

4. Wipe the motor base with a damp cloth.

5. Do not soak the stainless steel filter basket (9) in bleach.

6. Always treat the filter basket (9) with care as it can be easily damaged.

7. Discoloration of the plastic may occur with strongly colored fruit and vegetables. To help prevent this, wash parts immediately after use.

1. Wash the parts of the unit, which will be in contact with food .

2. Try to assemble and disassemble the unit for a few times before start working with the units.

DISMANTLING AND ASSEMBLE

1. Turn the 3 position switch (5) to off, release the safety locking handle (11).

2. Remove the cover (8).

3. Remove the juice and pulp separating bowl (10), then pull the stainless steel grater and filter basket (9) upwards.to assemble device: 4. Place the juice and pulp separating bowl (10) on base with heavy duty 1000 W motor (6), push with both hands on the juice and pulp separating bowl (10).

5. Insert the cover (8) and stainless steel grater and filter basket (9).

6. Disclose the cover (8) and fasten safety locking handle (11). lain

7. Put on the large pulp container (3) properly, then fix up the set the juice jar.

OPERATING DEUTSCH To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.DEUTSCH
