CR 7910

F D B E C H G A 3. camry

PICTURE E
PICTURE D

Diagram showing a device with internal components and a close-up of a petri dish containing a grid structure.

PICTURE G

Diagram of a heating element with cooling fins and mounting feet (no text or symbols)

F.1
PICTURE F

Line drawing of a heating unit with a pipe and cup, no text or symbols present

F.2

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the operating manual and follow the instructions contained in it. The manufacturer is not liable for damages caused by using the device contrary to its intended purpose or improper operation.
2. The device is for home use only. Do not use for other purposes that are not for its intended purpose.
3. The device should only be connected to an AC outlet with a grounded 220-240V \~ 50Hz. To increase operational safety, multiple electrical devices should not be connected to one current circuit at the same time.
4. Use extreme caution when using the device when children are nearby. Do not allow children to play with the device, do not allow children or people unfamiliar with the device to use it.
5. WARNING: This equipment may be used by children over 8 years of age and people with limited physical, sensory or mental ability, or people who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or have been granted them information on the safe use of the device and are aware of the dangers of using it. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children, unless they are over 8 years old and these activities are carried out under supervision.
6. Always disconnect the power plug by holding the socket with your hand after use. DO NOT pull on the power cord.
7. Do not immerse the cable, plug and the whole device in water or any other liquid. Do not expose the device to atmospheric conditions (rain, sun, etc.) or use in conditions of high humidity (bathrooms, damp mobile homes).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair shop to avoid danger.
9. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any other way or if it is not working properly. Do not repair the device yourself, as there is a risk of electric shock. Take the damaged device to an appropriate service center for checking or repair. All repairs may only be carried out by authorized service points. Incorrectly performed repairs can cause serious danger for the user.
10. Place the device on a cool, stable surface, away from hot kitchen appliances such as: electric stove, gas burner, etc.
11. Make sure that nothing is blocking the air inlet and outlet of the device
12. Use the device only on a level surface to prevent the condensation from spilling out

13. To provide additional protection, it is advisable to install a residual current device (RCD) in the electric circuit with a rated residual current not exceeding 30mA. Ask an electrician for this.

14. Clean the air filter regularly. The frequency of cleaning depends on the cleanliness of the air.

15. After turning off the machine, wait at least 5 minutes before turning it back on.
16. Do not use the device in sunny places. When the device overheats, the overheat protection will switch on the device.
17. To ensure effective cooling, a distance of at least 50 cm should be kept between the side walls of the device and the wall or furniture or curtains.
18. Due to the limited performance of the device, if the difference between the target temperature and the ambient temperature is too great, the target temperature may not be reached.
19. To reduce the risk of fire, electric shock or injury when using the air conditioner, observe the following basic precautions:

a) Connect to a grounded outlet with 3 pins.
b) Do not remove the grounding prong.
c) Do not use the adapter.
d) Do not use an extension cord.
e) Disconnect the air conditioner before servicing.
f) Use two or more people to move and install the air conditioner.

1. Do not use agents accelerating the defrosting or cleaning process other than those recommended by the manufacturer.

2. The device should be stored in a room without constantly operating sources of ignition, for example: open fire, gas appliances or electric heaters.

Device Description - Picture A

1. Control panel

2. Cold air outlet

3. Remote controller (picture E)

4. Transport handle

5. Air inlets with net filter

6. Air exhaust pipe

7. Exhaust connector

8. Drain hole with rubber cap

9. Window exhaust adapter

10. Connector of air exhaust pipe

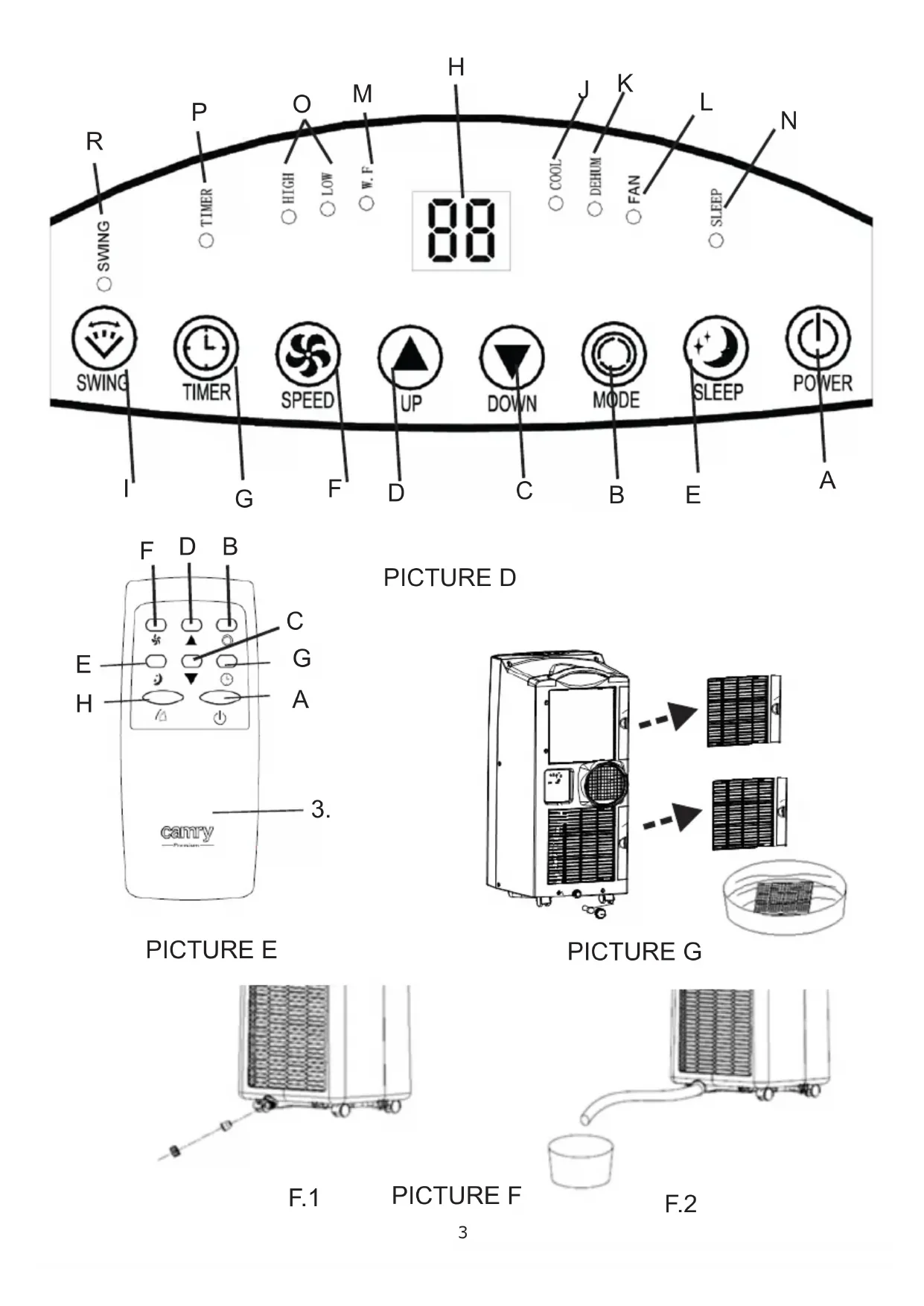

Control Panel Description - Picture D.

A. Power button

B. Mode button

C. Temperature down button in cooling mode

D. Temperature up button in cooling mode

E. Sleep model buttons

F. Fan speed button

G. Timer button

H. LED screen

1. Air oscillation button

J. Cool mode control lamp

K. Dehumidifying mode control lamp

L. Fan mode control lamp

M. WF - water full control lamp

N. Sleep mode control lamp

O. The fast and slow fan speed control lamps

P. Timer control lamp

R. Air oscillation control lamp

Remote controller – Picture E

A. Power button

B. Mode button

C. Temperature down button 16-31°C D. Temperature up button 16-31°C

E. Sleep mode button F. Fan speed button

G. Timer button H. Swing function button

CONTROL PANEL operation – picture D

Press button "A" to turn on and turn off the machine, the buzzer will play signal once.

Cooling mode -

After machine turns on, default value is cooling mode with 22^ C and low fan speed.

- Press button "B" to select cooling mode between cooling mode → fan mode → dehumidifying mode. The cooling mode control lamp J turns on.

- Press button “C” or “D” to adjust required temperature from 16°C to 31°C), buttons are not available in fan or dehumidifying mode.

Fan mode -

- Press button "B" to select fan mode, fan mode control lamp "L" turns on.

- Press button "F" to select high speed or low speed, chosen speed control lamp "O" turn on.

- During fan mode operation the temperature and sleeping functions cannot be setup.

Timer mode -

- When the device is not working, press button "G", the LCD screen flashes, press the button "G" repeatedly to setup the time the device will start to operate and how many hours it should operate. The LCD screen stops flashing and timer control lamp "P" turns on.

- When the device is working, press button "G", the LCD screen flashes, press the button "G" repeatedly to setup the time the device will shut off and how many hours it should operate before it will shut off. The LCD screen stops flashing and timer control lamp "P" turns on. This is a delayed start function.

Dehumidifying mode –

• Press button "B" to select dehumidifying mode, dehumidifying mode control lamp "K" turns on.
• Under dehumidifying mode, sleeping function cannot be setup, and fan speed is low.

Sleep mode –

• Press button "B" to cooling mode.
• Press button "E" enter into sleeping mode, default value of fan speed is low.
• The sleep mode control lamp "N" turns on.

- The sleep mode is automatically programmed. After the first hour of operation, the temperature will increase by 1 °C, after the second hour of operation, the temperature will increase by another 1 °C, and then remain at the same level.

Sleep mode is not available in dehumidify and fan modes. When the device communicates that it is full of water - the "M" indicator light flashes, then the device's standby mode, mode conversion and sleep mode will be cancelled

Air oscillation - Swing function –

Press button "I", after the device turns on, swing function control lamp "R" turns on, the louver will swing continuously left and right; by pressing the button again the movement will stop and the louver remain in that position.

REMOTE CONTROLLER operation – picture E

The remote controller transmits signals to the system.

Button "A" - the appliance will be started when it is energized or will be stopped when it is in operation, if you press this button.

Button "B" - press it to select operation mode: cool mode → dry mode → fan mode.

Button "C" / "D" - press to fix required room temperature when cooling mode is switched on.

Button "E" - press to set up or cancel sleep mode.

Button "F" - press it to select fan speed in sequence: low / high wind speed.

Button "G" - press it repeatedly to setup the operation time from 1 to 24 hours.

Button "H" - press to set up or cancel air flow oscillation function.

PROTECTION DEVICES

Compressor protection: Three minutes later after power on / restart, compressor starts to run.

DRAINAGE INSTRUCTIONS:

This device is equipped in auto-water-evaporating system. Condensed water cycle will cool down the condenser, which will not only improve cooling efficiency, but also save energy.

1. If inner water tank is full, "M" control lamp will flashed on the screen, the device enter into standby mode, buzzer shouts, compressor stops and all buttons is invalid till the device recovers to be normal, after water drainage.
2. Pull out the plug to drain out water, power off the device.

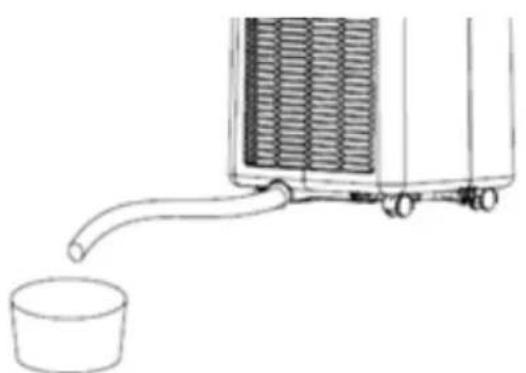

3. Remove the rubber cap from the drain hole (8) – picture F1. Drain the water to flat container (not included to set) or by pipe (not included to set) - picture F2. Close the rubber cap (8).
4. Restart the device, the machine will runs normally.

CLEANING & MAINTENANCE

Cleaning: before cleaning and maintenance, turn off the device and unplug the plug.

a) Housing cleaning

Clean with surface of device with a wet soft cloth. Don't use chemicals, such as benzene, alcohol, gasoline, otherwise, the surface of the device will be damaged or even the whole machine will be damaged.

b) Net filters cleaning

If the filter is clogged with dust, then the effectiveness of the device is reduced, be sure to clean the filter once every two weeks.

- Clean the upper and down filters frame after remove them from the back side of device – picture G.

- Put the filter into warm water with neutral detergent (about 40^ C / 104^ F) and dry it in the shade after rinsing clean.

STORAGE

If the device will be unused for a long time, please do as following :

1. Pull out drainage plug (8) to flow out water.
2. Let the device runs under fan mode for 2 hours to dry out the device's internal.
3. Turn off the device and pull out plug.
4. Clean and dry filters, then reinstall them.
5. Pull out exhaust pipe for safe keeping.
6. Put the machine into plastic bag, and place it on a dry place.
7. Remove batteries of the remote control and keep them properly.

TROUBLESHOOTING

Problem I.: The air conditioning does not work.

Reason 1 : There is no electricity. So, turn it on after connecting it to a socket with electricity.

Reason 2: The water full control lamp displays "WF". So, discharge the water.

Problem II.: The device auto-restarts frequently.

Reason1: Direct sunlight. So, drawn the curtains.

Reason 2: Door and windows are open, many heat sources in the room. So, close the door and windows, move out heat sources.

Reason 3: Filters are too dirty. So, clean or replace filters.

Reason 4: Air-inlet or air out-let is blocked. So, remove blockage.

Problem III.: Big Noise

Reason: The device is not placed on a flat surface. So, put the device on a flat and hard place to reduce noise.

Problem IV.: Compressor does not work.

Reason: Compressor time-delay protection turn on. So, wait for 3 minutes until the temperature is lowered, and then restart the machine.

Note: when abnormal situations are occurred, turn off machine and pull out plug, then contact with professional service for help.

Do not repair the device yourself. Not qualified repair will void the warranty.

TECHNICAL DATA:

Cooling capacity at BTU: 7000 BTU / hour

Cooling capacity in watts: 2050W

Energy consumption (cooling) in watts: 780 W

Noise level: <= 65dB

Air flow: 300 m3 / hour

Energy class: A

Drying capacity: 17 liters / 24 hours

Warning sign depicting a flame symbol in yellow and black on white background

Caution, risk of fire.

Do NOT pierce or burn.

Be aware that the refrigerant may not contain an odour.

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
