USER MANUAL L 840 SC STEINEL

Close-up of a metallic L-shaped object with a white top, no visible text or symbols

Three 3D cube-shaped objects with dark and light gray surfaces, arranged vertically against a white background (no text or symbols)

L 830 SC, L 830 C

L 835 SC, L 835 C

L 840 SC, L 840 C

GL 80 SC, GL 80 C

DE .....21

GB ....34

FR .....46

NL .....59

IT.....71

ES .....84

PT .....96

SE .....108

DK ....120

Fl.....131

NO ...142

GR ...154

TR .....166

HU . . .177

CZ .....189

SK . . . .201

PL....213

RO ...226

SI ....237

HR. . . .248

EE . . .259

LT ....271

LV....282

BG . . .293

CN . . .304

RU....315

Textteil beachten!

Follow written instructions!

Illustration of a 3D box with a side panel and multiple screw and nut components (no text or symbols)

3.2 L 830 SC, L 830 C

131,5 mm 110 mm 110 mm

3.3 L 835 SC, L 835 C

131,5 mm 110 mm 110 mm

3.4 L 840 SC, L 840 C

133,5 mm 110 mm 110 mm

3.5 L 830 SC, L 830 C

L 835 SC, L 835 C

L 840 SC, L 840 C

A B C

Technical line drawing of a mechanical assembly with labeled components D and E (no text or symbols beyond labels)

3.6 GL 80 SC, GL 80 C

Technical line drawing of a mechanical enclosure and mounting bracket assembly (no text or symbols)

3.7 GL 80 SC, GL 80 C

130 mm 117,5 mm 110 mm 633 mm 132 mm 107 mm

3.8 GL 80 SC, GL 80 C

A B F E D

3.9 L 830 SC, L 830 C

3.10 L 835 SC, L 835 C

3.11 L 840 SC, L 840 C

3.12 GL 80 SC, GL 80 C

3.13

2 m 1 m

10 m 5 m

3.14

A 5 m

B 5 m

C 5 m

4.1

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N L N N

L N L N

5.1

L 830 SC, L 830 C

L 835 SC, L 835 C

L 840 SC, L 840 C

1. 2. 3.

5.2

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

5.3

Ø 6 mm 6 mm

5.4

Safety warning sign showing a showerhead above and a prohibition symbol for a food item.

Technical diagram of a mechanical device with labeled parts including 'TOP' and screwdriver, showing internal components and directional arrows.

5.5

5.6 N L

5.7 1. 2. 3.

5.8 GL 80 SC, GL 80 C

5.9

5.10

Technical line drawing of a mechanical bracket assembly with mounting holes and a pencil, no text or symbols present

5.12 Ø 8 mm 8 mm

5.13

5.14

5.15 N L

5.16 I O

Diagram showing two scenarios of a wind farm with a flagpole and grass, one marked with an X and the other with a checkmark.

DE

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Please read carefully and keep in a safe place.

– Under copyright. Reproduction either in whole or in part only with our consent.
– Subject to change in the interest of technical progress.

Symbols

Hazard warning!

Reference to other information in the document.

2. General safety precautions

Disconnect the power supply before attempting any work on the unit.

• During installation, the electric power cable being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves work on the mains voltage supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions.
• Only use genuine replacement parts.
  • Repairs may only be made by specialist workshops.

3. L 830, L 835, L 840, GL 80 SC / C

Proper use

– Sensor-switched light for mounting on outdoor walls (L 830, L 835, L 840 SC).
– Light for mounting on outdoor walls (L 830, L 835, L 840 C).
– Sensor-switched light for mounting on outdoor ground surfaces (GL 80 SC).
– Light for mounting on outdoor ground surfaces(GL 80 C).

Note:

To rule out malfunctioning, a minimum distance of 3 m must be allowed from the Wi-Fi router and the access points.

The sensor-switched lights (SC) feature an active motion detector.

The integrated HF sensor emits high-frequency electromagnetic waves (5.8 GHz) and

receives their echo. Any movement by persons in the sensor switched light's detection zone is noticed by the sensor as a change in echo. A microprocessor then issues the switch command “switch light ON”. Detection is possible through doors, panes of glass or thin walls. Analysing the signal, the sensor distinguishes between moving persons and moving objects, such as bushes or small animals. This rules out any inadvertent triggering by small animals as well as interference from extreme temperatures.

The functions of the sensor-switched light can be set via smartphone and tablet. Bluetooth interconnection is only possible via smartphone or tablet.

Note: The high-frequency output of the iHF-sensor is approx. 1 mW – that's 1,000 times less than the transmission power of a mobile phone or the output of a microwave oven.

Package contents L 830, L 835, L 840 SC / C (Fig. 3.1)

• Luminaire
• Three screws
• Three wall plugs
• Three spacers

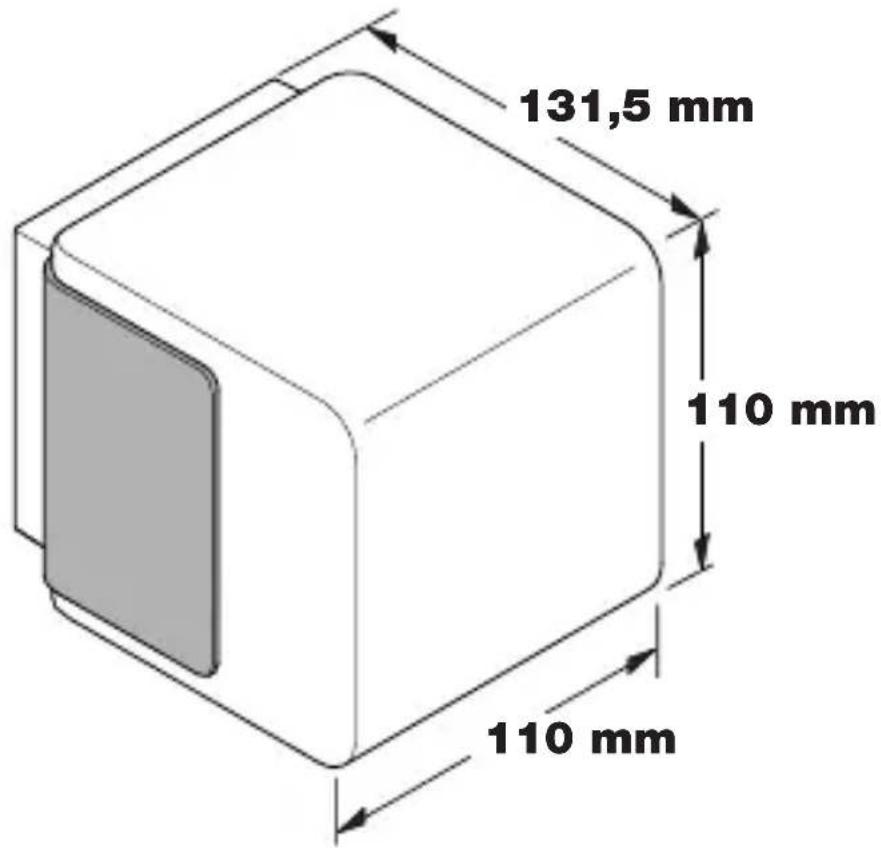

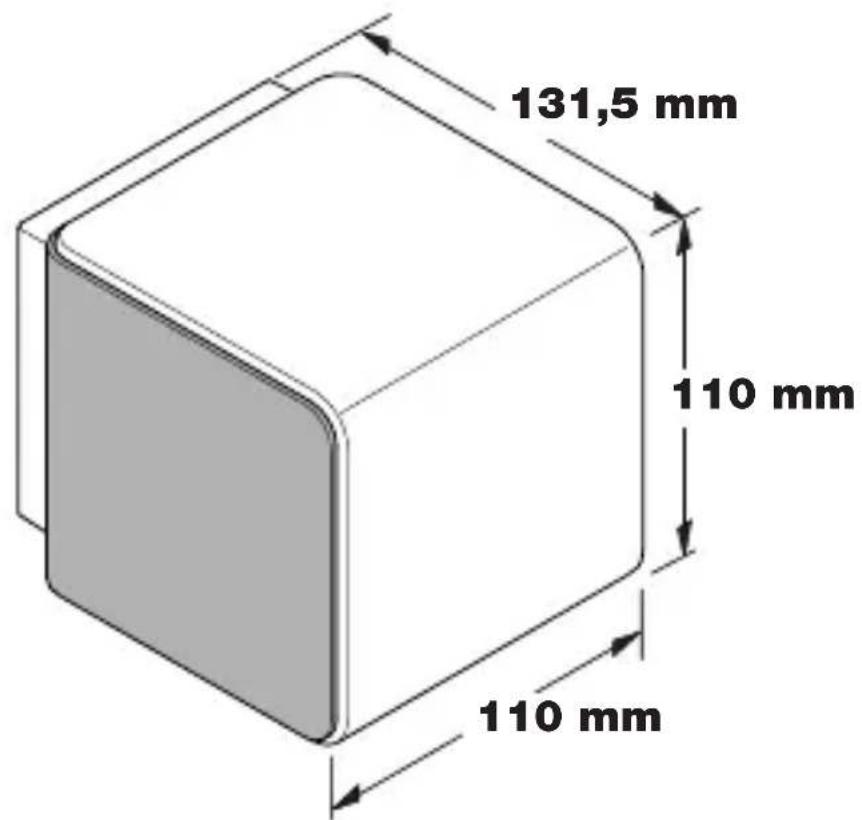

Product dimensions L 830 SC / C (Fig. 3.2)

Product dimensions L 835 SC / C (Fig. 3.3)

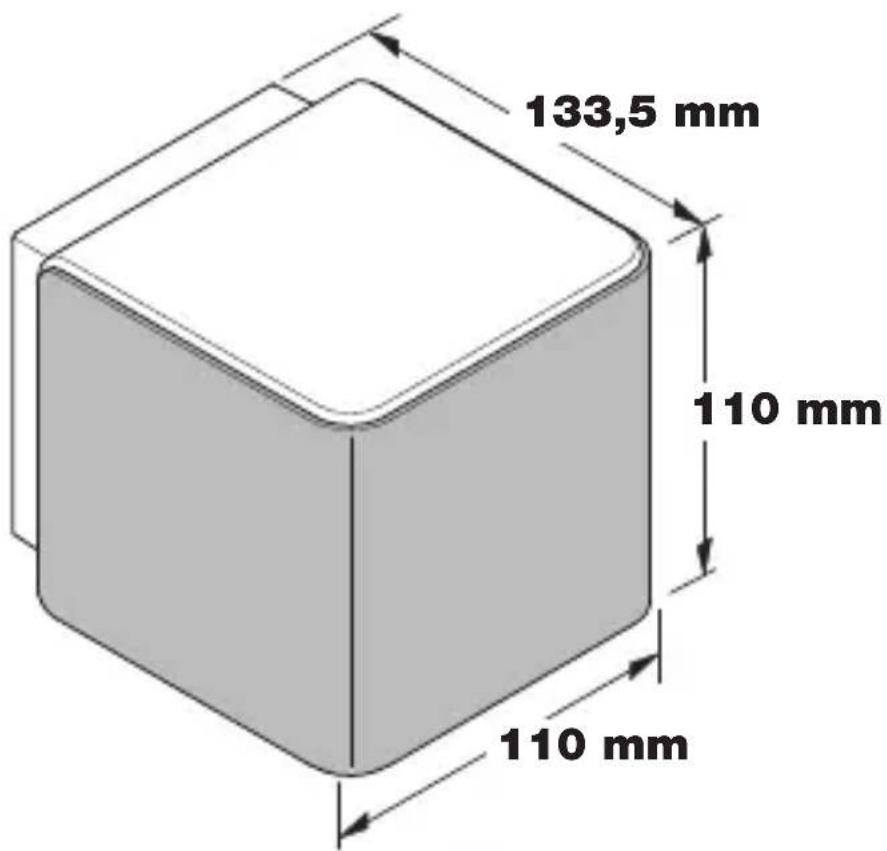

Product dimensions L 840 SC / C (Fig. 3.4)

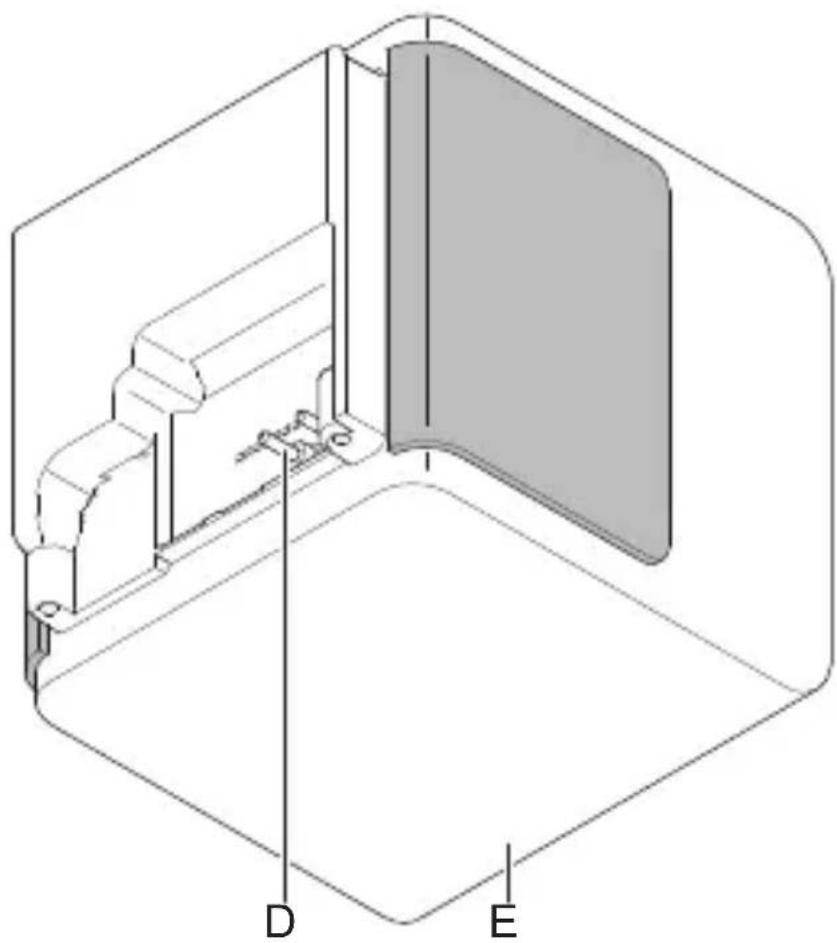

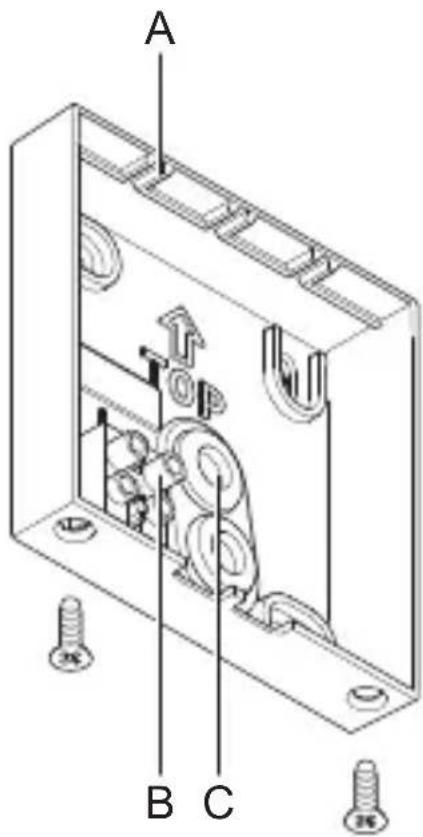

Product components L 830, L 835, L 840 SC / C (Fig. 3.5)

A Wall mount
B Connecting terminal
C Sealing plug
D Plug connection
E Light cube

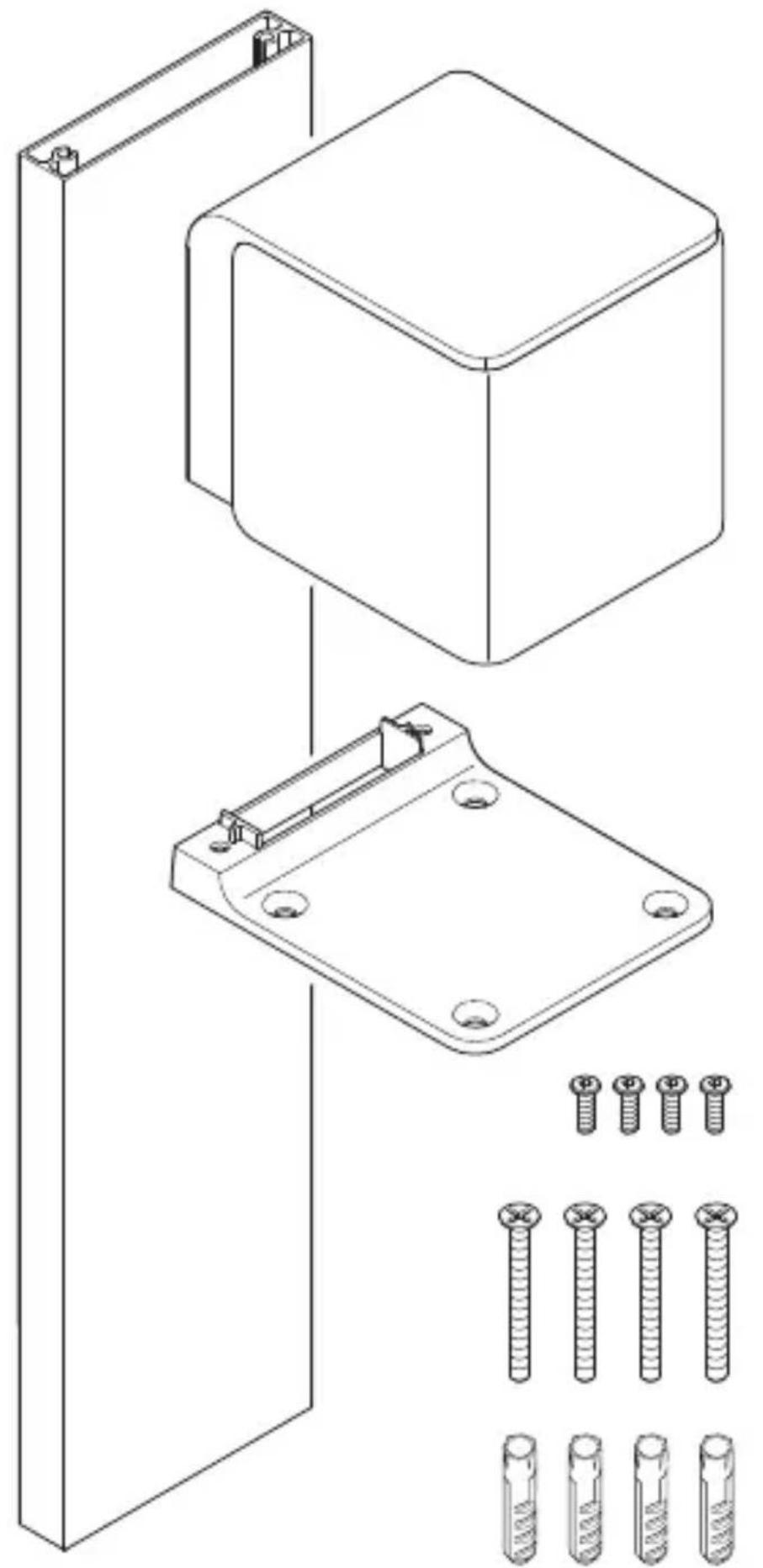

Package contents GL 80 SC / C (Fig. 3.6)

• Luminaire
• Profile
• Base plate
  – Four floor / ground screws
• Four wall plugs
• Four connecting screws

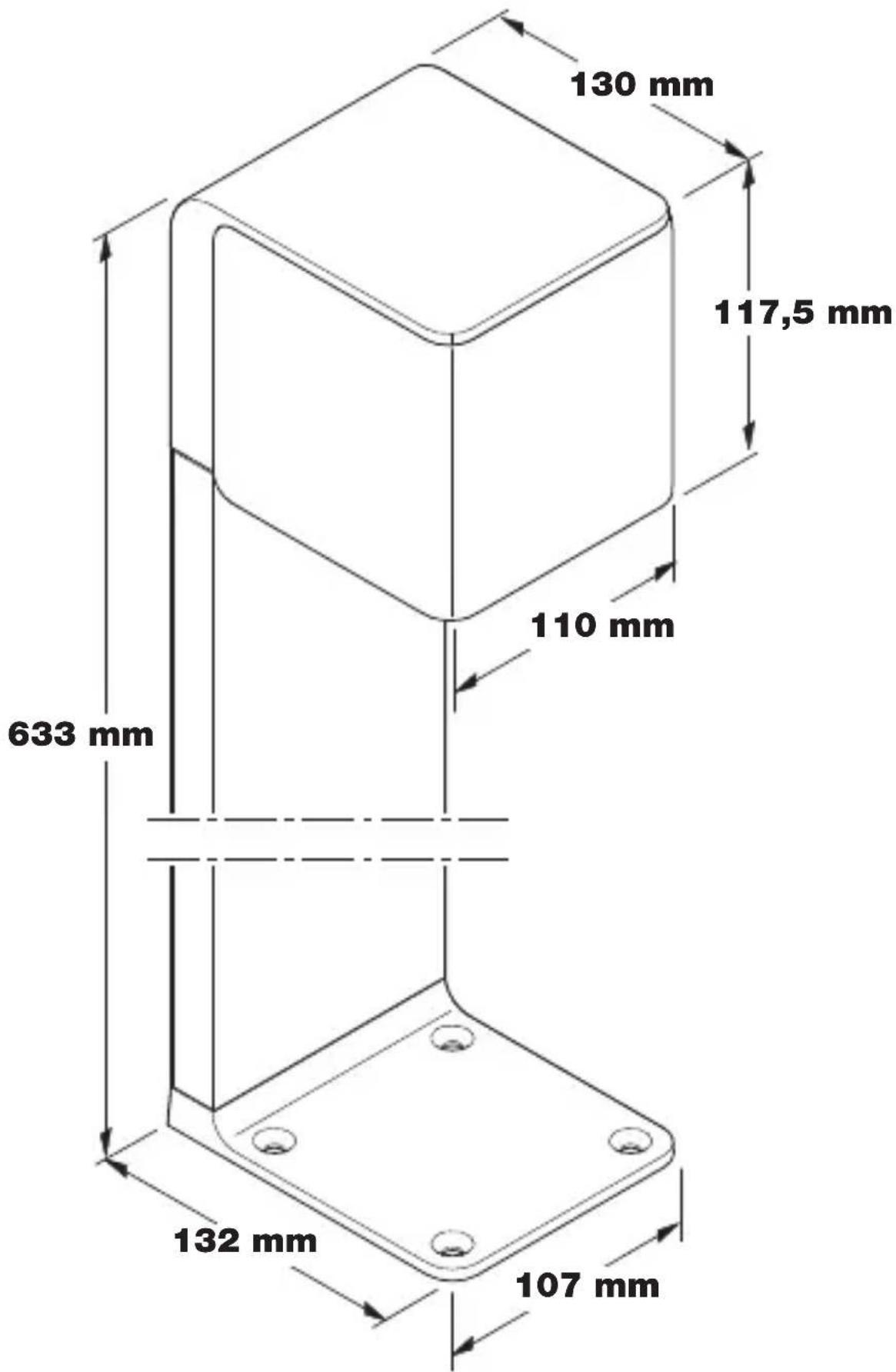

Product dimensions GL 80 SC / C (Fig. 3.7)

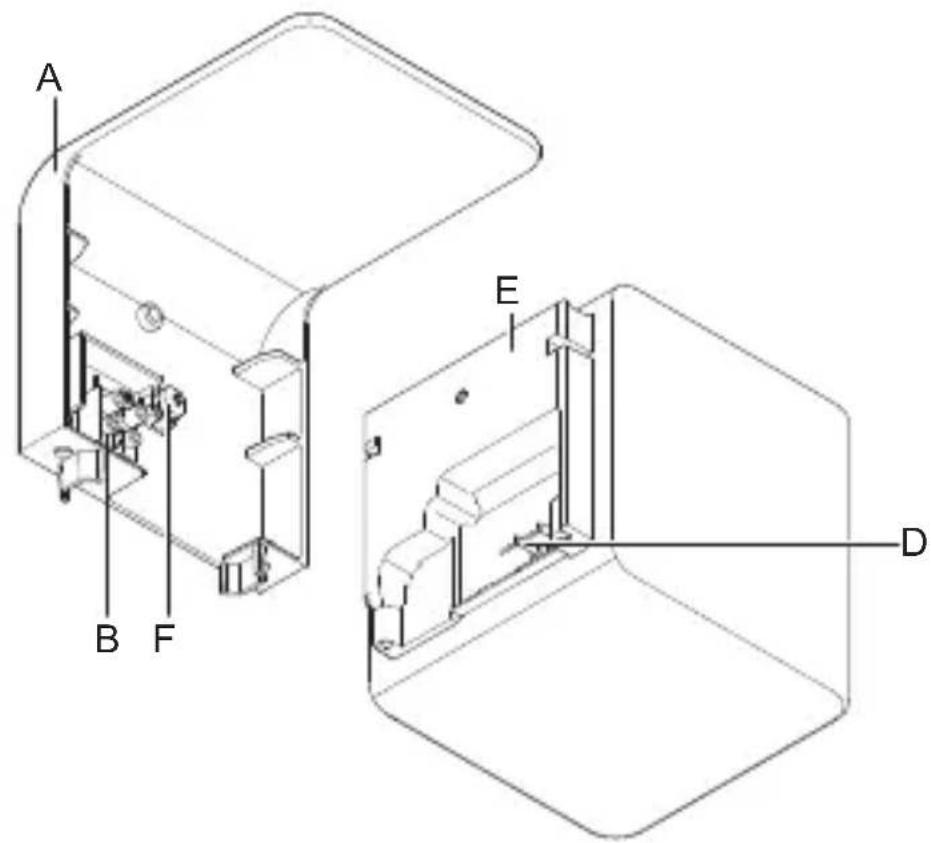

Product components GL 80 SC / C (Fig. 3.8)

A Cover cap
B Connecting terminal
D Plug connection
E Light cube
F Earth terminal

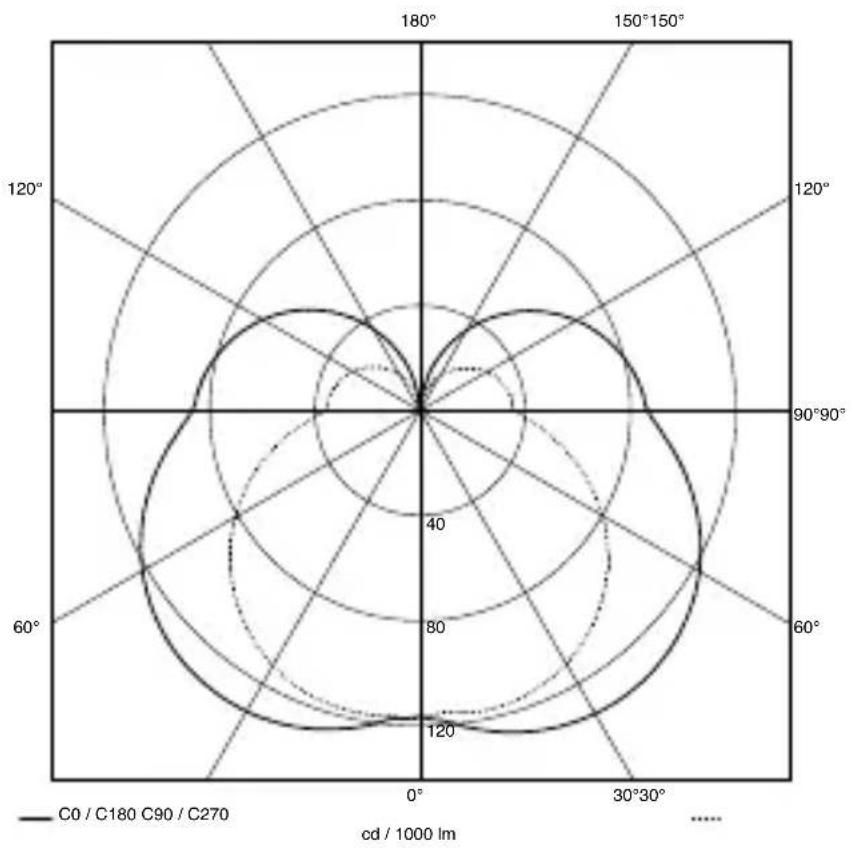

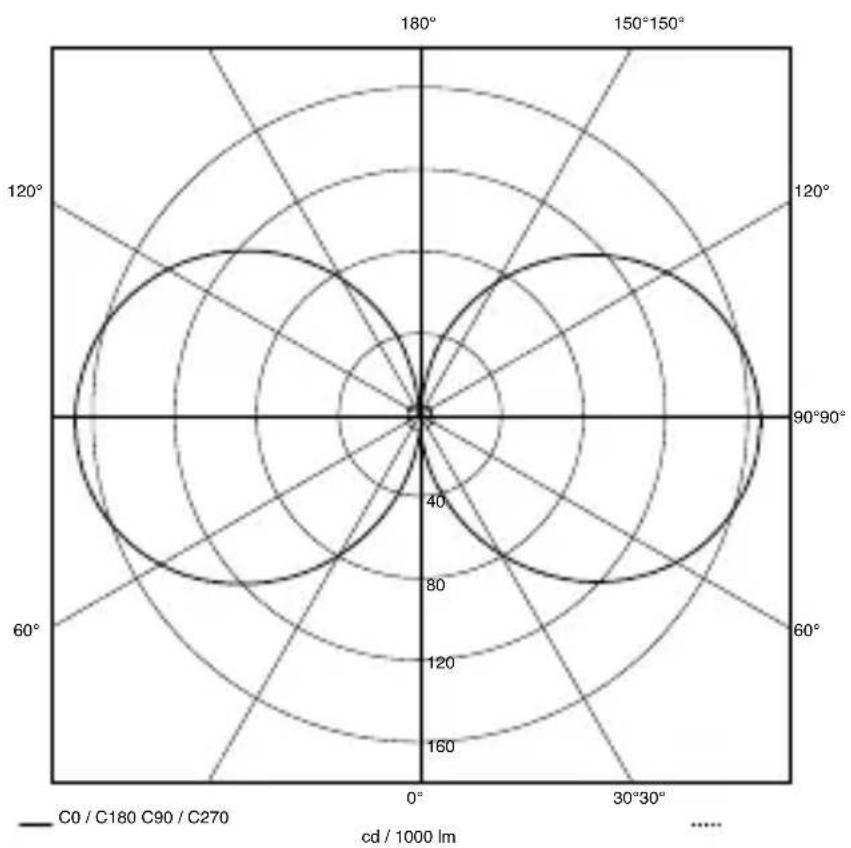

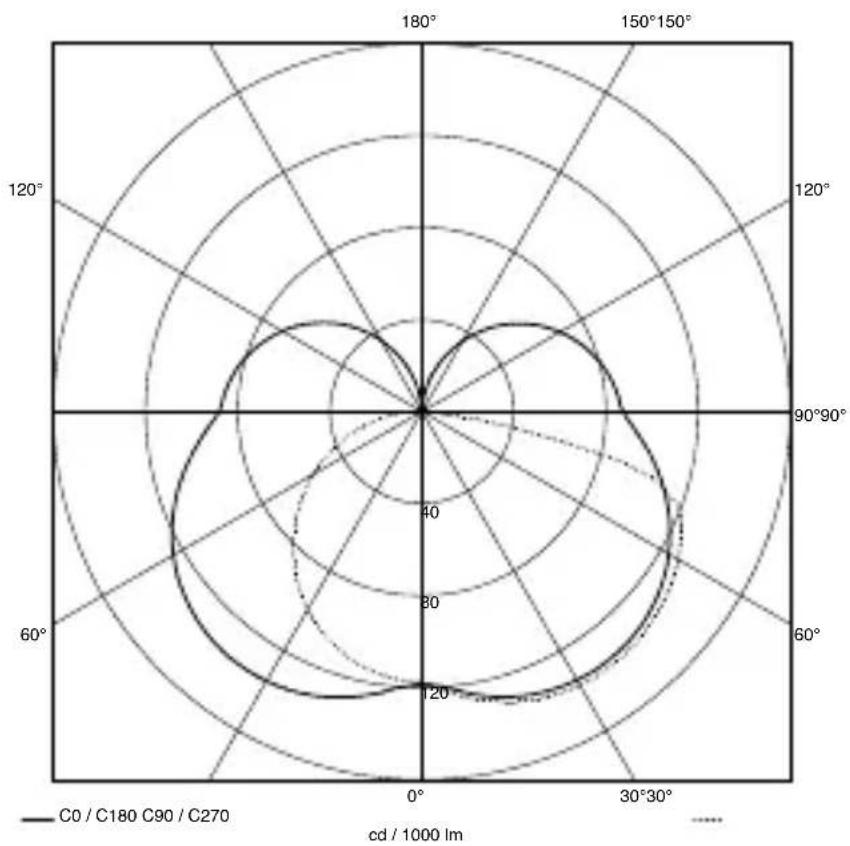

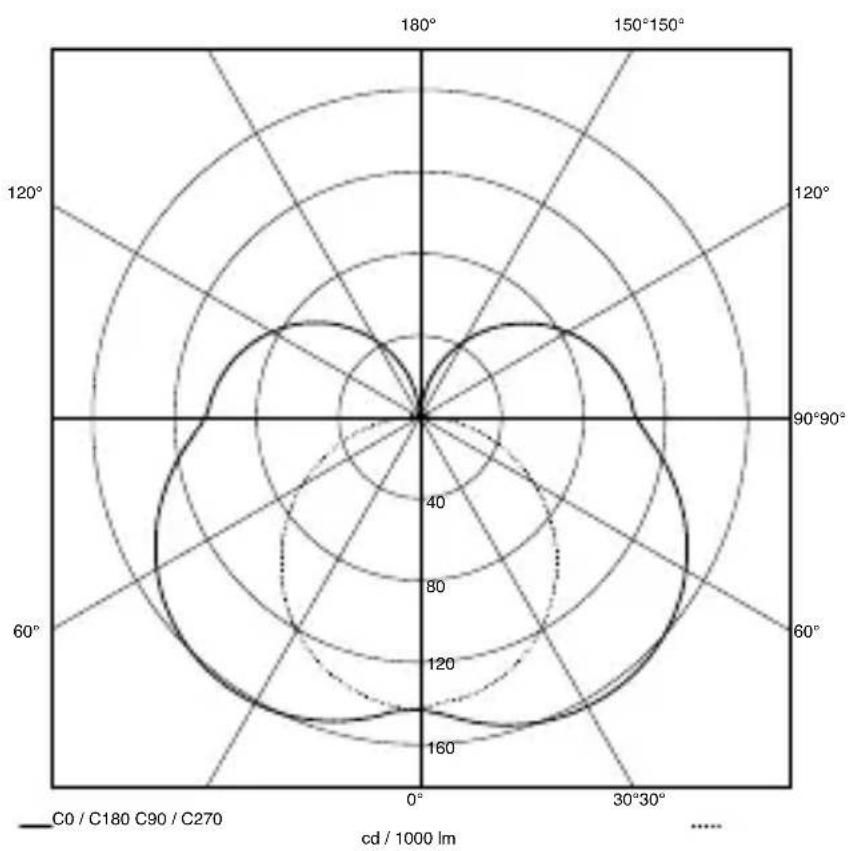

Luminous intensity distribution (Fig. 3.9, Fig. 3.10, Fig. 3.11, Fig. 3.12)

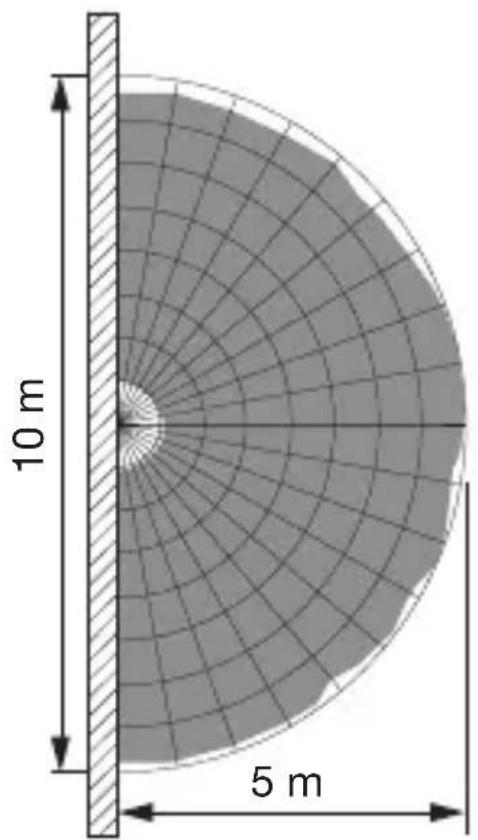

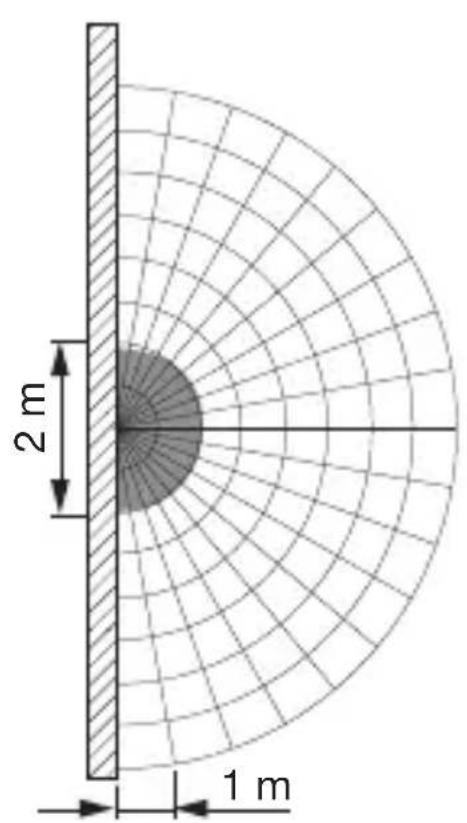

Reach (SC only) (Fig. 3.13)

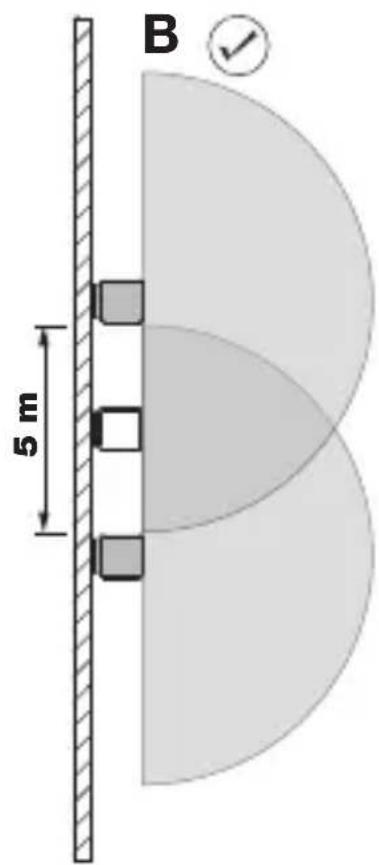

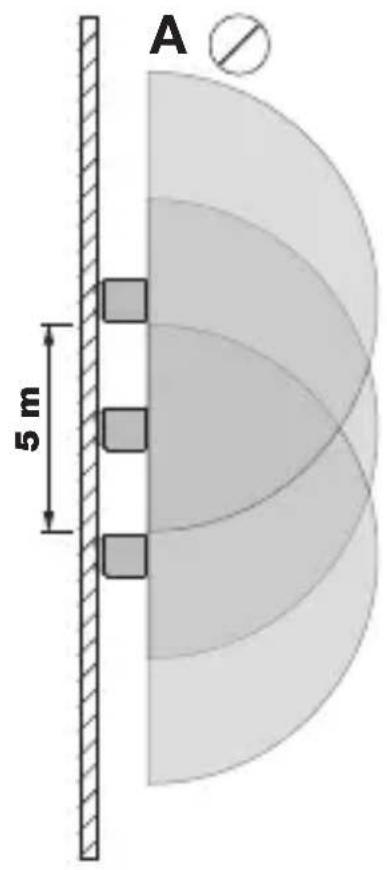

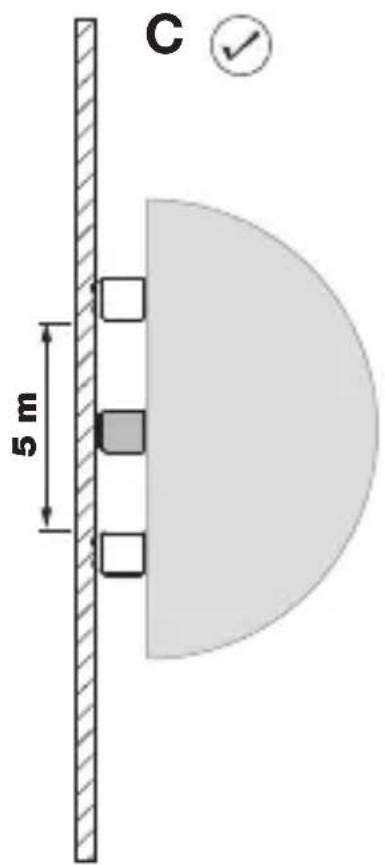

Note: If lights are mounted too close together, switching errors may occur as the high-frequency signals emitted will interfere with each other. (Fig. 3.14 A)

The following measures will help to avoid switching errors of this kind:

• Allow a distance of at least 5 m between lights.
• Interconnect lights via the Steinel Connect App and selectively deactivate the sensor in individual lights via the Sensor-Off function (Fig. 3.14 B + C). As a result of interconnection, movement will also switch lights ON in spite of their sensor being deactivated.

4. Electrical connection

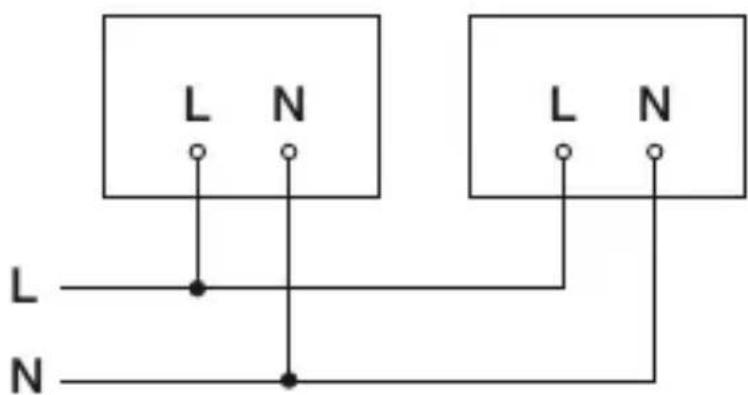

Wiring diagram (Fig. 4.1)

The mains supply lead is a 2 to 3-core cable:

L = phase conductor (usually black or brown)

N = neutral conductor (usually blue)

PE = protective-earth conductor (green / yellow)

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Connect phase (L) and neutral conductor (N) to the terminal. Insulate protective-earth conductor (PE) and place it next to terminal block.

For GL 80 SC / C, the protective-earth conductor must be connected to the earth terminal (PE).

Important: Incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual cables and re-connect them. A mains power switch for turning the light ON and OFF may of course be installed in the mains supply lead.

Important: The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

LED LED

5. Mounting

• Check all components for damage.
• Do not use the product if it is damaged.
• When installing the sensor-switched light, make sure the installation site is not exposed to vibration.
• Select an appropriate mounting location, taking the reach and motion detection into consideration.

Mounting procedure (L 830, L 835, L 840 SC / C)

• Switch OFF power supply. (Fig. 4.1)

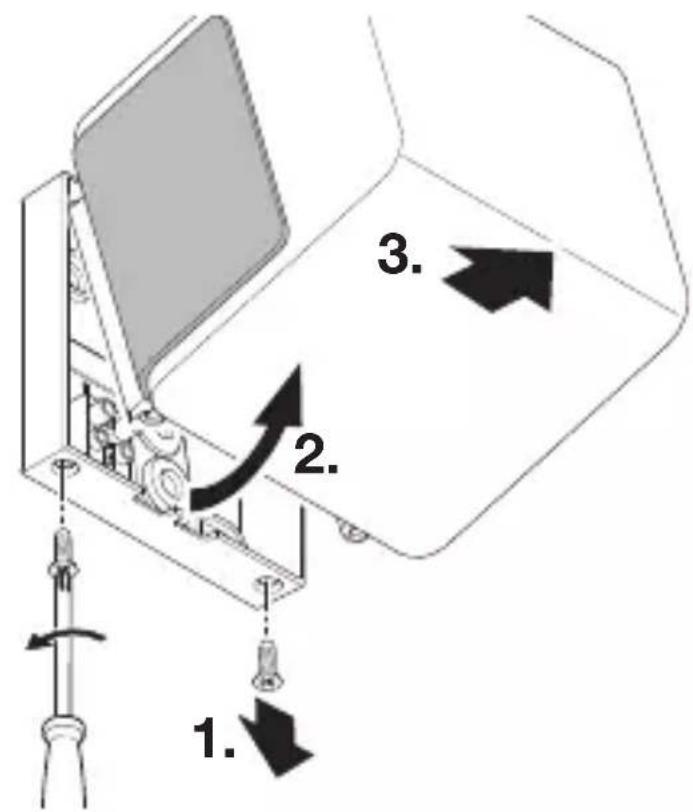

• Undo retaining screws and detach light cube from the wall mount. (Fig. 5.1)

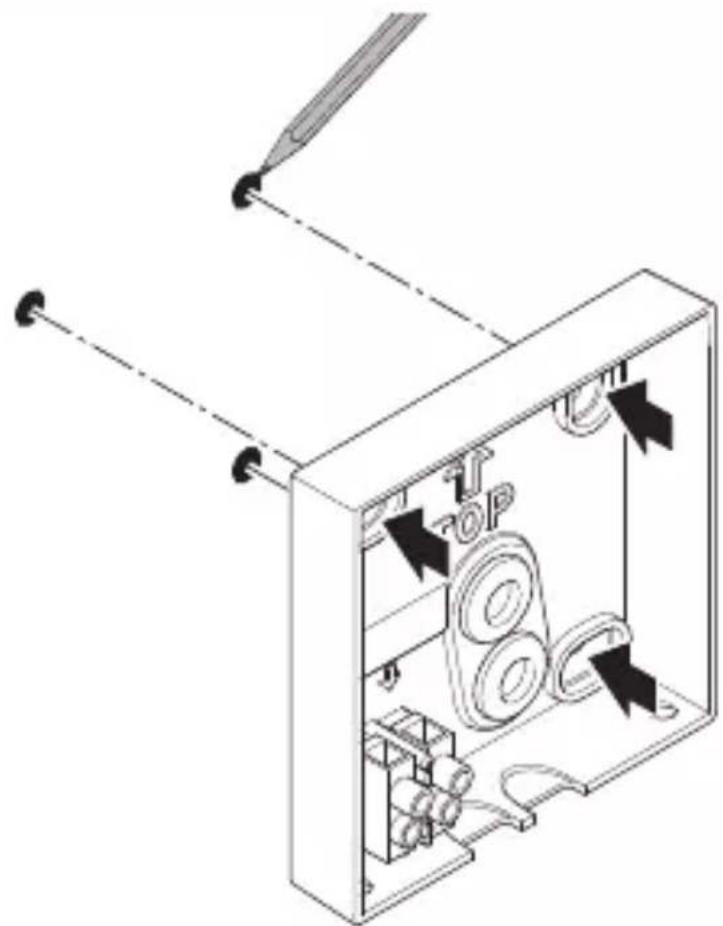

  • Mark drill holes (Fig. 5.2)

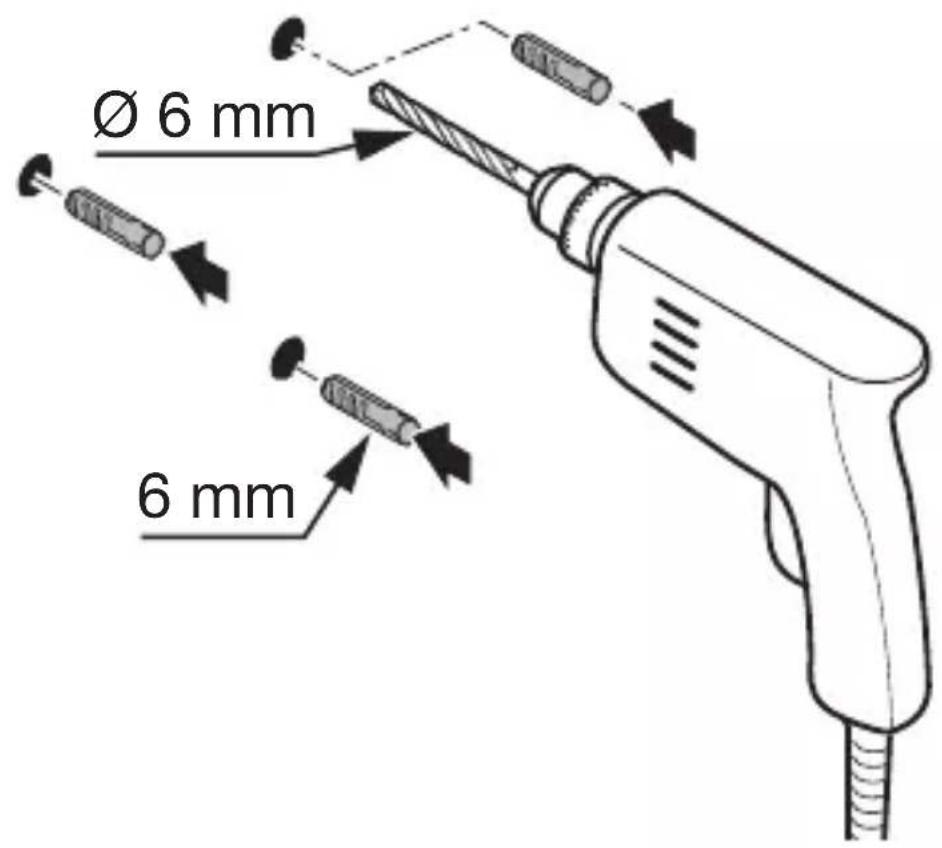

• Drill holes and fit wall plugs. (Fig. 5.3)
• Pierce sealing plug.

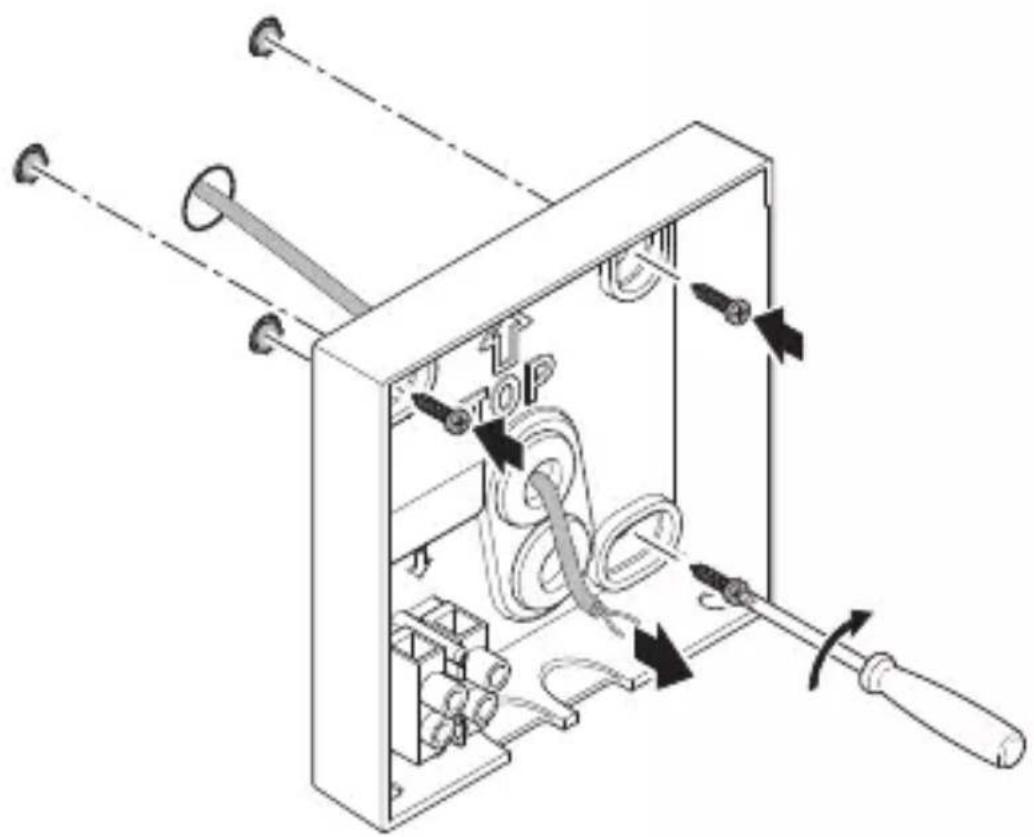

  • Installation with concealed power supply lead (Fig. 5.4)

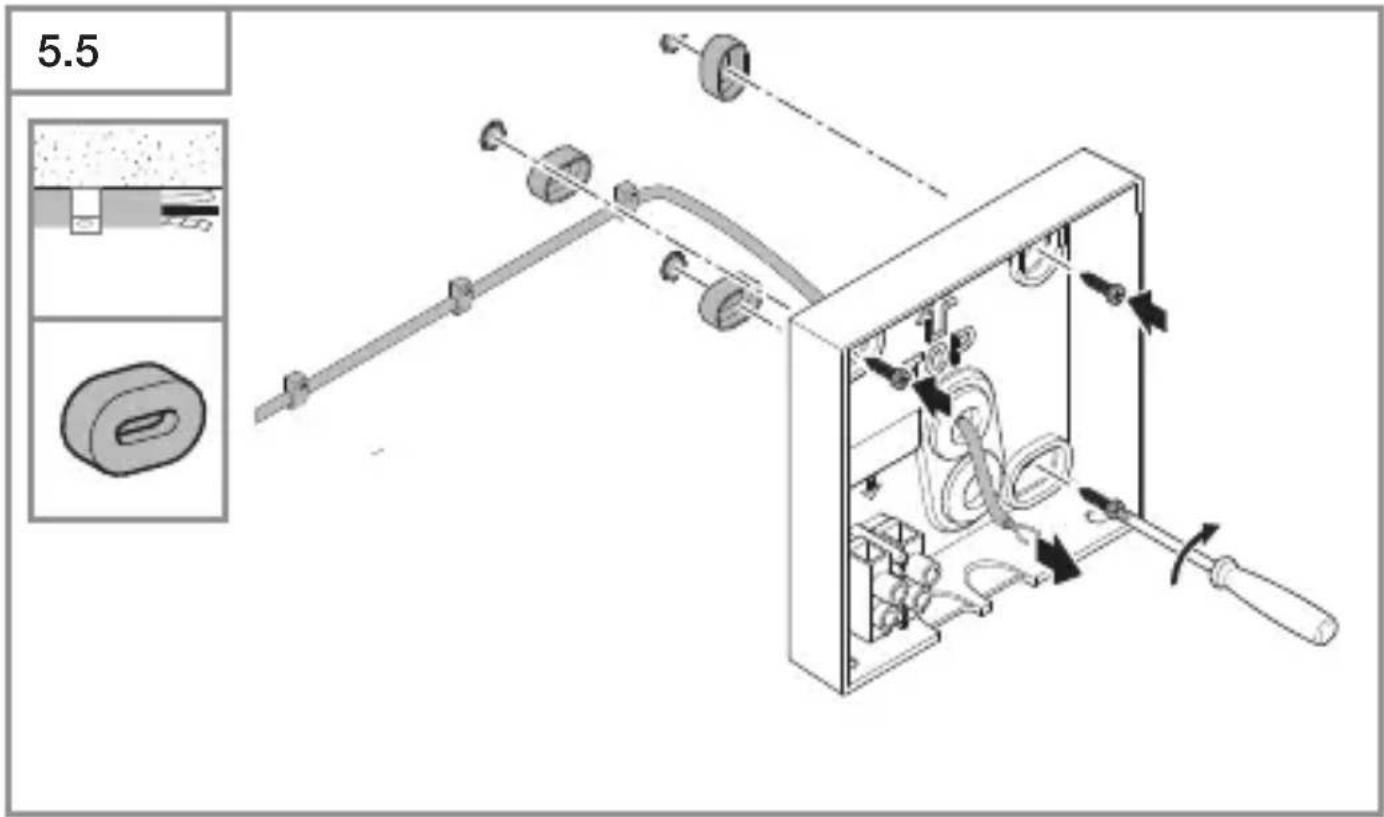

  • Installation with surface-mounted power supply lead (Fig. 5.5)

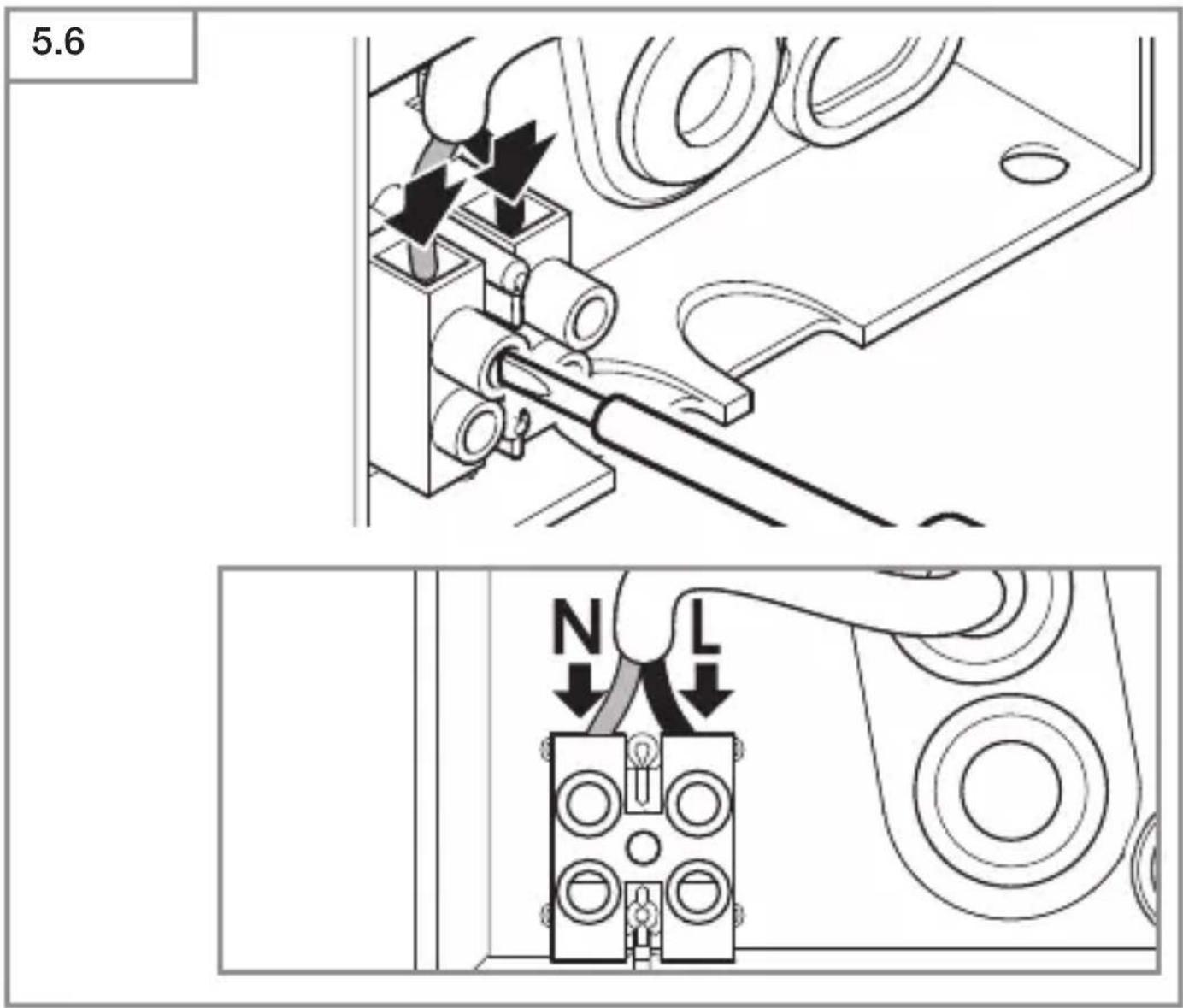

• Connect conductors (Fig. 5.6)
  • Fit light cube onto wall mount (Fig. 5.7)
• Screw in retaining screws (Fig. 5.7)
• Switch ON power supply (Fig. 5.7)
• Make settings via app → “6. Function”

Note:

To avoid damage from corrosion or oxidation, do not install the product below ground level.

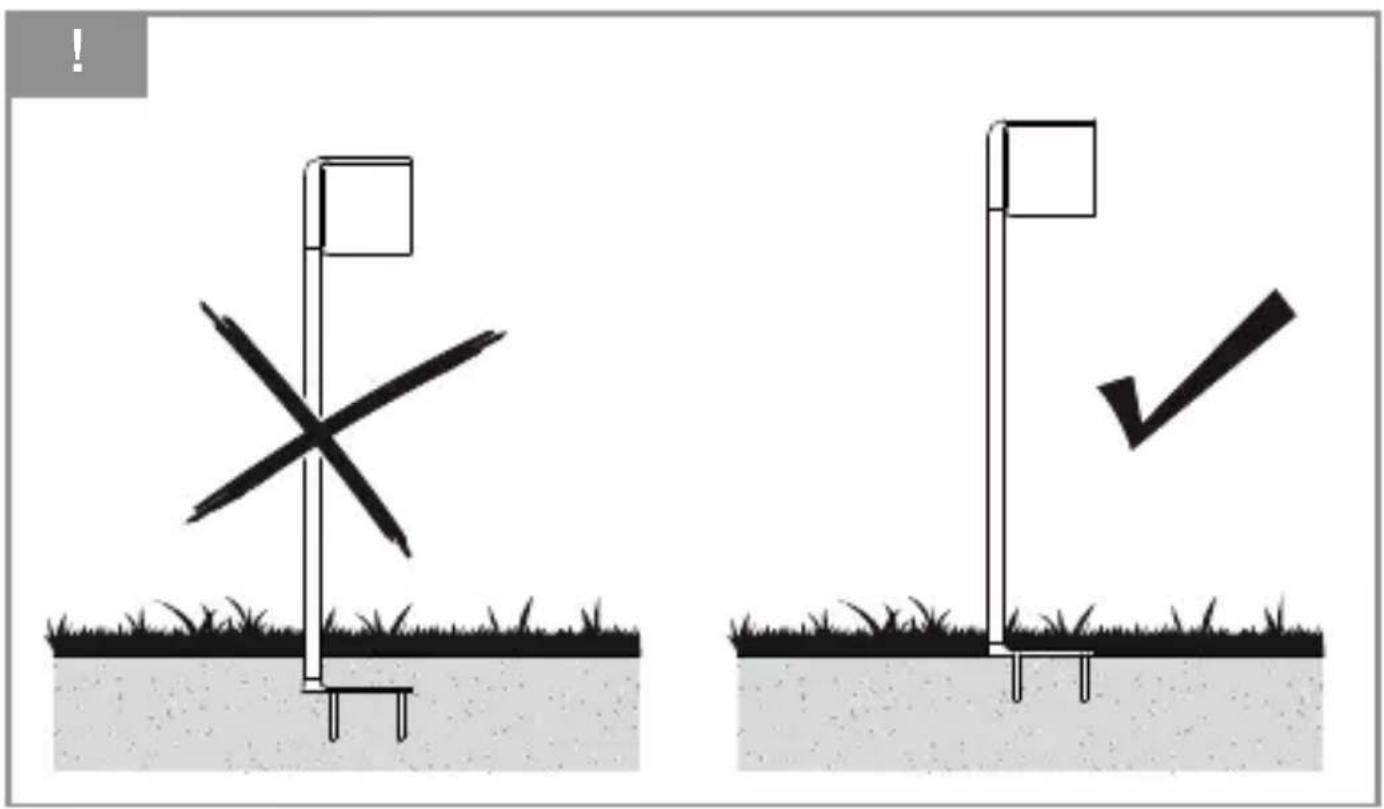

Mounting procedure (GL 80 SC / C)

• Switch OFF power supply (Fig. 4.1)

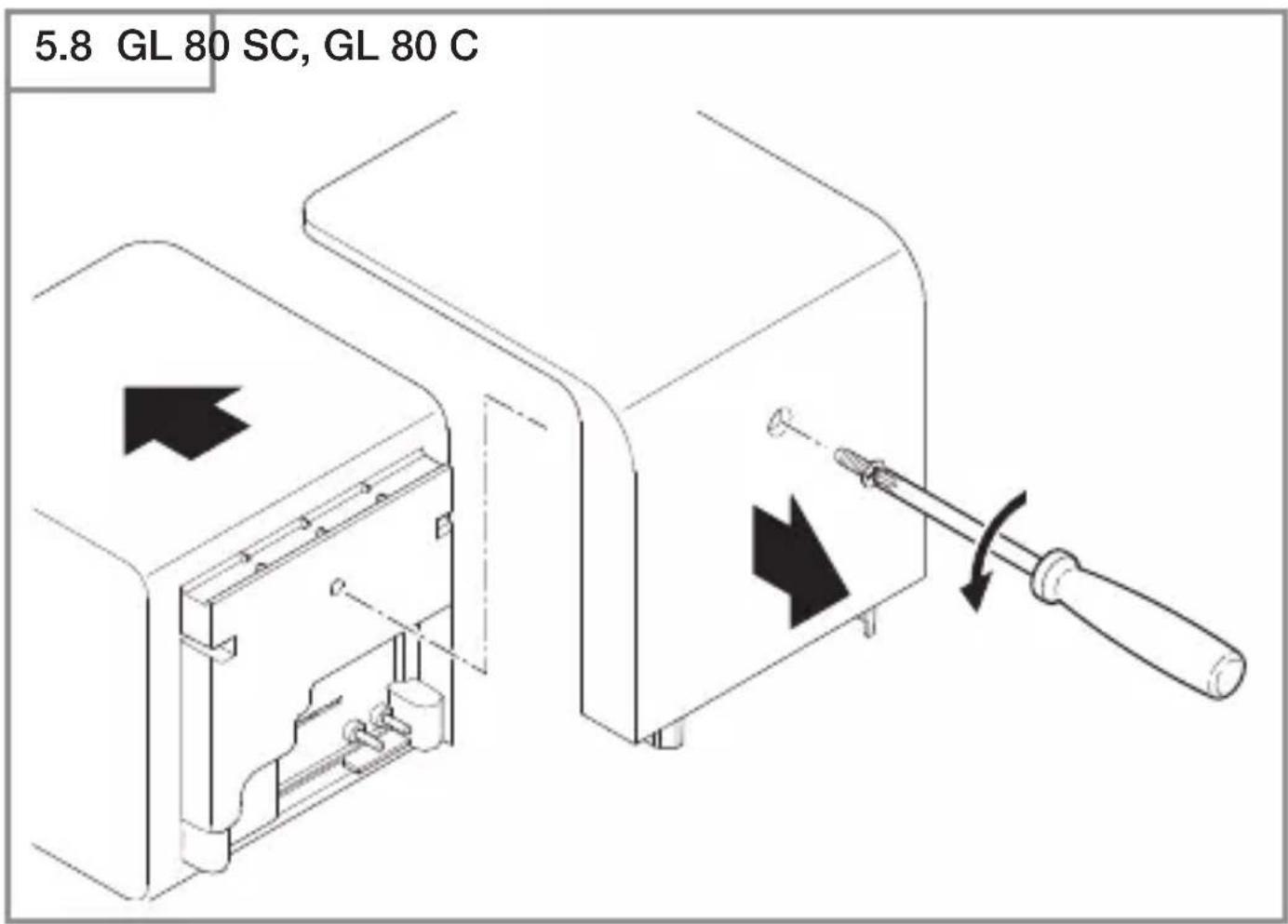

• Undo retaining screw and remove light cube from the cover (Fig. 5.8)

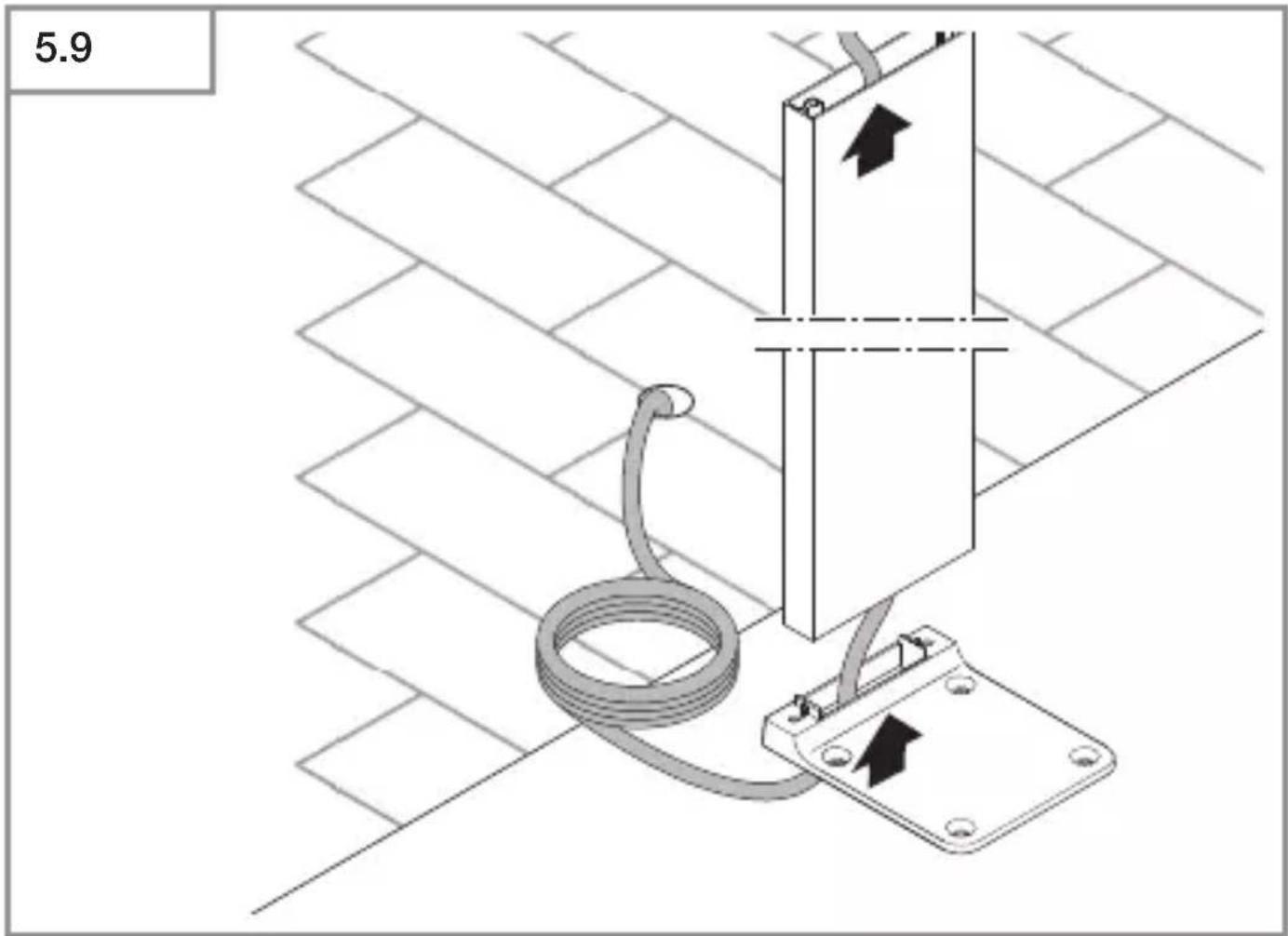

  • Pull cable through base plate and profile (Fig. 5.9)
• Screw base plate to profile (Fig. 5.10)

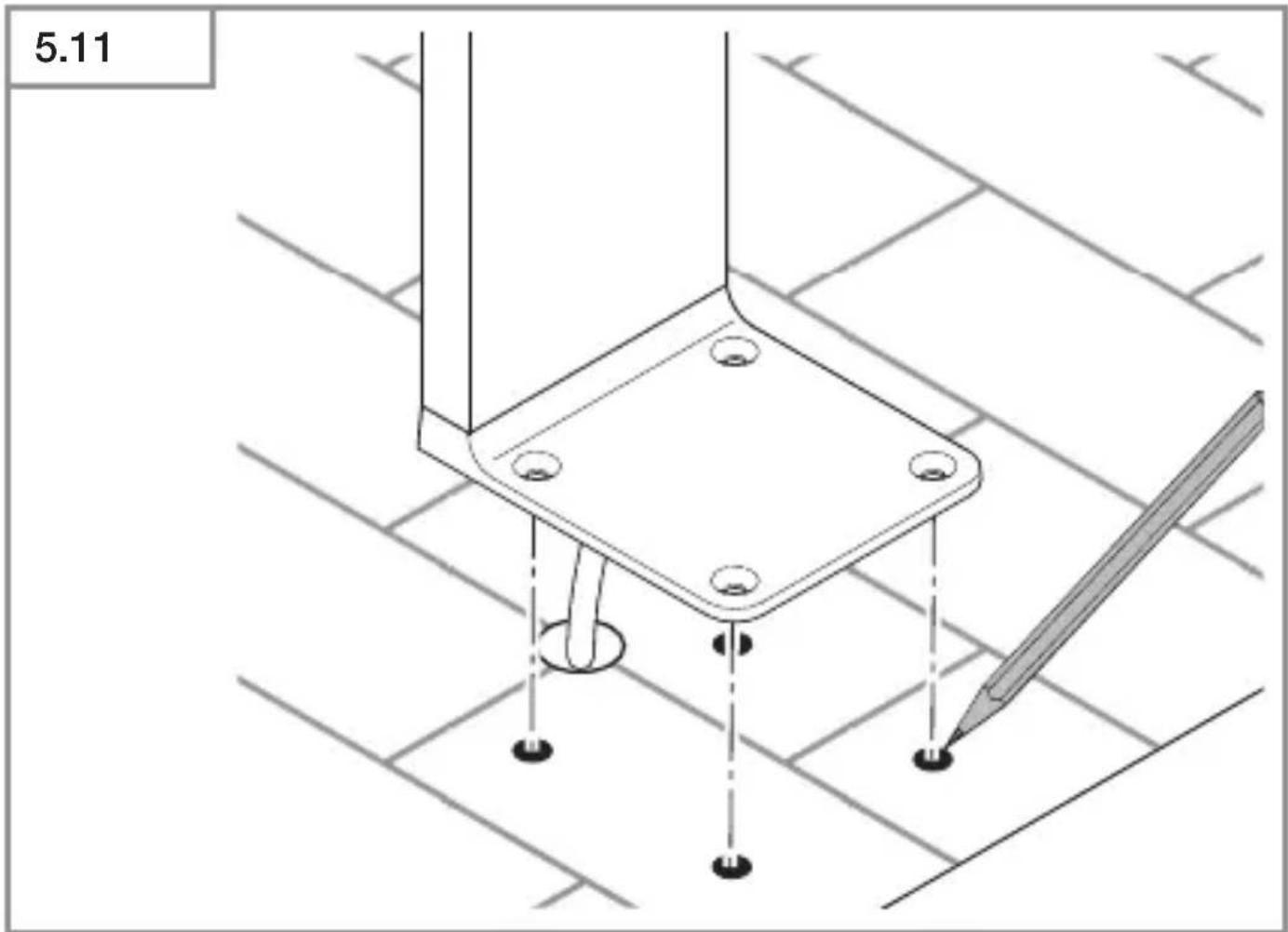

  • Mark base plate drill holes (Fig. 5.11)

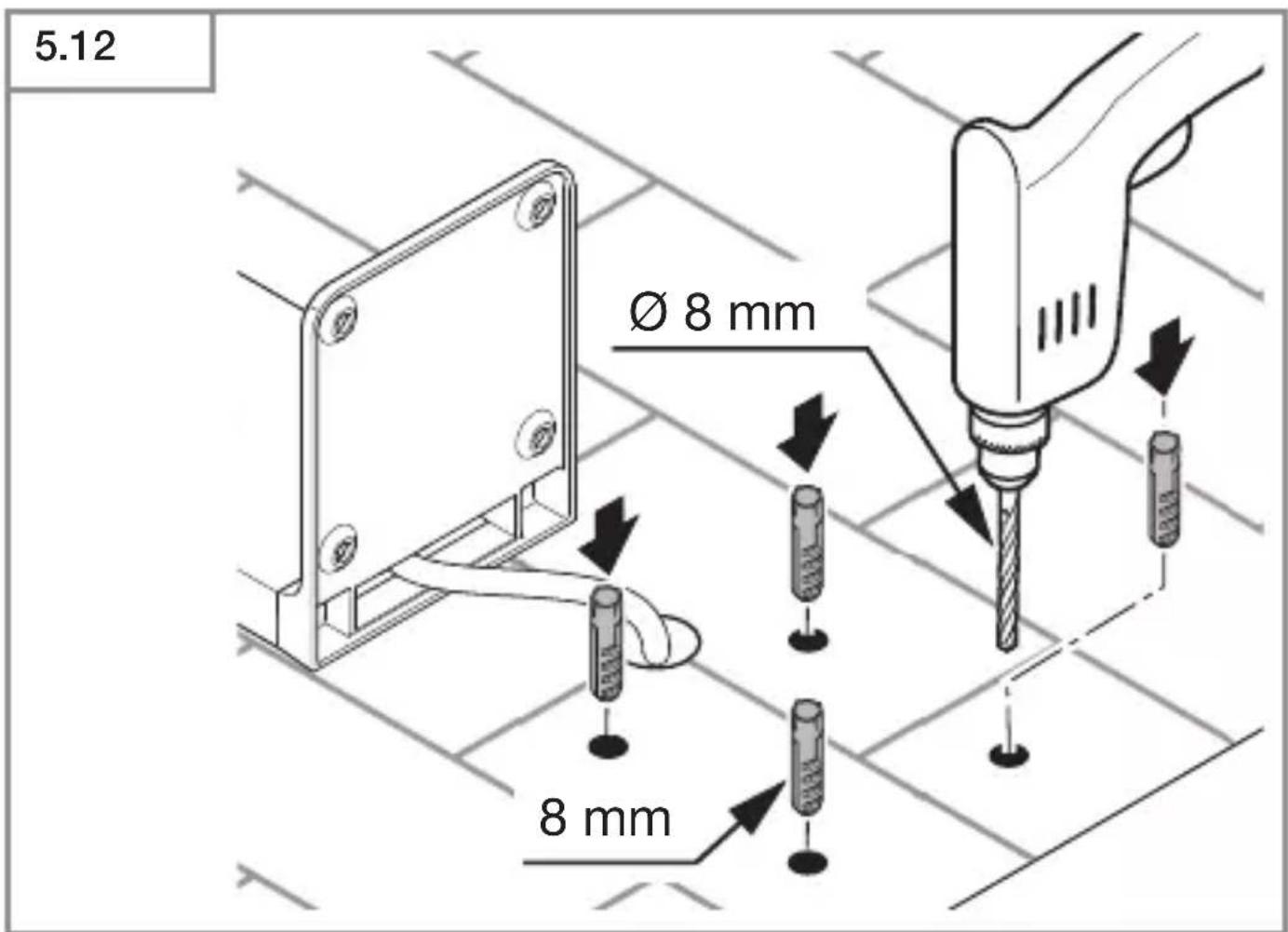

• Drill holes and insert screw anchors (Fig. 5.12)

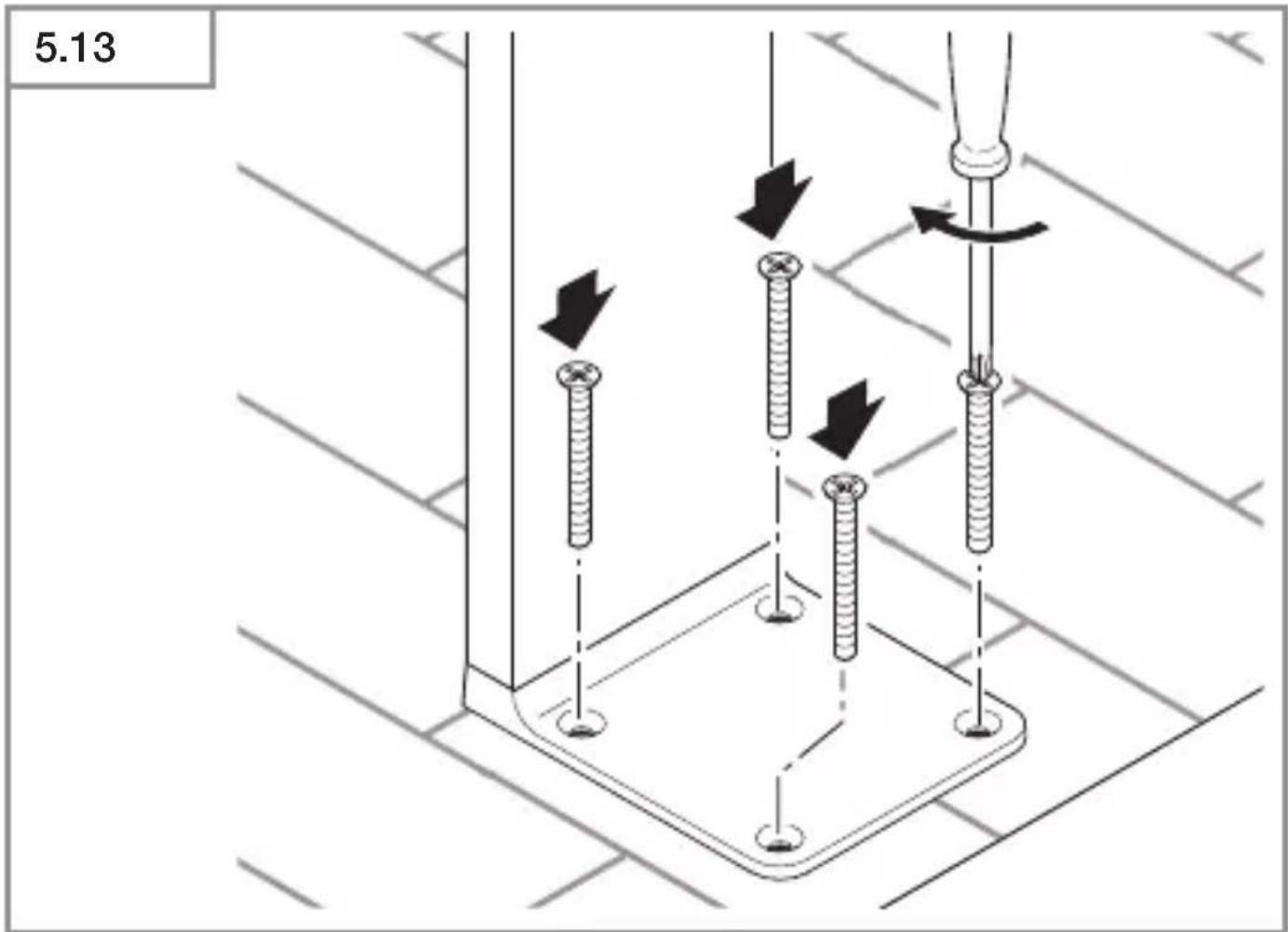

• Screw base plate to the floor / ground (Fig. 5.13)

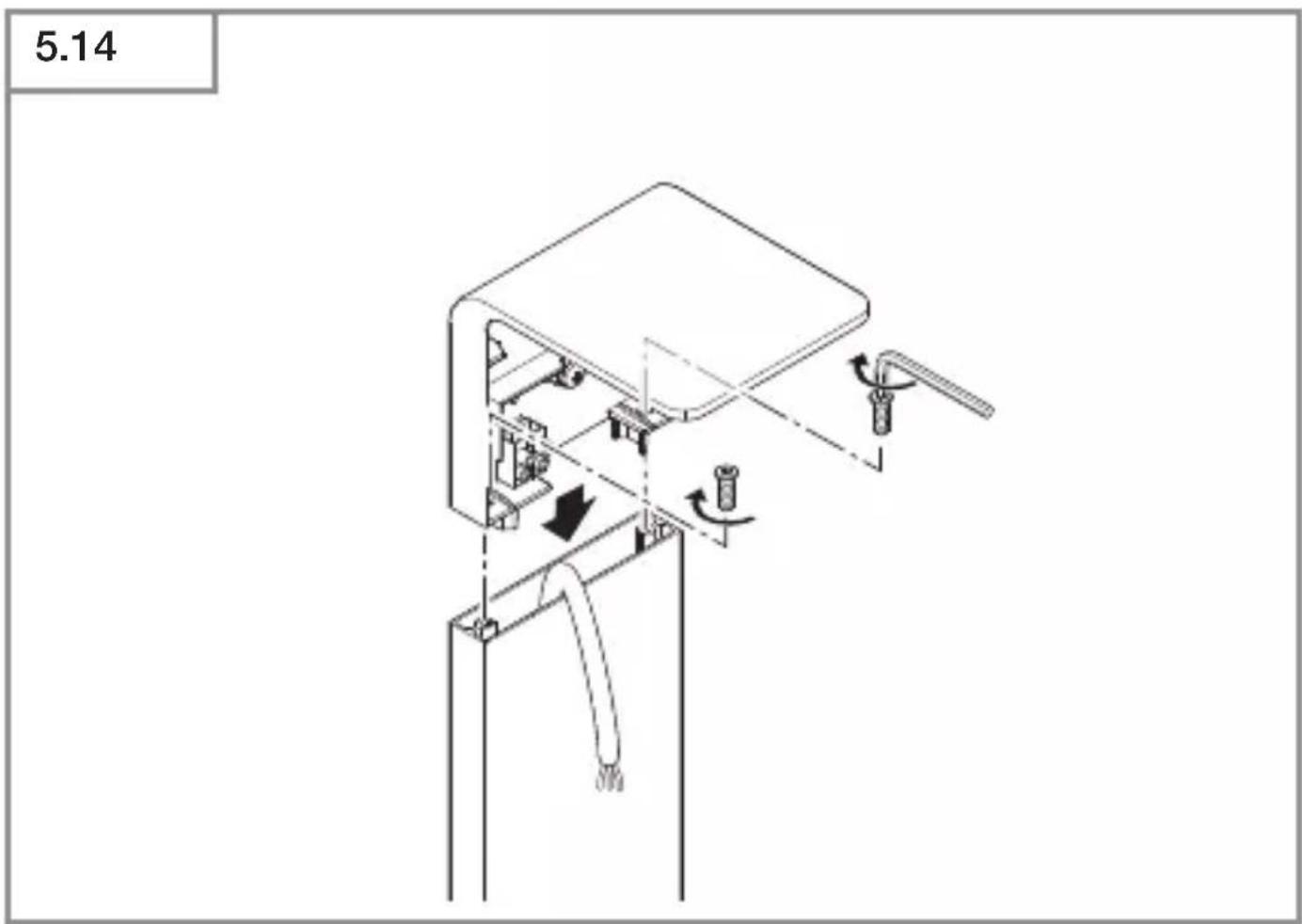

• Screw cover onto profile (Fig. 5.14)

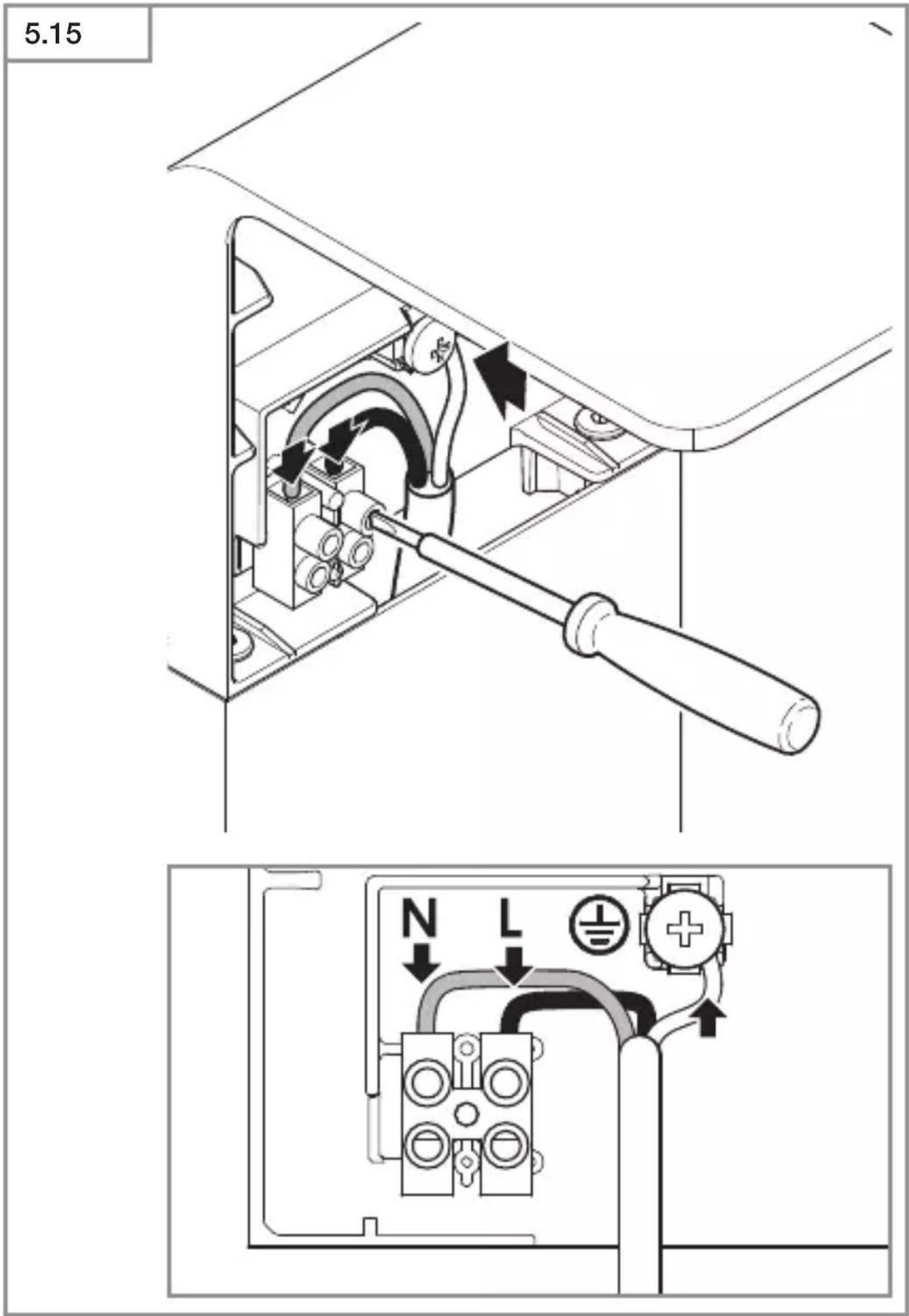

• Connect conductors (Fig. 5.15)

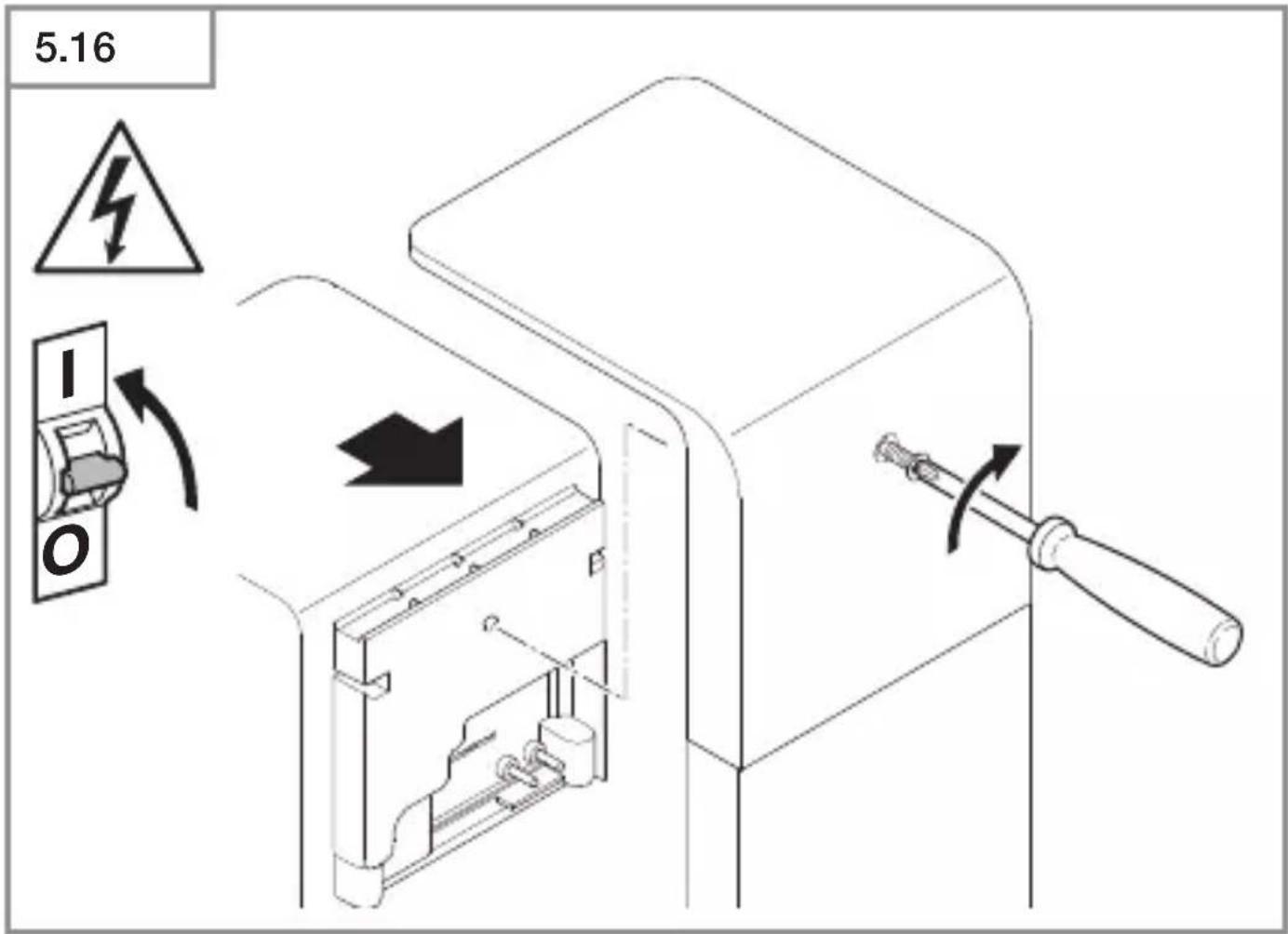

  • Fit light cube to cover (Fig. 5.16)
• Screw in retaining screw (Fig. 5.16)
• Switch ON power supply (Fig. 5.16)
• Make settings via app → “6. Function”

6. Function

The functions can be set for the SC types. Functions are set via the Steinel Connect App.

Steinel Connect App

To configure the light via smartphone or tablet, you must download the Steinel Connect App from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Functions that can be set via Steinel Connect App are:

• Time setting
• Reach adjustment
  – Twilight setting
• Basic light
• Main light / night light level can be adjusted
• Extended reach adjustment
• Group interconnection
  – Twilight setting by teach-in

Time setting (stay-ON time)

The light's ON time can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Any movement detected before this time elapses will restart the timer.

This function only ever applies to the C types in combination with a Bluetooth sensor-switched product.

Note:

After the light switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The light will only switch ON in response to movement once this period has elapsed.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Factory settings (state on leaving the factory)

-Reach setting = max.
- Main light time setting: 10 sec.
-Basic light time setting: 1 min.
-Twilight level: 2,000 lux
-Basic light dimming level: 50 %

Reach setting (sensitivity)

Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground after mounting the sensor-switched light at a height of 2 m.

• Control dial set to maximum = max. reach (5 m)
• Control dial set to minimum = min. reach (1 m)

This function only ever applies to the C types in combination with a Bluetooth sensor-switched product.

Twilight setting (response threshold)

The chosen response threshold can be infinitely varied from approx. 2 to 2,000 lux.

• Control dial turned fully clockwise = daylight mode (depending on ambient brightness)
• Control dial turned fully anti-clockwise = twilight operation (approx. 2 lux)

This function only ever applies to the C types in combination with a Bluetooth sensor-switched product.

The control dial must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight.

Basic lighting level

The brightness of the basic light level setting can be varied between 0 % and 100 %. Basic light can be set in relation to time or ambient light level. The light switches to maximum output (100 %) for the time selected in response to movements in the detection zone. The light then returns to the basic light level.

Main light level

The brightness of the main light level setting can be varied between 10 % and 100 %.

Soft light start function

On switching ON, light level constantly builds up to 100 % (fade in). On switching OFF, light level is constantly reduced to 0 % (fade out). Fade-in and fade-out times are selectable.

Manual override function

The manual override parameters can be set via the Steinel Connect app. In the new app, manual override can be set to any specific time of day (teaching time of day).

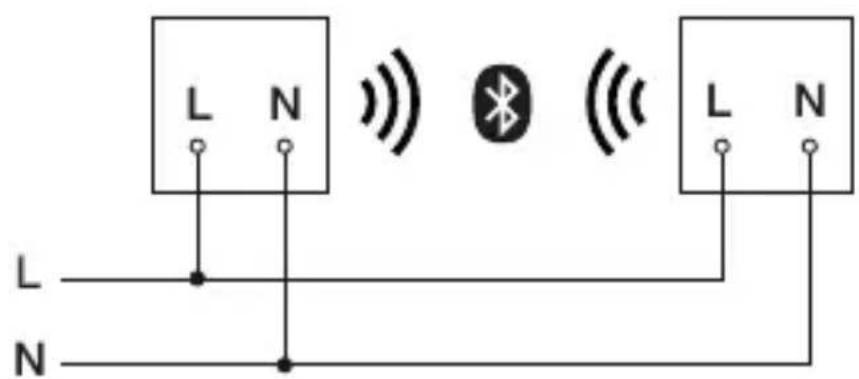

Bluetooth interconnection (Bluetooth Connect Mesh)

The sensor switch complies with the Bluetooth Mesh standard. It can be interconnected with all products complying with the Bluetooth Mesh standard. The sensor switch is configured via the Steinel Connect app.

Appropriate network keys are saved on a smartphone or tablet the first time a connection is made between the sensor switch and Steinel Connect app. The key rules out any unauthorised access to the sensor.

The network key must be shared for access via another smartphone or tablet.

7. Maintenance / care

The product requires no maintenance.

The light can be cleaned with a damp cloth (without detergents) if dirty.

Important note: the control gear cannot be replaced.

Diagram showing a resistor connected to an LED and a 230V power source, with a cross symbol indicating resistance or measurement.

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

• any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,
  – any improper or non-intended use of the product or any failure to observe the operating instructions,
  – any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
  – supplementary or replacement parts which are not genuine STEINEL parts,
• any maintenance or care of products that is not carried out in accordance with the operating instructions,
• any attachment or installation that is not in accordance with STEINEL's installation instructions,
  -any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Declaration of Conformity

Hereby, STEINEL GmbH declares that the radio equipment type L 830, L 835, L 840, GL 80 SC / C is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

11. Technical specifications
Dimensions W x H x D
L 830 SC / C, L 835 SC / C	110 mm × 110 mm × 131.5 mm
L 840 SC / C	110 mm × 110 mm × 133.5 mm
GL 80 SC / C	110 mm × 633 mm × 130 mm
Power supply 220–240 V, 50/60 Hz
Power consumption (Pon) 9.1 W
iHF sensor system power consumption	0.67 W
L 830, L 835, L 840 SC	0.67 W
GL 80 SC
Standby (network (Pnet))
L 830, L 835, L 840 SC	0.45 W
L 830, L 835, L 840 C	0.45 W
GL 80 SC	0.45 W
GL 80 C	0.45 W
Light output (lm)
L 830 SC	493 lm (anthracite), 523 lm (silver)
L 830 C	493 lm (anthracite)
L 835 SC	616 lm (anthracite), 616 lm (silver)
L 835 C	616 lm (anthracite)
L 840 SC	319 lm (anthracite), 319 lm (silver)
L 840 C	319 lm (anthracite)
GL 80 SC	650 lm (anthracite), 650 lm (silver)
GL 80 C	650 lm (anthracite)
Efficiency (lm / W)
L 830 SC	54 lm / W (anthracite), 57 lm / W (silver)
L 830 C	54 lm / W (anthracite)
L 835 SC	68 lm / W (anthracite), 68 lm / W (silver)
L 835 C	68 lm / W (anthracite)
L 840 SC	35 lm / W (anthracite), 35 lm / W (silver)
L 840 C	35 lm / W (anthracite)
GL 80 SC	71 lm / W (anthracite), 71 lm / W (silver)
GL 80 C	71 lm / W (anthracite)
Lamp LED
Colour temperature 3,000 K
Colour rendering index Ra = 82
Average rated life expectancy L70B50 at 25 °C: >60,000 hours
Colour consistency SDCM Starting value: 3
Basic light Yes (Off, 0–100 %)
	For C: Always only in combination with a Bluetooth sensor product.
Sensor technology (SC only) (5.8 GHz, ≤ 1 mW)
Detection zone
Angle of coverage	160°
	For C: only ever in combination with a Bluetooth sensor-switched product.
Angle of aperture	160°
	For C: only ever in combination with a Bluetooth sensor-switched product.
Reach 1–5 m
	For C: only ever in combination with a Bluetooth sensor-switched product.
Time setting 5 s–60 min
	For C: only in combination with a Bluetooth sensor-switched product.
Twilight setting 2–2,000 lux
	For C: only in combination with a Bluetooth sensor-switched product.
Light source energy efficiency class
L 830, L 835, L 840 SC
L 830, L 835, L 840 C	F
GL 80 SC	F
GL 80 C	F
	F
IP rating IP 44
Protection class
L 830, L 835, L 840 SC / C	II
GL 80 SC / C	I
Ambient temperature -20 °C to +40 °C
Bluetooth frequency 2.4–2.48 GHz
Bluetooth transmitter power 5 dBm / 3 mW

QR code image containing encoded data, no visible human-readable text

Technical documentation at www.steinel.de

12. Troubleshooting

GB

Malfunction Cause Remedy

Light without power ■ Fuse has tripped, not switched ON, break in wiring■ Short circuit	■ Activate, change fuse, turn ON mains switch, check wiring with voltage tester■ Check connections
Sensor-switched light will not switch ON (SC only)	■ Twilight setting in night-time mode during daytime operation■ Mains switch OFF■ Fuse has tripped■ Detection zone not correctly adjusted	■ Set twilight via app■ Switch ON■ Activate, change fuse, check connection if necessary■ Set reach via app
Sensor-switched light will not switch OFF (SC only)	■ Continued movement within the detection zone	■ Check detection zone and readjust if necessary
Sensor-switched light will not switch OFF completely (SC only)	■ Night light selected	■ Set night light to “0 min”
Sensor-switched light switching ON when it should not (SC only)	■ Wind is moving trees and bushes in the detection zone■ Cars in the street are detected	■ Change detection zone■ Change detection zone
Sensor-switched light switches ON and OFF in an uncontrolled manner (SC only)	■ Large metal objects, such as cars or metal walls, in the detection zone	■ Change detection zone■ E.g. park car somewhere else

FR

LED 22 LED

5. Montage

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Collegamento in rete Bluetooth (Bluetooth Connect Mesh)

QR code image containing encoded data, no visible human-readable text

LED 22 LED

5. Montaje

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED ×2 LED

5. Montage

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Teknisk dokumentation på www.steinel.de

12. Driftstörningar

LED 22 LED

5. Montering

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Teknisk dokumentation under www.stinel.de

LED 20 LED

5. Asennus

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED 22 LED

5. Εγκατάσταση

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED 22 LED

5? Montaj

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED X LED

5. Szerelés

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED 22 LED

5. Montaj

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Functiile care se pot seta prin Steinel Connect App sunt:

LED 230 V

8. Evacuarea ca deşeu

3 ANI GARANTIA PRODUCATORULUI

10. Declaratie de conformitate

QR code image containing encoded data, no visible human-readable text

LED 22 LED

5. Montaža

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije, nastavljive prek Steinel Connect App:

QR code image containing encoded data, no visible human-readable text

Tehnična dokumentacija na www.stinel.de

LED 22 LED

5. Montaža

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije koje se mogu podesiti pomoću Steinel Connect App:

– Podešavanje vremena
– Podešavanje dometa
– Podešavanje svjetlosnog praga
– Osnovno svjetlo
–Podesiva razina glavnog / noćnog svjetla
-Prošireno podešavanje dometa
-Grupno umreženje
-Podešavanje svjetlosnog praga pomoću funkcije Teach-In

Diagram showing a 230V power supply connected to an LED and a rectangular block, with a crossed-out symbol indicating resistance or leakage.

8. Zbrinjavanje

LED 22 LED

5. Montaaž

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Techninius dokumentus rasite www.stinel.de

12. Veikimo sutrikimai

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LED ×2 LED

5. Монтаж

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Техническа документация на адрес www.stinel.de

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

可通过智能远程应用程序进行设置的功能：

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

QR code image containing encoded data, no visible human-readable text
