USER MANUAL HL 1920 E STEINEL

GB Translation of the original operating instructions

Please familiarise yourself with these operating instructions before using this product because prolonged reliable and trouble-free operation will only be ensured if it is handled properly. We hope your new hot air tool will give you lasting satisfaction.

About this document

Please read carefully and keep in a safe place.
- Under copyright. Reproduction either in whole or in part only with our consent.
- Subject to change in the interest of technical progress

Safety warnings

Read and observe this information before using the tool. Failure to observe the operating instructions may result in the tool becoming a source of danger.

When using electric power tools, observe the following basic safety precautions to avoid electric shock as well as the risk of injury and fire. Used carelessly, the tool can start an unintentional fire or injure persons. Check the tool for any damage (mains connection lead, housing etc.) before putting it into operation and do not use the tool if it is damaged. Do not leave the tool switched on unattended. Children should be supervised to make sure they do not play with the tool.

First time of use

A small quantity of smoke may occur when the tool is used for the first time. This smoke is caused by binding agents released from the heater's insulating film during the first time of use.

To let the smoke escape quickly, the tool should be set down on its stand

ing surface. The area you are working in should be well ventilated when using the tool for the first time. Any smoke coming out of the tool is not harmful

Take the ambient conditions into account.

Do not expose electric power tools to rain. Do not use electric power tools when they are damp or in a damp or wet environment. Exercise care when using the tool in the proximity of flammable materials. Do not direct the tool at one and the same place for a prolonged period. Do not use in the presence of an explosive atmosphere. Heat may be conducted to flammable materials that are hidden from direct sight.

Protect yourself from electric shock.

Avoid coming in contact with grounded objects, such as pipes, radiators, cookers or refrigerators. Do not leave the tool unattended while in operation.

Safety warnings

Store your tools in a safe place.

After use, set the tool down on its standing surface and let it cool before putting it away.

When not in use, tools must be stored in a dry, locked room out of children's reach.

This tool may be used by children aged 8 or above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions on how to use the tool safely and understand the hazards involved.

Do not allow children to play with the tool.

Children are not allowed to clean or carry out maintenance work on the tool without supervision.

Do not overload your tools.

Your work results and safety will be enhanced if you operate the tool within the specified output range. Do not carry the tool by the power cord. Do not unplug the tool by pulling on the power cord. Protect the power cord from heat, oil and sharp edges.

Beware of toxic gases and fire hazards.

Toxic gases may occur when working on plastics, paints, varnishes or similar materials.
Beware of fire and ignition hazards. For your own safety, only use accessories and attachments that are specified in the operating instructions or recommended or specified by the tool manufacturer.
Using attachments or accessories other than those recommended in the operating instructions or catalogue may result in personal injury.

Repairs must only be carried out by a qualified electrician.

This electric power tool complies with the relevant safety regulations. Repairs should only be performed by a qualified electrician. Otherwise the user may run the risk of accidents. If this tool's main power cord is damaged, it must be replaced by the manufacturer or its customer service department or a similarly qualified person so as to avoid hazards.

Safety warnings

Residual heat indicator (HL 2020 E only)

The residual heat indicator serves as a visual warning to prevent injury from direct contact with the hot nozzle outlet. The residual heat indicator also works when the tool is unplugged.

The indicator starts working after the tool has been in use for 90 seconds and keeps flashing until the temperature at the nozzle outlet has fallen below 60^ at room temperature. The residual heat indicator does not show if the tool has been in operation for less than 90 seconds. Responsibility always rests with the user and care must be taken at all times when handling hot air tools.

Keep these safety precautions with the tool.

Uses

Here are some of the applications you can use STEINEL hot air tools for. This selection is by no means exhaustive - no doubt you can immediately think of other examples.

Paint stripping:

Paint is soled and can be removed with a stripping knife and paint scraper to leave a clean surface.

Shrinking tubing on cables:

The shrink tubing is slipped over the section you want to insulate and heated with hot air. The tubing shrinks by approx. 50% in diameter to give a sealed union. Shrinking is particularly fast and even using reflector nozzles, Sealing and stabilising cable breaks, insulating soldered joints, gathering cable runs, sheathing limberal blocks.

Forming PVC:

Sheeting, piping or ski boots can be soffonted and formed with hot air.

Lighting barbecues:

Gels charcoal glowing in next to no time: no more waiting.

Thawing:

Water pipes, frozen door locks, stops. Gently thaws and cries at in one go.

Soft soldering:

First, clean metal parts you want to join. Then, using hot air heat the point you want to solder and offer up the soldering wire. Use flux or a soldering wire with a flux core to prevent oxide forming.

Welding and joining plastic:

All parts being welded must be of the same plastic material. Use an appropriate welding rod.

Joining sheeting:

The sheets are overlapped and welded together. A slit nozzle is used to direct hot air under the overlap, then the two sheets are firmly pressed together with a feed roller. Also possible: Repairing PVC tarpaulins by overlap welding with a slit nozzle.

For your safety

These hot air tools are doubly protected from overheating. 1. A thermostat switches the heater off! It loco much of the air outlet nozzle is obstructed (heal build-up). However, the blower continues to run. A warning triangle on the display tells you that the heater is switched off. Once the air delivery nozzle is clear again, the heater automatically switches back on again after a few moments. The warning triangle then goes out. The thermostat may also respond after switching the hot air tool off, taking it longer than usual to reach temperature at the air delivery nozzle when it is switched on again.

1. The thermal cut-out completely shuts down the tool if it is overbaked.

for HL 2020 Eonly

Tool description - Operation

Please note: The citation from the object you are working on depends on material and intended method of working. Always try out the airflow and temperature on a test piece first. Using the attachable accessory nozzles (see accessories page on the cover) the flow of hot air can be controlled with maximum precision. Take care when changing hot nozzles! When using the hot air tool in the soft-resting position, make sure it is standing on a stable, non-slip and clean surface.

HL 1620 S

The tool is switched on and off at the two stage switch on the back of the grip handle. Airflow and temperature can be adjusted to 2 settings. Stage 1 reaches 300^ at an airflow of 240l/min , stage 2 reaches 500^ at 450l/min . This tool is intended for home use only.

HL 1820 S

The tool is switched on and off via the three-stage switch on the back of the grip handle. Airflow and temperature can be adjusted to 3 settings. Stage 1 (cool air stage) reaches 50^ at an airflow rate of 100 L/min, stage 2 reaches 400^ at 300 L/min and stage 3 reaches 600^ at 500 L/min. The guard sleeve is achieved by means of a bayonet seal.

HL 1920 E

The tool is switched on and off at the two stage switch on the back of the grip nando. In addition to three-stage speed/airflow control (stage 1 is a cold-air stage at 80^ temperature can be continuously adjusted over a range of 80^ - 800^ in settings 2 and 3 at the thumbwheel. The numbers 1-9 on the thumbwheel serve as a guide only. Whereas "1" means 80^ , the maximum temperature of 600^ is attained at "9". Airflow can be adjusted to the three stages of 150 / 150 - 300 / 300 - 500 L/min. The guard sleeve attaches at a bayonet cut.

HL 2020 E

The tool is switched on and off at the two-stage switch on the back of the grip handpiece. In addition to three-stage speed/airflow control at the switch, temperature can be continuously adjusted over a range of 80^ to 630^ in settings 2 and 3 at the rocker switch. The target temperature can be increased in 10^ increments by pressing the right hand + side of the rocker switch or reduced by pressing the left hand - side of the rocker switch. Keeping the button pressed will continue to increase or reduce the temperature in stage of 10^ until the rocker button is released or the minimum or maximum temperature is set. The temperature setting is shown on the display for 3 seconds. On lowering or increasing the temperature, the actual temperature is then displayed at the delivery nozzle. The CO_2^* + symbol flashes during this period. As soon as the selected temperature is reached, this symbol stops flashing and is displayed all the time. Blower stage 1 dvarles a temperature of 80^ . When the tool has been operating at high temperatures on blower stage 2 or 3 it will take a short while to cool to 80^ after switching down to blower stage 1. While the tool is cooling down, the LCD display shows the actual temperature at the nozzle outlet. After switching off, the tool stays in the last setting that was selected. The guard sleeve attaches at a bayonet catch.

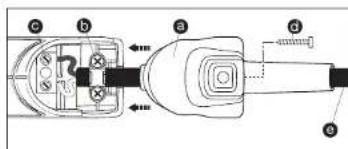

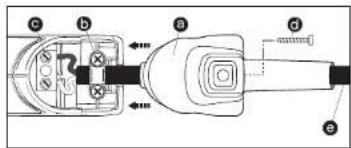

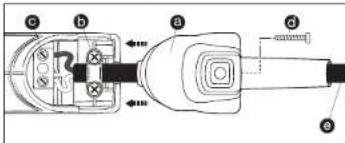

Changing the power cord (HL 2020 E only) If the power cord is damaged, it can easily be changed without opening the casing.

1. Important! Disconnected tool from power supply.
2. Undo screw and remove cover cap.
3. Release cable grip
4. Undomains terminals
5. Pull out core
6. Insert new cord and secure
   (1)Fmly screw down mairs (giminals eik.)

Tool features

Stalices steel outlet nozzle
Air Inlet with lattice guard keeps out foreign matter
Bamcvahe gurac sies
For places that are hard to reach
Soft stand and soft end cap for firm standing and non-slip stationary use
6Heavy-duty rubber Insulated power cord
Multiple-stage switch for adjusting airflow (2-stage/3-stage)
Thurnbwheel for selling temperature
Bullon for selling temperature
LED indicator for monitoring temperature
Soft grip handle for comfortable operation
Hanging capability
Residual head indicator (HL 2020 E ony)
Replacable mains power cord IHL 2020 E only

Technical specifications

HL 1620 S				HL 1820 S
Voltage	220 - 230 V, 50/60 Hz			220 - 230 V, 50/60 Hz
Output	1000 W			1900 W
Stage	1	2		1	2	3
Airflow rate (min.)	240	450		100	300	500
Temperature (°C)	300	500		50	400	600
Temperature setting	-			-
Temperature display	-			-
Residual heat indicator	No			No
Protection class (without earth termination)	II			II
Thermal	-			-
Thermal cut-out	Yes			Yes
Emission sound pressure level	≤70 dB(A)			≤70 dB(A)
Total vibration value	≤2.5 m/s2/K = 0.08 m/s2			≤2.5 m/s2/K = 0.08 m/s2
Weight	0.670 kg			0.800 kg
Subject to technical modifications
HL 1920 E				HL 2020 E
Voltage	220 - 230 V, 50/60 Hz			220 - 230 V, 50/60 Hz
Output	2000 W			2200 W
Stage	1	2	3	1	23
Airflow rate (min.)	150	160 - 300	300 - 500	150	150 - 300	300 - 500
Temperature (°C)	80	80 - 600		80	80 - 630
Temperature setting	Infinitely variable in 8 increments via setting dial			Infinitely variable in 10 °C steps via pushbutton
Temperature display	-			LCD
Residual heat indicator	No			Yes
Protection class (without earth termination)	II			II
Thermostat	-			Yes
Thermal cut-out	Yes			Yes
Emission sound pressure level	≤70 dB(A)			≤70 dB(A)
Total vibration value	≤2.5 m/s2/K = 0.08 m/s2			≤2.5 m/s2/K = 0.08 m/s2
Weight	0.840 kg			0.860 kg
Subject to technical modifications

Guide for selecting the right type of welding rod when welding plastics
Material	Applications	Characteristic signs
Rigid PVC	Pipes, fittings, tiles, structural sections, industrial mouldings300 °C welding temperature	Chars in the flame,pungent odour.clattering sound
Rigid PE(HOPE)Polydrony	Tubes, baskets, canisters, insulating material, piping300 °C welding temperature	Bright yellow flame,dries carry on burning, smells of extinguished candle;clattering sound
PPPolypropylene	High-temperature orangepipes, seat buckets, packagings, automotive parts250 °C welding temperature	Bright flame with blue core,dries continue to burn.pungent odour.clattering sound
ABS	Automotive parts, equipment enclosures, cases350 °C welding temperature	Black, flusty smoke,sweetish odour.clattering sound

Accessories (see illustrations on the cover)

Your retailer has a wide range of accessories for you to choose from.

1 Surface nozzle 50 mm Prod. No. 070113

2Surface nozzle 75 mm Prod. No.070212

3 Window nozzle 50 mm Prod. No. 070311

4 Window nozzle 75 mm Prod. No.070410

5 Part scrapers kit Prod.No.01031

6 Refleclor nozzle Prod.No.070519

7 Crime connectors

0.5-1.5 Prod.No.008655

01.5-2.5Prod.No.C08648

0.1-0.5-4.0-6.0 Prod.No.008662

8 Heat-shrinkable tubing

4.8-9.5mm Prod.No.071417

1.6-4.8 mm Prod.No.071318

4.0-12.0mm Prod.No.072766

Heat-shrinkable tubing set of 3 Prod. No. 075811

9 Soddering refector nozzle Proc. No. 074616

10 Reduction nozzle 14 mm' Prod.No.07/3717

11 Reduction nozzle 9 mm Prod.No.070618

12 Fine dust filter Prod.No.078218

13HL-Scan Proc.No.014919 14H2776

14 Wld-llnfo 15. Fie rroler

16Rgina wckng ren

B

Rigid PVC, LLC

HDPE

PP:

A3S

17 Weling space

(only for HL 1920 E and HL 2020 E)

Disposal

Electrical and electronic equipment, accessories and pack aging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic

equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its Implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recyclate in an environmentally compatible manner.

Declaration of Conformity

[see page 160]

Manufacturer's warranty

This STEINEL product has been manufactured with great care, tested for proper operation and safety in accordance with applicable regulations and then subjected to random sample inspection. STEINEL guarantees that it is in perfect condition and proper working order.

The product is guaranteed for 36 months or 600 hours of operation commencing on the date of sale to the consumer. We will remedy defects caused by material flaws or manufacturing faults. The warranty will be met by repair or replacement of defective parts at our own discretion. This warranty does not cover damage to wearing parts, damage or defects caused by improper treatment or maintenance nor does it cover breakage as a result of the product being dropped. Further consequential damage to other objects shall be excluded.

Claims uncer warranty snail only be accepted if the product is sent fully assembed and well packed complete with sales receipt or invoice date of purchase and dealer's stamp to the appropriate Service Centre or handed in to the dealer within the first 6 months.

Repair service:

If defects occur suitable the warranty ported or are not covered by warranty, ask your nearest service station for the possibility of repair.
