Transport

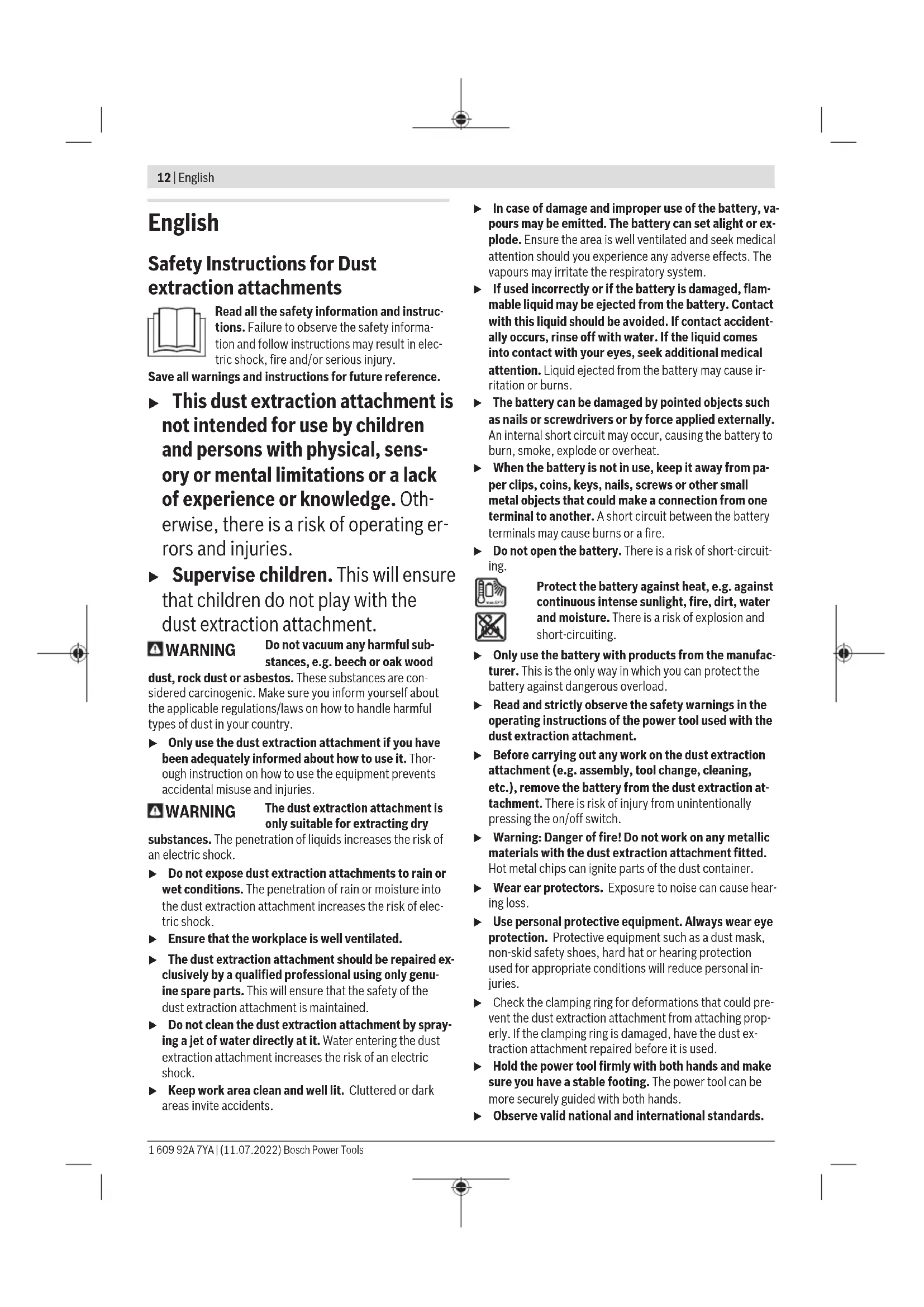

Safety Instructions for Dust extraction attachments

Read all the safety information and instructions. Failure to observe the safety information and follow instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This dust extraction attachment is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. Otherwise, there is a risk of operating errors and injuries.

Supervise children. This will ensure that children do not play with the dust extraction attachment.

WARNING

Do not vacuum any harmful substances, e.g. beech or oak wood

dust, rock dust or asbestos. These substances are considered carcinogenic. Make sure you inform yourself about the applicable regulations/laws on how to handle harmful types of dust in your country.

Only use the dust extraction attachment if you have been adequately informed about how to use it. Thorough instruction on how to use the equipment prevents accidental misuse and injuries.

WARNING

The dust extraction attachment is only suitable for extracting dry

substances. The penetration of liquids increases the risk of an electric shock.

Do not expose dust extraction attachments to rain or wet conditions. The penetration of rain or moisture into the dust extraction attachment increases the risk of electric shock.
Ensure that the workplace is well ventilated.
The dust extraction attachment should be repaired exclusively by a qualified professional using only genuine spare parts. This will ensure that the safety of the dust extraction attachment is maintained.
Do not clean the dust extraction attachment by spraying a jet of water directly at it. Water entering the dust extraction attachment increases the risk of an electric shock.
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.
Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
Read and strictly observe the safety warnings in the operating instructions of the power tool used with the dust extraction attachment.
Before carrying out any work on the dust extraction attachment (e.g. assembly, tool change, cleaning, etc.), remove the battery from the dust extraction attachment. There is risk of injury from unintentionally pressing the on/off switch.
Warning: Danger of fire! Do not work on any metallic materials with the dust extraction attachment fitted. Hot metal chips can ignite parts of the dust container.
Wear ear protectors. Exposure to noise can cause hearing loss.
Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
Check the clamping ring for deformations that could prevent the dust extraction attachment from attaching properly. If the clamping ring is damaged, have the dust extraction attachment repaired before it is used.
Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands.
Observe valid national and international standards.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock,

fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The dust extraction attachment is intended for extracting dust when drilling in concrete and masonry.

The dust extraction attachment may be used only with the following rotary hammers:

Dust extraction attachment Permitted rotary hammers

GDE 18V-26 D with stabilising brackets (11)	GBH 2-26 F
	GBH 2-26 F
	GBH 2-28 F
	GBH 2-28 F

GDE 18V-26 D without stabilising brackets (11)	GBH 18V-26 D
	GBH 2-28 L

The dust extraction attachment must not be used when drilling in wood, stone, metal or plastic.

Note: This dust extraction attachment is only intended for occasional drilling with smaller diameters. For long periods of application and/or drilling with large diameters, use the GDE 16 Plus or GDE 68 dust extraction attachments with an external dust extractor, e.g. GAS 35 M AFC.

Product Features

The numbering of the product features refers to the illustration of the dust extraction attachment on the graphics page.

(1) Dust cap for SDS-plus quick-change chuck for drilling diameters of up to 16 mm
(2) Dust cap for SDS-plus quick-change chuck for drilling diameters of up to 26mm
(3) Dust cap for SDS-plus fixed chuck for drilling diameters of up to 16 mm
(4) Dust cap for SDS-plus fixed chuck for drilling diameters of up to 26 mm
(5) Locking tab
(6) Locking receptacle
(7) Auxiliary handle
(8) Clamping ring
(9) Mounting bracket
(10) Guide pins
(11) Stabilising brackets
(12) Rechargeable batterya
(13) Battery charge indicator on the dust extraction attachment

(14) On/off switch
(15) Viewing window
(16) Release button for dust box
(17) Button for drill bit length adjustment
(18) Guide with depth stop scale
(19) Button for drilling depth adjustment
(20) Extension
(21) Battery release button
(22) Assembly openings for stabilising brackets
(23) Locking button
(24) Dust box
(25) HEPA filter
(26) Locking tab of the HEPA filter

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.
b) The HEPA filter removes 99.97% of all particles larger than 0.3 micrometres.

Technical Data

Dust extraction attachment GDE 18V-26 D
Article number	1600 A01 W0H
	1600 A02 05M
Drilling diameterA)	mm 4-26
max. drill bit lengthB)	mm 265
Max. drilling depth mm 100
Weight according to EPTA-Procedure 01:2014C)	kg 2.2-3.2
Recommended ambient temperature during charging	°C 0 to +35
Permitted ambient temperature during operationD) and during storage	°C -20 to +50
Recommended batteries GBA 18V...	ProCORE18V...
Recommended chargers GAL 18...	GAX 18...
	GAL 36...

A) with dust cap (1) or (3) for drilling diameters of up to 16mm with dust cap (2) or (4) for drilling diameters of 16-26 mm
B) With dust cap extension (20)
C) Depends on battery in use
D) Limited performance at temperatures < 0^

Noise/Vibration Information

GDE 18V-26 D

Noise emission values determined according to EN 60335-2-69.

Typically, the A-weighted sound pressure level of the dust extraction attachment is 78 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed the declared values.

14|English

Wear hearing protection!

GDE 18V-26 D + GBH 2-26

Noise emission values determined according to EN 60745-2-6.

Typically the A-weighted noise level of the power tool are: 93 dB(A); sound power level 104 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-6: a_h < 13m / s^2 K = 1.5m / s^2

The vibration level given in these instructions has been measured in accordance with a standardised measuring procedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibration.

The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for different applications, with different application tools or poorly maintained, the vibration level may differ. This can significantly increase the exposure to vibration over the total working period.

To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly.

Assembly

Battery Charging

Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates.

Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged.

Follow the instructions on correct disposal.

Removing the Battery

The battery (12) is equipped with two locking levels to prevent the battery from falling out if the battery release

button (21) is pressed unintentionally. As long as the battery is inserted into the dust extraction attachment, it is held in position by means of a spring.

Before carrying out any work on the dust extraction attachment (e.g. assembly, tool change, cleaning, etc.), remove the battery from the dust extraction attachment. There is risk of injury from unintentionally pressing the on/off switch.

To remove the battery, press the release button and pull the battery out of the dust extraction attachment. Do not use force to do this.

Battery charge indicator

The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the dust extraction attachment has been stopped.

Press the button for the battery charge indicator or show the state of charge. This is also possible when the battery is removed.

If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.

Battery model GBA 18V...

LEDs Capacity

3 × continuous green light 60 - 100%
2× continuous green light 30 - 60%
1× continuous green light 5-30%
1× flashing green light 0 - 5%

Battery model ProCORE18V...

LEDs Capacity

5 × continuous green light 80 - 100%
4 × continuous green light 60 - 80%
3 × continuous green light 40 - 60%
2× continuous green light 20-40%
1× continuous green light 5-20%
1× flashing green light 0 - 5%

Battery charge indicator on the dust extraction attachment

When the dust extraction attachment is switched on, the five LEDs of the battery charge indicator (13) indicate the state of charge of the battery (12).

Fitting the Stabilising Brackets (see figure A)

• Push the stabilising bracket (11) all the way into the assembly openings (22).

Fitting the Dust Extraction Attachment (see figures B1-B2)

Ensure the dust extraction attachment is correctly attached to the rotary hammer. Using the dust extraction attachment reduces the risks posed by dust.

• GDE 18V-26 D with GBH 2-26 (F) or GBH 2-28 (F): Fit the stabilising bracket (11) on the dust extraction attachment.
• Remove the auxiliary handle of the rotary hammer.
• Place the dust extraction attachment on a stable surface.
  Put the front part of the rotary hammer down on the mounting bracket (9).
• Push the rotary hammer forwards into the clamping ring (8), until you can hear the rotary hammer click into place into both of the guide pins (10) and the locking receptacle (6).

Make sure that the clamping ring (8) of the auxiliary handle slots into the corresponding groove of the housing on the rotary hammer.

• Fit the lower gripping end of the auxiliary handle (7).
• Swivel the auxiliary handle (7) around the axis of the rotary hammer to the required position.
  Turn the lower gripping end of the auxiliary handle (7) clockwise to tighten it.
• To loosen the rotary hammer from the dust extraction attachment, loosen the clamping ring (8) by turning the lower gripping end of the auxiliary handle (7) anticlockwise.
• Push the locking tab (5) while pulling the rotary hammer to the rear and pushing downwards at the same time.

Operation

Working advice

• Never use the dust extraction attachment without a filter. If the dust extraction attachment is used without a filter, larger particles of drilling dust can be flung towards the user and the power tool can be damaged.
  Do not use damaged filters (e.g. no cracks, small holes, etc.). Replace any damaged filters immediately.
  Never carry the power tool by the dust extraction attachment.

Note: The guide (18) is spring-loaded. The guide can spring forward when the button (17) for drill bit length adjustment is pressed.

Switching On and Off

• To switch on the dust extraction attachment, press the on/off switch (14).

• To switch off the dust extraction attachment, press the on/off switch (14) again.

Inserting/removing the drill bit (see figure C)

• Press the button (17) for drilling depth adjustment and pull the guide (18) all the way out.
• Release the button (17) again.
• Slide the tip of the drill bit through the dust cap (3) from behind and then fit the bit into the drill chuck according to the instructions of your power tool.
  Before removing the drill bit, press the button (17) again and pull the guide (18) all the way out.

Adjusting the Guide Length (see figure D)

To ensure that dust is extracted cleanly and the depth stop is set correctly, the guide (18) must be adjusted so that the tip of the drill bit is flush at the front with the dust cap (1)/(3).

• Insert the required drill bit into the tool holder of the drill chuck.
• Press the button (17) while adjusting the guide (18) to match the drill bit length.
• Release the button (17) again.

Note: To store the dust extraction attachment, press the button (17) and pull the guide (18) all the way out. This relieves the strain on the guide's spring, which increases the service life of the spring.

Adjusting the Drilling Depth (see figure E)

The button (19) for depth stop adjustment can be used to set the required drilling depth X.

• Press the button (19) and slide the button on the guide (18) so that the distance X shown in the illustration matches your required drilling depth.
• Release the button (19) again.

Fitting the Dust Cap and Extension (see figure F)

You will need to change the dust cap (1)/(3) depending on which drill chuck you are using:

Dust cap (1) for SDS plus quick-change chuck for drilling diameters of 4-16 mm
Dust cap (2) for SDS plus quick-change chuck for drilling diameters of 16-26 mm
Dust cap (3) for SDS plus fixed chuck for drilling diameters of 4-16 mm

16|English

Dust cap (4) for SDS plus fixed chuck for drilling diameters of 16-26 mm

In addition, you must change the dust cap if its wall contact surface shows clear signs of wear and is causing dust to escape through the extraction brush during extraction.

Removing the dust cap (1)/(3):

• Press the locking button (23) and pull the dust cap upwards out of the holder.
  Fitting the dust cap (1)/(3):
• Push the new dust cap down into the holder until the locking button audiably engages.
  The extension (20) is required if you use drill bits with a total length of 165 - 265mm .
• Mount and remove the extension (20) according to the assembly/removal of the dust cap.

Emptying the Dust Box (see figure G1-G4)

Note: Wear a dust mask when performing maintenance and cleaning on the dust box.

Empty the dust box (24) after completing your work and as needed, in order to ensure that the dust extraction attachment continues to perform optimally. The viewing window (15) enables you to check how full the dust box is.

• Hold the power tool with the dust extraction attachment horizontally and switch on the dust extraction attachment for a few seconds. This will cause residual dust to be sucked out of the extraction channel into the dust box (24).
• Press both the left-hand and right-hand release buttons (16) and pull the dust box (24) out of the dust extraction attachment.
• Shake out the dust box (24) over a suitable waste bin.
• Press both the left-hand and right-hand locking tabs (26) inwards and pull the HEPA filter (25) out of the dust box.
• Carefully tap against the HEPA filter to empty it or brush down the flaps of the HEPA filter using a soft brush. Note: Do not clean the HEPA filter with water and do not use compressed air to blow it clean.
• Put the HEPA filter (25) back in the dust box (24) after cleaning it. Then slide the dust box into the dust extraction attachment until the release buttons (16) audibly engage.

Maintenance and Service

Maintenance and Cleaning

• Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
  To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
• Clean the dust extraction attachment using a dry, soft cloth.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Dust extraction attachments, batteries, accessories and packaging should be sorted for environmentally friendly recycling.

Do not dispose of dust extraction attachments and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, dust extraction attachments that are no longer usable, and, according to the Directive 2006/66/EC, defective or

drained batteries must be collected separately and disposed of in an environmentally correct manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 16).

Français

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Trasporto

www.bosch-pt.com/serviceaddresses

Vervoer

Bosch Service Center

Telegravej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele er-ler oprettes en reparations ordre.

TIf. Service Center: 44898855

Fax:[phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Du hittar fler kontaktuppgifter till service har:

www.bosch-pt.com/serviceaddresses

Transport

Endast for EU-lander:

Taut stovyet (1)(3):

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Kuljetus

www.bosch-pt.com/serviceaddresses

Metaφρα

OuviotwevecmuatapieovtwvAilou unokevttai ot ana tnaeic twv enikivuvw ayaw. Omuatapie mnpoov va patapepboov obikcw an tov xphtnxwpic aalouc opouc.

'Otav, 6muic, oI mntapiec anooteAovtai ano tpiouc (n.x. ae- ponopikwic n ie taipia meaopowv) npenei va npouvtau diapopec ibaitepec anaitneic yia tn oukeuaia kai tn anu van. Edo npenei, kata nTv npoeioaia tou teayiou ano toolnc va ztnthei onomega note kai n ouiboulv evoc eibkou ia enikivduva ayaa

Anotette TIC mntapiec moov to neipBnaetaivai dKto. KootaTE TIC ymuvc enapec me kOanik taivia kai va oukeuaZeT Nv mntapia kata tetoio tpno, wote autn va unkyiota ma onu ouakeuaia. Napakaoume va lauavete etionc unoyn oac kaluyov nio auotnpec eVikc diataeic.

Anoupon

H diatae an aappoepno, o pataie, ta eapntmuata kai ouakeuaoe npenei va napabidovtai oe paikn npoc to nepiaov avakuKawon.

Mny pixvete Tn diatae n avappopnon kat tnc ena-vaapoptioevec unatapiec/umatapiec ota oikia ka anoppipmuata!

Movi yia xwpec tnc EE:

www.bosch-pt.com/serviceaddresses

Nakliye

知IiJxJtJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJX

www.bosch-pt.com/serviceaddresses

是

则当有之，即当有之。

Declaration of Conformity

Dust extraction attachment Article number

GDE 18V-26 D 1600 A01 WOH

1600A0205M

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN

60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019

+A14:2019

EN 60335-2-69:2012

EN55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 63000:2018

BOSCH

Vonjy Rajakoba

Managing Director - Bosch UK

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Martin Sibley

Head of Sales Operations and Aftersales

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 10/06/2021
