USER MANUAL Santa Cruz 370 BLAUPUNKT
Operating instructions
Hinweis:
Video-Eingang
Short press: Adjust the display brightness
Long press: Switch off the display
With inserted microSD card with navigation data:
Short press: Start the navigation
In navigation mode: Call up menu of active source
Long press: Switch off the display
② MENU button
Short press: Call up main menu
In the main menu: Call up menu of active source
Long press: Call up Bluetooth® function directly
③ Rotary/pushbutton
Short press: Switch on device
In operation: Mute audio source
Long press: Switch off device
Turn: Adjust volume
④ Infrared receiver for remote control
⑤ Microphone
⑥ Cover
⑦ Reset button
Access only with open cover
Restoring the original factory settings of the device.
Caution! All personal settings will be lost!
⑧ microSD card reader
Access only with open cover
The card reader supports microSD cards on which either audio/video files or navigation data can be stored.
⑨ AV-IN socket
Access only with open cover
⑩ USB socket
Access only with open cover
⑪ Touchscreen user interface

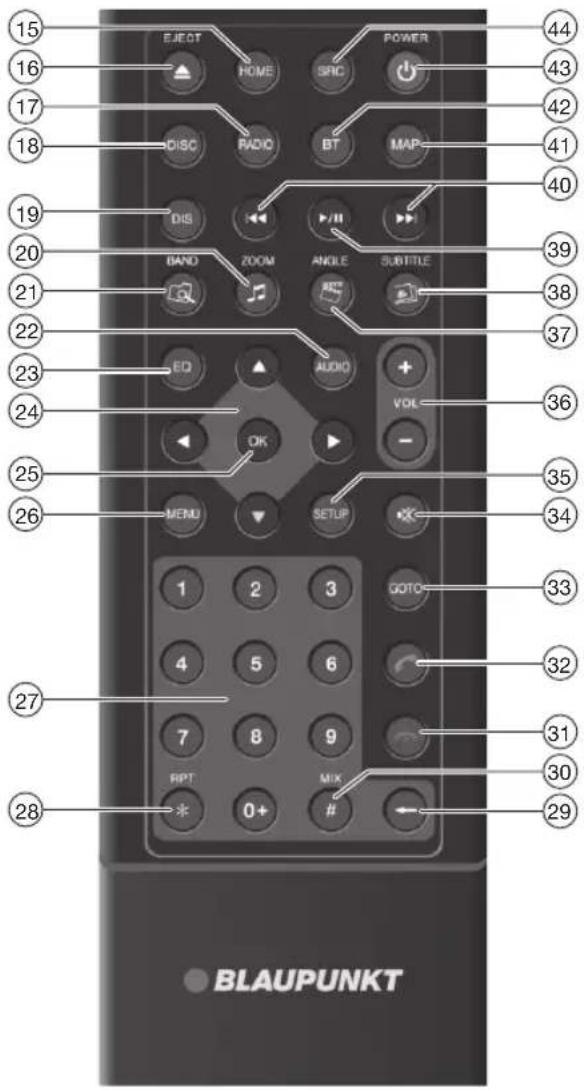

Controls – Remote control
15 HOME button
Call up main menu
In the main menu: Call up menu of active source
16 ▲ button
Not used
17 RADIO button
Start radio mode
18 DISC button
Not used
19 DIS button
Short press: Adjust the display brightness
Long press: Switch off the display
20 / ZOOM button
Call up overview of audio files
Zoom in on image area
21 /BAND button
Call up folder overview
Select waveband/memory bank
22 AUDIO button
Not used
23 EQ button
Call up equaliser menu
24 ▶/▶/ ▲button
Navigate in menus/lists
Tuning into stations manually (▲ / ▼)
Calling stored stations (◀)
25 OK button
Confirm selection
26 MENU button
Display the folder/file list
27 Number buttons 0 - 9
28 */RPT button
Repeat function
29 ← button
Delete last character of an entry
30 # / MIX button
Random track play
31 button
Ending/rejecting a phone call
③2 button
Answer a call
33 GOTO button
Directly select title, chapter, movie or playtime
34 button
Mute audio source
35 SETUP button
Call up settings menu
③6 VOL + / - button
Adjusting the volume
37 / ANGLE button
Call up overview of movies
38 / SUBTITLE button
Call up overview of images
39 ▶/11 button
Start and interrupt playback
40 ◀◀/▶Button
Select title, chapter, movie
Fast searching
41 MAP button
Starting the navigation
42 BT button
Starting Bluetooth mode
43 / POWER button
Switching device on/off
44 SRC button
Select source
Contents
Safety notes 24
Symbols used 24
Road safety 24
General safety notes 24
Declaration of conformity 24
Cleaning notes 24
Disposal notes.... 24
Scope of delivery 25
Placing the device in operation 25
Switching on/off 25
Volume 25

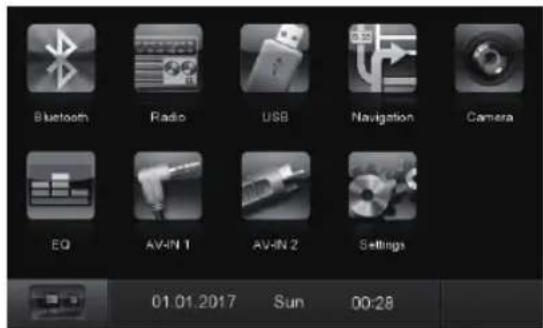

Main menu 25
Setting the reception area 25
Radio mode 26
Start radio mode 26
Select memory bank 26
Tuning into a station 26
Storing stations manually 26
Storing stations automatically (Travelstore) 26
Scanning stations.... 26
Switching RDS on/off 26
Switching the REG function (regional programmes) on/off 27
Switching the AF (alternative frequencies) function on/off 27
Adjusting the seek tuning sensitivity 27
Selecting the programme type and starting seek tuning 27
Switching priority for traffic announcements on/off 27
Navigation (only for devices with navigation) ..... 27
Loading navigation data 27
Download of map data 27

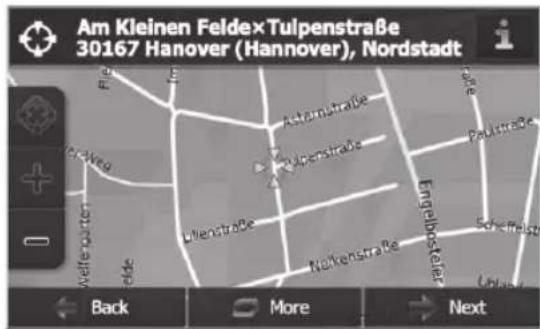

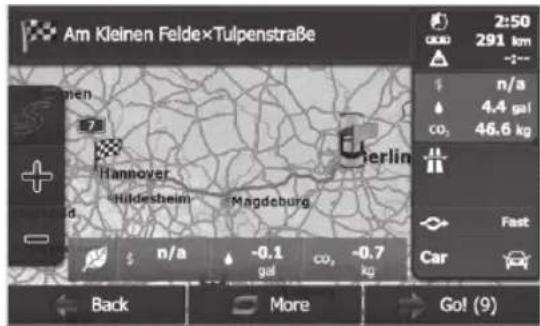

Starting the navigation 28

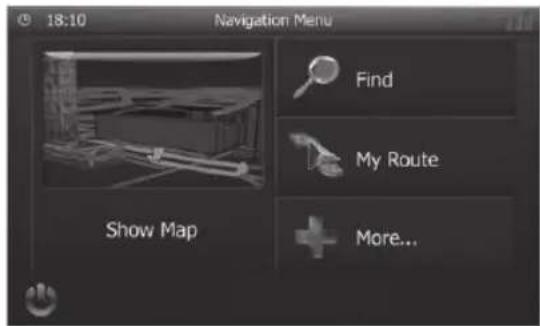

Initial startup 28

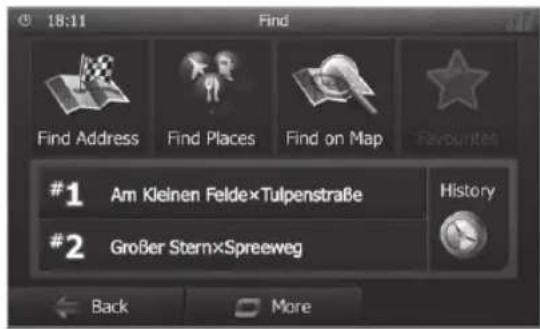

Entering a destination 28
Address 28
Points of Interest 29

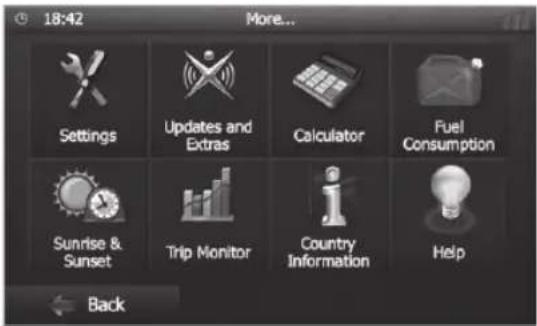

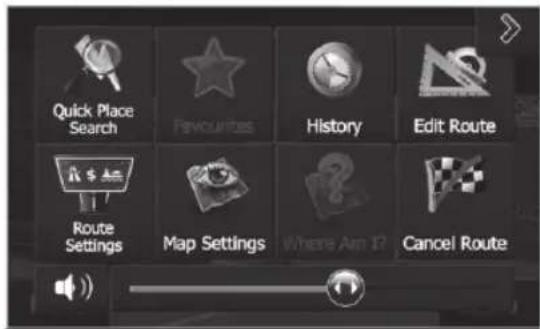

Setting route options 30
Map Settings 30
Basic information 31
USB data carrier 31
microSDHC cards 31

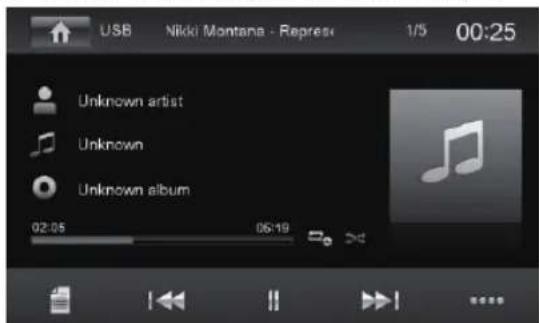

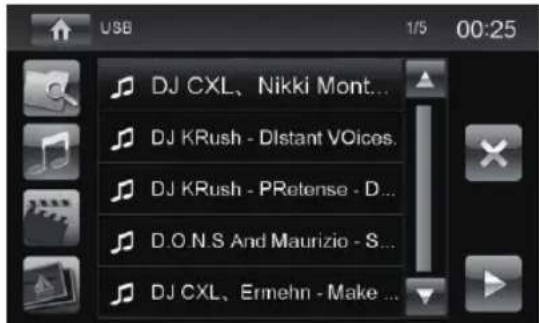

Audio playback from USB or microSDHC 32

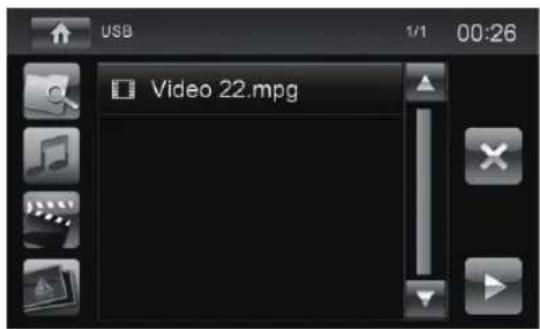

Video playback from USB or microSDHC.... 33
Image playback from USB or audioSDHC.... 33

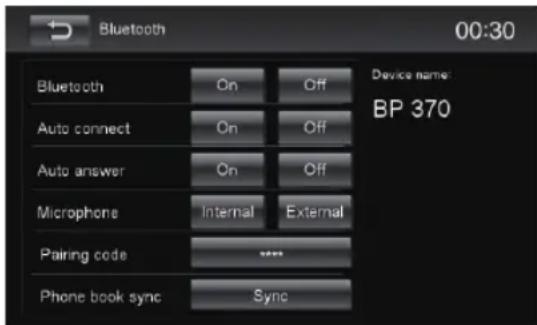

Bluetooth mode 34
Starting Bluetooth mode 34
Registering Bluetooth devices 34

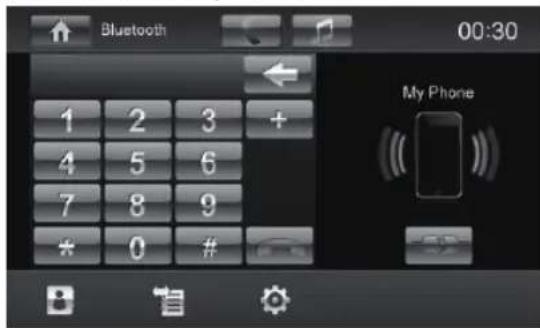

Telephone mode - Bluetooth.... 34

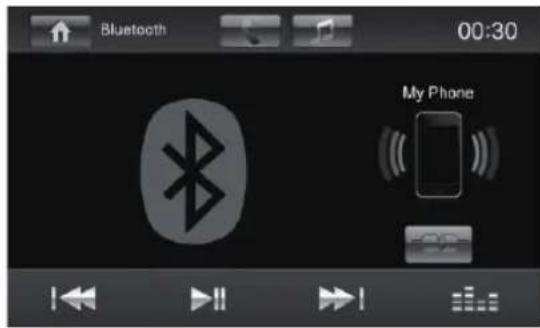

Audio playback - Bluetooth 35

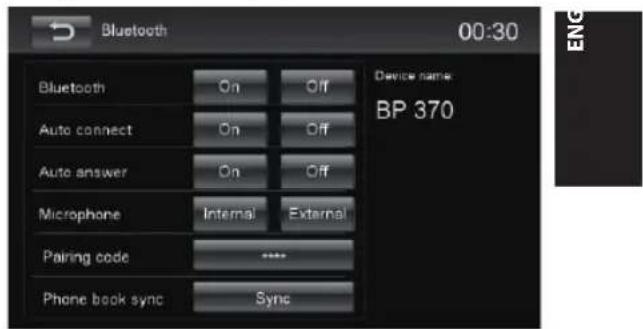

Bluetooth settings 35
External audio/video sources 36
AV-IN socket 36

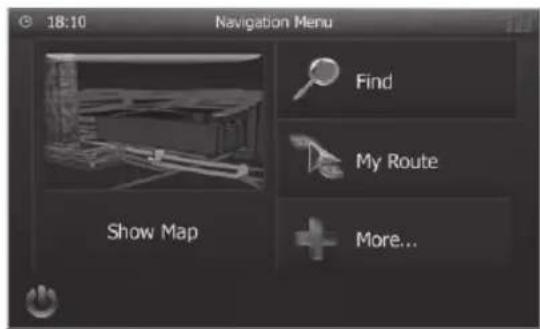

Video input 36
External monitor.... 36
Sound settings 36
Volume distribution (fader/balance) 36
Equalizer 37
Basic settings 37
General 37
Sound 38
Time 38
Language 38
Bluetooth 38
Volume 38
Warranty 38
Service 38
Connection diagram 313
Appendix 314

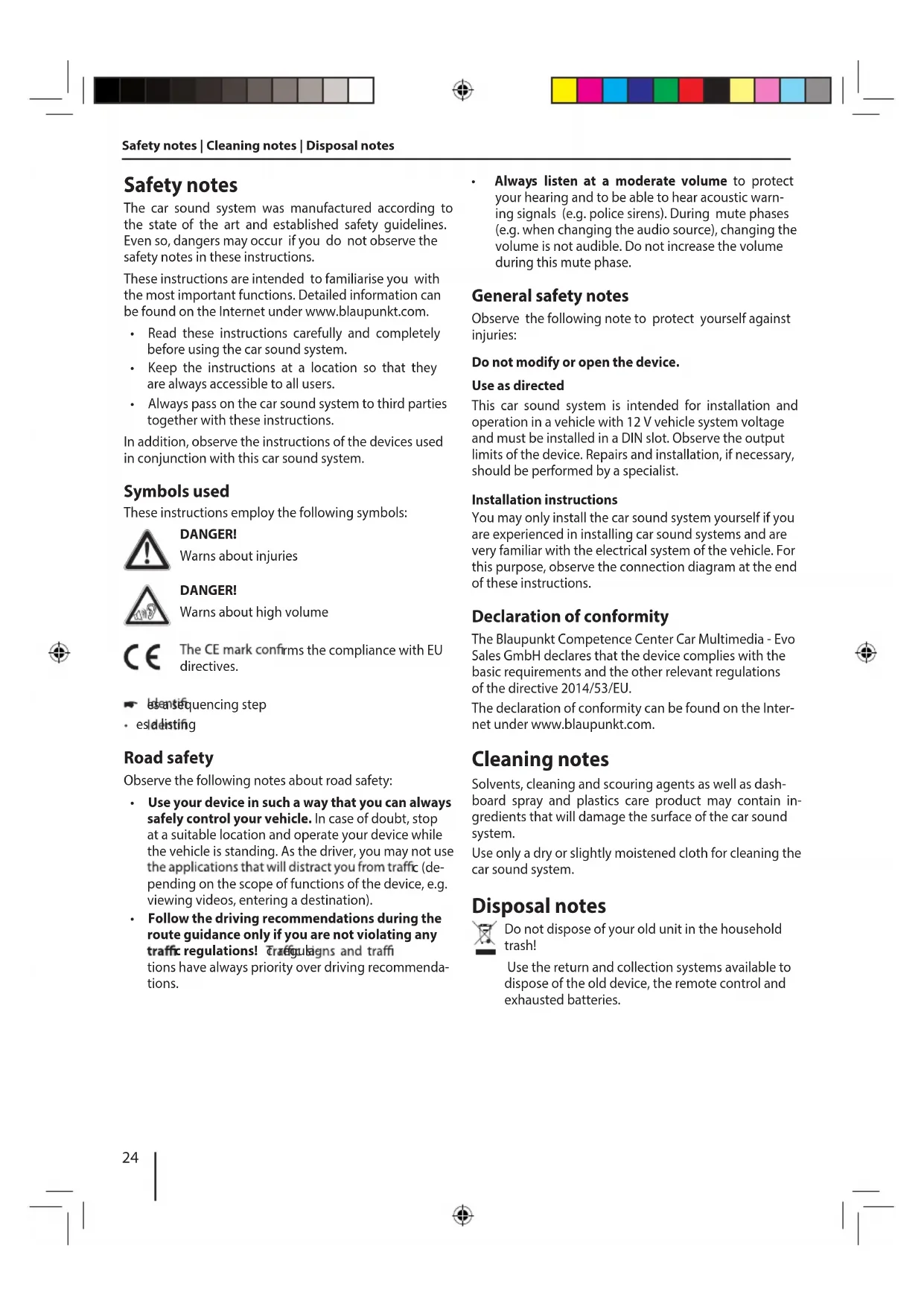

Safety notes
The car sound system was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions.
These instructions are intended to familiarise you with the most important functions. Detailed information can be found on the Internet under www.blaupunkt.com.
- Read these instructions carefully and completely before using the car sound system.
- Keep the instructions at a location so that they are always accessible to all users.
• Always pass on the car sound system to third parties together with these instructions.
In addition, observe the instructions of the devices used in conjunction with this car sound system.
Symbols used
These instructions employ the following symbols:
DANGER!
Warns about injuries
DANGER!
Warns about high volume
The CE mark confirms the compliance with EU directives.
- identif
- sequencing step
- esldisting
Road safety
Observe the following notes about road safety:
- Use your device in such a way that you can always safely control your vehicle. In case of doubt, stop at a suitable location and operate your device while the vehicle is standing. As the driver, you may not use the applications that will distract you from traffic (depending on the scope of functions of the device, e.g. viewing videos, entering a destination).
- Follow the driving recommendations during the route guidance only if you are not violating any traffic regulations! Traffic guidelines and traffitions have always priority over driving recommendations.
- Always listen at a moderate volume to protect your hearing and to be able to hear acoustic warning signals (e.g. police sirens). During mute phases (e.g. when changing the audio source), changing the volume is not audible. Do not increase the volume during this mute phase.
General safety notes
Observe the following note to protect yourself against injuries:
Do not modify or open the device.
Use as directed
This car sound system is intended for installation and operation in a vehicle with 12 V vehicle system voltage and must be installed in a DIN slot. Observe the output limits of the device. Repairs and installation, if necessary, should be performed by a specialist.
Installation instructions
You may only install the car sound system yourself if you are experienced in installing car sound systems and are very familiar with the electrical system of the vehicle. For this purpose, observe the connection diagram at the end of these instructions.
The Blaupunkt Competence Center Car Multimedia - Evo Sales GmbH declares that the device complies with the basic requirements and the other relevant regulations of the directive 2014/53/EU.
The declaration of conformity can be found on the Internet under www.blaupunkt.com.
Cleaning notes
Solvents, cleaning and scouring agents as well as dashboard spray and plastics care product may contain ingredients that will damage the surface of the car sound system.
Use only a dry or slightly moistened cloth for cleaning the car sound system.
Disposal notes
Do not dispose of your old unit in the household trash!
Use the return and collection systems available to dispose of the old device, the remote control and exhausted batteries.
Scope of delivery
The scope of delivery includes:
- Car sound system
• Remote control (incl. battery)
• TMC tuner (only for devices with Europe navigation)
- microSD card with navigation data in the microSD card slot (only for devices with navigation)
- GPS antenna
• External Bluetooth microphone
- Getting started
- Support frame
- Small parts set
• Installation material
- Connecting cable
Placing the device in operation
Caution!
Transport securing screws
Ensure that the transport securing screws at the top side of the device are removed before the startup of the device.
Switching on/off
For switch-on, press the rotary/pushbutton ③.
For switch-off, hold the rotary/pushbutton pressed for more than 2 seconds.
Switching on/off via vehicle ignition
If the car sound system is connected with the vehicle ignition and it was switched off with the rotary/pushbutton ③with the ignition or off
Volume
Adjusting the volume
You can adjust the volume in steps from 0 (off) to 50 (maximum).
Turn the rotary/pushbutton ⓣ to change the volume.
Muting the car sound system (Mute)
Briefly press the rotary/pushbutton to mute the device or to reactivate the previous volume.
Main menu
In the main menu, you press the buttons on the touchscreen to call up the different sources and operating modes.
Press the MENU button ②
-Or-
In the current source, press the[↑]button. The main menu is displayed.
As long as you do not select a new audio source, the last active audio source is played back.
Note:
The figures used in these instructions are intended to facilitate the explanations and details may deviate from your device.
Setting the reception area
This car sound system is designed for operation in different regions with different frequency ranges and station technologies. The factory default of the reception area is "Europe (FM/AM)". If you operate the car sound system outside of Europe, e.g. in the US or Asia, you may first have to set a suitable reception area in the menu:

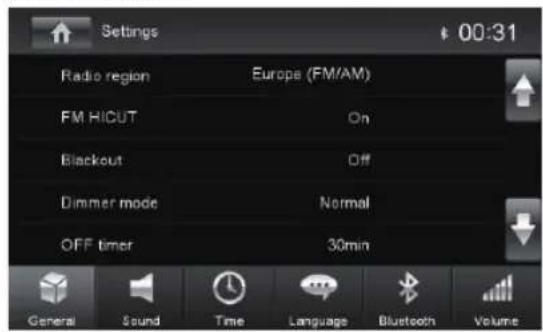

In the main menu, press the Settings button. The Settings menu is displayed.
In the bottom area of the Settings menu, press the [General] button.
The current setting is displayed behind "Radio region".
Tap twice (double-click) on the [ Radio region ] button to display the list of available reception areas.
Select the desired reception area by double-clicking.
The list is hidden, the selected reception area is set.
Press the [↑] button.
The main menu is displayed again.
Radio mode
Radio mode
Start radio mode

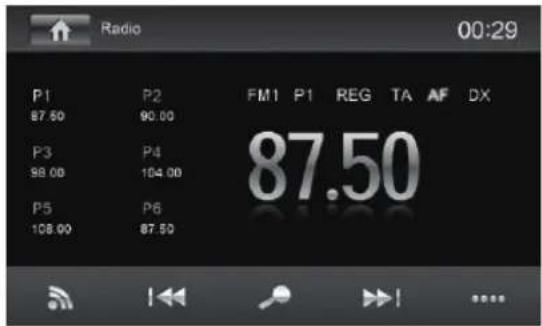

In the main menu, press the [Radio] button. The radio playback menu is displayed.
Select memory bank
Different memory banks and wavebands are available. Up to 6 stations can be stored in each memory bank.
Press the [播放] button repeatedly until the desired memory bank is displayed.
Tuning into a station
Tuning into stations manually
Express the [1] or [▶ button once or several times to change the frequency in increments.
Enter broadcast frequency directly
If the frequency of the desired stations is known, it can be entered directly via the touchscreen.
Press the [......] button to display additional operating options.
Press the [■] button.
A numeric keypad is displayed for the frequency input.
Enter the frequency of the desired station with the numeric keypad.
Press the [OK] button.
The radio playback menu is displayed, the station of the frequency entered is played back.
Starting station seek tuning
Press the [1] or [▶ button for approx. 2 seconds to start station seek tuning.
The radio tunes into the next receivable station.
Note:
For the reception area Europe: In the FM waveband, only traffic information stations are tuned into if the priority for traffic information is switched on.
Storing stations manually
Select the desired memory bank with the [Button.
Set the desired station.
Press one of the memory buttons P1 P6[for] approx. 2 seconds to store the current station at the button.
The station is stored.
Storing stations automatically (Travelstore)
With Travelstore, you can automatically search for and store the 6 FM stations offering the strongest reception in the region in the current memory bank. Any previously stored stations in this memory bank are deleted in the process.
Select a memory bank.
Press the [......] button to display additional operating options.
Press the [TS] button.
The tuner starts the automatic station seek tuning. After the storing is completed, the radio plays the station at memory location 1 of the previously selected memory bank.
Note:
For the reception area Europe: With switched-on priority for traffic information, only traffic information stations are stored.
Scanning stations
You can use the scan function to play all the receivable stations of the current waveband for a few seconds.
Press the [ ] button.
The seek tuning searches for stations in the current waveband. Each receivable station is played for a few seconds in the process.
Pressing the [ ] button again selects the currently scanned station and plays it back.
Switching RDS on/off
Many FM stations broadcast an RDS (Radio Data System) signal in addition to their programme in the reception area Europe that allows additional functions, such as the display of the station name.
Press the [......] button to display additional operating options.
Press the RDS button to switch the RDS function on or off.
If the RDS function is switched on, RDS is displayed in white.
Press the [V] button to hide the additional operating options, or wait until they are automatically hidden.
Switching the REG function (regional programmes) on/off
Some RDS stations divide their programmes into regional programmes with different contents at certain times. If the REG function is activated, the car sound system changes only to those alternate frequencies of the set station on which the same regional programme is being broadcast.
Press the REG button to switch the REG function on or off.
If the REG function is switched on, REG is displayed in white.
Switching the AF (alternative frequencies) function on/off
If the AF function is activated, the car sound system automatically tunes into the best receivable frequency for the station that is currently set.
Press the AF button to switch the AF function on or off.
If the AF function is switched on, AF is displayed in white.
Adjusting the seek tuning sensitivity
The seek tuning sensitivity decides whether the automatic station seek tuning finds only strong stations or also weaker stations that may be noisy.
Press the [LO] or [DX] button to adjust the sensitivity of station seek tuning.
If LO is displayed, only stations with a strong signal are found during seek tuning.
If DX is displayed, stations with a strong and weak signal are found during seek tuning.
Selecting the programme type and starting seek tuning
You can select a programme type with the PTY function to purposefully search for stations, for example, that broadcast rock music or sport events.
Press the [......] button to display additional operating options.
Press the [PTY] button to display the programme types.
Scroll through the list with [▼]/ [▲nd] tap on the desired programme type to select it.
Press the [PTY] button to start PTY seek tuning. If a station broadcasts a programme with the selected programme type, this station is played back.
Switching priority for traffic announcements on/off
In the reception region Europe, an FM station can identify traffic announcements via an RDS signal. If priority for traffic reports is switched on, a traffic report is automatically switched through, even if the car sound system is currently not in radio mode.
Press the [TA] button to switch the priority for traffic announcements on or off.
If the priority for traffic announcements is switched on, TA is displayed in white.
Navigation (only for devices with navigation)
Loading navigation data
The navigation software and map data are located on a microSD card. For devices with navigation, the device is delivered with the microSD card in the microSD card slot. To be able to use the navigation, the microSD card must be inserted in the card slot.
Important note:
The card reader supports microSD cards on which either audio/video files or navigation data can be stored. The microSD card for the navigation may not contain any other files besides the navigation data.
Open the cover underneath the rotary/pushbutton.
Insert the microSD card with its labelled side to the left (flattened corner to the top) and its contacts first into the card slot ⑧ until it clicks into place.
Download of map data
To ensure that you have the latest version of the map data when you purchase the device, you have 30 days from the first GPS positioning to download the latest version of the map data once and free of charge to the standard microSD card from the Internet at www.naviextras.com.
You can always purchase map material from this site at a later time.
Important note:
If the microSD card is lost or damaged, the navigation map license associated with the card will be lost. In this case, the license must be purchased anew with a new microSD card.
Navigation
Starting the navigation
In the main menu, press Navigation to start the navigation mode.
The navigation menu is displayed. If you start the navigation for the first time, the setup wizard is displayed.
Initial startup
If you start the navigation for the first time, a setup wizard appears which performs the basic settings for the navigation.
Adjust the language for the navigation. This can be a different language from the other functions of the device.
For the selection with [√].
The end-user license agreement is displayed.
Read the end-user license agreement. If you agree with the terms and conditions, press [√].
The configuration wizard starts.
Press [√] to continue.
Select a voice for the voice output of the navigation. Various voices are available for the languages.
Confirm the selection with [√].
Specify the time format and the units for the navigation. Next, press [ √ ].
On the next screen, you can perform your preferred route settings.
If necessary, change the entries by pressing the displayed menu entries.
Press [√] after you adjusted the settings.
Touch[√]duration.the confi
The navigation menu is displayed.
Entering a destination
Destinations can be entered in different ways: Via the address or as point of interest from the database of points of interest. Points of interest can be sights, museums, stadiums, petrol stations.
Address
Open the navigation menu.
Press on [Find]
The menu for the destination entry is displayed.
Press [Find Address]

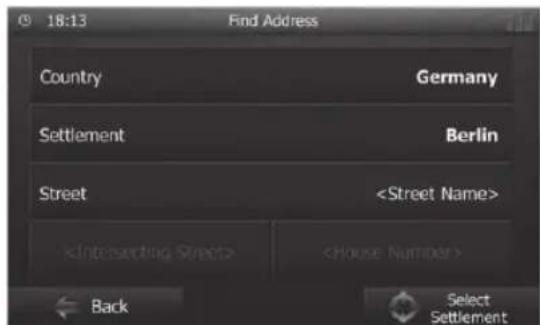

The menu for the address entry is displayed.
Enter the country, city and street in succession as well as the intersection or house number. To do so, press the corresponding entry in the address entry menu.

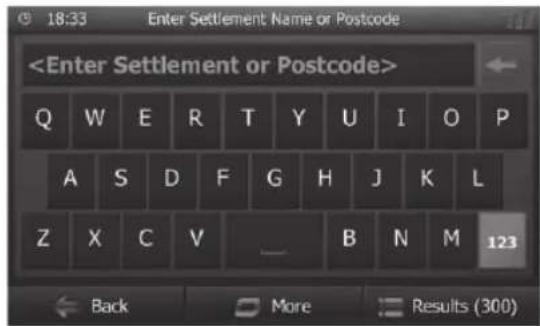

A menu for text entry is displayed.
Enter the desired destination via the keyboard.
With every character entered, the entry in the input line is automatically completed.
Navigation
If the name of the desired destination is displayed in the address line, press the [ √ button.
The selected destination is displayed on the map.
Press [Next] to start the route guidance.
The calculation of the route starts. Depending on the distance between start and destination, the route calculation may take some time.
After the route calculation is complete, the parameters of the route, such as distance and time, are displayed. In addition, the entire route is displayed on the map.
Press [Go!] to start the route guidance.
Points of Interest
Open the navigation menu.
Press on [Find]
The menu for the destination entry is displayed.
Press [Find Places]
The point of interest menu is displayed.
You can select a point of interest from one of the four predefined categories Petrol Station, Parking, Restaurant and Accommodation or start a separate search.
For example, press on Petrol Station to quickly find a petrol stations.

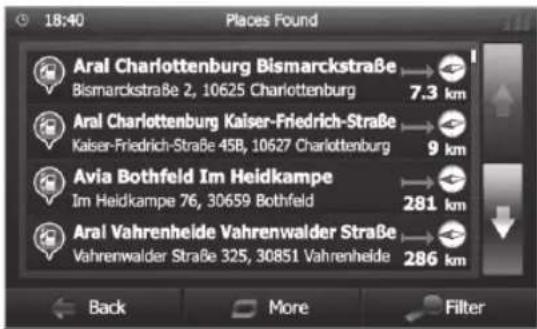

A list of petrol stations in the vicinity of the vehicle is displayed. The petrol stations are sorted by distance to vehicle.
Select a petrol station from the list by pressing on the list entry.

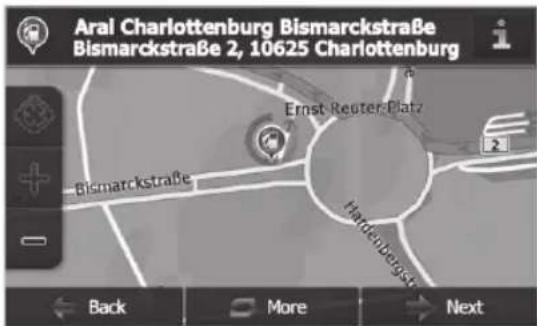

The petrol stations is displayed on the map.
Press [Next]
The route course and the route data are displayed.
Press [Go!] to start the route guidance.
Navigation
Setting route options
In the route options, the vehicle type, type of route (quick, short, dynamic) and additional parameters are defined which are required by the device to calculate the route according to your requirements.
You define the route options during the initial configuration of the navigation, but you can change them for any route guidance.
Adjusting route options before the route guidance

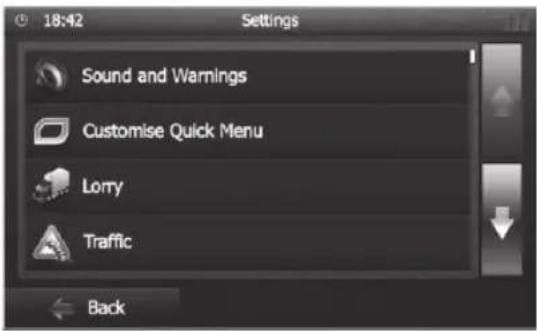

Call up the navigation menu.
Press [More...]
Press [Settings.]

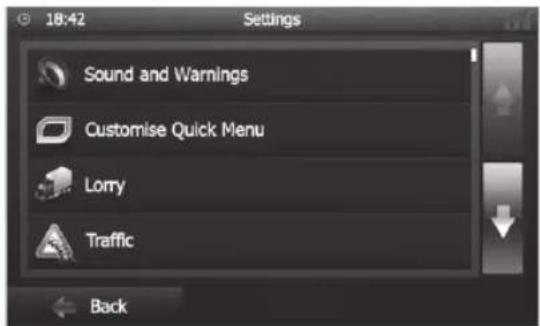

The settings menu for the navigation is displayed.
Press on the [↓] button to display the second page.
Press [Route Settings]

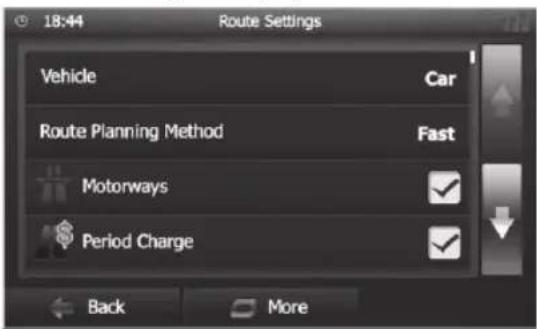

The route settings are displayed.
Change the settings, if necessary.
Press [Back] repeatedly until the navigation menu is displayed again.
Changing route options during route guidance
During a route guidance, press the [More] button.
Press [Route Settings]
The route settings are displayed.
Change the settings, if necessary.
Press[Back]
The route guidance is displayed again.

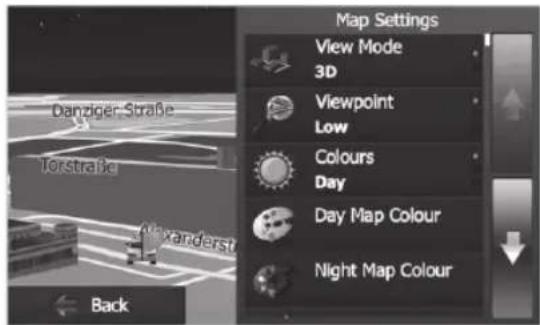

Map Settings
With the map settings, you can adjust the view mode (2D or 3D), the viewing angle of the map, the colours and the display of buildings and points of orientation on the map. In addition, you can specify for categories of points of interest whether they should be displayed on the map, e.g. car dealerships, cafés, restaurants.

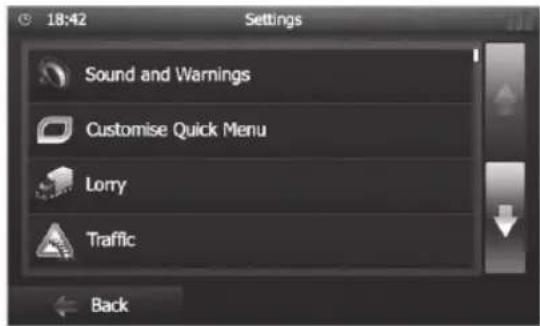

Call up the navigation menu.
Press [More...]
Press [Settings]
The settings menu for the navigation is displayed.
Press on the [↓] button to display the second page.
Press [Map Settings]
The map settings are displayed.
Change the settings, if necessary.
Press Back repeatedly until the navigation menu is displayed again.
Note:
You can also change the map settings during the route guidance:
During a route guidance, press the [More] button.
Press [Map Settings]
The map settings are displayed.
Change the settings, if necessary.
Press [Back]
The route guidance is displayed again.
The car sound system can be used to play MP3 or WMA files on USB data carriers and microSDHC cards.
In addition, you can view movies and images from USB data carriers and microSDHC cards on the display or a connected monitor.
For safety reasons, the playback of movies and images on the integrated monitor is allowed only while the vehicle is standing and the hand brake is applied. The "BRAKE" cable must be connected with the hand brake connection of the vehicle (see Connection diagram at the end of these instructions). The movie playback on an external monitor is also possible while driving.
Notes:
- Blaupunkt cannot guarantee the flawless function of USB data carriers and microSD cards available on the market.
Note the following information when preparing an MP3/WMA data carrier:
• Naming of tracks and directories:
- Max. 32 characters without the file extension ".mp3" or ".wma" (the use of more characters reduces the number of tracks and folders that the car sound system can recognise)
• USB format/file system: mass storage device / FAT/FAT16/FAT32
• IersystemDFATdFAT16/FAT32
- leFile extension of audio fi
- JES3 for MP3 fi
- JASMA for WMA fi
- WMA files only without Digital Rights Management (DRM) and created with Windows Media® Player version 8 or later
• MP3 ID3 tags: Version 1 and 2
• Bit rate for creating audio files:
- MP3: 32 to 320 kbps
- WMA: 32 to 192 kbps
• Maximum number of files and directories:
- USB medium: Up to 10,000 entries
- microSD cards: Up to 10,000 files.
USB data carrier
This device features a USB port under the cover at the front of the device.
Connecting a USB data carrier
Open the cover ⑥ underneath the rotary/pushbutton.
Insert the USB data carrier in the USB socket ⑩.
The device automatically switches to USB mode. The data are read, the playback starts with the first media file recognized by the device.
Removing the USB data carrier
Turn off the car sound system.
- Disconnect the USB data carrier.
microSDHC cards
This device features an microSDHC card slot under the cover at the front of the device.
Inserting the microSDHC card
Open the cover ⑥ underneath the rotary/pushbutton.
Insert the microSDHC card with its labelled side to the left (flattened corner to the top) and its contacts first into the card slot ⑧ until it clicks into place.
The device automatically switches to microSDHC mode. The data are read, the playback starts with the first media file recognized by the device.
Removing the microSDHC card
If necessary, open the cover⑥.
→ Push on the microSDHC card until it disengages.
Pull the microSDHC card out of the card slot 8.
Audio playback from USB or microSDHC
The principles of audio playback (MP3/WMA) from data carriers are identical for all sources.
Select the desired source via the main menu.
The device changes to the desired source and the playback starts.
If the playback does not start with the audio playback,
press the [ ] button to change to the folder/file list.
Press the [ ] button to display all the folders and files of the data carrier.
-Or-
Press the [ musical] lesson to display all the audio fi the data carrier.
[▲] Scroll through the list page by page.
[▼] Scroll through the list page by page.
[ ↑ ] Change to next higher folder level.
[▶] Open selected folder or start titles.
-Or-
Briefly tap twice (double-click) on the name of the folder/track. The folder is opened/the track is started.
[ × ] léxistthe folder/fi

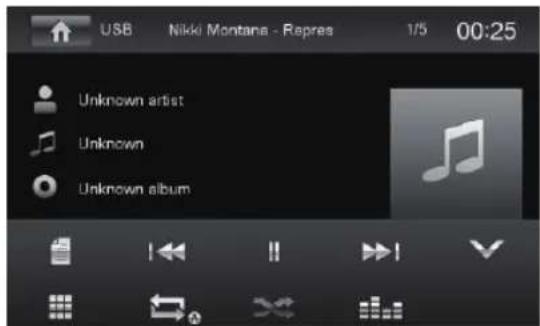

After starting a title, the playback menu is displayed.
[ ] [ ] display the folder/fi
[1] Short press: Title selection.
Long press: Fast searching.
[1] Interrupt playback and continue playback.
[▶▶] Short press: Title selection.
Long press: Fast searching.

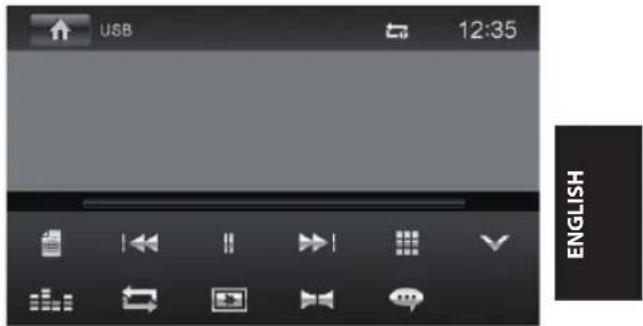

[......] Show additional operating options.
Tap on [......] to display additional operating options of the playback menu.
[▼] Hide additional operating options.
[ ■■ ] Display keypad to directly enter the number of the desired title.
[←] Start and end REPEAT function.
The REPEAT mode changes each time the [←] button is pressed.
| Display | REPEAT mode |
| Repeat current track |
| Repeat current folder |
| Repeat all tracks of data carrier |
[×] Start MIX random track play and end it again.
If the MIX function is switched on, the symbol is displayed in white.
The MIX mode depends on the selected REPEAT function.
| REPEAT mode display | MIX mode |
| No random track play |
| Mixing tracks of the current folder |
| Mixing tracks of the data carrier |

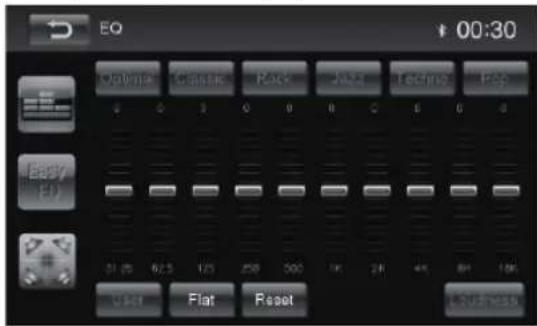

[ ] Display equalizer.
Video playback from USB or microSDHC
Select the desired source via the main menu.
The device changes to the desired source and the playback starts.
If the playback does not start with the video playback,
press the [ ] button to change to the folder/file list.
Press the [ ] button to display all the folders and files of the data carrier.
- Or -
Press the [ ]lesitton to display all the video fi of the data carrier.
Note:
Folders and videos are selected and started as described under audio playback.
If you selected a movie, the playback is started. During the movie playback, the playback menu is hidden.
Briefly touch the touchscreen once to display the playback menu again.
The playback menu is shown.
[ ] leDisplay the folder/fi
[ ] Select previous movie.
[Ⅱ/▶] Interrupt playback and continue playback.
[▶] Select next movie.
[ ■■ ] Call up keypad for direct selection of movie or playing time.
[ •••• ] Show additional operating options.
Tap on [......] to display additional operating options of the playback menu.
[ √ ] Hide additional operating options.
[ ] Display equalizer.
[ ↗ ] Switch repeat function for movie or folder on/off.
[ ] Adjust image.

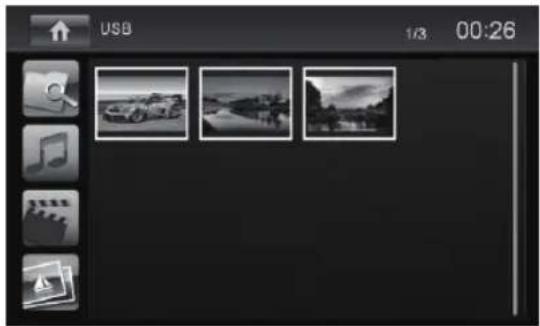

Image playback from USB or audioSDHC
Select the desired source via the main menu.
The device changes to the desired source and the playback starts.
If the playback does not start with the image playback,
press the [ ] button to change to the folder/file list.
Press the [ ] button to display all the folders and files of the data carrier.
- Or -
Press the [ ] button to display all the images of the data carrier.
Note:
Folders and images are selected and started as described under audio playback.
Bluetooth mode
Bluetooth mode
The Bluetooth® function allows registering cell phones and media playback devices with the car sound system.
When you register a cell phone with the car sound system, you can make phone calls with the built-in hands-free function. You can access the lists of dialled numbers and the phone book of the registered cell phone.
If the connected Bluetooth® device supports the functions A2DP and AVRCP, you can play the music via the car sound system and control the playback. During a call, the music playback is interrupted and continued again after the call.
If a cell phone is registered via Bluetooth® and a call is received during the playback of another source, the source playback is interrupted and the call menu is displayed.
Starting Bluetooth mode
In the main menu, press on [Bluetooth .]
- Or -
Press the MENU button ^② for approx. 2 seconds.
The Bluetooth ^® menu is displayed. It contains the list of known Bluetooth ^® devices. Other audio sources are switched off.
[ ] Add new Bluetooth® device.
[ ] Display options menu.
Press the [Connect] button of the Bluetooth® device with which you want to establish a connection. When the device is in range, the connection is established and the menu for the device is displayed.
Press the Delete button if you want to delete the Bluetooth® device from the list.
Registering Bluetooth devices
If you want to register a device with the car sound system for the first time, proceed as follows:
Ensure that Bluetooth® is activated at the car sound system and at your Bluetooth® device.
In the options menu of the Bluetooth® mode, enter a pairing code (see Bluetooth® settings).
Search for new devices/connections on your Bluetooth® device.
The car sound system appears as "BP 370" in the list of Bluetooth® devices.
Establish the connection; you may have to enter the pairing code that was previously entered on the car sound system.
The connection is being established and the menu for the registered device is displayed.
Note:
If a telephone is connected with the car sound system, the Bluetooth® icon§ is displayed at the top right edge of the display in all audio/video sources.
Telephone mode - Bluetooth
If you connected a phone with the car sound system via Bluetooth ^® , the following menu appears.
[ ] Display the phone menu.
[♪] Display the playback menu.
[●●] Disconnect connection with current device.
[8] Call up the phone book.
[ ] Call up caller lists.
[⚙️] Display options menu.
Enter a phone number with the keypad and press the [ ] button.
- Or -
Select a contact/number via the caller lists or phone book and press the [Dial] button in the pop-up window.
The connection is being established.
If a call is coming in, the call menu is displayed.
[ ] Reject a call.
[ ] Answer a call.
Audio playback - Bluetooth
If an audio streaming device is connected with the car sound system via Bluetooth ^® , you can play back the music via the car sound system and control the playback.
Press the [ musical] button to change to the audio play-back.
[ ] Display the phone menu.
[ ] Display the playback menu.
[●●] Disconnect connection with current device.
[ ] Short press: Title selection.
Long press: Fast searching.
[▶II] Interrupt playback and continue playback.
[▶▶] Short press: Title selection.
Long press: Fast searching.
[ ] Display equalizer.
Bluetooth settings
In the options menu for Bluetooth ^® , you can make the basic settings for the Bluetooth ^® mode.
Press the [💡] button.
The options menu is displayed.
Bluetooth – Bluetooth ^® can be switched on or off.
Auto connect – If "Auto Connect" is activated, the device automatically connects with known Bluetooth® devices as soon as they are in range.
Auto answer – If "Auto Answer" is activated, incoming phone calls are automatically answered.
Microphone – Select the microphone to be used for the hands-free system via Bluetooth®.
Pairing code – Many Bluetooth ^® devices request the pairing code before establishing the connection. You can define it here.
Phone book sync – To be able to access the phone book of a connected telephone, you must first synchronise it via this menu entry.
→ Press [→] to exit the options menu.
External audio/video sources
AV-IN socket
This device features an external AV input for audio and video playback. The AV-IN socket is located under the cover at the front of the device.
Danger!
Increased risk of injury from connector.
In case of an accident, the protruding connector in the AV-IN socket may cause injuries. The use of straight plugs or adapters leads to an increased risk of injury.
Start the AV-IN mode with the button [AV-IN]
The display shows the audio or video playback of the AV source.
This device features a video input at the rear of the device for connecting a camera that is available as an option. If a camera is connected, you can display the camera image.
In the main menu, press the Camera button.
External monitor
This device features an output for connecting an external monitor for the rear area of the vehicle (see Connection diagram at the end of these instructions).
Select the desired source via the main menu and start the film playback.
The film is displayed on the monitor of the device.
Call up the main menu.
Press the [ ] button.
The film is also displayed on the external monitor.
Sound settings

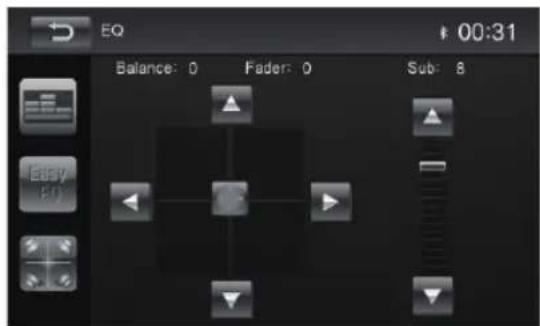

Volume distribution (fader/balance)
You can adjust the volume distribution in the vehicle for all sources.
In the main menu or on the control bar of the current audio source, press the [ ] button.
The equalizer menu is displayed.
Press the[÷]button.
The menu for fader and balance is displayed.
Adjust fader and balance with [▼]or [▲]
[◀/][▶]
Next, press [⊃].
The setting is stored, the current source is displayed again.
Sound settings | Basic settings

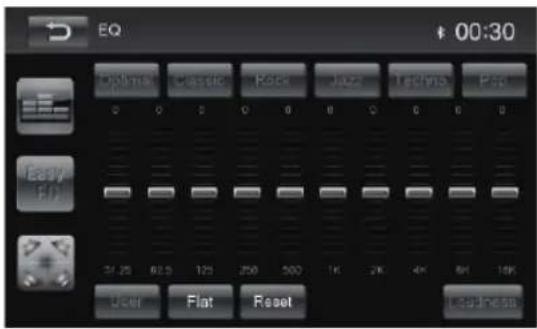

Equalizer
You can adjust the equalizer for all sources.
In the main menu or on the control bar of the current audio source, press the [☐☐] button.
The equalizer menu is displayed.
Select a preset equalizer via the buttons.
- Or -
Press the [User] button to adjust the level of the available frequency bands according to your preferences.
Note:
With the [Reset] button, you can reset the customised setting again.
- Or -
Press the [Flat] button for a linear sound playback.
Press the Loudness button to switch increasing the bass at low volume on or off.
Next, press [→].
The setting is stored, the current source is displayed again.
Basic settings
In the settings menu, you can adjust the basic settings for the different functions of the device to your requirements.
In the main menu, press the [Settings] button.
The settings menu is displayed, the General sub-menu is activated.
Call up the submenus with the buttons in the lower area of the settings menu.
General
The following settings are possible:
Radio region – Select the reception region for the radio reception.
Blackout – If this value is set, the display of the radio is completely switched off after 10 or 20 sec. without use.
Dimmer mode – Adjust the display brightness
Beep – Switch confirmation beep on/off
TFT calibration - The touchscreen can be calibrated here.
SWC – The buttons of a connected steering wheel control can be configured here.
Software version – Display of the current software version.
Load factory settings – Resets all personalised settings.
Sound
The following settings are possible:
Subwoofer – Switch subwoofer on/off
Subwoofer filter - Make the setting according to the subwoofer used (settings: 80/120/160 Hz).
Dynamic sound – Switch dynamic bass on/off
Time
The following settings are possible:
Date - Set the date
Clock mode – Selection between 12 and 24-h mode
Time - Set the time
Auto clock - Switch automatic clock setting on or off with the time data transmitted via RDS.
Language
The following settings are possible:
OSD – Language for the user interface of the device.
Bluetooth
The following settings are possible:
Bluetooth - Bluetooth® can be switched on or off
Auto connect – If "Auto Connect" is activated, the device automatically connects with known Bluetooth® devices as soon as they are in range.
Auto answer – Phone calls from connected telephones are automatically answered if this option is enabled.
Pairing code – Many Bluetooth ^® devices request the pairing code before establishing the connection. You can define it here.
Microphone – Select the microphone to be used for the hands-free system via Bluetooth®.
Volume
You can adjust the volume ratio for all audio sources in the volume menu.
Warranty
The warranty terms can be called up from www.blaupunkt.com.
Service
If you ever need to use a repair service, you will find information about service partners in your country under www.blaupunkt.com.
FM1-FM2 FM3 AM1 AM2-FM1 →
Navigation | Lecture des sources USB/microSDHC
Remarque :
Entrée Vidéo
Nota:
Ingresso video
Regolare fader e balance con[▼/][▲]/[◀][▶]
Premere infine [⊃].
FM1-FM2 FM3 AM1 AM2-FM1 →
Zenders instellen
Zenders handmatig instellen
Bestemming invoeren
Druk op Route Settings (Route-Instellingen).
[ √ ] Extra bedieningsopties onderdrukken.
Opmerking:
Video-ingang
Stel fader en balans met [▼] resp. / [◀] [▶] in.
Ange destination....102
Adress 102
Intressant platser - Points of Interest 103
Volymbalans (Fader/Balance) 110
Equalizer 111
Aktivera/avaktivera RDS
Ange destination
- Skriv in destinationen med tangentbordet.
[ ] listamapp-/fi
[ √ ] Dölj extraalternativen.
Observera:
[ ] Anslut en ny Bluetooth®-apparat.
[ ] Visa telefonmenyn.
Bluetooth – Här aktiverar/avaktiverar du Bluetooth®.
Videoingång
Volymbalans (Fader/Balance)
FM1-FM2 FM3 AM1 AM2-FM1 →
Sintonizar emisoras
Nota:
Entrada de vídeo
Ajuste el fader y el balance con [▼] o [▲]
[◀] [▶]
A continuación, pulse [→].
Chamar o menu principal
No menu principal: chamar o menu da fonte activa
⑯ Tecla ▲ / EJECT
Não usado
17 Tecla RADIO
Nota:
[ ] Visualizar o menu do telefone.
Entrada de Vídeo
Ajuste o Fader e Balance com [▼]ou [▲]
[◀] [▶]
De seguida, prima [⊃].
Navigationsmenuen vises.
Tryk på Settings (Indstillinger).
Indstillingsmenuen til navigationen vises.
[ ] Ilfisteist mappe-/fi
Bemærk:
[ ] Vis telefonmenuen.
[ ♪ ] Vis afspilningsmenuen.
Optionsmenuen vises.
Bluetooth – Her kan du aktivere og deaktivere Bluetooth®.
Videoindgang
Equalizer-menuen vises.
SUOMI
Videotulo
Εισαγωγή προορισμού
Υπόδειξη:
Είσοδος βίντεο
Wskazówka:
[ ] Wyświetlanie menu telefonu.
Wejście wideo
FM1-FM2 FM3 AM1 AM2-FM1 →
Adó beállítása
Úti cél megadása
Megjegyzés:
Videobemenet
Примечание:
Видеовход
Micro-carduri SDHC 269
Conectare/deconectarea RDS
Indicatie:
Bluetooth – Aici puteți conecta, respectiv deconecta Bluetooth®.
Intrare video
Equalizer (Egalizator)
Въвеждане на цел
Указание:
Видео вход
Not:
Bluetooth - Bluetooth® açma/kapama
Video girişi
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
Windows ^® und Windows Media ^® are registered trademarks of the Microsoft Corporation in the U.S.A. and/or other countries.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
DOLBY. DIGITAL
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
Evo-Sales GmbH
Hastenbecker Weg 33
