USER MANUAL WQ33G291CH SIEMENS

Close-up of a red plastic component being inserted into a white container, with a black arrow pointing to the component (no text or symbols visible)

5.1.2 Поставяне на контейнера за кондензат

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

3D rendering of a silver washing machine with circular vented design and black base mount (no text or symbols visible)

1. Освободете двете резета (1) и куките на предния капак (2) посредством отвертка.

Diagram illustrating vehicle air intake and exhaust process with labeled parts and directional arrows

Ремонт

Diagram of a red and white object with a circular pattern on its side, showing directional arrows (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Ремонт

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating motion direction.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a speaker (no text or symbols present)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols)

Ремонт

Illustration of hands holding a device with a magnified view showing internal components (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Diagram of a mechanical component with two tool holders, showing internal structure and directional arrows (no text or symbols)

Ремонт

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Ремонт

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Отстранете 13-те винта.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D rendering of a red circular mechanical component with two black arrows indicating upward motion (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Страница 20 от 745

Ремонт

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Ремонт

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a handle (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols present)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Страница 24 от 745

Ремонт

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Ремонт

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Ремонт

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Ремонт

Cross-sectional diagram of a car wheel or turbine blade assembly (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Ремонт

3D rendering of a mechanical component with a red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Страница 31 от 745

Illustration of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

5.1.2 Postavljanje spremnika kondenzata

▶ Postavite obratnim redoslijedom.

Popravak

5.2 Uklanjanje ručke spremnika kondenzata

Zahtjev:

√ Uredaj je odspojen od napajanja.
√ Spremnik kondenzata je uklonjen.→39
→ "Vađenje spremnika kondenzata",39

5.2.1 Uklanjanje ručke spremnika kondenzata

Kako biste uklonili ručku kondenzata, učinite sljedeće:
1. Otpustite zahvatne elemente (1)
2. Gurnite ručku prema gore (2)

3D mechanical assembly diagram showing a component with highlighted parts and directional arrows, no text or symbols present

5.2.2 Postavljanje spremnika kondenzata

▶ Postavite obratnim redoslijedom.

Popravak

5.3 Zamjena poklopca za održavanje

Specijalni alati:

Ravni odvijač Duljina nastavka maks. 6 cm

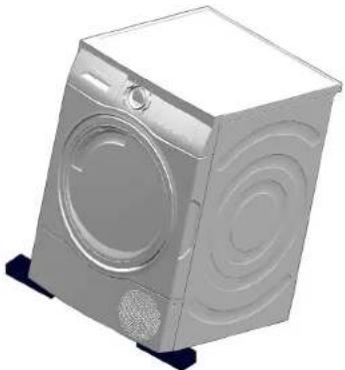

Klin na napuhivanje 28 cm x 13 cm x 5 cm, može podnijeti težinu od 130 kg [15000642]

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

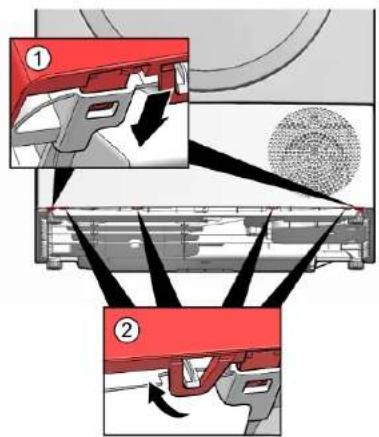

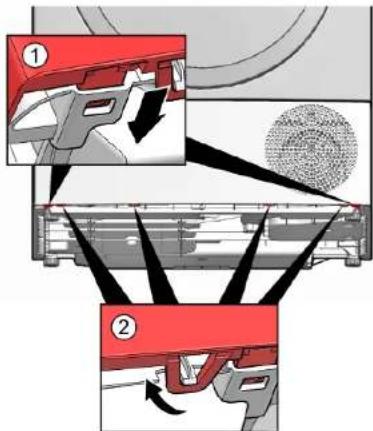

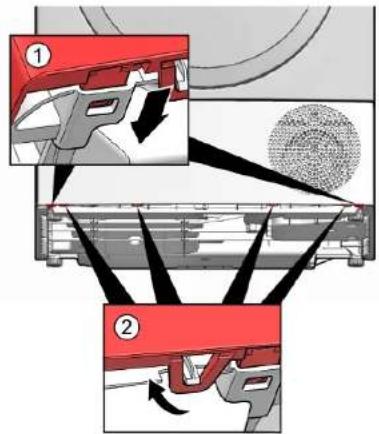

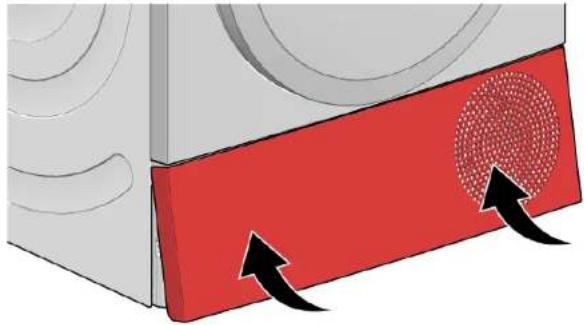

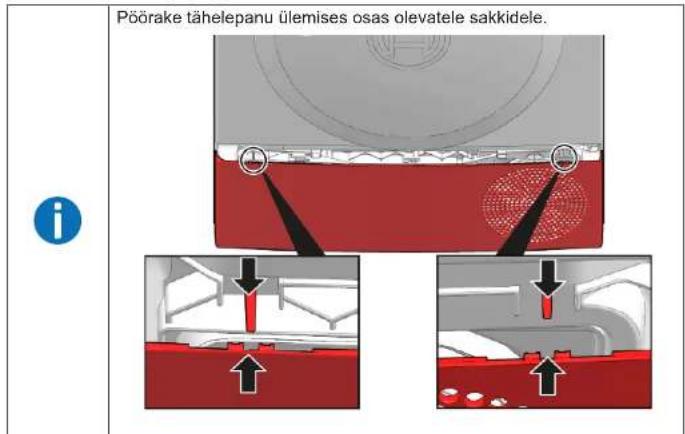

1. Otpustite oba zaporna elementa (1) i ravnim odvijačem otkvačite kuke na prednjem poklopcu (2).

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force

Popravak

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating motion or force (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Popravak

5.4 Uklanjanje i čišćenje filtara

5.4.1 Uklanjanje i čišćenje filtra za otpadna vlakna

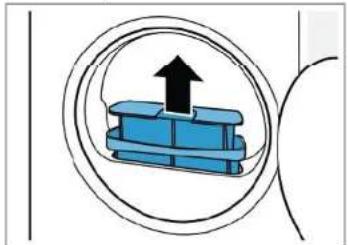

1. Uklonite dvodijelno sito za vlakna.

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

1. Otvorite dvodijelno sito za vlakna (1), uklonite vlakna i dobro očistite dvodijelno sito za vlakna pod tekućom toplom vodom (2).

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating motion direction.

	Ako čišćenje filtara ne otkloni problem i još uvijek ima poteškoća s čišćenjem filtara, zamijenite sito za vlakna jer je možda trajno začepljeno os-tatcima deterdženta.
	Filtre ne perite u perilici posuda!
	Nikada ne upotrebljavajte uređaj bez filtra za otpadna vlakna.

5.4.2 Čišćenje filtra kondenzata

Uredaji s funkcijom samočišćenja SelfCleaning.

Filtar kondenzata treba očistiti svaki put prilikom pražnjenja spremnika kondenzata. Ako uređaj nije bio korišten dulje vrijeme, očistite filtar kondenzata prije uporabe.

Popravak

1. Izvucite spremnik kondenzata.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

1. Izvucite filtar kondenzata iz spremnika kondenzata.
2. Očistite filtar kondenzata mekom četkom pod toplom tekućom vodom.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Odbravite servisni poklopac.

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Kondenzat se prikuplja u osnovnu posudu prije nego što se transportira u spremnik kondenzata. To je uobičajeni princip rada jer se vlaga iz rublja kondenzira u ovom području.

Izvucite servisni poklopac.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols)

Popravak

1. Izvadite spužvasti filtar iz servisnog poklopca.

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Two hand-drawn diagrams showing liquid droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

	Pozor: Nemojte ošetiti spužvasti filtar. Ako su se nakupile velike nasla-ge, filtarski uložak možete pažljivo očistiti usisavačem. Čistite ga samo čistom vodom; ne upotrebljavajte proizvode za čišćenje.
	Vodite računa o tome da uklonite svu prljavštinu s brtve.

Nikada ne upotrebljavajte uredaj bez filtra za otpadna vlakna.

Popravak

5.5 Zamjena vrata

Specijalni alati:

Odvijač Torx T20 s provrtom 100 mm, za vijke sa sigurnosnim kli- nom [00340764]

Zahtjev:

Vrata su otvorena.

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

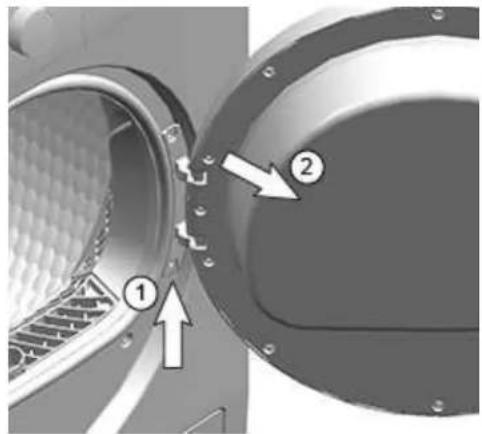

1. 1. Skinite vrata time da ih podignete (1).
2. Povucite ih natrag (2).

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

5.6 Zamjena brave vrata

Specijalni alati:

Odvijač Torx T20 s provrtom 100 mm, za vijke sa sigurnosnim kli- nom [00340764]

Zahtjev:

Vrata su se otvorila.

5.6.1 Uklanjanje brave vrata

1. Uklonite vijke i poklopac brave vrata.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

1. Uklonite bravu vrata iz uređaja.

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

5.6.2 Postavljanje brave vrata

▶ Postavite obratnim redoslijedom.

Popravak

5.7 Rastavljanje vrata (sa staklenim prozorom – varijanta 1)

Specijalni alati:

Odvijač Torx T20 s provrtom 100 mm, za vijke sa sigurnosnim kli-nom [00340764]
Komplet preciznih odvijača 9 kom., 2,0 mm, 2,4 mm, 3,0 mm, [00341820] PHO, PHO0, PH1, TX6, TX8, TX9

Zahtjev:

Vrata su skinuta.→47

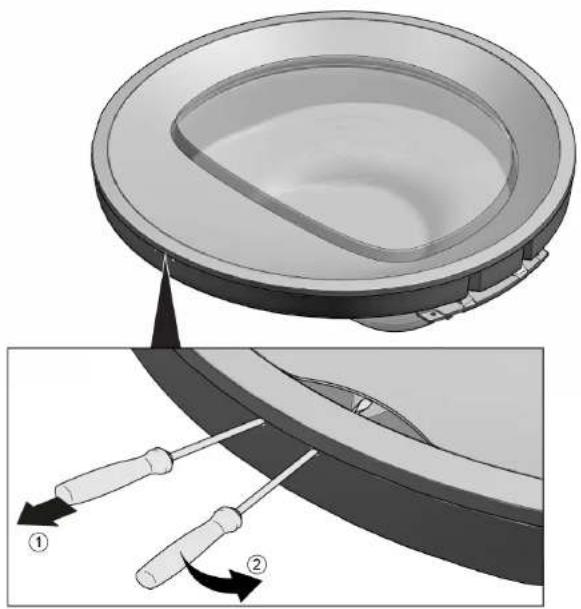

5.7.1 Rastavljanje vrata

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Popravak

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

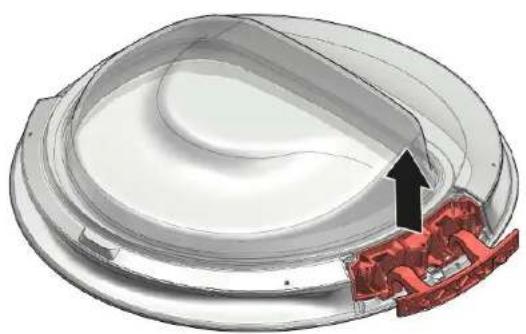

1. Uhvatite odmačnik vrata na dnu ruba i povucite ga kako biste otpustili zapore.

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

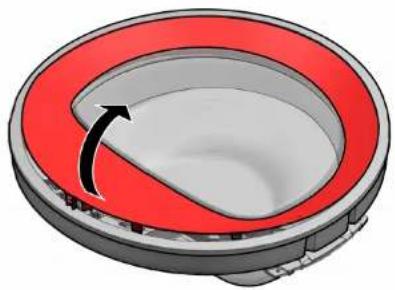

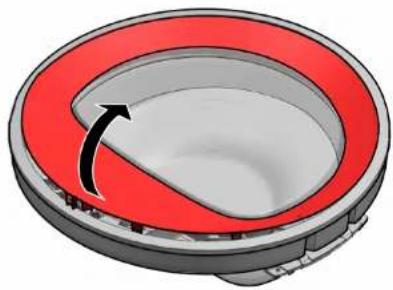

1. Uklonite odmačnik vrata.

3D rendering of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Popravak

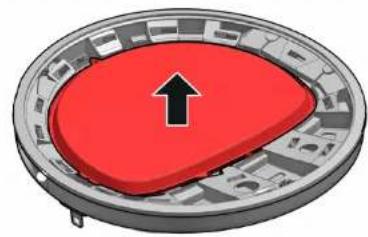

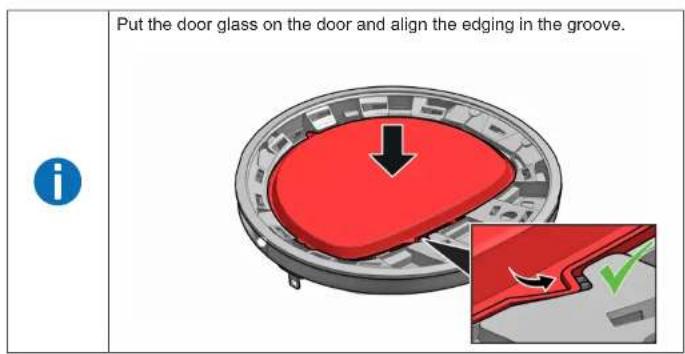

1. Uklonite staklo vrata.

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

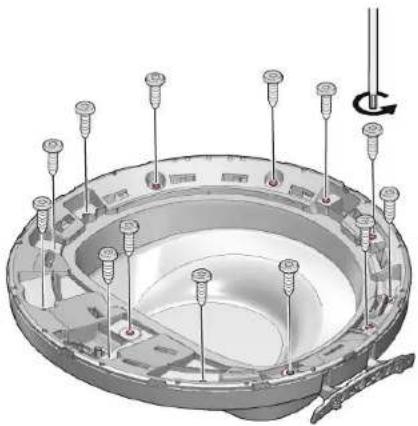

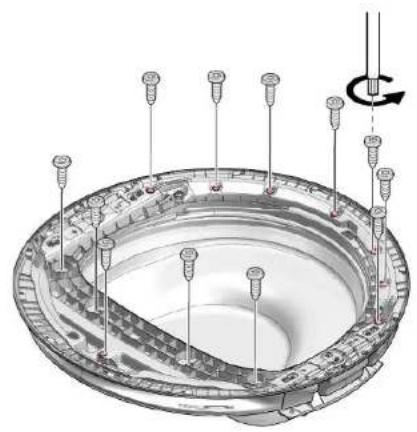

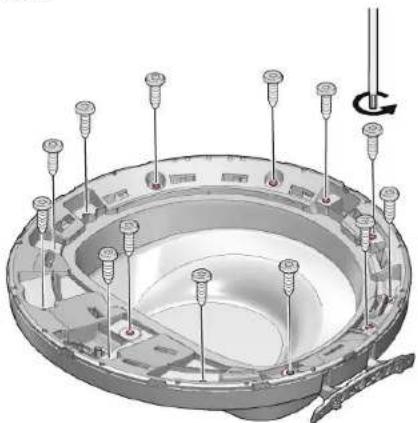

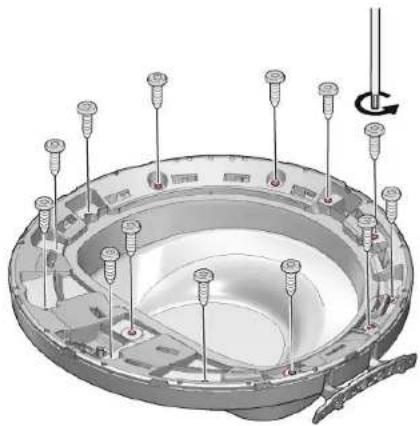

1. Uklonite 13 vijaka.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

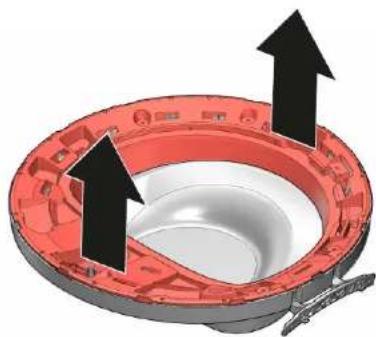

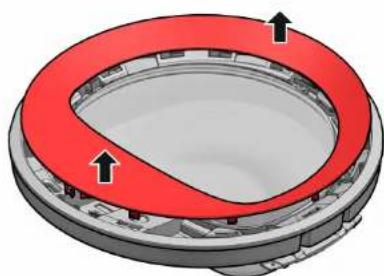

1. Uklonite odmačnik.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

2025-07-09_8001350416 Autorska prava BSH Hausgeräte GmbH Stranica 51 od 745

Popravak

1. 1. Uklonite 2 vijka.

2. Uklonite zglob.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Popravak

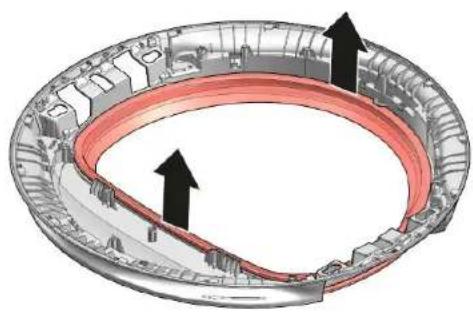

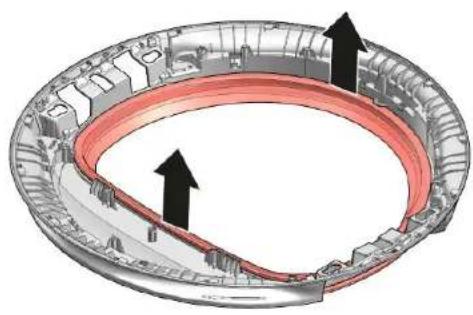

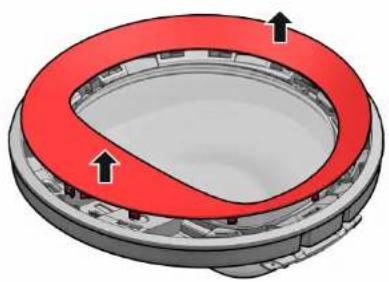

1. Uklonite brtvu vrata.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved section (no text or symbols beyond labels)

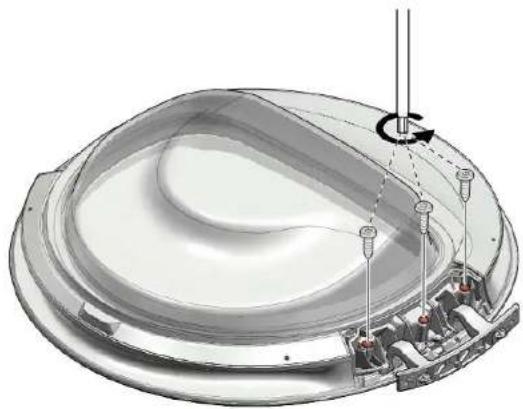

1. Uklonite 2 vijka sa zgloba i 2 vijka s kuke vrata.

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Popravak

1. Uklonite poklopac zgloba i kuke vrata. 5. Uklonite 3 vijka sa zgloba vrata.

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Popravak

1. Uklonite zglob vrata. 7. Uklonite 12 vijaka.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, showing internal structure and rotation arrow (no text or symbols)

Popravak

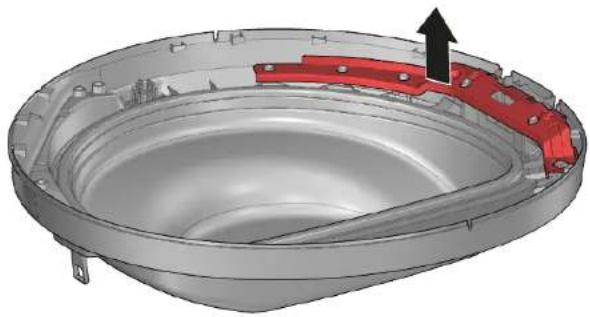

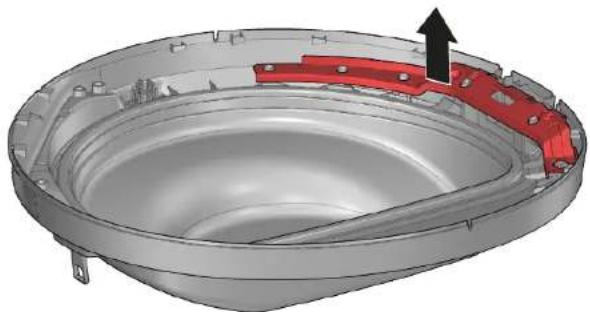

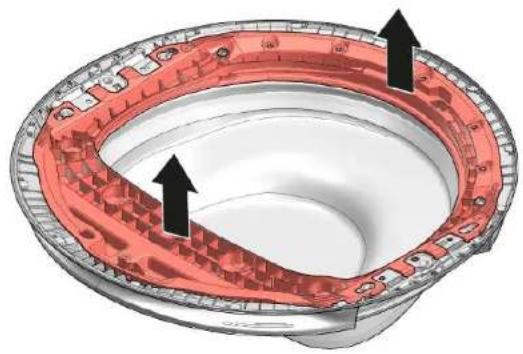

1. Uklonite okvir za ojačanje. 9. Uklonite staklo vrata.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Popravak

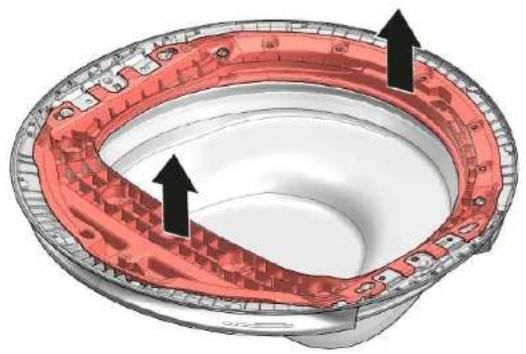

1. Uklonite brtvu vrata.

Cross-sectional diagram of a car wheel rim with highlighted structural components (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

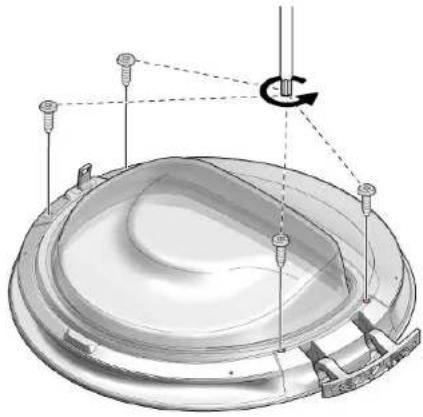

1. Povucite prednji poklopac prema naprijed.

2. Uklonite četiri vijka.

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no text or symbols)

Popravak

1. Uklonite zglob vrata.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

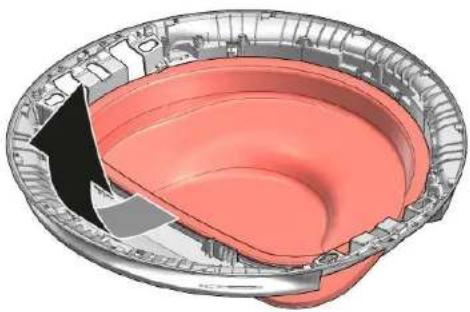

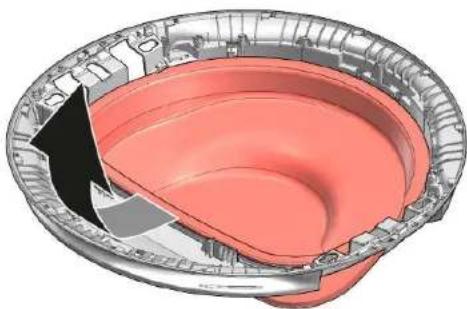

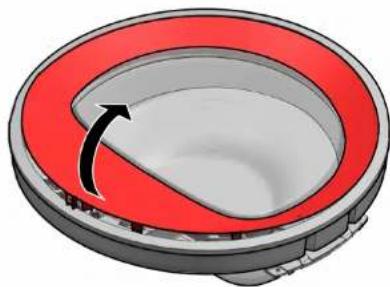

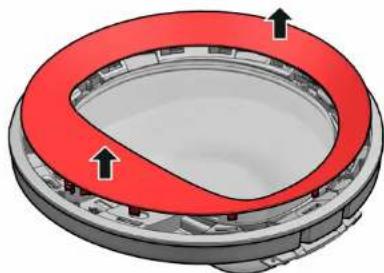

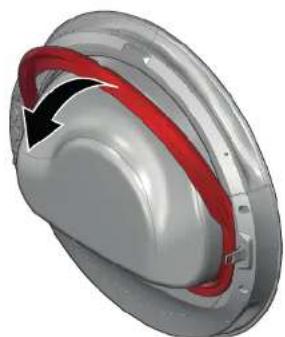

1. Povucite brtvu vrata.

3D rendered mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Autorska prava BSH Hausgeräte GmbH Stranica 62 od 745

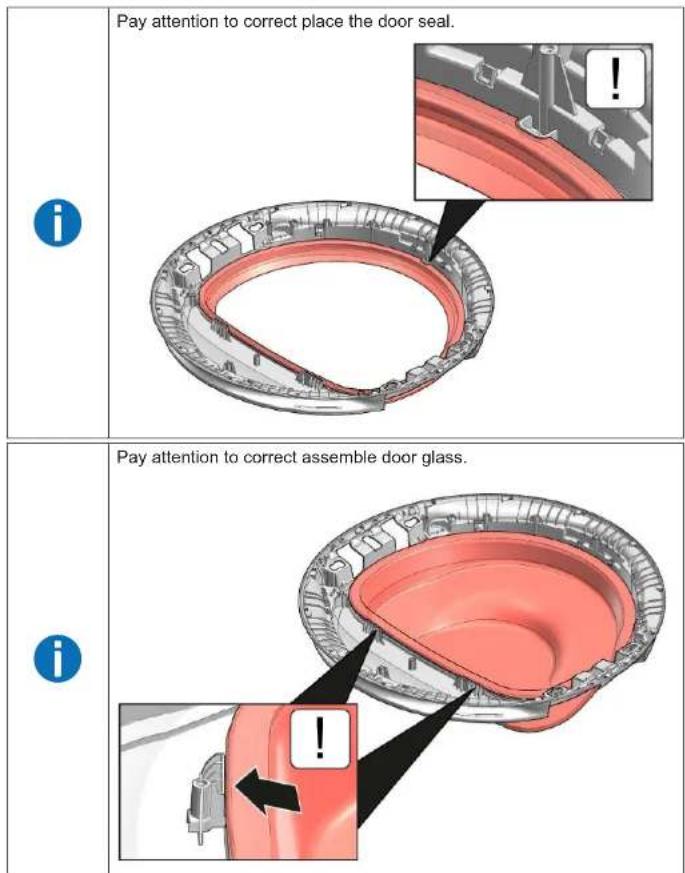

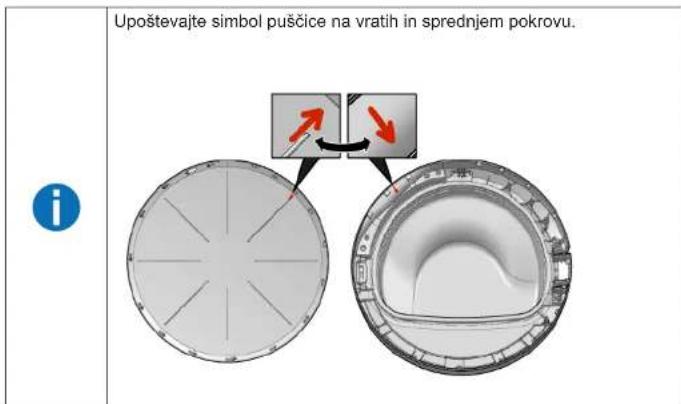

5.9.2 Sastavljanje vrata

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

Red plastic container being inserted into a washing machine (no text or symbols visible)

3D mechanical assembly diagram showing a component with highlighted parts and directional arrows, no text or symbols present

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Oprava

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating motion or force (no text or symbols present)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating flow or movement

Oprava

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Oprava

Illustration of hands installing a mechanical component with blue arrows indicating motion (no text or symbols)

Two hand-drawn diagrams showing liquid droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Montáž dvířek

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Oprava

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Oprava

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Ostraňte 13 šroubů.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH strana 82 od 745

Oprava

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of the component.

Cross-sectional diagram of a red-capped appliance with internal components (no text or symbols)

Oprava

3D diagram of a circular structure with internal red and black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved area (no text or symbols beyond labels)

3D technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Oprava

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Oprava

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Oprava

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Oprava

Cross-sectional diagram of a car wheel or turbine blade assembly (no text or labels visible)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Oprava

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH strana 93 od 745

Close-up of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Reparation

Diagram of a red and black component with circular pattern, showing fluid flow direction (no text or symbols)

Diagram of a red panel with a circular pattern on its side, showing directional arrows (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparation

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two-step folding or folding process of a folded paper or plastic sheet, labeled with step numbers ① and ②.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols)

Reparation

Illustration of hands installing a mechanical component with blue arrows indicating motion (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Diagram showing a mechanical component with two tool holders and a circular housing, no text or symbols present.

Reparation

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Reparation

1. Fjern dørglasset.

Circular diagram with a red heart shape and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Fjern 13 skruer.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Side 113 af 745

Reparation

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparation

1. Fjern dørpakningen.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved section (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Reparation

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparation

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Reparation

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Reparation

1. Fjern dørpakningen.

Cross-sectional diagram of a car wheel or turbine blade assembly (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no text or symbols)

Reparation

1. Fjern dørhængslet.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Side 124 af 745

Close-up of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols visible)

Red plastic container being inserted into a washing machine (no text or symbols visible)

5.1.2 Condenswaterreservoir installeren

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

5.2.2 Condenswaterreservoir installeren

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force

Reparatie

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Illustration of a red and white object with a circular pattern on its side, showing directional arrows (no text or symbols)

1. Zet de rest van de vergrendelingen (1) en haken (2) vast.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparatie

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Apparaten met SelfCleaning.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Apparaten zonder SelfCleaning.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Ontgrendel de serviceafdekking.

Diagram showing a device with an inset close-up of internal components, connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to a device with an inset close-up of its internal components (no text or symbols)

Reparatie

Illustration of hands installing a mechanical component with blue arrows indicating motion (no text or symbols)

Illustration of two hands holding a battery with water droplets, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a machining or assembly process.

5.5.2 Deur monteren

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

5.6.2 Deurslot monteren

Technical illustration of a mechanical component with two tool holders, showing a circular housing and a close-up view of the component (no text or symbols)

Reparatie

Technical illustration of a mechanical component with two labeled parts (① and ②), showing internal structure and tool path (no text or symbols beyond labels)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Reparatie

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Verwijder de ring.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparatie

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central circular feature (no text or symbols beyond labels)

3D technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Reparatie

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparatie

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Reparatie

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Reparatie

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Reparatie

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

1. Trek de deurafdichting eruit.

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

1.2 Explanation of symbols 158

1.2.1 Danger levels.... 158

1.2.2 Hazard symbols 158

1.2.3 Structure of the warnings.... 159

1.2.4 General symbols.... 159

Safety.... 160

2.1 General Safety instructions 160

2.1.1 All domestic appliances 160

Diagrams.... 161

Tools and aids.... 162

Repair 163

5.1 Removing condensate container 163

5.1.1 Removing condensate container.... 163

5.1.2 Installing condensate container.... 163

5.2 Removing condensate container handle 164

5.2.1 Removing condensate container handle.... 164

5.2.2 Installing condensate container.... 164

5.3 Replacing maintenance cover 165

5.3.1 Removing maintenance cover.... 165

5.3.2 Installing maintenance cover 166

5.4 Removing and cleaning filters.... 168

5.4.1 Removing and cleaning lint filter.... 168

5.4.2 Cleaning condensate filter 168

5.4.3 Removing and cleaning the foam filter.... 169

5.7 Disassembling door (with glass window - Variant 1) 173

5.7.1 Disassembling the door.... 173

5.7.2 Assembling the door.... 177

5.8 Disassembling door (with glass window - Variant 2) 179

5.8.1 Disassembling the door.... 179

5.8.2 Assembling the door.... 183

5.9 Disassembling door (without glass window).... 185

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 07/2025).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
Start	Identification of a key or button
[00123456]	Identification of a material number
Status Identification of displayed text / window (in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according EN 50678 (former VDE 0701) or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
- Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Diagrams

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Insulated Screw-driver Torx T15 with bore hole[15000626]	Blade length 125 mm, for screws with safety pin
Flat-tipped screw-driver	blade length max. 6 cm
Precision screw-driver set[00341820]	9 pieces, 2.0 mm, 2.4 mm, 3.0 mm, PH0, PH00, PH1, TX6, TX8, TX9
Screwdriver Torx T20 with bore hole[00340764]	100 mm, for screws with safety pin

Repair

5.1 Removing condensate container

Prerequisite:

√ Appliance disconnected from power supply.

5.1.1 Removing condensate container

▶ Pull out the condensate container, keeping it level.

Close-up of a red plastic component being inserted into a white container, with a black arrow pointing to the component (no text or symbols visible)

5.1.2 Installing condensate container

▶ Install in reverse order.

Repair

5.2 Removing condensate container handle

Prerequisite:

√ Appliance disconnected from power supply.
√ Condensate container removed.→ Page 163
→ "Removing condensate container". Page 163

5.2.1 Removing condensate container handle

In order to remove condensate container handle:
1. Release catch elements (1)
2. Push the handle upwards (2)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

5.2.2 Installing condensate container

▶ Install in reverse order.

Repair

5.3 Replacing maintenance cover

Required tools:

Flat-tipped screwdriver blade length max. 6 cm
Pump wedge 28 cm x 13 cm x 5 cm, can bear a weight of 130 kg

Only for appliances with SelfCleaning.

5.3.1 Removing maintenance cover

1. Use airbag to lift and fix the appliance to get free and safe access to the front bottom latches and hooks.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

1. Release both latches (1) and release hooks on the front lid (2) using flat screw-driver.

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Repair

1. Remove maintenance cover.

Illustration of a red and white object with a circular pattern, showing airflow or movement (no text or symbols)

5.3.2 Installing maintenance cover

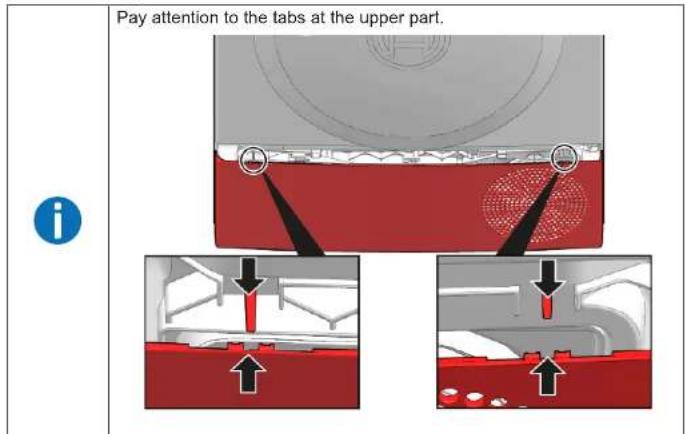

Pay attention to the tabs at the upper part.

Repair

1. Move the maintenance cover up and towards bottom of the appliance. 2. Clip the rest of the latches (1) and hooks (2).

Diagram of a red panel with a circular pattern on its side, showing directional arrows (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Repair

5.4 Removing and cleaning filters

5.4.1 Removing and cleaning lint filter

1. Remove the two-part fluff filter.

Diagram showing a blue mechanical component with an upward arrow inside a circular frame (no text or symbols)

1. Disconnect the two-part fluff filter.

Simple illustration of a blue container with a black upward arrow indicating upward motion (no text or symbols)

1. Open the two fluff filters (1) remove fluff and clean the two fluff filters thoroughly under warm, running water (2).

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

	If cleaning filters does not solve problem and communicate about cleaning filters still appears – replace fluff filter, as it might be permanently blocked with detergent residues.
	Don't clean filters in a dishwasher!
	Never operate the appliance without the lint filter.

5.4.2 Cleaning condensate filter

Appliances with SelfCleaning.

The condensate filter should be cleaned at least while every emptying of the condensate container. If the appliance has not been used for some time, clean the condensate filter before operating.

Repair

1. Pull out the condensate container.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

1. Pull out the condensate filter from the condensate container.
2. Clean the condensate filter under warm running water with a soft brush.

The appliance may be operated without the condensate filter only under special conditions - depending on the appliance type and connection of the external drain. Follow the user manual instructions to avoid damages of the appliance.

5.4.3 Removing and cleaning the foam filter

Appliances without SelfCleaning.

1. Open the maintenance flap.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Unlock the service cover.

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Condensate water is collected in the base pan before it's transported into the condensate container. It's a normal operating principle as the moisture from the laundry condenses in this area.

Pull out the service cover.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Repair

1. Take out the foam filter from service cover.

Illustration of two hands holding a device with arrows indicating motion or force (no text or symbols)

1. Wash the foam filter under running water and squeeze it out.

Two hand-drawn diagrams showing liquid droplets above devices, no text or symbols present

1. Use a soft brush to clean the heat exchanger cover.

Diagram of a mechanical component with a blue tool emitting force, no text or symbols present

	Please note: Take care not to damage the foam filter. If there are heavy deposits, you can clean the filter mat carefully with a vacuum cleaner. Only clean with clear water; do not use cleaning products.
	Make sure that you remove all dirt from the seal.

Never operate the appliance without the lint filter.

Repair

5.5 Replacing door

Required tools:

Screwdriver Torx T20 with bore 100 mm, for screws with safety pin [00340764] hole

Prerequisite:

Door opened.

5.5.1 Removing door

1. Remove screws.

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

1. 1. Remove the door by lifting it up (1).
2. Pull backwards (2).

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

▶ Install in reverse order.

Repair

5.6 Replacing door lock

Required tools:

Screwdriver Torx T20 with bore 100 mm, for screws with safety pin [00340764] hole

Prerequisite:

√ Door has been opened.

5.6.1 Removing door lock

1. Remove the screws and remove the door lock cover.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

1. Remove the door lock out from the appliance.

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

▶ Install in reverse order.

Repair

5.7 Disassembling door (with glass window - Variant 1)

Required tools:

Screwdriver Torx T20 with bore 100 mm, for screws with safety pin [00340764] hole
Precision screwdriver set 9 pieces, 2.0 mm, 2.4 mm, 3.0 mm, [00341820] PH0, PH00, PH1, TX6, TX8, TX9

Prerequisite:

√ Door removed.→ Page 171

1. Put the door on soft surface to avoid scratches.

2. Insert both screwdrivers into the holes at the bottom edge of door.

3. 1. Push the left screwdriver into the hole (1) to release the latch.
4. Push the right screwdriver down (2) to loosen the catch.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Repair

1. 1. While the cover is partly moved up, remove the left screwdriver (1) in order not to block the cover.

2. Rotate the right screwdriver (2) into right side.

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

1. Grab the door spacer at the bottom edge and pull to release catches.

3D illustration of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

1. Remove the door spacer.

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Repair

1. Remove the door glass.

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Remove 13 screws.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Remove spacer.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

1. 1. Remove 2 screws.
2. Remove hinge.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

1. Remove door glass starting from the lower edge.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Repair

1. Remove door seal.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

5.7.2 Assembling the door

▶ Install in reverse order.

	Pay attention to correct assemble door seal.
	When assembling the door glass pay attention to put glass under three holders (1) and fix it (2).

Repair

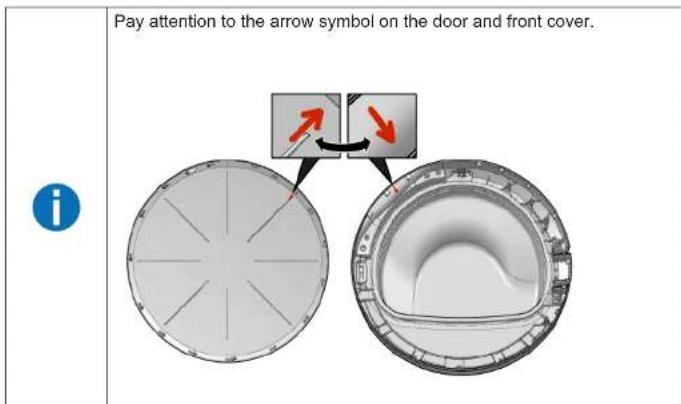

i	Pay attention to correct place the door glass.

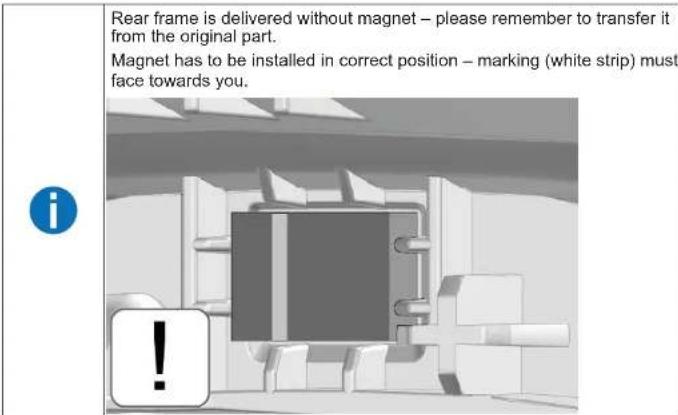

i	Rear frame is delivered without magnet – please remember to transfer it from the original part. Magnet has to be installed in correct position – marking (white strip) must face towards you.

Put the door glass on the door and align the edging in the groove.

Repair

5.8 Disassembling door (with glass window - Variant 2)

Required tools:

Screwdriver Torx T20 with bore 100 mm, for screws with safety pin [00340764] hole
Auxiliary tool Tool for loosening out of plastic parts [15000155]

Prerequisite:

√ Door removed.→ Page 171

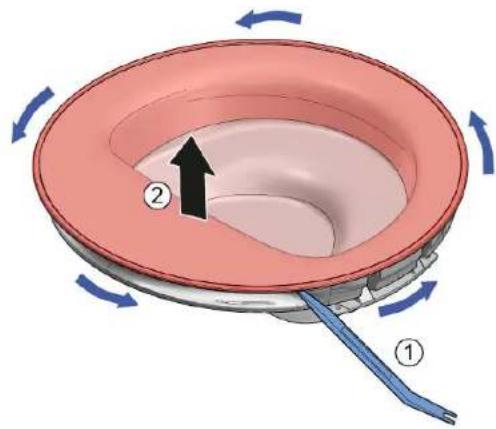

1. Turn the cover clockwise.
2. 1. Insert special tool and loosen latches all around the door.
3. Remove cover.

Diagram of a circular device with internal components and directional arrows indicating rotation (no text or symbols)

1. Remove 2 screws from the hinge and 2 screws from the door hook.

3D technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Repair

1. Remove hinge cover and door hook. 5. Remove 3 screws from door hinge.

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Repair

1. Remove door hinge. 7. Remove 12 screws.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Repair

1. Remove reinforcement frame. 9. Remove the door glass.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Repair

1. Remove door seal.

Cross-sectional diagram of a car wheel or turbine blade assembly (no text or labels visible)

▶ Install in reverse order.

Pay attention to correct place the door seal. Pay attention to correct assemble door glass.

Repair

Rear frame is delivered without magnet – please remember to transfer it from the original part. Magnet has to be installed in correct position – marking (white strip) must face towards you.

Repair

5.9 Disassembling door (without glass window)

Prerequisite:

Door opened.

1. 1. Grab the cover with both hands (1).

2. Turn the cover clockwise (2).

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

1. Pull the front cover forward.

2. Remove four screws.

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Repair

1. Remove the door hinge.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

1. Pull the door seal.

3D rendered mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

1. Install in reverse order.

2.

Pay attention to the positioning pin on the top part of the seal.

Push the door seal into groove.

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

1. Put the design ring on the door and turn it anticlockwise.

Repair

Pay attention to the arrow symbol on the door and front cover.

Remonditeave -

i Selle dokumendiga seoses 189

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

5.1.2 Kondensveemahuti paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

5.2.2 Kondensveemahuti paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle gear assembly with labeled parts and directional arrows indicating motion or movement.

Remont

1. Eemaldage hooldusluuk.

Diagram of a red and black component with circular pattern, showing directional arrows (no text or symbols)

5.3.2 Hooldusluugi paigaldamine

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Remont

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

1. Vötke kaheosaline ebemesöel lahti.

Simple illustration of a blue plastic container with an upward arrow indicating direction (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Vabastage hoolduskate.

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Remont

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Two hand-drawn diagrams showing water droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Ukse paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

5.6.2 Ukseluku paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Remont

Diagram of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a mechanical component with red and gray surfaces, showing a curved arrow indicating rotation (no text or symbols)

3D diagram of a circular mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Remont

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Eemaldage 13 kruvi.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Eemaldage vahetükk.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Remont

3D diagram of a circular mechanical component with internal red and black arrows indicating direction (no text or symbols)

5.7.2 Ukse kokkupanemine

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a blue tool inserted into a housing (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Remont

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Remont

1. Eemaldage uksehing. 7. Eemaldage 12 kruvi.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Remont

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Remont

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

5.8.2 Ukse kokkupanemine

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

1. Tömmake esikatet ettepoole.

2. Eemaldage neli kruvi.

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Remont

1. Eemaldage uksehing.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

3D CAD model of a vehicle component with highlighted parts and directional arrows, showing assembly steps (no text or symbols)

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Korjaus

1. Poista huoltokansi.

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating flow or movement

Korjaus

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols)

Korjaus

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a mechanical component with a blue tool emitting force, no text or symbols present

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

1. Poista luukun lukitsin koneesta.

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Korjaus

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D rendering of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Korjaus

1. Poista luukun lasi.

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Poista 13 ruuvia.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Poista välike.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

1. Poista luukun lasi; aloita poistaminen alareunasta.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Korjaus

1. Poista luukun tiiviste.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

3D diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Korjaus

1. Poista saranan suojus ja luukun koukku. 5. Poista 3 ruuvia luukun saranasta.

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Korjaus

1. Poista luukun sarana. 7. Poista 12 ruuvia.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Korjaus

1. Poista Iujitekehys. 9. Poista Iuukun Iasi.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Korjaus

1. Poista luukun tiiviste.

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Korjaus

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Outillage suggérèse:

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force

Réparation

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Réparation

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Appareils sans SelfCleaning.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, connected to a speaker (no text or symbols present)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols present)

Réparation

Illustration of hands holding a plastic enclosure and a battery with a circular arrow indicating motion (no text or symbols)

Illustration of two hands holding a smartphone with water droplets, no text or symbols present

Diagram of a mechanical component with a blue tool emitting force, no text or symbols present

Outillage suggérèse:

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Outillage suggérèse:

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Outillage suggérèse:

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Réparation

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D rendering of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Réparation

1. Retirer la vitre de porte.

Circular diagram with a red heart shape and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Retirer 13 vis.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Réparation

1. Retirer le joint de porte.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Outillage suggérèse:

Diagram of a circular device with internal components and directional arrows indicating rotation (no text or symbols)

3D diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Réparation

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Réparation

1. Retirer la charnière de la porte. 7. Retirer 12 vis.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or symbols)

Réparation

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Réparation

1. Retirer le joint de porte.

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D mechanical component diagram showing internal structure with highlighted sections and a close-up inset of a star-shaped component (no text or symbols)

Réparation

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

1. Retirer le joint de porte.

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

3D mechanical assembly diagram showing a component with highlighted parts and directional arrows (no text or symbols)

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Instandsetzen

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern and black arrows indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, likely illustrating a process or assembly step.

Instandsetzen

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Instandsetzen

Illustration of hands holding a device with a magnified view showing internal components (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with hexagonal lattice structure and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Tür einbauen

Topographic map with contour lines and a red scale bar indicating elevation or depth, featuring a black arrow pointing to a specific location.

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Diagram showing a circular component being inserted into a curved surface, with two screwdriver handles and directional arrows indicating movement (no text or symbols present)

Instandsetzen

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Instandsetzen

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D rendering of a red circular mechanical component with two black arrows pointing upward (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Instandsetzen

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a handle (no text or symbols beyond labels)

3D technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Instandsetzen

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Instandsetzen

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Instandsetzen

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Instandsetzen

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

Red plastic container being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

3D rendering of a silver washing machine with circular vented design (no text or symbols visible)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force

Επισκευή

Diagram of a red panel with a circular pattern on its side, showing airflow or heat transfer (no text or symbols)

Diagram of a red panel with a circular pattern on its side, showing directional arrows (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, likely illustrating a process or assembly.

Επισκευή

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine next to a device with an inset close-up of its internal components (no text or symbols)

Επισκευή

Illustration of two hands holding a device with a blue arrow indicating motion (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a mechanical component with a blue tool emitting force, no text or symbols present

Close-up of a metallic mechanical component with a grid-patterned surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Diagram showing a circular component with internal structure and two tool holders, no text or symbols present

Επισκευή

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Επισκευή

Circular device with a red highlighted component and an upward arrow, no text or symbols present.

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Σελίδα 330 από 745

Επισκευή

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Επισκευή

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a handle (no text or symbols beyond labels)

3D technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Σελίδα 334 από 745

Επισκευή

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Επισκευή

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Επισκευή

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Επισκευή

Cross-sectional diagram of a car wheel rim with highlighted structural layers and directional arrows (no text or symbols)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Επισκευή

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright by BSH Hausgeräte GmbH Σελίδα 341 απτό 745

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

3D CAD model of a vehicle component with highlighted parts and directional arrows, showing assembly steps (no text or symbols)

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force

Javítás

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red panel with a circular pattern on its side, with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Javítás

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ②, with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Javítás

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Two hand-drawn diagrams showing water droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Diagram showing a mechanical component with two tool holders and a circular housing, no text or symbols present.

Javítás

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a circular mechanical component with red outer ring and black arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Javítás

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Javítás

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Javítás

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Javítás

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Javítás

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Javítás

Cross-sectional diagram of a car wheel rim with highlighted structural layers and directional arrows (no text or symbols)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D mechanical component diagram showing internal structure with highlighted sections and a close-up inset of a star-shaped component (no text or symbols)

Javítás

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt mechanism with a red belt and hand pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

3D mechanical assembly diagram showing a component with highlighted parts and directional arrows, no text or symbols present

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating engine component assembly with labeled parts and directional arrows indicating motion or flow.

Riparazione

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Riparazione

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with a magnified inset view of internal components (no text or symbols)

3.

Diagram showing a washing machine with a magnified inset of its internal components (no text or symbols)

Riparazione

Illustration of hands holding a mechanical component with blue arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a battery with water droplets, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Riparazione

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a circular mechanical component with red ring and black arrows indicating direction (no text or symbols)

Riparazione

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Riparazione

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Riparazione

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Riparazione

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical diagram of a mechanical component with multiple screw holes and a circular base, showing internal structure and rotation arrow (no text or symbols)

Riparazione

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Riparazione

Cross-sectional diagram of a car wheel rim with highlighted structural layers and directional arrows (no text or symbols)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Riparazione

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Remonts

Diagram of a red and white object with a circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern and two black arrows pointing to it, against a gray background (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Remonts

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

1. Atvienojiet divda|igo pūku sietu.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols present)

Remonts

1. Nonemiet porolona filtru no apkopes pârsega.

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

1. Mazgājiet porolona filtru tekošā üdenī un tad izspiediet to.

Two hand-drawn diagrams showing liquid droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

1. 1. Iznemiet durvis, pacejot uz augšu durvis (1).
2. Pavelciet uz aizmuguri (2).

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Remonts

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D rendering of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Remonts

1. Nonemiet durvju stiklu.

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Iznemiet 13 skrūves.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Iznemiet starpliku.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Remonts

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols present)

Remonts

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Remonts

1. Nonemiet durvju engi. 7. Iznemiet 12 skrūves.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical diagram of a mechanical assembly with multiple screw holes and a rotating component (no text or labels)

Remonts

1. Nonemiet stiprinošo rāmi. 9. Nonemiet durvju stiklu.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Remonts

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Remonts

1. Nonemiet durvju enği.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendered mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

Red plastic container being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Remontas

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

Remontas

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two-step folding or folding process of a folded paper or plastic sheet, labeled with step numbers ① and ②.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Remontas

Illustration of hands holding a device with a magnified view showing internal components (no text or symbols)

Two illustrations showing hands holding a smartphone with water droplets, one being held and the other holding a smartphone with liquid droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Remontas

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a circular mechanical component with red outer ring and internal cavity, showing a curved arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Remontas

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Išsukite 13 varžtu.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Nuimkite tarpiklj.

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

Remontas

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Remontas

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved section (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Remontas

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Remontas

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Remontas

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Remontas

Cross-sectional diagram of a car wheel rim with highlighted structural layers and directional arrows (no text or symbols)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Remontas

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a white container, with a black arrow indicating the process (no text or symbols present)

3D CAD model of a vehicle component with highlighted parts, shown in two views (① and ②), no text or symbols present.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating engine component assembly with labeled parts and directional arrows indicating motion or flow.

Reparasjon

1. Ta vedlikeholdsdekselet av.

Diagram of a red and white object with a circular pattern, showing directional arrows (no text or symbols)

Diagram of a red panel with a circular pattern on its side, showing directional arrows (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparasjon

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

1. Trekk kondensfilteret ut av kondensvannbeholderen.
2. Rengjør kondensfilteret med en myk børste under varmt, rennende vann.

Apparater uten SelfCleaning.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Lás opp vedlikeholdsdekselet.

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Reparasjon

Illustration of two hands holding a device with arrows indicating motion or force (no text or symbols)

Two hand-drawn diagrams showing liquid droplets above devices, no text or symbols present

Diagram of a mechanical component with a blue tool emitting force, no text or symbols present

Close-up of a metallic mechanical component with hexagonal top and side grooves, showing internal structure and mounting points (no text or symbols visible)

1. 1. Demonter døren ved å løfte den opp (1).
2. Trekk den bakover (2).

Technical diagram of a mechanical component with numbered parts and directional arrows indicating features

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Reparasjon

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D rendering of a circular mechanical component with red outer ring and black arrows indicating features (no text or symbols)

Reparasjon

Circular diagram with a red heart shape and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Fjern 13 skruer.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH Side 485 av 745

Reparasjon

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

1. Demonter glasset i døren; begynn i nedre kant.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparasjon

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a handle (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Reparasjon

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparasjon

1. Demonter dørhengselet. 7. Fjern 12 skruer.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical diagram of a mechanical component with multiple screw holes and a circular base, showing internal structure and rotation arrow (no text or symbols)

Reparasjon

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Reparasjon

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

1. Trekk frontdekselet framover.

2. Fjern fire skruer.

3D mechanical component diagram showing internal structure with highlighted features and a close-up inset of a star-shaped component (no text or symbols)

Reparasjon

1. Demonter dørhengselet.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH Side 496 av 745

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

Red plastic container being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Illustration of a silver washing machine with circular vented design and black base mount (no text or symbols)

Diagram illustrating vehicle suspension system with labeled components and directional arrows indicating movement or collision.

Naprawy

Illustration of a red and white object with a circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, likely illustrating a process or assembly.

Naprawy

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols present)

Naprawy

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Two hand-drawn diagrams showing liquid droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with hexagonal lattice structure and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Naprawy

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Naprawy

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Wykręcić 13 śrub.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Wyjąć podkładkę.

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Naprawy

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Naprawy

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Naprawy

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or symbols)

Naprawy

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Naprawy

Cross-sectional diagram of a car wheel or turbine blade assembly (no text or labels visible)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Naprawy

1. Zdjąć zawias.

3D rendering of a mechanical component with red clamping bracket and black arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Illustration of a car seatbelt with a red belt and black arrow pointing to a specific component (no text or symbols present)

Red plastic container being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Illustration of a silver washing machine with circular vented design (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or force.

Reparação

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Diagram of a red panel with a circular pattern on its side, showing airflow or movement (no text or symbols)

1. Prenda o resto dos fechos (1) e ganchos (2).

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparação

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Aparelhos com SelfCleaning.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine next to a device with an inset close-up of its internal components (no text or symbols)

Reparação

Illustration of hands holding a device with a magnified view showing internal components (no text or symbols)

Two illustrations showing hands holding a smartphone with water droplets, one being held and the other holding a smartphone with liquid droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Instalar a porta

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Reparação

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a mechanical component with red ring and internal cavity, showing a curved arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Reparação

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Remova 13 parafusos.

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Remova o espaçador.

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparação

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

5.7.2 Montar a porta

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

3D diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparação

1. Remova a dobradiça da porta. 7. Remova 12 parafusos.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Reparação

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Reparação

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

5.8.2 Montar a porta

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing a close-up inset of a star-shaped feature (no text or symbols)

Reparação

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to the handle (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Repararea

Diagram of a red and white object with a circular pattern on its side, showing directional arrows (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

Repararea

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Aparate cu SelfCleaning.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Deblocati capacul de service.

Diagram showing a device with an inset close-up of internal components, connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to a device with an inset close-up of its internal components (no text or symbols)

Repararea

Illustration of hands holding a mechanical component with blue arrows indicating motion or force (no text or symbols)

Illustration of two hands holding a battery with water droplets, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Montarea uşii

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool holders, showing a circular housing and a close-up view of the component (no text or symbols)

Repararea

Technical illustration of a mechanical component with two directional arrows indicating motion (no text or symbols)

3D diagram of a circular mechanical component with red outer ring and internal cavity, showing a curved arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Repararea

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Detaşati distantierul.

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Repararea

1. Detaşati garnitura uşii.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

5.7.2 Asamblarea uşii

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved area (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols present)

Repararea

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Repararea

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or symbols)

Repararea

1. Detaşati rama de sprijin. 9. Detaşati geamul uşii.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Repararea

1. Detaşati garnitura uşii.

Cross-sectional diagram of a car tire track showing tire structure and tire arrangement (no text or labels)

5.8.2 Asamblarea uşii

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no text or symbols present)

Repararea

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to the handle (no text or symbols visible)

Red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle gear assembly with labeled parts and directional arrows indicating motion or movement.

Oprava

Diagram of a red and white object with a circular pattern on its side, showing directional arrows (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern on its side, connected by arrows indicating direction (no text or symbols present)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating flow or movement

Oprava

5.4 Vybratie a čistenie filtrov

5.4.1 Vybratie a čistenie filtra vlákien

1. Odoberte dvojdielne sitko na vlákna.

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

1. Odpojte dvojdielne sitko na vlákna.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols present)

Oprava

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Two hand-drawn diagrams showing water droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Montáž dverí

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

1. Odoberte poistku dvierok zo spotrebiča.

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Oprava

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

1. Odoberte vymedzovací diel dvierok.

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Oprava

Circular device with a red highlighted component and an upward arrow, no text or symbols present.

Exploded view diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Oprava

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

5.7.2 Montáž dvierok

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved area (no text or symbols beyond labels)

1. Odstráňte 2 skrutky zo závesu a 2 .skrutky z háku dvierok.

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Oprava

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Oprava

1. Odoberte záves dverl. 7. Odstránte 12 skrutiek.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, showing internal structure and assembly (no text or symbols)

Oprava

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating direction (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Oprava

Cross-sectional diagram of a car tire track showing tire structure and tire arrangement (no text or labels)

5.8.2 Montáž dvierok

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Oprava

1. Odoberte záves dverí.

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

5.9.2 Montáž dvierok

Close-up of a car wheel with red grip and a hand pressing a button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Popravilo

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Popravilo

5.4 Odstranjevanje in čiščenje filtrov

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

1. Odklopite dvodelni filter za kosme.

Simple illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

1. Odprite oba filtra za kosme (1), odstranite kosme in oba filtra za kosme temeljito očistite pod toplo, tekočo vodo (2).

Illustration showing two-step folding or folding process of a folded paper or plastic sheet, labeled with step numbers ① and ②.

Aparati s SelfCleaning.

Technical line drawing of a washing machine drawer with internal compartments and handle (no text or symbols)

Aparati brez SelfCleaning.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Odklenite servisni pokrov.

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Kondenzat se zbira v prestrezni posodi in se nato prenese v posodo za kondenzat. To je običajen način delovanja, saj se v tem območju nabere vlaga, ki nastane pri pranju.

Izvlecite servisni pokrov.

Diagram showing a washing machine with a close-up view of its internal components (no text or symbols present)

Popravilo

1. Vzemite filter za peno iz servisnega pokrova.

Illustration of hands holding a mechanical component with blue arrows indicating motion or force (no text or symbols)

1. Operite filter za peno pod tekočo vodo in ga ožemite.

Illustration of two hands holding a battery with water droplets, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a metallic mechanical component with hexagonal top and side grooves, showing internal structure and mounting points (no text or symbols visible)

1. 1. Odstranite vrata, tako da jih dvignete (1).
2. Povlecite nazaj (2).

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating movement or assembly.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

1. Odstranite varovalo vrat iz aparata.

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Popravilo

1. 1. Ko je pokrov delno pomaknjen navzgor, odstranite levi izvijač (1), da ne bloki-rate pokrova.

2. Zavrtite desni izvijač (2) v desno.

Technical illustration of a mechanical component with two labeled parts (① and ②), showing internal structure and tool path (no text or symbols beyond labels)

1. Primate distančnik vrat na spodnjem robu in povlecite, da sprostite držalne elemente.

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

1. Odstranite distančnik vrat.

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Popravilo

1. Odstranite steklo vrat.

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Odstranite 13 vijakov.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Popravilo

1. Odstranite tesnilo vrat.

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved area (no text or symbols beyond labels)

1. Odstranite 2 vijaka iz tečaja in 2 vijaka iz zatiča vrat.

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols present)

Popravilo

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Popravilo

1. Odstranite tečaj vrat. 7. Odstranite 12 vijakov.

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, showing internal structure and rotation arrow (no text or symbols)

Popravilo

1. Odstranite ojačitveni okvir. 9. Odstranite steklo vrat.

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a car dashboard showing internal components and airflow direction (no text or labels)

Popravilo

1. Odstranite tesnilo vrat.

Cross-sectional diagram of a car wheel rim with highlighted structural layers and directional arrows (no text or symbols)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

1. Povlecite sprednji pokrov naprej.

2. Odstranite štiri vijake.

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Popravilo

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

1. Povlecite tesnilo vrat.

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

1. Namestite obroč oblikovanja na vrata in ga obrnite v nasprotni smeri urnega kazalca.

Popravilo

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

3D mechanical assembly diagram showing a component with highlighted parts and directional arrows, no text or symbols present

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Reparación

Diagram of a red and black component with circular pattern, showing airflow or movement (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern on its side, connected by arrows indicating motion or force (no text or symbols present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparación

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Blue plastic container with black upward arrow indicating upward motion (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ② with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine next to a device with an inset close-up of its internal components (no text or symbols)

Reparación

Illustration of hands holding a device with a magnified view showing internal components (no text or symbols)

Two illustrations showing hands holding a smartphone with water droplets, one being held and the other holding a smartphone with liquid droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Montar la puerta

▶ Montar en orden inverso.

Reparación

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Reparación

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Reparación

Circular diagram with a red heart shape and an upward arrow, surrounded by mechanical components (no text or symbols)

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D rendering of a red circular mechanical component with two black arrows pointing upward (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparación

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a handle (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols present)

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparación

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, showing internal structure and rotation arrow (no text or symbols)

Reparación

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Reparación

Cross-sectional diagram of a car tire track showing tire structure and tire arrangement (no text or labels)

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no readable text or symbols)

Reparación

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

Reparationsinformation -

i Om detta dokument.... 685

1.1 Viktig information....685

1.1.1 Syfte 685

3D rendering of a red plastic component being inserted into a washing machine (no text or symbols visible)

5.1.2 Installera kondensattank

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

5.2.2 Installera kondensattank

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating airflow or movement.

Reparation

Diagram of a red and white object with a circular pattern, showing directional arrows (no text or symbols)

Diagram showing a red rectangular object with a dotted circular pattern and two black arrows pointing to it, against a white background (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Reparation

Diagram showing a blue mechanical component with an upward arrow inside a circular frame (no text or symbols)

Simple illustration of a blue container with a black upward arrow indicating upward motion (no text or symbols)

Illustration showing two steps of folding a blue object, labeled ① and ②, with arrows indicating movement direction.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Apparater utan SelfCleaning.

1. Öppna serviceluckan.

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with internal components connected to a washing machine (no text or symbols present)

3.

Diagram showing a washing machine next to a circular component, with an arrow pointing to it (no text or symbols present)

Reparation

1. Ta ut skumfiltret ur serviceskyddet.

Illustration of hands installing a mechanical component with blue arrows indicating motion (no text or symbols)

Two hand-drawn diagrams showing liquid droplets above a device, no text or symbols present

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with mesh texture and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

5.5.2 Montera lucka

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing a curved channel with contour lines and a red highlighted component, no text or symbols present.

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Reparation

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a circular mechanical component with red ring and black arrows indicating direction (no text or symbols)

Reparation

1. Ta bort glasrutan.

Circular diagram with a red heart shape and an upward arrow, surrounded by mechanical components (no text or symbols)

1. Ta bort 13 skruvar.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

3D diagram of a mechanical component with red and white parts, showing directional arrows (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH Sida 702 av 745

Reparation

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Reparation

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

5.7.2 Montera lucka

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a black arrow indicating direction (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Reparation

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Reparation

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with multiple screw holes and a circular base, no text or symbols present.

Reparation

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Reparation

Cross-sectional diagram of a car tire track showing inner and outer rings with directional arrows (no text or labels)

5.8.2 Montera lucka

Illustration of hands holding a red circular object with arrows indicating rotation or movement (no text or symbols)

3D technical illustration of a mechanical component with internal channels and mounting features, showing cross-sections and part numbers (no text or symbols)

Reparation

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

2025-07-09_8001350416 Copyright BSH Hausgeräte GmbH Sida 713 av 745

5.9.2 Montera lucka

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)

3D rendering of a red plastic component being inserted into a white container, with a black arrow indicating the process (no text or symbols present)

Technical diagram showing a 3D mechanical component with labeled parts and directional arrows, including zoomed-in views of the component.

Exterior view of a silver washing machine with circular vented design (no text or symbols visible)

[15000642]

Diagram illustrating vehicle component assembly with labeled parts and directional arrows indicating motion or movement.

Onarim

Diagram of a red and black component with circular pattern, showing fluid flow or movement (no text or symbols)

Diagram showing a red rectangular object with a circular pattern on its side, connected by arrows indicating motion or force (no text or symbols present)

Diagram illustrating vehicle exhaust system with labeled components and directional arrows indicating flow or movement

Onarim

Diagram showing a blue mechanical component inside a circular frame with an upward arrow, no text or symbols present.

Illustration of a blue plastic container with an upward arrow indicating flow or movement (no text or symbols)

Illustration showing two steps of folding a folded paper or plastic sheet, labeled ① and ②, with arrows indicating movement.

Technical line drawing of a washing machine drawer with internal compartments and ventilation slots (no text or labels)

Pure diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an inset close-up of internal components, no text or symbols present

3.

Diagram showing a washing machine next to an open door, with a magnified inset highlighting the interior (no text or symbols present)

Onarim

Illustration of hands holding a device with a blue arrow indicating motion (no text or symbols)

Illustration of two hands holding a smartphone with water droplets (no text or symbols)

Diagram of a blue tool interacting with a mechanical bracket (no text or symbols)

Close-up of a mechanical component with meshed surface and mounting holes (no visible text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Topographic contour lines with a red curved channel and black arrow indicating direction (no text or symbols)

Diagram showing contour lines and a red arrow pointing to a device component (no text or symbols present)

2,0 mm, 2,4 mm, 3,0 mm.

[00341820]

PH0, PH00, PH1, TX6, TX8, TX9

Ön kopul:

Kapı söküldü.→729

Technical illustration of a mechanical component with two tool tips, showing a circular housing and a close-up view of the component (no text or symbols)

Onarim

Technical illustration of a mechanical component with two directional arrows indicating assembly or motion (no text or symbols present)

3D diagram of a red-capped circular component with a black arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red ring and black arrows indicating direction (no text or symbols)

Onarim

Circular diagram with a red heart-shaped object and an upward arrow, surrounded by mechanical components (no text or symbols)

1. 13 vidayı sökün.

Technical diagram of a mechanical assembly with multiple screw holes and a central circular component (no text or labels)

1. Ara parçayı sökün.

3D diagram of a mechanical component with red outer ring and black arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

3D rendering of a red-capped mechanical component with a black arrow indicating direction (no text or symbols)

Onarim

3D diagram of a circular mechanical component with internal red structure and two black arrows indicating direction (no text or symbols)

Diagram of a mechanical component with labeled parts (1 and 2), showing rotational flow arrows and a central curved structure (no text or symbols beyond labels)

Technical diagram of a mechanical component with mounting holes and a rotation arrow (no text or symbols)

Onarim

3D diagram of a mechanical component with red clamps and arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and a rotation arrow (no text or symbols)

Onarim

3D rendering of a mechanical component with a red highlighted section and an arrow indicating a specific part (no text or symbols present)

Cross-sectional diagram of a mechanical component with multiple screw holes and a rotating arrow (no text or labels)

Onarim

Cross-sectional diagram of a mechanical component with red and white parts, showing internal structure and two black arrows indicating features (no text or symbols present)

Cross-sectional diagram of a car engine showing internal components and airflow direction (no text or labels)

Onarim

Cross-sectional diagram of a car wheel rim with highlighted structural components (no text or labels)

3D rendered mechanical component with a warning icon (no text or symbols)

Onarim

Illustration of hands holding a circular object with arrows indicating rotation or movement (no text or symbols)

3D mechanical component diagram showing internal structure with highlighted sections and a close-up inset of a star-shaped component (no text or symbols)

Onarim

3D rendering of a mechanical component with red bracket and arrow indicating direction (no text or symbols)

3D rendering of a mechanical component with red curved band and black arrow indicating rotation (no text or symbols)

Close-up of a car seatbelt buckle with red ring and black arrow pointing to a red button (no text or symbols visible)
