GB/IE Translation of the original instructions Page 1

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1/ PLGS 2012 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/ PAPS 204 A1/PAPS 208 A1 battery pack.

GB Smart battery support ③

This appliance supports advanced functions when using special smart batteries. For more information, please refer to the accompanying material provided by the respective manufacturer. If smart battery functions are supported, the Ready2Connect LED ③ lights up in the following manner:

Ready2Connect LED

Connect the battery pack LED flashes 3 times

Connect to the app LED stays on

Not connected to the app LED stays off

Tool in update mode LED flashes continuously

Tool update successful The LED flashes for 5 seconds

Tool update failed LED flashes rapidly alternately

Lücka LED Ready2Connect

Povezava akumulatorja Lucka LED 3-krat utripne

Povezava z aplicaciono Lucka LED sveti

Ni povezave z aplicaciono Lucka LED ne sveti

Orodje v načinu posodabljanja Lučka LED trajno utripa

Intended use 2
Features 2
Package contents 3
Technical details 3

General power tool safety warnings 4

1.Work area safety 4
2. Electrical safety
3. Personal safety 4
4. Power tool use and care 5
5. Use and handling of the cordless electrical power tool. 5
6. Service 5

Safety instructions for all applications 6
Kickback and corresponding safety instructions. 7
Special safety instructions for grinding and abrasive cutting 8
Additional special safety instructions for abrasive cutting 8
Safety guidelines for battery chargers 9
Storage and handling of the recommended accessory tools 9
Working procedures 9

Before use 10

Charging the battery pack (see fig. A) 10
Attaching/disconnecting the battery pack to/from the tool 11
Checking the battery charge level 11
Fitting the protective cover for cutting. 11
Adjusting the blade guard 11
Fitting the additional handle 11

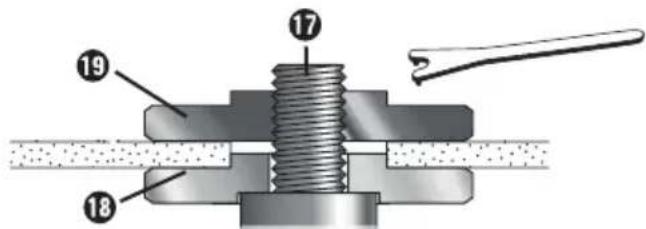

Fitting/changing the roughing/cutting disc 12

Starting the device 13

Switching on/off 13

Setting the rotational speed 13

Maintenance and cleaning 13

Disposal 14

Original declaration of conformity 17

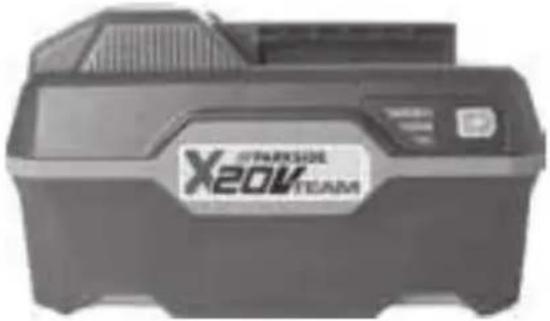

Ordering a replacement battery 18

Telephone ordering 18

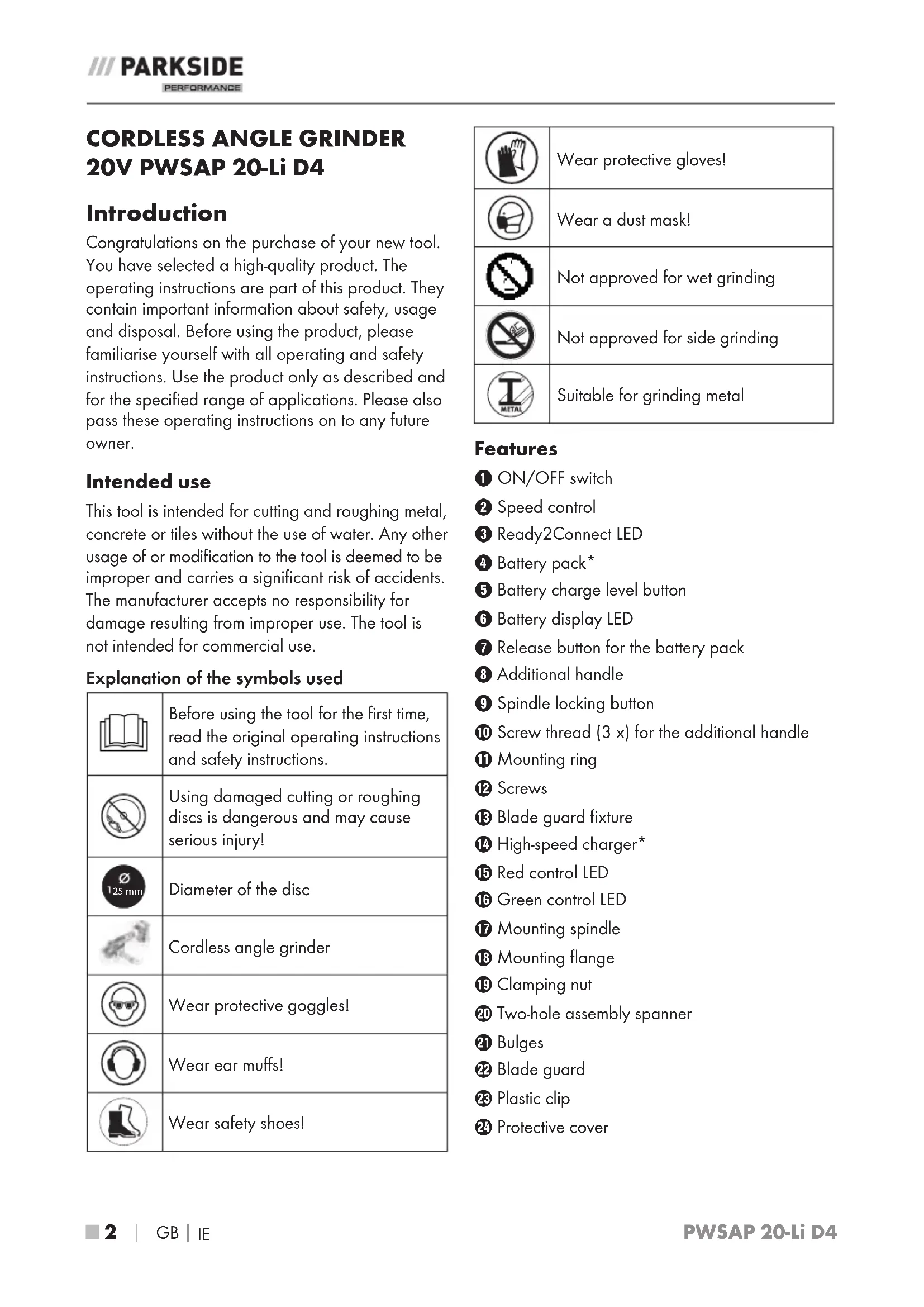

CORDLESS ANGLE GRINDER 20V PWSAP 20-Li D4

Introduction

Congratulations on the purchase of your new tool. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.

Intended use

This tool is intended for cutting and roughing metal, concrete or tiles without the use of water. Any other usage of or modification to the tool is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage resulting from improper use. The tool is not intended for commercial use.

Explanation of the symbols used

	Before using the tool for the first time, read the original operating instructions and safety instructions.
	Using damaged cutting or roughing discs is dangerous and may cause serious injury!
125 mm	Diameter of the disc
	Cordless angle grinder
	Wear protective goggles!
	Wear ear muffs!
	Wear safety shoes!

Wear protective gloves!

Wear a dust mask!

Not approved for wet grinding

Not approved for side grinding

Suitable for grinding metal

Features

ON/OFF switch
Speed control
Ready2Connect LED
Battery pack*
5 Battery charge level button
6 Battery display LED
7 Release button for the battery pack
Additional handle
Spindle locking button
10 Screw thread (3×) for the additional handle
1 Mounting ring
12 Screws
13 Blade guard fixture
14 High-speed charger*
15 Red control LED
16 Green control LED
17 Mounting spindle
18 Mounting flange
19 Clamping nut
20 Two-hole assembly spanner
2 Bulges
2 Blade guard
Plastic clip
2 Protective cover

Package contents

1 cordless angle grinder 20V
1 additional handle
1 blade guard (pre-assembled)
1 protective cover(pre-assembled)
1 roughing disc (pre-assembled)
1 two-hole assembly spanner
1 operating manual

Technical details

Cordless Angle Grinding 20V PWSAP 20-Li D4

Rated voltage 20V (DC)

Rated speed n 3000-10000 rpm

Disc size 125mm

Thread size M14

Battery PAP 20 B3*

Type			LITHIUM
Rated voltage	20 V	= (DC)
Capacity	4		Ah
Cells	10

High-speed charger PLG 20 C3*

INPUT

Rated voltage	230-240 V	~ 50 Hz (AC)
Rated power consumption	120	W
Fuse (internal)	3.15 A	T3.15A

OUTPUT

Rated voltage 21.5V (DC)

Rated current 4.5 A

Charging time approx. 60 min.

Protection class II/ (double insulation)

• BATTERY AND CHARGER ARE NOT SUPPLIED

Noise and vibration data

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically:

Noise emission value

Sound pressure level L	PA= 79.5 dB (A)
Uncertainty	K = 3 dB
Sound power level	LWA= 87.5 dB (A)
Uncertainty	K = 3 dB

Wear ear muffs!

Total vibration value

Surface grinding,

main handle	qh,AG=14.128 m/s
Uncertainty	K=1.5 m/s2
Surface grinding, additional handle	qh,AG=12.720 m/s
Uncertainty	K=1.5 m/s2

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for tool comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies depending on the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control of the tool.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge rechargeable batteries only in chargers recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the rechargeable, example, from continu-ght), fire, water and of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for all applications

General safety instructions for grinding and abrasive cutting

a) This power tool is designed to be used as a grinder and abrasive cutting tool. Please follow all safety instructions, instructions, diagrams and data that you receive with the tool. Failure to follow the instructions below may result in electric shock, fire, and/or serious injury.

b) This power tool is not suitable for sandpaper sanding, working with a steel brush or burnishing. Using the power tool for applications for which it is not designed can lead to hazards and injuries.

c) Do not use any accessories that have not been specifically provided or recommended by the manufacturer for this power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use.

d) The maximum permissible speed of the accessory tool being used must be at least as high as the maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air.

e) The external diameter and thickness of the accessory tool being used must comply with the dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.

f) Accessory tools with a thread insert must match the thread of the grinding spindle exactly. For accessory tools that are mounted using a flange, the diameter of the hole on the attachment tool must correspond to the width of the fitting on the flange. Accessory tools that cannot be fitted precisely onto the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.

g) Never use damaged accessory tools. Before each use, check tools such as grinding discs for chipping and cracks, grinding discs for cracks, wear or heavy wear. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the level of the rotating accessory tool and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during the test period.

h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or safety goggles. As required, use a dust mask, hearing protection, protective gloves or a special apron that will protect you from grinding and material particles. Protect your eyes from flying debris that may be produced during certain applications. Dust or filter masks must be used to filter any dust produced by the application. Long-term exposure to loud noise can cause hearing loss.

i) Ensure that any bystanders are at a safe distance from your work area. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or broken accessory tools can fly off and cause injury - even outside the immediate work area.

Hold the power tool only by the insulated handles when you are carrying out work in which the accessory tool may come into contact with concealed power cables. Contact with a live cable may also cause metal parts of the tool to become live and could result in an electric shock.

k) Keep the power cable away from any rotating accessories. If you lose control of the tool, the cord may get caught or cut and your hand or arm could get caught in the rotating accessory tool.

I) Never put the power tool down until the accessory tool has come to a complete standstill. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool.
m) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to an injury (for example, a cut or puncture wound).
n) Clean the ventilation slits of your power tool regularly. The motor fan draws dust into the housing, and a heavy accumulation of metal dust can cause electrical hazards.
o) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite these materials.
p) Do not use any accessory tools that require a liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

Kickback and corresponding safety instructions

A kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, grinding plate, etc., catches or jams. Catching or jamming leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool turns rapidly against the direction of rotation of the accessory tool caught in the blockage.

If, for example, a grinding disc catches or jams in a workpiece, the edge of the grinding disc projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rotation of the disc at the blockage. This can also cause the grinding discs to break.

Kickbacks are caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.

a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of the kickback. Always use the additional handle, if available, so that you have the maximum possible control over the kickback force or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the kickback and reaction forces.
b) Keep your hands clear of a rotating accessory tool at all times. The accessory tool could move over your hand in the event of a kickback.
c) Avoid having any part of your body in the area in which the power tool is likely to move in the event of a kickback. The kickback will force the electrical tool in the opposite direction to the direction of rotation of the grinding disc at the blockage.
d) Take special care when working near corners, sharp edges, etc. Do not allow the accessory tool to bounce back from the workpiece or to jam. The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or a kickback.
e) Do not use chains or toothed saw blades. These kinds of accessories often cause a kickback or loss of control over the power tool.

Special safety instructions for grinding and abrasive cutting

a) Use only the grinding accessories approved for your power tool and the appropriate blade guard for these grinding tools. Grinding tools that are not designed for the power tool cannot be sufficiently shielded and are unsafe.

b) Offset grinding discs must be mounted in such a way that their grinding surface does not project above the plane of the blade guard edge. An improperly fitted grinding disc which protrudes beyond the edge of the blade guard cannot be properly guarded.

c) The blade guard must be securely attached to the power tool and adjusted for maximum safety so that the minimum possible amount of the abrasive medium is open to the operator. The blade guard is designed to protect the operator from fragments, accidental contact with the grinding tool and sparks that could ignite clothing.

d) Grinding tools should only be used for the recommended applications. For instance, never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can cause them to break.

e) Always use undamaged clamping flanges of the correct size and shape for the grinding wheel you have selected. Suitable flanges support the grinding disc and reduce the risk of a disc breakage. Flanges for cutting discs can be different to flanges for other grinding discs.

f) Do not use worn grinding discs from larger power tools. Grinding discs for larger power tools are not designed for the higher rotational speeds of smaller power tools and can break.

Additional special safety instructions for abrasive cutting

a) Avoid exerting excessive contact pressure, and do not allow the cutting disc to jam. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or jamming and thus the possibility of a kickback or a breakage of the grinding tool.

b) Avoid the area in front of and behind the rotating cutting disc. When you move the cutting disc away from yourself in the workpiece, it is possible, in the event of a kickback, that the electrical tool will be thrown out directly towards you together with the rotating disc.

c) If the cutting disc jams or you stop working, switch the tool off and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kickback. Identify and remove the cause of the jam.

d) Do not switch the power tool back on as long as it is in the workpiece. Allow the cutting disc to reach its full speed before carefully resuming the cut. Otherwise, the disc can jam, jump out of the workpiece or cause a kickback.

e) Provide support for panels or large workpieces to reduce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides of the disc: both in the vicinity of the cutting disc and also at the edge.

f) Be particularly careful when making pocket cuts into existing walls or other obscured areas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause a kickback.

Safety guidelines for battery chargers

This tool may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the tool safely and are aware of the potential risks. Do not allow children to use the tool as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
To avoid potential risks, damaged power cords should be replaced by the manufacturer, their customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

WARNING!

To avoid potential risks, damaged power cords should be replaced by the manufacturer, their customer service department or a similarly qualified person.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/ PAP 20 A3/PAP 20 B1/PAP 20 B3/ PAPS 204 A1/PAPS 208 A1.
A current list of battery compatibility can be found at www.Lidl.de/Akku.

Storage and handling of the recommended accessory tools

Grinding tools must be treated with care and transported carefully.
Grinding tools should be stored in such a way that they are not exposed to mechanical damage or environmental influences (e.g. damp).

Working procedures

NOTE

Grinding tools should only be used for the recommended applications. Otherwise, they can break, be damaged or cause injuries.

Rough grinding

Never use cutting discs for rough grinding!

Move the angle grinder with moderate pressure back and forth over the workpiece.
For soft material, move the roughing disc at a flat angle over the workpiece; for hard material at a slightly steeper angle.

Abrasive cutting

Never use roughing discs for cutting!

Use only tested fibre-reinforced cutting or grinding discs that are approved for a peripheral speed of not less than 80~m / s

CAUTION!

The grinder continues running after being turned off. Do not try to brake it by applying lateral counterpressure.

• Secure the workpiece. Use clamps/vices to hold the workpiece firmly in place. This is much safer than simply holding it in your hand.
  Always switch off the tool before putting it down and wait for the tool to come to a complete standstill.

Use the tool only for dry cutting or sanding.

The additional handle 8 must be fitted to the tool during all work.

Do not process materials containing asbestos. Asbestos is a known carcinogen.

Tip! How to do things correctly.

DANGER! ALWAYS GUIDE THE TOOL THROUGH THE WORKPIECE IN REVERSE ROTATION.

In the opposite direction there is a risk of a kickback. The tool can be pushed out of the cut.

Always switch the tool on before applying it to the workpiece. After completing the task, lift the tool from the workpiece and then switch it off.

Always hold the tool firmly with two hands while working. Ensure that your stance is secure and stable.

For an optimum grinding effect, move the tool evenly at an angle of 15^ to 30^ (between grinding disc and workpiece) backwards and forwards.

When working on angled surfaces, do not exert too much force on the workpiece. If the rotational speed drops significantly, you must reduce the pressure exerted to allow safe and effective working. If the tool suddenly brakes completely or jams, it must be switched off immediately.

Cutting: Work at a moderate feed rate and do not tilt the cutting disc.

Roughing and cutting discs become very hot - let them cool down completely before touching them.

Never use the tool for purposes other than the ones for which it was designed.

Always make sure that the tool is turned off before inserting the battery into it.

In the event of danger, turn off the tool immediately and remove the battery. Ensure that the tool is easily and quickly accessible in the event of an emergency.

Always remove the battery during work breaks, when adjusting the tool and when it is not in use. The tool must be kept clean, dry and free of oil and grease at all times.

Remain alert at all times! Always pay attention to what you are doing and act with common sense. Do not use the tool if you are distracted or feeling unwell.

WARNING! Always wear safety goggles.

WARNING! Always wear a dust mask.

Before use

Charging the battery pack (see fig. A)

CAUTION!

Always disconnect the mains plug before removing the battery pack 4 from or inserting it into the charger.

NOTE

• Never charge the battery pack if the ambient temperature is below 10^ or above 40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .

Insert the battery pack 4 into the high-speed charger 14 (see fig. A).

Insert the mains plug into the mains power socket. The control LED lights up red.

The green control LED 16 indicates that the charging process is complete and the battery pack 4 is ready for use.

ATTENTION!

If the red control LED 15 flashes, this means that the battery pack has overheated and cannot be charged.

If the red and green control LEDs 15 16 both flash, this means that the battery pack 4 is defective.

Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Attaching/disconnecting the battery pack to/from the tool

Inserting the battery pack

Snap the battery pack 4 into the handle.

Removing the battery pack

Press the release button 7 and remove the battery pack 4.

Checking the battery charge level

Press the battery charge level button 5 to check the status of the battery (see also main diagram).

The status/remaining charge is shown on the battery display LED 6 as follows:

RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge

RED = low charge - charge the battery

Fitting the protective cover for cutting

When cutting with bonded abrasives, always use the protective cover 24 for cutting.

Slide the protective cover 24 onto the blade guard 22 (see fig. F) until the plastic clip 23 snaps into place at the end.

To remove the protective cover 2, pull the plastic clip 3 slightly forwards to release the protective cover 4.

Adjusting the blade guard

WARNING! RISK OF INJURY!

Always switch the tool off and remove the battery before carrying out any work on the tool.

RISK OF INJURY!

• Never use the angle grinder without the blade guard 22. The blade guard should be fitted securely onto the grinder. Set it so that the highest possible degree of safety is achieved, i.e. the operator is exposed to the smallest possible amount of the grinding disc. The blade guard 22 is designed to protect the operator from fragments and accidental contact with the grinding tool.

Make sure that the blade guard 2 is fitted with at least the same angle as the additional handle 8 (see fig. B). Otherwise, you could cut injure yourself on the roughing disc or cutting disc.

Turn the blade guard 2 to the required position (working position). Make sure that the blade guard 2 is positioned in such a way that the blade guard fixture 13 is lying over one of the bulges 1 on the blade guard 2 (see fig. E, fold-out page).
Make sure that the blade guard fixture is firmly seated in the respective bulge 21.

Fitting the additional handle

CAUTION!

For safety reasons, this tool may only be used with the additional handle fitted. Failure to do so can lead to serious injury. The additional handle can be screwed onto the left, the right or the top, depending on the job at hand.

Fitting/changing the roughing/ cutting disc

Always wear protective gloves when changing cutting/roughing discs.

Pay attention to the dimensions of the roughing/ cutting disc. The diameter of the hole must fit to the mounting flange 10 without any play. Do not use a reducer or adapter.

NOTE

Use only discs which are free of dirt.
Disc size of grinding disc: 125× 22.2× 6mm
Disc size of cutting disc: 125× 22.2× 3mm

Use only grinding discs whose permissible speed rating is at least as high as that on the type plate on the power tool.

■ RISK OF INJURY! Press the spindle locking button 9 only when the mounting spindle 17 is at a complete standstill.
Press the spindle locking button to lock the gearbox.
Undo the clamping nut by hand or using the two-hole assembly spanner (see fig. D). Fold the bracket of the clamping nut upwards and loosen it counterclockwise.
Place the roughing or cutting disc with the label side towards the tool on the mounting flange 18.
Then replace the clamping nut 19 on the mounting spindle 7 with the raised side facing up.

With thin grinding discs (see fig. 1)

The collar of the clamping nut always faces upwards so that a thin grinding disc can be fitted safely.

Fig. 1

Press the spindle locking button 9 to lock the gearbox.
Retighten the clamping nut 19 clockwise by hand or using the two-hole assembly spanner 20.

NOTE

If the disc does not turn smoothly or vibrates after the change, the disc must be replaced immediately.
For safety's sake, run the tool at maximum speed for 60 seconds after every disc change. Be aware of unusual noises and sparks.
Check whether all fastening elements are correctly fitted.
Make sure that the arrow showing the direction of rotation (if any) on the cutting or rough grinding discs (including diamond cutting discs) and the direction of rotation of the tool (arrow showing the direction of rotation on the head) match.

Starting the device

Switching on/off

Check the attached tool before use to ensure that all fastening elements are correctly fitted.

NOTE

Always switch on the angle grinder before making contact with the material, then apply it to the workpiece.
If the tool blocks due to an overload and switches off, it will restart automatically as soon as the cause of the blockage is removed (auto-start function).

Switching on

First, press theON/OFF switch 1 to the right so that you can then press it forwards.

Switching off

Let go of the ON/OFF switch 1.

Switching to continuous operation:

First, press the ON/OFF switch 1 to the right so that you can then press it forwards. Then press the ON/OFF switch 1 forwards and down until it engages.

Switching off continuous operation

Press theON/OFF switch 1 to the rear and downwards and release it.

Setting the rotational speed

You can use the speed control 2 to select the rotational speed:

$$ (1 = \text {s l o w e r s p e e d}, 6 = \text {f a s t e r s p e e d}). $$

The set speed level is displayed under the speed control 2.

We recommend you carry out practice tests to determine the correct speed.

The speed can also be changed during operation.

Maintenance and cleaning

WARNING! RISK OF INJURY! Always switch the tool off and remove the batteries before carrying out any work on the tool.

The cordless angle grinder is maintenance-free.

• Do not use any sharp objects for cleaning the tool. Do not allow any liquids to get into the tool. Otherwise the tool could be damaged.
  Clean the tool regularly, preferably immediately after use.
  Clean the housing with a dry cloth - do not use petrol, solvents or cleaners which can attack the plastic
  A vacuum cleaner is required for thorough cleaning of the tool.
  Ventilation openings must never be obstructed.
  Remove any sanding dust stuck to the tool with a brush.

NOTE

Replacement parts not listed (such as switches) can be ordered via our Service Hotline.

ARNING!

Do not use any accessories that are not recommended by PARKSIDE. This can lead to an electric shock and fire.

Disposal

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is

subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old tool has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old tool, remove the old batteries/rechargeable batteries as well as any lamps before returning the tool for disposal and take them to a separate collection point. If the rechargeable batteries are permanently installed, you must indicate during disposal that the tool contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to

Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/ rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material

components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

KompernassHandelsGmbH warranty

Dear customer,

This appliance comes with a 5-year warranty valid from the date of purchase. In the event that this product has any defects, you, the buyer, have certain statutory rights. Your statutory rights are not limited in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within 5 years of the product's date of purchase, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the 5-year warranty period, together with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

The X 20 V Team Series battery pack comes with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 391006_2201 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 391006_2201.

Service

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail]
IE Service Ireland Tel.:[phone] E-Mail:[e-mail] IAN391006_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2014/35/EU, charger only)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU)*

• The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic tools.

Related harmonised standards

EN 60745-1:2009/A11:2010

EN 60745-2-3:2011/A13:2015

EN IEC 55014-1:2021

ENIEC55014-2:2021

ENIEC63000:2018

Type designation of the machine: Cordless Angle Grinding 20V PWSAP 20-Li D4

Year of manufacture: 06-2022

Serial number: IAN 391006_2201

Bochum, 28/06/2022

CE

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery

If you want to order a replacement battery for your tool, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

• Online ordering of replacement parts is not possible in all countries. If this is the case, please contact the Service Hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]
IE ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your tool (IAN 391006_2201) to hand in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 20

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867BOCHUM

DEUTSCHLAND

www.kompernass.com

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

• Responsible qualite -

Tip! Zo handelt u correct.

GEVAAR! BEWEEG HET APPARAAT ALTIJD TEGEN DE DRAAIRICHTING IN DOOR HET WERKSTUK.

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Akumulator PAP 20 B3*

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Akumulator PAP 20 B3*

Typ

Dimenzaçné napatie 20 V = (jednosmerny prud)

Kapacita 4 Ah

Clanky 10

Rychlonabijacka akumulatora PLG 20 C3\* VSTUP/Input

Dimenzaçné napatie 230 - 240 V ~ 50 Hz (striedavy

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Bestilling of reservebatteri 179

Telefonisk bestilling 179

BATTERIDREVEN VINKELSLIBER 20 V PWSAP 20-Li D4

Indledning

FARE! BEVAG ALTID PRODUKTET I MODLØB GENNEM EMNET.

Dererfarefortilbageslagidenmodsatret- ning.Produktetkanblive pressetudaf snittet.

Taend for permanent drift:

Sluk for permanent drift

TrykTEND-/SLUK-knappen ①ned bagtil, og slip den saigen.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bestilling of reservebatteri

principal a_h,AG = 14,128m / s

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Akkumulator: PAP 20 B3*

Akumulator PAP 20 B3*

Vrsta

LITUJ-IONSK

Nazivna napetost 20V = (enosmerni tok)

Kapaciteta 4 Ah

Celic 10

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

Pooblasceni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 391006_2201

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompermass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji

Stav informacié - Estado de las informaciones - Tilstand af information - Versione delle informazioni - Informaciók allasa - Stanje informacij:

07/2022·Ident.-No.:PWSAP20-LiD4-062022-1
