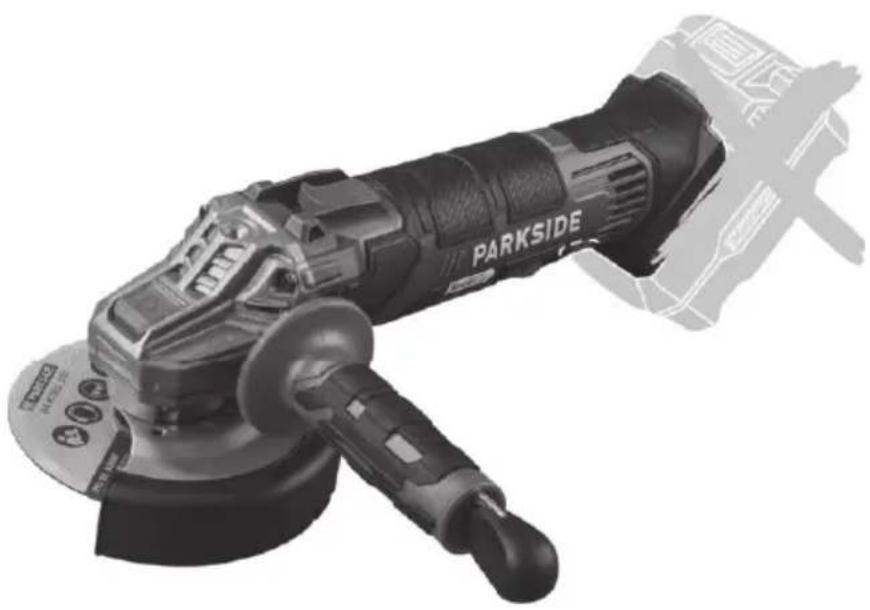

USER MANUAL PWSA 20Li C3 PARKSIDE

GB / MT Translation of the original instructions Page

Service Schweiz Tel.:[phone] (0,08CHF/Min., Mobilfunkmax.0,40CHF/Min.) E-Mail: [e-mail] IAN 411383_2107 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kontaktieren Sie zunächst das oben genannteService-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Deutschland www.grizzlytools.de26 GB MT Content Introduction ...............................26 Intended purpose .......................27 General description ....................27 Extent of the delivery ......................27 Description of function ....................27 Overview ...................................... 27 Technical data ............................ 28 Chargingtime ...............................28 Notes on safety..........................29 Symbols and icons .........................29 General Safety Directions for PowerTools ..................................30 Safety instructions for all applications ..................................32 Additional safety instructions for all applications ..................... 34 Kickback and corresponding precautions ...................................34 Special safety instructions for grinding and cutting .......................34 Other special safety instructions for cutting grinding .............................35 Additional safety instructions for working with wire brushes ...............35 Additional safety instructions ...........36 RESIDUAL RISKS ............................36 Practical tips ..............................37 Scrubbing wheels ...........................37 Grinding with a wire brush .............37 Cuttingdisc ................................... 37 Chuckkeystorage..........................38 Introduction Congratulationsonthepurchaseofyour new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to analinspection.Thefunctionalityofyour equipment is therefore guaranteed. Translation of the original EC declaration of conformity ....266 Exploded Drawing ...................277 Assembly ...................................38 Mount handgrip .............................38 Assemble/set protective hood/ demounting ..................................38 Fitting the attachment to/ removing the attachment from the protective cover ........................39 Installing/changing disc .................39 Installing/changing the wire brush ...39 Operation ..................................40 Inserting/ removing the rechargeable battery ... 40 Checkingthechargelevelof the rechargeable battery ................. 41 Selecting the speed ........................41 Turningonandoff ..........................41 Continuousoperation .....................41 Cleaning and servicing ............... 41 Cleaning .......................................42 Storage ......................................42 Waste disposal and environmental protection ...........42 Troubleshooting .........................43 Replacement parts / Accessories 44 Guarantee .................................44 Repair Service ............................45 Service-Center ............................45 Importer .................................... 45 Theoperatinginstructionsconstitute partofthisproduct.Theycontain important information on safety, use and disposal. Before using the product, familiarise your- self with all of the operating and safety instructions. Use the product only as de- scribedandfortheapplicationsspecied. Keep this manual safely and in the event27 GB MT that the product is passed on, hand over all documents to the third party. Intended purpose Thecordlessanglegrinderisatool(de- vice) for cutting, grinding, roughing or brushing metal, stone and wood materials, plastic, tiles and non-ferrous metals without using water. Thedeviceisnotintendedforanyother types of applications (e.g. grinding with unsuitable grinding tools, grinding with a coolant solution, grinding or cutting hazar- dous materials such as asbestos). Thedeviceisintendedtobeusedbydo-it- yourselfers. It was not designed for heavy commercialuse.Thetoolistobeusedby adults.Childrenovertheageof16may not use the tool except under supervision. Themanufacturerisnotliablefordamages caused by an improper use or incorrect operation of this device. ThedeviceispartoftheParkside X20VTEAMseriesandcanbeopera- tedusingParksideX20VTEAMseries batteries.Thebatteriesmayonlybe charged using chargers from the Parkside X20VTEAMseries. General description Theillustrationoftheprincipal functioning parts can be found on the front and back foldout pages. Extent of the delivery Carefullyunpacktheapplianceandcheck that it is complete: - CordlessAngleGrinder - Handle - Attachment, guard cover - Chuckkey - Cuttingdisc - Instructions for use The rechargeable battery and charger are not included in delivery. Description of function Thecordlessanglegrinderisatool(de- vice) for cutting, grinding, roughing or brushing metal, stone and wood materials, plastic,tilesandnon-ferrousmetals.There is a special disc for each of the separate applications. Please refer to the informati- on from the disc manufacturer. Please refer to the descriptions below for information about the operating devices. Overview 1 Handle 2 Threadsforhandle 3 On/Off switch 4 Battery release button 5 Rechargeable battery 6 Speed regulator 7 Guard cover 8 Cuttingdisc 9 Spindle stop button 10 Chuckkey 11 Attachment, guard cover 12 Mountingange 13 Clampingnut 14 Uptake spindle 15 Disc 16 Screw 17 Notch28 GB MT Technical data Cordless Angle Grinder .............. ........................... PWSA20-LiD4 Motor voltage ............................. 20V Idling speed (n) ............ 2500-11500 min

= 3 dB Sound power level (L

measured .......... 94.1 dB(A); K

= 3 dB Vibration level (a

Vibrations levels are the maximum values generated by the cutting discs supplied. Theactualvibrationvaluesmayvaryde- pending on the used accessories. Thevibrationvaluesarestillaffectedby the handling for the user‘s. Cutting disc .......... PTS 125 A24QBF (included) Idling speed n max ..................12200 min

The cutting disc must withstand a rotational speed of 80 m/s. Levels of noise and vibration were determi- ned according to the norms and regulati- ons in the declaration of conformity. Thevibrationemissionvaluehasbeen measured according to a standardised testing method and may be used for com- parison with another electric tool. Theindicatedvibrationemissionvalue may also be used for an introductory assessment of the exposure.

Thevibrationemissionvaluewhilst actually using the electrical tool may vary from the given values in- dependently of the type and way in which the electric tool is used. Trytokeeptheexposuretovibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load). Charging time ThedeviceispartoftheParksideX20V TEAMseriesandcanbeoperatedwithbat- teriesoftheParksideX20VTEAMseries. BatteriesoftheParksideX20VTEAM series may only be charged using chargers oftheParksideX20VTEAMseries. We recommend that you operate this ap- pliance with the following batteries only:

We recommend charging these batteries withthefollowingchargers:PLG20A3,

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku29 GB MT Notes on safety CAUTION!Whenusingpower tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury andre. Please read all these instructions before using this electric tool and please keep the safety instructions. Symbols and icons Symbols on the device: Thisdeviceispartofthe ParksideX20VTEAMseries Readthemanual! Wear eye protection Electrical machines do not belong with domestic waste. Spindle stop button Disc direction of travel ‘Switch on’ direction arrow Chargingtime (min) PAP20A1 PAP20B1 PAP20A2 PAP20A3 PAP20B3 Smart PAPS204A1 Smart PAPS208A1 PLG20A1 PLG20A4 PLG20C1

Other symbols on the cutting disc: Do not use for wet grinding Do not use defective discs Do not use for side grinding Intended for working on metal Wear ear protection Wear breathing protection Riskofcuts!Wearcut-resistant gloves. Wear safety shoes Symbols used in the instructions: Hazard symbols with in- formation on prevention of personal injury and property damage Precaution symbol with information on prevention of harm / damage. Notice symbol with information on how to handle the device properly.30 GB MT General Safety Directions for Power Tools WARNING! Read all safety notices, instructions, illustra- tions and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock,reand/orsevereinjuries. Retain all safety directions and in- structions for future use. Theterm„powertool“inthewarnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

a) Keep work area clean and well lit. Clutteredordarkareasinviteac- cidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- edplugsandmatchingoutletswill reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.Thereisanin- creased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or mov- ing parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current De- vice). UseofanRCDreducestherisk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the in u- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard31 GB MT hat, or hearing protection used for appropriate conditions will reduce per- sonal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool.Carryingpowertoolswith yourngerontheswitchorenergising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. Thisenablesbettercontrolofthepow- er tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related haz- ards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.Thecorrectpowertool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the re- chargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such pre- ventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation.32 GB MT

5) Careful handling and use of

battery devices a) Charge the batteries only in chargers that are recommended by the manufacturer. Riskofreif achargerthatissuitableforaspecic type of battery is used with other bat- teries. b) In the power tools, use only the batteries designed for the pur- pose.Theuseofotherbatteriesmay resultininjuriesandriskofre. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery con- tactsmaycauseburnsorre. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking bat- teryuidmaycauseskinirritationsor burns.

a) Have your power tool serviced by a quali ed repair person us- ing only identical replacement parts. Thiswillensurethatthesafety of the power tool is maintained. b) Never repair damaged batter- ies. All battery repairs should be car- ried out by the manufacturer or author- ised customer service centres only. Safety instructions for all applications Common safety instructions for grinding, working with wire bru- shes and cutting grinders:

• This electric tool is to be used as a grinder, wire brush and cutting grinder. Follow all safety instruc- tions, directives, illustrations and facts which you receive with the device. If you do not follow these inst- ructions,anelectricalshock,reand/or serious injury may occur.

• This electric tool is not suitable for sanding and polishing. Using the electric tool in ways for which it is not intended may cause hazards and injuries.

• Do not use any accessories that are not speci cally intended and recommended for this electric tool by the manufacturer. Simply because an accessory can be attached to your electric tool does not guarantee safe operation.

• The allowable rotation speed of the attachment tools must be at least as high as the highest rotation speed indicated on the electric tool. Accessories that run fas- ter than the allowable speed can break andyapart.

• The outside diameter and thick- ness of the attachment tool must correspond to the dimensions indicated for your electric tool. Attachment tools which are wrongly dimensionedcannotbesufciently shielded or controlled.

• Attachment tools with threaded attachment must t the threa- ding of the grinding spindle ex-33 GB MT actly. For attachment tools which are mounted through a ange, the diameter of the hole in the attachment tool must t the mounting diameter of the ange. Attachment tools which cannot be pre- cisely attached to the electric tool turn unevenly, vibrate very strongly and can ultimately lead to a loss of control.

• Never use damaged attachment tools. Check attachment tools such as grinding discs for chip- ping or cracks, grinding plates for cracks, wear or strong abrasi- on and wire brushes for loose or broken wires before using them. If the electric tool or the attach- ment tool falls off, check whether it is damaged or, use an undama- ged attachment tool. If you have checked the attachment tool and attached it, keep yourself and any nearby persons beyond the level of the rotating attachment tool and allow the device to run for 1 min. at the highest rotati- onal speed. Damaged tools usually break during this test period.

• Wear personal safety equip- ment. Depending on the appli- cation, use full face shields, eye protection or safety goggles. In so far as it is appropriate, wear dust masks, ear protection, gloves or special aprons which keep small grinding and materi- al particles away from you. Eyes should be protected from the foreign matterwhichcanbecausedtoydu- ring the various applications. Dust or breathingmasksshouldlterthedust that is created during operation. If you are exposed to loud noise for a long time, you may suffer hearing loss.

• Ensure that other people are at a safe distance to your working area. Anyone who enters the working area should wear per- sonal protective equipment. Bro- ken bits from the piece being worked orbrokenattachmenttoolscany away and cause injuries even beyond the direct working area.

• Hold the electric tool only by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring. Con- tact with a live wire can also cause a charge in metal parts of the tool and result in an electric shock.

• Never put the electric tool down before the attachment tool has come to a full stop. Therotating attachment tool can come into contact with the surface upon which it is set, whereby you could lose control of the electric tool.

• Never allow the electric tool to run while you are carrying it. Your clothing may accidentally come into contact with the rotating attachment tool and get caught and the attachment tool could drill into your body.

• Clean the ventilation slots of your electric tool routinely. The motor air pulls dust into the housing and, should too much metallic dust coll- ect, could cause electrical hazards.

• Never use the electric tool near ammable material. Sparks could ignite this material.

• Do not use attachment tools which require liquid coolant. Using water or another liquid coolant could lead to electrical shock.34 GB MT Additional safety instructions for all applications Kickback and corresponding precautions Kickback is the sudden reaction from a chopping or blocked grinder attachment such as a grinding disc, grinding plate, wirebrushetc.Choppingorblockingleads to sudden stopping of the rotating attach- ment.Thiscausesanuncontrolledelectric tool to accelerate in a direction counter to the rotational direction of the attachment tool. If, for example, a grinding disc cuts into the workpiece or blocks it, the edge of the grinding disc that digs into the work- piece can get caught and, through that, break off the grinding disc or cause a kick- back.Thegrindingdiscthenmovestowards or away from the operator, depending on the direction of rotation of the disc at the blocked spot. Here, the grinding discs can also break. A kickback is caused by wrong- ly or incorrectly operating the electric tool. It can be avoided by suitable cautionary measures, such as described below. a) Hold the electric tool very rmly and bring your body and your arm into a position in which you can resist the kickback force. Always use the supplemental handle if available to give you the best control over kickback force or reaction time during acceleration.Theoperatorcanmaster the kickback and reaction force through suitable precautions. b) Never bring your hands near a rotating attachment tool.Theat- tachment tool can run over your hand in the kickback. c) Keep your body away from the area in which the electric tool would move during a kickback. Thekickbackdrivestheelectrictoolin the counter-direction to the rotation of the grinding disc at the blocked spot. d) Work particularly cautiously in corner areas or where there are sharp corners etc. Prevent the attachment tools from recoiling from the workpiece and jam- ming. Therotatingattachmenttool tends to jam when near corners, sharp edgesorwhenitrecoilsfromsuch.This causes a loss of control or kickback. e) Do not use chain or toothed saw blades. Such attachment tools frequently cause a kickback or loss of control over the electric tool. Special safety instructions for grinding and cutting a) Use only grinders which have been approved for your electric tool and the protective hood intended for these grinders. Grinders which are not intended for theelectrictoolmaynotbesufciently shielded and are unsafe. b) Depressed Center grinding wheels must be pre-assembled so that their surface not abo- ve the level of the edge of the guard stands out. An improperly mounted grinding wheel, which ext- ends beyond the level of the edge of theguard,notsufcientlyshielded. c) The protective hood must be securely attached to the elec- tric tool and adjusted so that the greatest level of safety is35 GB MT reached, i.e., the smallest possib- le amount of the grinder is expo- sed to the operator.Theprotective hood should protect the operator from broken bits and accidental contact with the grinder. d) Grinders may only be used for the recommended attachment options. For example: Never grind with the side surface of a cutting disc.Cuttingdiscsareforcut- ting material using the edge of the disc. Pushing sideways on these grinders can break them. e) Always use undamaged clamping anges of the correct size and shape for the grinding disc you selected.Suitableangessupportthe grinding disc and thus reduce the danger of the grinding disc breaking. Flanges for cutting discs can be distinguished from angesforothergrindingdiscs. f) Do not use worn grinding discs for larger electric tools. Grinding discs for larger electric tools are not set up for the higher rotation speeds of smaller electric tools and can break. Other special safety instructions for cutting grinding a) Avoid blocking the cutting disc or pressing down too hard. Do not make any excessively deep cuts. Overloading the cutting disc increases wear and its tendency to tilt or block and, with that, to kickback or break the grinder. b) Avoid the area in front of and behind the rotating cutting disc. When you move the cutting disc by itself in the workpiece, in the event that the electric tool kicks back with the rotating disc, it can spin directly towards you. c) If the cutting disc jams, or you interrupt your work, switch the device off and hold it until the disc has come to a full stop. Ne- ver try to pull the cutting disc out of the cut while it is still run- ning, because it can kick back. Identify and correct the cause of the jamming. d) Do not switch the electric tool on again as long as it is in the workpiece. Allow the cutting disc to rst reach its full rotatio- nal speed before you carefully resume with the cutting. Other- wise, the disc may catch, spring away from the workpiece or cause a kick- back. e) Support plates or workpieces to reduce the risk of kickback from a jammed cutting disc. Large workpieces may bend under their own weight.Theworkpiece must be supported on both sides of the disc, near the cutting disc as well as also at the edge. f) Be particularly careful for po- cket cuts in existing walls or other areas where you cannot see what is there.Thecuttingdisc may cause a kickback when it cuts into gas or water lines, electrical lines or other hidden objects. Additional safety instructions for working with wire brushes Special safety instructions for working with wire brushes:36 GB MT

• Be aware that the wire brushes also lose wire pieces during typi- cal use. Do not overload the wi- res by pressing down too hard. Flying wire pieces can very easily penet- rate thin clothing and/or your skin.

• If a protective hood is recom- mended, do not allow the wire brushes and the protective hood to touch each other. Thediameter of plate and cup brushes can enlarge if too much pressure and centrifugal force is exerted. Additional safety instructions

• Only use grinding discs where the in- dicated rotational speed is at least as highaswhathasbeenspeciedonthe name plate of the device.

• Carryoutavisualinspectionofthe grinding disc before use. Do not use any damaged or deformed grinding discs. Replace any damaged or worn grinding discs.

• Make sure that the sparks produced by grinding do not present a danger, e.g. reachpeopleorigniteammablesubs- tances.

• Always wear safety goggles, safety gloves, respiratory protection and ear protection when grinding, brushing and cutting.

• Neverkeepthengersbetweenthe grinding disc and spark protection or in close proximity to the protective hoods. Thereisariskofcrushing.

• Therotatingpartsofthedevicecannot be covered due to functional reasons. Therefore,proceedcautiouslyandhold theworkpiecermlyinordertoavoid slipping which could cause your hands to come into contact with the grinding disc.

• Theworkpiecegetshotduringgrinding. Do not touch the machined area, allow ittocooldown.Thereisariskofbur- ning. Do not use coolants or the like.

• If you are tired or have consumed al- cohol or tablets, do not work with the device. Always have a break on time.

• Switch off the device and remove the battery from the device - to loosen a blocked insertion tool, - if the connection line is damaged or entangled, - in case of unusual sounds. RESIDUAL RISKS Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Lung damage if suitable respiratory protection is not worn. b) Hearing damage if suitable ear protec- tion is not worn. c) Damage to health due to - touching the area of the grinding tool which is not covered; - ejection of parts of workpieces or damaged grinding discs. d) Health injuries which result from swin- ging hand and arm, in the event that the device is used over a longer period of time or is not used and maintained properly. Warning! During operation, this electric tool generates an electro- magneticeldwhich,undercertain circumstances, may impair the functionality of active or passive medicalimplants.Toreducetherisk of serious or lethal injuries, we re- commend that persons with medical implants consult their doctor and the37 GB MT manufacturer of their medical im- plant before operating the machine. Practical tips When selecting the tool, ensure that its speci ed per- missible rotation speed is at least as high as the maxi- mum rotation speed speci- ed on the angle grinder. When selecting the disc, pay attention to the maximum per- missible diameter and the ma- ximum permissible thickness. Pay attention to the thread size M14 when selecting the brush. Scrubbing wheels Never use a cutting wheel for scrubbing ! The device must only be operated with the protecti- ve hood mounted when the rough grinding wheel is used. Fit the protective cover (7) for the scrub- bing wheels, see “Fitting/adjusting/remo- ving the protective cover”. Exert only moderate pressure on the work- piece. Move the device evenly back and forth. A working angle of 30° to 40° achieves the best results for scrub grinding. Grinding with a wire brush Ensure that you observe the permissible speed when se- lecting the wire brush. The permissible rotation speed of the wire brush must be at least as high as the highest rotation speed indicated on the angle grinder. Wear protective goggles: wires maybecomereleased! Suitable for rough rust removal, cleaning weld seams and removing paint. Press the wire brush with medium force onto the workpiece to be processed. Do not exert excessive strain on the wire brush by pressing down too hard. Cutting disc Never use a scrubbing wheel for cutting ! The device must only be operated with the protective hood mounted when the cut- ting disc is used. Fit the protective cover (7) and the attach- ment (11) for the cutting discs, see “Fitting/ adjusting/removing the protective cover” and “Fitting the attachment to/removing the attachment from the protective cover”. Onlycertied,bre-reinforcedcuttingor grinding discs may be used. In general, work with small scrubs. Exert only moderate pressure on the workpiece. Alwaysworkinthecounter-direction.This ensures that the device is not pushed out of the cut through lack of control.38 GB MT Chuck key storage Thechuckkey(10)canbestowedinthe handle (1), see the detailed illustration on the overview image. Assembly Caution! Risk of injury! - Ensurethatyouhavesufcientspace in which to work, and that you do not endanger other people. - All hoods and protective devices must be assembled properly before commis- sioning. - Remove the rechargeable battery from the device before changing settings on the device. Mount handgrip The device must only be operated with the handgrip mounted. Screw the handle (1) tight on to the thread for the handle. On the device, select the left, right or top thread for the handle (2), depending on how you work. Assemble/set protective hood/demounting Adjust the protective hood such that any sparks or detached parts cannot hit either the user or any bystanders. Theprotectivehoodmustalsobepositi- oned such that the sparks cannot ignite combustible parts, including those in the surroundings. Removing the cutting disc/ grinding disc/brush:

spindlelockxedthemountingspind- le. Keep and continue to hold down the spindle lock button (9)

3. Release the clamping nut (13) with the

ange(12)andcuttingdisc fromthespindleange(14). Attaching the guard cover:

1. Put the guard cover (7) onto the device

such that the open side is facing back towards the device.

2. Place the disc (15) onto the guard co-

ver (7). Thelongestofthethreemetalplateson the disk must be facing the direction of the handle.

3. Fasten the guard cover (7) with the

kingposition.Theclosedsideofthe guard cover must always face the ope- rator.

5. Readjust the position of the guard co-

verifyoundduringusethatitdoes not provide optimum protection. Removing the guard cover:

1. Removetheguardcover(7)byun-

screwingthethreescrews(16).Then you can remove the disc (15) and the guard cover (7) upwards.39 GB MT Fitting the attachment to/removing the attachment from the protective cover Fitting the attachment

1. If necessary, remove the disc for better

access, see “Installing/changing disc”.

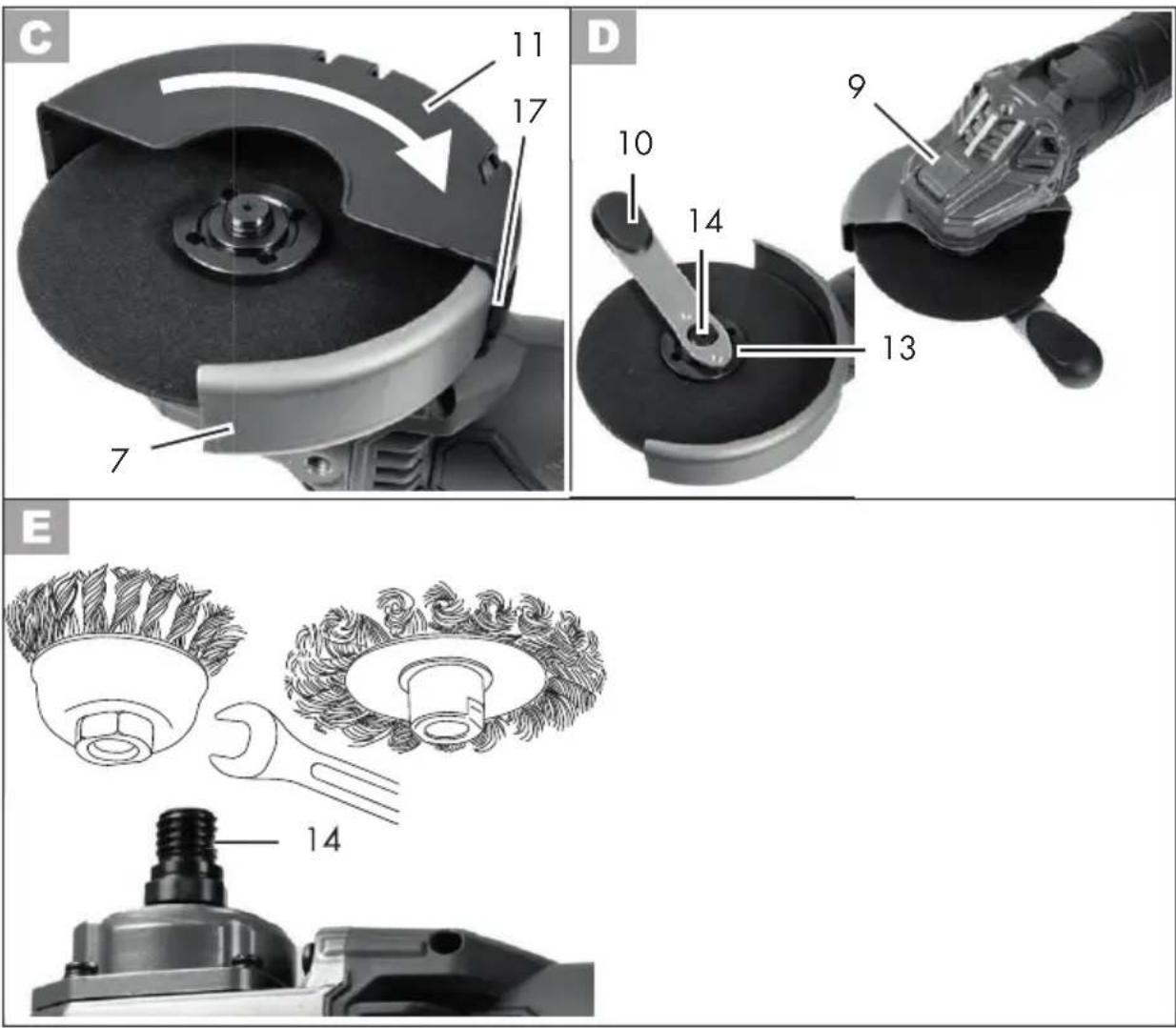

2. Fit the attachment (11) onto the guard

3. Push the attachment (11) onto the guard

cover (7) until it clicks into place. Removing the attachment

1. If necessary, remove the disc for better

access, see “Installing/changing disc”.

2. Release the attachment (11) by pushing

the notch (17) away from the guard cover (7).

3. Unscrew the attachment (11) from the

guard cover (7). Installing/changing disc

spindlelockxedthemountingspind- le. Keep and continue to hold down the spindle lock button (9)

3. Release the clamping nut (13) with the

chuck key (10). You can release the spindle lock button (9).

4. Set the desired disc onto the mounting

ange( 12). label on the disc should always face the device. If the rotary direction is in- dicated on your disc, ensure that it corresponds to the rotary direction of the angle grinder when mounting. This is indicated on the device below the spindle stop but- ton (9) (

Ensurethattheange( 12) is placed on the device in such a way thattherecessesintheangegrip intotheedgeofthedevice.The mounting spindle (14) must turn simul- taneouslywhenyouturntheange.

5. Set the clamping nut (13) on the moun-

tingspindel(14)again.Theatsideof the clamping nut must face the attach- ment tool if the thickness of the disc receptor is < 5 mm. If the thickness of the disc receptor is ≥5mm,turntheclampingnut. See illustration

6. Press the spindle stop button (9) and

turn the mounting spindle (14), until the spindle toggle button holds the spind- leangeinaxedposition.Pullthe clamping nut (13) tight again using the chuck key (10). You can let go of the spindle lock button (9). Installing/changing the wire brush

spindle stop button holds the mounting spindleinaxedposition.Keepthe spindle stop button (9) depressed.

3. Release the wire brush with a combina-

tion wrench (not included in the scope of delivery). You can now release the spindle stop button (9).

4. Place the desired wire brush onto the

5. Press the spindle stop button (9) and

rotate the wire brush on the mounting spindle(14).Tightenthewirebrush using a combination wrench. You can now release the spindle stop button (9).40 GB MT Operation Caution! Risk of injury! - Remove the battery before carrying out any work on the device. - Only use cutting/grinding discs and ac- cessories recommended by the manufac- turer. Using other attachment tools and other accessories can represent a risk of injury for you. - Only use accessory parts which bear information about the manufacturer, type of connection, dimension and permitted number of revolutions. - Only use accessory parts where the printed rotational speed is at least as highaswhathasbeenspeciedonthe name plate of the device. - Do not use any broken, cracked or otherwise damaged diamond cutting/ grinding discs. - Never operate the device without protec- tive equipment. - Support the plates or workpieces in or- der to reduce the risk of kickback from a jammed cutting disc. Large workpieces maybendundertheirownweight.The workpiece must be supported on both si- des of the disc, not only near the cutting disc, but also at the edge. Keep your hands away from the disc when the device is in operation. Risk of injury. Information on replacement: - Never operate the device without protec- tive equipment. - Ensure that the rotation speed stated on the tool is the same or higher than the nominal idle speed of the device. - Ensure that the tool dimensions match those of the device. - Onlyuseawlessdiscs(ringingtest: when you strike the grinding disc with a plastic hammer, it results in a clear sound). - Never re-drill a locating hole which is too small for the cutting/grinding disc to make it larger. - Never use separate bushings or adap- ters in order to make cutting/grinding discswithaholethatistoolargetthe device. - Do not use any saw blades. - Toclampthegrindingtoolsonlyusethe clampingangeprovided.Thepads betweentheclampingangeandthe grinding tools must be made of elastic materials e.g., rubber, soft cardboard etc. - Reassemble the device completely after replacing the tool. Switch off the device and remove the battery from the device. Allow the device to cool down. Wear protective gloves when chan- ging the tool so as to avoid injuries from cuts. Theclampingnutmustnotbescre- wed too tightly so as to avoid brea- king the disc and nut. Inserting/removing the rechargeable battery

1. Toinserttherechargeablebattery(5)

into the device, push the battery along the guides into the device. You will hear it click into place.

2. Toremovethebattery(5)fromthede-

vice, press the release button (4) on the battery and pull the battery out.41 GB MT Checking the charge level of the rechargeable battery Thebatterychargelevelindicator

the battery (5) indicates the charge level of the battery. Thechargelevelofthebatteryisindicated by illumination of the corresponding LED light. Press the button for the charge level indicator on the battery. Red-amber-green => battery fully char- ged Red-amber => battery approx. half charged Red => battery needs to be charged Selecting the speed Thedevicehas6levels,whichcanbeset on the speed regulator (6). 1: 2500 min

Toswitch the device on, sli- de the On/Off switch (3) to the side and then forwards in the di- rection of the arrow.

2. Toswitch it off, release the On/Off

switch.Thedeviceswitchesoff. If you have switched on continuous operation, tap the On/off switch (3) at the back to switch the device off. After switching on the device, wait until the device has reached its max. speed. Only then should you start with the work. The tool still runs even after the device has been switched off. Risk of injury. If the disc is blocked for more than 3 seconds, the device switches off automati- cally. If blocked for less than that, the disc starts back up automatically. Trial run: Always carry out a trial run without a load beforecarryingoutyourrstprocedure as well as after every tool change. Switch the device off immediately if the tool is not rotating smoothly, if considerable vibration occurs, or if you hear abnormal noises. Continuous operation

Switching on continuous opera- tion:

2. Push the front of the on/off switch (3)

towards the device in the on position. Theon/offswitchmakesanaudible click. Switching off continuous ope- ration:

3. Press the back of the on/off switch (3)

brieyonce.Theon/offswitchwill springbackintoitsinitialposition.The device turns off. Cleaning and servicing Remove the battery from the device before carrying out any adjust- ments, maintenance or repair work. Have any work on the device that is not described in this instruction guide performed42 GB MT by a professional. Only use original parts. Allow the de- vice to cool off before any maintenance or cleaning is undertaken. There is a risk of burning! Always check the device before using it for obviousdecienciessuchasloose,worn or damaged parts, correct the positioning of screws or other parts. Examine the cut- ting/grinding disc in particular. Exchange the damaged parts. Cleaning Do not use any cleaning agent or solvent.Chemicalsubstancescan etch the plastic parts of the device. Never clean the device under run- ning water.

• Thoroughlycleanthedeviceafterevery use.

• Cleantheventilationopeningsandthe surface of the device with a soft brush or cloth. Storage

• Store the appliance in a dry place well out of reach of children.

• Cuttingdiscsmustbedryandstored upright and should never be stacked.

• Before prolonged storage, remove the rechargeable battery from the device and charge it fully.

• Thestoragetemperaturefortherechar- geable battery and the device is bet- ween0°Cand45°C.Avoidextreme cold or heat during storage to ensure the battery output is not adversely affec- ted. Waste disposal and environmental protection Remove the rechargeable battery before disposingofthedevice! Thedevice,accessories,batteryandpa- ckaging should be properly recycled. Electrical machines do not belong with domestic waste. Do not throw batteries into domestic waste,re(riskofexplosion)orwa- ter. Damaged batteries can harm the environment and your health if poiso- nous fumes or liquids escape.

• Hand over the device at an utilization location.Theplasticandmetalparts employed can be separated out and thus recycled use can be implemented. AskourService-Centerfordetails.

• Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.

• In accordance with the Directive 2012/19/EU on waste electrical and electronic equipment, used electrical devices must be collected separately for disposal and recycled in an environ- mentally sound manner. Depending on the implementation in national law, you may have the fol- lowing options: - Return to a shop, - Returntoanofcialcollectionpoint. For more information, please contact your local waste management provi- der or our service centre. - Return to the manufacturer/distribu- tor. We will dispose of any defective43 GB MT Troubleshooting Remove the battery from the device before carrying out any maintenance, adjust- mentorcleaningworkonthedevice.Dangerofelectricshock! Problems Possible Cause Error correction Device doesn‘t start Battery (5) discharged Chargethebattery(observethe separate operating instructions for the rechargeable battery and charger) Battery (5) not inserted Insert battery (see ‘Operation’) On/off switch (3) may be de- fective RepairbyCustomerCare Engine faulty Grinding tool does not move although the engine is run- ning Grinding disc nut is loose Tightengrindingdiscnut(see „Installing/changing disc“) Workpiece, remaining workpie- ces or remaining grinding tools block drive Remove blockages Engine is slower and stops Device is overloaded through workpiece Reduce pressure on grinding tool Workpiece unsuitable Grinding disc does not rotate smoothly, abnormal noises can be heard Grinding disc nut is loose Tightengrindingdiscnut(see „Installing/changing disc“) Grinding disc is defective Changegrindingdisc devices that you send to us free of charge. Thisdoesnotaffectaccessoriesenc- losed with the old devices or tools wit- hout any electrical components.44 GB MT Replacement parts / Accessories Spare parts and accessories can be obtained at www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the”Service-Center” (see page 45). 1 Handgrip 91106221 7 Protective hood 91106220 8 Cuttingdisc 30211122 10 Chuckkey 91105183

Wire cup, crimped wire 91103213 Wire cup, braided wire 91103214 Guarantee DearCustomer, Thisequipmentisprovidedwitha3-year guarantee from the date of purchase. In case of defects, you have statutory rights againsttheselleroftheproduct.These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee Thetermoftheguaranteebeginsonthe date of purchase. Please retain the original receipt.Thisdocumentisrequiredasproof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for youfreeofcharge.Thisguaranteerequires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects Theguaranteeperiodisnotextendedby theguaranteeservice.Thisalsoappliesfor replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover Theequipmenthasbeencarefullypro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. Theguaranteeappliesforallmaterialand manufacturingdefects.Thisguarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. cuttingdisc,clampinganges)ortocover damage to breakable parts (e.g. switches). Thisguaranteeshallbeinvalidiftheprod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of theinstructionsspeciedintheoperating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. Theproductisdesignedonlyforprivate andnotcommercialuse.Theguarantee45 GB MT will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee Toensureefcienthandlingofyourquery, please follow the directions below:

• Please have the receipt and item num- ber(IAN411383_2107)readyas proof of purchase for all enquiries.

• Pleasendtheitemnumberontherat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the servicedepartmentspeciedbelowby telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cationofwhatconstitutesthedefect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity Weherebyconrmthatthe Cordless Angle Grinder DesignSeries PWSA20-LiD4 Serial Number 000001 - 275000 conforms with the following applicable relevant version of the EU guidelines : 2006/42/EC•2014/30/EU•2011/65/EU*&(EU)2015/863 In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied: EN 60745-1:2009/A11:2010 • EN 60745-2-3:2011/A13:2015 EN 55014-1:2017/A11:2020 • EN 55014-2:2015

• The object of the declaration described above satisfi es the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.267
