USER MANUAL PWSAP 20Li C3 PARKSIDE

PDF ONLINE www.lidl-service.com

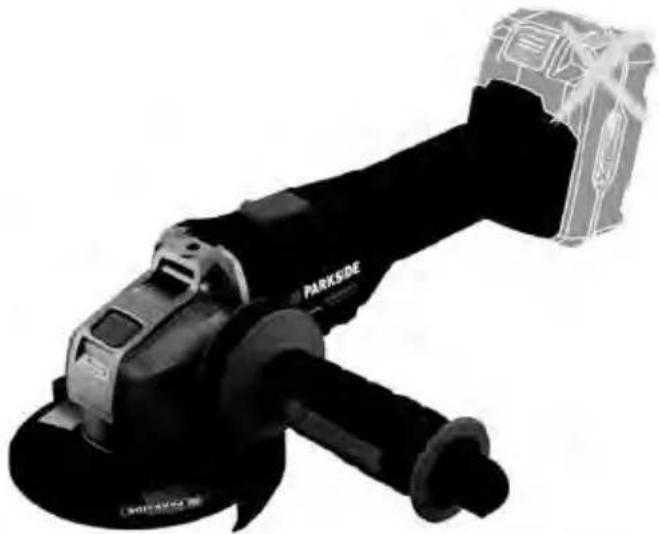

Black and white photo of a parkside electric grinder with visible brand mark 'PARKSDE' on the blade (no text or symbols on the device itself)

AKKU-WINKELSCHLEIFER 20 V / CORDLESS ANGLE GRINDER 20 V / MEULEUSE D'ANGLE SANS FIL 20 V PWSAP 20-Li C3

DE AT CH

Operation and safety notes

Translation of the original instructions

FR BE

MEULEUSE D'ANGLE SANS FIL 20 V

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

E b c a

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a highlighted section and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with concentric rings and a central shaft (no text or symbols)

Technical diagram of a robotic arm with curved base and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Mechanical diagram showing a foot pressing a circular component with directional arrows, no text or symbols present

Warnings and symbols used Page 35

Introduction Page 36

Intended use.... Page 36

Scope of delivery.... Page 36

Parts description.... Page 37

Technical data Page 37

Safety instructions.... Page 39

General power tool safety warnings Page 39

Grinder safety warnings.... Page 42

Angle grinder warnings Page 42

Vibration and noise reduction Page 47

Behaviour in emergency situations.... Page 48

Residual risks Page 48

Battery charger safety warnings Page 49

Before first use Page 50

Accessories Page 50

Operation Page 50

Attaching/removing the battery pack Page 50

Checking the battery pack charging level.... Page 50

Charging the battery pack.... Page 50

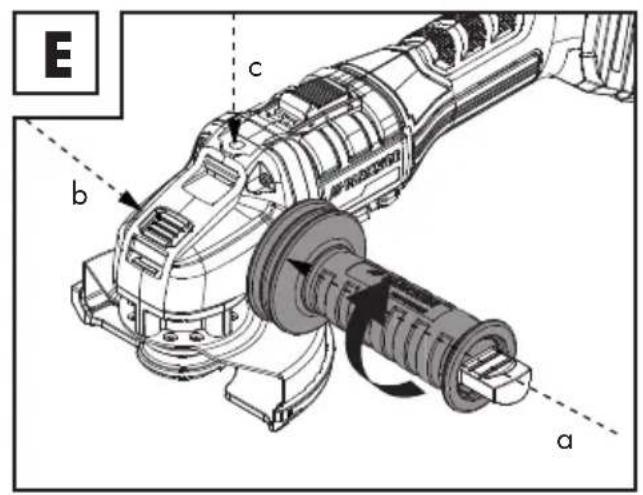

Attaching/removing the auxiliary handle Page 51

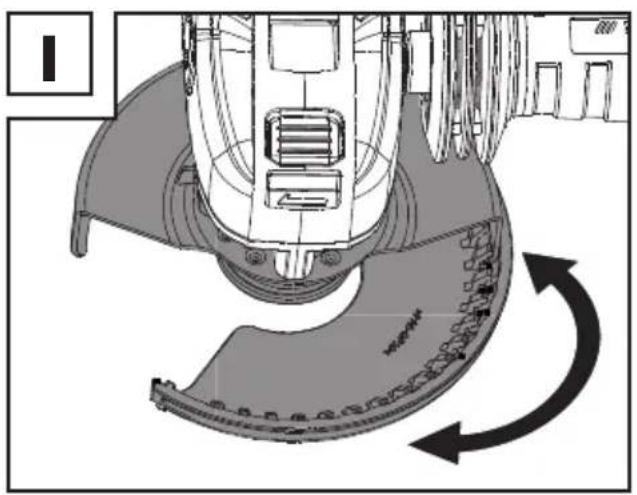

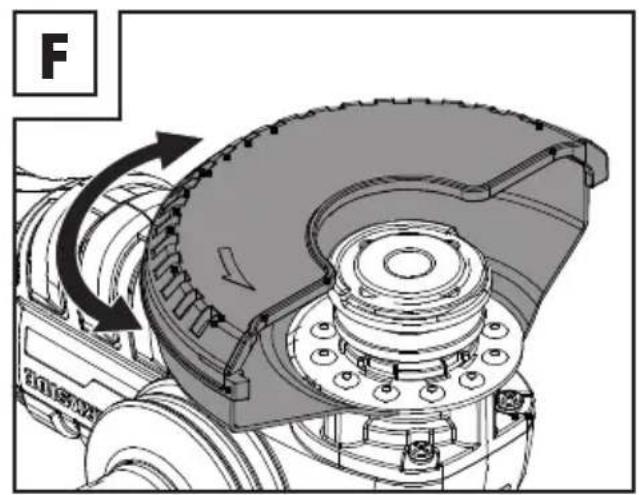

Adjusting the guard for grinding Page 51

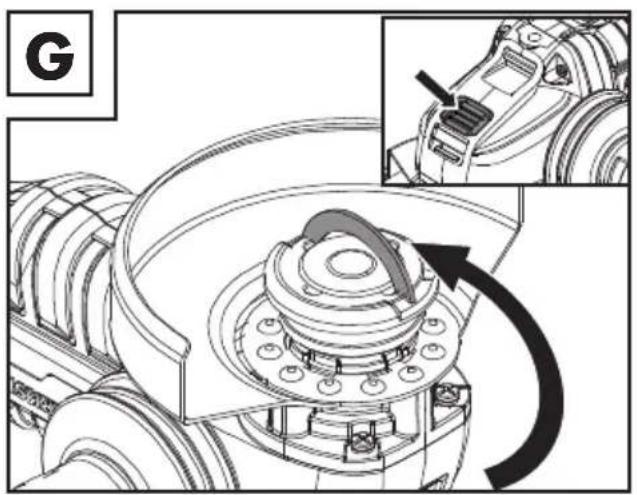

Mounting the guard for cutting Page 52

Removing the guard for cutting Page 52

Removing the guard for grinding.... Page 52

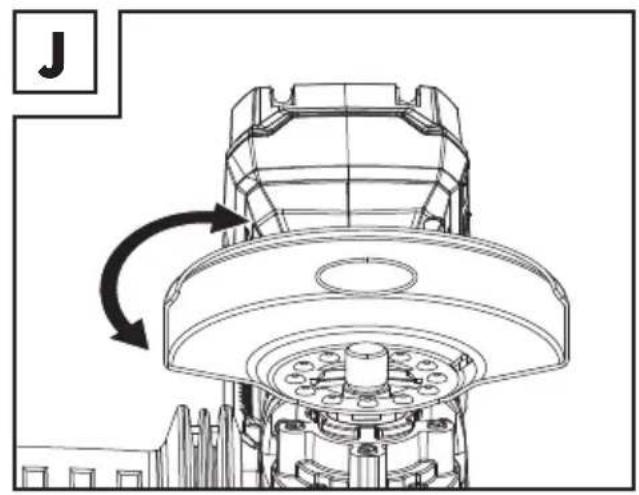

Mounting the guard for grinding.... Page 53

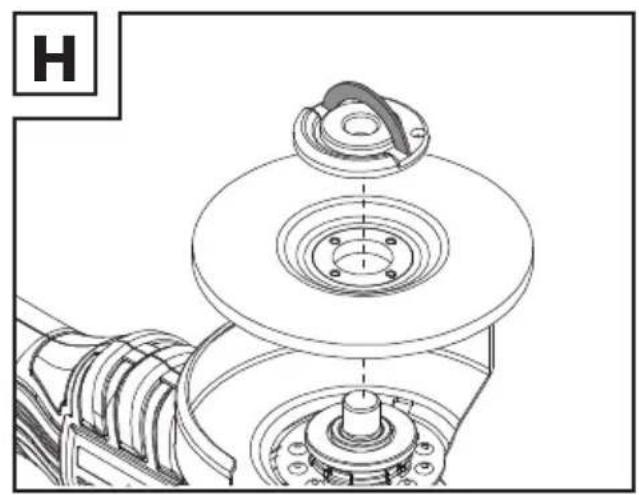

Attaching/removing the accessory tool.... Page 53

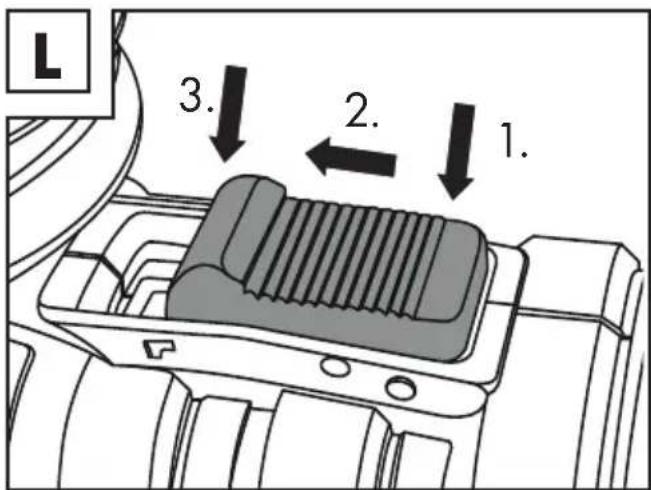

Switching on and off Page 54

Trial run Page 55

Working instructions Page 55

Grinding.... Page 55

Wire brushing Page 56

Abrasive cutting Page 56

Cleaning and care Page 56

Cleaning. Page 56

Maintenance Page 57

Repair.... Page 57

Storage Page 57

Transportation Page 57

Disposal Page 58

Warranty Page 59

EC declaration of conformity.... Page 60

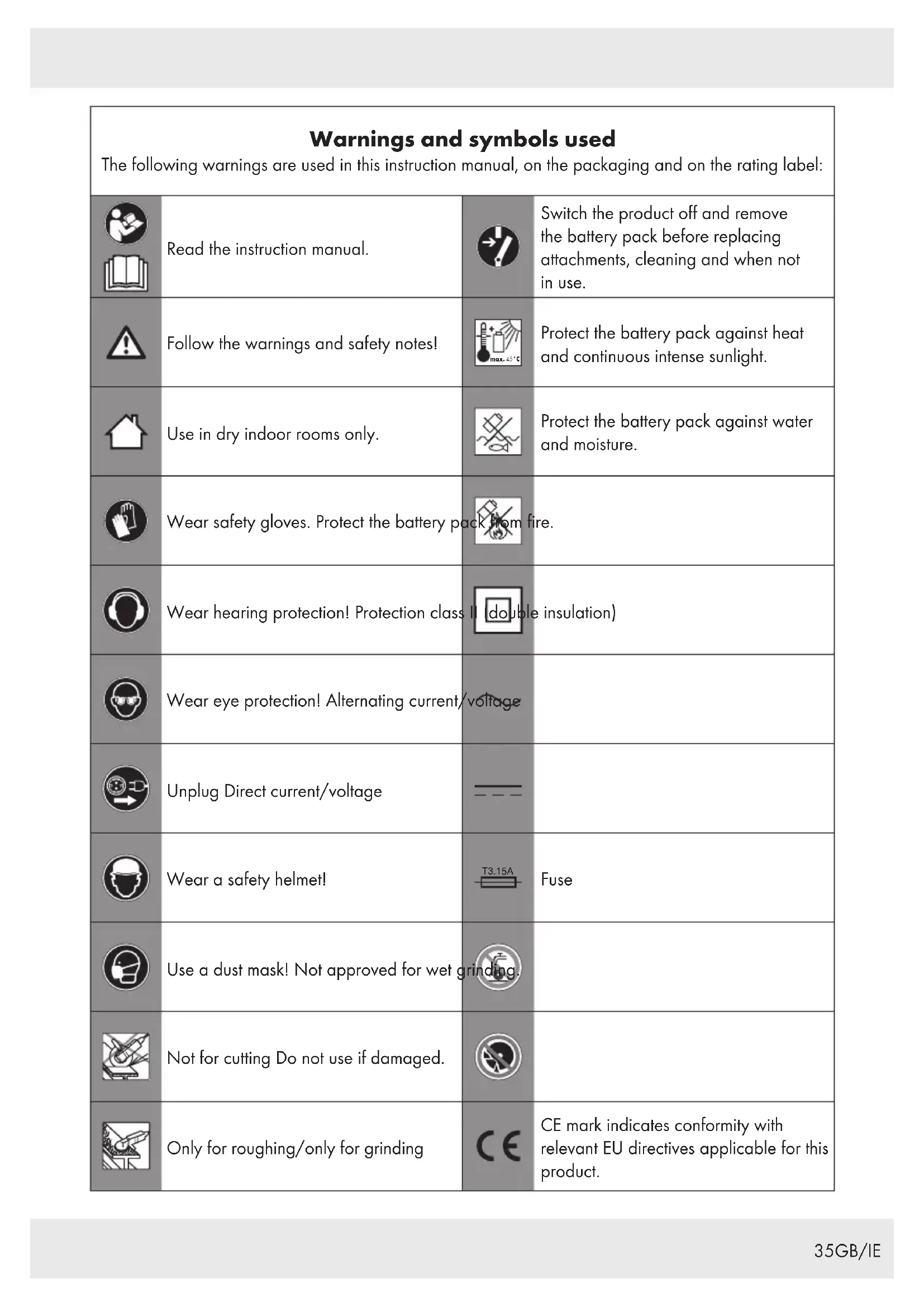

Warnings and symbols usedThe following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.		Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	Follow the warnings and safety notes!		Protect the battery pack against heat and continuous intense sunlight.
	Use in dry indoor rooms only.		Protect the battery pack against water and moisture.
	Wear safety gloves. Protect the battery pack from fire.
	Wear hearing protection! Protection class II (double insulation)
	Wear eye protection! Alternating current/voltage
	Unplug Direct current/voltage
	Wear a safety helmet!	T3.15A	Fuse
	Use a dust mask! Not approved for wet grinding.
	Not for cutting Do not use if damaged.
	Only for roughing/only for grinding	CE	CE mark indicates conformity with relevant EU directives applicable for this product.

CORDLESS ANGLE GRINDER 20 V

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless angle grinder (hereinafter "product" or "power tool") is designed for the following tasks:

Abrasive cutting-off
- Grinding metal/concrete/tiles without the use of water
■ Wire brushing metal

The product is not intended for any other types of applications (e.g. grinding with unsuitable grinding tools, grinding with a coolant solution, grinding or cutting hazardous materials such as asbestos).

The product is not intended for sanding and polishing.

Always use the correct accessory tools according to the intended use! Observe the technical requirements of this product (see "Technical data") when purchasing and using accessory tools!

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1x Cordless angle grinder 20 V PWSAP 20-Li C3
1x Auxiliary handle
1x Grinding disc (pre-installed)
1x Guard for cutting
1x Guard for grinding (pre-installed)
1x Chuck key (stored in the auxiliary handle)
1x Battery pack PAP 20 B3 *
1x Rapid battery charger PLG 20 C3 *
1x Carrying case
1x Instruction manual

Parts description

Figure A:

1	Spindle lock button
2	Auxiliary handle threads
3	On/off switch
4	Grip handle
5	Battery pack *
6	Auxiliary handle(with chuck key storage)
7	Chuck key
8	Guard, 2x
	8a Guard for grinding
	8b Guard for cutting
9	Directional arrow (on the guard)
10	Spindle
11	Backing flange
12	Locking flange (with tightening tab)
13	Retaining ring
14	Directional arrow (on the angle grinder)

Figure B:

5	Battery pack *
15	Release button for battery pack
16	button (charging level)
17	Charging level LEDs (red/orange/green)

Figure C:

5	Battery pack *
18	Battery charger (rapid battery charger) *
19	Power cord with power plug
20	Charging control LED - Green
21	Charging control LED - Red

Not illustrated:

22	Carrying case

- Technical data

Cordless angle grinder PWSAP 20-Li C3

Rated voltage: 20 V	— — —
Rated speed n: 10000 min	-1
Accessory tool diameter: ∅ 125 mm
Disc thickness: max. 8 mm
Spindle thread: M14

Battery pack	PAP 20 B3 *
Type:	Lithium-Ion
Rated voltage: 20 V	— — —
Capacity:	4 Ah
Energy value:	80 Wh
Number of cells:	10

Rapid battery charger PLG 20 C3 * Input:

Rated voltage: 230-240 V~
Rated frequency:	50 Hz
Rated power:	120 W
Fuse (internal):	3.15 A/T3.15A

Output:

Rated voltage: 21.5 V	---
Charging current:	4.5 A
Protection class:	II/☐

Charging time:

■ Battery type PAP 20 B3, 4.0 Ah (available separately): 60 minutes
■ Battery type PAP 20 B1, 2.0 Ah (available separately): 45 minutes

Recommended ambient temperature:

While charging: +4 to +40 °C

During operation: +4 to +40 °C

During storage: +20 to +26 °C

Noise emission value

The measured values have been determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L_pA : 84.6 dB(A)

Uncertainty K_pA : 3 dB

Sound power level L_WA : 95.6 dB(A)

Uncertainty K_WA : 3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 60745:

Main handle:

Hand/arm vibration a_h,AG : 3.396 m/s ^2

Uncertainty K: 1.5 m/s ^4

Auxiliary handle:

Hand/arm vibration a_h,AG : 3.744 m/s ^2

Uncertainty K: 1.5 m/s ^4

The values apply for the work mode surface grinding. Other applications may have different vibration emission values.

WARNING!

Wear ear protection!

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

3) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Grinder safety warnings

WARNING!

Dust from materials such as lead paint, some types of wood, and metal can be harmful to your health.
Contact with or inhaling this type of dust can present a danger to the user or persons nearby.

WARNING!

Wear safety glasses and a dust mask!

Angle grinder warnings

Safety warnings common for grinding, wire brushing and abrasive cutting-off

1) This power tool is intended for use as a grinder, wire brush and abrasive cutting machine. Follow all safety instructions, instructions for use, illustrations and data included with the device. Failure to heed the following instructions can result in electric shock, fire and/or serious injury.
2) Operations such as sanding and polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
3) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

4) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
5) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
6) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour size hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

7) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for 1 minute. Damaged accessories will normally break apart during this test time.
8) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

9) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
10) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.
11) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
12) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
13) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

14) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
15) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Further safety instructions for all operations – Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

1) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
2) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
3) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
4) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
5) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Specific safety instructions for grinding and abrasive cutting

1) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
2) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
3) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
4) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

5) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
6) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional safety warnings specific for abrasive cutting-off operations

1) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

2) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

3) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

4) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

5) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

6) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Additional safety instructions for wire brushing operations – Safety warnings specific for wire brushing operations

1) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
2) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional angle grinder warnings

1) Only use grinding wheels where the indicated rotational speed is at least as high as what has been specified on the name plate of the product.
2) Carry out a visual inspection of the cutting or grinding wheel before use. Do not use any damaged or deformed wheels. Replace any damaged or worn wheels.
3) Make sure that the sparks produced by grinding do not present a danger, e.g. reach people or ignite flammable substances.
4) Always wear safety goggles, safety gloves, respiratory protection and ear protection when grinding.
5) Never keep the fingers between the wheel and spark protection or in close proximity to the protective hoods. There is a risk of crushing.

6) The rotating parts of the product cannot be covered due to functional reasons. Therefore, proceed cautiously and hold the workpiece firmly in order to avoid slipping which could cause your hands to come into contact with the cutting or grinding wheel.
7) The workpiece gets hot during grinding. Do not touch the machined area, allow it to cool down. There is a risk of burning. Do not use coolants or the like.
8) Do not work with the product, if you are tired or have consumed alcohol or tablets. Always have a break on time.
9) Turn off the product and, before doing any servicing, remove the battery pack.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.

• Keep tight grip on the handles/grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batteries. Disregarding this instruction is hazardous.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

■ The appliance is suitable for indoor use only.

■ ATTENTION! This charger is only designed for charging the battery pack types:

Parkside 20 V battery pack

PAP 20 B1 2 Ah 5 cells

PAP 20 B3 4 Ah 10 cells

An up-to-date list of battery compatibility can be found at www.lidl.de/akku.

Before first use

Accessories

To operate this product safely and correctly, the following accessories, i.e. tools and accessory tools, are necessary:

Grinding disc
Cutting disc
Guard for cutting
Guard for grinding
Wire brush

Accessories and accessory tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

NOTE

This instruction manual contains information and suggestions for several accessory tools and their uses. The accessory tools depicted are not included in the shipment (see "Scope of delivery"), but are meant to indicate additional possibilities for using this product.

WARNING!

Do not use accessories not recommended by Parkside. This may result in electric shock or fire.

Suitable battery packs and chargers

Parkside X 20 V team battery pack and charger

Operation

- Attaching/removing the battery pack

Removing the battery pack: Press the battery pack release button 15. Remove the battery pack 5 (Fig. D).
- Attaching the battery pack: Align the battery pack 5 to the handle and slide it into it. Ensure it clicks noticeably in place.

The battery pack can only be inserted into the product in one direction.

- Checking the battery pack charging level

(Fig. B)

Check battery pack charge level: Press the 16 button. The charging level LEDs 17 light up:

Charging level LED 17 Charging level

Red/orange/green Maximum

Red/orange Medium

Red Low

● Charging the battery pack

(Fig. C)

NOTE

The battery pc5 may be charged at any time without reducing the life.
Interrupting the charging process does not damage the battery pack 5.

- Charge the battery pc ^5 before operation when it is at medium or low charging level.

The charging control LEDs (gre20 and red 21) indicate the status of the charger 18 and the battery pack 5:

LED Status

Red LED lights up Battery pack charges
Green LED lights up Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing Battery pack too cold or too warm

Green LED lights up (without battery pack) Charger ready

• Insert the battery pc5 into the charger 18.
  ■ Connect the power cord with power p19 of the charger 18 to the socket.
  When the battery pc5 is fully charged: Remove the battery pack from the charger18. Then disconnect the power cord with power plug19 of the charger from the socket.

- Attaching/removing the auxiliary handle

(Fig. E)

NOTE

The product may only be operated with the auxiliary handle 6 fitted.
Screw the auxiliary han 6, depending on the type of work, to the left (a), right (b) or on the top (c) of the product using the auxiliary handle threads 2.

- Adjusting the guard for grinding

(Fig. F)

WARNING!

Before adjusting the guard for grinding 8a: Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally. Let the product cool down before making any adjustments!

CAUTION! RISK OF INJURY!

Wear protective gloves. Be careful when handling the guard for grinding 8a as there is a pinching hazard between the guard and the disc.

NOTE

The product must only be operated with the guard mounted.

• Adjust the guard for grind8a such that any sparks or detached parts cannot hit either the user or any bystanders.
  The guard for grind8a must also be positioned such that the sparks cannot ignite combustible parts, including those in the surroundings.
  Turn the guard for grind8a to the required position. With every rotation of 30°, you can feel and hear the guard for grinding snapping into place. Only use the product when the guard for grinding is locked.

- Mounting the guard for cutting

NOTE

For cut-off grinding, you must fit the guard for cutting 8b to the guard for grinding 8a.

WARNING!

Before mounting or removing the guard for cutting 8b: Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally. Let the product cool down before mounting or removing the guard for cutting!

• Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally.
• Remove the grinding/cutting disc, if applicable (see "Attaching/removing the accessory tool").
  Align the teeth on the edge of the guard for cutting 8b with the guard for grinding 8a.
  ■ Turn the guard for cut[8b] clockwise until you can feel the lock on the guard for cutting clicking into place (Fig. 1).
• Check if the guard for cut8b is firmly seated.

- Removing the guard for cutting

■ Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally.
■ Remove the grinding/cutting disc, if applicable (see "Attaching/removing the accessory tool").
Press the lock on the guard for cut8b outwards. Turn the guard for cutting counterclockwise (Fig. 1).

- Removing the guard for grinding

WARNING!

Before mounting or removing the guard for grinding 8a: Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally. Let the product cool down before mounting or removing the guard for grinding!

■ Switch the product off.
■ Remove the battery pc5 from the product to prevent the product from starting unintentionally.
■ Remove the grinding/cutting disc (see "Attaching/removing the accessory tool").
■ Remove the backing flar11.
■ Remove the retaining 13 from the groove of the aluminium head.

NOTE

If the retaining r13 is stuck to the groove firmly, rotate the guard for grinding 8a a few times to displace the retaining ring. You may use a tool (e.g. pliers, slotted screwdriver) to help (Fig. J).

Rotate the guard for grind8a clockwise until the opening of the guard is facing the product's housing. Pull the tooth of the guard for grinding out of the receptacle of the aluminium head.

- Mounting the guard for grinding

■ Switch the product off. Remove the battery pack 5 from the product to prevent the product from starting unintentionally.

With the opening of the guard facing the product's housing, place the guard for grinding 8a into the receptacle of the aluminium head. The tooth of the guard must be aligned with the recess of the receptacle.

Press the guard for grind8a as far as possible into the receptacle. Rotate the guard for grinding counter-clockwise until it clicks into place.

Place the retaining r13 into the groove of the aluminium head to secure the guard for grinding 8a (Fig. J).

- Check if the guard for grind8a is firmly fixed.

NOTE

A chuck 7 is stored inside the auxiliary handle 6 . The chuck key can be used (in addition to the tightening tab) to loosen or tighten the locking flange 12 .

- Attaching/removing the accessory tool

WARNING!

Always switch the product off, remove the battery pack 5 and let the product cool down before making any adjustments!

CAUTION! RISK OF INJURY!

Keep your hands away from the accessory tool when the product is in operation.
After the product has been switched off, the accessory tool continues moving for some time. Do not touch the accessory tool and do not attempt to brake it.

WARNING!

▶ Never press the spindle lock but 1 whilst the spindle 10 is rotating!
The arrow direction on the accessory tool must be aligned with the directional arrow (9 or 14).

CAUTION! RISK OF INJURY!

Only use accessory tools recommended by the manufacturer. Using other accessory tools and other accessories can represent a risk of injury for you.

Only use accessory tools, which bear information about the manufacturer, type of binding, dimension and permitted number of revolutions.

Only use accessory tools where the printed rotational speed is at least as high as what has been specified on the product marking.

Do not use any broken, cracked, or otherwise damaged accessories.

Only use flawless accessory tools.

Ensure that the accessory tool dimensions match those of the product.

▶ Never re-drill a locating hole which is too small to make it larger.

▶ Never use separate bushings or adaptors in order to make discs with a hole that is too large fit the product.

Support plates or workpieces to reduce the risk of kickback from a jammed disc. Large workpieces may bend under their own weight. The workpiece must be supported on both sides of the disc, near the disc as well as at the edge.

■ Release the locking flan12: Press and hold the spindle lock button 1. Lift up and rotate the tightening tab in a counter-clockwise direction. Release the spindle lock button (Fig. G).
■ Remove the locking fla12.
If applicable, remove the current accessory tool.
Mount the desired accessory tool onto the backing flange 11 (Fig. H).
Press and hold the spindle lock but 1. Lift up the tightening tab. Thread the locking flange 12 in a clockwise direction. Use the tightening tab to tighten the accessory tool securely. Push down the tightening tab. Release the spindle lock button.

Switching on and off

CAUTION! RISK OF INJURY!

Always wear protective gloves when handling or working with the product.

Mechanical diagram showing a foot pressing a circular component with directional arrows, no text or symbols present

CAUTION! RISK OF INJURY!

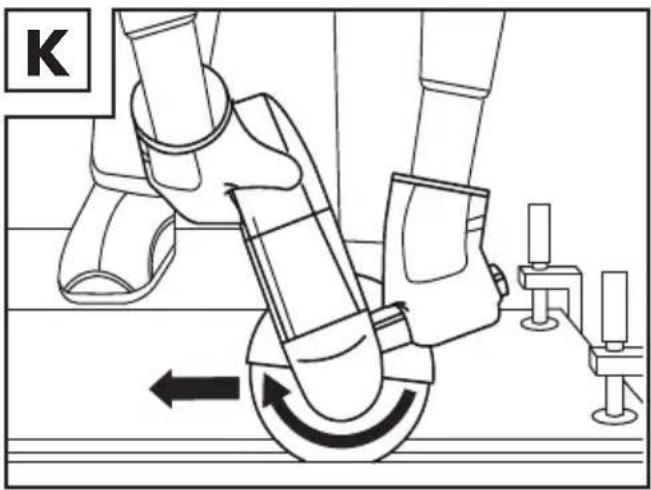

Always hold the product with both hands while working (Fig. K).
Keep your hands away from the accessory tool when the product is in operation.
After the product has been switched off, the accessory tool continues moving for some time. Do not touch the accessory tool and do not attempt to brake it.

CAUTION! HEALTH RISK!

▶ Never work on materials containing asbestos. Asbestos is considered carcinogenic.

L 3. 2. 1.

■ Switching on: Push the rear part of the on/off switch 3 down and slide it forward. (Fig. L, 1&2).

Continuous operation: Tilt the front part of the on/off switch 3 downwards until it engages (Fig. L, 3).

■ Switching off: Press the rear part of the on/off switch 3 so that it snaps back into its off position.

Trial run

NOTE

Always carry out a no-load trial run before starting work and after every accessory tool replacement. Switch the product off immediately if the accessory tool is not running smoothly, if considerable vibration occurs or if you hear abnormal noises.

Working instructions

Grinding

WARNING!

▶ Never use a cutting disc for grinding!

• Hold the product at a 10 to 15^ angle for easy handling and smooth grinding results.
  ■ Apply the grinding disc to the work surface with a light, steady pressure for maximum grinding efficiency. It should never be necessary to force the product. The weight of the product applies adequate pressure.
  Excessive pressure will overload the motor, slow the grinding action, put dangerous stress on the grinding disc and causes breakage.
  ■ Move the product back and forth steadily.

Wire brushing

WARNING!

Do not use a brush that is damaged, or which is out of balance. Use of a damaged brush could increase potential for injury from contact with broken brush wires.

- Avoid applying too much pressure which causes over bending of wires, leading to premature breakage.

■ Work with moderate feed, suited to the material being worked.

- Avoid bouncing and snagging the wire brush, especially when working corners, sharp edges etc. This can cause loss of control and kick-back.

- Abrasive cutting

WARNING!

▶ Never use grinding discs for cutting! When using a cutting disc, the guard for cutting 8b must be used when operating the power tool.

■ Only use tested, fibre reinforced cutting discs.

■ Always work at a low forward speed. Apply only moderate pressure to the workpiece.

■ Always use up (conventional) milling. This will prevent loss of the product when it leaves the cut.

● Cleaning and care

WARNING!

Always switch the product off, remove the battery pack 5 and let the product cool down before performing inspection, maintenance and cleaning work!

Cleaning

■ Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
- Regular and proper cleaning will help ensure safe use and prolong the life of the product.
- Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and soft brush.
■ The vents must always be clear.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use, check the product and accessories (e.g. accessory tools) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see "Technical data").

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

■ Switch the product off.
■ Clean the product as described above.
■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
■ Always store the product in a place that is inaccessible to children. The ideal long term storage (longer than 3 months) temperature is between +20 and +26 °C.
■ Store the product in its co22.
- Cutting or grinding discs must be dry and stored upright, and should never be stacked.

Battery pack advice

Only store the battery pad partially charged. The battery pack should be charged to 40 to 60 % (red and orange LED in the charge indicator 17 light up) before storing for extended periods.
- Check the battery price 5 charge about every 3 months when storing for extended periods. Recharge as necessary.

Transportation

■ Switch the product off.
■ Transport the product in its carrying c22.
■ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Remove the batteries/battery pack from the product before disposal.

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty for the battery pack is 1 year from the date of purchase.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

CE

EC declaration of conformity

EC DECLARATION OF CONFORMITY

IAN:

367746_2101

Product identification:

"Parkside" Cordless Angle Grinder 20V

Model Number:

HG08179

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 60745-1:2009/A11:2010

EN 60745-2-3:2011/A13:2015

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Additional information - Further related standards:

N° / Parts

EN 12413:2019

Name and address of the manufacturer:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

14.05.2021

Date

Benjamin Steeb Managing Director

Jens Buchheim thorised Signatory

Mechanical diagram showing a foot pressing a circular component with directional arrows, no text or symbols present

PRUDENCE ! RISQUE DE BLESSURE !

DÉCLARATION DE CONFORMITÉ CE

IAN: 367746_2101

Directive 2006/42/EC

Directive 2014/30/EU

Authorised Signatory

Type: Lithium-ion
Nominale spanning: 20 V ---

Capaciteit: 4 Ah

Mechanical diagram showing a foot pressing a wheel with directional arrows indicating motion (no text or symbols)

VOORZICHTIG! GEVAAR VOOR VERWONDINGEN!

Directive 2006/42/EC

Directive 2014/30/EU

Mechanical diagram showing a foot pressing a circular component with directional arrows, no text or symbols present

OSTROŻNIE! RYZYKO OBRAŻEŃ!

DEKLARACJA ZGODNOŚCI WE

IAN: 367746_2101

Directive 2006/42/EC

Directive 2014/30/EU

Mechanical diagram showing a foot pressing a circular component with an arrow indicating rotational motion (no text or symbols)

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2006/42/EC

EN 60745-1:2009/A11:2010

EN 60745-2-3:2011/A13:2015

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

Authorised Signatory

Mechanical diagram showing a foot pressing a wheel with directional arrows indicating motion (no text or symbols)

POZOR! NEBEZPEČENSTVO PORANENIA!

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2006/42/EC

Directive 2014/30/EU

Mechanical diagram showing a foot pressing a circular component with directional arrows, no text or symbols present

FORSIGTIG! FARE FOR KVÄSTELSER!

Directive 2006/42/EC

Directive 2014/30/EU

Neckarsulm	14.05.2021
Sted	Dato	Benjamin Steeb Managing Director	Iens Buchheim Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG08179

Version: 08/2021

IAN 367746_2101

8=
