EN Operator's manual 2-33

Transportation, storage and disposal.... 28

Technical data.... 29

Declaration of Conformity.... 32

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The models LB 548i and LB 553iV use BioClip to cut the grass into fertilizer.

The model LC 551iV collects the grass in a grass catcher. Remove the grass catcher to get rear discharge

of the grass. Attach a mulch kit (accessory) to cut the grass into fertilizer.

Intended use

Use the product to cut grass. Do not use the product for other tasks.

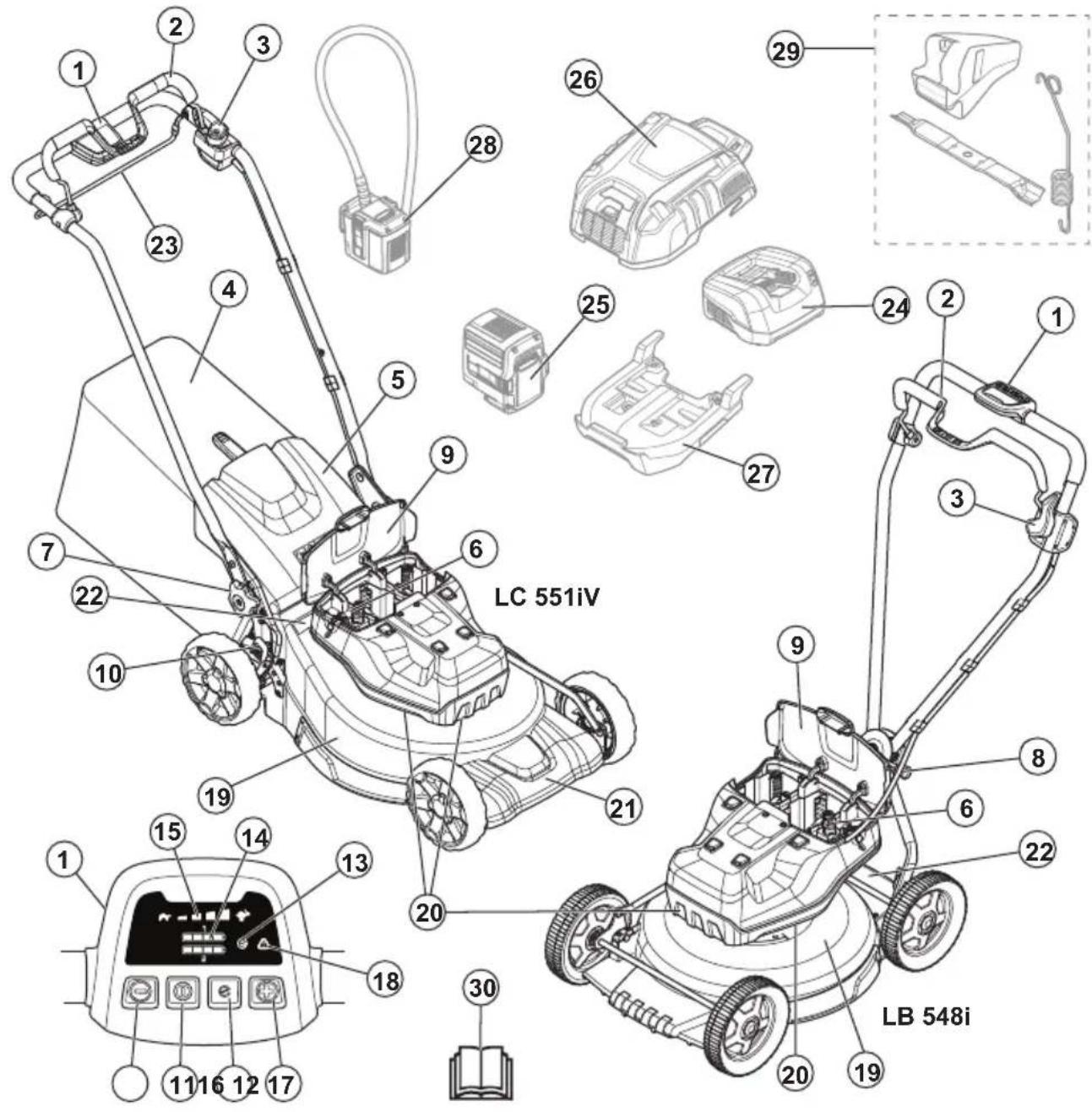

LC 551iV LB 548i

1. Control panel
2. Motor brake handle
3. Start inhibitor
4. Grass catcher (LC 551iV)
5. Rear cover (LC 551iV)
6. Safety key
7. Handle knob (LC 551iV)
8. Handle adjustment lever (LB 548i)
9. Battery cover
10. Cutting height control (LC 551iV)
11. ON/OFF button

12. SavE button

13. SavE indicator

14. Battery indicator

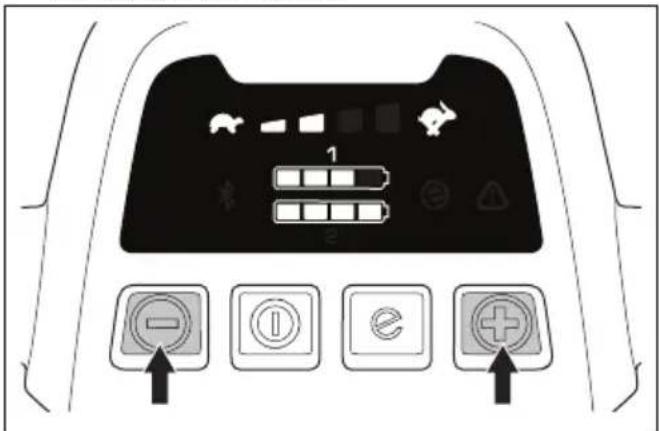

15. Speed level indicator
16. Decrease speed button
17. Increase speed button
18. Error LED
19. Cutting cover
20. Air intakes
21. Protection cover (LC 551iV)
22. Rating plate
23. Drive bail (LC 551iV)

24. Battery charger (Accessory)

25. Battery (Accessory)

26. Multi battery (Accessory)

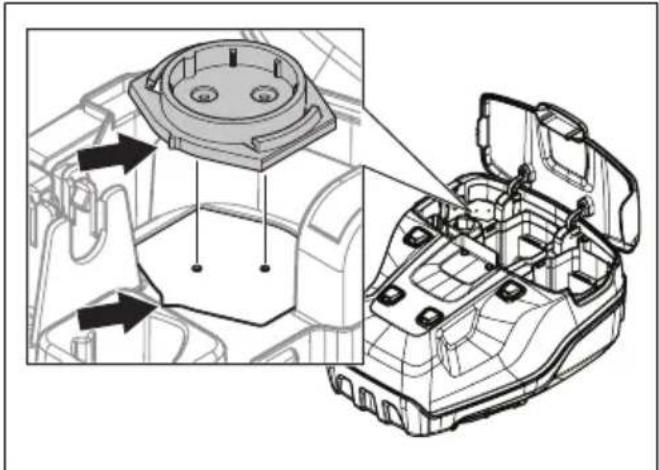

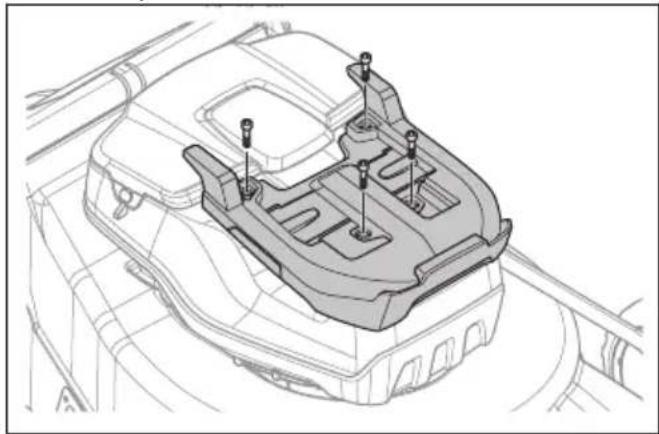

27. Adapter plate (Accessory)

28. Multi battery adapter (Accessory)

29. Mulch kit (LC 551iV)
30. Operator's manual

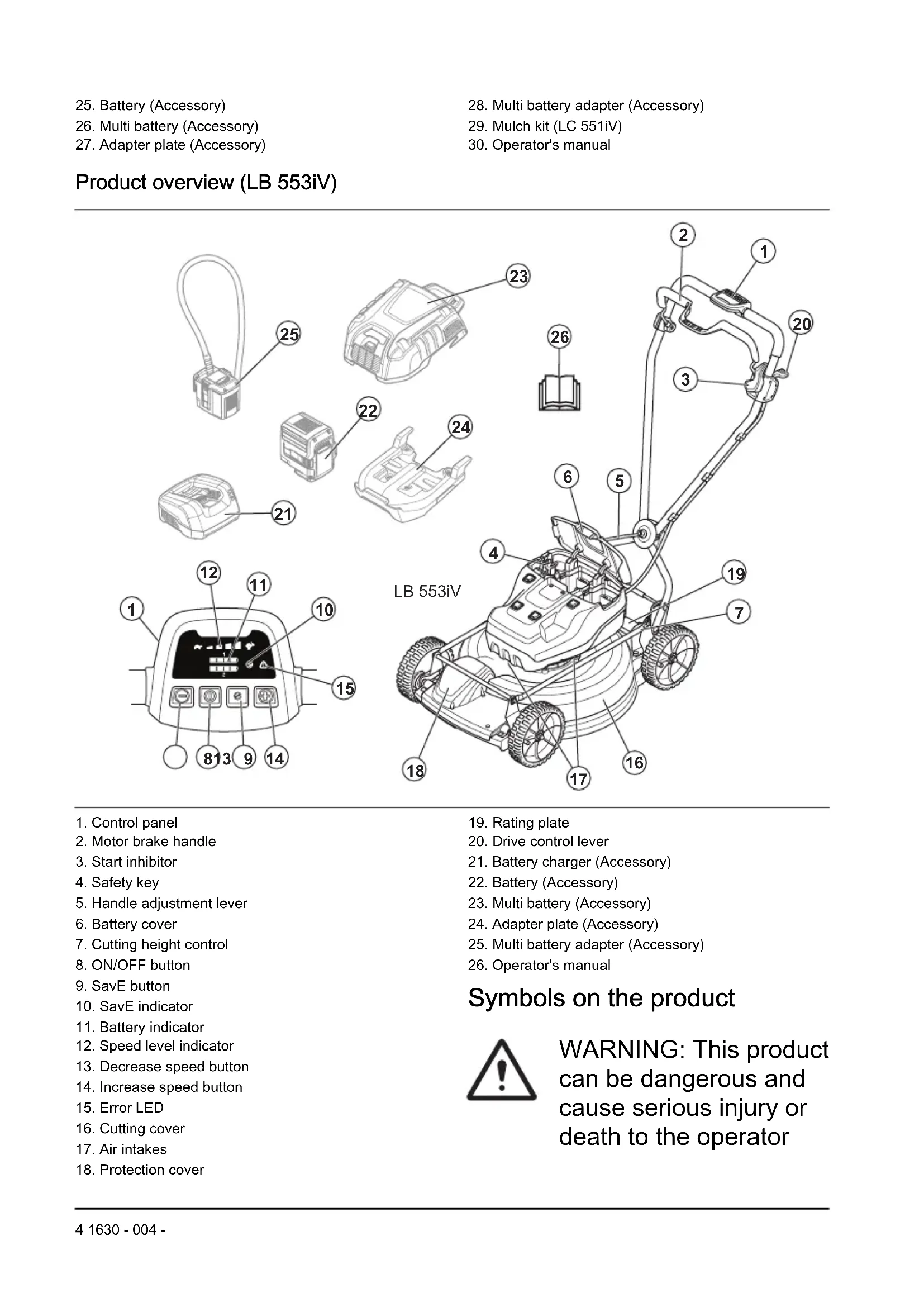

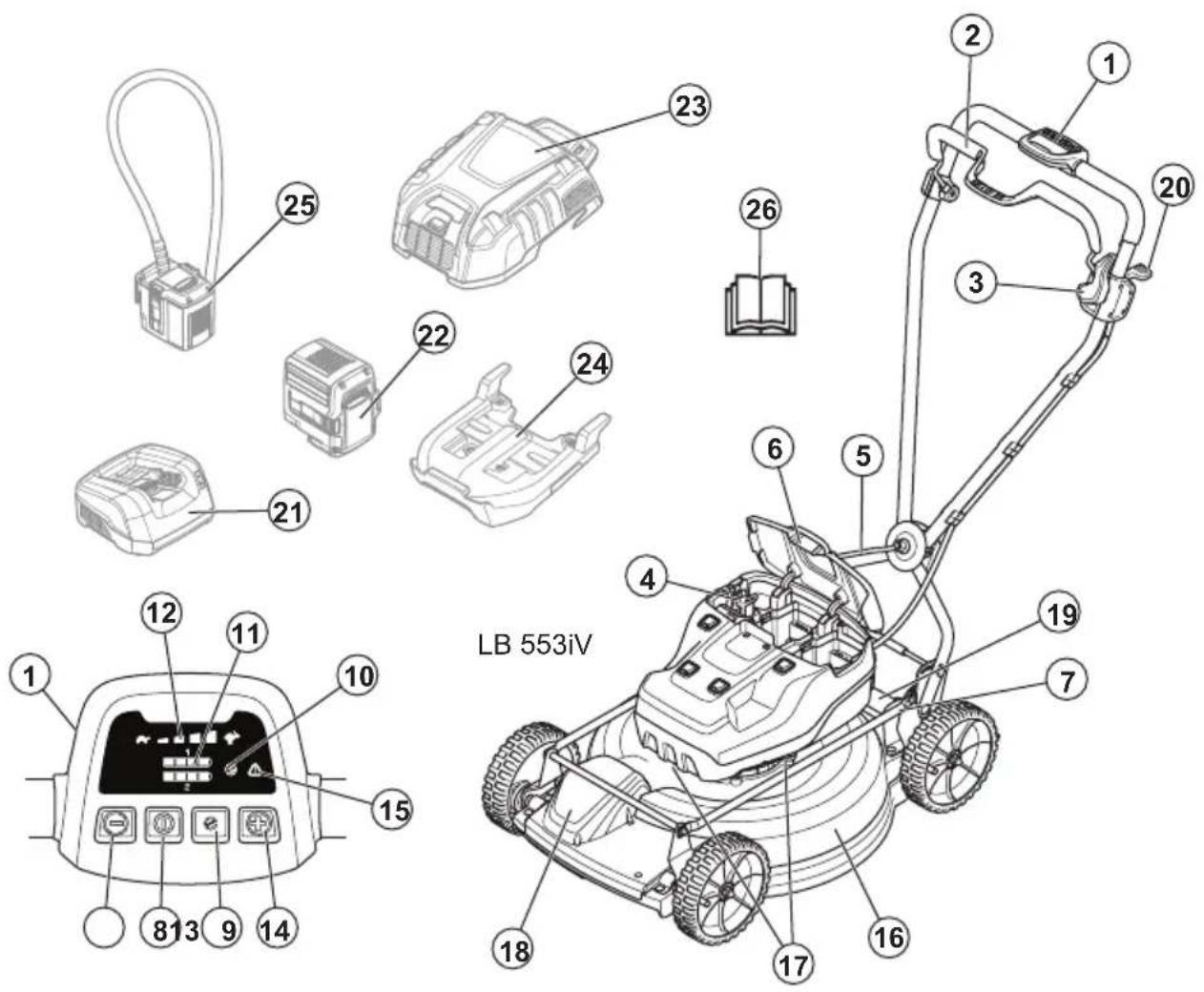

Product overview (LB 553iV)

LB 553iV

1. Control panel
2. Motor brake handle
3. Start inhibitor
4. Safety key
5. Handle adjustment lever
6. Battery cover
7. Cutting height control
8. ON/OFF button
9. SavE button
10. SavE indicator
11. Battery indicator
12. Speed level indicator
13. Decrease speed button
14. Increase speed button
15. Error LED
16. Cutting cover
17. Air intakes

18. Protection cover

19. Rating plate

20. Drive control lever
21. Battery charger (Accessory)
22. Battery (Accessory)
23. Multi battery (Accessory)
24. Adapter plate (Accessory)
25. Multi battery adapter (Accessory)
26. Operator's manual

Symbols on the product

WARNING: This product can be dangerous and cause serious injury or death to the operator

or others. Be careful and use the product correctly.

disposal location for electrical and electronic equipment.

Read the operator's manual carefully and make sure that you understand the instructions before you use this product.

The product agrees with applicable EC directives.

This product conforms to applicable UK regulations.

Keep persons and animals at a safe distance from the work area.

The product agrees with applicable Eurasian Customs Union directives.

Look out for thrown objects and ricochets.

The product agrees with applicable UkrSEPRO directives.

Warning: Keep hands and feet away from the rotating blade.

The product agrees with applicable RCM directives. Applies to AU/NZ only.

Warning: Keep hands and feet away from rotating parts.

Remove the safety key before you do repair work or maintenance.

Environmental mark. The product or package of the product is not domestic waste. Recycle it at an approved

Noise emission to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified

in Technical data on page 29 and on the label.

IPX4

Protected against splashing water.

Start procedure: push ON/OFF button, loosen start inhibitor, push motor brake handle down.

Release motor brake handle to stop.

Slow

Fast

Scannable code

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Label on the product

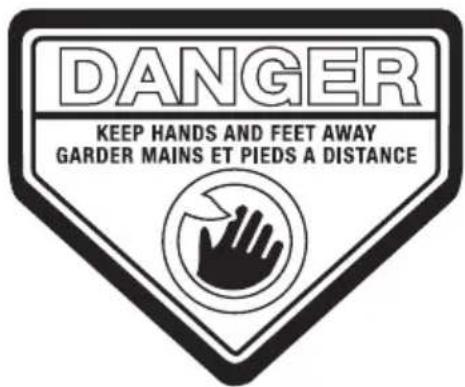

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

DANGER – Keep hands and feet away.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

- This product is dangerous if used incorrectly or if you are not careful. Injury or death can

occur if you do not obey the safety instructions.

- This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.
• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.
• Keep the product clean. Make sure that you can clearly read signs and decals.

• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator

• Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.

• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible that it has been changed by others.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

• Remove objects such as branches, twigs and stones from the work area before you use the product.
• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.
• Never use the product in bad weather such as fog, rain,

strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.

• Look out for persons, objects and situations that can prevent safe operation of the product.
• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.
• To cut grass on slopes can be dangerous. Do not mow excessively steep slopes. Do not use the product on ground that slopes more than 15°
• Exercise extreme caution when changing direction on slopes. Operate the product across the face of slopes. Do not move up and down.
• Be careful when you go near hidden corners and objects that prevent a clear view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. Refer to Personal protective equipment on page 10.
• Make sure that you know how to stop the motor quickly in an emergency.
• Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.
• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, pull up the safety key and remove the battery. Examine the product for damages. Repair damages or

let an authorised service agent do the repair.

• Never attach the motor brake handle permanently to the handle when the motor is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when the motor is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you must lift the product, first stop the motor, pull up the safety key and remove the battery.
• Do not walk rearward when you operate the product.
• Stop the motor when you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the motor is started.

Always walk when you operate the product.

• Stop the motor before you change the cutting height. Never make adjustments with the motor started.
• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
• Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do not remove or do modifications to safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

- Examine the cutting cover to make sure that there are no damages such as cracks.

Safety key

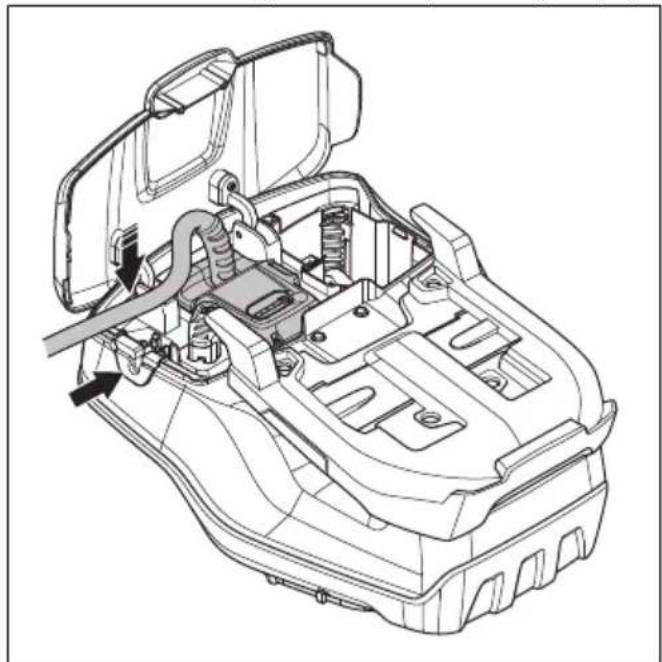

The safety key is below the battery lid. The safety key connects the battery that supplies the motor with power.

To do a check of the safety key

The safety key connects the battery that supplies the motor with power.

- Start and stop the motor. If the safety key operates correctly, the motor can only start when the key is in the safety lock.

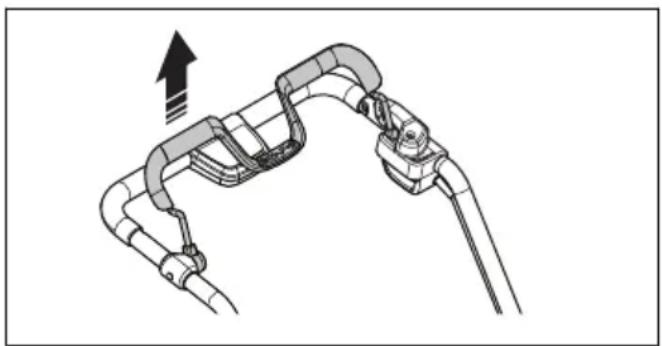

Motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

To do a check of the motor brake, start the motor and then release the motor brake handle. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

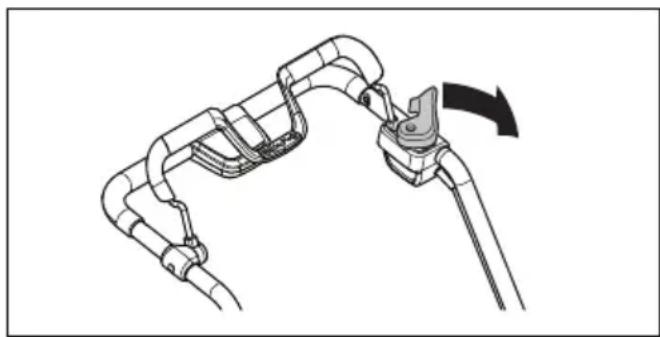

To examine the start inhibitor

Do a check of the start inhibitor to make sure that it prevents operation of the motor.

1. Push the motor brake handle in the direction of the handlebar. The start inhibitor stops the movement.
2. Push the start inhibitor out.

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

1. Release the start inhibitor and make sure that it goes back to its initial position.

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not use non-rechargeable batteries.

• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.

• Do not put objects into the air slots of the battery.

• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.
• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.
• Use the battery in temperatures between -10°C and 40°C.
• Do not clean the battery or the battery charger with water. See To clean the battery and the battery charger on page 27.
• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewellery.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

• Use the QC battery chargers to charge Husqvarna replacement batteries only.
• Risk of electrical shock or short circuit. Do not put objects into the air slots of the charger. Do not try to disassemble the battery charger. Do not connect the charger terminals to metal objects. Use an approved mains socket.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Regularly make sure that the power cord of the battery charger is not damaged and that there are no cracks in it.

• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.

• Keep the power cord and extension cables away from water, oil and sharp edges. Make sure that the cable is not pinched in doors, fences or equivalent. It can cause the charger to become energized.
• Do not clean the battery charger with water.
• The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.

• Do not charge non-rechargeable batteries in the battery charger.

• Do not use the battery charger near flammable materials or materials that can cause corrosion. Do not cover the battery charger. Pull out the plug to the battery charger if there is smoke or fire.

• Do not use a defective or damaged battery charger.
• Only charge the battery indoors in a room with good airflow and away from sunlight. Do not charge the battery in wet conditions.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• Remove the safety key before you do maintenance on the product.
• Do the maintenance work correctly to increase the lifetime of the product and decrease the risk of accidents. Let an approved service agent do the professional repairs. Speak to your nearest service agent for more information.

• Only do the maintenance work written in this operator's manual.

• Put on heavy duty gloves when you use the cutting equipment. The blade is very sharp and cuts can easily occur.

• Keep the cutting edges sharp and clean for the best and safest performance.
• Let your service agent regularly examine the product and make necessary adjustments and repairs.

• Replace damaged, worn or broken parts.

• Obey the instructions for how to change accessories. Only use accessories from the manufacturer.

• When not in operation, keep the product, battery and battery charger apart in a dry, indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

To install and remove the multi battery (accessory)

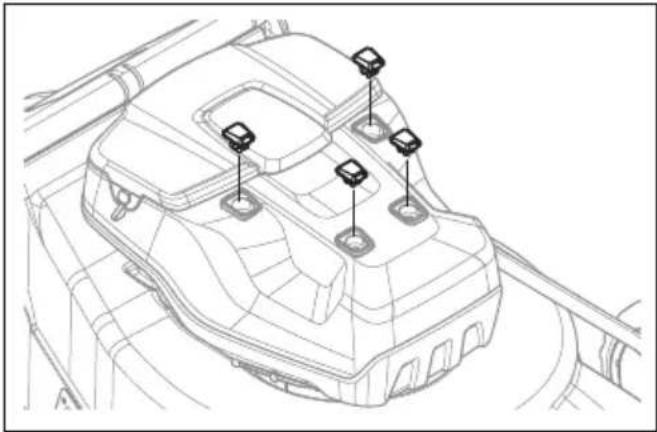

1. Remove the 4 rubber covers and the 4 screws from the motor cover.

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

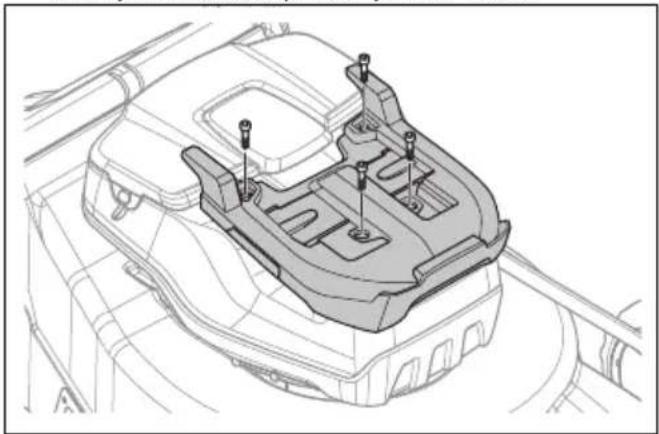

1. Put the adapter plate onto the motor cover.

2. Attach the adapter plate with the 4 supplied screws to a torque of 5-6 Nm.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

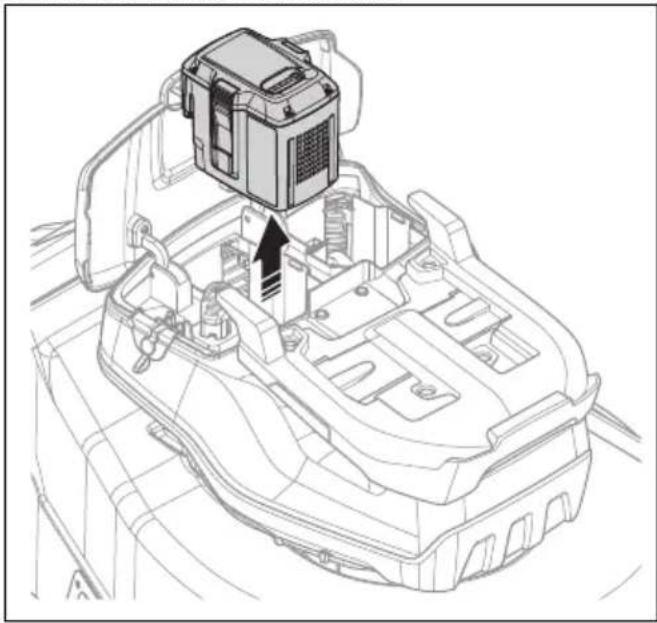

1. Open the battery hatch.

2. Remove the battery in slot 1.


Technical line drawing of an automotive engine bay with a mounted component (no text or symbols)

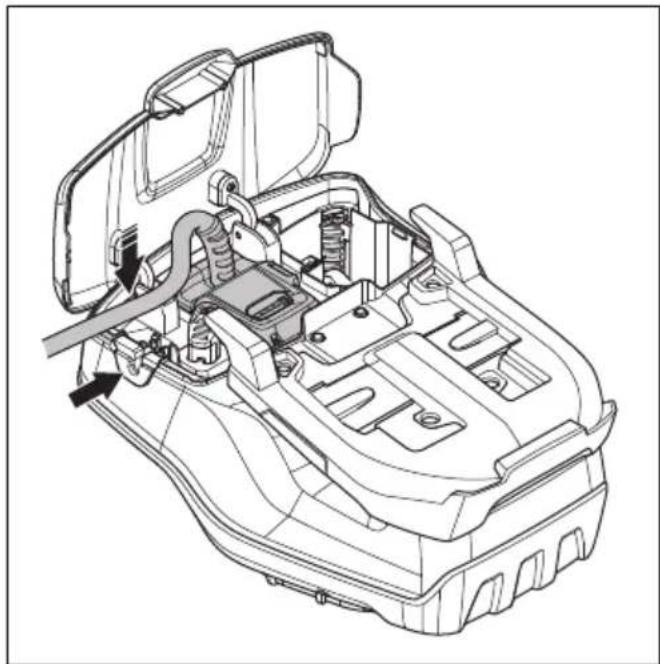

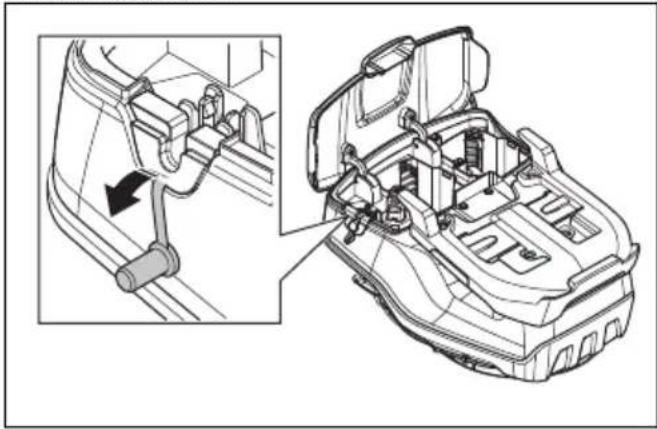

1. Remove the seal stop.


Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

1. Push the battery adapter into the battery compartment until you hear a click.


Technical line drawing of a vehicle engine bay with a mounted component and a black arrow indicating a specific part (no text or symbols present)

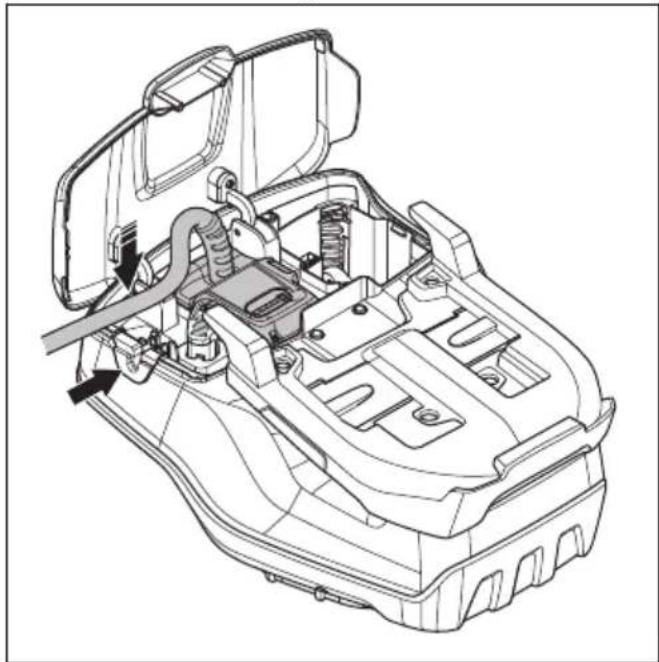

1. Put the cord of the battery adapter through the seal stop hole. Attach the cord with the clip.


Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

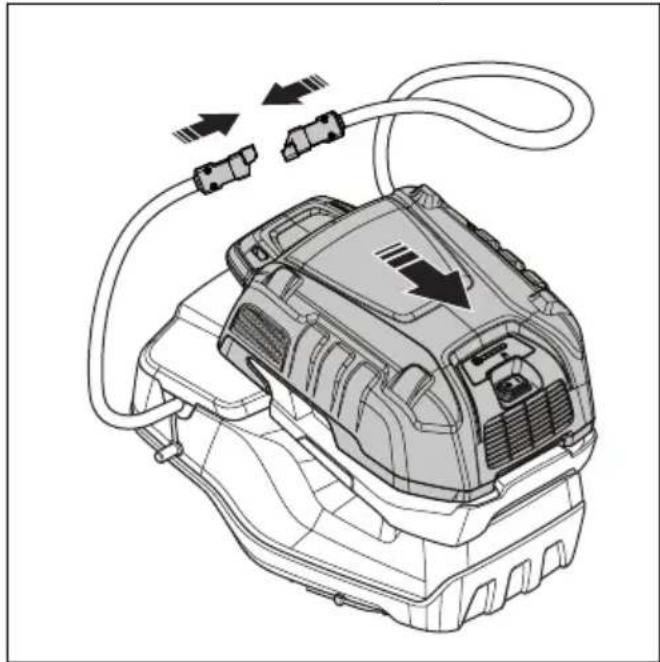

1. Install the multi battery onto the battery adapter.

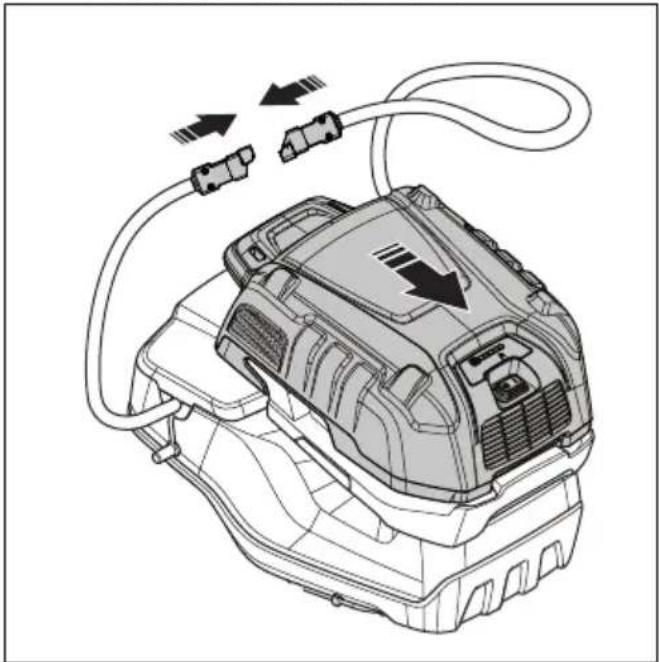

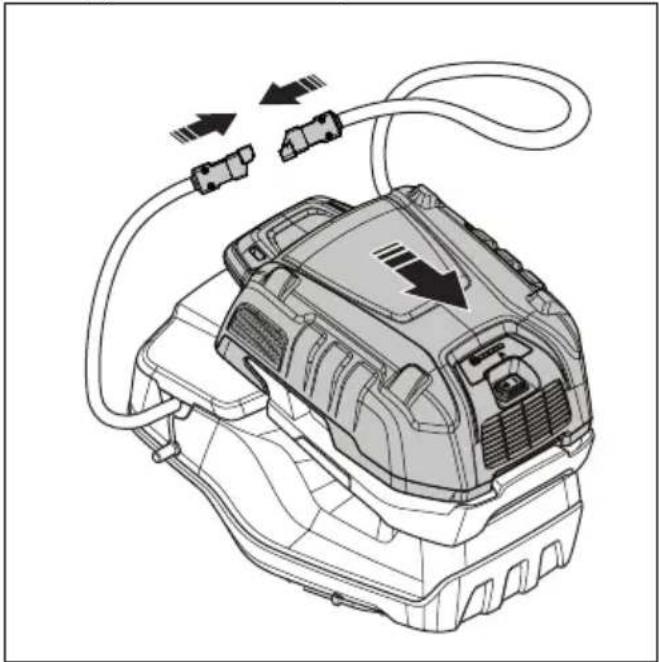

2. Connect the multi battery to the battery adapter.


Technical illustration of a mechanical device with hoses and connectors, no text or symbols present

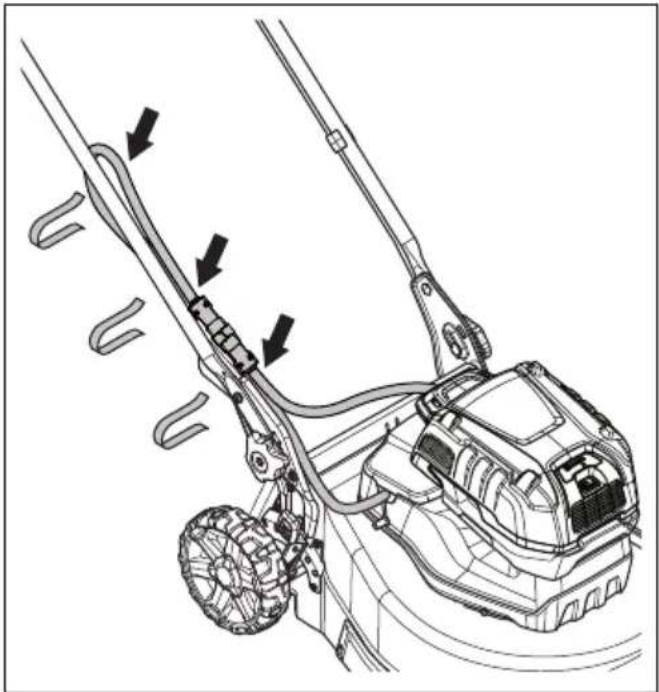

1. Attach battery adapter cord to the handle with the 3 fabric straps.

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

1. Remove the multi battery in the opposite sequence.

WARNING: Do not attach the cord too loosely to the handle. The cord can come off the handle and cause injury.

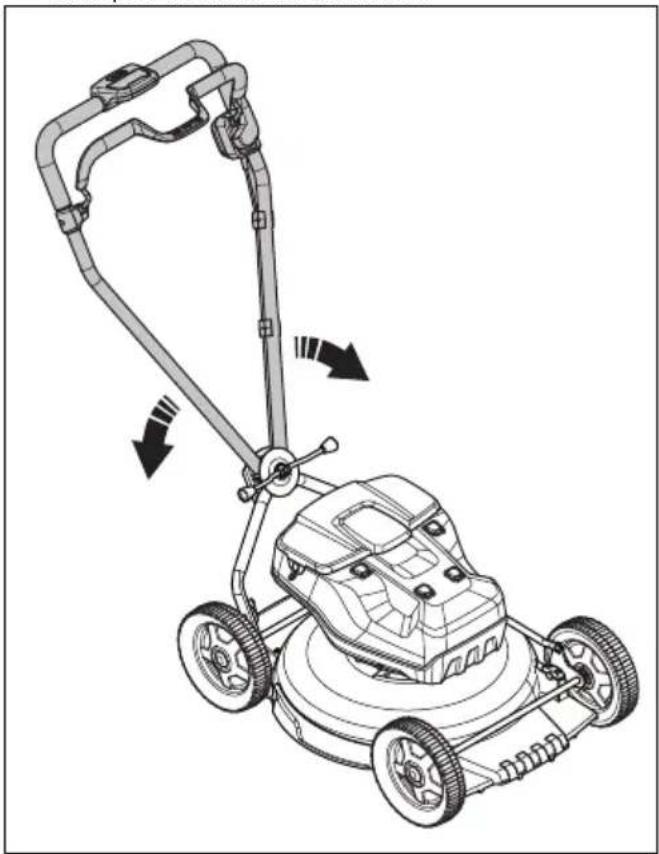

To adjust the handle (LC 551iV)

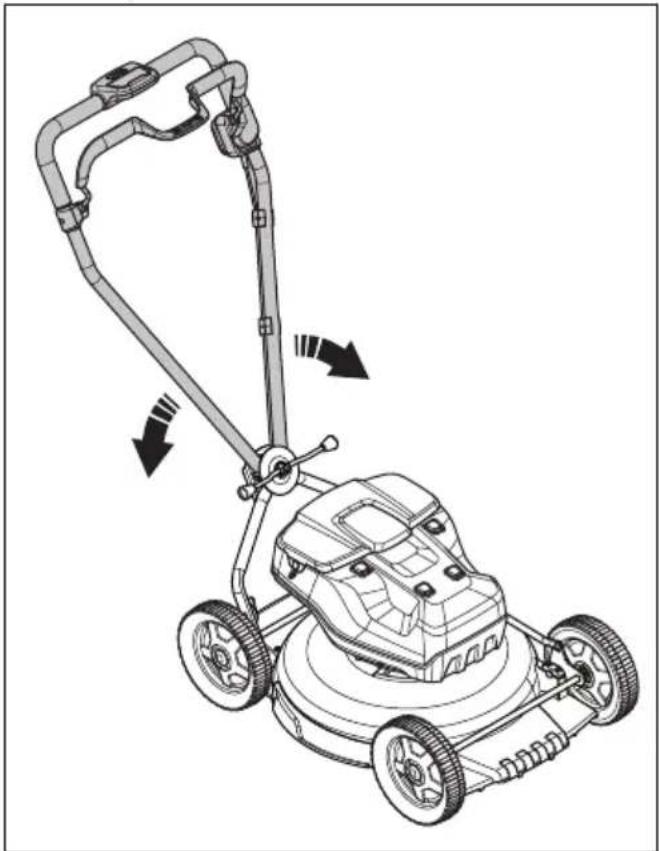

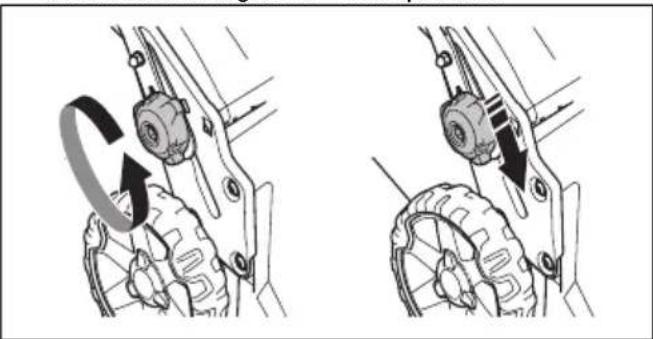

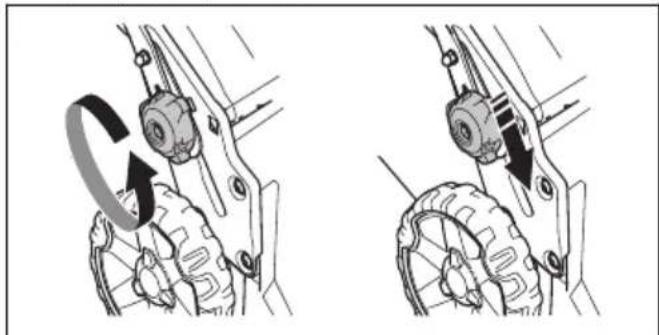

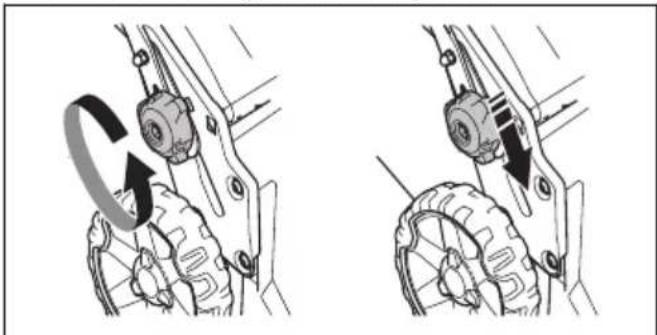

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Set the handle height in one of the 2 available positions.

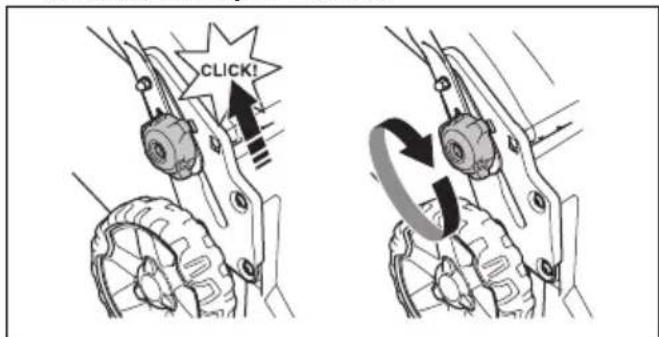

2. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

To assemble the handle (LB 548i, LB 553iV)

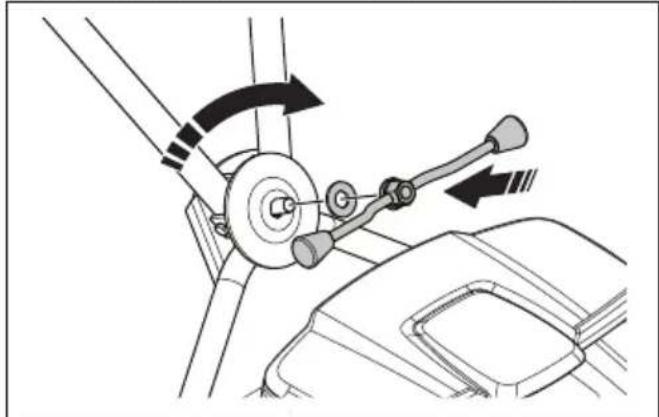

1. Remove the handle nut and the washer from the plate on the upper handle.
2. Put the upper handle in position on top of the lower handle.

CAUTION: Make sure that the wires are not caught or become damaged.

1. Attach the washer and the handle adjustment lever.

Diagram of a car's steering wheel and belt system (no text or symbols)

1. Turn the handle to the side for a good operation position when you operate the product near a wall.

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

To assemble the grass catcher (LC 551iV)

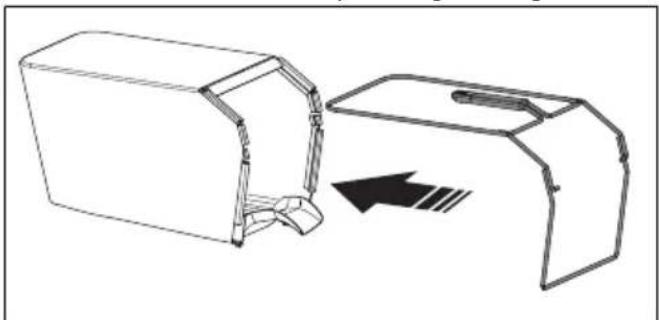

1. Attach the grass catcher frame to the grass bag with the rigid part of the bag on the bottom. Keep the handle of the frame on top of the grass bag.

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

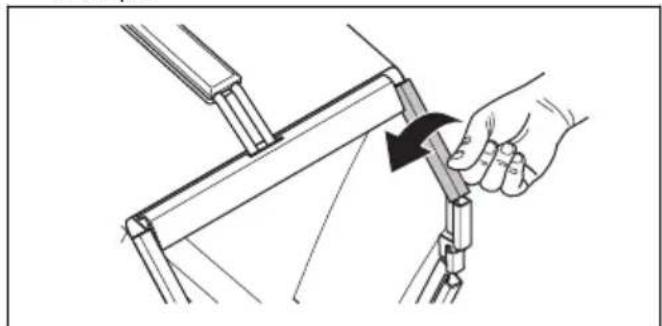

1. Attach the bottom section of the grass catcher frame in the groove on the bottom of the grass catcher.

2. Attach the grass bag to the grass catcher frame with the clips.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

1. Lift the rear cover.

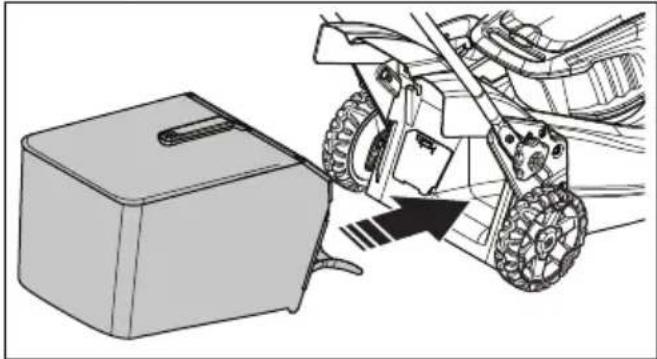

2. Attach the grass catcher to the top edge of the chassis.
3. Put the lower part of the grass catcher into the grass discharge channel.

Diagram showing a mechanical device with a box and wheels, connected to a vehicle (no text or symbols present)

To assemble the mulch plug (LC 551iV accessory)

1. Lift up the rear cover and remove the grass catcher.

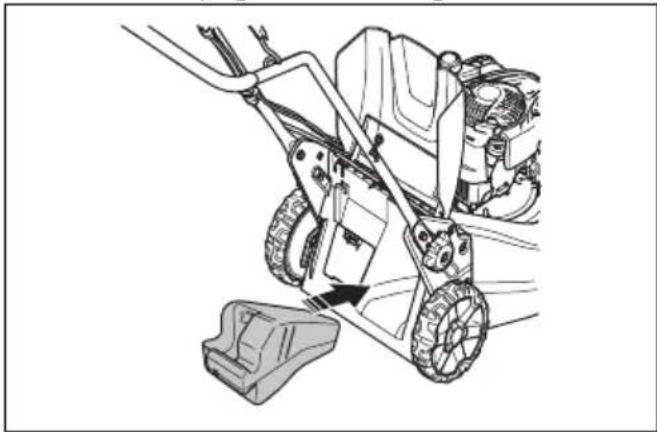

2. Put the mulch plug into the discharge channel.

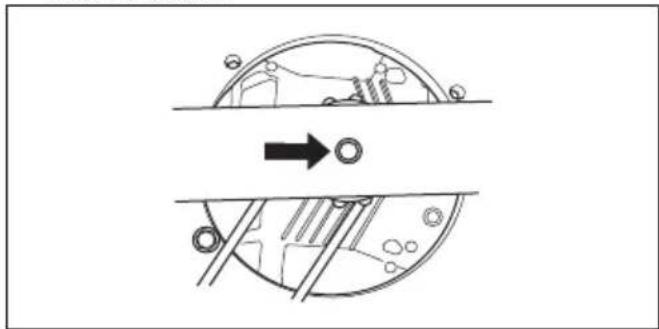

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

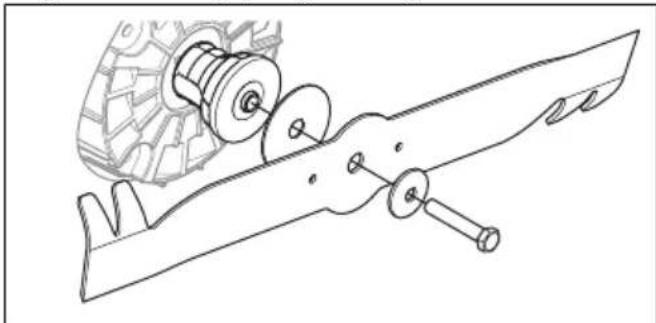

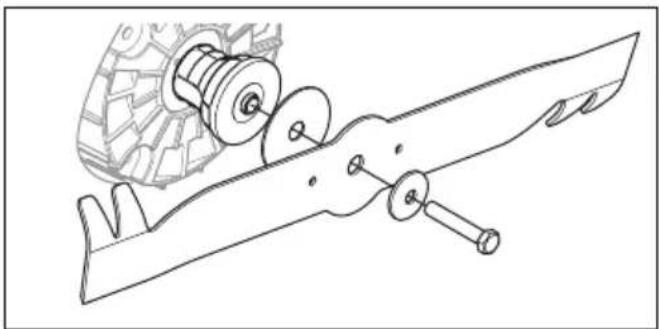

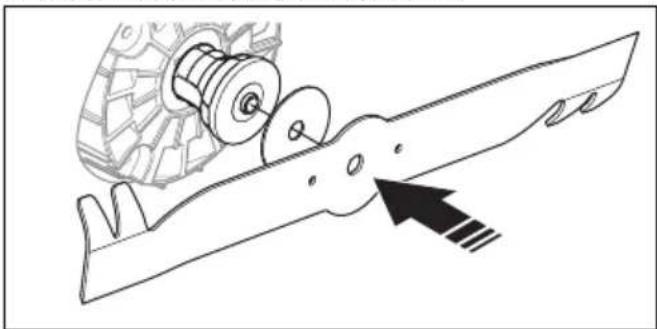

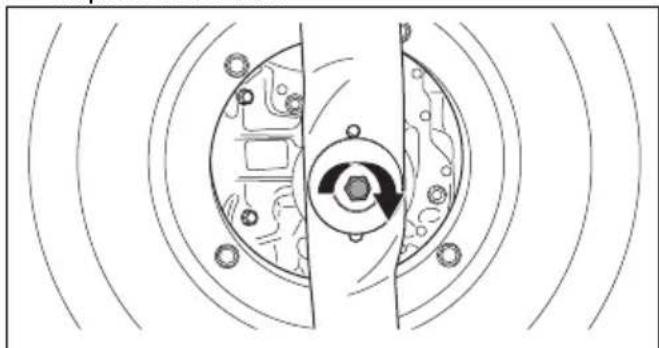

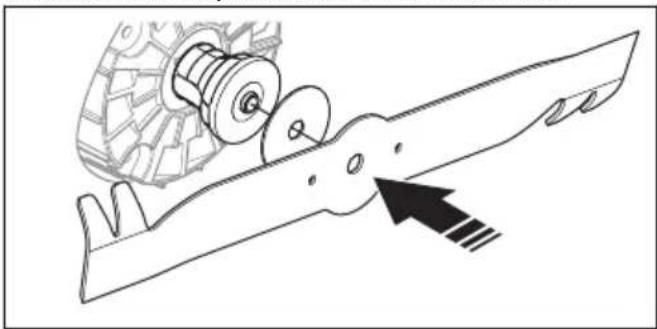

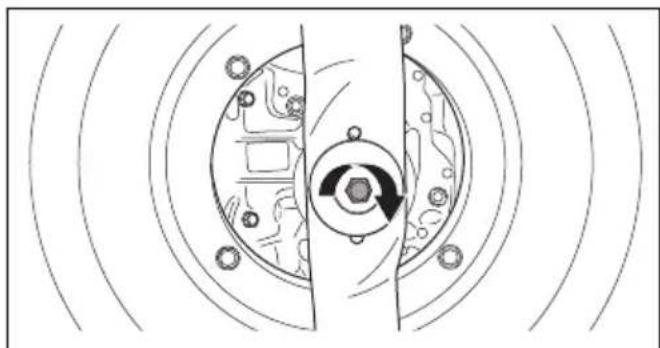

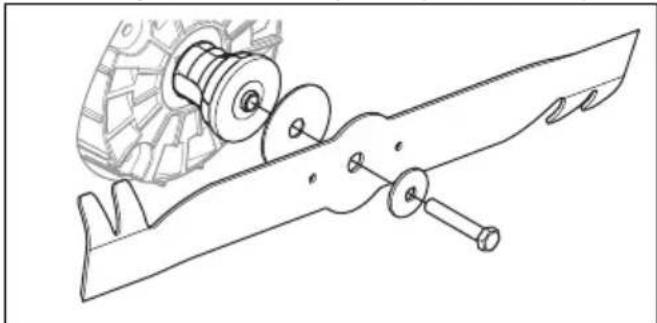

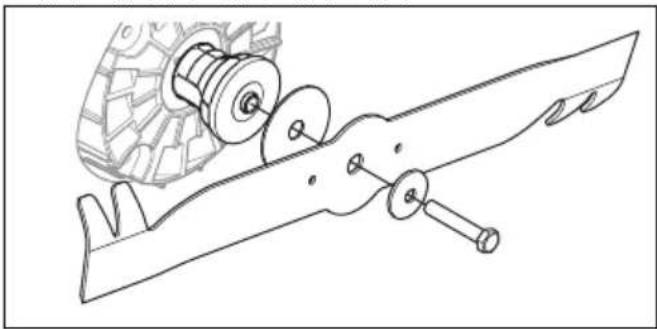

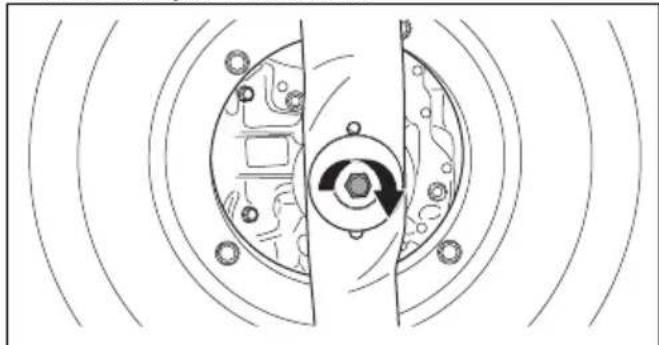

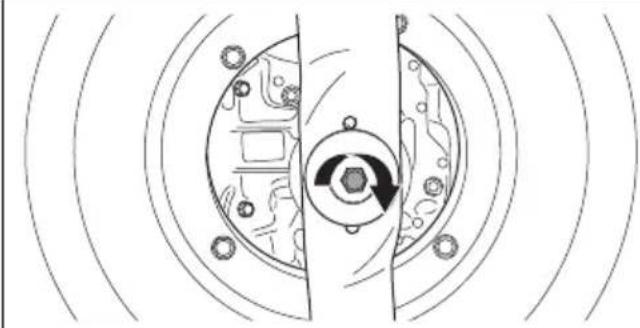

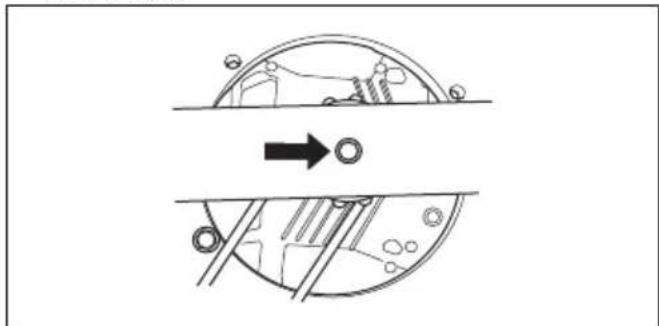

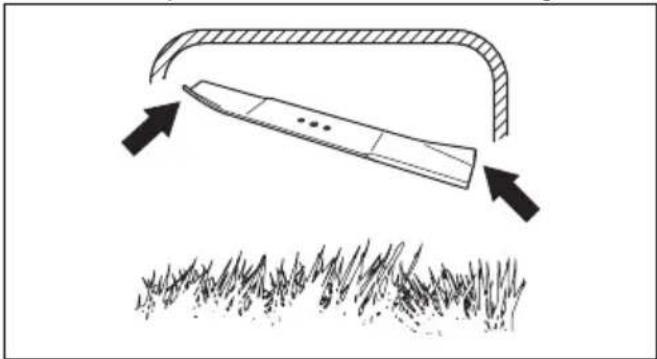

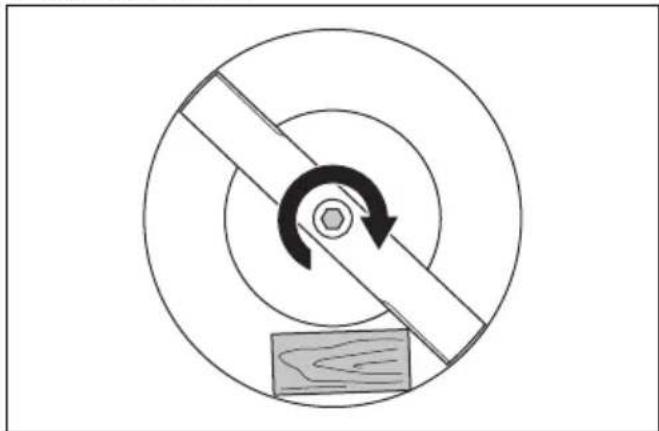

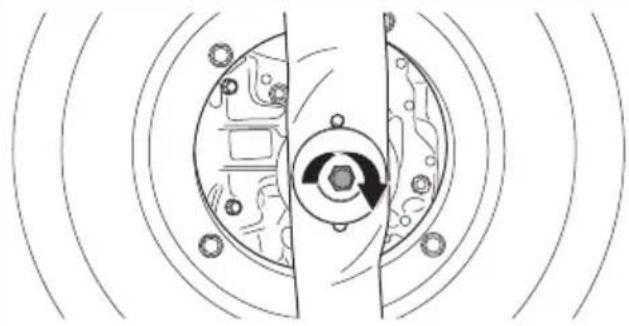

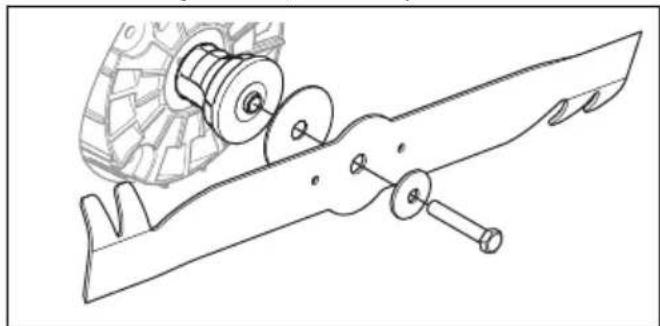

1. Replace the blade with the mulch blade that is supplied with the mulch kit. Refer to To replace the blade on page 26.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.
• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Do the instruction steps in the Husqvarna Connect app to connect and register the product.

Husqvarna Fleet Services™

Husqvarna Fleet Services ^™ is a cloud solution that gives the commercial fleet manager an overview of all products. It is a requirement to have the Husqvarna Fleet Services ^™ sensor installed on the product. The product is prepared for installation of a Husqvarna Fleet Services ^™ sensor. For more information about Husqvarna Fleet Services ^™ , refer to www.husqvarna.com.

To prepare the sensor (accessory)

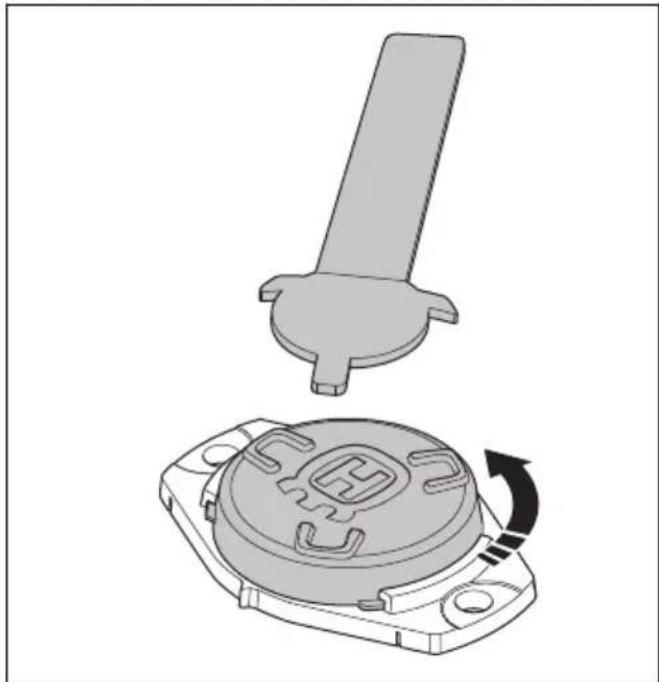

1. Use the sensor key to open the lid of the sensor.

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

1. Remove the sensor.

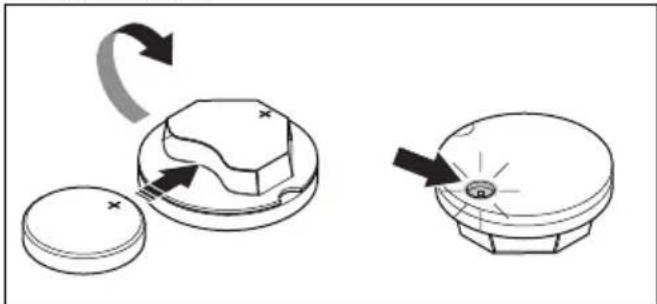

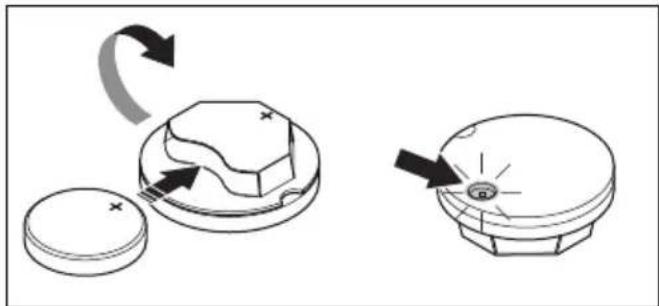

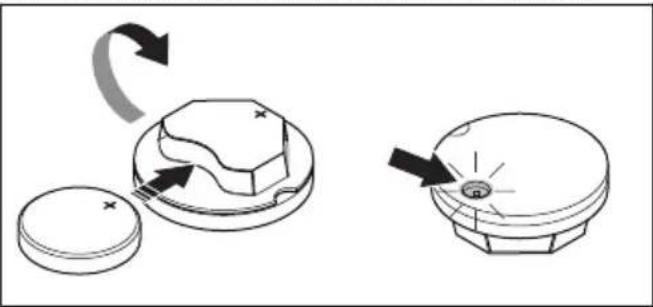

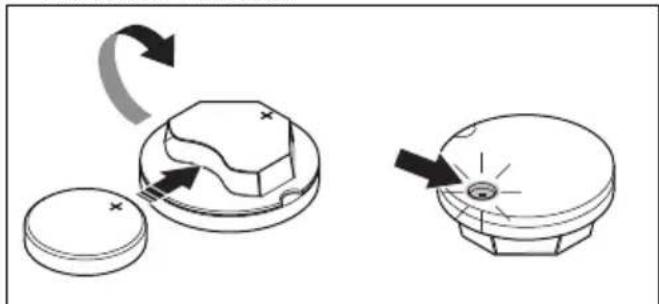

2. Connect the battery to the sensor. The LED light of the sensor comes on.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

1. Download the Husqvarna Fleet Services ^TM app.
2. Log on to the Husqvarna Fleet Services ^TM app.
3. Do a pairing operation. Refer to To do a pairing operation between the app and the product on page 18

To do a pairing operation between the app and the product

1. Log on to the Husqvarna Fleet Services ^TM app.
2. Select your product in the app.
3. Scan the code behind the sensor with your mobile device to install the sensor in the app.

Note: It is only necessary to do a pairing operation between the app and the product one time.

To install the sensor

1. Make sure that the sensor is connected to the Husqvarna Fleet Services™ app. Refer to To do a pairing operation between the app and the product on page 18.

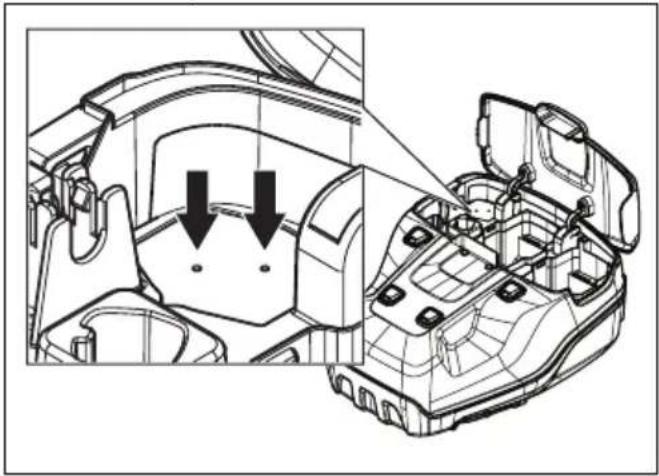

2. Drill 2 holes by the marks in the enclosure slot.

Technical line drawing of a vehicle interior showing structural components and airflow direction (no text or symbols)

Note: Make sure that the holes are the same dimension as the rivets supplied with the sensor.

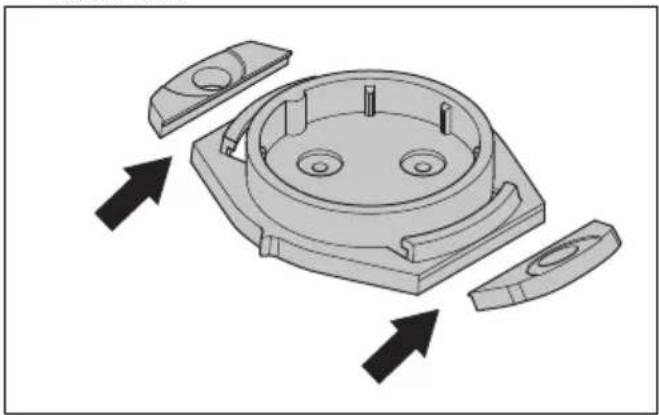

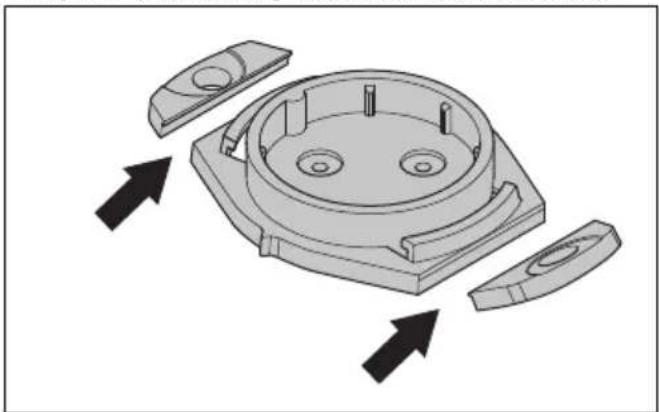

1. Use a pair of pliers to remove the outer holes on the sensor slot.

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

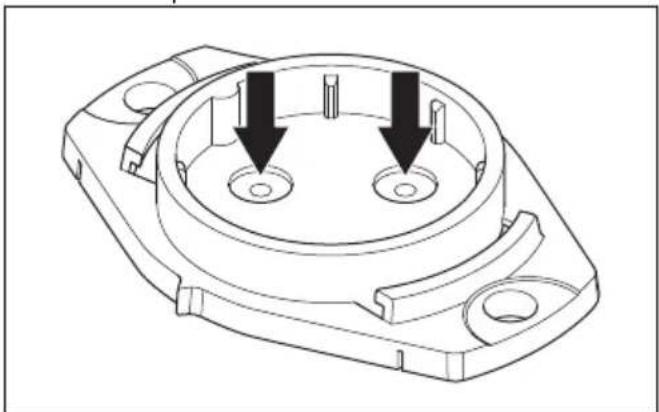

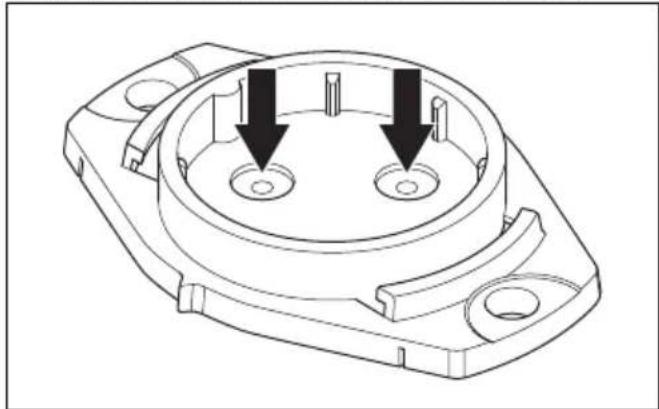

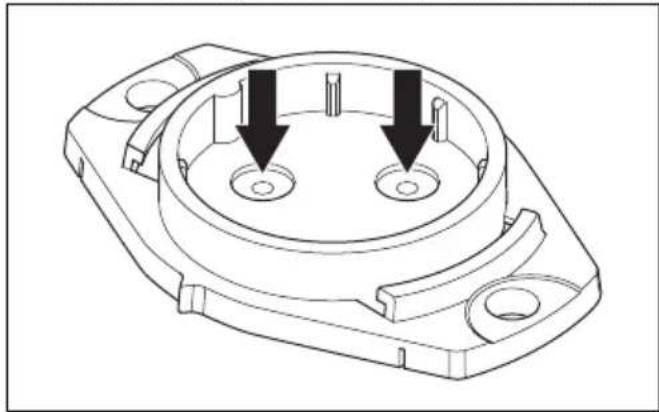

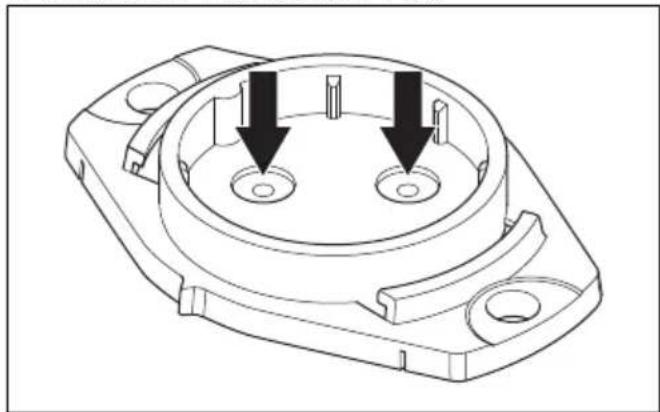

1. Drill 2 holes by the marks in the sensor slot.

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

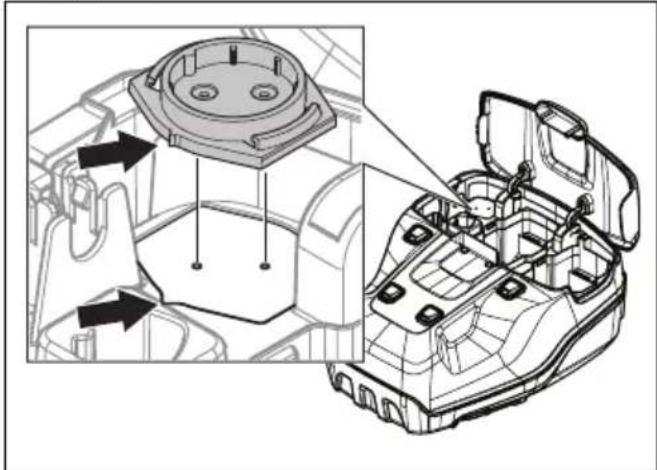

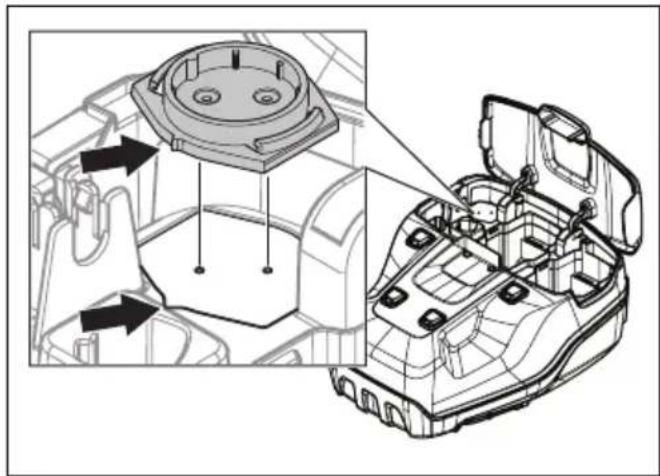

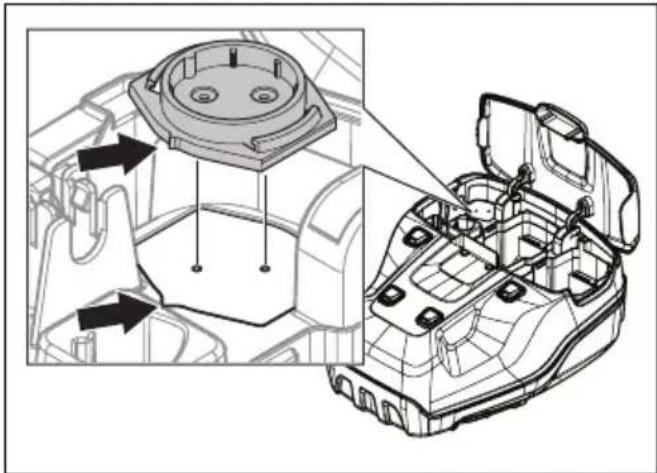

1. Align the sensor slot with the enclosure slot.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. Attach the sensor slot with the rivets.

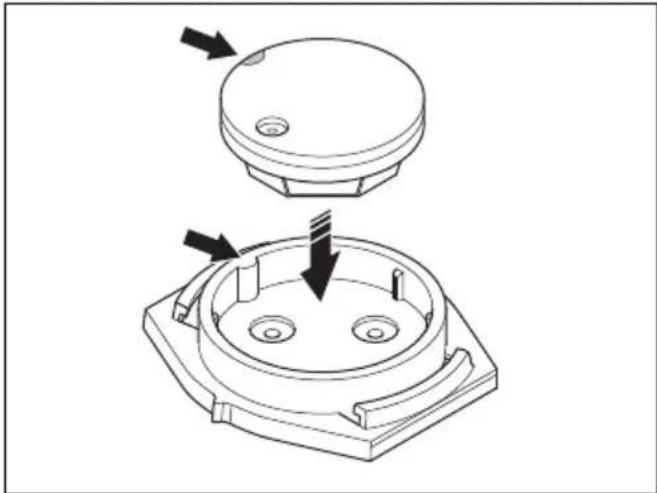

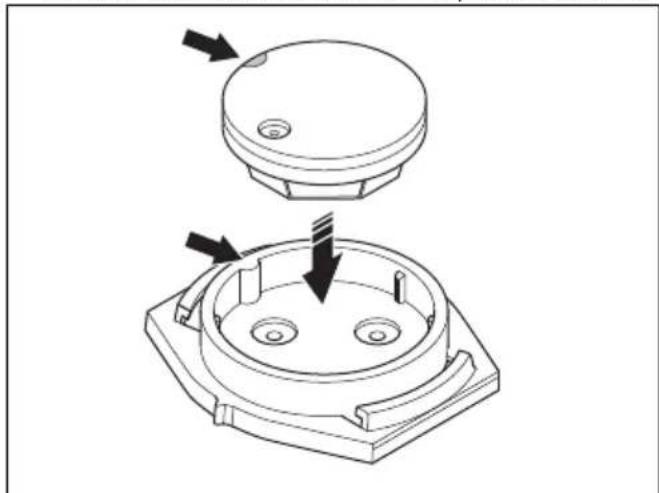

2. Install the sensor in the sensor slot. Align the white mark on the sensor with the mark on the sensor slot.

Technical line drawing of a mechanical component with two views showing internal components (no text or symbols)

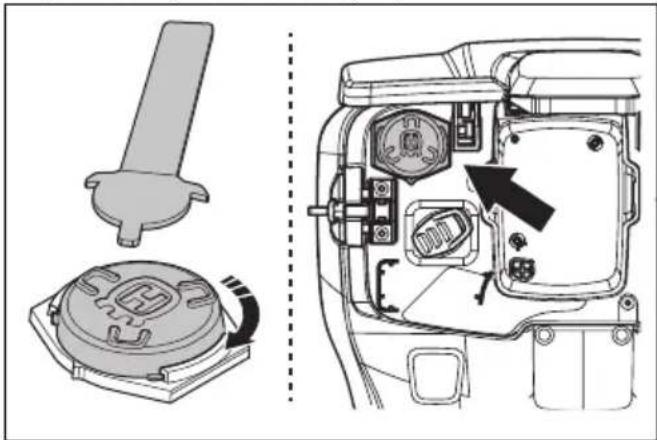

1. Close the lid to the sensor and lock it with the sensor key. Make sure that the top of the Husqvarna "H" points away from the safety key.

Technical line drawing showing internal components of a device, including a plastic housing and internal wiring (no text or symbols)

To set the product in operation position (LC 551iV)

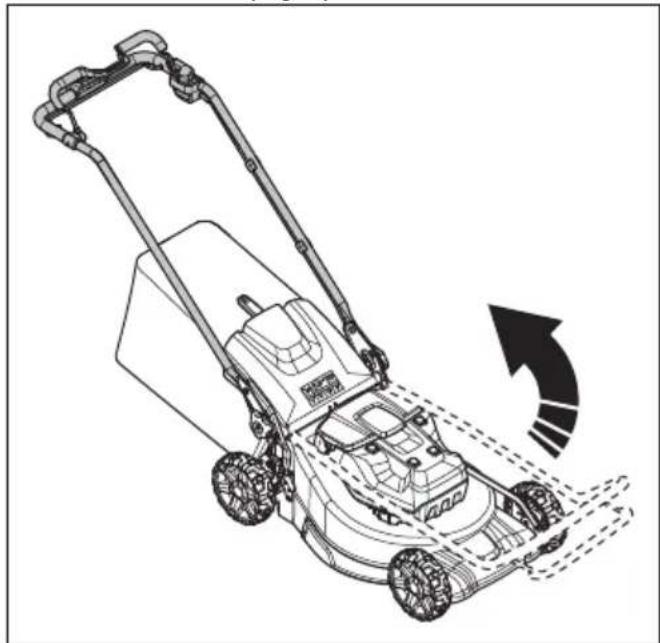

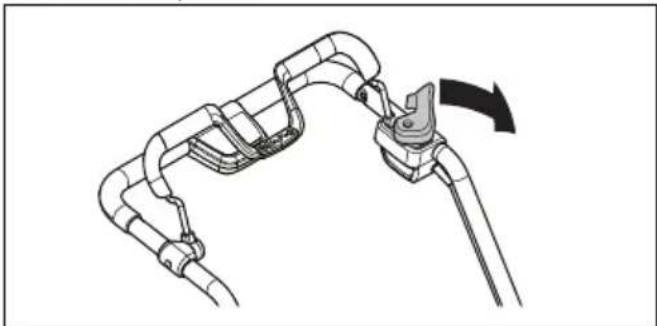

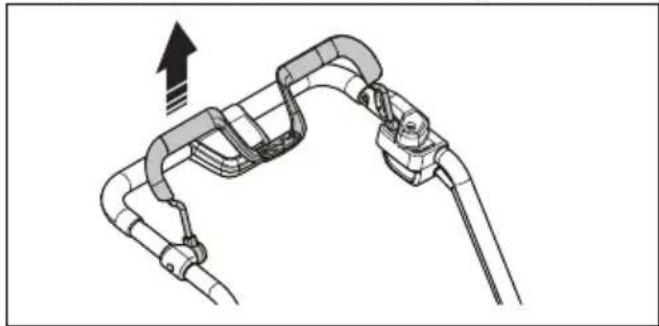

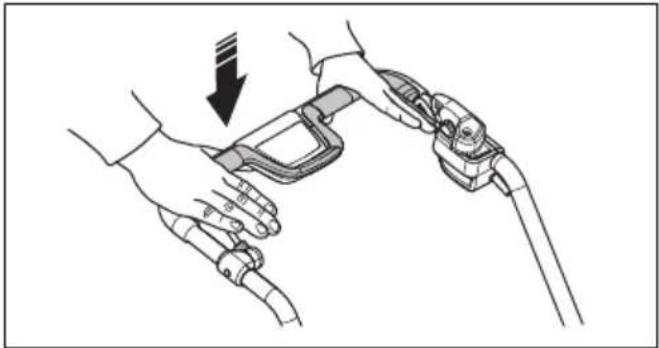

1. Lift the handle to upright position.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

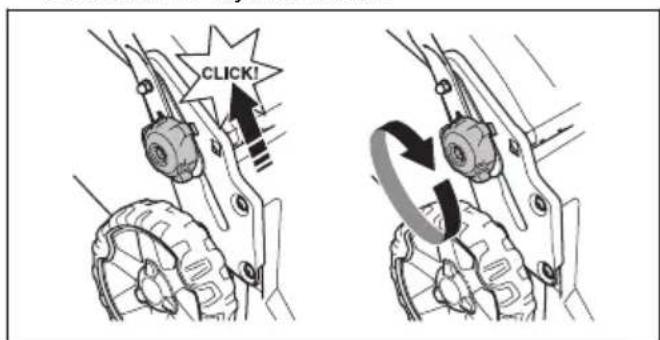

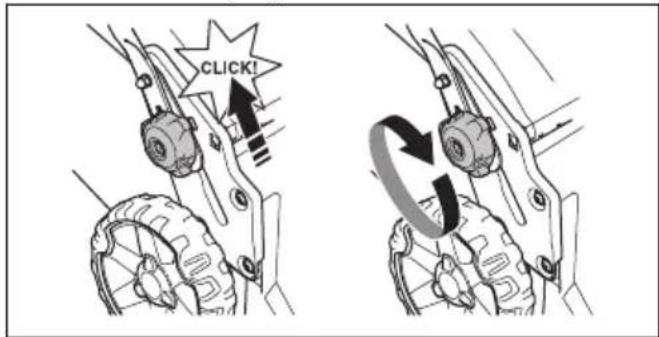

1. Move the knobs up in the direction of the handle until they stop and you hear a click.

CLICK!

1. Tighten the knobs fully.

To set the cutting height (LB 548i, LC 551iV)

The cutting height can be adjusted in 6 levels.

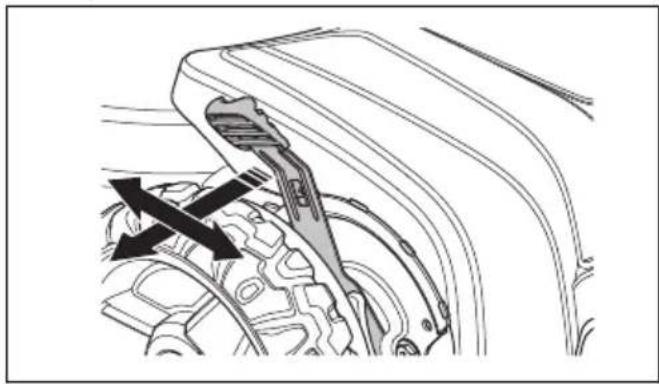

1. Push the cutting height control in the direction of the wheel and then rearward to increase the cutting height.

2. Push the cutting height control in the direction of the wheel and then forward to decrease the cutting height.

Mechanical assembly diagram showing a clamping tool inserted into a gear mechanism (no text or labels visible)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

To set the cutting height (LB 553iV)

The cutting height can be adjusted in 5 levels.

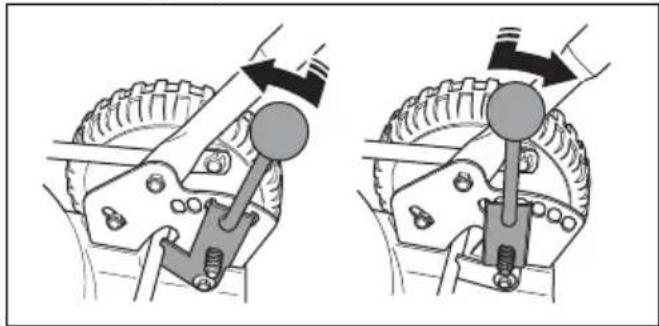

1. Move the cutting height lever rearward to increase the cutting height.
2. Move the cutting height lever forward to decrease the cutting height.

Mechanical assembly diagram showing two different configurations of a clamp or lever mechanism (no text or labels present)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Battery status

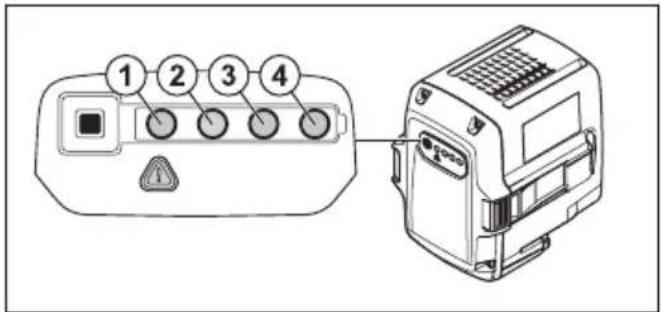

The display shows the remaining battery capacity and if there are problems with the battery. The battery capacity is shown for 5 seconds after the product is switched off or the battery indicator button is pressed. The warning

symbol on the battery is on when an error has occurred. See Battery on page 27.

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

LED lights Battery status
All LEDs are lit Fully charged (75-100%)
LED 1, LED 2, LED 3 are lit	The battery is 50%-75% charged
LED 1, LED 2 are lit The battery is 25%-50% charged
LED 1 is lit The battery is 0%-25% charged.
LED 1 flashes The battery is empty. Charge the battery.

To charge the battery

Charge the battery before the first use. The battery is only 30% charged when supplied to the customer.

Note: The battery charger must be connected to the voltage and frequency specified on the rating plate.

The battery does not charge if the battery temperature is above 50^ C. The battery charger decreases the temperature of the battery before it starts to charge.

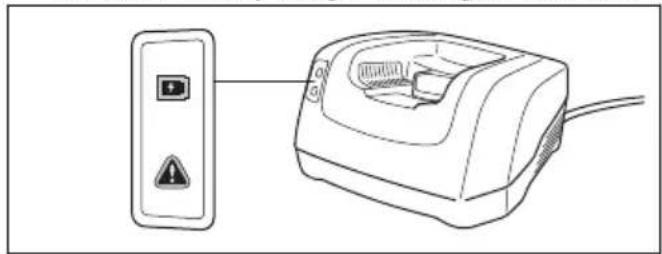

1. Connect one end of the power cord for the battery charger into the socket of the battery charger.
2. Connect the other end of the power cord for the battery charger in an grounded mains socket. The LED on the battery charger flashes green one time.

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

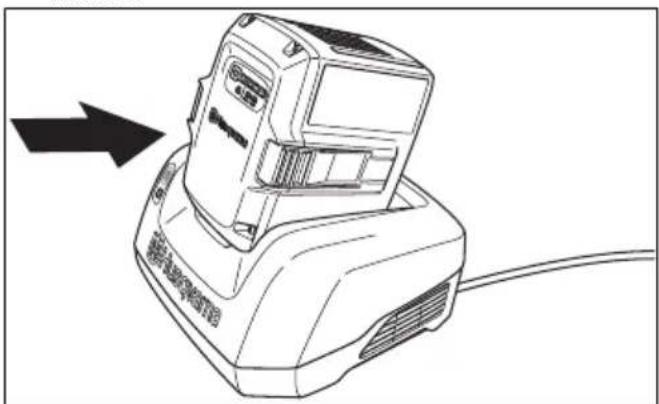

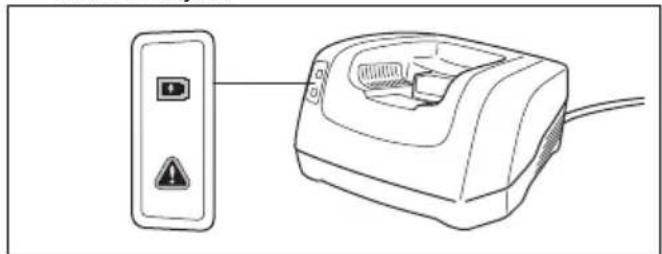

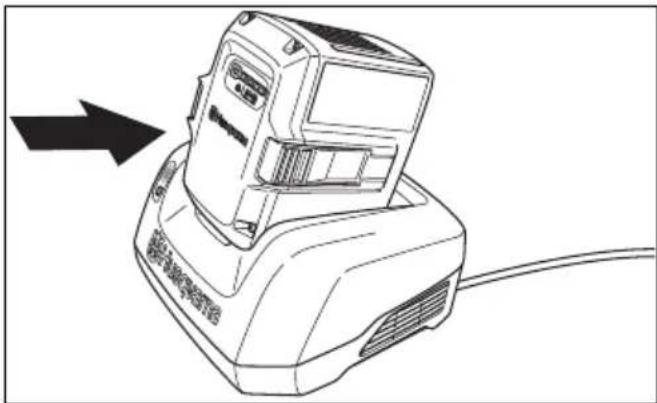

1. Put the battery in the battery charger. The green light on the charger comes on when the battery is correctly connected to the battery charger.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. When all LEDs on the battery have come on the battery is fully charged. Charge the battery for maximum 24 hours.
2. To disconnect the battery charger from the mains socket, pull the plug, not the power cord.
3. Remove the battery from the battery charger.

Battery charging status

A Husqvarna Li-ion battery can be charged or used at all charging levels. The battery is not damaged. A fully charged battery will not decrease its charge when the battery is left in the charger.

LED display	Charging status
LED 1 flashes 0%-25%
LED 1 is lit, LED 2 flashes	25%-50%
LED 1, LED 2 are lit, LED 3 flashes	50%-75%
LED 1, LED 2, LED 3 are lit, LED 4 flashes	75%-100%
LED 1, LED 2, LED 3, LED 4 are lit	Fully charged

To charge the multi battery

Note: Charge the battery if it is the first time that you use it. A new battery is only 30% charged.

1. Make sure that the battery is dry.

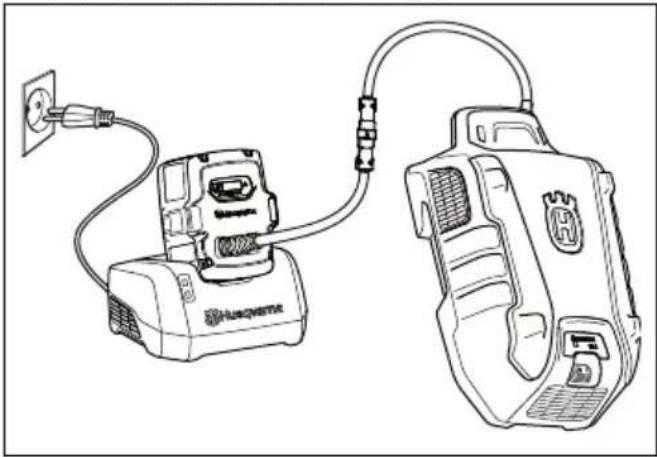

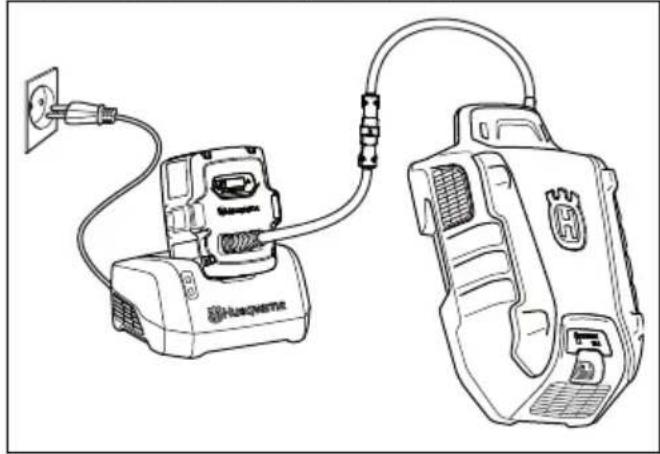

2. Connect the multi battery to the adapter.

Line drawing of two connected devices with power connections (no text or symbols)

1. Put the adapter in the battery charger.

2. Make sure that the green charging LED on the battery charger comes on. That means that the adapter and multi battery are connected correctly.

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component

1. When all LEDs on the battery come on and the adapter shows 100% , the battery is fully charged.

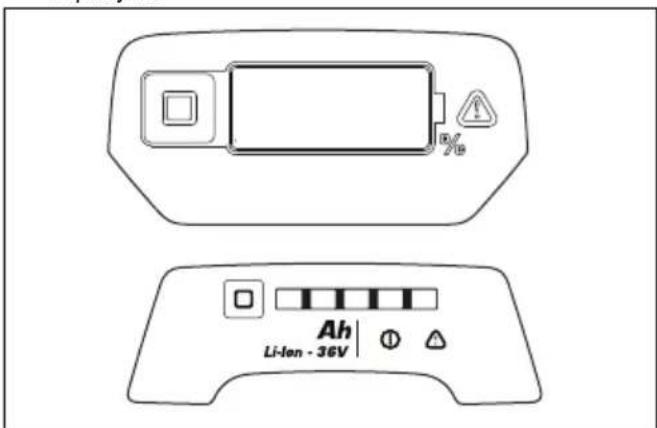

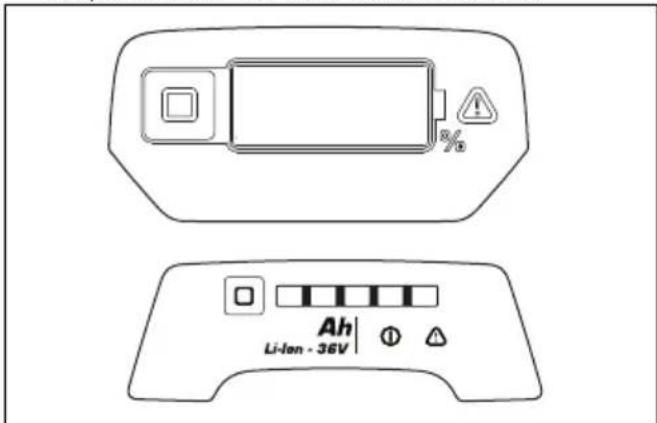

% Ah Li-Ion - 36V

The adapter shows the state of charge in steps of 1%. Small deviations are possible at the start of the charge.

1. To disconnect the battery charger from the mains socket, pull the plug. Do not pull the cable.

2. Remove the adapter from the battery charger.

3. Remove the multi battery from the adapter.

Note: Refer to the multi battery and battery charger manuals for more information.

To start the product

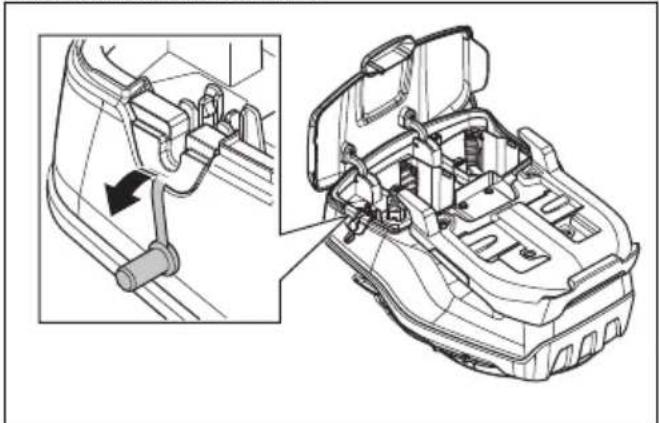

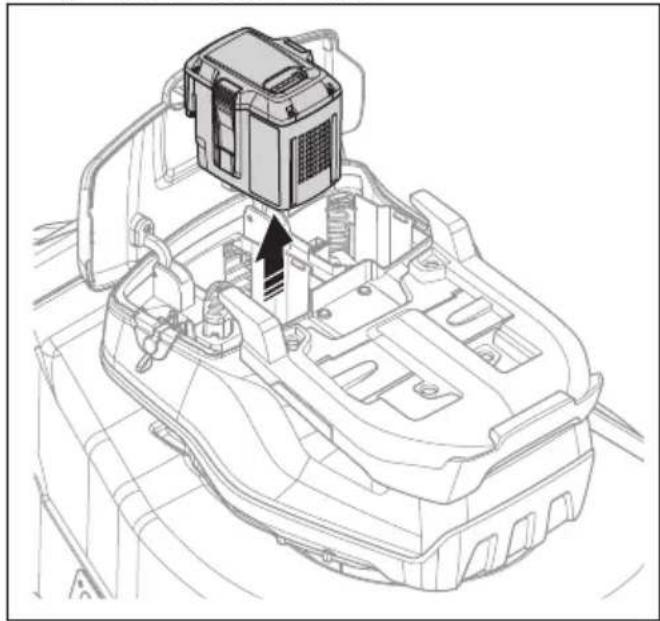

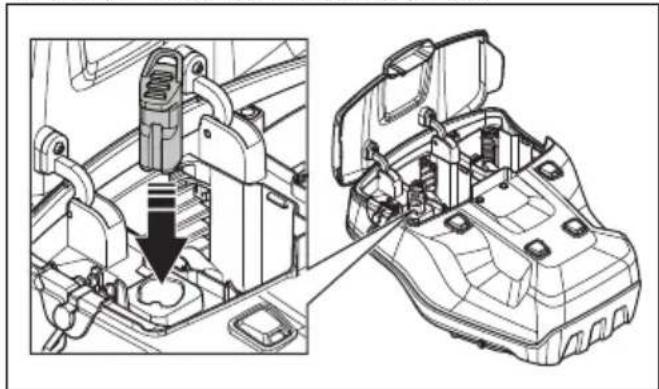

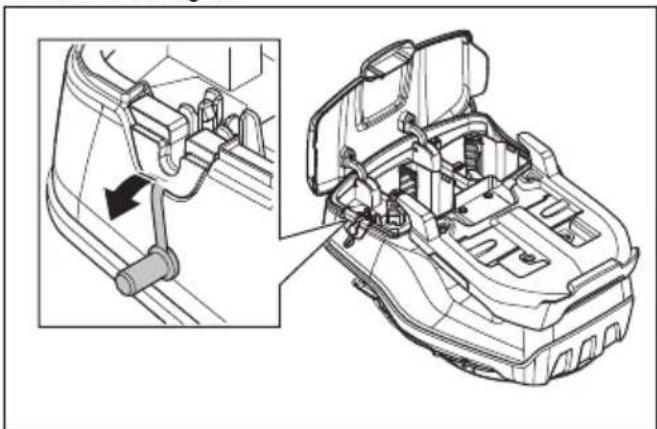

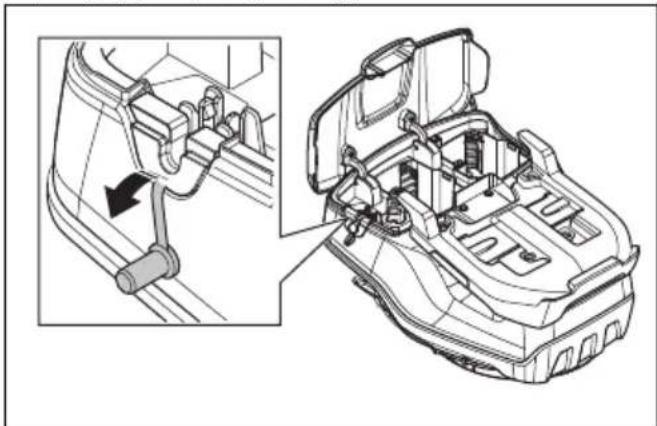

1. Lift the battery lid.

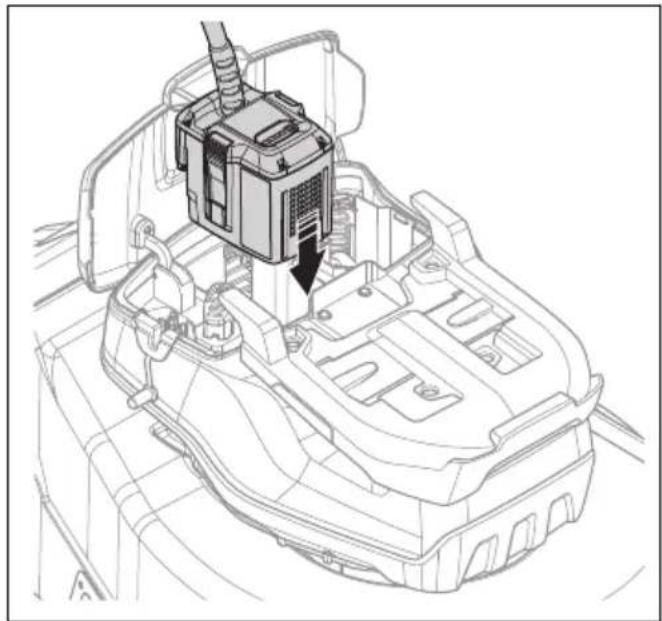

2. Put a charged battery in battery slot number 1 below the battery lid. For longer operation time, put a second charged battery in battery slot number 2.
3. Disconnect the safety key from the safety key holder.
4. Push the safety key into the safety lock.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or symbols present)

1. Stay behind the product.

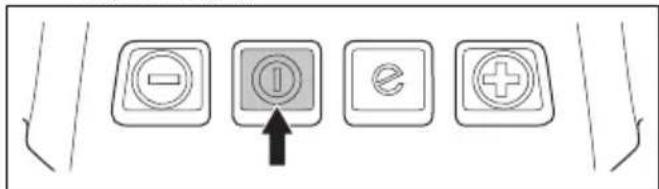

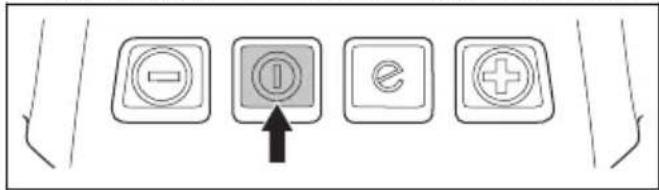

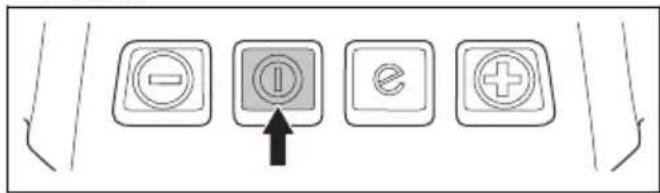

2. Push the ON/OFF button on the control panel. The display comes on.

3. Loosen the start inhibitor.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

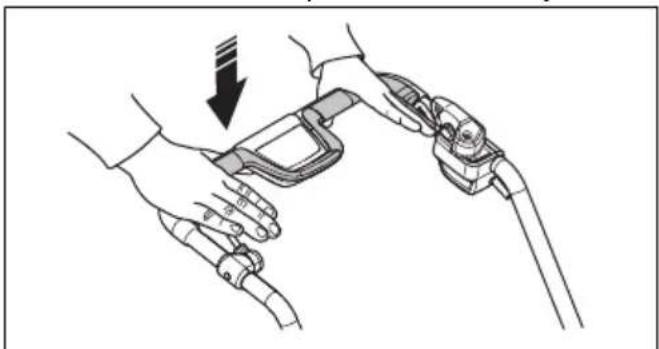

1. Push the motor brake handle in the direction of the handlebar.

Line drawing of hands holding a device with a downward arrow indicating motion (no text or symbols)

To use the drive on the wheels (LC 551iV)

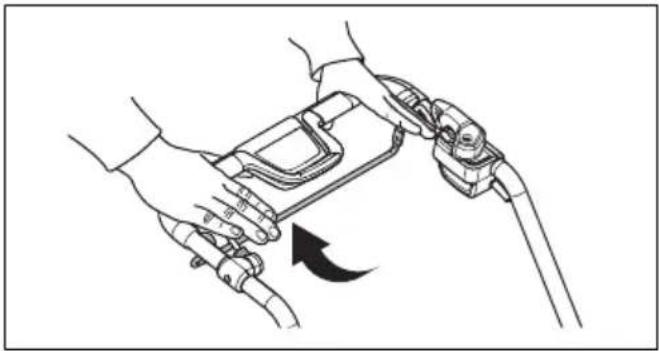

- Pull the drive bail in the direction of the handlebar to start the drive.

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

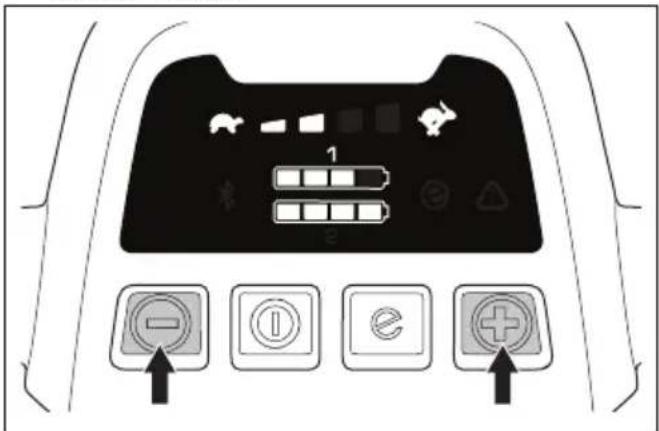

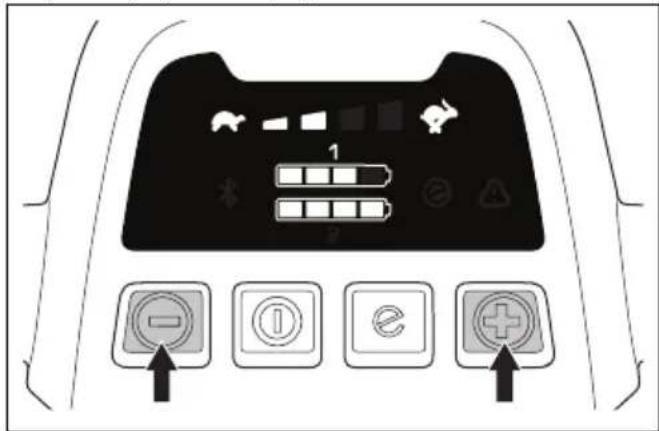

- Push + and - on the control panel to set the drive speed in 4 steps.

Diagram of a game controller panel with labeled buttons and icons, showing status indicators for battery, play, and progress controls.

- Release the drive bail to disengage the drive, for example when you go near an obstacle.

To use the drive on the wheels (LB 553iV)

1. Start the product, refer to To start the product on page 22.

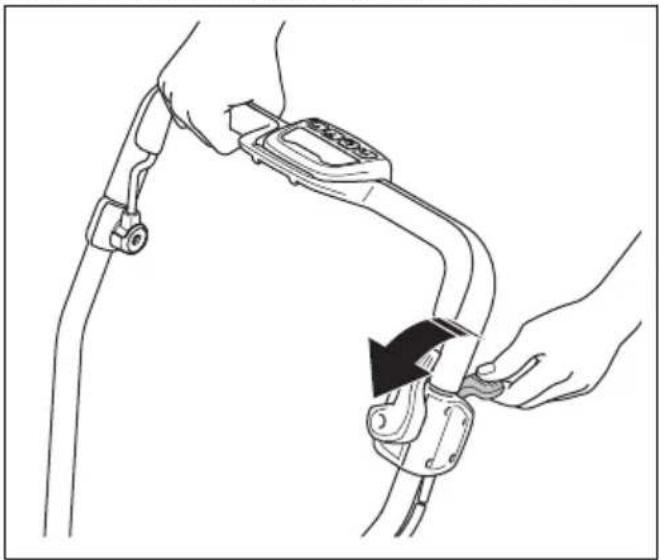

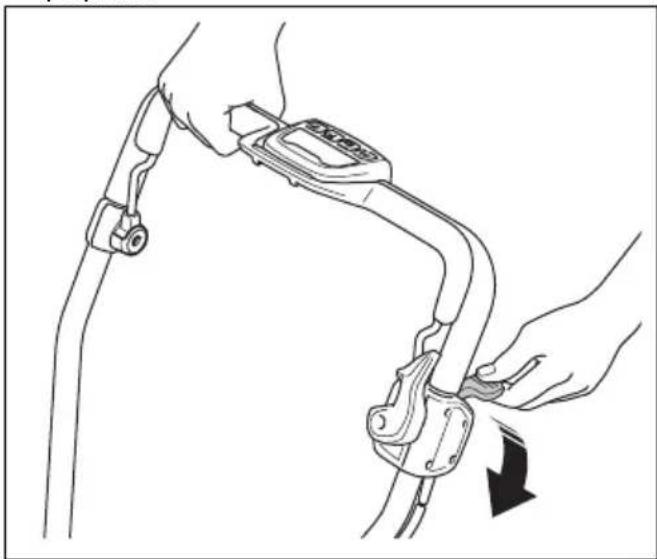

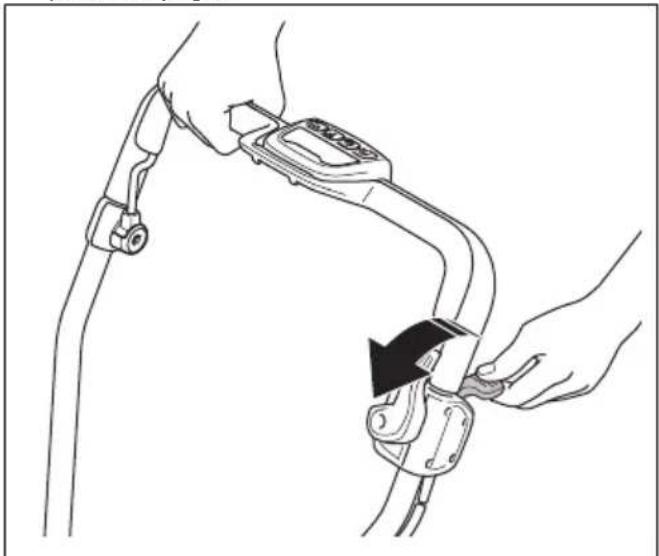

2. Pull the drive control lever up to start the drive.

Line drawing of a person using a bicycle brake lever, showing hand positioning and adjustment mechanism (no text or symbols)

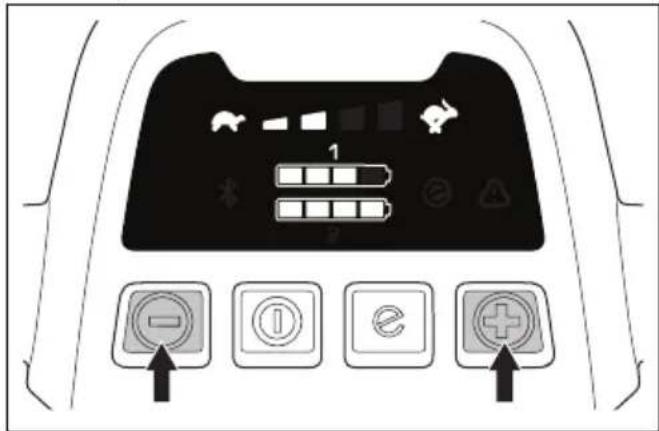

1. Push + and -buttons on the control panel to set the drive speed.

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

1. Push the drive control lever down to disengage the drive, for example when you go near an obstacle.

Line drawing of hands adjusting a cable clip with a directional arrow indicating motion (no text or symbols)

To move the product with the cutting equipment disengaged (LB 553iV)

• Engage the start inhibitor.
• Pull up the drive control lever.
• Hold the drive control lever and move the product.
• Let go of the drive control lever and disengage the start inhibitor to continue the operation.

To use the SavE function

The product has a battery saving function (SavE) that gives longer operation time.

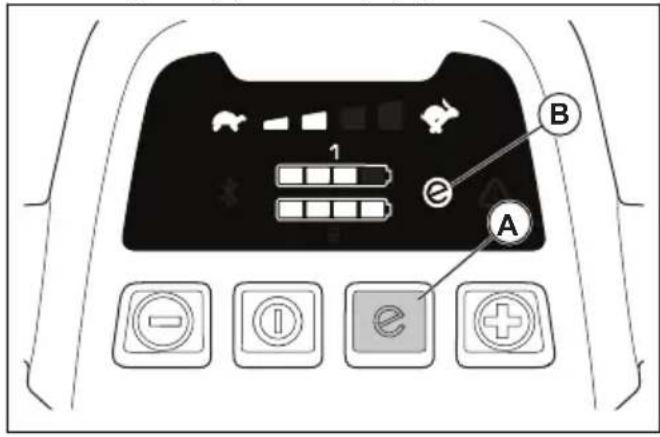

1. Push the SavE button (A) to start the function. The SavE symbol (B) on the display comes on.

2. Push the SavE button again to stop the function. The SavE symbol (B) on the display goes out.

1 e A B

Note: The SavE function stops automatically if the ground conditions make it necessary to have a higher output. The SavE function starts automatically again when the ground conditions let it.

PowerBoost function

When the product cuts long or wet grass, the motor automatically increases rpm. To save battery time, the motor goes back to standard mode automatically when the PowerBoost function is not necessary.

Motor stalling

During operation, the blade and motor can temporarily stop because of obstacles such as grass blockage below the cutting cover. If this occurs and you keep the motor brake handle pushed down, the product restarts automatically. If the product does not restart in 5-10 seconds, it can be necessary to clean below the cutting cover. Refer to To clean the product on page 27.

WARNING: If the motor stops, the product tries to restart automatically for 5-10 seconds. Wait for a minimum of 15 seconds before you do a check of the cutting cover.

WARNING: Before a check of the cutting cover, release the motor brake handle, turn the safety key to 0, remove the battery and wait for a minimum of 5 seconds. There is a risk of injury if the obstacle is removed and the product accidentally starts.

To stop the product

The product stops automatically if you do not operate it for 3 minutes.

1. Release the motor brake handle to stop the motor.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Push the ON/OFF button on the control panel. All LED lights and symbols on the display go out.

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

1. Remove the safety key from the safety lock and put it in the safety key holder.

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
- Cut in different directions each time to prevent stripes in the lawn.
- Keep the cutting cover clean. Buildup from grass and dirt on the inner side of the cutting cover can decrease the cutting result. Refer to To clean the product on page 27.

To cut grass without a grass catcher or mulch plug attached (LC 551iV)

1. Lift up the rear cover and remove the grass catcher.
2. If a mulch plug and a mulch blade are attached, remove them.
3. Close the rear cover before you operate the product.

When you operate the product, the cut grass discharges below the rear cover.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.

For more detailed information, refer to www.husqvarna.com.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with *, refer to Safety instructions for operation on page 10.

	Each use	Monthly	Each season
Do a general inspection. X
Clean the transmission covers. Make sure that the motor does not have grass on it.	X
Do a check of the start inhibitor. * X
Make sure that the safety devices on the product are not defective. * X
Examine the grass catcher for wear or deterioration. X
Examine the cutting equipment. X
Examine the cutting cover. * X
Do a check of the motor brake handle. * X
Make sure that the ON/OFF button operates correctly and is not defective. X
Examine the battery for damage. X
Do a check of the battery charge X
Make sure that the release buttons on the battery operates correctly and that the battery locks into the product.	X
Clean the air intakes. Make sure that the air intakes do not have grass or dirt on them.	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Clean below the protection cover (LC 551iV, LB 553iV). X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

To do a general inspection

• Make sure that the nuts and screws on the product are tightened.
• Make sure that the cables on the product are not in a position where they can get damaged.

To replace the blade

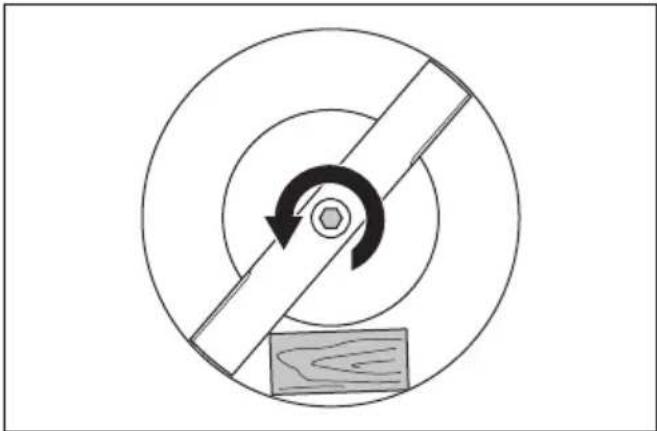

1. Lock the blade with a block of wood.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Remove the blade bolt, the spring washer and the blade.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Examine the blade support and blade bolt for damages.

a) If you replace the blade or the blade support, also replace the blade bolt, the spring washer and the friction washer.

1. Examine the motor shaft to make sure that it is not bent.

2. When you attach the new blade, make sure that the bent ends point in the direction of the cutting cover.

Diagram showing a blade cutting through grass with arrows indicating direction (no text or symbols)

1. Put the friction washer and the blade against the blade support.

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

1. Make sure that the blade aligns with the center of the motor shaft.

Mechanical diagram showing a gear assembly with rotating components and a directional arrow (no text or labels)

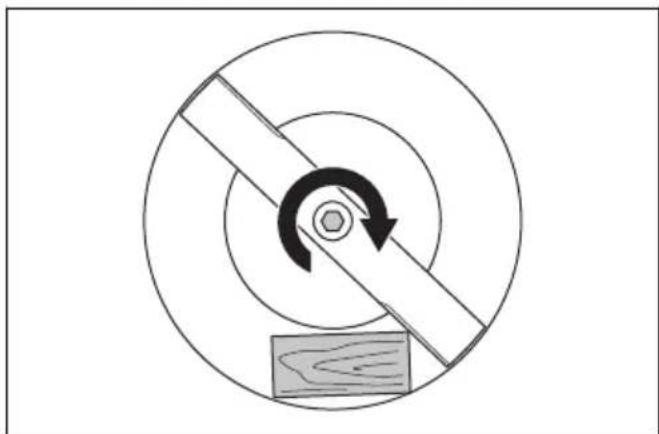

1. Lock the blade with a block of wood.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

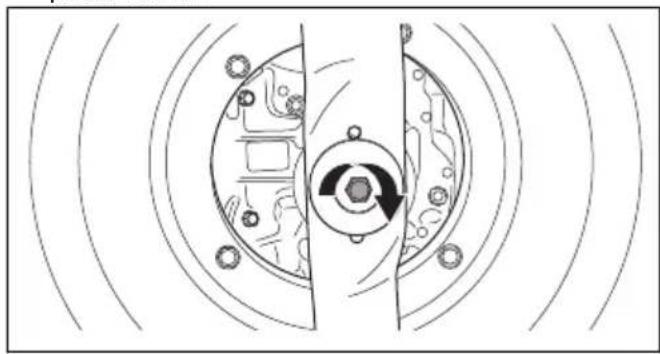

1. Attach the spring washer and tighten the bolt with a torque of 65-75 Nm.

Pure technical diagram of a mechanical or electronic component with concentric circular patterns and internal components (no text or symbols)

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use protective gloves.

The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

To clean the product

• Clean plastic parts with a clean and dry cloth.
• Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.
• Use a brush to remove leaves, grass and dirt.
• Remove the protection cover and use a brush to clean the inner side of the protection cover from grass.

To clean the battery and the battery charger

WARNING: Do not clean the battery or the battery charger with water.

WARNING: Do not use any chemical substances to clean the battery.

- Make sure that the battery and the battery charger are clean and dry before you put the battery into the battery charger.

• Clean the battery terminals with compressed air or use a soft and dry cloth.
• Clean the surfaces of the battery and the battery charger with a soft and dry cloth.

To examine the cutting equipment

WARNING: To prevent accidental start, pull up the safety key, remove the battery and wait a minimum 5 seconds.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

Troubleshooting

Battery

LED on the battery Cause	Solution
The green LED flashes.	The battery voltage is low. Charge the battery.	To charge the battery on page 21.
The error LED flashes.	The battery is weak. Charge the battery.	Refer to Battery on page 27.
	The temperature in the work environment is too high or too low.	Use the battery in temperatures between -10°C and 40°C.
	Overvoltage. Make sure that the mains	voltage is the same as on the rating plate on the product.
		Remove the battery from the battery charger. Wait 5 seconds and try again to charge the battery. If the problem continues, speak to an approved service agent.
The error LED is on. The	cell difference too much (1V). Speak to	an approved service agent.

Battery charger

LED on the battery charger	Cause Solution
The error LED flash-es.	The temperature in the work environment is too high or too low.	Use the battery charger in temperatures between 5°C and 40°C.
The error LED is on. S	peak to an approved service agent.

Control panel

Error code (Number of flashes)	Possible faults Possible procedure
1 The transmission motor is too hot. Let the product become cool. Make sure that the transmission does not have grass on it. Clean the transmission cover if it is necessary.
5 The motor speed de creases too much, and the motor stops.		Clean the cutting deck and increase the cutting height. Refer to To set the cutting height (LB 548i, LC 551iV) on page 20. If the error stays, speak to your approved service agent.
8 The battery is weak.	Charge the battery. Refer to	To charge the battery on page 21.
9 Battery error or no signal from battery. Put the battery in the product		correctly and examine the battery connector. If the error LED on the battery flashes, refer to Battery on page 20.
10 The motor control is too hot. Stop the motor and wait until it is cool.
Other errors If other errors occur, remove the safety key and the battery and speak to an approved service agent.

Transportation, storage and disposal

Introduction

WARNING: To prevent unintentional start during transport pull up the safety key, remove the battery and wait at least 5 seconds.

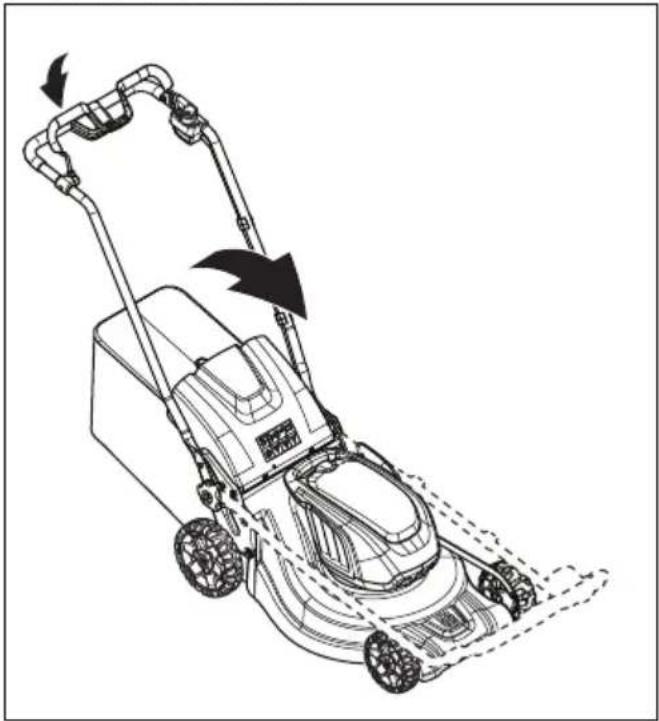

To set the product in transport position (LC 551iV)

1. Loosen the lower knobs.

2. Move the knobs to the lower end of the grooves on the left and the right side of the product.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Fold the handle forward.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Remove the grass catcher.

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
- For commercial transports special requirements on package and labels must be obeyed.
• Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.
• Always remove the battery for transport.
- Put tape on the battery connectors and make sure that the battery cannot move around during transport.
- Attach the product during transport.

Storage

• Always remove the battery for storage.
• To prevent accidents, make sure that the battery is not connected to the product during storage.

• Keep the battery charger in a closed and dry space.
• Keep the battery and the battery charger in a dry space where there is no moisture or frost.
• Disconnect the battery from the battery charger during storage.
• Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.
• Keep the battery where the temperature is between 5^ and 25^ and out of sunlight.
• Keep the battery charger where the temperature is between 5°C and 45°C and out of sunlight.
  • Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.
• Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.
• Clean the product and do a complete servicing before you put the product in storage for a long time.

Disposal

Symbols on the product or the packaging of the product indicate that this product cannot be handled as domestic waste. It must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technical data

Technical data

	LB 548i LB 553iV LC 551iV
Cutting motor
Motor type BLDC (brushless)	36V	BLDC (brushless)36V	BLDC (brushless)36V
Motor speed – SavE, rpm* 2600 2600 2600
Motor speed – Nominal, rpm* 3000 3000 3000
Motor speed – High load, rpm* 3300 3300 3300
Motor output – max. kW 1.8 1.8 1.8
Motor output – Nominal, kW 1.5 1.5 1.5
Drive motor
Motor output – Nominal, kW N/A 0.4 0.4
Self walk speed, km/h N/A 3.0–5.0 3.0–5.0
Speed adjustment levels N/A 4 4
Weight
Weight without battery, kg 31 38 39.5
Battery
Type of battery Husqvarna Battery	Series	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with one Husqvarna 9.4 Ah battery (Bli300).	35 35 30
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 9.4 Ah battery (Bli300).	30 30 25
Noise emissions ^1
Sound power level, measured dB (A) 93 97 97
Sound power level, guaranteed LWA dB (A)	93 98 97
Sound levels ^2
Sound pressure level at the operator's ear, dB (A)	80 84 84
Vibration levels ^3
Handle, m/s ^2	0.3 1.3 0.3
Cutting equipment
Cutting height, mm	30-60	28-65	26-74
Cutting width, cm	48 53 51
Blade standard	Mulch blade597466510	Mulch blade529441810	Collect blade597466310
Blade accessory	N/A N/A Mulch blade		597466410

	LB 548i LB 553iV LC 551iV
Grass catcher capacity, I N/A N/A 65

* Revolutions per minute

Approved batteries Type Battery capacity,	Ah	Voltage, V Weight, lb/kg
BLi20 Lithium-ion 4.0 36 2.6/1.2
BLi200 Lithium-ion 5.2 36 2.8/1.3
BLi300 Lithium-ion 9.4 36 4.1/1.9
BLi550X Lithium-ion 15.6 36 12.4/5.6
BLi950X Lithium-ion 31.1 36 15.4/7.0

Approved chargers for the specified batteries, BLi Input voltage, V Frequency, Hz Power, W
QC80	100–240 50–60	80
QC80F	12	0	80
QC330	100–240 50–60	330
QC500	100–240 50–60	500

Declaration of Conformity

EU Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Lawn Mower
Brand Husqvarna
Type / Model LB 548i, LC 551iV, LB 553iV
Identification Serial numbers dating from 2022 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU	"on the restriction of the use of certain hazardous substances in electrical and electronic equipment"

and that the following standards and/or technical specifications are applied: EN 60335-1:2012/AC:2014/A11:2014/A13:2017, EN 60335-2-77:2010, EN 62233:2008/AC:2008, EN 55014-1:2017/A11:2020, EN 55014-2:2015, EN IEC 63000:2018

Notified Body: 0404, RISE SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 29.

Huskvarna, 2022-10-14

$$ \Delta s \mathrm {d u} $$

Claes Losdal, Development Manager/Garden Products Husqvarna AB

Responsible for technical documentation

UK Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Lawn Mower
Brand Husqvarna
Type / Model LB 548i, LC 551iV, LB 553iV
Identification Serial numbers dating from 2022 and onwards

complies fully with the following UK regulations:

Description

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

The Supply of Machinery (Safety) Regulations 2008

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, schedule 9

Electromagnetic Compatibility Regulations 2016

and that the following standards and/or technical specifications are applied: EN 60335-1:2012/AC:2014/A11:2014/A13:2017, EN 60335-2-77:2010, EN 62233:2008/AC:2008, EN 55014-1:2017/A11:2020, EN 55014-2:2015, EN IEC 63000:2018

Notified Body: 0404, RISE SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden, has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 29.

Huskvarna, 2022-10-14

$$ \Delta \cdot 2 m $$

Claes Losdal, Development Manager/Garden Products Husqvarna AB

Responsible for technical documentation

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL5 6UP

Съдържание

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a vehicle engine bay with a sensor or sensor mounted on top (no text or symbols)

Technical line drawing of a car interior showing structural components and a hand valve mechanism (no text or labels)

Technical line drawing of an automotive engine component with a highlighted internal unit (no text or symbols)

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Line drawing of a lawn mower with visible blades and wheel, no text or symbols present

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment showing internal components and structural details (no text or symbols)

3D mechanical component diagram showing a central housing with four circular ports and two side slots, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical diagram showing two mechanical components with arrows indicating assembly or movement (no text or symbols present)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a component, with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a tool or clamp mechanism (no text or labels)

Line drawing of a device with a warning symbol and a connected cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a portable electronic device connected to a charging station, showing wiring and power outlet (no text or symbols)

Diagram showing a device with a warning symbol and an arrow pointing to a labeled component, accompanied by an exclamation mark.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever (no text or symbols)

Illustration of hands holding a device with a black arrow indicating force or adjustment (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery, battery pad, and function buttons.

Line drawing of hands adjusting a cable clamp device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation keys and function buttons

Line drawing of a person using a cable clamp device to adjust cable (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component before and after assembly, with no visible text or symbols.

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block and a cross-section view (no text or symbols)

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed-out bins with recycling symbols, indicating no waste or non-recyclable disposal.

Технически данни

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical clamp or connector with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and a base plate (no text or symbols)

Technical line drawing of a vehicle chassis with mounting brackets and structural components (no text or symbols)

Technical line drawing of a car engine bay with a mounted sensor or sensor component (no text or symbols visible)

Technical line drawing of a car interior showing structural components and a close-up view of the seat (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor unit (no text or symbols visible)

Technical line drawing of an automotive battery pack with internal components and wiring (no text or labels)

1. Vložte multibaterii do adaptéru baterie.
2. Připojte multibaterii k adaptéru baterie.

Diagram of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Mechanical diagram showing a belt drive mechanism with rotating components and directional arrows (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical assembly with a box and gear mechanism, showing motion direction (no text or symbols)

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Mechanical assembly diagram showing a component being shifted to a circular housing with a curved arrow indicating rotation (no text or symbols present)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and directional arrows (no text or symbols)

3D mechanical component diagram showing a housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a vehicle engine compartment with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing gear and piston components with directional arrows (no text or labels)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with battery and warning symbols, indicating status or hazard.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or labels)

Diagram of a mechanical device with curved pipes and a lever mechanism, showing a right-hand rule (no text or symbols present)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands connecting a device to a plug, with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Line drawing of hands adjusting a bicycle seatbelt buckle (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation keys and function buttons

Line drawing of hands adjusting a cable clip device with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons (circle, square, plus, and cross) with an arrow pointing to the square icon, likely indicating a function or operation.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a circular component being processed into a mechanical part, with no visible text or symbols.

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block and a cross-section (no text or symbols)

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Technické údaje

Technické údaje

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

1. Åbn batteridækslet.

2. Afmonter batteriet i batterirum 1.

Technical line drawing of a vehicle battery pack assembly with an internal component highlighted (no text or symbols)

1. Fjern seglstoppet.

Technical line drawing of a car interior showing structural components and a hand valve mechanism (no text or labels)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor unit (no text or symbols)

Technical line drawing of an automotive engine bay with internal components and a valve (no text or labels)

1. Monter multibatteriet på batteriadapteren.

2. Tilslut multibatteriet til batteriadapteren.

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a vehicle's wheel assembly with a box and gear, showing motion direction (no text or symbols)

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Technical line drawing showing a mechanical component with rotation and mounting features (no text or symbols)

Technical line drawing of a vehicle engine compartment showing internal components and structural details (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a vehicle engine compartment with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure (no text or symbols)

Technical diagram showing a mechanical component with a separate view of its internal structure (no text or symbols present)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear-like component (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and a connected cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a power supply connected to a device with cable (no text or symbols)

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component

Technical line drawing of a vehicle engine compartment with a disassembly view showing internal components (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery, battery, and plus button.

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

1. Tryk på + og -knapperne på betjeningspanelet for at indstille drevhastigheden.

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a bicycle brake lever with a directional arrow (no text or symbols)

Sådan flyttes produktet med klippeudstyret deaktiveret (LB 553iV)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing five labeled buttons with icons: minus, ID, minus, plus, and cross, connected by an arrow pointing to the ID.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

1. Sørg for, at klingen flugter med motorakslens centrum.

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or labels)

Diagram of a mechanical device with concentric circles and a rotating shaft, showing no text or symbols.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Tekniske data

*Omdrejninger pr. minut
Tekniske data

LC 551iV LB 548i

Operations (Noise Control)

Regulation 2017"

(Umweltschutz-/

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a car engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of a car engine bay with a mounted component and a black arrow indicating a detail (no text or symbols present)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

Technical line drawing of a mechanical device with attached cable and connectors (no text or symbols)

Technical line drawing of a lawn mower with attached toolbars and mechanical components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and a closed lid, showing internal components and a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Mechanical component diagram showing a lever pressing down on a circular housing with a rotating arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment showing internal components and structural details (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical slots, no text or symbols present.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top view showing a circular housing and bottom view showing a circular base with four holes (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with arrows indicating motion (no text or symbols present)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device panel with four labeled buttons and an external device, illustrating a status or status change.

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component

Technical diagram of a vehicle engine assembly showing internal components and a close-up view of the engine (no text or labels present)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Line drawing of hands adjusting a cable buckle with a black arrow indicating the rope being inserted (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation keys and function keys

Line drawing of hands adjusting a cable clip with a directional arrow (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four electrical switch symbols: battery, switch, minus sign, and plus sign with an arrow pointing to the switch symbol.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with an arrow indicating motion direction (no text or labels)

Mechanical assembly diagram showing a circular component being processed into a mechanical part, with no visible text or symbols.

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden base (no text or symbols)

Pure technical diagram of a mechanical assembly with concentric circles and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Technische Angaben

Technische Daten

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of a vehicle engine bay with a sensor or sensor mounted on top (no text or symbols)

Technical line drawing of a car interior showing structural components and a close-up view of the seat assembly (no text or symbols)

Technical line drawing of a car engine bay with a mounted component and a downward arrow indicating a component (no text or symbols present)

Technical line drawing of an electric vehicle battery pack with internal components and wiring (no text or labels)

Technical line drawing of a mechanical device with connectors and wiring (no text or symbols)

Technical line drawing of a lawn mower with attached hoses and levers, showing mechanical components without any text or symbols.

Mechanical assembly diagrams showing gear and motor components with rotational motion arrows (no text or labels)

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing a mechanical component with rotating and unrolled parts, no text or symbols present

Technical line drawing of a vehicle interior showing structural components and airflow direction (no text or symbols)

3D mechanical component diagram showing a housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

Technical line drawing of a vehicle engine compartment with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical line drawing showing internal components of a device, including a fan and housing with no visible text or symbols.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with arrows indicating motion (no text or symbols present)

Mechanical assembly diagram showing two different parts of a tool or bracket, with no visible text or symbols.

Line drawing of a device with a warning symbol and a connected button (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device with a warning symbol and an arrow pointing to a labeled component, accompanied by an exclamation mark.

Pure electrical circuit lines without any symbols

Ah Li-Ion - 36V

Technical line drawing of a vehicle engine compartment showing internal components and assembly (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to grip a device, showing a downward arrow (no text or symbols present)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable clip with a black arrow indicating the cable being inserted (no text or symbols present)

Diagram of a device control panel with labeled buttons and icons, showing navigation and function keys.

Line drawing of hands adjusting a cable buckle with a belt, showing a black arrow indicating motion (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component before and after assembly, with no visible text or symbols.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal circular elements (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed-out bins with recycling symbols, indicating no waste or non-recyclable disposal.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical device with a curved pipe and attached bracket, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of a vehicle battery pack assembly with an internal component highlighted (no text or symbols)

Technical line drawing of a car interior showing a seatbelt mechanism and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a component highlighted (no text or symbols)

Technical line drawing of a vehicle engine bay with internal components and valve assembly (no text or labels)

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Technical line drawing of a lawn mower with attached tool, showing mechanical components and motion arrows (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a belt drive mechanism with rotating components and directional arrows (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical line drawing of a manual lawn mower with a moving gear and bucket (no text or symbols)

Mechanical assembly diagram showing a component being lifted by a tool, with no visible text or symbols.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car body panel with internal components and directional arrows indicating movement (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, showing internal features (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal components (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a gear and motor (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices, one with a power outlet and cable, the other with a handheld device (no text or symbols)

Diagram showing a device with a battery symbol and warning symbols, likely indicating battery hazard or hazard.

Technical diagram of a vehicle engine assembly showing internal components and a downward arrow indicating a force or motion (no text or symbols present)

Diagram of a mechanical clamp or connector assembly with no visible text or symbols

Line drawing of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a game controller panel with labeled buttons and icons, showing status indicators for battery, play, and action buttons.

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, camera, and function buttons

Line drawing of hands adjusting a bicycle tire buckle (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including symbols like 'A', 'B', and function keys.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a gear mechanism, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Pure technical diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text or labels

Datos técnicos
Datos técnicos

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or connector assembly with no visible text or symbols

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

1. Pange adapteriplaat mootorikattele.

2. Kinnitage adapteriplaat nelja kruviga, kasutades jõumomenti 5-6 Nm.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

1. Avage akukaas.

2. Eemaldage aku pesast 1.


Technical line drawing of an automotive engine bay with a mounted component (no text or symbols)

1. Eemaldage tihend.


Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted component and a black arrow indicating a component (no text or symbols present)

1. Pange aku adapteri juhe läbi tihendi kinnitusava. Kinnitage juhe klambriga.


Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

1. Paigaldage multiaku aku adapteri külge.

2. Ühendage multiaku aku adapteriga.


Diagram of a mechanical device with attached cable and connectors, showing internal components without any text or symbols.

Technical line drawing of a manual lawn mower with attached tool, showing mechanical components and motion arrows (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Multšikorgi (LC 551iV lisatarvik) kokkupanek

Line drawing of a manual lawn mower with a tool and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

1. Eemaldage andur.
2. Kinnitage aku anduri külge. Anduri LED-tuli süttib.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

1. Rakenduse Husqvarna Fleet Services ^TM allalaadimine.
2. Logige rakendusse Husqvarna Fleet Services ^TM sisse.
3. Sidumistoiming Vt jaotist Sidumistoiming rakenduse ja toote vahel. Ik 248

Technical line drawing of a car body panel with two downward arrows indicating internal components (no text or symbols present)

Märkus: Veenduge, et avad on anduriga kaasasolevate neetidele vastavate diameetritega.

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, shown with arrows indicating assembly or adjustment points (no text or symbols present)

1. Joondage anduripesa kinnituspesaga.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. Kinnitage anduripesa neetidega.

2. Paigaldage andur anduripessa. Joondage anduril olev valge märk märgiga anduripesal.

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal components (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with arrows indicating direction (no text or symbols present)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices, one with a power outlet and cable, the other with a device emitting a plug (no text or symbols)

Diagram showing a device with a warning symbol and an arrow pointing to a labeled button or icon.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Veo kasutamine ratastel (LC 551iV)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car front panel with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of hands adjusting a cable buckle with a belt buckle, showing a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four electrical switch icons with an arrow pointing to the current symbol inside a square

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Kinnitage vedruseib ja pingutage polti momendiga 65-75 Nm.

Diagram of a mechanical or electrical component with internal circuitry and circular motion arrows (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed recyclables with recycling symbols, indicating no recyclable waste or non-recyclable waste.

Tehnilised andmed

Tehnilised andmed

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical or electrical component with curved and straight ends, showing a directional arrow (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of a car engine bay with a mounted component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted component and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

1. Asenna multiakku akkusovittimeen.

2. Kytke multiakku akkusovittimeen.


Technical illustration of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a lawn mower with a moving cart and wheel, showing motion blur (no text or symbols)

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car interior showing structural components and a highlighted section with two arrows indicating movement or force (no text or symbols present)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical slots, no text or symbols present.

Technical line drawing of a mechanical assembly with component highlights and arrows indicating assembly direction (no text or symbols present)

Technical diagram showing two mechanical components with arrows indicating assembly or movement (no text or symbols present)

Technical line drawing showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

HUOMAUTUS: Älä aseta

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

HUOMAUTUS: Älä aseta

Diagram showing a device with four labeled buttons and a warning symbol pointing to the right panel.

Line drawing of a device with a warning symbol and a connected terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols on the device itself)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device with a warning symbol and an arrow pointing to a labeled button, accompanied by a warning triangle.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the assembly (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pad, and function buttons.

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a computer control panel with labeled buttons and icons, including battery, monitor, and function buttons.

Line drawing of hands adjusting a cable buckle with a belt buckle, showing a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, showing a directional arrow (no text or symbols present)

Diagram showing four electrical switch symbols with an arrow pointing to a circled component

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade cutting through a curved channel with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with a circular component and a shaft, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Taita kahva eteen.


Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed-out bins with recycling symbols, indicating no waste or non-recyclable disposal.

Hävittäminen

LC 551iV LB 548i

Attention : projections et ricochets.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing structural components and a hand valve mechanism (no text or labels)

Technical line drawing of a car engine bay with a mounted component and a black arrow indicating a detail (no text or symbols present)

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with attached blades and guide rails (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing a mechanical component with rotating and unrolled parts, no text or symbols present

Technical line drawing of a vehicle interior showing structural components and a highlighted section with arrows (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

Technical line drawing of a mechanical assembly with component highlights (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with internal parts and an exploded view of the internal structure (no text or symbols present)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and a terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices, one with a power outlet and cable, the other with a handheld device (no text or symbols)

Technical line drawing of a vehicle engine assembly showing valve insertion and mounting bracket (no text or symbols)

Mechanical assembly diagram showing a pipe clamp and lever mechanism (no text or symbols)

Illustration of hands holding a tool with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation keys and function keys

Line drawing of hands adjusting a bicycle brake lever with a directional arrow (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, e, and plus, connected by an arrow pointing to the I button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a gear and arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a gear mechanism with rotating components and a moving shaft (no text or labels)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with circular flow patterns and central rotating arrow (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

LC 551iV LB 548i

1. Upravljačka ploča
2. Ručka kočnice motora
3. Blokada pokretanja
4. Sakupljač trave (LC 551iV)
5. Stražnji poklopac (LC 551iV)
6. Sigurnosni ključ
7. Kotačić upravljača (LC 551iV)
8. Poluga za podešavanje ručke (LB 548i)
9. Poklopac baterije
10. Kontrola visine rezanja (LC 551iV)
11. Gumb ON/OFF

12. Gumb SavE

13. Indikator SavE

14. Indikator baterije
15. Indikator razine broja okretaja
16. Gumb za smanjenje brzine
17. Gumb za povećanje brzine
18. LED indikator pogreške
19. Pokrov noža
20. Dovodi zraka
21. Zaštitni poklopac (LC 551iV)
22. Natpisna pločica
23. Poluga pogona (LC 551iV)

24. Punjač baterije (dodatna oprema)

25. Baterija (dodatna oprema)

26. Multi baterija (dodatna oprema)

27. Ploča prilagodnika (dodatna oprema)

28. Prilagodnik za Multi bateriju (dodatna oprema)

29. Komplet za usitnjavanje (LC 551iV)
30. Korisnički priručnik

Pregled proizvoda (LB 553iV)

LB 553iV

1. Upravljačka ploča
2. Ručica motorne kočnice
3. Blokada pokretanja
4. Sigurnosni ključ
5. Poluga za podešavanje ručke
6. Poklopac baterije
7. Kontrola visine rezanja
8. Gumb ON/OFF
9. Gumb savE
10. Indikator SavE
11. Indikator baterije
12. Indikator razine broja okretaja
13. Gumb za smanjenje brzine
14. Gumb za povećanje brzine
15. LED indikator pogreške
16. Pokrov noža
17. Dovodi zraka

18. Zaštitni poklopac

19. Natpisna pločica

20. Ručica kontrole pogona
21. Punjač baterije (dodatna oprema)
22. Baterija (dodatna oprema)
23. Multi baterija (dodatna oprema)
24. Ploča prilagodnika (dodatna oprema)
25. Prilagodnik za Multi bateriju (dodatna oprema)
26. Korisnički priručnik

Simboli na proizvodu

UPOZORENJE: Ovaj proizvod može biti opasan i izazvati teške ozljede ili smrt

rukovatelja ili drugih osoba. Budite oprezni i pravilno upotrebljavajte ovaj proizvod.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

OPASNOST – ruke i stopala držite podalje.

Pouzdanost proizvoda

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Pregled blokade pokretanja

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

1. Ploču prilagodnika stavite na poklopac motora.

2. Pričvrstite loču prilagodnika uz pomoć 4 isporučena vijka i pritegnite ih zateznim momentom od 5 – 6 Nm.

Technical line drawing of a vehicle chassis with mounting brackets and structural components (no text or symbols)

1. Otvorite poklopac baterije.

2. Izvadite bateriju iz utora 1.

Technical line drawing of a car engine bay with a mounted component (no text or symbols)

1. Uklonite graničnik brtve.

Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

1. Pritiskujte prilagodnik baterije u odjeljak za bateriju dok ne čujete škljocaj.

Technical line drawing of a vehicle engine bay with a mounted component and a black arrow indicating a specific part (no text or symbols present)

1. Provucite uže prilagodnika baterije kroz provrt na graničniku brtve. Pričvrstite uže kopčom.

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

1. Ugradite multi bateriju na prilagodnik baterije.

2. Povežite multi bateriju s prilagodnikom baterije.

Diagram of a mechanical device with attached cable and connectors, showing internal components without any text or symbols.

1. Pričvrstite uže prilagodnika baterije na dršku uz pomoć 3 platnene trake.

Technical line drawing of a lawn mower with attached toolbars and mechanical components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Postavite visinu ručke u jednu od dva dostupna položaja.

2. Pomičite kotačiće gore u smjeru ručke dok se ne zaustave uz škljocaj.

CLICK!

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

1. Pri radu s proizvodom u blizini zida ručku okrenite na stranu prikladnu za rad.

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Montaža sakupljača trave (LC 551iV)

Line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Sastavljanje priključka za sječku (LC 551iV dodatna oprema)

Line drawing of a lawn mower with visible blades and wheel, no text or symbols present

Mechanical component diagram showing a lever pressing down on a circular housing with a rotating arrow indicating rotation (no text or symbols)

1. Izvadite senzor.
2. Bateriju spojite na senzor. Uključit će se LED svjetlo senzora.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

1. Preuzmite aplikaciju Husqvarna Fleet Services ^TM .
2. Prijavite se u aplikaciju Husqvarna Fleet Services ^TM .
3. Provedite uparivanje. Pročitajte odjeljak Radnja uparivanja aplikacije s proizvodom na stranici 342

Radnja uparivanja aplikacije s proizvodom

Technical line drawing of a vehicle interior showing structural components and a zoomed-in section (no text or symbols)

Napomena: Pobrinite se za to da ta dva provrta budu istih dimenzija kao i zakovice isporučene sa senzorom.

1. Kliještima klonite vanjske provrte na utoru senzora.

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

1. Probušite 2 provrta na oznakama na utoru senzora.

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. Zakovicama pričvrstite utor senzora.
2. Ugradite senzor u utor senzora. Poravnajte bijelu oznaku na senzoru s oznakom na utoru na senzoru.

Technical line drawing of a mechanical component with two views showing internal components (no text or symbols)

Technical line drawing showing internal components of a device, including a plastic housing and internal wiring (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a piston-cranked tool interacting with a gear (no text or symbols visible)

Mechanical assembly diagram showing two different parts of a clamp or crimping tool, with no visible text or symbols.

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

LED indikatori Status baterije
Svi LED indikatori svijetle P	Potpuno napunjena (75 – 100%)
Svijetle indikatori LED 1, LED 2 i LED 3	Baterija je napunjena 50% – 75%
Svijetle indikatori LED 1 i LED 2	Baterija je napunjena 25% – 50%
Svijetli indikator LED 1 Baterija je napunjena 0% – 25%.
Indikator LED 1 treperi Baterija je prazna. Napu-nite bateriju.

Zamjena baterije

Prije prve upotrebe napunite bateriju. Baterija je pri isporuci kupcu napunjena samo 30%.

Napomena: Punjač baterije morate spojiti na napon i frekvenciju koji su navedeni na natpisnoj pločici.

Baterija se ne puni ako je temperatura baterije viša od 50 °C. Punjač baterije smanjuje temperaturu baterije prije početka punjenja.

1. Jedan kraj kabela za napajanje punjača baterije priključite na utičnicu na punjaču baterije.

2. Drugi kraj kabela za napajanje punjača baterije priključite na uzemljenu mrežnu utičnicu. LED indikator na punjaču baterije zatreperi jednom zelenom bojom.

Line drawing of a device with a warning symbol and connection point (no text or labels)

1. Postavite bateriju u punjač baterije. Ako je baterija pravilno priključena na punjač baterije, na punjaču se uključuje zeleni indikator.

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Kada na bateriji svijetle svi LED indikatori, baterija je potpuno napunjena. Bateriju punite najdulje 24 sata.

2. Za odspajanje punjača baterije od mrežne utičnice povucite priključak, ne kabel.

3. Izvadite bateriju iz punjača baterije.

Status punjača baterije

Litij-ionsku bateriju tvrtke Husqvarna možete puniti ili upotrebljavati pri bilo kojoj razini napunjenosti. Baterija nije oštećena. Potpuno napunjena baterija neće se prazniti kada je ostavite u punjaču.

LED zaslon	Stanje punjenja
Indikator LED 1 treperi 0%	-25%
Svijetli indikator LED 1, indikator LED 2 treperi	25% – 50%
Svijetle indikatori LED 1, LED 2, indikator LED 3 treperi	50% – 75%
Svijetle indikatori LED 1, LED 2, LED 3, indikator LED 4 treperi	75% – 100%
Svijetle indikatori LED 1, LED 2, LED 3 i LED 4	Potpuno napunjena

Punjenje multi baterije

Napomena: Napunite bateriju pri prvoj upotrebi. Nova baterija napunjena je samo 30 %.

1. Provjerite je li baterija suha.

2. Multi bateriju spojite na prilagodnik.

Line drawing of two household appliances connected by wires, one with a power outlet and the other with a device (no text or symbols)

1. Adapter stavite na punjač baterije.

2. Provjerite uključuje li se zeleni LED indikator punjenja na punjaču baterije. To znači da je prilagodnik ispravno spojen s multi baterijom.

Diagram showing a device panel with battery and warning symbols, indicating status or hazard.

1. Kada se na bateriji uključe svi LED indikatori, a na prilagodniku se pojavi brojka 100 %, baterija je potpuno napunjena.

% Ah Li-Ion - 36V

Prilagodnik prikazuje stanje napunjenosti u koracima od po 1 %. Na početku punjenja moguća su manja odstupanja.

1. Za odspajanje punjača baterije od mrežne utičnice izvucite utikač. Nemojte povlačiti kabel.

2. Izvadite prilagodnik iz punjača baterije.

3. Izvadite multi bateriju iz prilagodnika.

Napomena: Više informacija potražite u priručnicima za multi bateriju i punjač baterije.

Technical line drawing of a vehicle engine assembly showing valve insertion and mounting bracket (no text or symbols)

1. Stanite iza proizvoda.

2. Pritisnite gumb ON/OFF na upravljačkoj ploči. Uključuje se zaslon.

3. Otpustite blokadu pokretanja.

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Upotreba pogona na kotačima (LC 551iV)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

- Pritisnite + i - na upravljačkoj ploči za postavljanje brzine pogona u 4 koraka.

Diagram of a game controller panel with labeled buttons and icons, showing status indicators for battery, play, and action buttons.

Line drawing of hands adjusting a cable buckle with a belt switch (no text or symbols)

1. Pritisnite gumbe + i -na upravljačkoj ploči za postavljanje brzine pogona.

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a bicycle tire with a belt buckle, showing a black arrow indicating motion (no text or symbols)

Pomicanje proizvoda s isključenom reznom opremom (LB 553iV)

• Uključite blokadu pokretanja.
- Povucite prema gore ručicu kontrole pogona.
- Držite ručicu kontrole pogona i pomaknite proizvod.
- Za nastavak rada otpustite ručicu kontrole pogona i isključite blokadu pokretanja.

Upotreba funkcije SavE

Proizvod ima funkciju za uštedu baterije (SavE) koja omogućuje dulje vrijeme rada.

1. Pritisnite gumb SavE (A) kako biste pokrenuli funkciju. Na zaslonu se pojavljuje simbol SavE (B).

2. Ponovno pritisnite gumb SavE da biste zaustavili funkciju. Sa zaslona nestaje simbol SavE (B).

1 e A B

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

1. Pritisnite gumb ON/OFF na upravljačkoj ploči. Isključuju se svi LED indikatori i simboli na zaslonu.

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Skinite vijak noža, podlošku opruge i nož.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

1. Postanite tarnu podlošku i nož na nosač noža.

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with bolt holes and a side view (no text or labels)

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block at the base (no text or symbols)

1. Postavite elastični rasječeni prsten i zategnite vijak na zatezni moment od 65-75 Nm.

Diagram of a mechanical or fluid system with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tehnički podaci

Tehnički podaci

	LB 548i LB 553iV LC 551iV
Rezni motor
Vrsta motora BLDC (beskontaktni)	36 V	BLDC (beskontaktni)36 V	BLDC (beskontaktni)36 V
Broj okretaja motora – SavE, o/min* 2600 2600	2600
Broj okretaja motora – nazivni, o/min* 3000 3000	3000LB 548i LB 553iV LC 5	51iV
Broj okretaja motora – veliko opterećenje, o/min*	3300 3300 3300
Snaga motora – maks. kW 1,8 1,8 1,8
Snaga motora – nazivna, kW 1,5 1,5 1,5
Pogonski motor
Snaga motora – nazivna, kW N/D 0,4 0,4
Brzina samostalnog hoda, km/h N/D 3,0 – 5,0	3,0 – 5,0
Razine prilagodbe brzine N/D 4. 4.
Težina
Težina bez baterije, kg 31. 38. 39,5
Baterija
Vrsta baterije Serije baterije Husq-	varna	Serije baterije Husq-varna	Serije baterije Husq-varna
Trajanje baterije
Trajanje baterije, min, (slobodni pogon) s uk-ljučenom funkcijom SavE, s jednom bateri-jom tvrtke Husqvarna od 9,4 Ah (Bli300).	35. 35. 30.
Trajanje baterije, min, (slobodni pogon) s uk-ljučenim standardnim načinom rada, s jed-nom baterijom tvrtke Husqvarna od 9,4 Ah (Bli300).	30. 30. 25.
Emisije buke31
Razina jačine zvuka, mjerena u dB (A) 93 97 97
Razina jačine zvuka, zajamčena LWA dB (A) 93 98 97
Jačina zvuka32
Razine tlaka zvuka na uhu rukovatelja, dB (A)	80 84 84
Razine vibracije33
Ručka, m/s2	0,3 1,3 0,3
Rezna oprema
Visina rezanja, mm	30 – 60	28 – 65	26 – 74
Širina rezanja, cm	48. 53. 51.
Standardni nož	Nož za usitnjavanje 597466510	Nož za usitnjavanje 529441810	Nož za sakupljanje 597466310

	LB 548i LB 553iV LC 551iV
Dodatna oprema za nož N/D N/D Nož za usitnjavanje			597466410
Zapremnina sakupljača trave, litre N/D N/D 65

* Okretaja u minuti

Odobrene baterije Vrsta Kapacitet baterije,	Ah	Napon, V Težina, lb/kg
BLi20 Litij-ionska 4,0 36. 2,6/1,2
BLi200 Litij-ionska 5,2 36. 2,8/1,3
BLi300 Litij-ionska 9,4 36. 4,1/1,9
BLi550X Litij-ionska 15,6 36. 12,4/5,6
BLi950X Litij-ionska 31,1 36. 15,4/7,0

Odobreni punjači za navedene baterije, BLi Ulazni napon,	V Frekvencija, Hz	Snaga, W
QC80	100 – 240	50 – 60	80
QC80F	12	0	80
QC330	100 – 240	50 – 60	330
QC500	100 – 240	50 – 60	500

Izjava o sukladnosti

EU izjava o sukladnosti

Mi, Husqvarna AB, SE-561 82 Huskvarna, Švedska, tel.: [phone], pod punom odgovornošću izjavljujemo da proizvod:

Opis Kosilica
Marka Husqvarna
Vrsta/model LB 548i, LC 551iV, LB 553iV
Identifikacija Serijski brojevi iz 2022 i noviji

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with four mounting holes (no text or symbols)

Technical line drawing of a car interior component with mounting points (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt mechanism and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted sensor or connector (no text or symbols)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Mechanical diagram showing a car's steering wheel and belt drive mechanism (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car interior showing structural components and airflow direction (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, showing internal features (no text or symbols)

Technical line drawing of a mechanical assembly with component highlights (no text or symbols)

Technical diagram showing two mechanical components with arrows indicating assembly or movement (no text or symbols present)

Technical line drawing showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a component, with no visible text or symbols

Mechanical assembly diagram showing two different configurations of a tool or clamp mechanism (no text or labels present)

Line drawing of a device connected to a wall-mounted power outlet (no text or symbols)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device with warning symbols and an arrow pointing to a labeled component

Technical line drawing of a vehicle engine assembly showing internal components and a close-up view of the assembly (no text or symbols present)

Mechanical linkage diagram showing a lever mechanism with a black arrow indicating motion (no text or symbols present)

Line drawing of two hands holding a device with a black arrow indicating downward motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, showing navigation arrows and function keys.

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, warning symbols, and function buttons.

Line drawing of hands adjusting a cable clip with a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with a circular component and a shaft, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Műszaki adatok

Müszaki adatok

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a valve mechanism and structural components (no text or symbols)

Technical line drawing of an automotive engine bay with a component highlighted (no text or symbols)

Technical line drawing of an automotive engine bay with internal components and a valve (no text or labels)

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with attached blades and guide rails (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical line drawing of a manual lawn mower with a moving gear and bucket cover (no text or symbols)

Mechanical assembly diagram showing a component being lifted by a tool, with no visible text or symbols.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and airflow direction (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure (no text or symbols)

Technical diagram showing a mechanical component with internal parts and an exploded view of the internal structure (no text or symbols present)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a piston-cranked tool inserted into a gear mechanism (no text or labels)

Mechanical assembly diagrams showing two configurations of a tool or bracket with arrows indicating motion direction (no text or symbols present)

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

Line drawing of a device with a switch and warning symbol, connected to a wall-mounted device (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its side (no text or symbols present)

Line drawing of two household appliances connected by wires, one with a power outlet and the other with a device (no text or symbols)

Diagram showing a device with battery and warning symbols, indicating battery status or hazard.

Technical diagram showing engine compartment assembly with a valve and gear mechanism (no text or labels)

Mechanical assembly diagram showing a pipe clamp and lever mechanism (no text or symbols)

Line drawing of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a game controller panel with labeled buttons and icons, showing status indicators for battery, play, and action buttons.

Line drawing of hands adjusting a cable clip with a black arrow indicating the cable being inserted (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of a person adjusting a bicycle brake lever with a directional arrow (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a shaft, illustrating a process or transformation (no text or symbols present)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Pure technical diagram of a mechanical assembly with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol, likely indicating waste sorting or recycling restrictions.

Dati tecnici

Dati tecnici

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a cable or connector assembly with directional arrow (no text or symbols)

始動抑制装置の点検

Diagram of a mechanical clamp or connector assembly with no visible text or symbols

Technical line drawing of a vehicle chassis with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

1. シールストップを外します。

Technical line drawing of a car interior showing structural components and a close-up view of the seat (no text or symbols)

Technical line drawing of a car engine bay with a mounted component and a black arrow indicating a detail (no text or symbols present)

Technical line drawing of an internal combustion engine housing with valve and cooling unit (no text or labels)

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a mechanical device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical assembly with a box and gear mechanism, showing motion direction (no text or symbols)

Technical line drawing of a manual lawn mower with a moving gear and blade (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, showing internal features (no text or symbols)

Technical line drawing of a vehicle engine compartment with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal components (no text or symbols)

Technical diagram showing a mechanical component with a side view and internal assembly (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear mechanism (no text or labels visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device panel with four labeled buttons and a warning symbol, connected to a device casing.

Line drawing of a portable electronic device connected to a wall-mounted panel (no text or symbols)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two household appliances connected by wires, one with a power outlet and the other with a charging device (no text or symbols)

Diagram showing a device with battery and warning symbols, indicating battery status or hazard.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or symbols)

Diagram of a mechanical clamp or lever mechanism with a directional arrow indicating motion (no text or symbols present)

Line drawing of two hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car front panel with labeled buttons and icons, including navigation and function buttons

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of a person using a cable clamp device to adjust cable (no text or symbols present)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, ex, and plus, connected by an arrow pointing to the ⓘ button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above a grassy field (no text or symbols)

Mechanical assembly diagram showing gear and shaft components with an arrow indicating motion direction (no text or labels)

Mechanical assembly diagram showing a rotating component before and after assembly, with no visible text or symbols.

1. ブレードを木製ブロックでロックします。

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. ハンドルを前側に折り畳みます。

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. グラスキャッチャーを取り外します。

搬送

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

主要諸元

* 1 分間あたりの回転数
主要諸元

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a car engine bay with a mounted component and directional arrow (no text or symbols)

Technical line drawing of a vehicle's internal components, showing a bracket assembly and a close-up view of the seat (no text or symbols present)

Technical line drawing of an automotive engine bay with a component highlighted (no text or symbols)

Technical line drawing of an internal combustion engine housing with valve and cooling unit (no text or labels)

Technical illustration of a mechanical device with hoses and connectors, no visible text or symbols

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a belt drive mechanism with rotating components and directional arrows (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and wheels, connected to a motor (no text or symbols present)

Line drawing of a lawn mower with a blade and wheel, showing motion direction (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and a highlighted section with arrows (no text or symbols)

3D mechanical component diagram showing a central housing with four circular ports and two side slots, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical slots, no text or symbols present.

Technical line drawing of a mechanical assembly with component highlights (no text or symbols)

Technical line drawing of a mechanical component with two views: top view showing a circular housing and bottom view showing a circular base with four holes (no text or symbols)

Technical line drawing of a mechanical device showing internal components and a close-up view (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a component, with no visible text or symbols

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

1 2 3 4 good

Line drawing of a device with a warning symbol and a connected button (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a Huawei Haser device connected to a power outlet (no text or symbols present)

Diagram showing a device panel with a battery symbol and warning symbols, including an arrow pointing to it.

Pure electrical circuit lines without any symbols

Ah Li-Ion - 36V

Adapteris rodo ikrovos lygi 1 % padalomis.

Technical line drawing of a mechanical assembly with a disassembled component and a close-up view (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Illustration of hands holding a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands holding a device with a cable, showing a right-hand rule (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, lock, plus, minus, and minus signs.

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of hands adjusting a cable clip with a directional arrow indicating motion (no text or symbols)

Kaip judèti su gaminiu, kai pjovimo iranga atjungta (LB 553iV)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with a directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with shaft and bearing, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with circular flow patterns and central rotating arrow (no text or symbols)

1. Ranka pasukite peilj ir patikrinkite, ar jis laisvai sukasi.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

Techniniai duomenys

Techniniai duomenys

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head with sensor points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

1. Atveriet akumulatora luku.

2. Iznemiet akumulatoru 1. slotā.


Technical line drawing of a car engine bay with a mounted sensor or sensor component (no text or symbols)

1. Nonemiet blives atduri.


Technical line drawing of a car interior showing a valve mechanism and structural components (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

1. Novietojiet akumulatora adaptera vadu caur blives atdura atveri. Pievienojiet vadu ar skavu.


Technical line drawing of an automotive engine bay with internal components and valve assembly (no text or labels)

1. Uzstādiet multi akumulatoru uz akumulatora adaptera.

2. Pievienojiet multi akumulatoru pie akumulatora adaptera.


Technical line drawing of a mechanical device with attached cable and connectors (no text or symbols)

1. Piestipriniet akumulatora adaptera vadu pie roktura ar 3 auduma siksnām.

Technical line drawing of a lawn mower with attached toolbars and mechanical components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Technical line drawing of a manual lawn mower with a moving gear and bucket (no text or symbols)

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

1. Iznemiet sensoru.
2. Piestipriniet akumulatoru pie sensora. ledegas sensora LED diode.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment with internal components and directional arrows indicating movement (no text or symbols)

3D mechanical component diagram showing a housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

1. Izlīdziniet sensora slotu ar korpusa slotu.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top view of a circular housing, bottom shows front view of a hexagonal base with three circular holes (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical component diagram showing a piston and crankshaft mechanism (no text or labels)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device with a battery symbol and warning labels, indicating status or hazard.

Technical illustration of a vehicle engine assembly showing internal components and a close-up view of the assembly (no text or symbols present)

Diagram of a mechanical device with a lever and handle, showing a curved arm and lever mechanism (no text or symbols)

Illustration of hands using a tool to interact with a device, showing a downward arrow (no text or symbols present)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of a person using a bicycle belt switch mechanism, showing the grip and lever mechanism (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Line drawing of hands adjusting a cable clip with a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, showing a directional arrow (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Iznemiet asmens skrūvi, atsperi, nonemiet paplāksni un asmeni.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above grass (no text or symbols)

1. Novietojiet berzes paplāksni un asmeni pret asmens atbalstu.

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with shaft and bearing, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

1. Piestipriniet atsperpaplāksni un piegrieziet skrūvi ar 65-75 Nm griezes momentu.

Pure technical diagram of a mechanical or electronic component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and a blank base, likely illustrating waste management or disposal rules.

Tehniskie dati

Tehniskie dati

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with curved pipes and a lever mechanism, showing a right-hand rule (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted component (no text or symbols)

Technical line drawing of a vehicle's internal components, showing a bracket assembly and valve mechanism (no text or labels)

Technical line drawing of an automotive engine bay with a mounted sensor or connector (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical illustration of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Grasopvangbak monteren (LC 551iV)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear, connected to a vehicle (no text or symbols present)

De mulchplug monteren (accessoire LC 551iV)

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with component highlights and arrows indicating parts (no text or symbols present)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal components (no text or symbols)

Technical line drawing of a mechanical component with internal parts and a close-up view (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

LED-lampjes Accustatus
Alle leds branden Volledig opgeladen (75-100%)
Led 1, led 2, led 3 branden	De accu is 50%-75% op-geladen
Led 1, led 2 branden De accu is 25%-50% op-geladen
Led 1 brandt De accu is 0%-25% opge-laden.
LED 1 knippert De accu is leeg. Laad deaccu op.

De accu opladen

Line drawing of a device with a switch and warning symbol, connected to an electrical outlet (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

LED-display	Laadstatus
LED 1 knippert 0%-25%
Led 1 brandt, led 2 knippert	25%-50%
Led 1 en led 2 branden, led 3 knippert	50%-75%
Led 1, led 2 en led 3 branden, led 4 knippert	75%-100%
Led 1, led 2, led 3, led 4 branden	Volledig opgeladen

De multi-accu opladen

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with battery and warning symbols, indicating status or hazard.

Technical diagram showing a mechanical assembly with a disassembled component and its exploded view (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Illustration of hands holding a cable with a plug, showing a downward force (no text or symbols)

Illustration of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a computer control panel with labeled buttons and icons, showing navigation arrows and function keys.

Line drawing of hands adjusting a bicycle brake lever with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Controleer de messteun en de mesbout op beschadigingen.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a rotating component with mounting holes and a shaft, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Technische gegevens

Technische gegevens

Claes Losdal, Development Manager/Garden Products, Husqvarna AB

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with four mounting holes (no text or symbols)

1. Sett adapterplaten på motordekselet.

2. Fest adapterplaten med de fire medfølgende skruene med et dreiemoment på 5–6 Nm.

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted sensor or sensor component (no text or symbols)

1. Fjern forseglingsproppen.


Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted component and a black arrow indicating a detail (no text or symbols present)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

1. Monter multibatteriet på batteriadapteren.

2. Koble multibatteriet til batteriadapteren.


Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with attached tool, showing mechanical components and motion arrows (no text or symbols)

Mechanical assembly diagrams showing gear and motor components with rotational motion arrows (no text or labels)

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Slik monterer du finfordelingspluggen (LC 551iV tilbehør)

Line drawing of a lawn mower with a tool, showing motion and component movement (no text or symbols)

1. Skift ut kniven med finfordelingskniven som følger med finfordelingssettet. Se Slik bytter du kniven på side 569.

Drift

Innledning

ADVARSEL: Før du bruker produktet, må du lese og forstå kapittelet om sikkerhet.

Husqvarna Connect

Husqvarna Connect er en kostnadsfri app for mobilenheten din. Husqvarna Connect-appen gir utvidede funksjoner for Husqvarna-produktet ditt:

Mechanical assembly diagram showing a component being inserted into a housing with a circular base and arrow indicating rotation (no text or symbols present)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle chassis with internal components and directional arrows indicating movement (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top view showing a circular housing and bottom view showing a square base with three circular holes (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Slik setter du produktet i arbeidsstilling (LC 551iV)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagrams showing two configurations of a tool or clamp mechanism (no text or labels)

Line drawing of a device with a warning symbol and cable, no text or labels present

1. Sett batteriet i batteriladeren. Den grønne lampen på laderen tennes når batteriet er riktig koblet til laderen.

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

1. Når alle LED-indikatorene på batteriet lyser, er batteriet fulladet. Lad batteriet i maks. 24 timer.
2. For å koble laderen fra stikkontakten må du dra i selve støpselet, ikke i ledningen.
3. Fjern batteriet fra batteriladeren.

Batteriladestatus

Et Husqvarna Li-ionbatteri kan lades eller brukes ved et hvilket som helst ladenivå. Batteriet blir ikke skadet. Et fulladet batteris ladenivå reduseres ikke när batteriet blir stående i laderen.

LED-display	Ladestatus
LED 1 blinker 0–25 %
LED 1 lyser, LED 2 blinker	25–50 %
LED 1, LED 2 lyser, LED 3 blinker	50–75 %
LED 1, LED 2, LED 3 ly-ser, LED 4 blinker	75–100 %
Lampe 1, lampe 2, lampe 3 og lampe 4 tennes	Fulladet

Slik lader du multibatteriet

Line drawing of two connected devices, one with a power outlet and cable, the other with a device emitting a plug (no text or symbols)

1. Sett adapteren i batteriladeren.
2. Kontroller at den grønne ladelampen på laderen tennes. Det betyr at adapteren og multibatteriet er korrekt sammenkoblet.

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component

1. Når alle LED-indikatorene på batteriet lyser og adapteren viser 100 %, er batteriet fulladet.

% Al Li-Ion - 36V

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the assembly (no text or symbols)

1. Stå bak produktet.

2. Trykk på PÅ/AV-knappen på kontrollpanelet. Displayet slås på.

3. Løsne startsperren.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of a hand holding a device with a cable being adjusted, showing a downward arrow (no text or symbols present)

Line drawing of hands holding a device with a valve, no text or symbols present

Diagram of a car dashboard with labeled buttons and icons, including battery, battery, and function buttons.

Line drawing of hands adjusting a cable buckle with a black arrow indicating the rope's adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, battery pack, battery level, and function buttons.

Line drawing of hands adjusting a cable buckle with a belt buckle, showing a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Trykk på PÅ/AV-knappen på kontrollpanelet. Alle LED-lamper og -symboler på displayet slukkes.

Diagram showing four electrical switch symbols: power source, current, voltage, and plus sign with an arrow pointing to the current symbol.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Fjern knivbolten, sprengskiven og kniven.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Kontroller knivstøtten og knivbolten for skader.

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Mechanical component diagram showing gear and blade assembly with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a side view of a mechanical component (no text or symbols)

Diagram of a mechanical device with rotating shaft and circular components, no text or symbols present

1. Fest sprengskiven, og trekk til bolten med et moment på 65-75 Nm.

Pure diagram of a circular device with internal components and directional arrows, no text or symbols present.

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

1. Vipp styret forover.

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

1. Tøm oppsamleren.

Transport

Diagram showing two waste sorting bins with crossed-out recycling symbols, indicating no disposal or recycling.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or connector with a curved arm and lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a car interior component with mounting holes and structural brackets (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted component (no text or symbols)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device connected to a box, with an arrow indicating motion or force direction (no text or symbols present)

Line drawing of a lawn mower with a moving cart and wheel assembly (no text or symbols)

• Extended product information.
• Information about, and help with, product parts and servicing.

Mechanical assembly diagram showing a component being lifted by a tool, with no visible text or symbols.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car body panel with internal components and directional arrows indicating movement (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal components (no text or symbols)

Technical diagram showing a mechanical component with internal parts and an exploded view of the internal structure (no text or symbols present)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear mechanism (no text or labels visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and a connected panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two household appliances connected by wires, one with a power outlet and the other with a device (no text or symbols)

Diagram showing a device panel with battery and warning symbols, including an arrow pointing to the battery.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or symbols)

Mechanical diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Line drawing of hands holding a tool with a device, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Line drawing of a person using a cable buckle to adjust the seatbelt (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of a person adjusting a bicycle brake lever with a directional arrow (no text or symbols)

Diagram of a mechanical or electrical component with a curved pipe and connectors, showing an upward motion (no text or symbols)

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a shaft, illustrating a process or transformation (no text or symbols present)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Pure technical diagram of a mechanical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed bins with a recycling symbol and no text labels

Dane techniczne

Dane techniczne

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Verificar o inibidor de arranque

Verifique o inibidor de arranque para se certificar de que este impede o funcionamento do motor.

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a car interior component with mounting holes and structural brackets (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt mechanism and internal components (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted sensor or sensor unit (no text or symbols visible)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

1. Instale a bateria múltipla no adaptador da bateria.

2. Ligue a bateria múltipla ao adaptador da bateria.

Technical line drawing of a mechanical device with attached cable and connectors (no text or symbols)

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagram showing two stages of gear meshing and rotational motion (no text or symbols)

Mechanical diagram showing a car's steering wheel and belt drive mechanism (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Montar o coletor de relva (LC 551iV)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating the motion (no text or symbols present)

Technical illustration of a mechanical assembly with a box and gear mechanism (no text or symbols)

Technical line drawing of a lawn mower with visible blades and wheel (no text or symbols)

Mechanical assembly diagram showing a component being lifted by a tool, with no visible text or symbols.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car interior showing structural components and a zoomed-in view of the engine compartment (no text or labels)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and two downward arrows indicating features (no text or symbols)

1. Alinhe a ranhura do sensor com a ranhura do invólucro.

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

1. Fixe a ranhura do sensor com os rebites.
2. Instale o sensor na ranhura do sensor. Alinhe a marca branca no sensor com a marca na ranhura do sensor.

Technical line drawing of a mechanical component with two views: top view shows a circular housing, bottom view shows a circular base with four holes and a handle (no text or symbols)

Technical line drawing showing internal components of a device, including a plastic housing and internal wiring (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device with a warning symbol and connection point (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with battery symbol and warning icons, indicating status or hazard.

Technical line drawing of a vehicle engine compartment showing internal components and a close-up view of the valve assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Illustration of two hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including battery, play button, and navigation buttons.

Line drawing of a person using a cable clamp device to adjust the cable (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Line drawing of a person using a bicycle brake lever with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Technical line drawing of a mechanical component with a gear and directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with mounting holes and a side view of a gear mechanism (no text or labels)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with circular elements and internal components, no text or symbols present.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing structural components and a close-up view of the seat (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor unit (no text or symbols)

Technical line drawing of an automotive engine bay with internal components and valve assembly (no text or labels)

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment with structural details and arrows indicating motion (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

Technical line drawing of a mechanical assembly with component highlights (no text or symbols)

Technical line drawing of a mechanical component with two views: top view showing a circular housing and bottom view showing a circular base with four holes (no text or symbols)

Technical line drawing showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear mechanism (no text or labels visible)

Mechanical assembly diagram showing two configurations of a tool or bracket with arrows indicating motion direction (no text or symbols present)

Line drawing of a device with a warning symbol and a power outlet, connected to a cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices with power outlets, no text or symbols present

Diagram showing a device with warning symbols and an arrow pointing to a labeled component

Technical diagram showing mechanical assembly with a disassembled component and a close-up view of the internal structure (no text or symbols)

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Illustration of a hand holding a medical device with a catheter, showing a downward arrow (no text or symbols present)

Line drawing of hands connecting a device to a plug, with an arrow indicating the process (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Line drawing of hands adjusting a cable clip device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable clip with a directional arrow (no text or symbols)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, with an arrow pointing to the circled button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a gear and arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a shaft, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

Diagram of a mechanical component with circular motion arrows indicating rotation (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out bins, indicating no disposal or recycling.

Date tehnice
Date tehnice

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a vehicle chassis with mounting brackets and screw fasteners (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a valve mechanism and structural components (no text or symbols)

Technical line drawing of an automotive engine bay with a component highlighted (no text or symbols)

Technical line drawing of an internal combustion engine housing with valve and cooling unit (no text or labels)

Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and wheels, showing a directional arrow (no text or symbols)

Line drawing of a manual lawn mower with a moving tool and base (no text or symbols)

Technical illustration of a mechanical component with a lever and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a car interior showing structural components and airflow direction (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a vehicle engine compartment showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a piston inserted into a gear (no text or labels visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device with four labeled buttons connected to a rack-mounted unit, indicating status or warning.

Line drawing of a device with a warning symbol and cable, no text or labels present

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices, one with a power outlet and cable, the other with a device labeled 'Huaqema' (no text or symbols on the devices themselves)

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component.

Technical diagram showing mechanical assembly with a downward arrow indicating a component (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Line drawing of hands adjusting a cable clip with a black arrow indicating the rope movement (no text or symbols)

Diagram of a car front panel with labeled buttons and icons, including battery, battery pack, battery stop, and function buttons.

Line drawing of a person using a bicycle tire to lift a cable, with a hand adjusting the rope (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight pipes, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under load with arrows indicating force direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with rotating components and a directional arrow indicating motion (no text or labels)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol, indicating no waste or non-recyclable disposal.

Технические данные

Технические данные

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Kontrola poistky naštartovania

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a car engine bay with an internal component and directional arrow (no text or symbols)

Technical line drawing of a car interior showing a brake lever mechanism and internal components (no text or symbols)

1. Zatláčajte adaptér batérie do priestoru batérie, kým sa neozve cvaknutie.

Technical line drawing of an automotive engine bay with a highlighted component (no text or symbols)

1. Prestrčte šnúru adaptéra batérie cez otvor na tesniacu zátku. Pripevnite šnúru pomocou príchytky.

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

1. Nainštalujte multibatériu na adaptér batérie.

2. Pripojte multibatériu k adaptéru batérie.

Technical line drawing of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with attached tool, showing mechanical components and motion arrows (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a mechanical device with an open lid and internal components, showing a close-up view of the lid (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration of a mechanical assembly with a box and gear mechanism, showing motion direction (no text or symbols)

Line drawing of a manual lawn mower with a moving gear and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment showing internal components and structural details (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

1. Vyvrtajte 2 diery podla značiek v slote snímača.

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

Technical line drawing of a vehicle engine compartment with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

1. Posuňte gombíky nahor smerom k rukoväti, kým sa nezastavia a nebudete počut' kliknutie.

CLICK!

1. Gombíky utiahnite na doraz.

Mechanical component diagram showing a piston inserted into a gear assembly (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device panel with numbered labels pointing to its internal components, including a warning symbol and a labeled device.

LED svetlá Stav batérie
Všetky LED svetlá svietia Plne nabitá (75 – 100 %)
Svieti LED 1, LED 2, LED 3	Batéria je nabitá na 50% – 75%
Svieti LED 1, LED 2 Batéria je nabitá na 25% – 50%
Svieti LED 1 Batéria je nabitá na 0% – 25%.
Bliká LED 1 Batéria je vybitá. Nabite batériu.

Nabíjanie batérie

Line drawing of a wall-mounted device connected to a vertical panel with warning symbol (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Ked' svietia všetky indikátory LED na batérii, batéria je plne nabitá. Batériu nabíjajte maximálne 24 hodín.
2. Pri odpájaní nabíjačky batérií od siet'ovej zásuvky t'ahajte za zástrčku, nie za šnúru.
3. Vyberte batériu z nabíjačky batérií.

Stav nabíjania batérie

Line drawing of two devices connected by a cable, one with a power outlet and the other with a handheld device (no text or symbols)

1. Vložte adaptér do nabíjačky batérie.
2. Uistite sa, či sa rozsvietil zelený indikátor LED nabíjania na nabíjačke batérie. To znamená, že adaptér a multibatéria sú správne pripojené.

Diagram showing a device panel with labeled buttons and an arrow pointing to a warning symbol

1. Ked' svietia všetky diódy LED na batérii a adaptér ukazuje 100 %, batéria je plne nabitá.

% Ah Li-Ion - 36V

Technical diagram showing mechanical assembly with a disassembled component and a close-up view of the internal structure (no text or symbols)

Diagram of a mechanical linkage or cable assembly with a directional arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable buckle with a belt switch (no text or symbols)

Diagram of a computer control panel with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of a person adjusting a cable buckle with a belt buckle, showing hand placement and motion arrow (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Na ovládacom paneli stlačte tlačidlo ON/OFF (Zap./Vyp.). Všetky diódy LED a symboly na displeji zhasnú.

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Demontujte skrutku noža, pružnú podložku a čepel.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above a grassy field (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with a rotating component and shaft, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, no text or symbols present.

1. Pripevnite pružnú podložku a utiahnite skrutku na ut'ahovací moment 65-75 Nm.

Diagram of a mechanical device with circular components and directional arrows, no text or symbols present

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

3. Skopte držadlo dopredu.

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

NEVARNOST – Ne približujte rok in nog.

Odgovornost proizvajalca

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Za pregled blokade vžiga

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Technical line drawing of a vehicle head with mounting points (no text or symbols)

1. Na pokrov motorja postavite vmesno ploščo.

2. Vmesno ploščo privijte s 4 priloženimi vijaki z momentom 5–6 Nm.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted sensor or sensor component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt mechanism and internal components (no text or symbols)

1. Baterijski vmesnik potisnite v prostor za baterijo, se zaskoči.

Technical line drawing of an automotive engine bay with a mounted component and a black arrow indicating a detail (no text or symbols present)

Technical line drawing of an internal combustion engine housing with visible components and piping (no text or labels)

1. Na baterijski vmesnik namestite baterijski sklop.

2. Baterijski sklop priključite na baterijski vmesnik.

Technical illustration of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

1. Spodnji del ogrodja zbiralnika za travo vstavite v utor na dnu zbiralnika za travo.

2. Vrečo za travo namestite na ogrodje zbiralnika za travo in ga pritrdite z sponkami.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a lawn mower with a moving gear and base (no text or symbols)

1. Rezilo zamenjajte z rezilom za mulčenje, priloženo kompletu za mulčenje. Glejte Zamenjava rezil na strani 764.

Delovanje

Uvod

OPOZORILO: Pred uporabo izdelka morate prebrati in razumeti poglavje o varnosti.

Husqvarna Connect

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

1. Odstranite senzor.

2. Senzor priključite na baterijo. Indikator senzorja mora zasvetiti.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and a highlighted section with two arrows indicating movement or force (no text or symbols present)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, showing internal features (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with internal parts and an arrow indicating a specific section (no text or symbols present)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

POZOR: Ne nastavite višino rezanja prenizko. Rezila lahko trčijo ob tla, će površina travnika ni ravna.

Nastavitev višine košnje (LB 553iV)

Mechanical assembly diagrams showing two configurations of a tool or bracket with arrows indicating motion direction (no text or symbols present)

POZOR: Ne nastavite višino rezanja prenizko. Rezila lahko trčijo ob tla, će površina travnika ni ravna.

Baterija

Line drawing of a device with a warning symbol and cable, no text or labels present

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two household appliances connected by a cable, one with a power outlet and the other with a device (no text or symbols)

Diagram showing a device panel with warning symbols and an arrow pointing to a fault symbol

Technical diagram showing mechanical assembly with a disassembled component and a close-up view of the internal structure (no text or symbols)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

1. Ročico motorne zavore potisnite v smer ročaja.

Illustration of hands holding a device with a cable, showing a downward arrow indicating motion (no text or symbols present)

Za pogon koles (LC 551iV)

Illustration of hands connecting a device to a plug, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls.

Line drawing of a person using a cable buckle to adjust the seatbelt (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of a person adjusting a cable buckle with a belt buckle, showing hand placement and motion arrow (no text or symbols)

Premik izdelka z izklopljeno rezalno opremo (LB 553iV)

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, e, and plus, connected by an arrow pointing to the I button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the bottom (no text or symbols)

1. Odstranite vijak rezila, vzmetno podložko in rezilo.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Preverite, ali sta nosilec rezila in vijak rezila poškodovana.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

1. Torno podložko in rezilo namestite na nosilec rezila.

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with shafts and bearings, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

1. Pritrdite vzmetno podložko in privijte vijak z zateznim momentom 65-75 Nm.

Diagram of a mechanical or electrical component with circular cross-section and internal rotation arrow (no text or symbols)

1. Ročno zavrtite rezilo in se prepričajte, da se prosto obrača.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

1. Odstranite zbiralnik za travo.

Prevoz

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Tehnični podatki

Tehnični podatki

	LB 548i LB 553iV LC 5	51iV
Motor rezalne enote
Tip motorja BLDC (brezkrtacni	enosmerni) 36 V	BLDC (brezkrtacnienosmerni) 36 V	BLDC (brezkrtacnienosmerni) 36 V
Št. vrt. motorja – SavE, vrt/min* 2600 2600 2600
Št. vrt. motorja – nazivno, vrt/min* 3000 3000	3000
Št. vrt. motorja – visoka obremenitev, vrt/min*	3300 3300 3300
Najvišja izhodna moč motorja v kW 1,8 1,8 1,8
Nazivna izhodna moč motorja v kW 1,5 1,5 1,5
Pogonski motor
Nazivna izhodna moč motorja v kW Ni navedeno 0,4 0,4
Hitrost samohodnega pogona, km/h Ni navedeno 3,0–5,0 3,0–5,0
Stopnje hitrosti Ni navedeno 4 4
Teža
Teža brez baterije v kg 31	38	39,5
Baterija
Vrsta baterije	Serija baterij Husq-varna	Serija baterij Husq-varna	Serija baterij Husq-varna
	LB 548i LB 553iV LC 551iV
Avtonomija baterije
Avtonomija baterije, najkrajša, (prosto delovanje) z aktivirano funkcijo SavE, z eno baterijo Husqvarna z močjo 9,4 Ah (Bli300).	35 35 30
Avtonomija baterije, najkrajša, (prosto delovanje) z aktiviranim standardnim načinom, z eno baterijo Husqvarna moči 9,4 Ah (Bli300).	30 30 25
Emisije hrupa 70
Raven zvočne moči, izmerjena v dB (A) 93 97	97
Raven zvočne moči, zajamčena LWA v dB(A)	93 98 97
Nivoji hrupa 71
Nivo zvočnega tlaka pri ušesu operaterja, dB(A)	80 84 84
Ravni vibracij 72
Ročaj, m/s2	0,3 1,3 0,3
Rezalna oprema
Višina reza v mm 30-60 28-65 26-74
Širina reza v cm 48 53 51
Standardno rezilo Rezilo za mulčenje	597466510	Rezilo za mulčenje 529441810	Rezilo za zbiranje 597466310
Dodatno rezilo Ni navedeno Ni navedeno Rezilo za mulčenje			597466410
Kapaciteta zbiralnika za travo, I Ni navedeno Ni navedeno 65

* Vrtljaji na minuto

Homologirane baterije Vrsta Zmogljivost aku-		mulatorja v Ah	Napetost, V Teža, lb/kg
BLi20 Litij-ionska 4,0	36	2,6/1,2
BLi200	Litij-ionska	5,2	36
BLi300	Litij-ionska	9,4	36
BLi550X	Litij-ionska	15,6	36
BLi950X	Litij-ionska	31,1	36

Odobreni polnilniki za določene baterije, BLi Vhodna nape- tost, V	Frekvenca, Hz Moč, W
QC80 100–240 50–60 80
QC80F 12 0 80
QC330 100–240 50–60 330
QC500 100–240 50–60 500

Izjava o skladnosti

Izjava EU o skladnosti

Mi, Husqvarna AB, SE--561 82 Huskvarna, Švedska, tel.: [phone], izjavljamo na lastno odgovornost, da je izdelek:

LC 551iV LB 548i

1. Kontrolna tabla
2. Ručica kočnice motora
3. Inhibitor pokretanja
4. Hvatač trave (LC 551iV)
5. Zadnji poklopac (LC 551iV)
6. Bezbednosni ključ
7. Dugme ručke (LC 551iV)
8. Poluga za podešavanje ručke (LB 548i)
9. Poklopac baterije
10. Komanda visine košenja (LC 551iV)
11. Dugme ON/OFF

12. Dugme SavE

13. Indikator SavE

14. Indikator baterije
15. Indikator nivoa brzine
16. Dugme za smanjenje brzine
17. Dugme za povećanje brzine
18. LED lampica greške
19. Poklopac košenja
20. Dovodi vazduha
21. Zaštitni poklopac (LC 551iV)
22. Nazivna pločica
23. Pritiskivač pogona (LC 551iV)

24. Punjač baterije (oprema)

25. Baterija (oprema)

26. Multi baterija (oprema)

27. Ploča adaptera (oprema)

28. Adapter multi baterije (oprema)

29. Komplet za malčiranje (LC 551iV)
30. Uputstvo za rukovaoca

Pregled proizvoda (LB 553iV)

LB 553iV

1. Kontrolna tabla
2. Ručica kočnice motora
3. Inhibitor pokretanja
4. Bezbednosni ključ
5. Poluga za podešavanje ručke
6. Poklopac akumulatora
7. Komanda visine košenja
8. Dugme ON/OFF
9. Dugme SavE
10. Indikator SavE
11. Indikator akumulatora
12. Indikator nivoa brzine
13. Dugme za smanjenje brzine
14. Dugme za povećanje brzine
15. LED lampica greške
16. Poklopac košenja
17. Dovodi vazduha

18. Zaštitni poklopac

19. Nazivna pločica

20. Kontrolna poluga pogona
21. Punjač akumulatora (oprema)
22. Akumulator (oprema)
23. Multi akumulator (oprema)
24. Ploča adaptera (oprema)
25. Adapter multi akumulatora (oprema)
26. Korisničko uputstvo

Simboli na proizvodu

UPOZORENJE: Ovaj proizvod može biti opasan i prouzrokovati teške povrede ili smrt

rukovaoca ili drugih osoba. Budite pažljivi i koristite proizvod na pravilan način.

Pre korišćenja proizvoda pažljivo pročitajte korisničko uputstvo i budite sigurni da ste ga razumeli.

Pazite da ljudi i životinje budu na bezbednoj udaljenosti od radnog područja.

Pazite na odbačene predmete i odskakivanja.

Upozorenje: Udaljite šake i stopala od rotirajućeg noža.

Upozorenje: Udaljite šake i stopala od rotirajućih delova.

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

OPASNOST – udaljite šake i stopala.

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Provera inhibitora pokretanja

Izvršite proveru inhibitora pokretanja kako biste se uverili da sprečava rad motora.

1. Pritisnite ručicu kočnice motora u smeru upravljača. Inhibitor pokretanja zaustavlja kretanje.

2. Pritisnite inhibitor pokretanja ka spolja.

Diagram of a mechanical clamp or connector assembly with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and mounting points (no text or symbols)

1. Postavite ploču adaptera na poklopac motora.
2. Pričvrstite ploču adaptera pomoću 4 obezbeđena zavrtnja na moment pritezanja od 5–6 Nm.

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

1. Otvorite poklopac akumulatora.

2. Uklonite akumulator iz pregrade 1.

Technical line drawing of a vehicle engine bay with a sensor mounted on top (no text or symbols)

Technical line drawing of a car interior showing structural components and a hand valve mechanism (no text or labels)

1. Pritisnite adapter akumulatora u odeljak akumulatora dok ne čujete klik zvuk.

Technical line drawing of a vehicle engine bay with a mounted sensor or sensor unit (no text or symbols visible)

1. Provucite kabl adaptera akumulatora kroz otvor zaptivnog graničnika. Pričvrstite kabl pomoću spojnice.

Technical line drawing of an internal combustion engine housing with valve and cooling unit (no text or labels)

1. Postavite multi akumulator na adapter akumulatora.
2. Povežite multi akumulator na adapter akumulatora.

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with attached blades and guide rails (no text or symbols)

1. Uklonite multi akumulator obrnutim redosledom.

UPOZORENJE: Nemojte pričvršćivati kabl suviše labavo na ručku. Kabl može spasti sa ručke i prouzrokovati povredu.

Podešavanje ručke (LC 551iV)

1. Olabavite donju dugmad.
2. Pomerite dugmad u donji kraj žlebova na levoj i desnoj strani proizvoda.

Mechanical assembly diagrams showing gear and motor components with rotational motion arrows (no text or labels)

1. Stavite ručku u jedan od 2 položaja za visinu.
2. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

Sklapanje ručke (LB 548i, LB 553iV)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

1. Okrenite ručku na stranu radi dobrog položaja za rad kada proizvod koristite blizu zida.

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Sklapanje hvatača trave (LC 551iV)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

1. Postavite donji deo rama hvatača trave u žleb na dnu hvatača trave.

2. Pričvrstite okvir vreće za travu spojnicama.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating the motion (no text or symbols present)

Technical illustration of a mechanical device with a box and wheels, showing a directional arrow (no text or symbols)

Postavljanje priključka za usitnjavanje (LC 551iV oprema)

Line drawing of a manual lawn mower with a moving gear and blade (no text or symbols)

1. Zamenite sečivo sečivom za usitnjavanje iz kompleta za usitnjavanje. Pogledajte Zamena sečiva na stranici 796.

Rukovanje

Uvod

Technical illustration of a mechanical component with a top view and a side view showing a rotating base (no text or symbols)

1. Uklonite senzor.
2. Povežite akumulator sa senzorom. LED lampica senzora se uključuje.

Technical illustration of a mechanical component with two views showing rotation and assembly (no text or symbols)

1. Preuzmite aplikaciju Husqvarna Fleet Services ^TM .

2. Prijavite se na aplikaciju Husqvarna Fleet Services™.

3. Izvršite proces uparivanja. Pogledajte Vršenje procesa uparivanja između aplikacije i proizvoda na stranici 789

Vršenje procesa uparivanja između aplikacije i proizvoda

1. Prijavite se na aplikaciju Husqvarna Fleet Services™.
2. Izaberite proizvod u aplikaciji.
3. Pomoću mobilnog uređaja skenirajte kôd koji se nalazi iza senzora kako biste instalirali senzor u aplikaciji.

Napomena: Potrebno je samo jednom izvršiti proces uparivanja između aplikacije i proizvoda.

Instaliranje senzora

1. Uverite se da je senzor povezan na aplikaciju Husqvarna Fleet Services™. Pogledajte Vršenje procesa uparivanja između aplikacije i proizvoda na stranici 789
2. Izbušite 2 otvora pored oznaka u otvoru za kućište.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D mechanical component diagram showing a central housing with four circular ports and two side slots, with arrows indicating direction (no text or symbols)

1. Izbušite 2 otvora pored oznaka u prorezu senzora.

Technical line drawing of a mechanical component with two circular holes and three mounting holes, showing internal features (no text or symbols)

Technical line drawing of a vehicle engine compartment with internal components and mounting holes (no text or symbols)

1. Pričvrstite prorez senzora pomoću zakivaka.
2. Postavite senzor u prorez senzora. Poravnajte belu oznaku na senzoru sa oznakom na prorezu senzora.

Technical line drawing of a mechanical component with two views: top view shows a circular housing, bottom view shows a circular base with three holes and a handle (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade motion (no text or symbols)

1. Pomerite dugmad nagore u smeru ručke dok se ne zaustave i ne čujete klik zvuk.

CLICK!

1. Potpuno zategnite dugmad.

Podešavanje visine košenja (LB 548i, LC 551iV)

Visina košenja se može podesiti u 6 nivoa.

1. Gurnite komandu visine košenja u pravcu točka pa unazad da povećate visinu košenja.
2. Gurnite komandu visine košenja u pravcu točka pa unapred da smanjite visinu košenja.

Mechanical assembly diagram showing a tool interacting with a gear (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Line drawing of a device connected to a wall-mounted switch, showing warning symbol and cable (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

1. Akumulator je potpuno napunjen kada na njemu svetle sve LED lampice. Punite akumulator najviše 24 sata.
2. Da biste iskopčali punjač akumulatora iz mrežne utičnice, povucite utikač, a ne kabl za napajanje.
3. Izvadite akumulator iz punjača akumulatora.

Status punjenja akumulatora

Husqvarna litijum-jonski akumulator se može puniti ili koristiti na svim nivoima punjenja. Akumulator nije oštećen. Potpuno napunjen akumulator neće smanjiti punjenje kada je akumulator ostavljen na punjaču.

LED displej	Status punjenja
LED br. 1 trepće 0%-25%
LED br. 1 svetli, LED br. 2 trepće	25%-50%
LED br. 1, LED br. 2 svet-le, LED br. 3 trepće	50%-75%
LED br. 1, LED br. 2, LED br. 3 svetle, LED br. 4 trepće	75%-100%
LED br. 1, LED br. 2, LED br. 3, LED br. 4 svetle	Potpuno napunjeno

Punjenje multi akumulatora

Napomena: Napunite akumulator ako je to prvi put da se koristi. Novi akumulator je napunjen samo 30%.

1. Uverite se da je akumulator suv.

2. Povežite multi akumulator na adapter.

Line drawing of two household appliances connected by a cable, one with a power outlet and the other with a device (no text or symbols)

1. Stavite adapter u punjač akumulatora.

2. Proverite da li se zelena LED lampica punjenja na punjaču akumulatora uključila. To znači da su adapter i multi akumulator ispravno povezani.

Diagram showing a device panel with battery and warning symbols, indicating status or hazard.

1. Kada sve LED lampice na akumulatoru svetle i adapter prikazuje 100%, akumulator je potpuno napunjen.

% Ah Li-Ion - 36V

Adapter prikazuje stanje napunjenosti u koracima od 1%. Moguća su mala odstupanja na početku punjenja.

1. Da biste iskopčali punjač akumulatora sa mrežne utičnice, povucite utikač. Nemojte vući za kabl.

2. Izvadite adapter iz punjača akumulatora.

3. Izvadite multi akumulator iz adaptera.

Technical line drawing of a vehicle engine assembly showing internal components and a close-up view of the valve (no text or symbols present)

1. Stanite iza proizvoda.

2. Pritisnite dugme za uključivanje/isključivanje (ON/OFF) na kontrolnoj tabli. Prikazuje se displej.

3. Olabavite inhibitor pokretanja.

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

Korišćenje pogona na točkićima (LC 551iV)

- Povucite pogonsku osovinu u smeru upravljača da bi se pokrenuo pogon.

Line drawing of hands connecting a device to a cable with an arrow indicating rotation (no text or symbols)

- Pritisnite + i - na kontrolnoj tabli da biste postavili brzinu pogona u 4 koraka.

Diagram of a game controller panel with labeled buttons and icons, showing status indicators for battery, play, and action buttons.

- Otpustite pritiskivač pogona da biste deaktivirali pogon, na primer, kada se nalazite blizu prepreke.

Korišćenje pogona na točkićima (LB 553iV)

1. Pokrenite proizvod, pogledajte Pokretanje proizvoda na stranici 792.
2. Povucite kontrolnu polugu pogona nagore da biste pokrenuli pogon.

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

1. Pritisnite dugmad + i –na kontrolnoj tabli da biste postavili brzinu pogona.

Diagram of a car dashboard with labeled buttons and icons, including battery, camera, and function buttons

1. Gurnite kontrolnu polugu pogona nadole da biste deaktivirali pogon, na primer, kada se nalazite blizu prepreke.

Line drawing of hands adjusting a bicycle tire buckle (no text or symbols)

Pomeranje proizvoda sa deaktiviranom opremom za košenje (LB 553iV)

• Aktivirajte inhibitor pokretanja.
• Povucite nagore kontrolnu polugu pogona.
• Držite kontrolnu polugu pogona i pomerite proizvod.
• Pustite kontrolnu polugu pogona i deaktivirajte inhibitor pokretanja da biste nastavili sa radom.

Korišćenje funkcije SavE

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

1. Pritisnite dugme za uključivanje/isključivanje (ON/OFF) na kontrolnoj tabli. Sve LED lampice i simboli nestaju sa displeja.

Diagram showing four labeled buttons with icons: minus, ⓘ, ex, and plus, connected by an arrow pointing to the ⓘ button.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Uklonite vijak sečiva, opružnu podlošku i sečivo.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Pregledajte da li su potpora sečiva i vijak sečiva oštećeni.

a) Ako zamenite sečivo ili potporu sečiva, zamenite i vijak sečiva, opružnu podlošku i podlošku za trenje.

1. Pregledajte osovinu motora kako biste se uverili da nije savijena.

2. Kada postavite novo sečivo, uverite se da su savijeni krajevi okrenuti u smeru poklopca mehanizma za košenja.

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

1. Postavite podlošku za trenje i sečivo uz potporu sečiva.

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

1. Pobrinite se da je sečivo poravnato sa sredinom osovine motora.

Diagram showing a mechanical assembly with a circular component and a bracket, both without any text or symbols.

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

1. Postavite opružnu podlošku i zategnite vijak na moment pritezanja od 65-75 Nm.

Pure technical diagram of a mechanical or electronic component with concentric circular patterns and internal components (no text or symbols)

1. Povucite sečivo rukom da biste proverili da li se slobodno okreće.

UPOZORENJE: Koristite zaštitne rukavice. Sečivo je veoma oštro i lako dolazi do posekotina.

1. Pokrenite proizvod kako biste testirali sečivo. Ako sečivo nije ispravno postavljeno, pojaviće se vibriranje proizvoda ili rezultat košenja neće biti zadovoljavajući.

Čišćenje proizvoda

• Očistite plastične delove čistom i suvom krpom.
• Nemojte čistiti proizvod vodom. Voda može da prodre u akumulator ili motor i izazove kratak spoj ili oštećenje proizvoda.
• Uklonite lišće, travu i prljavštinu pomoću četke.
• Uklonite zaštitni poklopac i pomoću četke očistite od trave unutrašnju stranu zaštitnog poklopca.

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Sklopite ručku unapred.

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

1. Uklonite hvatač trave.

Transport

• Zahtevi u pogledu transporta opasnih materija primenjuju se na sadržane litijum-jonske akumulatore.
• Za komercijalni transport moraju se poštovati posebni zahtevi koji su navedeni na pakovanju i nalepnicama.
• Pobrinite se da se pridržavate propisa za transport opasnih materija prilikom pripreme proizvoda za transport. Lokalni propisi se mogu primenjivati.
  • Uvek uklonite akumulator pre transporta.
• Stavite traku na konektore akumulatora i uverite se da se akumulator ne može pomerati tokom transporta.
  • Fiksirajte proizvod tokom transporta.

Skladištenje

• Uvek uklonite akumulator pre skladištenja.
• Kako bi se sprečili nesrećni slučajevi, uverite se da akumulator nije povezan na proizvod tokom skladištenja.
• Držite punjač akumulatora u zatvorenom i suvom prostoru.
• Držite akumulator i punjač akumulatora u suvom prostoru gde nema vlage ili mraza.
• Iskopčajte akumulator sa punjača akumulatora tokom skladištenja.
• Ne čuvajte akumulator na mestima gde može doći do statičkog pražnjenja. Ne čuvajte akumulator u metalnoj kutiji.
• Čuvajte akumulator na mestu gde je temperatura između 5 °C i 25 °C i van direktne sunčeve svetlosti.
• Čuvajte punjač akumulatora na mestu gde je temperatura između 5 °C i 45 °C i van direktne sunčeve svetlosti.
• Pobrinite se da je akumulator napunjen na 30% - 50% pre skladištenja na duži vremenski period.
• Čuvajte proizvod, akumulator i punjač akumulatora na zaključanom mestu izvan domašaja dece i neovlašćenih osoba.
• Očistite proizvod i izvršite kompletno servisiranje pre nego što uskladištite proizvod na duži vremenski period.

Odlaganje

Simboli na proizvodu ili njegovom pakovanju ukazuju na to da se ovim proizvodom ne može rukovati kao otpadom iz domaćinstva. On se mora odneti u odgovarajući reciklažni pogon za obnavljanje električne i elektronske opreme.

Diagram showing two crossed bins with a recycling symbol and no text labels

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

1. Öppna batteriluckan.
2. Ta bort batteriet i fack 1.

Technical line drawing of a vehicle engine bay with a mounted component and directional arrow (no text or symbols)

1. Ta bort tätningen.

Technical line drawing of a car interior showing structural components and a close-up view of the seat assembly (no text or symbols)

Technical line drawing of a car engine bay with a mounted component and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an internal combustion engine housing with valve and cooling unit (no text or labels)

1. Sätt batteripacket i batteriadaptern.

2. Anslut batteripacket till batteriladdaren.

Technical illustration of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with rotating components (no text or labels)

Mechanical assembly diagram showing a rotating wheel and belt drive mechanism (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Montera gräsuppsamlaren (LC 551iV)

Line drawing of a device with an open lid and internal structure, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing a black arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a manual lawn mower with a moving gear and blade (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and a zoomed-in section (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and three vertical pins, no text or symbols present.

Technical line drawing of a vehicle engine compartment with internal components and directional arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows top circular housing, bottom shows front view with internal cavity (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a component, with no visible text or symbols

Mechanical assembly diagram showing two different states of a tool or clamp mechanism (no text or symbols present)

Diagram showing a device panel with numbered labels and warning symbols, alongside a labeled electronic device.

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of a portable electronic device connected to a charging case, with no visible text or symbols.

Diagram showing a device with labeled buttons and an arrow pointing to a warning symbol

Technical diagram showing engine compartment assembly with a valve and gear mechanism (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Line drawing of hands holding a tool with a clip, showing a downward motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including function keys and navigation controls

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including battery, navigation, and function buttons.

Line drawing of a person using a cable clamp device to adjust cable (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including labels A and B pointing to specific controls.

Diagram of a mechanical linkage or cable assembly with an upward arrow indicating motion (no text or symbols present)

Diagram showing four labeled buttons with icons: minus, I, minus, and plus, connected by an arrow pointing to the I button.

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with a bolted head and shaft, no text or symbols present

Diagram of a mechanical gear or pulley system with rotational arrow and base block (no text or symbols)

Diagram of a mechanical or electrical component with circular and radial lines, no visible text or symbols

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. Vik handtaget framåt.


Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and a battery icon, likely illustrating waste management or recycling rules.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head with four sensor points on the roof (no text or symbols)

Technical line drawing of a vehicle chassis component with mounting points (no text or symbols)

Technical line drawing of a car engine bay with a mounted component (no text or symbols)

Technical line drawing of a car interior showing a seatbelt switch and internal components (no text or symbols)

Technical line drawing of a vehicle engine bay with a mounted component and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

Diagram of a mechanical device with attached cable and connectors, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a lawn mower with attached tool and mechanical components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols present)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Line drawing of a device with an open lid and internal components, showing a directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing a mechanical device with a box and gear assembly, no text or symbols present

Line drawing of a manual lawn mower with a moving gear and bucket cover (no text or symbols)

Mechanical component diagram showing a lever pressing down on a circular housing with a curved arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three mounting holes, shown with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with component highlights (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure (no text or symbols)

Technical diagram showing a mechanical component with a close-up view of internal components (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Mechanical assembly diagram showing a clamping tool interacting with a gear (no text or symbols visible)

Mechanical assembly diagram showing two different states of a tool, one with a lever mechanism and the other with a circular component (no text or symbols present)

Line drawing of a device with a warning symbol and a control panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with labeled buttons and an arrow pointing to the 'S' button.

Technical diagram showing a mechanical assembly with an inset view of a component being inserted (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of hands holding a handheld device with a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a computer control panel with labeled buttons and icons, including battery, battery pack, and function buttons.

Line drawing of hands adjusting a bicycle brake lever with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four electrical switch icons with an arrow pointing to a button labeled 'i', next to a plus symbol.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and blade with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Line drawing of a lawn mower with motion arrows indicating cycle (no text or symbols)

Diagram showing two crossed recycling bins with a recycling symbol and no text labels

Teknik veriler

Teknik veriler

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram of a mechanical clamp or connector with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a vehicle head with sensor points (no text or symbols)

Technical line drawing of a vehicle chassis with mounting brackets and structural components (no text or symbols)

Technical line drawing of a vehicle engine bay with a sensor or sensor mounted on top (no text or symbols)

Technical line drawing of a car interior showing structural components and a hand valve mechanism (no text or labels)

Technical line drawing of an automotive engine bay with a component highlighted (no text or symbols)

Technical line drawing of an internal combustion engine housing with no visible text or symbols

Technical illustration of a mechanical device with connectors and wiring (no text or symbols)

Technical line drawing of a lawn mower with attached blades and guide rails (no text or symbols)

Mechanical assembly diagrams showing gear and motor components with directional arrows (no text or labels)

Mechanical assembly diagram showing a belt drive mechanism with no text or symbols

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical illustration of a mechanical assembly with a box and gear mechanism (no text or symbols)

Technical line drawing of a lawn mower with a moving tool and base (no text or symbols)

Technical illustration of a mechanical component with a handle and base, showing a rotating assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical housing component with two circular holes and three vertical pins (no text or symbols)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure (no text or symbols)

Technical line drawing of a mechanical device showing internal components and a close-up view (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a gear component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing two different parts of a tool, one with a handle and arrow indicator, the other with a circular component (no text or symbols)

Line drawing of a device with a warning symbol and a connected terminal block (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its top panel (no text or symbols present)

Line drawing of two connected devices with power outlets, no text or symbols present

Diagram showing a device with labeled buttons and an arrow pointing to a button labeled '2'

Technical diagram of a vehicle engine assembly showing internal components and a close-up view of the engine (no text or labels present)

Mechanical assembly diagram showing a lever mechanism with a curved handle and directional arrow (no text or symbols)

Line drawing of hands holding a device with a clip, showing a downward arrow indicating motion (no text or symbols)

Line drawing of hands holding a device with a cable, showing a right-hand rule for change (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable buckle with a belt buckle (no text or symbols)

Diagram of a game controller panel with labeled buttons and icons, showing navigation arrows and function keys.

Line drawing of hands adjusting a bicycle brake lever with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, ⓘ, e, and plus, connected by an arrow pointing to the ⓘ.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

Mechanical assembly diagram showing a gear and shaft with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with shafts and bearings, no text or symbols present

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Diagram showing two crossed bins with recycling symbols, indicating no waste or non-recyclable disposal.

LC 551iV LB 548i

DANGER KEEP HANDS AND FEET AWAY GARDER MAINS ET PIEDS A DISTANCE

危险 - 手脚切勿靠近。

产品责任

Diagram of a mechanical linkage or cable assembly with an arrow indicating direction (no text or symbols present)

检查启动禁止器

检查启动禁止器，确保它能防止电机运转。

Diagram of a mechanical clamp or bracket assembly with a directional arrow indicating motion (no text or symbols present)

Technical line drawing of a vehicle head assembly with four sensor points (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal cavities (no text or symbols)

Technical line drawing of an automotive engine bay with a mounted sensor or sensor component (no text or symbols)

1. 拆下密封止杆。

Technical line drawing of a car interior showing structural components and a close-up view of the seat (no text or symbols)

Technical line drawing of an automotive engine component with a highlighted internal unit (no text or symbols)

Technical line drawing of an internal combustion engine housing with valve and exhaust components (no text or labels)

Diagram of a mechanical device with hoses and connectors, no text or symbols present

Technical line drawing of a lawn mower with mechanical components and motion arrows (no text or symbols)

1. 按照相反的顺序拆下多电池。

Mechanical assembly diagrams showing gear and cam mechanism (no text or labels)

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

装配集草袋 (LC 551iV)

Technical line drawing of a mechanical device with an open lid and internal components, showing a directional arrow (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical illustration of a mechanical assembly with a box and wheels, showing motion direction (no text or symbols)

Line drawing of a lawn mower with visible blades and wheel, no text or symbols present

Diagram showing a mechanical component being lifted by a tool, with no visible text or symbols.

Diagram showing two mechanical components with arrows indicating rotation and movement (no text or symbols)

Technical line drawing of a vehicle engine compartment with internal components and structural details (no text or symbols)

3D mechanical component diagram showing a circular housing with internal components and directional arrows indicating movement (no text or symbols)

1. 在传感器插槽中的标记处钻 2 个孔。

Technical line drawing of a mechanical component with two circular holes and three mounting holes, showing internal features (no text or symbols)

1. 将传感器插槽与外壳插槽对准。

Technical line drawing of a vehicle engine compartment with internal components and mounting features (no text or symbols)

Technical diagram showing two mechanical components with arrows indicating assembly or movement, no text or symbols present.

Technical line drawing of a mechanical component with exploded view and internal assembly (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating blade movement (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Mechanical assembly diagrams showing two configurations of a tool or clamp mechanism (no text or labels)

1 2 3 4 good

Line drawing of a device with a warning symbol and a vertical panel (no text or labels)

Line drawing of a portable electronic device with a black arrow pointing to its left side (no text or symbols present)

Line drawing of two connected devices with power connections (no text or symbols)

Diagram showing a device panel with warning symbols and an arrow pointing to a labeled component

Technical line drawing of a vehicle engine compartment showing internal components and assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved pipe and lever attachment (no text or symbols)

1. 朝手柄杆方向推动电机制动手柄。

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a device with a cable, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation controls and function keys

Line drawing of hands adjusting a cable clamp device with a black arrow indicating the adjustment (no text or symbols present)

Diagram of a car dashboard with labeled buttons and icons, including navigation and function controls

Line drawing of hands adjusting a bicycle brake lever with a black arrow indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with curved and straight lines, no visible text or symbols

Diagram showing four labeled buttons with icons: minus, circled, minus, and plus, each pointing to a button with an arrow.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. 拆下刀片螺栓、弹簧垫片和刀片。

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. 检查刀片支架和刀片螺栓是否损坏。

Diagram showing a blade under load with arrows indicating direction, above grass (no text or symbols)

1. 将摩擦垫片和刀片紧靠在刀片支架上。

Mechanical assembly diagram showing gear and blade components with an arrow indicating direction (no text or labels)

1. 确保刀片与电机轴中心对准。

Mechanical assembly diagram showing a rotating component with bolt holes and a side view (no text or labels)

1. 使用木块卡住刀片。

Diagram of a mechanical or electrical component with concentric circles and a central rotating shaft, featuring a wooden block at the base (no text or symbols)

Diagram of a mechanical or electrical component with concentric circular patterns and internal components (no text or symbols)

1. 用手拉住刀片旋转，确保刀片转动自如。

Mechanical assembly diagram showing two stages of a gear mechanism with no visible text or symbols

1. 向前折叠手柄。

Line drawing of a lawn mower with motion arrows indicating cycle (no text or symbols)

1. 拆下集草袋。

运输

Diagram showing two crossed recycling bins with a recycling symbol and a blank waste bin, likely illustrating waste management or disposal rules.

废弃处理

Original instructions

Оригинални инструкции

Původní pokyny
