Important safety instructions

▷ Read the instruction manual carefully and completely before using the product.
▶ Always include the instruction manual when passing the product on to third parties.

Do not use an obviously defective product.

Preventing damage to health and accidents

Protect your hearing from high volume levels. Permanent hearing damage may occur when headphones are used at high volume levels for long periods of time. Sennheiser headphones sound exceptionally good at low and medium volume levels.

Do not insert the ear canal phones too deep into your ears and never insert them without ear adapters. Always extract the ear canal phones from your ears very slowly and carefully.
▶ Always maintain a distance of at least 10 cm/3.94" between a cardiac pacemaker, implanted defibrillator (ICD) or other implants and the ear pieces or the carrying case since the product and the clasp of the carrying case generate permanent magnetic fields.
▷ Keep the product, accessories and packaging parts out of reach of children and pets to prevent accidents and choking hazards.
Do not use the product in an environment that requires your special attention (e.g. in traffic).

Preventing damage to the product and malfunctions

▶ Always keep the product dry and do not expose it to extreme temperatures (hairdryer, heater, extended exposure to sunlight, etc.) to avoid corrosion or deformation.
Do not drop the product. The ceramic housing is brittle and may shatter when hitting hard surfaces.
▷ Use only attachments/accessories/spare parts supplied or recommended by Sennheiser.

▷ Clean the product only with a soft, dry cloth.

Intended use / Liability

These dynamic, closed in-ear headphones have been designed for use with portable music players and hi-fi systems.

It is considered improper use when the product is used for any application not named in the corresponding product documentation.

Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/accessories.

Package contents

1 IE 800 S ear canal phones, cable length approx. 0.25 m Connection cable

1 2.5 mm stereo jack plug, balanced, length approx. 1 m
1 3.5 mm stereo jack plug, length approx. 1 m
1 4.4 mm Pentaconn stereo jack plug, balanced, length approx. 1.1 m Ear adapters (in pairs):
3 silicone ear adapters, size S, M (pre-mounted to the IE 800 S) and L
3 Comply™ ear adapters, size S, M, L

1 instruction manual

1 carrying case

1 microfiber cloth

Your IE 800 S

• High-fidelity ear canal phones for natural, balanced sound and high noise isolation
• Improved acoustics with refined bass reproduction
• Sennheiser proprietary wide-band transducers of only 7 mm in diameter
• Patented dampened two-chamber absorber (D2CA)
• Ergonomically designed ear pads from Comply™
• Two protection meshes – one in the silicone ear adapter and one in the nozzle – for easy cleaning
• Matte black ceramic housing
• Premium leather carrying case
  • Engineered and handcrafted in Germany

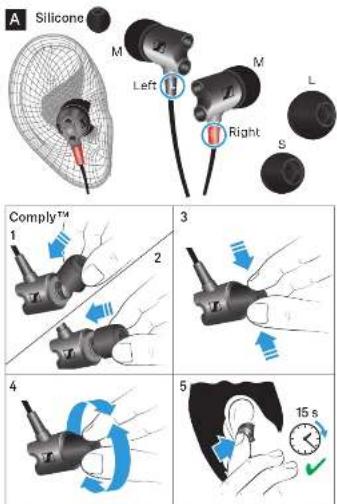

Selecting the ear adapters and inserting the ear canal phones into the ears\*

The perceived sound quality and bass performance of the ear canal phones depends to a large extent on the correct fit of the ear canal phones in the ear. Figure out which ear adapter type and size suits you best in terms of both sound quality and wearing comfort.

Silicone

Insert the ear canal phones into the ears. Select ear adapters of the correct size (S, M or L) so that the ear canal phones sit comfortably and securely in your ears.

Comply™

▷ Roll the Comply™ ear adapters between your fingers and insert the ear canal phones into the ears. Hold the ear canal phones for at least 15 seconds so that the compressed Comply™ ear adapters can expand and sit snuggly in your ear.

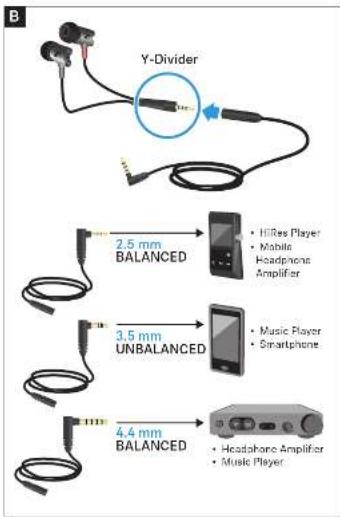

B Selecting and connecting the connection cable\*

• 2.5 mm stereo jack plug, balanced signal transmission, 4-pin
• 3.5 mm stereo jack plug, unbalanced signal transmission, 3-pin
• 4.4 mm Pentaconn stereo jack plug, balanced signal transmission, 5-pin

C Optimum cable routing\*

D Cleaning\*

For reasons of hygiene, the ear adapters should be replaced from time to time. (The Comply™ ear adapters only have a durability of a few months due to their material properties.) Spare ear adapters are available from your Sennheiser partner. To find a Sennheiser partner in your country, search at www.sennheiser.com.

▷ Clean the product only with a soft, dry cloth (supplied).

▷ You can clean the silicone ear adapters under lukewarm running water. Let the ear adapters air dry at room temperature for at least 12 hours before re-attaching them to the ear canal phones.

E Transporting and storing the IE 800 S\*

Specifications

Transducer principle dynamic, closed
Frequency response 5 to 46,500 Hz
Frequency response diffuse-field equalized
Ear coupling	in-ear
Impedance	16 Ω
Sound pressure level	125 dB at 1 kHz, 1 Vrmscompliant to IEC/EN 62368-1 (tested according to EN 50332-2)
Total harmonic distortion (THD)	< 0.06% (1 kHz, 94 dB)
Attenuation	-26 dB
Cable	oxygen-free copper cable (OFC)

Connector(see pin assignment on inside cover)

stereo jack plug, gold-plated3.5 mm, unbalanced, 3-pin2.5 mm, balanced, 4-pin4.4 mm, balanced, 5-pin

Weight approx. 8 g (without cable)

Operating temperature -10^ to +55^

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

- General Product Safety Directive (2001/95/EC)

Compliant to Sound Pressure Limits according to country specific requirements.

EU declaration of conformity

• RoHS Directive (2011/65/EU)

The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.

Notes on disposal

• WEEE Directive (2012/19/EU)

The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates that these products must not be disposed of with

normal household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.

Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner.

The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make an important contribution to the protection of the environment and public health.

FOR AUSTRALIA ONLY

Sennheiser's goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any liability of Sennheiser which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law.

To make a claim under this warranty, contact Sennheiser Australia Pty Ltd, Unit 3, 31 Gibbs Street, Chatswood NSW 2067, AUSTRALIA Phone: [phone], email: [e-mail].

All expenses of claiming the warranty will be borne by the person making the claim.

The Sennheiser International Warranty is provided by Sennheiser Australia Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbs Street, Chatswood NSW 2067 Australia.
