| Brand | Yato |
| Model | YT85720 |
| Product type | Multi-functional vacuum (dry/wet, blower, basin drain) |
| Rated power | 1400 W |
| Supply voltage | 220-240 V~, 50/60 Hz |
| Vacuum | 18 kPa |
| Tank capacity | 30 liters |
| Insulation class | II |
| Protection degree | IPX4 |
| Weight | 2.8 kg |
| Filtration type | Sponge filter (dry/wet) + cloth filter (dry only) |
| Included equipment | Flexible hose, extension tubes, wide brush, round brush, narrow nozzle, basin nozzle, drainage filter, castors |
| Operating modes | Continuous (I) and automatic (II) with 30s on / 25s off cycle |
| Main uses | Dry and wet cleaning, blowing, garden basin drainage |
| Max waste temperature | 40 °C |
| Electrical safety | Double insulation (class II), IPX4 protection against water splashes |
| Maintenance | External cleaning with compressed air (max 0.3 MPa), filters washable with water, complete drying before reuse |
| Repairability | Replaceable filters, standard hose and accessories |
Frequently Asked Questions - YT85720 Yato
User questions about YT85720 Yato
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual YT85720 - Yato and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YT85720 by Yato.
USER MANUAL YT85720 Yato
Side-by-side comparison of a gray industrial vacuum cleaner with a side profile view (no text or symbols visible)
- vacuum cleaner cover
- tank
- inlet
- outlet
- drain hole
- power switch
- material fi lter
- sponge filter
- tube
- suction hose
- drain hose
- drain fi lter
- wide brush nozzle
- narrow suction nozzle
- round brush nozzle
- pond suction nozzle
DE
Read the operating instruction
Wear protective goggles
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU

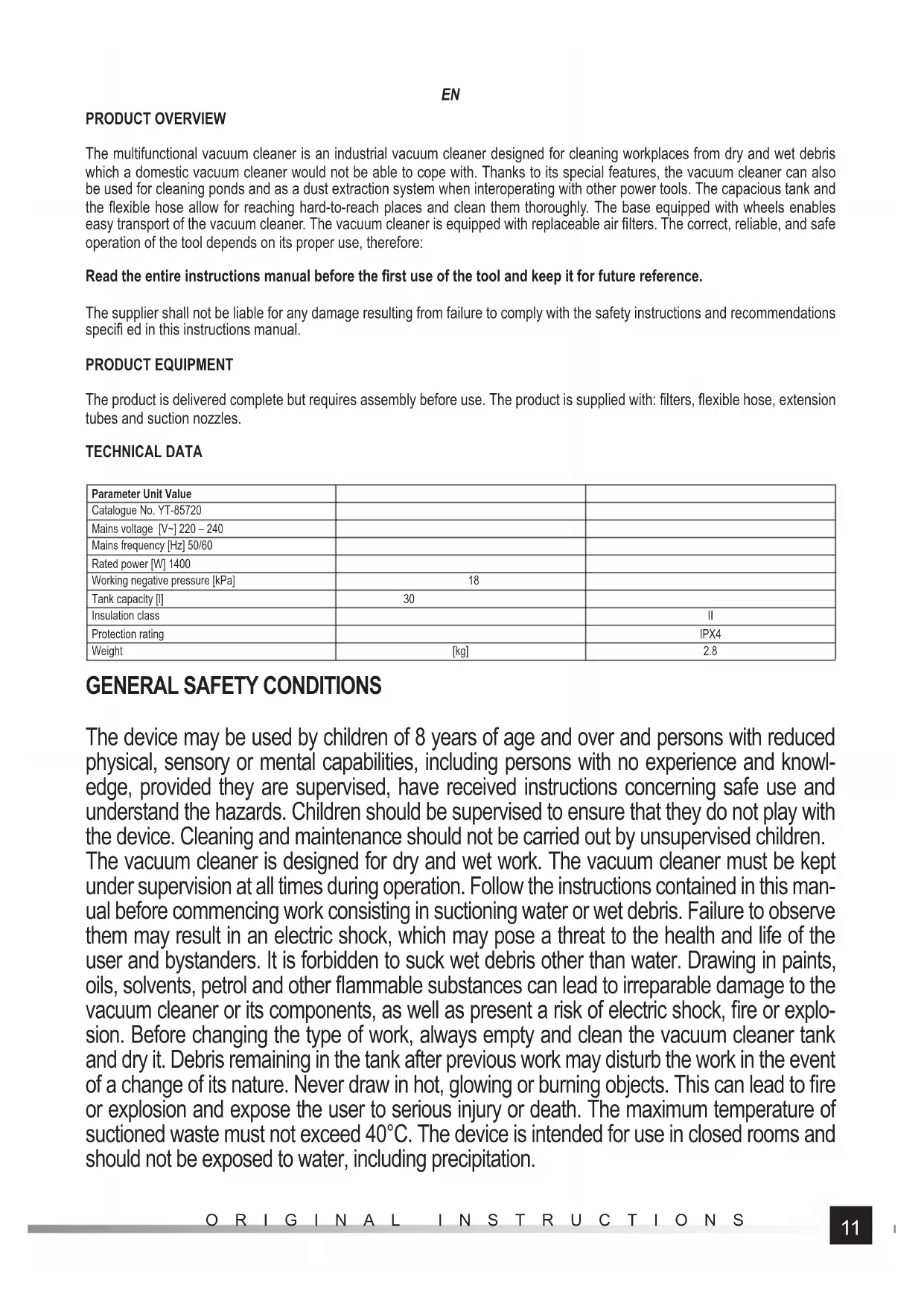

The multifunctional vacuum cleaner is an industrial vacuum cleaner designed for cleaning workplaces from dry and wet debris which a domestic vacuum cleaner would not be able to cope with. Thanks to its special features, the vacuum cleaner can also be used for cleaning ponds and as a dust extraction system when interoperating with other power tools. The capacious tank and the flexible hose allow for reaching hard-to-reach places and clean them thoroughly. The base equipped with wheels enables easy transport of the vacuum cleaner. The vacuum cleaner is equipped with replaceable air filters. The correct, reliable, and safe operation of the tool depends on its proper use, therefore:
Read the entire instructions manual before the first use of the tool and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
PRODUCT EQUIPMENT
The product is delivered complete but requires assembly before use. The product is supplied with: filters, flexible hose, extension tubes and suction nozzles.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-85720 | ||
| Mains voltage [V~] 220 – 240 | ||
| Mains frequency [Hz] 50/60 | ||
| Rated power [W] 1400 | ||
| Working negative pressure [kPa] | 18 | |
| Tank capacity [l] | 30 | |
| Insulation class | II | |
| Protection rating | IPX4 | |
| Weight | [kg] | 2.8 |
GENERAL SAFETY CONDITIONS
The device may be used by children of 8 years of age and over and persons with reduced physical, sensory or mental capabilities, including persons with no experience and knowledge, provided they are supervised, have received instructions concerning safe use and understand the hazards. Children should be supervised to ensure that they do not play with the device. Cleaning and maintenance should not be carried out by unsupervised children. The vacuum cleaner is designed for dry and wet work. The vacuum cleaner must be kept under supervision at all times during operation. Follow the instructions contained in this manual before commencing work consisting in suctioning water or wet debris. Failure to observe them may result in an electric shock, which may pose a threat to the health and life of the user and bystanders. It is forbidden to suck wet debris other than water. Drawing in paints, oils, solvents, petrol and other flammable substances can lead to irreparable damage to the vacuum cleaner or its components, as well as present a risk of electric shock, fire or explosion. Before changing the type of work, always empty and clean the vacuum cleaner tank and dry it. Debris remaining in the tank after previous work may disturb the work in the event of a change of its nature. Never draw in hot, glowing or burning objects. This can lead to fire or explosion and expose the user to serious injury or death. The maximum temperature of suctioned waste must not exceed 40°C. The device is intended for use in closed rooms and should not be exposed to water, including precipitation.
EN
Make sure that the mains parameters comply with the ones shown on the device's name-plate before connecting the power cord plug of the device. Before each use, check the condition of the device, including the power cord and plug. If any faults are noticed, do not use the device. Damaged cables and cords must be replaced with new ones at a specialist service centre. The protection rating specified in the table with technical data will be ensured if the device will be connected to a socket with at least the same protection rating. Make sure that the power cord plug has been disconnected from the mains socket before carrying out maintenance on the device.
Keep the device out of reach of bystanders, especially children. Make sure that the device is out of the reach of bystanders, especially children also during operation. Move the device using the handle; do not move the device by pulling by the power cord. If the vacuum cleaner is used as a blower, it is forbidden to direct the hose outlet toward people and animals. Check the condition of the flexible hose at regular intervals. Never use the vacuum cleaner if its flexible hose is damaged.
Preparing for operation

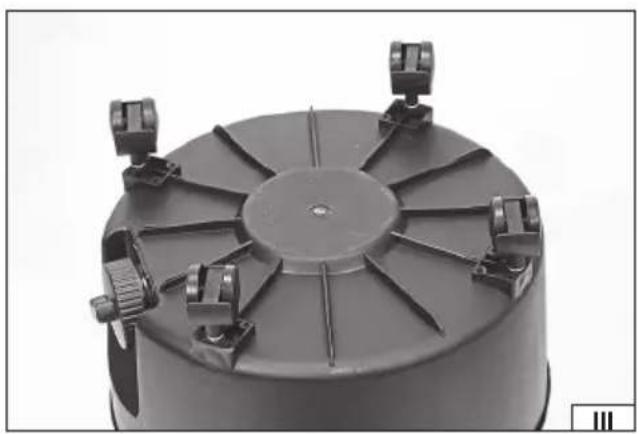

Before first use, install the wheels on the bottom of the vacuum cleaner tank. Press the pin of each wheel into the hole in the tank (II). Make sure that all wheels have been installed, are at the same height, and the pins are fully in the tank holes (III).

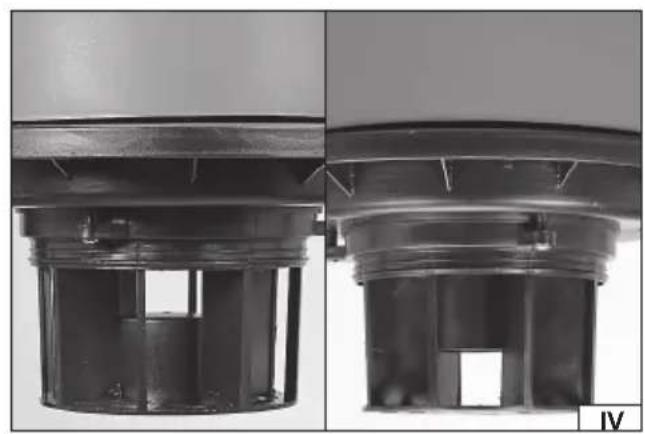

The vacuum cleaner is equipped with a float (IV), which cuts off the air supply every time the tank is overfilled. Before starting work, make sure that the float and the guides in which it moves are not damaged, are clean and ensure free movement of the float. The float operation is each time indicated by a louder motor operation and a decrease in suction force.
Warning! It is forbidden to use the vacuum cleaner without an operable float.

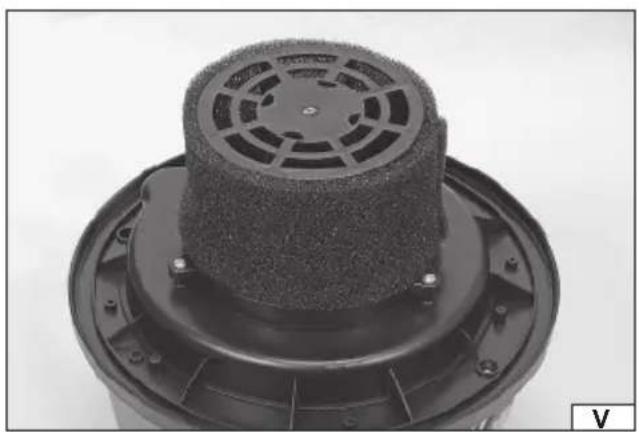

The vacuum cleaner is equipped with two filters – sponge filter intended for dry and wet work and material filter for dry work only. The sponge filter is mounted on the float housing (V). Make sure that the filter has thoroughly covered the float guides.

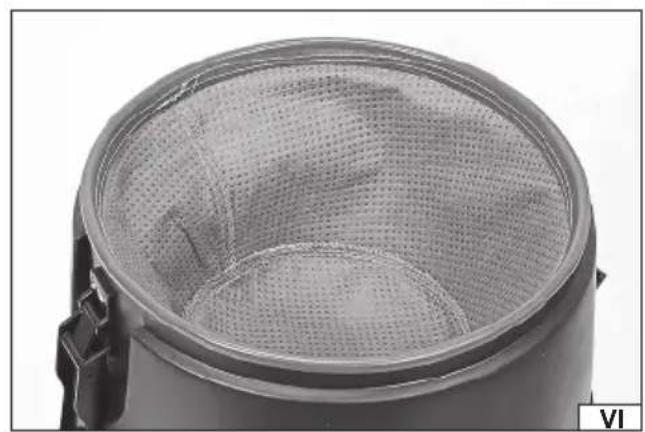

The material filter is placed on the tank edge (VI). Make sure that the edge of the filter adheres to the tank edge around the entire circumference.
Warning! Always use the vacuum cleaner with the sponge filter installed. Use the material filter only when sucking dry debris.
Place the cover of the vacuum cleaner on the tank edge so that it adheres to it along its entire circumference. Press the cover against the tank with the latches (VII). Pay attention to the markers on the cover between which each of the latches should be placed. This is the only way to ensure sufficient tightness between the cover and the tank.

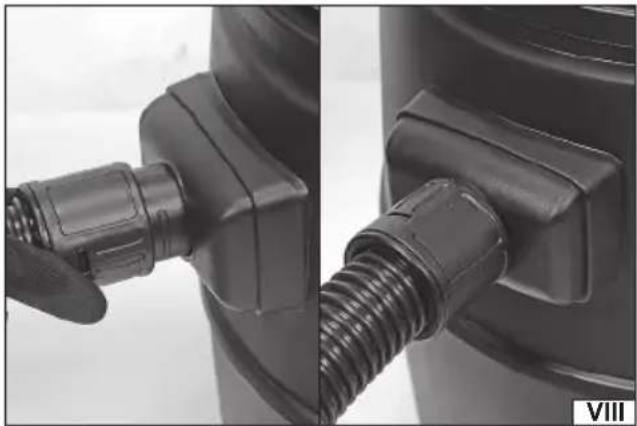

If the device is to be used as a vacuum cleaner, attach the suction hose to the inlet. The hose connection has tabs that should match the air inlet guides. Then rotate the end of the hose to lock it in the inlet (VIII).
If the device is to be used as a blower, connect the suction hose to the air outlet.

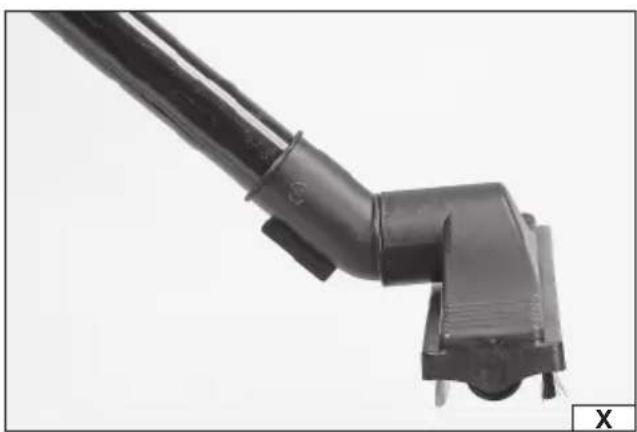

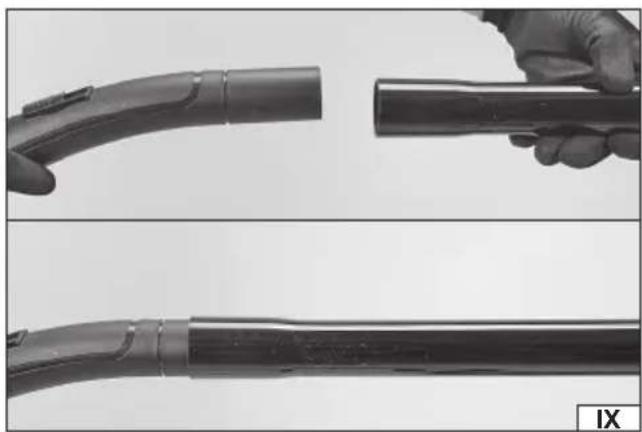

Connect the tube (IX) or the selected suction nozzle to the other end of the hose. It is also possible to connect the suction nozzle to the tube (X). The tubes can be joined together to obtain the length most suited to the type of work selected.

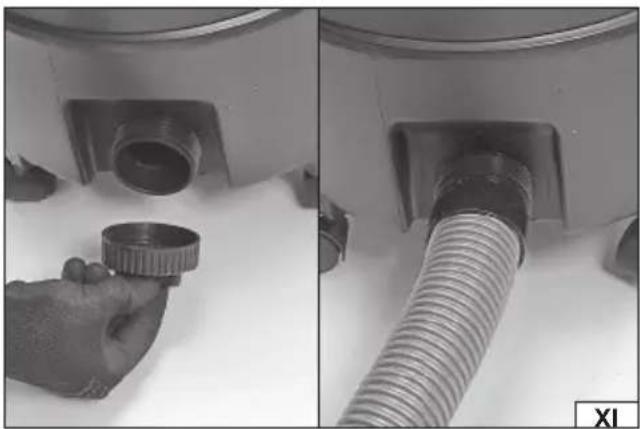

The tank has an opening closed with a screwed cover in the lower part. When working on the pond, remove the opening cover and connect the drain hose (XI) instead. Attach the drain filter to the other end of the hose using a string.
Starting the vacuum cleaner
CAUTION! It is forbidden to use the vacuum cleaner to vacuum hot ash. The temperature of debris drawn in by the vacuum cleaner must not exceed 40^ C.
The vacuum cleaner can operate in the continuous mode or in the automatic mode recommended for emptying the ponds.
To activate the continuous mode, move the power switch to the position marked "I". Now the vacuum cleaner works in the continuous mode.
To turn the vacuum cleaner off, move the power switch to the position marked "O".
EN
The automatic mode is activated by moving the power switch to the position marked "II". The vacuum cleaner will start for approx. 30 seconds and then pause the operation for approx. 25 seconds. It will work in this cycle until it is turned off by moving the power switch to the "O" position.
Working with the vacuum cleaner
The vacuum cleaner has several suction nozzles, which facilitate work.
The wide brush nozzle is used to vacuum hard floors taking up a large space and short-pile carpets.
The round brush nozzle is used to vacuum small areas; it can also be used to vacuum furniture.
The narrow suction nozzle is used to clean places too small to be cleaned with the other suction nozzles.
The pond suction nozzle is used to empty the ponds.
The suction hose handle has a suction force regulator. Opening the regulator reduces the suction force by diverting part of the air out of the hose.
The regulator should be completely closed during wet work and pond emptying.
When vacuuming, press the suction nozzle only with the force necessary for cleaning. Excessive pressure can damage the surface to be cleaned or the suction nozzle.
Using the vacuum cleaner as a blower
Before using the vacuum cleaner as a blower, thoroughly clean the tank, clean the sponge filter, and remove the material filter. Connect the hose to the outlet, make sure that nothing obstructs the inlet and start the vacuum cleaner.
Warning! It is forbidden to use vacuum cleaners as a blower to ignite the fire.
Using the vacuum cleaner to empty the pond
Connect the suction hose to the vacuum cleaner inlet and connect the pond suction nozzle to the other hose end directly or using the tubes. Connect the drain hose to the drain hole and attach the drain filter at its other end.
The entire length of the drain hose must not be positioned higher than the drain hole. Only this arrangement will ensure that the contents of the tank can be emptied through the drain hose. It is recommended to place the hose at least on a slight slope. The drain hose must not be bent at an acute angle, kinked or deformed in such a way that the contents of the tank cannot flow freely. The drain hose should be directed to the place where the contents of the pond will be poured.
Immerse the pond suction nozzle in the pond and start the vacuum cleaner. It is recommended to start in automatic mode.
However, if the vacuum cleaner is started in continuous mode, control the tank filling degree so that it is not overfilled.
In the automatic mode, the vacuum cleaner tank will be emptied automatically after stopping operation.
Due to the debris that can be sucked in together with the water from the pond, check whether the tank is being emptied. The drain hole or hose may be clogged by debris. The purpose of the drain filter is to stop impurities that flow out together with the water from the vacuum cleaner tank. Check the status of the filter filling and, if necessary, stop the operation of the vacuum cleaner with the power switch and empty the filter.
After finishing work, turn off the vacuum cleaner using the power switch, and then unplug the power cord plug from the mains socket. Proceed with the vacuum cleaner maintenance.
Emptying the vacuum cleaner tank
After finishing the dry work, remove the vacuum cleaner cover and check the tank filling level. Due to the tank capacity, it is recommended to empty it after each use. This will be easier than emptying a full tank.
After finishing the wet work, remove the vacuum cleaner cover. The debris remaining in the tank can be removed by tilting the tank.
After emptying, clean the tank with a water jet and then dry thoroughly.
Vacuum cleaner maintenance
Caution! Before carrying out any maintenance works, make sure that the power cord plug has been disconnected from the mains socket.
After each use of the vacuum cleaner, check the tank, cover gasket and air filters as described in the section: "Preparing for operation".
Clean the external surfaces of the vacuum cleaner with a stream of compressed air with a pressure of not more than 0.3 MPa.
Pay special attention to the ventilation openings, both inlet and outlet – check them for blockages. Clean them with a stream of compressed air with a pressure of not more than 0.3 MPa, if needed. Do not use sharp, metal objects for cleaning the ventilation openings. Do not immerse the vacuum cleaner in water to clean it. Check the vacuum cleaner hose for damage after and before each use. It is forbidden to use a damaged hose. In the event of drawing in water or wet debris, clean the inside of the vacuum cleaner, the flexible hose, the extension tubes and the attachments immediately after use. Dried debris can lead to irreparable damage to the vacuum cleaner or its components.
The inside of the hose and extension tubes should be cleaned with a jet of water, after disconnecting them from the vacuum cleaner, and then left to dry completely. Remove heavy soiling from the housing with a soft cloth. Never immerse the vacuum cleaner cover in water or any other liquid. Do not point the water jet at the vacuum cleaner cover.
Clean the vacuum cleaner filters with clean water. All filters should be completely dried before installing them in the vacuum cleaner.
