USER MANUAL ILCA77M2M SONY

© 2014 Sony Corporation Printed in Thailand

4536323420

ILCA-77M2

English

A-mount

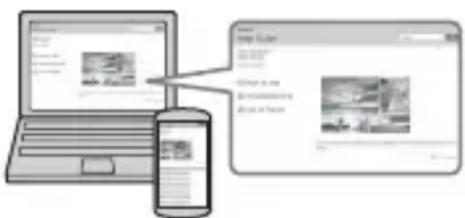

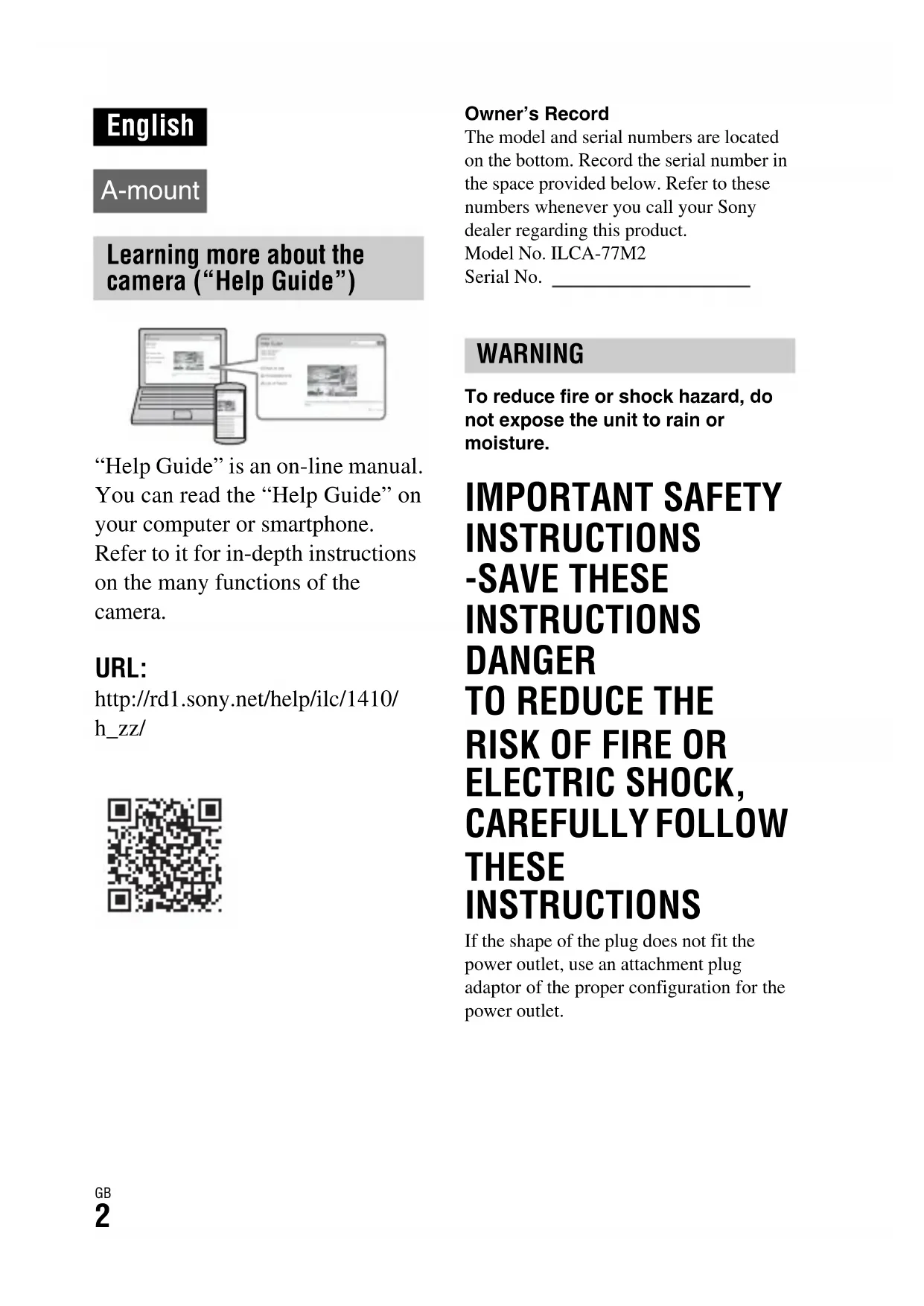

Learning more about the camera ("Help Guide")

"Help Guide" is an on-line manual. You can read the "Help Guide" on your computer or smartphone. Refer to it for in-depth instructions on the many functions of the camera.

URL:

http://rd1.sony.net/help/ilc/1410/h_zz/

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. ILCA-77M2 Serial No.

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION For Customers in the U.S.A.

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140^) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

Battery charger

Use the nearby wall outlet (wall socket) when using the Charger. Disconnect the Charger from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

and Canada

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.call2recycle.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack and lens (if lens supplied)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CANICES-3B/NMB-3B

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

For Customers in the U.S.A.

If you have any questions about this product, you may call:

Sony Customer Information Center 1-800-222-SONY (7669).

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: ILCA-77M2

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127

U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment must not be co-located or operated in conjunction with any other antenna or transmitter.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Canada

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

Manufacturer: Sony Corporation, 1-7-1
Konan Minato-ku Tokyo, 108-0075 Japan
For EU product compliance: Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany

CE

Hereby, Sony Corporation, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet).

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On

certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

For Customers in Singapore

Complies with

IDA Standards

DB00353

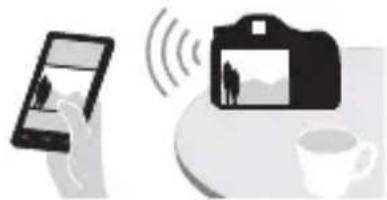

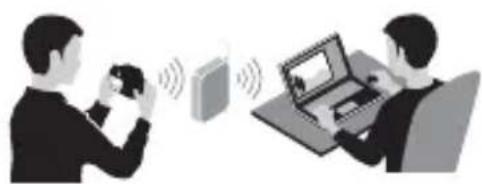

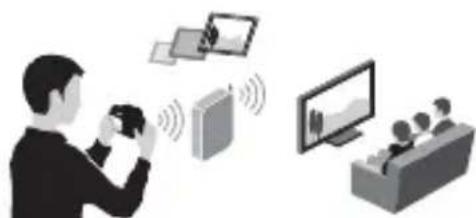

For details on Wi-Fi functions, see the flyer "Wi-Fi Connection/One-touch (NFC) Guide."

This manual covers several models supplied with different lenses.

The model name varies depending on the supplied lens. The available model varies depending on the countries/regions.

Model name Lens
ILCA-77M2 Not supplied
ILCA-77M2Q Supplied (DT 16 – 50 mm zoom lens)
ILCA-77M2M Supplied (DT 18 – 135 mm zoom lens)

GB

Notes on using your camera

Screen language

You can select the language displayed on the screen using the menu.

Shooting procedure

This camera has 2 modes for monitoring subjects: the monitor mode using the monitor, and the viewfinder mode using the viewfinder.

Functions built into this camera

• This manual describes 1080 60i-compatible devices and 1080 50i-compatible devices.

To check whether your camera is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.

1080 60i-compatible device: 60i
1080 50i-compatible device: 50i

• This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image.

Creating an image database file

If you insert a memory card that does not contain an image database file into the camera and turn on the power, the camera automatically creates an image database file using some of the memory card's capacity.

The process may take a long time and you cannot operate the camera until the process is completed. If a database file error occurs, export all images to your computer using PlayMemories Home™, and then format the memory card using the camera.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Back up recommendation

To avoid the data loss, always copy (backup) data to other media.

Notes on the monitor, electronic viewfinder, lens, and image sensor

• The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These dots are normal due to the manufacturing process and do not affect the images in any way.
• Do not hold the camera by the monitor.
• Do not expose the camera to sunlight or shoot sunward for a long time. The internal mechanism may be damaged. If sunlight is focused on a nearby object, it may cause a fire.
• There is a magnet on the back and around the rotating shaft of the hinge part of the monitor. Do not bring anything that is easily affected by a magnet, such as floppy disks or credit cards, near the monitor.

• Images may trail across on the screen in a cold location. This is not a malfunction. When turning on the camera in a cold location, the screen may become temporarily dark. When the camera warms up, the screen will function normally.

• The recorded image may be different from the image you monitored before recording.

Notes on shooting with the viewfinder

This camera is equipped with an Organic Electro-Luminescence viewfinder with high resolution and high contrast. This viewfinder achieves a wide viewing angle and a long eye relief. This camera is designed to provide an easily viewable viewfinder by appropriately balancing various elements.

• The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to see the full composition with all its details, you can also use the monitor.
• If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder.
• When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder. The required length or frequency of the break may differ depending on the individuals, so you are advised to decide at your own discretion. In case you may feel uncomfortable, refrain from using the viewfinder until your condition recovers, and consult your doctor as necessary.

Notes on recording for long periods of time

• Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.
• Under high ambient temperatures, the temperature of the camera rises quickly.
• When the temperature of the camera rises, the image quality may deteriorate. It is recommended that you wait until the temperature of the camera drops before continuing to shoot.
• The surface of the camera may get warm. This is not a malfunction.

Notes on importing AVCHD movies to a computer

When importing AVCHD movies to a computer, download and use the software PlayMemories Home from the following website:

www.sony.net/pm/

Notes on the flash

• Do not carry the camera by the flash unit, or use excessive force on it.
• If water, dust or sand get into the open flash unit, it may cause a malfunction.
• Be sure to keep your fingers out of the way when you press the flash down.

Notes when playing movies on other devices

• This camera uses MPEG-4 AVC/H.264 High Profile for AVCHD format recording. Movies recorded in AVCHD format with this camera cannot be played with the following devices.

• Other devices compatible with AVCHD format that do not support High Profile
  Devices incompatible with the AVCHD format

This camera also uses MPEG-4 AVC/ H.264 Main Profile for MP4 format recording. For this reason, movies recorded in MP4 format with this camera cannot be played on devices other than those that support MPEG-4 AVC/H.264.

• Discs recorded with HD (high definition) image quality can be played back only on AVCHD format-compatible devices. DVD-based players or recorders cannot play back HD image quality discs, as they are incompatible with the AVCHD format. Also, DVD-based players or recorders may fail to eject HD image quality discs.
• Movies recorded in 1080 60p/1080 50p format can be played back only on 1080 60p/1080 50p-supported devices.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted.

Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

The pictures used in this manual

The photographs used as examples of pictures in this manual are reproduced images, and are not actual images shot using this camera.

On the data specifications described in this manual

The data on performance and specifications are defined under the following conditions, except as described in this manual: at an ordinary ambient temperature of 25^ (77^) , and using a battery pack that has been fully charged until the CHARGE lamp has turned off.

How to turn off wireless network functions (Wi-Fi and NFC, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily.

Select MENU [Wireless] [Airplane Mode] [On].

If you set [Airplane Mode] to [On], an (airplane) mark will be displayed on the screen.

Notes on wireless LAN

If your camera is lost or stolen, Sony bears no responsibility for the loss or damage caused by illegal access or use of the registered access point on the camera.

Checking the supplied items

First check the model name of your camera (page 6). The accessories supplied differ depending on the model.

The number in parentheses indicates the number of pieces.

Supplied with all models:

• Camera (1)
• BC-VM10A Battery charger (1)

• Power cord (mains lead) (1)^* (not supplied in the U.S.A. and Canada)

• Multiple power cords may be supplied with your camera. Use the appropriate one that matches your country/region.
• Rechargeable battery pack NPFM500H (1)

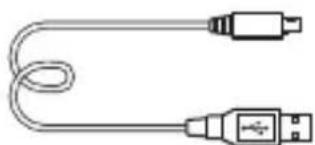

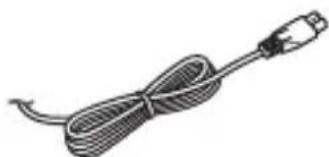

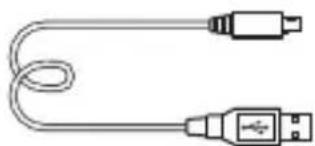

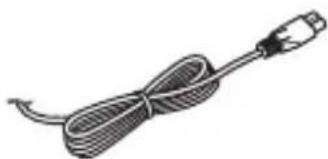

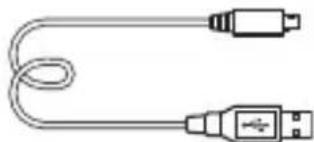

• Micro USB cable (1)

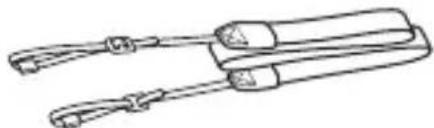

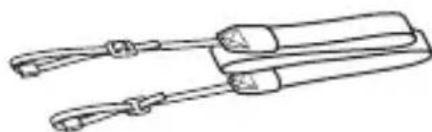

Shoulder strap (1)

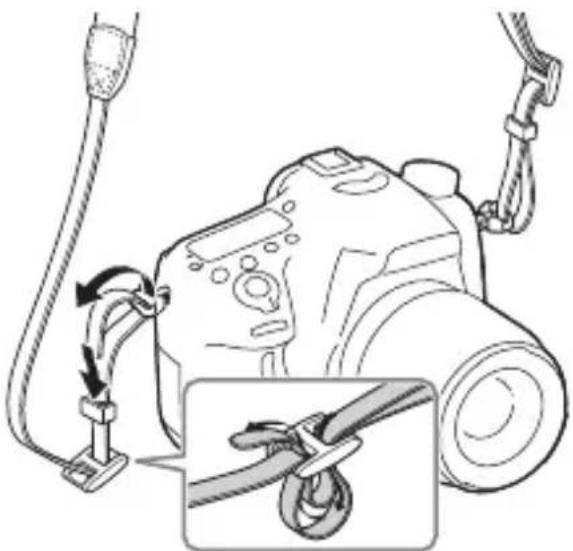

For how to attach the shoulder strap to the camera, refer to page 15.

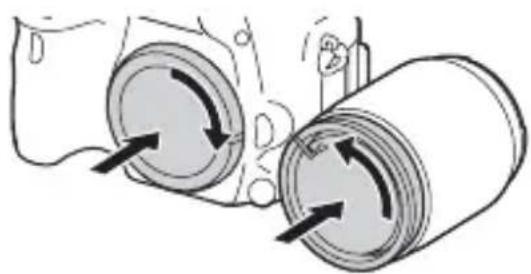

• Body cap (1) (Attached on the camera)

• Shoe cap (1) (Attached on the camera)
  Eyepiece Cup (1) (Attached on the camera)
• Instruction Manual (1) (this manual)
• Wi-Fi Connection/One-touch (NFC) Guide (1) This guide explains the functions that require a Wi-Fi connection.

ILCA-77M2Q:

• DT 16-50 mm zoom lens (1)/Front lens cap (1)/Rear lens cap (1)/Lens hood (1)

ILCA-77M2M:

• DT 18-135 mm zoom lens (1)/Front lens cap (1)/Rear lens cap (1)/Lens hood (1)

Identifying parts

See the pages in parentheses for details on operation for the parts.

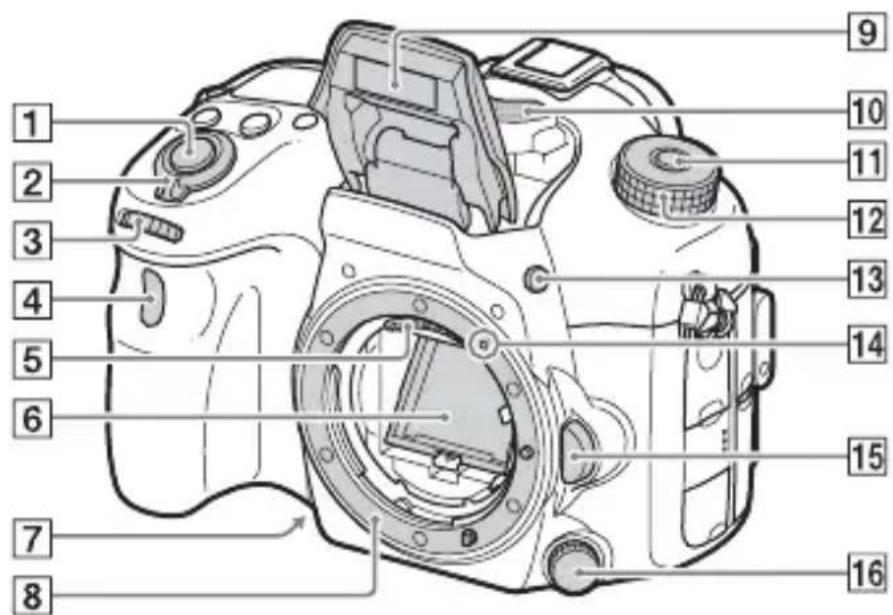

Front side

GB

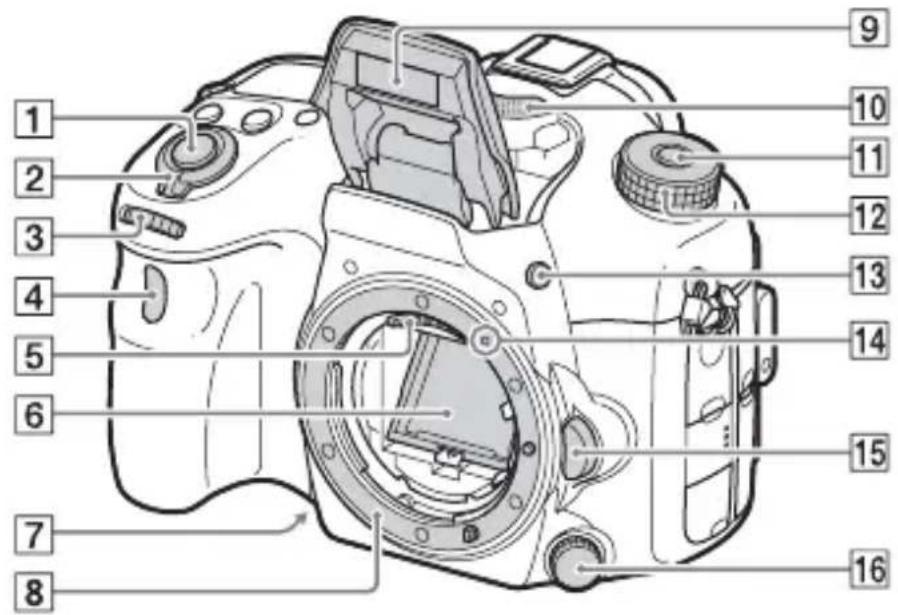

1Shutter button (31)

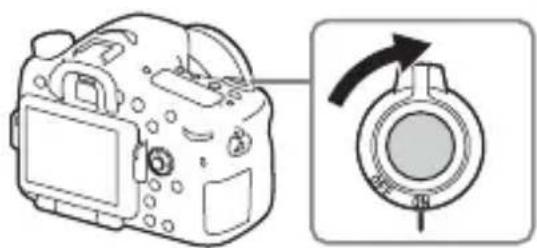

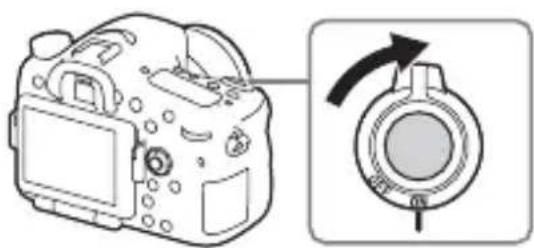

2Power switch (29)

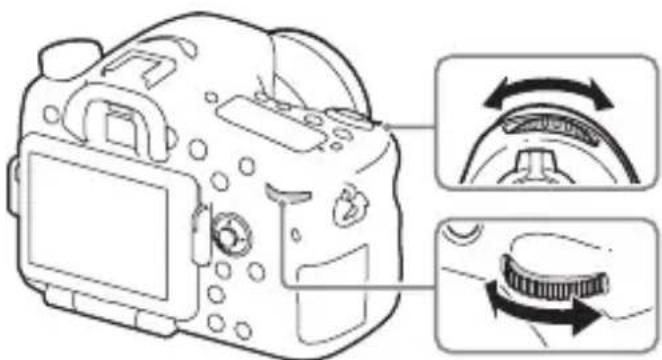

3Front control dial (18)
4 Remote sensor
5 Lens contacts*
6Mirror*
Preview button
8Mount
Built-in flash*

• Press the (Flash pop-up) button to use the flash.
• When not using the flash, press it back into the camera body.

10 Microphone**

11Mode dial lock release button (31, 35)

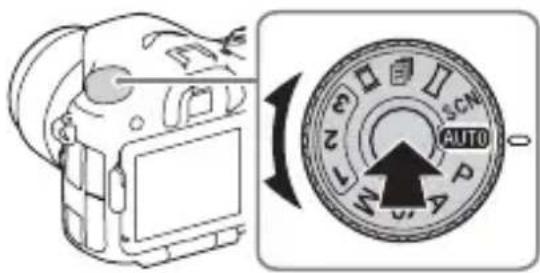

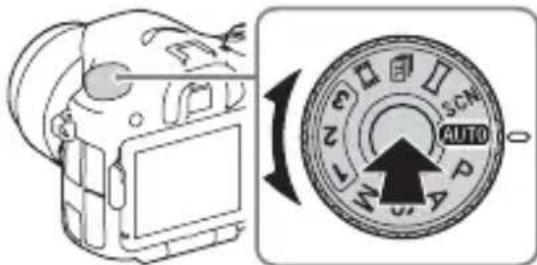

12Mode dial (35)
13 (Flash pop-up) button
14Mounting index (27)
15 Lens release button (28)
16 Focus mode dial

• Do not directly touch these parts.

** Do not cover this part during movie recording. Doing so may cause noise or lower the volume.

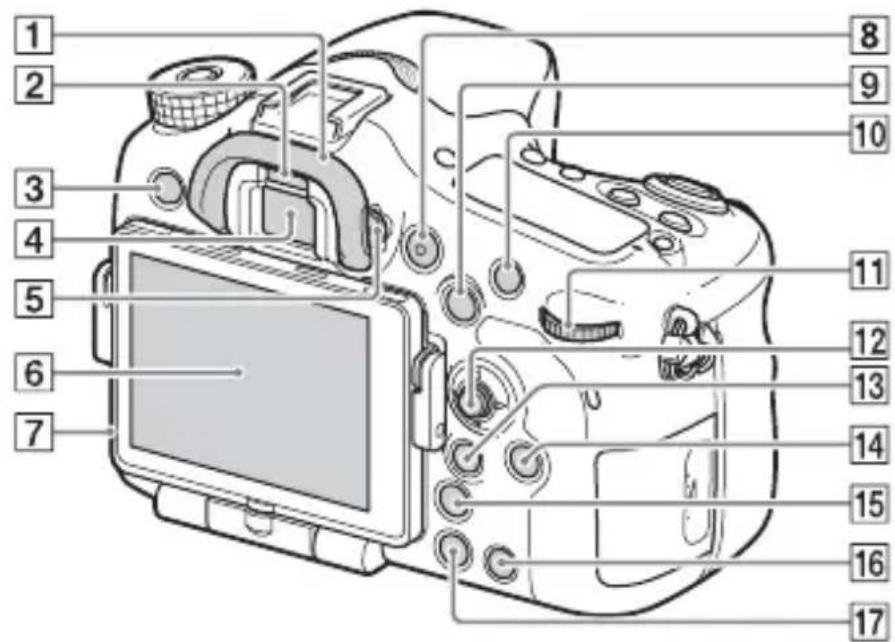

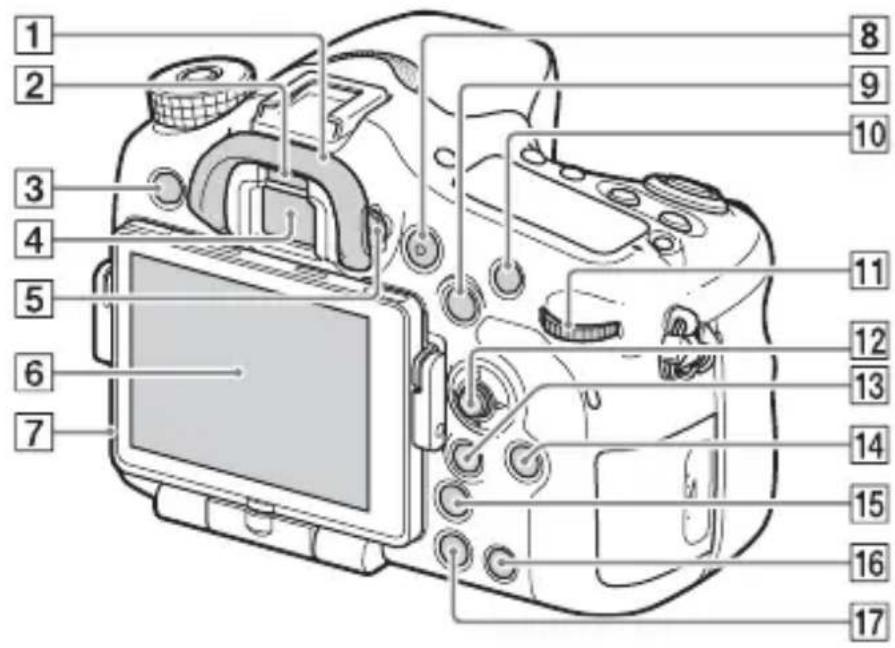

Rear side

1Eyecup
2Eye sensor

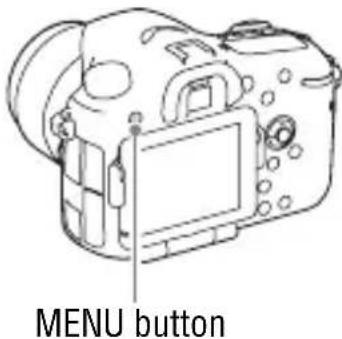

3 MENU button (20)
4Viewfinder*

• When you look into the viewfinder, the viewfinder mode is activated, and when you take your face away from the viewfinder, the screen mode returns to the monitor mode.

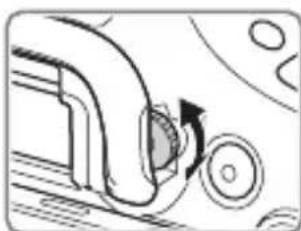

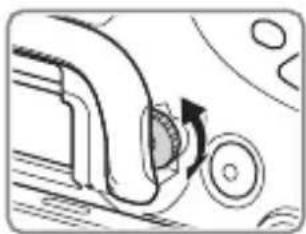

5Diopter-adjustment dial

• Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder.

6Monitor
7Light sensor
MOVIE button (32)
For shooting: AEL (AE lock) button/SLOW SYNC button For viewing: image index) button
10For shooting: AF/MF (Auto focus/manual focus) button For viewing: Enlarge) button
11Rear control dial (18)

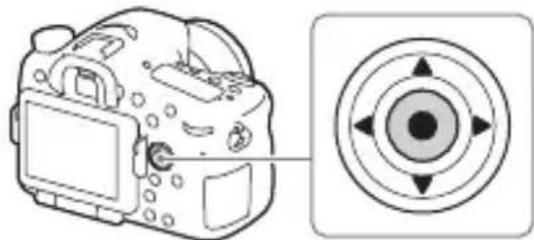

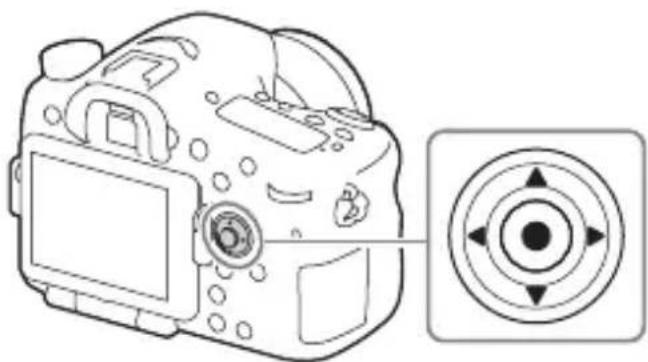

12Multi selector

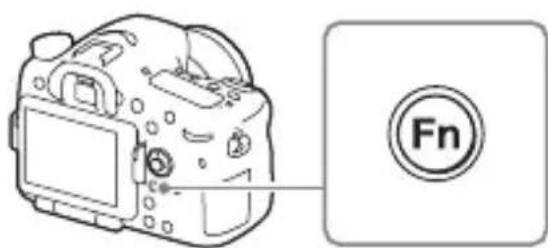

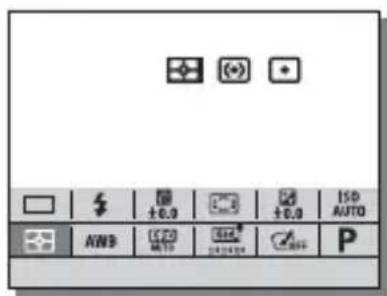

13For shooting: Fn (Function) button (19)

For viewing: Send to Smartphone) button

• You can display the screen for [Send to Smartphone] by pressing this button.
• When you attach a vertical grip (sold separately), pressing the (Image rotation) button on the vertical grip displays the [Send to Smartphone] screen.

DISP(Display) button

15 (Smart teleconverter) button
16C (Custom) button For viewing:Delete) button (34)
17 (Playback) button (33)

• Do not directly touch this part.

Top side

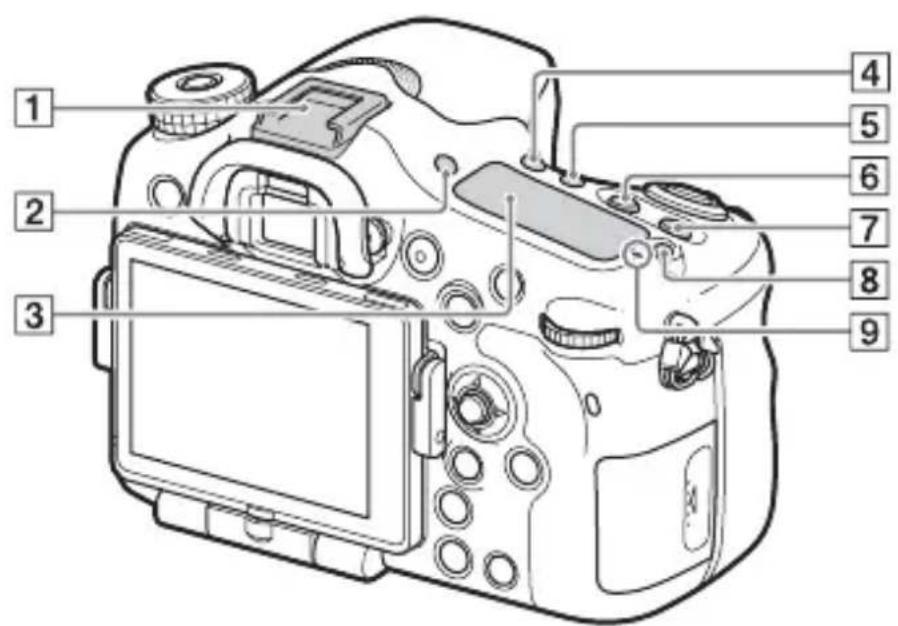

1Multi interface shoe*
2FINDER/MONITOR button
3Display panel
4 (Drive mode) button
5WB (White balance) button
6 (Exposure) button
7ISO button
Display panel illumination button
9 Image sensor position mark

• For details on compatible accessories of the Multi interface shoe, visit the Sony website in your area, or consult your Sony dealer or local authorized Sony service facility.

Accessories for the Accessory Shoe can also be used.

Operations with other manufactures' accessories are not guaranteed.

ni Multi Interface Shoe

Accessory Shoe

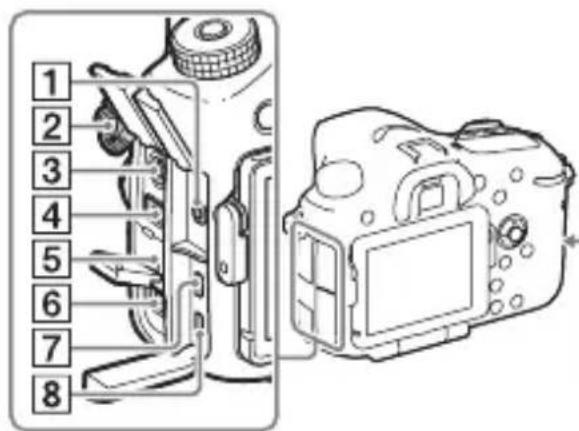

Sides/Bottom

1 Microphone jack

• When an external microphone is connected, the internal microphone is turned off automatically. When the external microphone is a plug-in-power type, the power of the microphone is supplied by the camera.
  2 Hooks for shoulder strap
• Attach both ends of the strap onto the camera.

3 (Flash sync) terminal

4REMOTE terminal

• When connecting the RM-L1AM Remote Commander (sold separately) to the camera, insert the plug of the Remote Commander into the REMOTE terminal, aligning the guide of the plug with the guide of the REMOTE terminal. Make sure that the cord of the Remote Commander faces forward.

5Speaker

6DC IN terminal

• When connecting the AC-PW10AM AC Adaptor (sold separately) to the camera, turn the camera off, then plug the connector of the AC Adaptor to the DC IN terminal on the camera.

GB

7HDMI micro jack
8Multi/Micro USB Terminal*
Supports Micro USB compatible device.
9Access lamp
10 (mark)
- This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone. For details on the location of the N (N mark) on your Smartphone, refer to the operating instructions of the Smartphone.
NFC (Near Field Communication) is an international standard of short-range wireless communication technology.
11Wi-Fi sensor (built-in)

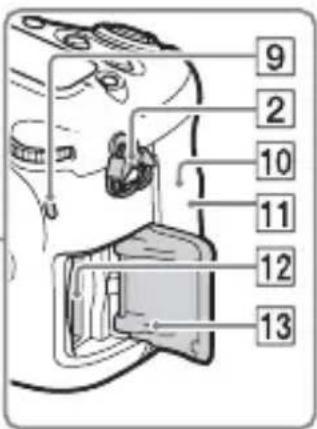

12Memory card insertion slot (24)
13Memory card cover (24)

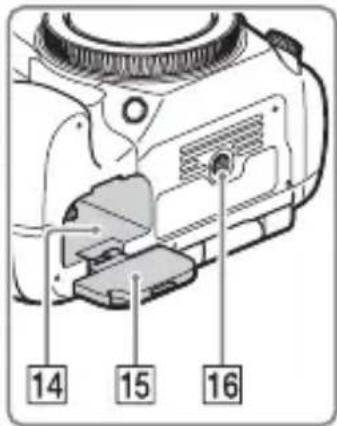

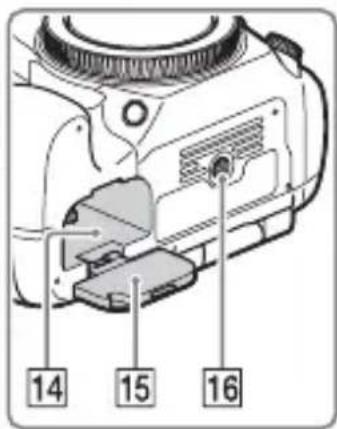

14 Battery insertion slot (24)
15 Battery cover (24)
16 Tripod socket hole
- Use a tripod with a screw less than 5.5mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
* For details on compatible accessories for the Multi/Micro USB Terminal, visit the Sony website, or consult your Sony dealer or local authorized Sony service facility.

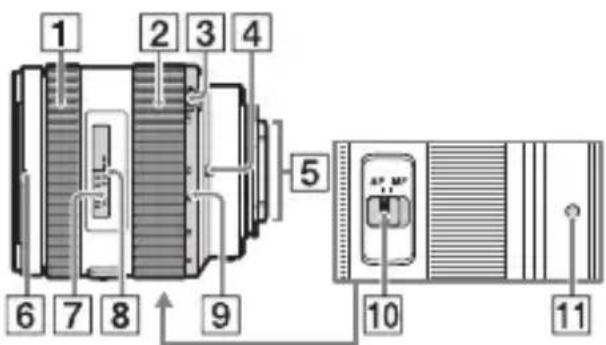

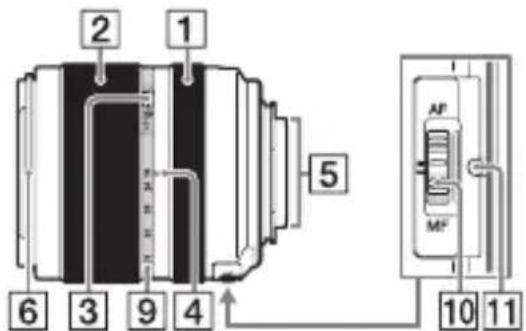

Lens

DT 16-50mm F2.8 SSM (Supplied with the ILCA-77M2Q)

DT 18-135mm F3.5-5.6 SAM (Supplied with the ILCA-77M2M)

1 Focusing ring
2Zoom ring
3Zoom lock switch
4 Focal-length index
5 Lens contacts*
6 Lens hood index
7Distance scale

8Distance index
9Focal-length scale
10Focusing mode switch
11Mounting index

* Do not directly touch this part.

• The DT 16-50mm F2.8 SSM/DT 18-135mm F3.5-5.6 SAM are designed for Sony A-mount cameras (models equipped with an APS-C sized image sensor). You cannot use these lenses on 35mm-format cameras.
• For the lenses other than DT 16-50mm F2.8 SSM/DT 18-135mm F3.5-5.6 SAM, refer to the operating instructions supplied with the lens.

GB

Operating the camera

How to use the multi selector

• You can use the up/down/left/right side of the multi selector to move the selection frame. Press in the center of the multi selector to set the selected item. In this manual, the up/down/left/right side of the multi selector is indicated by / / / .
• When you use on the multi selector in playback mode, you can display the previous or next image.
• [Standard] is assigned to in the center of the multi selector in the default settings. When you press , the autofocus function is activated and the camera focuses on the subjects in the central area of the monitor.

How to use the front dial/rear dial

You can turn the front dial or rear dial to change the settings required for each shooting mode with immediate effect.

Selecting a function using the Fn (Function) button

This button is used for setting up or executing functions used frequently in shooting, except for functions from the Quick Navi screen.

1 Press the DISP button to set the screen mode to other than [For viewfinder].

2 Press the Fn button.

GB

3 Select the desired item using / / on the multi selector.

The setting screen appears.

4 Select the desired setting by turning the front dial, then press on the multi selector.

• Some setting values can be finely adjusted by turning the rear dial.

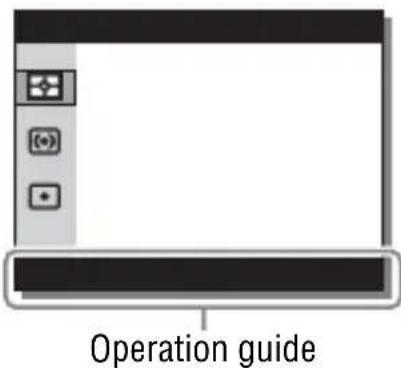

To set the individual settings in the dedicated screen

In step 3, select a setting item and press on the multi selector to switch to the dedicated screen for the setting item. Set the items according to the Operation guide.

Functions that can be selected using the MENU button

You can set up the basic settings for the camera as a whole, or execute functions such as shooting, playback, or other operations.

1 Press MENU button to display the menu screen.

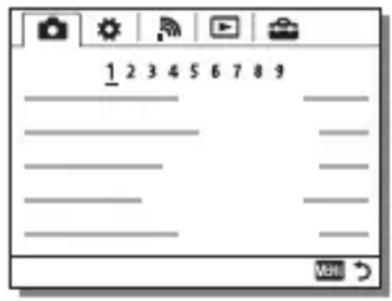

2 Select the desired setting item using / / / on the multi selector, and then press on the center of the multi selector.

• Select an icon at the top of the screen and press the on the multi selector to move to another MENU item.

3 Select the setting value, then press to confirm.

To display the Tile Menu

Allows you to select whether to always display the first screen of the menu when you press the MENU button.

MENU (Setup) 2 [Tile Menu] [On]

Using the In-Camera Guide

You can use [Custom Key Settings] to assign In-Camera Guide to the desired button.

The In-Camera Guide displays explanations for the currently selected menu function or setting.

1 Select MENU button (Custom Settings) 6 [Custom Key Settings] desired functions assigned to the button [In-Camera Guide].

Press the MENU button and use the multi selector to select a MENU item whose explanation you want to read, and then press the button to which [In-Camera Guide] is assigned.

Charging the battery pack

When using the camera for the first time, be sure to charge the NP-FM500H InfoLITHIUM™ battery pack (supplied).

The InfoLITHIUM battery pack can be charged even when it has not been fully depleted.

It can also be used when it has not been fully charged.

The charged battery pack is discharged little by little, even when you do not use it. To avoid missing an opportunity to shoot, charge the battery pack again before shooting.

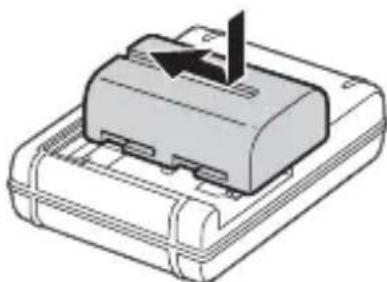

1 Insert the battery pack into the battery charger.

Push the battery pack until it clicks.

2 Connect the battery charger to the wall outlet (wall socket).

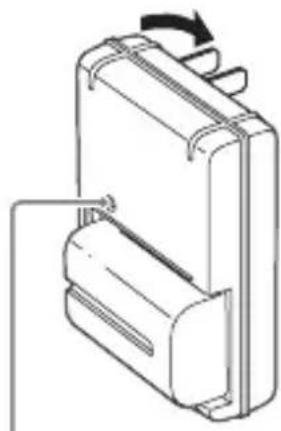

Light on: Charging Light off: Charge completed

Charging time (Full charge)

Approx. 175 minutes

• When charging a fully depleted battery pack at a temperature of 25^ (77^) .
• The CHARGE lamp turns off when charging is completed.

For the U.S.A and Canada

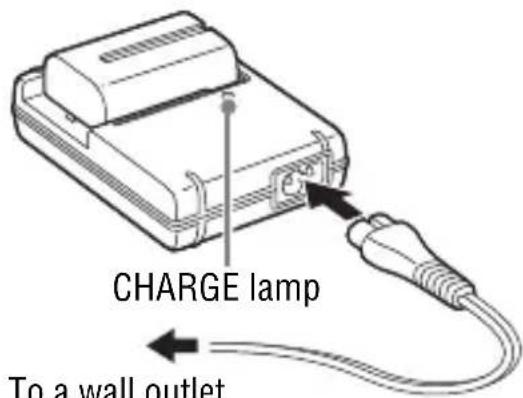

CHARGE lamp

For countries/regions other than the U.S.A. and Canada

GB

• The charging time differs depending on the remaining capacity of the battery pack or charging conditions.
• Be sure to use only genuine Sony brand battery packs.
• We recommend charging the battery pack in an ambient temperature of between 10^ to 30^ (50^ to 86^) . You may not be able to efficiently charge the battery pack outside this temperature range.
• Connect the battery charger to the nearest wall outlet (wall socket).

Inserting the battery pack/memory card (sold separately)

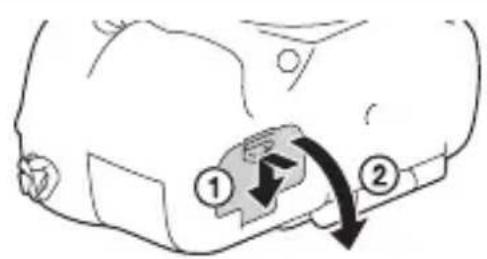

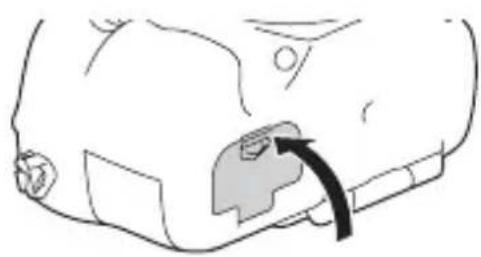

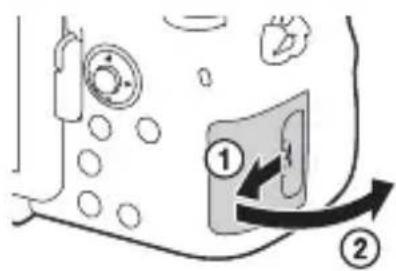

1 While sliding the battery cover open lever, open the cover.

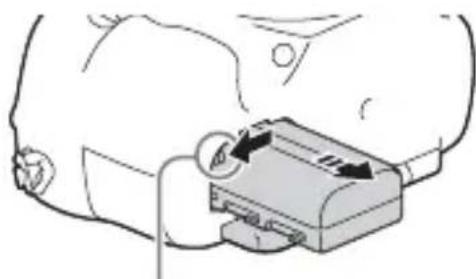

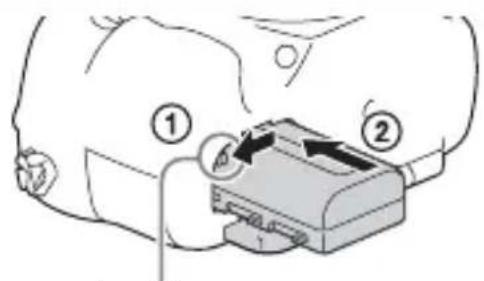

2 Firmly insert the battery pack all the way while pressing the lock lever with the tip of the battery.

Lock lever

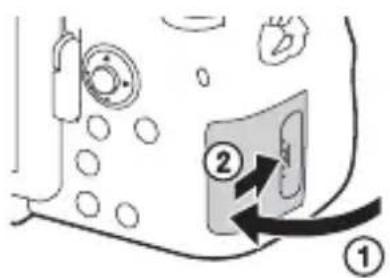

3 Close the cover.

4 While sliding the memory card cover, open the cover.

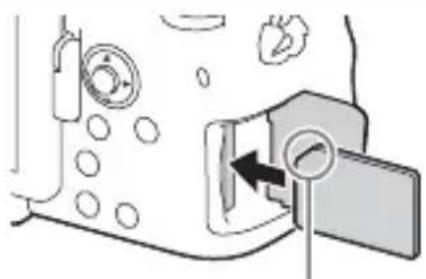

5 Insert a memory card.

• With the notched corner facing as illustrated, insert the memory card until it clicks into place.

Ensure the notched corner faces correctly

6 Close the cover.

GB

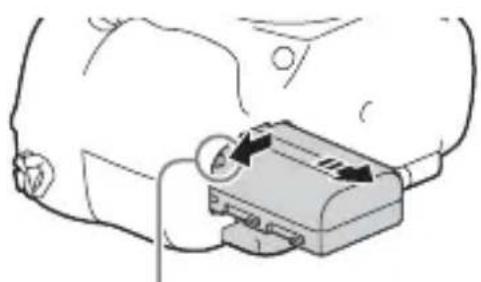

To remove the battery pack

Turn off the camera and slide the lock lever in the direction of the arrow. Be careful not to drop the battery pack.

Lock lever

To remove the memory card

Check that the access lamp (page 16) is not lit, then open the cover, and push the memory card once.

To check the remaining battery level

The supplied battery pack is a lithium-ion battery pack that has functions for exchanging information related to operating conditions with your camera. The percentage of the remaining battery life is displayed according to the operating conditions of your camera.

Battery level						“Battery exhausted.”
	High					You cannot shoot any more pictures.

Memory cards that can be used

You can use the following types of memory cards with this camera. However, proper operation cannot be guaranteed for all types of memory cards.

	Memory card For still images For	movies
A	Memory Stick PRO DuoTM (Mark2 only)√	√
	Memory Stick PRO-HG DuoTM	√	√
	Memory Stick XC-HG DuoTM	√	√
B	SD memory card (Class 4 or faster)	√	√
	SDHC memory card (Class 4 or faster)	√	√
	SDXC memory card (Class 4 or faster)	√	√

• In this manual, the products in the table are collectively referred to as follows:

A: Memory Stick PRO Duo media

B:SD card

• This camera supports UHS-I-compatible SD cards.

Notes

• Images recorded on a Memory Stick XC-HG Duo media or an SDXC memory card cannot be imported to or played on computers or AV devices that are not compatible with exFAT*. Make sure that the device is compatible with exFAT before connecting it to the camera. If you connect your camera to an incompatible device, you may be prompted to format the card.

Never format the card in response to this prompt, as doing so will erase all data on the card.

• exFAT is the file system used on Memory Stick XC-HG Duo media and SDXC memory cards.

Attaching a lens

Set the power switch of the camera to OFF before you attach or remove the lens.

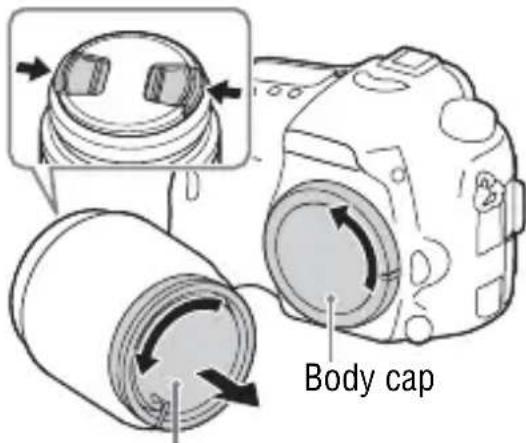

1 Remove the body cap from the camera and the rear lens cap from the rear of the lens.

• When changing the lens, quickly change the lens away from dusty locations to keep dust or debris from getting inside the camera.
• When shooting, remove the front lens cap from the front of the lens.

Front lens cap

GB

Rear lens cap

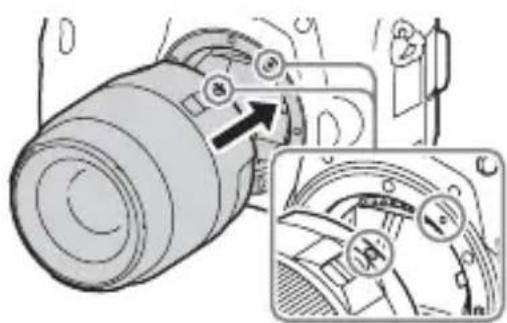

2 Mount the lens by aligning the orange index marks (mounting indexes) on the lens and camera.

• Hold the camera with the lens facing down to prevent dust from entering into the camera.

Orange index marks

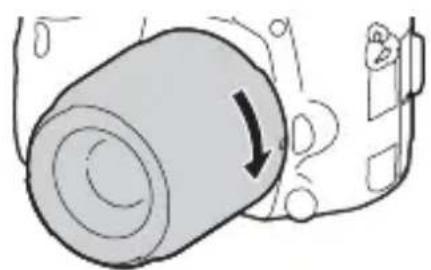

3 While pushing the lens lightly toward the camera, turn the lens clockwise until it clicks into the locked position.

• Be sure to put the lens on straight.

Notes

• When attaching a lens, do not press the lens release button.
• Do not use force when attaching a lens.
• E-mount lenses are not compatible with this camera.
• When you use a lens for which a tripod socket is provided, attach the lens onto the tripod using the tripod socket provided to help balance the weight of the lens.
• When carrying the camera with a lens attached, hold both the camera and the lens firmly.
• Do not hold the part of the lens that is extended for the zoom or focus adjustment.

To remove the lens

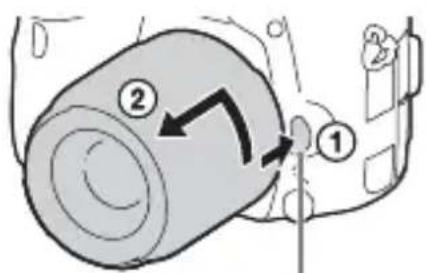

1 Press the lens release button all the way in and turn the lens counterclockwise until it stops.

Lens release button

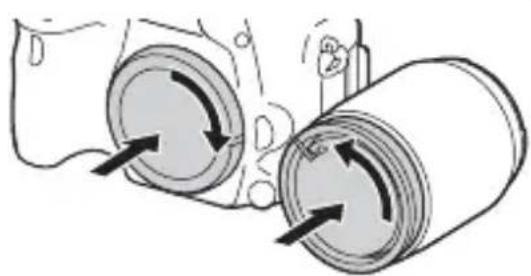

2 Attach the caps to the front and rear of the lens and the body cap to the camera.

Before you attach them, remove any dust from them.

Notes on changing the lens

When changing the lens, if dust or debris gets inside the camera and adheres to the surface of the image sensor (the part that converts the light to an electric signal), it may appear as dark spots on the image, depending on the shooting environment.

The camera is equipped with an anti-dust function to prevent dust from landing on the image sensor. However, always make sure to quickly change the lens away from dusty locations when attaching/removing a lens.

Setting the date and time

When you turn on the camera for the first time or after you initialize the functions, the screen to set the date and time appears.

1 Set the power switch to ON to turn on the camera.

The screen to set the date and time appears.

• To turn the camera off, set the power switch to OFF.

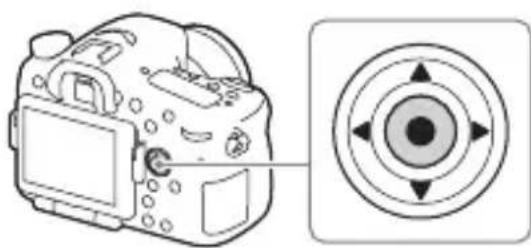

2 Check that [Enter] is selected on the screen, then press on the multi selector.

3 Select a desired geographic location, and then press .
4 Select a setting item by using / on the multi selector, then press .
5 Select a desired setting by using / / on the multi selector, then press .
6 Repeat steps 4 and 5 to set other items, then select [Enter] and press .

To cancel the date and time setting operation

Press the MENU button.

Setting the date/time and area again

The date and time setup screen appears automatically when the power is turned on for the first time or when the internal rechargeable backup battery has been discharged. To reset the date and time, use the menu.

MENU button (Setup) 4 [Date/Time Setup] or [Area Setting]

Maintaining the date and time setting

This camera has an internal rechargeable battery for maintaining the date and time and other settings regardless of whether the power is on or off, or the battery is installed or not.

Shooting still images

In auto mode, the camera analyzes the subject and allows you to shoot with the appropriate settings.

1 Set the power switch to ON to turn on the camera.

2 Set the mode dial to Auto Mode).

• Turn the mode dial while pressing the mode dial lock release button on the center of the mode dial.

GB

3 Look into the viewfinder and hold the camera.

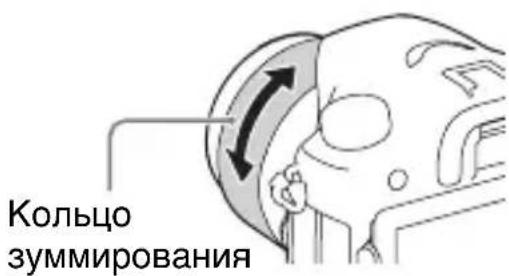

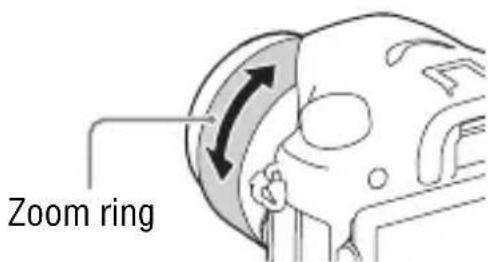

When using a zoom lens, adjust the zoom ring to the proper size of the subject.

4 Press the shutter button halfway down to focus.

• When the image is in focus, a beep sounds and the or indicator lights.

5 Press the shutter button fully down to shoot an image.

• If [Auto Obj. Framing] is set to [Auto], when shooting faces, close-up (macro) subjects, or subjects tracked by [Lock-on AF], the camera analyzes the scene and automatically trims the captured image into a suitable composition. Both the original and the trimmed images will be saved.

1 Set the mode dial to Movie).

• When the [MOVIE Button] is set to [Always], the movie recording can be started from any shooting mode.

2 Press the MOVIE button to start recording.

MOVIE button

3 Press the MOVIE button again to stop recording.

Notes

• The sound of the camera in operation may be recorded while recording a movie. You can disable the sound recording by setting [Audio Recording] to [Off].
• The continuous recording time of a movie depends on the ambient temperature or the condition of the camera. See "Notes on continuous movie recording" (page 46).
• When the non appears, the temperature of the camera is too high. Turn the camera off and wait until the temperature of the camera decreases.
• When you are recording continuously for a long time, you may feel that the camera is warm. This is normal. Also, "Internal temp. high. Allow it to cool." may appear. In such cases, turn the camera off and wait until the camera is ready to shoot again.

Playing back images

1 Press the button.

2 Select an image by pressing the / on the multi selector.

• To play back movies, press on the multi selector.

• If you press on the multi selector while playing back a movie, the control panel will be displayed.

Control panel Action during movie playback
▶Playback
■Pause
▶Fast forward
▲Fast rewind
■Forward slow playback
▲Rewind slow playback
▶Next movie
▲Previous movie
■Frame advance
▲■Frame rewind
	Volume settings
	Closes the control panel

Notes

• Movies recorded using other devices may not play back on this camera.

Deleting images

Once you have deleted an image, you cannot restore it. Be sure that you want to delete the image before proceeding.

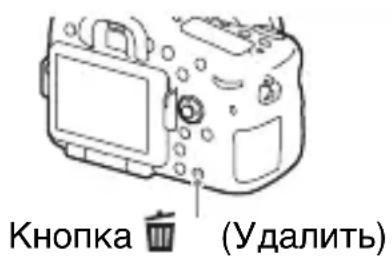

1 While displaying the image you want to delete, press the (Delete) button.

2 Select [Delete] with / on the multi selector, then press .

• To delete several images at a time, select MENU button

(Playback) 1 [Delete].

Notes

• Protected images cannot be deleted.

Selecting a shooting mode

Turn the mode dial while pressing the mode dial lock release button on the center of the mode dial.

The following shooting modes are available.

AUTO (Auto Mode) A	Allows you to shoot still images with the settings adjusted automatically.
P (Program Auto) A	ows you to shoot with the exposure (the shutter speed and the aperture value) adjusted automatically. The other settings can be adjusted manually.
A (Aperture Priority)	Shoots by adjusting the aperture and changing the focus range, or by defocus the background.
S (Shutter Priority) A	adjusts the shutter speed to show the movement of the subject.
M (Manual Exposure)	Allows you to shoot after manually adjusting the exposure (the shutter speed and the aperture value) using the front or rear dial.
1/2/3 (Memory recall)	Calls up settings pre-registered in [Memory] in the (Camera Settings).
(Movie) Allows you to change shooting settings and shoot a movie.
(Cont. Priority AE)	Allows continuous shooting while the shutter button is fully depressed. The camera records the images continuously at a maximum of about 12 images per second.
(Sweep Panorama)	Allows you to shoot panoramic images by combining multiple images.
SCN (Scene Selection)	Allows you to shoot with preset settings according to the scene.

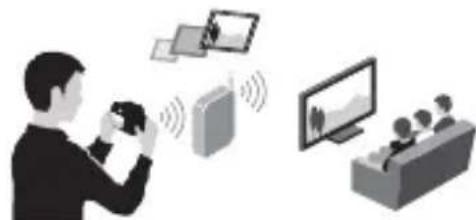

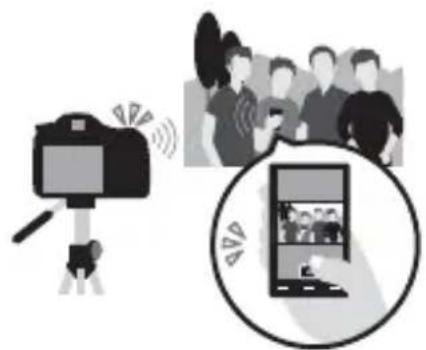

Using the Wi-Fi and NFC one-touch functions

You can perform the following operations using the camera's Wi-Fi and NFC One-touch functions.

Saving images to a computer. Transferring images from the camera to a smartphone.

Using the smartphone as a remote control for the camera.

Viewing still images on a TV.

For details on the Wi-Fi and NFC One-touch functions, refer to the attached document "Wi-Fi Connection/One-touch (NFC) Guide" or to the "Help Guide" (page 2).

Connecting the camera to a wireless access point

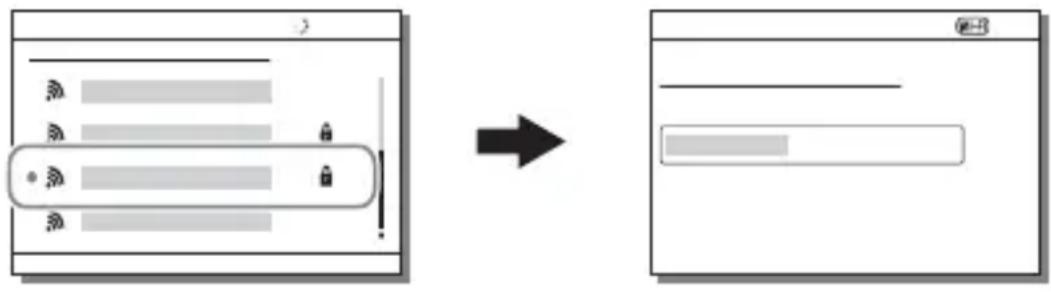

Connect the camera to your wireless access point. Before starting the procedure, make sure you have the SSID (name of the access point) and password of your wireless access point with you.

1 MENU button (Wireless) 2 [Access Point Set.].
2 Use / on the multi selector to select the access point you want to connect to. Press in the center of the multi selector and enter the password if a key icon is displayed with a wireless access point, then select [OK].

Notes

• If a connection is not established, see the wireless access point operating instructions or contact the administrator of the access point.
• To save images to a computer, install the following dedicated software on your computer.

When using Windows: Play Memories Home

www.保养.net/pm/

When using Mac: Wireless Auto Import

http://www.保养.co.jp/imsoft/Mac/

Using the software

Use the following applications to optimize use of the images shot with your camera.

• Image Data Converter
  PlayMemories Home
• Remote Camera Control

For details on installation, see pages 39 to 42.

System requirements

You can find the system requirements for the software at the following URL:

www.sony.net/pcenv/

Using Image Data Converter

With Image Data Converter, you can do the following:

• You can play back and edit images recorded in RAW format with various corrections, such as tone curve and sharpness.
• You can adjust images with white balance, exposure, and [Creative Style], etc.
• You can save the images displayed and edited on a computer.
• You can either save the image as RAW format or save it in a general file format.
• You can display and compare the RAW images and JPEG images recorded by this camera.
• You can rank images in 5 grades.
• You can apply color labels.

To use Image Data Converter, refer to Help.

Click [Start] [All Programs] [Image Data Converter] [Help] [Image Data Converter Ver.4].

Image Data Converter support page (English only)
http://www.sony.co.jp/ids-se/

Installing Image Data Converter

1 Download the software from the following URL and install it on your computer.

Windows:

http://www.sony.co.jp/imsoft/Win/

Mac:

• Log on as Administrator.

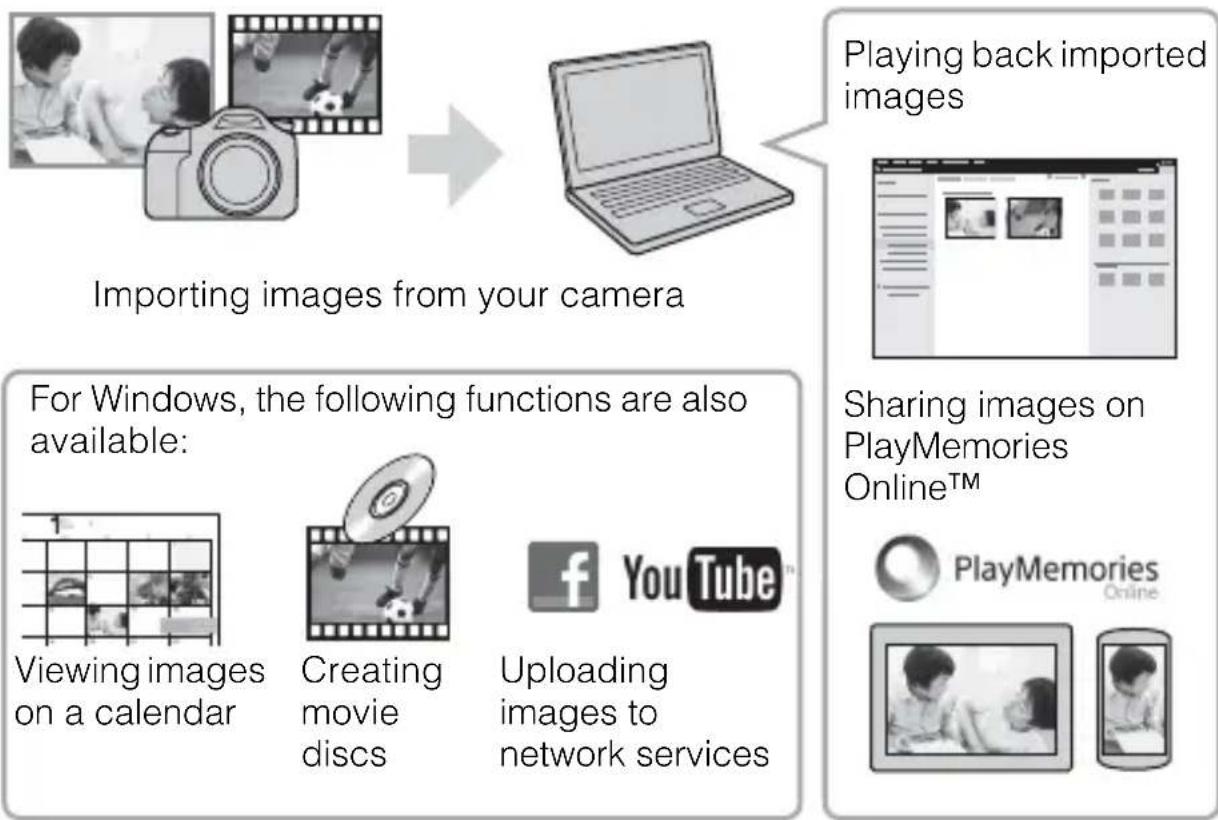

Using PlayMemories Home

The software PlayMemories Home allows you to import still images and movies to your computer and use them. PlayMemories Home is required for importing AVCHD movies to your computer.

• You can download Image Data Converter or Remote Camera Control, etc. by performing the following procedure: Connect the camera to your computer launch PlayMemories Home click [Notifications].

Notes

• An Internet connection is required to install PlayMemories Home.
• An Internet connection is required to use PlayMemories Online or other network services. PlayMemories Online or other network services may not be available in some countries or regions.
  Refer to the following URL for Mac software: http://www.sony.co.jp/imsoft/Mac/

• If the software PMB (Picture Motion Browser), supplied with models released before 2011, has already been installed on your computer, it will be overwritten by PlayMemories Home during the installation. Use PlayMemories Home, the successor software of PMB.

• Movies recorded using the [60p 28M(PS)]/[50p 28M(PS)], [60i 24M(FX)]/[50i 24M(FX)] or [24p 24M(FX)]/[25p 24M(FX)] setting in [ Record Setting] are converted by PlayMemories Home to create an AVCHD recording disc. This conversion can take a long time. Also, you cannot create a disc with the original image quality. If you want to keep the original image quality, store your movies on a Blu-ray Disc.

Installing PlayMemories Home

1 Using the Internet browser on your computer, go to the following URL, then click [Install] [Run].

www.sony.net/pm/

GB

2 Follow the instructions on the screen to complete the installation.

Using Remote Camera Control

Connect the camera to your computer. With Remote Camera Control you can:

• Set up the camera or record an image from the computer.
• Record an image directly to the computer.
• Perform an Interval Timer Shooting.

Set up the following before use: MENU (Setup) 4 [USB Connection] [PC Remote]

Installing Remote Camera Control

1 Using the Internet browser on your computer, go to the following URL.

Windows:

http://www.sony.co.jp/imsoft/Win/

Mac:

2 Follow the instructions on the screen to download and install Remote Camera Control.

Notes

• An Internet connection is required to install Remote Camera Control.

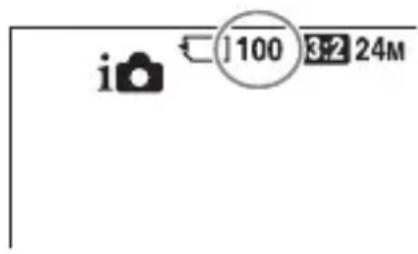

Checking the number of images and recordable time of movies

When you insert a memory card into the camera and set the power switch to ON, the number of images that can be recorded (should you continue to shoot using the current settings) is displayed on the screen.

Notes

• When "0" (the number of recordable images) flashes in yellow, the memory card is full. Replace the memory card with another one, or delete images from the current memory card (page 34).
• When "NO CARD" (the number of recordable images) flashes in yellow, it means no memory card has been inserted. Insert a memory card.

The number of images that can be recorded on a memory card

The table below shows the approximate number of images that can be recorded on a memory card formatted with this camera. The values are defined using Sony standard memory cards for testing. The values may vary depending on the shooting conditions and the type of memory card used.

Image Size: L: 24M

Aspect Ratio: 3:2*

Memory card formatted with this camera (Units: Images)

Capacity Size	2 GB 4 GB 8 G B 16 GB 32 GB 64 GB
Standard 330 660 1	350 2700 5	400 10500
Fine 200 410 820 1	650 3300 6	600
Extra fine	100 200	400 820	1600 3250
RAW & JPEG	54	105 220	440 880	1	750
RAW	74	145 300	600 1200	2	2400

• When [Aspect Ratio] is set to [16:9], you can record more images than the numbers shown in the table above (except when [RAW] is selected).

The number of images that can be recorded using a battery pack

Note that the actual numbers may differ depending on the conditions of use.

		Battery life Number of images
Shooting (still images)	Screen Approx.	240 min. Approx. 480 images
	Viewfinder Approx.	205 min. Approx. 410 images
Actual shooting (movies)	Screen Approx.	120 min. —
	Viewfinder Approx.	110 min. —
Continuous shooting (movies)	Screen Approx.	175 min. —
	Viewfinder Approx.	175 min. —
Viewing (still images)	Screen Approx.	270 min. Approx. 5400 images
	Viewfinder Approx.	320 min. Approx. 6400 images

Notes

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions:

• The battery pack is used at an ambient temperature of 25^ (77^) .
  Using the lens DT 16-50mm F2.8 SSM

• Using Sony Memory Stick PRO Duo (Mark2) media (sold separately)
• [Viewfinder Bright.] is set to [Manual] [± 0] .

• [Monitor Brightness] is set to [Manual] [± 0] .

• The number for "Shooting (still images)" is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

-Focus mode: S (Single-shot AF)
- Shooting once every 30 seconds.
- The power turns on and off once every ten times.

• The number of minutes for movie shooting is based on the CIPA standard, and are for shooting under the following conditions:

• [Record Setting] is set to [60i 17M(FH)]/[50i 17M(FH)].

• Typical movie shooting: Battery life based on repeatedly shooting, zooming, shooting stand-by, turning on/off, etc.

• Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE button again. Other functions, such as zooming, are not operated.

Available recording time for a movie

The table below shows the approximate total recording times using a memory card formatted with this camera.

Memory card formatted with this camera (h (hour), m (minute))

Capacity Record Setting	2 GB	4 GB	8 GB	16 GB	32 GB	64 GB
60i 24M(FX)/50i 24M(FX)	10 m 20	m 40 m 1	h 30 m 3 h	6 h
60i 17M(FH)/50i 17M(FH)	10 m 30	m 1 h 2 h	4 h 5 m	8 h 15 m
60p 28M(PS)/50p 28M(PS)	9 m	15 m 35	m 1 h 15	m 2 h 30	m 5 h 5 m
24p 24M(FX)/25p 24M(FX)	10 m 20	m 40 m 1	h 30 m 3 h	6 h
24p 17M(FH)/25p 17M(FH)	10 m 30	m 1 h		2 h	4 h 8 h
1440×1080 12M	20 m	40 m	1 h 20 m	2 h 45 m	5 h 30 m	11 h
VGA 3M	1 h 10 m	2 h 25 m	4 h 55 m	10 h	20 h	40 h

• Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 20 minutes (limited by the 2 GB file size restriction).

Notes

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

• The values shown are not for continuous recording time.

• The recording time may differ depending on shooting conditions and the memory card used.

• When is indicated, stop recording the movie. The temperature inside the camera has increased to an unacceptable level.
• For details on movie playback, see page 33.

Notes on continuous movie recording

• It requires a lot of power to perform high quality movie recording or continuous shooting using the image sensor. Therefore, if you continue to shoot, the temperature inside the camera will rise, especially that of the image sensor. In such cases, the camera turns off automatically since higher temperatures affect the quality of the images or affect the internal mechanism of the camera.
• The duration of time available for movie recording is as follows when the camera starts recording after the power of the camera has been turned off for a while. (The following values indicate the continuous time from when the camera starts recording until the camera stops recording.)

Ambient temperature Continuous recording time for movies

20°C (68°F) About 29 minutes

30°C (86°F) About 29 minutes

40°C (104°F) About 17 minutes

• The duration of time available for movie recording varies with the temperature or condition of the camera before you start recording. If you frequently recompose or shoot images after the power is turned on, the temperature inside the camera will rise and the recording time available will be shorter.
• If the camera stops recording due to the temperature, leave it for several minutes with the power turned off. Start recording after the temperature inside the camera drops fully.

• If you observe the following points, the recording time will be longer.

• Keep the camera out of direct sunlight.

• Turn the camera off when it is not being used.

• The maximum size of a movie file is about 2 GB. When the file size is about 2 GB, recording stops automatically when [File Format] is set to [MP4], and a new movie file is created automatically when [File Format] is set to [AVCHD].

• The maximum continuous recording time is 29 minutes.

Specifications

Camera

[System]

Camera Type: Built-In-Flash Interchangeable Lens Digital Camera

Lens: Sony A-mount lens

[Image sensor]

Image format: 23.5mm× 15.6mm (APS-C format) CMOS image sensor

Total pixel number of image sensor: Approx. 24 700 000 pixels

Effective pixel number of camera: Approx. 24 300 000 pixels

[SteadyShot]

For still images: System: Image sensor-shift mechanism

For movies: System: Electronic

[Anti-Dust]

System: Charge protection coating on image sensor and image sensor shift mechanism

[Auto focus system]

System: TTL phase-detection system (with center F2.8 sensor), 79 points (15 points cross type)

Sensitivity Range: -2EV to 18 EV (at ISO 100 equivalent)

AF illuminator: Approx. 1m to 5m (3.3 ft. to 16.4 ft.)

[Electronic viewfinder]

Type: Electronic viewfinder (Organic Electro-Luminescence)

Screen size: 1.3cm (0.5 type)

Total number of dots: 2359296 dots

Frame coverage: 100%

Magnification: Approx. 1.09× Approx. 0.71× (35mm -format equivalent) with 50~mm lens at infinity, -1m^-1

Eye Point: Approximately 27mm from the eyepiece, 22mm from the eyepiece frame at -1m^-1 (CIPA standard compliant)

Diopter Adjustment: -4.0m^-1 to +3.0m^-1

[LCD monitor]

LCD panel: 7.5cm (3.0 type) TFT drive

Total number of dots: 1228800 (640× 4 RGBW) × 480) dots

[Exposure control]

Metering Cell: "Exmor" CMOS sensor

Metering method: 1200-zone evaluative metering

Metering Range: -2EV to +17EV on Multi segment, Center weighted, Spot modes (at ISO 100 equivalent with F1.4 lens)

ISO sensitivity (Recommended exposure index):

Still images: AUTO, ISO 50 to 25600 (1/3 EV step)

Movies: AUTO, ISO 100 to 12800 (1/3 EV step)

Exposure compensation: ± 5.0 EV (switchable between 1/3 EV and 1/2 EV steps)

[Shutter]

Type: Electronically-controlled, vertical-traverse, focal-plane type

Speed range:
Still images: 1/8000 second to 30 seconds, bulb
Movies: 1/8000 second to 1/4 second (1/3 step), up to 1/60 second in AUTO mode (up to 1/30 second in Auto slow shutter mode)

Flash sync speed: 1/250 second

[Built-In-Flash]

Flash G.No.: GN 12 (in meters at ISO 100)

Recycling time: Approx. 3 seconds

Flash coverage: Covering 16mm lens (focal length that the lens indicates)

Flash compensation: ± 3.0 EV (switchable between 1/3 EV and 1/2 EV steps)

Flash range:

Aperture		F2.8 F4.0 F5.6
ISO setting	100 1	m - 4.3 m (3.3 ft. - 14.1 ft.)	1 m - 3 m (3.3 ft. - 9.8 ft.)
	200 1	m - 6.1 m (3.3 ft. - 19.9 ft.)	1 m - 4.2 m (3.3 ft. - 13.9 ft.)
	400 1	.4 m - 8.6 m (4.7 ft. - 28.1 ft.)	1 m - 6 m (3.3 ft. - 19.7 ft.)
	800 2	m - 12 m (6.6 ft. - 39.8 ft.)	1.4 m - 8.5 m (4.6 ft. - 27.8 ft.)

[Continuous shooting]

Continuous shooting speed:

Continuous Advance Priority AE:

Maximum 12 images per second/

Hi: Maximum 8 images per

second/Maximum

3 images per second

• Based on our measurement conditions. The speed of continuous shooting can be slower, depending on the shooting conditions.

The maximum number of continuous shots:

In Continuous Advance Priority AE mode

Extra fine: 53 images/

Fine: 60 images/

Standard: 64 images/

RAW & JPEG: 25 images/

RAW: 26 images/

In Continuous shooting

Extra fine: 56 images/

Fine: 75 images/

Standard: 93 images/

RAW & JPEG: 26 images/

RAW: 28 images

[Image zooming playback]

Scaling range:

Image size:

L: Approx. × 1.0 - × 18.8/

M: Approx. × 1.0 - × 13.3/

S: Approx. × 1.0 - × 9.4

[Recording format]

File format: JPEG (DCF Ver. 2.0, Exif Ver. 2.3, MPF Baseline) compliant, RAW (Sony ARW 2.3 format)

Movie (AVCHD format): AVCHD

format Ver. 2.0 compatible Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

Manufactured under license from Dolby Laboratories.

Movie (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

[Recording media]

Memory Stick PRO Duo media, SD card

[Input/output terminals]

Multi/Micro USB Terminal*:

USB communication, Hi-Speed USB (USB 2.0)

• Supports Micro USB compatible devices.

HDMI: HDMI type D micro jack

Battery pack: Rechargeable battery pack NP-FM500H

[Power consumption]

When using a DT 16-50 mm F2.8 SSM*

When using the viewfinder:

Approx. 3.5 W

When using the screen:

Approx. 3.0W

• Supplied with ILCA-77M2Q.

[Others]

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

DPOF: Compatible

PRINT Image Matching III:

Compatible

Dimensions:

142.6 ~mm × 104.2 ~mm ×

80.9mm (5 5/8 inches ×

4 1/8 inches × 3 1/4 inches)

(W/H/D, excluding protrusions)

Mass:

Approx. 726g (1 lb 9.6 oz) (with battery and Memory Stick PRO Duo media)

Approx. 647g 1 lb 6.8 oz body only

Operating temperature: 0^ to 40^ (32^ to 104^)

[Wireless LAN]

Supported format: IEEE 802.11 b/g/n

Frequency band: 2.4 GHz bandwidth

Security: WEP/WPA-PSK/WPA2-PSK

Connection method: WPS (Wi-Fi Protected Setup)/Manual

Access method: Infrastructure mode

NFC: NFC Forum Type 3 Tag compliant

Design and specifications are subject to change without notice.

Battery charger/Battery

BC-VM10A Battery charger

Input rating: 100V - 240V AC, 50 / 60Hz,9W

Output rating: 8.4VDC 0.75 A

Operating temperature range: 0^ to 40^ (32^ to 104^)

Storage temperature range: -20^ to +60^ (-4^ to +140^)

Maximum dimensions:

Approx. 70mm× 25mm×

95 mm (2 7/8 inches × 1 inch ×

3 3/4 inches) (W/H/D)

Rechargeable battery pack NP-FM500H

Battery type: Lithium-ion battery

Maximum voltage: DC 8.4 V

Nominal voltage: DC 7.2 V

Maximum charge voltage: DC 8.4 V

Maximum charge current: 2.0A

Capacity:

Typical: 11.8 Wh (1650 mAh)

Minimum: 11.5 Wh (1600 mAh)

Maximum dimensions:

Approx. 38.2mm× 20.5mm×

55.6mm (1 9/16 inches ×

13/16 inches × 2 1/4 inches)

(W/H/D)

Lens

Name (Model name)	DT 16-50mm F2.8 SSM(SAL1650)	DT 18-135mm F3.5-5.6SAM(SAL18135)
Equivalent 35mm-formatfocal length* (mm)	24-75 27-202.5
Lens groups/elements 13-16 1	1-14
Angle of view*83°-32° 76°-12°
Minimum focus** (m (ft.))	0.3 (1)	0.45 (1.48)
Maximum magnification (×) 0.2	2 0.25
Minimum aperture f/22 f/22-f/36
Filter diameter (mm) 72 62
Dimensions (max. diameter× height)(Approx. mm (in.))	81×88(3 1/4 × 3 1/2)	76×86(3 × 3 1/2)
Mass (Approx. g (oz.)) 577 (20	3/8) 398 (14)

• The values for equivalent 35mm-format focal length and angle of view are based on Interchangeable Lens Digital Camera equipped with an APS-C sized image sensor.
  ** Minimum focus is the shortest distance from the image sensor to the subject.

GB

• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash with ADI functionality.
• Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused at infinity.
• The infinity position provides for some adjustment to compensate for focus shift caused by change in temperature. To shoot a subject at infinite distance in MF mode, use the viewfinder and set focus.

On focal length

The picture angle of this camera is narrower than that of a 35mm -format camera. You can find the approximate equivalent of the focal length of a 35mm -format camera, and shoot with the same picture angle, by increasing the focal length of your lens by half.

For example, by using a 50~mm lens, you can get the approximate equivalent of a 75~mm lens of a 35~mm -format camera.

On image data compatibility

• This camera conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan Electronics and Information Technology Industries Association).
• Playback of images recorded with your camera on other equipment and playback of images recorded or edited with other equipment on your camera are not guaranteed.

Trademarks

Memory Stick and
trademarks or registered trademarks of Sony Corporation.
- "AVCHD Progressive" and the "AVCHD Progressive" logotype are trademarks of Panasonic Corporation and Sony Corporation.
- Dolby and the double-D symbol are trademarks of Dolby Laboratories.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac is a registered trademark of Apple Inc. in the United States and other countries.
- iOS is a registered trademark or trademark of Cisco Systems, Inc.
- iPhone and iPad are registered trademarks of Apple Inc. in the United States and other countries.
- SDXC logo is a trademark of SD-3C, LLC.
- Android, Google Play are trademarks of Google Inc.
- Wi-Fi, the Wi-Fi logo and Wi-Fi PROTECTED SET-UP are registered trademarks of the Wi-Fi Alliance.
- The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

• DLNA and DLNA CERTIFIED are trademarks of Digital Living Network Alliance.
• Facebook and the "f" logo are trademarks or registered trademarks of Facebook, Inc.
  YouTube and the YouTube logo are trademarks or registered trademarks of Google Inc.
• Eye-Fi is a trademark of Eye-Fi, Inc.
• In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the TM or marks may not be used in all cases in this manual.

InfoLITHIUM

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

François

Monture A

Responsible : Sony Electronics Inc.

Adresse: 16530 Via Esprillo, San

Diego, CA 92127 E.-U.

Complies with IDA Standards DB00353

Temps de charge (charge complete)

Env. 175 minutes

(CIPA: Camera & Imaging Products Association)

Batterie rechargeable NP-FM500H

(CIPA: Camera & Imaging Products Association)

Messmethode: 1 200-Zonen

Mehrfeldmessung

Format AVCHD Ver. 2.0

kompatibel

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch,

Verbindungsmethode: WPS (Wi-Fi Protected Setup)/Manuell

(CIPA: Camera & Imaging Products Association)

M: Aprox. × 1,0 - × 13,3/

S: Aprox. × 1,0 - × 9,4

Baseline), RAW (formato ARW

2,3 de Sony)

Smartphone] premendo Anything.

(CIPA: Camera & Imaging Products Association)

Pacco battery: Pacco battery

ricaricabile NP-FM500H

[Consumo]

Quando si usa un DT 16-50mm F2.8

SSM*

Instalar Remote Camera Control

(CIPA: Camera & Imaging Products Association)

Characteristicas techniques

Câmara

[Sistema]

Tipodecamara:Camara Digital de Objetivas intercambiavis flash incorporado

Ampliacao: Aprox.1,0

Aprox. 0,71× (equivalente ao formato de 35mm ) com objetiva 50~mm ao infinito, -1m^-1

M: Aprox. × 1,0 - × 13,3/

S: Aprox. × 1,0 - × 9,4

(CIPA: Camera & Imaging Products Association)

Aansluitmethode: WPS (Wi-Fi Protected Setup)/handmatig

Maximale laadstroom: 2,0 A

Capacitite: Typisch: 11,8 Wh (1650 mAh) Minimaal: 11,5 Wh (1600 mAh)

Maximale afmetingen: Ong. 38,2mm× 20,5mm× 55,6mm (b× h× d)

Lens

Elementary apparatus

(CIPA: Camera & Imaging Products Association)

Akumulator: Akumulator NP-FM500H

[Pobórmocy]

Ładowarka/Akumulator

Ladowarka BC-VM10A

Akumulator NP-FM500H

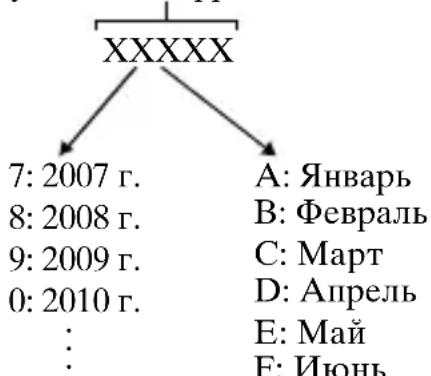

JaTa H3rOToBJIeHnJAHTn-NOHHOro 6aTapeHoro 6JIOKa yKa3aHbI Ha 6OKOBoN cTOpOHe HJIN Ha NOBepXHOCTN CHaKJIeIKoN.

56yKBcHHO-ⅢIΦpOBbIX CHMBOJIOB

• IOBepxHOCTb KaMepbIMoKet CTAb TeIIIO. 3To He ABJAEtCn HeNCIIpaBHOCTbIO.

PpnilaraetcKo Bcem MoeJAM:

Kamepa (1)
3apiaHoe yctpoCTBO BC-VM10A (1)

IIIHyp IIITaHn (1)* (He npJIaIaeTcB CIIIA n KaHaJe)

*B KOMIIeKT IIOCTaBKn KaMepbIMOJcET BXoIHTb HeCKOJIbKO IIHypOB IINTaHn. NcIOJIb3yIte IIHyp, COOTBeTcTBYIOII n cTpaHe/peRHOHy IIpe6bIBaHn.
- Ipe3apkaembiaKKymjIaTnp NP-FM500H (1)

Ka6eJb Micro USB (1)

IIeueBOIpeMeHb (cJeJHaHO BO BBeTHaMe H 3rTOBJIeHO I3 IOJINCTepa/ NCKyCCTBeHHO'KoXN) (1)

HOpMaun O Tom, KaK
IIpIKpeINITb IIJeYeBOI peMeHb K
KaMepe, IIpNBHeHa Ha cTp. 18.

KpbIIka 6aHHeTa (1)

(HaIeBaetcHa KaMepy)

KpbIIka pa3bema (1) (HaJeBaetca Ha KaMepy)
- Haŋa3HnK okyJЯpa (1)

(HaTeBaEtcaHa KaMepy)

• INHCTpyKuIyIIO 3KcIIlyaTaUIN (1) (aHHoe pyKOBoCTBO)
  Wi-Fi Connection/One-touch (NFC) Guide (1)

JaHna cnpaBka IoJcHJeT cyHKn, Tpe6yIOIne coeINHeHHa Wi-Fi.

RU

ILCA-77M2Q:

• 3ym-06bekTNB DT 16-50 mm (1)/PipeHnKa KpbIIka o6bekTnBa (1)/3aHnKa KpbIIka o6bekTnBa (1)/ CBeTo3aIHTHa 6JIeHda o6bekTnBa (1)

ILCA-77M2M:

3ym-06bekTnB DT 18-135 mm (1)/PipeHna KpbIIka o6beKTHBa (1)/ 3aHna KpbIIka o6beKTHBa (1)/ CBeTo3aIHTHa 6JIeHda o6beKTHBa (1)

KomnoHeTbI KaMepbl

6 MoHITOp
7IaTnK OCBeHHOCTN
8KhoIIka MOVIE (39)

9ДлЯсьемки:КногkaAEL (6ЛОкровkaA3)/Kногka SLOWSYNC

BbIKJIOHTe KaMepu H cIBINHbTe pIyauKOK qNKcaTopa B HaIIpaBJIeHNcTpeJKN. ByIbTe oCTOpOxHbI, YTO6bI He ypoHnTB aKKymjIaTOP.

PbIaXoKΦnKcauIN

3CMOTPNTe B BnDOnCKaTeJIb n ydepxkBaIte KaMepy.

Ipn HcnoJb3OBaHH 3ym-06beKTHBa OTpeYJnpyTe KOJIbIO 3yMMnpOBaHH B COOTBeTCTBHN C pa3MepamN O6beKTa.

4HaXMMTe KHONky 3aTBopa HanoJIOBHy dIy BbINOJIHeHЯ ФOKycnpoBKn.

• EcJH n3o6paXeHHe haxoJIHTc8 B cOKyce, pa3Jaetc8 3ByKOBoH cnHaJI N BBICBeYHBAeTc8 HnIKKaTOP HJIN

RU

5ДЯ BыЮнHeHЯ CьeMKNaЖмITE KHonky 3aTBopaNoJIHOCTbIO BHN3.

• EcJIN [ABTO KaIrpnoB.] yCTaHOBJIeHO B [ABTO], IIpi NBIIIOJIHeHNN CbEmKN JINi, O6BeKTOB KpyIHbIM IJIaHOM (MaKPO) INIIN O6BeKTOB, OTcJIeJXnBaembIX φyHKInei [CJIeJNII AF], KaMepa aHaJIIN3IpyeT cIeHy i ABToMaTHUeCKN O6pe3aeT 3axBaueHHoe N3O6paJxHne I0 IOJXoJNIIe' KOMIO3NIHN. CoXpaHЯIOTcKaK opuRHaJIbHbIe, TAK N O6pe3aHHbIe N3O6paJxHnY.

1yctahOBNTe dNCK peKIMOB B noJIOXeHne (BndeO).

• EcJIH [KHOIIKa MOVIE] yCTaHOBJIeHO B [BceIgA], BnIeOCbEmKa MOKeT 6bITb HaYATA B JIObOM peXIMe cBeMKN.

2Hajmte KhoNky MOVIE JIaHaJa 3aIncn.

KhoNka MOVIE

3Euple pa3 haxmnte KhONky MOVIE dIy npekpaueHn 3aIncn.

PpmeaHn

• Bo Время Видаозапин с может 6ытб 3апсан 3Byk pa6OTы Камеры. Бы може ТьИКЛЮчNTь 3aПСь 3Byka ПУТЕМ yCTaHOBKN [3aПИсь 3Byka]В [БыКЛ].
  BpeMa HeIpepbIBHO BnJeO3aIIINcN 3aBHCNT OT OKpyKaIOSeI TeMIIePaTpybI HJIH COCToHHa KaMepbI. CM. "PiPmEuaHna IIO HeIpepbIBHO BnJeO3aIIINcN" (ctp. 55).
• Повлелене 3начka [03начаet, YTO TeMпepaТура KaМерь IЯВлгETс сишkom BысOKо. БыклioчNTe KaМеру I IOJOxДИTe, NOka TeMпepaТура KaМерь I He ChIN3HITcя.
• IIJIHTeJIbHOH HeIIpepbIBHO 3aIINCH BbIMoKTe IIOUyBCTBOBaTb, YTO KaMepa HaIpeBaetc. 3To HOpMaJIbHOe AByJHeHne. TaKKe MoKTe IIOBJIaTbcN INIIHKaIIN "KaMepa IeperpeJIacb. IIO3BOJIbTe KaMepe ocTbITb." B TaKHX CJUYaX BBIKJIIOHTe KaMepy N IOIOJKTte, IOKa KaMepa He 6yJeT cHOBA FOTOBA K CbeMKe.

Bocnpon3BedeHne cHmKOB

1HaXMMTe KHonky

2 Bыберп Te n3o6paхеHne, Haxmam a Ha MylbTn- ceJIeKTope.

• Дя ВоспюнЗBEДЕНЯ BИДEO3aПиСeн HaЖмITE -Ha MyЛьти- ceJIeKTOpe.

• IIpn HaXkATnH ▼Ha MyJIbTH-ceJIeKTope BO BpeM RAocIpOn3BeJeHHBnE03aIINCH 6yIeT OTO6paJKeHa IaHeJIb yIpaBJIeHHN.

BnIeO3aHnCn, 3aHncaHHbIe c HOMOIIbIO npYrNX yCTPOcTB, MOryT He BOCIIPOH3BOJITbcra Ha daHHoK KaMepe.

YdaJIeHne CHIMKOB

BbI He cMOxKeTe BOCCTaHOBHTb CHMOK IocJIe erO yJaJIeHnI. IpeI TeM, KaK IIpoIOJIxHTb, y6eIITecb, YTO BbI XOTHTe yJaJIHTb CHMOK.

1Ipn OTO6paXeHn CHNmKa, KOtOpbH NyXHo ydaJIntb, HaxMnte KHOJKy (YdaJIntb).

2 BbIbepnte [YdaJIHTb] c nOMoIbIO △/▼ Ha MyIbTnCeJIeKTope, a 3aTeM HaXMMTe

• Д�� удалесни HeсКоЛькИХ снMuKOB 3a pa3 ВыбepиTe KHOПКу MENU (ВocпponЗВe-ДeнHe) 1 [YdaJIITb].

Приимechия

3aIIHHe oTOCHmKn He MOryT 6bITb yJaJIeHbI.

Bb6op peXmamcBeMkn

IpocMOTp fOTOCHIMKOB Ha TeJIeBn3ope.

YcTaHOBKa npIloXeHnR Remote Camera Control

1C nOmoIbI O IHTepHET-6pay3epa Ha KOMNbITope nepeiDnte K cJeDuOuSeMy URL-aDpecy.

Windows:

http://www.sony.co.jp/imsoft/Win/

Mac:

(CIPA: Camera & Imaging Products Association)

• PeKHM φokycnpoBkn: S (Покадровы AF)
  -CbemkaYepe3KaJkbIe 30 cekyH.
  -Питанн eвклioчаeТсЯ n BBiKJIIOUaeTcЯ chepe3 KaXIbIe JecrTa pa3.

• KoJIInueCTBO MmHyT IJIa BnIeOcBeMKn cOrJIaCHO cTaHApTy CIPA n cbeMKN BCJIeIyIOIIx ycIOBHX:

-Пааметр [пааметрь 3аи.] установлен ha [60i 17M(FH)]/[50i 17M(FH)].
-TnHnHaBnIeocbEmKa:BpeMa pa6oTbI aKKyMyJrTopa 6a3npyetcHa IOBTOpRAIOUeCnCbeMKe,3yMMNPOBaHH,OKNJaHH CBeMKN,BKJIIOueHHN/ BbIKJIIOUeHHN H T.I.
- HeIIpepbIBHna BnIeocbEmKa: BpeMa pa6oTbI aKKyMyJrTopa 6a3npyeTcHa HeIIpepbIBHOcBeMKe IIO IOCTHXKeHHI PeJeJa (29 MmHyT), a 3aTeM IIpoIOJIkaIOSeIcR IOBTOpHBIM HaKATHeM KHOIIKN MOVIE. JpyrHe yHKuH, KaK 3yMMnpOBaHne, He NcIOJIb3yIOTcR.

[BcTpoeHHa BcNbIiSha]

BeIyIe ee YIcJIo BCIIbIITIKN: GN 12 (B MeTpax IIprn ISO 100)

BpeIepe3apKn:Pi6Jn3. 3ceKyHdbI

IHaIa3OH IeBCTBnB BcIIbIIIKN:

RU

Диафрагма		F2.8 F4.0 F5.6
Уstановka ISO	100 1 M	-4,3 M	1 M -3 M
	200 1 M	-6,1 M	1 M -4,2 M
	400 1,4 M	M -8,6 M	1 M -6 M
	800 2 M	-12 M	1,4 M -8,5 M

[HenpepbIBHa cbeMa]

CkopocTb HeIpepbIBHOcbeMKn: Iprnoptet A3 npn HeIpepbIBHOIpoTJxKKe: MaKcHym 12 H3O6paXeHN B ceKyHdy/MaKcHym8 H3O6paXeHN B ceKyHdy/ MoKcHym 3 H3O6paXeHNB ceKyHdy

Ha ochoBaHHn co6CTBeHHbIX KpntepHe H3MpeHn. CkopocTb HeIpepbIBHOcBeMKn MOxET 6bITb HxKe B 3aBHCIMOCTH OT ycJIOHN CbeMKn.

MaKcHMaJIbHOe KOJIInueCTBO HeIIpepbIBhIX CHIMKOB: BpeXnme IIpNoOpHTeTa A3 IIpr HHeIIpepbIBHOI IpOTJxKKe CBepXBbICOKOE: 53 CHIMKOB/ BbICOKOE: 60 CHIMKOB/ CtaHApTHOE: 64 CHIMKOB/ RAW II JPEG: 25 CHIMKOB/ RAW: 26 CHIMKOB/ IIpr HHeIIpepbIBHOI cBeMKe CBepXBbICOKOE: 56 CHIMKOB/ BbICOKOE: 75 CHIMKOB/ CtaHApTHOE: 93 CHIMKOB/ RAW II JPEG: 26 CHIMKOB/ RAW: 28 CHIMKOB

[Bocnpo3BeDeHne cHmKOB KpynhbIM nlaHOM]

[Pa3beMbI BBOda/BbIBOda]

Pazbem Multi/Micro USB: USB-coeINHeHne, Hi-Speed USB (USB 2.0) ПоДержИBaeT Micro USB-COBMeCTHMbIe yctpoNcTBA.

AkkymyJIaTOp: Ipe3apJxJaembI aKKymyJIaTOp NP-FM500H

[Потpeблгеме птунке]

При ИспIOЛьЗОВанИ DT 16-50 mm F2.8 SSM* IprИ ИспIOЛьЗОВанИ BИДОИСКАТЕЯ: IprИбЛИЗ.3,5BT IprИ ИспIOЛьЗОВанИ ЭКраHA: IprИБЛИЗ.3,0BT
*IprИlaIaIaeTcR KILCA-77M2Q

[Почee]

MnKpoΦoH: CTepeo

ΓρOMKOrOBOpHTeJIb: MoHocOHHueckn

Exif Print: COBmecTHMa

DPOF: CoBmecTHMa

PRINT Image Matching III: CoBmecTHMa

Pa3MepbI: 142,6MM× 104,2MM× 80,9MM (III/B/T，He BKJIIOUaY BbICTyIIbI)

Mcca: _Pn6Jn3.726 (c
aKKymyJIaTOpom n Memory
Stick PRO Duo) _Pn6Jn3.647 (TOJIbKO
KopIyc)

TeMIIepaTypa 3KcIIJaTaIIN: oT0°Cdo40°C

[BecnpoBODHa JOKaJIbHa ceTb]

YroJIΦOTOCbEMKnJaHHoroKaMepbIyKe,EmyKaMepbI 35-MM

ΦopMaTa. BbIMoKTe HaHTN IIpH6JIIN3HTeJIbHbI' KKBnBaJIeHT

ΦOKyCHOrO paCCToHnKaMepbI 35-MMΦOpMaTa IJIaΦOTOCbEMKn C

TaKHM Je yrJOM, yBeJIINuBaJ OKychoe pacCTOJHHe oBbeKTnBa

HaIOJIOBInHy.

HaipnMep, npn HcIOJIb3OBaHHN 50 MM O6beKTHBa Bbl MOKeTe

IIOJIyHTb Iprn6JIN3NTeJIbHbI'KKBnBaJIeHT 75 MM O6beKTnBa KaMepbI

35 MM opMaTa.

O COBmecTnMoCTn φopMaTOB DaHHbIX n306paXKeHn

• Даннай КамеруюВлЕТВОРЯET yньерсаль"HOMу стандарту DCF (Design rule for Camera File system), установленьому JEITA (Japan Electronics and Information Technology Industries Association).
  BocnpOn3BeJeHne H3O6paJKeHn, 3aIINcaHHbIX BaIIe KaMePO, Ha npYROM o6OpUIOBaHn H BOCpOn3BeJeHne BaIIe KaMeo I3O6paJKeHn, 3aIINcaHHbIX nJIH OTpeJaKTIpOBAHHbIX Ha npYROM o6OpUIOBaHn, He rapaHTnpyeTc.

TobapHbIe 3HaKn

Memory Stick 3AEBJIOITc TOBapHbIMN 3HaKaMn JIN 3apeHnCTpnpOBaHHbIMN TOBapHbIMN 3HaKaMn Sony Corporation.
- "AVCHD Progressive" И Логотни "AVCHD Progressive" Альперся Товарныз haKaMaH Panasonic Corporationи Sony Corporation.
Dolby H cHMBOJI B BnIe CdBIOEHHO 6yKBbl D YBJIaIOTc TOBaPbIMN 3HaKaMn Dolby Laboratories.
- TepMHbI HDMI n HDMI High-Definition Multimedia Interface n JIOrOTHHDMI RAJIaOTcra TOBapHbIMn 3HaKaAMn NJIu 3apeTNCtPnpOBaHHbIMn TOBapHbIMn 3HaKaAMn HDMI Licensing LLC B CIIA n npyrnx cTpaHax.
- WindowsяВлЯетс 3apeГИСТРИРОВаHHbIM TOВарнБIM 3HaKOM Microsoft Corporation B CoeДиНЕнБIx IIITaTax AmeprКн n/NJIN ДPyгnx CтpaHax.
MacЯВлЯЕТС 3apeГИСТРИРОВАнБIMTOВарНБIM 3HaKOMAppleInc.BCoeДинHeHbIXRU IIItaTAXAmeprHKNIIpyrHx cTpahax.
- iOS RNAJRAETCA3apeHnCTpnpOBaHHbIM TOBapHBIM3HaKOM HJITTOBapHBIM 3HaKOM Cisco Systems, Inc.
- iPhone i iPad yBJIaIOTcra 3apeHnCTpnpOBaHHbIMu TOBaHPbIMn 3HaKaAMn Apple Inc. B CoeINHeHHbIX IITaTax AmePHKN I pyTHX cTpaHax.

JIoTOniSDXCABJIaTeTcTaTOBapHBIM3HaKOM SD-3C,LLC.
Android, Google Play yBJIaIOTcT ToBapHbIMn 3HaKaAMn Google Inc.
Wi-Fi, JIorOTn Wi-Fi n Wi-Fi PROTECTED SET-UP ABJIaOTc3apeHCTpnpOBaHHbIMN TOBapHBIMN 3HaKaAMN KOMIIaHH Ni-Fi Alliance.
MeTka N YBJIeTcra TOBapHbIM 3HaKOM HJIN 3apeRnCTpnpOBAHHbIM TOBapHbIM 3HaKOM NFC Forum, Inc. B CoeHNHeHHbIX IIITaTAX AmePKN I B JpyTHX cTpahx.
DLNA n DLNA CERTIFIED YBJIOTcT TOBapHbIMN 3HaKaMn Digital Living Network Alliance.
- Facebook И ЛогOTиП "f" АВЛЯИТСА TOBAPHBIM 3HaKaMн ИЛь 3aperHCTpHpOBaHHbIMN TOBAPHBIM 3HaKaMн KOMIIaHIN Facebook, Inc.
YouTube ⅡIorOTn YouTube JBJIOTc TOBapHBIMN 3HaKaMn JIN 3apeHCTpHPOBaHHbIMN TOBapHBIMN 3HaKaMn KOMIIaHH Google Inc.
- Eye-Fi YIABJIaETcT OBaPbIM 3HaKOM Eye-Fi, Inc.
Kpome TOrO,Ha3BaHnIcCTeM H3JeJIH,HCIOJIb3YeMbIeBJaHHOM pYKOBOJCTBe，ABJIaOTcR，OBbIuHO TOBapHBIMN 3HaKaAMN JIN 3apeHCTpnpOBaHHbIMN TOBapHBIMN 3HaKaAMN IX COOTBeTCTByIOIIHX pa3pa6OTtIKOB JIN IIPOIN3BOJNTeJIe. OJHaKO 3HaKN TM NJI IN HCIOJIb3yOTcR He BO BCEx CJUyAax B JaHHOM pYKOBOJCTBe.

InfoLITHIUM

N3roTOBNTeNb: CoHn KopnopeuH
Adpec: 1-7-1 KoHaH, MnHaTo-Ky, TokNo 108-0075, YnOHHa
CTpaHa-npon3BOdnteNb: TaunHaHd

IIMnopTeP Ha TeppntOpnn Ctpan TamoxKeHHoro coH3a 3AO «CoHn 3JeKtpoHnKc», Pocn, 123103, MockBa, KapamblweBckn npoe3d, 6

OprHn3aun, yNoHOMOeHHa npHmAtb npeTeH3nn OT noTpe6nteNe Ha TeppNTOpn Ka3axCTaHa

3AO «CoHn 3JIeKTPoHnKC>
IpeIcTaBnteJIbCTBO B Ka3axCTaHe,
050059,AImaTbI,yuNca IBaHnIOBa,
d.58

IIOJIINTeJIbHaN HOpMaIIH IO IaHHOMy N3JeJInO N OTBeTbI Ha Yacto 3aJaBaEmbE BOIpocbl MOrY T 6bITb HaIeHbI Ha HAIIeM Be6-caTe IIOJIepKKn IOKyIIaTeJIe.

http://www.sony.net/

RU

YkpaHcbKa

A-перекIDнк

Bnpo6HnK: Sony Corporation, 1-7-1

Konan Minato-ku Tokyo, 108-0075

Japan (Jinohia)

ДяЗaINTiB IIOIO BiINOBiHocTi Bnpo6y 3riIHO 3aKoHOnaBvnx aKTiB CC: Sony Deutschland GmbH, Hedelfinger Strasse 61,70327 Stuttgart, Germany (HimeuHa)

CE

IIM KOpPiopaii Sony Corporation
IIITBepJxkye, IIO Ie O6JIaHaHHa
BIIOBIJaE O6OB'3KOBHM BHMOram Ta
iHIMM BiIOBIiHM IOJOXKeHHaM
IInpeKTHBn 1999/5/EC. JIA OTPMaHHa
IeTaJIbHOi iHΦopMaii BIiBiJaTe Be6 -caT:

http://www.compliance.sony.de/

Ppimtka

KIOIINBIIINBOM cTaTHUHOI
JIeKTPKN a6o eJIeKTPOMaHITHO
IOIA IPOUC epeaui DaHnx 6yue
IpeepBaHn,peep3aynctiTb pnCTpi
a6o Bi'EDHaHTe Ta IOBTOpHo
IIpNEIHnTe Ka6JIb,IO
BVKOpNCTOByETbcra IIaIpeaui DaHnx (USB,Toio).

Pe3yJIbTaTn TecTyBaHb IIbOro BnPo6y IeMOHCTpyIOTb IHO BiiIOBiiHicTb BHMOram IIOIO O6MeJKeHb, 3a3HaueHnx y IInpeKTHBi EMC, kci CTocyIOTbcra BnKOpNCTaHHa 3'eINHyBaJIbHnx Ka6eJIiB, KOPOTIIHX 3a 3 MeTpH.

Ha BiINOBiINHX YacTOTax eJIeKTPOMaHITHi IOJIa MoKyTB BIIINBaTH Ha JIKcTB 3O6paJKeHHa i 3ByKa, BiTbOPIOBAHINBnPo6om.

Ipepeo6ka BnKOpncTaHnx eIementiB XnBJIeHHa, CTaporo eIekTpunHO rTa eIekTPOHHORO 0blaHaHHa (3acTOcoBycTBcraB CbponecBkOMy coo3i Ta iHux EBponecBkNX KpaIHax i3 cnCTeMaMn po3dIJIbHorO 3bnpaHHa cmITTA)

Mozha Bn6paTH MOBy, kKa BiO6paKaTHMeTbC8 BekpaHHnx MeHIO.

PpOec 3nOMKn

IeH fOToaIapat IIITprnMye 2 peXHMnCTeXeHHra 3a 06'EKTaMH:peXHMMOHiTopa,BYKOMy 3o6paXeHHBnBOiHTbcra Ha MOHiTOP,i peXHMBnIOuKyKaHa,BYKOMy 3o6paXeHHBnBOiHTbcra Ha BnIOuKyKa.

B6ydoBaHi yHKuii foToanapaTa

• Y IIbOMy IIOci6Hnky OINcaHI
  IIpNCTpoi, cyMiChi 3i cTaHApTaMH
  1080 60i Ta 1080 50i.
  IIO6 IIi3HaTnCs, JkNcTAHapr
  IIITprMMye fOToaIapaT - 1080 60i YN
  1080 50i, - IpeBipTe HaABHicTB Ha
  HNKHi IIaHeJI TaKHX IO3HaQOK:
  IIpNCTpii i3 IIITprMKOIO cTaHApTy
  1080 60i - 60i
  IIpNCTpii i3 IIITprMKOIO cTaHApTy
  1080 50i - 50i
• IeH foToaIapaT iIITrpHMye BiJeO fOpMaTy 1080 60p a6o 50p. Ha BiIMHy BiI cTaHApTHNX IOHeJIaBHa peXHMIB 3aIIncy, kI BHKOPnCTOBYBaJIN Upe3PraIKOBy po3rOpTKy, IeH foToaIapat III qac 3aIINcy BHKOPnCTOBYe IocJIIOBHy po3rOpTKy. Ie IIbHIyE po3JIbHiCt b i 3a6e3IneUye 6JIbIII 3rJaIXeHe Ta peaJIiCTuHHe 3O6paJxHnI.

CTBOpENHaФaIy6a3nDaHnx 306paXKeHb

KIO BCTaHTn y fOToaIapat KapTy Iam'ATi,Ha kIn HeMae faiJy 6a3n DaHx 3o6paXKeHb,Ta yBIMKHyTH XNBJIeHH, fOToaIapaT aBTOMaTHUHO CTBOPHTb faJI 6a3n IaHnx 3o6paXKeHb, BNKOpNCTOByOuN YactINHy O6'Emy KapTN IaM'ATi.

IeH IpoIec MoKe TpNBaTH IOBRO,i KOpNCTyBaTnC H oToaIIapaTOM IO NOrO 3aBepHHeHH HeMOxJIInBO.Y pa3i IOMNIKn FaiJy 6a3n DaHnx ekIopTyIte Bci 3o6paXKeHH Ha KOMI'IOTe 3a IOnOMoroIO IIporpaMn PlayMemories HomeTM i BiΦopMaTyIte KapTu Na'M'Ati Ha φotoaIIapati.

Biccythictb komneHcaqii 3a nozkodxeHHBmicty a6o HemoxJnBicTb BnKohHHaNc

KOMIIaHia Sony He Ipepe6aaye HaanHHa KOMIeHcaii y BnIaKy HEmOxJIInBOcTi BHKoHaHHa3aHcy NbTpaTH a60 IIIOKoJKeHHa3aHCAHO BVMcTy BHaCJIIOK HeCnPaBHOCTi fOToaHapaTa, Hocia IHOpMaTTOIO.

PekomeHdaucii 0do CTBopeHHpe3epBnX koni

ДяЗAnO6iraHnBbTaTiДaHnx3aBxN KOIIIOHTeix（CTBOpIOnTepe3epBHi KOII)HaIHINHOciI.

Iprmitkn 7oDo MOHITopa, eNeKTPoHHoro BnDo7yKa7a, 06'ekTnBa Ta DaTynka 3O6paJKeHn

• MoHITOP Ta eJIeKTPoHHN BnIOIyKaU BnTOBJIeHO 3 BnKOpHCTaHHaM HaJ3BnHaHb BnCOKOTOuHOi TexHOJIOTII, IIO IO3BOJIe eΦeKTINBHO BnKOpHCTOBYBaTH IIoHaJI 99,99 % IIkceJIiB. OdHaK Ha MOHITopi Ta eJIeKTPoHHOMy BnIOIyKaHi MOKe 6yTH BnIHNO KpnXiTHi YOpHi Ta/a6o JcKpaBi IITKN (6IJIoro, YepBOHOrO, CInHbORO a60 3eJIeHOrO KOJIbOpy). HaABHICTb TaKHX IITOK E HOpMaJIbHOIO IJIa IpoIecy BnTOBJIeHHI i HiK He BnJIiBaE Ha 3O6paJKeHHa.
  He TpmaTe foToaIapaT 3a MOHITOP.
• O6epiraIte foToaIapat BiJ i
  coHnHnx IpomHei I He 3HimaTe,
  cIpyMaBaBII NOrO IIO coHnIa,
  TpNBaJIH Yac. MoXHa IIOIKoINTN
  BHyTpiiH HmexaHI3M foToaIapata.
  KIO coHryHe cBiTIIO cΦOKycETbcra
  Ha o6'ekTi, IIIO 3HaXoIHbCn IIO6JIH3Y,
  MOKe BHHKNHYTN IOKeJxA.
  -Позаду та habКоJO o6eptOBOrO BaJa IIapHipa MOHITopa BCaHOBJIeHo MaHIT. He IIINOCbTe J0 MOHITopa TaKi IIpeIMeTn, kki JIErKO 3a3HaOTb HeRaTHBHO BIIINBy MaHITy, a caMe IINCKeTn a6o KpeHHTHi KapTKN.
• Y XOJIIOHOMy cepeIOBnIi 3O6paJxHHa ekpaHI MOxTyb BiITBOPHOBaTHcra 3 eΦeKTOM «IIJIeHfy>. Ie He e O3HaKOIO HeCIIpaBHOCTi. Y pa3i yBIMKHeHHa FOToaIapata B XOJOHOMy MicIeKpaH MOKe TImuacBO IIOTemHiTn. KoJIH FOToaIapat HaRpiEtbcra, ekpaH IIpaIIOBAtHMe HaJIeXHHM YINHOM.
  3HrTe 3o6paKeHHa MoKe Biipi3HraTncB iI 3o6paKeHHa,Ke Bn 6auiIIN IpeE 3HOMKOIO.

Iopadn 3mOMKn 3 BNDowkaqem

IeH fOToaIapaT oJiaHaHO opraHiHM eJIeKTPoJIOMiHeCIIeHTHM BnIOUyKaueM 3 xapaKTepNCTHKamn BncoKOi po3JIbHocTi Ta KOHTpactHocTi. IeH BnIOUyKaay 3a6e3IeYye IInpOKn KyT OrJaNy Ta BeJInky fOKucHy BiCTaHb. BnIOUyKaay y IbOMy fOToaIapatI JeTKO KOpNCyBaTHcR, aIXKe B HbOMy HaJIeXKnM YINHom BpiBHOBaKeHo p3Hi eJIeMeHTH.

3o6paKeHHa MoKe 6yTH 3JIeRka BnKpNBJIeHIM IO KYTaX BnIOIIyKaHa. Ie He e O3HaKOIO HecIpaBHOcti. IIo6 IpeERJHyTH Bce 3o6paKeHHa i3 Bcima JeTaJIaMM, MOxHa TaKOx BnKOpNCaTH MOHiTOP.
-ПиДчacпаногам hoi 3HOMKU chepe3 BnIOIyKaay a6oПиДчac 3OpOBoro ORJIaIy 3O6paJxHnY bNIOIyKauyi MoKe 6yTH BnKpHBJIeHm, a6o Jx MoKc 3MInHTncr KOJIip 3O6paJxHnY. IeЯBnIe npITamHaHHe po6oti O6'ekTnBa qH IIprHcTpoIO BiIO6paJxHnY i He BBaJaETbcr HecIIpaBHicTIO.ПиДчac 3HOMKn paIIMO INBHTncy U ceHTp BnIOIyKaay.
-Пид уасьOMK3ВИКОпсТаHHЯ m BИДОПИУКач aBи можеTe BiДЧУВaTH IeВHи ДИСКOMфОрТ,HaIIprNKJIaI IepeHaIIpyЖeHHЯ 3OPY,ВТOMY, 3aKaЧУВaHHЯ Ch HHyToT.Y.Пи dac 3HOMK3 BИДОПИУКaчem peKOMeHДуЕТбяpeRyJIЯрHo pOБHTN IepepBN.

PeKOMeHIOBaHa TpHbJIicTb NepePB a6o iX YacToTa e iHNiBiiJaYbHIMN IJIa KOxHOrO, a TOMy BnpiIiYBaTHcme Bam. KIO Bu BiIiYBaTe IINCKOMΦOpT, IIpHInHiTb KOpHCTyBaTHcra BIIIOIIyKaUeM, IOKH Bam He cTaHe KpaIe, i 3a IOTpe6oIO IIPOKOHcyJIbTyIHTecr 3 JIkapem.

PpIMiTkn 0do TpBaIoi 3HOMKn

3 MeTOIO 3aXnCTy, 3aJIeJxHO BiTEmIIepaTypn foToaIapapaTi 6aTapei, Bam MOKe He BlaTnCra 3aIINcaTH BiJeO, a6o XHBJIeHHr MOKe BHMKHyTncb ABTONaTHNo.
IpeTMM,AK BIMKHeTbCJKNBJIeHHa6o BiJeO3aHc 6iJIbIe He 6yIeMOXJIINBM,Ha eKpaHI 3'ABHTbcIIOBIOMJIeHHa.Y taKOMy pa3iBIMKHITb fOTOanapat i 3aueKaIte,IOKN BIIaIe TeMIIepaTypafOTOanapata i 6aTaapei. JKiIOYBIMKHyTH fOTOanapat, He JaBIIIINOMy Ta 6aTaapei IOCTaTHBOOXJOHOHT, XNBJIeHHa MOKe 3HOBYBIMKHyTHcA,i BN He 3MOKeTe3aIIHCyBaTH BiJeO.
- 3a BncoKoi TeMIIepaTpyn 3OBHIIHHbOTo cepeIOBnIa TeMIIepaTpya foTOaIapata IIIBNUIyETbcra IIBNko.
- Y pa3i πiBnHηeHHa TempepaTyprn ΦoToaIapata MoKe IoripHTncb kicTB 3O6paKeHHa. Ipei IIPOIOBKeHHaM 3HOMKn peKOMeHNyETbcra 3aueKaTH, IOKH He 3HN3HTbcra TempepaTypa fOToaIapata.
-Поверхня соToaIapaTа може harpiTHc. He He O3HaKOIO HecIIpaBHOCTi.

Приитkin садо IMnopTyBaHHa Bideo Фор matу AVCHD Ha KOMn'IoTeP

Y pa3i imIIOpTyBaHHa BiJeO fOpMaTy AVCHD Ha KOMII'IOTe 3aBaHTaXTe i BHKOPHCTOByIe IIPOrpaMy PlayMemories Home 3 Be6-caHTy: www.sony.net/pm/

Ppimitkn 0oDo cnaaxy

He TpImaIe foToaIapat 3a cIIaJax i He IprHKJaIaIe HaIMipHOi CNJIN DO HbOro.
- YKIO uepe3 BiIKpHTn cIIaJax ycepeINHy IOTpaINTb BOJa, IIJI a6O IIcOK, Ie MoKe cTaTH IIprHNOHO HeCIIpaBHOctI.
3aKpHbAIOUcIaJIax,6yIbTe o6epeXHi,IIo6 He IIpHIIeMHTn IaJIbIi.

PpIMITKn 0oDo BiD TBOpEHnB BiDeo Ha iHux npucTpox

• ΦоTOaIapaT BnKOpHCTOBye KoIeK MPEG-4AVC/H.264 High Profile ⅡЯЗИСу BiIeO y φopMaTi AVCHD. BiIeO, 3aIIncahi y φopMaTi AVCHD 3aДОПOMIoTO IIbIOrO φoTOaIapaTa, HEMOXJIINBO BiITBOPHTN Ha TaKHX IIpIcTpOax:

-iHiii npncTrooi, cymichi 3 fOpMaTOM AVCHD, kki He IIITpmyotb High Profile;
- IIpncTpoi, HecymicHi 3 fOpMaTOM AVCHD.

ΦOTOaIIapat BnKOpHCTOBye TaKoJ KoIeK MPEG-4AVC/H.264 Main Profile 3aIINcy BiJeO y φopMaTI MP4.Tomy BiJeO,3aIINcaHe IIM ΦOTOaIIapaTOMy φopMaTI MP4, MoXHa BiITBOPHTI JInIe Ha THX IIpIcTPOAx,ЯKI IIITpIMyIOTb KOIeK MPEG-4AVC/H.264.

-ДиСКИ i3 306paJKeHЯm HD (BnCOKoi YITKOCi) MoXHa BiITBOpIbAToH JINIIe Ha IIpIcTPOx,ЯKI IIITprHMyOTb φOpMaT AVCHD.ПрогРаВaI a6O 3aIIncyUoI IIpIcTpoI Ha 6a3i DVD He BITBOPIOOTb IINCKI 3 BiJeO BnCOKoi YITKocTi (HD), OCKIJIbKN BOHN He IIITprHMyOTb φOpMaT AVCHD.KpIM TOrO,III qac cIpObN BnIMaHHa I3 BiJeO BnCOKoi YITKocTi HD i3 IIporPabawiv a6O 3aIIncyUOuHx IIpIcTpoIB Ha 6a3i DVD MoJKe CtATncr 36iI.

• BiJeO, 3aIIncani y fOpMaTi 1080 60p/ 1080 50p, MoJHa BiITBOpIOBaTH JINIIe Ha IIpIcTPOAx i3 IIITpHMKOIO fOpMaTy 1080 60p/1080 50p.

PonepeJxehnI zoDo aBTopcbKnx npaB

Ha TeJIeBi3iHHi InpoRpaMn, fIbMn, BiJeocTpIcKn Ta iHII MaTepiAJI M OMe po3IOBcIOJxKyBaTHcA BTOpcbKe IIpaBO. HecaHKUIOHOBAHNIpe3aIINc TaKHX MaTepiAJI B MOKe cyIepeHTN IOJOXKeHHaM 3aKOHy Ipo aBTOpcbKi IIpaBa.

3o6paXeHHa, 10 BnKOpNCTOBYIOTBcB V cIbOMy noci6Hnky

ΦOTOrpaΦi, ΙΟ BVKOpHCTOBYIOTBcB IVpHKJIaIax IIbOTo Ioci6HNka, -Ie peIPOyKObaHI 3o6paXKeHH, iix He 6yJIO 3HrTO 3a IOnOMOIO IIbOTo φOToapanapaTa.

Про Тхични данi, Habe deihi y zubomy noci6nky

Po6oHi xapaKTepeHCTnKn TaTexHicHi IaHI Bn3HaueHi 3a OIIncahnx HnKYe yMOB, OKpIM BnIaIKiB, Bka3aHNx y IIbOMy IIOci6HnKy: 3a 3BnuaHoi TeMIIepaTpyn cepeIOBnua 25 ^ C i BnKOpNCTaHHI IOBHicTIO 3apJKeHOI 6aTapei, Jka 3apJJaIacr, IOKn He 3rag iHnKaTop CHARGE.

TmuaCoBe BmKHeHnA cyHKci 6e3dpoToBOi MepeXi (Wi-Fi, NFC too)

Y pa3i IIOcaIKN B JIiTak TOIO MOxHa TImuacOBO BHMKHyTN Bci dyHKii 6e3IpOTOBOI mepexi.

Bn6epitb MENU

[Be3IpoTOBn] [PeKIMIOJIbOTy] [YBiMK].

JaIOIJIaIpaMeTpap [PexHMIOJbOToy] BCTaHOBHTn 3HaueHn [YBIMK], Ha ekpaHI BiIO6paKaTnMeTbcIIO3HaUka

(JIitak).

Iprmitkn 7oDo 6e3dpoTOboi IokaJIbHOI mepexi

Y pa3i BTPaTH a6o BnKpaJeHHa foToaIapata KOMIIaHia Sony He Hece KOHOI BiIOBIIaJIbHOCTi 3a MOxJIuBi 3bHTKN YI IKOJy, 3aIOJIaHI HecaHKIOHOBAHIM IOCTUOM a6o BnKOpNCaHHaM 3apecTpOBAHOI TOKNI OcTyNy Ha foToaIapati.

Ipebipka npnaand, 0o doaTbcra

CnoaTky IpeBipTe Ha3By MoJeIi fOToaIapata (ctop. 5). KomJIeKr IIpIIaIIra, IIO IOJaETbcr, 3aJIeXHTb BiIM MoJeIi. YnCIO B DyKkax Bka3ye Ha KJIbKicTB IIITyK.

IocTaUaCTbC8 3 ycima MoeJIaMn:

• Φοτοαπαρατ (1)
  3apaHnI npncTpIi BC-VM10A (1)

IIIhyp KINBJIeHHr (1)* (He IOJaETbCra JJIa MOJeJIeH, IIpN3HaueHnx IJIa CIIIA Ha KaHaIi)

*I0 foToaIapaTa MoKe 6yTH IOHaHO IekJIbKa IIHHypIB XINBJIeHHN. BnKOpHCTOBYHTe TOIIHHyp, IIO BiIIIOBIIaE yMOBaM eKCIJIyaTaUiY BaIi KpaIHi a6o perioHi.
- AkymyJIaTOpHn 6JIOK NPFM500H (1)

Ka6eJIb Micro USB (1)

• IJIeOvBn peMiHb (1)

IHCtpyKuIO 3 npKpIIJIeHHa peMeHa IO foToaIapata IHBiTbcra Ha cTOp.17.

Kpnika Kopnyca (1) (BCTaHOBJIeHa Ha foToaIapati)

KpHka KOJIOKn (1) (BcTaHOBJIeHa Ha foToaIapati)
HaouHnK OkjIpa (1) (BCTaHOBJeHN Ha foToaapanapati)
-Посибнк 3 ekciлyaTaцii (1) (ий псибнк)
Wi-Fi Connection/One-touch (NFC) Guide (1) YIbomyIOci6HnkyHaBeJeHO IOncHHeHHaYHKi,poBota KkX BImaRa3'EnHaHHaWi-Fi.

ILCA-77M2Q:

• O6'ekTnB 3i 3miHHOIO φokycHOIO BiIcTaHHIO DT 16-50 mm (1)/IpepeHЯ KpIIka o6'ekTnBa (1)/3aIHi KOBIIaOk IJIa o6'ekTnBa (1)/ 6JIeHda o6'ekTnBa (1)

ILCA-77M2M:

• O6'ekTnB 3i 3MiHHIO φokycHO BicTaHHIO DT 18-135 mm (1)/IpepeHnja KpIIka o6'ekTnBa (1)/3aHniJ KOBIIaOJKДЯ o6'ekTnBa (1)/ 6JIeHJa o6'ekTnBa (1)

UA

Elefembrens FOToanapata

IokJIaIHy iHΦopMaIIO Ipo BnKOpIcTaHHЯ YacTHN IINBiTbcr Ha cToPiHKax, IIO 3a3HaueHi y IyKkax.

Переднасторoga

1KhoIIka cIycky (36)
2IpeemkaJxNBJeHn (34)
3IpepeHKeJiHaTko KepyBaHHa (21)
4CeHcopIyJbTa IINCTaHIIHOrOKepyBaHHa
5KoHTaKTn O6'ekTnBa*
6Дзеркалo*
7KHOIIKa IIOIpeHbOro IepeJIaIy
8BaioHcT

9B6yIOBaHn cnaJax*

HaTnchIb KHOIIKy (IIINHrTTcnaJaxy),IO6 IIINHrTH cnaJax.
- KIIO cIIaJax He IOTpi6Hn, IOTINCHITb IORO Ha3aJy KOpIyc BInpo6y.

10Mikpooh**
11KHOIIKa po36JIOkyBaHHa INsKa IepeMnKaHHa peXIMiB (36,41)
12Дискперемкиня ржимь (41)
13KhoIIka (IiHraTTcnaJaxy)

14ПОЗнauкаВСТаHOBJIeHHЯ(31)
15KhoIkaΦikcaTopa o6'ekTnBa (32)
16ДиСКперемнкання ржИму ФOKUCYBAHHЯ
He TopkaǐTecǎ 6e3nocepéndhbo unx çaCTH.
*He 3aKpNbAte uei
eIemENT iD yac
3aIncyBaHnB BiDeO.
HeIoTpmaHnY ciEi
BIMOrn MoKe cnpuHHTN
NoBy uymiB u
3MeHseHn pIBn
ryHocTi.

UA

3aHnCTOpOHa

1HaouHnK
2 CeHcop OKa
3KhoIIKa MENU (24)
4BnIoNyka*

• KIIO IINBHTncb y BINOIIyKaU, BMNKaETbcra peKIM BINOIIyKaUa, a KIIO BiBeCTn OJIuYr BiB NIOIIyKaUa, 6yJe BCTaHOBJieHo peKIM IIpeTJMy Uepe3 MOHiTOP.

5ДиСКHaJIaIITyBaHHЯДIOПТПI

• PeryIIOHTe IIcK HaJIaITyBaHHЯ DiONTpIIN, IIOKN 3O6paXKeHHaY BnIOIIyKaUi He BiIO6paXaTHMeTbCra YITKO.

6 MoHiTop
7CencopcbiTla
8KhoIIka MOVIE (38)

9ДлЯЗнOMКИ:КНОПKaAEL (6ЛOKУВаHHЯ aBTOMaTHUHOi ekCNo3Hii)/KHOПKa SLOW SYNC
Для пергляду: Кногka (перглад миhiаюр 30бражень)
10IIJ3HOMKn: KHOJIka AF/MF (aBTOMaTHUHe OKycyBaHHa/ pyUHe OKycyBaHHa) IJIa IIpeIgIaY: KHOJIka (36iJIbIeHHa)
13aHHe KOJIiHaTko KepyBaHHa (21)
12MyJIbTnCeJIeKTop
13IIa 3nOMKn: KHOIIKa Fn (fynKii) (22) IIa IpeIgIy: KHOIIka (HaicJI. Ha cMapTΦ.)

3a IOnOMOIOIiEi KHOIIKMOJHa BiO6pa3HTn ekpaH cyHKii [HaicJI. HacMapTΦ.]
-Якio npikpiJIeHoBepTKaJIbHy pyKy（IpoJaETbcr OKpeMo）i KaHATNCHyTN KHOIIKy（ObeptaHHa 3o6paJKeHHa Hii, BIO6pa3nTbcr ekpaH[HaicJI. Ha cMapTΦ.]

14KhoIIkaDISP (BIO6paJxHn)
15KhoIIka (po3ymHn TeJIeKOHBepTop)
16KhoIIka C (cneiaJIbHa) IJIaIpeIJIaIy: KHOIIka (BnJaJIeHn) (40)
17KhoIIka (BiTbOpEHn) (39)

*He TopkaǐTecnúci āctuHn.

BnД 3rOpN

1BaTaToiHTeppeHcHn po3'EM*
2KHOIIKa FINDER/MONITOR
3IhOpmaiHa nHeJIb
4KhoIIka /pO6OTn IITOpKn)
5KHOIIKa WB (6aJIaHc 6iJIoRo)
6KhoIIka (ekno3nii)
7KHOIIKa ISO
8KHOIIKa IIcBiTKn IHOpMaIIHoiI NaHeJIi
9ПиБнayka ПОJOжЕнЯДаТУнka 3OбpaЖeня

*IJIa OTpIMaHHaJeTaJIbHOi IHOpMaIII Ipo IIpHJaIIa, cyMicHe 36araToIHTepeHcHMM po3'EMOM, BiBiaaTe Be6-caNT KOMHaHI Sony y cBOeMy perioHi a60 3BepHiTbcra Io nnJIepa Sony nMicIeBOrO aBTOpH3OBaHO rHTpy O6cJIyTOBvBaHHaSony.

MoXHa TaKoX BnKOpHCTOByBaTH npJIaIaIg IJIg PO3'Emy IJIg IOJaTkoBOrO npJIaIaIg.

Cymichictb i3 npnlaam iHINX Bnpo6HKnB He rapaHTyeTbcra.

Multi Interface Shoe

Accessory Shoe

BnrgIa36oky/3Hn3y

1Po3'EmIJIaMiKpOΦoHa

Ypa3iPiEHaHHa 3OBHIINHbOTo MIKPOoHa BHyTpiiHHiMikPOoH BMnKaETbCra aBTOMaTHUHO. KIIIO IIKJIIOyeHo 3OBHIINiMiKPOoH,AKI IITpHMye MoJINBICTb KNBJIeHHRA O MiKPOoHa IOCTaYaTImetbca IIMΦOTOaIapaTom.

2TaUKNIJIaIIJeYOBOROpemEny

• IIpIeKpiiTb 6nIbA KIni peMeH IO FOToaIapata.

3Po3'em cHxpoHiai3i 3i cnaJaxOM)

4Po3'EM REMOTE

• KIIO IO FOToaIapata II'EnHaHO IyJBt INCTaHIIHOrO KepyBaHH RA M-L1AM (IpOJaETbcra OKpeMo), BCTaBTe IIITeKepe BID IIyJIbTa INCTaHIIHOrO KepyBaHHa y po3'EM REMOTE i BnpiBnaTe IIO3NaUky Ha IIITeKepi 3 IIO3NaUKOHa po3'Emi REMOTE. YIeBHITbcra, IIO Ka6eJb IIyJIbTa INCTaHIIHOrO KepyBaHHA cIprMOBaHH yIepeJ.

5IyHOMOBeB

UA

6Po3'EMDCIN

• IIo6 nii'eHaTu aanTep 3miHHoro ctpymy ACPW10AM (npoaetbockpeMo) no foToaIapata, BIMKHiTB foToaIapat, TOni nn'EnHaTe po3'em aanTepa 3miHHoro ctpymy eo pO3'emy DC IN foToaIapata.

7Mikpopo3'emHDMI

8Po3'em Multi/Micro USB*

PiTpMyOTbcra pncToi, cymChi 3 po3'EMOM Micro USB.

9IHHnKaTOp IOCTyIy

10 (H3HaUka N)

• Ie MapkyBaHHa Bka3ye Ha TOUKY IOTNKY 3'EnHaHHa FOToaIapata CMapTFOHy 3 IIITpHMKOIO TexHOJOriNFC. DeTaJIbHy IHOpMaIIO Ipo PO3TaIIyBaHHa (IO3HaYKn N) Ha cMapTFOHi YHTaIte B iHCTpyKII3 BHKOpNCtAHn CMapTFOHy.

NFC (Near Field Communication, «3B'ЯЗOK на HeBeJIKNKx BiIcTaHЯX») - Ze mIXHapOДнИ CTaHДapT TexHOJIoIi 6e3IpoTOBOrO 3B'ЯЗКу MaIOrO paIiyCy II.

IobiKa 3 BnKOpncTaHHa

UA

Функц,якIMожнвбраTN 3a donomorOIO KHONKIN MENU

BnKopncTaHnB6yDoBaHoI DoBikn

3a IOnOMOIOI napametpa [Iapam. KJIIOU.KOpHc.] MoJHa IIpn3HaHTN B6yIOBaHy IOBiIKy IIeBHiKHOIIi.

B6yIOBaHa IOBiKa BiIOobpaKae IIOJcHHeHHa BIOpaHOi Ha JaHIM MOMENT yHKii a6o IapamEtpa MeHIO.

1 HaTnchItb KhoNky MENU (HaJaWtYBaH. KopncTyBaa) 6 [Iapam. KJIouc.KOpnc.] noTppi6Hi yHKci, npu3Nauehi KhoNci [B6yDoBaHa doBiKa].

HaTnchItb KhoIky MENU i 3a DoIOMoTOIO MyJIbTnCeJIeKTopa Bn6epiItb IyHKT MENU, IOnsHeHnI Do IkoRo IOTpi6HO IOnHTaTH, ToDi HaTnchItb KhoIky, Iki IIprncBOeHo yHKuio [B6yIOBaHa IOBiKa].

UA

KoJIbIiKpIbAeTe KpIIkky, IpeBipTe, YH He cBiITbCyaTOp IOcTyIy (cTOp. 18), TOni OINH pa3 HaTnCHiTb Ha KapTu NaM'ATi.

UA

Ipebipka 3aIIshkoBOrO 3apy 6aTapei

BaTape,ka IoIaETbC- ige JITiHIOHH aKymyJIaTOpHn 6JIOK,
KIM MoKe O6MiHIOBaTHc3 fOToaIapaTOM JaHIMN IIOIO yMOB
eKcnJIyatauii. BiICOTOK Yacy po6OTn 6aTapei, IIO 3aJIINIBcR,
BiO6paKaETbCByIIOBIDHO IO yMOB eKcnJIyatauII BaIIOrO
fOToaIapaTa.

• IpeT NIM YK BCTaHOBJIIOBATH KpHIIKN, BnJaJIiTb i3 HNX IIJI.

Ppimitkn 0do 3miHn 6'ekTnBa

Якwoпд часзMiHNo6'ekTnBaПиЛЧИбpyД NOTpaIITb y фOTOanapat i ПОпаDEHa NOBepxHIOДaTчнKa 3O6paJKeHHa (JeTaJIb, Яka IIepeTBOpIOcBiTIOHa eJIeKTPnHn CnHaN), BiH MoJKe 3'YBHTNcHa 3O6paJKeHHi Y BnIJaI TeMHnx IJIaM, 3aJIeJXHO BiД yMOB 3HOMKn.

ΦOTOaIIapaT o6IaIHaHO ΦyHKiEIO 3axHcTy BiI IINJy IJIa 3aIIObiHaHHaOcIgKByBaHHIO IIJy Ha IaTChK 3o6paXKeHHa. Ipote cJIi3aBxIIN BCTaHOBJIObATn a60 BiI'cIHyBaTH O6'ekTIN BIBNko i IIOaJIi BiI 3aIIJIeHNX MicIb.

UA

BcTaHOBJIeHHaTnIyacy

IicJIyBIMKHeHnA FOToaIapata BnepIe a6o iHiiaJIi3auii FyHKii 3'YBJIeTbcE kpaH IJIaBCTaHOBJEHn DaTH N acy.

1uob yBimKhytn foToanapaT, BCTaHObitb nepemkauch KnBJeHry y noJoxeHH ON.

3'YBNTbcEkpaH JJI BCTaHOBJeHHJ DaTN N acy.

• IIo6 BnMKHyTN FOToaIapaT, BCTaHOBIb IepeMHKaU XNBJIeHHB IIOJIOKeHH OFF.

2ПepeBiPte,Чи Ha ekpani Bn6paHo [Bxid] i HaTncHITb KHOKNy ●Ha MyJbTnCeJIekTopi.

3Bn6epiTb noTpbi6He reorpaΦiUHe po3TaUyBaHHaHaTusChiTb
4 3a ДОПOMΟΤΟ ΚΗΝΟΚ Δ/V Na MυήνιςΕΝΤΟρινινόνερινηνίβεριν τηντινησικεινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηνινηθ.
5 3a Дономою Кнорok ▲/▼/▲/» на мультустеньки Виковайтоотрибни налштуваши, тоци нату симпь кногку Ⓒ.

6Ioo6 hanaTbyBATn iHwi napameTpN, NOBtopiTB dii Kpokiv 4 i 5, Todi Bn6epitb [Bxid] i HataChiTb KhoNky

CkacyBaHHBCTaHOBJIeHHaTn N acy

HaTnCiIb KhoIky MENU.

(HaJIaIITyBaH.) 4 [USB-3'eIHaHHa] [BiIaJIeHnI PIK]

HaJIaIITyBaHnHaIIOITpIi: Bi-4,0 M-1 I0 +3,0 M-1

[MoHiTop]

PK-ⅡaHeJIb:7,5cm(THII3,0), 6a3yETbcraHaTexHOJIorii TFT

3aaraIbHa KJIbKicTb Toyok: 1228800 (640× 4 RGBW)× 480)ToyoK

[KepyBaHHeKcNo3nciE]

KJIITINHka Bn3HaueHHeKcNo3nii: daTnK «Exmor» CMOS

MeToI eKcIOBmipIOBaHHa: 1200-3OHaJIbHe OiHIOBaJIbHe 3aMipIOBaHHa

IIaIa3OH BnMipIOBaHHa: Bi -2 EV 1o +17 EV, 6aRaTOCeRMentHn, IeHTPO3BaJKeHn, TOUKOHN peKHM (3a eKBiBaJIeHTa ISO 100 3 06'ekTbOM F1,4)

UyTJIINBicTB ISO (peKOMeHIOBaHn iHneKc ekCNo3nii): FOTo3HIMKn: AUTO, BiI ISO 50 1o 25 600 (i3 KpOKom peRyJIIOBaHHaekCIO3nii 1/3 EV) BiJeO: AUTO, BiI ISO 100 I0 12 800 (i3 KpOKom peRyJIIOBaHHaekCIO3nii 1/3 EV)

Kopekui eKcno3nii: ± 5,0 EV (MOxJIuBicTb IepemKaHnKpokiv 1/3 Ta 1/2 EV)

[3aTBop]

TII:3 eJIeKToHHm KepyBaHHaM, BePTHKaJIbHOrO XoIy, IITOPHO-IIIJINHHOrO TIIpy

Дiаиэн ВИТРИМКИ:
ФОТОЗHIIMКИ: 1/8000ceKуНДи
До 30ceKуНД, a TaKoJxpyHа
ВИТРИМКa
ВiДeо: 1/8000ceKуНДи
1/4ceKуНДn (КрOK 1/3), До
1/60ceKуНДиВ
aBTOMaTINCHOMy peЖИМi (До
1/30ceKуНДи y peЖИМi
aBTOMaTINCHOД IOBROI
ВИТРИМКИ)

IIIBnIckTb cHxpoHi3auii 3i cHaJaxom:1/250ceKyHIN

[B6ydoBaHn cnaIax]

CπaJIax (BéIyue yIscIIO): GN 12 (y MeTpax 3a ISO 100)

UacIpe3apJxkaHnHa: Iprn6JI. 3 cekyHn

Kyt oxoJIeHHcnaJaxy: oxoJIIOe Kyt 30py 16 MM o6'ekTHBa (fokycHa BiIcTaHb, IIO3HaueHa Ha o6'ekTnBi)
Kopekii eKcno3nii cnaJaxy: ± 3,0EV (MOxJIHBicTB IepemKaHHKpOKiB 1/3 Ta 1/2 EV)

Iiannacn cnaJaxy:

Дiaфпарma		F2.8 F4.0	F5.6
OSI KHHKHeH	100 1 M	-4,3 M	1 M -3 M	1 M -2,1 M
	200 1 M	-6,1 M	1 M -4,2 M	1 M -3 M
	400 1,4	M -8,6 M	1 M -6 M	1 M -4,3 M
	800 2 M	-12 M	1,4 M -8,5 M	1 M -6,1 M

[HepepeBha 3iOMka]

IIIBNikicTb HeIepepBHOi 3HOMKn: HeIepepBHa 3HOMKa 3 IpiOpHTeTom aBTOeKcIO3Hii: MaKcHMym 12 3o6paXKeHb 3a ceKyHny/ MaKcHMym

8 3o6paKeHb 3a ceKyuHny/

MaKcHMyM

3 3o6paXeHnHa 3a ceKyuHny

-ДаиHa ochOBi yMOB BnMipHOBaHHa. IIIbNdkicTb HeIpepePBHOI 3HOMKn MoKe 6yTNIOBIJIbHIiHa 3aJIeXHo BiI yMOB 3HOMKn.

MaKcHMaJIbHo I03BOJIeHa KJIbKicTb KaIpiB HeIpepeBHOI 3HOMKn:

ByMOBax HeIepepBHOi 3HOMKn 3 IIpiOpHTeTOM aBTOeKcIO3HIIi HaIBNua:53 3O6paJxEhb/

BncoKa: 60 3o6paKeHb/

CtanhapTHH:64306paXKeHb/

RAW i JPEG: 25 306paЖeNb/

RAW: 26 306paXeHb/

Y peKIMi HeIepepBHOi 3HOMKII

HaBnua: 56 3o6paKeHb/

BncoKa: 75 3o6paXKeHb/

Aydio: MPEG-4 AAC-LC 2-KaH.

[Hocii daHnx]

Memory Stick PRO Duo, KapTka SD

[Bxidhi/Bnxidhi po3'cMn]

Po3'EM Multi/Micro USB*:

AkymyJIaTOpHn6JIOK: AkymyJIaTOpHn6JIOK NP-FM500H

[Стохивансяеонрий]

Upa3i BnKOpncTaHnD T16- 50mm F2.8 SSM* y pa3i BnKOpncTaHnBnOuKaHa: np6JI.3,5BT y pa3i BnKOpncTaHnEeKpaHa: np6JI.3,0BT
*IocTaaetbcs 3 ILCA-77M2Q.

[Inhe]

MikpofoH: Ctepeo

Гуномовь: Монфоший

Exif Print: Cymichn

DPOF: IIITpIMyETbca

PRINT Image Matching III: Cymicn

Po3mipn: 142,6 MM × 104,2 MM × 80,9 MM (III/B/Γ, He bpaXOBYIOUH BnCTyII)

Bara:
[ \text{Прибл. 726 r (З батуарецю i Memory Stick PRO Duo)} ]
[ \text{Прибл. 647 r (Линшеморпунс)} ]

PoboHa TeMHepaTya: BiD 0^ Do 40^

[Bé3dpoToBa lokaJIbHa mepexa]

ПiДТрИмУВангфорMaT: IEEE802.11b/g/n
ЧаСТOTНи ДiАпaЗоH:2,4ГТц
БeЗпeKa:WEP/WPA-PSK/WPA2-PSK

Cnoci6PiKJIIOueHn:WPS(Wi-Fi Protected Setup)/BpyuHy
Cnoci6IOCTyIy:peXIM iHΦpaCTpyKTypn
NFC:cymichicTBi3 NFC Forum Type 3 Tag

KoHcTpkyiTaTexHiXapaKTePncTnKNMOxTyb3MiHOBaTnca6e3IOBIDOMJIeHHJ.

3apdHn npncTpip/ BaTapea

3apdHn npncptpi BC-VM10A

BxiHa IOTyXHicTb: 100 B - 240 B 3MiHHoro cTpyM, 50/60 Tt, 9BT

BuxiHa IOTyXHicTb: 8,4 B IocTiHoro cTpymy,0,75 A

IIaIa3OH TeMIIepaTpyn BHKOpNCtAHN: Bi0°C 40°C

Iiapa3oH TeMpepaTpyn 36epiraHHa: Bi -20 ^ C Io +60 ^ C

MaKcHMaJIbHi po3Mipn: 6.70× 25× 95 (III/B/T)

AkymnyTopn6loK NP-FM500H

TnI 6aTaapei: JiTi-iOHHaKymyJIaTOP

MaKcHMaJIbHa HaIpyra: IocTiHHn cTpym 8,4 B

HomHaJIbHa HaIpyra: IocTiHnI cTpyM 7,2 B

MaKcHMaJIbHa HaIpyRa 3apJxKaHHa:IOCTiHnCtpyM 8,4B

MaKcHMaJIbHN cTpym 3apJxKaHHa:2,0A

EMHicTb: TIOBa:11,8BT/roI

(1650 mA/roI)

MihimaJIbHa: 11,5 Bt/roJ

(1600 mA/roπ)

MaKcHMaJIbHi po3MipI: IIpI6JI. 38,2 MM × 20,5 MM × 55,6 MM (III/B/T)

UA

O6'ekTnB

Installation of Image Data Converter

Installation of PlayMemories Home

Installation of Remote Camera Control
