Product type	Compact digital camera
Brand and model	Sony Cyber-shot DSC-TX55
Sensor	CMOS Exmor R 7.77 mm (type 1/2.3), 16.2 effective megapixels
Lens	Carl Zeiss Vario-Tessar, 5× optical zoom, f=4.7-23.5 mm (equiv. 26-130 mm)
Screen	OLED 8.3 cm (3.3 inches), 1,229,760 dots resolution, touchscreen
Dimensions (W × H × D)	92.9 mm × 54.4 mm × 13.2 mm
Weight (with battery and card)	Approx. 109 g
Battery	Lithium-ion NP-BN, 3.6 V, 630 mAh capacity
Power	AC adapter AC-UB10/UB10B (5 V, 0.5 A) or USB
Storage media	Internal memory 19 MB, Memory Stick Micro, microSD/microSDHC (Class 4 or higher)
Image formats	JPEG (DCF/Exif/MPF), MPO for 3D
Video formats	AVCHD (MPEG-4 AVC/H.264, Dolby Digital 2 channels), MP4 (AAC-LC)
Built-in flash	Range: 0.08-3.7 m (W), 0.6-2.6 m (T) (ISO auto)
Stabilization	Optical SteadyShot
Main features	Face detection, smile detection, scene modes, photo effects (HDR Painting, Miniature, etc.), panorama, burst
Connections	USB 2.0 Hi-Speed, micro HDMI, composite AV output
Supplied accessories	Battery NP-BN, USB cable, AC adapter, wrist strap, brush pen, tripod adapter, CD-ROM
Maintenance and cleaning	Clean with a slightly damp soft cloth; avoid solvents, insect repellents
Safety	Do not expose to water, extreme temperatures (>60°C), battery non-removable
Repairability and spare parts	Spare parts available through Sony after-sales service; repair by authorized professional

Frequently Asked Questions - Cybershot DSC-TX55 SONY

How to charge the battery of the Sony DSC-TX55?

Use the supplied AC adapter AC-UB10/UB10B and USB cable. Plug the adapter into a wall outlet, then connect the camera via the cable. The orange indicator lights up during charging and turns off when complete (about 140 minutes). You can also charge via a computer's USB port.

Which memory card to use?

The camera accepts Memory Stick Micro (M2) and microSD/microSDHC (Class 4 or faster) cards. Insert it into the slot with the correct orientation until it clicks.

How to set the date and time?

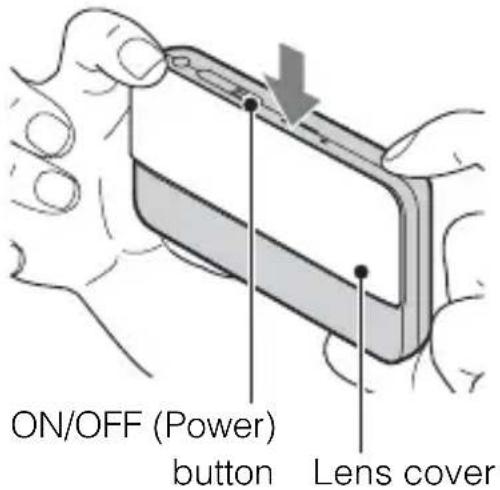

Turn on the camera by sliding the lens cover or pressing ON/OFF. Follow the on-screen instructions: select language, geographic area, set daylight saving time, format and date/time, then confirm.

What to do if the screen displays 'Charge error'?

Turn off the camera, remove and reinsert the battery. Check that the ambient temperature is between 10°C and 30°C. If the problem persists, use an authentic Sony charger and contact support.

How to take a photo in auto mode?

In normal mode, aim and press the shutter halfway to focus (beep + green indicator). Press fully to take the photo. Use the W/T lever to zoom out/in.

Can I use the camera while charging?

Yes, but only in playback mode. In shooting mode, power is not supplied via USB/adapter. For continuous recording, use a charged battery or AC adapter AC-UD10 (sold separately).

How to transfer photos to a computer?

Connect the camera to the computer using the supplied USB cable. The screen switches to connection mode. The computer recognizes the camera as a storage device. Copy files from internal memory or memory card.

What does the blinking power indicator mean?

An orange blinking indicates a charging error or pause due to overheating. Let the camera cool to room temperature (10-30°C) and recharge. If the problem persists, contact Sony.

How to clean the lens?

Use a slightly damp soft cloth (water only). Do not use solvents or chemicals. For the screen, the same cloth is suitable. Avoid touching the lens with fingers.

Where to find the complete user manual?

The supplied CD-ROM contains the Cyber-shot User Guide in HTML format. Insert it into a computer, click 'Install' (Windows) or copy the 'en' folder (Mac) and open index.html. You can also download the manual from Sony's website.

USER MANUAL Cybershot DSC-TX55 SONY

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. DSC-TX55

Serial No. ____

Model No. AC-UB10/UB10B

Serial No. ____

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ircC (140°F) such as in direct sunlight or in a car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

GB

IAC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

For Customers in the U.S.A. and Canada

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-TX55

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ICAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

GB

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Refer to “Cyber-shot User Guide” (HTML) on supplied CD-ROM

For details on advanced operations, please read “Cyber-shot User Guide” (HTML) on the CD-ROM (supplied) using a computer.

GB

Insert the CD-ROM into the CD-ROM drive.

For Windows users:

① Click [User Guide] → [Install].
②Start “User Guide” from the shortcut on the desktop.

For Macintosh users:

①Select the [User Guide] folder and copy [eng] folder stored in [User Guide] folder to your computer.
②After copying is complete, double-click “index.html” in [eng] folder.

Checking the supplied items

• Camera (1)
• Rechargeable battery pack NP-BN (1)
  (This rechargeable battery pack cannot be used with Cyber-shot that are supplied with the NP-BN1 battery pack.)
• Multi-use terminal USB cable (1)
  • AC Adaptor AC-UB10/UB10B (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Paint pen (1)
• Wrist strap (1)
• Tripod adaptor (1)
• CD-ROM (1)
  – Cyber-shot application software
• “Cyber-shot User Guide”
• Instruction Manual (this manual) (1)

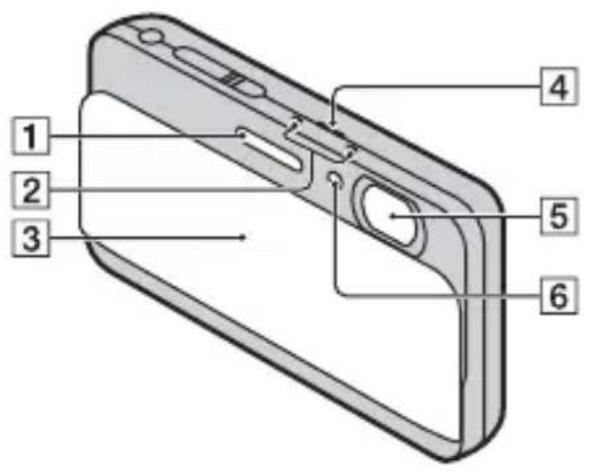

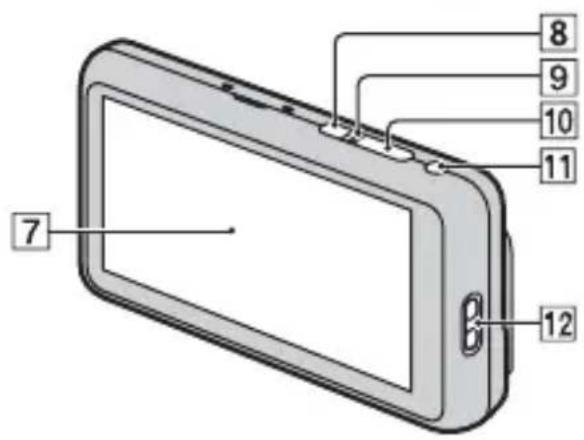

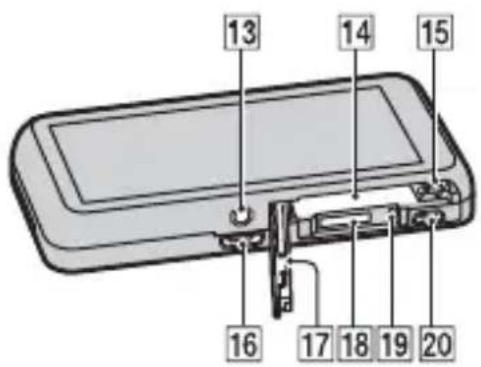

Identifying parts

1Flash
2 Microphone
3 Lens cover
4Speaker
5 Lens
6 Self-timer lamp/Smile Shutter lamp/AF illuminator
7 Screen/Touch panel
8ON/OFF (Power) button
9Power/Charge lamp
10 Shutter button
11 W/T (zoom) lever
12Hook for wrist strap
13Thread groove
14Battery insertion slot
15Battery eject lever
16 Multi connector (Type3b)
17Battery/Memory card cover
18 Memory card slot
19 Access lamp
20HDMI connector

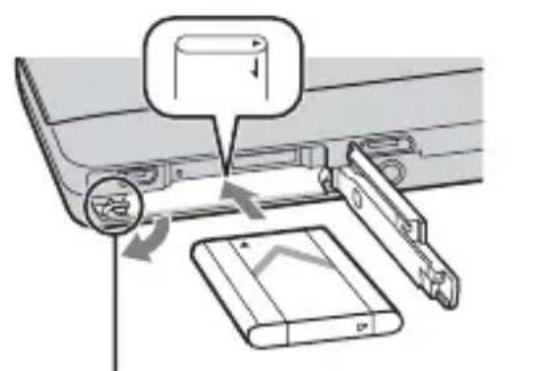

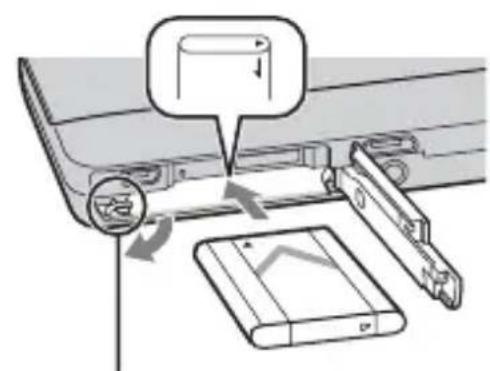

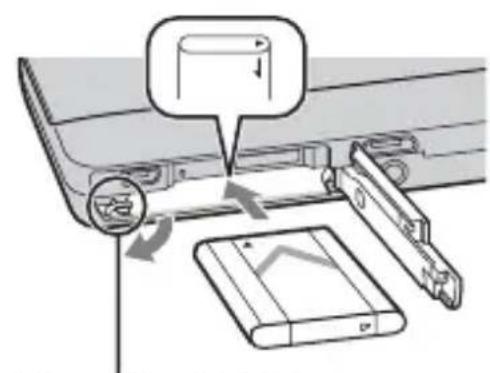

Inserting the battery pack

Battery eject lever

GB

1 Open the cover.

2 Insert the battery pack.

- While sliding the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.

- Closing the cover with the battery inserted incorrectly may damage the camera.

Charging the battery pack

For customers in the USA, Canada

Diagram of a device with an attached cable and connector, showing no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

For customers in countries/regions other than the USA and Canada

Power/Charge lamp Lit: Charging Off: Charging finished Flashing: Charging error Charging paused due to overheating

1 Connect the camera to the AC Adaptor (supplied), using the multi-use terminal USB cable (supplied).

2 Connect the AC Adaptor to the wall outlet (wall socket).

The Power/Charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

• If the Power/Charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10^ircC to 30^ircC ( 50^ircF to 86^ircF ).
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, multi-use terminal USB cable (supplied) and AC Adaptor (supplied).
• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN rechargeable battery pack supplied with this model. BC-TRN battery charger (sold separately) is not able to quick-charge the NP-BN rechargeable battery pack supplied with this model.

Charging time

The charging time is approximately 140 min. using the AC Adaptor (supplied).

Note

- The above charging time applies when charging a fully depleted battery pack at a temperature of 25^ircC (77°F). Charging may take longer depending on conditions of use and circumstances.

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a multi-use terminal USB cable.

GB

Note

- Note the following points when charging via a computer:

- If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.

- Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.

- No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images can be recorded and played back

	Battery life Number of images
Shooting (still images) Approx. 125 min. Approx. 250 images
Viewing (still images) Approx. 180 min. Approx. 3600 images
Shooting (movies) Approx. 60 min. —

Notes

- The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

- The number of images that can be recorded is for shooting under the following conditions:

- Using Sony microSD memory card (Class 4 or faster) (sold separately)

- The battery pack is used at an ambient temperature of 25^ircC (77°F).

- The number for “Shooting (still images)” is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

• [Panel Brightness] is set to [3].
• Shooting once every 30 seconds.
• The zoom is switched alternately between the W and T ends.
  – The flash strobes once every two times.
• The power turns on and off once every ten times.

- The battery life for movies applies shooting under the following conditions:

– Movie quality: AVC HD HQ
- When continuous shooting ends because of set limits (page 22), touch

(Movie button) again and continue shooting. Shooting functions such as the zoom do not operate.

Supplying power

The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor, using the multi-use terminal USB cable.

You can import images to a computer without worrying about draining the battery pack by connecting the camera to a computer using the multi-use terminal USB cable.

In addition, you can use the AC Adaptor AC-UD10 (sold separately) for shooting to supply power when shooting.

Notes

• Power cannot be supplied when the battery pack is not inserted in the camera.
• When the camera is connected directly to a computer or to a power outlet using the supplied AC Adaptor AC-UB10/UB10B, power supply is available only in playback mode. If the camera is in shooting mode or while you are changing the settings of the camera, power is not supplied even if you make a USB connection using the multi-use terminal USB cable.
• If you connect the camera and a computer using the multi-use terminal USB cable while the camera is in playback mode, the display on the camera will change from the playback screen to the USB connection screen. Touch (Playback) to switch to the playback screen.

Inserting a memory card (sold separately)

Make sure that the correct side is facing up.

GB

1 Open the cover.

2 Insert the memory card (sold separately).

"Memory Stick Micro" (M2) media: Insert the memory card until it clicks into place as shown (A).

microSD memory card: Insert the memory card until it clicks into place as shown (B).

- If the memory card is not inserted straight and in the correct direction, the camera cannot read the memory card and Internal Memory) is displayed.

- Only one memory card can be inserted.

3 Close the cover.

■ Memory cards that can be used

	Memory card For still images	For movies
A	Memory Stick Micro ○ —
	Memory Stick Micro (Mark2) ○		○
B	microSD memory card ○	○	(Class 4 or faster)
	microSDHC memory card ○	○	(Class 4 or faster)

- In this manual, products in A are collectively referred to as “Memory Stick Micro” media, and products in B are collectively referred to as microSD memory card.

■ To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Note

- Never remove the memory card/battery pack when the access lamp (page 8) is lit. This may cause damage to data in the memory card/internal memory.

Setting the clock

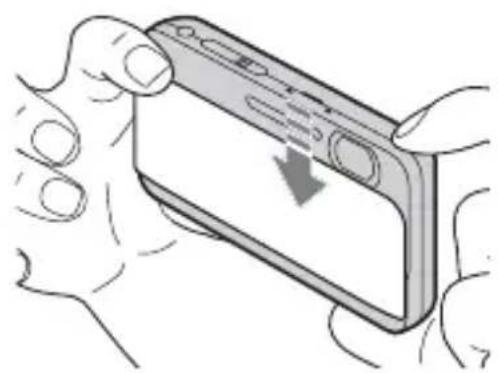

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

GB

1 Lower the lens cover.

The camera is turned on. The power lamp lights up green only when the camera starts up.

Date & Time setting is displayed when you turn on the camera for the first time.

• You can also turn on the camera by pressing the ON/OFF (Power) button.
• It may take time for the power to turn on and allow operation.

2 Select a desired language.

3 Select a desired geographic location by following the on-screen instructions, then touch [Next].

4 Set [Daylight Savings] or [Summer Time], [Date & Time Format] and [Date & Time], then touch [Next].

- Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

5 Touch [OK].

6 Select the desired display color, following the instructions on the screen, then touch [OK].

7 When an [In-Camera Guide] introductory message is appeared on the screen, touch [OK].

Shooting still images/movies

Blank white image with black and gray vertical borders and a small logo in the top-left corner (no text or symbols on the main area)

Shooting still images

1 Press the shutter button halfway down to focus.
When the image is in focus, a beep sounds and the ● indicator lights.
2 Press the shutter button fully down to shoot an image.

Shooting movies

1 Touch 📂 (Movie button) to start recording.

- Use the W/T (zoom) lever to change the zoom scale.

2 Touch 📊 (Movie button) to stop recording.

Notes

• The sound of the lever operating will be recorded when the zoom function operates while shooting a movie.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera's default settings and when the temperature is approximately 25^ircC (77°F). When movie recording is finished, you can restart recording by touching
  (Movie button) again. Recording may stop to protect the camera depending on the ambient temperature.

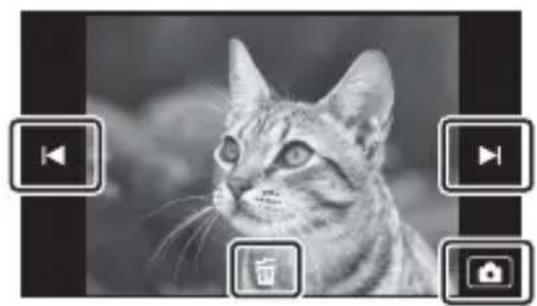

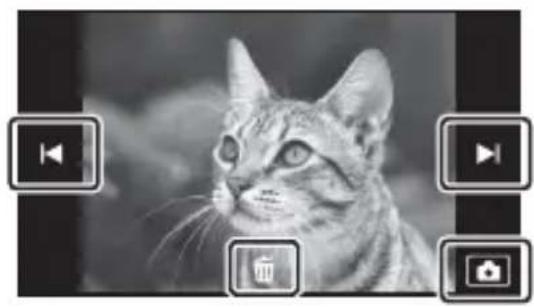

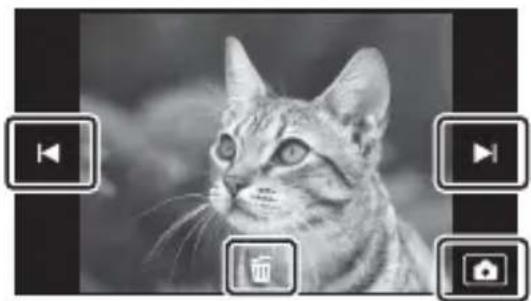

Viewing images

Blank white image with black vertical bars and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by play and media control buttons (no text or symbols on the cat or background)

GB

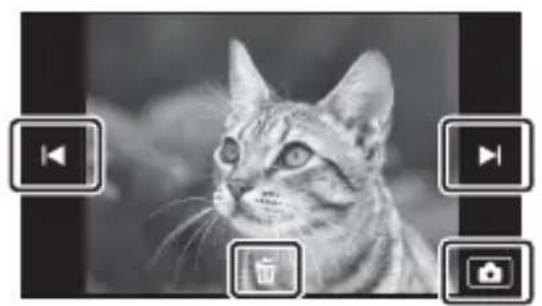

1 Touch ▶ (Playback).

- When images on a memory card recorded with other cameras are played back on this camera, the registration screen for the data file appears.

Selecting next/previous image

Touch ▶(Next)/ (Previous) on the screen.

• To play back movies, touch (Playback) in the center of the screen.
• To zoom in, touch the still image being played back.

■ Deleting an image

Touch 📋 (Delete) → [This Image].

■ Returning to shooting images

Touch on the screen.

- You can also return to shooting mode by pressing the shutter button halfway down.

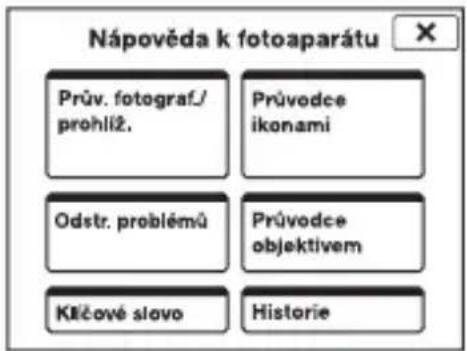

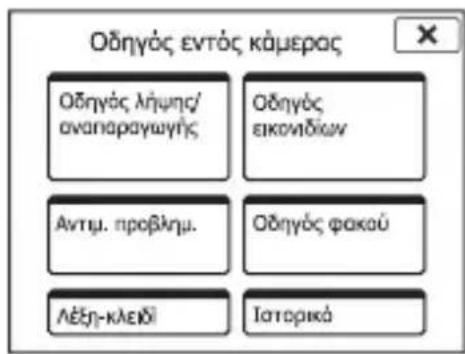

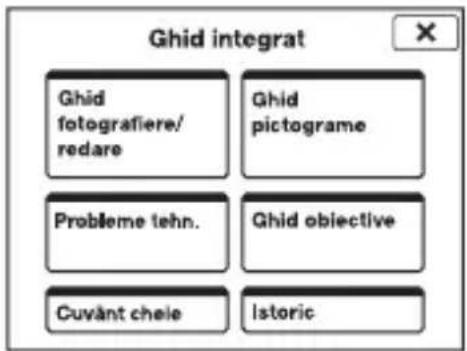

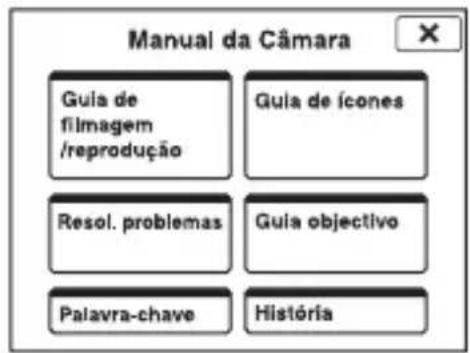

In-Camera Guide

This camera is equipped with built-in instruction guide. This allows you to search the camera's functions according to your needs.

Empty rectangular frame with black borders and a small question mark in the bottom-left corner (no text or symbols on the frame itself)

1 Touch ?(In-Camera Guide).

• The ?mark will appear on the bottom left of the screen while viewing.

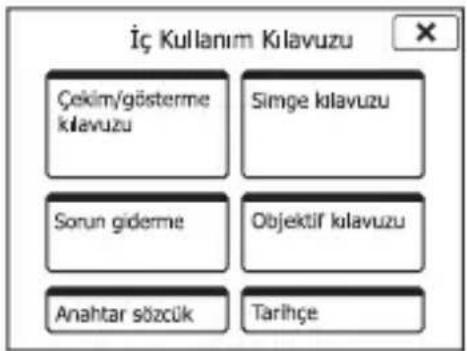

2 Select a search method from [In-Camera Guide].

Shoot/ playback guide: Search for various operation functions in shooting/viewing mode.

Icon guide: Search the function and meaning of displayed icons.

Troubleshooting: Search common problems and their solution.

Objective guide: Search functions according to your needs.

Keyword: Search functions by keywords.

History: View the last 10 items displayed in [In-Camera Guide].

Introduction of other functions

Other functions used when shooting or playing back can be operated touching the MENU on the screen. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, you can use various functions.

GB

Menu Items

Shooting

Movie shooting scene	Select movie recording mode.
Easy Mode Shoot still	images using minimal functions.
Movie button Shoots	movies from all shooting modes quickly.
Flash Sets the flash settings.
Self-Timer Sets the self-timer settings.
Defocus Effect	Set the level of background defocus effect when shooting in Background Defocus mode.
Still Image Size(Dual Rec)	Sets the still image size shot while recording a movie.
Still Image Size/ Panorama Image Size/Movie Quality/ Movie Size	Select the image size and the quality for still images, panoramic images or movie files.
Cont. Shooting Settings	Sets the burst shooting settings.
Macro Shoots beautiful close-up images of small subjects.
HDR Painting effect	When [HDR Painting] is selected in Picture Effect, sets the effect level.
Area of emphasis	When [Miniature] is selected in Picture Effect, sets the part to focus on.
Color hue	When [Toy camera] is selected in Picture Effect, sets the color hue.
Extracted Color	When [Partial Color] is selected in Picture Effect, selects the color to extract.
EV Adjust the exposure	manually.
ISO Adjust the luminous sensitivity.
White Balance Adjust	color tones of an image.
Focus Select the focus	method.
Metering Mode	Select the metering mode that sets which part of the subject to measure to determine the exposure.
Scene Recognition Set to automatically detect shooting conditions.
Soft Skin Effect Set the Soft Skin Effect and the effect level.
Smile Shutter	Set to automatically release the shutter when a smile is detected.
Smile Detection Sensitivity	Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection	Select to detect faces and adjust various settings automatically.
Anti Blink	Set to automatically shoot two images and select image in which the eyes are not blinking.
Movie SteadyShot Sets the strength of SteadyShot in movie mode.
In-Camera Guide Search the camera's functions according to your needs.

Viewing

Easy Mode Increase the text size on the screen for ease of use.
Date Select Selects the desired image to view by date.
Calendar Selects the date to be played back on Calendar.
Image Index Displays multiple images at the same time.
Slideshow Select a method of continuous playback.
Delete Delete an image.
Paint Paints on a still image and saves it as a new file.
Retouch Retouch an image using various effects.
3D Viewing Set to play back images shot in 3D mode on a 3D TV.
View Mode Select the display format for images.
Display Cont. Shooting Group	Select to display burst images in groups or display all images during playback.
Protect Protect the images.
Print (DPOF) Add a print order mark to a still image.
Rotate Rotate a still image to the left or right.
Volume Adjusts the volume.
Exposure data	Sets whether or not to display the shooting data (Exif data) of the currently displayed file on the screen.
Number of images in index	Sets the number of images displayed in the index screen.
In-Camera Guide Search the camera's functions according to your needs.

Setting items

If you touch the MENU while shooting or during playback, (Settings) is provided as a final selection. You can change the default settings on the (Settings) screen.

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog. Guide/Red Eye Reduction/Blink Alert/Write Date
Main Settings	Beep/Panel Brightness/Language Setting/Display color/ Demo Mode/Initialize/CTRL FOR HDMI/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/Power Save
Memory Card Tool*	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

* If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] can be selected.

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

(Units: Images)

Size\Capacity	Internal memory Memory card
	Approx. 19 MB 2 GB
16M 3 335
VGA 98 9600
16:9(12M) 3 355

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes. The maximum size of an MP4-format movie file is up to approximately 2 GB.

(h (hour), m (minute))

Size\Capacity	Internal memory Memory card
	Approx. 19 MB 2 GB
AVC HD 24M (FX) — 10 m		(10 m)
AVC HD 9M (HQ) — 25 m		(15 m)
MP4 12M — 15 m
MP4 3M —	1 h 10 m

The number in ( ) is the minimum recordable time.

- The recordable time of movies varies because the camera is equipped with VBR (Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

- This manual describes the functions of 1080 60i-compatible and 1080 50i-compatible devices.

To check whether your camera is a 1080 60i-compatible device or a 1080 50i-compatible device, check for the following marks on the bottom of the camera.

1080 60i-compatible device: 60i

1080 50i-compatible device: 50i

- Do not watch 3D images shot with this camera for extended periods of time on 3D-compliant monitors.

- When you view 3D images shot with this camera on a 3D-compliant monitors, you may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent these symptoms, we recommend that you take regular breaks. However, you need to determine for yourself the length and frequency of breaks you require, as they vary according to the individual. If you experience any type of discomfort, stop viewing the 3D images until you feel better, and consult a physician as necessary. Also refer to the operating instructions supplied with the device or software you have connected or are using with this camera. Note that a child's eyesight is still at the development stage (particularly children below the age of 6).

Consult a pediatrician or ophthalmologist before letting your child view 3D images, and make sure he/she observes the above precautions when viewing such images.

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

- Before you start recording, make a trial recording to make sure that the camera is working correctly.

- The camera is neither dust-proof, nor splash-proof, nor water-proof.

- Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.

- Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.

- If moisture condensation occurs, remove it before using the camera.

- Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place
  In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Under direct sunlight or near a heater
  The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places
  Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

Carl Zeiss lens

The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany.

Note on the screen and lens

The screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.

A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

On charging the battery

If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.

This is due to the battery characteristics, and is not a malfunction. Charge the battery again.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

- Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Specifications

Camera

[System]

Image device: 7.77 mm (1/2.3 type) Exmor R CMOS sensor

Total pixel number of camera: Approx. 16.8 Megapixels

Effective pixel number of camera: Approx. 16.2 Megapixels

Lens: Carl Zeiss Vario-Tessar 5× zoom lens

f = 4.7 mm - 23.5 mm (26 mm -

130 mm (35 mm film equivalent))

F3.5 (W) - F4.8 (T)

While shooting movies (16:9):

28 mm - 140 mm*

While shooting movies (4:3):

35 mm - 175 mm*

* When [Movie SteadyShot] is set to [Standard]

SteadyShot: Optical

Exposure control: Automatic exposure, Scene Selection (15 modes)

White balance: Auto, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash, One Push

Signal format:

For 1080 50i: PAL color, CCIR

standards HDTV 1080/50i

specification

For 1080 60i: NTSC color, EIA

standards HDTV 1080/60i

specification

File format:

Still images: JPEG (DCF Ver. 2.0,

Exif Ver. 2.3, MPF Baseline)

compliant, DPOF compatible

3D still images: MPO (MPF

Extended (Disparity Image)) compliant

Movies (AVCHD format):

AVCHD

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch,

equipped with Dolby Digital Stereo Creator

• Manufactured under license from Dolby Laboratories.

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: Internal Memory

(Approx. 19 MB), "Memory Stick

Micro” media, microSD memory cards

Flash: Flash range (ISO speed

(Recommended Exposure Index) set to Auto):

Approx. 0.08 m to 3.7 m

(3 1/4 inches to 12 ft 1 3/4 inches) (W)

Approx. 0.6 m to 2.6 m

(1 ft 11 5/8 inches to 8 ft

6 3/8 inches) (T)

[Input and Output connectors]

HDMI connector: HDMI micro jack

Multi connector: Type3b

(AV-out/USB/DC-in):

Video output

Audio output (Stereo)

USB communication

USB communication: Hi-Speed USB

(USB 2.0)

[Screen]

OLED:

Wide (16:9), 8.3 cm (3.3 type) TFT drive

Total number of dots:

1 229 760 dots equivalent

[Power, general]

Power: Rechargeable battery pack NP-BN, 3.6 V

AC Adaptor AC-UB10/UB10B, 5 V

Power consumption (during shooting): Approx. 1.0 W

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20^ircC to +60^ircC (-4^ircF to +140^ircF)

Dimensions (CIPA compliant):

92.9 mm × 54.4 mm × 13.2 mm (3 3/4 inches × 2 1/4 inches × 17/32 inches) (W/H/D)

Mass (CIPA compliant) (including NP-BN battery pack, “Memory Stick Micro” media):

Approx. 109 g (3.8 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC Adaptor AC-UB10/UB10B

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0^irc C to 40^irc C ( 32^irc F to 104^irc F)

Storage temperature: -20\ ^ircC to +60\ ^ircC (-4\ ^ircF to +140\ ^ircF)

Dimensions:

Approx. 50 mm × 22 mm × 54 mm (2 inches × 7/8 inches × 2 1/4 inches) (W/H/D)

Mass:

For the USA and Canada:

Approx. 48 g (1.7 oz)

For countries or regions other than the USA and Canada:

Approx. 43 g (1.5 oz)

Rechargeable battery pack NP-BN

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 0.9 A

Capacity:

typical: 2.3 Wh (630 mAh)

minimum: 2.2 Wh (600 mAh)

Design and specifications are subject to change without notice.

Trademarks

• The following marks are trademarks of Sony Corporation.

Cyber-shot, "Cyber-shot," "Memory Stick Micro"

• Windows is registered trademark of Microsoft Corporation in the United States and/or other countries.

• Macintosh is registered trademark of Apple Inc.

- microSDHC logo is a trademark of SD-3C, LLC.

- “” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc.

- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks are not used in all cases in this manual.

Works with PlayStation®3

- Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available.)

- The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas where the PlayStation Store is available.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

GB

Français

Aide-mémoire

Responsible : Sony Electronics Inc.

Adresse : 16530 Via Esprillo, San Diego, CA 92127 É.-U.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Remarque

(CIPA : Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a cable, showing a cable being inserted (no text or symbols present)

Touche ON/OFF (Alimentation)

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Capuchon d'objectif

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

FR

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

1 Touchez ▶ (Lecture).

(h (heures), m (minutes))

Taille\Capacité	Mémoire interne Carte mémoire
	Environ 19 Mo 2 G o
AVC HD 24M (FX) — 10 m		(10 m)
AVC HD 9M (HQ) — 25 m		(15 m)
MP4 12M — 15 m
MP4 3M	—	1 h 10 m

Batterie rechargeable NP-BN

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Nota

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Blank white image with black and white vertical borders and a small logo in the top-left corner (no readable text or symbols)

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Circa 50 mm × 22 mm × 54 mm

(L/A/P)

Peso:

Cyber-shot, "Cyber-shot", "Memory Stick Micro"

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Nota

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a cable being inserted (no text or symbols visible)

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

Tapa del objetivo

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black and white photo of a tabby cat with blurred background, surrounded by video control buttons (no text or symbols on the cat's face)

Cyber-shot, "Cyber-shot," "Memory Stick Micro"

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Nota

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the corner (no text or symbols)

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Akku-Äuswurfhebel

Hinweis

(CIPA: Camera & Imaging Products Association)

Illustration of a document being inserted into a machine (no text or symbols visible)

„Memory Stick Micro“

Simple line drawing of a printer or printer with an arrow pointing to it (no text or symbols)

microSD- Speicherkarte

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

DE

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the corner (no text or symbols)

Standards HDTV 1080/60i-

Spezifikation

Dateiformat:

Standbilder: JPEG (DCF Ver. 2.0,

Exif Ver. 2.3, MPF Baseline)-

konform, DPOF-kompatibel

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Accu-uitwerphendel

1 Open het deksel.

NL

2 Steek de accu erin.

Opmerking

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating compression or disassembly (no text or symbols present)

1 Duw de lensafdekking omlaag.

Blank white image with black and white vertical borders and a small circular logo in the top-left corner (no text or symbols on the main area)

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the bottom-left corner (no text or symbols on the frame itself)

Works with PlayStation3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Uwaga

(CIPA: Camera & Imaging Products Association)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Wykonywanie zdjęć

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

1 Dotknij ▶ (Odtwarzanie).

Empty rectangular frame with black borders and a small question mark in the corner (no text or symbols)

(MPF Extended (Disparity Image))

Filmy (Format AVCHD):

AVCHD

Wideo: MPEG-4 AVC/H.264

Works with PlayStation3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Poznámka

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with camera and play button icons (no text or symbols on the cat's face)

Blank white image with black border and a small question mark in the corner (no text or symbols)

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Megjegyzés

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

Blank white image with black and white borders and a small circular logo in the top-left corner (no text or symbols on the main area)

Fényképezéskor

Blank white image with black vertical bars and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the corner (no text or symbols)

Works with PlayStation3

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Poznámka

(CIPA: Camera & Imaging Products Association)

– [Panel Brightness] je nastavené na [3].
– Snímanie každých 30 sekúnd.
– Zoom sa striedavo prepína medzi koncovými hodnotami W a T.
– Blesk blysne pri každom druhom zábere.
– Napájanie sa vypína a zapína po každom desiatom zábere.

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

1 Posuňte kryt objektívu nadol.

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with blurred background, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty white rectangle with black border and a small question mark in the corner (no text or symbols)

1 Dotknite sa ?(In-Camera Guide).

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog. Guide/Red Eye Reduction/Blink Alert/Write Date
Main Settings	Beep/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/CTRL FOR HDMI/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/Power Save
Memory Card Tool*	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

Works with PlayStation®3

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Batteriutmatningsknapp

1 Öppna locket.

2 Sätt i batteripaketet.

Observera

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black and white photo of a tabby cat with blurred background, surrounded by video playback buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the bottom-left corner (no text or symbols beyond the icon)

Cyber-shot, "Cyber-shot", "Memory Stick Micro"

Works with PlayStation®3

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Akun poistovipu

1 Avaa kansi.

Huomaa

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a cable and a pull-up arrow (no text or symbols)

ON/OFF (virta) - painike

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

Objektiivinsuojus

Kuvaus (valokuvat)

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with camera feed icons in the corner (no text or symbols on the cat's face)

1 Kosketa ▶ (toisto).

Works with PlayStation3

I Vekselstrømadapter

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Dette symbolet på batteriet eller på forpakningen betyr at batteriet ikke skal behandles som vanlig husholdningsavfall.

Batteriutkaster

1 Åpne dekselet.

2 Sett inn batteriet.

Merk

(CIPA: Camera & Imaging Products Association)

Illustration of a hand holding a smartphone with a downward arrow indicating action (no text or symbols present)

1 Senk linsedekslet.

Blank white image with black and white borders and a small circular logo in the top-left corner (no text or symbols on the main area)

Ta stillbilder

Blank white rectangular frame with black borders and a small play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible camera control buttons (no text or symbols on the cat's face)

Empty rectangular frame with black borders and a small question mark in the bottom-left corner (no text or symbols on the frame itself)

(h (time), m (minutt))

KapasitetStørrelse	Internminne Minnekort
	Ca. 19 MB 2 GB
AVC HD 24M (FX) — 10 m		(10 m)
AVC HD 9M (HQ) — 25 m		(15 m)
MP4 12M — 15 m
MP4 3M — 1 h 10 m

Vekselstrømadapter AC-UB10/UB10B, 5 V

Works with PlayStation3

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Bemærk

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

1 Tryk objektivdækslet nedad.

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols on the cat's face)

1 Berør ▶ (Afspil).

Empty rectangular frame with black borders and a small question mark in the corner (no text or symbols)

(h (timer), m (minutter))

Størrelse\Kapacitet	Intern hukommelse Hukommelseskort
	Ca. 19 MB 2 GB
AVC HD 24M (FX) — 10 m		(10 m)
AVC HD 9M (HQ) — 25 m		(15 m)
MP4 12M — 15 m
MP4 3M —	1 h 10 m

Cyber-shot, "Cyber-shot", "Memory Stick Micro"

Works with PlayStation®3

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Ova oznaka na bateriji ili na ambalaži označava da se baterija ne smije zbrinjavati kao ostali kućni otpad.

Na nekim baterijama se uz ovaj simbol može nalaziti kemijski simbol. Kemijski simboli za živu (Hg) ili olovo (Pb) dodaju se ako baterija sadrži više od 0,0005% žive ili 0,004% olova.

Polugica za vađenje baterije

1 Otvorite poklopac.

2 Umetnite baterijsku jedinicu.

• Dok gurate polugu za vađenje baterije, umetnite baterijsku jedinicu kako je prikazano. Osigurajte da se poluga za vađenje baterije nakon umetanja zaključa.
• Zatvaranjem poklopca kad je baterija nepravilno umetnuta možete oštetiti fotoaparat.

HR

Punjenje baterijske jedinice

HR

Napomena

(CIPA: Camera & Imaging Products Association)

Blank white image with black and gray vertical borders and a small logo in the top-left corner (no text or symbols on the main area)

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

1 Dodirnite ▶ (reprodukcija).

- Kad se slike na memorijskoj kartici snimljene s drugim fotoaparatima reproduciraju na ovom fotoaparatu, pojavljuje se registracijski zaslon za podatkovnu datoteku.

Odabir sljedeće/prethodne slike

Dodirnite ▶(sljedeće)/ (præthodno) na zaslonu.

• Za reprodukciju filmova dodirnite (Reprodukcija) u sredini zaslona.
• Za zumiranje, dodirnite fotografiju koja se prikazuje.

Brisanje slike

Dodirnite ☐ (Brisanje) → [Ova slika].

Empty rectangular frame with black borders and a small question mark in the bottom-left corner (no text or symbols on the frame itself)

1 Dodirnite ?(Vodič kroz fotoaparat).

Works with PlayStations3

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Introducerea accumulatorilor

Observatie

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating action (no text or symbols present)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Realizarea de fotografii statice

Blank white rectangle with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, profile view, and control buttons (no text or symbols)

Blank white image with black border and a small question mark in the corner (no text or symbols)

1 Atingeti ?(Ghid integrat).

[26 mm - 130 mm (echivalent

film 35 mm)]

F3,5 (W) - F4,8 (T)

Filme (format AVCHD): AVCHD

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2 canale, include Dolby Digital Stereo Creator

Conector HDMI: Minimufă HDMI

(iesire AV / USB / intrare CC):

Ieşire video

Ieşire audio (stereo)

Comunicare USB

Comunicare USB: Hi-Speed USB (USB 2.0)

[Ecran]

OLED:

Lat (16:9), de 8,3 cm (tip 3,3), unitate TFT

Works with PlayStation®3

Symbol of a trash bin crossed with no signage or text (no readable text)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Pil çıkarma düğmesi

1 Kapağı açın.

2 Pili takın.

Not

(CIPA: Camera & Imaging Products Association)

Illustration of hands holding a smartphone with a downward arrow indicating compression (no text or symbols)

Blank white rectangle with black borders and a play button icon in the corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Blank white image with black border and a small question mark in the corner (no text or symbols)

(DCF Ver. 2.0, Exif Ver. 2.3,

Cyber-shot, "Cyber-shot", "Memory Stick Micro"

1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan

Türkiye İrtibat Numaraları: Tel: [phone] Faks: 0216-632 70 30 e-mail: [e-mail]

SONY YETKİLİ SERVİSLERİ

ADANA CENGİZ ELEKTRONİK (322) 2251587/ADIYAMAN STAR ELEKTRONİK (416) 2165383/ANKARA (Anıtepe) BİLGİLİ ELEKTRONİK (312) 2308382, (Mamak) FİLİZ ELEKTRONİK (312) 3689834, (Aydınkıevler) DUZOLLAR ELEKTRONİK (312) 3169852/ANTALYA NECMİ ELK.SAN.TİC. LTD. ŞTİ. (242) 3451374, EKEN ELEKTRONİK (242) 3124242, OLCAY ELEKTRONİK (242) 7467603, (Alanya) ERTUNÇ ELEKTRONİK (242) 5136314/BURSA UFO ELKT. MÜH. TİC. LTD. ŞTİ. (224) 2341192/BOLU ARDA ELEKTRONİK (374) 2155748/ÇANAKKALE GÜVEN ELEKTRONİK (286) 2173618/DENİZLİ MAVİ ELK. LTD. ŞTİ. (258) 2421749/DİYARBAKIR TELEVİZYON HASTANESİ (412) 2236869/ESKİŞEHİR GÖRGÜN ELEKTRONİK (222) 2265626/ERZURUM ELEKTRONAL TİC. (442) 2130528/GİRESUN ÖZEN ELEKTRONİK (454) 2168161/GAZİANTEP İBRAHİM SERİN (342) 2153545/HATAY ZEKİ ELEKTRONİK (326) 2210597/İÇEL SEDAFON ELK.S.T.LTD. ŞTİ. (324) 3227655/İSTANBUL (Moda) SENTEZ ELK.S.T.LTD. ŞTİ. (216) 4145250, (Kadıköy) ENDER ELEK.LTD. (216) 3468024, (Suadiye) MERCOM ELK.LTD.ŞTİ. (216) 3612858, (Göztepe) İTEM LTD. ŞTİ. (216) 5664888, (Üsküdar) BURCU ELEKTRONİK (216) 5536929, (Maslak) MODVİ ELK.SAN.TİC.LTD. (212) 2862270, (Şişli) VEBE ELK.SN.TC.LT.ŞTİ. (212) 2336778, (1.Levent) AVE ELEKTRONİK (212) 2823469, (Maçka) MEKEL ELEKTRONİK (212) 2604677, (Fatih) CİHAN ELK. SAN. TİC. LTD. ŞTİ. (212) 5317001, (Bakırköy) VİP VIDEO ELK. TİC. LTD. ŞTİ. (212) 5705868, (Bakırköy) MEST ELK.SAN.TİC.LTD (212) 5438242, (Beşiktaş) P.M. ELEKTRONİK LTD.ŞTİ. (212) 2275247, (Florya) AVC ELK. LTD. ŞTİ. (212) 5740426/İZMİR BÜLENT EROL (232) 4221225, (Hatay) ASİL2 EİLK.SR.T.LTD. ŞTİ. (232) 2288310, (Karşıyaka) TEKNİK TV.ELK.LTD. ŞTİ. (232) 3696175, (Güzelyalı) APEX ELEKTRONİK (232) 2464044/KARS ŞAHİN ELEKTRONİK (474) 2238732/KAYSERİ ÇAĞDAŞ ELEKTRONİK (352) 2̣̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̪̯̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄̄ MALATYA GÜRBÜZ ELEKTRONİK (422) 3250460/MARDİN (Nusaybin) ÇİFTSÜREN ELK. PAZ. LTD. (482) 4153592/MUĞLA (Marmaris) MTM SERVICE (252) 4126217/RiZE METE ELEKTRONİK (464) 2120078/SAKARYA İSMAİL SENOĞLU (264) 2714704/SAMSUN YALIM ELEKTRONİK (362) 2334883/SiIRT İSMET ELEKTRONİK (484) 2245724/SiVAS CAN ELEKTRONİK (346) 2230015/TRABZON LİDER ELEKTRONİK (462) 3232641/ZONGULDAK ÖZDEMİRLER TV. (372) 3167044

TR

İTHALATÇI FİRMA

SONY®

SONY EURASIA PAZARLAMA AS.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Παρατήρηση

(CIPA: Camera & Imaging Products Association)

Blank white image with black and white borders and a small icon in the top-left corner (no text or symbols)

Blank white image with black borders and a play button icon in the bottom-right corner (no text or symbols)

Black-and-white photo of a tabby cat with visible eye, surrounded by video and image control buttons (no text or symbols on the cat's face)

Empty white rectangle with black border and a small question mark in the corner (no text or symbols)

Works with PlayStation®3
