| Brand | DeWalt |
| Model | D51180 |
| Type | Pneumatic stapler/nailer |
| Operating pressure | 4.8 - 8.5 bar |
| Air consumption per stroke | 0.2 L (at 6.9 bar) |
| Work mode | Contact trip |
| Fastener type | Bulk (glued strips) |
| Fastener length | 19 - 89 mm |
| Max. head diameter | 10 mm |
| Weight | 1.2 kg |
| Sound pressure (LpA) | 92 dB(A) |
| Sound power (LwA) | 101 dB(A) |
| Vibration emission value | < 2.5 m/s² (uncertainty K = 1.5 m/s²) |
| Power supply | Compressed air (1/4" connector) |
| Intended use | Driving fasteners into wood |
| Daily maintenance | Cleaning, draining, lubrication (5-7 drops of oil) |
| Safety | Safety glasses and hearing protection required, do not use on ladder |
| Warranty | 1 year full + 30 days satisfaction + 1 year free maintenance |
| Operating temperature | In cold weather: preheat and lubricate; avoid direct heat |
| Recommended accessories | DeWalt pneumatic oil, original accessories |
Frequently Asked Questions - D51180 DEWALT
User questions about D51180 DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stapler in PDF format for free! Find your manual D51180 - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. D51180 by DEWALT.
USER MANUAL D51180 DEWALT
Belyder risiko for brand.
EF-overensstemmelseserklaering
MASKINDIREKTIV
D51180
DEWALT erklærer, at produkterne beskrevet under "tekniske data" er udformet i overensstemmelse med: 2006/42/EF, EN 792-13, EN 12549, ISO 8662-11.
D-65510, Idstein, Germany
31.12.2009
AblassenderKondensation

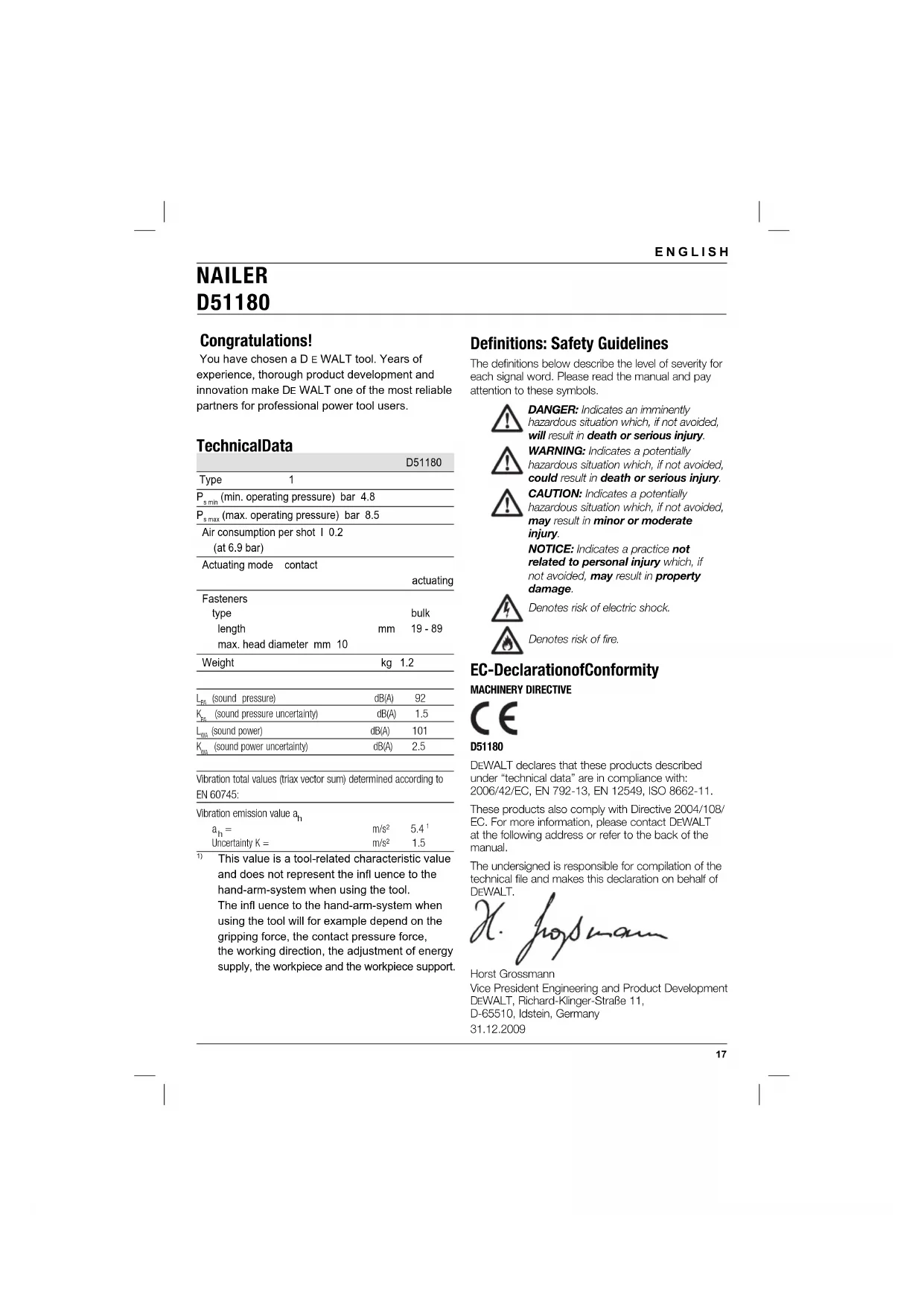

You have chosen a DE WALT tool. Years of experience, thorough product development and innovation make DE WALT one of the most reliable partners for professional power tool users.
TechnicalData
D51180
Type 1
Pmin(min. operating pressure) bar 4.8
P_smax (max. operating pressure) bar 8.5
Air consumption per shot 10.2 (at 6.9 bar)
Actuating mode contact
actuating
Fasteners
bulk
type bulk length mm 19-89
max. head diameter mm 10
Weight kg 1.2
L (sound pressure) dB(A) 92
K (sound pressure uncertainty) dB(A) 1.5
LA (sound power) dB(A) 101
K_ A (sound power uncertainty) dB(A) 2.5
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value a_h
a_h = m/s² 5.4 Uncertainty K= m/s² 1.5
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool. The influence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure force, the working direction, the adjustment of energy supply, the workpiece and the workpiece support.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently
hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially
hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially
hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
Denotes risk of electric shock.
Denotes risk of fire.
EC-DeclarationofConformity
MACHINERY DIRECTIVE
D51180
DEWALT declares that these products described under "technical data" are in compliance with: 2006/42/EC, EN 792-13, EN 12549, ISO 8662-11.
These products also comply with Directive 2004/108/ EC. For more information, please contact DEWALT at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.
Horst Grossmann
Vice President Engineering and Product Development DEWALT, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
31.12.2009
Safety Instructions
When using tools, always observe the safety regulations applicable in your country to reduce the risk of personal injury. Read the following safety instructions before attempting to operate this product.
Keep these instructions in a safe place!
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS
General
1. Keep work area clean.
Cluttered areas and benches can cause accidents.
2. Consider work area environment.
Do not expose tools to humidity. Keep work area well fit. Do not use tools in the presence of flammable liquids or gases.
3. Keep children away.
Do not let children or visitors come into contact with the tool. Supervision is required for those under 16 years of age.
4. Store idle tools.
When not in use, tools must be stored in a dry place and locked up securely, out of reach of children.
5. Dress properly.
Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip safety footwear. Wear protective hair covering to keep long hair out of the way.
6. Do not overreach.
Keep proper footing and balance at all times.
7. Stay alert.
Watch what you are doing. Use common sense. Do not operate the tool when you are tired.
8. Use appropriate tool.
The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.
WARNING! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.
9. Maintain tools with care.
Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep all controls dry, clean and free from oil and grease.
10. Check for damaged parts.
Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.
11. Have your tool repaired by an authorized DEWALT repair agent.
This tool is in accordance with the relevant safety regulations. To avoid danger, tools must only be repaired by qualified technicians.
Additional safety instructions for pneumatic tools
- Use quick-action couplings for connection to the compressed air system. The non-sealable nipple must be fitted to the tool in such a way that no compressed air remains in the tool after disconnection.
Always use clean, dry compressed air. Do not use oxygen or combustible gases as an energy source for this tool. - Only connect this tool to an air supply where the maximum allowable pressure of the tool cannot be exceeded by more than 10% . In case of higher pressures, a pressure reducing valve including a downstream safety valve shall be built into the compressed air supply.
- Only use hoses with a rating exceeding the maximum operating pressure of the tool.
- Before transporting the tool, disconnect it from the compressed air system, especially where ladders are used or where unusual physical posture is adopted while moving.
- Disconnect the tool from the air supply when it is not in use.
Additional safety instructions for fastener driving tools
- Before use check that the magnet in the nail guide is functioning properly. Do not use the tool if the magnet is defective.
Always wear safety glasses.
Always wear ear protection.
- Only use fasteners of the type specified in the manual.
- Do not use fasteners made of hardened steel (e.g. masonry nails) or fasteners which are non-magnetic.
- Do not use any stands for mounting the tool to a support.
- Do not use the equipment as a hammer.
- Never point any operational fastener driving tool at yourself or at any other person. Do not use the tool in applications requiring operation close to the body.
- While working, hold the tool in such a way that no injuries can be caused to the head or to the body in the event of a possible recoil due to a disruption in the energy supply or hard areas within the workpiece.
- Never actuate the fastener driving tool into free space.
- Do not attempt to drive fasteners into concrete, stone, hardwoods, knots or any material too hard for the fasteners to penetrate.
- Consider the conditions in the work area. Fasteners can penetrate thin workpieces or slip off corners and edges of the workpiece, and thus put people at risk.
- Do not drive fasteners close to the edge of the workpiece.
- Do not drive fasteners on top of other fasteners.
- Before putting the tool down, always check that there is no fastener present in the nail guide.
WARNING! Use of this tool can generate and/or disburse dust, which may cause serious and permanent respiratory or other injury. Wear adequate personal protective equipment.
Residual Risks
The following risks are inherent to the use of these machines:
Injuries caused by improper handling of the tool.
Loss of control due to not gripping tool firmly.
Muscle strain of arms and hands, especially when working overhead. Always take regular breaks when working for long periods of time.
Do not use the tool while you are tired or under influence of drugs, alcohol or medication. A moment of inattention while operating may result in serious personal injury.
- In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:
Impairment of hearing. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
Loss of control caused by recoil.
Risk of injury caused by pinch points, sharp edges and improper handling of workpiece.
Risk of injury caused by sharp edges when changing nails or inserting nail sticks.
Discomfort to hand and arms. Vibration caused by the operating action of this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra cushion, take frequent rest periods and limit daily time of use.
The following pictograms are shown on the tool:
Pneumatic tool with safety yoke.
Do not use the tool on a ladder.
Wear ear protection.
Wear eye protection.
Read instruction manual before use.
Recommended minimum operating pressure.
Recommended maximum operating pressure.
Fastener diameter.
Fastener length.
ENGLISH
Tool weight.
DATE CODE POSITION (FIG. A)
The Date Code, which also includes the year of manufacture, is printed into the housing.
Example:
2010 XX XX
Year of Manufacture
Package contents
The package contains:
1 Nailer
1 Safety glasses
1 Instruction manual
1 Exploded drawing
- Check for damage to the tool, parts or accessories which may have occurred during transport.
Take the time to thoroughly read and understand this manual prior to operation.
Description (fi g. A)
Your nailer D51180 has been designed for driving fasteners into wooden workpieces.
1 Contact trip
2 Nail guide
3 Air fitting
ASSEMBLY AND ADJUSTMENT
Air fitting (fig. A)
These tools have a standard 1/4" pipe thread for the air fitting (3).
- Wrap the male end of the fitting with Teflon tape to prevent air leaks.
2.Screw the fitting into the end cap and tighten firmly.
Fitting the upholstery (fi g. B)
The upholstery (4) ensures a safe and comfortable grip of the tool in operation.
- Place the ring (5) over the nail guide (2) as shown.
- Draw the upholstery over the top of the housing.
-
Loop the strips (6) through the ring and click the press buttons in place.
-
Wrap the remaining strips around the tool and click the press buttons in place.
WARNING: Check that the upholstery is placed correctly over the tool. The ring has to be secured by the loops correctly.
OPERATION
Instructions for Use
WARNING:
Always observe the safety instructions and applicable regulations.
- Avoid longer lasting static muscle tension of hands and arms, e.g. during overhead work.
- Avoid long-lasting work processes and unbalanced load for the body without adequate breaks.
Proper Hand Position (fig. C)
WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.
Proper hand position requires holding the nailer in the palm of your hand, placing your index, middle and ring fingers behind the loop (7) at the back and your thumb and little finger in the loops (8) at the sides.
Preparing the tool (fig. A)
- Drain all condensation from the air compressor tanks and hoses.
- Lubricle the tool. See "Maintenance".
- Check that there are no objects inside the nail guide (2).
- Check if the contact trip (1) can move freely.
WARNING: Do not use the tool if the contact trip cannot move freely.
- Check that the pressure of the air supply is within the rated pressure range as stated in the technical data. Be sure that the maximum recommended operating pressure will not be exceeded more than 10% .
WARNING: Never use the tool below or above the rated operating pressure.
- Connect the air hose to the ftting on the tool.
- Check for audible leaks around valves and gaskets.
- Set the air pressure to the minimum required operating pressure for your application.
WARNING: Never use a tool that leaks or has damaged parts.
Cold weather operation
When operating tools at temperatures below freezing:
- Keep the tool as warm as possible before use.
- Disconnect the airline from the tool.
- Put 10 to 15 drops of D E WALT pneumatic tool oil (or winter-weight pneumatic oil containing ethylene glycol) into the air inlet.
- Set the air pressure to a maximum of 5.5 bar.
- Connect the air hose to the fitting on the tool.
- Actuate the tool 5 or 6 times into scrap lumber to lubricate the o-rings.
- Increase the air pressure to the normal operating level.
- Use the tool in the normal manner.
Hot weather operation
The tool should operate normally. Avoid the heat of direct sunlight to avoid damage to the bumpers, o-rings, and other rubber parts.
Actuating the tool (fi g. A & C)
- Hold the tool in the palm of your hand, as described under Proper Hand Position.
- Insert the head of the nail into the nail guide (2).
- Position the nail on the work surface, keeping the tool in the line of the driving direction.
- To actuate the tool, push the tool against the nail. The tool will drive the nail into the work surface until the contact trip (1) is fully depressed.
Optional Accessories
WARNING: Since accessories, other than those offered by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with this product.
Consult your dealer for further information on the appropriate accessories.
MAINTENANCE
Your DE WALT tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends on proper tool care and regular cleaning.
The following maintenance operations must be performed every day.
Cleaning
- Clean the nosepiece using compressed air.
- Clean the front end of the contact trip using pneumatic tool oil.
WARNING: Before cleaning, disconnect the tool from the air supply. Wear safety glasses and hand gloves during cleaning.
Draining
- Drain all condensation from the air compressor tanks and hoses.
Lubrication
- Insert 5 - 7 drops pneumatic tool oil into the air fitting on the end cap of the tool.
Checking
- Ensure that all fasteners on the tool are tight and undamaged.
- Tighten loose fasteners using the appropriate tool.
Protecting the Environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
DEWALT provides a facility for the collection and recycling of DeWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
GUARANTEE
DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
30 DAY NO RISK SATISFACTION GUARANTEE
If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.
- ONE YEAR FREE SERVICE CONTRACT
If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, you are entitled to one service free of charge. It will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.
- ONE YEAR FULL WARRANTY
If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or - at our discretion - replace the unit free of charge provided that:
The product has not been misused;
The product has been subject to fair wear and tear:
- Repairs have not been attempted by unauthorised persons;
Proof of purchase is produced;
The product is returned complete with all original components.
If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com.
MARTILLO CLAVADOR D51180
Enhorabuena!
Pression de service minimum recommanded.
L'emballage contient:
K (onzekerheitsfactor
geluidsdruk) dB(A) 1,5
Vice President Engineering and Product Development
VEILIGHEIDSWAARSCHUWINGEN
ENALLEINSTRUCTIES
Algemeen
has partes lateralis.
Preparacao da ferramenta (fi g. A)
Vice President Engineering and Product Development
DEWALT, Richard-Klinger-Strasse 11,
D-65510, Idstein, Germany
31.12.2009
