DCL060 - Flashlight DEWALT - Free user manual and instructions

Product type	Cordless work light
Brand	DEWALT
Model	DCL060
Power source	18 V Li-Ion battery
Compatible batteries	DCB180, DCB181, DCB182, DCB183, DCB184, DCB185
Compatible chargers	DCB105, DCB107, DCB112 (230 V)
Weight (tool only)	1.5 kg
Pivoting head	0° to 90°
Control	Rotary On/Off switch
Battery charge indicator	Yes (button e)
Battery protection	Electronic system against overload, overheating and deep discharge
Usage	Dry indoor, professional use
Protection class	Double insulation (charger)
Charging temperature	4 °C to 40 °C
Maintenance	Clean with damp cloth and mild soap; do not immerse
Recycling	Selective collection; do not dispose of with household waste

Frequently Asked Questions - DCL060 DEWALT

What type of battery does the DCL060 use?

The DCL060 uses an 18 V Li-Ion battery. Compatible packs are DCB180, DCB181, DCB182, DCB183, DCB184 and DCB185.

Can I use a non-DEWALT charger?

No, use only recommended DEWALT chargers (DCB105, DCB107, DCB112). Using another charger may damage the battery or cause a fire.

Can the lamp be used in the rain?

No, the lamp is not designed for outdoor or wet conditions. Protect it from rain and snow.

How do I know if the battery is charged?

Press the charge indicator button (e) to see the charge level indicated by three green LEDs. If no LED lights up, the battery is discharged.

What if the lamp does not turn on?

Check that the battery is fully inserted and charged. If the battery is empty, recharge it. Make sure the On/Off switch is turned to the operating position.

Can I look directly at the light source?

No, never look directly at the light. This can cause blurred vision and eye damage.

How do I clean the lamp?

Remove the battery before cleaning. Use a damp cloth with water and mild soap. Never immerse the lamp in liquid.

Does the lamp get hot during use?

Yes, the pivoting head becomes very hot. Do not touch it during or immediately after use. Risk of burns.

How do I know if the battery is defective?

If the charger indicates a problem (e.g., abnormal red flashing light), the battery may be defective. Take the charger and battery to an authorized repair center.

Can I repair the lamp myself?

No, the lamp contains no user-serviceable parts. For any repair, take the tool to an authorized DEWALT service center.

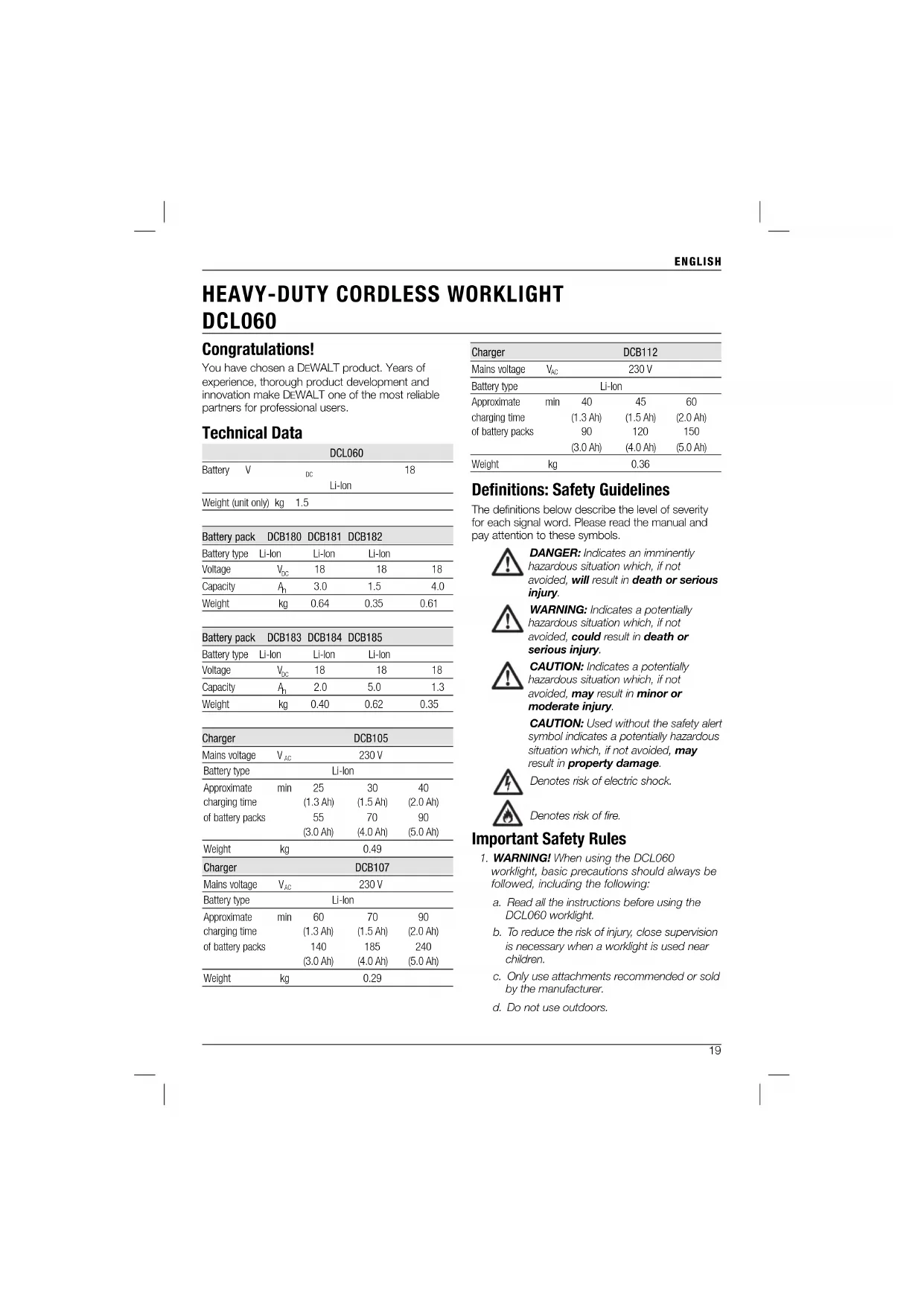

USER MANUAL DCL060 DEWALT

You have chosen a DEWALT product. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional users.

Technical Data

DCLO60
Battery V	DC	18
	LI-Ion
Weight (unit only) kg	1.5

Battery pack	DCB180	DCB181	DCB182
Battery type	Li-Ion	Li-Ion	Li-Ion
Voltage	Voc	18	18	18
Capacity	Ah	3.0	1.5	4.0
Weight	kg	0.64	0.35	0.61
Battery pack	DCB183	DCB184	DCB185
Battery type	Li-Ion	Li-Ion	Li-Ion
Voltage	Voc	18	18	18
Capacity	Ah	2.0	5.0	1.3
Weight	kg	0.40	0.62	0.35

Charger		DCB105
Mains voltage	VAC	230 V
Battery type	Li-Ion
Approximate charging time	min	25	30	40
		(1.3 Ah)	(1.5 Ah)	(2.0 Ah)
of battery packs	55	70	90
	(3.0 Ah)	(4.0 Ah)	(5.0 Ah)
Weight	kg	0.49
Charger		DCB107
Mains voltage	VAC	230 V
Battery type	Li-Ion
Approximate charging time	min	60	70	90
		(1.3 Ah)	(1.5 Ah)	(2.0 Ah)
of battery packs	140	185	240
	(3.0 Ah)	(4.0 Ah)	(5.0 Ah)
Weight	kg	0.29

Charger		DCB112
Mains voltage	VAC	230 V
Battery type	Li-Ion
Approximate charging time of battery packs	min	40(1.3 Ah)	45(1.5 Ah)	60(2.0 Ah)
		90(3.0 Ah)	120(4.0 Ah)	150(5.0 Ah)
Weight	kg	0.36

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Important Safety Rules

1. WARNING! When using the DCL060 worklight, basic precautions should always be followed, including the following:

a. Read all the instructions before using the DCL060 worklight.
b. To reduce the risk of injury, close supervision is necessary when a worklight is used near children.
c. Only use attachments recommended or sold by the manufacturer.
d. Do not use outdoors.

ENGLISH

e. To reduce the risk of electrical shock, do not put worklight in water or other liquid. Do not place or store worklight where it can fall or be pulled into a tub or sink.
f. Use only the charger supplied by the manufacturer.

Safety Rules for Worklights

WARNING: Fire hazard. Do not operate worklight near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.

• Vision may be impaired when looking directly into light.
• Do not expose light to wet or damp areas. Use only in dry locations. Do not allow any liquid to get inside worklight. Do not submerge worklight in any liquid.
  The worklight is intended for household and commercial use.
• Before using battery, read all instructions and cautionary markings on battery pack, and product using battery pack.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

WARNING: Shock hazard. Do not allow any liquid to get inside worklight. Electric shock may result.

• Do not expose worklight to rain or snow.
• Use only a proper extension cord that is necessary to operate the charger. Use of an improper extension cord could result in risk of fire, electric shock or electrocution.
• Place the worklight in a position away from any heat source.
• Do not place any object on top of worklight or place the worklight on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the worklight in a position away from any heat source.
• Do not operate the worklight if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.

Do not disassemble worklight. Take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
- Remove the battery before attempting to clean the worklight.
- The DCL060 operates on direct current (DC) through a fully charged 18V battery pack. Do not use any other voltage.

Residual Risks

The following risks are inherent to the use of this appliance:
- impaired vision when looking directly into light
- burns from touching a hot surface

Labels on Worklight

The following pictograms are shown on the worklight:

Read instruction manual before use.

Hot surface. Risk of bums. Do not touch.

Do not stare at light source.

Do not use near fire.

DATE CODE POSITION

The Date Code, which also includes the year of manufacture, is printed into the housing surface. Example:

2014 XX XX

Year of Manufacture

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for the DCB105, DCB107 and DCB112 battery chargers.

• Before using the charger, read all instructions and cautionary markings on charger, battery pack and product using the battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.

CAUTION: Burn hazard. To reduce

the risk of injury, charge only DEWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

NOTICE: Under certain conditions, with the charger plugged in to the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose charger to rain or snow.
- Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
- Make sure that cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- Do not block the ventilation slots on the charger. The ventilation slots are located on the top and sides of the charger. Place the charger in a position away from any heat source.
- Do not operate charger with damaged cord or plug. In case of damaged power supply cord the supply cord must be replaced immediately

by the manufacturer, its service agent or similar qualified person to prevent any hazard.

• Do not operate charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorised service centre.
• Do not disassemble the charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard 230 V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

SAVE THESE INSTRUCTIONS

Chargers

The DCB105, DCB107 and DCB112 chargers accept 10.8V, 14.4V and 18V XR Li-ion (DCB123, DCB125, DCB127, DCB140, DCB141, DCB142, DCB143, DCB144, DCB145, DCB180, DCB181, DCB182, DCB183, DCB184 and DCB185) battery packs.

These chargers require no adjustment and are designed to be as easy as possible to operate.

Charging Procedure (fi g. 2)

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Insert the battery pack into the charger, making sure the pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.
3. The completion of charge will be indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger.

NOTE: To ensure maximum performance and life of Li-ion batteries, charge the battery pack fully before first use.

Charging Process

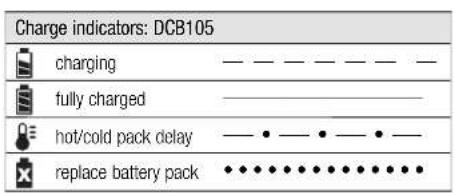

Refer to the table below for the charge status of the battery pack.

ENGLISH

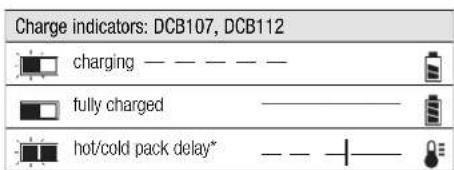

• DCB107, DCB112: The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.

The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light or by displaying problem pack or charger blink pattern.

NOTE: This could also mean a problem with a charger.

If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.

HOT/COLD PACK DELAY

When the charger detects a battery that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery life.

A cold battery pack will charge at about half the rate of a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery warms.

XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the Li-Ion battery on the charger until it is fully charged.

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include the catalogue number and voltage.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow the charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
• Never force the battery pack into charger. Do not modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.
• Charge the battery packs only in designated DEWALT chargers.
  DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ (105°F) (such as outside sheds or metal buildings in summer).
• For best results, make sure the battery pack is fully charged before use.

WARNING: Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert it into the charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to the service centre for recycling.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash the area with mild soap and water. If the battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

Transportation

DEWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria.

In most instances, shipping a DEWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous material. In general, the two instances that require shipping Class 9 are:

1. Air shipping more than two DEWALT lithium-ion battery packs when the package contains only battery packs (no tools), and
2. Any shipment containing a lithium-ion battery with an energy rating greater than 100 watt hours (Wh). All lithium-ion batteries have the watt hour rating marked on the pack.

Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentation requirements.

Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected

and well insulated from materials that could contact them and cause a short circuit.

The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer's responsibility to ensure that its activities comply with the applicable regulations.

Battery Pack

BATTERY TYPE

The DCL060 operates on an 18V XR Li-Ion battery pack.

The DCB180, DCB181, DCB182, DCB183, DCB184 and DCB185 battery packs may be used. Refer to Technical Data for more information.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

Read instruction manual before use.

See Technical Data for charging time.

Battery charging.

Battery charged.

Battery defective.

Hot/cold pack delay.

Do not probe with conductive objects.

ENGLISH

Do not charge damaged battery packs.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4^ and 40^ .

Only for indoor use.

Discard the battery pack with due care for the environment.

Charge DEWALT battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.

Do not incinerate the battery pack.

Package Contents

The package contains:

1 Worklight

1 Instruction manual

• Check for damage to the worklight, parts or accessories which may have occurred during transport.
  Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

IG: Never modify the power tool or any part of it. Damage or personal injury could result.

a. On/Off knob
b. Handle
c. Battery port
d. Pivoting head
e. Fuel gauge button

INTENDED USE

The DCL060 worklight is designed to be used as a light source.

The DCL060 worklight is a professional appliance. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Electrical Safety

The worklight has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DeWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.

VG: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1,5mm^2 the maximum length is 30~m

When using a cable reel, always unwind the cable completely.

WARNING: Operating equipment at low voltage can cause it to overheat. Using an excessively long extension cord can cause the cord to overheat.

OPERATION

Installing and Removing the Battery Pack

CAUTION: Make sure the lamp head is in the OFF position before inserting the battery to avoid injuring eyes.

NOTE: For best results, make sure your battery pack is fully charged.

To install the battery pack into the worklight, insert battery pack into battery port (c). Make sure the battery pack is fully seated.

To remove the battery pack from the worklight, press and hold the battery release button(s) on the battery pack and remove. To charge the pack, insert it into your DEWALT charger. DEWALT chargers are designed for specific batteries. For a list of compatible battery packs and chargers, refer to

Technical Data

FUEL GAUGE BATTERY PACKS (FIG.1)

Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack.

To actuate the fuel gauge, press and hold the fuel gauge button (e). A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Usage (Fig. 1)

1. Place the worklight on a stable, level surface resting on its rubber feet and position it as desired.
2. With one hand securely holding the handle (b), use the other hand to rotate the on/off knob (a) anti-clockwise to turn the worklight on. Turn the knob to angle the light to the desired position. The pivoting head (d) rotates between 0^ and 90^ .
3. When finished using the worklight, align the on/off knob notches to turn the worklight off.

WARNING: Burn hazard. Pivoting head becomes hot during use. Do not touch pivoting head when worklight is on or immediately after use.

WARNING: When the battery pack has completely discharged, the unit will immediately shut down. The worklight WILL NOT dim when battery pack is approaching full discharge. To reduce the risk of injury, always have a back-up battery or secondary lighting available if the situation warrants it.

Carrying the Worklight

When carrying the worklight with a battery installed, use one hand on the handle and one hand on the back of the unit, with the rubber feet pointing down toward the floor.

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

G: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

The charger and battery pack are not serviceable. There are no serviceable parts inside.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

G: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

ENGLISH

CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Rechargeable Battery Pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.

• Li-ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

LUZ DE TRABAJO INALÁMBRICA DE TRABAJODCLO60

Enhorabuena!

Suspension de charge.

Batterie rechargeable

HEAVY-DUTY ACCU WERKLAMP DCL060

Laadprocedure (afb.2)

VERMOGENMETER (AFB.1)

Ike had skadede batteripakker.

Ike utsett for vann.

NORSK

SLADDLOS ARBETSLAMPA DCL060

Gratular!
