DCL079 - Flashlight DEWALT - Free user manual and instructions
Find the device manual for free DCL079 DEWALT in PDF.
| Product Type | LED Tripod Light |
| Brand | DeWalt |
| Model | DCL079 |
| Power Source | FLEXVOLT™ Lithium-Ion Battery Pack or 20V Max* DeWalt |
| Compatible Voltage | 20V Max / 60V Max (depending on battery pack mode) |
| Battery Type | Rechargeable Lithium-Ion |
| Number of Light Modes | 3 (high, medium, low) |
| Low Battery Indicator | Flashes every 45 seconds then dims |
| Adjustable Height | Yes, via extension rods |
| Head Tilt | Pivoting |
| Intended Use | Lighting for home and commercial workspaces |
| Safety | Do not submerge, do not expose to rain, keep away from combustible materials |
| Maintenance | Clean with dry compressed air, no solvents |
| Recommended Accessories | DeWalt accessories sold separately |
| Warranty | 3-year limited, with 1-year free service contract |
| Repairability | Repairs by authorized DeWalt service center, charger and battery pack not repairable |
| Transport | Closed position with legs folded and head lowered |
| Approval | Complies with CAN ICES-3(B)/NMB-3(B), FCC Part 15 |
Frequently Asked Questions - DCL079 DEWALT
User questions about DCL079 DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flashlight in PDF format for free! Find your manual DCL079 - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DCL079 by DEWALT.
USER MANUAL DCL079 DEWALT

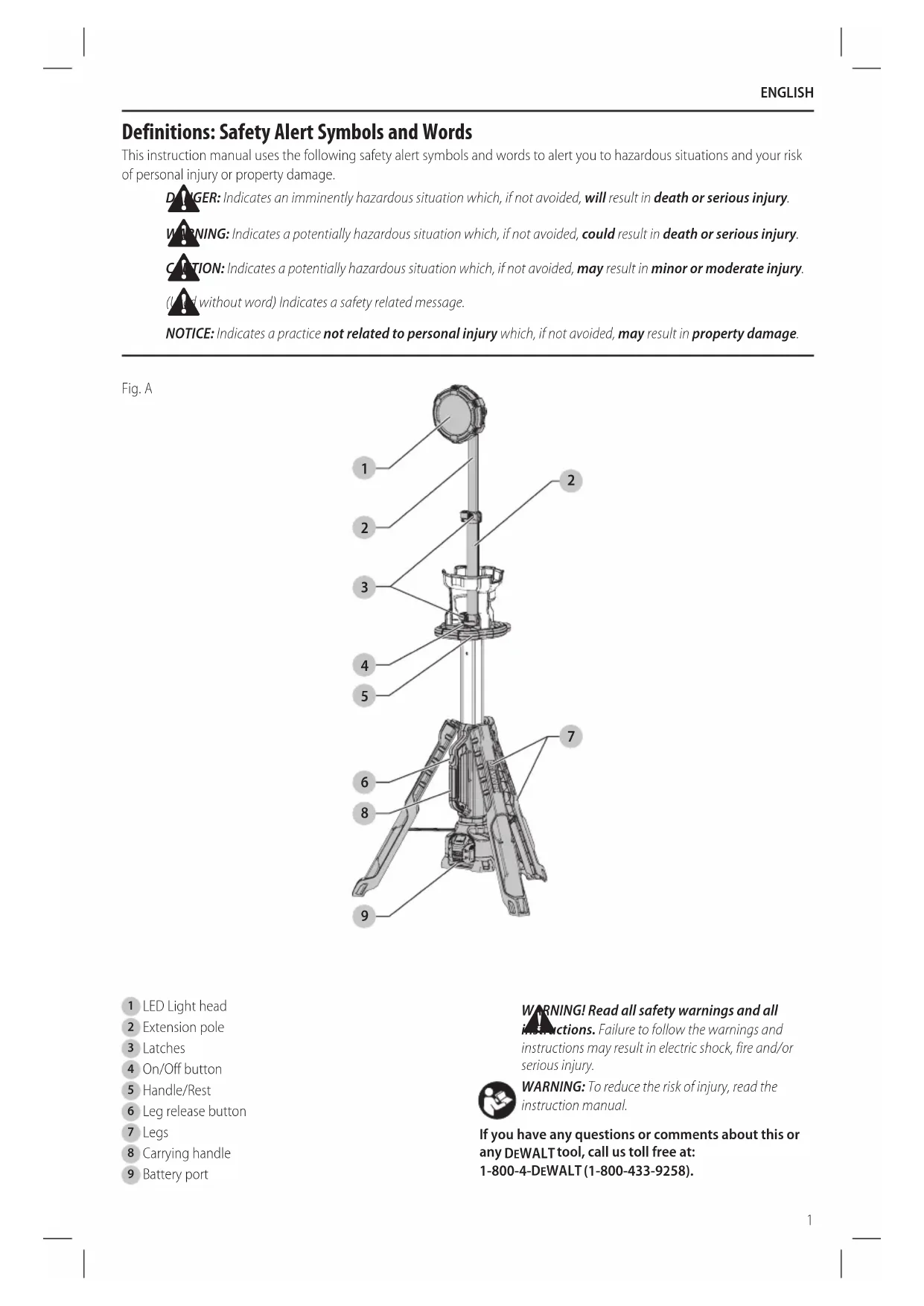

Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.
D. IGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WINDING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAITON: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

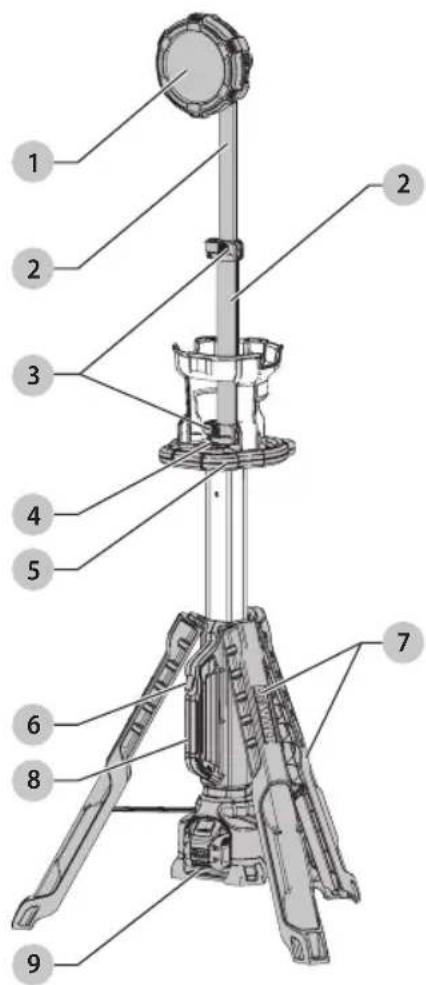

Fig. A
1 LED Light head
2 Extension pole
3 Latches
4 On/Off button
5 Handle/Rest
6 Leg release button
7 Legs
8 Carrying handle
9 Battery port
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.
If you have any questions or comments about this or any DEWALT tool, call us toll free at: 1-800-4-DEWALT (1-800-433-9258).
English
Important Safety Instructions
WARNING!
When using the tripod
light, basic precautions should always be followed, including the following:
a) Read all the instructions before using the tripod light.
b) To reduce the risk of injury, close supervision is necessary when a tripod light is used near children.
c) Avoid contact with hot parts.
d) Do not operate any tripod light after it has received a sharp blow, malfunctions or is dropped or damaged in any manner. Return tripod light to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
e) To reduce the risk of electrical shock, do not put tripod light in water or other liquid. Do not place or store tripod light where it can fall or be pulled into a tub or sink.
f) Only use attachments recommended or sold by the manufacturer.
g) Risk of electric shock. Do not expose to rain. Store indoors.
h) To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could occur.
SAVE THESE INSTRUCTIONS
Specific Safety Rules for Tripod Lights
WARNING: Fire hazard. Do not operate tripod light reflect flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.
- Do not submerge tripod light in any liquid.
- The tripod light is intended for commercial and household use.
- Before using battery and tripod light, read all instructions and cautionary markings on tripod light and battery pack.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Store the tripod light indoors when not in use. Keep out of reach of children.
- DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The tripod light and battery pack are specifically designed to work together.
- Place the tripod light away from any heat source.
- Do not disassemble tripod light. Take it to an authorized service center when service or repair is required. Incorrect
reassembly may result in a risk of electric shock, electrocution or fire.
- The DCL079 tripod light is designed to operate on fully charged DEWALT 20V Max or FLEXVOLT™ lithium-ion battery packs. Do not use any other voltage.
- While transporting, be sure the light head is collapsed to its lowest position, the extension poles are locked, and the tripod's legs collapsed and locked into their carrying position.
WARNING: To reduce the risk of fire, do not place anying on top of the lens during or after operation of the light.
WARNING: Do not place the tripod light in a position which may cause anyone to intentionally or unintentionally stare into the light head. Serious eye injury could result.
CAITION: Only use tripod light on stable surface. Raise above work space/personnel via lifting, hoisting, mounting, or suspension.
The label on your tripod light may include the following symbols. The symbols and their definitions are as follows:
V volts
Hz.....hertz
min.........minutes
- or DC....direct current
Class I Construction (grounded)
..min..per minute
BPMi... .beats per minute
IPM............impacts per minute
RPM revolutionsper minute
sfpm surface feet per minute
SPM.........strokes per minute
A. amperes
W.....watts
or AC....alternating current
or AC/DC....alternatingordirect current
Classll
Construction (double insulated)
n_0 .no load speed n..rated speed
...earthing terminal safety alert symbol
A.........visible radiation
...wearrespiratory protection .weareye
...wearhearing protection
readall documentation
hot surface on/off button
pinch/crushhazard
Important Safety Instructions for the Tripod Light
WARNING: Read all safety warnings and all instructions for the battery pack and tripod light. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
- The tripod light is intended for workspace lighting only. Use as directed. Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose the tripod light to rain or snow.
- When operating the tripod light outdoors, always provide a dry location.
CAUTION: When not in use, place tripod light side resting on the stand portion of the handle/rest 5 on a stable surface where it will not cause a tripping or falling hazard.
ENGLISH
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage. Your tool uses a DEWALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and battery packs.
READ ALL INSTRUCTIONS
Important Safety Instructions for All Battery Packs
WARNING: Read all safety warnings and all instructions for the battery pack, charger and tripod light. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.
- Charge the battery packs only in designated DEWALT chargers.
DO NOT splash or immerse in water or other liquids. - Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ (40^) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.
- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
- Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
WARNING: Burn hazard. Battery liquid may be infeasible if exposed to spark or flame.
WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger.
Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.
Transportation
WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.
Shipping the DEWALT FLEXVOLT™ Battery
The DEWALT FLEXVOLT™ battery has two modes: Use and Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is in a DEWALT 20V Max product, it will operate as a 20V Max battery. When the FLEXVOLT™ battery is in a 60V Max or a 120V Max (two 60V Max batteries) product, it will operate as a 60V Max battery.
Shipping Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically
disconnected within the pack resulting in three batteries with a lower Watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries.
The battery label indicates two Watt hour ratings (see example). Depending on how the battery is shipped, the appropriate Watt hour rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Watt hour rating indicated for "Shipping". If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to "Use".
Example of Use and Shipping Label Marking
USE: 120 Wh Shipping: 3 × 40 Wh
For example, Shipping Wh rating might indicate 3 × 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Wh rating might indicate 120 Wh (1 battery implied).
ENGLISH
Fuel Gauge Battery Packs (Fig. B)
Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack.
The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the following indicators:
75-100% charged
51-74% charged
< 50% charged
Pack needs to be charged
To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.
Fig. B
NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.
For more information regarding fuel gauge battery packs, please contact call 1-800-4-DEWALT (1-800-433-9258) or visit our website www.dewalt.com.
The RBRC Seal
The RBRC (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium ion batteries (or battery packs) indicates that the costs to recycle these batteries
(or battery packs) at the end of their useful life have already been paid by DEWALT. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle program provides an environmentally conscious alternative.
Call 2 Recycle, Inc., in cooperation with DEWALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized DEWALT service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC is a registered trademark of Call 2 Recycle, Inc.
Important Safety Instructions for All Battery Chargers
WARNING: Read all safety warnings and all instructions for the battery pack, charger and tripod light. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual.
The charger and battery pack are specifically designed to work together.
These chargers are not intended for any uses other than charging DEWALT rechargeable batteries.
Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose the charger to rain or snow.
- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.
| Minimum Gauge for Cord Sets | |||||
| Volts | Total Length of Cord in Feet(meters) | ||||
| 120 V 25 (7.6) | 50 (15.2) | 100 (30.5) | 150 (45.7) | ||
| 240 V 50 (15.2) | 100 (30.5) | 200 (61.0) | 300 (91.4) | ||
| Ampere Rating | American Wire Gauge | ||||
| More Than | Not More Than | ||||
| 06 18 16 16 14 | |||||
| 6 10 18 16 14 12 | |||||
| 10 12 16 16 14 12 | |||||
| 12 16 14 12 Not Recommended | |||||
- Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal
ENGLISH
heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
- Do not operate the charger with a damaged cord or plug.
- Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
- Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
- Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
NEVER attempt to connect 2 chargers together. - The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.
WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.
CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.
NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
Wireless Certifications and Safety Information
- This device is CAN ICES-3(B)/NMB-3(B) compliant.
-
This device complies with Part 15 of the FCC rules and Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:
-
This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and adaptor.
- Connect the equipment into an outlet on a circuit different from that to which the adaptor is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate the device. This Class B digital apparatus complies with Canadian ICES-003.
- Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
- To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna used for this device must not be co-located or operating in conjunction with any other antenna or transmitter.
For Bluetooth Products
- When traveling on airlines, be sure to comply with the airline restrictions on usage of personal electronic devices and Bluetooth®.
The out of range alert feature has been designed to act as an aid to warn against products getting misplaced or stolen. It is not a security system. - The connectivity range is up to 100 feet (30.5 meters) depending on environment and location.
- The shortwave radio frequency signals of a Bluetooth device may impair the operation of other electronic and medical devices (such as pacemakers or hearing aids).
NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DFWALT is under license. Other trademarks and trade names are those of their respective owners.
This product complies with these standards when operated with a 6 foot (1.8 meters) or shorter extension cord.

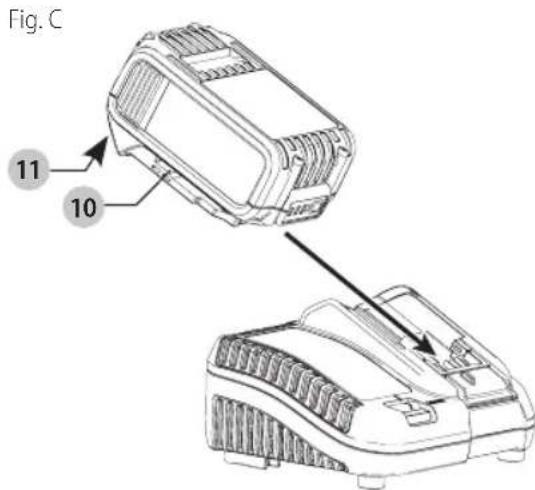

Charging a Battery (Fig. C)
- Plug the charger into an appropriate outlet before inserting battery pack.
ENGLISH
- Insert the battery pack 10 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.
- The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button 11 on the battery pack.
NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.
Charger Operation
Refer to the indicators below for the charge status of the battery pack.
| DCB107, DCB112, DCB113, DCB115, DCB118, DCB132 | |
| Charging | - - - - - - |
| Fully Charged | - - - - - - |
| Hot/Cold Pack Delay* | - - - - - - |
- DCB107, DCB112, DCB113, DCB115, DCB118, DCB132:
The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.
The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light or by displaying a problem pack or charger blink pattern.
NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorized service center.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.
A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.
The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled.
Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.
Wall Mounting
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28-0.35" (7-9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.
Important Charging Notes
- Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ and 75^ (18^ - 24^) . DO NOT charge the battery pack in an air temperature below +40^ (+4.5^) , or above +104^ (+40^) . This is important and will prevent serious damage to the battery pack.
- The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
- If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65^ - 75^(18^ - 24^)
d. If charging problems persist, take the tool, battery pack and charger to your local service center.
- The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
- Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
- Do not freeze or immerse the charger in water or any other liquid.
Storage Recommendations
- The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.
- For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.
NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
COMPONENTS (FIG. A)
WARNING: Never modify the tripod light or any part of the Damage or personal injury could result.
Refer to Figure A at the beginning of this manual for a complete list of components.
Intended Use
This tripod light is designed for commercial and household workspace lighting.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.
WARNING: Burn hazard. The lens and heatsink get wet not during use. To reduce the risk of burns and fire, do not touch and keep away from combustible materials while in operation.
Tripod Light Setup (Fig. A)
To set up your tripod light from its collapsed carrying position, hold the handle/rest 5 with one hand then use your other hand to hold the carrying handle 8. While pressing the leg release button 6, slide the carrying handle 8 down until the legs extend and lock into place.
Be sure the legs are fully extended and locked into position before extending the light head pole.

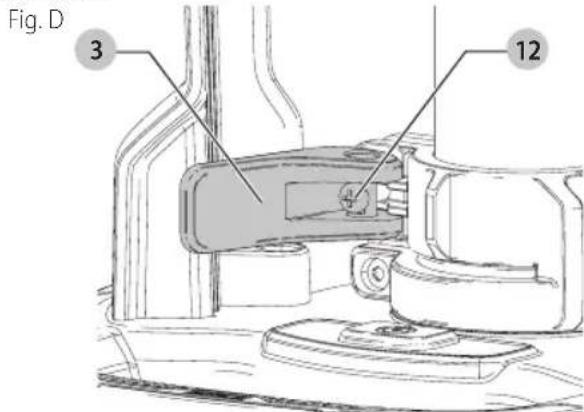

Extending the LED Light Head
(Fig. A, D, E)
The height of your tripod light can be adjusted by extending or collapsing the extension poles 2.
- Extend the legs 7 then secure/lock them into position (refer to Tripod Light Setup).
- Unfasten the top latch 3 and raise the head out of the housing. Extend the pole to the desired height.
- Fully close the top extension latch and make sure the extension pole is locked into place.
- For more height, unfasten the bottom latch and extend the head further to the required height.
- Fully fasten the bottom latch and make sure the extension pole is locked into place.
- Pivot the head to the desired angle.
NOTE: Over time, the latches may loosen. If this happens, open the latches 3 and hand-tighten the screws 12 (Fig. D). Do not over-tighten, as that could damage the latches.
NOTE: Over time, the light head may also loosen. If this happens, hand tighten the two light head screws 13 (Fig. E) located on the back of the light head 1. Fig. E
English
Collapsing and Carrying the Tripod Light (Fig. A)
CAUTION: Keep hands and fingers clear when using the light head back into the housing to avoid pinching of fingers and hands.
To collapse your tripod light into the carrying position, first collapse the extension poles 2 so the light head rests in the lowest position and is inside the housing. Lock the latches 3. Press the leg release button 6 and slide the carrying handle 8 up until the legs fold in completely.
CAITION: Keep hands clear of the legs as they can see to avoid pinching of fingers and hands.
Storing the Tripod Light
Store your tripod light either in its closed carrying position (refer to Collapsing and Carrying the Tripod Light) lying on its side on the handle/rest 5, or standing vertically with the legs extended and the light head fully collapsed into the base.
CAUTION: Do not store the light vertically when in the air. Position as it could tip over causing injury or damage to the light.
OPERATION
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

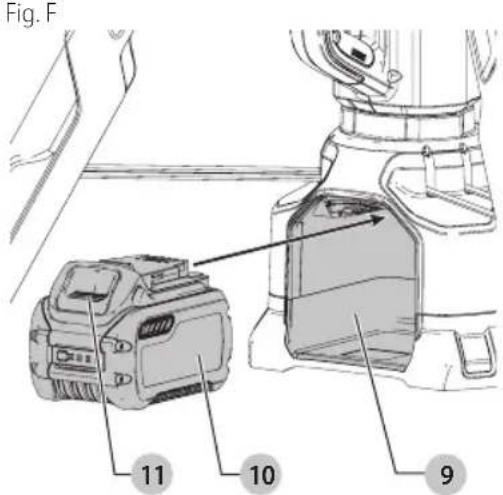

Installing and Removing the Battery Pack (Fig. F)
NOTE: For best results, make sure your battery pack is fully charged.
- To install the battery pack 10 into the tripod light, align the battery pack with the rails inside the tripod light's battery port 9 and slide it in until the battery pack is firmly seated. Ensure that it does not disengage.
- To remove the battery pack from the tripod light, press the release button 11 on the battery pack and firmly pull the battery pack out.
Usage (Fig. A, E)
WARNING: Burn hazard. The lens and heatsink get hot not during use. To reduce the risk of burns and fire, do not touch and keep away from combustible materials while in operation.
- Place the tripod light on a stable, level surface resting on its three extended legs.
- To turn the light on, press the power button 4. The light will turn on at the brightest setting. Pressing the power button a second time will change the light to middle brightness, and pressing it a third time will change the light to the lowest brightness. Pressing the power button a fourth time will turn the light off.
- Pivot the light head as needed using the light head's frame.
- When finished using the tripod light, press the power button until the light turns off.

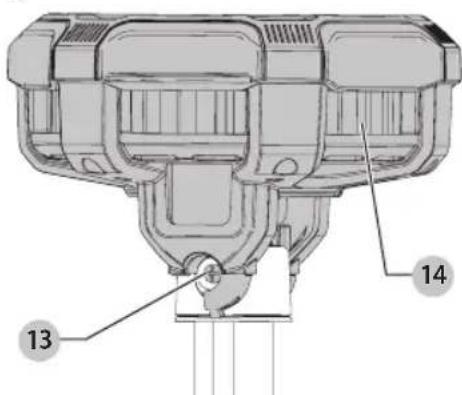

WARNING: Burn hazard. The light head's heatsink (Fig. E) becomes hot during use. Do not touch the heatsink when worklight is on or immediately after use, and keep away from combustible materials. Always pivot the head using only the head's frame.
Low Battery Indicator
As the battery nears a fully discharged state, the light will blink twice and then dim, dropping the brightness of the light below the normal level. The light will continue to blink twice every 45 seconds until the battery is fully discharged at which time the light will turn off. Indication time will vary based on battery pack capacity.
WARNING: Stop work and replace the battery when it occurs. To reduce the risk of injury, always have a back-up battery or secondary lighting available if the situation warrants it.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.
The light source contained in this light shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Cleaning
WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Accessories
WARNING: Since accessories, other than those used by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DFWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286, call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.
Repairs
The charger and battery pack are not serviceable.
WARNING: To assure product SAFETY and ABILITIES, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DEWALT factory service center or a DEWALT authorized service center. Always use identical replacement parts.
Register Online
Thank you for your purchase. Register your product now for:
- WARRAnTY sERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
- COnFiRMAtiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
Register online at www.dewalt.com/register.
Three Year Limited Warranty
DEWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DEWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.
In addition to the warranty, DEWALT tools are covered by our:
1 YEAR FREE sERVICE
DEWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.
2 YEARS FREE SERVICE ON DEWAIT BATTERY PACKS
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361
3 YEARS FREE SERVICE ON DEWAIT BATTERY PACKS
DCB200, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB606, DCB609
NOTE: Battery warranty voided if the battery pack is tampered with in any way. DEWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.
90 DAY MOnEy BACK gUARAnTEE
If you are not completely satisfied with the performance of your DEWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.
IATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.
FREE WARning IABEL REPLACEMENTN: If your warning labels become illegible or are missing, call 1-800-4-DeWALT (1-800-433-9258) for a free replacement.
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361
COnTRAT D'EnTREiEn gRATUiT DE TROis Ans sUR IEs BIOC-PiIEs DEWALT
DCB200, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB606, DCB609
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
- DCB107, DCB112, DCB113, DCB115, DCB118,
DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB127, DCB201, DCB203, DCB203BT, DCB207, DCB361
3 ANOs DE sERViCiO gRATUITO PARA UniDADEs DE AlIMEnTACiON DEWAIT
DCB200, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB606, DCB609
| Battery Cat # | Output Voltage | 120 Volts 12 Volts | DCB119 | DW0249 | ||||||||||||||
| DC9000 | DC9310 | DC9320 | DC8095 | DC8102 | DC8103 | DC8107 | DC8112 | DC8113 | DC8114 | DC8115 | DC8116 | DC8118 | DC8132 | |||||
| DCB609 | 20/60 | X | X | X | X | 135 | 135 | 432 | 270 | 230 | X | 135 | X | 75 | 270 | X | X | |
| DCB606 | 20/60 | X | X | X | X | 100 | 100 | 272 | 170 | 140 | X | 90 | X | 60 | 90 | X | X | |
| DCB404 | 40 | X | X | X | X | X | X | X | X | X | 90 | X | 30 | X | X | X | X | |
| DCB406 | 40 | X | X | X | X | X | X | X | X | X | 130 | X | 45 | X | X | X | X | |
| DCB407 | 40 | X | X | X | X | X | X | X | X | X | 170 | X | 60 | X | X | X | X | |
| DC9360 | 36 | 45 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | |
| DCB361 | 36 | 45 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | |
| DC9280 | 28 | 60 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | |
| DW0242 | 24 | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | 60 | |
| DCB200 | 20 | X | X | X | X | 60 | 60 | 140 | 90 | 67 | X | 45 | X | 45/30** | 45 | 90 | X | |
| DCB201 | 20 | X | X | X | X | 30 | 30 | 70 | 45 | 35 | X | 22 | X | 22 | 22 | 45 | X | |
| DCB203 | 20 | X | X | X | X | 35 | 35 | 90 | 60 | 45 | X | 30 | X | 30 | 30 | 60 | X | |
| DCB203BT* | 20 | X | X | X | X | 35 | 35 | 90 | 60 | 45 | X | 30 | X | 30 | 30 | 60 | X | |
| DCB204 | 20 | X | X | X | X | 70 | 70 | 185 | 120 | 90 | X | 60 | X | 60/40** | 60 | 120 | X | |
| DCB204BT* | 20 | X | X | X | X | 70 | 70 | 185 | 120 | 90 | X | 60 | X | 60 | 60 | 120 | X | |
| DCB205 | 20 | X | X | X | X | 95 | 95 | 240 | 150 | 112 | X | 75 | X | 75/47** | 75 | 150 | X | |
| DCB205BT* | 20 | X | X | X | X | 95 | 95 | 240 | 150 | 112 | X | 75 | X | 75/47** | 75 | 150 | X | |
| DCB206 | 20 | X | X | X | X | 100 | 100 | 272 | 170 | 140 | X | 90 | X | 60 | 90 | X | X | |
| DCB207 | 20 | X | X | X | X | 30 | 30 | 60 | 40 | 30 | X | 22 | X | 22 | 22 | X | X | |
| DC9182 | 18 | X | 40 | 40 | X | X | 40 | X | X | X | X | X | X | X | X | X | 40 | |
| DCB120 | 12 | X | X | X | X | 30 | 30 | 60 | 45 | 35 | X | 20 | X | X | X | 45 | X | |
| DCB127 | 12 | X | X | X | X | 35 | 35 | 90 | 60 | 50 | X | 30 | X | X | X | 60 | X | |
| DCB080 | 8 | X | X | X | 60 | X | X | X | X | X | X | X | X | X | X | X | X | |
*BT - BluetoothNOTE: The Bluetooth word mark and logos are registered trademarks owned by theBluetooth, SIG, Inc. and any use of such marks by DEWALT is under license. Other trademarks and trade names are those of their respective owners.
**Battery Datecode 201536 or later.
"X" Indicates that the battery pack is not compatible with that specific charger. All charge times are approximate. Actual charge time may vary. Read the instruction manual for more specific information.
"X" indique que le bloc-piles n'est pas compatible avec ce chargeur. Les durées de charge sont approximatives; la durée de charge réelle peut varier. Lire le manuel d'utilisation pour obtenir des renseignements plus précis.
Una "X" indica que el paquete de baterías no es compatible con este determinado cargador. El tiempo de duración de carga es aapproximado; la duración de carga real pueda variar. Lea el manual de instrucciones para Obtener información más precisa.
