| Brand | DeWalt |
| Model | DCL183 |
| Product type | Rechargeable LED flashlight |
| Nominal voltage | 3.6 V DC |
| Luminous flux (LED spot) - low | 250 lumens |
| Luminous flux (LED spot) - high | 1000 lumens |
| Luminous flux (side lamp) | 400 lumens |
| Beam angle (spot) | 15° |
| Beam angle (side lamp) | 90° |
| Runtime (low spot) | 6.5 hours |
| Runtime (high spot) | 2.5 hours |
| Runtime (side lamp) | 6.5 hours |
| Power supply | Built-in rechargeable battery via USB-C (5 V DC, max 3 A) |
| Charging time | 1 to 4 hours |
| Charge indicator | LED indicator (green, yellow, red) |
| Overheat protection | Yes (LED flashes red/green) |
| Lighting functions | LED spot (2 levels), LED side lamp, low battery indicator |
| Built-in magnet | Yes, at the bottom of the lamp |
| Hanging hook | Yes, adjustable |
| Belt clip | Yes |
| Care and cleaning | Clean with a damp cloth and mild soap; do not immerse |
| Safety | Do not look directly at LEDs; do not use near flammable liquids |
| Included accessories | USB-C charging cable, instruction manual |
| Certifications | CE, class 3, recycling (selective sorting) |
Frequently Asked Questions - DCL183 DEWALT
User questions about DCL183 DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flashlight in PDF format for free! Find your manual DCL183 - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DCL183 by DEWALT.
USER MANUAL DCL183 DEWALT
English (original instructions) 11

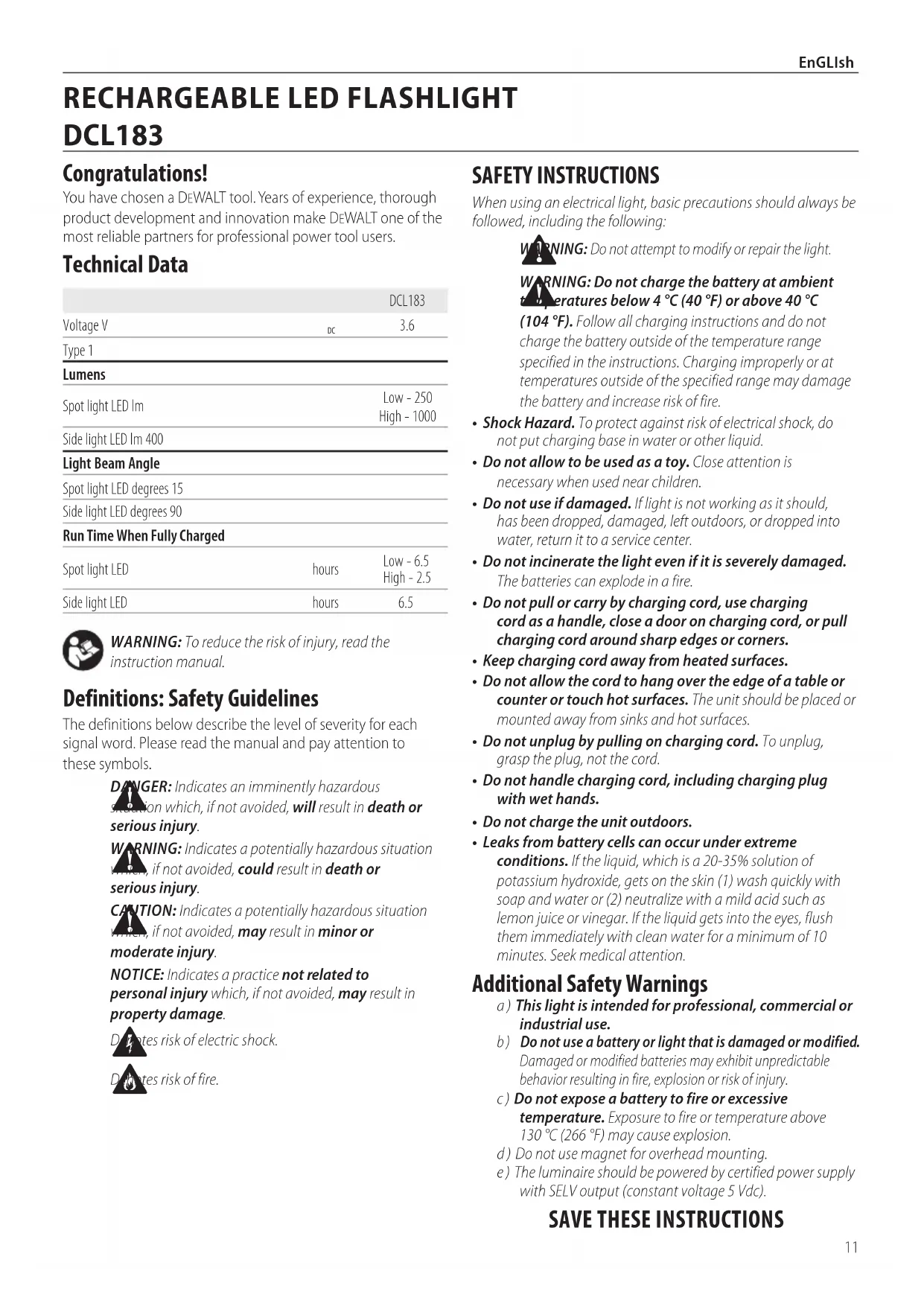

GENOPLADELIG LED-LOMMELYGTE
DCL183
Tillykke!
You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.
Technical Data
| DCL183 | ||
| Voltage V | DC | 3.6 |
| Type 1 | ||
| Lumens | ||
| Spot light LED Im | Low - 250High - 1000 | |
| Side light LED Im 400 | ||
| Light Beam Angle | ||
| Spot light LED degrees 15 | ||
| Side light LED degrees 90 | ||
| Run Time When Fully Charged | ||
| Spot light LED | hours | Low - 6.5High - 2.5 |
| Side light LED | hours | 6.5 |
WARNING: To reduce the risk of injury, read the instruction manual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
Diagnotes risk of electric shock.
Dicates risk of fire.
SAFETY INSTRUCTIONS
When using an electrical light, basic precautions should always be followed, including the following:
ING: Do not attempt to modify or repair the light.
ING: Do not charge the battery at ambient temperatures below 4 °C (40 °F) or above 40 °C
(104 °F). Follow all charging instructions and do not charge the battery outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase risk of fire.
- Shock Hazard. To protect against risk of electrical shock, do not put charging base in water or other liquid.
- Do not allow to be used as a toy. Close attention is necessary when used near children.
- Do not use if damaged. If light is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not incinerate the light even if it is severely damaged. The batteries can explode in a fire.
- Do not pull or carry by charging cord, use charging cord as a handle, close a door on charging cord, or pull charging cord around sharp edges or corners.
- Keep charging cord away from heated surfaces.
- Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit should be placed or mounted away from sinks and hot surfaces.
- Do not unplug by pulling on charging cord. To unplug, grasp the plug, not the cord.
- Do not handle charging cord, including charging plug with wet hands.
- Do not charge the unit outdoors.
- Leaks from battery cells can occur under extreme conditions. If the liquid, which is a 20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.
Additional Safety Warnings
a) This light is intended for professional, commercial or industrial use.
b) Do not use a battery or light that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
c) Do not expose a battery to fire or excessive temperature. Exposure to fire or temperature above 130 °C (266 °F) may cause explosion.
d) Do not use magnet for overhead mounting.
e) The luminaire should be powered by certified power supply with SELV output (constant voltage 5 Vdc).
SAVE THESE INSTRUCTIONS
Specific Safety Rules for Lights
WARNING: Do not place the light in a position which may cause anyone to intentionally or unintentionally stare into the light. Serious eye injury could result.
WARNING: Fire hazard. Do not operate light or charger flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using the light, basic precautions should always be followed, including the following:
a) To reduce the risk of injury, close supervision is necessary when a light is used near children.
b) To reduce the risk of electrical shock, do not put light in water or other liquid. Do not place or store light where it can fall or be pulled into a tub or sink.
c) Turn the light off when not in use.
d) Do not operate any light after it malfunctions or is dropped or damaged in any manner.
e) This light is intended for indoor use only.
Additional Safety Rules for Lights
- Do not submerge hand held light in any liquid.
- Do not wash light or battery with water or allow water to get inside light or battery.
- Do not operate without lens cover assembly attached.
Package Contents
The package contains:
1 LED light
1 Type C USB cable
1 Instruction manual
- Check for damage to the lamp, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.
Markings on Lamp
The following pictograms are shown on the lamp:
Read instruction manual before use.
European certification
Class 3 luminaire appliance
Waste electrical and electronic equipment: Separate Collection.
Keep clear of magnets.
Magnetic hazard can disturb pacemaker operation and result in serious injury or death.
Hot surface
Description (Fig. A)
WARNING: Never modify the area light. Damage or personal injury could result.
1 Multi function button
2 Housing
3 Belt clip
4 Magnet
5 Side LED
6 Spot light LED
7 Hang hook
8 USB charging port cover
9 USB charging cable
10 USB charger plug
11 USB charging plug
12 Charge indicator LED
Intended Use
Your DEWALT DCL183 has been designed for professional lighting applications.
DO NOT use under wet conditions or in the presence of flammable liquids or gases.
DO NOT let children come into contact with the lamp. Supervision is required when inexperienced operators use this lamp.
- Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.
BATTERIES
The product is not fully charged out of the carton. Before using the product, read the safety instructions below and then follow the charging procedures outlined.
NOTE: If the product is unused for approximately 90 days, fully charge the battery to help prolong the life of the battery.
Important Safety Instructions for All Integral Battery Charging
WARNING: Read all safety warnings, instructions, cautionary markings for the battery, charging cable and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: Only charge product using a certified power adapter with SELV output (constant voltage
5Vdc, 3A maximum) that is compliant with applicable country regulations and international/regional safety standards. Using adapters that do not meet applicable safety standards could result in injury.
- Only use the charging cable supplied by the manufacturer for charging.
- The provided charging cable is not intended for any uses other than charging DEWALT rechargeable tools with charging ports. Charging other types of tools may cause their batteries to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.
- DO NOT expose charging cable to water, rain or snow.
- Pull by the plugs rather than the cord when disconnecting the charging cable. This will reduce the risk of damage to the plugs and cord.
- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
- DO NOT use a charging cable with a damaged cord or plugs. Have them replaced immediately.
- Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charging plugs and port.
• Always unplug the charging cable from the power supply when there is no tool attached to it.
Charging Procedure (Fig. A, B)
- Pull the USB charging port cover 8 away from the light.
- Insert the USB charging plug 11 into the charging port 13.
- Plug the USB charger plug 10 into any USB charging port (such as on a computer or wall adapter).
NOTE: Charging takes 1 to 4 hours depending on power supply rating.
- The color of the charge indicator LED 12 will be either red, yellow or green and remain continuously ON while charging.
- Charging is complete when the color of the charge indicator LED 12 is green or turns off.
- The battery can be left charging or the charging cable can be disconnected.
Hot/Cold Delay
When the light detects that the battery is too hot or too cold, it automatically starts a hot/cold delay, suspending charging until the battery has reached an appropriate temperature. The light then automatically switches to charging mode. This feature ensures maximum battery life.
- A cold battery may charge at a slower rate than a warm battery.
- The hot/cold delay will be indicated by the charge indicator LED 12 flashing red and yellow.
- Once the battery has reached an appropriate temperature, the charge indicator LED 12 will show the color of the current battery capacity, indicating that the light has resumed the charging procedure.
Important Charging Notes
- The light may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the light after use, avoid placing the light in a warm environment such as in a metal shed or an uninsulated trailer.
- If the light does not charge properly, take the light and charging cable to your local service center.
- You may charge a partially used battery whenever you desire with no adverse effect on the light
Over Temperature Protection (Fig. A)
When over temperature protection is activated, the charge indicator LED 12 will flash red and green. The unit cannot be used during the over temperature protection cycle.
State of Charge Indicator (Fig. A)
The DCL183 is equipped with a state of charge indicator. The charge indicator LED 12 is used to display the current level of charge in the battery during use and during charging. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.
Checking State of Charge (Fig. C)

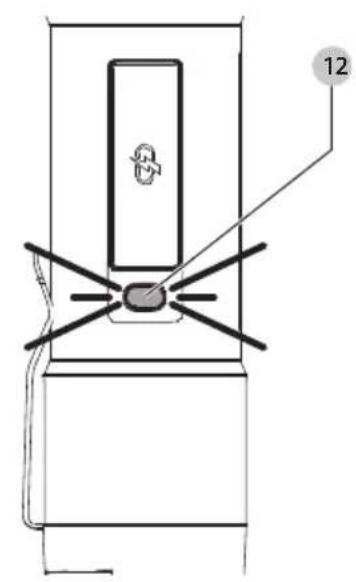

- When the LED light is ON, the charge indicator LED 12 will illuminate green, yellow or red indicating the percent of charge in the battery:
- GREEN: ≥50%
- YELLOW: >25% to >50%
- RED: ≤25%
- If less than 3% , light and indicator will flash two times every 45 seconds until out of power.
- If the color of the charge indicator LED 12 is red or does not illuminate, charge the battery.
OPERATION
CAUTION: Do not stare into the LEDs. Serious eye injury could result.
Multi Function Button (Fig. A)
The spot light LED 6 two brightness settings, low and high. The side LED 5 has one brightness setting.
Low battery indication. If less than 3%, the activated LED and charge indicator LED will flash two times every 45 seconds until out of power.
NOTE: If the light remains on for more than five seconds, pressing the multi function button 1 again will result in turning off off the selected LED.
NOTE: With the light activated, a long press of the multi function button 1 will result in turning off the selected LED.
- Press the multi function button 1 once to activate the spot light LED 6 high setting.
- Press the multi function button 1 a second time to activate the spot light LED 6 low setting.
-
Press the multi function button 1 a third time to activate the side LED 5.
-
Press the multi function button 1 a fourth time to turn off the side LED 5.
Magnet (Fig. A)
CAUTION: When the LED light hangs by the magnet, do not shake the LED light or the object from which it hangs. Do not hang the work LED light overhead or from anything that is not secure. Personal injury or property damage may occur.
CAUTION: Only use the magnet for hanging the LED light. The magnet is not intended to support additional weight. Do not attach or hang anything additional to the LED light or risk of breakage may occur.
- The DCL183 has a magnet 4 built into the bottom of the light.
- The magnet 4 is intended for catching small metal parts such as screws and bolts or to hold the light in place on solid metal surfaces.
Hang Hook (Fig. A, D)
CAUTION: When the LED light hangs by the hang hook, do not shake the LED light or the object from which it hangs. Do not hang the LED light overhead or from any electrical wires or anything that is not secure. Personal injury or property damage may occur.
CAUTION: Only use the hang hook for hanging the LED light. The hang hook is not intended to support additional weight. Do not attach or hang anything additional to the LED light or risk of breakage may occur.
CAUTION: Do not use the hang hook to reach with or to support your weight in any situation.

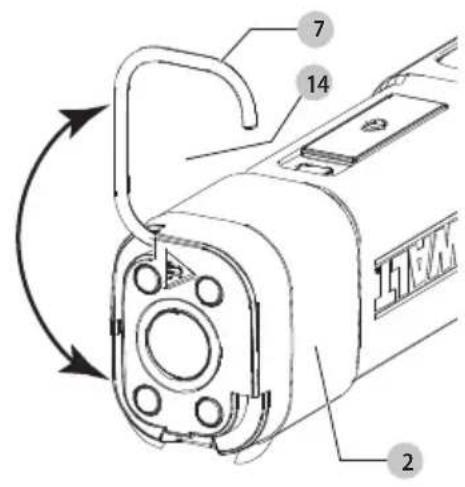

The built in hang hook 7 can be attached to anchored hoses, pipes, tubes or cables in the space you are working in.
- To access the hang hook 7, rotate the hang hook 7 away from the housing 2 until the hang hook opening 14 is exposed.
- Place the hose, pipe, tube or cable in your work space into the hang hook.
NOTE: Ensure the LED light housing is fully secured and will not slide off or along the anchored hose, pipe, tube or cable before proceeding.
- To remove the hang hook 7 from the anchored hose, pipe, tube or cable, grasp the hang hook 7 and slide the anchored hose, pipe, tube or cable from the hang hook opening 14.
- Secure the hang hook 7 into place onto the housing 2.
MAINTENANCE
Your DEWALTproduct has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.
Cleaning
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the lamp. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the lamp; never immerse any part of the lamp into a liquid.
Accessories
WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
There are no accessories for this product.
Protecting the Environment
Separate collection. Products marked with this symbol comply with the European Directive 2012/19/EU and must not be disposed of with normal household waste; Products contain materials that can be
recovered or recycled reducing the demand for raw materials.
Please recycle electrical products according to local provisions.
Further information is available at www.2helpU.com.
