LaserRangeMaster i3 - Rangefinder Laserliner - Free user manual and instructions

USER MANUAL LaserRangeMaster i3 Laserliner

Laserliner 0.462 m 0.652 m DIST OFF MINI-MAX Laserlange-Master i3

Laser

635 nm

Laserliner

ESLHS G26C Laser

Interior view of a children's bedroom with a bunk bed, bookshelf, and a sleeping mat (no text or symbols visible)

x x·y=m² y

z x y x·y·z=m³

Laserliner

!

Interior view of a portable electronic device showing battery pack, card, and warning symbols (no readable text or labels)

a f b e max f min 80.0.0.0 80.0.0.0 23 m d c

1.

2.

DIST OFF MAX/MAX LaserRange-Master 13

DISPLAY:

1x 2x 1 sec * laser 3x 2 sec 1x

https://packd.li/ll/aou/in

Laserliner

!

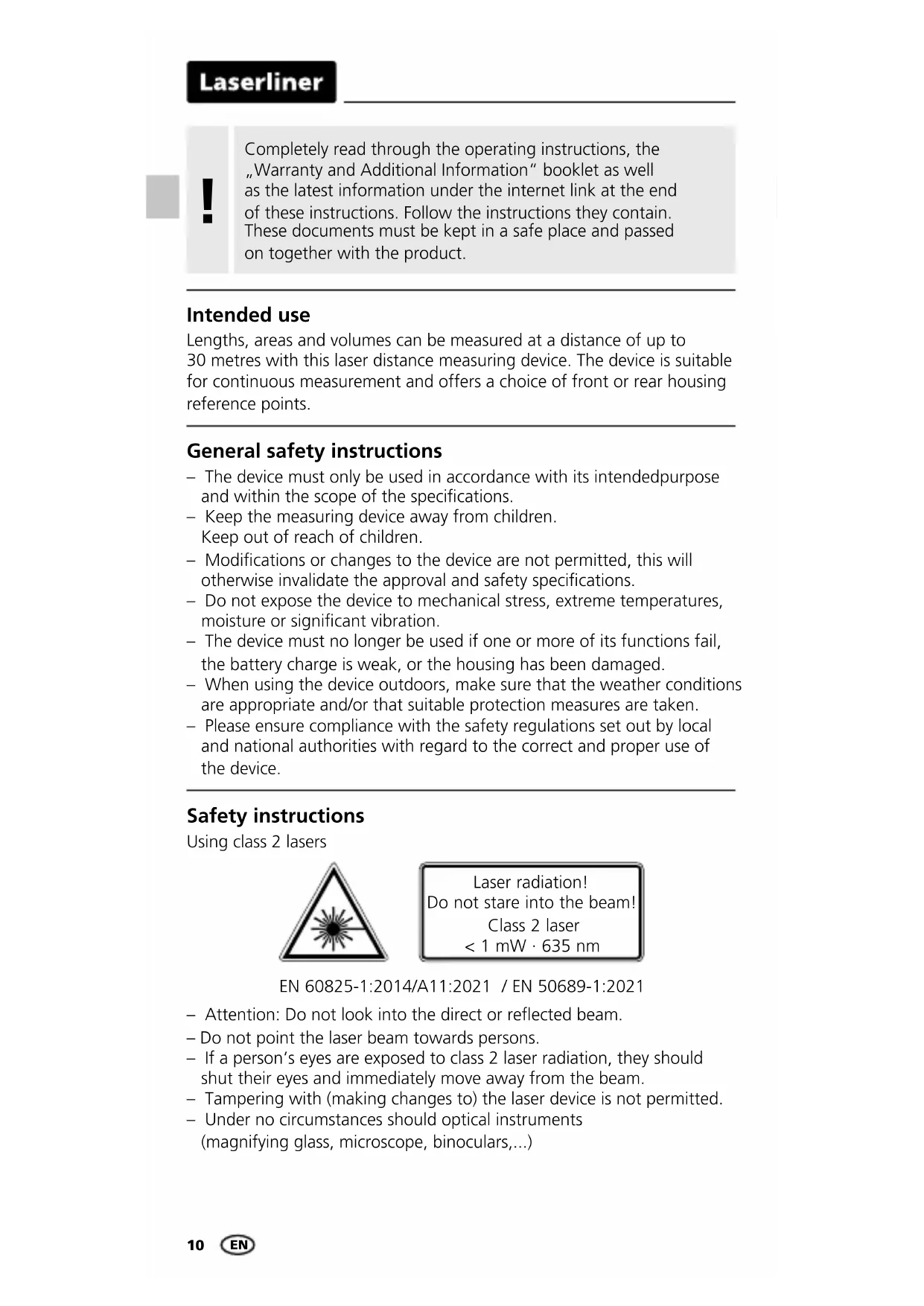

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the product.

Intended use

Lengths, areas and volumes can be measured at a distance of up to 30 metres with this laser distance measuring device. The device is suitable for continuous measurement and offers a choice of front or rear housing reference points.

General safety instructions

- The device must only be used in accordance with its intended purpose and within the scope of the specifications.

- Keep the measuring device away from children. Keep out of reach of children.

- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

- The device must no longer be used if one or more of its functions fail, the battery charge is weak, or the housing has been damaged.

- When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.

- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 635 nm

EN 60825-1:2014/A11:2021 / EN 50689-1:2021

- Attention: Do not look into the direct or reflected beam.

- Do not point the laser beam towards persons.

- If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.

- Tampering with (making changes to) the laser device is not permitted.

- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars,...)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.
• The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.

Inserting batteries

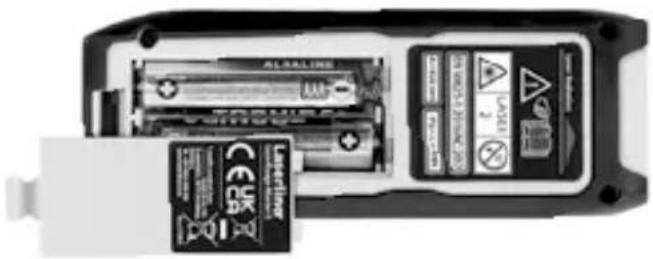

Open the battery compartment and insert batteries (2 x 1,5V LR03 (AAA)) according to the symbols. Be sure to pay attention to polarity.

Interior view of a battery pack with two cards and external components (no visible text or symbols)

f b e a max g 88.0.8.0 m f min d 88.0.8.0 23 m c

1.

2.

DIST OFF MIN/MAX LaserRange-Master 13

DISPLAY:

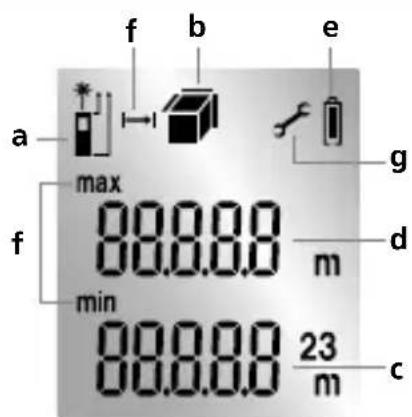

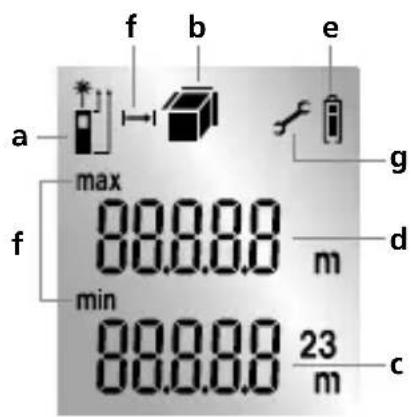

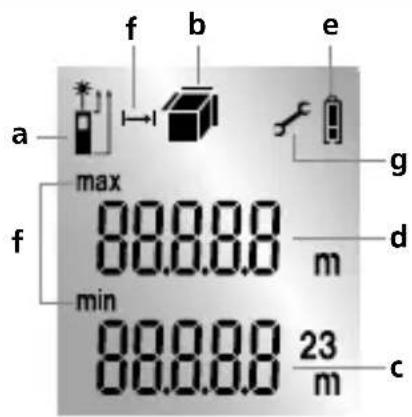

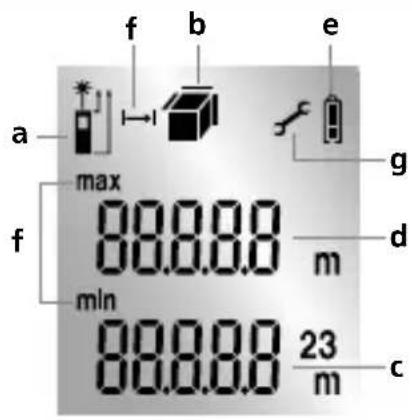

a Measurement point (reference) rear / front
b Display length / area / volume
c Measurement values / Measurement results Unit m
d Intermediate values / min/max values
e Battery symbol
f Min./max. measurement
g Malfunction / service required

KEYPAD:

1. ON / Measure / OFF
2. Length, area, volume, min./max. measurement Measurement point (reference) rear / front

Laserliner

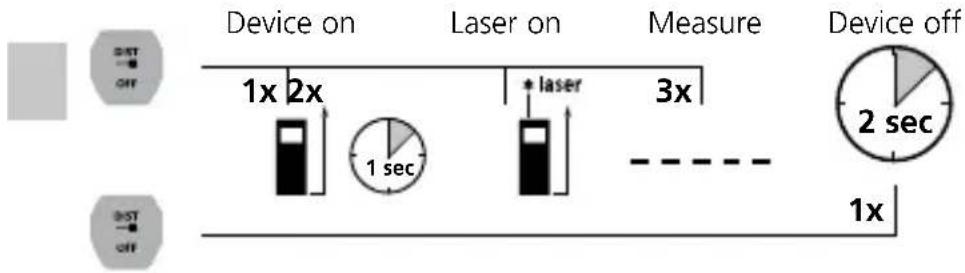

Switch on, measure and switch off:


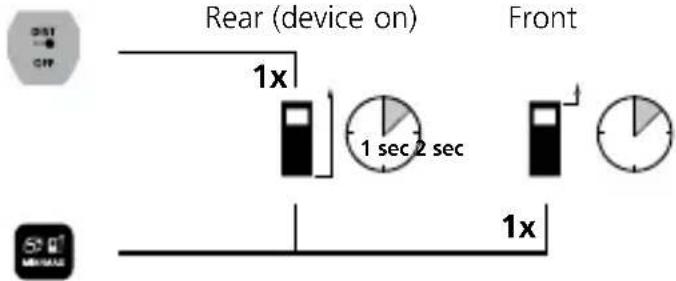

Change measurement point (reference):

Rear (device on) Front 1x 1 sec 2 sec 1x 50 MHz

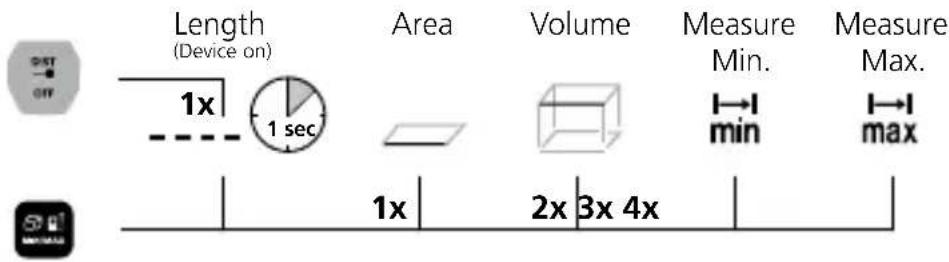

Change measurement function:

Length (Device on) Area Volume Measure Min. Measure Max. 1x 1 sec 1x 2x 3x 4x min max

Length measurement:

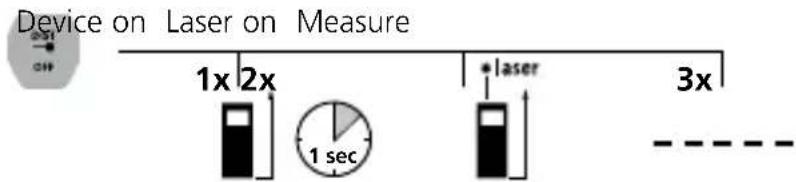

Device on Laser on Measure 1x 2x + laser 3x 1 sec

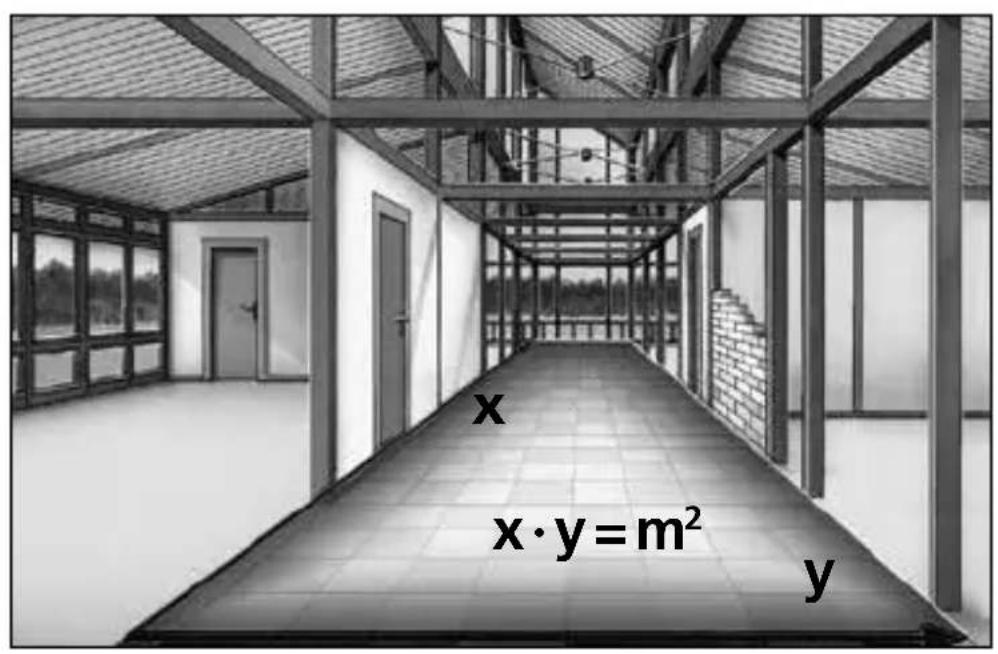

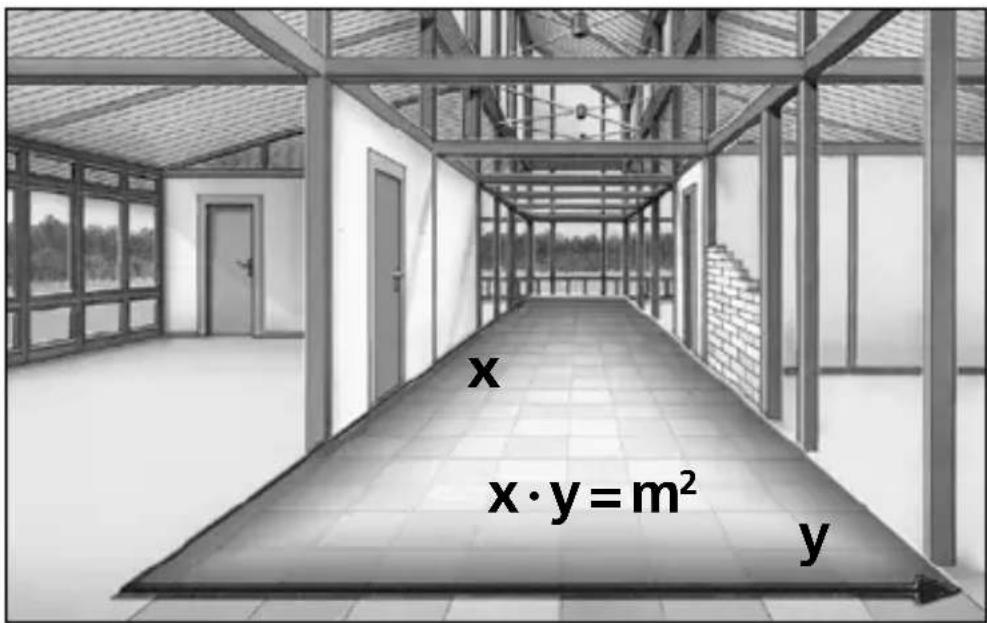

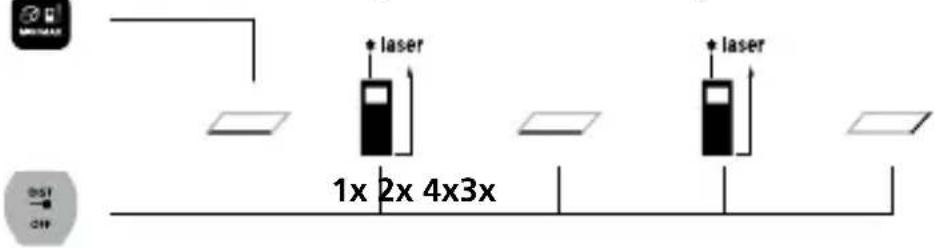

Area measurement:

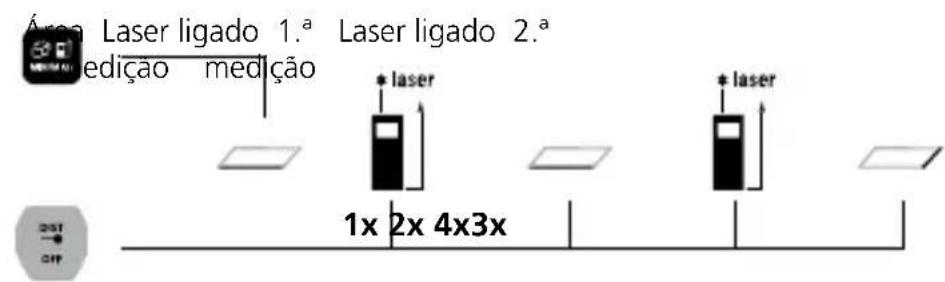

Area Laser on 1. Measuring Laser on 2. Measuring

MINT + laser 1x 2x 4x3x + laser

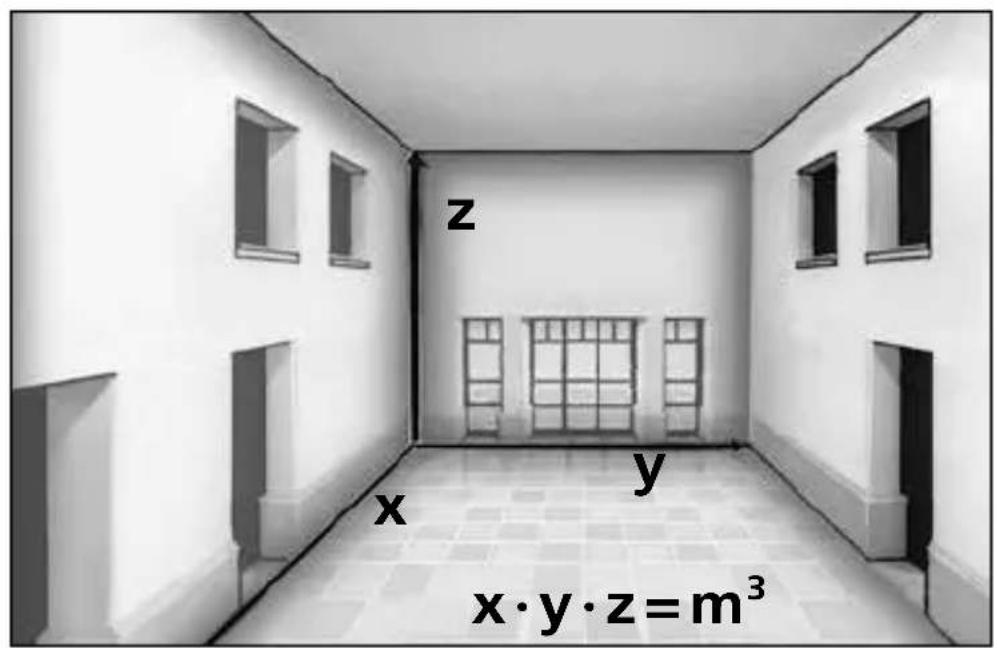

Volume measurement:

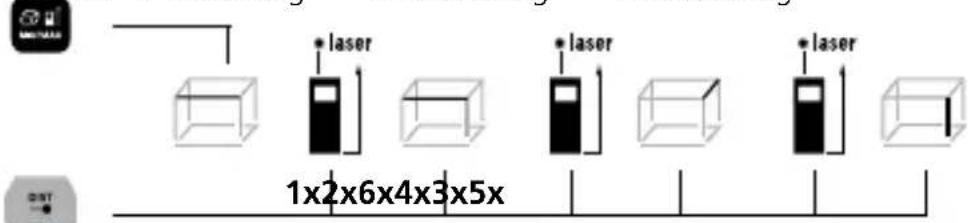

Volume 1. Measuring 2. Measuring 3. Measuring

1x2x6x4x3x5x * laser * laser * laser

Min./max. measurement:

Min./max. Laser on Measure Stop measurement

measurement min max * laser min max 1x2x3x DIST OFF

Min. measurement

The LC display shows the lowest value (min.) and the current value.

Max. measurement

The LC display shows the lowest value (max.) and the current value.

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Laserliner

Error codes:

Err15: Outside the measuring range

Err16: Received signal too weak

Err26: Value outside display range

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every 1 - 2 years. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Technical Data (Subject to technical changes without notice. 24W06)

Precision (typical)* ± 2 mm
Measurement range (inside)**	0,3 m - 30 m
Laser class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689-1:2021)
Laser wave length 635 nm
Automatic switch-off 30 sec laser / 3 min device
Power supply 2 x 1,5V LR03 (AAA)
Operating conditions	-10°C ... 40°C, max. humidity 20 ...85% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-20°C ... 70°C,max. humidity 80% rH
Dimensions (W x H x D) 40 x	110 x 24 mm
Weight 90 g (incl. batteries)

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for weakly reflective target surfaces.
** at max. 5000 lux

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices, batteries and packaging do not belong in household waste. Users are obliged by law to surrender used batteries or battery packs to a public collection point, to sales outlets, or to technical customer services, free of charge. Remove the battery from the device without damaging it using standard commercial tools: arrange separate collection before returning the device for disposal. Please do not hesitate to contact the UMAREX-LASERLINER service department if you have any queries regarding removing the battery. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.

Further safety and supplementary notices at: https://packd.li/ll/aou/in
