USER MANUAL Evalite Duo Joie

duo stroller birth to 15kg/birth - 36 months

Care and Maintenance Accessories (May not be included in purchase) Accessories may be sold separately or may not be available depending on region.

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie Evalite Duo, you are using a high quality, fully certified stroller, ap- proved to European safety standards EN 1888-1:2018. This product is suitable for use with children weighing under 15kg in each seat. Please carefully read this man- ual and follow each step to ensure a comfortable ride and best protection for your child. IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Visit us at joiebaby.com to download manuals and see more exciting Joie products! For warranty information, please visit our website at joiebaby.com Contents Figures 1-10 WARNING

Use with Joie Infant Child Restraint

Cleaning and Maintenance

Emergency In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.13

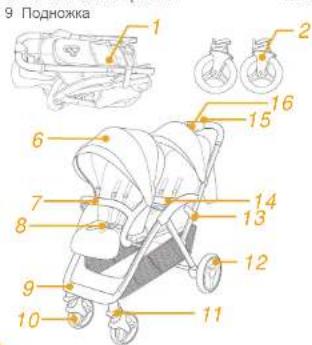

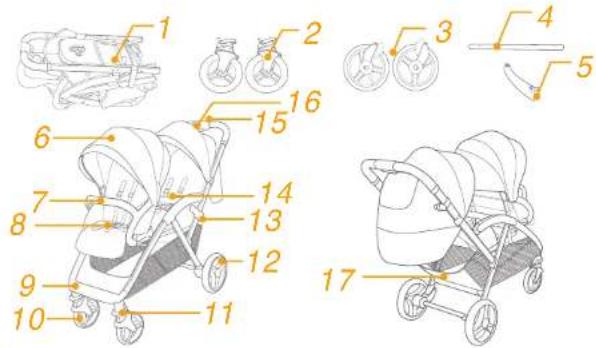

Parts List Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly. 1 Stroller Frame 2 Front Wheel 3 Rear Wheel 4 Support Tube 5 Armbar 6 Hood 7 Front Armbar 8 3/5 Point Buckle 9 Footrest 10 Front Wheel 11 Front Swivel Lock 12 Rear Wheel 13 Storage Latch 14 Rear Armbar 15 Secondary Lock 16 One-Hand-Fold Handle 17 Storage Basket

Accessories (May not be included) Rain Cover Accessories may be sold separately or may not be available depending on region. Product Information Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model. Product Evalite Duo Stroller Suitable for Child weighing under 15kg in each seat unit This front seat unit is suitable for children 6 -36 months This rear seat unit is suitable for children birth -36 months Materials Plastics, metal, fabrics Patent No. Patents pending Made in China Brand Name Joie Website www.joiebaby.com Manufacturer Allison GmbH15

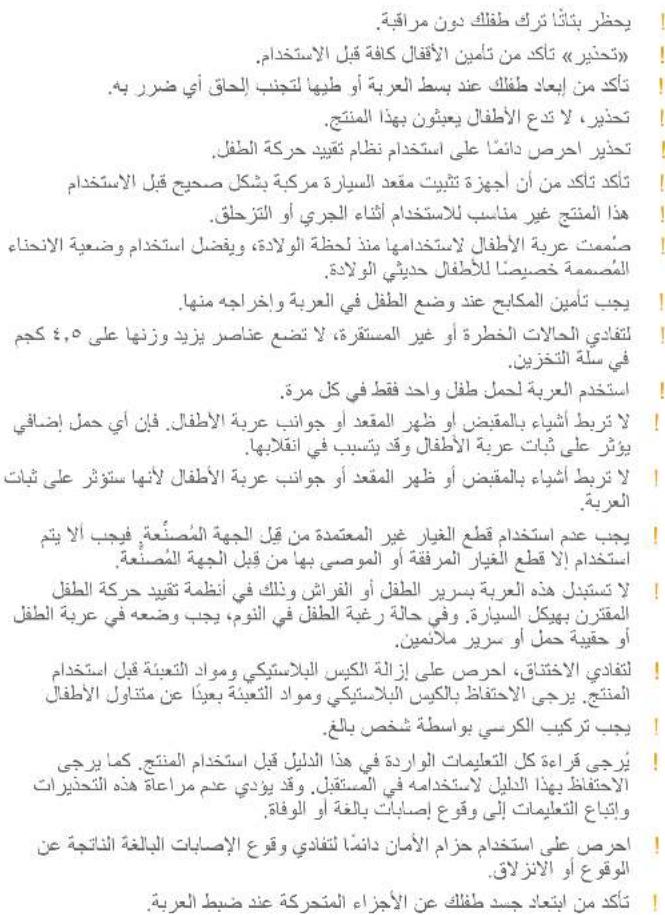

WARNING ! WARNING Never leave the child unattended. ! WARNING Ensure that all the locking devices are engaged before use. ! WARNING To avoid injury ensure that the child is kept away when unfolding and folding this product. ! WARNING Do not let the child play with this product. ! WARNING Always use the restraint system. ! WARNING Check that the car seat attachment devices are correctly engaged before use. ! This product is not suitable for running or skating. ! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies. ! The parking device shall be engaged when placing and re- moving children. ! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket. ! Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip. ! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller. ! Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or rec- ommended by the manufacturer shall be used. ! For infant child restraints used in conjunction with a chas- sis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed. ! To avoid suffocation, remove plastic bag and packaging ma- terials before using this product. The plastic bag and pack- aging materials should then be kept away from babies and children. ! Adult assembly required. ! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death. ! To avoid serious injury from falling or sliding out, always use seat belt. ! Make sure your child’s body is clear from the moving parts when adjusting the stroller. ! Never use stroller on stairs or escalators. ! Keep away from high temperature objects, liquids, and elec- tronics. ! Never place the stroller on roads, slopes or dangerous ar- eas. ! To avoid strangulation, DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys. ! DO NOT use storage basket as a child carrier. ! To avoid finger entrapment, use care when folding and un- folding the stroller. ! To ensure your child’s safety, please make sure all parts are assembled and fastened properly before using the stroller. ! To avoid strangulation, do make sure your child is clear from the canopy. ! Always engage the brakes when parking the stroller. ! Discontinue using stroller if it is damaged or broken. ! This front seat unit is not suitable for children under 6 months. This rear seat unit is suitable for children under 6 months. This product is suitable for use with children weigh- ing under 15kg in each seat. This product is designed to carry a one or two children in an upright or reclined posi- tion. it could cause damage to the stroller if the child is over 15kg.17

Stroller Assembly (Please refer to figures on page 1-10) Please read all the instructions in this manual before assembling and using this product. Open Stroller see images

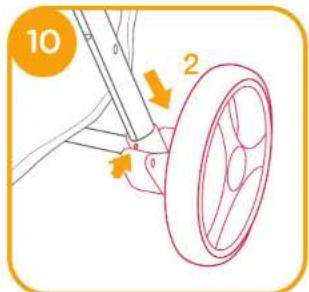

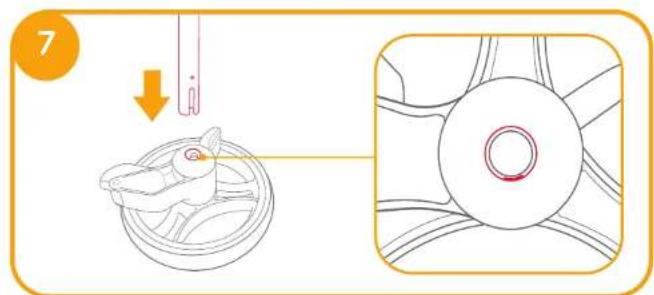

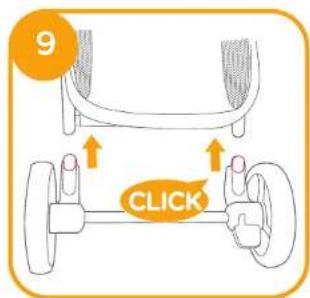

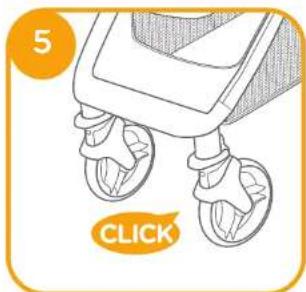

. Meanwhile, pull the stroller backward to open. Latches should click into place. ! Check that the stroller is completely latched before continuing to use. Assemble & Detach Front Wheels see images

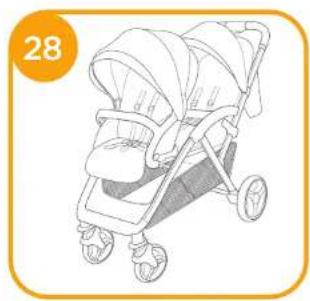

The completely assembled stroller is shown as

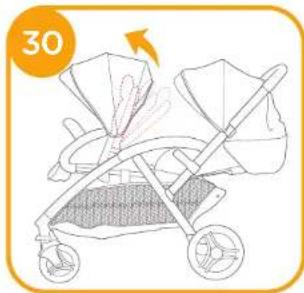

Stroller Operation Adjust Recline see images

Adjust Calf Support see images

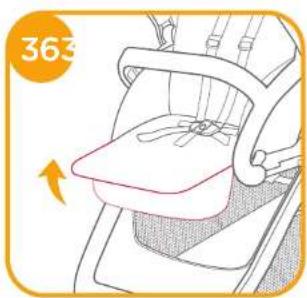

The calf support has 2 positions. To raise the calf support, lift it upwards. Use Buckle see images

! To avoid serious injury from falling or sliding out, always se- cure your child with harness. ! Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand lay flat on child’s chest. ! Do not cross the shoulder belts. This will cause pressure on a child’s neck.19

! In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

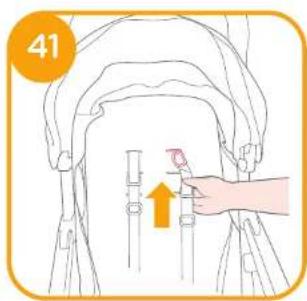

- 3 Slide adjuster For larger child, use shoulder harness anchor A and the high- est shoulder slots. For smaller child, use shoulder harness anchor B and the low- est shoulder slots. To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front.

Rethread it through the slot that is closest to child's shoulder height.

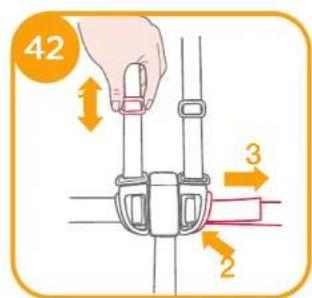

Use slide adjuster to change the harness length.

- 2, while pulling the waist harness to proper length

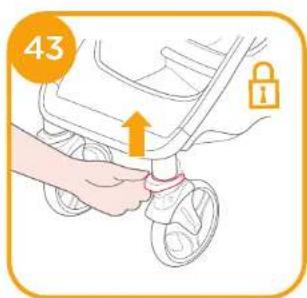

Pull up the front swivel locks to maintain the moving direction.

Tip It is recommended to use swivel locks on uneven surfaces. Use Brake see images

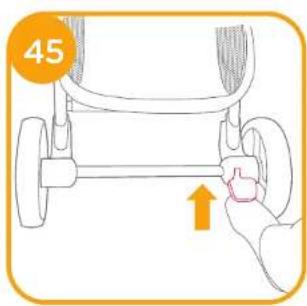

To lock wheels, step the brake lever downwards.

To release wheels, just lift the brake lever upwards.

Tip Always set the parking brake when stroller is not moving. Fold Stroller see images

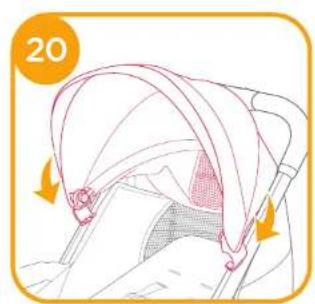

! Please fold the hood before folding the stroller.

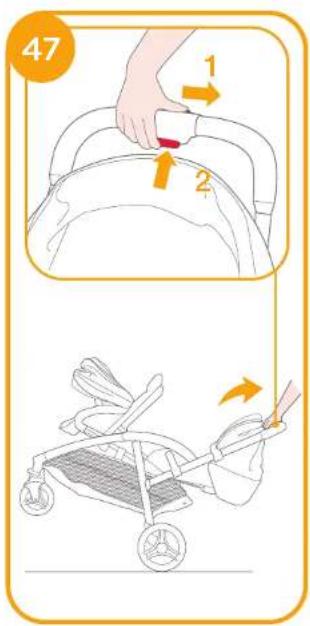

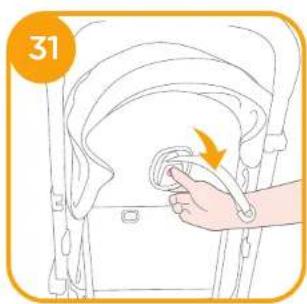

! Please do not lock swivel while folding to avoid folded stroller unable to stand. Push secondary lock

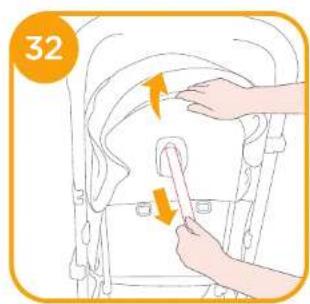

-1 and squeeze one-hand-fold handle

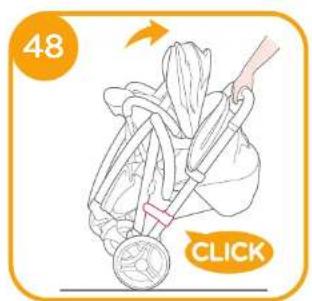

-2. Pull the armrest rearwards to fold stroller, then the stroller can stand when folded.

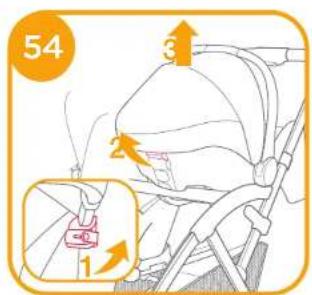

4. To remove the infant child restraint, Open the infant child

restraint lock, squeeze the stroller release handle to release the infant child restraint from armbar, and then lift infant child restraint out of stroller.

! If you have any problems using the infant child restraint, please refer to the infant child restraint instruction manual. ! Remove infant child restraint before folding. Cleaning and Maintenance see images

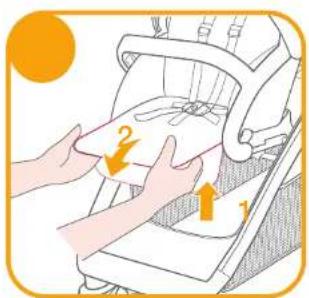

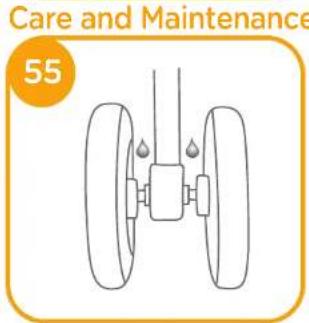

! Removable seat pad may be washed in cold water and drip- dried. No bleach. Please refer to the care label for instructions on cleaning the fabric parts of the stroller. ! To clean stroller frame, use only household soap and warm water. No bleach or detergent. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water. ! From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. ! Excessive exposure to sun or heat could cause fading or warping of parts. ! If stroller becomes wet, open hood and allow to dry thoroughly before storing. ! If wheels squeak, use a light oil (e.g. , Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.

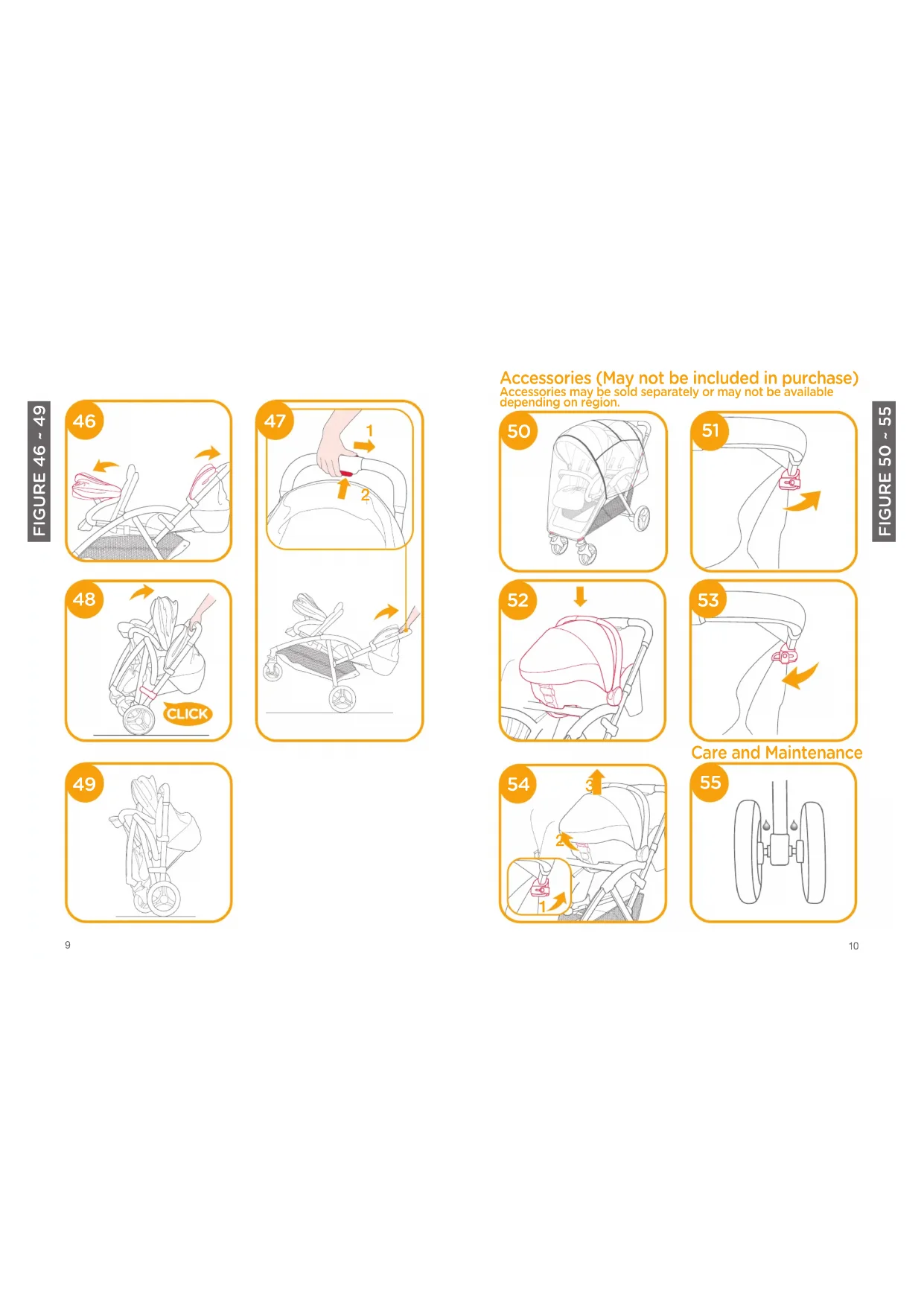

! When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies. Use Accessories Accessories may be sold separately or may not be available depending on region. Use Rain Cover see images

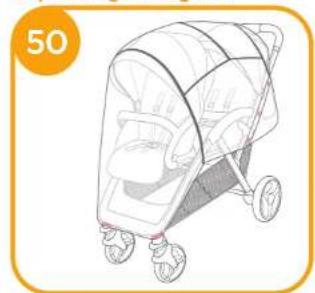

To assemble the rain cover, place it over the stroller, then attach it on the handle by hook and loop fasteners and wrap the webbings on the rain cover around the mounts, and then snap buttons.

! When using the rain cover, please always check its ventilation. ! When not in use, please check that the rain cover has been cleaned and dried before folding. ! Do not fold the stroller after assembling the rain cover. ! Do not place your child into the stroller assembled with rain cover during hot weather. Use with Joie Infant Child Restraint see images

When using with Joie infant child restraint gemm, i-Gemm, i-Snug, please refer to the following instructions. ! Recline the stroller rear seat to the lowest position.

1. Make sure the infant child restraint lock is open on the right

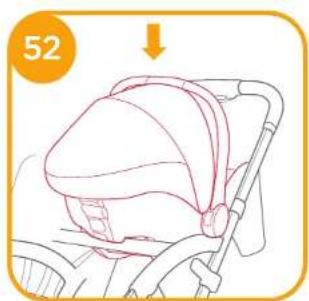

2. Place infant child restraint into rear seat of stroller so

notches in rockers fit over edge of armbar. Then click the infant child restraint into place.

3. Lock the infant child restraint lock.

! Pull up on the infant child restraint to check that it is fully locked to the stroller.23
