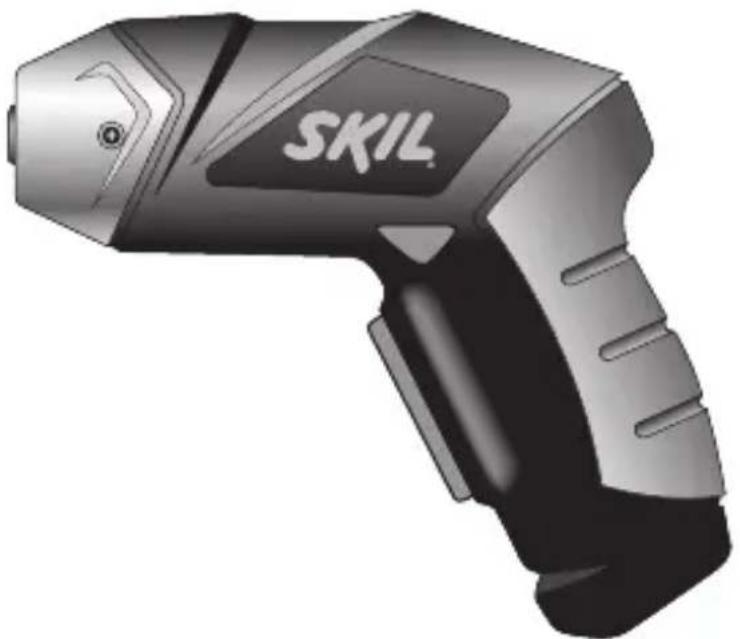

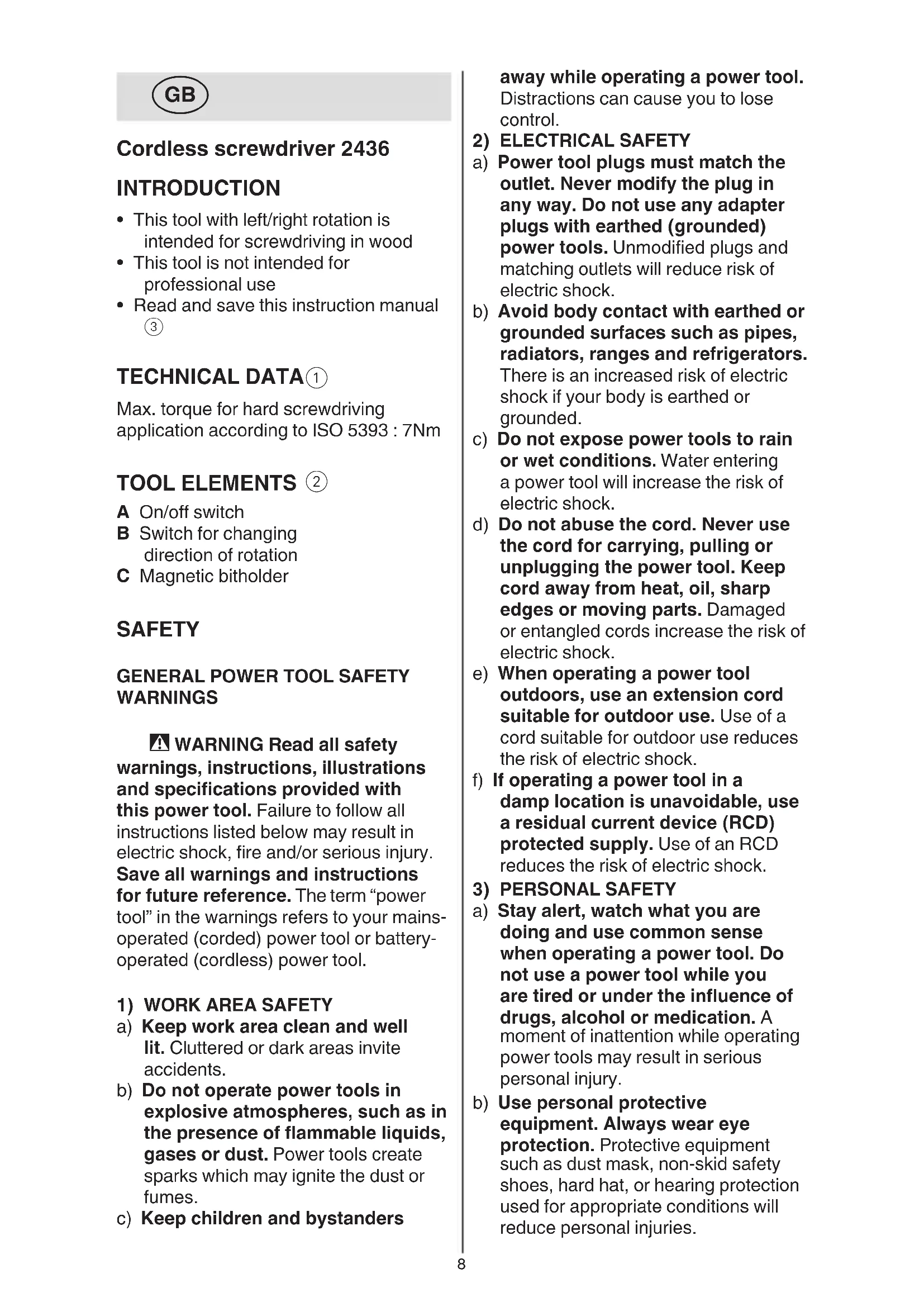

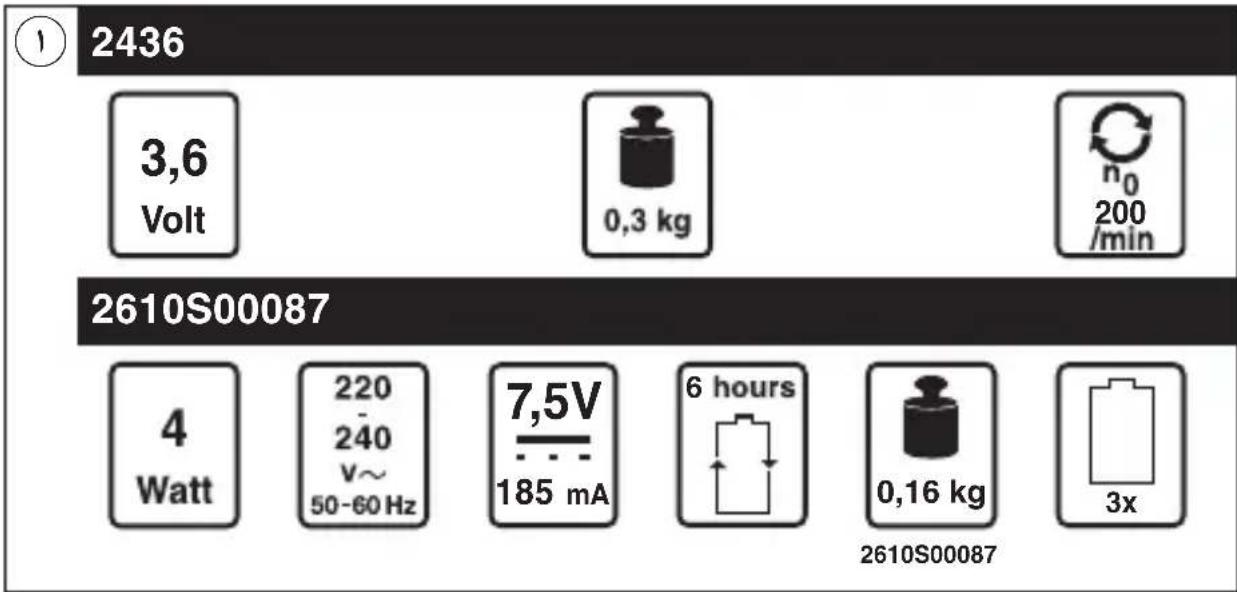

Cordless screwdriver 2436 INTRODUCTION

• This tool with left/right rotation is intended for screwdriving in wood

• This tool is not intended for professional use

• Read and save this instruction manual

Max. torque for hard screwdriving application according to ISO 5393 : 7Nm TOOL ELEMENTS

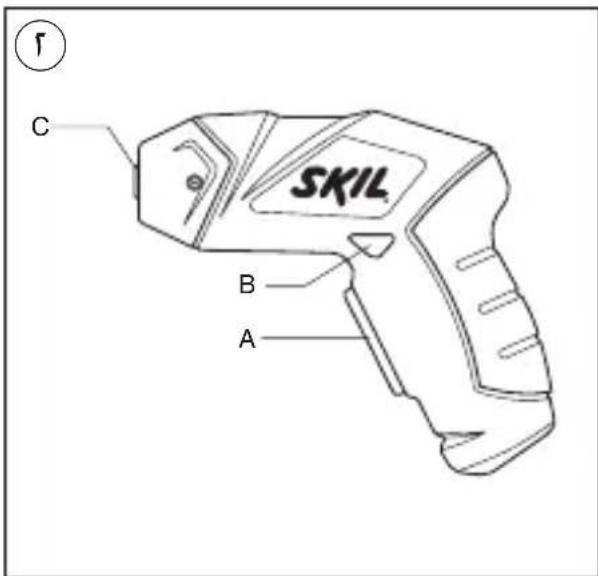

A On/o switch B Switch for changing direction of rotation C Magnetic bitholder SAFETY

GENERAL POWER TOOL SAFETY

WARNINGS - WARNING Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders9 the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b) Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. c) Prevent unintentional starting. Ensure the switch is in the o- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting10 when connectable

• Certain kinds of dust are classied as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

• Follow the dust-related national requirements for the materials you want to work with

• Do not expose tool/charger to rain

• Do not use tool/charger when damaged; take it to one of the ocially registered SKIL Service Stations for a safety check

• Do not disassemble charger or tool

• Ensure that switch B

is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool CHARGING/BATTERIES

• Only use SKIL charger 2610S00087/2610399089 (U.K. 2610396004) with this tool

• This charger can be used by children aged 8 and above and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury. f) Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 130°C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

a) Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Do not work materials containing asbestos (asbestos is considered carcinogenic)

• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device11

• Use suitable detectors to nd hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to re or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock) DURING USE

• Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord (fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock)

• In case of electrical or mechanical malfunction, immediately switch o the tool or unplug charger from power source

Read the instruction manual before use

Double insulation (no earth wire required)

Fail-safe isolating transformer (the power source is electrically separated from the transformer output)

Automatic shut-o when charger gets too hot (thermic fuse blows and charger becomes useless)

Incorrect polarity of the charger connection could cause a hazard (only charge the battery with the charger supplied)

Do not dispose of electric tools and batteries together with household waste material USE

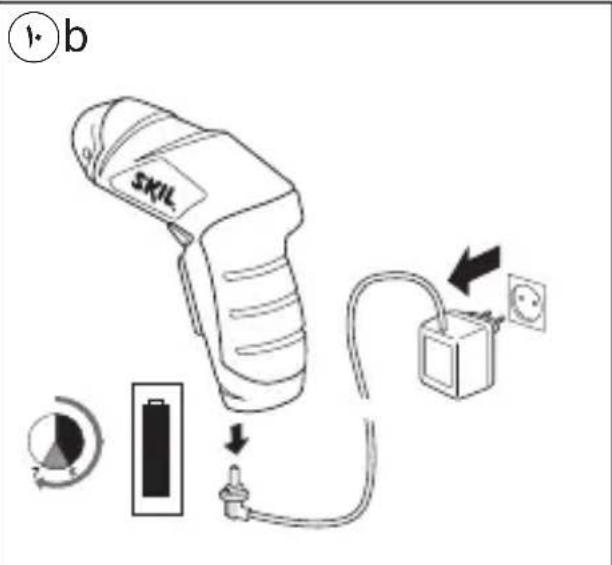

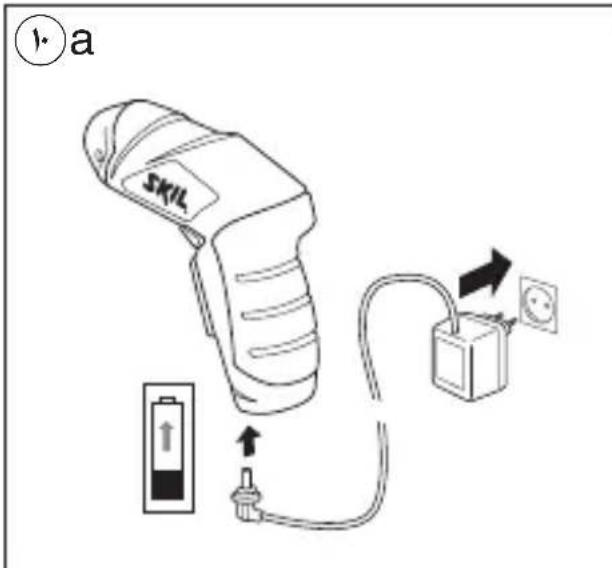

- battery of new tools is not fully charged ! unplug the charger from the tool after charging period has ended thereby lengthening the service life of the battery IMPORTANT: - while charging, the charger and the battery may become warm to touch; charger and they understand the associated dangers (otherwise, there is a danger of operating errors and injuries)

• Supervise children (this will ensure that children do not play with the charger)

• Cleaning and user maintenance of the battery charger shall not be made by children without supervision

• Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the ocially registered SKIL Service Stations

• Permitted ambient temperature (tool/ charger/battery): - when charging 0...+45°C - during operation –20...+50°C - during storage –20...+50°C ACCESSORIES

• SKIL can assure awless functioning of the tool only when original accessories are used BEFORE USE

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)12

• When screwdriving in hard wood one should pre-drill a hole

• For more tips see www.skil.com MAINTENANCE / SERVICE

• This tool is not intended for professional use

• Keep tool and charger clean ! unplug charger from power source before cleaning

• If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools - send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com) ENVIRONMENT

• Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries) - in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility - symbol

will remind you of this when the need for disposing occurs ! remove the batteries before disposal of the tool

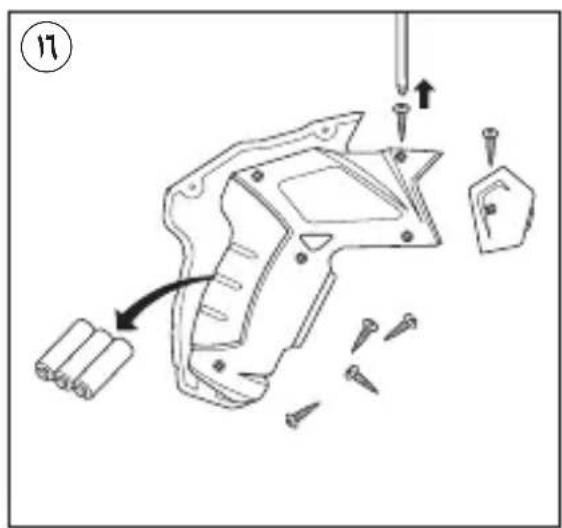

• Removing/disposing of batteries

! only remove the batteries if they are completely empty - protect battery terminals with heavy tape to prevent short-circuit - dispose of the batteries at an ocial collection point for batteries - batteries may explode when disposed of in re, so do not burn battery for any reason this is normal and does not indicate a problem - do not charge at temperatures below 0°C and over 45°C; this will seriously damage the battery as well as the charger ! a battery that is new or has not been used for a longer period does not develop its full capacity until after approximately 5 charging/discharging cycles - do not repeatedly recharge the battery after only a few minutes of operation; this may result in a reduction of operating time and battery eciency - the battery must be kept separate from the natural environment and should not be disposed of as normal domestic waste (symbol

will remind you of this when the need for disposing occurs) - if you anticipate long periods of non- use for the tool, it is best to unplug the charger from its power source

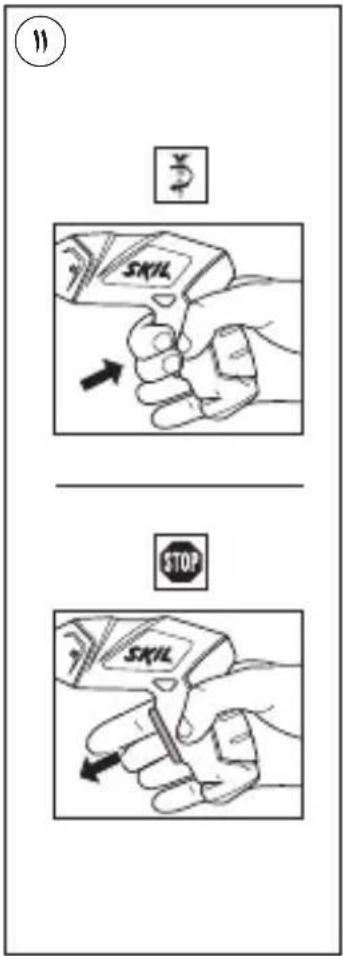

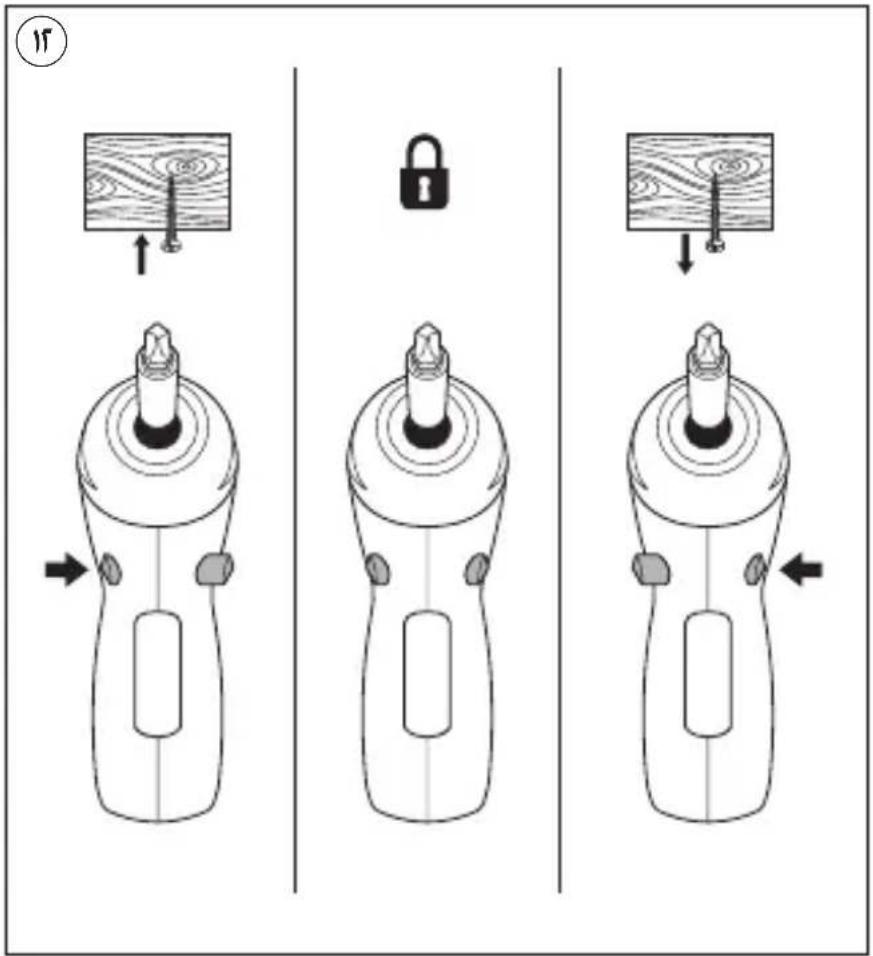

• Changing direction of rotation

- when not properly set in left/right position, switch A

cannot be activated ! change direction of rotation only when tool is at a complete standstill

! do not use bits with a damaged shank

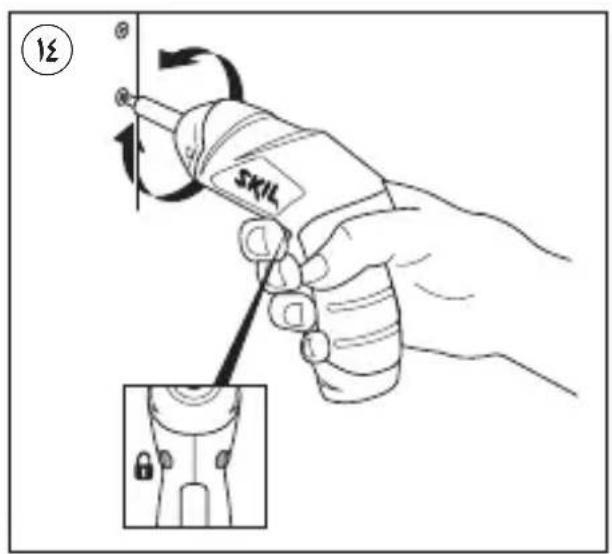

• Automatic spindle-lock Allows you to manually tighten or loosen screws, when necessary

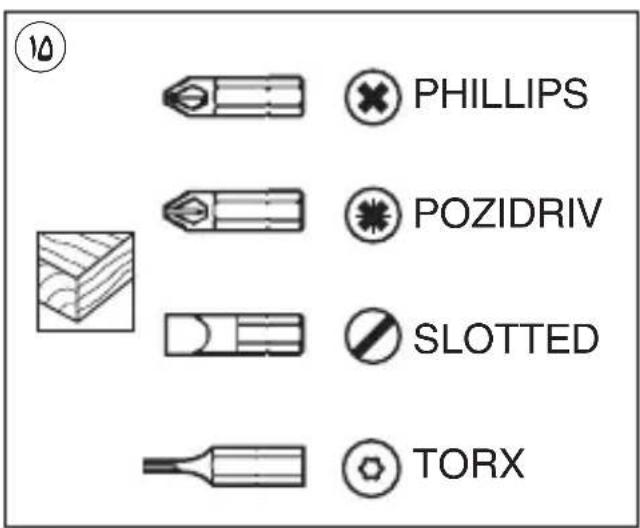

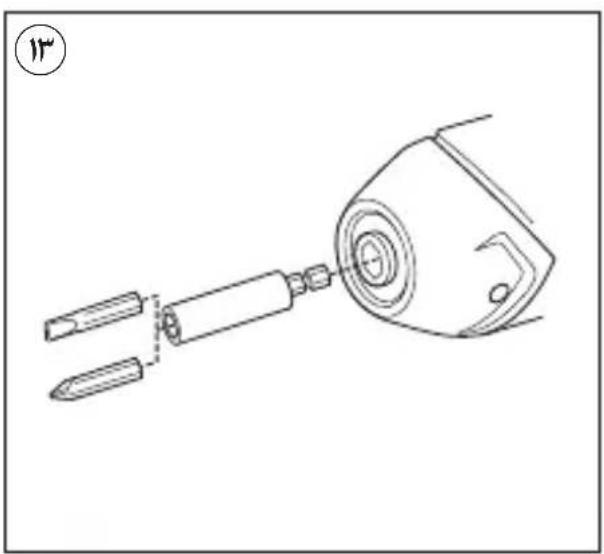

! do not use damaged bits ! only use bits with hexagon shaft

• When turning in a screw at/near the cross cut end or an edge of wood, pre- drill a hole in order to avoid cracking of the wood

• For an optimal use of the tool a steady pressure on the screw is required, especially while removing13

• Measured in accordance with EN 60745 the sound pressure level of this tool is <70 dB(A) (standard deviation: 3 dB) and the vibration <2.5 m/s² (triax vector sum; uncertainty K = 1.5 m/s²)

• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned - using the tool for dierent applications, or with dierent or poorly maintained accessories, may signicantly increase the exposure level - the times when the tool is switched o or when it is running but not actually doing the job, may signicantly reduce the exposure level ! protect yourself against the eects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns
