Product type	Centrifugal juicer (slow juicer)
Brand	SEVERIN
Model	ES 3571
Dimensions (W x H x D)	140 x 420 x 170 mm
Weight	3.8 kg
Power supply	220-240 V~, 50/60 Hz
Power	Approx. 150 W
Main functions	Juice extraction from fruits and vegetables, jam preparation, sorbet making
Operating time	15 minutes maximum, then cooldown of 30 minutes
Safety	Thermal safety device with reset button, lid locking latch
Materials	Plastic motor unit, removable parts in plastic and stainless steel (sieves)
Included parts	Motor unit, auger, auger housing, lid with chute, pusher, fine mesh sieve, coarse mesh sieve, sorbet accessory, pulp collector, juice container, cleaning brush
Care and cleaning	Motor unit can be cleaned with a damp cloth; all other parts (except motor unit) are dishwasher safe or can be washed in warm soapy water; use the provided brush for sieves
Warranty	2 years against defects in material and workmanship

Frequently Asked Questions - ES 3571 SEVERIN

What types of food can be used with the SEVERIN ES 3571 juicer?

You can extract juice from fruits (apples, pears, oranges, strawberries, etc.) and vegetables (carrots, celery, cucumbers, etc.). Also suitable for sorbets made from frozen fruits and jams (use the coarse mesh sieve). Do not use bananas, dried fruits, nuts, or ice cubes.

How to assemble the appliance correctly?

First place the sieve (or sorbet accessory) into the auger housing. Install the housing onto the motor unit ensuring the rubber tab fits into the pulp collector outlet spout. Insert the auger, close the lid, and lock it by turning clockwise. Raise the locking latch. Position the pulp collector and juice container under their outlets.

What to do if the appliance does not start?

First check that the plug is properly connected and the appliance is correctly assembled (the locking latch must be engaged). If the problem persists, the thermal safety device may have been activated: unplug, allow to cool for 30 minutes, then press the reset button located under the motor unit.

Can I wash the parts in the dishwasher?

Yes, all removable parts (lid, housing, auger, sieves, sorbet accessory, pusher, pulp collector, juice container) are dishwasher safe. However, it is recommended to clean the sieves first with the provided brush to remove residues. The motor unit must never be immersed; clean it with a damp cloth.

How to prepare a sorbet with the juicer?

Freeze the fruits (e.g., mango or strawberries) overnight. Let thaw briefly. Attach the sorbet accessory instead of the sieve. Turn on the appliance (position I) and insert the frozen fruits into the chute using the pusher. Do not push too hard to avoid damaging the motor. The sorbet comes out of the spout.

What is the difference between the fine mesh sieve and the coarse mesh sieve?

The fine mesh sieve is used to obtain clear juices (less pulp). The coarse mesh sieve is intended for thick juices and for making jams or coulis. Note: the coarse sieve is not suitable for hard foods like carrots.

How long can I use the appliance continuously?

The appliance is designed for intermittent operation: do not exceed 15 minutes of continuous use. After this time, allow the appliance to cool for at least 30 minutes before using it again. This prevents overheating.

What to do if the appliance jams?

If the appliance jams, set the function selector to R (reverse) to unblock the auger. If that does not suffice, turn off, unplug, and manually remove the blockage. Avoid overloading the appliance.

Can I extract juice from hot fruits?

No, never extract juice from hot foods. This could damage the appliance and pose a risk of burns. Use only fruits and vegetables at room temperature or refrigerated.

Where can I find after-sales service for the SEVERIN ES 3571 juicer?

For any questions or repairs, contact SEVERIN customer service. Contact details are provided in the manual. Keep your proof of purchase (receipt, invoice) to benefit from the 2-year warranty.

USER MANUAL ES 3571 SEVERIN

Black SEVERIN brand brush rester with smooth, textured grip and no visible text or symbols on the device itself.

ES 3571

GB Instructions for use Slow juicer 10

Slow Juicer

Technical line drawing of a mechanical component with no visible text or symbols

oder unter

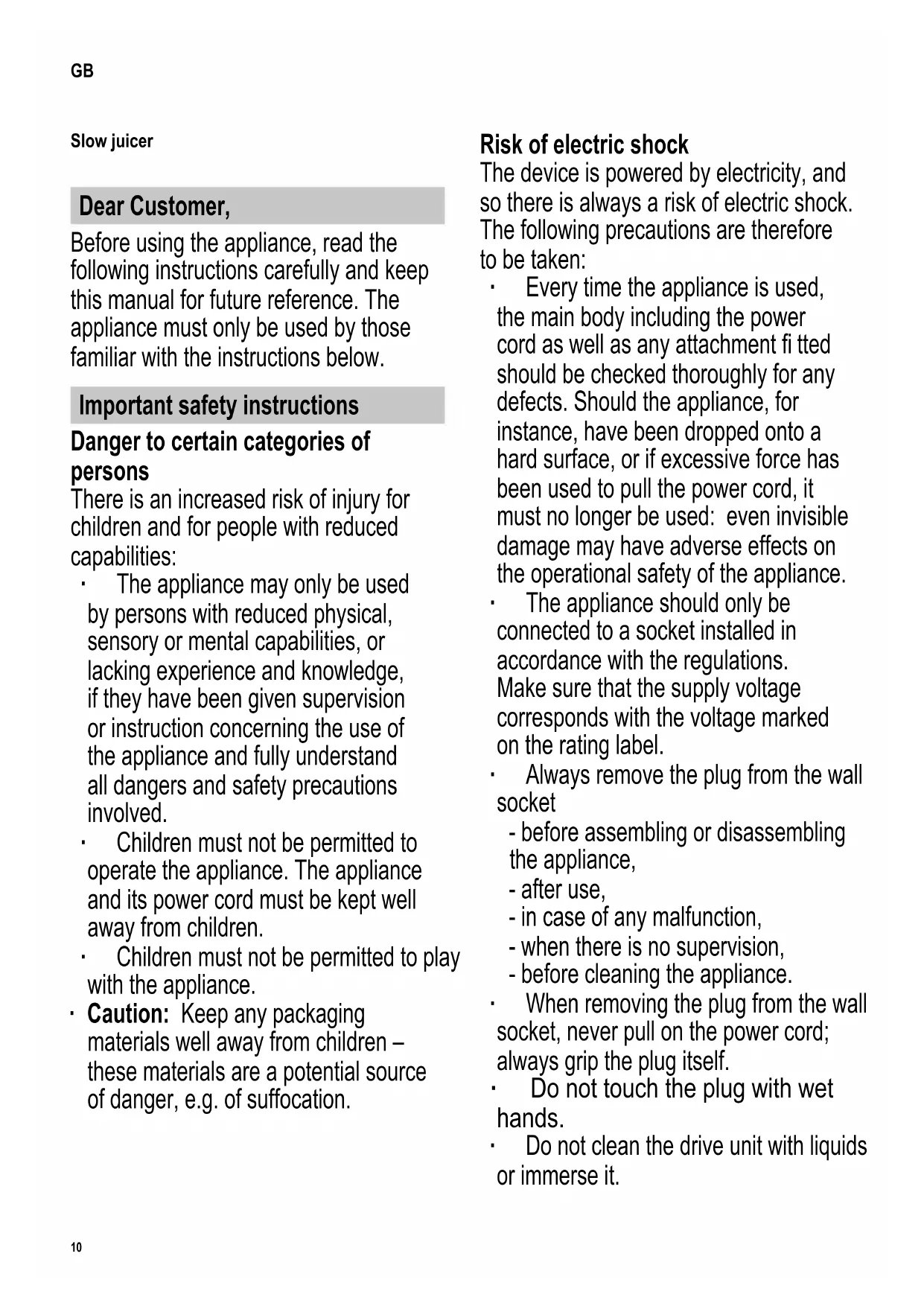

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by those familiar with the instructions below.

Important safety instructions

Danger to certain categories of persons

There is an increased risk of injury for children and for people with reduced capabilities:

• The appliance may only be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to operate the appliance. The appliance and its power cord must be kept well away from children.
  • Children must not be permitted to play with the appliance.
• Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of suffocation.

Risk of electric shock

The device is powered by electricity, and so there is always a risk of electric shock. The following precautions are therefore to be taken:

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

• The appliance should only be connected to a socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label.

• Always remove the plug from the wall socket

• before assembling or disassembling the appliance,

• after use,
• in case of any malfunction,
• when there is no supervision,
• before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• Do not touch the plug with wet hands.
• Do not clean the drive unit with liquids or immerse it.

Danger from moving parts

There is a risk of serious injury from moving parts:

- Do not wear long chains, earrings, scarves or shawls, clothes with long and/or wide sleeves, or long, loose hair when operating the appliance.

- Do not put fingers into the feeder chute, and do not insert any other objects.

- Do not put your hands near the juice or pulp output areas.

- Wait until all parts have come to a complete standstill before removing the feeder chute.

Lack of hygiene

Lack of hygiene may result in germs forming inside the appliance:

- Clean the appliance thoroughly before using it for the first time, and also after each cycle of use.

•Always ensure that the appliance is disconnected from the mains before cleaning.

- For detailed information on cleaning the appliance, please refer to the section Cleaning and care.

- When preparing sorbets, do not use ingredients that have been defrosted and then deep-frozen again.

Danger of damage to the unit

Incorrect handling of the appliance can cause damage:

- Always place the unit on a dry, level, non-slip surface, which is impervious to contact with the rubber feet.

- Do not let the power cord hang free.

- Do not kink or pinch the power cord. Keep both the cord and the appliance itself well away from heat sources (eg hot-plates, gas flames)

- Do not try to extract juice from hot food items.

- Use only original accessory parts with this appliance.

Proper use

- This appliance must only be used for extracting juice from vegetables and fruit and for preparing sorbets from deep-frozen fruit or vegetables. It is also suitable for making fruit purées (compotes) for jams or sauces.

- Caution: The appliance is not designed to process hard food items such as nuts or ice cubes.

- Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

• This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.

- Do not leave the appliance unattended while connected.

- Caution: Any misuse can cause severe personal injury.

In case of a defective appliance

A defective appliance can cause material damage and injury:

• Check the appliance for damage before every use. Do not operate if the appliance shows any sign of damage.
• In the event that you detect damage, please contact our customer service department by phone or email (see appendix).
• Repairs to this appliance or its power cord must only be carried out by our customer service.

Overview and parts included

1. Pulp container
2. Juice container
3. Sorbet insert
4. Sieve insert, coarse
5. Sieve insert, fine
6. Function switch
7. Cleaning brush
8. Power cord with plug
9. Drive unit
10. Worm-drive housing
11. Worm-drive
12. Lid with feeder tube
13. Pestle

Operation

Short-time operation

The appliance is designed for short-term operation only, i.e. it should not be operated continuously for more than 15 minutes. Allow it to cool down for another 30 minutes, after which it may be used again.

Useful tips for juice extraction

• Almost all common types of fruit are suitable for juice extraction, such as apples, pears, plums, strawberries, grapes, oranges, melons, kiwi fruit, pineapples, mangoes and papayas.
• The following vegetables are also suitable for efficient juice extraction: carrots, kohlrabi, celery or cucumber. However, spinach, rocket (rucola) or different types of lettuce may be processed as well.
• Bananas or dried fruits are not suitable for extraction. They contain very little juice and might cause damage.
  • After cleaning, roughly cut up the fruit or vegetables and remove any stones, cores or seeds to prevent damage to the appliance.

- To facilitate extraction, hard fruit and vegetables such as carrots, fennel or kohlrabi should be cut into smaller pieces.

Thermal safety cut-out

The appliance has an integral safety cut-out which protects it from overheating. Should the cut-out have been activated, disconnect the appliance from the mains power and allow it to cool down to room temperature. Then press the reset button on the base of the drive unit.

Before using for the first time

Clean the appliance as described in the section Cleaning and care.

Switch

• The appliance is equipped with a function switch.

0 switched off

I normal operation

R reverse operation

- Do not attempt to change from I directly to R or vice versa. To prevent damage to the appliance, always wait for the motor to come to a standstill first.

Sieve- and sorbet inserts

Fine sieve insert → for clear juices

To extract juices with a low fruit pulp content

Coarse sieve insert → for thick juices and jam

To extract juices with a high fruit pulp content, for making jam and puréed tomatoes for tomato sauces.

Note: The coarse sieve insert is not suitable for extracting juice from harder food items with a low water content such as carrots, kohlrabi etc. Cocktail tomatoes are also unsuitable for processing.

Sorbet insert

For preparing sorbet from frozen fruit.

Assembling the appliance

1. Select the appropriate insert.
2. Fit the insert into the recess of the worm-drive housing so that the protruding part of the insert engages over the rim of the worm-drive housing. Push the insert lightly down.
3. Ensure that the rubber tab under

Technical line drawing of a mechanical device with a coiled cable and directional arrow (no text or symbols)

the worm-drive housing fi ts inside the pulp outlet:

1. Fit the worm-drive housing with the pulp outlet facing left and the juice outlet facing forward to the drive unit.

2. Place the worm drive with the opening facing down into the worm-drive housing, turning it lightly left and right until it is seated firmly on the rubber seal.

3. Fit the lid with the feeder tube onto the worm-drive housing, so that the markings and face each other.
4. Lock the lid by turning clockwise, until the two triangular markings face each other.
5. Lift up the locking latch on the rear of the drive unit.
6. Place the pulp container under the pulp outlet and the juice container under the juice outlet.
7. Insert the plug into a mains socket. The appliance is now ready for use.

Extracting juice from fruit and vegetables

1. Prepare the appliance as described in the section Assembling the appliance (sieve insert I or II).
2. Set the switch to the I position and lift up the flap on the juice outlet.
3. The appliance starts operating.
4. Feed the clean, pre-cut fruit or vegetable pieces down the feeder tube while the unit is running, using the pestle to push the pieces lightly down. Caution: Excessive pressure may result in damage to motor or filter.
5. If unsuitable or excessive ingredients are loaded into the appliance, it may jam. Should this occur, press the button for reverse operation to remove the blockage. You may also have to press the reset button first (see Thermal safety cut-out).
6. During operation, ensure that juice does not accumulate in the worm-drive. If it does, switch the appliance off, disconnect it from the mains and, if necessary, remove any blockage in the pulp or juice outlet.
7. When processing large quantities of fruit or vegetables, the pulp and juice containers must be emptied from time to time, as necessary.
8. When the juice stops coming out, switch the appliance off and remove the plug from the wall socket.
9. Clean the appliance immediately after use.

Hint: The juice should be consumed right away, or stored in a suitable container and kept in a refrigerator (but only for a short time). In this way, vitamins and nutrients are preserved.

Making jam

1. Prepare the appliance as described in the section Assembling the appliance (sieve insert II).
2. Extract the juice - see Extracting juice from fruit and vegetables.
3. Without delay, put the juice, together with the pulp, into a saucepan and prepare the jam according to the recipe.

Some sample recipes can be found towards the end of this manual, or at www.severin.de/service/recipes

Making sorbets

Hint: Sorbets are easily made from frozen fruit or vegetables. Simply freeze the food items overnight, and let them briefly thaw before processing.

1. Prepare the appliance as described in the section Assembling the appliance (sorbet insert).
2. Set the switch to the I position.
3. The appliance starts operating. With the motor running, put the frozen fruits or vegetables into the feeder tube and push down with the pestle. Caution: Avoid excessive pressure to prevent damage to the motor and filter.
4. If unsuitable or excessive ingredients have been loaded into the appliance, it may jam. Should this occur, press the button for reverse operation to remove the blockage.
5. When processing large quantities of sorbet, the juice container must be emptied from time to time, as necessary.
6. When the sorbet stops coming out, switch the appliance off and remove the plug from the wall socket.
7. Clean the appliance immediately after use.

Tip: The sorbet should be consumed right away, or stored in a suitable container, and kept (for a short time only) in a refrigerator. Vitamins and nutrients will then be preserved.

After use

• The appliance should be thoroughly cleaned immediately after each use. For details, please refer to the section Cleaning and care.
• Remove the juice and pulp containers.
  • Take off the pestle.
• Release the locking latch. Turn the lid with its feeder tube anti-clockwise and take it off.
  • Take off the worm-drive housing. Remove the worm drive and take out the sieve inserts.
• Clean all components - see Cleaning and care.

Recipes

Apple-orange jam

Ingredients:

400 g apples

400 g oranges

250 g preserving sugar 3:1

a dash of Amaretto

a pinch of ground cloves

1 tsp cinnamon
1 tbsp lemon juice

• Peel the apples, remove the cores and cut into eight pieces. Peel the oranges and separate the slices.
• Assemble the juicer and fit the (coarse) sieve insert for jam.
• Extract the juice from the apples, and then from the oranges.
• Put the juice and pulp into a saucepan, add the preserving sugar, Amaretto, spices and lemon juice, and let simmer for around 5 minutes, stirring constantly.
• Put the jam into jars (rinsing them in hot water first), screw the lids tight and leave the jars upside down for several minutes.

Mango-strawberry jam

Ingredients:

400 g mango
200 g strawberries
300 g preserving sugar 2:1

• Peel the mango and cut the fruit from the core. Wash the strawberries and remove any green residue.
• Assemble the juicer and fit the (coarse) sieve insert for jam.
• Extract the juice from the mangoes, and then from the strawberries.
• Put the juice and pulp into a saucepan, add the sugar and let simmer for around 5 minutes, stirring constantly.
• Put the jam into jars (rinsing them in hot water first), screw the lids tight and leave the jars upside down for several minutes.

More recipe ideas:

or at www.severin.de/service/recipes

Cleaning and care

• Always remove the plug from the wall socket and allow the appliance to cool down before cleaning.
- Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning.
- To avoid the risk of electric shock, do not clean the drive unit with water and do not immerse it in water.
- The drive unit may be wiped with a slightly damp, lint-free cloth.
- All detachable parts (including the seals on the worm-drive housing) may be cleaned using hot water and a mild detergent.
- Clean the sieve inserts using the soft cleaning brush provided. Do not clean the inserts with any hard object, or they may be rendered unusable.
- All detachable parts may also be cleaned in a dishwasher. However, the sieve inserts should first be cleaned off with the brush provided.
- All parts must be fully dry before re-assembly.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Trouble shooting

Problem Cause Remedy
The appliance does not start. It is not connected to the mains.		Insert the plug into a wall socket.
	The appliance is not assembled.	See Assembling the appliance.
The appliance stops suddenly. The ingredients have caused a jam.		Put the switch to position ‘R’. The appliance runs in reverse, resolving the blockage.
	The appliance is overloaded, triggering the safety cut-out.	Let the appliance cool down for 30 minutes and press the reset button at the base of the drive unit.
The drive unit is overheated. The appliance has been operated too long.		Switch off, disconnect from the mains and allow to cool down for at least 30 minutes.

Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.

Technical specifications

Device category, Art. no.	Slow juicer ES3571
Voltage 220-240 V~, 50/60 Hz
Output approx. 150 W
Dimensions (W x H x D) 140 x 420 x 170 mm
Weight 3,8 kg
Special markings
	Do not dispose of in domestic garbage
[ΦΩZC]	This product complies with all binding CE labelling directives.

Centrifugeuse

Chère cliente, Cher client,

Technical line drawing of a mechanical component with a curved pipe and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a coiled cable and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a coiled cable and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a coiled cable and directional arrow (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved pipe and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with a coiled cable and directional arrow (no text or symbols)

Pure mechanical diagram of a valve or connector without any text, numbers, or symbols

B4-061/062 NO,181 Exhibition Road,

Jiangdong District, Ningbo

Tel.: [phone]

Fax.: [phone]

Web: www.nbautin.com.cn

Web: www.autin.com.cn

Czech Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Indonesia

PT. Setai Modern Elektronik

Email.: [e-mail]

Web.: www.severin.co.id

Jakarta

Komp. Glodok Plaza Blok F No. 9, Jl. Pinangsia Raya,

Jakarta Barat

021 65911888 / 021 6592889

Medan

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel.: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

E-Mail: [e-mail]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: [e-mail]

Polska

Severin Polska Sp.z o.o.

Al.Jerozolimskie 56 C

00-803 Warszawa

Tel.: [phone]

Serbia and Montenegro

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Singapore

Beste (S) Pte. Ltd.

Tagore Building

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

Web: www.beste.com.sg

E-Mail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljublja

Tel.: [phone]

Fax: [phone]

Slowak Republic

PREMT S.R.O.

Skladová 1

917 01 Trnava

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

South Africa

AL&CD Ashley (PTY) Ltd.

3rd Floor, Grove Exchange

9 Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Switzerland

BLUEPOINT Service Sagl

Via Cantonale 14

CH-6917 Barbengo

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

United Arab Emirates

Juma al Majid Est

P.O. Box 156

Dubai U.A.E.

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.al-majid.com

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

180/38 Nguyen Huu Canh Street

Ho Chi Minh City. Vietnam

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Stand: 10.2016
