Product type	Juicer
Brand	SEVERIN
Model	CP 3566
Number of speeds	2 (slow speed I, fast speed II)
Overheat protection	Yes (automatic shut-off, 30 min cooling)
Short-term operation	Max 1 min continuous, then 1 min rest; after 3 cycles, 15 min rest
Safety	Safety switch with lid lock clip
Juice spout	Foldable to prevent dripping
Pusher	Yes, with guide groove
Pulp collector	Yes, removable
Strainer	With sharp points, removable
Juice container	With lid, retains foam
Motor unit maintenance	Wipe with a damp cloth, do not immerse
Accessory maintenance	Wash with hot water and mild detergent, not dishwasher safe
Strainer cleaning	With a soft nylon brush, avoid hard objects
Warranty	2 years against manufacturing defects
Intended use	Domestic, juice extraction from fruits and vegetables (except fig, avocado, etc.)

Frequently Asked Questions - CP 3566 SEVERIN

How to assemble the Severin CP 3566 juicer before use?

Place the strainer holder on the drive shaft, the juice spout to the right. Insert the strainer into its holder, pressing firmly until it locks. Slide the pulp collector onto the left side under the edge of the strainer holder. Place the transparent lid and lock it with the locking clip on both sides. Place the juice container under the unfolded spout.

What foods should not be used with this juicer?

Do not use figs, avocado, eggplant, elderberries, rhubarb, lingonberries. Peeled bananas can be added for flavor but yield little juice. Do not use overly hard or fibrous foods not mentioned.

How to clean the strainer after use?

Use a soft nylon brush to clean the strainer. Do not use hard objects (metal, scrapers) as they could damage the sharp points and render the strainer unusable. Not dishwasher safe.

What to do if the appliance stops suddenly during use?

This is an overheat protection. Unplug the appliance and let it cool down for 30 minutes before using it again. This prevents motor damage.

How long can I run the appliance continuously?

The appliance is designed for short-term operation: maximum 1 minute continuously, then let it cool for 1 minute. After 3 cycles of one minute, let it cool for 15 minutes before continuing.

How to prevent juice drips after use?

The juice spout is foldable: slightly lift the juice container and fold the spout upward. This prevents residual juice from dripping onto the work surface.

Can I wash the accessories in the dishwasher?

No, all accessories (pulp collector, strainer holder, lid, pusher, juice container) must be hand washed with hot water and a mild detergent. Do not wash the strainer in the dishwasher.

How to use the pusher correctly?

Insert the food into the feed chute and use the pusher to push it down. Make sure the guide groove of the pusher engages on the notch. Do not push too hard to avoid damaging the motor or strainer.

What to do if the strainer is damaged or cracked?

Do not use the appliance. The strainer is a safety part: if damaged, it can break and cause injury. Contact Severin customer service for a replacement.

Where to find spare parts like the strainer or juice container?

Spare parts are available from authorized Severin service centers. Contact customer service or visit the Severin website for references and orders.

USER MANUAL CP 3566 SEVERIN

Exterior view of a modern electric juice maker with a glass of orange juice in front (no visible text or symbols)

ART.-NO. ES 3566

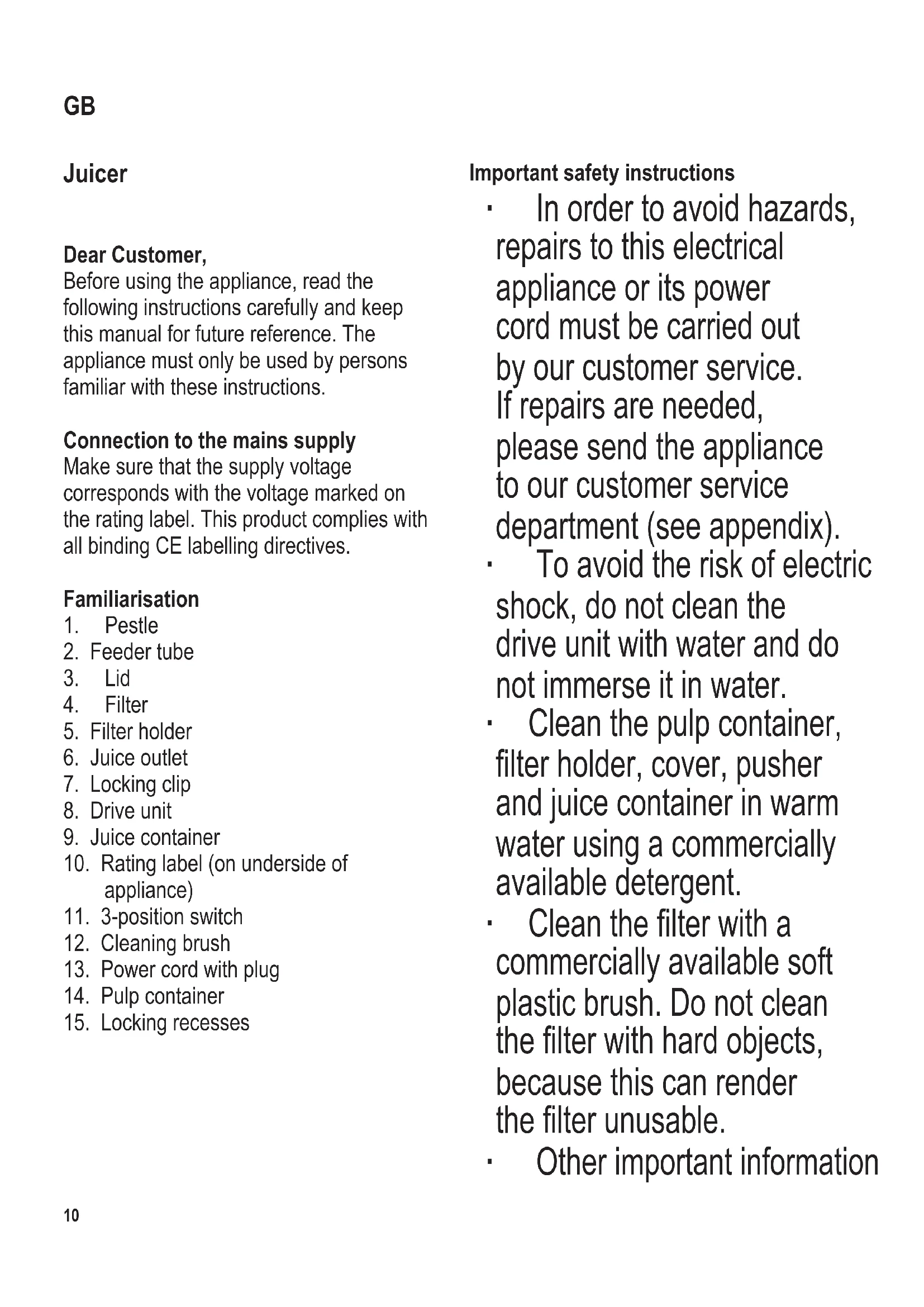

GB Instructions for use Juicer 10

DE

Entsafter

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Pestle
2. Feeder tube
3. Lid
4. Filter
5. Filter holder
6. Juice outlet
7. Locking clip
8. Drive unit
9. Juice container
10. Rating label (on underside of appliance)
11. 3-position switch
12. Cleaning brush
13. Power cord with plug
14. Pulp container
15. Locking recesses

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
  • To avoid the risk of electric shock, do not clean the drive unit with water and do not immerse it in water.
• Clean the pulp container, filter holder, cover, pusher and juice container in warm water using a commercially available detergent.
• Clean the filter with a commercially available soft plastic brush. Do not clean the filter with hard objects, because this can render the filter unusable.
• Other important information

related to cleaning can be found in the section Cleaning and care.

- Warning! The filter has sharp tips! Take special care when assembling, cleaning and emptying to avoid injury.

- Do not operate the appliance if the rotating filter or the lid shows any kind of damage, or if there are any visible cracks.

• Always remove the plug from the wall socket

• before assembling or disassembling the appliance,
• after use,
• in case of any malfunction,
• before opening the lid,
• when there is no supervision,
• before cleaning the appliance.

- This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offices and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments.

- Warning! Misuse of the device can cause injuries!

- The appliance may only be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions

involved.

- Children must not be permitted to operate the appliance. The appliance and its power cord must be kept well away from children.

• Children must not be permitted to play with the appliance.

- Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of suffocation.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- For safety reasons, use the pestle at all times when feeding fruit or vegetables into the feeder tube. Under no circumstances use your hands or fingers.

• After switching off, always wait until the motor has come to a complete standstill before opening the lid.

- Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. Do not touch the plug with wet hands.

- Do not let the power cord hang free.

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Intended use

- This appliance must only be used for extracting juice from fruit and vegetables such as apples, carrots, cucumber, tomatoes etc.

- The following fruits and vegetables are not suitable for juice extraction: figs, avocados, aubergines, elderberries, rhubarb, cranberries and the like.

- Peeled bananas should be added for aromatic purposes only, as very little juice can be extracted.

- Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

Short-time operation

The appliance is designed for short-term operation only, i.e. it should not be operated continuously for more than 1 minute. Allow it to cool down for 1 minute afterwards. After 3 such cycles, the unit must be permitted to cool down for 15 minutes before it is switched on again.

Overheating protection

The appliance automatically switches off in the case of over-heating. If this happens, disconnect the appliance from the mains and allow it to cool down for 30 minutes, when it will be ready for use again.

Before using for the first time

Before the appliance is used for the first time, it must be cleaned as described in the section Cleaning and care.

Switch

The appliance is equipped with a 3-position switch.

0 appliance switched off

I slow juice extraction

II fast juice extraction

Tip!

The slow-juicing setting I is suitable for soft, juicy fruits or vegetables such as melons (peeled), tomatoes etc.

For harder fruits or vegetables such as apples, carrots etc, we recommend using the quick-juicing setting II.

Juice outlet

The juice outlet can be folded up to avoid dripping. During operation, the outlet must be folded down.

Operation

Preparing the ingredients

- Clean and cut up the fruit or vegetable so that it fits down the feeder tube; remove any stones, pips or cores to prevent damage to the appliance.

Preparing the appliance

• Ensure that the switch is set to its 0 position.
• Place the filter holder onto the drive unit with the juice outlet to the right.
• Fit the filter into its holder, pushing it firmly down by the rim until it is heard locking into place. It is important that the filter is securely attached and not at an angle, and that it can be turned easily.
• Slide the pulp container on the left side of the unit under the rim of the filter holder, tilting the container slightly.
• Place the transparent lid onto the filter holder. The left side of the lid must engage in the pulp container. Secure the lid with the locking clip, which will activate the safety switch. Ensure that the locking clip engages firmly on both sides into the locking recesses on the lid.
• Fit the juice container with its lid below the outlet, and then fold the juice outlet down.

Juicing

• Insert the plug into the wall outlet and put the switch to the required setting.
• Feed the clean, pre-cut fruit or vegetable pieces down the feeder tube while the unit is running. When inserting the pestle, ensure that its guide slot slides over the protruding knob on the feeder tube, and then push the pieces lightly down. Caution: Excessive pressure may result in damage to motor or filter.
• When processing large quantities of fruit or vegetables, the pulp container and juice container must be emptied from time to time as necessary.

After use

• After use, switch the appliance off and remove the plug from the wall socket. Lift the juice container slightly and fold up the juice outlet at the same time.
• Make sure to clean the appliance thoroughly after each cycle of use. For detailed information, please refer to the Cleaning and care section.
- To detach the filter and filter holder, remove the pulp container first. Then fold down the locking clip and take off the pestle and lid.
- Place your left hand under the filter holder and your right hand under the juice outlet. Pull the filter holder up by applying pressure to left and right alternately, until it comes clear.
• Take off the filter holder and filter.

Juice container

With the lid left in place when pouring out the juice, the foam caused during juice extraction will remain inside the container.

Recipes

In the mood for some healthy recipe ideas?

or try www.severin.com/service/recipes

Information for testing institutes

Juicing sugar cane:

Juice the sugar cane for 5 seconds, with the addition of 100 ml of water.

Cleaning and care

• Always remove the plug from the wall socket and allow the appliance to cool down before cleaning.
- Caution: The filter has small, sharp points. There is a risk of injury.
- Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning.
- To avoid the risk of electric shock, do not clean the drive unit with water and do not immerse it in water.
- The drive unit may be wiped with a slightly damp, lint-free cloth.
- The pulp container, filter holder, lid, pestle and juice container may all be cleaned using hot water and a mild detergent.
- The filter should be cleaned, using a soft, commercially available nylon brush. Do not clean the filter with any hard object, as that may render it unusable.
• These parts are not dish-washer safe.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
