USER MANUAL CP 3537 SEVERIN

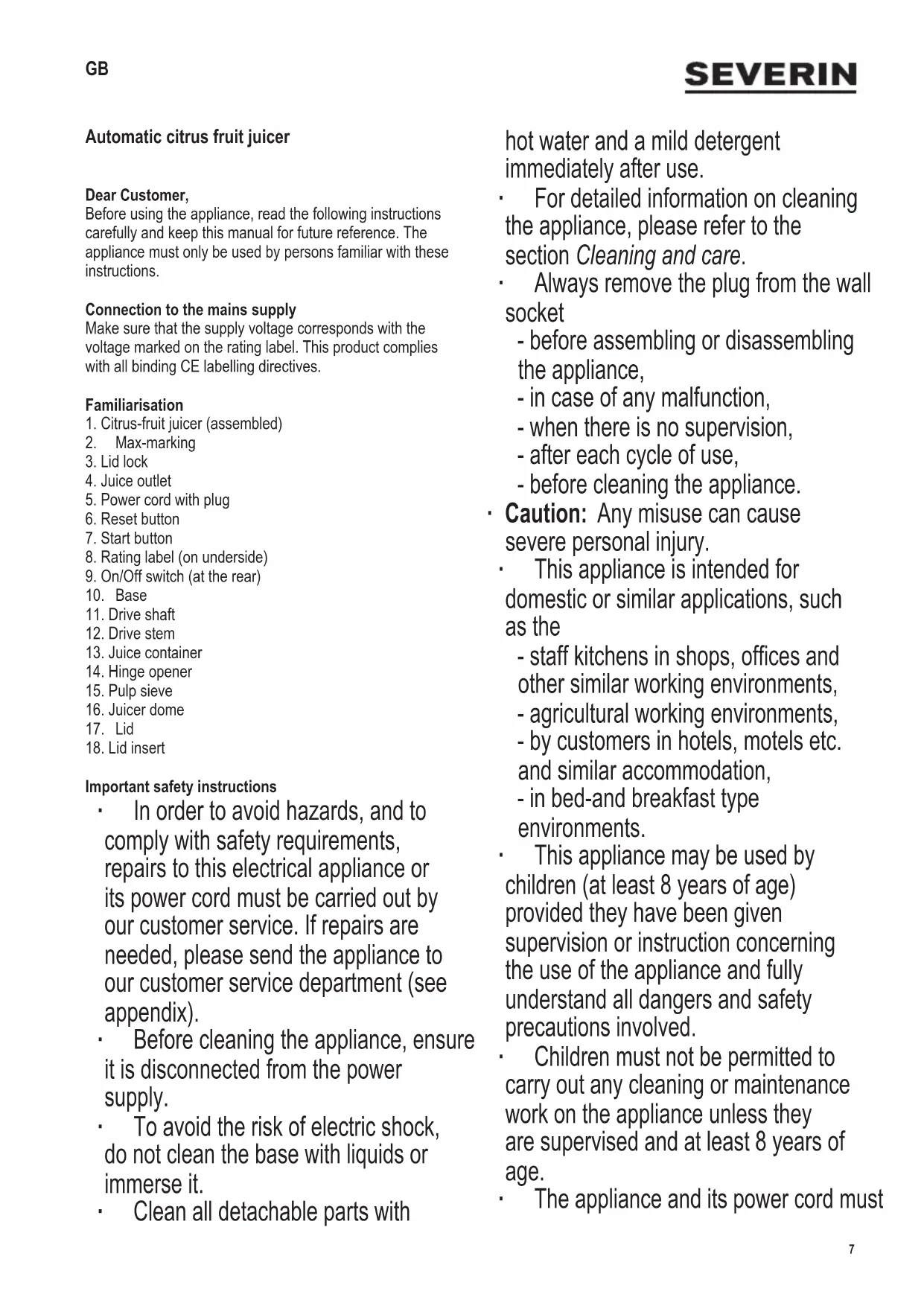

Automatic citrus fruit juicer

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Citrus-fruit juicer (assembled)
2. Max-marking
3. Lid lock
4. Juice outlet
5. Power cord with plug
6. Reset button
   7.Start button
7. Rating label (on underside)
8. On/Off switch (at the rear)
9. Base
10. Drive shaft
11. Drive stem
12. Juice container
13. Hinge opener
14. Pulp sieve
15. Juicer dome
16. Lid
17. Lid insert

Important safety instructions

In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
Before cleaning the appliance, ensure it is disconnected from the power supply.
To avoid the risk of electric shock, do not clean the base with liquids or immerse it.
Clean all detachable parts with

hot water and a mild detergent immediately after use.

• For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
  Always remove the plug from the wall socket

• before assembling or disassembling the appliance,

• in case of any malfunction,
• when there is no supervision,
• after each cycle of use,

• before cleaning the appliance.

• Caution: Any misuse can cause severe personal injury.

This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,
• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must

be kept well away from children under 8 at all times.

• The appliance may only be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  Children must not be permitted to play with the appliance.
• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
• Before the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any faults or defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources.
• When removing the plug from the wall socket, never pull on the power cord. Do not let the power cord hang free.
• Do not use the appliance with any attachments other than those provided by the manufacturer; all components must be properly fitted (see Preparing the unit).
• Never operate the appliance when empty.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

Before the juicer is used for the first time, it must be cleaned as described in the section Cleaning and care.

Power cord storage

There is a power-cord storage compartment in the base. Unwind the cord to the required length before use. After use, wind up the cord.

Operation

Preparing the unit

• Fit the drive stem onto the drive shaft on the base.
• Fit the juice container so that the and marks face each other.
• Fold the juice outlet up.
• Lock the juice container by turning it clockwise, so that the and marks face each other and the juice container is heard locking into place.

NB:

If the juice container turns during operation, it is not properly locked. In that case, switch the appliance off, lock the container properly and then continue.

• Fit the pulp sieve onto the juice container.
• Fit the juicer dome over the pulp sieve and onto the drive shaft.
• Fit the lid insert into the lid and push it firmly down.
• Push the hinge opener on the juice container down and fit the lid into the hinge.
• Place a suitable container under the juice outlet and fold the outlet down.
• Connect the appliance to the mains. The juicer is now ready for use.

Extracting juice

• Cut the citrus fruit in half and place one of the halves onto the dome with the cut section facing downwards.
• Close the lid; ensure that it is heard locking into place.
• Use the On/Off switch to turn the appliance on. A beep signal is heard and the 'Start' button lights up.
• Push the 'Start' button until you hear a beep-signal.
• The fruit is now pushed up, juice is extracted and the fruit is lowered again, the juice being collected in the container.
• Wait until the motor has come to a complete standstill. Now the lid can be opened, the fruit residue removed and a new piece of fruit put on the dome.
• When processing larger quantities of fruit, the pulp sieve must be emptied from time to time as necessary.
• When extracting juice from larger fruit (e.g. grapefruit), ensure that the Max marking is not exceeded – the juice outlet must be folded down early enough.
  After use, fold the juice outlet up and switch the appliance off.
• Remove the plug from the wall outlet and clean the appliance.

Reset button

• Following a power interruption, or if the appliance is blocked up, the pulp sieve and juicer dome will remain in their current position. The reset button flashes and beep-signals are heard.
• Push the reset button. The unit now reverts to its starting position and the juicing process can be continued.

Cleaning and care

Before cleaning the appliance, remove the plug from the wall socket.
- To avoid the risk of electric shock, do not clean the base with liquids or immerse it.
Clean the base with a damp, lint-free cloth.
- Do not use abrasives, harsh cleaning solutions or hard brushes.
- Removing the attachment parts:

• Lift up the lid lock to open the lid.
• Push down the hinge opener and take off the lid.
• Remove the lid insert from the lid.
• Remove the juicer dome and pulp sieve.
  If necessary, fold the juice outlet up.
• Unlock the juice container by turning it anti-clockwise and take it off.
• Remove the drive stem.

All detachable parts should be thoroughly cleaned after use, using hot water and a mild detergent; wipe thoroughly dry afterwards.
- The juice container, pulp sieve, juicer dome and lid insert are dishwasher-safe.
- Caution: The lid and drive stem are not dishwasher-safe.
- Re-assemble the parts after cleaning as described under Preparing the unit.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
