Brand	OK
Model	OPJ 4321
Product type	Centrifugal juice extractor
Power supply	220-240 V~, 50/60 Hz
Power	1000 W
Speeds	2 speeds (1 for soft fruits, 2 for hard) + pulse function (P)
Sieve material	Stainless steel
Pusher	Yes, included
Locking bar	Yes, for safety
Suction feet	Yes, for stability
Cleaning	Removable parts (A, B, D, E, H, M) dishwasher safe. Wipe base with a damp cloth.
Box contents	Juice extractor, user manual, warranty card
Recommended use	Household only, for preparing fruit and vegetable juices
Continuous operating time	Maximum 7 minutes, then let cool
Safety	Locking bar, stop and unplug before cleaning, sharp blade

Frequently Asked Questions - OPJ 4321 OK

How to assemble the juice extractor?

Place the base on a flat and stable surface. Attach the container onto the base aligning the spout. Insert the stainless steel sieve and lock it by pressing until it clicks. Place the lid and raise the locking bar until it locks into the grooves. Finally, plug in the appliance after complete assembly.

Can I wash the parts in the dishwasher?

Yes, the following parts can go in the dishwasher: the pusher (A), the lid (B), the sieve (D), the sieve holder (E), the juice jug (H) and the pulp container (M). The motor base must never be immersed.

What to do if the motor stops during extraction?

This probably means the sieve is clogged. Turn off the appliance, unplug it, remove the lid and clean the sieve to remove residues. Also make sure not to overload the chute.

Can I extract banana juice?

No, bananas and avocados do not contain enough juice and may clog the appliance. It is recommended to blend them separately. Use juicy fruits and vegetables like apples, carrots or oranges.

What is the power of the appliance?

The rated power is 1000 W at a voltage of 220-240 V~, 50/60 Hz. This allows efficient extraction of juice from hard or soft fruits and vegetables.

How to use the pulse function?

Set the switch to the P position and hold it down for quick extraction. Release to stop; the switch automatically returns to 0. Use this function in short bursts (max 2 minutes) to avoid overheating.

Is the appliance suitable for hard fruits?

Yes, use speed 2 for hard fruits and vegetables like beets, carrots or celery. Cut them into small pieces and feed them slowly into the chute to avoid blockages.

How to remove an obstruction in the chute?

Set the button to 0 and wait for the blade to stop completely. Unplug the appliance, remove the lid, then remove the blocked food with the pusher. Never insert fingers into the chute.

Why does juice leak under the base?

This may be due to a clogged sieve or spout, or too high speed. Clean the sieve and the spout, and switch to a lower speed if necessary. Also check that the container is properly positioned.

Can I use the appliance continuously?

No, the appliance is not designed for continuous operation. Do not use it for more than 7 minutes at a time, then let it cool before using again to avoid motor overheating.

USER MANUAL OPJ 4321 OK

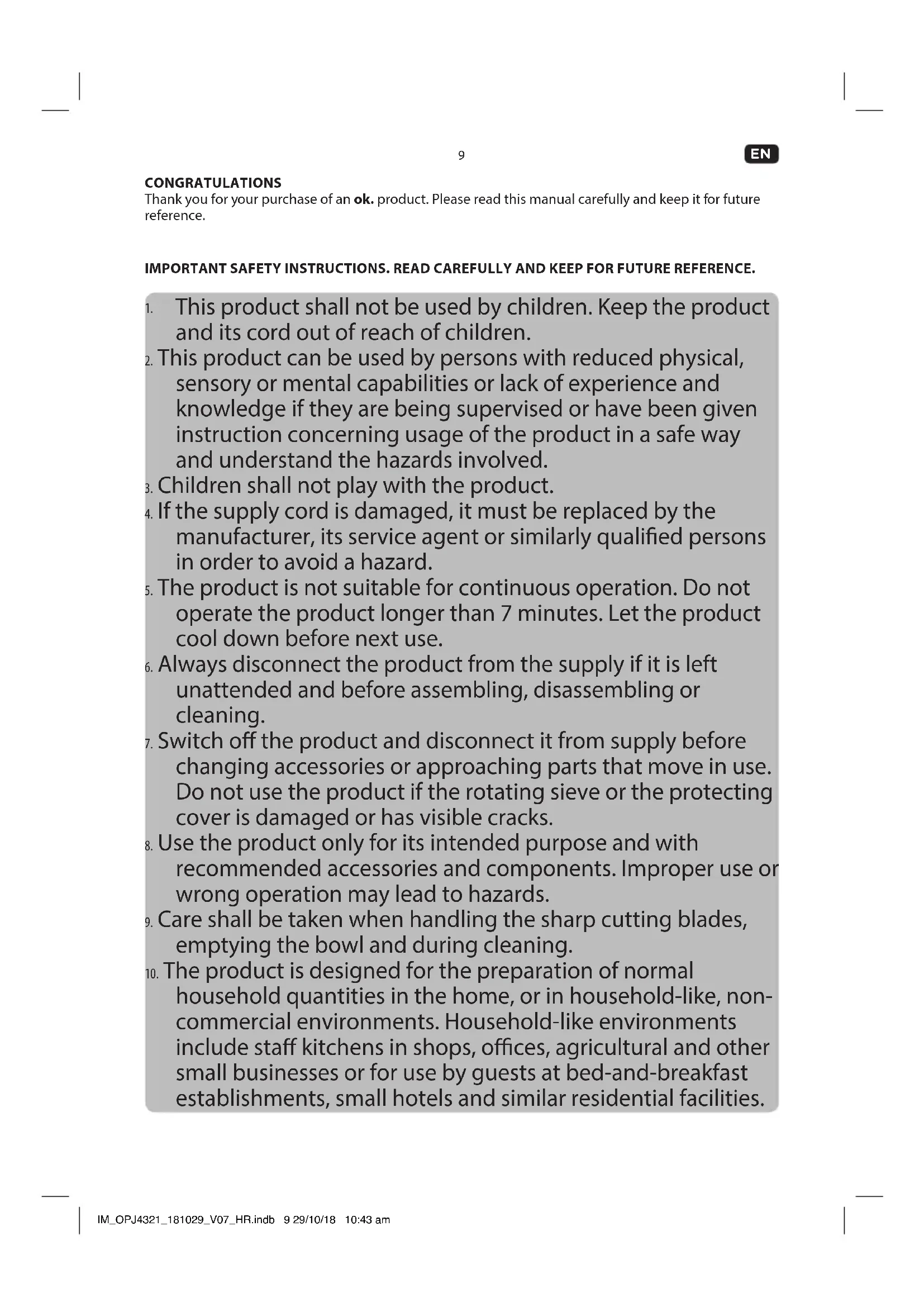

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product shall not be used by children. Keep the product and its cord out of reach of children.
2. This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning usage of the product in a safe way and understand the hazards involved.
   Children shall not play with the product.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. The product is not suitable for continuous operation. Do not operate the product longer than 7 minutes. Let the product cool down before next use.
5. Always disconnect the product from the supply if it is left unattended and before assembling, disassembling or cleaning.
6. Switch off the product and disconnect it from supply before changing accessories or approaching parts that move in use. Do not use the product if the rotating sieve or the protecting cover is damaged or has visible cracks.
7. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
8. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
9. The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

EN

10

1. Clean the product and all other accessories after each use.

2. Follow the instructions in the chapter Cleaning and care.

3. Observe all safety instructions to avoid damage through improper use!

4. Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included.
5. Before connecting the product to the power supply, make sure that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label.
6. Never use a damaged product! Disconnect the product from the electrical outlet and contact your retailer if it is damaged.
7. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well. Do not let rotating blades touch the power cord.
8. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible.
9. If an extension cord is used, its capacity needs to be suitable for the power consumed by the product.
10. Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
11. Do not open the product casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
12. Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the product.
13. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the product. Use the power plug as the disconnection device.
14. Disconnect the power plug from the electrical outlet when the product is not in use and before cleaning.
15. If the power cord should overheat, stop using the product and disconnect the product from the electrical outlet.
16. Do not place the product on hot plates (gas, electric, coal cooking range, etc.). Keep the product away from hot surfaces and open flames. Always operate the product on a level, stable, clean, heat-resistant and dry surface.
17. Never leave the product unattended during use.
18. Dry the product and all accessories before connecting it to the power supply and prior to attaching accessories.

INTENDED USE

This appliance is only intended for preparing juices. This product is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the product or injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

CONTROLS AND COMPONENTS

A. Pusher

H. Juice container

B. Lid with feeding chute

I. Locking bar

C. Locking groove

J. Power cord with power plug

D. Stainless steel sieve with blade

K. Vacuum cup feet

E. Sieve holder

L. On/off switch (O, 1, 2, P)

F. Spout

M. Pomace container

G. Base with motor

N. Container holder

DELIVERY CONTENT

1xJuicer
1xUsermanual
1 x Warranty card

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Check for completeness and transport damage. In case of damages or incompleteness please contact your dealer.
  After unpacking, please refer to chapter Cleaning and care.

Before using the first time, all removable parts should be cleaned.

Note: Wash all removable parts with water, mixed with a little detergent and then rinse and dry thoroughly.

Alternative the parts A, B, D, E, H and M can also be cleaned in the dishwasher.

Disassemble the device as follows:

a) Put down the safety bar.
b) Remove the pomace container.
c) Remove the lid with the feeding chute.
d) Pull off the sieve holder upwards together with the sieve. Note: The sieve holder is fixed relatively tight. Pull from all sides, especially at the side of the spout.
e) Remove the sieve from the sieve holder.

ASSEMBLY

WARNING! Never connect the power plug into an electrical outlet before the appliance is fully assembled.

Place the base on a dry, flat, and steady surface. Press the base firmly on the surface so that the suction feet get a good grip.
Place the sieve holder on the base. Make sure sieve holder and spout fit in place correctly.
4 Attaching the pulp container: Insert its upper part under the receptacle lip. Push the lower part firmly into the pulp container holder.
5 Insert the stainless steel sieve inside the receptacle, matching its bottom with the base shaft.
Lock the sieve in place: Press the sieve edge downward until a click is heard.
7 Place the lid on the juicer.
Lock the bar: Lift up the locking bar until it fits the locking grooves on both sides of the lid.

EN

12

9 Insert the pusher into the feeding chute. Make sure the notch of the pusher fits the ridge on the feeding chute top.

Place the juice container underneath the spout.

Now the appliance is assembled and ready for use.

Note: Ensure that all components, esp. the metal sieve are properly assembled before using the product.

PREPARING FRUITS AND VEGETABLES

• This juicer can be used to make juices from many different types of fruit and vegetables, but some preparations are needed to create flavourful and tasty juices.
• Rinse fruits and vegetables under fresh running water.
  Cut large fruits and vegetables into pieces that fit into the feeding chute.
• Remove large seeds, stones, and pits from cherries, peaches, etc.
• Remove thick or hard skin from pineapple, oranges, melons, etc.

EXTRACTING JUICE

Cautions!

• Before plugging in the juicer, make sure the electrical circuit is not overloaded with other appliances.
  Always turn the juicer off and unplug it when not in use.
• Do not put your hand or fingers into the feeding chute to push food or remove clogged food. Use the pusher only. Danger of serious injury due to the rotating blade!

10 Remove the pusher from the feeding chute.
11 Connect the power plug to a suitable electrical outlet.
12 Set the on/off switch to desired juicing speed.

Speed Description

0 Off position

1 Extracting juice from soft fruits and vegetables
2 Extracting juice from hard fruits and vegetables

13 Fill the prepared ingredients into the feeding chute. Do not overload it.

Add small pieces at a time.

Fruit pulp is ejected into the pulp container. Meanwhile, the extracted juice flows through the spout into the juice container.

Use the pusher to slowly push the ingredients through the feeding chute.

Pour small amounts into the feeding chute again and again and push it down with the pusher.

14 After use: Set the on/off switch to the 0 (off) position.
15 1. Wait until the blade has stopped running.
2. Disconnect the power plug from the electrical outlet.

PULSE FUNCTION

Note: You can always use the pulse function for maximum power! Use this function for a maximum of 2 minutes to avoid overheating the motor!

16 1. Set the on/off switch to P and hold it to start juicing.

1. Release the on/off switch to stop juicing. The switch goes back to 0 automatically.

REMOVING BLOCKAGES

• If the blades of the sieve are clogged: Set the on/off switch to 0. Wait until the blade stops running.
• Disconnect the power plug from the electrical outlet and remove the lid.
  Clear all clogged foodstuff.

HINTS

• Do not put any fruit or vegetables in your juicer until power is turned on and the motor is spinning.
• Allow juicer to run for a few seconds before juicing.
• Do not force food into the juicer. Allow food to pass through slowly and steadily using the pusher.
• Any fruit or vegetable that will fit the chute can be put through whole. Only cut fruits and vegetables if they are too large to fit into the chute. Then it should be cut into small enough pieces to fit in the chute. Do not cut pieces too small.
• Remove large pits such as peach, mango, etc., as they will damage the blade and possibly the appliance.
• Let the juicer run for a few seconds before turning it off to allow any excess juice to be extracted. Once turned off, wait until the appliance has come to a complete standstill and has fully cooled before disassembling.
• Do not use bananas or avocados as they do not contain juice and will clog the appliance. Add them separately in a blender.
• We do not recommend using overripe fruit as it will leave too much pulp in the sieve and clog the appliance.
• Do not pour liquids into the appliance at any time.
• When using small or thin fruits or vegetables, insert more of them at the same time. For example, insert 2 or 3 carrots at a time into the chute for best results.
• When juicing herbs or wheat grass, wrap them in larger leafed vegetables such as spinach, cabbage, etc., and follow with a fruit or vegetable that contains an abundance of juice such as pineapple, apple, etc.
• Always use the slower setting when juicing very juicy foods. Note that the pomace will be wetter the juicer the used foods are (e.g. cucumbers). Push the pomace through a sieve to receive more juice. Always push down the foods at a slow but steady pace.
• Fruits, Vegetables that don't contain a lot of juice (e.g. bananas) won't give a lot of juice. Rather use these foods as a flavourful addition and not as the main source of juice. Always push down the foods at a slow but steady pace.
• Denser vegetables (e.g. beets) and fibrous vegetables (e.g. celery) should be chopped and fed slowly into the chute to reduce clogging.

CLEANING AND CARE

• Warning! Before cleaning, always switch off the appliance and disconnect the plug from the power.
• Warning! Never immerse the power cord with plug or the base in water or other liquids.
• Disassemble the juicer as given in chapter Assembly, points a) to e).
• Cleaning the base: Use a soft, slightly damp cloth. Make sure that no moisture is entering the appliance during cleaning.
• Cleaning all detachable parts: Remove coarse remnants of all removable parts. Wash the parts in warm water with detergent. Rinse thoroughly under running water.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
  Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location, away from children and pets.

EN

14

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Problem Possible causes Solution	Interrupted power supplyProduct is switched offThe locking bar is not secured	Interrupted power supplyProduct is switched offThe locking bar is not secured
The motor stops while juicing or it turns noticeably slow	The sieve is blocked • Switch	off the product and unplug. Clean the sieve.
The juice sprays out of the product	You are working too fastThe speed setting is too high	Work more slowlyChange to a lower speed setting
During the processing, the juice is running down the product base	The sieve or the spout is blockedThe speed setting is too high	Clean the sieve and spoutChange to a lower setting

TECHNICAL DATA

Rated voltage: 220 - 240V 50 / 60Hz

Rated power: 1000 W

Protection class : II

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
