1. PRECAUTIONS

An ACOUSTIC PRESSURE value of 4m corresponds to the ACOUSTIC POWER value stated on the yellow label located on the compressor, minus 20 dB.

THINGS TO DO

• The compressor must be used in a suitable environment (well ventilated with an ambient temperature of between +5^ and +40^ ) and never in places affected by dust, acids, vapors, explosive or flammable gases.
• Always maintain a safety distance of at least 4 meters between the compressor and the work area.
• Any coloring of the belt guards of the compressor during painting operations indicates that the distance is too short.
• Insert the plug of the electric cable in a socket of suitable shape, voltage and frequency complying with current regulations.
• For 3-phase versions, have the plug fitted qualified electrician according to local regulation. When starting the compressor for the first time, check the correct direction of rotation and that this matches the direction indicated by the arrow on the belt guard (versions with plastic protection) or on the motor (versions with metal protection).
• Use extension cables with a maximum length of meters and of suitable cross-section.
• The use of extension cables of different length and also of adapters and multiple sockets should be avoided.
• Always use the switch of the pressure switch to switch off the compressor or use the switch of the electric panel for models equipped with this. Never switch off the compressor by pulling out the plug in order to avoid restart with pressure in the head.
• Always use the handle to move the compressor.
• When operating, the compressor must be placed on a stable, horizontal surface to guarantee correct lubrication.
• Position the compressor at least 50~cm from the wall to permit optimal circulation of fresh air and to guarantee correct cooling.

THINGS NOT TO DO

• Never direct the jet of air towards persons, animals or your body. (Always wear safety goggles to protect your eyes against flying objects that may be lifted by

the jet of air).

• Never direct the jet of liquids sprayed by tools connected to the compressor towards the compressor.
• Never use the appliance with bare feet or wet hands or feet.
• Never pull the power cable to disconnect the plug from the socket or to move the compressor.
• Never leave the appliance exposed to adverse weather conditions.
• Never transport the compressor with the receiver under pressure.
• Do not weld or machine the receiver. In the case of faults or rusting, replace the entire receiver.

• Never allow inexpert persons to use the compressor. Keep children and animals at a distance from the work area.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision instructions concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not position flammable or nylon/fabric objects closed to and/or on the compressor.
• Never clean the compressor with flammable liquids or solvents. Check that you have unplugged the compressor and clean with a damp cloth only.
• The compressor must be used only for air compression. Do not use the compressor for a other type of gas.
• The compressed air produced by the compressor cannot not be used for pharmaceutical, food or medical purposes except after particular treatments and cannot be used to fill the air bottles of scuba divers.
• Never use the compressor without guards (belt guard) and never touch moving parts.

THINGS YOU SHOULD KNOW

• To avoid overheating of the electric motor, this compressor is designed for intermittent operation as indicated on the technical dataplate (for example, S3-50 means 5 minutes ON, 5 minutes OFF). In the case of overheating, the thermal cutout of the motor trips, automatically cutting off the power

when the temperature is too high. The motor restarts automatically when normal temperature conditions are restored.

• To facilitate restart of the compressor, in addition to the operations indicated, it is important to return the button of the pressure switch to the OFF position and then to ON again (fig. 2).
• On single-phase versions, press the reset button on the terminal box of the motor (fig. 19).
• On 3-phase versions, operate manually on the button of the pressure switch, returning this to the ON position, or press the button of the thermal cutout inside the box of the electric panel (figures 2b & 20).
• The single-phase versions are fitted with a pressure

switch equipped with a delayed closing air vent valve (or with a valve located on the check facilitates motor start-up; therefore a few-s jet of air from this, with the reservoir empty, is to be considered normal.

• To guarantee machine safety, all the are fitted with a safety valve that is activated in the case of failure of the pressure switch.
• When fitting a tool, the flow of air in output must be switched off.
• When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, pneumatic tools, painting, washing with water-based detergents only, etc.).

compress

2. LAYOUT

1. Intake air filter
2. Pressure vessel
3. Wheel
4. Guide roller (or supporting foot)
5. Quick-lock coupling (regulated compressed air)
6. Pressure gauge (for reading the preset tank pressure)
7. Pressure regulator
8. ON/OFF switch
9. Transportation handle
10. Safety valve
11. Drainage screw for condensation water
12. Pressure gauge (for reading the tank pressure)
13. Quick-lock coupling (unregulated compressed air)
14. Oil sealing plug (oil filler opening)
15. Oil drainage screw
16. Oil level window
17. Bolt
18. Nut
19. Washer
20. Check valve

3. SCOPE OF USE

The compressor is designed for generating pressed air for tools operated by compressed air.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications.

Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

4. POINTS TO NOTE WHEN SETTING UP THE COMPRESSOR

• Examine the machine for signs of transit damage Report any damage immediately to the company which delivered the compressor.
• The compressor should be set up near the working consumer.
• Avoid long air lines and long supply lines (sions).
  Make sure the intake air is dry and dust-free.
• Do not set up the compressor in damp or wet rooms.
• The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to +40^ ). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
• The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.

com.The oil level in the compressor pump has t checked before putting the equipment into operation.

5. ASSEMBLY AND STARTING

Warning!

You must fully assemble the appliance before using it for the first time.

5.1 Fitting the wheels (Figs. 4-5)

Fit the supplied wheels as shown in figures 4 & 5.

5.1.1 Fitting the supporting foot (only for B 255/10/50, B 350/10/50, B480/10/50)

Fit the supplied rubber stopper as shown in Fig. 6.

5.2 Fitting the quick-lock coupling for tank pressure (ref. 13)

Screw the quick-lock coupling for unregulated pressure (ref. 13) to the pressure vessel as shown in Figures 7 and 8.

5.3 Fitting the transport handle (ref. 9)

Screw the transport handle (ref. 9) to the compressor as shown in Figures 9 and 10.

5.4 Voltage

5.4.1 Single-phase version 230 V/50 Hz

The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 230V 50Hz shock-proof socket which is protected by a 16 A fuse. Before you use the machine, make sure that the mains voltage complies with the specifications on the rating plate. Long supply cables, extensional reels etc. cause a drop in voltage and can impede motor start-up. In the case of low temperatures below +5^ , motor start-up is jeopardized as a result of stiffness.

5.4.1.1 Connection of the mains plug (electrical information for the BS plug)

Important!

The wires in the mains lead fitted to this product are coloured in accordance with the code shown in fig. 25.

• This product is double insulated and does not require a connection to earth.
  The 3 pin plug must comply to BS1363/A.
• Fuse must comply to BS1362.

If for any reason the 13 amp plug fitted to this product requires replacement it must be wired in accordance with the following instruction:

Do not connect the brown (live) or blue (neutral) to the earth pin marked 'E' on the 3 pin plug.

Connect the Blue wire to the terminal marked Neutral To switch on (N). Connect the Brown wire to the terminal. marked

Live (L). Ensure that the outer insulation isTo switch off the compressor, press the red knob (ref. by the cord grip and that the wires are not trapped 8) in again.

when replacing the plug cover. The mains lead on this product is fitted with a 13 amp (BS1363/A) plug. A 13 amp (BS1362) fuse must be fitted in the plug.

If in doubt consult a qualified electrician

There are no user serviceable parts inside this product except those referred to in the manual. Always re servicing to qualified service personnel. Never remove any part of the casing unless qualified to do so; this unit contains dangerous voltages.

Warrnng!

For your protection if this product is to be used outdoors it should not be exposed to rain or used in damp locations. Do not place the product on damp surfaces, use a workbench if available. For added protection use a suitable residual current device (R.C.D.) at the socket outlet.

Note: If the mains cable requires replacing it must be replaced with an identical one and fitted by a qualified person.

5.4.2 3-phase version 400V / 50Hz

• The compressor is equipped with a mains cable, with a 16A CEE plug. This plug has a phase converter. Before you put the equipment into operation, check whether the motor rotates in the correct direction (see the direction arrow on the V-belt cover) by switching on the compressor briefly. If the compressor motor rotates in the wrong direction, you must correct the rotating field by reversing the phase converter in the plug (use a screwdriver to depress the phase converter slightly and turn it through 180^ ).

• The motor is equipped with an overload switch the compressor overloads, the overload switch will switch off the equipment automatically to protect the compressor from overheating. If the overload switch triggers, wait for the compressor to cool down.

• Long supply cables, extensions, cable reels etc cause a drop in voltage and can impede motor startup.
• In the case of low temperatures below +5^ , motor start-up is jeopardized as a result of stiffness.

5.5 On/Off switch (ref. 8)

5.5.1 Single-phase version (Fig. 2a)

To switch on the compressor, pull out the red knob (ref.

5.5.2 3-phase version (Fig. 2b)

To switch on the compressor, press the (ref. 8.1).

To switch off the compressor, press the red knob (ref. 8.2) in again.

5.6 Adjusting the pressure (Figs.2a-2b)

• You can adjust the pressure on the pressure gauge (ref. 6) using the pressure regulator (ref. 7).
• The set pressure can be taken from the quicklock coupling (ref. 5).

5.7 Setting the pressure switch

The pressure switch is set at the factory.

Switch-on pressure: 8 bar

Switch-off pressure: 10 bar

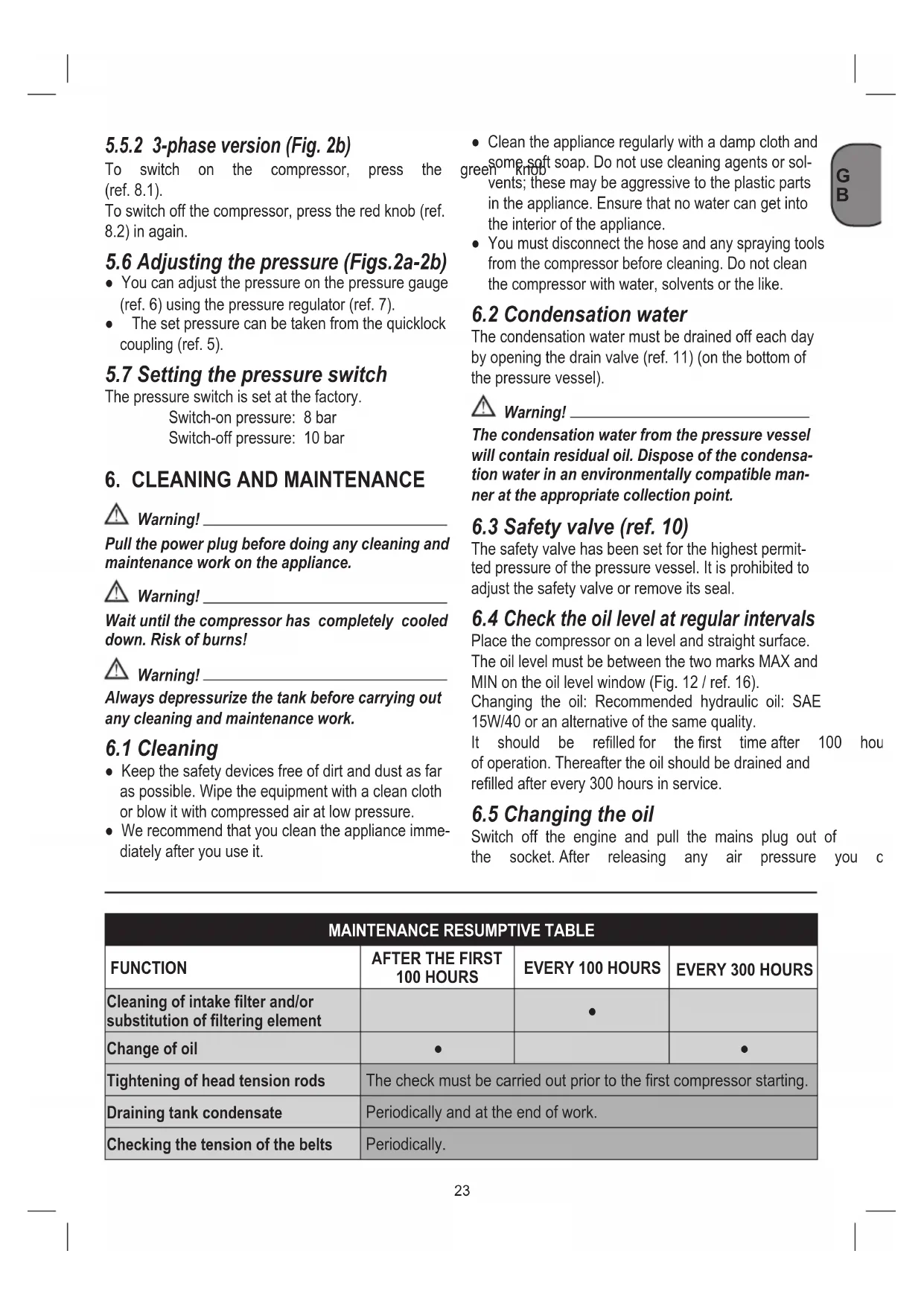

6. CLEANING AND MAINTENANCE

Warning!

Pull the power plug before doing any cleaning and maintenance work on the appliance.

Warning!

Wait until the compressor has completely cooled down. Risk of burns!

Warning!

Always depressurize the tank before carrying out any cleaning and maintenance work.

6.1 Cleaning

• Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

• We recommend that you clean the appliance immediately after you use it.

• Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.

• You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

6.2 Condensation water

The condensation water must be drained off each day by opening the drain valve (ref. 11) (on the bottom of the pressure vessel).

Warning!

The condensation water from the pressure vessel will contain residual oil. Dispose of the condensation water in an environmentally compatible manner at the appropriate collection point.

6.3 Safety valve (ref. 10)

The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal.

6.4 Check the oil level at regular intervals

Place the compressor on a level and straight surface. The oil level must be between the two marks MAX and MIN on the oil level window (Fig. 12 / ref. 16).

Changing the oil: Recommended hydraulic oil: SAE 15W/40 or an alternative of the same quality.

It should be refilled for the first time after 100 hours of operation. Thereafter the oil should be drained and refilled after every 300 hours in service.

6.5 Changing the oil

Switch off the engine and pull the mains plug out of the socket. After releasing any air pressure you c

MAINTENANCE RESUMPTIVE TABLE
FUNCTION	AFTER THE FIRST 100 HOURS	EVERY 100 HOURS	EVERY 300 HOURS
Cleaning of intake filter and/or substitution of filtering element		●
Change of oil	●		●
Tightening of head tension rods	The check must be carried out prior to the first compressor starting.
Draining tank condensate	Periodically and at the end of work.
Checking the tension of the belts	Periodically.

unscrew the oil drainage screw (ref. 15) from the compressor pump. To prevent the oil from running out in an uncontrolled manner, hold a small metal chute under the opening and collect the oil in a vess does not drain out completely, we recommend tilting the compressor slightly.

Dispose of the old oil at a drop-off point for old oil. When the oil has drained out, re-fit the screw (ref. 15). Fill new oil through the oil filler opening (ref. 14) until it comes up to the required level. Then replace the oil sealing plug (ref. 14).

6.6 Retensioning the V-belt (Figs.13-15)

• Pull out the power plug and remove the safety guard for the V-belt.
• Slacken the four motor fixing screws (A).
• Shift the motor until the V-belt is tens point where it can still be depressed by approx. 1-2 cm at the longest free position.
• Retighten the motor fixing screws (A) and refit safety guard for the V-belt.

6.7 Tightening of head tension rods

• Check that all screws (in particular those of the head of the unit) are tightly drawn up (fig. 24).
• The check must be carried out prior to the first compressor starting.

TIGHTENING OF HEAD TENSION RODS
	Nm Min. torque	Nm Max. torque
Screw M6 9 11
Screw M8 22 27
Screw M10 45 55
Screw M12 76 93
Screw M14 121 148

6.8 Cleaning the intake filter (ref. 1)

The intake filter prevents dust and dirt being drawn in. It is essential to clean this filter after at least every 100 hours in service. A clogged intake filter will decrease the compressor's performance dramatically. Undo the two Allen screws (B). You can then remove the filter from the two halves of the plastic housing, tap it to remove the dirt, blast it down with low-pressure compressed air approx.3 bar) and re-insert it (Figures 16-17-18).

6.9 Storage

Warning!

Pull the mainsqwug out of the socket and ventilate the appliance and all connected pneumatic tools.

Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

Warning!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!

7. DISPOSAL AND RECYCLING

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. A your dealer or your local council. the

8. POSSIBLE FAULTS AND RELATED PERMITTED REMEDIES

Request the assistance of a qualified electrician for operations on electric components (cables, motor, pressure switch, electric panel, etc).

FAULT CAUSE REMEDY
Air leak from the valve of the pressure switch.	Check valve does not perform its function correctly due to wear or dirt on the seal.	Unscrew the hex-shaped head of the check valve, clean the housing and the special rubber disk (replace if worn). Re-assembler and tighten carefully (figures 21-22).
	Condensate drainage cock open.	Close the condensate drainage cock.
	Rilsan hose not inserted correctly in pressure switch.	Insert the Rilsan hose correctly inside the pressure switch.
Reduction of efficiency, frequent start-up. Low pressure values.	Excessively high consumption.	Decrease the demand of compressed air.
	Leaks from joints and/or pipes. Change gaskets.
	Clogging of the suction filter.	Clean/replace the suction filter (figures 16-17-18).
	Slipping of the belt. Check belt tension (fig. 15).
The motor and/or the compressor overheat irregularly.	Insufficient ventilation. Improve ambient conditions.
	Closing of air ducts.	Check and if necessary clean the air filter.
	Insufficient lubrication. Top up or change oil.
After an attempt to start the compressor, it stops due to tripping of the thermal cutout caused by forcing of the motor.	Start-up with head of the compressor charged.	Release the compressor head by using the pressure switch push button.
	Low temperature. Improve ambient conditions.
	Voltage too low.	Check that the mains voltage matches that of the dataplate. Eliminate any extensions.
	Incorrect or insufficient lubrication.	Check level, top up and if necessary change the oil.
	Inefficient electrovalve. Call the Service Center.
During operation, the compressor stops for no apparent reason.	Tripping of the thermal cutout of the motor.	Check level oil. Single-stage, mono-phase versions: operate on the button of the pressure switch returning this to the OFF position (par. 5.5.1).Reset the thermal cutout (fig. 19) and restart (par. 5.5.1).If the fault persists, call the Service Center.
		Versions with delta-star starter: operate on the button of the thermal cutout located inside the box of the electric panel (fig. 20) and restart (fig. 2b). If the fault persists, call the Service Center.
		Other versions: Operate on the button of the pressure switch returning this to the OFF position and then to ON again. If the fault persists, call the Service Center.
	Electric fault. Call the Service Center.
When operating, the compressor vibrates and the motor emits an irregular buzzing sound. If it stops, it does not restart although the sound of the motor is present.	Single-phase motors: faulty capacitor.	Have the capacitor replaced.
	3-phase motors: One of the phases of the 3-phase power supply is missing due probably to blowing of a fuse.	Check the fuses inside the electric panel or the electric box and if necessary replace those that have been damaged (fig. 23).
Irregular presence of oil in the network.	Too much oil inside the unit. Check oil level.
	Wear on segments. Call the Service Center.
Leaking of condensate from the vent cock.	Presence of dirt/grit inside the cock.	Clean the cock.

Any other type of operation must be carried out by authorized Service Centers, requesting original parts. Tampering with the machine may impair its safety and in any case make the warranty null and void.

3. DOMAINED'APPLICATION

8. POSSIBLES ANOMALIES ET INTERVENTIONS ADMISES

5.5 Interruptor ON/OFF (8)

5.5.1 Versiones monofasicas (fig. 2a)

2. BESCHRIJVING VAN HET APPARAAT

5.5 AAN/UIT-schakelaar (ref. 8)

5.5.1 Monofase-versie (fig. 2a)

U schakelt de compressor in door de rode knop (ref. 8)uit te trekken.

TI INPENEI NA EEPETE

Autoc o ouptieotx exe kataokuaotei yia va aeitoupyei
me tn oxen biakekouevn c aeitoupyiac tou avaypafetai
OTNV ETIKETA Teyvikuv OTOIXIW (T.X. S3-50 0nauve 5
AETTA LEITOPOYAC KAI 5 AEITIA DIAKOTNCS) WOTE VA aTOOPEUYETAI
n UTEPepmuovtou nAeKTPIKOuOTEP. STNV TEPINTWON TOU
TAPOUADTEI UTEPepmuov, ETEUBAVEI N BEPUKn aOPAeia
Tou diaheTeI TO MOTEP DIAKOTTVAC autOpata TNY TAPOXn
pemuoC, otav n BEPOKpaoia eivai TApA TPOU uynl any

6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7 6.7

EeYTe av eivai kaA ophiyeves oes oi BiEs, EIKOTepa oi BiEs Tns KEpAlnc Tou ouyKpOtnmuToC (EK.10). O eEvXoN pTei va yivei TpiV TeOei Yia npWtn popa ae λeitoupyia o ouptieotnC.

1. MEPbI INPEIOCTOPOXHOCTN

3haeHne AKYCTNueCKOTo DABJIEHnI,
n3MepeHHoro Ha 4 m B CBO6oHOM nOJe,
3KBMBAJENTHO 3haeHnIO AKYCTNUECKOIMOLUHOCTN, o6o3haeHHoHa XeIToI 3TNKeTKe,
pacnoLoXeHHo Ha KOMnPecCope, MmHyc 20 dB.

PABUNPABOTBI

• KomnpceccopdoJXeHpa6oTaB BXopoO BoHTnnpyembIX NOMeueHnx, npi TemnepaType ot +5^ do +40^ .BBo3dyxe NOMeueHHe DOJXHO COePxAcbr NblN, napOB KNCLOT,B3pbIBOONacHbIX NIN JERKO BOCNoIaMeHraUxxCsKNDKocTeuNra3OB.
• Be3onacHoe paCCToHne ot pa6oTaHooero kOmnpecccopa - He MeHee 4 M Do MeCTa OCHOBHO pa6Otbl.
• Ecni 6pbizn pacnbijmeom npn NOMOuN KOMPeccopa Kpackn nonadaot Ha 3aunTHbIK KOxypeMeHHoro npNbOda, 3HaHT KOMPeccop CTONT cINUKOM 6NI3KO K MeCTy pa60Tbl.
• CeTeBOI pa3bEM DnI BUNKIN 3JIeKTpOnpoBOda DOJKeH COOTBETCTBOBaTb eN NO FOpMe, HApPjXeHIO, YactOTE N COOTBETCTBOBaTb DeiCTByIOUIM HopMaMn T6.
  -ДяТрexфа3ньх элкгюдигели ВИКу -Злкгюповда Должнен устаньпать TOЛьк -КВалифицрованьи элкгтук, co6людая -ДeиctыюшеHopMaTINBbl. Пprn epBOM -ВКлчehиnpobерte HanpaВлени Брашени potopa, кOTOPOEdoJXHOcoBnaDAtbcO cTpeJIKOHа 3auntHom KOKyxe npINBOda (B MOneJx C ППАCTMAccOBbIM KOKyXOM) ИИн Ha DBrIaTeJe МоDEЯСmetaJIПУeCKIM KOKyXOM).

• Пи ИСпОЛьЗОВАнУДПИНТЕЯ ДПИHA erо KaБЕЯ He DoIжнAmpeБыIшТь 5 M, a erо ceЧЕнe DoIжнO COOTBETCTBOВаТь ceЧЕнIO KaБЕЯ KOMпpeccopa.
  He pekomeHnyeTcNcNoIb3OBAtbydINHHTeIN 60JIbwei nnHbI, MHOROKOHtAKTHbIe WTeNCeINnJIn nepexoHbIe yCTpOcTBa.
  BbIKHouaTe KOMPecCop Bcerda n ToIbKO npn NOMOu BBIKHOaTeJpaCNOJIOKeHHoro HapeJe DaBHeHn, IIno npn NOMOUs BBKHOaTeJr3NeKTPOUHTa, ecn OH NMeETcB NcNoJIb3yEmOBAMMoJeIN. YTo6bI Nocne OctaHOBKn KOMPecCop He 3aNycKaICr C BbICOKIM DaBHeHnEM B rONOBHOu YactN, He HNKOrDa He BBIKHOaHaTe erO, IpocTo BbIHMaB BNkY m3 CeTn.

• Iepemeea KOMpeccop, TAHHTe ero TOIbKO 3a npedHa3NaueHHyIO dIpy 3TOrO cko6y.

• YctaHabnBaIte pa6oTaOuI KOMPpeccOp Ha ycTouHBOI rOpN3OHTaJIbHOI NOBepXHOCTN: 3TO rapaHTnpyET npaBnblHyIO CMa3Ky BCEX erO y3IOB.
• 4To6bI o6ecneuTb HOpMaJIbHbI npITOK oxJaXdaIOUeRO BO3dyxa K pa6OtaIOUeMy KOMPpeccopy, He yCTaHaBnBaITe erO y CTeHbI 6JnxKe Yem Ha 50 cm.

HE DEJANE 3TOFO

• HanpaBnTb ctpyO cKaTOrO Bo3Dyxa Ha IIOdei, XNBOThbIX HnHa co6CTBeHHoe TeNo. (YTo6bI co ctpyeCkatoRO Bo3Dyxa B rJa3a He nonaJIIM MeJKe uactuBi NbIJH, HaneBaAte 3auHThbie OOK).
• HanpaBnTb cTpyo CxAtoro Bo3dyxa B CTOpohy camoro KOMnPeccopa.
  Pa6oTaTb 6e3 3aUHTHOI 06yBN, KacaTbcpa6oTaIOJero KOMPpeccopa MOKpbIMn pyKaMn N/INHOrAMN.

Pe3ko DepraTb 3JIeKTpOpPoBOd NITaHnIy, BbIKIIOUaY KOMPpeCCOP n3 cETn, INI TReHYt b 3a Hrro, IbITarCb CdBnHyTb KOMPpeCCOp C MeCTa.

• OctabJrTb KOMPecCOP NOB 03dEICTBnEM He6IarOpnTbIX aTMocΦepHbIX YBHeHn (doXdb, npAble coJIHeuHbIe JyU, TymaH, CHer).
• NpebeO3nTb KOMnPecCOp C MecTa Ha MeCTo, He c6pocuB npeDbapnteHb OaBJIeHne u3 pecuBepa.
• PpOu3BODHTb MExaHnueckn peMOHT nIN CBAPky pecuBepa. Ppr O6HapUxKeHm NepeKToB INn npu3HaKOB Koppo3nn MetaJIJa Heo6XoDnMo erO NOIHOCTbIO 3aMeHNTb.
• Donyckatb K pa6ote c KOMnpccopom HeKBaIIuΦnIupoBaHHbI INI HeONbITbI NepcoHaJI. He pa3peWaiTe np6IINXaTbcra K KOMnpccopy DeTAM I XNBOTbIM.
• Pn6bop He npedHa3HaueH dIa IcNoJIb3ObaHna JIOdbMn (BkIIOyAra DeTei) C OrpaHnueHHbIMN 0n3UeCKIMN, CeHCOPHBIMN nIy UmCTBeHHbIMN cNoC6HOCTaMn IIN pN OTCyTCTBIM NoIta N3HaHNI; 3a NckIIOuHeHMe CnyaE B, KOrda NlIO, OTBeTCTBeHHoe 3a INx Be3OpNaChOCtB, HAbIOaET 3a HmN IIN DaET MM INHCTpyKUnn No npImeHEnIO np6opa.
  Heo6xoJIMO cneiNb, YTo6bI dEtN He irpaNN C npu6opom.
  Pa3MeaTb pAOM c KOMnpccopom Nergko BOCJIaMeHraIOuIeCn PpeMTebl IIN KNaCTb Ha KOpNc KOMnpccopa n3dJIINrN 3 HeJIoHa n DpynX

JIeKOBOCnIaMeHraIOUxCSrTKaHei.

-Потирать Корпс KOMпессopa Лerко BOCПаменяюшимсяжИДКОCTЯМ. ПользуNTecb NCKЛIOчNTeЛьНСMOчEHHONВ BODE BeTOoubI. He 3a6ydbTe npedBapNTeJIbHO OTKЛIOчNTb KOMпессop OT 3JNEKTPOcETN.
- IcnoIb3OBAtB KOMnpeccOp dIJI CxATNIA INHO rA3a, KpOME BO3dYxa.
-ДаннькOMPpeccop pa3pa6oTaH TOnbko ДлгТхнчecnKx HxkD.ВбOlbHnCax,ВфapMaцeBTnkeN DnЯ npriroTOBnEHn NIIu K KOMPpeccopyHeo6xoIIMO nOcOeHNrTb yCTpoiCTBOnpedBapnteJbHOI NOrTOBKn BO3dyxa. HeIb3nynpimehaTb KOMPpeccop dIra HanoJIHeHnaakBaJahiroB.
BkIIOuHaTb KOMPpeccop B pa6Otu 6e3 3a1 KOxya peMeHHoro npNBOda N KacaTbcra erO DnKxUnxCyaCTeI.

CHTO HAD0 3HATb

Bo n36exkHne ype3MepHoro neperpeBa 3JIeKTPoDBnIaTeIa KOMnPecCOP pa6OtaET B DByXCTaIINHom pexKMe nepNoDnueckoro BKJIOUeHNA, COOTHOseHNE MeKdy npoDOJXHTeJIbHOCTbIO pa6ObI IN BBIKIOUeHHEm Yka3aHO Ha Ta6NtueKe C TexHNueCKIM DaHHbIMN (HaNPmEp, S3-50 O3Naayet 5 MNHT pa6ObTI N 5 MNHT OCTaHOBKn). B cnyae neperpeBa cpa6aTBiBaet3aunTHaTepMonapa,yCTAHOBJIeHHa H a 3JIeKTPoDBnIaTeIe.
-Дя плавноctи nycka DBurataTeЯ, КрOME yka3aHHoro Bblwe, nepeKIOUaTeIb peJIe

ДаВлесни HeобхODиmo NepeBecTN Chaayana B ПОLOжehнe «БыкЛ.》，a3aTeM CHOBA B ПОLOжehнe «ВКЛ.» (pnc.2).

• Y OndHofa3HbIX 3JIeKToDnBnraTeIeN, KOrda OHN OTKnIOUaOTc8 BCJeIDCTBHe NpePpeBa, CHOBA BKJIIOHTb DnBnraTeJI B pa6Oty MOxHO TOJbKO BbIKIOUaTeIeM Ha KJIeMMHO Kopo6Ke camoro DnBnraTeJI (pnc.19).
• Y Tpexa3HbIX DnBURAteNei DocTaTOUHO BpyuHyIO nepeBecTNI peKJIIOUaTeIb pene DaBJIeHne B NIOJoxHeNc 《BKNUOyeHO》IIIN HaKaTb NepeKJIIOUaTeIb TepMonapbl, pacNoJIOxEHHbI Na 3JIeKTPoUHTe (Pnc 2b n 20).
  -Д��обсесеня палвогу nycka B Ondhoа3ных -Двигателх педусмOTpeHo pele Давлени C -ТНОБИNYCKHBIM BO3dUshbIM KlaNaHOM 3aMeДпEHORO -ДeИСТВИ (ИЛС C DOnOЛHHTeJIbHbIM Ha CTOnOPR -Клanahe). ПОэTomу пи похнem pecиBEpe -БыxOD N3 BO3dUshoro KlaPaHa He6OlbwoI CT -BO3dUxA B TeueHne HECKOLbKIX CEkyHД YBJIЯTO -ROPMaJIbHbIM.
  Для NOBbIeHn 6e3oNaChocT npa60tbl BCE KOMnPecccopbl obOpyIDoBaHbI npeOxpaHnteJIbHbIM KlaHOM, cpa6aTBiBaIOUm npn OTka3e peNe daBJIeHn.
  IopcoeHnna K 7nHaHy KOMnpccopa nHEBMOnHCTpyMeHT, He 3a6bBAaTe nepeKpbBaTb BO3dyuHbIKpaH.
• Пи IncnoIb3ObaHn CxkatoRO Bo3Dyxa (HaNyBaHne, pacnbIeHne uepe3 nHeBMOnHCTpyMeHT, Okpacka, MoKa pactBopamn Ha BODHO OCHOBE n T.I.) co6JIOdaTe BCE npabuna TB dny KaXdoRo KOHKpETHoro cnya.

2. ONICAHNE YCTPOINCTBA

1. BcacbBaIOUm BO3dyuHbIΦnIbTp
2. EMKOCb BBICOKO DAABHeHn
3. Koneco
4. IIOBOPOTbIy poJIHK (IIIN OnOpHaNHOJKA)
   5.БbIcTpoJeNCTByIOUaMyΦTa (OTpeRyIINPOBaHHbCkA TbB BO3DyX)
5. MaHOMeTp (MOxHO CHTaTb 3aDaHHOeDaBneHne)
6. Perylntop daBHeHn
7. IpeeknouaTeJIb BkHIOueHO-BbIKIIOueHO
8. RykoTka dny TpaHcnpOpTupOBK
9. PpeoXpaHnteBHyi Knaan
10. BnHT BbInycka KOHdeHcata
11. MaHometp (yKa3bIbAeT daBHeHne B 6aJINoHe

13.БыICTpoDeIeCTbUOuaЯ MyΦTa (HeperynpyEmblcXaTbI B03dYx)
14. 3aŋnyka Macna (OTBepCTne 3aJIbKn Macna)
15. BnHT cInBa macna
16. CMOTPOBOE OKHO
17. Bont
18. Taima
19. Ⅲaɪða
20. CTONOPHOM KJanaHe

3. OBJACTb NcNoJIb3OBAHnIa

KoMnpecccop npedHa3HaueH dIy Bbipa60TKn CxAtoro BO3dyxa dIy npINBOIDMOB DeiCTBne CxAtbIM BO3dyXOM INHCTpyMeHTa.

IoxaanyiCTa，PpIMMe BO BHNMaHHe，TO KOHcTpyKunHaXuCTPOINCTB He npedHa3HaueHa IJN HCIOb3OBAHn Hx B PpOMblNEHHOCHT, peMecIe nn HNDyCTPN. Mbl He daem rapaHTnHBix 063aTeJIbCTB, ecNI yCTPOINCTBO 6yDet NcNoIb3OBaTbcra B npOMblJeHHoH, peMecJIeHHoH nn HNDyCTPnaJIbHOJ, a TaKKe INObHOJ DEaTEJIbHOCTn.

YcTPOINCTBO MOXHO NcNoIb3OBaTB TOJIbKO B COOTBETCTBNN C eRO IpeDHa3HauHeHem. JIO DpyrOe, BBIXODAJUe ee 3a 3TN paMKN IcNoIb3OBaHne, CUHTaeTcH He COOTBETCTBYUOUM IpeDnICAHN 3a BO3HNIKUHe B pe3yIbTaTe 3TOrO yuep6 TpaBMbl IIO6oR oPa a Hecet OTBETCTBeHHOC IONb3OBaTeNb HnPa6oTaUOuC INHCTpyMeHOM, a He n3rTOBUTeNB.

4. YKA3AHЯ K YCTAHOBKE

• Поверъустюн haHaHJIчne NOBpeKdHn BO Bpem TpaHcnpTIpOBk. O ImeIoUxCЯ NOBpeKdENHx Heo6xoDIMO HeMeIeHHO COO6uNTb TpaHCnpTHOMy npEiPnTIO, KOtopoe DoCTaBnIOKOMnpceccop.
  KomnpcecopdoJxeh6bItb yctaHOBneH B6n3n noTppe6nten.
  Hyxho n36eRaTb dNHHbIX nyTeB BO3dyXOB 60nbwo dNnHb Ka6eNe NtAHy (yDnHHTebHbI Ka6eIb).
• ObecneBte BcacbIbAHne cyxoro He coepkaeero nbIb BO3dyxa.
• He yctaHaBnBaIe KOMPpeccop BO BnaXhblIX NIIcBipbIX NOMeUeHnX.
• Komnpeccop MoXHO IcNoIb3OBAtB ToIbKO B IIOxOJaIcxNOMeUeHnJx(XopoWaaBeHTnJIaIyra, TeMnepaTpya OkpykaIoSei cpeblOT +5^ Do +40^) .B NOMEuEHN He DOnKHO6bl Nbln, KNCLOT, NapOB, B3pbIOONaCHbIX INIIBOCPiAmHeYIOxxCra3OB.
  Komnpccop npedHa3Hauen npa60tB BCyNX NOMeueHnX. 3aPpeEHO NcNoIb3OBaTb ero B O6Jnactx, Ipe pOn3BOaTcra pa60tB C pa36pb13rNBaHnEM BObl.
• Ipeed BBOIDOM B 3KcNpyaTaUH Heo6xOJI npOBepnIb ypOBeHb Macna B Hacoce KOMnpecccopa.

5. MOHTAX N BBOJ B 3KcΠγATAUIO

BHUMaHue!

Ipeed BBOOM B 3KcNpyatauH No6xOdmo 10nHOCTbIO c6paTb yctpoiCTBO!

5.1 MoHTax Konec (pnc. 4-5)

YcTaHOBnTe npInOKeHHbIe KOJeca corNaCHO pncyHky 4-5.

5.1.1 MoHTaX onOpHbIX HOxEK (ToIbKO dIy B 255/10/50 n B 350/10/50 n B 480/10/50)

YHOBNTePnIOXeHHbIepe3NHOBbIeHaKOHeHNKIN B COOTBeTCTBUN C PNCyHKOM 6.

5.2 YcTaHOBka 6bIcTpoDeiCTByIOUeim MyΦMbIДЯ NOdKJIQUeHnK 6aJIIOHy CxAtoro BO3dyxa (TeT.13)

PnBHTte 6bICTpoeIcTByOuMyfTy dna CxAtoro BO3dyxa C HeperyNpyEmbIM daBJIeHnEM (Te.13) K 6aJIIOHy CxAtoro BO3dyxa (Te.2) TaK, KaKnoka3aHO Ha pncyHKax 7 n 8.

5.3 MoHTaX pyKoTkn dIy TpaHcNoptnOboKn (dTe. 9)

3IOB TnBnHTnTe pyKoTky dny TpaHcnpTnpoBKn (Te.9) KOMnPecccopy TaK, KaK 3TO noka3aHo Ha pncyHKax 9 no 10.

5.4ПодсоeДинHeHneK3JIeKTpOceTn

5.4.1 Ondnofa3HbI BapnaHT 230 V/50 Hz

KOMPecccop IMeET NHTAHNE OT CeTи OCHaUeH
Itekepom C 3aunTHbIM KOHTAKTom. Ero MOxHO
IOKNIuOaTB K ITeNCElbHOJ PO3eTKe C 3aUNTHbIM
KOHTaKTOM 230 B \~ 50 T, ImeIoUe 3aUnTy 16
A.IpoBepBe Nepei BBOIDOM B 3KcIIyatauIO
COOTBeTCTBHe HAnpJXeHnE CTeH HAnpJXeHnIO,
Yka3aHHOMy Ha Ta6JIuYe C nAcnpTHbIM DaHHbIMN
yCTPOiCTBa.ДлнHbIe Ka6eNl NITaHnI, a TAKKe
yDInHNTeNi, Ka6eJIbHbIe 6apabHaBI n T.D.MOryT
Bbl3BaTb NaDeHne HAnpJXeHnI N TEM CaMbIM
IMO
3aTpudHtB nyck DBrIaTeIe. Ipn TemnepaTypax
HnKe +5^ nYCK DBrIaTeIe 3aTpudHe n3-3a
TJxKeIoro XoJa.

5.4.2 Tpexpa3HbB BapnaHT 400 V/50 Hz

Komnpceccop ochaueh ka6eJem

HNTAHNc 16A CEE, KOTOpBIMMeetnepeKJIIOuataIb pa3. IpOKOHrPOIpnpyTepeed nepBOJ 3KcnPlyatauanei npabINbHOCTb HAnpABNeHn BpaUeHn DBnraTeJIa (HaNPABNeHn E BpaUeHn Ha KpbIuKe KInHOBOrOpEMH), DnA 3TORO HxKHO BKIOHTb DBnraTeIbHa KOPOTKoe Bpem. Ecnn DBnraTeJIb KOMnPecccopa BpaUaETcB HeNPaBnblHom HAnpABJeHH, TO Heo6XODm N3MeHtBbpauOuueecn Pone nyTEM nepeCTaHOBKn peekNIouaTeJIa Fa3bl B WTEkepe (NCNOJB3yIteOTBepTKy, CJIeRka HaxKaTb Ha nepeKIOUaTeJIbF0a3 n NobepHyTB Ha 180^

-Диогаелб осашен Вьклочаелм порузkn.； При порузke komпес相对较 вьклочаел. пөрөрүзкг OTКлочаet abTomatчeckn ДяТOrO, Чтобг 3aцHTbKOMпессop OT порразы. Есни Вьклочаелн порузkn сработаET, TO Heo6xODIMO BvIXdTaB NOka KOMпессop ocTbIHerT.
-ДиHHbIeKa6JIa,ataKxeydHnHntbHbIeKa6JIu Ka6JIbHbIe 6apabAHbI n T.I. Bbl3bBAIO TnaDeHne HnprJxEHNr N MOryT 3aTpYdHNTb NyCK DBrIaTeJIa.
- Пинизкх TempepaTypax, Ниke +5°C nysk Двигателу 3atpydHeH n3-3a TЯжeleno xOda Детален.

5.5 NepeKJIIOuHaTeIb BkIIOUThbBbIKJIOuHTb (dTe.8)

5.5.1 Ondofoa3HbI BapnaHT (pnc. 2a)

ДяВКЛIOUeHЯ yCTaHOBnTe nepeKJIIOuAteJIb BKJIIOUeHO-BbIKIIOUeHO (dTe.8).

IIy BbIKNIOUeHnnepeBeNDTe nepeKIOuATEIb BKJIIOUeHO-BbIKNIOUeHO (Det.8).

5.5.2 Tpexpa3hBn BapnaHT (pnc. 2b)

KOMnpeccop BkIIOuHaTcHa HxHaTneM Ha 3eJeHyo KhoNky (TeT.8.1).

EkeHHeBHO BbInyckaIte KOHdeHcAT npn NOMOuN OTKpbITNa Klaanaha ydaene Hn BObl (DeT. 11) (DHOEMKOCTN BbICOKOr DaBHeHn).

BhumaHue!

KoHdEHCAT n3 emKocTn BbICOKO RaBJIeHn coDepeXHT ocTaTKn Macna. CdaIte KOHdeHCAT,He 3acopra npnpOy, B COOTBeTCTByUOnuNHyHKT c6opa OTxOIOB.

6.8 OuncTkBa BcacbBaHouzero cnIbTp a (TeT.1)

BcacbIbAIOU nPnIbTp npdynpexkdaT

BCacbBaHne Nbln N Tp3N B yCTpoCTBO.

Heo6xOIMO OuHuaTb BCaCbIbAIOUe HnIbTp uepe3 kaxdbie 100 yacob pa6oTbI. 3acopeHHbI BcAcbIBAOUe HnIbTp 3NaHTeJIbHO CHNXaET npON3BOIDTeJbHOCTKOMPecccopa. BbIBNHTnte oBa BNHTa C BHyTpEHm IeCTNRpaHHNKOM (B).

Teneb Bbl MoXeTe BbHyTb 0nIbTp n3 06oNX pnaCTmaccOBbIX KOpnycoB. Bbl 6eTe Mycop, npOdyTe CkAdbIM BO3dYxOM NOHn3KIM daBJIeHHeM (npImepHo 3 6apa) n B 3aBepWeHH

yCTaHOBNTe ΦHbTp BHOBb Ha CBOE MecTO (pnc. 16-17-18).

6.9Пошинковая onopa

BHumaHue!

BbInbTe WTeKepe 3NeKtpoNTaHnI N3 po3eTKN,BblNyCTnTe BO3dYx N3 yCTpOcTba H BcEx NOkJIIOyeHHbIX INHCTpyMeHTOB Ha cKaToM Bo3dyxe.3aunITne KOMnpecccop OT HecaHKUHOHPoBAHHO BKJIOueHnI.

BHUMAHue!

XpaHnte KOMnpeccop TOnbKO B Cyxom HHeIOCTyINHom IJRA NOCTOpOHNX MecTe. He ONpOKnDbIBaTb, XpaHNTb TOnbKO B CTOrYeM nOLOKeHH!

8. BO3MOXHbIE HENOJAdkn IN CNOCObl INX YCTPAHEHnA

Henonaikn B 3neKtpnuecko qactn (kaBenn, 3neKtpoDBrataIb, pene daBneHna, 3neKtpoNTdoJXhbl yCTpaHrtbc KaBnΦuNpOBaHHbIM 3neKtpnKOM.

5.5 Av/Pà-bryter (ref. 8)

5.5.1 Enkeltfaseversjon (Fig. 2a)

For a sla pa kompressoren, trekk ut den rode bryteren (ref. 8)

6. RENGJØRING OG VEDLIKEHOLD

Advarsell!

6.3 Sikkerhetsventil (ref. 10)

5.4.1 Tek fazl model 230 V/50 Hz

5.5 Açma/Kapama Şalteri (ref. 8)

5.5.1 Tek fazli model (Sekil 2a)

6.3 Emniyet supabi (ref. 10)

Sebeke fişini prisden cekin, makineyi ve®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. Kompresörü kapatin ve kompresörün yetkisiz kılısilverce tekrar calistirlamayacak bicimde emniyete alindüzindan emin olun.

Uyari!

5.5 Intrerupator pornire/oprire (ref. 8)

5.5.1 Varianta intro singura faz (fig. 2a)

Hne He Noemame OTROBOPHOC, ako ypeIbT ce n3noJ3Ba B npOMnJIeHN, 3aHaTcNcK NIN INDyCTpNaHnnpednpAITNA, KaTO n npn paBHOCTOHN DeHOCTN.

MaunHaTa Tp6Ba Da ce n3No13Ba cAmo No npedHa3- HaueHneTo N.BcKa no-HaTaTbUHa N3BbN TOBa yno- Tpe6a He e no npedHa3HaueHne. 3a npedn3BnKaHn OT TOBa UETI INI HapaHbAHnOT BcKaKbB BND OTROBOPHOCT HOCINOTpe6ntJrT/O6cnyKbaOTo IInCe,

He npoN3BOOHTeJIaT.

4. yka3AHn 3A MOHTAXKA

• Побт урда 3a ТрансорTNи NOВд. EBHTyaHnT NOВрд n C sbOБцаВAT BДнara Ha TpaHcNopTHOTO npДпрЯТи, KOTOdoCTaBINO KOMnpCopa.
• MoHTnpaHTo Ha KOMnpcopa TpRA6Ba Da CTaH B 6JIN3OCT Do KOHCymaTopa.

-Да сибягват дьлгИ ВьздухоповODи nдьлгИ пон- Hanpeжehne Da cБВпадhe C pa6OTHO Hanpeжehne Вждаши Лини (удьлжня). -Да собрн Вимани 3a cyx n 63прашн 3acmyKBан Вьздух. -Компсорьт Да n C моHTира ВьВ влajхно Или мok- ponomи. -J Komпсорьт мож Дa C кспAoТира сamo B похo- kaHETo Ha DBIratЯл. Пprn HnCKn TempepaTpyn noD +5 °C nyc-
Дяшиnomши（dobbHTnHpaH，OKoHa TMnpa-
Ipya +5^ - +40^ ）Bnomshito H trp6Ba da nma
HnTO npax，HnTO KNCNIH，napi，KcNIO3NBHN A CEE uekep，KoiTo nMaΦa3OB ppeBknUoyBaTeJ.
J KomnpocbT noXoJa3a npNoxHn B cyXn
nomsHn.B yactbui，KbDTo C pa6Otn C BOHn NOcKa Ha BpTeHe Bpxy NOKPBAaTa TIOva Ha
Ipeu nyckahe B ekCnoaataun Tp6Ba Da KTHPOHPaHO HnBOTo Ha MacIoTO B KOMnpecopHa- Ta nomna.
5.MOHtAX IN NYCKAHE B EKCIIPOATAUHA 3OBn PpeBKnUoyBaTeN BueKeepa (nOJI3BaYeOTBepTKa,NEKO HATCHeTaeZOBn PpeBKnUoyBaTeN

BhimaHne!

Ppei nyskaHeTo B ekcnnoaTaun 3aIbJnxTeJIHO mOnTnpaIte ypeia n3qraNo!

5.1 MoHTipaHe Ha KoJIeNaTa (ФИг. 4-5)

PnnoxhenTe KoneLa Tp6Ba Da 6bDaT M cnopeed fnypa 4-5.

5.1.1 MoHTax Ha onOpHTo KpaYe (Camo 3a B 255/10/50, B 350/10/50, B480/10/50)

PnnoKeHnT rEme 6yep Tp8Ba da 6bJe MOHTnpaH cnopei nrypa 6.

5.2 MoNTaX Ha 6bP3OeIcTbauncaedn Hnten 3a Hnrahe B KoteJa (Cnp.13)

3aBnHTe6bP3OeIcTBaUINcBeEHHITeJ 3a He peRynpyeMo HAnraHe B KOTena (Cnp.13), KaKTo e Noka3aHO HaΦnpya7 Do 8 3a 6apabana (Cnp.2).

5.3 MoNTaX Ha npbXkata 3a TpaHcnpTnpaHe (cnp.9)

3aBnHTeTe DpbKkata 3a TpaHcnpTupaHe (cnp. KaKTo e NOKa3aHO Ha cHpya 9 do 10 3a Komnpecopa.

5.4 BkIIOUbaHe BmpexKaTa

5.4.1 Endozaeh BapnHT 230 V/50 Hz

KOMPecopbTe e cHa6dEn C MPeXOB IpoBOHnK Cbc 3a- uHTEN KOHTAKTeH UenCeN (230 V ~ 50 Hz). To3n MoKe Da Ce BKNIOU N BvB BCEKn 3auNTeH KOHTAKTeH UenCeN, KOJTo e oBe3oNaCen C 16 A. PpeDn NyCKaHeT O BeknnoatauN OsbpHeTe BHNMaHne Ha TOBa, MPeXOBOTO

-ДиВИгATEЛТ e ChаБдeн CпpeKbСВaч 3a npeTOBapBaHe.Пр npeTOBapBaHе Ha KOMnpecopa npeKbCBAчБТ abTOMaTnUHо N3KJIIOUBy, 3a Дa npeДпaЗN KOMnpecopa ot nperpЯBaHе. Ako npeKbCBAчТ 3a npeTOBapBaHe e N3KJIIOUJI, N3ЧаКaЛte DOKATO KOMnpecopbT ce oxlaДи.
-ДыглзaxpaHbAsn npOBdHnCn KaKTo n yDbl-JxnteN, Ka6eHNbapabAHn N.T.H. PpeH3BnKBBaT cnadaheHa HApexeHneTO mORaT da nonpeyat Ha nyckaHETo B EKcPiOaTaun HA MOTopa.
- Пи НИСКИ Temпатуг Рд +5 °C nyskaheTo ekслноataць Ha MOTOPa e 3actpaшени nocpeД-CTBOM 3atpydнхОнHa pa6Ota.

5.5 BytoH 3a BkIIOUBaHe/IM3KIOUBaHe (Cnp.8)

5.5.1 Endofoa3eH BapnAHT (fur. 2a)

KomnpecopbT ce BkIIOvBa Upe3 N3DbpNBAHe Ha cepBENH6byToH (cnp.8).

3a N3KJIIOUBaHe Ha KOMPipecopa YepBHeHrT 6yTOH (Cnp.8) TpIbBA Da 6bJe HATnCHaT.

5.5.2 Tpua3eH BapnAHT (fur. 2b)

C HataNcKaHe Ha 3eIeHn6yToH (cnp.8.1) KOMnPecOpbT Ce BkJIIOUBya.

3a N3KJIIOUBaHe Ha KOMPpeCopa YepBHeHnT 6yTOH (cnp.8.2) TpA Bda 6bJe HATnCHaT.

5.6 HactpoBbHe Ha haIraHTo (Pur. 2a-2b)

C rpaHnUHTo pene 3a HaNrAhe (cnp.7) HaNrAHe-TO Ha MaHOMeTbpa (cnp.6) MOKe da ce HAcTpOi.
HactpoeHToHaJIraHeMoKe da ce OTuTe Ha 6bp30dEiCTBaUINcBedeHNHTen (Cnp.5).

5.7 Hactpoika Ha npKbcbaaya 3a HanraH.

Pkpcbcya 3a HaJraH HactpoH pa6pnuHO.

BkJIOUbaHnIaRan86apa

N3KJIIOUBaIoo HaJIraH 106apa

4. ÜLESSEADMISJUHISED

É CONFORME ALLE SEGUENTI DISPOSIZIONI - WAS BUILT IN COMPLIANCE WITH THE FOLLOWING DISPOSITIONS

EST CONFORME AUX DISPOSITIONS SUIVANTES - MIT DEN FOLGENDEN VORSCHRIFTEN UBEREINSTIMMT

ESTA CONFORME CON LAS SIGUIENTES DISPOSICIONES - ESTA EM CONFORMIDADE COM AS SEGUIENTES DISPOSICOES

IN OVEREENSTEMMING IS MET DE VOLGENDE BEPALINGEN - OPFYLDER FØLGENDE FORSKRIFTER

ARIOVERNSSTAMMELSE MED FOLJANDE FORESKRIFTER-ALLAOLEVIEN SAADDOSTEN MUKAISESTI-SYMMOPQNETAI ME TIZ AKOYOQEZ DIATAEIEZ

JEST ZGODNA Z NIJEJ WYMIENIONMYI NORMAMI - U SUKLABU SA SLIJEDECIM PROPISIMA - V SKLADU S SLEDECIM ODREDBAMI

MEGFELELO AZ ALABBI RENDETEKNEK - JE V SOULADU S NÁSLEDUJICIMI SMÉRNICEMI - JE V SULADE S NASLEDOVNYMI SMERNICAMI

OTBEUYAET TPEBOAHNIM CNEYIOUX HOPMATNBOB -ER I OVERENSSTEMMELSE MED FOLGENDE BESTEMNELSER

IZLEYEN KURALLARA UYGUNLUGUNU BEYAN EDERIZ - A FOST EXECUTAT CONFORM DISPOZITIILOR

E B CbOTBETCTBNE CbC CJELHNTE PA3IPOEEN - U SKLADU SA SLEDECIM PROPISIMA - PAGAMINTAS, REMIANTIS SEKANCIOMIS DIREKTYVOMIS
