Product Type	Cordless Drill
Brand	WORX
Model	WX175.2
Power Supply	Lithium-ion battery 20 V max (18 V nominal)
Charger Input Voltage	100-240 V ~50/60 Hz
No-load Speed	0-600 / 0-2000 rpm (2 mechanical speeds)
Chuck Capacity	13 mm (keyless)
Maximum Torque	60 Nm
Clutch Positions	18 torque positions + 1 drill position
Drilling Capacity in Steel	13 mm
Drilling Capacity in Wood	40 mm
Weight (without battery)	Approximately 1.55 kg
Sound Pressure Level (LpA)	72 dB(A)
Sound Power Level (LwA)	83 dB(A)
Vibrations (metal drilling)	8.43 m/s² (K=1.5 m/s²)
Functions	Drilling, screwdriving/unscrewing, forward/reverse, variable speed, LED light, spindle lock
Maintenance	Clean with a dry cloth, do not use water or chemicals; lubrication not necessary
Safety	Wear hearing protection, use auxiliary handle, hold by insulated surfaces
Included Accessories	Battery and charger included depending on version; belt hook and bit holder possibly

Frequently Asked Questions - WX175.2 WORX

Why doesn't the drill work when I press the trigger?

The forward/reverse switch located above the trigger is probably in the center position (locked). Slide it left or right, then press the trigger. (See Fig. B)

Why does the drill stop before the screw is fully tightened?

Check the position of the torque adjustment ring (between the chuck and body). Position 1 is the lowest torque, position 18/22 is the highest. The drill symbol provides maximum torque. Adjust the ring to a higher setting.

Why can't I insert the battery into the charger?

The battery only inserts in one direction. Rotate it until it slides in freely; the red indicator should light up to indicate charging.

What are the causes of battery runtime differences?

Incomplete charge/discharge cycles or prolonged storage can reduce runtime. After several full cycles, runtime may be restored. Severe working conditions (large screws in hard wood) drain the battery faster. Do not recharge below 0°C or above 45°C.

How do I change the direction of rotation?

Use the forward/reverse switch above the trigger. Push it left for forward rotation (tightening), right for reverse rotation (loosening). Never change direction while the chuck is rotating.

How do I select the speed?

The drill is equipped with a two-speed control. Slide the selector: low position (1) for high torque and low speed (0-600 rpm), high position (2) for high speed (0-2000 rpm). Adjust speed to the material and drilling diameter.

What is the purpose of the torque adjustment ring?

It allows you to set the tightening torque to avoid damaging screws or material. Turn the ring to a number (1 to 18) for increasing torque, or to the drill symbol for maximum torque (drilling).

What does the rapid flashing of the LED indicator mean?

The protection system cuts power in case of overload, overheating, or low battery. Release the trigger and let the tool cool down. If battery is low, remove it and recharge. The indicator flashes for 60 seconds then turns off.

How do I maintain the drill?

Remove the battery before any maintenance. Clean the tool with a dry cloth; never use water or chemical cleaners. The ventilation slots must remain clean. There are no user-serviceable parts. Store in a dry place.

What accessories are included with the WX175.2 model?

The included accessories may vary depending on the version. Generally, the standard model includes a battery and charger. Some packages may contain a belt hook and bit holder. Check the list on the packaging or manual to verify exact contents.

USER MANUAL WX175.2 WORX

Technical line drawings of two WVO-RX electric drillers with dual motors (no text or symbols on the designs themselves)

BRUSHLESS MOTOR

20VMAX LITHIUM

WX175 WX175.1 WX175.2 WX175.9

WX373 WX373.1 WX373.2 WX373.9

EN Original instructions

Technical line drawing of a mechanical device with labeled component (12), no readable text or symbols present.

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a person wearing a belt holding a device, no text or symbols present

Line drawing of a 20V max vacuum cleaner device (no text or symbols on the device body)

Technical line drawing of a mechanical component with a lock and circular housing (no text or symbols)

1. CHUCK
2. TORQUE ADJUSTMENT RING
3. TWO-SPEED GEAR CONTROL
4. FORWARD/REVERSE ROTATION CONTROL
5. SOFT GRIP HANDLE
6. BATTERY PACK*
7. BELT HOOK
8. BATTERY PACK RELEASE BUTTON
9. SIGHT LIGHT
10. ON/OFF SWITCH

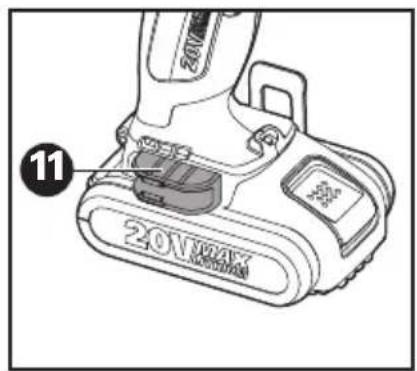

11. BIT CLIP
12. BATTERY CAPACITY INDICATOR*(ONLY FOR WX373 WX373.1 WX175 WX175.1)

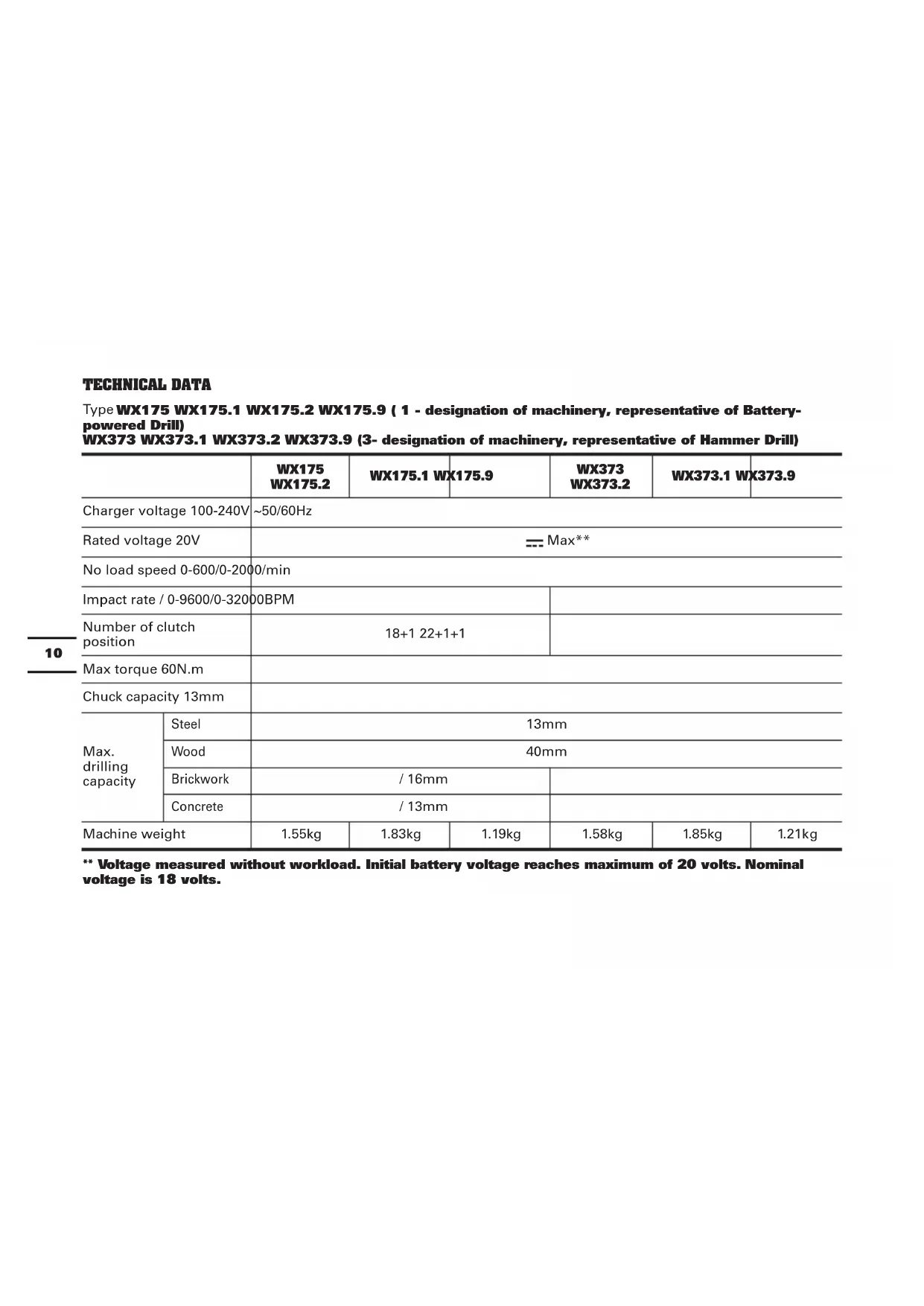

TECHNICAL DATA

Type WX175 WX175.1 WX175.2 WX175.9 (1 - designation of machinery, representative of Battery-powered Drill)

WX373 WX373.1 WX373.2 WX373.9 (3- designation of machinery, representative of Hammer Drill)

		WX175WX175.2	WX175.1 WX175.9		WX373WX373.2	WX373.1 WX373.9
Charger voltage 100-240V		~50/60Hz
Rated voltage 20V		Max**
No load speed 0-600/0-2000/min		0/min
Impact rate / 0-9600/0-32000BPM
Number of clutch position		18+1 22+1+1
Max torque 60N.m
Chuck capacity 13mm
Max.drillingcapacity	Steel	13mm
	Wood	40mm
	Brickwork	/ 16mm
	Concrete	/ 13mm
Machine weight		1.55kg	1.83kg	1.19kg	1.58kg	1.85kg	1.21kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure L	_pA : 72dB(A)
A weighted sound power L	_wA : 83dB(A)
K_PA & K_WA	3.0dB(A)
Wear ear protection when sound pressure is over	80dB(A) [IMAGE]

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Drilling into metal	Vibration emission value a_h = 8.43m/s^2
	Uncertainty K = 1.5m/ s^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running

idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^0 C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX175	WX175.1	WX175.2	WX175.9	WX373	WX373.1	WX373.2	WX373.9
Charger 1 1 1 / 1 1 1 /
Battery Pack 2 1 2 / 2 1 2 /
Double Ended Bit 1 1 1 1	1 1 1 1
Hook 1 1 1 1 1 1 1 1
Bit Clip 1 1 1 1 1 1 1 1

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the

affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Wear protective gloves
	Do not expose to rain or water.
	Do not burn
	Do not dispose of batteries, Return ex-hausted batteries to your local collection or recycling point.

	Hammer drilling
	Screwdriving
	Drilling
	Wood
	Metal
	Brick
	High speed
	Low speed
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	xINR18/65-y: Cylindrical lithium lon battery cells with max diameter of 18mm and max height of 65mm; “x” represents a number cells serial connected, blank if 1; “-y” represents a number of cells paralleled connected, blank if 1.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE (FOR WX175 WX175.1 WX175.2 WX175.9)

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

INTENDED USE (FOR WX373 WX373.1 WX373.2 WX373.9)

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic.

ASSEMBLY AND OPERATION

ACTION FIGURE
BEFORE OPERATION

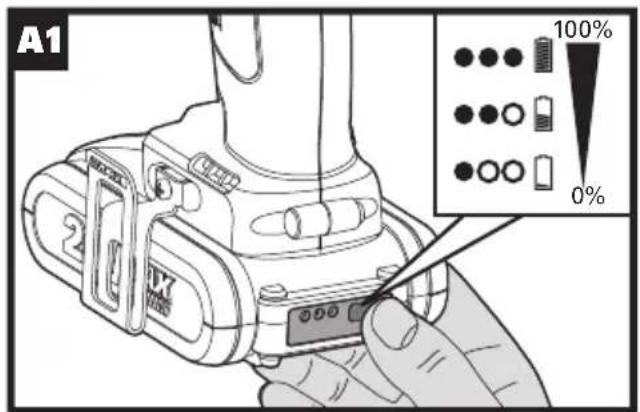

Checking the battery charge condition See Fig. A1

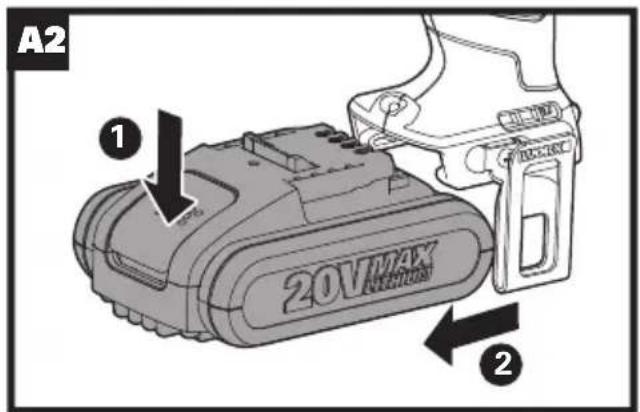

Removing the battery pack See Fig. A2

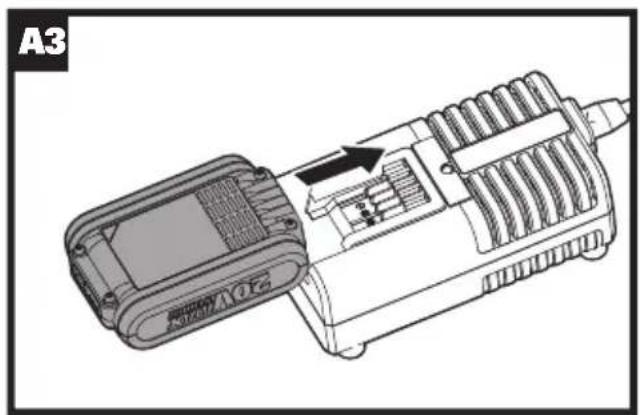

Charging the battery See Fig. A3

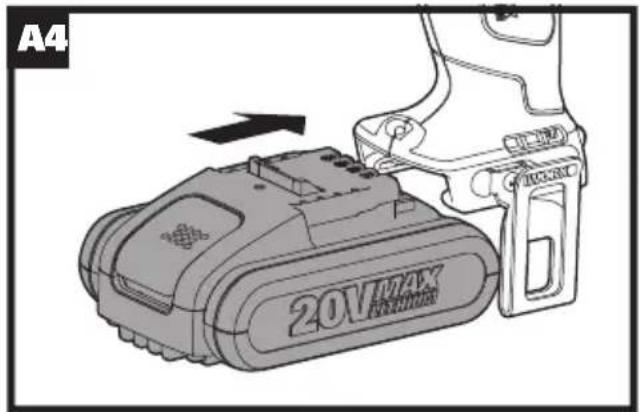

Installing the battery pack See Fig. A4
ASSEMBLY

CHUCK ADJUSTMENT

WARNING: Always lock off trigger switch and disconnect tool from power source when changing accessories. Always ensure the bit is secure before starting the tool. Damage to the Chuck or a loose bit may cause possible personal injury.

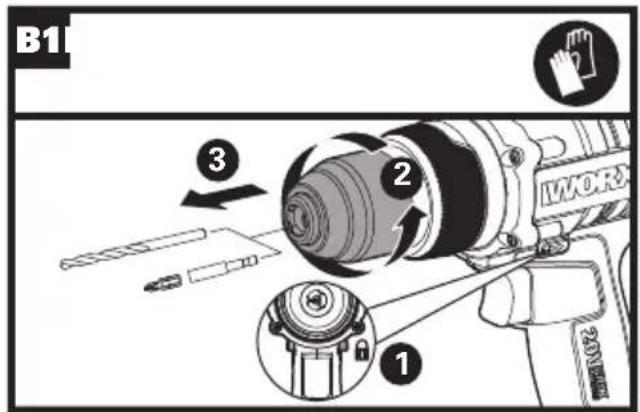

-- Removing the bits See Fig. B1

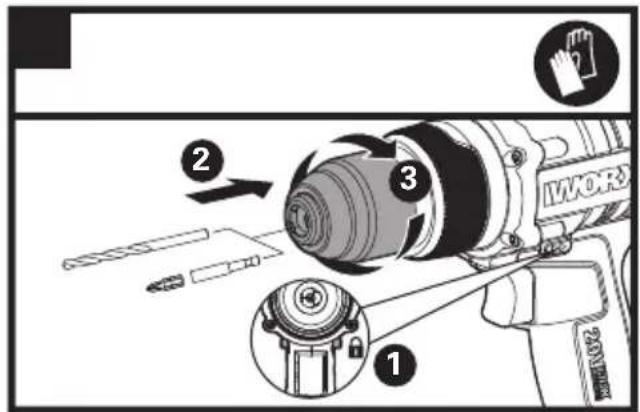

-- Inserting the bits See Fig. B2

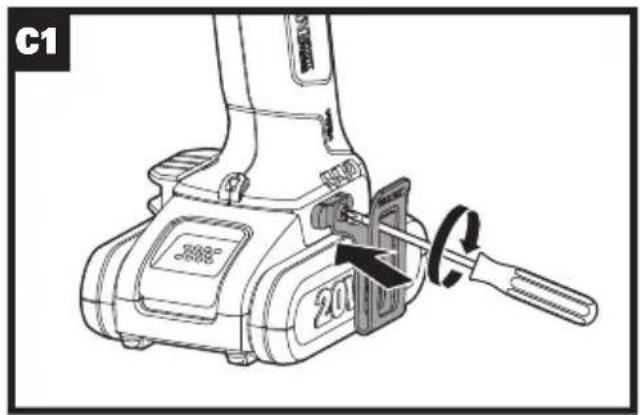

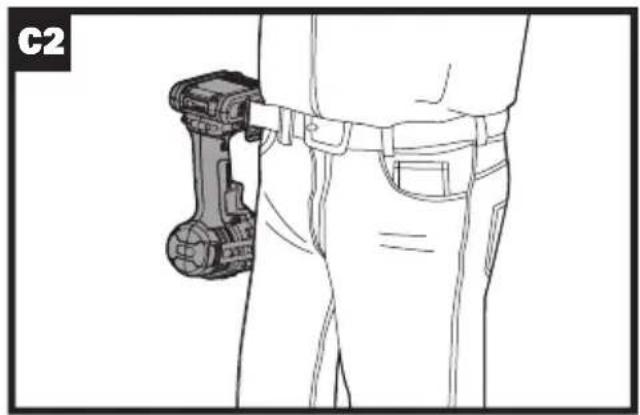

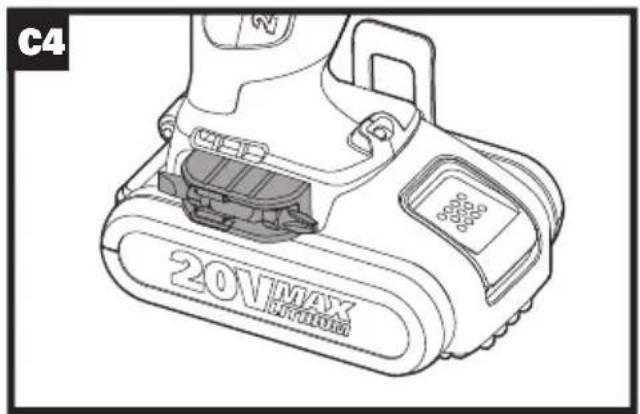

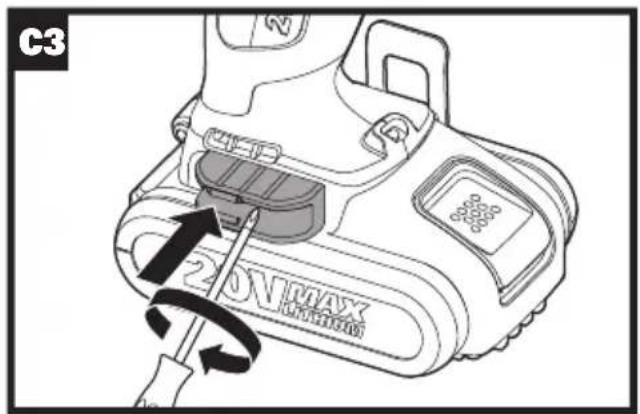

Assembling the belt hook and bit clip	See Fig. C1, C2, C3, C4
OPERATION

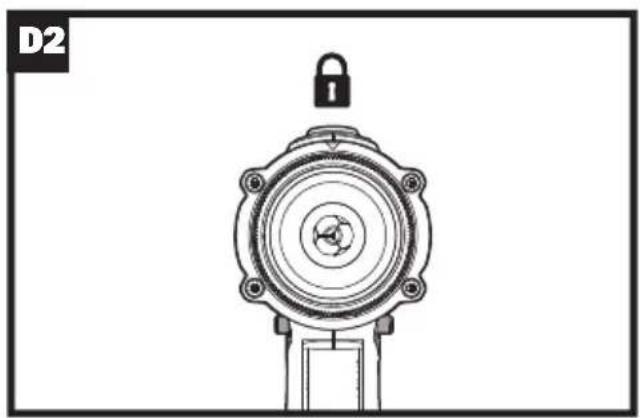

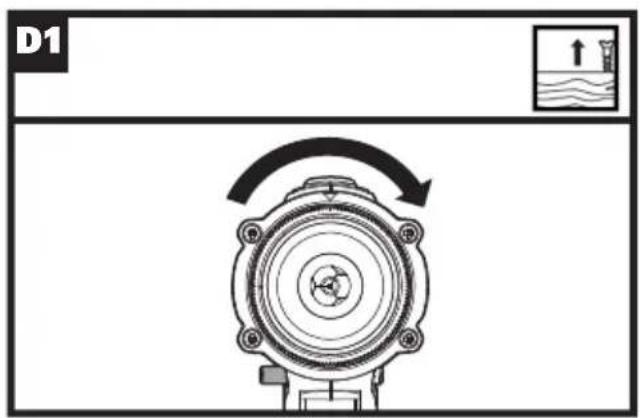

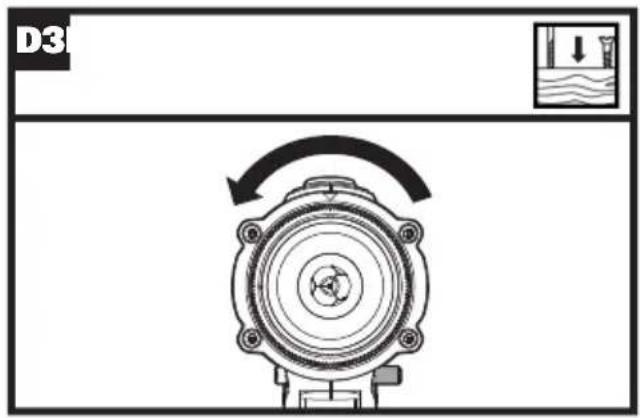

FORWARD/REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!	See Fig.D1, D2, D3

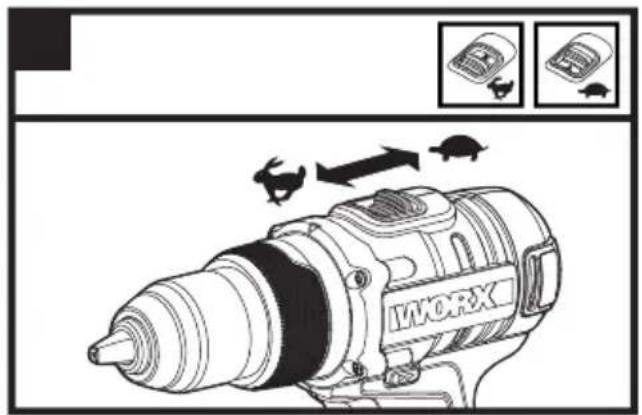

TWO-SPEED GEAR CONTROL	See Fig. E

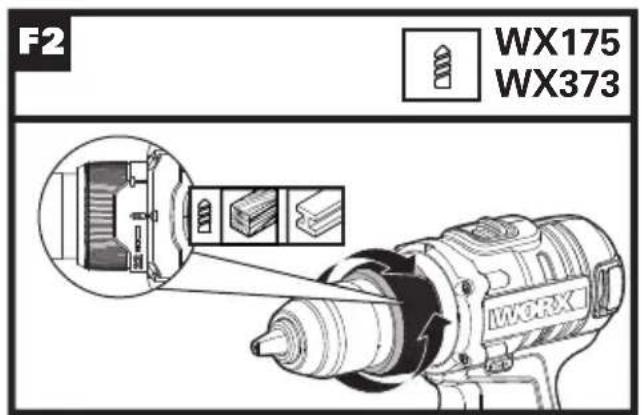

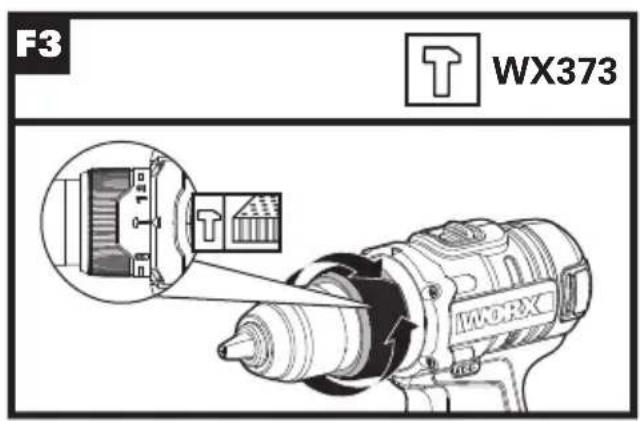

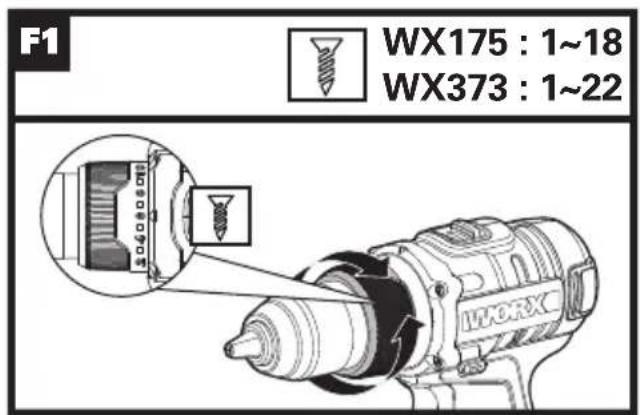

TORQUE ADJUSTMENT SCREWDRIVING, DRILLING, HAMMER DRILLING	See Fig. F1, F2, F3
OPERATING THE ON/OFF SWITCHWARNING: Do not operate for long periods at low speed because excess heat will be produced internally.	See Fig. G

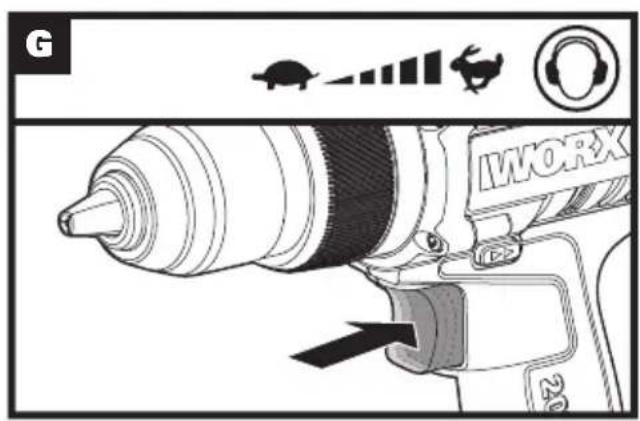

LED LIGHT INDICATOR (See Fig. G)

Before operation, the LED light will be activated when the On/Off switch is slightly depressed, and will automatically turn off 20 seconds after the On/Off switch is released.

WARNING: To turn on the light, press the On/Off switch and make sure the Forward/Reverse Rotation Control is on right/left position.

The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 60 seconds and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

- Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.

- Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again.

- Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The Forward and Reverse Switch, which is on top of the trigger, is positioned in the lock function. Unlock the Forward and Reverse Switch putting it into the required rotation position. Push the trigger and the drill will start to rotate (See Fig. B).

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the Torque Adjustment Ring, you can find the Torque Adjustment Ring between the Chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 22 is the highest torque (screw driving force). Position 3 is for drill operation. Position 4 is for hammer drill operation. Regulate the Torque Adjustment Ring to a higher position to reach the best result (See Fig. E).

3. I CAN NOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the red LED Light should turn on when the battery is charging.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a Battery Pack for a prolonged time will reduce the Battery Pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the Battery Pack energy faster than lighter working conditions. Do not re-charge your Battery Pack below 0°C and above 45°C as this will affect performance.

MAINTENANCE

Remove the Battery Pack from the tool before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or

maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or er for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Battery-powered Drill

Type WX175 WX175.1 WX175.2 WX175.9 (

1 - designation of machinery, representative of Battery-powered Drill)

WX373 WX373.1 WX373.2 WX373.9 (3-designation of machinery, representative of Hammer Drill)

Function Drilling

Complies with the following Directives,

2006/42/EC

2011/65/EU

2014/30/EU

Standards conform to:

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-1

EN 60745-2-2

The person authorized to compile the technical file, Name: Russell Nicholson

Address: Positec Power Tools (Europe) Ltd, PO

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

Deputy Chief Engineer, Testing & Certification

WX373 WX373.1 WX373.2 WX373.9 (3-

Name: Russell Nicholson

Adresse: Positec Power Tools (Europe) Ltd, PO

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

	WX175	WX175.1	WX175.2	WX175.9	WX373	WX373.1	WX373.2	WX373.9
Chargeur 1 1 1 / 1 1 1 /
Batterie 2 1 2 / 2 1 2 /
Embouts Doubles 1 1 1 1	1 1 1 1
Support 1 1 1 1 1 1 1 1
Bit clip 1 1 1 1 1 1 1 1

UTILISATION CONFORMÉMENT À LA DESTINATION DE L'APPAREIL(POUR WX175 WX175.1 WX175.2 WX175.9)

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Modèle WX175 WX175.1 WX175.2 WX175.9 (

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

USO CONFORME ALLE NORME(PER WX175 WX175.1 WX175.2 WX175.9)

USO CONFORME ALLE NORME(PER WX373 WX373.1 WX373.2 WX373.9)

VEILIGHEIDSWAARSCHUWINGEN VOOR BOOR

GEBRUIK VOLGENS BESTEMMING(VOOR WX175 WX175.1 WX175.2 WX175.9)

UŻYCIE ZGODNE Z PRZEZNACZENIEM (DLA WX175 WX175.1 WX175.2 WX175.9)

Typ: WX175 WX175.1 WX175.2 WX175.9 (1

6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

RENDELTETÉS(MERT WX175 WX175.1 WX175.2 WX175.9)

Típus: WX175 WX175.1 WX175.2 WX175.9 (1 - a

WX373 WX373.1 WX373.2 WX373.9 (3- a

UTILIZARE CONFORM DESTINATIEI(PENTRU WX175 WX175.1 WX175.2 WX175.9)

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

Adjunct Inginer şef, Testare si certificare

1. SKLÍČIDLO
2. KLUZNÁ SPOJKA
3. OVLÁDÁNÍ PŘEVODŮ
4. PŘEPÍNAČ SMĚRU OTÁČENÍ, BLOKOVÁNÍ SPÍNAČE
5. RUKOJEŤ PRO UCHOPENÍ NÁŘADÍ
6. AKUMULÁTOR*
7. HÁČEK NA ŘEMEN
8. ZÁPADKA JEDNOTKY BATERIÍ
9. OSVĚTLENÍ LED
10. VYPÍNAČ
11. PŘÍCHYTKA NÁSTROJŮ
12. INDIKÁTOR KAPACITY BATERIE* (POUZE PRO MODEL WX373 WX373.1 WX175 WX175.1)

TECHNICKÉ ÚDAJE

ÚČEL POUŽITÍ(PRO WX175 WX175.1 WX175.2 WX175.9)

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

POUŽÍVANIE PODL'A URČENIA(PRE WX175 WX175.1 WX175.2 WX175.9)

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

ÂMBITO DE UTILIZAÇÃO (PARA WX175 WX175.1 WX175.2 WX175.9)

ÂMBITO DE UTILIZAÇÃO (PARA WX373 WX373.1 WX373.2 WX373.9)

Tipo WX175 WX175.1 WX175.2 WX175.9 (

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

ÄNDAMÅLSEN LIG ANVÄNDNING (FOR WX175 WX175.1 WX175.2 WX175.9)

Adress Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

NAMEN UPORABE (ZA WX175 WX175.1 WX175.2 WX175.9)

Strojček je namenjen za vijačenje vijakov ter vrtanje v les, kovino ali plastiko.

NAMEN UPORABE (ZA WX373 WX373.1 WX373.2 WX373.9)

Vrsta izdelka WX175 WX175.1 WX175.2 WX175.9

( 1 - zasnova naprave, predstavnik brezžičnih vrtalnikov/vijačnikov)

WX373 WX373.1 WX373.2 WX373.9 (3- zasnova naprave, predstavnik udarnih vrtalnikov

Ime: Russell Nicholson

Naslov: Positec Power Tools (Europe) Ltd, PO

Box 6242, Newbury, RG14 9LT, UK

Suzhou 2015/04/05

Allen Ding

Do not load or transport package if Damaged.

A fire hazard could exist.

For more information, call:[phone]

LITHIUM-IONEN-BATTERIE

WORX you've got the power

www.worx.com

Copyright © 2016, Positec. All Rights Reserved. AR01179901
