USER MANUAL PHO 2000 BOSCH

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Planer PHO 1500 PHO 2000 Article number 3 603 BA4 0.. 3 603 BA4 1.. Rated power input W 550 680 Power output W 280 400 No-load speed min

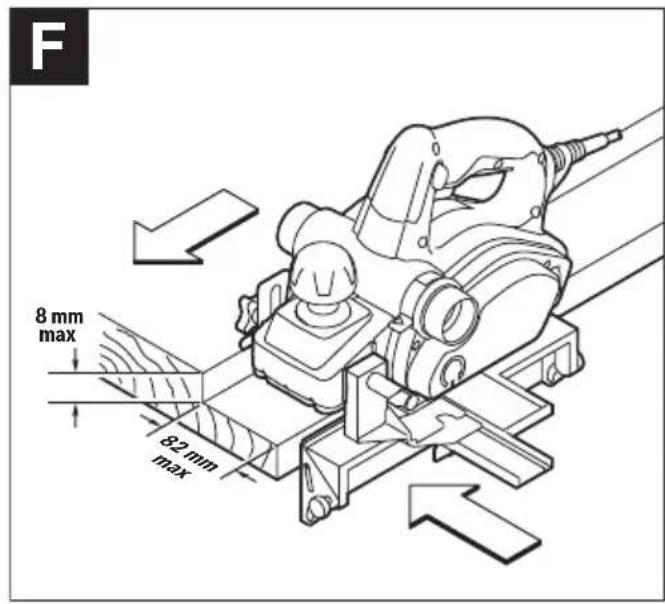

19 500 19 500 Cutting depth mm 0–1.5 0–2.0 Rebate depth mm 0–8 0–8 Bosch Power Tools 1 609 92A 49E | (12.11.2018)14 | English Planer PHO 1500 PHO 2000 max. planing depth mm 82 82 Weight according to EPTA-Procedure 01:2014 kg 2.4 2.4 Protection class / II / II The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/vibration information Noise emission values determined according to EN 62841-2-14. Typically, the A-weighted noise level of the power tool is: Sound pressure level 86dB(A); sound power level

(triax vector sum) and uncertainty K determined according to EN62841:

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Planer Article number
