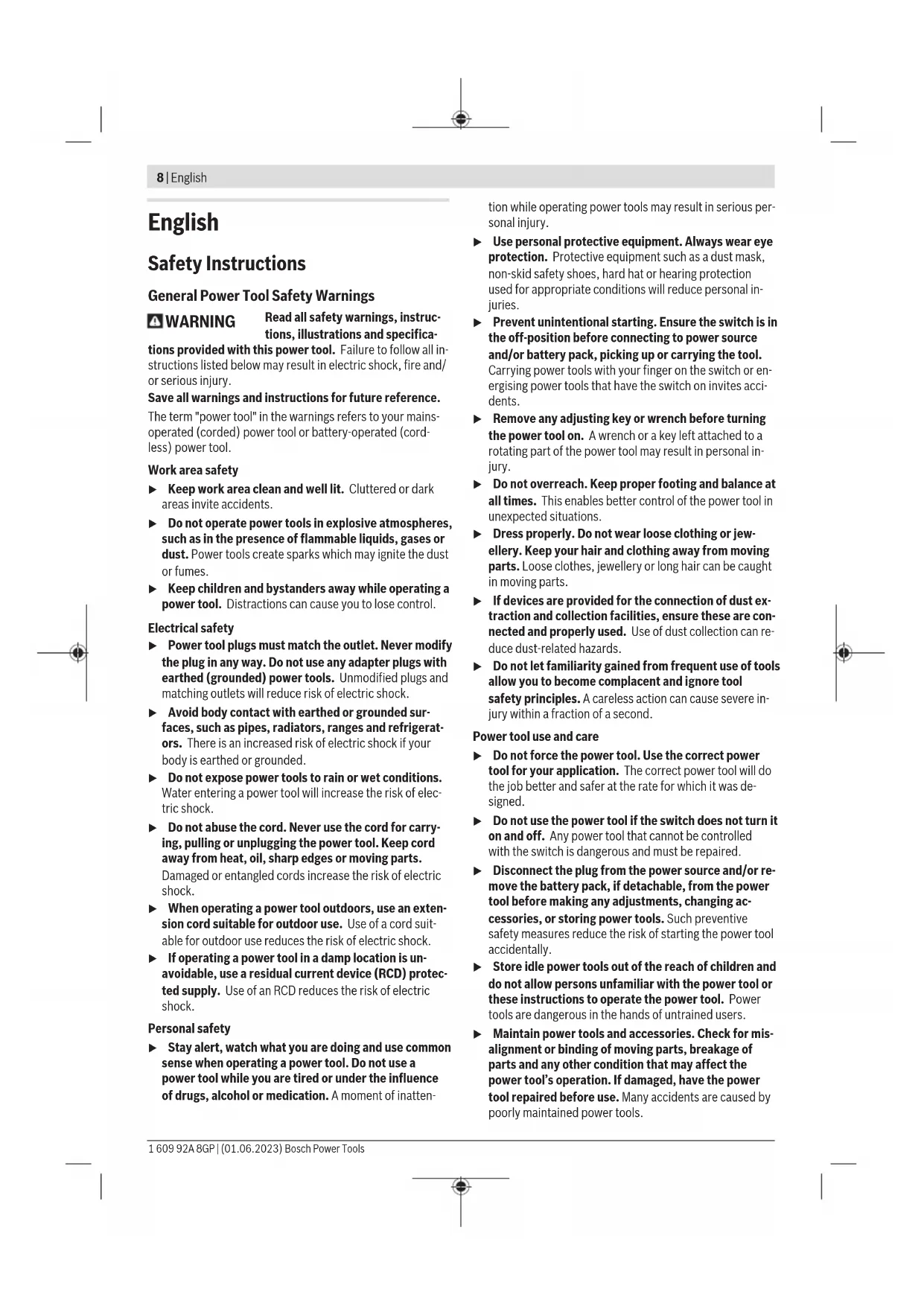

(13) (20) (19) (37) (22) (37) (23) Bosch Power Tools 1 609 92A 8GP | (01.06.2023)8 | English English Safety Instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. 1 609 92A 8GP | (01.06.2023) Bosch Power ToolsEnglish | 9 u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety instructions for planers u Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the sur- face leading to possible loss of control and serious injury. u Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by your hand or against the body leaves it unstable and may lead to loss of control. u Only bring the power tool into contact with the work- piece when switched on. Otherwise there is danger of kickback if the cutting tool jams in the workpiece. u Do not allow the chip ejector to come into contact with your hands. You may be injured by rotating parts. u Never plane over metal objects, nails or screws. Cut- ters and cutter shafts could become damaged and cause increased vibration. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u While working, always hold the planer in such a way that the planer base plate lies flat against the work- piece. Otherwise the planer could slip and cause injury. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The power tool is intended for planing wood-based materials such as beams and boards while resting firmly on the work- Bosch Power Tools 1 609 92A 8GP | (01.06.2023)10 | English piece. It is also suitable for chamfering edges and for rebat- ing. Product features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Cutting depth scale (2) Knob for setting the cutting depth (insulated gripping surface) (3) Chip ejector (either right or left) (4) Lock-off function for On/Off switch (5) On/off switch (6) Rechargeable battery

(7) Rechargeable battery release button

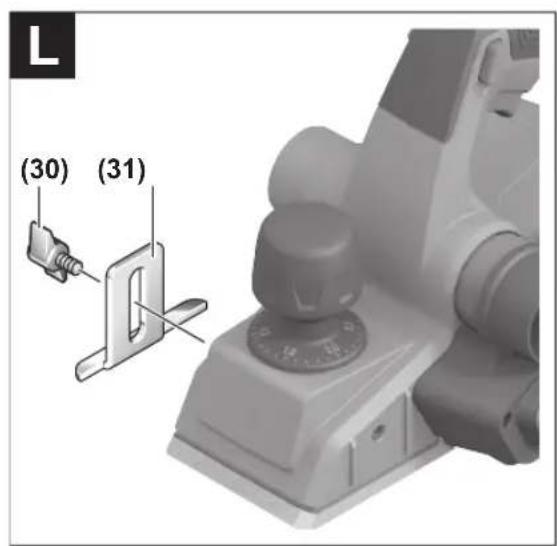

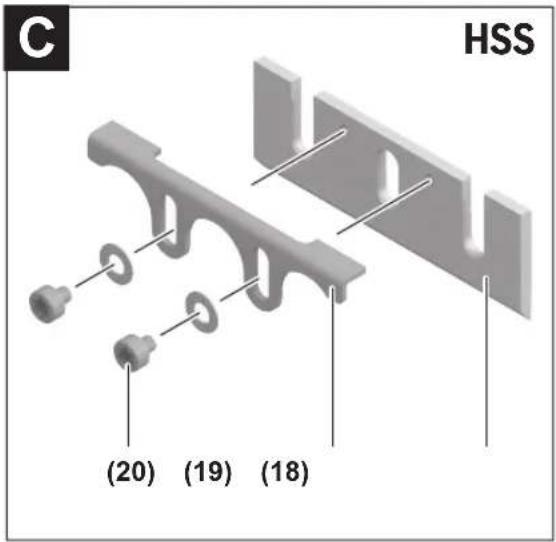

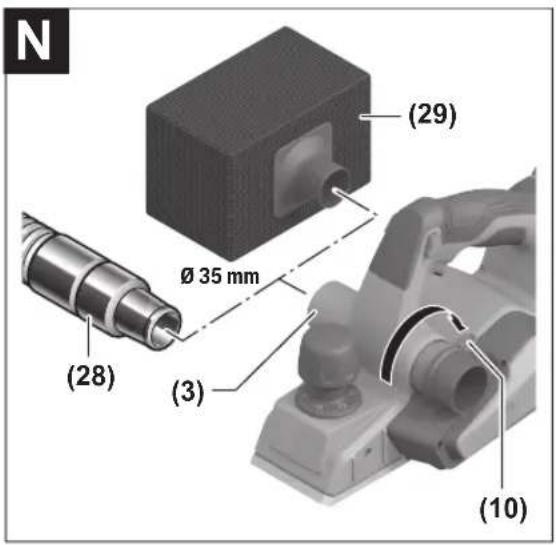

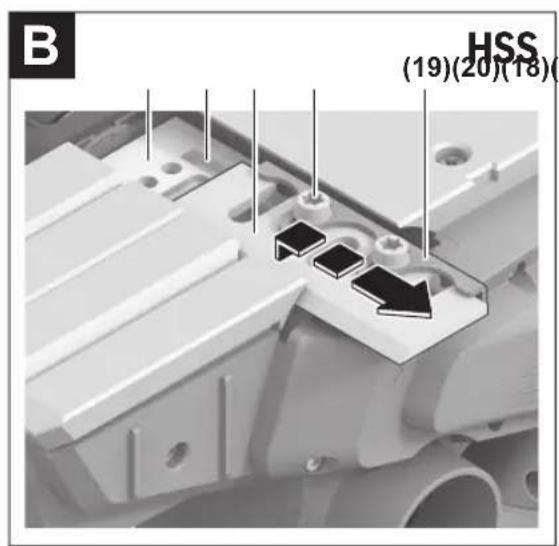

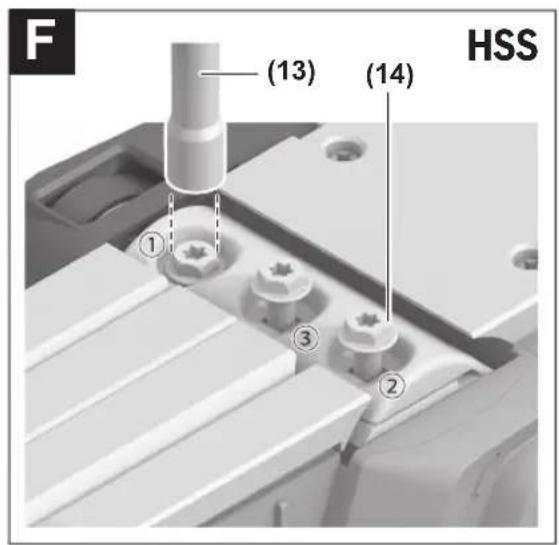

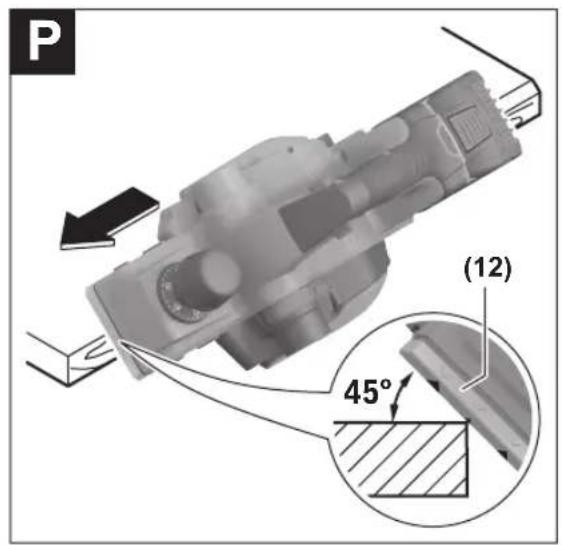

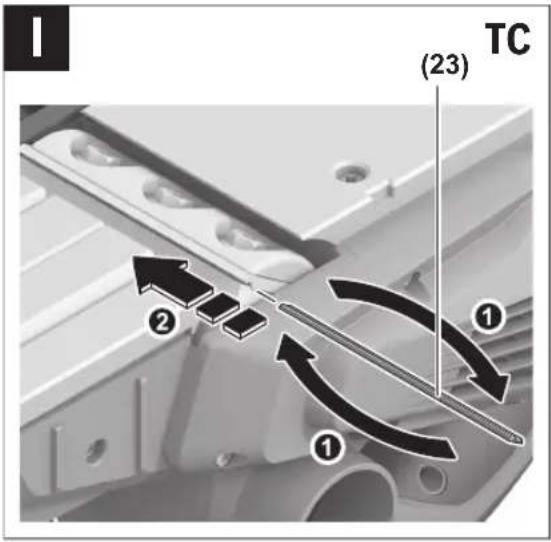

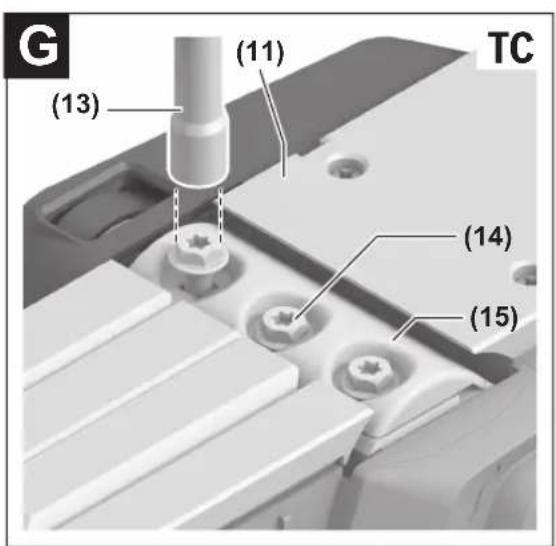

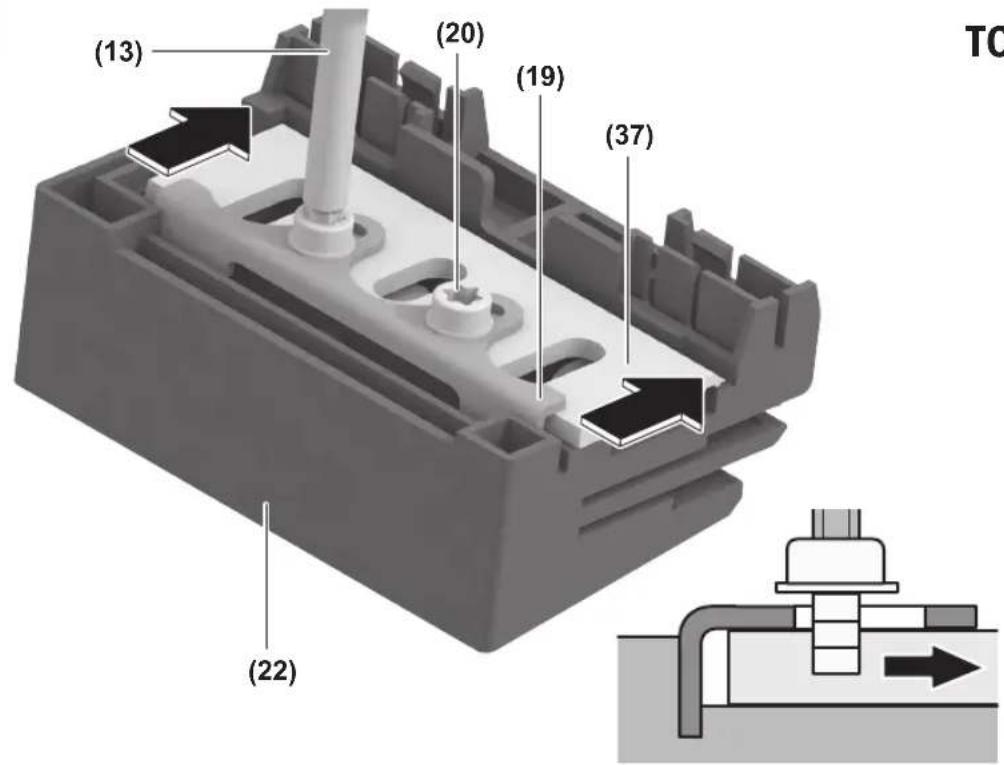

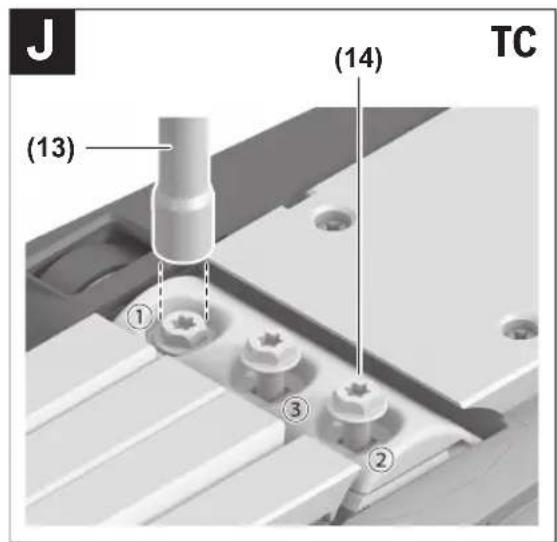

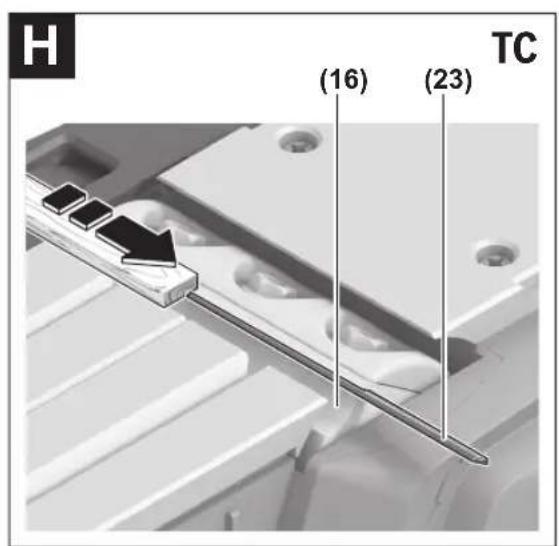

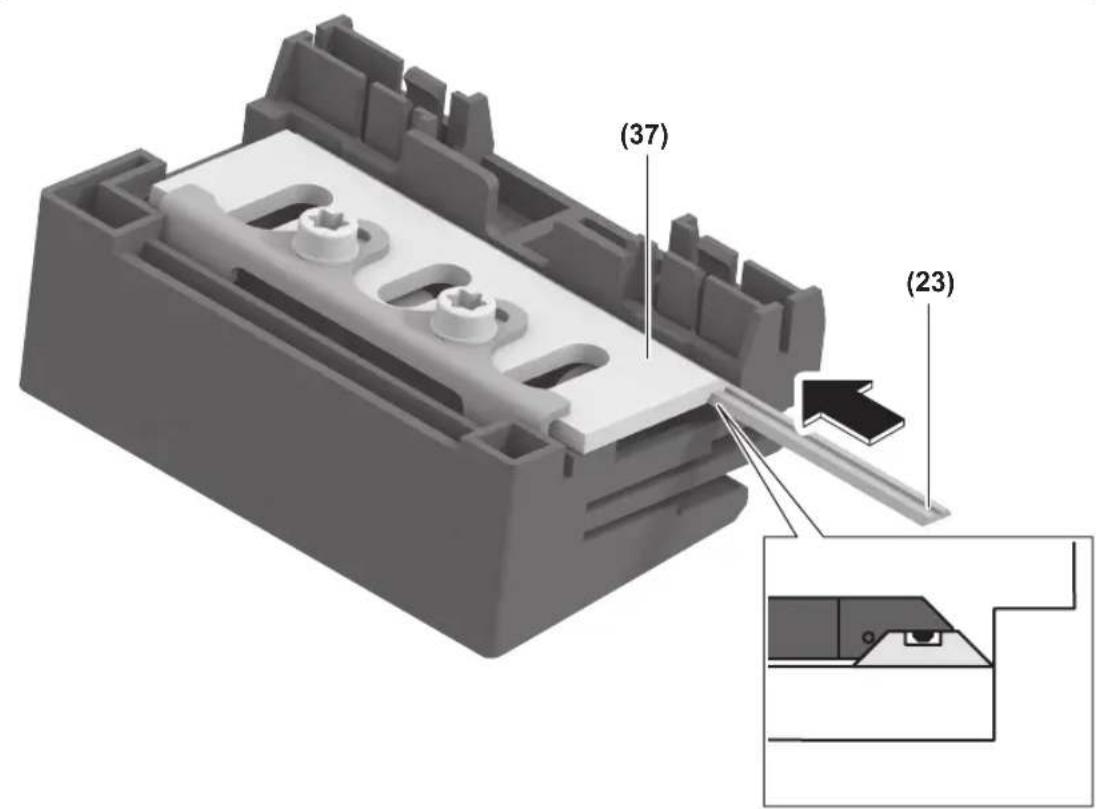

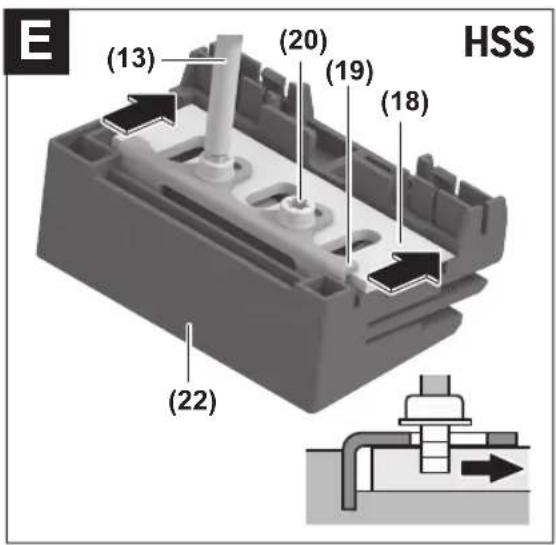

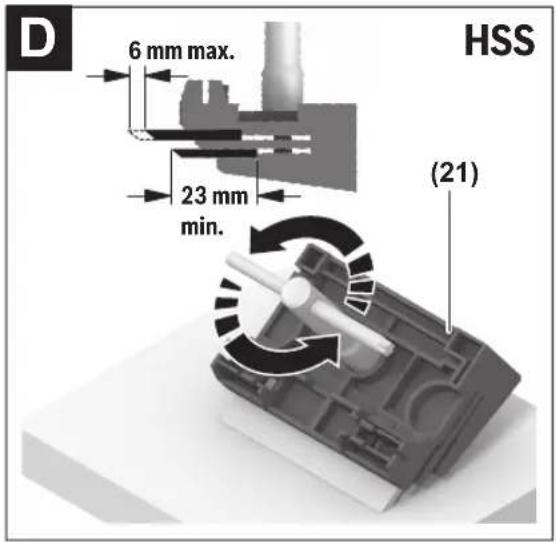

(8) Screw for belt cover (9) Belt cover (10) Changeover lever for chip ejector direction (11) Planer base plate (12) V-grooves (13) T-handle socket spanner/Torx keys (14) Fastening screw for clamping jaw (15) Clamping jaw (16) Blade head (17) Guide groove for planer blade (18) HSS planer blade (19) HSS planer blade retaining clip (20) Fastening screw for HSS planer blade retaining clip (21) Sharpening aid for HSS planer blades (22) Setting gauge for HSS planer blades (23) HM/TC planer blade

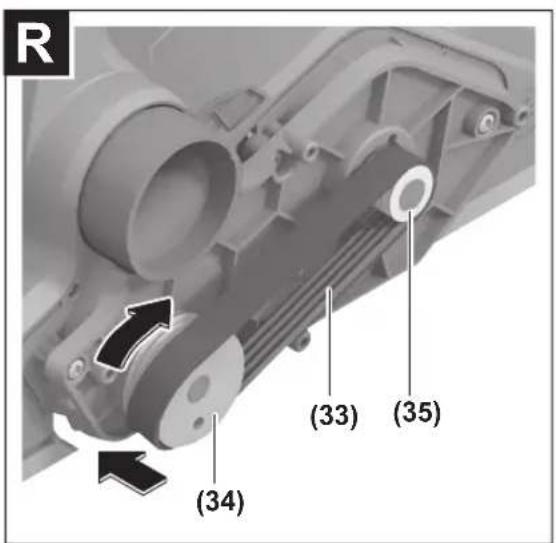

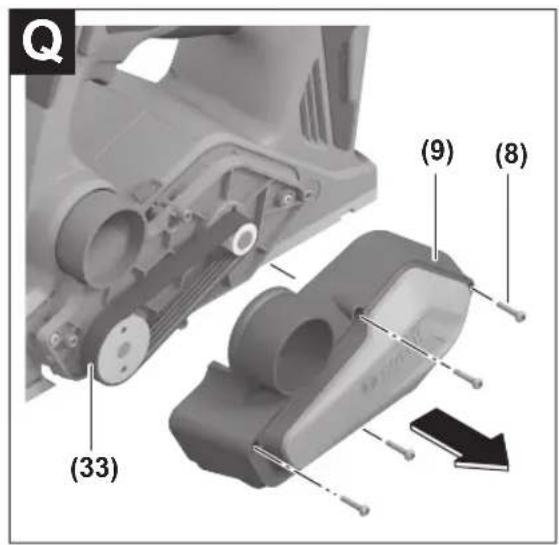

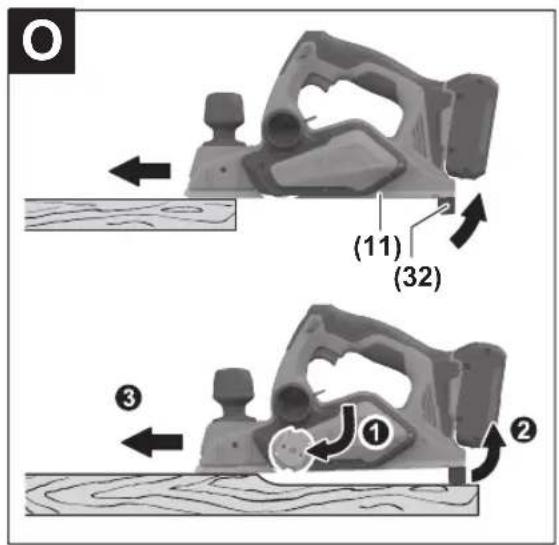

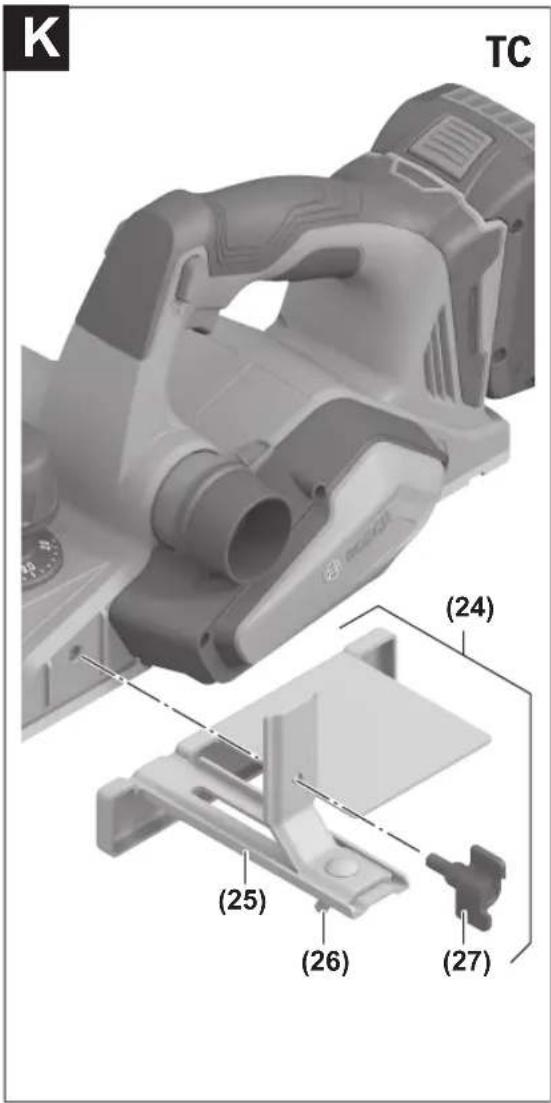

(32) Parking rest (33) Drive belt (34) Large belt wheel (35) Small belt wheel (36) Handle (insulated gripping surface) (37) Adapter for converting from HSS to TC planer blades

(38) Battery charge indicator on the power tool

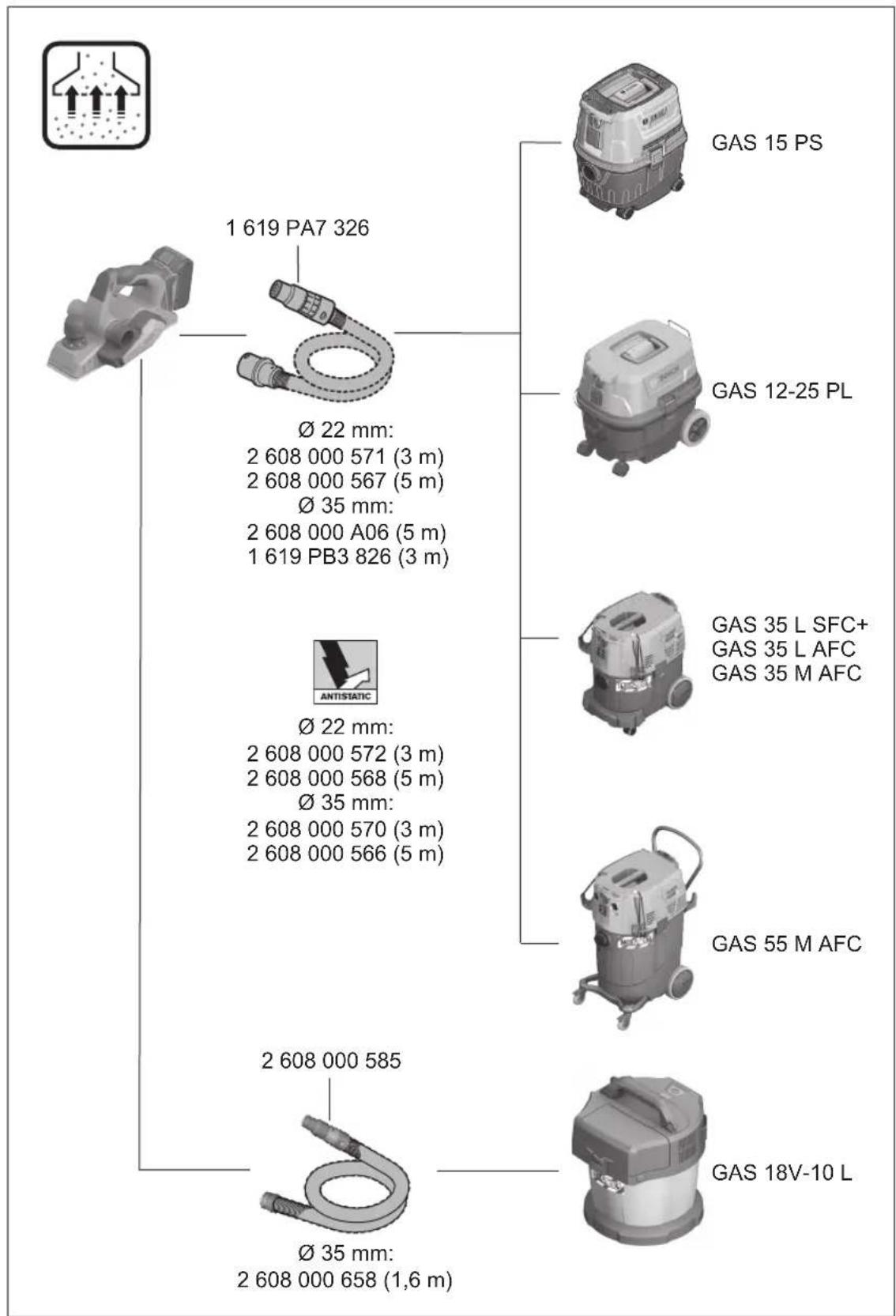

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical data Planer GHO 185-LI Article number 3 601 EB5 0.. Rated voltage V 18 No-load speed

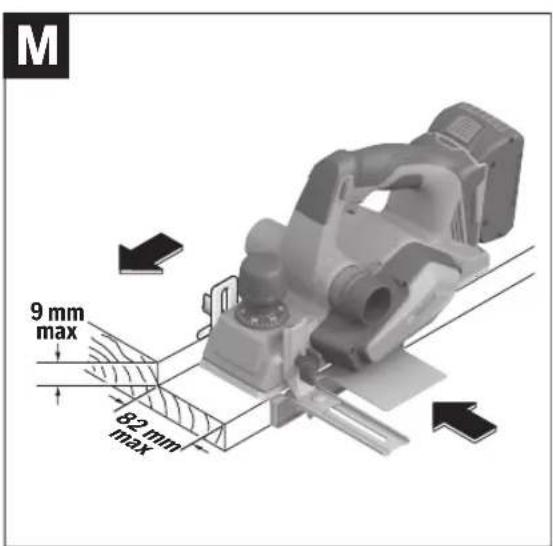

14,000 Cutting depth mm 0–2.6 Rebate depth mm 0–9 Max. planing width mm 82 Weight according to EPTA-Pro- cedure01:2014

kg 2.6–3.7 Recommended ambient tem- perature during charging °C 0to+35 Permitted ambient temperature during operation

and during storage °C –20to+50 Recommended rechargeable batteries GBA18V… ProCORE18V… Recommended chargers GAL 18… GAX 18… GAL 36…

Measured at 20–25°C with rechargeable battery GBA 18V 4.0Ah. B) Depends on battery in use C) Limited performance at temperatures <0°C Values can vary depending upon the product and are subject to ap- plication and environmental conditions. For further information www.bosch-professional.com/wac. Noise/vibration information Noise emission values determined according to EN62841-2-14. Typically, the A-weighted noise level of the power tool is: Sound pressure level 91dB(A); sound power level 99dB(A). Uncertainty K=3dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-14:
