| Product Type | Cordless Planer |
| Brand | Bosch |
| Model | GHO 12V-20 Professional |
| Rated Voltage | 12 V |
| No-load speed | 14500 rpm |
| Max. planing width | 56 mm |
| Planing depth (optimal) | 0 – 1.0 mm |
| Planing depth (maximum) | 1.0 – 2.0 mm |
| Rebate depth | 0 – 17 mm |
| Weight (according to EPTA) | 1.7 – 1.9 kg |
| Sound pressure level | 79 dB(A) |
| Vibration level | < 2.5 m/s² |
| Battery type | Lithium-ion 12 V (compatible with 10.8 V) |
| Recommended battery capacity | ≥ 2.5 Ah |
| Recommended charger | AL 11.., AL 12.., GAX 18V-30 |
| Charging temperature | 0 °C to +45 °C |
| Operating temperature | -20 °C to +50 °C |
| Suitable materials | Wood, plywood, MDF |
| Main functions | Planing, chamfering, rebating |
| Dust extraction system | Click & Clean adapter, dust bag |
| Safety | Switch lock, overload and overheating protection |
| Maintenance and cleaning | Regular cleaning of ventilation slots and chip ejector |
| Spare parts | Carbide planer blades (HM/TC), hex key for socket head screws |
Frequently Asked Questions - GHO 12V-20 Professional BOSCH
User questions about GHO 12V-20 Professional BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Planer in PDF format for free! Find your manual GHO 12V-20 Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GHO 12V-20 Professional by BOSCH.
USER MANUAL GHO 12V-20 Professional BOSCH
Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-pt.com
1609 92A 4LD (2019.02) O/224
1 609 92A 4LD
GHO 12V-20 Professional
BOSCH
Deutsch
Sicherheitshinweise
General Power Tool Safety Warnings
WARNING
Read all safety warnings, instructions, illustrations and specifica-
tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing ac-
cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130° C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
14 | English
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Safety instructions for planers
▶ Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury.
▶ Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by your hand or against the body leaves it unstable and may lead to loss of control.
▶ Only bring the power tool into contact with the workpiece when switched on. Otherwise there is danger of kickback if the cutting tool jams in the workpiece.
▶ Do not allow the chip ejector to come into contact with your hands. You may be injured by rotating parts.
▶ Never plane over metal objects, nails or screws. Cutters and cutter shafts could become damaged and cause increased vibration.
▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ While working, always hold the planer in such a way that the planer base plate lies flat against the workpiece. Otherwise the planer could slip and cause injury.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.
▶ Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands.
Product Description and Specifications
Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.
Please observe the illustrations at the beginning of this operating manual.
Intended use
The power tool is intended for planing wood-based materials such as beams and boards while resting firmly on the workpiece. It is also suitable for chamfering edges and for rebating.
Product features
The numbering of the product features refers to the diagram of the power tool on the graphics page.
(1) Knob for setting the cutting depth
(2) Button for maximising the cutting depth (max. 2 mm)
(3) Lock-off button for on/off switch
(4) On/off switch
(5) Battery A)
(6) Battery release button (2x) A
(7) Drawer for spare blades
(8) Side cutter block guard
(9) Planer base plate
(10) Battery charge indicator
(11) Screw for belt cover
(12) Belt cover
(13) Chip ejector (can be inserted on the right-hand or left-hand side)
(14) Adjustable planer base plate
(15) V-groove
(16) Handle (insulated gripping surface)
(17) HM/TC planer blade
(18) Hex key
(19) Blade head
(20) Clamping element for planer blade
(21) Fastening screw for planer blade (2x)
(22) Extraction hose (dia. 35 mm) (Click & Clean) A)
(23) Chip/dust bag A)
(24) Dust extraction adapter (Click & Clean) A)
(25) Locking device A)
(26) Snap fastener
A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.
Technical data
| Planer GHO 12V-20 | |
| Article number | 3 601 EA7 0.. |
| Rated voltage V 12 | = |
| No-load speed min | 1 14,500 |
| Cutting depth | |
| - optimum mm 0 - 1.0 | |
| - maximum mm 1.0 - 2.0 | |
| Rebating depth mm 0 - 17 | |
| Max. planing width mm 56 | |
| Weight according to EPTA-Procedure 01:2014 | kg 1.7 - 1.9 A) |
| Permitted ambient temperature | |
| - during charging °C 0 to +45 | |
| - During operation B) and dur-ing storage | °C -20 to +50 |
| Recommended batteries GBA 12V... | GBA 10.8V... |
| Recommended chargers | AL 11.. CV GAL 1110 CV GAL 12.. CV GAL 12V-.GAX 18V-30 |
A) Depends on battery in use
B) Limited performance at temperatures <0 °C
In unfavourable conditions, it is possible that the power tool may switch itself off due to electrostatic discharge. After switching the power tool back on again, it will work as intended.
Noise/vibration information
Noise emission values determined according to EN 62841-2-14.
Typically, the A-weighted sound pressure level of the power tool is 79 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80 dB(A).
Wear hearing protection
Total vibration values ah (triax vector sum) and uncertainty K determined according to EN 62841-2-14:
a _ n lt; 2. 5 m / s ^ 2, K = 1. 5 m / s ^ 2,
The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.
The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.
To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.
Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.
Fitting
Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
Battery Charging

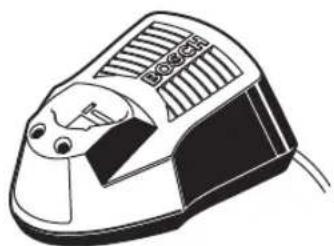

▶ Use only the chargers listed on the accessories page. Only these chargers are matched to the lithium-ion battery of your power tool.
Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.
The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates.
▶ Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged.
Follow the instructions on correct disposal.
Removing the battery
To remove the battery (5), press the release button (6) and pull the battery to the rear and out of the power tool. Do not use force to do this.
Changing the Tool
The hex key (18) required for changing the planer blade is housed inside the power tool and should always be stored there (see figure F).
▶ Take care when changing the planer blade. Do not pick up the planer blade by the cutting edges. You may be injured by the sharp cutting edges.
Use only original Bosch HM/TC planer blades.
The hard metal (HM/TC) planer blade has two cutting edges and can be turned. If both cutting edges become blunt, the planer blade (17) needs to be changed. The HM/TC planer blade must not be resharpened.
Removing the planer blade (see figure A)
To turn or replace the planer blade (17), turn the blade head (19) until it is parallel to the adjustable planer base plate (14).
16 | English
① Loosen the two fastening screws (21) using the hex key (18) (approx. 1–2 turns).
② If necessary, loosen the clamping element (20) by lightly striking it with an appropriate implement, e.g. a wooden wedge.
③ Push the side cutter block guard (8) downwards and use a piece of wood to push the planer blade (17) to the side and out of the blade head (19).
Fitting the planer blade (see figure B)
The guide groove on the planer blade ensures a constant, even height setting when changing or turning the blade. If necessary, clean the knife seat in the clamping element (20) and the planer blade (17).
When fitting the planer blade, ensure that it is securely seated in the mounting guide of the clamping element (20) and is aligned flush with the side edge of the planer base plate (9). Then tighten the two fastening screws (21) with the hex key (18).
Note: Check that the fastening screws (21) are firmly tightened before starting operation. Turn the blade head (19) by hand and ensure that the planer blade is not brushing against anything.
Note: A spare blade (17) can be placed in the drawer (7) (see figure E).
Dust/chip extraction
The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.
- Use a dust extraction system that is suitable for the material wherever possible.
- Provide good ventilation at the workplace.
- It is advisable to wear a P2 filter class breathing mask.
The regulations on the material being machined that apply in the country of use must be observed.
- Avoid dust accumulation at the workplace. Dust can easily ignite.
Clean the chip ejector (13) regularly. Switch off the power tool to do so. Remove the chip ejector and tap it to clear the chips. Use a suitable tool, e.g. a piece of wood, compressed air etc. to clean a blocked chip ejector.
▶ Do not allow the chip ejector to come into contact with your hands. You may be injured by rotating parts.
Always use an external dust extraction device or chip/dust bag to guarantee optimum suction.

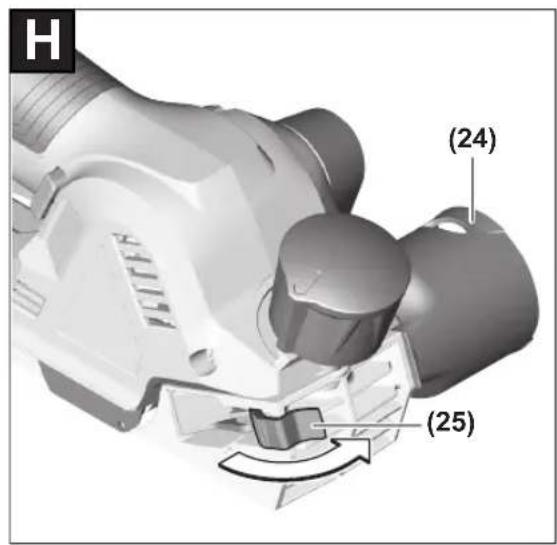

External dust extraction (see figures C, G and H)
Remove the chip ejector (13).
The dust extraction adapter (24) (accessory) with dust extraction hose (dia. 35 mm) (22) (accessory) can be fitted to either side of the power tool.
Firstly, insert the dust extraction adapter (24) into the power tool. Engage the lock (25) on the dust extraction adapter. Then insert the dust extraction hose (22) into the dust extraction adapter (24) until you hear both snap fasteners (26) on the dust extraction hose engage.
Connect the dust extraction hose (22) to a dust extractor (accessory). You will find an overview of how to connect to various dust extractors at the end of these operating instructions.
The dust extractor must be suitable for the material being worked.
When extracting dust that is dry, especially detrimental to health or carcinogenic, use a special dust extractor.
Self-generated dust extraction (see figures C and I) Remove the chip ejector (13).
You can use a chip/dust bag (accessory) (23) for small-scale tasks.
Insert the chip/dust bag (23) into the power tool. Engage the locking device (25) on the chip/dust bag.
Empty the chip/dust bag (23) at regular intervals to maintain optimum dust collection.
Selectable chip ejector
Insert the chip ejector (13) into the right-hand or left-hand side of the planer to determine the direction in which the chips are ejected.
If the chip ejector (13) is not inserted, dust and chips are ejected on both sides of the planer.
Operation
Note: The power tool can be operated using all Bosch 10.8 V and 12 V batteries. We recommended using batteries with a capacity of at least 2.5 Ah for optimum power.
Operating modes
Setting the cutting depth
Note: The power tool is optimised for cutting depths of up to 1 mm.
The cutting depth can be continuously adjusted from 0–1.0 mm using the knob (1). For cutting depths greater than 1 mm, the button (2) must be pressed:
| Material Planing width | in mm | Cutting depth in mm |
| 0-1.0 0-2.0 | ||
| Softwood < 30 ● ● | ||
| 30-40 ● - | ||
| Hardwood < 20 ● ● | ||
| 20-30 ● - | ||
| Softwood (wet) 0-40 ● - |
| Material Planing width | in mm | Cutting depth in mm | |
| 0-1.0 | 0-2.0 | ||
| Plywood < 20 ● ● | |||
| 20-30 ● - | |||
| Phenolic resin-coated plywood | < 15 ● ● | ||
| 15-30 ● - | |||
| MDF sheets < 20 ● ● | |||
| 20-30 ● - | |||
| Veneers 1 ● ● | |||
| Hardwood veneers 3-5 ● ● | |||
| Two-part filler 3-5 ● ● | |||
| Cardboard 2 ● ● | |||
Start-up
Inserting the battery
Insert the charged battery (5) into the battery holder until it is flush and you feel it engage.
Switching on/off
▶ Make sure that you are able to press the On/Off switch without releasing the handle.
To start the power tool, first press the lock-off button (4), then press and hold the on/off switch (4).
To switch off the power tool, release the on/off switch (4).
Note: For safety reasons, the on/off switch (4) cannot be locked; it must remain pressed during the entire operation.
Battery charge-control indicator
When the on/off switch (4) is pressed in halfway or completely, the battery charge indicator (10) indicates the battery's state of charge for several seconds. The indicator consists of three green LEDs.
LEDs Capacity
| 3 × continuous green light ≥ 66% | |
| 2 × continuous green light ≥ 33% | |
| 1 × continuous green light <33% | |
| 1 × flashing green light | Reserve |
Temperature-dependent Overload Protection
In the event of an overload, the speed is reduced. Allow the power tool to cool down unloaded at its maximum no-load speed for approx. 30 seconds.
Practical advice
Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
Planing Procedure
Set the required cutting depth and attach the power tool with the adjustable planer base plate (14) to the workpiece.
▶ Only bring the power tool into contact with the workpiece when switched on. Otherwise there is danger of kickback if the cutting tool jams in the workpiece.
Switch on the power tool and guide it over the surface of the workpiece, applying uniform feed.
To achieve high-quality surfaces, apply only a low feed rate and exert pressure on the middle of the planer base plate.
For the processing of hard materials, such as hardwood, and also when utilising the maximum planing width, set only a low cutting depth and reduce the planer feed as appropriate. Excessive feed reduces the quality of the surface finish and can lead to the chip ejector quickly becoming blocked.
Only sharp planer blades achieve good cutting performance and make the power tool last longer.
Chamfering edges (see figure D)
The V-groove (15) in the front of the planer base plate enables quick and easy chamfering of workpiece edges. Position the planer with the V-groove onto the edge of the workpiece and guide it along.
Groove used
V-groove
Medium
Dimension a (mm)
2.1-5.0
0.0-2.8
Maintenance and Service
Maintenance and cleaning
Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
Clean the power tool at regular intervals using compressed air.
Keep the side cutter block guard (8) clear and clean it regularly.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
18 | Français
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-mail: rbsa-hq.pts@za.bosch.com
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further restrictions.
When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.
Disposal
The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Only for EU countries:
According to the Directive 2012/19/EU, power tools that are no longer usable, and according to the Directive 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Battery packs/batteries:
Li-ion:
Please observe the notes in the section on transport (see "Transport", page 18).
Français
Robert Bosch (France) S.A.S.
Calle Robert Bosch No. 405
(24) Afzuigadapter (Click & Clean) A)
(25) Vergrendeling A)
(26) Drukknop
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Transport
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Transport
Robert Bosch Sp. z o.o.
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Service scule electrice
Strada Horia Măcelariu Nr. 30-34, sector 1
013937 Bucureşti
Service scule electrice
Strada Horia Măcelariu Nr. 30-34, sector 1
013937 Bucureşti, România
www.bosch-pt.com/bg/bg/
Транспортиране
JEHT RAH ANDAZI ABRA BRCI, ABDA CFL KILID (4) RA FGEAL KINID W SPS KILID CPGG W OUL (4) RA FSHRDHE NKGHD ARID.
2x: 2 608 000 672
10x: 2 608 000 673
2 608 000 675
1 600 A00 1RR
GBA 12V ...
GAL 12V-20
GBA 12V ...
GAL 12V-40
GAL 1215 CV (3,6 - 12 V)
AL 1130 CV
GAL 1230 CV (12 V)
AL 1115 CV
220
CE
1
| de | EU-Konformitätserklärung | Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:* | |
| Hobel | Sachnummer | ||
| en | EU Declaration of Conformity | We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:* | |
| Planer | Article number | ||
| fr | Déclaration de conformité UE | Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:* | |
| Rabot | N° d'article | ||
| es | Declaración de conformidad UE | Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:* | |
| Cepillo | N° de artículo | ||
| pt | Declaração de Conformidade UE | Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:* | |
| Plaina | N.° do produto | ||
| it | Dichiarazione di conformità UE | Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:* | |
| Pialletto | Codice prodotto | ||
| nl | EU-conformiteitsverklaring | Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:* | |
| Schaafmachine | Productnummer | ||
| da | EU-overensstemmelseserklæring | Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:* | |
| Høvl | Typenummer | ||
| sv | EU-konformitetsförklaring | Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningar nas och att de stämmer överens med följande normer.Teknisk dokumentation:* | |
| Hyvel | Produktnummer | ||
| no | EU-samsvarserklæring | Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:* | |
| Høvel | Produktnummer | ||
| fi | EU-vaatimustenmukaisuusvakuutus | Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:* | |
| Höylä | Tuotenumero | ||
| el | Δήλωση πιστότητας ΕΕ | Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:* | |
| Πλάνη | Αριθμός ευρετηρίου | ||
| tr | AB Uygunluk beyani | Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:* | |
| Planya | Ürün kodu | ||
||
CE
| pl | Deklaracja zgodności UE | Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:* | |
| Strug | Numer katalogowy | ||
| cs | EU prohlásení oshodě | Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:* | |
| Hoblík | Objednací číslo | ||
| sk | EÚ vyhlásenie ozhode | Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok spíňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcimi normami:Technické podklady má spoločnosť:* | |
| Hoblík | Vecné číslo | ||
| hu | EU konformitási nyilatkozat | Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:* | |
| Gyalu | Cikkszám | ||
| ru | Заявление о соответствии EC | Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:* | |
| Рубанок | Товарный No | ||
| uk | Заява про відповідність ЄС | Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:* | |
| Рубанок | Товарний номер | ||
| kk | EO сәйкестік мағлумдамасы | Өз жауапкершілікпен біз аталған өнімдер теменде жзылған директикалар мен жарлықтардың тиісті қағидаларына сәйкестігін және темендері нормаларға сай екенін білдіреміз.Техникалық кужаттар:* | |
| Жонғы | Өнім нөмірі | ||
| ro | Declarație de conformitate UE | Declarăm pe proprie răspundere că produsele mentionate corespund tutu-ror dispozițiilor relevante ale directivelor și reglementărilor enumerate în ce-le ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:* | |
| Rindea | Număr de identificare | ||
| bg | ЕС декларация за съответствие | С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:* | |
| Електрическо renде | Каталожен номер | ||
| mk | EU-Изјава за сообразност | Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:* | |
| Ренде | Број на дел/артик | ||
| sr | EU-izjava o usaglašenosti | Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:* | |
| Rende | Broj predmeta | ||
| sl | Izjava o skladnosti EU | Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vse-mi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom. Tehnična dokumentacija pri:* | |
| Skobeljnik | Številka artikla | ||
| hr | EU izjava o sukladnosti | Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:* | |
| Blanja | Kataloški br. | ||
| et | EL-vastavusdeklaratsioon | Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas | |
| Höövel | Tootenumber | ||
CE
III
| järgmiste normidega.Tehnilised dokumendid saadaval: * | |||
| Iv | Deklaräcija par atbilstibuES standartiem | Mës ar pilnu atbildibu paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem talāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm,kā ari sekojošiem standartiem.Tehniskā dokumentacija no: * | |
| Ėvele | Izstrādājuma numurs | ||
| It | ES atitikties deklaracija | Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvu ir reglamentu reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: * | |
| Obliai | Gaminio numeris | ||
| GHO 12V-20 | 3 601 EA7 0.. 2006/42/EC2014/30/EU2011/65/EU | EN 62841-1:2015EN 62841-2-14:2015EN 55014-1:2006+A1:2009+A2:2011EN 55014-2:2015EN 50581:2012 | |
| * Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY | |||
Henk BeckerChairman of Executive Management Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 19.02.2019 | |||
- GHO 12V-20 PROFESSIONAL
- BOSCH
- DEUTSCH
- SICHERHEITSHINWEISE
- GENERAL POWER TOOL SAFETY WARNINGS
- WARNING
- SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
- WORK AREA SAFETY
- ELECTRICAL SAFETY
- PERSONAL SAFETY
- POWER TOOL USE AND CARE
- BATTERY TOOL USE AND CARE
- 14 | ENGLISH
- SERVICE
- SAFETY INSTRUCTIONS FOR PLANERS
- PRODUCT DESCRIPTION AND SPECIFICATIONS
- INTENDED USE
- PRODUCT FEATURES
- NOISE/VIBRATION INFORMATION
- WEAR HEARING PROTECTION
- FITTING
- BATTERY CHARGING
- REMOVING THE BATTERY
- CHANGING THE TOOL
- REMOVING THE PLANER BLADE (SEE FIGURE A)
- 16 | ENGLISH
- FITTING THE PLANER BLADE (SEE FIGURE B)
- DUST/CHIP EXTRACTION
- EXTERNAL DUST EXTRACTION (SEE FIGURES C, G AND H)
- SELF-GENERATED DUST EXTRACTION (SEE FIGURES C AND I) REMOVE THE CHIP EJECTOR (13)
- SELECTABLE CHIP EJECTOR
- OPERATION
- OPERATING MODES
- SETTING THE CUTTING DEPTH
- START-UP
- INSERTING THE BATTERY
- SWITCHING ON/OFF
- BATTERY CHARGE-CONTROL INDICATOR
- TEMPERATURE-DEPENDENT OVERLOAD PROTECTION
- PRACTICAL ADVICE
- PLANING PROCEDURE
- CHAMFERING EDGES (SEE FIGURE D)
- MAINTENANCE AND SERVICE
- MAINTENANCE AND CLEANING
- AFTER-SALES SERVICE AND APPLICATION SERVICE
- GREAT BRITAIN
- 18 | FRANÇAIS
- IRELAND
- AUSTRALIA, NEW ZEALAND AND PACIFIC ISLANDS
- REPUBLIC OF SOUTH AFRICA
- CUSTOMER SERVICE
- GAUTENG - BSC SERVICE CENTRE
- KZN - BSC SERVICE CENTRE
- WESTERN CAPE - BSC SERVICE CENTRE
- BOSCH HEADQUARTERS
- TRANSPORT
- DISPOSAL
- ONLY FOR EU COUNTRIES
- BATTERY PACKS/BATTERIES
- FRANÇAIS
- ТРАНСПОРТИРАНЕ
Brand : BOSCH
Model : GHO 12V-20 Professional
Category : Planer
