USER MANUAL CT501AC Vonroc

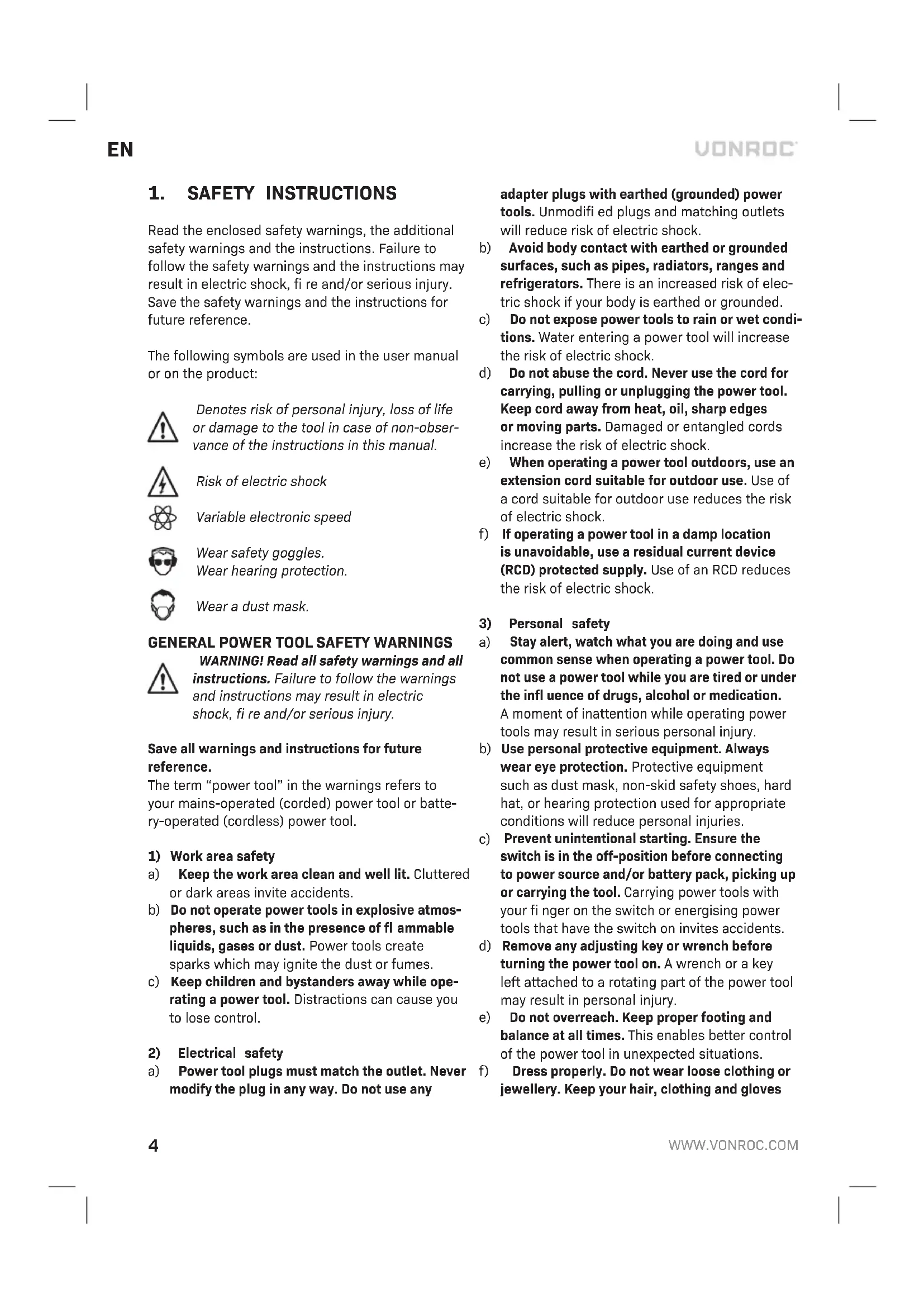

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference. The following symbols are used in the user manual or on the product: Denotes risk of personal injury, loss of life or damage to the tool in case of non-obser- vance of the instructions in this manual. Risk of electric shock Variable electronic speed Wear safety goggles. Wear hearing protection. Wear adust mask.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or batte- ry-operated (cordless) power tool.

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while ope- rating apower tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering apower tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating apower tool outdoors, use an extension cord suitable for outdoor use. Use of acord suitable for outdoor use reduces the risk of electric shock. f) If operating apower tool in adamp location is unavoidable, use aresidual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Stay alert, watch what you are doing and use common sense when operating apower tool. Do not use apower tool while you are tired or under the infl uence of drugs, alcohol or medication. Amoment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. Awrench or akey left attached to arotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and glovesEN

away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. Acareless action can cause severe injury within afraction of asecond.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of child- ren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’soperation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in ahazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. Acharger that is suitable for one type of battery pack may create arisk of fi re when used with another battery pack. b) Use power tools only with specifi cally design- ated battery packs. Use of any other battery packs may create arisk of injury and fi re.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make aconnection from one terminal to another. Shorting the battery terminals together may cause burns or afi re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use abattery pack or tool that is dama- ged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury.

Do not expose abattery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by aqualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Always keep the cord away from the moving parts of the machine.

• In the case of locking, switch the machine off im- mediately and remove the plug from the mains.6

• Compare the maximum number of revolutions allowed of the accessories with the number of revolutions of the machine.

• When you put the machine away the engine must be switched off and moving parts must have reached astandstill.

• Never attach an assembly spanner to your ma- chine with apiece of string or anything similar.

• Never use the axle locking button if the machine is operating.

• Make sure that the spring chuck diameter is the same as the axle diameter of the accessory.

Use aclamping device for securing the work piece.

• Keep your hands away from the work piece. Electrical safety When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fi re, electric shock and personal injury. Read the following safety instructions. Always check that the power supply corre sponds to the voltage on the rating plate. Class II machine - Double insulation - You don’t need any earthed plug

2. MACHINE INFORMATION

Intended use This power tool is intended to function as agrinder, sander, wire brush, polisher, carving or cut-off tool. This rotary multi tool is great for editing of materi- als like wood, plastic, stone, shell aluminium, brass and steel. Always use the proper accessories and speed setting. TECHNICAL SPECIFICATIONS Model No. CT501AC/S_CT501AC Voltage 220-240V~Frequency 50 HzPower consumption 160 WNo load speed 8.000-35.000/min Capacity of spring chuck 3.2 + 2.4 mmWeight 1.75 kgLpa (Sound pressure level) 73+3 dB(A)Lwa (Sound power level) 84+3 dB(A)Vibration 3.74+1.5 m/s

Vibration level The vibration emission level stated in this instruc- tion manual has been measured in accordance with astandardized test given in EN60745; it may be used to compare one tool with another and as apreliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may signifi cantly increase the exposure level.

• The times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level. Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns. DESCRIPTION The numbers in the text refer to the diagrams on pages 2 - 3 Fig. A

5. Speed adjustment wheel

10. Ring of fl exible shaft

Before assembly always remove the plug from the mains.

Warning! Change accessories by inserting an accessory into the collet (or chuck) as far possible to minimize run out and unbalance. Assembly of accessories (Fig. A) Press down the spindle lock (2) and hold it down. Using the chuck spanner (3) you can undo theEN

chuck (1). Put the accessory in its place. Hold down the spindle lock when you fasten the chuck with the chuck spanner. To mount an accessory in the fl exible shaft (Fig. B) Lock the spindle by putting the pin (6) in the pin opening (7). Then loosen the chuck with the chuck spanner and place the accessory. Keep the pin in place and tighten the chuck. Make sure to remove the pin before operating the machine. Operation Switch on the machine by engaging the on/off switch (4) By adjusting the speed adjustment wheel (5) you can regulate the speed of the Multi tool. Do not put the machine down when the motor is still running. Do not place the machine on adusty surface. Dust particles may enter the mechanism. Too high aload at alow speed of the Multi tool can burn out the engine. Mounting the Safety guard (Fig. I) Note: Safety guard is advised to be used when using grinding, sanding, polishing or cutting acces- sories. Remove ring (8) from the machine. Mount the safety guard (13) on the Multi tool. Assembly the accessories to be used like explained in chap- ter: Assembly of accessories. Make sure the see through part of the safety guard is facing you, so you will be protected from sparks or debris. Mounting the milling attachment (Fig. J) Note: Milling attachment is advised to be used when using drill or milling accessories. The milling attachment will help guide the tool in astraight line when milling material. Remove ring (8) from the machine. Assembly the accessories to be used like explained in chapter: Assembly of accessories. Mount the Milling attach- ment (14) on the Multi tool. Adjust the depth of the milling tool to the desired cutting depth by opening and closing the Depth knob (15).

MOUNTING THE FLEXIBLE SHAFT AND STAND

Flexible shaft (Fig. C) Screw the ring (8) off the chuck and remove it. Mount the fl exible shaft on the Multi tool, placing the inner shaft (9) in the chuck. The ring of the fl exible shaft (10) can then be fastened onto the Multi tool. Never operate the axle locking button if the engine is still rotating. Stand for the Rotary multi tool

• Assembly the stand (11) on to the workbench clamp (12).

• Mount the assembled stand on the side of aworkbench or worktop with amaximum thick- ness of 60 mm.

• The height of the stand is adjustable. Loosen the top tube of the stand by turning it anti- clockwise. Draw the tube out to its maximum height and secure it by turning the tube clockwise. The height of the suspension bracket is adjustable by loosening the black knob. After adjusting the suspension bracket to the correct height, retighten the knob.

• Attach the Multi tool to the suspension bracket of the stand; this suspension bracket can be turned 360°. Accessories for the Rotary multi tool Always check that the maximum rpm of the accessory is suitable for the maximum speed of the Multi tool. Note: Work safe by using the safety guard. This pre- vents sparks and debris hitting you. Grinding stones (Fig. D) When using agrinding stone the fi rst time, use the dressing stone to balance it. The dressing stone can also be used for cleaning the surface or to give the grinding stone aspecial shape. Material Speed setting Stone, shell - Steel + Aluminium, brass + - Plastic -8

Felt wheels (Fig. E) The felt wheels should be screwed on the mandrel. Material Speed setting Steel + Aluminium, brass + - Plastic + Sanding bands and disc (Fig. F) Material Speed setting Wood + + Steel - Aluminium, brass + - Plastic - High speed cutter, Diamond wheel point and Drill (Fig. G) Material Speed setting Stone, shell Max Steel + - Aluminium, brass + + Plastic - Stainless steel brushes and bristle brush (Fig. H) Only for S_CT501AC Material Speed setting Stone, shell + - Aluminium, brass + -

Make sure that the machine is not live when carrying out maintenance work on the motor. Clean the machine casings regularly with asoft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using asoft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components. ENVIRONMENT Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations. Only for EC countries Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way. WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improperly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by company either expressed or implied. There are no other war- ranties expressed or implied which extend beyond the face hereof, herein, including the implied war- ranties of merchantability and fi tness for aparticular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifi cations can be changed without further notice.DE

10. Ring van de fl exibele as

DECLARATION OF CONFORMITY
