USER MANUAL S_CT501AC Vonroc

White silhouette of a bottle with a cap, against a black background (no text or symbols)

EN Original Instructions 04

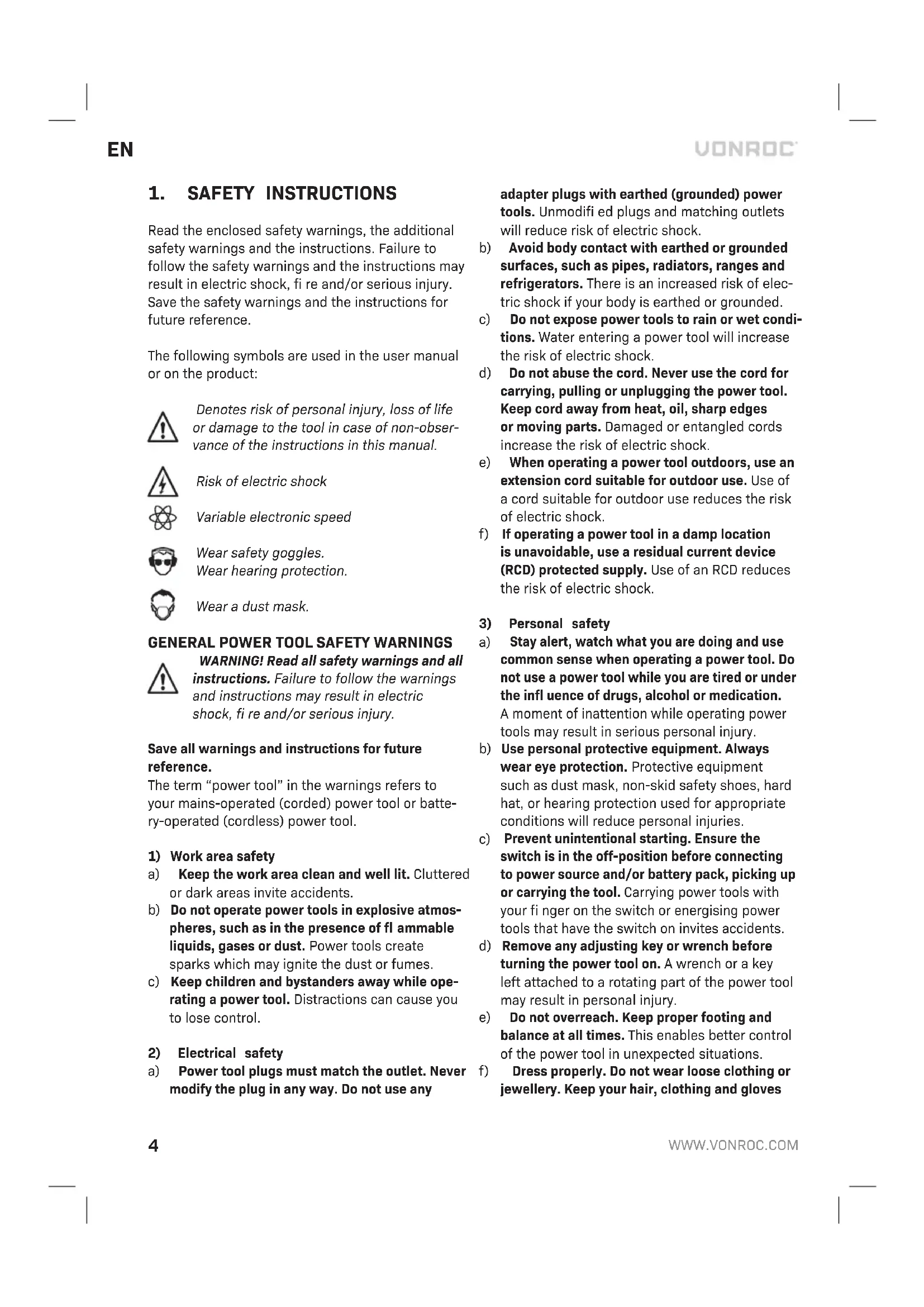

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock

Variable electronic speed

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack.
b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury.
f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

ADDITIONAL SAFETY WARNINGS FOR ROTARY MULTI TOOL

• Always keep the cord away from the moving parts of the machine.

• In the case of locking, switch the machine off immediately and remove the plug from the mains.

• Compare the maximum number of revolutions allowed of the accessories with the number of revolutions of the machine.

• When you put the machine away the engine must be switched off and moving parts must have reached a standstill.
• Never attach an assembly spanner to your machine with a piece of string or anything similar.
• Never use the axle locking button if the machine is operating.
• Make sure that the spring chuck diameter is the same as the axle diameter of the accessory.
• Use a clamping device for securing the work piece.
• Keep your hands away from the work piece.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions.

Always check that the power supply corre sponds to the voltage on the rating plate.

Class II machine - Double insulation - You don't need any earthed plug

2. MACHINE INFORMATION

Intended use

This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool. This rotary multi tool is great for editing of materials like wood, plastic, stone, shell aluminium, brass and steel. Always use the proper accessories and speed setting.

TECHNICAL SPECIFICATIONS

Model No. CT501AC/S_CT501AC
Voltage	220-240V~
Frequency	50 Hz
Power consumption 160 W
No load speed 8.000-35.000/min
Capacity of spring chuck 3.2 + 2.4 mm
Weight 1.75 kg
Lpa (Sound pressure level) 73+3 dB(A)
Lwa (Sound power level)	84+3 dB(A)
Vibration	3.74+1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2 - 3

Fig. A

1. Chuck
2. Spindle lock
3. Chuck spanner
4. On/off switch
5. Speed adjustment wheel
6. Pin
7. Pin opening
8. Ring of machine
9. Inner shaft
10. Ring of flexible shaft
11. Stand
12. Workbench clamp
13. Safety guard
14. Milling attachment
15. Depth knob

3. OPERATION

Before assembly always remove the plug from the mains.

Warning! Change accessories by inserting an accessory into the collet (or chuck) as far possible to minimize run out and unbalance.

Assembly of accessories (Fig. A)

Press down the spindle lock (2) and hold it down. Using the chuck spanner (3) you can undo the

chuck (1). Put the accessory in its place. Hold down the spindle lock when you fasten the chuck with the chuck spanner.

To mount an accessory in the fl exible shaft (Fig. B)

Lock the spindle by putting the pin (6) in the pin opening (7). Then loosen the chuck with the chuck spanner and place the accessory. Keep the pin in place and tighten the chuck. Make sure to remove the pin before operating the machine.

Operation

Switch on the machine by engaging the on/off switch (4) By adjusting the speed adjustment wheel (5) you can regulate the speed of the Multi tool. Do not put the machine down when the motor is still running. Do not place the machine on a dusty surface. Dust particles may enter the mechanism.

Too high a load at a low speed of the Multi tool can burn out the engine.

Mounting the Safety guard (Fig. I)

Note: Safety guard is advised to be used when using grinding, sanding, polishing or cutting accessories.

Remove ring (8) from the machine. Mount the safety guard (13) on the Multi tool. Assembly the accessories to be used like explained in chapter: Assembly of accessories. Make sure the see through part of the safety guard is facing you, so you will be protected from sparks or debris.

Mounting the milling attachment (Fig. J)

Note: Milling attachment is advised to be used when using drill or milling accessories. The milling attachment will help guide the tool in a straight line when milling material.

Remove ring (8) from the machine. Assembly the accessories to be used like explained in chapter: Assembly of accessories. Mount the Milling attachment (14) on the Multi tool.

Adjust the depth of the milling tool to the desired cutting depth by opening and closing the Depth knob (15).

MOUNTING THE FLEXIBLE SHAFT AND STAND Flexible shaft (Fig. C)

Screw the ring (8) off the chuck and remove it. Mount the fl exible shaft on the Multi tool, placing the inner shaft (9) in the chuck. The ring of the fl exible shaft (10) can then be fastened onto the Multi tool.

Never operate the axle locking button if the engine is still rotating.

Stand for the Rotary multi tool

• Assembly the stand (11) on to the workbench clamp (12).
• Mount the assembled stand on the side of a workbench or worktop with a maximum thickness of 60 mm.
• The height of the stand is adjustable. Loosen the top tube of the stand by turning it anticlockwise. Draw the tube out to its maximum height and secure it by turning the tube clockwise. The height of the suspension bracket is adjustable by loosening the black knob. After adjusting the suspension bracket to the correct height, retighten the knob.
• Attach the Multi tool to the suspension bracket of the stand; this suspension bracket can be turned 360°.

Accessories for the Rotary multi tool

Always check that the maximum rpm of the accessory is suitable for the maximum speed of the Multi tool.

Note: Work safe by using the safety guard. This prevents sparks and debris hitting you.

Grinding stones (Fig. D)

When using a grinding stone the first time, use the dressing stone to balance it. The dressing stone can also be used for cleaning the surface or to give the grinding stone a special shape.

Material Speed setting
Stone, shell -
Steel +
Aluminium, brass + -
Plastic -

Felt wheels (Fig. E)
The felt wheels should be screwed on the mandrel.

Material Speed setting
Steel +
Aluminium, brass + -
Plastic +

Sanding bands and disc (Fig. F)

Material Speed setting
Wood + +
Steel -
Aluminium, brass + -
Plastic -

High speed cutter, Diamond wheel point and Drill (Fig. G)

Material Speed setting
Stone, shell Max
Steel + -
Aluminium, brass + +
Plastic -

Stainless steel brushes and bristle brush (Fig. H)

Only for S_CT501AC

Material Speed setting
Stone, shell + -
Aluminium, brass + -

4. MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
