Product Type	2-in-1 stick vacuum (stick vacuum + handheld vacuum)
Brand	Bosch
Model	Move 2in1 BBHMOVE9
Power Supply	Rechargeable NiMH battery, mains charger with charging cable
Runtime	Variable depending on power setting (medium or high mode)
Charging Time	16 hours for first charge
Suction Power	Two settings: medium power and high power
Brush Type	Rotating floor brush (power brush)
Included Accessories	Crevice tool, mini brush, charging station with wall mount
Filter	Dirt filter and textile filter, washable
Dust Container Capacity	Not specified (approx. 0.5 L)
Maintenance	Clean the brush and filters regularly; filters can be washed
Safety	Do not vacuum wet, hot, or flammable substances; operation without filter prohibited
Usage	Household, up to 2000 m altitude
Spare Parts	Filters available from customer service
Warranty	According to terms of the country of purchase

Frequently Asked Questions - Move 2in1 BBHMOVE9 BOSCH

How to charge the Bosch Move 2in1 stick vacuum?

Place the device in the charging station and plug the charger into a wall outlet. The charging indicator lights up. The first charge takes 16 hours.

Can the vacuum be used on fragile hard floors?

Yes, but check the wear of the floor brush regularly. A worn brush can damage fragile floors like parquet. Use appropriate power settings.

How to clean the vacuum filters?

Remove the dust container, then take out the filters (dirt filter and textile filter). Tap or brush them. They can be washed with water; let them dry completely before reinstalling.

Can the vacuum suck up liquids?

No, the vacuum is not designed to vacuum wet or liquid substances. This could damage the device.

How to switch from stick mode to handheld mode?

Press the release button of the battery-powered vacuum (located on the handle) to remove it from the stick vacuum. You can then use the handheld vacuum with the accessories.

What to do if the rotating brush stops turning?

Check that threads or hair are not tangled around the brush. Clean it with scissors and a crevice tool. Also ensure the device is turned on and the battery is charged.

How to install the charging station on the wall?

Choose a location near a power outlet. Drill holes according to the markings, insert wall plugs, then screw the charging station. You can also use it without wall fixing as a base stand.

Can children use the vacuum?

The device can be used by children over 8 years of age under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision.

Where can I buy replacement filters?

Filters can be ordered from Bosch customer service. Use only original parts to ensure proper operation of the device.

How to dispose of the vacuum at end of life?

Before disposal, remove the NiMH battery (see manual) and dispose of it separately. The device must be recycled in accordance with the WEEE directive. Consult your retailer or local authorities for collection points.

USER MANUAL Move 2in1 BBHMOVE9 BOSCH

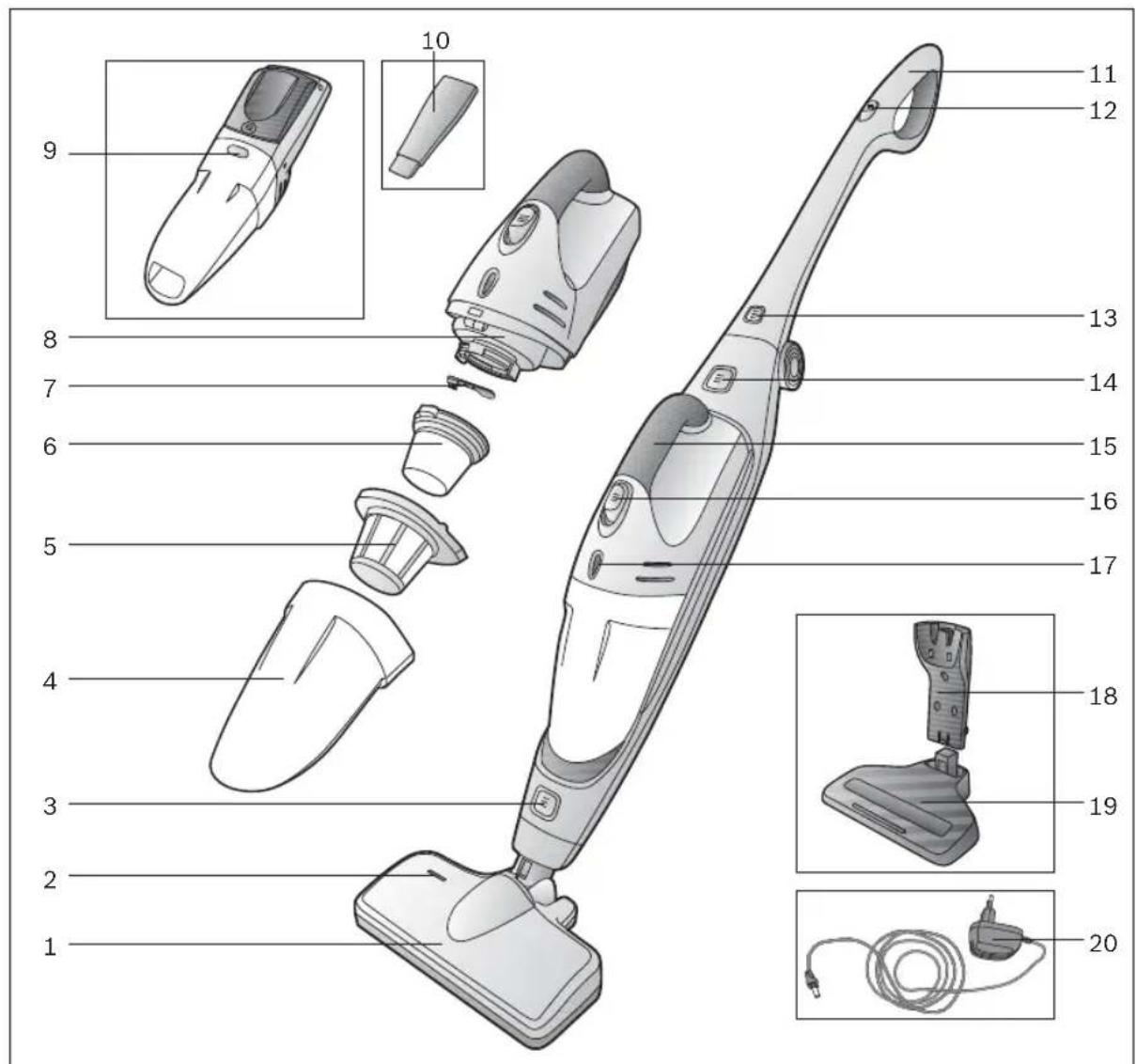

11 Handstick vacuum cleaner handle
12 Handstick vacuum cleaner ON / OFF button
13 Handle unlocking knob
14 Handheld vacuum cleaner unlocking knob
15 Handheld vacuum cleaner handle
16 Handheld vacuum cleaner pushbutton
17 Charging indicator
18 Charger
19 Charger floor support
20 Charging cable

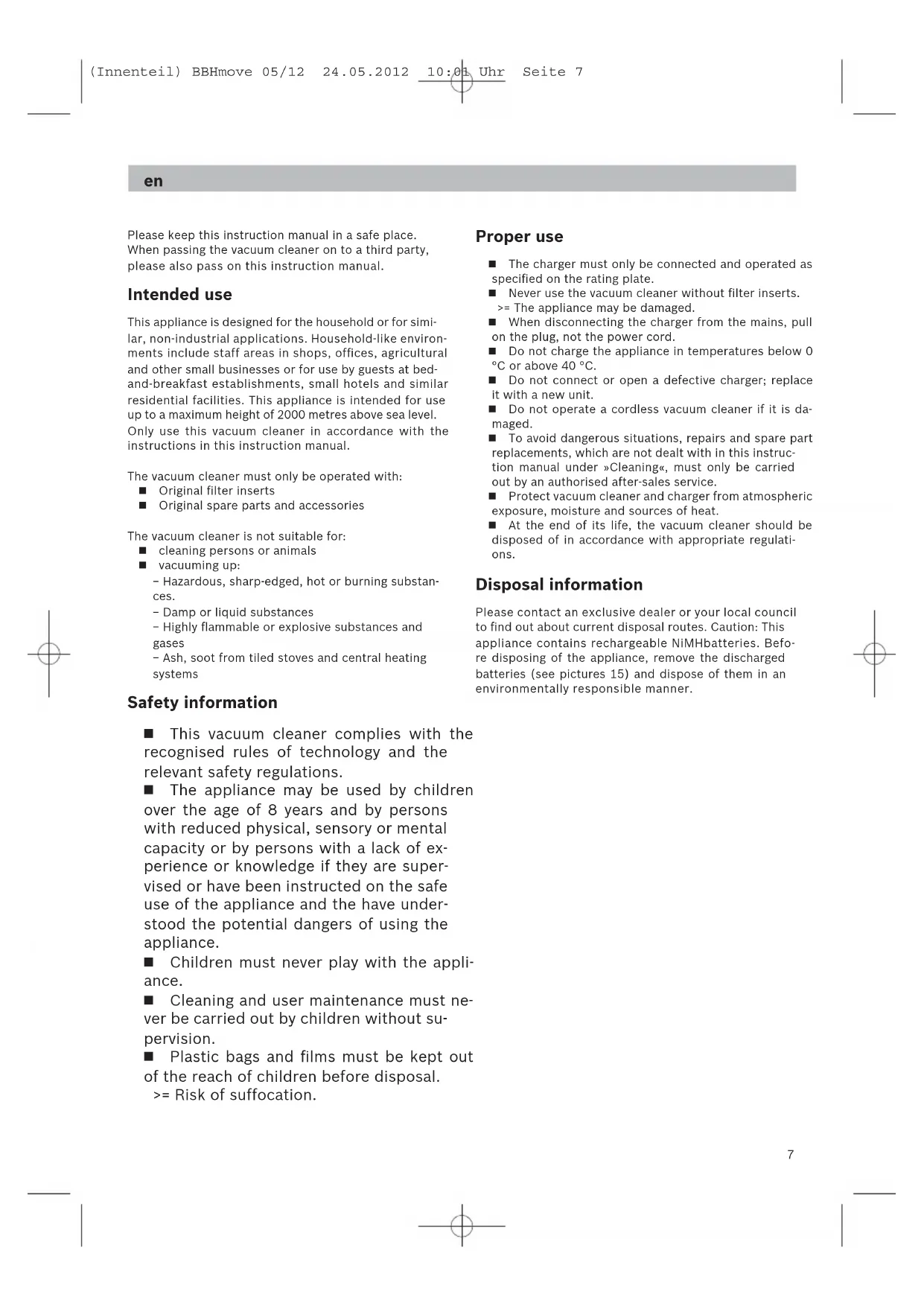

en

Please keep this instruction manual in a safe place. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is designed for the household or for similar, non-industrial applications. Household-like environments include staff areas in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The vacuum cleaner must only be operated with:

Original filter inserts
Original spare parts and accessories

The vacuum cleaner is not suitable for:

■ cleaning persons or animals
vacuuming up:

Hazardous, sharp-edged, hot or burning substances.
Damp or liquid substances
- Highly flammable or explosive substances and gases
- Ash, soot from tiled stoves and central heating systems

Safety information

Proper use

The charger must only be connected and operated as specified on the rating plate.
- Never use the vacuum cleaner without filter inserts. The appliance may be damaged.
- When disconnecting the charger from the mains, pull on the plug, not the power cord.
- Do not charge the appliance in temperatures below 0 °C or above 40 °C.
- Do not connect or open a defective charger; replace it with a new unit.
- Do not operate a cordless vacuum cleaner if it is damaged.
To avoid dangerous situations, repairs and spare part replacements, which are not dealt with in this instruction manual under «Cleaning», must only be carried out by an authorised after-sales service.
- Protect vacuum cleaner and charger from atmospheric exposure, moisture and sources of heat.
At the end of its life, the vacuum cleaner should be disposed of in accordance with appropriate regulations.

Disposal information

Please contact an exclusive dealer or your local council to find out about current disposal routes. Caution: This appliance contains rechargeable NiMHbatteries. Before disposing of the appliance, remove the discharged batteries (see pictures 15) and dispose of them in an environmentally responsible manner.

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.
The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.
Children must never play with the appliance.
- Cleaning and user maintenance must never be carried out by children without supervision.
Plastic bags and films must be kept out of the reach of children before disposal.

>= Risk of suffocation.

en

Figure 4

Raise the handle and lock into place
To fold the handle back down, press the unlocking knob and release the handle catch.

Figure 5

Plug the handstick vacuum cleaner into the floor tool and lock into place.
To release the floor tool, press the unlocking knob and pull the handstick vacuum cleaner out of the tool.

Figure 6

Insert the handheld vacuum cleaner into the handstick vacuum cleaner as shown and lock into place.

Make sure that the contacts of the handheld

vacuum cleaner and handstick vacuum cleaner are not dirty. Clean the contacts if necessary.

Figure 7

Insert the handstick vacuum cleaner into the charger as shown.
Make sure that the contacts of the handstick
- vacuum cleaner and charger are not dirty. Clean the contacts if necessary.
- When the handstick vacuum cleaner is inserted into the charger, the appliance is automatically switched off, should it have still been left on by mistake.

Before using the appliance for the first time, the

vacuum cleaner batteries must be charged for at least 16 hours.

Plug the charger plug into the socket.
The charging indicator lights up.
The indicator remains lit for as long as the vacuum cleaner is connected to the mains via the charger.
It does not go out even when the vacuum cleaner batteries are fully charged.
It is normal for the charger and vacuum cleaner to become hot and not a cause for concern.
You can charge the vacuum cleaner at any time when it is not in use. In this way, it is always ready for use.

Vacuuming

Using the hand-held vacuum cleaner

Figure 8

Remove the appliance from the charger.

For BBHMOVE1, BBHMOVE2, BBHMOVE3 models:

Press the on/off switch in the direction of the arrow. The function indicator on the floor tool lights up, indicating that the brush roller is turning.

As of BBHMOVE4 model:

The on/off switch can be moved to the following two positions:

Position 1 = medium power setting
The appliance has a longer run time.
Position 2 = high power setting
The appliance has more power for a shorter run time.

Figure 9

During short pauses in vacuuming, the appliance can be left standing upright anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle.
Caution: When the appliance is left standing,
it must be switched off, because if the brush is turning while the appliance is standing still, it could cause damage to the floor covering.

Figure 10

After vacuuming, switch the appliance off and return it to the charger.

Caution!

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Using the handheld vacuum cleaner

Figure 11

Unlock the handheld vacuum cleaner by pressing the unlocking knob and remove it from the handstick vacuum cleaner.

en

Crevicenozzle

Figure 12

For vacuuming crevices and corners, etc.
Insert the crevice nozzle into the air intake opening of the handheld vacuum cleaner, as illustrated.

Figure 13

To charge the handheld vacuum cleaner, insert it into the handstick vacuum cleaner and lock into place. Make sure it is correctly seated.

Cleaning the filters

As far as possible, the dust container should be emptied every time after vacuuming.

Figure 14

Remove the handheld vacuum cleaner from the handstick vacuum cleaner (see Figure 11)
Using the release button, unlock the dust container and withdraw it from the suction unit.

Figure 15

Using the handle, remove the dirt filter and cloth filter from the dust container and clean them by tapping out or brushing out the dirt with the brush provided.

Figure 16

Empty the dust container.
If heavily soiled, the filters and dust container can be washed out. Then wipe out the dust container with a dry cloth. Allow the filters to dry completely before refitting.

Figure 17

a)Insert the dirt filter and cloth filter into the dust container.

b)Fit the dust container onto the suction unit and lock into place.

Filters can be obtained from our after-sales service as required

Cleaning the floor tool

Figure 18

The floor tool should be cleaned at regular intervals.
To clean it, release the floor tool from the handstick vacuum cleaner. (see Figure 5)
Cut through threads and hairs wound round the rollers using scissors. Vacuum threads and hairs with the crevice nozzle.

Care

Before cleaning, the handheld vacuum cleaner or handheld appliance must be switched off and disconnected from the charger. They can be cleaned using an ordinary cleaning agent for plastics.

Do not use a scourer, glass-cleaning agent or all-purpose cleaning product. Never immerse the vacuum cleaner in water

Battery disposal

Before disposing of the appliance, please remove the battery cartridge and dispose of it separately.

Figure 19

• Slide open the battery compartment in the direction of the arrow.
  Cut through the retaining tape and remove the battery cartridge from the appliance.
  Cut through the power cables and to ensure safety, bind and insulate each of the cable ends with tape.
