Product type	Cordless stick vacuum cleaner
Brand	Bosch
Model	Athlet BBH65PETGB
Weight	Approx. 2.7 kg
Power supply	Rechargeable lithium-ion batteries, 18 V
Charging time	6 hours for full charge
Runtime	Up to 45 min (level 1), medium (level 2), short (level 3)
Dust collector capacity	Approx. 0.5 L
Power levels	3 levels: 1 (eco), 2 (normal), 3 (max)
Electric brush	Yes, integrated in floor brush
Sensor Control indicator	Blue/red light indicating filter cleaning need
Battery charge indicator	Solid blue (charged), flashing (recharge needed)
Included accessories	Upholstery nozzle, crevice nozzle, accessory adapter, suction hose, cushion nozzle, carrying strap
Filtration	Outer filter unit + filter cartridge with foam filter and motor protection filter
Filter cleaning	Shake/tap; machine washable (gentle cycle, max 30°C) for heavily soiled cartridge
Brush maintenance	Side removal, cut entangled threads/hair
Usage	Household use only, do not vacuum liquids, hot, sharp, or flammable substances
Operating temperature	0°C to 40°C
Spare parts	Use only original Bosch parts
Warranty	According to country conditions, purchase receipt required

Frequently Asked Questions - Athlet BBH65PETGB BOSCH

How to charge the Bosch Athlet BBH65PETGB stick vacuum cleaner?

Connect the supplied charging cord to the socket at the back of the device, then plug it into a mains socket. The charging light blinks during charging. A full charge takes about 6 hours. Once charged, the light stays solid blue.

What is the runtime of the vacuum cleaner?

Runtime depends on the power level: up to 45 minutes on level 1 (eco), medium runtime on level 2, and shorter on level 3 (maximum power).

How to empty the dust collector?

Press the unlock buttons on the collector, remove it. Take out the filter unit, empty the collector. Also clean the filter unit if necessary. Replace the filter unit and snap the collector back until it clicks.

What to do if the Sensor Control light blinks red?

This means the filter needs cleaning. Turn off the device, clean the outer filter unit (shake or tap) and the filter cartridge (tap or wash at 30°C). If the red light persists after cleaning, the cartridge should be machine washed.

How to clean the rotating brush?

Turn off and unplug the device. Press the brush release button, remove it sideways. Cut entangled threads and hair with scissors along the intended notch. Reinsert the brush and lock it.

Can I use the vacuum cleaner to vacuum liquids?

No, the vacuum cleaner is designed only for dry vacuuming. Never vacuum damp or liquid substances, as this would damage the device.

How to maintain the foam filter?

Remove the filter cartridge, take out the foam motor protection filter. Wash it with water, let it dry completely (about 24h) before reassembling. Do not use solvents.

Where to find original spare parts and accessories?

Use only original Bosch spare parts and accessories. You can order them from Bosch customer service or an authorized dealer.

My vacuum cleaner won't turn on anymore, what should I do?

First check if the battery is charged. If the charging light is off, plug in the charger. If the device still doesn't work, turn it off and contact authorized customer service. Do not attempt to repair it yourself.

How to use accessories like the upholstery nozzle?

To use accessories, detach the long handle from the main unit (press the release button). Attach the short handle and the accessory adapter. Connect the suction hose and the desired nozzles (e.g., upholstery nozzle for fabrics, crevice nozzle for joints).

USER MANUAL Athlet BBH65PETGB BOSCH

Labeled diagram of a vacuum cleaner with numbered parts for identification

© Writing and Sepo-Verreising in Sitzinger.

5 DOLL 701400M

A 1650 yuM

31 0848 542 040

(2) 6.4.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

Robert Bosch Hauserate GmbH

cad-wory-strath 36

81703 München, GERMANY

www.hisclbhome.com

1

[Unreadable]

A

BOSCH

in 14 v and

b. 10.26. Tianbo

1. 推荐: 10% 王

(1) 求面HDF 定二

1. 防家

2014年，

1. 2016年

at 1nd anniversary

1. PUNION

In the case of this

1. 100%

ta 10.8974

1. 05/13 24:00:17

Sicherheitshinweise....2
Gerätebeschreibung 31
Safety information 3
Your vacuum cleaner....34
Consignes de sécurité .... 5
Description de l'appareil....37
Istruzioni di sicurezza....6
Descrizione dell'apparecchio....40
Veiligheidsvoorschriften....8
Beschrijving van het toestel....43
Sikkerhedsanvisninger 9
Beskrivelse......46
Sikkerhetshenvisninger....11
Beskrivelse av apparatet....49
Säkerhetsanvisningar....12
Produktbeskrivning....51
Turvallisuusohjeet....13
Laitteen kuvaus....54
Instruções de segurança....14
Descrição do aparelho....56
Consejos de seguridad....16
Descripción de los aparatos....59
Υποδείξεις ασφαλείας......17
Περιγραφή της συσκευής 62
Güvenlik bilgiler....19
Cihaz açıklaması 65
Wskazówki dotyczące bezpieczeństwa....20
Opis urządzenia....68
biztonsági útmutató....22
A készülék leírása....71
Указания за безопасност....23
Описание на уреда....73
Указания по технике безопасности.... 25
Описание прибора 76
Indicații de siguranță 26
Descrierea aparatului....79
Вказівки з техніки безпеки 28
Загальні характеристики пилососа 82

30 إرشادات الأمن

88 وصف Jinghaz

ar

de

Please keep this instruction manual for future reference.

When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only, not for commercial use. Only use this vacuum cleaner in accordance with the information provided in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuuming persons or animals.
■ Vacuuming up:

• Hazardous, sharp-edged, hot or red-hot substances.
• Damp or liquid substances.
• Highly flammable or explosive substances and gases.

- Ash, soot from tiled stoves and central heating systems.

- Toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note

- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children and disposed of.

= There is a risk of suffocation.

Proper use

■ To charge, only use the charging cable included in the scope of supply.
■ The charging cable must only be connected and operated as specified on the rating plate.
■ The appliance must only be stored and charged indoors.
■ Do not expose the appliance to temperatures below 0 °C or above 40 °C.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.

• Keep the vacuum cleaner away from your head when using nozzles and tubes. => This could cause injury.
  ■ Do not use a damaged charging cable. Replace it with an original charging cable.
  ■ When disconnecting the charging cable from the mains, pull the plug itself to remove it; do not pull on the power cord.
  ■ Do not pull the charging cable over sharp edges or allow it to become trapped.
  ■ Before carrying out any work on the vacuum cleaner, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ Do not operate the vacuum cleaner if it is damaged.
  ■ If a fault is detected, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
  ■ In the following cases, you must stop the appliance immediately and contact the after-sales service:

- If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance;

- If the appliance has been dropped and damaged.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites. => Vacuuming up building rubble may damage the appliance.
■ Switch off the appliance when it is not in use.
■ The packaging is designed to protect the vacuum cleaner from being damaged during transportation. We therefore recommend keeping the packaging for the purpose of future transportation.

Batteries

Your appliance is fitted with lithium-ion batteries which, for safety reasons, are only accessible to professional repair specialists.

For battery replacement, please contact your nearest after-sales centre or an authorised specialist dealer.

Information on disposal

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliances

This appliance contains rechargeable lithium-ion batteries. The appliance must therefore only be disposed of by an authorised after-sales service or dealer.

fr

= Fare for kvelning!

Tiltenkt bruk

Simple line drawing of an open book with a black arrow indicating rotation (no text or symbols)

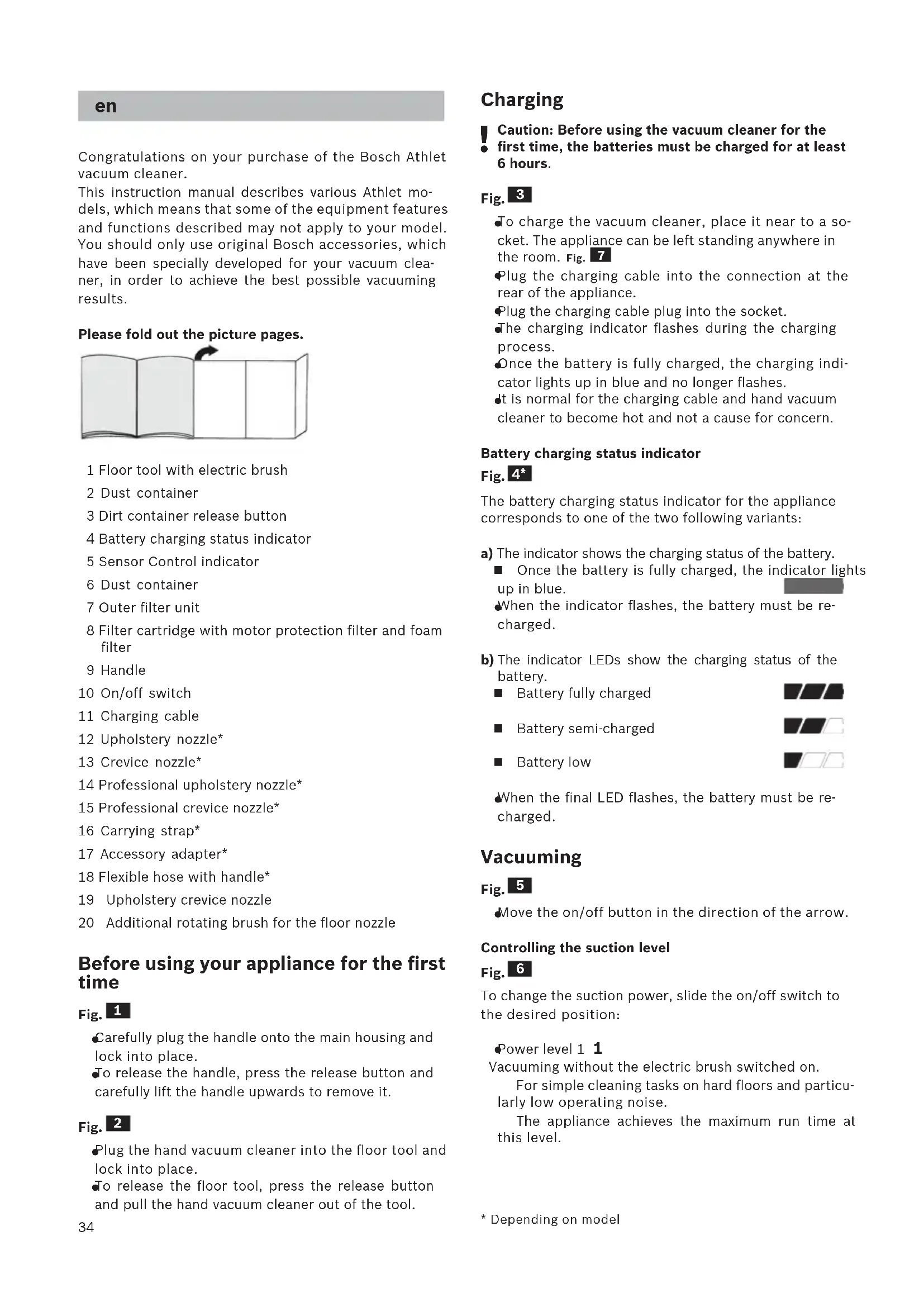

Congratulations on your purchase of the Bosch Athlet vacuum cleaner.

This instruction manual describes various Athlet models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please fold out the picture pages.

Simple line drawing of an open book with a black arrow pointing to the right page (no text or symbols)

1 Floor tool with electric brush

2 Dust container

3 Dirt container release button

4 Battery charging status indicator

5 Sensor Control indicator

6 Dust container

7 Outer filter unit

8 Filter cartridge with motor protection filter and foam filter

9 Handle

10 On/off switch

11 Charging cable

12 Upholstery nozzle*

13 Crevice nozzle*

14 Professional upholstery nozzle*

15 Professional crevice nozzle*

16 Carrying strap*

17 Accessory adapter*

18 Flexible hose with handle*

19 Upholstery crevice nozzle

20 Additional rotating brush for the floor nozzle

Before using your appliance for the first time

Fig. 1

Carefully plug the handle onto the main housing and lock into place.

To release the handle, press the release button and carefully lift the handle upwards to remove it.

Fig. 2

Plug the hand vacuum cleaner into the floor tool and lock into place.

To release the floor tool, press the release button and pull the hand vacuum cleaner out of the tool.

Charging

! Caution: Before using the vacuum cleaner for the first time, the batteries must be charged for at least 6 hours.

Fig. 3

To charge the vacuum cleaner, place it near to a socket. The appliance can be left standing anywhere in the room. Fig. 7

Plug the charging cable into the connection at the rear of the appliance.

Plug the charging cable plug into the socket.

The charging indicator flashes during the charging process.

Once the battery is fully charged, the charging indicator lights up in blue and no longer flashes.

It is normal for the charging cable and hand vacuum cleaner to become hot and not a cause for concern.

Battery charging status indicator

Fig. 4\*

The battery charging status indicator for the appliance corresponds to one of the two following variants:

a) The indicator shows the charging status of the battery.

■ Once the battery is fully charged, the indicator lights up in blue.

When the indicator flashes, the battery must be re-charged.

b) The indicator LEDs show the charging status of the battery.

■ Battery fully charged

■ Battery semi-charged

Battery low

When the final LED flashes, the battery must be re-charged.

Vacuuming

Fig. 5

- Move the on/off button in the direction of the arrow.

Controlling the suction level

Fig. 6

To change the suction power, slide the on/off switch to the desired position:

Power level 1 1

Vacuuming without the electric brush switched on.

For simple cleaning tasks on hard floors and particularly low operating noise.

The appliance achieves the maximum run time at this level.

* Depending on model

Power level 2 2

Vacuuming at normal power and with the electric brush switched on.

For normal cleaning tasks on all floors at an average run time.

Power level 3 3

Vacuuming at full power and with the electric brush switched on.

For particularly demanding cleaning tasks on all surfaces (carpets, in particular) and when using an optional accessory. The appliance achieves a shorter run time at this level.

Fig. 7

During short pauses in vacuuming, the appliance can be left standing anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle.

Caution: When the appliance is left standing, it must be switched off, because if the brush is turning while the appliance is standing still, it could cause damage to the floor covering.

Vacuuming with accessories

Fig. 8\*

a) Fasten the carrying strap to the short handle provided.
b) Remove the long handle from the main housing.
c) Insert the short handle and lock it in place.
d) Remove the hand-held vacuum cleaner from the floor nozzle.Fig. 2
e) Plug the accessory adapter into the hand-held vacuum cleaner and lock it in place.

Fig. 9\*

Fit nozzles as required to the flexible hose with the accessory adapter handle:

●Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
- Crevice nozzle for vacuuming crevices and corners, etc.
●Upholstery crevice nozzle for vacuuming upholstery, ideal for cleaning car seats in particular

After using the appliance

Fig. 10

Switch off the appliance after vacuuming.

Emptying the dust container

Fig. 11

In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the dust container has reached the marking.

We recommend that you not fill the dust container beyond the marking, as this leads to considerable soiling of the filter.

When emptying the dust container, always check how dirty the outer filter unit is and, if necessary, clean it as detailed in the "Cleaning the outer filter unit" instructions. Fig. 16

Caution: The filter can only be cleaned if the appli-
- ance is switched off.
Never vacuum without the outer filter unit and its fitted filter cartridge.

Fig. 12

Using the release button, unlock the dust container and remove it from the appliance.

Fig. 13

Take the filter unit out of the dust container.
●Empty the dust container.

Fig. 14

Remove any dirt which may have been lodged underneath the container ejector opening.
Insert the filter unit into the dust container, making sure it is correctly seated.
Insert the dust container in the appliance, so that it 'clicks' audibly into place.

Caution: If you notice any resistance when inserting
the dust container, check that the filter is complete and that the filter unit and dust container are correctly seated.

Filter care

Caution: The filter can only be cleaned if the appli-
ance is switched off.

Your appliance is equipped with a "Sensor Control" function.

This function constantly monitors whether your vacuum cleaner is working at its optimum power level. The indicator light lets you know when you need to clean the filter cartridge, so that the appliance can reach its optimum power level once more.

Fig. 15 Sensor Control

The indicator lights up blue or is off when the aperture is working at its optimum level. Once the indicator turns red and flashes, the outer filter unit and filter cartridge must be cleaned.

The appliance is automatically adjusted to power level 1.

Fig. 16 Cleaning the outer filter unit

The outer filter unit should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner.

• Please switch off the appliance to clean the outer filter unit.
• Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13
●Clean the outer filter unit.

a) It is usually sufficient to lightly shake or tap out the whole filter unit when the dust container is emptied in order to dislodge any particles of dirt.
b) If this is not sufficient, you can use a dry cloth to remove dirt particles from the surface.

Fig. 17 Cleaning the filter cartridge

Switch off the appliance.
Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13

a) Turn the filter cartridge lid anti-clockwise and remove the filter cartridge from the filter unit.
b) Firstly, clean the filter cartridge by tapping out the dirt.
c) Pull out the foam filter from the motor protection and rinse separately.

Allow the foam filter and motor protection filter to y completely (approx. 24 hours)

d) After fitting the foam filter, insert the filter cartridge into the dust container.
e) Insert the filter cartridge into the filter unit and lock it by turning the lid clockwise.

If, after hand-washing the filter cartridge, the "Sensor Control" indicator flashes red again, the filter cartridge is so heavily soiled that it must be washed in a washing machine. Use a gentle programme at max. 30 °C and the lowest spin speed.

New filters can be obtained from our after-sales service, if required.

Cleaning the floor tool

Before carrying out any maintenance, switch off the vacuum cleaner and disconnect it from the charging cable.

Fig. 18

a) Release the brush roller using the release button and pull it sideways out of the floor tool.
b) Using the groove provided, cut through threads and hairs wound round the rollers with scissors and then remove them.
c) Push the brush roller in sideways along the guide rod in the floor tool and lock in place using the release button.

Caution: The floor tool must only be put into operati-

- on with the brush roller fitted.

Care

Before cleaning the hand vacuum cleaner, it must be switched off and disconnected from the charging cable. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

! Caution: Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

Simple line drawing of an open book with a black arrow pointing to the right page (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a black arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a black arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a black arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

Andheri East

Mumbai 400 093

www.bosch-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Bandrol ve Seri No. :

[e-mail]
