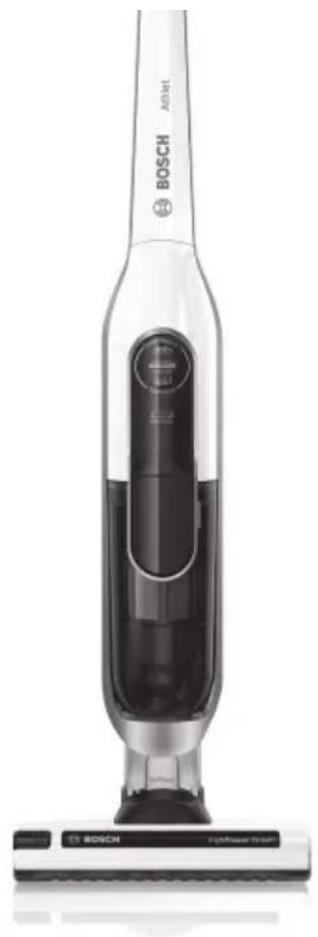

Product Type	Cordless electric broom
Brand	Bosch
Model	Athlet BBH65KITGB
Category	Stick vacuum cleaner
Power supply	Rechargeable lithium-ion battery
Battery voltage	25.2 V
Battery capacity	2,500 mAh (estimated)
Charging time	6 hours (first charge)
Runtime	Up to 45 minutes (depending on power level)
Dust collector capacity	0.4 L
Filter type	Foam filter and motor protection filter (washable)
Charge indicator	Blue LED (steady = charged, flashing = charging)
Sensor Control indicator	Blue light (optimal power) / flashing red (filter needs cleaning)
Electric brush	Yes, rotating floor brush
Power levels	3 levels: 1 (smooth floor, low noise), 2 (normal), 3 (max)
Weight	Approximately 3.5 kg
Dimensions (L x W x H)	Approximately 250 x 200 x 1150 mm
Included accessories	Floor brush, upholstery nozzle, crevice nozzle, adapter, carrying strap, optional hose
Safety	Automatic shutdown in case of fault, use without dust container prohibited
Maintenance	Empty dust collector after each use, clean outer filter and cartridge, wash foam filter
Spare parts and repairability	Only use genuine Bosch parts, repair by authorized service center
Warranty	Warranty according to conditions of country of purchase

Frequently Asked Questions - Athlet BBH65KITGB BOSCH

How to charge the Bosch Athlet BBH65KITGB vacuum cooler?

Before first use, charge the appliance for at least 6 hours. Plug the charging cord into the socket on the back of the appliance and then into a mains socket. The indicator flashes during charging and becomes steady blue when the battery is full.

How to empty the dust collector?

Press the release buttons to remove the dust collector. Take out the filter unit, empty the dust collector, and replace the filters correctly. It is advisable to empty after each use or when dust reaches the mark.

What to do when the Sensor Control light flashes red?

The red light indicates that the filters are clogged. First clean the outer filter unit by tapping it. If the light persists, wash the filter cartridge (foam filter and motor protection) with water, then dry for 24 hours before reinstalling.

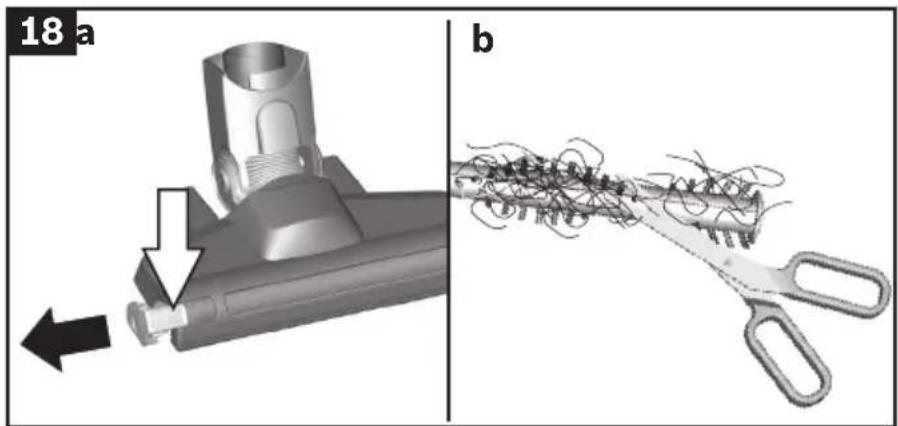

How to clean the rotating brush?

Turn off the appliance and unplug the cord. Press the side release button to remove the brush. Cut any hair or threads wrapped around using scissors along the notch. Replace the brush and lock it.

Can I use the vacuum without the dust collector or filters?

No, the vacuum must never be operated without the dust collector, motor protection filter, and air outlet filter. Doing so could damage the appliance and void the warranty.

What is the battery runtime?

The runtime depends on the power level. On power level 1 (without electric brush), it can reach up to 45 minutes. On power level 3, the runtime is reduced. Fully recharge the appliance in 6 hours.

How to use the additional accessories (upholstery nozzle, crevice nozzle)?

Attach the accessory adapter to the vacuum. Then connect the suction hose to the adapter and add the desired nozzle. You can also use the carrying strap to carry the appliance.

Can the vacuum be used on hard floors and carpets?

Yes, thanks to the rotating electric brush. For hard floors, use level 1 (brush disengaged) to avoid damaging the floor. For carpets, levels 2 or 3 activate the brush for effective cleaning.

How to store the vacuum?

For short breaks, place the appliance freely in the room by tilting it slightly forward. For longer storage, place it in a dry indoor area, out of reach of children, and turn it off.

What to do if the vacuum accidentally sucks up liquid?

Stop the appliance immediately and unplug the charging cord. Do not use the vacuum and contact the authorized service center. The vacuum is not designed to pick up liquids.

USER MANUAL Athlet BBH65KITGB BOSCH

Close-up of two boots decorated with butterflies on their sole, standing on a textured surface (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

Exterior view of a Bosch air purifier (no signage or text visible on body)

Close-up of a textured surface with a dark border and a light gray background, no visible text or symbols.

BBH6... / BCH6...

Athlet

BOSCH

Please keep this instruction manual for future reference.

When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only, not for commercial use. Only use this vacuum cleaner in accordance with the information provided in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuuming persons or animals.
■ Vacuuming up:

• Hazardous, sharp-edged, hot or red-hot substances.
• Damp or liquid substances.
• Highly flammable or explosive substances and gases.

- Ash, soot from tiled stoves and central heating systems.

- Toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note

- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children and disposed of.

= There is a risk of suffocation.

Proper use

■ To charge, only use the charging cable included in the scope of supply.
■ The charging cable must only be connected and operated as specified on the rating plate.
■ The appliance must only be stored and charged indoors.
■ Do not expose the appliance to temperatures below 0 °C or above 40 °C.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.

• Keep the vacuum cleaner away from your head when using nozzles and tubes. => This could cause injury.
  ■ Do not use a damaged charging cable. Replace it with an original charging cable.
  ■ When disconnecting the charging cable from the mains, pull the plug itself to remove it; do not pull on the power cord.
  ■ Do not pull the charging cable over sharp edges or allow it to become trapped.
  ■ Before carrying out any work on the vacuum cleaner, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ Do not operate the vacuum cleaner if it is damaged.
  ■ If a fault is detected, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
  ■ In the following cases, you must stop the appliance immediately and contact the after-sales service:

- If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance;

- If the appliance has been dropped and damaged.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites. => Vacuuming up building rubble may damage the appliance.
■ Switch off the appliance when it is not in use.
■ The packaging is designed to protect the vacuum cleaner from being damaged during transportation. We therefore recommend keeping the packaging for the purpose of future transportation.

Batteries

Your appliance is fitted with lithium-ion batteries which, for safety reasons, are only accessible to professional repair specialists.

For battery replacement, please contact your nearest after-sales centre or an authorised specialist dealer.

Information on disposal

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliances

This appliance contains rechargeable lithium-ion batteries. The appliance must therefore only be disposed of by an authorised after-sales service or dealer.

fr

= Fare for kvelning!

Tiltenkt bruk

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

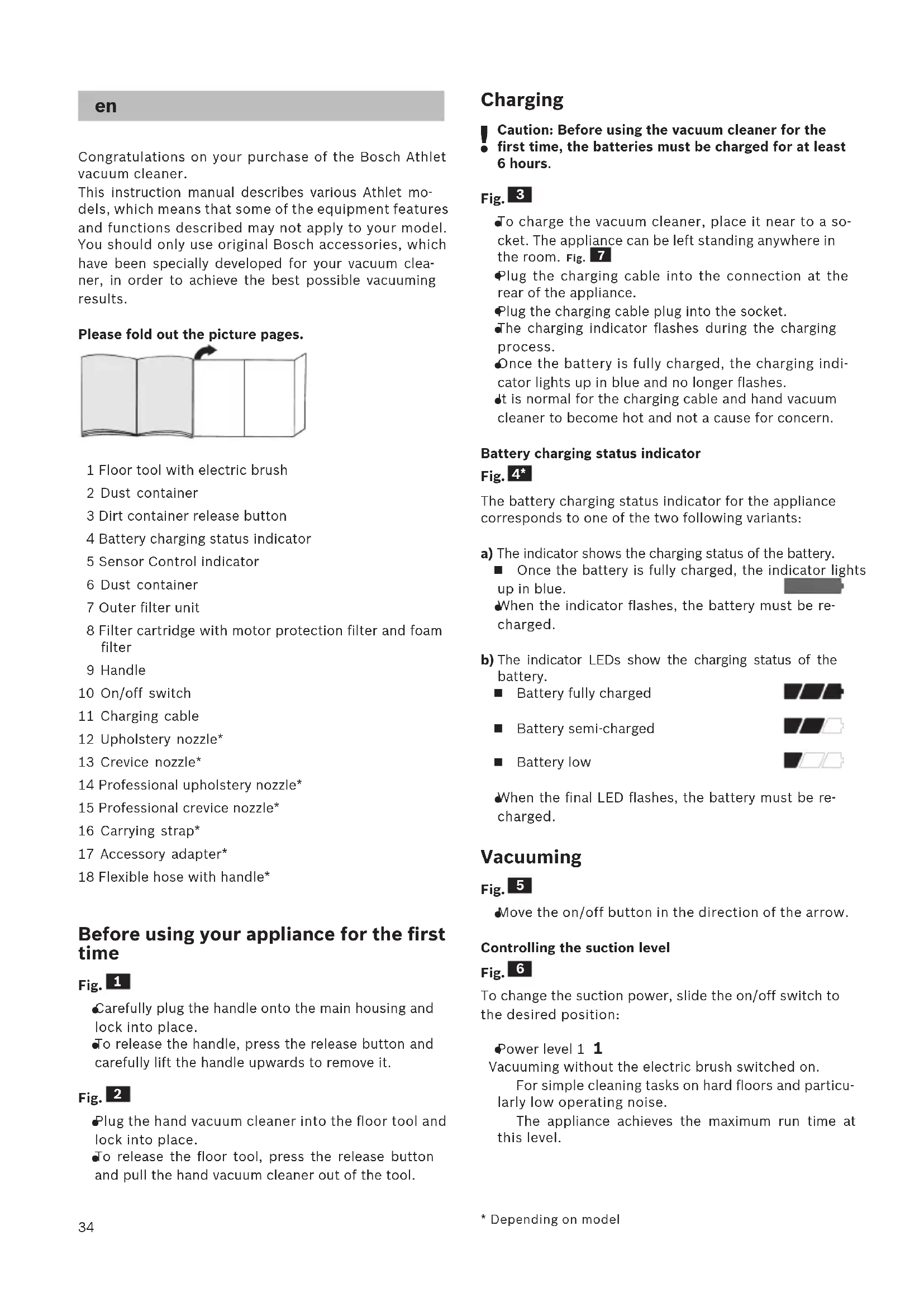

Congratulations on your purchase of the Bosch Athlet vacuum cleaner.

This instruction manual describes various Athlet models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please fold out the picture pages.

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

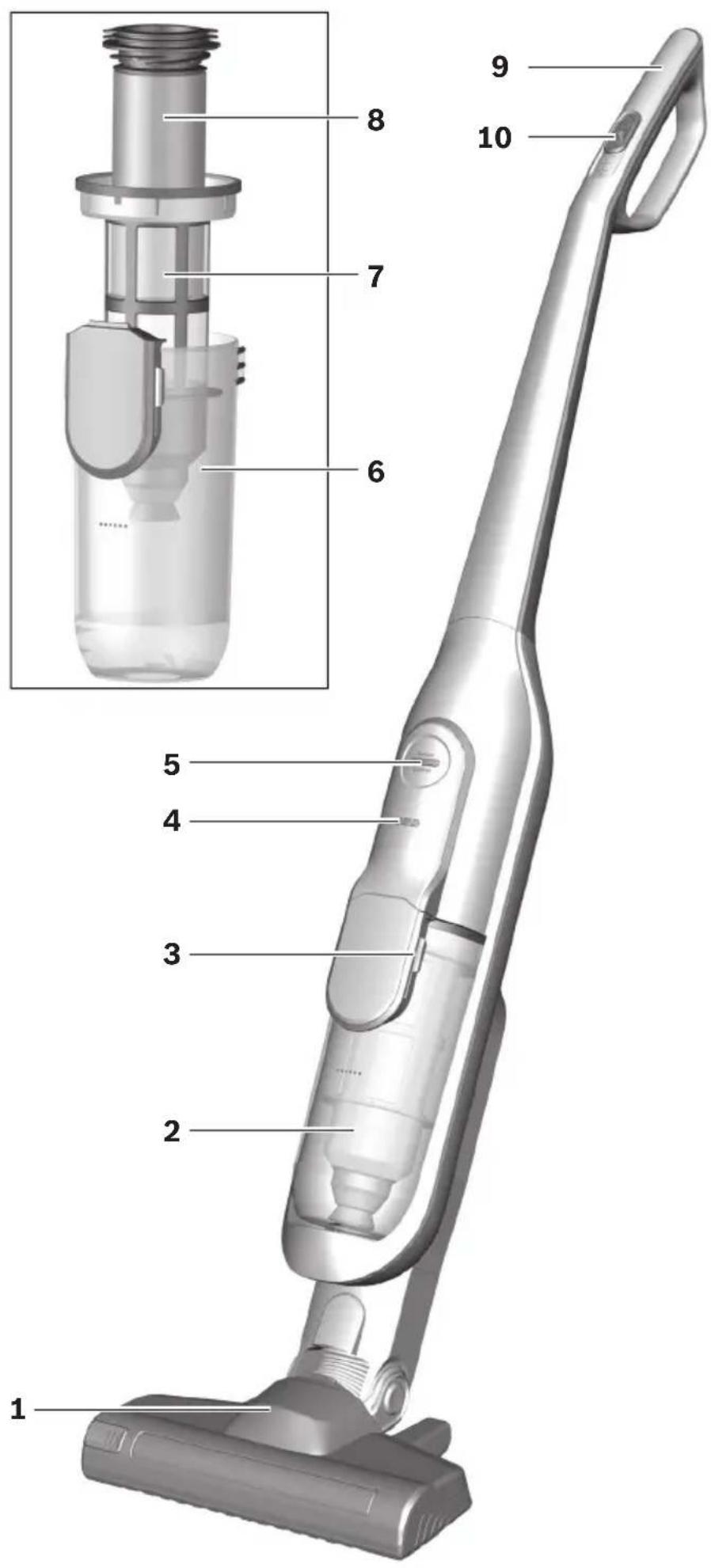

1 Floor tool with electric brush
2 Dust container
3 Dirt container release button
4 Battery charging status indicator
5 Sensor Control indicator
6 Dust container
7 Outer filter unit
8 Filter cartridge with motor protection filter and foam filter
9 Handle
10 On/off switch
11 Charging cable

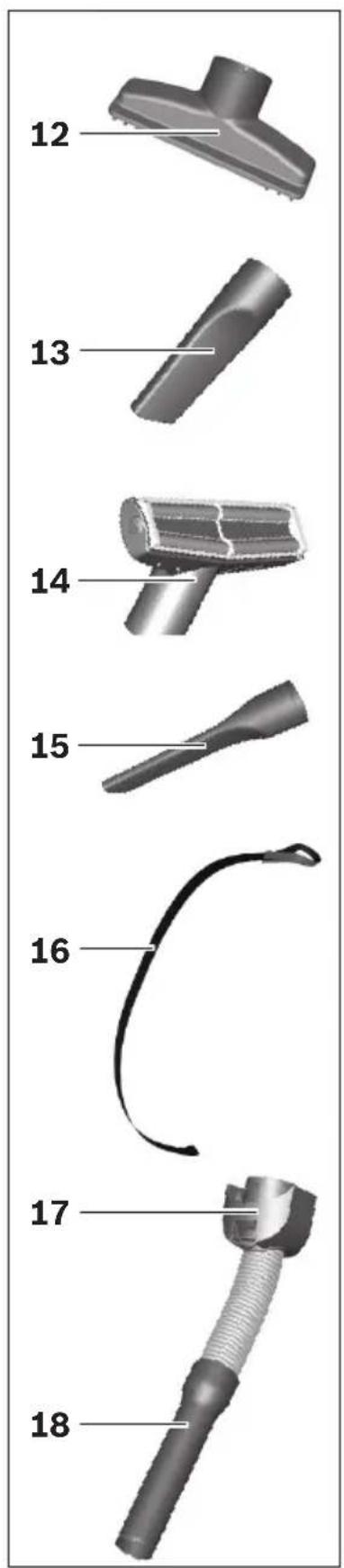

12 Upholstery nozzle*
13 Crevice nozzle*
14 Professional upholstery nozzle*
15 Professional crevice nozzle*
16 Carrying strap*
17 Accessory adapter*
18 Flexible hose with handle*

Before using your appliance for the first time

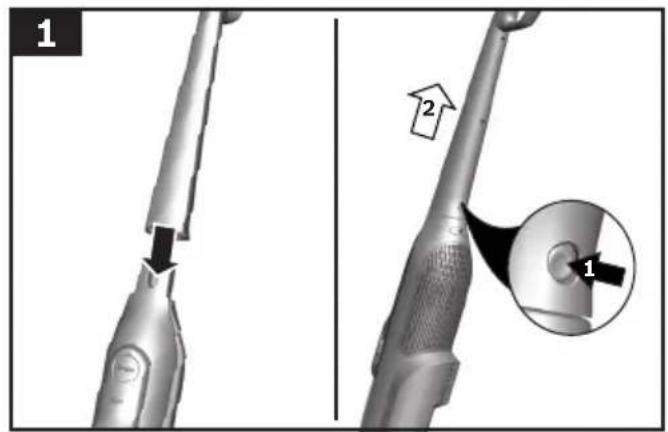

Fig. 1

Carefully plug the handle onto the main housing and lock into place.
To release the handle, press the release button and carefully lift the handle upwards to remove it.

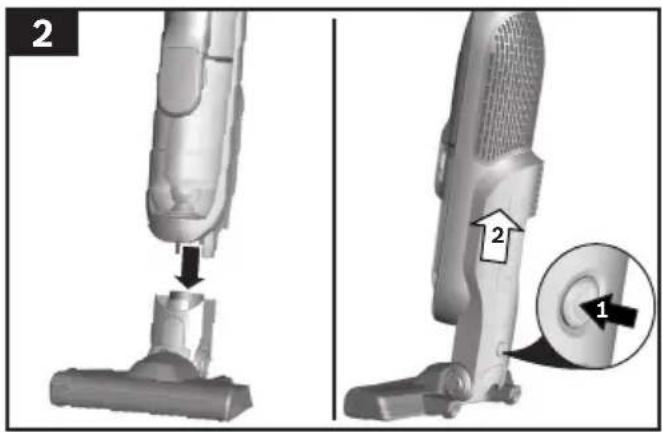

Fig. 2

Plug the hand vacuum cleaner into the floor tool and lock into place.
To release the floor tool, press the release button and pull the hand vacuum cleaner out of the tool.

Charging

! Caution: Before using the vacuum cleaner for the first time, the batteries must be charged for at least 6 hours.

Fig. 3

To charge the vacuum cleaner, place it near to a socket. The appliance can be left standing anywhere in the room. Fig. 7
Plug the charging cable into the connection at the rear of the appliance.
Plug the charging cable plug into the socket.
The charging indicator flashes during the charging process.
Once the battery is fully charged, the charging indicator lights up in blue and no longer flashes.
It is normal for the charging cable and hand vacuum cleaner to become hot and not a cause for concern.

Battery charging status indicator

Fig. 4\*

The battery charging status indicator for the appliance corresponds to one of the two following variants:

a) The indicator shows the charging status of the battery.

■ Once the battery is fully charged, the indicator lights up in blue.
When the indicator flashes, the battery must be re-charged.

b) The indicator LEDs show the charging status of the battery.

■ Battery fully charged

■ Battery semi-charged

Battery low

When the final LED flashes, the battery must be re-charged.

Vacuuming

Fig. 5

- Move the on/off button in the direction of the arrow.

Controlling the suction level

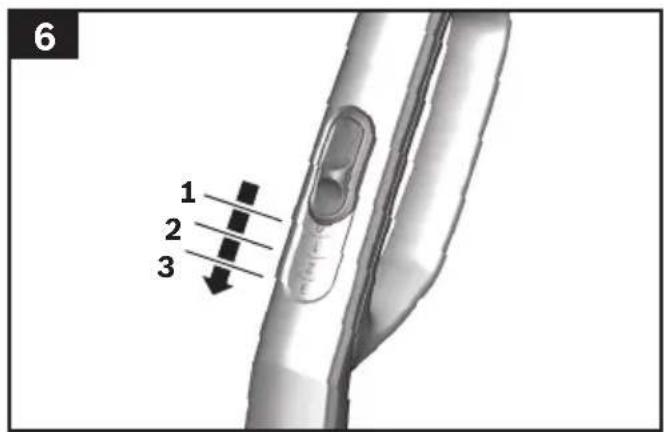

Fig. 6

To change the suction power, slide the on/off switch to the desired position:

Power level 1 1

Vacuuming without the electric brush switched on.

For simple cleaning tasks on hard floors and particularly low operating noise.

The appliance achieves the maximum run time at this level.

Power level 2 2

Vacuuming at normal power and with the electric brush switched on.

For normal cleaning tasks on all floors at an average run time.

Power level 3 3

Vacuuming at full power and with the electric brush switched on.

For particularly demanding cleaning tasks on all surfaces (carpets, in particular) and when using an optional accessory. The appliance achieves a shorter run time at this level.

Fig. 7

During short pauses in vacuuming, the appliance can be left standing anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle.

Caution: When the appliance is left standing, it must be switched off, because if the brush is turning while the appliance is standing still, it could cause damage to the floor covering.

Vacuuming with accessories

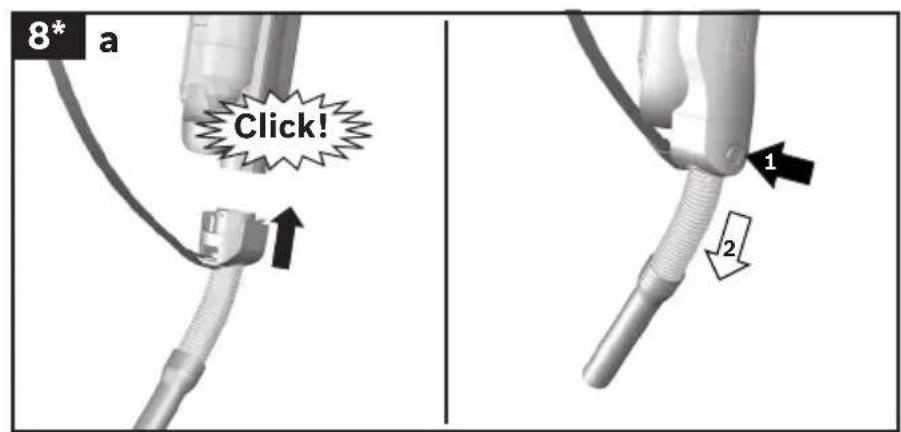

Fig. 8\*

a) Plug the accessory adapter into the hand vacuum cleaner and lock into place.
To release the accessory adapter, press the release button and pull out the accessory adapter.

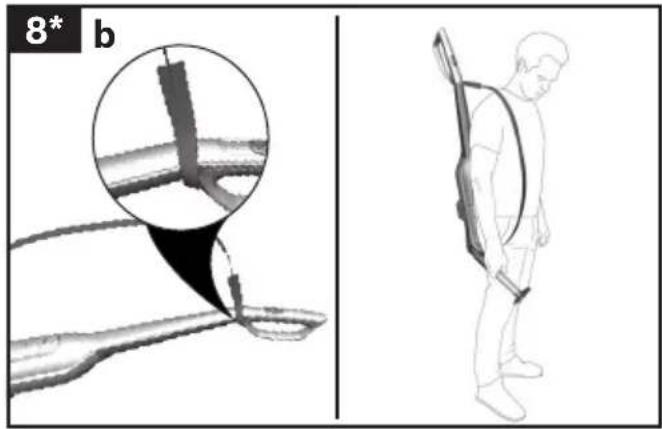

b) Fasten the carrying strap to the handle. When doing so, lay down the appliance; do not rest it on the adapter or the hose.

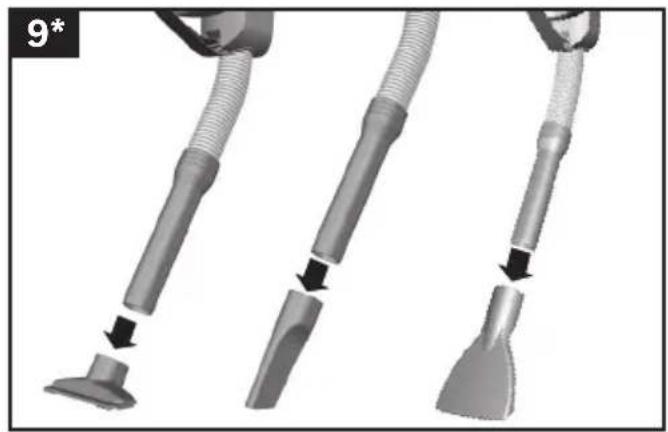

Fig. 9\*

Fit nozzles as required to the flexible hose with the accessory adapter handle:

●Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
- Crevice nozzle for vacuuming crevices and corners, etc.

After using the appliance

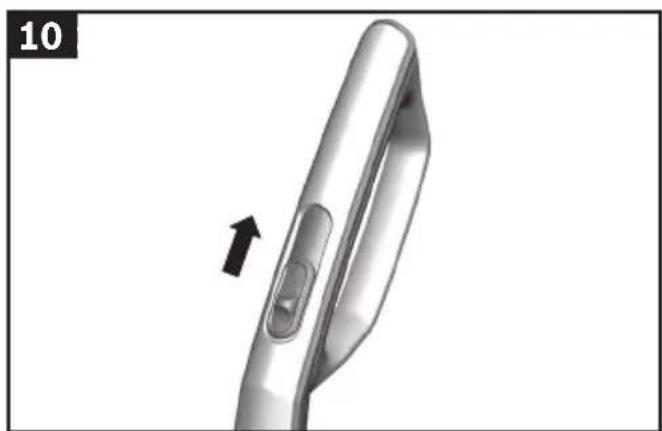

Fig. 10

Switch off the appliance after vacuuming.

Emptying the dust container

Fig. 11

In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the dust container has reached the marking.

We recommend that you not fill the dust container beyond the marking, as this leads to considerable soiling of the filter.

When emptying the dust container, always check how dirty the outer filter unit is and, if necessary, clean it as detailed in the "Cleaning the outer filter unit" instructions. Fig. 16

! Caution: The filter can only be cleaned if the appliance is switched off.
Never vacuum without the outer filter unit and its fitted filter cartridge.

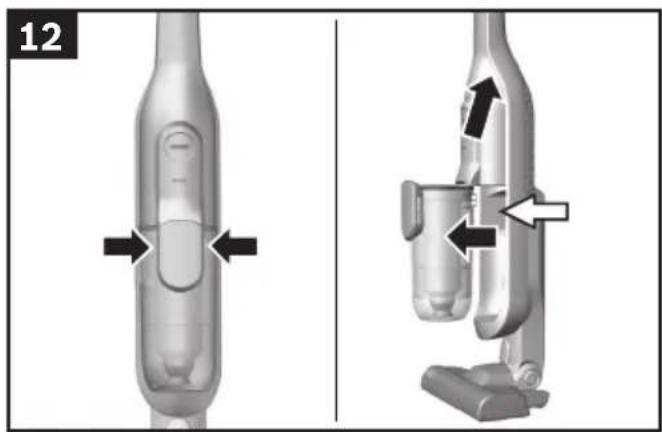

Fig. 12

Using the release button, unlock the dust container and remove it from the appliance.

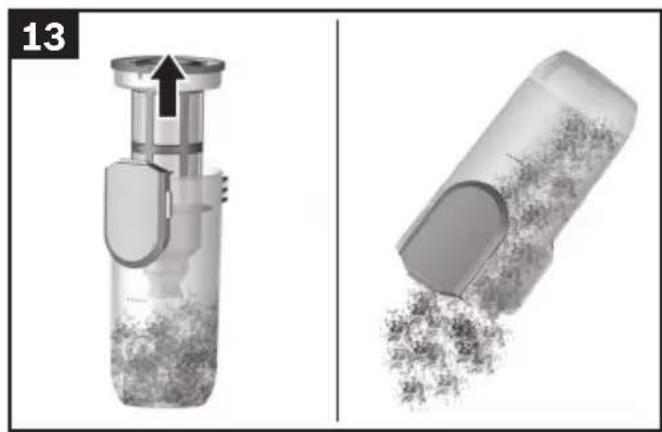

Fig. 13

Take the filter unit out of the dust container.
Empty the dust container.

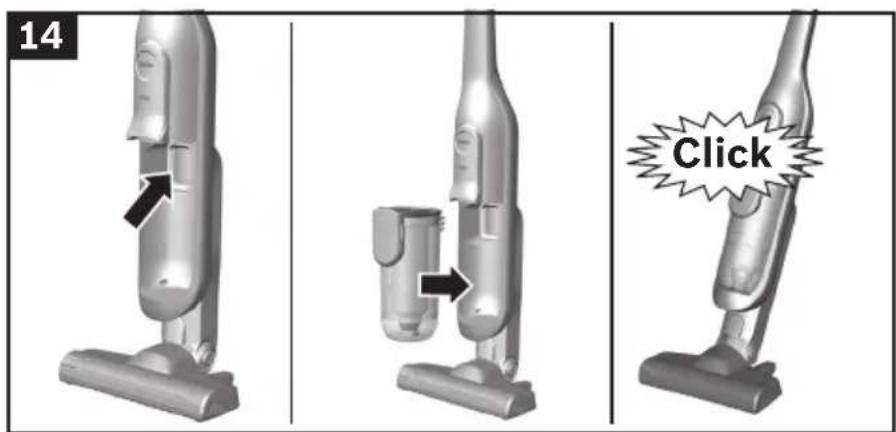

Fig. 14

Remove any dirt which may have been lodged underneath the container ejector opening.
- insert the filter unit into the dust container, making sure it is correctly seated.
- insert the dust container in the appliance, so that it 'clicks' audibly into place.

Caution: If you notice any resistance when inserting
the dust container, check that the filter is complete and that the filter unit and dust container are correctly seated.

Filter care

Caution: The filter can only be cleaned if the appli-
ance is switched off.

Your appliance is equipped with a "Sensor Control" function.

This function constantly monitors whether your vacuum cleaner is working at its optimum power level. The indicator light lets you know when you need to clean the filter cartridge, so that the appliance can reach its optimum power level once more.

Fig. 15 Sensor Control

The indicator lights up blue or is off when the aperture is working at its optimum level. Once the indicator turns red and flashes, the outer filter unit and filter cartridge must be cleaned.

The appliance is automatically adjusted to power level 1.

Fig. 16 Cleaning the outer filter unit

The outer filter unit should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner.

• Please switch off the appliance to clean the outer filter unit.
• Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13
●Clean the outer filter unit.

a) It is usually sufficient to lightly shake or tap out the whole filter unit when the dust container is emptied in order to dislodge any particles of dirt.
b) If this is not sufficient, you can use a dry cloth to remove dirt particles from the surface.

Fig. 17 Cleaning the filter cartridge

Switch off the appliance.
Remove the dust container from the appliance.

Fig. 12

Take the filter unit out of the dust container. Fig. 13

a) Turn the filter cartridge lid anti-clockwise and remove the filter cartridge from the filter unit.
b) Firstly, clean the filter cartridge by tapping out the dirt.
c) Pull out the foam filter from the motor protection and rinse separately.

Allow the foam filter and motor protection filter to y completely (approx. 24 hours)

d) After fitting the foam filter, insert the filter cartridge into the dust container.
e) Insert the filter cartridge into the filter unit and lock it by turning the lid clockwise.

If, after hand-washing the filter cartridge, the "Sensor Control" indicator flashes red again, the filter cartridge is so heavily soiled that it must be washed in a washing machine. Use a gentle programme at max. 30 °C and the lowest spin speed.

New filters can be obtained from our after-sales service, if required.

Cleaning the floor tool

Before carrying out any maintenance, switch off the vacuum cleaner and disconnect it from the charging cable.

Fig. 18

a) Release the brush roller using the release button and pull it sideways out of the floor tool.
b) Using the groove provided, cut through threads and hairs wound round the rollers with scissors and then remove them.
c) Push the brush roller in sideways along the guide rod in the floor tool and lock in place using the release button.

Caution: The floor tool must only be put into operati-

- on with the brush roller fitted.

Care

Before cleaning the hand vacuum cleaner, it must be switched off and disconnected from the charging cable. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

! Caution: Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BSH Home Appliances Ltd. Grand Union House

Old Wolverton Road Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārāभारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

Andheri East

Mumbai 400 093

www.bosch-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon.

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Bosch Su Isitici (Kettle)

Bosch Mikser

Bosch Mutfak Robotu

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Bandrol ve Seri No. :

[e-mail]

Technical diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Illustration of a small electronic device with wires and a labeled component (no text or symbols on the device itself)

12 13 14 15 16 17 18

1 2 1

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled parts and an inset detail view.

3 1 2

4* a b

Close-up of a handheld electronic device with a black arrow pointing to a circular button (no text or symbols visible)

6 1 2 3

3D rendering of a vacuum cleaner with an inset close-up showing the mechanical component (no text or symbols)

8* a Click! 1 2

Illustration showing a person carrying a rifle with a magnified inset of the blade (no text or symbols)

Three-step diagram showing a hairdryer tool with three different tip configurations (no text or symbols)

Close-up of a metallic object with a black arrow indicating direction, no visible text or symbols

Diagram of a mobile phone with a speech bubble highlighting a dotted pattern (no text or symbols present)

Two grayscale diagrams of a vacuum cleaner with directional arrows indicating movement or force (no text or symbols present)

Two grayscale images showing a hand mixer and a plastic container with granular material, no text or symbols present.

14 Click

Close-up of a transparent bottle with internal dot pattern and central rectangular area (no text or symbols)

16
a

3D illustration of a mechanical component with motion lines indicating movement (no text or symbols)

b

3D rendering of a cylindrical mechanical component with internal grid structure (no visible text or symbols)

17a

Diagram of a mechanical component with two lock icons and a curved arrow indicating rotation (no text or symbols)

3D mechanical component diagram showing a threaded shaft and housing with an upward arrow (no text or symbols)

b

Illustration of a cylindrical object with particles and motion lines, no visible text or symbols

17
C

3D rendered mechanical component with threaded shaft and arrow indicating direction (no text or symbols)

3D rendered image of two cylindrical mechanical components, one with threaded end and one plain, shown without any text or symbols.

17
d

3D rendered mechanical component with threaded shaft and arrow indicating direction (no text or symbols)

3D rendering of a mechanical device with a downward arrow indicating motion (no text or symbols)

Mechanical component diagrams showing a cylindrical assembly and a mechanical housing with lock mechanism (no text or symbols)

Diagram showing a hairdryer tool in (a) and a wire-wrapped tool in (b), with arrows indicating process direction (no text or symbols present)

18 c Click
