USER MANUAL WHUD09JE5 PANASONIC

Line drawing of a rectangular industrial cabinet with a control panel and display (no text or symbols)

Model No.

Indoor Unit

WH-ADC0309J3E5

Outdoor Unit

WH-UD03JE5

WH-UD05JE5

WH-UD07JE5

WH-UD09JE5

Installation Instructions attached.

Serial number and production year please refer to name plate.

Please read the Operating Instructions thoroughly before using the Quick Menu.

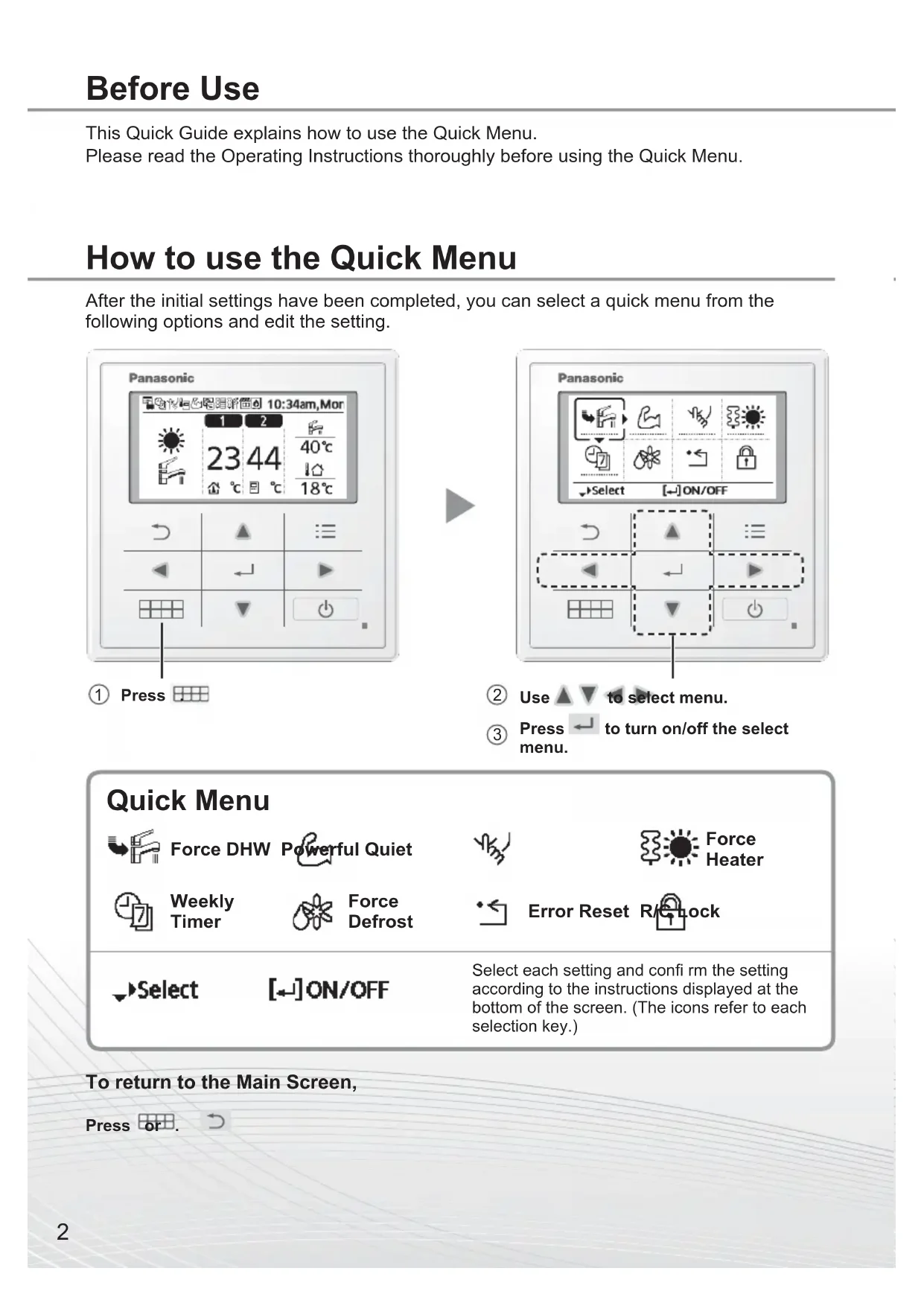

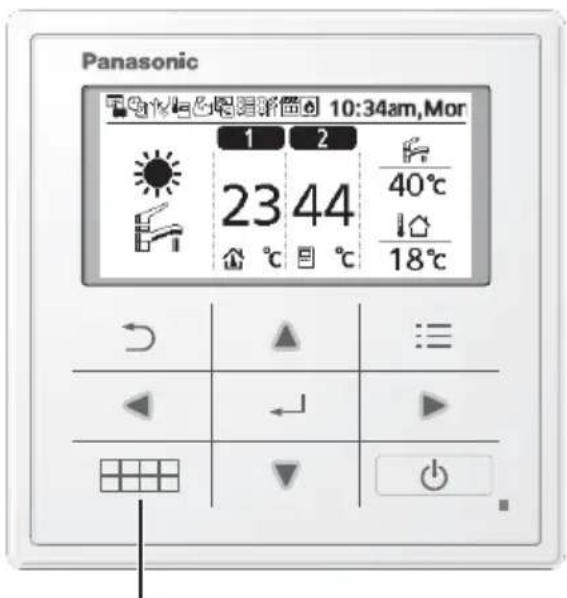

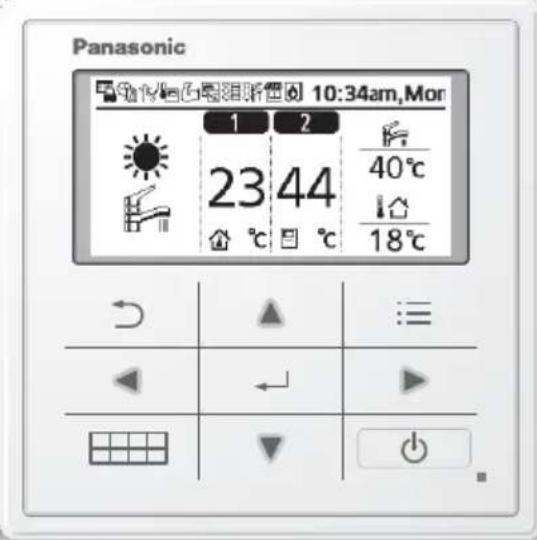

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

③ Press ← to turn on/off the select menu.

Quick Menu
	Force DHW		ful Quiet			Force Heater
	Weekly Timer		Force Defrost		Error Reset	ck
Select [←]ON/OFF Select each setting and confi rm the setting according to the instructions displayed at the bottom of the screen. (The icons refer to each selection key.)

Quick Menu

To return to the Main Screen,

Press or.

Notes on operation icon

Example:

- Operation icon indicate with “...”=OFF

- Operation icon indicate with “=” ON

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

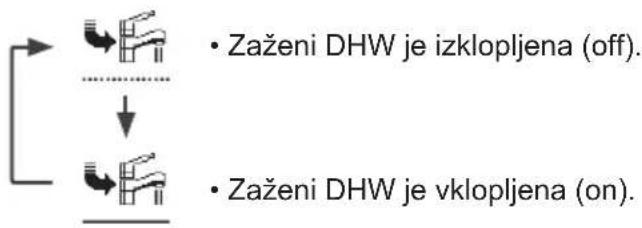

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Pixelated abstract shape resembling a stylized letter or symbol, enclosed in a rounded square frame with arrow indicators (no text or symbols)

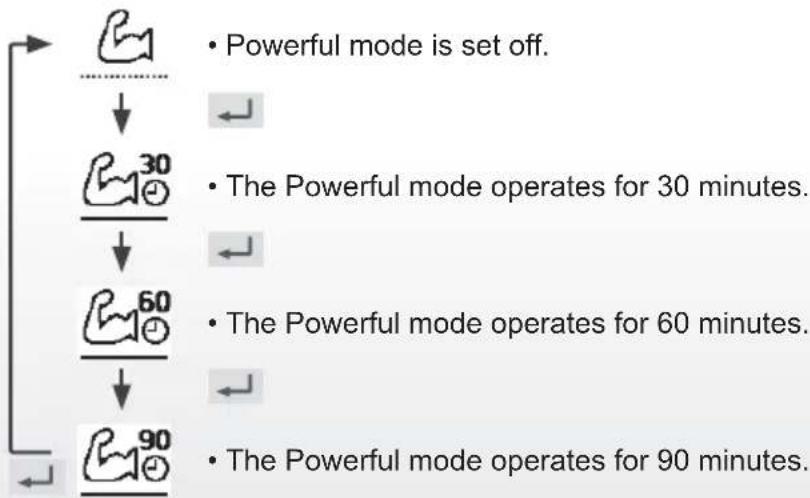

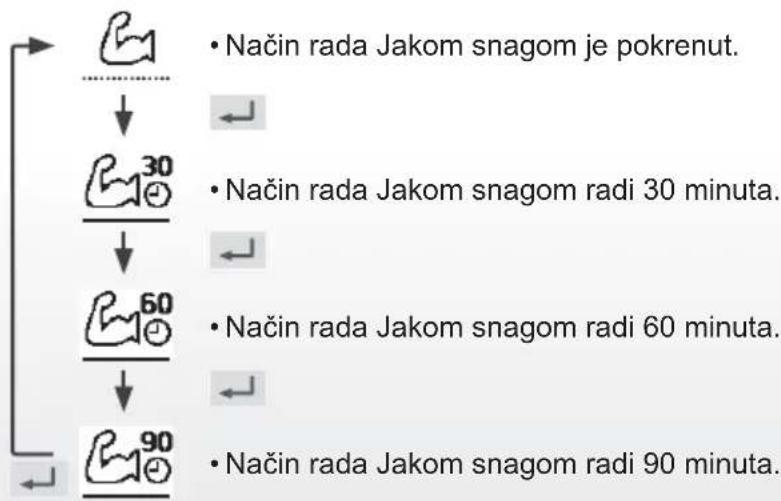

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

- Powerful is disabled when operation is turned OFF.

Abstract black line drawing on white background with gray border (no text or symbols)

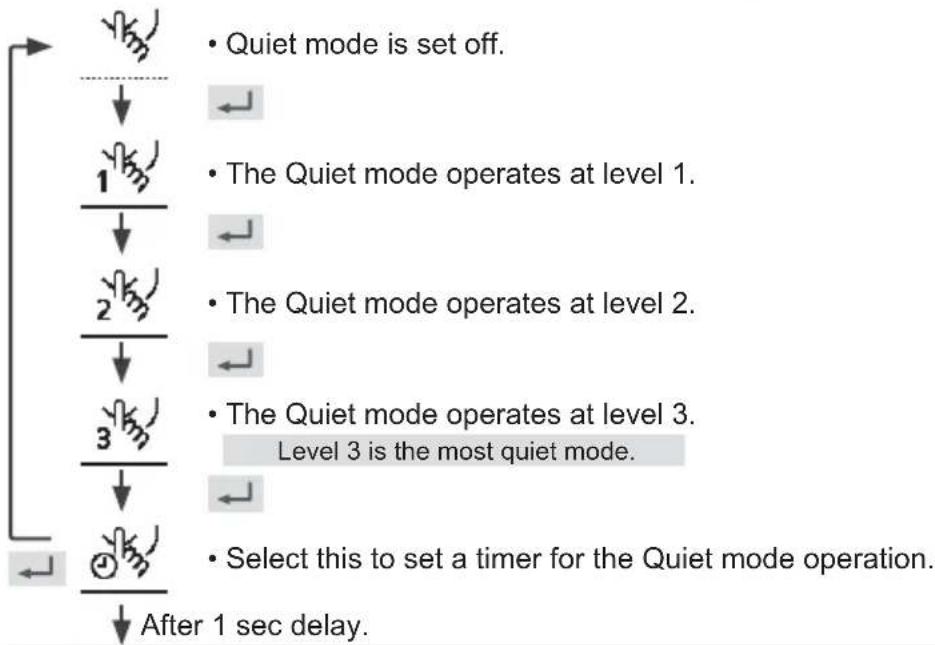

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)


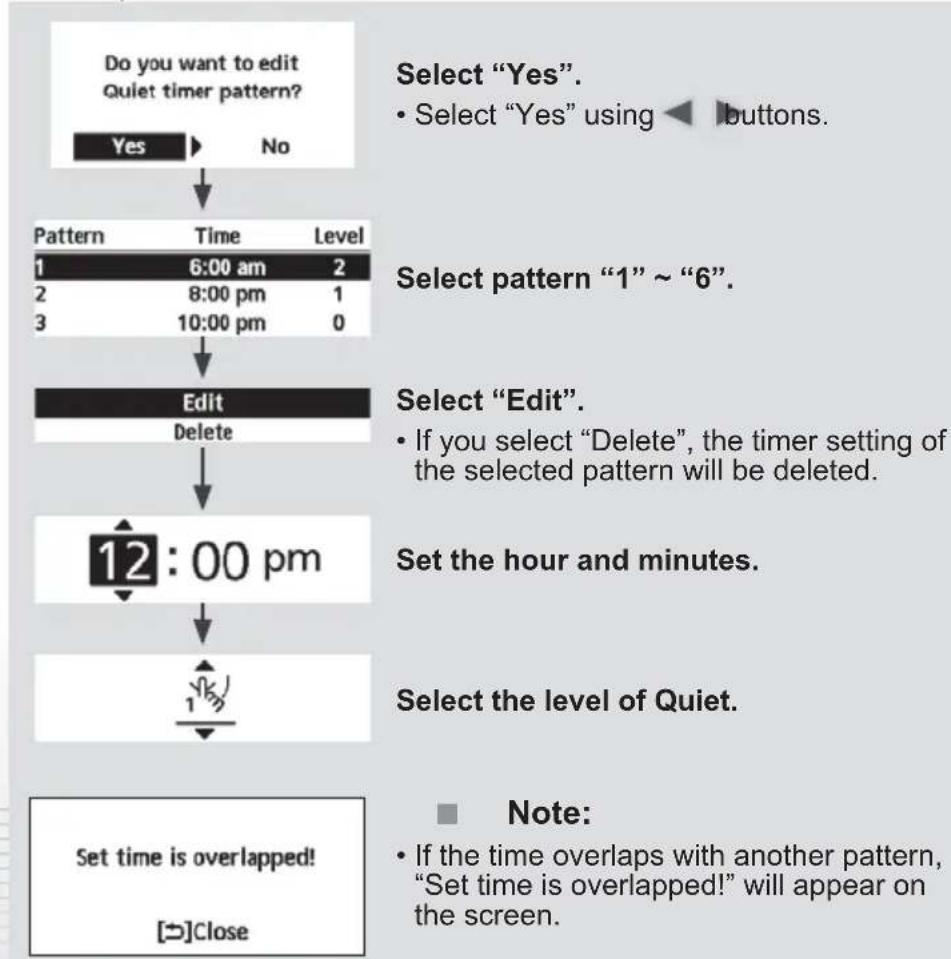


Simple icon showing a tree and sun, no text or symbols present

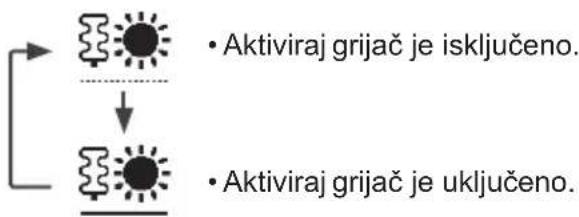

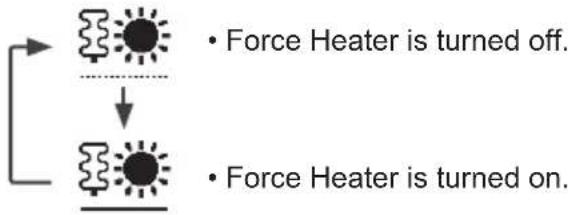

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)
    note1["Force Heater is turned off"]
    note2["Force Heater is turned on"]

Note:

- Force Heater is disabled whenever operation is already on and "Disabled due to operation ON!" will be displayed.

Disabled due to operation ON!

[⊃]Close

Icon showing a clock and two overlapping documents with page number 7, enclosed in a square frame (no text or symbols)

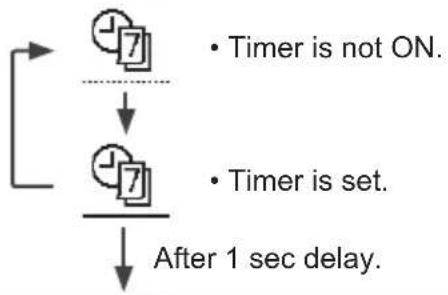

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

- If you select "No", the screen will return to the Main Screen.

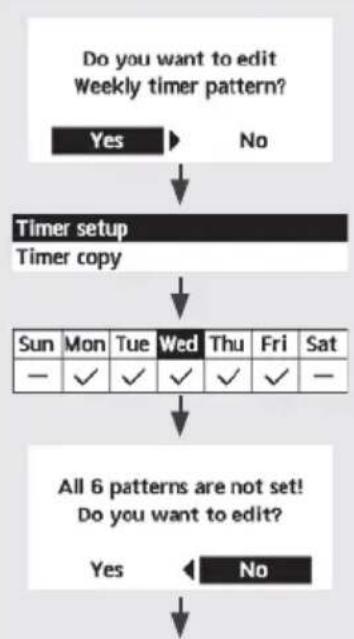


• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

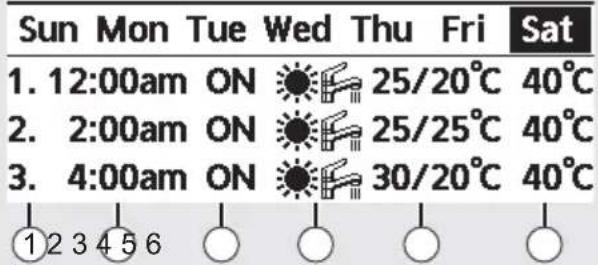

[Example of a Timer setup]

Select the day(s) which you wish to edit using ▲ buttons.

If all 6 patterns are not preset, this screen will be displayed.

Sun Mon Tue Wed Thu Fri Sat 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

①Select pattern "1" \~ "6".
② Set the hour and minutes of the Timer.
③Select ON/OFF of the Timer.
④Select the operation mode.
- Select mode using ▲ buttons.
⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp Zone1 Zone2 ON 25 °C ON 25 °C 45 °C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[⊃]Close

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[→]Close

- Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

Simple icon of a padlock inside a square frame (no text or symbols)

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control? Yes ▶ No

Select "Yes".

(The Main Screen will be locked.)

- If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen) Press → and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

(The screen will be off after 3 seconds.)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

ACS forzado

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Potente

Abstract pixelated graphic with curved lines inside a square frame (no text or symbols)

Silencioso

Simple icon showing a tree and sun, no text or symbols present

Calefactor forzado

Simple icon showing a clock and two overlapping documents (no text or symbols)

Temporiz. semanal

Dom Lun Mar Mie Jue Vier Sab 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Desescarche forzado

Simple line drawing of a padlock inside a square frame (no text or symbols)

Bloqueo R/C

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

ACS forzato

Pixelated abstract shape resembling a stylized letter or symbol, enclosed in a rounded square frame with arrow indicators (no text or symbols)

Powerful

Pixelated handwritten or stylized text inside a rounded square frame, possibly a signature or symbol

Modalità silenziosa

Simple icon showing a tree and sun, no text or symbols present

Forza resistenza

Simple icon showing a clock and two overlapping documents (no text or symbols)

Progr. settimanale

Dom Lun Mar Mer Gio Ven Sab 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Sbrinamento forzato

Panasonic Select [→] AAN/UIT

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Forceren warmtapwater

Simple line drawing of a stylized human figure inside a rounded square frame (no text or symbols)

Extra vermogen

Abstract black line drawing on white background with gray border (no text or symbols)

Geluidsreductie

Simple icon showing a tree and sun, no text or symbols present

Geforceerd verw.

Icon showing a clock and two overlapping documents with arrows indicating direction (no text or symbols)

Week-timer

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Forceren ontdooien

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a stylized human figure inside a square frame (no text or symbols)

Tryb intensywny

Uwaga:

Pixelated handwritten or stylized text inside a rounded square frame, possibly a signature or symbol

Praca cicha

Simple icon showing a tree and sun, no text or symbols present

Wymuś pracę grzałki

Simple icon showing a clock and two overlapping documents (no text or symbols)

Harm. tygodniowy

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Resetowanie błędu

Pure mechanical diagram showing a lever and bracket without any text or symbols

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Ισχυρό

Pixelated handwritten or stylized text inside a rounded square frame, possibly a signature or symbol

Αθόρυβο

Simple icon showing a tree and sun, no text or symbols present

Disabled due to operation ON!

[⊃]Close

Simple icon showing a clock and two overlapping documents (no text or symbols)

Επιλέξτε "Yes".

Sun Mon Tue Wed Thu Fri Sat 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Saturday: Pattern 1: Set Temp Zone1 ON 25 °C Zone2 ON 25 °C 45 °C

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Do you want to lock remote control? Yes ▶ No

Επιλέξτε "Yes".

Επιλέξτε "Reset".

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Vynutit TUV

Touto ikonou zapnete/vypnete nádrž TUV.

Pixelated abstract shape resembling a stylized arm or tool, enclosed in a rounded square frame (no text or symbols)

Výkonný

Abstract black line drawing on white background with gray border (no text or symbols)

Tichý režim

Simple icon showing a tree with a sun and directional arrows, no text or symbols present.

Nucený ohřev

Simple icon showing a clock and two overlapping documents (no text or symbols)

Týdení časovač

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Vynutit odmražení

Simple black arrow pointing left with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Reset chyb

Pure mechanical diagram showing a lever and bracket without any text or symbols

Simple line drawing of a flexed arm inside a rounded square frame (no text or symbols)

Chauffage Turbo

Abstract pixelated graphic with curved lines and arrows, no readable text or symbols

Mode Silence

Simple icon showing a tree and sun, no text or symbols present

Activation du "Mode secours"

Simple icon showing a clock and two overlapping documents (no text or symbols)

Prog. hebdo

Dim Lun Mar Mer Jeu Ven Sam 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Forcer le dégivrage

Pure mechanical diagram showing a gear or linkage mechanism without any text, numbers, or symbols

Simple line drawing of a stylized arm or object inside a rounded square frame (no text or symbols)

Leistungsbetrieb

Abstract pixelated graphic with curved lines and arrows, no readable text or symbols

Flüsterbetrieb

Simple icon showing a tree and sun, no text or symbols present

Man. E-Heizung

Icon showing a clock and two overlapping documents with the number 7, enclosed in a square frame (no text or symbols)

Wochentimer

So Mo Di Mi Do Fr Sa 1. 12:00am EIN 25/20°C 40°C 2. 2:00am EIN 25/25°C 40°C 3. 4:00am EIN 30/20°C 40°C 12 3 4 5 6

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Fehler-Reset

Pure mechanical diagram showing a gear or linkage mechanism without any text, numbers, or symbols

Zorlu DHW

Pixelated graphic of a flexed arm inside a rounded square frame (no text or symbols)

Güçlü

Simple icon showing a tree and sun, no text or symbols present

Elekt. ısıtıcı

Icon showing a clock and two overlapping documents with page number 7, enclosed in a square frame (no text or symbols)

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Zorlu Buz Çözme

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Tvinga VV

Simple line drawing of a flexed arm inside a rounded square frame (no text or symbols)

Kraftfull

Abstract pixelated graphic with curved lines inside a square frame (no text or symbols)

Tyst läge

Simple icon showing a tree and sun, no text or symbols present

Manuell värm.

Icon showing a clock and two overlapping documents with number 7, enclosed in a square frame (no text or symbols)

Veckotimer

Pixelated icon of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Tvinga avfrostning

Simple black arrow diagram with a dot and left-pointing arrow inside a rounded square frame (no text or symbols)

Felåterställning

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Tvungen DHW

Pixelated abstract shape resembling a stylized letter or symbol, enclosed in a rounded square frame (no text or symbols)

Powerful

Velg dette symbolet for å la varme-/kjølesystemet gå ved full effekt.

Abstract pixelated graphic with curved lines and arrows, no readable text or symbols

Stillemodus

Velg dette symbolet for stille drift.

Simple icon showing a tree and sun, no text or symbols present

Tvangsstyrt varme

Icon showing a clock and two overlapping documents with the number 7, enclosed in a square frame (no text or symbols)

Ukeplan

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Tvungen avising

Simple black arrow pointing left with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Nullstille feil

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pakota DHW

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Abstract black line drawing on white background with gray border (no text or symbols)

Hiljainen

Simple icon showing a tree and sun, no text or symbols present

Pakota lämmitin

Icon showing a clock and two overlapping documents with arrows indicating rotation (no text or symbols)

Viikkoajastin

Su	Ma	Ti	Ke	To	Pe	La
1.	12:00ap	ON		25/20^		40^
2.	2:00ap	ON		25/25^		40^
3.	4:00ap	ON		30/20^		40^

Pixelated icon of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Pakota sulatus

Simple black arrow pointing left inside a rounded square frame (no text or symbols)

Virheen nollaus

Simple line drawing of a padlock inside a square frame (no text or symbols)

R/C-lukko

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

HMV kényszerítése

Pixelated abstract shape resembling a stylized arm or connector, enclosed in a rounded square frame (no text or symbols)

Abstract pixelated graphic with curved lines inside a square frame (no text or symbols)

Csendes

Simple icon showing a tree and sun, no text or symbols present

Fűtés kénysz.

Icon showing a clock and two overlapping documents with the number 7, enclosed in a square frame (no text or symbols)

Heti időzítő

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Pure mechanical diagram showing a gear or linkage mechanism without any text, numbers, or symbols

Zaženi DHW (topla sanitarna voda)

Izberite to ikono, da vklopite/izklopite Rezervoar tople sanitarne vode (DHW).

Pritisnite, da potrdite izbiro.

Opomba:

• Zaženi DHW je onemogočena, ko je vklopljen Zaženi Grelnik.
• Ko je Zaženi DHW vklopljena, se bosta delovanje in način spremenila nazaj v prej memoriziran status.

Simple line drawing of a stylized arm or object inside a rounded square frame (no text or symbols)

Močno

Abstract black line drawing on white background with gray border (no text or symbols)

Tiho

Izberite to ikono za tiho delovanje.

Pritisnite, da potrdite izbiro.

Simple icon showing a tree and sun, no text or symbols present

Pospeš. Grelnika

Izberite, da zaženete Grelnik.

Pritisnite, da potrdite izbiro.

Icon showing a clock and two overlapping documents with the number 7, enclosed in a square frame (no text or symbols)

Tedenski časovnik

Ned Pon Tor Sre Čet Pet Sob 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C 1 2 3 4 5 6

Simple line drawing of a pinwheel with a handle and star (no text or symbols)

Zaženi odtajanje

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Ponastavitev napak

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Aktiviraj DTV

Simple line drawing of a stylized arm or object inside a rounded square frame (no text or symbols)

Jakom snagom

Za grijanje/hlađenje sustava jakom snagom odaberite ovu ikonu.

Za potvrdu odabira pritisnite

(Rad jakom snagom počinje približno 1 minut nakon pritiska na

Napomena:

- Jakom snagom je onemogućeno kad je rad ISKLJUČEN.

Abstract black line drawing on white background with gray border (no text or symbols)

Tiho

Simple icon showing a tree and sun, no text or symbols present

Forsirano grijanje

Odaberite aktivirati uključivanje Grijača.

Za potvrdu odabira pritisnite

(Način rada Aktiviraj grijač počinje približno 1 minut nakon pritiska na ← .)

Napomena:

Simple icon showing a clock and two overlapping documents (no text or symbols)

Tjedni vrem. Prog.

Simple line drawing of a flower with petals and stem, enclosed in a square frame (no text or symbols)

Aktiviraj odmrzavanje

Simple black arrow pointing left with a dot, enclosed in a gray rounded square frame (no text or symbols)

Resetiranje pogreške

Odaberite kako biste povratili prethodne postavke kad se pojavi pogreška.

Za potvrdu odabira pritisnite

(Kad je prihvaćen ovaj način rada, prikazivat će se donji zaslon.)

Zahtjev prihvaćen!

[⊃]Zatvori

Abstract geometric pattern with curved lines and grid lines on a light background (no text or symbols)

Country Hotline Phone Number	Country Hotline Phone Numb
Austria 0800 - 700666 Hungary [phone]
Baltic [phone] Netherlands [phone]
Bulgaria [phone] Norway [phone]
Croatia [phone] Poland [phone]
Czech Republic	[phone]
Denmark	[phone]
Finland	[phone]
France [phone]	UK/Ireland
Germany	0800 - 2002223

Panasonic Corporation

Web site: http://www.panasonic.com

© Panasonic Corporation 2019

Printed in the Czech Republic

Spain	[phone]
Sweden	[phone]
Switzerland	0800 - 001074
[phone]

Authorised representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

AEEE Compliance with Turkey Regulations
