Product Type	Self-propelled lawn mower
Brand	Wolf Garten
Model	A 530 A SP HW IS
Cutting width	530 mm
Adjustable cutting height	3 to 9 cm
Engine type	4-stroke engine
Fuel	Unleaded petrol
Engine oil	4-stroke engine oil (see engine manual)
Starting	Electric with rechargeable battery
Transmission	Self-propelled (rear wheel drive)
Forward speed	Adjustable (multiple speeds)
Mulching function	Possible with optional accessory
Grass catcher	Included, easy emptying
Central height adjustment	Yes (depending on version)
Safety devices	Safety handle, ejection flap, baffle
Foldable handlebar	Yes for storage
Lockable front wheels	Yes (depending on version)
Maintenance	Oil change, cleaning after each use
Blade replacement	By specialized workshop (specific tightening torque)
Warranty	According to manufacturer's conditions

Frequently Asked Questions - A 530 A SP HW IS Wolf Garten

How to start the Wolf Garten A 530 A SP HW IS lawn mower?

Make sure the start battery is charged and inserted. Open the fuel valve if present. Set the throttle to the max or start position. Keep the safety handle pressed and turn the ignition key until the engine starts (do not exceed 5 seconds).

What type of engine oil to use?

Use a 4-stroke engine oil suitable for lawn mowers. Consult the engine manual for the recommended viscosity (often SAE 30). Top up before each use and change it after the first 2-5 hours, then once per season.

How to adjust the cutting height?

Depending on the model, use the central adjustment lever or the individual wheels knobs. The height can be adjusted between 3 and 9 cm. For uneven ground, choose a sufficient height to prevent the blade from touching the ground.

What to do if the mower does not start?

Check that the throttle is in the correct position (max or choke), that the tank contains fresh petrol, that the spark plug cap is connected, that the start battery is properly inserted and charged, and that the mower is not in too tall grass. If the problem persists, consult a specialized workshop.

How to clean the mower after use?

Stop the engine, remove the ignition key and wait for it to cool down. Clean the cutting deck with a brush or cloth. If your model is equipped with a wash system, connect a garden hose to the fitting and run the engine for a few minutes. Never use a high-pressure cleaner.

How to use the mulching function?

If your mower is equipped with the mulching accessory, remove the grass catcher and install the mulching plug or close the special ejection flap. For optimal results, mow dry grass, do not cut more than 2 cm of length and drive slowly at full throttle.

When to change the cutting blade?

Replace the blade if it is dull, damaged or unbalanced. Have this operation performed by a specialized workshop, as specific tools are required. The tightening torque of the blade bolt is 51-68 Nm for a steel housing, or 36-44 Nm for a plastic housing.

How to safely transport the mower?

Stop the engine and let it cool down. Disconnect the spark plug cap and empty the fuel tank. For transport in a vehicle, securely fasten the mower to prevent any movement. Never transport the device in an overturned position.

What to do if the mower vibrates abnormally?

Immediately stop the engine and check if the blade is loose, damaged, or unbalanced. If you hit an obstacle, inspect the device for damage. Have the mower serviced by a specialized workshop before using it again.

How to store the mower for winter?

Drain the fuel into a suitable container (outdoors). Thoroughly clean the mower and grass catcher. Protect metal parts with oil. Recharge the battery and store it in a cool, dry place. Consult the engine manual for specific storage operations.

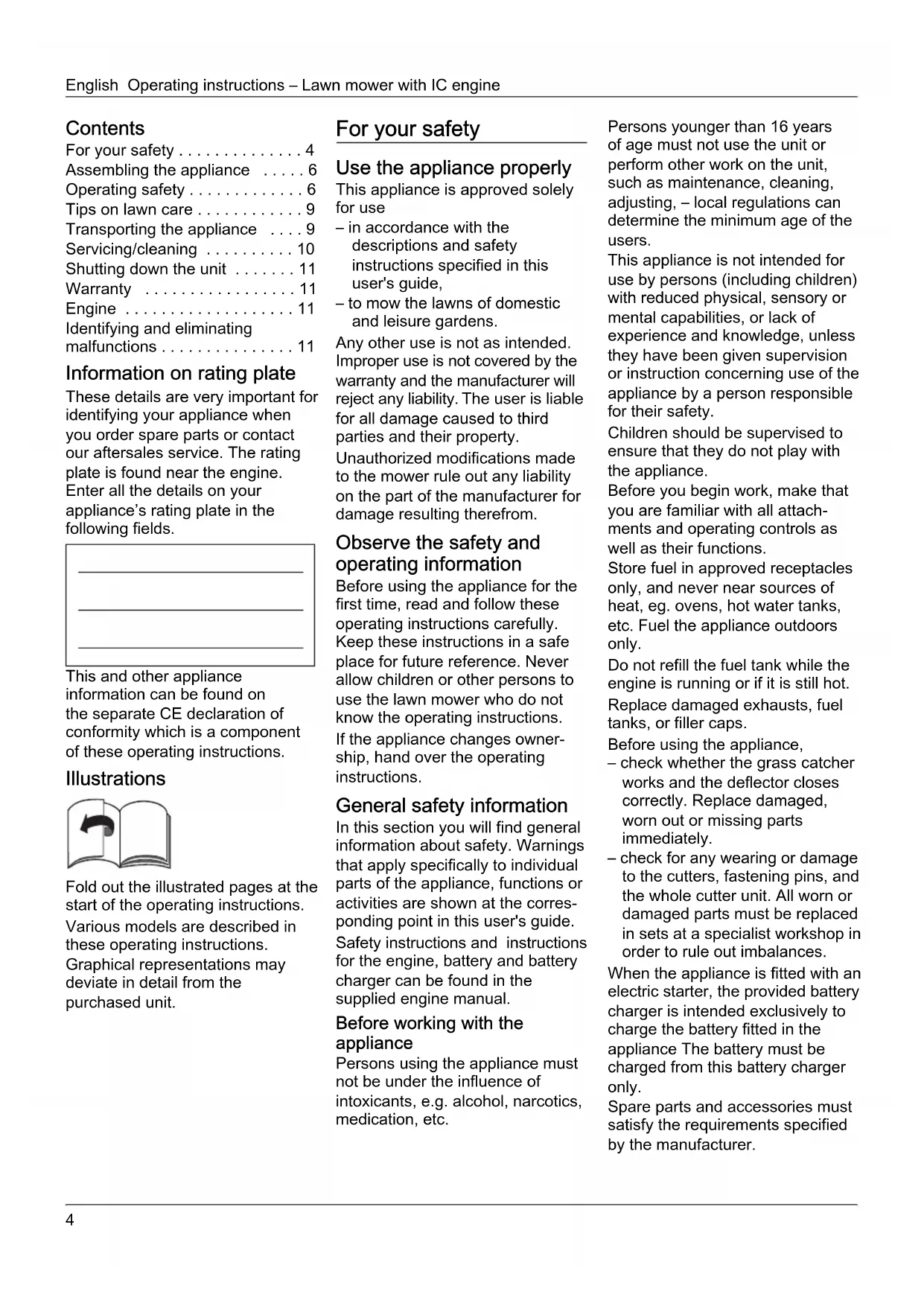

USER MANUAL A 530 A SP HW IS Wolf Garten

(Original operating instructions)

Français 13

Assembling the appliance 6

Operating safety 6

Tips on lawn care 9

Transporting the appliance 9

Servicing/cleaning 10

Shutting down the unit 11

Warranty 11

Engine 11

Identifying and eliminating malfunctions 11

Information on rating plate

These details are very important for identifying your appliance when you order spare parts or contact our aftersales service. The rating plate is found near the engine. Enter all the details on your appliance's rating plate in the following fields.

This and other appliance information can be found on the separate CE declaration of conformity which is a component of these operating instructions.

Illustrations

Fold out the illustrated pages at the start of the operating instructions. Various models are described in these operating instructions. Graphical representations may deviate in detail from the purchased unit.

For your safety

Use the appliance properly

This appliance is approved solely for use

• in accordance with the descriptions and safety instructions specified in this user's guide,

• to mow the lawns of domestic and leisure gardens.

Any other use is not as intended. Improper use is not covered by the warranty and the manufacturer will reject any liability. The user is liable for all damage caused to third parties and their property. Unauthorized modifications made to the mower rule out any liability on the part of the manufacturer for damage resulting therefrom.

Observe the safety and operating information

Before using the appliance for the first time, read and follow these operating instructions carefully. Keep these instructions in a safe place for future reference. Never allow children or other persons to use the lawn mower who do not know the operating instructions. If the appliance changes ownership, hand over the operating instructions.

General safety information

In this section you will find general information about safety.Warnings that apply specifically to individual parts of the appliance, functions or activities are shown at the corresponding point in this user's guide.

Safety instructions and instructions for the engine, battery and battery charger can be found in the supplied engine manual.

Before working with the appliance

Persons using the appliance must not be under the influence of intoxicants, e.g. alcohol, narcotics, medication, etc.

Persons younger than 16 years of age must not use the unit or perform other work on the unit, such as maintenance, cleaning, adjusting, - local regulations can determine the minimum age of the users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Before you begin work, make that you are familiar with all attachments and operating controls as well as their functions.

Store fuel in approved receptacles only, and never near sources of heat, eg. ovens, hot water tanks, etc. Fuel the appliance outdoors only.

Do not refill the fuel tank while the engine is running or if it is still hot.

Replace damaged exhausts, fuel tanks, or filler caps.

Before using the appliance,

• check whether the grass catcher works and the deflector closes correctly. Replace damaged, worn out or missing parts immediately.

• check for any wearing or damage to the cutters, fastening pins, and the whole cutter unit. All worn or damaged parts must be replaced in sets at a specialist workshop in order to rule out imbalances.

When the appliance is fitted with an electric starter, the provided battery charger is intended exclusively to charge the battery fitted in the appliance. The battery must be charged from this battery charger only.

Spare parts and accessories must satisfy the requirements specified by the manufacturer.

Therefore use original spare parts and original accessories only or spare parts and accessories authorised by the manufacturer.

All repair work must be conducted exclusively at a specialised garage.

When working with the appliance

When working with or on the appliance you must wear protective clothing. This includes:

-safety shoes,

trousers,
close-fitting garments,
-hearing protection,
- protective goggles, etc.

All safety devices must be installed on the appliance, and they must be complete and in a fully functional condition.

Do not make any changes to the safety devices.

Operate the vehicle only when it is in good technical condition as stipulated and delivered by the manufacturer.

Never change the engine settings preset at the factory.

Keep away from naked flames, avoid creating sparks and do not smoke.

Before all work on this appliance

If the lawn mower has an engine, always turn off it off before doing any working on it (e.g. repair work and adjustments) and before transporting it (e.g. lifting or carrying) in order to avoid injury - switch OFF the engine,
- remove the ignition key (if used),
- wait until all moving parts have come to a complete stop and the engine has cooled down,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
- remove the starter battery from the engine,
which takes into account additional safety information in the engine manual.

After working with the appliance Never leave the unit without switching off the engine and - if used - without removing the ignition key.

Safety devices

Fig. 1

Danger

Never use a lawn mower if it has damaged safety devices or if there are no safety devices fitted.

Safety lever (1)

The safety lever stops the motor and cutting blades in an emergency.

There must be no attempt to circumvent this function, which is crucial for your personal safety.

Ejection flap (2) or impact protection (3)

The ejection flap/impact protection protects you from being injured by the blade or by ejected solid objects. The lawn mower must always be operated with the ejection flap or impact protection.

Symbols on the appliance

On the appliance you will find various symbols on adhesive labels. These symbols are explained in the following:

Attention! Before starting up the unit, read the operating instructions!

Keep third parties away from the danger area!

Switch off the engine and remove the ignition key before carrying out any work on the unit and before leaving the unit.

Please follow additional information in the section entitled "For your safety".

Before working on the cutters, remove the spark-plug terminal! Keep fingers and feet away from the cutting tools! Switch off the lawn-mower and remove the spark plug connector before adjusting, cleaning, or checking it.

Risk of injury - only work with impact protection mounted.

Risk of injury - only work with tail clamp mounted.

Risk of injury - only work with deflector mounted.

Always keep these symbols on the appliance in a legible state.

Symbols in the user's guide Symbols are employed in the user's guide to indicate hazards or draw attention to important information. They have the following specific meanings:

Danger

Draws your attention to sources of potential danger associated with the task you are undertaking at the time which constitute a danger to persons.

Caution

Used to highlight hazards which are associated with the activity that is being described, whereby damage could occur to the appliance.

Note

This indicates important information and application tips.

Assembling the appliance

Assembly of the unit is illustrated on a separate supplementary sheet.

Disposal instructions

Dispose of packaging remnants, old units, etc., in accordance with local regulations.

Operating safety

Also follow the instructions in the engine handbook.

Danger

Accident

• No person, especially children, and/or animals should be allowed to stand close to the mower while it is in use. Risk of injury due to ejected stones or other objects.

Falling over

• Operate the vehicle at walking speed only.

• Be particularly careful when mowing in reverse and pulling the appliance towards you.

• When mowing on steep slopes, there is a risk of the mower tipping over and you could be injured as a result.
  Mow crossways to the slope, never upwards and downwards.
  Do not mow on inclines greater than 20% .

• Be particularly careful when changing the direction and always pay attention to a good position.
• Mowing along perimeters involves a risk of injury. Mowing near edges, hedges, or steep inclines is dangerous. Keep a safe distance from perimeters when mowing.
• If the ground is wet the mower could slip due to reduced traction and overturn. Mow only when the grass is dry.
• Work only by daylight or in good artificial lighting.

Injury

• Always maintain a safe distance from the rotating tool by means of the steering handle.
• The working area of the operator is behind the steering handle during operation.
• Never place your hands, feet, or other parts of the body near rotating parts.
• Do not use the unit in adverse weather conditions, e.g. if there is a probability of rain or a storm.

• Turn off the engine and wait until the blade has stopped:

• before tilting the lawn mower,
  for transporting over surfaces other than grass,

• Switch off the engine to prevent the engine from being started unintentionally: Remove ignition key (if used), remove starter battery from the engine, leave the engine to cool down and remove the spark-plug terminal,

• before you clear the ejector of blockages and other hindrances,
  before you check, clean, or configure the lawn mower or perform any work on it,

• immediately after a foreign object is hit. Check the appliance for damage, and have any damage repaired at a specialised garage,

• immediately after the appliance starts to vibrate with unusual violence and before you check the appliance.

• Never lift or carry the appliance when the engine is running.

• Check the surface on which the appliance is to be used and remove all objects that the appliance can take up and fling out.
• If the cutting tool hits a foreign object (e.g. stone) or if the machine starts vibrating violently: stop the engine immediately. Before continuing to use the unit, have it checked for damage by a service centre.
  In the case of mowers with rotary blades, never stand in front of grass ejection holes.

Lawn mowers with grass catchers:

• If you remove the grass catcher, you or other persons might get injured due to ejected, mowed materials or foreign bodies. Never empty the grass sack while the engine is running. Switch off the appliance.

Danger of asphyxiation due to carbon monoxide poisoning. Run the internal combustion engine outdoors only.

Explosion and fire hazard

• Petrol vapours are explosive, and petrol is highly flammable.
• Fill the fuel before starting the engine. Keep the fuel tank closed when the engine is running or still hot.

• Fill with fuel only when the engine has been switched OFF and has cooled down. Keep away from naked flames, avoid creating sparks and do not smoke. Fuel the appliance outdoors only.

• Do not start the engine when fuel has spilt. Remove the appliance from the surface soiled with fuel and wait until the fuel vapours have evaporated.

• To avoid fire hazard, please keep the following parts free of grass and escaping oil:

• en g i n e
  -exhaust
  -batteries/storage batteries
  -petrol tank.

Tripping over

• Operate the vehicle at walking speed only.

Caution

Damage to the lawn mower

• Stones, scattered branches, and similar objects can damage the machine and impair its correct operation. Remove all objects from the appliance's path before every use.
• Operate the appliance only when it is in good technical condition Subject the appliance to a thorough visual check before using it. In particular, check the safety devices, controls and threaded connections for damage and secure attachment. Replace damaged parts before operating the unit.
• Never use a battery which is deformed, has been dropped or damaged.
• Do not expose the battery or battery charger to rain or humidity.

i Operating times

Comply with the national/municipal regulations concerning the times when the mower may be used (if required, contact your local authority).

i Directions

Specified positions on the unit (e.g. on the left, on the right) are always seen from the steering handle in the working direction of the unit.

Before starting up the unit for the first time

Filling the engine with oil

Caution

The lawn mower is delivered without any lubricating oil due to transportation reasons.

Therefore, you must fill the engine with oil before putting into operation for the first time. Please see engine manual.

Charge the battery

(appliances with electric starter) Observe and follow all instructions and information concerning the battery and battery charger in the engine manual.

Risk of chemical burns/ poisoning

In extreme cases be alert to the escape of liquids or gases.

Risk of electric shock

Before using the charger, always check for external damage. Never use a battery charger which is damaged or has been dropped.

Caution

• Ensure that the power supply operates at 220-230 V and 50 Hz according to the specifications on the rating plate of the charger.
• Protect the battery and battery charger from humidity, rain, snow and frost.
• Charge battery in well ventilated and dry rooms only.
• Remove the battery before disconnecting the battery charger from the mains.
• Never insert objects into the contacts of the battery.
• Before working on the battery charger, disconnect it from the mains.
• Do not open the battery or battery charger. Have all work on the battery and battery charger carried out by a service centre.

Fig. 2

Before using the unit for the first time, charge the battery for approx. 1 hour. Only use the battery charger included in the delivery.

i Note

Detailed information concerning the charging process and battery status indicator can be found in the engine manual.

i Disposal information for the charger

The charger is subject to the disposal regulations for electrical appliances. Observe the local regulations.

Always make any adjustments before using the unit

Risk of injury

Before all work on this appliance

• Switch off engine.
• remove the ignition key (if used),
• Wait until all moving parts have come to a standstill; the engine must have cooled down,
• remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
• Remove the starter battery from the engine.

Hang the grass catcher (only in the case of lawn mowers with grass catchers)

Fig. 11

• Lift up the deflector flap and hook the grass sack onto the appliance.

Set the cutting height

Caution

Select cutting height for uneven terrain to prevent the cutter from ever coming into contact with the ground.

Fig. 3

Set the cutting height of the grass as required.

Setting option (depending on model) from approx. 3cm to maximum 9 cm.

i Note

If units have individual wheel adjustment, set all wheels to the same height.

Model A

• Attach the wheels in the position required.

Model B

Pull the flap and snap into place in the position required.

Model C

Advance or push back the lever of the central vertical adjustment and snap into place in the position required.

Locking front wheels

(only units with lockable front wheels)

Fig. 4

Lock wheels to drive straight ahead - set the wheels in forward position and put hoop into large hole.

Wheels are freely movable - put clamp into large hole.

Filling with petrol and checking oil level

• Fill up with lead-free petrol (see engine manual).
• Fill fuel tank up to max. 2 cm below the lower edge of the inlet nozzle.
• Close fuel tank tightly.
• Check oil level and, if required, top up (see Engine manual).

Clean the battery compartment on the engine

• Remove foreign objects and dirt from the battery compartment using a cloth and brush.

Starting the engine

Fig. 5

Danger

To prevent injury:

• do not start the engine when you are standing in front of the ejector;
• keep hands and feet well away from the cutting blade;
• never place your hands, feet, or other parts of the body near rotating parts; always keep away from the ejector.

Before starting the engine, disengage the clutches for all cutters and drives.

Do not tip the appliance when starting. Keep the appliance on an even surface with little or the shortest possible grass.

Information about the engine -Observe the information in the engine manual.
- Some models do not have an throttle. The engine speed is set automatically. The engine always runs at the optimal engine speed.
Insert starter battery into the battery compartment on the engine until it engages - Fig. 5A.
- Open the fuel tap (if fitted).
Set throttle (if available) to /max - Fig. 5B.
- Stand behind lawn mower - Press and hold safety hoop - Fig. 5C.
- Turn ignition key on the steering handle until the engine starts (start attempt max. 5 seconds, wait at least 1 minute before the next attempt) - Fig. 5C.

When the engine is running:

• When the engine has started, push the throttle (if fitted) between x /max and y /min to warm up the engine briefly.
• Set the throttle to full throttle (if available).

i Note

If you need more information about operating the engine, please refer to the engine manual.

Stopping the engine

Fig. 7

Bring throttle (if available) into position min.
- Release the safety hoop. The engine and the cutting tool stop after a short time.

Working with the unit Engaging/disengaging gear drive

(only in the case of lawn mowers with gear drives)

Fig. 6A, B, C

Putting gear drive into gear

Pull and hold the lever/hoop.

Throwing gear drive out of gear

Release lever/hoop.

Information for units according to Fig. 6C

The unit can be switched on/off with the left or the right lever or even with both levers together.

i Note

When the unit is pulled back, there may be increased resistance on the back wheels on account of the design. This is not a fault with the unit but occurs for technical reasons.

Remedial action (depending on model): Without pulling the drive handle, push unit forwards a little, then backwards.

Changing drive speed of the wheel drive

(dependently on model)

Caution

Damage to the lawn mower Make adjustments when the engine is running only.

Model 6D, E

• Select from the different speeds using the small lever (1/min/ and 4/max/

Fig.6F,G
- Select from the different speeds using the lever (1/min/ and 4/max)

i Note

For technical reasons the speed may be difficult to change when the unit is at a standstill.

Remedy: Pull drive bar and select speed setting.

Detaching and emptying the grass sack

(for lawn mowers without grass catchers)

Fig. 11

If cut grass is left lying on the ground or if the level indicator (optional, Fig. 12) indicates that the basket is full:

• Release safety hoop and wait until the engine stops.
• Lift the deflector flap and unhook the grass sack.
  Empty out the contents.

Working without the grass sack Whenever you detach the grass sack, the deflector flap drops down. When working without a grass catcher, the mowed grass is ejected directly downwards.

Retrofitting for mulching (for units with optional mulcher)

Units with rear discharge:

Fig. 8A

• Lift the ejection flap.
  Remove the grass catcher.
• Insert mulch key (depending on model).
  Lower the ejection flap.

i Note

Models with integrated mulching function do not require a separate mulch key - a specially shaped rear flap assumes this function (Fig. 8B).

Units with side discharge:

Fig. 9

• Attach impact protection/mulch lock instead of the side discharge (Fig. 9A)
  or
• Remove side discharge - impact protection/mulch lock closes automatically (Fig. 9B).

Changing units over to side discharge

(dependently on model)
If fitted:

Remove grass catcher and lower the rear discharge flap.
- Lift impact protection/mulch lock and attach side discharge (Fig. 9C).

After finishing work

Remove the ignition key (if used).
Wait until all moving parts have come to a complete stop and the engine has cooled down.
- Turn off the fuel tap (if fitted - see engine manual).
- Disconnect the spark plug terminal on the engine.
Empty the grass sack.
Remove starter battery from the engine - Fig. 16.
- Recharge battery if required. Fig. 17

To check the battery charge, press the button (1) on the battery. The LEDs (2) indicate the approximate battery charge. If an LED is flashing, recharge the battery immediately.

i Note

Leave engine to cool down before placing unit in closed room.

Tips on lawn care

Here are some tips to help you keep your lawn looking healthy and ensure uniform growth.

Mowing

Lawnns consist of various grass types. Frequent mowing promotes the growth of grass, resulting in strong roots and a firm sward. If you seldom cut the grass, you will enhance the development of high-growing types of grass and other weeds, such as clover, daisies).

The normal height of a lawn is approx. 4 - 5cm Only 13 of the total height should be mown; therefore cut 7 - 8cm long grass to normal height.

Try not to cut the grass shorter than 4cm otherwise the lawn will suffer during dry periods.

If the grass has grown particularly high (for example, during a holiday period), cut it back to its normal height in several stages.

When mowing, always overlap the mown swaths slightly.

Mulching (using the accessories)

The grass is cut into small pieces (approx. 1cm ) and left to lie on the lawn. The lawn therefore retains a lot of nutrients.

For the best possible result the grass must always be kept short, see also section "Mowing".

Observe the following when mulching:

• Do not mow wet grass.
• Never mow more than 2cm
  Mow slowly.
• Use the maximum engine speed.
• Clean the cutters regularly.

Transporting the appliance

Short distances by hand

Danger

Objects may be caught and ejected by the rotating cutter deck and cause injury and/or damage.

First stop the engine before moving it over surfaces other than grass.

Using a vehicle

Danger

Before transportation, always stop the engine and leave to cool down. Remove spark-plug terminal.

The appliance must not be tilted when it is transported.

For transport on or in a vehicle, secure the appliance adequately against slipping.

Empty the fuel tank before transporting the unit. Filler cap must be closed tightly.

Lawn mowers with collapsible bars: Fig. 10

The steering handle can be folded down to facilitate storage.

Servicing/cleaning

Danger

To protect against injury before all work on the appliance
-switch OFF the engine,
- Remove the ignition key (if used),
- wait until all moving parts have come to a complete stop and the engine has cooled down,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
- Remove the starter battery from the engine.
which takes into account additional safety information in the engine manual.

Danger

To protect against injury from the cutters, have a specialist garage perform all work such as replacing or regrinding the cutters (special tools required).

Tightening torque of the blade screw:

• 51-68 Nm (lawn mower with steel housing)
• 36-44 Nm (lawn mower with plastic housing)

Caution

When tilting the unit, always ensure that the spark plug is face up to prevent fuel or oil damaging the engine.

Servicing

Caution

Please observe the maintenance instructions in the engine manual. At the end of the grass-cutting season, have the appliance checked and serviced in a specialist workshop.

Have any repairs carried out by a service centre only.

Caution

Environmental hazard caused by engine oil.

After changing the oil, take the waste oil to a waste oil collecting point or to a waste disposal company.

Batteries/storage batteries pollute the environment.

Used batteries do not belong in domestic waste. Give used batteries to your dealer or other disposal company. Remove batteries before appliances are scrapped.

i Note

Observe the inspection and maintenance intervals in the engine manual.

Depending on the model, your unit features an electronic maintenance indicator (Fig. 13). Observe the appropriate maintenance indicators in addition to the written maintenance instructions.

Operation as well as further information can be found in the separate operating instructions which are enclosed with the maintenance indicator.

Before each operation

Check oil level; if required top up.
- Check screw connections are tight, if required tighten.
Check safety devices.
- Remove foreign objects and dirt from the battery compartment on the engine using a cloth and brush.

Check the point of contact of the clutch:

(only in the case of lawn mowers with gear drives)

• The lawn mower should not drive forwards when the engine is running and when the gear drive is not engaged.
• The lawn mower should drive forwards when the engine is running and the gear drive is engaged.

Fig. 15

If required, set contact point using thumb wheel/adjusting nut on the wheel drive lever (depending on design on the underside of the control panel) or Bowden cable.

i Note

Adjustments are not possible on some models.

After the first 2-5 operating hours

• Change oil (please see engine manual enclosed).

After mowing or when required

recharge battery.

Once a season

Change oil (please see engine manual enclosed).
Lubricate the pivot points and torsion spring on the ejector cover.
At the end of the season the appliance must be checked and serviced at a specialist garage.
- Have the battery and battery charger tested regularly (at least 1x year) by a service centre.

Cleaning

Caution

Clean the appliance after every use. Failure to clean the appliance can damage the materials and cause malfunctions.

Do not clean the unit with a high-pressure cleaner.

Cleaning the grass sack (only in the case of lawn mowers with grass catchers)

The easiest time to clean the grass catcher is immediately after mowing.

• Detach and empty the grass sack.
  The grass sack can be cleaned by means of a powerful jet of water from a garden hose.
• Allow the grass sack to dry out thoroughly before using it again.

Cleaning lawn mower

Danger

Work on the cutters can cause injury. Wear safety gloves for your protection.

Caution

When tilting the unit, always ensure that the spark plug is face up to prevent fuel or oil damaging the engine.

Do not splash the unit with water, otherwise electric components may be damaged.

Protect the battery and battery charger from humidity.

Whenever possible, always clean the appliance directly after mowing.

Clean the battery compartment on the engine

• Remove foreign objects and dirt from the battery compartment on the engine using a cloth and brush.

Units without deck washing system:

Clean the cutter chamber and the ejector cover with brush, hand broom, or cloth.
- Set the appliance down on its wheels, and remove all visible grass residue and other soiling.

Units with deck washing system: Fig. 14

Lawn mowers with a deck washing system feature a water connection. Grass clippings can then be rinsed off the underside of the mower deck and deposits of corrosive chemicals prevented. After mowing, proceed as follows:

• Place unit on level ground, free of debris, stones, etc.

i Note

Discharge chute must not be directed at houses, garages, etc.

• Attach a commercially available hose adapter (optionally included in the product package) to a water hose and connect to the water connection on the mower deck.
  Turn on water.

• Start engine and leave running for several minutes.

• Stop engine and remove water hose from the appliance.

At the end of the cleaning process:

• Start engine and leave running for several minutes to dry the underside of the mower deck.
• Stopping the engine.

Shutting down the unit

Danger

Risk of explosion and fire.

When there is fuel (petrol) in the tank, never keep the appliance in rooms where fuel vapours can come into contact with naked flames or sparking.

Caution

Damage to mower materials.

• Keep the vehicle only in clean and dry rooms when the engine is cold.
• Protect the lawn mower when storing it for longer periods of time e.g. against rust in winter.
• Store the battery and battery charger in a cool and dry location.
• Protect the battery and battery charger from humidity, rain, snow and frost.

At the end of the season or when the vehicle will not be used for longer than a month:

• drain off the fuel into a suitable receptacle, and immobilise the engine as described in the engine manual.

Caution

Drain fuel outdoors only.

Clean the appliance and the grass sack.
To protect metal parts from rust, wipe them all down with an oiled cloth (resin-free oil) or apply an oil spray.
Charge the battery.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

Engine

The manufacturer of the engine is liable for all engine-related problems with respect to output power, power measurement, specifications, warranties, and service. More detailed information can be found in the owner/operator handbook provided separately by the engine manufacturer.

Identifying and eliminating malfunctions

Malfunctions that occur during the operation of your lawn mower often have simple causes that you should know and be able to repair on your own. In cases of doubt your specialised garage will be pleased to assist you further.

Problem Possible cause(s) Remedy

Engine does not start.	Throttle is not in the right position.	Set throttle to position N or CHOKE (if the engine is cold).
		Set throttle to max position or START (if the engine is warm).
	Lawn mower is standing in long grass.	Place the lawn mower onto a surface with shorter grass.
	No fuel in the tank. Fill tank with clean, fresh fuel.
	Spark plug terminal not connected. Connect spark plug terminal.
	Fuel old or dirty. Replace with new fuel.
	Air filter clogged. Clean air filter.
	Battery not inserted correctly.	Insert battery correctly into the battery compartment on the engine until it engages.
	Battery discharged. Charge battery with provided battery charger.
	Lead damaged.	Check whether electric lead OK.
	Battery defective.	Have battery tested by a service centre.
Unusual noises (rattling, clanging, knocking).	Screws, nuts, or other fasteners loose	Tighten parts. If the noises persist: Contact a specialist garage.
Shaking, vibrations.	Cutter(s) loose.	Cutter fastening screw must be tightened at specialist garage.
	Cutter(s) damaged. Cutters must be replaced at specialist garage.
	Cutters not balanced correctly.	Cutters must be replaced or balanced at specialist garage.
	Engine not secure. Engine must be secured at specialist garage.
Unclean cut or speed is decreasing.	Grass too high.	Set larger cutting height, if necessary mow twice.
Grass is not being picked up or grass catcher is not filling.	Grass too damp.	Let the lawn dry.
	Ejector clogged. Switch OFF engine, remove hindrance.
	Cutters blunt.	Cutters must be replaced or reground at a specialist garage.
	Insufficient power from motor.	Mow more often. Select a greater cutting height.
	Grass sack full.	Switch off engine. Unload grass catcher.
	Dirty grass sack.	Switch off engine. Clean air ducts in the grass catcher.
Wheel drive does not work.	V belt torn or gears defect.	Damaged parts must be replaced at a specialist garage.
	Cable pull/Bowden cable torn.	Damaged parts must be replaced at a specialist garage.

Sommaire

Pourvoiresecurite. 13

Montage 15

Utilisation 15

Klipp alltid i nagot overlappande banor.

Fare for aetsning/forgifting

I ekstreme tilfaelde ma man regne med, at der slipper vaeske eller gas ud.

Vedlikhold/Rengjoring 86

Fare for etsing/forgifting

I ekstreme tilfeller ma det regnes med at det trenger ut vaeske ellergass.

Fare for strømstøt

Transporter aldri maskinen i vippet stilling.

Detector e reparar as avarias 107

Apos as primeiras 2-5 horas de service

Mudar o oleo, ver o Manual do Motor anexo.

AuroTo mnxavma eivai EyKEkpiEvo movo yia xpno

• yia xpnan me TEPiYpaqcs kai TIG UTOEIEcIaQpAeiaC TIOU bIOvTAI OTO TAPov EYXepidio odnyiwxpnans.

• yia To Koupema ETTiapaveiwv ME Ykaov OE KNTouc KAtoIKIWV KAI Xwow avauxns.

MeTAtic TpWTeC 2-5 wpeC AetoupyiaC

AaaaCETa aia, b. EITIOUVAATTOeVO eYXeipio I AIEIoupyiaKIVnTnpa.

MeTa aTio kaOe KoUpeMa n otav XpeiaZeTai

-ΦoptiεTe Tny μπatapia.

Mia φρα καθε σεζόν

AaaaZeTe Ta aOia, 3A. EITIOUVAITTOpeVO EYxEipioo AETOUpyiAc IVNtnpa.

MoHTaxkata Ha ypeodot e npkaKaHa Ha CnKu BO nOce6HnOT DoaTOK.

3a6eileka 3a nccpnyBaHbe BO OTnad

OcTaToUTe OJ nakyBaHbETo, CTapNTe ypeN uTH. NcPpNeTe rN BO OTnAd COoDbETHO Ha JOKaJIHHTe npOnCn.

PaKyBaHbe

BHIMabajTe Ha COBETNE BO npupaHKnOT 3a MOTOPOT.

Onachoct

Hezroda

PpeBpTyBaHbe

-Ⅱuca, nOce6Ho deca, HnH KINBOTNI pN KOCEHe HNKORAHe Cmee Da ce BO 6n3Ha Ha ypeoT. ONaCHOt OD NOBpea Od N3PeTaHte KaMeBa HnI Dpyrnpedmetn.
-BoTe ro ypeoT cMo co 6p3Ha Ha yeKOp.
-5nTe NOce6HO BHIMaTeJIHH Kora Kocnte HaHa3aI N rO NOBNEkyBaTe ypeoT KOH ce6e.
-При Косец Ha CTPMHn HauonHHupeoT MoKe da ce npeBPTn Bne MoKe da ce noBpeHte. Kocete nonpeHno NO HauONHHaTa, HNKORAHarope n HaOone. He Kocete Ha HauONHnCo aorI norOJem od 20%.
-5nTe noc6Ho BHImaTeHn npu MeHyBaHe Ha Hacokata Ha DnKHeI CEkOrAùBHMaBajTe da CTouTe do6po.
-IOCTOn ONaCHOCT OJ NOBpeJa Pn KocHe Bo TpaHnUH NoppaJa. KocHeTo BO 6n3Ha Ha pa6oBn, XmBn ORpaNn nTcPMn HAdOJIHHne oIaCHO. Pn KocHeTo OdpXyBaJTe ro 6e36eHOCHTO pactoJaHne.

-При Кocье Ha Bnaxнa TpeBa ypeIOT MOKeДа n3nI3ra nopadH HamaIeHNot KONTAKT co npOrata n Bne MoKeДa naHete. Kocete cmo Kora TpeBata e cyBa.
- Pa6oTeTe cAmO npn dHeBHO CBETIIO IINI pN IO6po BeWtauKo OCBETnyBaHBe.

Nobpea

• Cekoraw Tpe6a da ce odpxkyba 6e36edHocHTo pactoJAHne od potnpaKnot anat odpeJeHO cO BOdNknte.
• PaBOTHOTo NOpaJYe Ha onepatopOT 3a BpeMe Ha paBOTATA e 3ad BOeKNOT IOCT.

• HnKoraw He rH nocTaByBajTe INaHKITE UIN CTOnaNATA Ha UIN NOB BPNTNBTE DeNOBn.
  -He ro KopncTeTe ypeoT npn IOuIN BpeMeHcKU YcIOBn, KaKO Ha Ip. MoXHOCT 3a DoXd INH HeBpeMe.
  -CTonnpajTe ro MOTOPOT nouekejTe da ce cmnpu pe3HnOT anaT:

• nped da ro npebptnte ypeoT,
  -3a TpaHcnpT NO NOBpUHHI WTO Ce pa3JNUH N O D TpeBa,

• Vcknyte ro MOTOP 3a da cnpeuHTe Hecakaho CTapTyBaHe Ha MOTOP: IVBneyeTe ro KnyOT 3a naneHbe (ako noCTOn), OTCTpaHete ro akymyIaTOPOT 3a CTapTyBaHBe OD MOTOP, OCTabete MOTOP DA Ce n3JaNn N I3BneyeTe rnpKnyOKOT 3a CBeKnUkata 3a naneHbe,

• nped da rH OTcpaHnTe 3aenyBaHaTa n 6noku paHaTa Ha nCpplyBaHbeto,

• nped da ja npoBepyBaTe, YnCTNTe, DOTepyBaTe Kocnilkata 3a TpeBa nIIu Da Bpwnte pa60TN Bp3 ypeOToT,
  -KoraKeCe ydpu BO HaBOpewHo TeNo. PpOBepTe daHn Kocnilkata 3a TpeBa e OHTeHa n npu WTeTa nobapajte ctpyuHen cepBnc,
  -ako ypeoT noUHe da Tpece HeobuHc cnHNo. BeHaI npOBepTe ro ypeoT.

• HnKoraaw He ro noDnHyBaJte nnHocHTe ypeoTdoEka MOTOPOT paBOn.

• PpOBepTe ro TepeHOT Ha Koj 1Ito Ke ce KopnCTn ypeIoT n OTcpanHeTe n CHTe npdMeTu 1Ito MoKe da ce 3aΦaTaT u Da n3JetaaT.
  -Ako pe3HnOT anat ydpn BO NaBbOpeuHo Teno (Ha np. KameH) nnn aKO ypeoT noUHe da Tpece HeobuHc CInHO: BeHaU H3rachete ro Motopot. Ppei da npoJOnKHe co paBoTehe npOBepeTe BO cneunjAnm3npaH CepBnc daNN ypeoTe oWtTeH.
• Pn KocbeTo HNKORAHe ce nocTabyBaJTe nped OTbOpnte 3a NcPpnyBaHBe TpeBa.
  YpeDn CO 3bnpaHa TpeBa:
• Pn OTcpanyBaHbeto Ha 3bnpaOT Ha TpeBa MoKte Da ce nOBpeNTe Bne Nn Dpynte od N3JetaHOT MaTePnJan OJ KocHeTo NnOd NaBOpEHHTe Tena. HnkoraU He ro npa3Hete 3bnpaOT Ha TpeBa DoKeMa MOTOP paBOTu. Vcknyte Ro ypeDOr.
  Onachoct od 3aynyBaHbe od jaNepoJe HMOKcn.
  Octabajte ro MOTOPOT CO BhatpeuHo coropyBaHe da paBOTn cAmo Ha OTBOpeHo.
  Eknnno3na n onachoc od noxap
  -BeH3nHCKnTe napen ce eKcJIIO3NBHI n 6eH3nHOT mBa BucOK CTeIeH Ha 3aNaJIYBOCT.
• HanonHeTe nOrOHcKO rOpMbO nped da ro cTapTyBaTe MOTOPOT. DpxkTe ro pe3epBoaPot 3aTBOpEn DoKeKa MOTOPOT paB0TNnCe yUwTe e Bpen.
  -Дotypajte norOHcKO rOpNBO cAmO npu n3rachat u n3paDeH motop. 136berHybajte OTBopeH pIaMeH, nojBa Ha NCKPN He nywete. IOnHeTe ro ypeDoT co rOpNBO cAmo Ha OTBopeHo.
  -Ako noroHcKOTOropuBO npeteue He ro CTapTyBajTe MOTOpOT. OCTpaHete ro ypeJOT oNOBpHHata wTO e n3BaNkaHa CO noroHcKO rOpuBO nNoyeKaTe NcnapyBaHeTo Ha noroHcKOTO rOpuBO da 3aBpHn.

-3a da n36erHete onachocT od
noXap,odpxyBaJTe rN CneHnTe
deIOBn YnCTn Ond TpeBa Nn
IpeTeueHo MacNo:
-MOTOPOT
-IVYBO T
-akymyNaTOPHTe
-pe3epBoapOT 3a ropnuBO.

Onachoct od conHyBaHbe
-BoTe ro ypeIOT cMo co 6p3nHa Ha YekOp.

BHIMAHHe

OwTeTyBaHbHa ypeDor

• Kamehata, naHaTne rpaHKn nnCnHyHte npedMeTu MoKe da nped3BnKaat OwTeTyBaHbe Ha ypeoT n Ha cyHKunjata. Otctpahete rN cBpCTnte npedmetn od pa60THOTo noDpaue nped ceKoe KopncTeHe.
  -KopncTeTe ro ypeoT cmo BO becnpeKOpHa cocToj6a. Ppei ceKOE KOpncTeHe HnpaBete Bu3yeHna npOBepka. PpOBepTe rN Noc6Ho 6e36eHOnCHnTE MexAHn3Mn,JeNoBnTe 3a paKyBaHe n HABOJHnTe CNOEBn DaNN Ce OHTeHNu Ce npuBcTeHN. 3aMeHete rN OHTeHnTe JeNoBn Ppei KopncTeHeTO.
• Hnkoraaw He Kopnctete akymnatop wTo e deOpmu paH, naHaT nn OwTeTeH.
  -He rnu 3nOxyBajTe akyMynaTOpOT u nonHaoyoT Ha doxk nnBnara.

i Pa6oTHn BpeMHba

BHHMaBajTe Ha HauNoHaHnHTe/ OIuTINHcKNTe npOnncn BO Bpcka CO BpeMnBaTa Ha KopncTeHe (no noTppe6a npaJte kaj BaWaTa HaNLeXHa cLyX6a).

i PnodaToCu 3a noIooK6a

Pn HabeYBaHbTo Ha noJox6bata Ha ypeoT (Ha np. JeBO, DecHO) ceKoraaNoarame rneJaHO oB OBeyKaTa KynOla BO npaBeoT Ha paOta Ha ypeoT.

IpeI npBOTO nyuTaHbe BO pa60Ta

HanoJIhete MOTOPHO MacNo

BHMMAHue

Iopadn TpaHcnpTH npuHH ypeoT ce ncpauyBa 6e3 MOTOPHO Macno.

IopadnToa, nped npBOTOnyUtaHe BO pa6Ota HanoNHeTeMOTOPHO MacNo, NOrNeHHeTe BO npupaHnKOT 3a MOTOpOT.

ПОЛнHeBaHa aKymyIaTOPoT (Ypeu co eJektpocTapr) BnImabajTe n noHTyBaJIte rN cUTe HAnOMeHn INΦOpMauN BO BPCKa Co aKymyIaTOPoT I NOnHaCyOT oD npupaHnKOT 3a MOTOpN.

OnachocT od n3ropeHnU od KncenHa/tpyehe

Boektpemn cnuyan Mopa da ce cmeta Ha nCTekyBahe Ha TeyHOCTN IIN rAcOBn..

OnachocT od ctpyeH yap

IpeceKoKopncTeHe IPOBepTe daHn nonHaOT mHaBopeuHn OWTetyBaHa. HnkoraH He KopncTeTe OWTeH nn NaHaT nonHa.

BHUMAHNE

-Проверетадам Мрекаразьг co 220-230 V n 50 HzcooDbETHO Ha noaToUHTe HaTNCKATA O3Haka Ha ypeJOT 3aNOJIHeIe.
-3aHTNTeTRe n akymyNatopOT INONHauOT OBnara,doXd, CHER,KAKO N OD MP3HeIbe.
-Понhoe ro akymyntopot camo BOДобpo npobetpeha n cyBa npocstopja.
- IIO OTCTpaHyBaHbeto Ha akymyIaTOPOT OJBOJTe rONHaYOT OJ MPexkata.
- HnKoraW He cTabajTe npedMeTH BO KOHTaKTtTe Ha akymyIaTOPOT.
- Ppe cekoe pa6otebe Bp3 nouHauot, Toj Tpe6a da ce ODBONd Mpekata.

-He nO TBopajte akymynatopot n nonhaOT. Cnte pa6oTeBa Bp3 akymynatopot n nonhaoT da Ce n3BpUyBaAT BO cneuJa nn3npaHa cepBncha pa6oTnHua.

Cnka2

Ipei npBOTO KopncTeHe Ha ypeoT noHete ro akymyata-Topot oKoJy 1vac.KopncTeTe Ro nOJIHaOT wTo e cOpJkaH BO O6emOT Ha nCnopaKa.

i CoBET

Obemn HOpMaun BO Bpcka co nocTaNkata Ha noJIHeBe n NOKaKyBaOT Ha cocToj6aTa Ha aKymlaTOPOT npOHTajTe BO npnpauHKnOT 3a MOTOpN.

i HanomeHa 3a nccpnyBaHbe Ha noJhaOT BO OTnad

IoiNaHOT noJIeXn Ha npOnncnte 3a nOpnyBaHBe BO OTnaD Ha eNEKtpuHn ypeNi. BnImaBajTe Ha IOKaJIHNTe npOnncn.

MecTeHe npedcekoepa6oTeHe

OnachocT od nobpeda

Ipeceke paobotehe Ha oboj ypei

• U3rachete FO MOTOPOT,
  -13BJIeKETe FO KnyOT 3a IanaHeBe (aKO UMa),
• NOyeKaJTe CNTe NOBnXHN DeIOBN CEIOCHO Da DojDaT BO MnpyBaHBe; MOTOpOT Mopa da e N 3 J a D e H,
  -ИЗБЛЕЧЕТЮпИКПУOKOT3a CBeКИЧКАТа 3a пале He MOTOPOT,3aДа спpeчite HecaKaHO CTapTyBaHbE Ha MOTOPOT,
• OtctpaHete ro akymyntopot 3a cTapTyBaHe oD MOTOPOT.

MoxhoCT 3a DToTepyBaHBe (BO 3aBnCHOCT Od MoJeNOT) OO OKoIy 3 cm Do HajMHOry 9 cm.

i CoBeT

Kaj ypeNi co MeCTeHe co eHOTpkaNo HameCTeTe rN CNTe TpkaJaHa NCTa BnCnHa.

MOnenA

PnucBpCTe Tn TpkJaTAt BO cakaHaTa NIOJX6a.

MoeB

■ NobneyeTe ro ja3nueTo n BJIeKNIteTe ro Bo cakHaTa noJox6a.

MoDcN C

■Повlete ja paqukata Ha ueHTpaHHTO MeCTeHBe Ha BnCnHaTa HAnapd IInn HnHa3aD IN BLeJnxTTe T OBO CaKaHaTPOJIOx6a.

3aKnyuBaHBe Ha npedHnTe Tpkana

(cam0 3a ypei n co npedHn Tpkalna To ce 3aknyybaat)

Cnka 4

3aknyte Tn TpkanaTa 3a BO3eHbe npabo - Hacoyete Tn TpkanaT a npabo, a JAKOT BO rOJEMNOT OTBOP.

TpkaJata ce DnKaT cNo6oNHO JaKOT BO MAnIOT OTBOP.

PonHeBe ropNo n npOBepKa Ha HnBO Ha MacJIO

■Понhte 6e3oJOBeH 6eH3nH (IorJIeIHeTe BO npnpaHnKOT 3a MOTOpOT).
I POnHeTe ro pe3epBoaopT 3a I norOHcKO rOpNBO HajMHOry Do 2 cm noD doHnOt pa6 Ha OTBOPOT 3a nonHeIbe.
LbpcTo 3aTBopTe ro pe3epBOapOT 3a noroHcko ropnBO.

• PpOBepeTe ro HnBTo Ha MacNo, no nOtpeBa dOnonHeTe (nOrneHHeTe BO npPauHnKOT 3a MOTopoT).

UncTeHe Ha nperpadaTa 3a 6atepnja Ha MOTOPOT

OCTpaHete rN tyfnte TeJa HneuNcTOTnjaHa nperpadaTa 3a 6aTeepn CO Kpna N YeTka.

CTapTuBaHbe Ha MOTOPOT Cnka 5

OnachocT

3a 3awitura od noBpeu,

-He ro cTapTyBaJTe MOTOPOT KORA CTOnTe Ipei NcΦpnyBaHbETo;
-Држete rN dlnaHKeT e nCTOnanataNoJaNeKy Ope3HNOT MExaHu3am;
- HNKORAHe nIOCTaByBajTe DnAHKITE, CTOnaNATA INN dpYrH DeNoBn OJ TeNOTO BO 6n3nHa Ha BPTINBITE DeNoBn. Cekora stOjTe noaneky OJ NcDpnyBaHeto.

Ipea ro cTapTyBaTe MOTOPOT OcnoBodete rncuTe pe3Hn aJatn I NOrOH.

He ro npebptybajte ypeoT npn CTapTyBaHbeto. NapkpajTe ro ypeoT ha paMHa NOBpsiHa CO wTO e MOxHo NOKpaTKa TpeBa INN CO MaNKy TpeBa.

i CoBETn 3a MOTOPOT

-BHnMaBajTe Ha HhOpMaunTe BO npnpaunKOT 3a MOTOPOT.
- Hekon MoeJIH Hemaat paKa 3a rac, 6poJoT Ha BpTeKn Ce MeCTn ABTomatcKn. MoTopOT cekoraW pa60Tu co ONTMaJeH 6poj Ha BpTeKn.
Hamectete ro akymyataPOT 3a cTapTyBaHe BO nperpadaTa 3a 6bATEpuJa Ha MOTOPOT, 3a da ce BJIeKuHTn - Cnka 5A.
OTbopeTe ja YeUMaTa 3a 6eH3nH (ako nMa).
PaKaTa 3a rac (ako nocToN) Ha /max Cnka 5B.
3actaHaTn 3aJ ypeJoT npntncHeTe ro 6e36eHocHnot naK n 3aDpxKeTe ro-cnka 5C.

3aBpTeTe ro KnyOT 3a naJeHBe Ha rnaBaTa 3a BOeHbe, 3a MOTOpOT da CTapTyBa (Obnd 3a cTapTyBaHe MaKcImaJIHO 5ceKynDn, nped CneJHnot O6nd noYeKaTe HajMaJIky 1 MmHyta)- Cnka 5C.

Kora pa60Tu MoToPoT:

IIO cTapTyBaHBeTo Ha MOTOPOT NOBHeTe ja paKaTa 3a rac (ako noCTOn) Mery max n/min, 3a MOTOPOT Da ce nyuTN da ce 3arpeBa Ha KpaTKO.
3a KoceHe TpeBa NoCTaBeTe ja paKaTa 3a rac (ako noctOn) Ha nOH rac.

Cobet

Дуги Инфорmaци 3a pakyваньeto CO MOTOPOT MOKete Д apochnate BO npupaHnKOT 3a MOTOPOT.

CtonpaheHaMOTopoT

Cnka7

PaKaTa 3a rac (ako noctou) BO nonox6a min.
OtnyTeTe ro 6e36eHOCnOT nak. Motopot n pe3Hnot aIaT cToIIpaat no KpaTKo BpeMe.

Pabota co ypeDoT

BknyyBaHbe/ncknyyBaHBe Ha norOH Ta TpkaJaTa

YpeNcoCTpaHnUHOncpnyBaHe:

Cnka 9

MOnTpajTe ja 3aUHTnTaTa Oyap/6paBata 3a MmKnpaHe Ha MeCTOTo Ha CtpaHnHuNtNcΦpJyBauch (Clnka 9A).
NIN
OTCTpaHete ro cTpaHnUHNOT nCpnyBaY - 3aWTntaTa od ydap/6paBata 3a MNIKupaHe ce 3aTBopa aBTOMATCKI (Cnka 9B).

MoHnucpaHe Ha ypei 3a cTpaHnUHO nCpnyBaHe (3aBnCHO OJ N3BeD6ata)

• DOKONKY NOCTO: OTeTpaHete rO co6npaTuOT 3a TpeBa nCnyuTete rO 3aHnot Kapanak 3a NcPpnyBaHe.
  IOnnHHeTe ja 3aWtntata od yap/6paBaTa 3a MmKnupaHe n MOHTnpajTe ro cTpaHnHnOT nccpplyBaay (Cnka 9C).

IkojaotHa pa6oTaTa

I3BneyeTe ro knyoT 3a naenehe (ako nma).
IopoekajTe cHTe NOdBnKHN DeIOBn ceIocHO da DojDat BO MnpyBaBe n MOTOpOT da ce N3JaN.
3aTbopeTe ja cnaBnHaTa 3a6eH3nH (ako nocToN - nOrneIHeTe BO npnpaunK 3a MOTop).
13BneyeTe ro npKnyOKOT 3a CBeKnUkata 3a naJeHbe Od MOTOPOT.
Icnpa3Hete ro 36npuaOT Ha TpeBa.
OTcTpaHete ro akymyIaTOPoT 3a cTapTyBaHbe OJ MOTOPOT - Cnka 16.
- ПО.notpe6a ДОПONHETe ro akymylatopot. Слпka 17 3a npOBePkHa ha coCToJ6aTa ha haNoIhETOcT Ha akymylatopOT npITnCKajTe ro konHcTe (1) Ha akymylatopOT. LED (2) ja npIKaKByBaAT npi6LnxHata coCToJ6a Ha HANOJIHTOC. Kora TpeNka HeKoe LED BeDHaW dOIpONHeTe ro akymylatopOT.

Cobet

OcTaBajTe rnyupeiNe Bo 3aTBopeHa npocToPiJa camo CO n3nadeH MOTop.

Cobetn 3a Hera Ha TpeBaTa

HeKoIky COBeTn 3a BaUata TpeBa da pacTe 3dpaBO n paMOHOpHo.

Kocehe

TpeBaTa ce coCTOn OJ pa3JIuHn BINOBn TpeBa. Kora YecTo KOCHTe 3aCInJeHO pacte TpeBa wTO mHa CINHeN KOpeH N CO3DaBA CINHa XINla.AKO KOCHTe peTKO 3acNJeHO ce CO3dAbA TpeBa CO BNCOK pACT IN DpyrN DnBn TpeBN (Ha np. DeTeJIHa,NETPOBka).

HopMaHaTa BnCnHa Ha TpeBaTa
n3HecyBa OKny 4-5 cm.Tpe6a da
ce Kocn cAmo 1 / _3 od BKynHaTa
BnCnHa; 3NaHy npn 7-8 cm Da
ce CeYe Ha HopMaHa BnCnHa.
IIO MoXHOCT TpeBaTa Da He ce
ceYe nOKpaTKO od 4 cm, INaKy npn
CyBOcT Ce OWTeTyBa XInaTa Ha
TpeBaTa.

Bucoko n3pacHaTata TpeBa (Ha np. no roiweH oMOp) eTanHO da ce Kocn Ha HopMaHa BucnHa.

Pn KocHeTo cekoraU octaBajTe npynte da ce npeKlOnyBaat no MaNky.

Губpeьe (co np6op)

Pn KocbeTo TpeBaTa ce ceYe Ha MaIi napuHa (okony 1 cm) n octaHyBa da Jexn. TpeBaTa IO6nBA MHOrgy xpaHnBn COcTojKn.

3a onTImaJIeH pe3yIITat TpeBaTa Mopa Da ce ODpxkyBa KpaTKa, NORHeHete N BO NORnAbje «KocHe». BHNmAbajTe Ha CneDnHTe COBtN npi rHy6peHbeto:

-HeKoceteBnaXHaTpeBa.
-HeKocTeNoBeKeO2cmoBkyHnHaTaDolJxHnHaHaTpeBaTa.
- Onde Te noneKa.
- UckopncTeTe rMaKcMaJIHnOT 6poj Ha BpTeKn Ha MoTOpOT.
- PeIDOBHO YIcTeTe rO pe3HnOT MEXAHN3aM.

TpaHcnpT

Kycn naTeKn paHNo

Onachoct

BptnnBnot pe3eH MexaHn3am MOKe da rN 3aΦaTu npedMeTne I Da rN nCΦpN, npuToa npedn3BukyBaJKn TETa.

3a ypeoT da ro dBnKte no NOBpunHn wTO He ce TpeBHATN, PpeTXoHcO ctonnpajTe ro MOTOPOT.

Co BO3nIO

Onachoct

Ipei cekoj tpaHcnpot n3rachete ro MOTOPOT N OCTaBeTe da ce n3nau. IVBneye To npNKnyyOKOT 3a CBeKnUka 3a NaNehe. He ro npBe3yBaJte ypeoT BO HabeHaTa noNoK6a.

Obe36eTe ro ypeTo npu TpaHcnpT Ha nn BO Bo 3nNoTO DOBOnHO od HecaKaHO n3raHe. IpeBe3yBaJte ro ypeTo camo Co npa3EH pe3epBoap 3a rOpNBO. Kanakot Ha pe3epBoapOT mopa da 6nJe 3aTbOpEN UBPCTO.

Ypeu co npeknoniba BODJIka: Cnka 10

3a noIeCHO CMeCTyBaHc co6epTe ro ynpabyuOT.

OdpxkyBaHbe/ChteHbe

OnachocT

3a 3awtnta od nobpeu npn cekoe pa6otehe Bp3 ypeoT

• U3rachete FO MOTOPOT,

• INBneyeTe FO KnyOT 3a NaIeHe (aKO nMa),
  -NouekaTe CNTe NOdBnXHN DeIOBn ueIocHO da doJat BO MnpyBaHbe H MOTOPOT da ce U3JaN,
  -ИЗБЛЕЧЕТУ ПРИКПУСКOT 3a CBeКИЧКАТа 3a пале БОД MOTOPOT, 3a Дд СпpeчITE HecaKaHо CTapTуВаНe Ha MOTOPOT,

• OtctpaHete ro akymynatopot 3a cTapTyBaHbe oMOTOPOT,
  -BHIMMABajTe Ha JONONHHTENHITECOBETN BO npnpaunKOT 3a MOTOPOT.

Onachoct

3a 3aHTa OJ NOBpeN OJ pe3Hnot MexAHn3am CNTe paBOTu KAKO 3aMeHa NIN DONONHTeHNOUIPTeHe Ha pe3Hnot HOK BpIWeTe IBO CTpyeh CepBVC (NOTpe6Hn Ce CneuiJaan anATn).

BptexeH MOMeHT Ha 3aterhybahe Ha 3abPTkata Ha HOXOT:

-51-68 Nm (Kocnkn 3a TpeBa co YenuHo Kykntte)
-36-44 Nm (Kocuikn 3a TpeBa co nnaCTnUHO KIuWite)

BHIMAHne

Cekora npebptybajte ro ypeodT ha Toj HauHn CBeKuKhata 3a naneHe da NokaKyBa Harope 3a IOROHCKOTO rOpNBO HnM MacNoTO Da He PpeDn3BnKa OwTeTyBaHe Ha MOTOPOT.

OdpkByaHbe

BHMaHne

BHHMaBaJte Ha npOnncite 3a OdpxuBaHe BO npPauHnKOT 3a MOTOpOT. Ha kpaJot Ha ce3ohata npOBepTe ro n OdpxuBaJte ro ypeDTo BO cTpyeH cepBnC.

CITE nonpaBKN 3BpUyBajTe rncamOB CNEuJaHn3npaHa cepBncha paOToNnHua.

BHIMAHne

3arpo3yBaHBe Ha XNBOTHaTa CpeiHa OJ MOTOPHO MacNo.

CTapOTO macno no npomehaTa Ha MacNo npedajTe ro Ha cObnpHO MecTo 3a CTapo MacnIO uH BO OTnA.

3arpo3yBaHBe Ha XHBOTHaTcpeiHa oAkyMynatOpN.

VCTPOWEHHTe akymyntopn He Cnaraat BO KYKHNOt OTnaI.

IpeajTe nHcTpoWeHnte akymyNatOpn Ha Baunot npoJaBaaynnHa OTnAd.

OTctpaHete rnaakymynatopute nped yHnWtYbaHeTo Ha ypeoT.

i COBET

BnImaBajTe Ha nHTepBaJIte 3a KOHTpOJa N OdpxyBaHe BO npnpaunKOT 3a MOTOPOT.

Bo 3aBnCHOCT OJ MOeJIOT, BaINOT ypeI e onpeMeH co eNeKTPoHcN NOKaKyBaU 3a cepBncipaHe (Cnka 13).

BnImaBaJte Ha COoDbETHnTe nokaxyBaun 3a cepBncupahe, DOnOJIHTeJHo Ha NcMeHnTe HApOMeHn 3a cepBncupahe.

PaKyBaHbETo n Dpyrnte HnΦopMaun MoJnme npOHTajTe rN BO Noc6hOTo yNaTCTBO 3a paKyBaHbe, KOe ITO e npNJIOxHo CO NOKaKByaOH T3 a cepBnCnpaHbe.

Ppe,cekoja pa6oTa

PpOBepeTe ro HnBOTo Ha MacNo, no nOtpe6a dOTypeTe.
PpOBepeTe DaJIH HABoJHnTe BpCKn Ce UbpCTn, No NpTpe6a 3aTeHHeTe.
IpoBepTe rH 6e36eHochnTe ypeN.
OcTpaHete rN Tynte Tena HneHCTOTnJa Od nperpaData 3a 6atepnja Ha MOTOPoT CO Kpna N YeTka.

PpOBepTe ja TOnkata Ha 3aΦaKaHe Ha CnojkaTa:

(camokajypeNi co noroH na TpkanaTa)

-Додак моторот pa6otn nИСКЛУЧЕн e NOrOHOT HaТPkАлATA ypeДOT He CmeeДа ce ДвЖи HaHaNPeД.
-ДодакамOTOPoT pa6OTn IN BKnyeH e NOrOHOT Ha Tpkanata ypeDToT Tpe6a da ce BO3N HHaHApE.

Cnka 15

IIO notpe6a doTepaJte ja ToUkata Ha 3aPakae co NOMOu HA 3aNueCTOTOPKaJIO/ HABrTKaTa 3a DOTEpyBaHe Ha paUKaTa 3a IOROH Ha TPKaJaTa (Cnped n3BEd6aTa, od DOJIHaTa CTpHa Ha KOH3OJaTa 3a BKlyuYBaHe) INn CO BNeuHaTa cajna.

i COBET

Kaj Hekon MoJeJn He nocToM oXHOCT 3a DoTepyBaHbe.

No npBnte 2-5 pa6oTHn YacOBn

PpomeHete ro macnoto, nOrrJeHNHe BO npJIOXeHNOt npIpaunK 3a MOTOpOT.

No ceKoe KocHe Nn no nOtpe6a

-Донолгете ro akymynaTopoT.

EHaBbOce3oHaTa

PpomeHete ro macnoto, nOrrJeHHeTe BO npINOxKeHNOT npIpaUHk 3a MOTOPOT.
IopMauchajTe r3rNoobnTe n BpTInbata npyKHa Ha noknoneot 3a nccppnyBaHe.
Ha Kpajot Ha ce3oHaTa npOBepTe ro n OdpKyBajTe ro ypeDTo BO cTpyuHen cepBnC.
PeIOBHO npOBepyBaJte rna kMyIaTOPOT n POnHaQOT (HajMaJIky 1x roDiuHo) BO cneJnJaINn3npaHa cepBncha paOToNnHa.

YnCTeBe

BHMMaHne

UcTeTe ro ypeIOT no cekoja npmHa. HencCnCTeHnot ypeB BODN KOH OWTeYBaHe Ha MaTePnJaNT u Ha fYHKUMOHpaHbeto.

3a YnCTeHe Ha KOpNCTe YnCTaY NOBNCOK PnTNCOK.

YnCTeHbHe Ha 36npaUOT Ha TpeBa

No MoXHOCT YnCTeTe rO ypeDoT BeHaH No KOceHeTo.

YncteHe Ha nperpadaTa 3a 6atepnja Ha MOTOPOT

• OtctpaheTe rTuYrnte TeNa HHeuHCTOTnjata OJ npepradaTa 3a BaTeepnja Ha MOTOPOT co Kpna N YeTka.

Upei6e3 cncTeM 3a MneHe Ha kanakot:

IcncTeTe rnpocTopoT 3a ceyeHe n POKNoneOToT 3a nCpplyBaHbe co Yetka, paHa MeTna IIN Kpna.
IocTaBeTe ro ypeoT Ha TpkaJa
NOTCTpaHeTe rCtE BnDnBn
OCTaTOU n O TpeBa
H HeuNcTOnjia.

YpeNco CnCTeM 3a MneHe Ha kanakot:

Cnka 14

Kocnilknte 3a TpeBa CO CnCTem 3a MneHe Ha KaNak Ce OnpemeHc Co PnPKnyOK 3a BOJa. Co Hero MoKaT Da ce NcPJIaKHaT OCTaTOUnte OD TpeBa OD DOJIHaTa CTpaHa Ha KaNAKOt Ha KocnilkaTa H Ce CnPpeyBa TaIOnKeHe Ha KOPOINPaQKn XEMnKaJIn.

No KocheTo noCTanete Ha cnEHNOT HauH:

IocTabeTe ro ypeDoT ha pamHa nOBpUHa,6e3 7JbYnak, KaMunBa n cI.

i COBET

OTBOPOT 3a nCΦpnyBaBe He Cmee Da Ce HAcOyBa KOH KyKn, rapaKn N CJI.

MoHTnpajTe 06uH aAnTep 3a UpeBO (no n36op e BO o6emOT Ha Ncnpaka) Ha UpeBOTO 3a BODa H npKnyte Ro Ha npKnyOKOT 3a BODa Ha KaNAKOt Ha KocnIKAta.
IpywTeTe B0da.
CTapTyBajTe ro MOTopOTn OCTaBeTe ro da pa6OtN HEKOLKy MNHyTN.
I3rachete ro MOTOPOT NOTCTpaHete ro UpeBOTO 3a BOda oJ ypeDTo.

No 3aBpUyBaHbeto Ha nocTaNkata Ha YnCTeHe:

CTapTyBajTe ro MOTopoT n OCTaBeTe ro da pa6oTu HeKoJky MNHyTu, 3a DoJIHaTa CTpaHa Ha KaNAkOT Ha KocINKaTa Da ce NcUuN.
CTonnpaHeHaMOTopoT.

CTabaHe BO MnpyBaHbe

Onachoct

OnachocT od ekcnno3nja n noxap. HnkoraH He ro cmeCTyBajTe ypeDTo CO norOHcKO rOpNBO BO pe3epBoaPOT BO IpOCTOpN BO KOn ITO NcnapyBaHaTa OJ NorOHcKOTO rOpNBO MoKe Da DoJaT BO DOnnp CO OTBOpeH OrAH nnN NCKpn.

BHUMAHNE

OwTeTyBaHa BO MaTePnJaNTo Ha ypeIoT.

• yBaJTe ro ypeIOT (co n3naJeH MOTOP) cAmO BO YnCTn N CyBn npocToPm.
• Pn noonro CmecTyBaHbe, Ha np. BO 3ma 3aunTeTe ro ypeoT oN Kopo3nja.
  HyBaJTe rN akymyNaTOpOT N NOHaOT Ha CTyDeHO N CyBO MecTO.

-3aunntete n akymnatopot n nonhaot od Bnara,doxd, CHER, KAKO N OD MP3Hehe.

Ioc3oHaTa nn Kora ypeodot Hema da ce KopnTn noDolro od eDen Meceu,

IcnyuTeTe ro norOHCKOTO TOpUBO BO COODBeTeH CaI N CTaBete Ro MOTOPOT BO MnpyBaHe KaKO uTo e ONnShaHO BO npnpaHKnOT 3a MOTOPOT,

BHIMAHHe

Vcnyutajte ro norOHCKOTO ropnBO cAmo Ha OTbopeHo.

Icunctete ro ypeodTn 3bnpaoyt Ha TpeBa.
CnTe MeTaJIHn DeIIOBn 3apaJn 3aUHTNa Od Kopo3nJa n36pNIeTe rN CO MPcHa Kpna (MacNo 6e3 BOCK) IIN NCnpckajTe rN co MacNo.
- NohHeBe Ha akymyNaTopoT.

TapaHunja

Bo cekoja 3emja BaxkaT od HaWeTo npetnpnjaTne nIe OJ yBO3HnKOT 3aJaDeHnTe rapaHcNCKyUCNOBn. PpeKNTe Ha Baunot ypeD Bo paMKNTe Ha rapaHcNCKNt pOK Tn OTCTpAnyBaMe 6ecnPaTHO, DOKOJIky npuHHaTa 3a HNB MOKe Da 6nDE rpeKa BO MaTepnjAnot Nn BO npOn3BOdCTBOTO. Bo cnyaj Ha rapaHcNiJa MoInme o6paTe ce Ha BaUnot npOdaBaYnHa Haj6nckata fnnjana.

HΦopmaunja 3a MOTOPOT

Ipon3BOIDTeJOT Ha MOTOPT rapaHTnpa 3a CnTe npo6IeMn IOBp3aHn CO MOTOPT BO nOJIeHa CNINHaTa, MepeHeTo Ha cnIHata, TexNcKITE NOaTOu, rapaHcjuTa n cepBncOT. IobnCKn HOpMaun Ke HajTe BO NocebHO Ncnpa- yAHnot nppaHnk 3a CONCTBeHKnOT/paKyBaHbe OJ Ipon3BOIDTeJOT Ha MOTOPT.

OTKpNbHe n OTcTpaHyBaHbE Ha npeuknte

Ipeuknte npaobotaHa Baunot ypeq cheTo naHmaaTeedHOCTabHn npuHHn ITO Tpe6a da
rno3naBATE n deJyMHO camnte da moKeTe da rOCTpaHnTe. Pnp dBOyMeHe co 3aIOBOJCTBO Ke
Bn nomorHe Baunot cTpyeH npoDaBaU.

PpO6IeM MoXHa npuHa Iomou

MOTOR OH He pani. Pachkata 3a rac e BO He npabunna nojok6a.	Pachkata 3a rac BO nojok6a |Пли CHOKE (при незагreed Motor).
	Pachkata 3a rac BO nojok6a |Max. или START (при загreed Motor).
Kosciillkata StOn BO BnCoka TpeBa. Пocstabete ja Kosciillkata Na nobpshinha co Hncka TpeBa.
Hema noorhcko rorpbo BO pezepboapot.	HanoiheTe ro pezepboapot co chstTo, cbeko noorhcko rorpbo.
Прилчokot 3a СveknchkaTа 3a палеBJe He e HameCTeH.	HameCTeTe ro prioknyokot 3a cbeknchkaTа 3a палеBJe.
ПогонсOTO rorpbo e CTapo nii n3BaJIkaHOb.	ЗаменTe ro noorhckoto rorpbo co cbeko.
Фиltetot 3a Bo3dux e n3BaJalKaH. Исчstete ro Фиltetot 3a Bo3dux.
Akymynatoporot He e noctabehn правilnho.	HameCTeTe ro akymynatoporot prabnilho BO ngperpaDATA 3a 6atepiJa Na motopot и ВLEKniSTeTe ro.
HanoiHete ro akymynatoporot. HanoiHete ro akymynatoporot co ncopaHaHOT noIHaN.
Kabelot e oStTeH. ПрOBepete Дали селкtrpuchnOt kabel e BO peД.
Akymynatoporot e paciPahn. ПрOBepete ro akymynatoporot BO cpeziJalnizupaHa cepBncha pa60tulnHa.
HeobuHn 3Byu, (SVeZkaHb, kpueHb, TrpOaHb).	3aBPKITE, HabrTkite nii dpyrHte DeJIOBn 3a прuzBPCTyBaHb ce La6abAn.
Потreci, Вибрацhi. Hoxot e na6ab.	3aBPTKata 3a priucbpctyBaBe Ha Hoxot cterHete ja BO cTrpyen cepBnC.
Hoxot e oStTeH.	3amehete ro hoxot BO cTrpyen cepBnC.
Hoxot He e npabunHn 6aJanncipan.	3amehete ro hoxot BO cTrpyen cepBnC nii 6aJanncipajTe ro.
ПрицbpctyBaHbeto Ha motopot e La6abO.	Priucbpcte To MOTOPOT BO cTrpyen cepBnC.
Heinst re3 nii 6pojot ha bptexki na7a.	TpeBata e npeBnCoka.

PpO6IeM MoXHa npuHa NOMo

• KoUeHnra3OHa BOKpyr DOMa Hn Ha caIIOBbIX yuactKax.

IIO6oe dpyrooe nCnoJb3ObaHne He COOTBETCTBYeT Ha3HaueHnIO.

Bpe3yIbTaTe HcNoIb3OBAHnna
N3dJIaHNe He No Ha3HaueHnIO
rapaTnI ppeKpaIaet CBoe
DeIcTBne I N3rTOBtIb CHMaET
Cce6BaBCIO OTBETCBENHOCTb.

IoiJIb3OBaTeJIb HeCET OTBETCTBeHHOCTb 3a IpiuHHeHne TpaBMIOCTOpOHnIM JIncAm N IOBpeK-DeHne INX IMyUeCTBa.

CamaOBbHbIe N3MeHeHnA
N3dJIy NCKIooaHT OTBETCTBEHHoCTb N3ROTOBNTeJI 3a
BO3HKnUHe B CBA3n C 3TUM
IOBpeKdEHN.

O3HaKOMJIeHne c yka3aHnIyMn no 6e3oNaChocTn uynpaBNeHIO

Kak nojb3OBaTeIb DaHHoro
ycTropoIcTba,pepeI nepBbIM
nCnoJIb3OBaHHeM n3deJIINr
BHIMATEJIbHO npOHTte DaHHoe
PykoBOdCTBO NO 3KcnnyatauIN.
DeiCTByIe B COOTBeTCTBUN
c Yka3aHnIMN COxpaHITe
PykoBOdCTBO dIra DaJIbHeiJwero
ncNoJIb3OBaHnI.Hn B Koem cIyuae
He IIO3BOJnIte DeTAM INI INpYrIM
NIuam,He O3HaKOMNBUnMCs
c DaHHbIM PykoBOdCTBOM IO
3KcnNyatauIN,NOJIb3OBaTbcR
n3deJIeM.

Pn CmHe NOJb3OBaTeJI nepeaIte PykoBoDCTBO nO 3KnpyatauBMeCTe cn3dennm.

Obune yka3aHnna no 6e3oNaChocTn

B daHOM pa3dene Bbl haJeTe
obuue yka3aHnno 6e3oNac-
HOCTn. PpeynpeXdeHnra,
OTHOscAunecKOHKeTHO
K OTDeJIbHbIM DeTaJAM n3DeHnra,
ero fynkCnM nI npabOumm
OepauqnaM, Bbl hainTe
B COOTBeTCTByIOUcE m pa3dene
daHHoro PykoBOndBa.

Yka3aHnno TexHnke 6e3oNaC-HocTn n npabuHa nO ekCnIyatauIN DBrIaTeJIa, AkKymJrAToPHOJ 6bIapen n 3apRAnHO rCTPOcHTBa aKKymJrAToPHOJ 6bIapen Bbl HaJeTe BO BXODaEM B KOMNKeKT IocTabKn pyKOBoDCTBE NO 3KcnIyatauIN DBrIaTeJIa.

Ipepa6oToCn3dennem
Nua,ncnoB3yUOuue n3deJe
He OJXHbHaXoDnTbcra NOD
BO3eJCTBnEM NCXoAKTNBbIX
BeueCTB,KaK HaNP.,anKOroJ,
HapKOTIKOB ININ MeDnUHCKNX
IpenapaTOB.

3anpeaetcncnoIb3OBAHne
n3deJnna, a TaKKe BblNOJIHeHne
kaknx-Jn6o pa60r, HApP.,
npOBedeHne TexHnueckoro
06cnyXKBaHnra, BblONHeHne
ChtKn, HAcTPOiKN, NlCuAMN,
He DoCTnURHMn 16-NetHerO
BO3pacta. MeCThblm 3aKOHO
daTeJIbCTBOM MOryT yCTaHaBNI
BaTbcnHbIe MNHImaJIbHbIe
BO3pactHbIe OrpaHnueHnra Dnla
NoIb3OBaTeJeN.

JaHHe n3dJIe He npEHa3-HaueHo IJn IcNoIb3OBaHnI JIuAMn (B T. Y. DeTbMn) C ORpaHnueHHbIMN pH3nueCKIMN, CEHCOPHBIMN IIN YMCTBeHHbIMN cNoC6HOCTaMn INn C HeIOCTaKOM ONbITaN/INn 3HaHn, 3a NCKIIOUeHNem clyuaEB, KOrDa OHn HaxOJaTcNpD npNCmOTpOM OTBeTCTBeHHoro 3a INx 6e3oNaHOCtBJINa INn POnyInn OT Hero YKa3aHnA, KaK POnb3OBaTbcr IN3dJIeEM.

Bo n36exkHne npc npnbopom DeTn DOJXHbI HaxOdntbcr PoD npncMOTpOM.

Ipeed hauanom pa6oTbO3HaKOMbTeCb CO BcEMN pncnocobJeHnMn nJemeHTamu ynpabHeHn, a TaKe Cnx FyHKnA M.

XpaHnTe TOnJIbNO ToJbKO B pa3peWeHHbIX K IcNoJIb3OBAHIO CneuaJIbHbIX KaHnCTpax N BCerda BdAnOT NCTOCHNKOB TeNla, (Ha np.: neey nIIN BODoHaPReBaTeNe). 3anpaBnIe NTDeJIne TOJbKO Ha OTKpbITOM Bo3dyxe. HnkOrda He 3anpaBnIe NTDeJIne npaPa6TaIoUeM nI IN rOpYem DBrIaTeNe.

3aMeHnTe NOBpeXeHHbIe BbIXIOHoe OTBepCTne,6ak nn KpbIuKy 6aka.

PpOBepbTe npeq nCpNoB30BaHnem:

pa60tocno6hoctb TpaBoc6opHNka n npabnIbHoe 3aKpbITne KpbIuKN Bbl6pacbIBaTeJI.

CneJeT HeMeIeHNO 3aMeHrTb NOBpeKdEHHbIe, N3HOWeHHbIe IIN HeOCTaIOUne DetaII.

• pexyuüne nHCTpyMeHTbl, KpeJexKhIe 60JIbI N BeCb peKyuM MExaHn3M Ha HAIyue cJeIOB u3HOca IIN NOBpeK- DeHn. N3HOseHHbI IN IOBpeKDeHHbI DeTaII N Heo6xOIMo 3aMeHrTb B CneuaN3InpOBaHHo MaCTepCKoTOnbKO KOMPKeK-TOM, YTO6bl NCKJIuOHITb BO3HNKHOBEHne DnC6baHaHCA.

Bxodjuee B KOMnKeT NoCTaBKn
H3dennr 3apJdHoe ycTpoiCTBO,
IpeHa3NaYeHO NCKJIuOHTeJIbHO
DnR 3apJDKN IcNoJIb3yEmoro
B H3deJInn aKKymJYrTopa.

AkkymyIaTOp DoJxKeH 3apXKaTbCra TOJIbKO C NOMOuBIO DaHHORO 3apAnHO rO yCTPOINCTBa.

3aNaChbIe YacTn I npHaJNeKHOCTN DOJXHbI COOTBETCTBOBaTbYCTaHOBHeHHbIM N3ROTOBUntEm Tpe6oBaHnM.

IcnoJb3yTe No3TOMy ToIbKO opnHaJIbHbIe 3aIacHbIe YactN I npHaJIpeKHOCTN IIN 3aIacHbIe YactN I npHaJIpeKHOCTN, DOnyUeHHbIe N3rOToBtTeJeM. Bce peMOHTbIe pa6oTbI DoJIxHbI npOBODTbcraToJIbKO B CneUaJIH-3npOBaHHoM MaCTepCKoN.

BoBpempa60tbcH3deJnem
Pnpa6oTax c H3deJnem nnHa
H3deJnem Heo6xoJMo Hocntb
COOTBeTCTByUOyO pa6OyU
ODeKdy,Kak,HanpImep:

-3aunTHyOo6yBb,

-ДИИHbI e Wtahbl,

-06neraiouoyoJeKny,

-HayuHnKnIJIa3aunTbIopraHOB cnyuXa,

-3aUHTbIe OUYK.

Ha 3dennn DOnxHbI 6bITb yctahOBnEnbI BCE 3aunTHbI npncnocobneHna, HaxoJnuecB INCpabHom COCTOHN.

3aPpeuaeTcBHOCTbN3MeHeHn B KOHCTpyKUIO 3aUHTbIX PnC-nocoben.

IcnoJb3yIte n3dJIeNe TOIbKO B TOM TexHnueCKOM COCTOaHIn, B KOTOpOM OHO 6bIO BbIpyUeHO I corlaCHO npednicaHnram N3rTOBNTeJIa.

HnB Koem Cnyae He N3MeHnTe npedBapnteNbHO yCTaHOBnEHbIe Ha 3aBOe-3rTOBNTeJI HAcTPOKn DBrTaTeJI.

I36eraTe nCTOuHnKOB OTKpbIToro ORHa, NCKp Hc Kypnte.

Ipeep npoBeHnem IIO6bIX pa60T Ha3TtM n3deJnem
Ja 3aunTbI OT TpaBMnPOBaHnna
peep npoBeHnem IIO6bIX pa60T
Ha3 tTM n3deJnem (HaNP.,
TexHnueCKoro o6cLyXnBaHnna Hnn
peryIpnoPoBOuHbIX pa60T) npeep
TPaHCnOpTnpOBKoN (HaNP.,
IOnHrTnEM nIN nepeHoCKoN)
I3DeJIra Heo6xOAnMo:

-OCtAHOBITb DnBnTaTeJIb,
- n3BJIeYb KJIIOU 3aXnIraHnI (npnHaIIuyn),
-ДОЖДаТьСЯ ПОЛНО OCTaHOBKIN BCEX NOДВИЖнБIX DeTaleN OXnaxdEHHДBnIraTeNIA,
-CHYbKoJINaqOK CBeUH 3aJnRanHc DBrTaTeIaI npEoT-BpaueHn HnpeHaMepeHHoro 3aNycka DBrTaTeIa,
-CHrTB CTApTOByIO aKKyMyJnTOpHyIO 6aTapeEO C Dnuratela,
-03HaKOMITbCcIOnJHHTeJIb-HbIMN yka3aHnA MNo 6e3oNaCHOCTNB PyKOBoDCTBe No3KcIIyatauMn DBrTaTeJI.

Iocne pa6oTbC n3dJIeHm HnKOrda He octaBnTe n3dJIe, noka He octaHOBnTe DnraTeJb N He n3BNeYe - npn erO haJIuHn -KnIOU 3aXnHaHn.

3auntbIe npncno6JeHna

Pnc.1

Onachoctb

HnB KOem Cnyahe He NCNoIb3yIte H3JeJIeC NOBpeXdEHHbIMN UJH He NODcoEduHEHHbIMN 3auNT-HbIMN pncnoCo6neHHaMn.

Cko6a 6e3oanachoctn (1)

Cko6a 6e3oNaChOcTn CnyKnt DnB Bawaen 6e3oNaChOcTn, YTO6bl B 3KCTpeHHOM Cnyuae HEmeJNeHHO OCTaHOBNb DBNraTeNb npexkyun MExaHn3M.

3anpeaetc npednpnHMaTb
NONbITKN npedOTBpaTNTb ee
3aHTHyO cyHKUIO.

KpbIuKa Bbl6paCbIBaTeJra (2) IIN npOTnBOyDapHa 3aunTa (3)

KpbuKa Bb6paCbBaTeJIa/ npOTnBOyDapHa 3aUHTa
3aUHaetBacOT TpaBMIpOBAHnpeJxM MExAHN3MOM IIN
BblNeTaIOUIM TBepDbIMn
IpeDMeTAM.N3dJIne MOxHO
3KcPnyatnpoBaTb TOlbKO
C yCTaHOBHeHHo KpbuIKoN
Bb6paCbBaTeJIa IIN npOTnBOyDapHO 3aUHToN.

CNMBOJIbHa n3dEINN

Ha n3dJIbN BbI haiTe HeKaJIeKN C pa3JIuHbIMn CmBOLaMn.

Jaee npBBeJeHb IoRcHeHnKcMBoJAm:

BHHMaHHe
Ipeed BBODOM
B 3KcNpyaTaunIO
npouHTb
PyKOBoDCTBO nO
3KcNpyaTaunIO

ДерхаТь нocToPoHHxВдАЛn OTOnachHOrучactka!

BbIKIOUHTe
DBNATeIb
n N3BJIeKNTe KIOU
3aJINrAHHaNEpeED
npOBeHHeM IIO6bIX
pa6OTHa
n3DeHMe, a TaK
Ke npeD TEM KaK
OCTaBHTb N3deJIne.
O3HaKOMbTecb
c DOIOJIHHTeJIbHbIMN
yKa3aHnA M
B pa3dene
«ДЯ BaWei
6e3OnaCHOCtN>.

Ipepa6otamn
HaPpeKyuImn
HhCTpyMeHTaMn
CHIMatb KOJNaQoK
CBeuN 3axnraHnra!
Depxnte pyKn n HOrn
BdaNt OT peKyuXs
HhCTpyMeHTOB!
Ipeed hAcTpoiKoN
HNo OvNCTkOi
H3dEJIy NNI nepeD
ero npOBepKO
OTKnIOUaTB N3DeJIne
IN CHIMATb KOJNaQoK
CBeuN 3axnraHnra.

OnachocTb TpaBMnpoBaHna - paOtaTb TOIbKO C yCTaHOBJIeHHo IpoTHBOyDapHO3aunTOI.

OnachocTb TpaBMnpoBaHna - pa60TaTB TOJbKO C yCTaHOBJIeHHo 3aDHeckOboi.

OnachocTb TpaBMnObaHnra pa60TaTb TOJbKO C yCTaHOBJIeHHbIM Bbl6paCbIBaTeIeM. CoXpaHnTe DaHHbIe CNMBoJIb IHa n3dEINN BcERDa B YHTaEMOM COCTOHN.

CnMBOJIbI BPyKOBoDCTBe

B DaHOM PyKOBOcTBe NcNoJIb-3yOTc CmBOJbl, KOTOpbie 6paauoT BHMaHne Ha onacHOCTn IIN BaXHbIe yKa3aHn. Hxke npuBeDeHbI noaCheHn KcMBoJam:

Onachoctb

BaWe BHMaHHe oBpaUaETcHa ONaCHOCTN, CB3aHHbIE COnncaHHO pa6OeH OepauJeN, BO BpEmKOTOpO CyIecTByET Yrpo3a DnA JIOdeN.

BHIMAHHe

Bahe BHMaHne obaaetcna OnaCHOCTn, CB3aHHbIe cOnncAHHO paOoey Oepauyne, I KOTOpbie MOryT Nobpey 3a coobon nobpeXdHne n3denn.

i yka3aHne

Copeknt BaxHyIO HhOpMaHIO N COBtI NO NcNOJIb3OBAHIO.

C6opka

C6opka n3delenn n3o6paXeHa Ha pucyHKax B OTeJIbHOM npINOxKeHN.

i Yka3aHne no yTnIn3aun

OcataKny ynaKOBOUHOro MaTePnAna, CTapBle N3dEIny I T.D. yTINN3nPOBaTb B COOTBeTCTBNN C MecTHbIM NpeDncaHnAMyN.

3Kcnpnyataua

O3HaKOMbTecb TaKKe C yKa3aHnMaB PyKOBoCTBe NO 3KcNpyatauIN DBnraTeIa.

Onachocb

Hecyacthblcnya

-BoBpemKaOWeHnIOCTOpOH HneIuca,OcObeHNODeTu,NIN KMBOTbIE,HN BKOEM Cnyae HeDOnKHBi HAXoNTbcra BHeNoCpeIcTBeHHo6n3OCTu OTn3dJIeN.CyueCTByET ONaCHOCTb TpaBMnpOBAHn OTNeTaIOUmm KamHmN Nn DpyrMMPpeMetAmN.

Паденпe

• Iepemeeuane H3dennne TOnbKO CO CKOpOCTbIO Waara.
  -CobnoaTe Oco6yIO octopoxHOCTb npKoIeHN B o6paTHOM HnnpaBneHN, T.e. KOrDa Bby TaHete N3dEenne Ha Ce6ra.
  -При Кошен Ha Kpytbix CKTOHAX N3dJIe Moxet NepeBepHybca N BbI MoXete NOJyHTb TpaBMbl. Kocite NOIpeK CNOHa, HN B KOem Cnyae BBepx N BHN3. He KOCte Ha CKNOHax C yTlOM HaKNOHa 6oJee 20%.
  -БудteOCobehnoOCTopoxhbl npn N3MeHn HappaBneHn DBNKeHn IN Bcerda COxpaHny Te yCTOuHBOE NOIOXeHne.
  -CyueCTByeT ONaCHOCTb TpaBMn-poBaHn np Kooehn Ha rpaHnHybix yAcTKax. KoWeHne B6IINKpaEB, 3eJIeHbIX n3ropOeN IIN KpytbIX CKIOHOB onaCHO.CobIouaIte np Kooehn Be3oNaChoe pacctOAHne.
  -Прн кошени BnaхногТраьВBO3нkaeT ONaCHOCTbCKoJIbxeHnI N3dENnI N3-3aymeHbSeHnI CcenPHeHnKoJIecC NOBepxHOCTbIO N Bbl MoXeTeynactb.KocHTe TOnbKO B TOMCnyae,ecnn TpaBa cyxar.
• Pa6oTaIte TOnbKO npn DHeBHom CBete NIN npn XopoWem NCKYCCTBeHHOM OCBeUeHm.

TpaBMnPOBaHne

-CneNyET Bcerda co6nIouaTb 6e3oNaChoe pacCTOHaHne do BpaAioUeROc INHCTpyMeHTa, ONpeJeHeHHe pyKoTkoYnpaBNeHn.
- Pa6o7a 30Ha NOnb3OBaTe7a BO BpEmr 3KcPnPyatauHn HaxOHTC3a pykoTko ynpabNeHn.
- Hn B KOem Cnyuae He NIOHOCHTe pyKN IIN HOrN K BpaUaIOUMcA DetanrM IIN IOJ HNX.
-He nCNoJIb3yIte n3dJIeNne BO BpEMr IIOXIN X NOrOJHbIX YcNOBn, HAp., npu ONaCHOCTn DoKJa UIN rPo3bl.
-OctaHOBNTe DBNrataTeIb IdoXnTecb OCTaHOBKn peKyuero INHCTpyMeHTa:

B KpaHnX CnyaX He NCKIOUeHO BbIJeHe XNIOKoTeN IIN Ra3OB.

Onachoctb npaxehna 3JIeKTPnueckm TOKOM

IpoBepaTe 3apAnHoe YCTPOINCTBO npeJ KaKdbIM NCIOJIb3OBAHNEM Ha HANUHe BHeuHIX NOBPEXKeHn. HnB KOeM Cnyae He NcNoJIb- 3OBaTb 3apAnHOe YCTPOINCTBO B CNYae NOBPEXDeHn IIN NocJe ero naHn.

BHMMaHne

-y6eintecb, yTO 3NEKtpuecka Cetb HmeeT HanpJxHne 220- 230B uactoty ToKa 504 B COOTBETCTBUN CdaHHbIMN, Yka3aHHbIMN Ha TINOBOITabnue 3apJdHoro yCTPOIcTBa.

-Bepeb aKKyMnyTOpHyIO 6atapeio u 3apraHoe yCTPOIcTB0 OT CbIpOCTn,doXJa, CHera U MOp03a.

-3apjkaTb aKKyMnyTOpHyo 6atapeToIbKO B XopoWo npOBeTpnaBaeMbIX N CyXNX NOMeHnAX.

-3apraHoe yctpoIcTBO OTcoeHNHTb OT 3neKtpocETN NOCNE N3BnueHnN 3 Hero aKKymyTAOPHO bATapeu.

• Hn B KOem Cnyae He BCTaBnTb HNKaNX PpeDMeTOB B KOHTaKTbI aKKymyIaTOPHO batapeu.

-3apraHoe yctpoiCTBO OTcoeHNHTb OT 3JIeKTPocETn IpeI BbINONHeHEm BCEX paBOT HaI Hm.

-AKKyMnyTOpHyo 6bTaapeIO n 3apJHoe yCTPOIcTBO He BCKpbIBaTb. BblIOJIHeHne BCex paB0r HAD aKKyMnyTOpHO B6aTapeeN 3apJdHBIM YCTPOIcTBOM NOpYuATb CNeuHaUN3UPOBaHHO MactepckOi.

Pnc.2

Ipeid nepBbIM nCNoB3OBaHHeM n3DeHnna 3apAHTb aKKyMyJrTOpHyO 6aTapeo B TeueHne ok.1 Yaca. Pa3pewaETcNcNoB3OBaTb TOlbKO 3apArdHoe yCTPOIcTB0 n3 KOMnNEKTA NOCTABKN.

Yka3aHne

Ioppo6Hyu HOpMaHIO O npoecce 3apAdkn N nHdkaun yPOBn 3apAdkn AKKymyTOpHo6batape Bbl haJeTe B pyKOBOCTBe no 3KcNpyataun DBratEn.

Yka3aHne no yTuIN3aCmN 3apAnHO yCTpoiCTBa

3apraHoe ycTPOINCTBO NOJLeKNT yTNIN3aUIN B COOTBETCTBUN C npEINSCAHNIM N O yTNIN3aUIN 3NeKTPoPn6OpOB. Co6JIOnaIte MeCTHbIe npeDnSCAHNIA.

PerynpoBouHbIe pa6oTbI nepei kaxdoi OKcnnyataunei

Onachoctb TpaBMnpoBaHna

Ipea npoBeHnEM IIO6bIX pa60T Hn 3TNm N3eHNEM

• OCTAHOBNTb DBNATeJIb,
  -3BNeueKJIIOU3aXnIraHn（npHaJIuHH）
  -DOXdaTbCnIPOHONOCaHOBKN BCEXIOBnKHBIXDeTaNei; DBURATEb DOJKeH 6bITb OCTbIBWIM,
  -CHTbKoIINaUOK CBeu 3axnIraHnC DBrIaTeNJa InpedOTBpaueHn HnpeHaMepeHHoro3aNycka DBrIaTeNJa,
  -CTapTOByIO aKKyMyIaTOpHyIO 6atapeio CHrTB c DnBiratena.

YcTaHOBKa TpaBoc6bOpHnKa (ToIbKO dJa n3dJIeN c TpaBoc6bOpHnKOM)

Pnc. 11

PnnoHnTb KpbIuKv BbIpaCbIBaTeJIy UcTaHOBnTb TpaBOc6OpHnK.

YCTaHOBka BBICOTbI KOWeHnA

BHMaHHe

BbICOTy KOWeHnHa HepOBHOI NOBepXHOCTN CNeJyET YCTaHOBTb TaK, YTO6bIpexyHn HOK Hn B KcEM CNyae He KaCaJIcra NoYBbl. Pnc.3

YCTaHOBtB BbICOTy KOJIeHnTpaBbl NO JEAHnIO.

PerynpoBka BO3MOxHa (B 3aBnCmOCTN OT MoJeN) OT OK.3cm Do MaKcMym 9 cm.

Yka3aHne

Ha n3dJIINx C nHnBnDyαNbHOI perynpOBKo InKaJDoRO KOJecA, CJeDyET yCTaHOBNTb BCE KOJeca Ha OOnHaKOByO BbICOTy.

MoenbA

3aФнкрOBaTB KOJIeCa BKeIaEMOM NOLOKeHnM MoIeIb B

IOTaHyTb NETJIO 3aΦnKcNpOBaTb B XeJIaEMOM NOJXEHIN.

MoDEnb C

IpeMeCTb BnepeiHa3aD pbUar ceHTpaHn3OBaHHoI peryInpOBKn BbcOTb i 3aPnKcnpOBaTb B XeJaEMOM NONOJXeHN.

Блкровka nepeDHnx KOJec (ToJIbKO n3dJIInc 6LokpyEmbIMn nepeHmN KOJecAMn) Pnc.4

Блokровka kOlec dЯ празмОинeHOrO DBИжЕня ВперeД - yctaHOBnTB kOJIeca В перeДпeп NOLOЖЕнe И перeМecTITb cKo6y B 6OЛьшоe OTBерстNe.

Cbo6oHoe nepemeueHne KOeC - nepemecntb ckoby MaJeHbKoe OTBepCTne.

3anpaBka n npOBepka ypOBHn Macna

3anpaBntb6ak He3TuHnpoBaHHbIM 6eH3nHOM (cM. PykoBoDCTBO no 3KcnIpyatauIN DBuRatela).
YPOBEH TONJIINBA B 6ake He DOJXKeH DoXoIITb 2 CM Do HIXHrO Kpa 3aJIINBHO r NaTpy6ka.
Kpenko 3aKpyTntb KpbIuKy TOnnBHorO 6aka.
IpoBepntb ypOBeHb Macna n, npn Heo6xOaIMocTn,doJNTb (cM.PykoBOcTBoNo3Kcnnyataun DBnraTeT).

UcTka 6aTapeHoro OTeKa Ha DBratene

IocToPOHHne npEdMeTbI n 3aRpa3HeHn ydaJIHTb C6bTaapeHOro OTceKa C NOMOuBTOKaN N UeTKN.

3anyck DvraTeJIa

Pnc.5

OnachocTB

J3aHTbOT TpaBMPOBaHnA,

-He 3aynckaIte DnurateIb, ecnn Bbl haoiTeCb nepeB bblpaCabBaTeIem;
-ДерхиTe HOrn n pyKn BdaJIb OT pexyUeO mExaHn3Ma.
- HN B KOEM Cnyae He NODHOCHTe pyKN, HORN INIIN Dpyrne Yactn TeNa K BpaAuaOuIMCra DeTajm U3denn. IepKNTecb BCerda BdaNN OT BblOpacbIBaTeJIa.

Ipeed 3anyckom DbrarateTn OTKIOHTe CuenJeHne BCEx pexyux HNCTpyMeHToB n npBODOB.He hAKNoHrTB N3dEIne BO Bpem3anycka DbrarateTn. YcTAHOBr TB N3dEIne Ha POBHO NOBepxHOCTNC MAKCImaNbHO KOpOTKo TpaBOu NnC He6Oblu MM KOJIueCTBOM TpaBbl.

i Yka3aHnnoDbnraTeIIO

-O3HaKoMbTeCb C INHΦopMaζnei, npBedeHHoB PyKOBODCTBe nO 3KcIpyatauIN DBrIaTeJI.
-HeKoTOpBie MoDeJIH He IMeIOT pblura ra3a, YnCNo O6OpOTOB ycTaHaBnIBaEtcra ABTomAtnYeCKn. DBrarTeJb Bcerda pa6otaet C ONTImaJIbHbIM YnCJOM O6OpOTOB.
CTAPTOBYO aKKMyJITOPHYO 6aTapeIO BCTABNTb B 6aTapeHbI OTCEK Ha DBNrAteNe TaK, UTO6bl OHa 3aФNKcnpOBanacB Na3e -pnc.5A.
OTKpbITb 6eH3okpaH (npnHaHnUHH).
YCTaHOBtB pbyar ynpabJeHnA DPOCCeJIbHOJ 3acJOnHKo (Pn HAnuH) B NOJKeHne /max-pnc.5B.
BcTaTb nO3aHn3dEJIa - npJkaTb u ydePknBaTb cKo6y 6e3onacHocTN - pnc.5C.
KJIOU 3aXnIraHnHa pyKOarTke ynpabNeHn BKNIOHTb, YTO6bl DBNarTeIb 3aBeIcnr (nonbITka 3anycka MaKc.5cekyHd, neped cneDyIOuEe NOnbITKOINoOx- daTb MIn.1 MNHyTu)-pnc.5C.

Pp pa6oTaioUeM DnurateJe:

Iocne 3anycka DBnraTeTepbUar ynpabNeHApocceHbHOJ 3acNoHKo (npn HAnuH)ycTaHOBtmbexdy maxn/min,HTO6bIKOPOTKOporpTeB DBnraTeNb.
Дя кошеня ra30Ha yctaHOBntb pbIar ynpaBJIeHnЯ dpoCCeIbHoi 3acNoHko (npn HaJIuHn)Ha nOJIhBn ra3.

i yka3aHne

DOnONHHTeBHaN HΦOpMaUaNo ynpabHeHIO dBVaTeIeM npedCTaBHeA B PyKoBODCTBe NO 3KcNpyatauIN dBVaTeJIa.

OctahOBka DBrTaTeJra

Pnc.7

YCTaHOBtbpHar ynpaBJeHnA DPOCCeIbHOJ 3acIOHKO (pN HAIuH) B NOIOKeHne /min.
OTnyctntb ck06y 6e3oNaCHOCTN. DBurateln npexyuyn HNCTpymEnT OCTaHOBATcYpeep3 HeKOTOpoe Bpemr.

Pa6ota c n3dennem

BkIIOUeHne/BbIKIOUeHne npuBoDa KOJec (Tolbko IJIa n3dEInn C npuBOOM KOJec)

Pnc.6A,B,C

BknHueHne npNbOda kOJec

：

IOTaHyTb n ydepeXnBaTb pbiur/cko6y.

BbIKHouHe HnPnBOda Konec

#

OTnyctntb pbuhar/cko6y.

Yka3aHHe dIyI3eJIbB COOTBeTCTBn C pnc.6C

ДяВКЛIOUeHЯ/ВБIKЛIOUeHЯ MOЖHO NcNoJIb3OBaTb KaK JEBbl, TAKИ npaBbI pyIyar IINO6a pbIyara BMecTe.

i yka3aHne

3aHHe Koneca n3dEJIIN npi nepemueHHn Ha3aM MOryT OKa3bIBaT NOBbIeHHoe COnpOTNBHeHne, YTO obycNobNeHo OcO6eHHoCTaMn KOHcTpKuNN. B daHOM cnyaae peYb Ndet He o HEnCnPaBHOCTn, a O TexHnecKnx OcO6eHHoCTaX N3deJIINy. YcTaPAnHeHne 3aTpUdHHeHn (B 3aBNCmOCTn OT MoDeJI): He BbITrNBaR npINBOHyIO CkO6y, nepeDbHbTe n3dEJIne ChaJaHaEMHOro Bneped, a 3aTeM Ha3aD.

I3MeHHeCKOpOCTn npBODa KOJec

(B 3aBNCIMOCTN OT NCIOJIHHeHnA)

BHMMaHHe. OnaCHOCTb NOBpeXdeHnN 3dennr

HacpoKy npo3B0uNTb TOnbKO npn paOtaUoJem Dnuratene.

Pnc.6D,E

Bb6paTb Heo6xOIMyIO CTyneHbCKOpOCTN C NOMOJIbIO MaJIeHb-Koro pbIyara (1/min/ 4/max/

Pnc.6F,G

Bb6paTb cTyneHb ckopoctn c nOmoIbIO pbIyara (1/min/ n 4/max/

i yka3aHne

IpeeknueHne cKOpocTeHa HEnoDbNXHOM N3deJIMMOKET 6bITb 3aTpudHeO, YTO oBcNoBJeHO TexHnueCKMn CBOICTBaMn N3dEJNA.

YcTpaHHeNe 3aTpUdHEnn: TOnyTb npuBODHyIO cKo6y N BblpaTb CTynHb CKOpOCTN.

OTCOeHNHeHne n onycto-
IeHne TpaBoc6opHnka
(ДЯИЗDEПСТРВOC6OpHnKOM)
Pnc.11

Ecnn ckoWeHHa TpaBa ocTaetcnaKaTb Ha 3emne nnn HndNKaTop yPoBnHa 3anOpHeHn (Onn, pnc.12) Noka3bIbAeT, YTO npnEMHnKa Kop3nHa HanoJIHeHa TpaBOH:

OTnyctntb ckoby 6e3onacHOCTn IdoXdaTbcra OCTaHOBKn DBurataTeIa.

IopHrB KpbIuKy BbIbpaCblBaTeNn OTOeUNHHTbTpaBOc6OpHNK.
BbITpRXHyTb coDepxHmoe.

Pa6ota 6e3 TpaBoc6opHnka
Ecnn Bbl ChnmeTe TpaBoc6opHnK,
TO KpbIuKa Bbl6paCbIBaTeNl
ynaTe Bn3. Ppi pa6ote 6e3
TpaBoc6opHnKa CkOWeHHa TpaBa
6yDet c6paCbIBaTbcR Bn3.

IpeoobopyoBaHne Ha MylbUPOBaHne (nra n3deN COnuHOHaNbHbIMn npHaJNeXHoCTaMn dJa MylbUPOBaHna)

I3dennc 3aHnM BbIbPocOM: Pnc.8A

IOnHnTb KpbIuKy Bbl6paCbiBaTeJIa.
OTCOeINHHTb TpaBOc6OpHNK.
YcTaHOBnTb MyJbUpyUoIuN KJIINH (B 3aBNCIMOCTN OT MOdEJI).
OnycntNb KpbIuKy Bbl6paCblBaTeN.

i yka3aHne

Длma moDEJIe CO BCTpoEHHO mIyIbIpyUOSeI cyHKUeI He Tpe6yeTcY yCTaHOBka OTdJIbHO mIyIbIpyUOSeI 3aIryuKn - 3Ty cyHKUIO BblONHReT CneuaJIb-HOH φOpMbI 3aIHyra KpbIuKa (pnc.8B).

I3dJIINc60KOBbIM BbIbPocOM: Pnc.9

YCTAHOBNTb IpOTNBOydapHyIO 3aunTy/MynbnyuOuyo 3arJyuky BmecTo 6OKOBORo Bbl6poca (pnc.9A)
NIN
N3BJIeYb 6OKOBON BbIbIpc - npOTnBOyDapHna 3aUHTa/ MyJbUnpUOua 3aIpyka 3akpoETc aBTOMaTnueckn (pnc.9B).

IpeoobopyoBaHne n3denn Ha 60koBbBb6poc (B 3aBNCIMOCTn OT NCNONHeHnA)

PnHaJIuHn: OToeINHHTb TpaBoc6OpHN KOnyCTNTb KpbIshky 3aHHeRo Bbl6pOca.

IoiHnTb npoTnBOyDapHyu 3aunTy/ MynbnypuOuyo 3aJnykU yCTaHOBtB 6OKOBov Bbl6poc (Pnc.9C).

Pocne 3aBepueHnpa6oTbI

N3Bnueb KIOU 3aXnraHna (npnHaHnnu).
OxJaTbcra NOnHOn OCTaHOBKn BCEX NOdBnKbIX DeTaJeN OXJaXdEHHaBnTaTeJIa.
3akpbItb 6eH3OKpaH (npn HAnuH - cm. PykoBoCTBO no 3KcNpyaTaun DBrataTeJ).
CHaTb KOJInaQOK CBeuN 3aKurAHnC DnurTaTeJIa.
OnycToWntb TpaBoc6opHnK.
CTapTOByIO aKKymyIaTOpHyIO 6batapeIO cHrTb C DnuratTeJI - pnc.16
AkkymyIaTOPHyIO 6aTaapeIO
do3apraNTb npn
Heo6xoJIMOCtN.
Pnc.17

IJIpeMeueHn H3eHnno NOBepxHOCTAM,He NOKpbITbIM TpaBOi, CNeJeYET ChaJana OCTaHOBTb DBuRatEnb.

C nOmoIbIO TpaHcNOpTHoro cpeICTBa

Onachoctb

IpeqKaXdoTpaHcnpTupOBKoOCTaHOITbDviratEnbNdaTbEMYOCtbl.CHrTB KOJIauOK CBeu3aKurHn. He TpaHCnpTpyuTe N3dENe B HAKIOHHOM NOJKeHN. 3aΦNKcnpyTe DOCTaTOH NoAedxHO N3dENe OT CamONPOn3BOJbHOrO CMeUeHn Ipn ETo TpaHCnpTPOBKE B K3OBe NnHa npue TpaHCnpTHoroCpeCTBa.N3dENe TpaHCnpTPOBaTbTONbKO C NyCTbIM TOJIINHBIM bakom.KpbIiKa baka DOnkHa6bITb NIOTHO 3aKpbItoN.

I3dJIInaCo cKJIaHOn pyKoTko: Pnc.10

B HeKOTOpbIX MoDeIax OTCyTCTByET BO3MOXHOCTb peRynipOBKn.

Iocne nepBbix 2-5 yacob ekpnyatau

3aMeHnTb MaCNo, CM. npuIarauoUeecr PykoBocToBo nO 3KcNpyatauIN DBratela.

Pocne ctpnKra3oHa nnn npn Heo6xOmoCTn

AkkymyTopHyo 6aTapeio D03apnTb.

OdINHpa3Bce3OH

3aMeHnTb MaCNo, CM. npuIarauoueecr PykoBocTBO no 3KcnpnyatauIN DBratela.
Cma3aTb 7apHnHpHbe coeHHeHnI npyXnHb KpyeHnHa KpbIwke Bbl6paCbBaTeJI.
B KOHc ce3OHa OTaIte H3dJIe B CneuJn3npoBaHHyIO MaTePCKyIO nI npOBedeHn IPOBepKIn TEXHnueckoro O6CnyXnBaHn.
Iopuyatb cneuaan3npoBaHHO mactepcko peryraepnoe npoeDeHne npOBepkn aKKymJrTopHO 6aTapeu n 3apdHoro yctpoiCTBa (He Mehee OndHoro pa3a B rO).

OuInCTka

BHMaHne

OuHuaIte H3dJIe NocJe KaJdoi
3KcNpyataun. HecobnIOJenHe
DaHHoro Tpe6OBaHN MoKeT
PnIBeCTN K BO3HKnHOBeHNIO
NoBpeXDeHNI MaTePnaIOB
HapUWeHNIO pa6oTOCnOC6HOCTN.

He nCnonb3yIte dIra OUHCTKn BBICOKOHAnOpHbIe OUHCTNTEN.

OuNcTkA TpaBoc6OpHnKa (ToJIbKO dIa N3dJIeNI c TpaBoc6OpHnKOM)

Ppoe Bcero npoN3BOIDnTb OunchKy cpa3y nocne KOWeHnA.

OTcoeINHTbNOnyctOuHTb TpaBOc6OpHNK.
TpaBoc6opHnK MoXHO OuNCTHTb npn NOMOUN MOUHON CTpyu BObl (m3 caoBOrO uHaHa).
Ipeed cJeDyUOuM nCNoB30BaHnem TpaBoc6OpHnKTuaTeJIbHO IpocuyNTb.

OuInCTka r30HOKOcNJIKN

Onachoctb

Pn pa6ote nad pexyumm HOXOM MOxHO NOnyUHTb TpaBMY.
NcnoJb3yIte 3aunTHbIe nep- yATKn.

BHMMaHne

Bo n36exhaHne nobpeXdHnnaBnraTeN O TnonaHnraTOnnBa nnMaCnA, HAKHOHnTe N3deHnE Bcerda TAKIM oBa3OM, YTObI CBeya 3axirAHn8 bbla HanpaBHeHa BBepx.

U3denn He OnpbicknBaTb BDOu, B nPOTNBOM Cnyae 3NeKtpn-yeCKne Detann Moryr BblTN u3 CTPOJ.

Bepueb aKKyMnyTOpHyo batapeu H 3apJHoe yCTpOiCTBO OT cbipocTN.

IIO BO3MOXHOCHT, CNeDyET BCERda OUnuTaB N3dEJIne cpa3y JKe NOcJIe KOWeHnJ.

UcTka 6aTapeHoro OTeCeKa Ha DnIraTeNe

IoctopoHHne npedMeTbI n 3aqr3HeHn ydaNtB c6atapeHoro oTceKa Ha DBnraTeJe C NOMOuTO TkaHn N uetKn.

I3dJIIN6e3CNCTEmblMOKPOO OYNCTKN DEKN:

OuHCTnTb OTdJeHHe,
rpe paCNoIooKeH peKyuNIMexaHN3M,N KpbIuKy Bbl6paCblBaTeJIc NOMoUbIO UeTKN,
BENKA INI TpRKn.

YCTAHOBHTb H3dJIeHa KOJeca N ydaJIbTB BCE BnIMble OCTaTKI TpaBbl dpyrnx 3arp3HeHm.

I3dJIINcCnCTeMoIMoKpO OuNCTKN DEKN:

Pnc.14

(\Gamma a30HOKOcNlK n C c nCTeMoN MOKpO N O uNCTKn DEKn OCHaUeHbI NODKNIuOyeHnEM K BOe. BlaRaOpA r 3TOMy OCTaTK TpaBbI CmblBaIOTCr C HnXHeN CTopoHbI DEKn Ra30HO-KOCnKN, PpeoTbPaUaJ HacNoEHN XIMnuecknx BeIeCTB Koppo3nOHnO Ro DeIcTBnI. IocNe KOWeHnBbInONHnTe CneDyUOuNe DeIcTBnI:

YCTaHOBNTe n3dJIne Ha POBHOI NOBepXHOCTN, CBO6OdHOI OT rpaBn, KamHei N T.I.

i Yka3aHne

CTBOJ BbIbpaCbIBaTeJIr HeJIb3r HappaBJIrTb B CTOPOHy DoMOB, rapaxeH T.I.

IopcoeHnHTe cTaHapTHbI aanTep dna WlnaHra (B Bnde onuB KOMnKeTe NoCTaBKn) K WnHaHy dny BoDby N K NOdkNHOyeHNIO KBODe Ha DeKe Ra3OHOKocnIKn.
OTKpoIe BOyU.
3anyctnte DburaTeIb N OCTaBbTe ero BKIOUeHHbIM Ha HeCKoNbKO MNHyT.
OCTaHOBInTe DBNrataJIb NOTCOeINHInTe WJNaHr IJRA BODbI OT N3dEJIy.

Iocne oKoHuaHn npOcecca OuNCTkn:

3anyctnte DbngateIb N OCTaBte ero BKIOueHHbIM Ha HeCKoJIbKO MmHyT, YTO6bl BbICyWNTb HIXKHO CTOpOHy DeKN Ra3OHOKOcNkN.
OCTaHOBnTB DnRatEnb.

BbIbOД n3 3KcPnyaTauuN

Onachoctb

B3pbIbO- n NOxapooanacHOCTb. Hn B KOem cnyae He XpaHnte N3dJIeNc C TOnNtBOM (bEH3nHOM) B TOnNtBHom bake B NOMEueHnX, rDe MOKET IPOU30uTN KOHTAKT napOB TOnNtBA C NCTOCHNKAMN OTKpbIHor OHR NIN NCKP.

BHMMaHne

IobpexdennMaTePnAnOB n3denna.

-XpaHnTe n3dene (C OCTbIBWIM DBNrAteJeM) TOJIbKO B YNCtBX IN CYXNX NOMeUeHNJX.
-3aunuatae n3dene npn dnttebHOM XpaHeHN, HapnpMeP, 3mO, OT pKaBvHbl.
-AkkymyIaTOpHyo 6aTapeIO U3apJHoe yCTPOINCTBO XpaHITb B IPOXnADHom U CYXOM MeCTe.
-Bepeb aKKyMyJrTopHyu
baTapeU u 3apJdHoe
yCTPOIcTB0 OT cbIpOCTn,doXJa,
CHera n MOp03a.

IIO OKOHaHn Ce3OHa IIN ecnn 13dEne He 6yDet nCNoJb3oBaTbc60one Ondoro Meca, CneDyeT:

CINbTOnnBOB NOxOJaUyO EMKoCTb N3aKOHcepBupOBaTB DBuRaTeNb, KaONcaHo B PykoBoDCTBe No 3KcnIya-taun Dnuratela.

BHUMAHNE

CnBaTb TOnJIINBO ToJbKO Ha OTKpbITOM BO3dYXe.

OuHCTnTb n3dJIne H TpaBOc6OpHNK.
ДяЗauntbOt pKaBcHbI npOTepTeB BCE MeTaJIINueCKne DeTaN BetoMbH, IpONITaHHoM MacJOM (6e3 CMOnCTbIX npIMecE), INI NOpbI3raTb a3pO30JbHOcMa3KoN.
3apraika akkymyntopa.

TapaHTnA

B kaJdoi cTpaHe DeIcTByIOT rapaHTnHbIe ycIOBn, n3DaHHbIe HaWei KOMnAHne nIIN φIpMoI- mNnOpTePOM HaWei npOdyKuIN. Bo3MOxHbIe HeNCnPabHocTN BaWero n3dJIeM MBI yCtpanReM B pAMkax rapaHTnHbIX o6raTeNbCTB 6ecnlaTHO, ecIn Ix npUHNbI 3akNIOaHTcR B 6pake MaTePnAna nII IN pON3BOIDCTBeHHOM 6pake. B rapaHTnHOM cnYae ObaPaaNTecb, noXa-NyIcTa, K BaWemy npOdaBu y nII B 6nJkaWee npedCTaBnteJIbCTBO HaWei KOMnAHnn.

HnΦopMaζη nO dBNraTeJIIO

I3ROTOBtJIb DBrIaTeJIa HeceT OTBeTCTBeHHOCTb 3a IIObIe CBra3aHHbIe C DBrIaTeJIem npo6JIembl, KacaIoUcneCraERO MOuHOCTN, N3MepeHnRA MOuHOCTN, TexHnueCKNX XapaKTepNCTk, rapaHTnHBIX O6ra3aTeJbCTB n cepBnca. BoJe eNoDpo6Hyo HnΦopMaunu BbI NaIDeTe BOTdJIbHOM, BXODaUcEM B KOMPiNEKTI NOCTaBKn pyKOBOdCTBe IJy BnAdeJIbUa/IOJIb3OBaTeJIa, pa3pa6oTaHHOM N3ROTOBtJIeM DBrIaTeJIa.

BbIaBHeHne n yCTpaHHeHne HEnCnpaBHOCTeN

HeuCnpaBHOCTN BO Bpem
EkCnpyatau BaWero n3dEIN
yacto Bo3HnKaIOT no npocTbIM
PnUHNAM, KOToPbIE Bam cneDyeT
3HaTb, YTO6bl HeKOTOpbIE n3
HeuCnpaBHOCTeBb CMOrn
ycTpaHtB camOcToTebHo.
B cnuyae comHeHnBaM Bcerda
nomoxet BaU oPhiuaNbHbI
dnlep.

PpO6nema Bo3MOxHaa (-bI) npuHa (-bl) YcTpaHeHne

Pn3nk npaHHeHH - npaUOBaTN HeoDMiHHO 3i 3MOHTOBaHIM 3aHIM 6yreIem.

Pn3nk nopaneHHN - npaIOBaTH HeoMInHO 3i 3MOHTOBAHM BnBaHTaxyBaIbHm 6JOKOM.

TpmaTe ci cIMBOJN 3aBXdny 3daTHOMy dIJI YHTaHHcTaNHy.

CnmboJI B iHCTpyKci

BuiHCTpykii BnKOpNCaHO CnMBOJN, 10 No3HaayoTb He6e3neKn a6o BaXJIbBi Bka3iBKn. Tyr po3uΦpOBKn CnMBOJIb:

Hebe3neka

Bka3ye Ha pu3nKn, nob'3aHi 3 onncahOIO po6oOIO oepaieIO, i nd yac koi icHyE 3arpo3a dnn IIOeI.

yBara

Bka3ye Ha pu3nK, noB'ra3aHi 3 onncahOIO pOboOIO onepaJIeIO, I KI MOxyTb CnpuHHTN NOIKoJKeHH npuaNy.

i Bka3ibKa

No3Hauac BaxnBy iHopMaio Ta KopNCI Bka3IBKN KOpNCTyBaueBi.

MOHTaK

MoHTaX npuJaIy 3O6paJxHn Hn 3O6paJxHnB OkpeMOMy DoTaKy.

Ipebiprte 3apdHn npctpi Ipeed KOxHM 3actocybaHHa HnpedMet BiccyTHOCTi 3OBHIHX NOKoXeHB. YKOHOMBy BNpAky He BHKOPNCOTByBaTN 3apdHn npctpiy pa3i NOKoXeHHa60 nicra noR OndHH.

yBara

-NepekoHaTeCBA TOMy,uo HanpyraB Mepexi 220-230 B Ta50Tq,ayueBMarmaCTbca y BiNobiHocti i3 daHMM Ha fipMOBII TaBnUci 3apJdHoro npunctpo.
-Bepertn akymyIaTOpHy
baTapeo i 3apAHN npnctpiB
BID BONOR,doUy,CHiry
i MOpO3y.
-AkymyIaTOp 3apJxKATn TINbKn BIO6pe npoBITpOBAHnx i cyXnx pIMiueHHax.
-3apnnpncpii Bid'edHaTIN BID eNektpomepexi nCnBnMaHH i3 HbO aKMyIyTopHOi batapei.
- YKoDHOMY BUNaKy He BCTaBnTIN KODHIX NpeDmETiB Do KOHTaKTiB AkyMnyTopHOi 6atapei.
-3apnnpucpiBid'ednatu BID eNektpomepexi nepeD BNUKOHHm ycix pObit HnM.
-AkymyIaTOpy 6atapeio i3apnHnn npCTpiH ne po3KpNBaTN. BnkOHaHH ycix p0bi Hnd akymyIaTOPO 6atapeo i 3apnHm npCTPOeM dOpuyaTH Cneuii3OBaHi MaNCTepHi.

3o6paXeHHa 2

IpeepnBnKOpntaHnM Bnpo6y 3apAHTn akymyTOpHy 6atapeo npotraom npn6n3HO 1roDnH. KopctyBaTnc tInbKn HaadAHm y KOMPNeKTi 3apAHDnM npncTPOeM.

i Bka3ibka

DeTaIbHy iHΦopMauiio npo npoec 3apAKn Ta iHnKaui piBna 3apAkn aKymJrToPHOi 6atapei Bn 3haJeTe y nociBnky 3 ekCnIyatauii DBrvHa.

i Bka3iBka 0do yTnIiaui 3apndHOro npncTroO

3apnnpncpiytni3yctbcra 3a npabnamnytni3aui eeneKtpo npnaiB.3BepHtbybary Ha Miccebi npabnla.

HaataybaHnapeid KOxHOEOeknnyataciEIO

Hebe3neka npaHeh

Ipeq ycima po6otamn Hnd ym npnaadom

-BUMKHItb ABVnyH,
-BWIMtBKnIOU3aIaIIOBaHHA (3a HArBHOCTi),
-3auekaTe NOBHOI 3yINHKn YcIXpyXOMNXyACTNH; DBNHyN NOBUNHeH OXONOHUTN,
-BiD'zHaIte KOHTaKTHn HakoHeuHK 3aapanIOBaJIbHOI CBHKn Ha DBuHyHi, UoOyHNUKHyTN HeoBaUHorO 3aNyCKy DBuRyHa,
-CTapTOby akymyIaTOpHy 6aTaapeIO 3HrTu 3Dburlya.

BcTaNHeHH TaPBO36ipHnKa

（TinbKnDn npuna.iB i3 TpaBo36ipHnKOM)

3o6paXeHHa 11

■ПиняТВИВаHTaЖуВальНИ КОЗИрOK Ta BCTaBNTU ТраВОЗбIPнИK.

BctaHOBJIeHHBVCOTN KOCIHH

yBara

Bucoty KocHHa TaBn Ha HepiBHi NOBepxHi CnI D BCTaHOBUrTaK, 06 p3aHbH HIX Hi B YAKOM pa3i He TOpKaBCr IpyHTy.

3o6paKaeHHa 3

BctaHOBHTN BUCOTy KocHHa 3a6axaHHaM.

Bucota Kocinna BCTaHOBIOEbC8 (B 3anexKHOCTi BiD MoJeNi) B Mekax BiD npn6n3Ho 3 cm Do MaKcMym 9cm.

i Bka3ibKa

B npunaax 3 He3aJeknHm nepemiuueHHam Knic yci Koneca ycTaHOBHTn Ha OndaKOBOMy pIBHi. Moelb A

3akpinTu KOJecay6aXaHINo3nii.

MoenbB

BntraHyTu ByuKo Ta 3aΦikCyBaTu y 6aKaHi N03nui.
MoeB C
KpyTnBaxiNb ceHtpaJIbHorOBCTaHOBJIeHHBNCOTN Bnepea6oHa3aTd aikcyBaTu Ha6axaHi BNCOTi.

3a6nokybaHHnpehdHIX KOIC (NIIe dI npuaID 3 6NokyBaNB HIMNIpeHIMN KOJecAMN) 3o6paXeHH4

3a6nokyBaHna KOnic nI pymoi i3n - NoCTaBnTu KOneca BnepeTa BCTaBnTu 6yReInb y BeNkni OTBip.

Для Biьhoi pyxomocti konic - BCTaBnTb 6yreIb y MaJIeHbKn OTBip.

3anpaBneHH naHb Ta nepeBipka pibMaCna

3a npabJIyTe HeeTnIOBaHm 6eH3nH (DnBtbcra Noci6Hnk dIa DnIgTuHa).
IaINBn6ak 3anOBHIOte MaKcIMyM 2cm BiD HxKhBoTO KpaO 3aINBHOrO natpy6ky.
3akpiTe do6pe naNBn 6ak.
IpeBipTe pibHb Macna, OdaTe MacNo 3a Notpe6n (NBIbCnOci6Hnk dJa DnryHa).

UHHeHHaTaapeHoroBiciky HaDbNHyHi

CTOPOHNI npedmetn i 3a6pydHeHHBnDaJIHTN 3 6batapeHOro BiDCiKy 3a DOnOMOHO TkaHINi i u i T K n .

3anyckDBrnuHa

3o6paXeHHa5

Hebe3neka

J3axvcty BiipopaHeh

-He 3aNYCKaTN DbNfHy, CTOyH NpeEi BvBaHTaXyBaIbHIM 6nOKOM;
- TpIMaTI pyKu Ta HOrn Ha BIDCTaHI BiD pI3aIbHoro anapaty;
-TPMMAItepyK, HOrTa iHwi
yactuHnTiNa 3aBxJn OCTopoHb
BID o6eptOBHX deTaeJe.
TPMMAITec3aBxJn NooJaJIb
BID BUBaHTaxyBaNbHoro 6nOky.

Ipe3nyckomDbnryHa po3yinnrte Bci pi3aIbHi IHCTpymEnTH Ta npBODn.

Iid yac 3anycky He haxnny npnad. NocTABNTn npnad Ha pIBHIN dInnHci 3 KOPOTKOIO abo PIKOIO TpaBOIO.

i Bka3iBKN CTOCOBHO DBNrhyHa

-3BepHItb yBary Ha iHOpMauiy y noci6nky dnn DnBuRyHa.
-B DeaKnx MoeJx HemaB BaxiIra3y, uCNo o6epTIB BCTaHOBJIOETbcra ABtOMaTHNO. DnHy3aBXdN pauOc 3 ONTMaJIbHIMuCNOM o6epTIB.

CTapTOBy aKymyIaTOPHy 6aTaapeIO BCTaBHTn Do 6bTapeHOrO BiDcIKy Ha DBrHyI TaK, Uo6 BOHa 6yNa 3aФikcoBaHa yna3y - mAn.5A.
BiiKpnIte 6eH3nHOBn KpaH (3a HApBHOCTi).
Baxijb ynpabJIHHA dpoceIbHOIO 3acnIHKOIO (3a HaABHOCtI) BCTaHOBTN Ha max - Man. 5B.
CTOHy 33aNy BiI npiJaNy, HATNCHTN Ta TpIMaTN abapiHn6yreJIb-306paXeHHA 5C.
Kluy 3anaenHa pykoaru npabnHn BbIMkHytn,06 Dnryh 3aibcra (cnpo6a 3anycky maKc.5cekynd,nepe HactynHOO cnpo6o 3auekaTmH.1xbnHy)-maI.5C.

BbIMKHeHHn npNBOy KOic

IOTaHTTa TpMaTn BaxiJIb/ 6yreIb.

BIMKHeHH npuBdy konic

Baxkib/6yreIb BiDnyctnTn.

i Bka3iBka dny npnnaDIBiINOBiIDHO do 3o6paXeHHa 6C
IIra BBIMKHeHHr/BUMKHeHH
MOxHa BkOpNCTOByBaTn Jk IiBni,
Tak i npabN BaxInb afo o6nDa
Baxeni pa30m.

i Bka3ibKa

Oco6JIHBOCTI KOHCTpyKUIMoKytb 3yMOBNIIBATN HABHBICTb NiBnueHOrO onopy y 3aHix Kojic NiJac nepeCyBaHHa Bnpo6y 3aHim XoOM. LcHe e O3HaKOIO HeCnpabHOCTi Bnpo6y, a 3yMOBNeHO OCO6JIHBOCTaMn TexHiuHO KoHCTpyKUII.

Дономora (В заленист Вд моdeni): Пипад 6e3 BBIMKHeHoi ckobn npINBOy cNoatky nepecyHyTu TpOxN Bnepea, a Notim Ha3a.

3MiHeHHa WbNdkOcTN npNbOdy Knic

(B3aJIeXHOCTI BiD BIKOHaHH)

yBara

NoKoJKeHH npuaNy

HanaTobyBatn Nmwe nq yac pobotn Dnryha.

3o6paKeHH 6D,E

3a donomoro MaIoro BaKeJRA B6paTH Heo6xIDHy IWBnKicTb Mx (1/min/ i 4/max/
3o6paXeHH6F,G
3a donomoroBaxeJn B6paTH Heo6xidy WbukicTb mix (1/min/ i 4/max/
i Bka3ibKa

Плд уасстянь Виpo6у nepemNKaHHЯ WbNdkOcTeM MoKe 6yTu ycknaHHe, lo 3ymOBJIeHo texHiuHmBnactNBOCTaMn Bvpo6y.

Dionomora: HatnchItb Ha npnbOndHy ck6y i Bn6epitb Wbnkictb.

3HHTTa onopoxHeHH TaPBO36ipHnka

Ppna3aHIM BnBaHTaxyBaHHM:

3o6paXeHH8A

PiHnBnBaHTaKyBaIbHn KO3npok.
3HrTn TpaBo36ipHnK.
BCTaBHTMMybUyBaJIbHmKnH (B3aJExKHOCTiBiD MoJeI).
BidiNyCTnBnBaHTaXyBaJIbHn KO3npOK.

i Bka3ibKa

Дя mojen i3 iHerpoBaHOI ΦyHKciEO MylbCyBaHHa HeNoTpi6HO Okpemoro MybCyBaJIbHOrO KInHy -cH O FyHKciIO BnKOHc CneiaJIbHO COpMOBaHa 3aHNa KpnUka (3o6paXeHHa 8B).

Ppua360KOBIM BnBaHTaKyBaHHM: 3o6paKeHH9

Bid6BaJIbHn 3axnt/MyIb- cyBaJIbHn 3acnIH yCTaHOBTN 3amictb 6OKOBOro BBAHTaKyBaIbHoro KO3npka (306paKeHHra 9A)
a60
3Hrtn6OKOBn BvBaHTaKyBaIbHnKO3nPOK-BiD6NBaIbHn 3axnCT/MyIbCyBaIbHn 3acnIH 3aKpNbAcTbCra ABOMatTuHO (3o6paXeHHn 9B).

IpeBnaTbAHn npnlaIB Ha 6OKOB BnBaHTaXyBaHH (B 3aJIeKHOCTi BiD BnKOHaHH)

3a HaarBHOCTi:
3HIMITb TpaBO36ipHNk i ONyCTiTb 3aHiBnBaHTaxkyBaIbHn K03nPOK.
■Пинимы BiбиBaJIbHn 3axuct/ MyIbUyBaJIbHn 3acnIH Ta BMOHTyIte 6OKOBn BVBaHTaKyBaJIbHn KO3npok (306pa-KeHHa 9C).

Texhihe 06cnyroByBaHHa

yBara

3BepHbYbaryHa po3nopJxHeHHaOdo texhichoro 06cnyroByBaHHnoC6Hnka dnaDburyha. NpepaTnpnad HapnkiHci ce3ohy do CnejaiizOBaHOi MaICTepHI dNppeBipkn iTexhichoro 06cnyroByBaHHa.

BnKoHaHHb-ayb-axpeMOHTHX poBITdopyuATIINwE CneuaIi3O-BaHIMMaICTepHi.

yBara

Bteya MOTOPHORo Macna He6e3neuHa dIy DOBkInn

CnpaoboHaMacno nicra 3MiHn Macna 3daTn Ha 3bipHn npHT a60 Ha CneiaJIbHe NiIpnpEMCTBO.

Eatapei/akymyntopn He6e3neHi Ira doBkinn

CnpauboBahi 6batapei/akymyIANTOPH He 3daBATN DO XaTHBOCMTTc. CnpauboBahi 6batapei/akymyIANTOPH 3daBATN DO BAUORO npoabua abo Ha cneuiahHe NiDnepmCTBO. JemOnTyIte 6bataei/akymyIANTOPn nepei 3daueio npnana hy 6byxt.

i Bka3ibKa

3BepHbYbaryHa npomixknyacy dIy npoBeHnI nepeBipok Ta texHiuHorO obcnyroByBaHHa, 3a3HaueHi B noci6Hnky dJa DBnryHa.

B 3aJexHocTi BiD MoDei
BaW npnad yctatKobAHNI
eNEKtpoHHm iHdNKATOpOM
TexHiuHO O6cnyROByBaHHa
(3o6paXeHNHa 13).3BeTaNTE
yBary Ha BiNObiHi NOBiDMNeHHa
iHdNKATopa TexHiuHOrO 6cIyRO
ByBaHHa DOaTKOBO Do NcMbONx
BkazIBOK. Do iHdNKATopa TexHiuHORO 6cNyROByBaHHa DOdaHa
Okpema IHCTpyKci3 ekCnlyaTauii,
jKa MiCTNb DOaTKOBy IHOpMaiciIO.

Ipeed Koxho eKcnnyataciio

IpepeBipTe pibEnb Macna i doJnTe 3a notpe6n.
IpebeipTe MiHiCTb rBnHTOBnx 3'eHaHb, 3a Notpe6n 3aTgHiTb Tyriwe.
IpepeBipTe 3axnchi npncTpoi.
CTOPOHHI ppeMTei 3a6pydHeHHBnDaJIHTN 3 6aTaapeHOro BiDcIKy Ha DBuRHyI 3a DOnOMorOTo TKAHHH I iTKn.

Ipebipka Toukn 3aueenneHHn 3eennnnn:

(TiNbKn DnI npNlaIb 3 npNBOdom KOnic)

• Pnna He NOBHeH pyxatncb Bnepe, KOJI npaIOc DBNyH Ta npBiD KOnic BmKHeHn.

• PpIaI IOBHeH pyXaTncb BnepeI, KOJI npaIOe DBnHyTHa pNBI KOLIC yBIMKHyTNI.

3o6paXeHHn 15

Ipn Heo6xidnocti HanaTbyBatn TOky 3aueenleHn 3a DonoMoroHO hKaTHORo pONka/ peryIIOBaJIbHOI rAIKn Ha BaXeI npINBOy KOIC (B 3aJIeXHOCTN BiD BNIKOHaHHa HnIXHi CTOPOHI NyIbTa ynpabJIiHH) afo 6oyDeHOBCKOMy Tpoci.

i Bka3ibka

Y DeKnx MoJenX BiCyTHa MOxJIINBiCTb peRyJIIOBaHHa.

Iicna nepux 2-5 pooboux roDHH

3MiHHTMaCIO,INB.DOJaHn noci6HnK DnA DBnryHa.

Picna ctpnKn ra3oHy a60 3a Heo6xidHocTi

AkymyIaTOpHy 6aTaapeo nida3apdntn.

OdnH pa3 Ha ce3OH

3MiHHTMaCIO,INB.DOJaHn noci6HnK DnA DBnryHa.
3ma3yBaTn 7apHipHi TOnkTa TopcioHHy npyKHy HaBbBAHTaKyBaIbHOMy Ko3npKy.
IpeepaTn npnilad HanpkiHci ce30Hy do cneziiai3OBaHOi MaictepHi dny nepeBipkn i TexhiHoro obcnyrobyBaHHra.
Dopyuata nceuaian3oBaHm MaictepHi peryIaRhe npOBeDeHHnpeBipKn akymyTOpHoi 6aTaapei i 3apAnHO rnpCTPOH (He MeHwe oDHoro pa3y Ha pik).

OuHHeHHa

ybara

YnCTITb npnna nicna Koxhoi eknnnyataui. He ouuuehni npnad cnpuHne NOUKoJKeHHa MaTepiany i dyHKUioHyBaHHIO. He Kopnctyntecra Jn OunseHHa OUnSyBaueh BucOKOTo TnCKy.

Ouichienn TpaBo36ipHnka (Tilbkn nI npnaIaIB i3 TpaBo36ipHnKOM)

OuHHeHH HaInpocTiWe BiDpa3y nicJI KocIHn.

3HrTu TpaBO36ipHNK Ta ONOPOKHHTN.
YHCTHTN TpaBO36ipHNK MOXHa CNJbHM BOJHM CTpyMeHem (CaIOBIM NONBaJIbHM ⅢlaHROM).
IpeHnHmKOpntyBaHHmdo6peBnCuyNTnTpaBO36ipHnK.

OuHHeHHra3oHokocapKn

Hebe3neka

PnpobotaxHa p3aHbHomy anapatyMOXHaNopAHHTNCb.

J3axcty KopctyTeCA p06oumm pykabuqMn.

ybara

Haxnayte npnaad 3abknd Tak,
06 3anaIIOBAJIbHa CBiKa 6yNa
3Bepx 3 TmM, 6o6 3anobirtu
NOWKODKEHHA DBUYHa BID NaINBa
a6o macna.

He 36pnu3kyBaTu npnna BDOIO, iHaKue MOxUyTb ByTu NooKOxKeHi eNeKTpuHl Detani.

Bepertn akymyntopny baatae o i 3apnn npncptpi BID BONrN.

YnCTiB npnna 3a MoKlnBOcTi 3aBKn HeaHNo nicna KocHHra.

UHnHn6aTapeHoro BiDciky Ha DnHyHi

CTOPOHNI ppeMEn i 3a6pydHeHHBnAaNTu 3 6bTaapeHoro BiCiKy Ha DnRHyHi 3a DonOMOroTO TKAHHI i tKn.

PpuiJn 6e3 CnCTem MOKporo OunuHnAekn:

P3aIbHn BiDcIK Ta BnBaHTaJxYBaJIbHn KO3nPK YnCTNTU 1TkoHO, BiHnKoM a60 raHnipKOIO.
IocTaBnTn npuNaHa Koneca Ta yCyBaTu Bci BuHi 3aNnKu TpaBu Ta CMITr.

Ppnila3n 3cnTeMoIO MOKporo Ounuehnnaekn:

3o6paXeHHn 14

Tg30HOKOCAPK 3 CnCTeMOH MOKPOrO OuNueHHaek OChauSeHi CnCTeMOIO NdaHH BOn. 3aBdAKn ΒbOMy 3aJIiWKn TpaBn 3MNBauTbcra 3 HxJhBoRo 6oKy DeKn ra30HO-KocapKn, 3anobiraoun HaapyBaHHaXimiuHnx peOvBuH Kopo3iHooi dii. Picna KocinH TaPABN BnKOHaIte HAcTyuHni dii:

BcTaHOBiT npnJaHa pIBHIn nobepxHi, BInbHi BiI rpaBIO, KaMHciB i T.I.

Bka3iBka

KoNo6 dIy BnKuNy He MoXHa HnPaBnTyn 6ik 6yDnHKnIB, rapaxi b i T.n.
IpnecdHaTe cTaHdapThn anTep dna Wnahry (y Bnrgn di onui B KomnneKti nocTaayHn) do IuHaRa dna BOi i Do CnCTemn noaui BOu DeKN ra3OHOKocpKn.

BidkpniTe Body.
3anyctitb DBNyH i 3aNnWitb Ioro BBIMKHeHm Ha JeKiNbKa XBNHH.
Bumkhitb DnurHy n BiD'cnHaHte Wnahr dny BOnn Bi npnaNy.

Picna 3akinueHH npoccy ouuueHH:

3anyctitb DnBuryh i 3aHniuItb Ioro BBIMKHeHm Ha DeKeINbKa XBNINH,IO6 BNCyUHTN HNXHIO CTOPOHy DEKN Ra3OHOKocapKn.
3ynnHHTnDbNHyH.

Bvbi i3 ekcnnyataci

He6e3neka

Bnu6yxo-Ta noKexKoHe6e3neKa HikOnn He 36epiraTe npnad 3 naNBOM (6eh3nHOM) y baky BnpMiuIeHHx, B JkXn NaNBHi napu MoKyTB B3aEMOiTn 3 BiKpTuM BOrHem a60 ickpaMn.

ybara

NookxHnMaTepiIIB npna

-36epiraTe npnad (3OXONOJXKeHIM DBNHyHOM) TINbKN Y NCTNX Ta CYNX INPMiueHHAX.
-При IOBROMy 36epirahHHi, HApnKnaIaB, BImKy, 3axNCTITb npnnaB iD ipxKi.
-AkymyTOpHy 6aTaapeio i3apdHn npncTpii 36epiratyn y npoxoOnHOMy i cyxOMy Micu.
-BeperTu akymyTOpHy
baTapeIO i 3apAHN npucTpii
BID BOIOn,DOU,CHiry
IMopo3y.

Iicna ce3ohy a6o KOJI npnlaom He KOpNCtuyTbCnnoHaM Micra

3nBAtn naIbBO y npuaTHn 6ak Ta BnBe3TN DnHyH 3 ekCnnyataqii 3riDHO IHCTpyKciM y nOci6Hnky dna DnryHa.

ybara

3nBaTu nannBO TInbKn Ha Bynnu.

YnCTHTnpuaT Ta TpaBO-36ipHnK.
Bci metaneBi detani dny 3axncty BiD ipxio6tnpaTN 3maueHOIO Macnom (6e3 CMOnI) raHupkoIO a6o o6pO6nTm MacneHm aeO30Jem.
3apjaKaHnAkyMnyTopa.

TapaNTi

Y KOKHI KpaiHi DiOTb rapaHTiHi
NoLOXeHHa 0 BuaHO a6o
HaOIO KOMnAIEKO a6o IMnop-
TePOM. KoN DeEeKt MaTePiay
a6o NOMJIKA y BnpO6HcMy
IpoUeci CnpuHNIO HeNOJaKn
BaWOrO npJaNy, MN B paMKax
rapaHTiHOI BiIDNObIAJbHOCTi
ix 6e3KOuTOBHO ycHEmo.
Y rapaHTiHOMy BnApkdy
3BepHITbc DO npOdaBzra 6o
HaibnKcooi fii.

IhOpMaCiJyODo DnRyHa

Bnpo6HnK DnBnyHa Hece BIDIOBdaIbHicTb 3 ycix NITaHb, NOB'3aHnx 3 DnBnyHom, TO6To NOTyXhICTb, BmIpOBoHHra NOTyXhOcTi, TexHiCy hi napametpn, rapaHTi, cepBicHe obcIyroByBaHHra. IOnaIbSy iNΦopMaciIO BMICTNb HaDaHni OkpeMo Noc6HnK 3 ekCnIpyataci Bnpo6HnKa DnBnyHa.

3haxoNTTa ycyBaTN DeΦeKTH

Henonadkn B ekcnnyataui Bawoi ra30HOKOCAPKn Yacto MaOTb npocti npuHH, npo kI Bam cnid 3HaTu. YactKOBO BN cami MoKeTe ix yCyBaTu. Ha BnpaDOK cymHiy npodaBeu-b-KOHcyNbTaHT Do Baunx nocnyr.

PpO6Iema MoKJIbBa IpruHa DoIOMora

Obpbla Bn ce BHMaHne 3a Bb3MOxHN ONaCHOCTN, KOINTO Ca CBbp3AHN C ONuCAHHTe DeHOCHTN I pN KOINT e Bb3MOxHO HapaHraBaHTo Ha Xopa.

BHIMAHHe

Obpbua Bn ce BHMaHne 3a Bb3MOxHN ONaCHOCTN, KOINTO Ca CBbp3AHN C ONuCAHNTe DeHOCHTN I pN KOINT e Bb3MOxHO yBpeXdaHTo Ha ypeJa.

i yka3aHne

Obo3Haayaba Baxha HOpMaJn IcbBtN 3a npNUoXeHne.

Mоntиранe

MOHTaKbT Ha ypeDa e noka3aH B OTdEInHO pNIOXeHne CbC CHIMKn.

i Yka3aHnna 3a n3XBbPnJaHe

I3JINHHTe ONAKOBKN,CTAPNTe ypeNnT.H.N3XBpJIaHTe B CbOTBETCTBNE C MeCTHITepa3npope6n.

O6cnykBaHe

Cna3BaIte cIoo n yka3aHnraTa, daJeHN B yIbTbaHeto Ha dBnRaTeJI.

OnachocT

HeuacteH cnyuai

-Xopa,ocobeno deca, n KMBOTHn HMKORA He Tp8bBa Da CToT B6n30CT do ypeDa no BpeMe Ha KOCEHe. CbIeCTByBa ONaCHOCT OT HapAHBaHe C N3XBpNeHN KaMbH Nnn dpyr nn ppeMetn.

Panahe

-KapaiTe ypea cAmo C HOPMaJIHO TEMNO.
-БьдeteOCObeHO BHIMaTeHNI, KOratoKocnteHa3aDeH XoI NDbpNaTe ypeDa KbMceBe cn.
-При Косе He Bbpy CTpbMn Терешу ypeB T MOKe Да ce пробьрHe Mochete Дa ce наранTe. Ксete BuHarN НарpeHo Ha CkIoHa, HNKORA В пocoka Harope ИИн Надony. He Ксete Bbpy CTpbMn Тереши C haKIOH NO-ROJAM OT 20%.
-БбдeteOCObeHO BHIMaTeJIHn прсмянHa NocOKaTHa ДВИЖЕНе И BHIMaBaIte Да СтЕ CTыПИNCTaБИЛНо.
- CbueCTByBa onaCHOCT OTHapaHraBaHe npu KocHeB rpa Hn uHn y a cT b uN.KocHeTo B 6n3OCTdo pboBoe,XPACTn UIN CTpbMn CKIOHOBe e onaCHO. Pn KocHecna3BaIte Heo6XoImato6e30aCHO pa3CTOHNHe.

-При Косе He Ha MOKpa TpeBa,ypebT MoKe Da ce NOpXnB3He nopaMMAKOTO cUeJIeHne CbC 3emrTa H MOKeTe Da NaHHe. Kocete camo Korato TpeBaTa e cyxa.
- Pa6oTeTe cAmO npn dHeBHa CBeTmHa mnn npn MHO rObpo N3KcYCTBeHO OCBETnEHHe.

HapaHaBaHHa

-OnpeJeHEnOTo HnpaBJIyBaIHTe CtpaHnUHn pAmHeb3oNacHO pa3cTOrHne doBbPTAHTe Ce UHCTpyMeHTuPra6Ba BuHaI Na Ce Cna3Ba.
- Pa60THOTo nOne Ha o6cnyKBaunrno Bpeme Ha pa6ota Ce HAMnpa 3aD pBxKata 3a ynpabnene.
-Hnkora He noctabryte pbye nnnpkaqdo nnnnnoaDvckelteceyactn.
-He u3non3BaIte ypea npu N0uN KINMaTnHn YCNOBn, KaTO HApnPmep ONaCHOCT OT DbXd mN bypra.
- Cnpete Dnuratena n N3yaKaite IbHOTo CNupaHe Ha pexeunTe HNCTpyMeHTN:

• npedu da haknaHre ypeda;

• npu TpaHcnpTnpaHe Bbpy NIOU, KOHTO He ca NOKPNTN C TpeBa.

-13KIOUeTe DBuratEnI 3a da npedOTBpaNTe NyCKaHTo MY NO HeBHIMaHHe: 13BaTe KIOua 3a 3anaBHe (ako IMa TaKbB), CBaTe aKymyNaTopa 3a 3anaBHe, OCTaBeTe DBuratEnI Da U3CTnHe n CBAneTe NyNata Ha CBeTa,
- npeDn da OTCpaHbATE 3anyuBaun N bokupaun HaTPynBaHna OT OTBopa 3a N3XBpLnHe Ha TpeBaTa,
- npeDn da npOBepnte, NOuchNTte nnn perynipate KOcaKaTa nn npedn da 13BbPWBATE HkaKBu paBoTN no ypeDa;

-Korato Kocaykata ce c6nbckac yxko Tano. IpoBepete Kocaykata 3a TpeBa 3a NOBpeu n npu ycTaHOBraHe Ha NOBpea NotbpcTe CneuaHn3npaH CepBu3,
-ako ypeBt 3aNoyHe da Bnbpnpa HeobuayHo cnHNO. BeHaRa npOBepTe ypeHa.

• Hnkora He nobdnirate n He Hocete ypeda C BknioyeH Dniratet.
• PpOBepTe TepHa, BbpyKoITo Ue Ce N3NoJ3Ba YpeJa, IVOTcPaHete BCnKn IpeDMeTu, KOnTO MoT Ta 6bDatIOBHeuEH N 13XBbpNeHN.
  -Ako pexeunrT mexaHn3bM ce yapn B uXkIO TAno (Ha npimep kambk) nn ypeBt 3anOyHe da Bn6pnpa HeobuayHo: Behara n3KnOuyTe DnRaTeN. Ppei NocpeBaUo n3NoJ3BaHe Ha ypea ro npOBepe T Cneuna-nn3upan cepBn3 3a Nobpei.
  -ПрИи3нОЛ3ВаHe Ha CьрпОBE HnKOra He 3aCTaBaIte ПpeД OTbOpa 3a ИЗХБьрЯHe Ha TpeBaT.

YpeiN C npntabka 3a cbohpae Ha TpeBa:
-Прс CBанг He Na ПИСТАВКATA 3a cБирапe Ha TpeBa Mожete Дa HapaHnTe c6e Cn NIIpyrN Xopa C N3XBbPЯHЯ OkOceH MaTePuaI NIIчУЖДI TeNa. Hikora He N3npa3BaIte ПИСТАВКATA 3a cБирапe Ha TpeBa, KOrato DVBiratelenT paBoTn. N3knIOUChTe ypeDa.

OnachocT O3aDywaBaHe CBbIpeOeH OKc. BKnIOuBaIte Dnuratena da pa60Tu camo Ha OTKpTuTo.

OnachoctOTeknno3nN nokap

-Ⅰ3napeHnraHa 6eH3nHa caeknno3BnN 6eH3nHbT ecuHOBb3PiMaMeHm.
-3apexdaTe c ropuBO npedn da CTE BKNIOUHN DBURAteN. Pn BKNIOUeH NNI Oue TOnbI DURATEN dpBXKTe pe3epBOapa 3a ROpNUO 3aTBopeH.

-Доивайе roрьо само пи ИЗКПЮЧЕН И CTУДЕн DBИralteп. ИЗБЯВайе OTКРТ ORБH, образува themselves Ha nCKPN И He nyшete. 3apexждайе урета с roрьо самоHa OTKpntO.
-He BKNIOVAIte DBURATeTn aKO CTe IpeNbHnHn pe3epBOapa. IpemecTe Te ypeTa OT MCTOTO, KbDeTo NMa pa3JIrTO rOpNUBO, nU3uKaAte Ta Ce U3napaT npuTe OT rOpNUBO.To
-3aДапгелOTВратиTe NOXap, Na3eTe CJIeHNTe YAcTn YIcTn OT TpeBa N3NpCKaHO MaCIO:

-ДВИГАТЕЛ,
-aycnyxa,
-akymytaTopa,
- pe3epBOapa 3a ropuBO.

Onachoct or npenbBahe

-KapaTe ypeJa cAmo C HOpMaJIHO TEMNO.

BHIMAHHE

IoppeHnHa ypea

-KambHInTe,pa3XBpJHInTe KIOHN NIN DpyrN NOO6Hn PpeMeTn MOrAT da IOBeaT Do NOBpeXdaHe Ha ypeHa HApUshaBaHe Ha fYHKuHTE My. PpeDN BCraKO n3NoJ3BaHe OTCTpanHaBte TBbpNTe PpeMeTn OT paOThata NLOU.
-ИЗПОЛЗВАЛТЕУРЕДСAMOB63ynpeHOCbCTOЯнHe.IPedsI BcRAKO N3ПОЛЗВАнНаравETeOrNeI.OcoBeoH BHIMATEJIHO pOBepTe IpeIpa3HNTe MExaHn3Mn,peKeUHTe MEXaHn3Mn-CbC 3aTЯraloYCTPOJCTBO,06CnyKbAHTeENEMEHnN6OJITOBHTe CbeDINHEHn3aIOBpeDNu HEnOДВxH03axBaUAnE.IPedsI N3ПОЛЗВАнМeHETe NOBpeDeHNTe YACTN.
- HnKora He u3non3BaIte akymynatop, KOITo e dephiOpMnpaH, naan e nn e NOBpeH.
-He octabraHte akymyIaTopa H3apJHOTO yCTPOIcTBO U3IOXeHn Ha IbXd NIIH NaIa.

i Yacobe 3a pa6oTa

Cna3BaIte HaunohnHITe/ KOMyHaJIHITe IpeDnIcAHnO tHOCHO YacOBeTe 3a pa6oTa (Pn Heo6xOIMOCt Ce OCBeDoMeTe OT CbOTBtHaTaNHCTNTUz).

i Yka3aHnra 3a nocOKnTe

Korato daBame yka3aHnra CBpb3aHn C NOCOKITE Ha ypeDa (HaPnMep JIABO INI DaCHO) n3XOXdAmE BUNAHn OT pa60THOTO NOIOXeHne Ha ypeDa.

IpeHn IpbBTo NyckaHe B EKcnloaTaunr

HanbHHeTe DnRaTeJra

BHUMAHNE

Iopadn TpaHcnpTHn CbObaXeHn ypeT ce doctabB 6e3 MOTOPHO MacNo.

Iopadn Ta3n npuHa npedn PbBOTO nycaHe B deHCTBne To HAnbJIHeTe C MOTOPHO MacNo, BxK yNbTBAHETo Ha DBNrataJIe.

3apeXdaHe Ha akymyntopa (3a ypeiTe c eIeKtpomotopn 3a 3anaBahe)

Cna3BaIte n 3n7bJIHBAIte BCNUKyka3aHnN INHΦOpMaunrTa N0 OTHoWeHne Ha akymyntopa n 3apJHOTO YCTPOINCTBO,JaAeHN B KHNKKata Ha DBNrAten.

OnachOCTOTpa3JxJaHe/HatpaBHe

Bektpemn cnuyan Tp6ba da ce nma npedbn, ye morat da 6bdaT n3nychatN TeHOCN nnra3OBe.

OnachocOT TOKOB ydap

PpOBepaBte 3apdHOTO yCTPOIcTBo IpeN BcKO n3No3BaHe 3a BbHUN HapaHaBaHn. Hkora He n3No3BaTe NOBpeJeHO nn NaJaIO 3apdHO yCTPOIcTB0.

BHIMAHHe

• YBepete ce, ye Mpekata OTROBAPHa daHHnte OT TINOBATA Tabenka Ha 3apdHoto yctpoiCTBO 220-230 Vn 50 Hz.

-Ⅱa3eTeakymyntopaH3apnHOTOYCTPOINCTBOOTBnaRa,ДьЖД，CHIIGCTUД.
-3apexkaTe akymyntopa camo Bdope npobetpeHn cyxu NOMeueHna.
- Cnep cBaJIaHTo Ha akymyIaTOPa N3KIOUcTe 3apJHOTO yCTPOJCTBO OT MPexkata.
-Hukora He nbxaTe npedmetu B KOHTaKTnTe Ha akymynaTopa.
-При BCЯКВи pa6OTn NO 3apHOTO yCTpoIcTBO Tp6Ba Da rO n3KnIOyIe OT MpeKaTa.
-He OTBapnTe aKymyIaTopa n 3apnHOTO yCTpoNCTBO. BcnupeMOHTn no akymyIaTopa n NO 3apnHOTO yCTPOJCTBO N3BbPWBaHTe B CneuHaN3npaH CepBu3.

Φur.2

IpeiPiBpBOTo N3noJ3BaHe Ha ypea 3apeTe aKymyJatopa Okono 1 Yac. N3noJ3BaTe cAmo DOCTaBeHOTOCypea ycTPOIcTB0 3a 3apeJdaHe.

i Yka3aHne

ObwnpHa HnΦopMaunrno OTHoWeHne Ha Ipoceca Ha 3apeXdaHe N INdNkTOpNTe 3a CbCToHNeTO Ha aKymJaTopa Ⅲe HamePte B KnXkKaTa Ha DnIraTeJ.

i Yka3aHnna 3a N3XBpPnHe Ha 3apAHOTO yCTPOINCTBO 3a 3apAHOto yCTPOINCTBO BaxKAT npaBnNaTa 3a N3XBpPnHe, BaINHN 3a eJKeTPOyPeDInTe. Cna3BaInTe n MeCTHInTe npaBnla.

PeryIipaHe npeDn BcKaO n3NoJ3BaHe

OnachocT OT HapaHraBaHe Ipei BcKaKbB Bu paBOTn no To3u ype

-13KIIIOUeTeBUNrAteTn,
- 3BaTeKIIOa3a 3aNaIbHeTo (aKOIMa TaKB),
-34aKaIe BCnKn DnXeUcN Ce 3aCTn Da CnpaT Da ce DnXkaT; DnRaTeJrT TpOBa Da e N3CTnHaJI,

• CBAJETe 3aapanitEnHaTa CBeU Ha DBuratela, 3a da npedotBpaTITE BKNIOyBaHe Ha DBuratela IIO HeBHIMMaHHe,
• Cbaene akymynaTopa 3a 3anaBaHe OT DBuratena.

Bb3MOxHocT 3a peryInpaHe (B 3aBNCIMoCT OT MoJeNa)OT OKOLO 3 cm Do MaKcIMMym 9 cm.

i yka3aHne

Pn ypei n c perynipaHe Ha BcKaKo KOJIeNo perynpaIte BCNUKn KOJIeNa Ha eHaKaBa BnCOuHa. Moen A

ФИКСИРаNTe HeNoДВИХНО KOJIeJaTа B XeJIaHOTO ПОЛоЖЕнe.

MoeB

I3TeTne TnlaHkata nФИКСИРаТЕВЖЕЯHOTo NOJIOXeHNe.

MoDcN C

I36yTaIe HAnpeiHnHa3aI JocTa 3a ceHTpaHTo peYnnpaHe Ha BnCOUnHaTa I ro FHKcuaTe B XeNaHOTo NOLOXKeHne.

ФИКсupaHe HaпpeДнITE KОЛЕЯ

(camoypei n c 6nokpyemn npedn Koneja)
Φn.4

3aФИКСИРан He KОЛЯТа 3a KAPaHc CamO HAnpaBO - OpHENTIpaIte KОЛЯТa HAnpei N NOCTaBTe CKO6aTa B TOrJIeMnI OTbOp.

3a cbo6oHNO DnHexeUc ce KoneJa -noCTaBeTe Cko6aTaB MaNKnA OTBOp.

3apeKdaHe n npOBepKa HNBOTO Ha MacIOTO

3apeKdaIte c 6e30IOBEN 6eH3n (BIX KHXKKaTa Ha DBNrataT).
HaBHepeepBoapa HAMHOro 2cm noDdoHNpa b6 Ha pnoTo.
3aTbOpTe pe3epBoapa 3a roPnBO do6pe.
PpOBepeTe HNBOTo Ha MacJIoTO, npn Heo6xOaMocT DocnneTe (BIXK KNKKkata Ha DBrTaTeJIa).

IOnuCTe OTdEJIeHHeTo 3a akymylaTopa Ha DnBraTeJia

IOnuHcTeTe cnapaJyXkDITe TeJa n 3aMbpcBaHnraTo OT OTeJeHHeTO 3a akymylaTopa.

BkIIOUbaHe Ha DbNraTeJIa ΦnR.5

Onachoct

3a da ce npedna3nte ot HapaHbAHN,

-He BKNIOUBAHTe DNBURATeJRA, KORATO CTOVTE nped OTBOPa 3a N3XBbPnA He Ha TpeBaTa;
-na3eTe pbuete N KpaKaTa CN daNeu OT peKeun MExaHn3bM;
-He NOCTABYIePBcTe, KpaKaTa
HIN DpyrN yactn OT TAnOTo CN
B 6JIn3OCT DO BbPTaUHTe Ce
yactn. CToIte BNHaHn Ha
pa3CTOARHne OT OTBopa 3a
N3XBbpJIrHe Ha TpeBaTa.

Ipei Da BKnIOuHTe DnuratEnra pa3eHHeTe BCnuKn peKeuIN HNCTpyMeHTN INpeaBkn.

Pn BKnOuBaHe He HauNaHnTe ypeHa. NapKnpaTe ypeHa Ha paBHa NOBbPxHOCT, NO Bb3MOXHOCT NOKpNTa C HnCKa Nn C MaNKo TpeBa.

i yka3aHna 3a DnurataTeJIa

• CnataBaTe yka3aHnraTa B KnKkata Ha DnIraTeJI.
• HЯков мodyели Намат Лост на ra3ta, obopotnte ce pergunpat abTomatuH.ДВогателя pa60TN BUNaHn C ONTUMaHn obopotn.

IocTaBeTe aKymylaTopa 3a 3anaBae B OTdJeHneTo 3a aKymylaTopa Ha DnirTaTEn, Taka Ye da ce 3acToOpn - fnr.5A.
OTbOpTe KpaHa Ha 6eH3nHa (ako mTaKbB).
IocTaBeTe IocTa Ha ra3Ta (aKO mMa TaKbB) NOnOKeHne /MaKc.ΦnR.5B
Kato 3aCTaHete 3aI ypeHaHTNCHeTe 3aUHTHaTa cKO6aIra 3aApbXTe -ΦIr 5C.
BkIIOUcTe KIOUca 3a 3anaJIbaHe n dpbKkaTa 3a ynpabNeHne, DOKaTO DBnraTeJrT 3anAn (ONIT 3a 3anaJIbaHe MaKcIMyM 5 cekyn, npedn nobTopeH ONIT n3uKaIte MaKcIMyM 1 MNHyTa)-qnr.5C.

Korato dBiratentpa60n:

Cne3anaBaeHaDnBraTeJRA ByTheTeNoCTaHaRa3Ta(aKo mMa TaKB)MeXdy max nMHN,3a Da 3arpeete DnBraTeJIaMaNko.
3aKoceHeHaJINBaIaTa NOCTaBeteIOCTaHaRa3Ta (aKOIMATaKBB)HaNbIHa ra3.

i yka3aHne

IObeue HOpMaunr OTHOCHO 06cnyXbaHTo Ha DnRaTeJr MOKeTe Da HamepuTe B yNbTbAHeTo Ha DnRaTeJr.

N3KIOUBAHe Ha DBNrATeJRA ΦnI.7

IocTaBeTe NoCTa Ha r3Ta (ako mTaKaBb) B NOJoxeHne /MnH.
IpycheTe 3aunTHaTa cko6a. CneKpATKO BpeMe DnuratEnrT n pexeUrt MExAHN3bM cnnpaT.

Pabota c ypea

BknOuBaHe/N3KnIOUBaHe
Ha npedabKaTa Ha KOJIeJaTa
(camo 3a ypeNi c npedabKa
Ha KOJIeJaTa)
ΦnR.6A,B,C

BknIOUbaHe Ha npedabKaTa HauKoJenata

I3TeTne TeIOCTa/pbUkata n 3aDpBxTe.

N3KIOUoyBaHe Ha npedAkaTaHa KOneJaTa

Iychete nocta/pbukata.

i Yka3aHn 3a ypeN B CbOTBcTCTBne c qnr.6C

3a BKNIOUBAHe/U3KNIIOUBAHe MOraT Da ce N3NON3BaT KaKTo JEBN, TaKa I DECHNIAOCT,CBOTBETHO- IN DBAtA 3aeHNO.

i yka3aHne

Iopapn KOHCTpyKTHBn npuHNnpn DbpnaHe Ha ypeHaHa3aDe Bb3MOxHO 3aHnTe KOJIeJa Da OKa3BaT NO-ToJMaO CbIpOTNBJeHne. KaTO TOBA He e NOBpeHa ypeDa, a e TexHnueckn OBycNoBEno.

POMOUI (B 3aBnCmOCT OT MoDena): ByTHeTe PpBO Jeko Hanpei ypeia, a Cnei TOBa Jeko Ha3aI, KaTO B CbUTo BpMe 3aDbNkBaunrT IocT He e n3Te TJIeH.

Помяна Ha ckopoctTa Ha Движенье Ha 3aДВиЖ- BaHeto Ha KOJIeNaTа (B 3aBUCMOCT OT ИЗпьЛнEHNeTO)

BHMaHne NOBpeNHa ypea

I3BbPwBaIte perynnpOBKIne
cAmO np pa6oteu DnuratEn.
Φnr. 6D, E

C NOMOuTa Ha MaJIKNJIOCT n36peTe eHa OT pa3NJUHnTE cTeNeHN Ha CKOpocTtA (1/MnH./ 4/MaKc./
Φn.r.6F,G
C nocta n36peTe cTeHen 3a ckopocTta (1/MnH./ m4/MaKc./)

i yka3aHne

Korato ypeBt cToH ha eHOMaCTO,napaT NTexHnuecknOCo6eHOCTn E Bb3MOxHOCKOpocTTa da ce npomeHa noTpydHo.

IOMO; N3TerneTe 3aBnKBaun IocN n36epTe cTeenHa CKOPoCTTa.

CbaTe Hn3npa3HeTe npCTaBkata 3a cb6npaHe Ha TpeBa.

( npn ypeiTe c npicTaBkata 3a cb6paHe Ha TpeBa)
Φnrg.11

Korato Otpra3aHaTa TpeBa OcTaBa Da JIeJn Ha 3eMaTaNIN INDnKaTopa 3a HAnbNbaHe Ha KOuHnCaTa noka3Ba, Ye KooHnCaTa e NbJHa (OnuHOHaHo,ΦIr 12):

IpycheTe npedna3HnJIOCT n3yakaTe DburaTeJIaT da cnpe.
BdHrHeTe Kanaka N OTKaYeTe npictabkata 3a cbbnpaHe Ha TpeBa.
I3npa3HeTe cbDbpxKaHneTo.

Pa6ota 6e3 npncTabka 3a c6bnpaHe Ha TpeBa

Cne KaTo CbAnTe npncTaBkata 3a Cb6npaHe Ha TpeBa, KanaKbT Ce 3aTbApra HAnOy. Pnp pa6oTa 6e3 npncTabKa 3a Cb6npaHe Ha TpeBa OKoCeHnrt MaTePnaIe Ce N3XBpna IInpeKTHo HAnOy.

Ipeo6opudBaHe 3a Ioppr3BaHe-TopeHe

( npn ypei n c onuohnnpnHaJIeXHOCHTN 3a NOpaBnaHe)

Ypei cbc 3aHNO n3XBbPnHe: ΦnR.8A

BdHHeTe kanaKa.
CbaIeTe npicTaBkata 3a Cb6paHe Ha TpeBa.
IocTaBete KocauHnKInH (B3aBNCIMoCTOTMOdeJa).
CnycheTe kanaka.

i yKa3aHHe

Pn ypei n C BrpaedeHa yHKuHa 3a noDpaBraH HeMa OTDeJeEH KInH-Ta3n FyHKuHa Ce Noema OT CneuaHNO OOpMeHa 3aHa KJana (Fnr.8B).

Upei n cbc cTpaHnHNo

n3XbPJIHe:ΦnI.9

Ha MRCOTO Ha CTPaHnHOTOn3XbPnIe MOHTnpaITe 3aUNTHaT npectnKka/Kanaka (Anr 9A)
NIN
CbaTe cTpaHNoTo 3XbPJIHe-3aHTHaTa npctnIka/KanaKbT ce 3aTBapra ABTomatNo (Φn9B).

IpeobopydBaHe Ha ypeiTe 3a CtpaHnUHO N3XBbPJIHe (B 3aBNCIMOCT OT N3TbJIHeHNeTO)

Korato nMa: Cbane: KOuHnUaTa 3a Cb6npaHe Ha TpeBaTa N PyChTe KLnanaTa 3a 3aHOTo N3XBbPnHe.
BdHrHeTppeDn3HaT a npeTnIka/Kanaka mOHTnpaIte cTpaHnUHOTo n3XbPnAHe (Fur.9C).

Cnei npNKIOUbaHe Ha pa6oTa

13BaTe KJIIOva 3a 3anaBaeHo (ako IMa TaKbb).
I3yakaTe BCnKn DnHexeU n Ce Yactn Da Cnpat Da ce DnXkAT N DBNfATEJrT Da I3CTnHe.
3aTBopete KpaHa 3a 6eH3nHa (ako mTaKbB-BNX ynbTbaHETo Ha DBratela).
I3BaTe KynnyHra Ha 3anaNTeJIHnTe CBeUHa DnRaTeJ.
I3npa3Hete npncTabkata 3a c6bupahe Ha TpeBa.
CbaIe akyMylaTopa 3a 3anaIbAhe OT DnraTeIa - cnr.16

■Пи HeobxOIMoCTdo3apeDeTe aKymyIaTopa. 17

3a npoBepka Ha cBcTOnHneTo Ha 3apeXdahe HATnChTe 6yToH (1) Ha aKymJaTopa. INdIkatOpnte LED (2) noka3BaT npi6n3nTeI- HOTO cbCTOHa He Ha 3apeXdahe. Pn MiRaU IHdIkatOp LED BeDHa 3apeDeTe aKymJaTopa.

i yka3aHne

PnpnbpaTe ypeDa camo c n3CTnHaJ DnRaTeN B 3aTBopeHn NOMeueHn.

CbBETn 3a noDlbpxaHe Ha TpeBHIne PLOU

HЯколко сьВета 3a Да pacte TpeBaTа Bn paBHomepHo NДa 6Бдe 3Дрaba.

KocHe

TpeBnTe pIoUc n ca 3acEtnc pa3nnuHn BnOBe TpeBa.AKO Kocnte YecTo, TpeBaTa pacteNo-3dpaBa,C NO-3dpaBn KopeHn O6pa3yBa TbCTa TpeBHaNOKpNBKa.AKO Kocnte PraKo,6bp30 ce o6pa3yBaT BnCOKOPactaIu TpeBn IpyrN bypeHn (HanPmep DeTeJIHa, «napuKn)HopMaHaTaNcoUnHa Ha eHa TpeBHa NOKpNBa e OKoNo 4-5 CM.Tp6Ba Da ce Kocn camo 1 / _3 OTobata BnCOUnHa; cJeDoBaTeHo np7-8 cm Okocete Do HopMaHaTaNcoUnHa.

ПО Вьзмохност He KOCeTe TpeBnTe PLOUи NOBeue ot 4 cm, BnpOTuBEN CnyuaH npN cywa TpeBHATA NOKpNBka ce pa3BaIa. BnCOKO NOPaCHaIaTApTeBa (HaNPmEp cIeD OTnycKaTa Bn) OKoCte NoEtAnHO Do DOCTnRaHe Ha HopMaJIHATA BnCOUnHa.

Pn KocHe BnHaN MaKo 3aCtbnBaIte JeHTnte Ha KocHe.

Iopra3BaHe-TopeHe (OCTaBnHe Ha OKoCeHaTa TpeBa 3a HATOpRABe Bbpxy IiBaJaTa), (c npHaJNeK-HOCTN)

Pn KocHe TpeBaTa Ce Hap3Ba Ha MaKn KbCyeTa (OKOJIO 1 CM) N OCTaBa Da JIeKn Ha 3emrTa.

TpeBHaTa nIoU 3ana3Ba noBeYe OT XpaHnTeHNHe Cn BeueCTBa.

3a ONTImaJIeH pe3yIITat TpeBHaTa
IIIOU TpRA6Ba Da ce NOdIbPka
NOCToRnHO HnCKO OkOcHe, BnK
CbIoo «KocHe». Ppi NODpy3BaHe
Cna3BaIte CneIdHInTe yKa3aHn:

-HeKoceteMOKpaTpeBa.
- HNKORA He KOCeTe NOBYe OT MaKcMym 2 cm OT cIaTa DbJIKNHa Ha TpeBaTa.
-KapaIte 6aBHO.
-ИЗпОзВаИтЕ МAKСИМАЛНИТЕоборOTи HaДВИгATEЛЯ.
- PeIDOBHO NOUHCTBaIte peKeuMEXAHN3bM.

TpaHcnpTnpaHe

KbcnOTceukn-Ha pbka

OnachocT

BbptraoTo ce yctpOCTBO 3a p3aHe MoKe Da NOBNeue npedMeTu No To3n HauH Da npuHH BpeN.

3a npuBnKBaHe Ha ypeHa Bbpy NOBbpxHOCTN, KOUTO He Ca NOKpUTN C TpeBa, IpbBO N3KnHcTe DBratela.

C npEBo3HO cpeDCTBO

Onachoct

Ipei BCaKO TpaHCnoptnpaHe Cnpete DvraTeN N OCTaBeTe da ce OxnaN. IVBaTe JyNaTa Ha CBeuTa.

He TpaHcnpoptypaIte ypeDa B HAKIOHEHO NIOXKeHne.

Ipn TpaHcnpTupaHe Ha ypeDa BbB INN Bbpxu TpaHCnOpTHO CpeiCTBO, rnoocnypeTe dope Cpeuy n3naJaHe.

TpaHcnpOpTuPaIte ypeJa cAmO C npa3eH pe3epBoap 3a rOpNBO. KaauKata Ha pe3epBoapa Tp86Ba Da bDe 3aTbopeHa NtBTHO.

Pn ypei n cbc crBaema dpbXka:
Φnr. 10

3a no-neecho npnbpahe, cTbHeTe dpbXka.

O6cIyKBaHe/ПочиcaHe

Onachoct

3a 3auNTa OT HapaHraBaHHn IpeDN BcKaKbN paBOTn NO TO3u ypeD

-13KnHouTe DBuratena.

-3BaTeE KIOUa 3a 3anaBHeTO (aKO UMa TaKbB),

-34aKaITe BCnKu DnKeUcN Ce 3actn da cnpaT da ce DnKxat N DnRatEnT Da n3CTnHe.

-IV3BaTe KynnyHra Ha 3aNaNTeHNHTe CBeuHa nBnIATEn,3a Da npedOT-BpaTne 3aNaJIbAHeTo Ha DBnIATEn NO HEBHMaHne.

-Cbane akymyntopa 3a 3anaIbaHe OT DBuratena,

-OCBENTOBACnA3BaHTe NdoJIbIINHTeHNHTeYka3aHn 3a6e3ONaCHOCTOTyTbTBAHeTo HaDnuratela.

Onachoct

3a 3aunTa OT HapaHraBnna
CpeXeunMexaHn3bM BCuKn
paobTu, KaTO CMHa UIN
NoocTpRHe Ha peXeunHOK,
TP6Ba Da ce N3BbPWBat
B CneuaNn3npaH cepBu3
(Heo6xOJmnc Ca CneuaJHn
HHCTpyMeHTn).

3aTgauBbPTMOMeHT Ha BnHTa Ha HOxA.

-51-68 Nm (Kocayka 3a TpeBa C MeTaNHeK Kopnyc)
-36-44 Nm (Kocayka 3a TpeBa C nactMacOB KOpnyc)

BHIMAHne

HaKaJaHnTe ypeDa BnHaTn Taka, ye 3aapanTeHNHe CBeuN Da ca OobpHaTu HaRope, 3a Da He Morat RopNBOTU MM MacNOTO da npuHnT NOBpeDN Ha DnRaTeN.

06cIyXBaHe

BHHMaHHe

Cna3BaIte npedncaHnraTa 3a 6e30nacHOCT OT yNbTbaHeTo Ha Dnuratena. B KpaHa Ce3oHa 3akapaiTe ypeDa 3a npOBepka N o6cnyXBaHe B CneuHaUN3npaH cepBn3.

BcKaKbPemOHTnN3BbPWBaIte cAmOB CneuMaH3upaH CenBu3.

BHHMaHHe

Onachoct OT 3ambpcraBaHe Ha OKoJIHata CpeJa C MOTOPHO To MacNo.

Cne cmaHa Ha Macnoto
npedabaTe ynotpe6BaHOTo
MACIO B CneuaJIIN3IpaH
npedabatEn H NHT 3a
yNOTpe6BaHO Macno NNI
ΦnpMa 3a OTnaDbuN.

OnachocOT 3aMbpcBaHe Ha OKoJIHata cpea c batepuIte/ akymyInatopa.

U3noJ3BaHnte 6atepn/
akymyNatOpn He Tpr6Ba da
ce I3XBbPnT CDOMaKInHCKnTe
OTnaDbu. PpeJaBaIte N3NoJ3-
BaHnTe 6atepn/AkymyNatOpn npi
TbpRoBeua HnHa qnpMa 3a
OTnaDbu. CbaIe Te 6atepnTe/
akymyNatOpa, PpeN ypeBt Da
6bJe PpeJaDeH Na BTOpHuN
CypOBHH.

i yKa3aHne

O6bPHeTe BHMaHne Ha INHTepBaJIte 3a KOHTpoI INHTepBaJIte 3a O6cnyKBaHe B pBkoBOdCTBOTO Ha DBNraTeJ.

B 3aBnCIMoCT OT MoJeBaWnIypeD e obOpyDbH C eNeKtpOnHa cNCTema 3a npocneJaBaHe Ha o6cnykBaHeTo (Φur 13).

Cbo6pa3raBaIte ce cbc
cboTBeTHnTe INDnKaTOpn 3a
obCyXbaHe, B DoNbJIHeHne
KbM NmCMeHnTe yKa3aHnna 3a
obCyXbaHe. 3a NaHnHa Ha
obCyXbaHe n Dpyra INHopMauHn
MOKeTe Da B3eMeTe OT OTdENHOTO
yNbTBAHe 3a ekCnNoaTaUn, KoETo
e npINOxEHO KbM CnCTeMaTa 3a
npocLeJaBaHe Ha obCyXbaHeTO.

PpeBcraKo n3no3BaHe

PpOBepTe HnBTo Ha MacNoTo, npHneOxOAnMoCT DocnPeTe.
■ PpOBepeTe BnHTOBInTe CbeEnHHeHn, DaJIu Ca CTerHaTn Do6pe, npn Heo6xOaMocT 3aTeHete.
IpoBepTe npedna3HnTe cboPbXeHn.
OTCTpaHeteUyXdnteTeJa 3aMbpcraBaHnraTa OT OTeJeHneto 3a Akymylatop Ha DBrarTeJc NapzauN Yetka.

PpOBepTe TOnKaTa Ha 3aueBbHe Ha npedaBkata:

(cam0 3a ypei n c npedabKa Ha KOJenata)

• Pn pa6oTeu DvraTei N 3KIOUeHO 3aDvIXBaHe Ha KOJIeNaTa ypeBt He MoKe da ce DvIXn HapPeI.
• Pn pa6oTeu DnBnraTeI N BkIIOyeHO 3aDnBXBaHe Ha KOJIeJaTa ypeIbT Tp6Ba da MoKe Da ce DnXn Hnpei.

Φn.15

Ipn Heo6xOIMOCT perylnpaaiTe ToKata Ha 3aueBbae c poNka 3a Ha3b6BaHe/perynipaa rAka Ha 3aDbNkBaun KOIJIATA JOCT (B 3aBNCMOCT OT N3PbJIHeHHeTO Ha DoJHaTa CTPaHa Ha IpeBKKIOUBAaTa KOH30Ja) INI TbBKABn BA.

i yka3aHne

Pn HAKoM OeJn HMa Bb3MOxHOCt 3a perynipahe.

CneI pBNTe 2-5 pa6oTHn Yaca

CmeHeMaCNoTO,BNX npINOxKeHTo yNbTbaHe Ha DnRaTeIa.

CneB BcKaKO KocHe NIN npn Heo6xoDmOCT

• Do3apeDeTe akyMynaTopa.

BedhkaHa Bcekn ce3OH

CmeHeMaCNoTO,BNX npINOxKeHTo yNbTbaHe Ha DnRaTeJI.
Cma3BaIte ToyKInTe Ha 3auePbHe N BbPTruTe npyKnHn Ha KaNaka Ha OTBopa 3a N3XBbPJIHe Ha TpeBaTa.

B KpaHa ce3oHa 3aKapaTe ypeDa 3a npOBepKa n o6cnykBaHe B cneuaJIn3npaH cepBn3.
IpoBepaIteakymlaTopa I 3apHnOTo yCTpOiCTBO peIOBHO（HaM-MaIKo BeHbK roINuHO）BCneuaN3npaH cepBn3.

Почистванe

BHMaHHe

IOnuCTBaIte ypeDa CneD BCaKO n3NON3BaHe. HEnoUcTeHnA rT ypeD BOiN DO NOBpeXdaHe Ha MaTePnAna N HapUshaBe Ha fYHKuNTe. 3a NoUcCTBaHe He N3NON3BaIte ypeDi, paBoteu Ni oD BucOKO HanraHe.

NouctBaHe Ha npctaKaTa 3a cb6npaHe Ha TpeBa (cAmo 3a ypeDnte C npctaKa 3a cb6npaHe Ha TpeBaTa) Hau-lecno cTaba NouctBaHeto BeHara CneKocHe.

CbaIeTe n 3npa3HeTe npncTabKaTa 3a cb6npaHe Ha TpeBa.
PnCTaKaTa 3a Cb6paHe Ha TpeBa MoKe Da ce NouchTn Cbc CnHa CTpy Boda (rpaDnHcN Mapkyu).
IpeiCJIeDBAUTo H3NOJ3BaHe NOcCyUWeTe Do6pe npNCtABkata 3a Cb6npaHe Ha TpeBa.

Почистван На Косачкata

Onachoct

Pn n3BbPwBaHe Ha pa60Tu no
peXeUmaMexaHn3bM MoKeTe da
ce HapaHtE. 3a CBOr 3aunTa
HocTe npedna3Hu pa60THu
pbkABu.

BHIMAHne

HaKaJaHnTe ypeDa BnHaTn Taka, ye 3aapannteHNHTe CBeuN Da ca OobpHaTu HArope, 3a Da He Morat RopUBOTU Nm MacNTo Da npuHnT NOBpeDu Ha DnRaTeN. He npbckaIte ypeDa CBoa, 3aOTo MORaT Da ce NobpeJr eNeKtpnuecknTe Yactu. Pa3eTe aKymnatopa n 3apdHoto yCTPOINCTBO OT Bnara.

IIO Bb3MOxHOCT NOUcTBaIte ypeDa BnHaN HEnocpeDCTBeHo CNeI KOCHeTO.

IOnuHCTeTe OToJeHHeNo 3a akymylaTopa Ha DnVraTeJIa

OtctpaheTe yxndTe TeNa 3aMbpcaBaHnraTa OT OTdeneHneTO 3a akymynaTop Ha DBuratela c napcau N YeTka.

Ypei63cncTeMa 3a NOHCTBaHe Ha MexAHN3Ma:

I OuHCTeTe MxCTOTO Ha pexKeUra MexaHn3bM C YeTka, MeTna Nn NapcaJ.
IocTaBete ypeDa Ha KOneJaTa n OTCTpaHete BCnUKN BnDmN OCTaTbCn OT TpeBa N3aMbpcraBHaHna.

Ypei n Cbc CnCTema 3a
NouchTbaHe Ha MexaHn3Ma:
ΦnI.14

KocayKeTc CbC CNTema 3a
H3MnBaHe Ha MExaHn3Ma Ca
O6OpyDbaHn C H3BOd 3a BOda.
IIO To3n NaHH Ce OTMnBaT
OCTaTbUHTe TpeBa OT DOJHaTa
CTpaHa Ha KocayHn MEXaHN3bM
N CE IpeDoTbPaT8Ba OTlaRaHTo
Ha Kopo3nPaUx XmKnAIn.
Cnei KoCeHe IpOuZeDnPaYTe
No CNeiHn HaHH:

IocTaBeTe ypea Bbpxy paBHa IOBbpxHOCT 6e3 YaKbI, KaMbHn I dp.

i yka3aHne

OTBOpbT 3a N3XBpJIHe He TpI6Ba Da e HacOueH KbM KbU, rapaxn I npytn noo6HN.

CbpxKeTe oBnKHOBeH aDAnTOp 3a Mapky (OuHOHaJIHo e BkIIOUeH BIOCTaBkAta) KbM MapKyu ITO CBpXeTe KbM IN3BOda 3a BOda Ha KocauHn MEXaHN3bM.
- PnycheTe BODaTa.
3anaane Te Dniratena I ro octabete da pa60Tu HraKoKo MInHyTN.
Cnpete DnBraTeN I OTCpaHHeTe Mapkyua 3a BOda OTypeja.

CneI npKIOUbaHe Ha npOcecaHa n3MnBaHe:

3anaane Te Dniratela n ro octabete da pa6otn HkoJKO MNHyTN, 3a da NocuHTe DOHaTcTaPHa Ha KocauHmexaHN3bM.
N3KJIIOUBaHe Ha,DbVaTeJIA.

3a3nMaBaHe

Onachoct

OnachoctOTekcnno3nI noxap Hnkora He npnbpaTe ypea C ropuBO (bEH3nH) B pe3epBOapa B NOMEueHna, B KOUTO n3npaehnraHa rOpNBOTO MOrat Da Bn3aT B KOHTaKT C OTKpNT O'bH nnN NCKP.

BHMMaHne

MATEPNAHNI UeTu Ha ypeJa.

-Прибираиte урета (c n3ctnHaI DBuRatel) cAmO B uNCTH N CyXN NOMeueHna.
- Pnno-Dbnro CbXpaHBAHe, Hanpnmep npe3 3mata, 3aunTeyepeda cpeuy pbxda.
-CbXpaHraBaIte aKymyIaTopa 3apJHOTO yCTPOIcTBo Ha XJaHO H CyXO MRCTO.
-Ⅱa3eTeakymyntopa Ⅰ3apnHOTO yCTPOIcTBO OT BnaRa,dbxqD，CHrNCTyD.

B KpaHa Ce3oHa NnKorato ypeT Hma Da 6bNe n3noJ3BaH IOBeue OT MeceU:

I3TOcTe rOpBOTO B NOxOJaU CbN 3a3mTe DBrTaTeJ, KaKTo e OINCAHO yTbTBaHETO Ha DBnRaTeJ.

BHMMaHne

V3TOyBaIte rOpNBOTO cMo Ha OTKpTuO.

I OuHcTeTe Upea n npucta KaTa 3a cbbnpaHe Ha TpeBa.
■ N36bpyte BCnKm MeaHn Hactn C HaNoeHa B MacNo (HecbIbpxkaO CMoJa) KbPna IINr HAnpckaTe C MacNo, 3a Da rnpda3nTe OT pbXda.
3apeKdaHe Ha akymyntopa.

TapaHcHn

BbB BcRAKa DbPkaBa ca BaINdHn
H3daDeHnTe OT Hac, CbOTBeTHO
OT BHOCHTeRr rapAHn.
OTcTpaHraBame NOBpeHnTe
IIO BAuNya YpeD B paMKnTe
Ha rapaHzraTa N DOKOLKOTO
PpUHNaTa E B IN3NoJ3BaHnA
MaTePnAII NII B IPOUN3BODCTBeHa
rpeXka.B clyuaHn IOBpeDa
B pAMKnTe Ha rapaHczraTa ce
06bpHeTe KbM npoDaBaVa Hn
KbM Na-6nn3KOTo OphiuaHNO
npedCTaBnTeJIcTBO.

HΦopMaζηa 3a DvΓaTeJIa

ПОНЗВОДИТЕЛТ ha DBИralteлЯ OTROBAP3a BCnUKN npO6JIeMn, CBbP3AHN C DBIraTeJI N O THOWEHHe Ha MOUHOCCTTa, N3MepBaHe Ha MOUHOCCTTa I TEXHnueCKNTe DaHHN, rapaHcNoHHTO O6CJyKBAHe I cepBn3. INΦopMaцnia MoKeTe Da HamepIne B OTDeJIHOTO yNbTBAHe 3a CO6CTBeHnka/ NOI3BaTeJI, n3JaDeH0 OT PON3BOIDITeJI Ha DBIralteJI.

YcTaHOBЯBaHe NOTCTpaHЯBaHe Ha NOBpeNi

IobpeHte npa6oTaTc ypeDa
ObIKHOBeHo ca npeIN3BnKaHN OT
PpUHH, KOHTCa Bn Do6pe
N3BecTHN KOTOMoKeTe Da
OTCTpaHtTe cam. B cnyuAa Ha
KoJIe6aHHe ce o6bpHeTe KbM
CneuaJIn3npaH cepBn3.

Поблел Мьзможн пиуна Oтстаяпа He

Двигателей не се вklюва. Лостыт за гаста не се в правлино поожения.	ПосавETе лоста за гаста в правлино впоста В поста СнокЕ (Kогато двигателей студан).
	ПосавETe лоста за гаста В поста СнокЕ (Kогато двигателей студан).
Ножьт e затыhal вьв виска трева.	ПосавETe кесчкatinga вьрху терен с по-hися трева.
В розерboaра на заима流转в. Habленье розерboaра с чиро и посян流转в.
He e свързан кулунга на заалителнице сveши.	Свържete кулунга на заалитelнице сveши.
Горовто e стар по по заимьрсан.	Сmenete ripubOTO c HOBO.
Въздунягфлър e заимьрсан.	Почистете въздунягфлър.
Акумалatorьт не с постaven правлино.	ПосавETe akumylatopa правлино В OTдени提到а akumylatopи ng З actonopete.
Акумалatorьт e пошten. 3apedete akumylatopa сбс зарадно устристBO, Вklючени BO дoctabkaata.
Пов徕ен кабел. Пов徕ete в поравноцл са[elektriqueeknite кабел.
Пов徕ен akumylatop. Пов徕ete akumylatopa В спецалл�ан сөрвiz.
Нeoобачαιшишимove (dрьнuele, трополени, trapakane).	БOLTOBete, raйкие по друг; Закрени quantе quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quantе quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quantе quantе quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quante quanta. хлабам.

Uldised ohutusjuhised
