USER MANUAL POWDP6030 PowerPlus

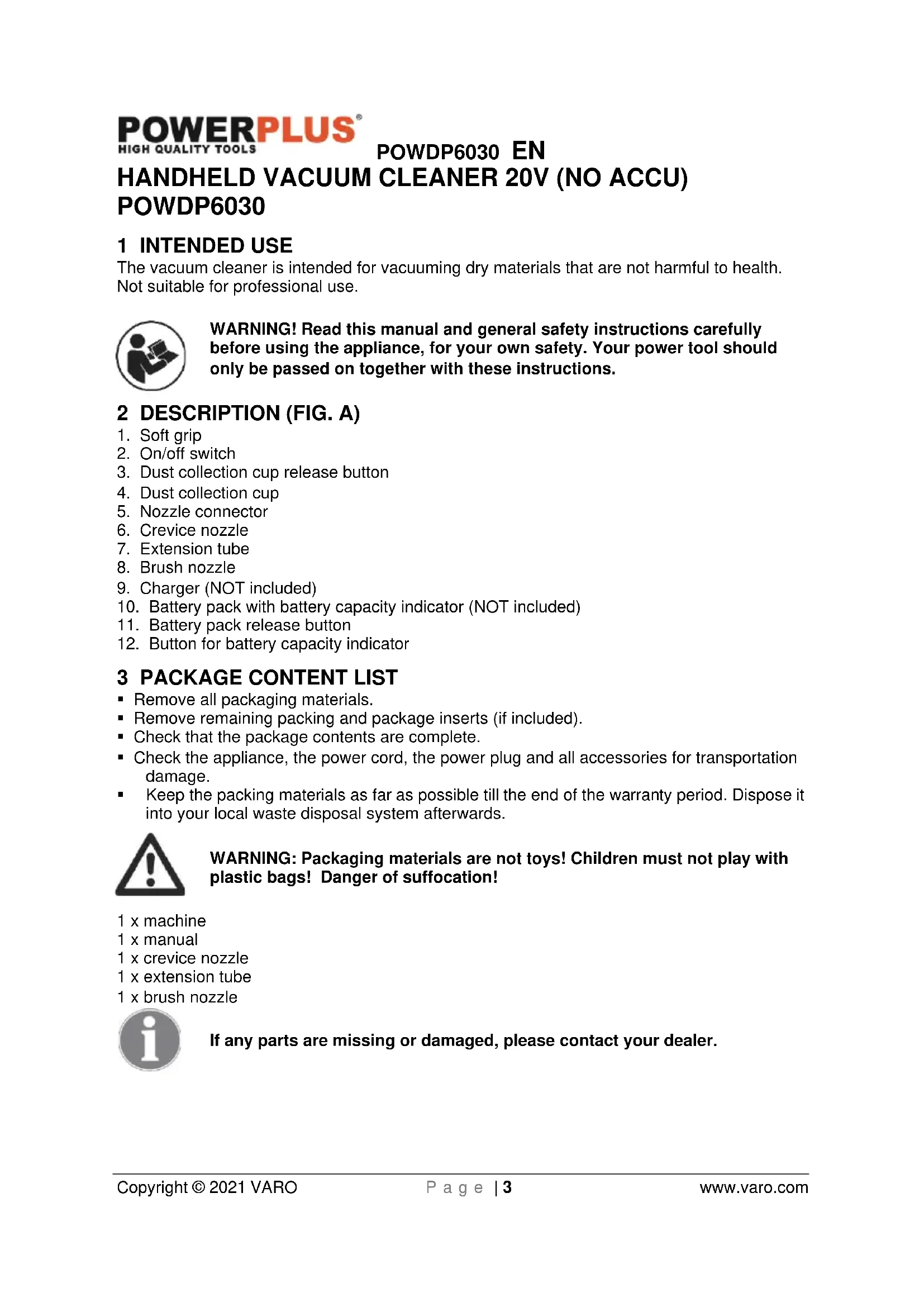

Copyright © 2021 VARO P a g e | 3 www.varo.com HANDHELD VACUUM CLEANER 20V (NO ACCU) POWDP6030 1 INTENDED USE The vacuum cleaner is intended for vacuuming dry materials that are not harmful to health. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. 2 DESCRIPTION (FIG. A)

9. Charger (NOT included)

10. Battery pack with battery capacity indicator (NOT included)

11. Battery pack release button

12. Button for battery capacity indicator

3 PACKAGE CONTENT LIST

• Remove all packaging materials.

• Remove remaining packing and package inserts (if included).

• Check that the package contents are complete.

• Check the appliance, the power cord, the power plug and all accessories for transportation damage.

• Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with

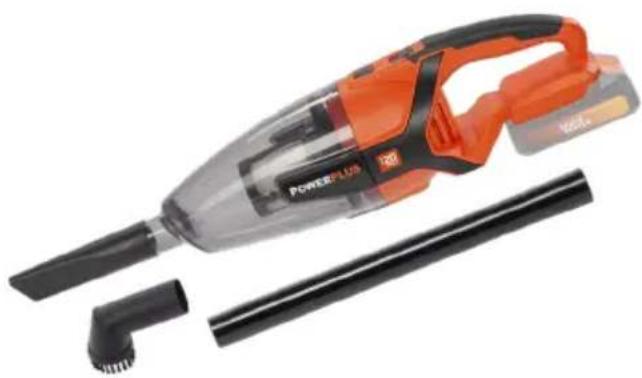

plastic bags! Danger of suffocation! 1 x machine 1 x manual 1 x crevice nozzle 1 x extension tube 1 x brush nozzle If any parts are missing or damaged, please contact your dealer.POWDP6030 EN Copyright © 2021 VARO P a g e | 4 www.varo.com 4 SYMBOLS In this manual and/or on the machine the following symbols are used:

Denotes risk of personal injury or damage to the tool.

In accordance with essential requirements of the European directive(s).

Read manual before use.

Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for charger).

Ambient temperature 40 °C max. (only for battery).

Use battery and charger only in closed rooms.

Wear a mask in dusty conditions.

Do not expose charger and battery pack to water.

Do not incinerate battery pack or charger.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains- operated (corded) power tool or battery- operated (cordless) power tool.

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.

• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.

• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.POWDP6030 EN Copyright © 2021 VARO P a g e | 5 www.varo.com

• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

• Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.POWDP6030 EN Copyright © 2021 VARO P a g e | 6 www.varo.com

6 ADDITIONAL SAFETY INSTRUCTIONS FOR VACUUM CLEANER

To avoid fire, explosion, or injury, inspect battery pack and chargers for any damage before use.

• DO NOT vacuum up hard or sharp objects such as glass, nails, screws, or coins that could damage the vacuum cleaner.

• DO NOT vacuum up drywall dust, fireplace ash, or embers. DO NOT use as an attachment to power tools for dust collection.

• DO NOT vacuum up smoking or burning objects such as hot coals, cigarette butt s, or matches.

• DO NOT vacuum up flammable or combustible materials, such as lighter fluid, gasoline, or kerosene, or use vacuum in areas where they may be present.

• DO NOT vacuum up toxic solutions (e.g., chlorine bleach, ammonia, or drain cleaner).

• DO NOT use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust, or other explosive or toxic materials.

• DO NOT vacuum up any liquids.

• DO NOT immerse vacuum cleaner in water or other liquids.

• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor.

• Do not place cleaner on stairs or furniture, as it may result in injury or damage.

• DO NOT immerse in water when cleaning.

• If handheld vacuum/wand is damaged, discontinue use.

• Never attempt to open for any reason.

• Do not store in locations where the temperature may exceed 40 °C.

• Charge only at ambient temperatures between 4 °C and 40 °C.

• Store your batteries in a cool dry place (5 °C-20 °C). Never store batteries in discharged state.

• It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.

• Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.

• Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows: − Carefully wipe the liquid off using a cloth. Avoid skin contact. − In case of skin or eye contact, follow the instructions below: ✓ Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.POWDP6030 EN Copyright © 2021 VARO P a g e | 7 www.varo.com ✓ In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

• Never attempt to charge non-rechargeable batteries.

• Have defective cords replaced immediately.

• Do not expose to water.

• Do not open the charger.

• Do not probe the charger.

• The charger is intended for indoor use only. 8 CHARGING AND INSERTION OR REMOVAL OF BATTERY

8.1 Charger indications (Fig. 1)

Connect the charger to the power outlet socket:

• Solid green: ready to charge.

• Flickering red: charging.

• Solid green: charged.

• Solid green and red: battery or charger damaged. Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger.

1. Frequently monitor the charger and battery pack while connected.

2. Unplug the charger and disconnect it from the battery pack when finished.

3. Allow the battery pack to cool completely before using it.

4. Store the charger and battery pack indoors, out of reach of children.

NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.

8.2 Removal / insertion of battery (Fig. 2)

WARNING: Before making any adjustments ensure the machine is switched

off or remove the battery pack.

• Hold the tool with one hand and the battery pack (10) with the other.

• To install: push and slide battery pack into battery port, make sure the release button on the rear side of the battery snaps into place and battery is secure before beginning operation.

• To remove: Press the battery release button and pull the battery pack out at the same time.POWDP6030 EN Copyright © 2021 VARO P a g e | 8 www.varo.com

8.3 Battery capacity indicator (Fig. 3)

There are battery capacity indicators on the battery pack, you can check the capacity status of the battery if you squeeze the button (12). Before using the machine, please press switch trigger to check if the battery is full enough for properly working. Those 3 LED might show the status of the capacity level of the battery: 3 LED’s are litt: Battery fully charged. 2 LED’s are litt: Battery 60% charged. 1 LED is litt: Battery almost discharged. 9 OPERATION

9.1 Switching On/Off (2) (Fig. 4)

• To start, slide the On/Off switch (2) forward firstly.

• Slide on/off switch forward until on lock position.

• To stop, slide the switch back.

9.2 Fitting brush nozzle (8) (Fig. 5)

Could clean the house and the car dense or small space inside easily: fan blades, sofa, carpets, quilts, meshes, pet hair, etc.

• Insert brush nozzle (8) into the nozzle connector (5) gently.

9.3 Fitting crevice nozzle (6) (Fig. 6)

Could absorb dust from the sofa space / car seat space.

• Slide the crevice nozzle (6) into the nozzle connector (5) gently.

9.4 The crevice nozzle/brush nozzle with extension tube (7) (Fig. 7)

• Slide the crevice nozzle/brush nozzle into the extension tube (7).

• Slide the extension tube into the nozzle connector. 10 CLEANING

10.1 Cleaning the dust collection cup (4) (Fig. 8)

WARNING! Projectile/Respiratory Hazard: Never use the vacuum without its filter. NOTE: The filter is re-usable, do not confuse it with a disposable dust bag, and do not throw it away when the product is emptied.

• While holding the dust collection cup (4) and handle, press dust collection cup release button (3).

• Remove the dust collection cup to access filter.

• Remove filter assembly from dust collection cup & separate the white filter from the filter housing.

• Tap filter over a trash can to remove debris. Be sure to also wipe debris from the filter housing.

• Put the filter back into the filter housing and place filter assembly back into the dirt collection cup.

• Reassemble dirt collection cup to body, align bottom first and rotate up until it clicks. NOTE: Filter is rinseable with water. Do not use soap/detergent. Let filter air dry for 24 hours or until completely dry.POWDP6030 EN Copyright © 2021 VARO P a g e | 9 www.varo.com 11 TROUBLESHOOT GUIDES Problem Possible cause Remedies Poor suction

1. Dirt cup not completely sealed.

2. Filter is clogged.

1. Reinstall dirt cup, make

sure lid is closed completely.

2. Remove filter and clean.

1. Clean filter, rinse, dry and

re-assemble. Vacuum tools won’t pick-up

1. Dirt collection cup full.

2. Dirt collection cup not installed

3. Rinseable and/or filter made with

HEPA media not installed completely.

2. Review ‘Dirt Cup removal &

3. Review ‘Filter Removal and

Air power 93 W Working current

• This product is warranted for a 36-month period effective from the date of purchase by the first user.

• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

• Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

• You can always obtain more information at the number 00 32 3 292 92 90.

• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

• Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.POWDP6030 EN Copyright © 2021 VARO P a g e | 10 www.varo.com

• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

• Your purchase receipt must be kept as proof of date of purchase.

• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

• Your tool must be charged at least 1x per month to ensure optimal operation of this tool. 14 ENVIRONMENT Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

15 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: HANDHELD VACUUM CLEANER 20 V Trade mark: PowerPlus Model: POWDP6030 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature): 2011/65/EU 2014/35/EU 2014/30/EU European harmonized standards (including, if applicable, their amendments up to the date of signature): EN60335-1:2012 EN60335-2-2:2010 EN55014-1 : 2017 EN55014-2 : 2015 Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO, Ludo Mertens Regulatory Affairs – Compliance Manager 15/04/2021, Lier - BelgiumPOWDP6030 DE Copyright © 2021 VARO Seite | 1 www.varo.com
