USER MANUAL MMS 800 E Meister Craft

GB - Multi-purpose electric saw ..... 55

GR - Нлектрикή полюσέγα ...... 64

Hastener Straße 4 - 8

D-42349 Wuppertal

Close-up of a mechanical clamp or bracket with teeth and a black head (no visible text or symbols)

				PLASTIC		CERAMIC
P	I-III	0-II	0	0-I	I-III	0

Pure diagram of a mechanical or electrical component with diagonal hatching and directional arrow (no text or symbols)

max. 200 mm

max. 12 mm

max. 25 mm

max. 8 mm

Illustration of a hand using a saw to cut a mechanical component, labeled 'Abb. 3' (no text on diagram itself)

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols visible)

Mechanical component with a triangular frame and central hub, no visible text or symbols

Abb. 5 a

Diagram of a mechanical device with a zigzag edge and directional arrow, no text or symbols present

Close-up of a hand using a saw to cut a textured surface with intersecting lines (no text or symbols visible)

Close-up of a hand holding a tool near a curved surface, with no visible text or symbols.

Close-up of a hand holding a tool with a metal clip, partially open to reveal material (no text or symbols visible)

Close-up of a hand using a tool to cut white foam blocks on a wooden surface (no text or symbols visible)

Close-up of a hand holding a pipe with a metal tool, next to a metallic cylindrical component (no visible text or symbols)

Close-up of a wooden plank being cut with a tool, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

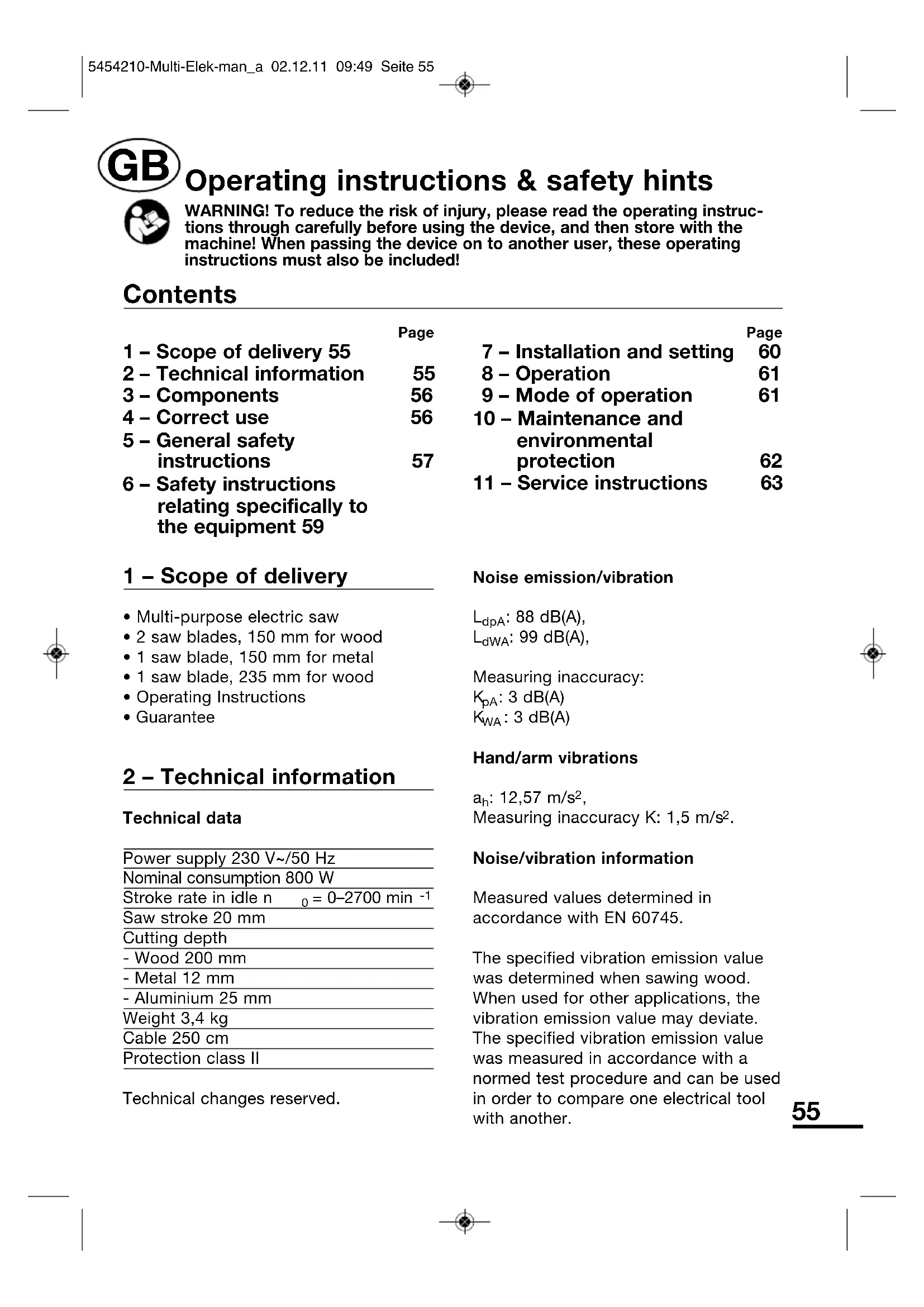

Operating instructions & safety hints

WARNING! To reduce the risk of injury, please read the operating instructions through carefully before using the device, and then store with the machine! When passing the device on to another user, these operating instructions must also be included!

Contents

	Page		Page
1 – Scope of delivery 55		7 – Installation and setting	60
2 – Technical information	55	8 – Operation	61
3 – Components	56	9 – Mode of operation	61
4 – Correct use	56	10 – Maintenance and environmental protection	62
5 – General safety instructions	57
6 – Safety instructions relating specifically to the equipment 59		11 – Service instructions	63

1 - Scope of delivery

• Multi-purpose electric saw
  • 2 saw blades, 150 mm for wood
  • 1 saw blade, 150 mm for metal
  • 1 saw blade, 235 mm for wood
• Operating Instructions
• Guarantee

2 - Technical information

Technical data

Power supply 230 V~/50 Hz

Nominal consumption 800 W

Stroke rate in idle n 0 = 0-2700 min -1

Saw stroke 20 mm

Cutting depth

- Wood 200 mm

- Metal 12 mm

- Aluminium 25 mm

Weight 3,4 kg

Cable 250 cm

Protection class II

Technical changes reserved.

Noise emission/vibration

L_dpA : 88 dB(A), L_dWA : 99 dB(A),

Measuring inaccuracy: K_pA : 3 dB(A) K_WA : 3 dB(A)

Hand/arm vibrations

a_h : 12,57 m/s ^2 , Measuring inaccuracy K: 1,5 m/s ^2 .

Noise/vibration information

Measured values determined in accordance with EN 60745.

The specified vibration emission value was determined when sawing wood. When used for other applications, the vibration emission value may deviate. The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one electrical tool with another.

The specified vibration emission value can also be used for an introductory evaluation of the influence.

CAUTION! The vibration emission value may fluctuate from the specified value during use of the power tool. These fluctuations will depend on the way in which the power tool is used.

Safety measures must be taken in order to protect the operator. As a result, the evaluation of the influence must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the power tool is switched off and times in which it is switched on, but is running without load.)

CAUTION! A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum.

CAUTION! The effects of noise may cause damage to the hearing. Only ever work with suitable ear defenders. Anybody else in the vicinity should thus also wear ear defenders.

3 - Components

1 On/Off switch
2 LED working light
3 Saw shoe
4 Saw blade holder
5 Pendulum action selection switch
6 Saw blade locking lever
7 Handle

8 Additional handle
9 Saw shoe locking button
10 Light switch

4 - Correct use

Sawing wood, metal and plastics. Rasping, cleaning and removing rust when used with suitable accessories. Only use suitable inserts and observe the relevant manufacturer's specifications. Any other usage is strongly unadvisable. The device is designed for household use, not for commercial use. The unit ought not to be used as a permanent installation.

The machine is intended only for use in the household.

This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device.

CAUTION! Incorrect use of, or alterations to the drill, as well as the use of parts not tested and approved by the manufacturer, may cause unforeseen damage.

Improper use of the product

All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use.

This power tool is not suitable for cutting down trees.

Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool.

Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use.

The permitted stroke rate of the tool insert must be at least as high as the highest value specified on the electrical tool. Accessories that turn faster than is permitted may break and fly away.

There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use.

If other components or non-original components are used with the machine, the manufacturer guarantee is voided.

Remaining risks:

The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care.

Remaining risks may be, for example:

• Touching rotating parts or tools.
• Injury caused by flying tools or tool parts.
• Risk of fire with insufficient ventilation of the motor.
• Adverse effects on the hearing caused by working without ear defenders.

The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks.

WARNING! During operation, this power tool generates an electro - magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool.

5 – General safety instructions for handling power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

1 Work area

a Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create

sparks which may ignite the dust or fumes.

c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 Electrical Safety

a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual

current circuit-breaker reduces the risk of an electrical shock.

3 Personal safety

a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.

h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

4 Power tool use and care

a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged,

have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Service

a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative.

6 – Safety instructions relating specifically to the equipment

• Use only sharp, undamaged saw blades. Torn, bent or blunt blades should be replaced immediately.
• Match the tool insert, stroke rate and pendulum action to the material in question. Pay attention to an even feed.
• The unit may only be operated with the footplate (3) mounted. When working, the footplate should always rest against the work piece.

• Always start the unit before introducing it to the work piece.
- Do not process materials that contain asbestos. When processing other materials that contain fibres, use a face mask and dust extraction unit.
- If the device is to be used outside, it must be connected via a residual current circuit-breaker. Extension cords and plugs must be certified for outdoor use.
- Do not attempt to stop the saw blade by applying pressure to the sides.
- Secure the work piece to prevent it from slipping by using tensioning mechanisms.
• Make sure that cables always lead away from the work place.
- During operation, always guide the device with both hands and ensure that you are standing firmly.
- The device should never be allowed to get wet and should not be operated in a damp environment.
- Prior to each use, check the device, the cable and the plug. Any damages should only be repaired by a specialist. Only plug the device into the socket when the machine is switched off.

- When carrying out work in which dust is generated, wear a face mask and safety goggles - do not smoke and avoid naked flames.

- When handling saw blades and rough materials, wear gloves.

- When changing a saw blade, wear protective gloves to prevent injuries caused by the sharp cutting edges of the blade.

- Wear ear-protectors.

• Wear safety goggles.
• Before carrying out any work on the machine, pull the plug out of the socket.
• Do not leave keys in the machine.
• Observe the general safety notes for handling electrical tools.
• Should the connecting cable be damaged, it must be replaced by the manufacturer or their customer representative in order to prevent risks.

7 – Installation and setting

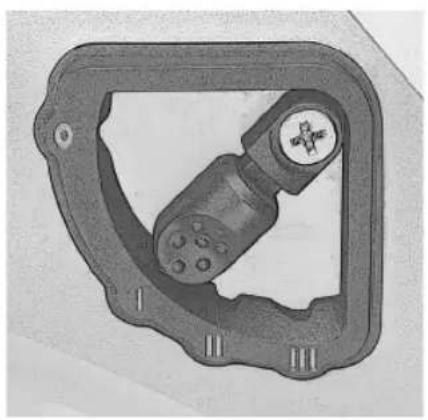

Pendulum action (P)

The adjustable pendulum action (5) Figure 1 (P) of the saw blade (0 for hard

materials, up to 3 for soft materials) is

used in combination with a suitable hub stroke (H) and improves the adjustment of the machine to suit the relevant materials. At the same time, this also protects the saw blade, improves the rate of rejection of shavings and considerably reduces the formation of frictional heat. Switching to pendulum action is also possible when the machine is running. For recommendations with regard to device settings, see Figure 1.

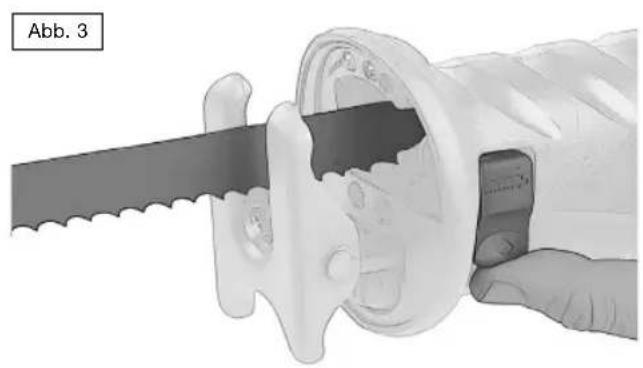

Changing the saw blade (Figure 3)

Pull the saw blade locking lever (6). Remove any sawdust from the saw blade holder. Change the saw blade as shown in the diagram. Ensure that the guide pin of the lifting rod slots into the guide hole of the saw blade. It should not be possible to pull out the saw blade when the locking lever (6) is released.

CAUTION! Disconnect the power cable prior to changing the e!

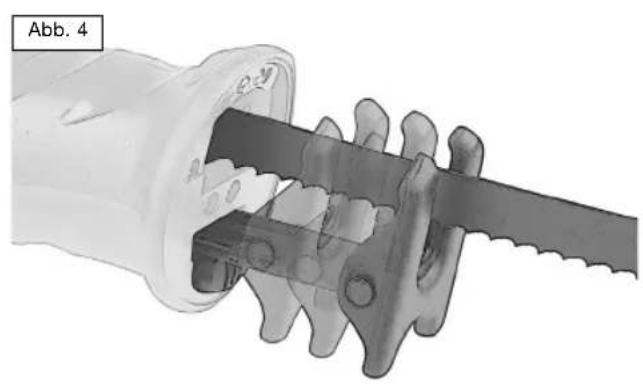

Setting the saw shoe (Figure 4)

Press the saw shoe locking button (9) and slide the saw shoe (3) lengthwise to the desired position. Release the locking button. To adapt or to provide a safe rest for the various materials, the angle of the saw shoe can also be modified.

8 - Operation

• Switching on: Press the On/Off switch (1). The machine starts up with the lowest revolutions. Press down harder on the switch to increase the revolutions.
• Switching off: Release the On/Off switch (1).

The On/Off switch cannot be locked for continuous operation.

• LED working light To enable precise working even under bad lighting conditions, you can use the LED working light (10). The 2 LED lamps light up the cutting area (Figure 2).

9 - Mode of operation

Adapt the saw blade, the stroke rate and the pendulum action to the material. Remove foreign objects from the work piece.

CAUTION! When working, always hold and guide the device by the style (7) and the additional handle (8).

The specifications in Figure 1d serve as orientation. We recommend carrying out test cuts on waste materials in order to determine the required device settings for the project.

CAUTION! Observe the safety notes!

Switch the device on, and move it towards the work piece to be processed. Place the saw shoe (3) on the surface of the work piece and saw the material with even pressure and feed. If the saw blade becomes trapped, turn the device off immediately. Use a suitable tool to open up the cut a little and remove the device. When you have finished working, switch off the machine and only put it down when it has come to a complete standstill.

CAUTION! After working with a low stroke rate for a long period me, operate at maximum solutions in idle mode for about

three minutes to allow the machine to cool down.

CAUTION! When sawing metal, and steel in particular, regularly cooling breaks should be taken in order to allow the saw blade to cool, or brush the blade with a cutting oil! This will considerably increase the durability and edge retention of the blade.

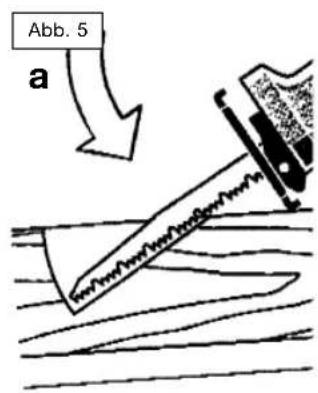

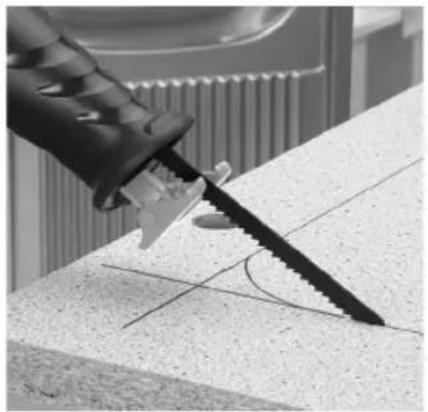

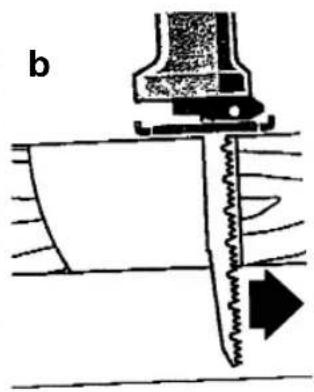

Sawing without pilot hole (Figure 5)

If you need to make a cut in a work piece and it is not possible to make a test hole, set the pendulum action to 0, release the saw shoe, push it right back and lock into place. With the saw blade in a tipped machine position and the machine running, careful guide it across the work piece (a). As soon as the work piece has been sawn through, continue working with the machine in the normal position (b).

CAUTION! Such usage is only possible with short blades and soft materials, such as soft wood or insulation materials.

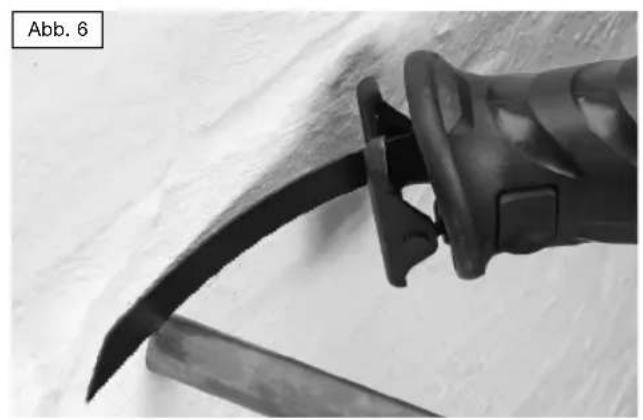

Sawing flush (Figure 6)

When used in conjunction with elastic bi-metal blades (not included) you can, for example, cut projecting elements (water pipes etc.) directly flush with the wall. Place the saw blade up directly against the wall and use lateral pressure on the machine to bend it until the saw shoe (3) lies against the wall. Switch the machine on and apply constant, lateral pressure while sawing off the work piece.

Application examples

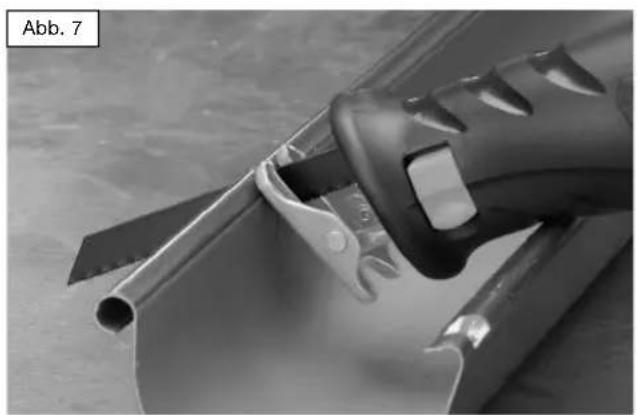

Figure 7: Sawing plastic/metal

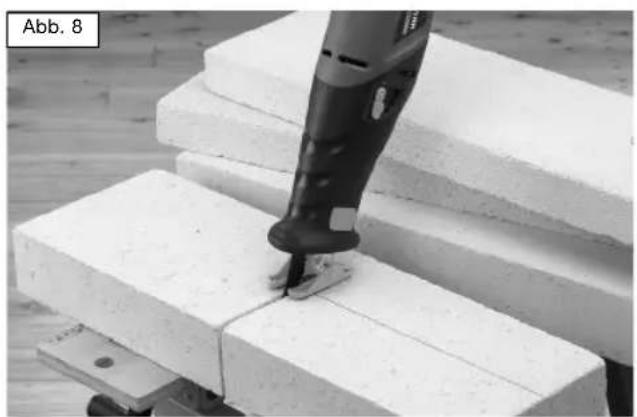

Figure 8: Aerated concrete

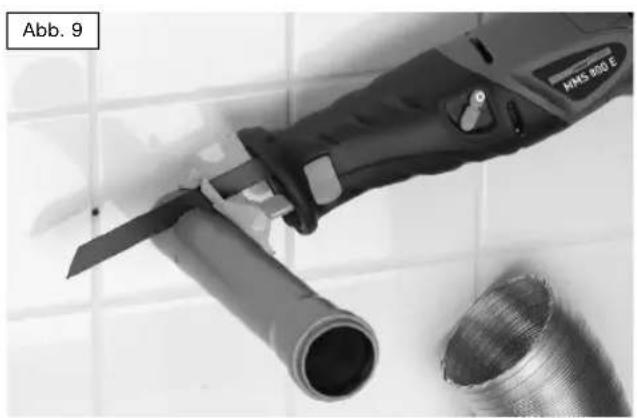

Figure 9: Shortening plastic pipes

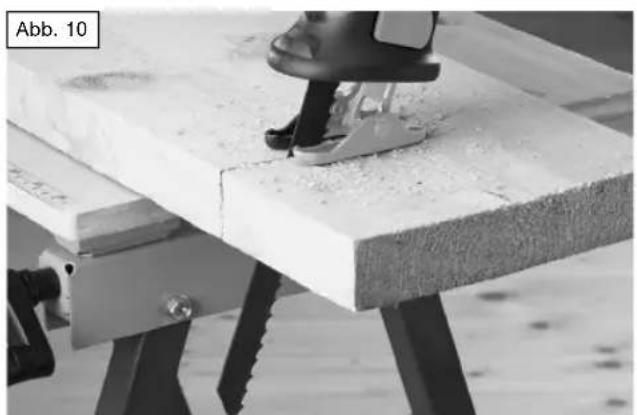

Figure 10: Cutting wood

10 – Maintenance and environmental protection

CAUTION! Unplug from the power source!

Never submerge electrical machinery in water. Additional notes can be found in the operating instructions.

Wipe the housing with a damp cloth and dry well. Do not use any cleaning products. Remove the dust from the ventilation slots and the blade holder, and if necessary use a vacuum cleaner.

CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with

the 2002/96 EC directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling.

Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

11 - Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
• MeisterCRAFT devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
• MeisterCRAFT devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.
• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.

PLEASE NOTE! Opening of the device invalidates the guarantee claim.

IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.
• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a horizontal line and a rectangular block below (no text or symbols present)

Električni i baterijski uredjaji koji se više ne mogu koristiti ne bacajte u kućni otpad! Njih trebate odvojeno sakupiti prema odgovarajućim zakonskim propisima i otpremiti ih na reciklažu gdje će biti zbrinuti na ekološki i stručan način.

11 - Servisne napomene

• Pohranite stroj, naputak za posluživanje i eventualno pribor u originalnom pakovanju. Tako ćete imati sve informacije i dijelove uvijek pri ruci.

• MeisterCRAFT aparati uglavnom ne zahtijevaju njegu. Za ćišćenje kućišta dovoljna je vlažna krpa. Elektrostroj ne stavljati nikada u vodu. Dodatne upute naćiće te u naputku za posluživanje.

• MeisterCRAFT aparati se podvrgavaju strogoj kontroli kvalitete. Ako ipak dode do funkcionalne smijetnje molimo pošaljite aparat na našu servisnu adresu. Opravka će biti izvršena vrlo brzo.

• Kratki opis kvara skraćuje vrijeme traženja greške i vrijeme opravke. Tijekom garancije priključite aparatu garancijski list te račun/potvrdu o kupovini.
• Ako se ne radi o garancijskoj opravci dostavićemo vam račun za popravku.

VAŽNO! Otvaranje aparata vodi gašenju prava na garanciju.

VAŽNO! Izričito upozoravamo na to da prema Zakonu o garanciji zvoda ne jamčimo za štete nastale rebom naših uredjaja ako su

Symbol of a trash bin crossed with no visible text or labels

Symbol of a waste sorting machine with no text or labels

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

GB - Storage of the technical documentation:
