USER MANUAL KS 1200 MB Meister Craft

Measuring inaccuracy K: 1,5 m/s Noise/vibration informationMeasured values determined inaccordance with EN 60745-1,EN 60745-2-5.The specified vibration emission valuewas determined when carrying outsurface grinding. When used for otherapplications, the vibration emission valuemay deviate. The specified vibrationemission value was measured in Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

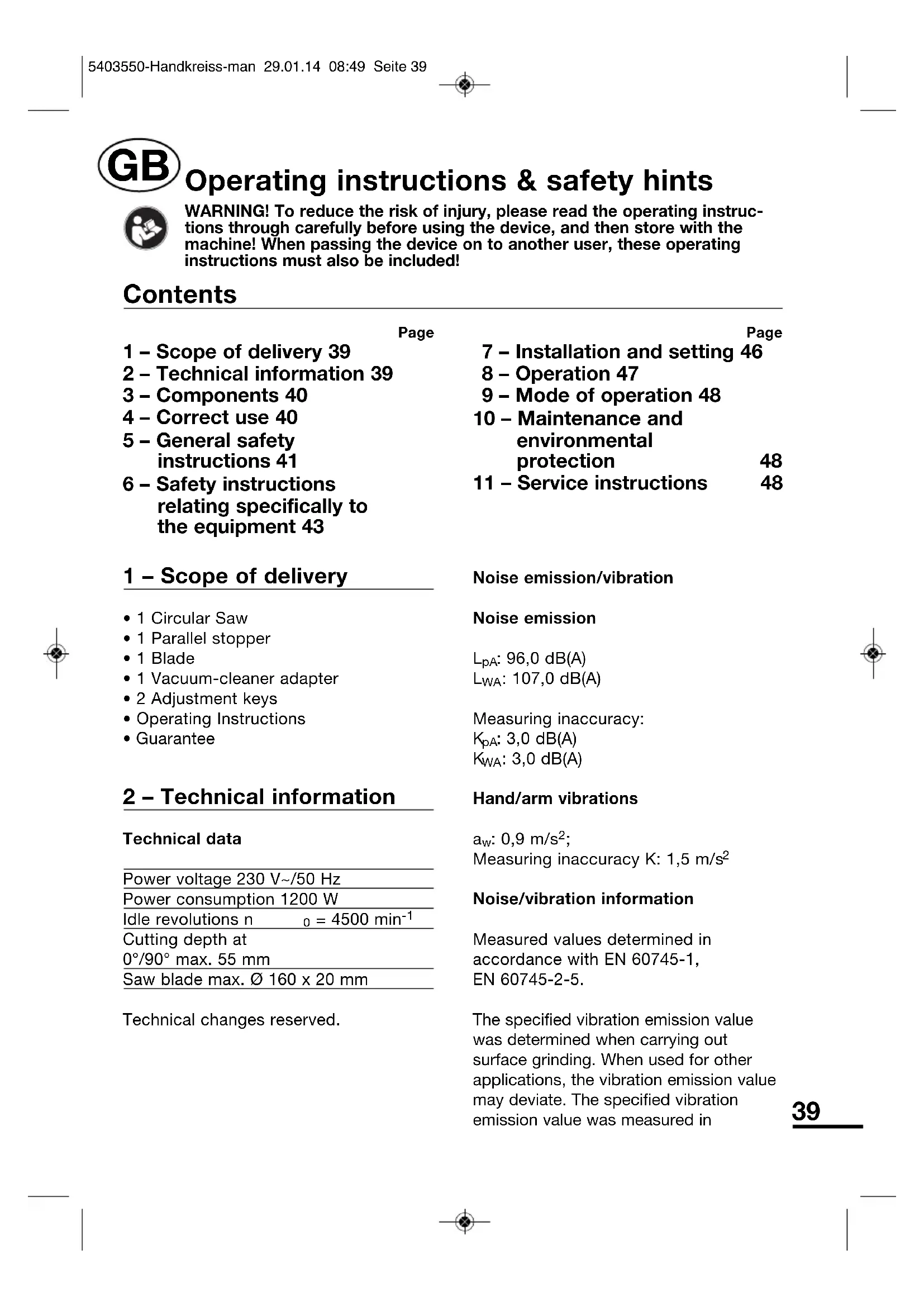

Page 1 – Scope of delivery 39 2 – Technical information 39 3 – Components 40 4 – Correct use 40 5 – General safety instructions 41 6 – Safety instructions relating specifically to the equipment 43 Page 7 – Installation and setting 46 8 – Operation 47 9 – Mode of operation 48 10 – Maintenance and environmental protection 48 11 – Service instructions 48 Contents 5403550-Handkreiss-man 29.01.14 08:49 Seite 3940 accordance with a normed test procedure and can be used in order to compare one electrical tool with another. The specified vibration emission value can also be used for an introductory evaluation of the influence. CAUTION! The vibration emission value may fluctuate from the specified value during use of the power tool. These fluctuations will depend on the way in which the power tool is used. Safety measures must be taken in order to protect the operator. As a result, the evaluation of the influence must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the power tool is switched off and times in which it is switched on, but is running without load.) CAUTION! A certain amount of noise is unavoidable when using this device. Ensure you carry out noise- intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. CAUTION! The effects of noise may cause damage to the hearing. Only ever work with suitable ear defenders. Anybody else in the vicinity should thus also wear ear defenders. 3 – Components 1Grip 2 Switch 3 Adjusting screws 4 Splitting wedge 5 Hinged guard 6 Hexagon screw 7 Base plate 8 Flange 9 Parallel stopper 10 Hoover connector 11 Cut angle setting 12 Cut depth setting 13 Vacuum-cleaner adapter 4 – Correct use This circular saw is strictly a hand- operated tool and the saw blade that comes with it is suited for making straight cuts in wood and wooden materials according to the specifications in this instruction manual. When used with suitable blades (adhere to manufacturer’s specifications), the tool can also be used to cut: plastics, thermo-plastics and duroplastics, laminated plastics, high-resistance foam, plaster board, rock wool boards, cemented particle board, porous concrate and nonferrous metals. All other applications are expressly ruled out. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. 5403550-Handkreiss-man 29.01.14 08:49 Seite 4041 Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use. The permitted revolutions of the tool insert must be at least as high as the highest value specified on the electrical tool. Accessories that turn faster than is permitted may break and fly off. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. WARNING! During operation, this power tool generates an electro magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, 5403550-Handkreiss-man 29.01.14 08:49 Seite 4142 gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. 5403550-Handkreiss-man 29.01.14 08:49 Seite 4243 g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations. h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b If connection cables are damaged, they must – in order to reduce the risks – be replaced by the manufacturer or by their customer service representative. 6 – Safety instructions relating specifically to the equipment

• Saw blades made of high-speed steel may not be used.

• Saw blades that do not correspond to the characteristic data specified in this operating manual may not be used.

• Ensure that all of the moving parts of the saw blade protector are able to move without catching. 5403550-Handkreiss-man 29.01.14 08:49 Seite 4344

• The splitting wedge should always be used and be set correctly, except when carrying out insertion cuts.

• Only use sharp saw blades and suitable accessories.

• Fix small wooden items in place firmly before processing. Never hold them by hand.

• Do not use flanges/flange nuts with drilled holes that are larger or smaller than those of the saw blade.

• Do not brake the saw blade by hand.

• The machine is not to be used for stationary operation. Keep your hands well away from the sawing zone and the saw blade! Use your other hand for the additional handle or the motor housing. If both hands are holding the saw, they cannot be injured by the saw blade.

• Do not put your hand under the workpiece. The safety guard cannot protect your hands from the saw blade under the workpiece.

• Select the depth of the cut to match the thickness of the workpiece. Less than the height of one tooth should be visible beneath the workpiece.

• Never hold the workpiece with your hand or rest it on your leg. Secure the workpiece on a steady surface. It is important to secure the workpiece to reduce the risk of body contact, jamming of the saw blade or loss of control.

• During work where there is a danger of damaging concealed wires or the mains cable of the machine, hold the machine only by the insulated handles. Contact with live wires causes the metallic parts of the machine to become live and cause electric shock.

• When cutting lengthwise, always use a stop or a straight guiding edge. This improves the accuracy of the cut and reduces the risk of saw blade jamming.

• Always use saw blades of the right size with seating holes of the correct size and shape (e.g. star-shaped or round). Saw blades which do not fit correctly into the saw are not correctly balanced and cause loss of control.

• Never use damaged or incorrect saw-blade washers or screws. The saw-blade washers and screws supplied were designed specially for your saw to ensure optimum safety and performance. Causes and prevention of kickback:

A kickback is a sudden backward impact resulting from a jamming or wrongly adjusted saw blade and causes an uncontrolled saw to spring out of the workpiece towards the user. When the saw blade jams or locks in the cut gap, it blocks and the force of the motor causes it to jump back towards the user. If the saw blade twists in the cut or is incorrectly aligned, the teeth of the rear edge of the blade may lock in the workpiece, lifting the blade out of the cut and back towards the user. This kickback is caused by incorrect use of the saw. It can be prevented by suitable precautions as described below.

• Hold the saw firmly with both hands and hold your arms in a position where they are able to 5403550-Handkreiss-man 29.01.14 08:49 Seite 4445 withstand kickbacks. Always stand to the side of the saw blade. Never bring the saw blade into line with your body. A kickback may cause the saw to jump backwards unexpectedly; however, the user can control the effects by exercising due care.

• Should the saw blade become stuck or the sawing operation be interrupted for any other reason, release the ON/OFF switch and hold the saw steady in the workpiece until the blade has come to a complete rest. Do not attempt to remove the saw from the workpiece or to pull it backwards as long as the blade is moving or a kickback could happen. Locate the cause of the saw blade’s jamming and take appropriate measures to remedy it.

• If you wish to restart a saw whose blade is stuck in the workpiece, first centre the blade in the cut and ensure that the teeth of the saw are not locked in the workpiece. If the saw blade is jammed it may move out of the workpiece or cause a kickback when the saw is re-started.

• Ensure that larger boards are well supported to reduce the risk of a kickback caused by a jamming saw blade. Large boards may sag due to their own weight. Boards must be supported on both sides, both in the vicinity of the gap and at the edge.

• Do not use blunt or damaged saw blades. Blades with blunt or wrongly aligned teeth, cause excess friction because the cut gap is too narrow, and this in turn causes the blade to jam and kick back..

• Before starting work, tighten the setting devices for cut depth and cut angle. If the settings should shift during sawing, the saw blade may jam, causing a kickback.

• Take particular care when making a „sink cut“ into a concealed area, e.g. into an existing wall. The sinking saw blade may jam in concealed objects thereby causing a kickback.

• Before use, check that the lower guard closes properly. Do not use the saw if the lower guard does not move freely or does not close immediately. Do not use the saw if the lower guard does not move freely or does not close immediately. Should the saw fall to the ground accidentally, the lower guard may be bent or damaged. Open the guard with the pull-back lever and ensure that it moves freely and never touches the saw blade or other parts of the saw at any cutting angle or depth.

• Check the function of the spring for the lower guard. If the guard and the spring do not work properly, have the machine inspected and repaired before using it again. Damaged parts, encrusted material or accumulations of chippings may cause the guard to operate with delay.

• Open the guard by hand only in case of special cuts such as „sink cuts“ or „angle cuts“. Open the lower guard using the pull-back lever and release it as soon as the blade has penetrated the workpiece. For all other sawing operations, the lower guard must function automatically.

• When laying the saw aside on the bench or floor, ensure that the blade is covered by the guard. The unprotected spinning blade causes the saw to move contrary to cutting 5403550-Handkreiss-man 29.01.14 08:49 Seite 4546 direction and damages anything in its path. Remember that the saw blade continues to spin freely for a while after the switch is released.

• Use the correct splitting wedge for the saw blade in use. The splitting wedge must be thicker than the body of the saw blade, but thinner than the width of the teeth.

• Adjust the splitting wedge as described in the operating instructions. Incorrect thickness, position and alignment may be the reason why the splitting wedge does not effectively prevent a kickback.

• Always use the splitting wedge except for sink cuts. Re-fit the wedge immediately after the sink cut. The splitting wedge hinders sink cutting and may cause the saw to kick back. Safety marking The symbols on the housing mean the following: Do not dispose of with domestic waste! Important! Observe operating instructions! „Tested Safety“ voluntary quality mark CE Mark (conformity to European safety standards) Housing is double insulated Wear safety goggles! Wear ear defenders! 7 – Installation and setting Parallel cutting

1. Unscrew the setting screw.

2. Set the parallel stopper according to

the scale, do not forget the width of the blade ! Attention! Make a test cut with a piece of waste wood Notch 0 - vertical cut 90° Notch 45 - inclined cut 45° Setting the depth of the cut

1. Unscrew the adjusting screw.

2. Swing the base plate downwards.

3. Set the cutting depth using the scale.

The top line must stand approx. 2 mm proud of the wood. Setting the base plate

1. Unscrew the 2 adjusting screws.

2. Set the plate to the angle required

3. Tighten the adjusting screws.

Setting the splitting wedge

1. Open the hinged guard and hold

2. Unscrew the screws.

3. Set the splitting wedge and tighten

the screws. Replacing the blade

1. Open the hinged guard and hold

2. Hold the flange with the flange

3. Loosen the hex. screw by the hex.

4. Pull the flange and the blade

6. Tighten the hexagonal screw, make

sure the blade is running correctly.

7. Adjust the splitting wedge.

8 – Operation Switching on and off

5403550-Handkreiss-man 29.01.14 08:49 Seite 4748 The machine has a two-button protective-circuit: The machine can only be put into service if the handle is firmly grasped and both buttons are depressed. When the handle is released, the machine turns off automatically, preventing any unintentional operation. 9 – Mode of operation

• The pendulum cover is automatically pushed back by the work piece.

• Gently and evenly push the circular saw forwards.

• The waster piece should be located on the right-hand side of the circular saw to ensure that the largest piece is lying fully on the table. Dust extractor (10) The vacuum connection can be used to fit a vacuum to clear away dust. Use the adapter (13) if necessary. Breathing in saw dust is dangerous to your health and as a result you should always work with the vacuum activated. 10 – Maintenance and environmental protection The ventilation slots on the engine housing should be kept free and clean. Blow the build up from the slots from time to time. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19 EU directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. 11 – Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim! 5403550-Handkreiss-man 29.01.14 08:49 Seite 4849 IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeug GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price. 5403550-Handkreiss-man 29.01.14 08:49 Seite 4950 1 – Omvang van de levering
