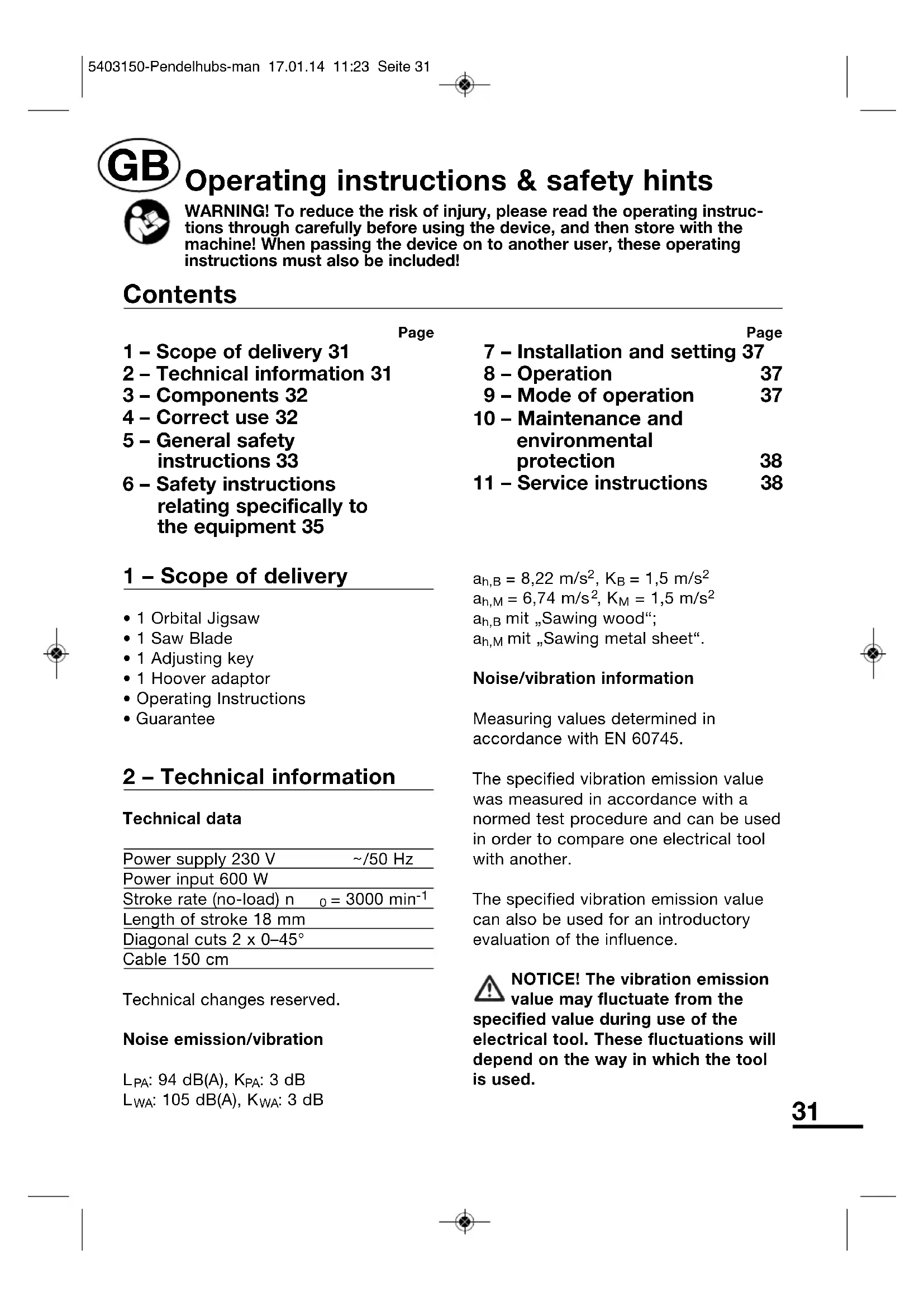

h,M mit „Sawing metal sheet“.Noise/vibration informationMeasuring values determined inaccordance with EN 60745.The specified vibration emission valuewas measured in accordance with anormed test procedure and can be usedin order to compare one electrical toolwith another.The specified vibration emission valuecan also be used for an introductoryevaluation of the influence.NOTICE! The vibration emissionvalue may fluctuate from thespecified value during use of theelectrical tool. These fluctuations willdepend on the way in which the toolis used. Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

Page 1 – Scope of delivery 31 2 – Technical information 31 3 – Components 32 4 – Correct use 32 5 – General safety instructions 33 6 – Safety instructions relating specifically to the equipment 35 Page 7 – Installation and setting 37 8 – Operation 37 9 – Mode of operation 37 10 – Maintenance and environmental protection 38 11 – Service instructions 38 Contents

value present during the use of the machine may deviate from the specification given in the operating instructions or made by the manufacturer. This may be caused by the following influencing factors that should be taken into account prior to and during each use:

• Is the device being used correctly?

• Is the correct type of material being processed?

• Is the device in proper working order?

• Are the handles or optional vibration handles mounted and fixed securely up against the body of the machine? If your hands experience an unpleasant sensation or the skin changes colour while you are using the machine, immediately discontinue your work. Take sufficient breaks. If you do not take sufficient breaks, this may cause a hand/arm vibration syndrome. You should estimate the level of load caused in conjunction with the work or use of the machine and take the appropriate breaks. This method can be used to considerably minimise the level of load during the entire working time. Minimise risks in which you are exposed to vibrations. Take care of your machinery in accordance with the directions in the operation instructions. If the machine is to be used frequently, contact your dealer and arrange anti- vibration equipment (handles) if necessary. Avoid using the tool in temperatures of t = 10 °C or lower. Draw up a working schedule which can be used to minimise vibration loads.

Warning: A certain amount of noise is

unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. For the sake of your personal protection and the protection of persons in the vicinity, suitable ear defenders should be worn. 3 – Components 1 ON/OFF switch 2 Hoover adaptor 3 Lock knop 4 Oscillation 5Cable 6Blade guard 7 Connection for dust exhaustion 8 Cutting angle adjustment 9 Guide roller 10 Footplate 11 Adjusting key 12 Saw blade holder 4 – Correct use Subject to the specified cutting rates and when appropriate accessories are used (Heed manufacturer’s data), this jigsaw is suitable for sawing wood, metal, ceramics and panels of plastic or mineral fibre. All other applications are expressly ruled out. The machine is intended only for use in the household. This unit may not be used by people (including children) with reduced

5403150-Pendelhubs-man 17.01.14 11:23 Seite 32physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. The unit may not be used for the following purposes:

• Use as a transportable or stationary unit There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks Even when the device is used properly, there is a residual risk that cannot be excluded. The following potential dangers are inherent in the type and construction of the device:

• Contact with the unprotected part of the saw blade (cuts)

• Contact with flying parts of a saw blade in the event that it breaks (cuts)

• Kickback from flying work piece parts (bumps)

• Loss of hearing if the required ear defenders are not used during work (loss of hearing)

• Contact with electrical current due to defect or sawn feed cable, motor housing (electrical shock)

• Hazardous emissions caused by sawdust If the instructions in your operating instructions are not observed, incorrect use may result in other residual risks. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard

5403150-Pendelhubs-man 17.01.14 11:23 Seite 33to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times.

5403150-Pendelhubs-man 17.01.14 11:23 Seite 34This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations. h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative. 6 – Safety instructions relating specifically to the equipment

• Hold the tool by the insulated handle surfaces only when carrying out tasks during which is it

5403150-Pendelhubs-man 17.01.14 11:23 Seite 35possible that the tools will come across hidden power cables or its own cable. Contact with a power- carrying cable can also put metal parts of the unit under power and cause an electric shock.

• Only use sharp saw blades that are in perfect condition. Cracked, bent or dull saw blades should be replaced immediately.

• Adapt the insert tools, stroke rate and pendulum motion to the materials. Pay attention to even feed.

• Only operate the device with a mounted saw shoe (10). When working, always ensure that the footplate is resting on the workpiece.

• Always switch on the device before inserting into to the workpiece.

• Materials containing asbestos may not be processed. When working with any other materials containing fibres, use dust protection masks and extraction systems.

• If you wish to use the device outdoors, ensure it is connected via a residual current circuit breaker. The extension cable and plug must be designated for use outdoors.

• Do not break the saw blade by pressing on the sides.

• Secure the workpiece using clamping mechanisms to prevent it from slipping.

• Make sure that cables always lead away from the rear of the workplace.

• When operating the device, always guide it with both hands and ensure that you are standing sturdily.

• The device may not be damp and may not be used in a damp environment.

• Prior to each use, check the device, cable and plug. Have any damages eliminated by a specialist. Only plug the plug into the socket when the tool is switched off.

• When carrying out work that generates dust, wear a breathing mask and goggles – do not smoke, avoid naked flames.

• When using saw blades and handling rough materials, wear gloves.

• Wear protective gloves to prevent injuring yourself on sharp cutting edges when changing the saw blade.

• Before carrying out any work on the machine, always pull the plug out of the socket.

• Do not leave tool keys inserted.

• Observe the general safety instructions with regard to operating power tools.

• If connection cables are damaged, they must – in order to reduce the

5403150-Pendelhubs-man 17.01.14 11:23 Seite 36risks – be replaced by the manufacturer or by their customer service representative. 7 – Installation and setting Pendulum The adjustable pendulum movement (P) of the saw blade (0 for hard materials, up to 3 for soft materials) improves the adjustment of the machine to the material being processed. And at the same time, it reduces wear on the saw blade, improves the rejection of shavings and considerably reduces the formation of heat caused by friction.The activation of the pendulum function may also be carried out when the machine is already running. Recommendations regarding the machine settings can be found on Figure 4. Inserting the saw blade CAUTION! Unplug from the power source. Loosen both of the holding screws on the saw blade holder (12) using the hexagonal wrench (11) (Figure 2). Slot the saw blade into the groove and push it in as far as it will go, ensuring that the spine fits well into the groove of the guide roll (9). Tighten the holding screws up again. Dust removal The extraction hose of the household vacuum should be fitted to the extraction opening (7) on the jigsaw or to the supplied adapter (2). Push this, along with the rubber seal, firmly into the guide groove of the extraction opening and fix with a gentle turn. The drawn down cutting protection element (6) will improve the efficiency of the dust removal process. Mitre/bevelled cuts The saw shoe (10) is set to the middle position (O°) when the machine leaves the factory. To set it for mitre or bevelled cuts, loosen the holding screw of the shoe with the adjustment wrench (Figure 3) and push the shoe forwards from the rest position. Set the cutting angle (8) by turning the to the right or left. The angles 0°, 15°, 30° and 45° are marked but intermediate values may also be selected. Tighten the holding screw up again. When carrying out cuts at an angle, push the cutting protection element (6) up as far as it will go. 8 – Operation Insert mains plug into an outlet

• ON: Press switch (1) and hold.

• OFF: Release switch (1).

• Continuous operation ON: Press switch (1), actuate lock knob (2) and lock in place.

• Continuous operation OFF: Press switch (1) again - lock knob jumps out of locking device and release. 9 – Mode of operation Sawing Do not force the saw; this causes the saw blade to overheat and bend and/or break. If material to be cut is thin, place

5403150-Pendelhubs-man 17.01.14 11:23 Seite 37it on an additional board/plate to dampen vibrations and improve cutting. Drop sawing If the workpiece is to be sawn in the middle and holes cannot be bored in it, set the oscillation to 0, loosen the footplate, push it back and lock it. Hold the machine at an angle and carefully allow the blade to slide on to the workpiece (Fig. 5). As soon as the workpiece is sawn through, continue working with the machine in the normal position. 10 – Maintenance and environmental protection Regularly dust sawdust off housings, ventilation openings and movable parts. Where applicable, wipe off with a damp cloth. Do not drop electrical machines in water. Apply a light coat off oil to saw blade guide roller from time to time. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19 EU directive for the disposal of electrical and electronic waste, and sent for proper and environ mentally- friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. 11 – Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meisterbasic devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meisterbasic devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim. IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
