USER MANUAL 9174 BK3R SALTER

please read this instruction manual before using the product for the first time

IMPÉDAN CEMÈTRE

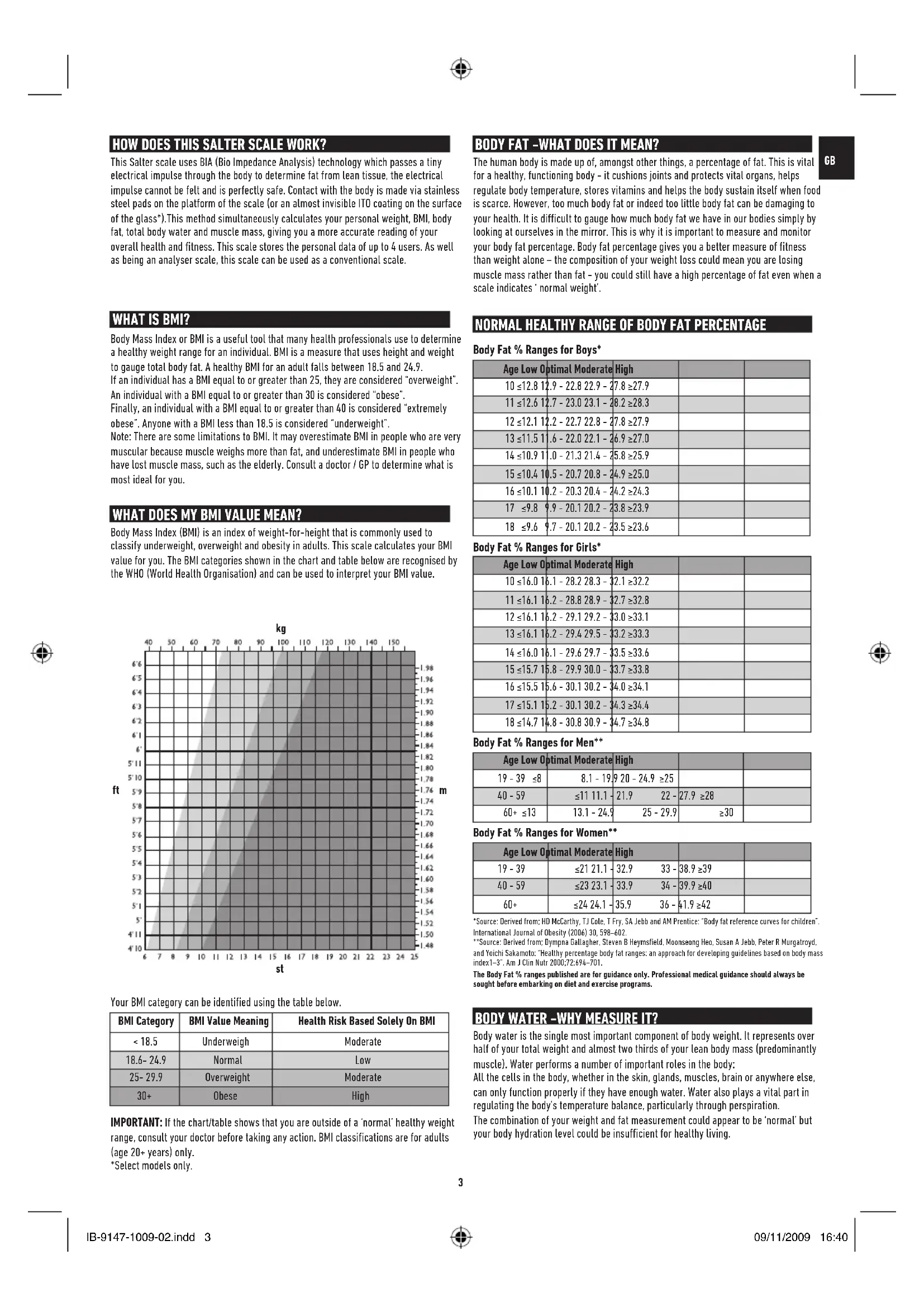

This Salter scale uses BIA (Bio Impedance Analysis) technology which passes a tiny electrical impulse through the body to determine fat from lean tissue, the electrical impulse cannot be felt and is perfectly safe. Contact with the body is made via stainless steel pads on the platform of the scale (or an almost invisible ITO coating on the surface of the glass*). This method simultaneously calculates your personal weight, BMI, body fat, total body water and muscle mass, giving you a more accurate reading of your overall health and fitness. This scale stores the personal data of up to 4 users. As well as being an analyser scale, this scale can be used as a conventional scale.

WHAT IS BMI?

Body Mass Index or BMI is a useful tool that many health professionals use to determine a healthy weight range for an individual. BMI is a measure that uses height and weight to gauge total body fat. A healthy BMI for an adult falls between 18.5 and 24.9. If an individual has a BMI equal to or greater than 25, they are considered "overweight". An individual with a BMI equal to or greater than 30 is considered "obese". Finally, an individual with a BMI equal to or greater than 40 is considered "extremely obese". Anyone with a BMI less than 18.5 is considered "underweight". Note: There are some limitations to BMI. It may overestimate BMI in people who are very muscular because muscle weighs more than fat, and underestimate BMI in people who have lost muscle mass, such as the elderly. Consult a doctor / GP to determine what is most ideal for you.

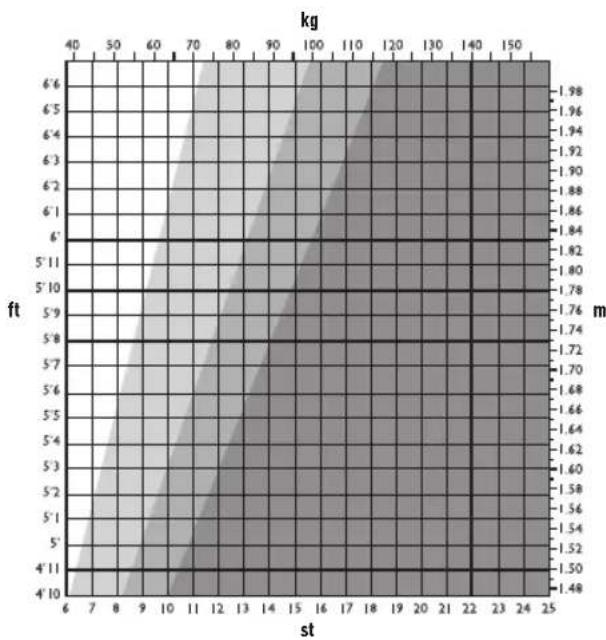

WHAT DOES MY BMI VALUE MEAN?

Body Mass Index (BMI) is an index of weight-for-height that is commonly used to classify underweight, overweight and obesity in adults. This scale calculates your BMI value for you. The BMI categories shown in the chart and table below are recognised by the WHO (World Health Organisation) and can be used to interpret your BMI value.

Your BMI category can be identified using the table below.

BMI Category	BMI Value Meaning	Health Risk Based Solely On BMI
< 18.5	Underweigh	Moderate
18.6- 24.9	Normal	Low
25- 29.9	Overweight	Moderate
30+	Obese	High

IMPORTANT: If the chart/table shows that you are outside of a 'normal' healthy weight range, consult your doctor before taking any action. BMI classifications are for adults (age 20+ years) only. *Select models only.

BODY FAT -WHAT DOES IT MEAN?

The human body is made up of, amongst other things, a percentage of fat. This is vital for a healthy, functioning body - it cushions joints and protects vital organs, helps regulate body temperature, stores vitamins and helps the body sustain itself when food is scarce. However, too much body fat or indeed too little body fat can be damaging to your health. It is difficult to gauge how much body fat we have in our bodies simply by looking at ourselves in the mirror. This is why it is important to measure and monitor your body fat percentage. Body fat percentage gives you a better measure of fitness than weight alone - the composition of your weight loss could mean you are losing muscle mass rather than fat - you could still have a high percentage of fat even when a scale indicates 'normal weight'.

NORMAL HEALTHY RANGE OF BODY FAT PERCENTAGE

Body Fat % Ranges for Boys*

Age Low Optimal Moderate High
10 ≤12.8 12.9 - 22.8 22.9 - 27.8 ≥27.9
11 ≤12.6 12.7 - 23.0 23.1 - 28.2 ≥28.3
12 ≤12.1 12.2 - 22.7 22.8 - 27.8 ≥27.9
13 ≤11.5 11.6 - 22.0 22.1 - 26.9 ≥27.0
14 ≤10.9 11.0 - 21.3 21.4 - 25.8 ≥25.9
15 ≤10.4 10.5 - 20.7 20.8 - 24.9 ≥25.0
16 ≤10.1 10.2 - 20.3 20.4 - 24.2 ≥24.3
17 ≤9.8 9.9 - 20.1 20.2 - 23.8 ≥23.9
18 ≤9.6 9.7 - 20.1 20.2 - 23.5 ≥23.6

Body Fat % Ranges for Girls*

Age Low Optimal Moderate High
10 ≤16.0 16.1 - 28.2 28.3 - 32.1 ≥32.2
11 ≤16.1 16.2 - 28.8 28.9 - 32.7 ≥32.8
12 ≤16.1 16.2 - 29.1 29.2 - 33.0 ≥33.1
13 ≤16.1 16.2 - 29.4 29.5 - 33.2 ≥33.3
14 ≤16.0 16.1 - 29.6 29.7 - 33.5 ≥33.6
15 ≤15.7 15.8 - 29.9 30.0 - 33.7 ≥33.8
16 ≤15.5 15.6 - 30.1 30.2 - 34.0 ≥34.1
17 ≤15.1 15.2 - 30.1 30.2 - 34.3 ≥34.4
18 ≤14.7 14.8 - 30.8 30.9 - 34.7 ≥34.8

Body Fat % Ranges for Men**

Age Low Optimal Moderate High
19 - 39 ≤8	8.1 - 19.9	20 - 24.9	≥25
40 - 59	≤11 11.1	21.9	22 -	27.9 ≥28
60+ ≤13	13.1 - 24.9	25 - 29.9		≥30

Body Fat % Ranges for Women**

Age Low Optimal Moderate		High
19 - 39	≤21 21.1 -	32.9	33 -	38.9 ≥39
40 - 59	≤23 23.1 -	33.9	34 -	39.9 ≥40
60+	≤24 24.1 -	35.9	36 -	41.9 ≥42

*Source: Derived from: HD McCarthy, TJ Cole, T Fry, SA Jebb and AM Prentice: *Body fat reference curves for children*. International Journal of Obesity (2006) 30, 598–602.

**Source: Derived from; Dympha Gallagher, Steven B Heymsfield, Moonseong Heo, Susan A Jebb, Peter R Murgatroyd, and Yoichi Sakamoto: "Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index 1-3". Am J Clin Nutr 2000;72:694-701.

The Body Fat % ranges published are for guidance only. Professional medical guidance should always be sought before embarking on diet and exercise programs.

BODY WATER -WHY MEASURE IT?

Body water is the single most important component of body weight. It represents over half of your total weight and almost two thirds of your lean body mass (predominantly muscle). Water performs a number of important roles in the body:

All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else, can only function properly if they have enough water. Water also plays a vital part in regulating the body's temperature balance, particularly through perspiration.

The combination of your weight and fat measurement could appear to be 'normal' but your body hydration level could be insufficient for healthy living.

NORMAL HEALTHY RANGE OF BODYWATER PERCENTAGE

Body Water Chart\*\*\*

	BF % Range Optimal BW % Range
Men	4 to 14% 70 to 63%
	15 to 21% 63 to 57%
	22 to 24% 57 to 55%
	25 and over 55 to 37%
Women	4 to 20% 70 to 58%
	21 to 29% 58 to 52%
	30 to 32% 52 to 49%
	33 and over 49 to 37%

***Source: Derived from Wang & Deurenberg: "Hydration of fat-free body mass". American Journal Clin Nutr 1999, 69 833-841.

For those using Athlete Mode: note that athletes may have a lower body fat range and a higher body water range than shown above, depending on their type of sport or activity. Body water measurement results are influenced by the proportion of body fat and muscle. If the proportion of body fat is high, or the proportion of muscle is low then the body water results will tend to be low. It is important to remember that measurements such as body weight, body fat and body water are tools for you to use as part of your healthy lifestyle. As short term fluctuations are normal, we suggest you chart your progress over time, rather than focus on a single days reading.

The Body Water % ranges published are for guidance only. Professional medical guidance should always be sought before embarking on diet and exercise programmes.

WHY SHOULD I KNOW MY MUSCLE MASS?

According to the American College of Sports Medicine (ASCM), lean muscle mass may decrease by nearly 50 percent between the ages of 20 and 90. If you don't do anything to replace that loss you're losing muscle and increasing fat. It is also important to know your muscle mass % during weight reduction. At rest, the body burns approximately 110 additional calories for each kilo of muscle gained. Some advantages of gaining muscle mass include:

• Reversing the decline in strength, bone density and muscle mass that accompanies age
• Maintenance of flexible joints
• Guide weight reduction when combined with a healthy diet.

This product is for domestic use only. Pregnant women should only use the weight function.

CAUTION: Do not use this product if you have a pacemaker or other medical device fitted. If in doubt, consult your doctor.

QUESTIONS & ANSWERS

How exactly is my body fat and water being measured?

This Salter Scale uses a measurement method known as Bioelectrical Impedance Analysis (BIA). A minute current is sent through your body, via your feet and legs. This current flows easily through the lean muscular tissue, which has a high fluid content, but not easily through fat. Therefore, by measuring your body's impedance (i.e. its resistance to the current), the quantity of muscle can be determined. From this, the quantity of fat and water can then be estimated.

What is the value of the current passing through me when the measurement is taken? Is it safe?

The current is less than 1mA, which is tiny and perfectly safe. You will not be able to feel it. Please note however, that this device should not be used by anyone with an internal electronic medical device, such as a pacemaker, as a precaution against disruption to that device.

If I measure my body fat and water at different times during the day, it can vary quite considerably. Which value is correct?

Your body fat percentage reading varies with body water content, and the latter changes throughout the course of the day. There is no right or wrong time of the day to take a reading, but aim to take measurements at a regular time when you consider your body to be normally hydrated. Avoid taking readings after having a bath or sauna, following intensive exercise, or within 1-2 hours of drinking in quantity or eating a meal.

My friend has a Body Fat Analyser made by another manufacturer.

When I used it I found that I got a different body fat reading. Why is this?

Different Body Fat Analysers take measurements around different parts of the body and use different mathematic algorithms to calculate the percentage of body fat.

The best advice is to not make comparisons from one device to another, but to use the same device each time to monitor any change.

How do I interpret my body fat and water percentage readings?

Please refer to the Body Fat and Water tables included with the product. They will guide you as to whether your body fat and water reading falls into a healthy category (relative to your age and sex).

What should I do if my body fat reading is very 'high?

A sensible diet, fluid intake and exercise program can reduce your body fat percentage. Professional medical guidance should always be sought before embarking on such a program.

Why are the body fat percentage ranges for men and women so different?

Women naturally carry a higher percentage of fat than men, because the make-up of the body is different being geared towards pregnancy, breastfeeding etc.

What should I do if my water percentage reading is 'low'?

Ensure that you are regularly taking sufficient water and work towards moving your fat percentage into the healthy range.

Why should I avoid using the Body Analyser Scale whilst pregnant?

During pregnancy a woman's body composition changes considerably in order to support the developing child. Under these circumstances, body fat percentage readings could be inaccurate and misleading. Pregnant women should therefore only use the weight function.

STOWAWEIGH STAND

This Salter scale features a unique storage solution. When not in use the scale can be stored safely and conveniently in an easy to assemble storage stand, freeing up space in the bathroom.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows, no text or symbols present.

Simple line drawing of a rectangular device with two side legs and a central display (no text or symbols)

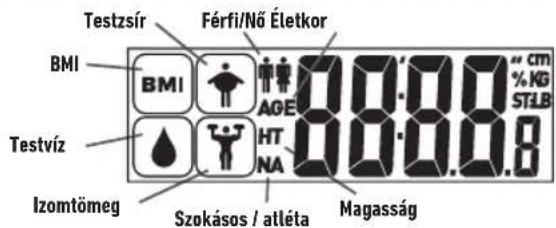

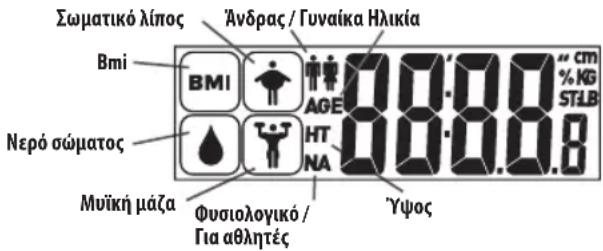

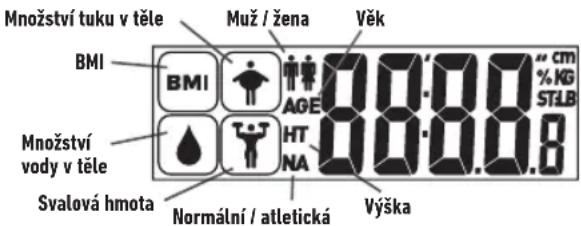

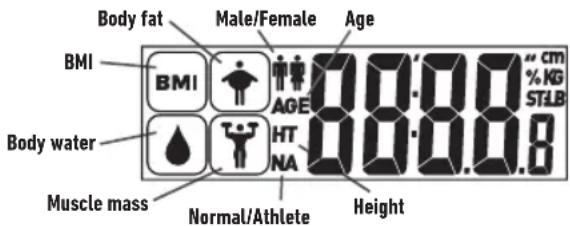

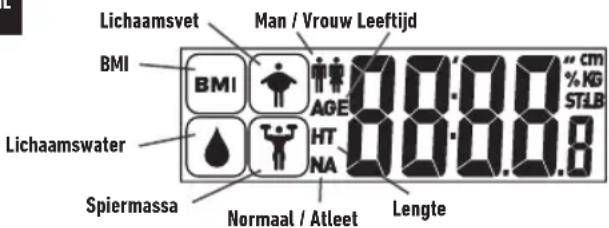

DISPLAY GUIDE

Body fat Male/Female Age BMI BME AGE 0.00.0.8 cm % KG STLB Body water HT NA Muscle mass Normal/Athlete Height

PREPARING YOUR SCALE

1. Open the battery compartment on the scale underside.
2. Insert batteries (1 x CR2032) observing the polarity signs (+ and -) inside the battery compartment.
3. Close the battery compartment.
4. Select kg, st or lb weight mode by the switch on the underside of the scale.
5. For use on carpet remove the non-slip pads from the scales feet and attach enclosed carpet feet.

WEIGHT READING ONLY

1. Position scale on a firm flat surface.
2. Tap the platform centre (vibration activates your scale) and remove your foot.
3. Wait until 0.0 is displayed.
4. Step on and stand very still while the scale computes your weight.
5. When you hear a beep, step off.
6. Your weight is displayed for a few seconds then the scale will switch off.

PERSONAL DATA ENTRY

1. When 0.0 is displayed press SET button to activate the set-up procedure.
2. User number will flash. Press ▲ or ▼ buttons as necessary to set the user number, press SET to confirm.
3. Weight units will flash. Press ▲ or ▼ buttons as necessary to set the units (kg, lb, St), press SET to confirm.
4. The male or female symbol will flash. Press ▲ or ▼ buttons until the correct symbol is flashing, press SET to confirm.
5. The age display will flash. Press ▲ or ▼ buttons as necessary to set your age, press SET to confirm.
6. The height display will flash. Press ▲ or ▼ buttons as necessary to set your height, press SET to confirm.
7. The normal/athlete symbol will flash. Press ▲ or ▼ buttons to set athlete or normal mode, press SET to confirm.
   Note: An athlete is defined as a person who is involved in intense physical activity of approximately 12 hours per week and who has a resting heart rate of approximately 60 beats per minute or less.
8. User number will flash. Your user data is now set. Wait for the scale to switch off.
9. Repeat the procedure for a second user, or to change user details.

WEIGHT & BODY FAT READINGS

1. Position scale on a firm flat surface.
2. Tap the platform centre (vibration activates your scale) and remove your foot.
3. Wait until 0.0 is displayed.
4. Press SET button. User number will flash. Press ▲ or ▼ buttons as necessary to select your user number.
5. Your user data will be confirmed, wait until 0.0 is displayed.
6. With bare feet, step onto the scale platform and stand still.
7. When you hear a beep, step off.
8. Your weight will be displayed followed by BMI, body fat, body water and muscle mass.
9. Your weight will be displayed a second time then the scale will turn off.

WARNING INDICATORS

Err Out of range, incorrect operation or poor feet contact. Unstable weight.

Stand still..

0-Ld Weight exceeds maximum capacity.

Lo Replace battery.

TECHNICAL SPECIFICATION

100 cm - 220 cm Male/Female d = 0.1 BMI

3' 2" - 7'02 " 4 user memory d = 0.1 % body fat

10 - 80 years Athlete mode d = 0.1 % body water

d = 0.1 % muscle mass

ADVICE FOR USE AND CARE

• Always weigh yourself on the same scale placed on the same floor surface.
  Do not compare weight readings from one scale to another as some differences will exist due to manufacturing tolerances.
• Placing your scale on a hard, even floor will ensure the greatest accuracy and consistency.
• It is recommended that you measure at the same time of the day, preferably early
  evening before a meal for the most consistent results.
• Your scale rounds up or down to the nearest increment.
  If you weigh yourself twice and get two different readings, your weight lies between the two.
• Clean your scale with a damp cloth. Do not use chemical cleaning agents.
• Do not allow your scale to become saturated with water as this can damage the electronics.
• Treat your scale with care – it is a precision instrument. Do not drop it or jump on it.

TROUBLESHOOTING GUIDE

- You must have bare feet when using body fat and total body water measurements.

• The condition of your skin on the bottom of your feet can affect the reading. To get

the most accurate and consistent reading, wipe your feet with a damp cloth,

leaving them slightly moist before stepping on the scale.

WEEE EXPLANATION

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

GUARANTEE

This product is intended for domestic use only. Salter will repair or replace the product, or any part of this product, (excluding batteries) free of charge if within 15 years of the date of purchase, it can be shown to have failed through defective workmanship or materials. This guarantee covers working parts that affect the function of the scale. It does not cover cosmetic deterioration caused by fair wear and tear or damage caused by accident or misuse. Opening or taking apart the scale or its components will void the guarantee. Claims under guarantee must be supported by proof of purchase and be returned carriage paid to Salter (or local Salter appointed agent if outside the UK). Care should be taken in packing the scale so that it is not damaged while in transit.

This undertaking is in addition to a consumer's statutory rights and does not affect those rights in any way. For UK Sales and Service contact HoMedics Group Ltd,

PO Box 460, Tonbridge, Kent, TN9 9EW, UK. Helpline Tel No: [phone].

Outside the UK contact your local Salter appointed agent.

F

COMMENT FONCTIONNE CE PESE-PERSONNE SALTER ?

Technical line drawing of a mechanical clamp or bracket assembly with two clamps and a base plate (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with two side legs and a central display (no text or symbols)

F

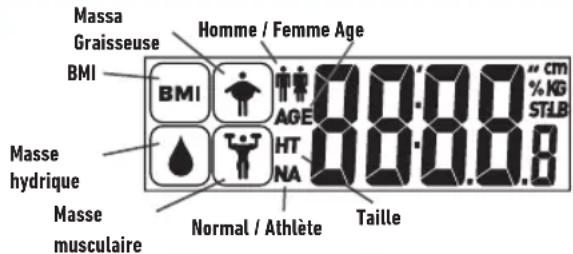

GUIDE D'AFFICHAGE

Massa Graisseuse Homme / Femme Age BMI BME AGE 0.0.0.0 cm % KG STLB Masse hydrique HT NA Normal / Athlete Taille Masse musculaire

PRÉPARATION DE L'APPAREIL

Technical line drawing of a mechanical clamp or bracket assembly with two mounting brackets and a circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with a digital display and two side connectors (no text or symbols)

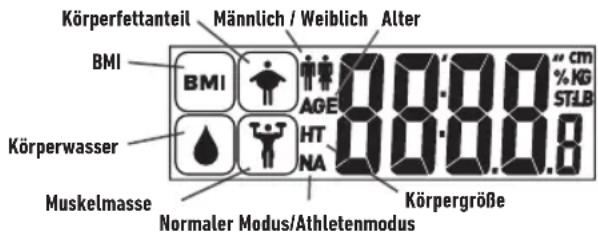

ANZEIGEERKLÄRUNG

*Fuente: HD McCarthy, TJ Cole, T Fry, SA Jebb y AM Prentice: 'Body fat reference curves for children'. International Journal of Obesity (2006) 30, 599–602. *Fuente: Dymna Gallagher, Steven B Heymsfield, Moonseong Heo, Susan A Jebb, Peter R Murgatroyd, y Yoichi Sakamoto: 'Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index1-3', Am J Clin Nutr 2000;72:694–701.

Technical line drawing of a mechanical clamp or bracket assembly with two mounting brackets and a circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows, no text or symbols present.

Line drawing of a rectangular electronic device with two side connectors and a display screen (no text or symbols)

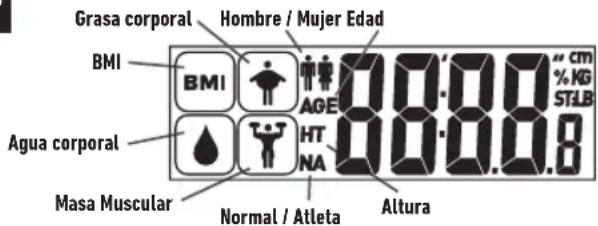

GUIA DE LA PANTALLA

Grasa corporal Hombre / Mujer Edad BMI BME AGE 0.0.0.0 cm % KG STLB Agua corporal HT NA Masa Muscular Normal / Atleta Altura

*Fonte: Estratto da HD McCarthy, TJ Cole, T Fry, SA Jebb e AM Prentice: "Body fat reference curves for children". International Journal of Obesity (2006) 30, 598–602.

**Fonte: Estratto da Dympna Gallagher, Steven B Heymsfield, Moonseong Heo, Susan A Jebb, Peter R Murgatroyd e Yoichi Sakamoto: "Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index1-3". Am J Clin Nutr 2000;72:694-701.

Technical line drawing of a mechanical clamp or bracket assembly with two mounting brackets and a central circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with two side legs and a central display (no text or symbols)

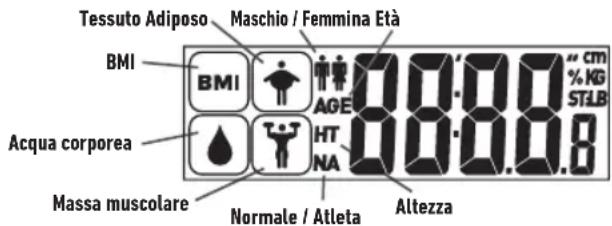

DISPLAY GUIDA

PERGUNTAS E RESPOSTAS

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular device with a digital display on top and two side connectors at the base (no text or symbols)

P

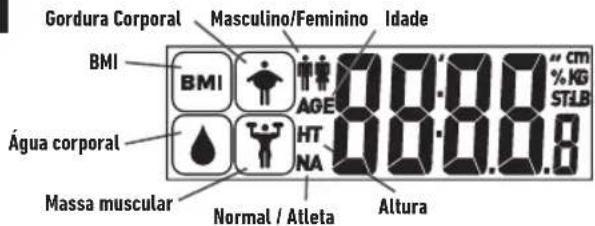

GUIA DO MOSTRADOR

Gordura Corporal Masculino/Feminino Idade BMI BME AGE 0.0.0.0 cm % KG STLB Água corporal HT NA Massa muscular Normal / Atleta Altura

KROPPSFETT – HVA BETYR DET?

NORMAL SUNN KROPPSFETTPROSENT

Alder Lav Optimal Moderat Høy
10 ≤ 16.0 16.1 - 28.2 28.3 - 32.1 ≥ 32.2
11 ≤ 16.1 16.2 - 28.8 28.9 - 32.7 ≥ 32.8
12 ≤ 16.1 16.2 - 29.1 29.2 - 33.0 ≥ 33.1
13 ≤ 16.1 16.2 - 29.4 29.5 - 33.2 ≥ 33.3
14 ≤ 16.0 16.1 - 29.6 29.7 - 33.5 ≥ 33.6
15 ≤ 15.7 16.8 - 29.9 30.0 - 33.7 ≥ 33.8
16 ≤ 15.5 16.6 - 30.1 30.2 - 34.0 ≥ 34.1
17 ≤ 15.1 16.2 - 30.1 30.2 - 34.3 ≥ 34.4
18 ≤ 14.7 14.8 - 30.8 30.9 - 34.7 ≥ 34.8

NORMAL SUNN KROPPSVANNPROSENT

Technical line drawing of a mechanical clamp or bracket assembly with two clamps and a base plate (no text or symbols)

Technical line drawing of a mechanical component with two curved features and directional arrows indicating motion (no text or symbols)

Line drawing of a rectangular electronic device with two side legs and a central display (no text or symbols)

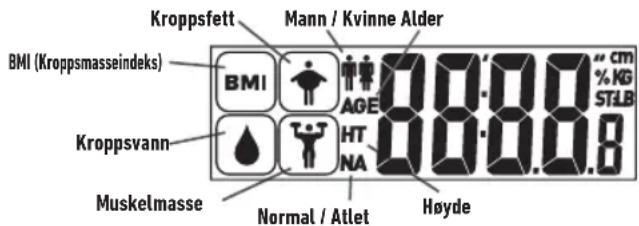

OVERSIKT OVER SKJERM

Kroppsfett Mann / Kvinne Alder BMI (Kroppsmasseindeks) BMI AGE 00.00 cm % KG STLB Kroppsvann HT NA 00.00.8 Muskelmasse Normal / Atlet Høyde

KLARGJ∅RE VEKTEN

RAD FOR BRUK OG VEDLIKEHOLD

WAT BETEKENT MIJN BMI?

LICHAAMSWATER - WAAROM MOET IK DIT METEN?

STOWAWEIGH-STANDAARD

Technical line drawing of a mechanical clamp or bracket assembly with two mounting brackets and a central circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with two side legs and a central display (no text or symbols)

NL
UITLEG VAN DISPLAY

WAARSCHUWINGSMELDINGEN

"Lähde: Derived from; HD McCarthy, TJ Cole, T Fry, SA Jebb and AM Prentice: HD McCarthy, TJ Cole, T Fry, SA Jebb ja AM Prentice: "Body far reference curves for children". International Journal of Obesity (2006) 0, 598–602. "Lähde: Dymna Gallagher, Steven B Heymsfield, Monseong Hea, Susan A Jebb, Peter R Murgatroyd ja Yoichi Sakamoto: "Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index1—Am J Clin Nutr 200D;72:694–701.

Technical line drawing of a mechanical clamp or bracket assembly with two clamps and a base plate (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows, no text or symbols present.

Line drawing of a rectangular electronic device with two side connectors and a digital display on top (no text or symbols)

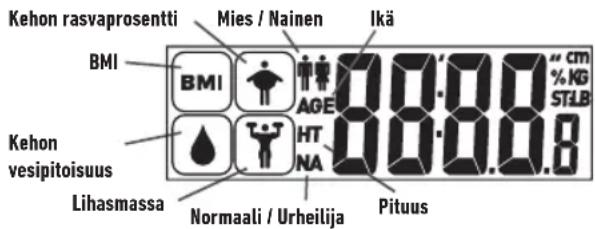

NAYTÄ OPAS

Technical line drawing of a mechanical clamp or bracket assembly with two mounting holes and a base plate (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular electronic device with two side connectors and a display screen (no text or symbols)

DISPLAYGUIDE

KROPSFEDT – HVAD BETYDER DET?

*Kilde: Stammer fra: HD McCarthy, TJ Cole, T Fry, SA Jebb & AM Prentice: "Body fat reference curves for children". International Journal of Obesity (2006) 0, 598–602..

**Kilde: Stammer fra: Dympna Gallagher. Steven B Heymsfield, Moonseong Heo, Susan A Jebb, Peter R Murgatroyd & Yoichi Sakamoto: "Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index1-3". Am J Clin Nutr 2000;72:694-701.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with two side legs and a central display (no text or symbols)

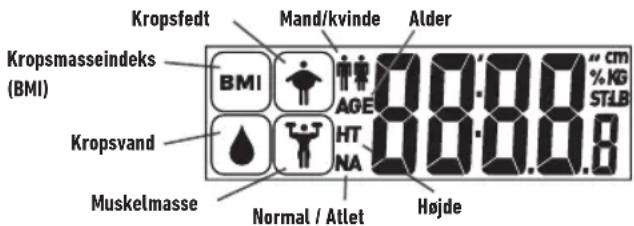

DISPLAYVEJLEDNING

Kropsfedt Mand/kvinde Alder Kropsmasseindeks (BMI) BMI AGE 00.00 cm % KG STLB Kropsvand HT NA Muskelmasse Normal / Atlet Højde

KLARG∅R VÆGTEN

	TZS % tartomán Optimális össz testvíz % tartomány
Férfiak	4 to 14% 70 to 63%
	15 to 21% 63 to 57%
	22 to 24% 57 to 55%
	25 and over 55 to 37%
Nők	4 to 20% 70 to 58%
	21 to 29% 58 to 52%
	30 to 32% 52 to 49%
	33 and over 49 to 37%

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Line drawing of a square electronic device with two side legs and a central display (no text or symbols)

SEGEDLET

CO JE INDEX TÉLESNÉ HMOTNOSTI (BMI)?

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating movement (no text or symbols)

Line drawing of a rectangular electronic device with two side connectors and a digital display on top (no text or symbols)

NÁVOD K DISPLEJI

MERENÍ SAMOTNÉ HMOTNOSTI

Technical line drawing of a mechanical clamp or bracket assembly with two mounting brackets and a circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved features and directional arrows (no text or symbols)

Line drawing of a rectangular electronic device with two side connectors and a digital display on top (no text or symbols)

TR

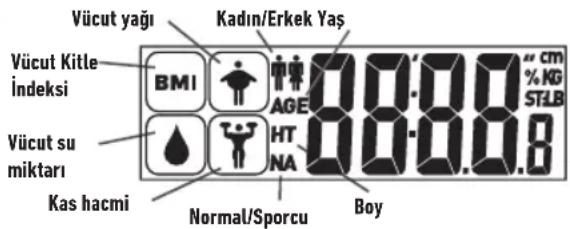

EKRAN KILAVUZU

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with two curved arms and directional arrows, no text or symbols present.

Line drawing of a rectangular electronic device with two side connectors and a digital display on top (no text or symbols)

ΠΕΡΙΓΡΑΦΗ ΟΘΟΝΗΣ

Technical line drawing of a mechanical component with two clamped parts and a circular base (no text or symbols)

Technical line drawing of a mechanical component with two curved brackets and directional arrows, no text or symbols present.

Line drawing of a rectangular electronic device with two side legs and a central display (no text or symbols)

ru

	Zakres % BF Optymalny zakres % TBW
Mężczyźni	4 to 14% 70 to 63%
	15 to 21% 63 to 57%
	22 to 24% 57 to 55%
	25 and over 55 to 37%
Kobiety	4 to 20% 70 to 58%
	21 to 29% 58 to 52%
	30 to 32% 52 to 49%
	33 and over 49 to 37%

Technical line drawing of a mechanical component with two curved arms and two rectangular slots, no text or symbols present.

Technical line drawing of a mechanical component with two curved arms and directional arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular electronic device with two side legs and a central screen (no text or symbols)

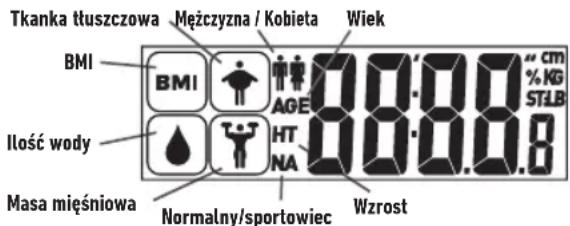

WSKAZANIA WYŚWIETLACZA
