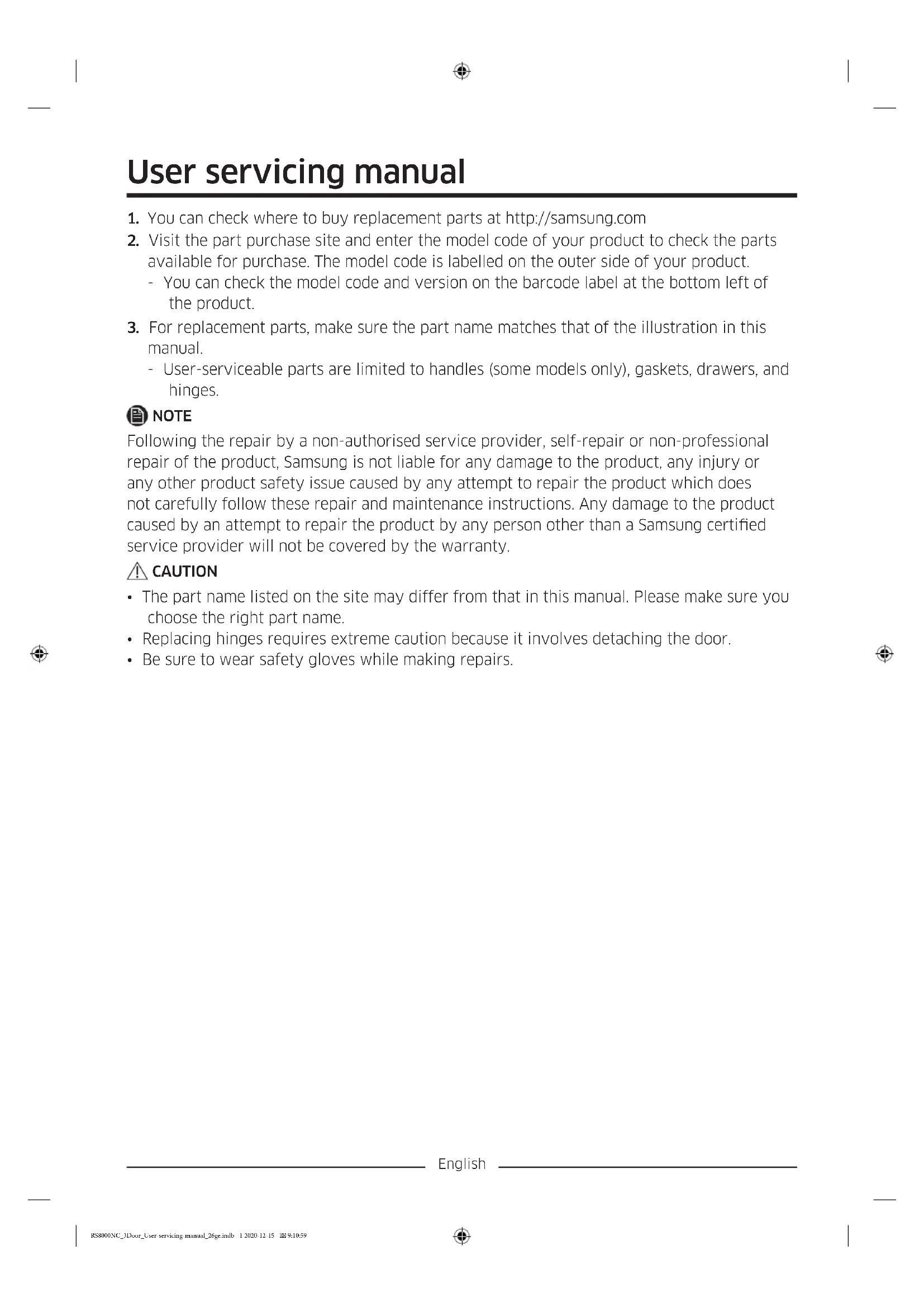

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. RS8000NC_3Door_User-servicing-manual_26ge.indb 1 2020-12-15 9:10:59English The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Top hinge 02 Gasket 03 Drawer 04 Handles (Applicable models only) 05 Bottom hinge 06 Barcode label Handle replacement Model name looks like this: XXXX**. What replaces the asterisks may differ depending the model. Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code. CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product. RS8000NC_3Door_User-servicing-manual_26ge.indb 2 2020-12-15 9:10:59English Tools required (not provided) Flat-head screwdriver To detach the handles

1. Put the at-head screwdriver in the

bottom hole of one handle.

2. Turn the screwdriver 90 degrees

3. Gently pull the handle out toward the front

4. Repeat the above steps on the other

handle. CAUTION Take caution not to lose the washers, which are required for reattaching the handles. To attach the handles

1. Attach the handle supports on the

2. Firmly press the handles at the supports.

Check and make sure the handles are rmly attached. NOTE Make sure there is no gap between the supports and the door. RS8000NC_3Door_User-servicing-manual_26ge.indb 4 2020-12-15 9:11:00English Gasket replacement CAUTION Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak. To remove the gasket Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door. RS8000NC_3Door_User-servicing-manual_26ge.indb 5 2020-12-15 9:11:00English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the multipurpose drawer Gently lift up the front of the drawer and slide it out. To remove the vegetable/dry drawer Remove the vegetable drawer from the fridge or the dry drawer from the freezer.

1. First, remove the surrounding

2. If your refrigerator has a cover (A) for

the vegetable/dry drawer, remove the cover. To do this, slide out the cover while holding down the clips on either side of the cover.

3. Gently pull out the vegetable/dry drawer.

To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps RS8000NC_3Door_User-servicing-manual_26ge.indb 6 2020-12-15 9:11:00English Hinge replacement To replace the hinges, you must remove the doors rst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. Tools required (not provided) Phillips screwdriver Flat-head screwdriver Socket spanner (10 mm) Allen spanner (5 mm) RS8000NC_3Door_User-servicing-manual_26ge.indb 7 2020-12-15 9:11:01English To replace the hinges Disconnect the water line CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser model)

• To prevent water leaks, each water hose must be inserted fully to the centre of the transparent coupler. (only for Dispenser model)

• Ensure that the water hose surface is not damaged. (only for Dispenser model)

1. From the bottom rear side of the

refrigerator, pull out the water line to the front. NOTE The refrigerator’s water line is a water circulation line that connects between the water pipe from the water source and the hoses from the water ltering system of the refrigerator.

2. To disconnect the hoses, press and hold

the transparent coupler (A) and detach the water hose (B). CAUTION Do not apply excessive force to the coupler. It may break. Detach the doors CAUTION The door may fall off or over and damage itself during any of these steps. To prevent an accident, use extreme caution when performing these steps.

1. Use a Phillips screwdriver to unscrew the

hinge covers (A) on the top of each door.

2. Open the doors to loosen the hinges and

remove the hinge covers. Once the covers are removed, close the doors. RS8000NC_3Door_User-servicing-manual_26ge.indb 8 2020-12-15 9:11:01English

3. Disconnect the electrical harness.

4. Gently lift the clamp.

NOTE To prevent damage to the clamp or injuries, do not lift the clamp forcefully.

5. Pull the clamp to remove.

6. Open the door by 90 degrees. While

2. Put hinge low right in correct place

3. Hinge low right tighten with three screws

into the holes (pictures 4, 5).

1. Take hinge low left (picture 1) then put in

correct place (pictures 1)

2. Hinge low left tighten with three screws

into the holes (pictures 2, 3).

3. Hinge low left correctly assembled showed

at (pictures 3, 4). RS8000NC_3Door_User-servicing-manual_26ge.indb 11 2020-12-15 9:11:03English Reconnect the water hoses Once the refrigerator has passed through the entrance, reconnect the water hoses.

• Make sure the water hoses are connected with matching colours.

• To prevent water leaks, each water hose must be inserted fully to the centre of the transparent coupler.

• After reconnecting the water hoses, push them under the cabinet and arrange them on the hook. CAUTION

• Make sure the wire connectors are connected properly.
