Product type	Wireless temperature controller (cooking sensor)
Brand	Bosch
Model	HEZ39050
Power supply	CR2032 battery (included)
Battery type	Lithium CR2032, 3 V
Package contents	Wireless cooking sensor, silicone patch, stencil
Attachment	Self-adhesive silicone patch on the cooking utensil
Main functions	Monitoring cooking temperature, wireless transmission to the cooktop
Transmission range	Approx. 10 m (Bluetooth®)
Compatibility	Bosch cooktops with wireless sensor function
Cleaning the sensor	Damp cloth, do not immerse or put in dishwasher
Cleaning the silicone patch	Dishwasher safe
Cleaning the window	Glass cleaner and cotton swab, avoid hard objects
Safety	Magnetic sensor – keep at least 10 cm away from electronic implants
Operating temperature	Do not expose to high temperatures, remove from utensil after cooking
Spare parts	Replacement silicone patch ref. 17007119 (pack of 5)
Certifications	RED Directive 2014/53/EU, Bluetooth® trademark
Disposal	Device and battery according to WEEE regulation and Directive 2006/66/EC
Dimensions (sensor)	Approx. 30 mm diameter, 10 mm thickness
Weight (sensor)	Approx. 20 g

Frequently Asked Questions - HEZ39050 BOSCH

How to attach the cooking sensor to the pan?

Clean the external surface of the utensil, degrease it with alcohol. Remove the film from the silicone patch and stick it using the stencil at the appropriate height. Press the entire surface and let dry for 1 hour before use. Then, clip the sensor onto the patch.

How to replace the sensor battery?

Remove the silicone cover using a screwdriver, unscrew the two screws, open the housing. Replace the used battery with a new CR2032 battery respecting polarity. Close and screw back. Do not touch the terminals with a metal object.

Can the sensor go in the dishwasher?

No, the sensor itself must not be placed in the dishwasher or immersed. Clean it only with a damp cloth. The silicone patch, however, is dishwasher safe.

How to clean the sensor window?

Use a soft cloth or cotton swabs with glass cleaner. Avoid hard or abrasive objects that could scratch the window. Wipe off dirt and grease splashes regularly.

What are the safety precautions with the magnetic sensor?

The sensor contains a magnet. Wearers of electronic implants (pacemaker, insulin pump) must maintain a distance of at least 10 cm. Never carry the control element in a pocket.

Can I use the sensor without the silicone patch?

No, the silicone patch is necessary to securely attach the sensor to the cooking utensil. If the patch becomes detached, you can order a new one (ref. 17007119, pack of 5).

How to know if the battery is discharged?

If the sensor LED does not light up when you press the symbol on the cooktop, the battery is discharged. Replace it with a new CR2032 battery.

Is the sensor compatible with all Bosch cooktops?

It is compatible with Bosch cooktops equipped with the wireless sensor function. Check your cooktop's manual to verify compatibility.

What to do if the silicone patch no longer sticks?

Thoroughly clean the utensil surface with alcohol to degrease. Replace the patch with a new one. If the problem persists, use a new patch from reference 17007119.

How to dispose of the used sensor?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment (WEEE). The battery must be removed and recycled separately according to Directive 2006/66/EC.

USER MANUAL HEZ39050 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Wireless cooking sensor

HEZ39050

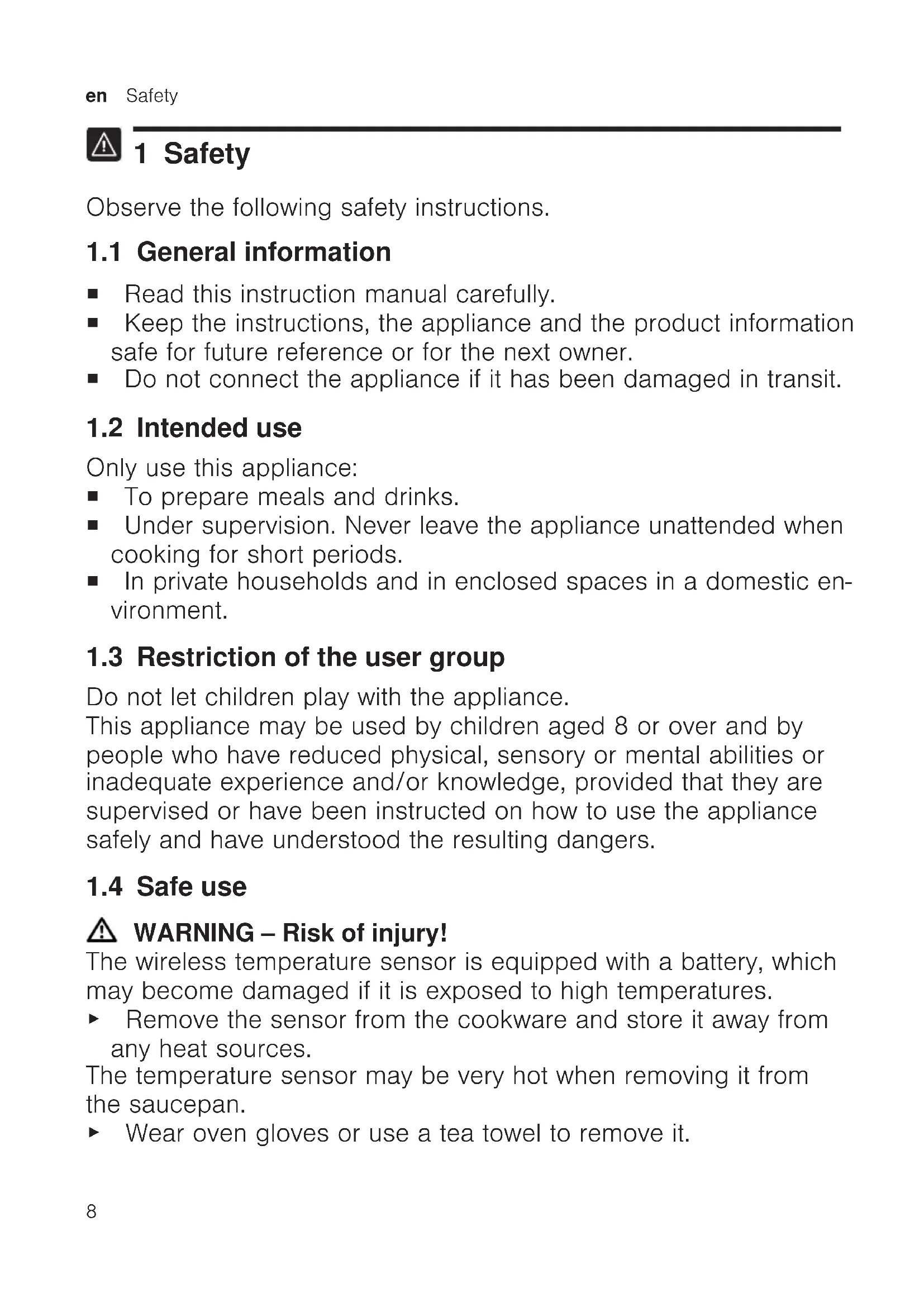

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instructions, the appliance and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

To prepare meals and drinks.
- Under supervision. Never leave the appliance unattended when cooking for short periods.
In private households and in enclosed spaces in a domestic environment.

1.3 Restriction of the user group

Do not let children play with the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

1.4 Safe use

WARNING - Risk of injury!

The wireless temperature sensor is equipped with a battery, which may become damaged if it is exposed to high temperatures.

• Remove the sensor from the cookware and store it away from any heat sources.

The temperature sensor may be very hot when removing it from the saucepan.

Wear oven gloves or use a tea towel to remove it.

WARNING - Danger: Magnetism!

The wireless temperature sensor is magnetic and can damage electronic implants, e.g. heart pacemakers or insulin pumps.

• Persons with electronic implants must stand at least 10cm away from the magnetic control element.
• Never put the control element in your pockets.

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  Do not let children play with small parts.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

3 Before the first use

In order to be able to use the cooking functions, you must pair the wireless cooking sensor to the control panel. You can find further information in the section on cooking functions in the user manual for your hob.

3.1 Scope of delivery

After unpacking all of the parts, check for any transport damage and for completeness of delivery.

• AWireless cooking sensor
  ■ ESilicone patch
• Template
  Fig. 1

3.2 Attaching the silicone patch

The silicone patch secures the cooking sensor to the cookware. For fitting on the cookware:

1. The adhesive area on the cookware must be free from grease. Clean and dry the container thoroughly, and rub the adhesive area using alcohol, for example.

2. Remove the protective film from the silicone patch. Adhere the silicone patch to the outside of the cookware in the correct place using the enclosed template as a guide.

$$ \rightarrow F i g. \boxed {2} $$

1. Press down all over the surface of the silicone patch, including in the centre.
2. Leave the adhesive to dry for one hour. Do not use or rinse out the cookware during this time.

Note: If the silicone patch comes loose, use a new one. If required, you can purchase a set with five silicone patches from specialist retailers, from our customer service or on our official website www.bosch-home.com by quoting the article number 17007119.

All adhesives break down over time when they are stored. To prevent this from happening, place the silicone bases on their containers as soon as they are cleaned.

3.3 Attaching the wireless cooking sensor

1. Ensure that the silicone patch is completely dry before attaching the cooking sensor.
2. Attach the cooking onto the silico- one patch so that it fits perfectly.

Fig. 3

4 Replacing the battery

If the LED on the wireless cooking sensor does not light up when pressed, the battery is discharged. Changing the battery:

1. Remove the silicone cover from the lower section of the cooking sensor casing and remove both screws using a screwdriver.

$$ \rightarrow \text {F i g .} \quad 4 $$

1. Open the cooking sensor lid and remove the battery from the base.

$$ \rightarrow \text {F i g .} \quad 5 $$

1. Insert a new battery, observing the instructions for the battery poles. Only use premium-quality CR2032 batteries.

$$ \rightarrow \text {F i g .} \boxed {6} $$

Note: Do not use any metal objects to remove the battery. Do not touch the battery connection points.

1. Close the cap on the cooking sensor. The indentations for the screws on the cap must be aligned with the indentations on the lower section of the housing. Use a screwdriver to tighten the screws and secure the silicone cover on the lower section of the cooking sensor housing.

$$ \rightarrow \text {F i g .} \boxed {7} $$

5 Cleaning

5.1 Cooking sensor

Clean with a damp cloth. Do not place in the dishwasher and do not get it wet.

When you are not using the cooking sensor, remove it from the cookware and store it in a clean, secure location, away from any heat sources.

5.2 Silicone patch

Clean and dry before attaching the cooking sensor. Dishwasher safe.

Note: The cookware with the silicone patch must not be left to soak for long periods in soapy water.

5.3 Window for the wireless cooking sensor

Always keep the window clean and dry. Important:

1. Remove dirt and oil splatters regularly.
2. For cleaning, use a cloth or a cotton bud and window-cleaning solution.

Fig. 8

Notes

• Do not use hard or rough objects such as bristle brushes or scouring pads to clean the hob, and do not use scouring agents.
• Do not touch the window for the wireless cooking sensor with your fingers; this will soil or scratch it.

6 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with wireless cooking sensor function meets the basic requirements and other relevant provisions of the Directive 2014/53/EU.

A detailed Declaration of Conformity in accordance with Directive RED can be found at www.bosch-home.com on the product page for your appliance under "Additional documents.

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by BSH Hausgeräte GmbH under licence. All other trademarks and trade names are owned by the respective companies.

6.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at www.bosch-home.co.uk among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternatively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

This statement of compliance is prepared by the manufacturer.

The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
provision 5.2-1 of ETSI EN 303 645 v2.1.1;
provision 5.3-13 of ETSI EN 303 645 v2.1.1.

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary to maintain the main functions free of charge until at least 28/02/2034.

7 Disposal

7.1 Disposing of old appliance

Valuable raw materials can be reused by recycling.

• Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and elec

tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

7.2 Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

• Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
