USER MANUAL SSD 144 LT METABO

Director Innovation, Research and Development

Responsible Person for Documentation

© 2011 Metabowerke GmbH, 72622 Nürtingen, Germany

SSW…

1

SSD...

2
3
4
5
6
7
8

A

B

18 V 2,6 Ah 6.25459 Li-Power Extreme

14,4V 2,6Ah 6.25458 Li-Power Extreme

C
SSD...

D
SSW....

$$ \begin{array}{l} n _ {0} = \ S = S c h l a g z a h l \ \end{array} $$

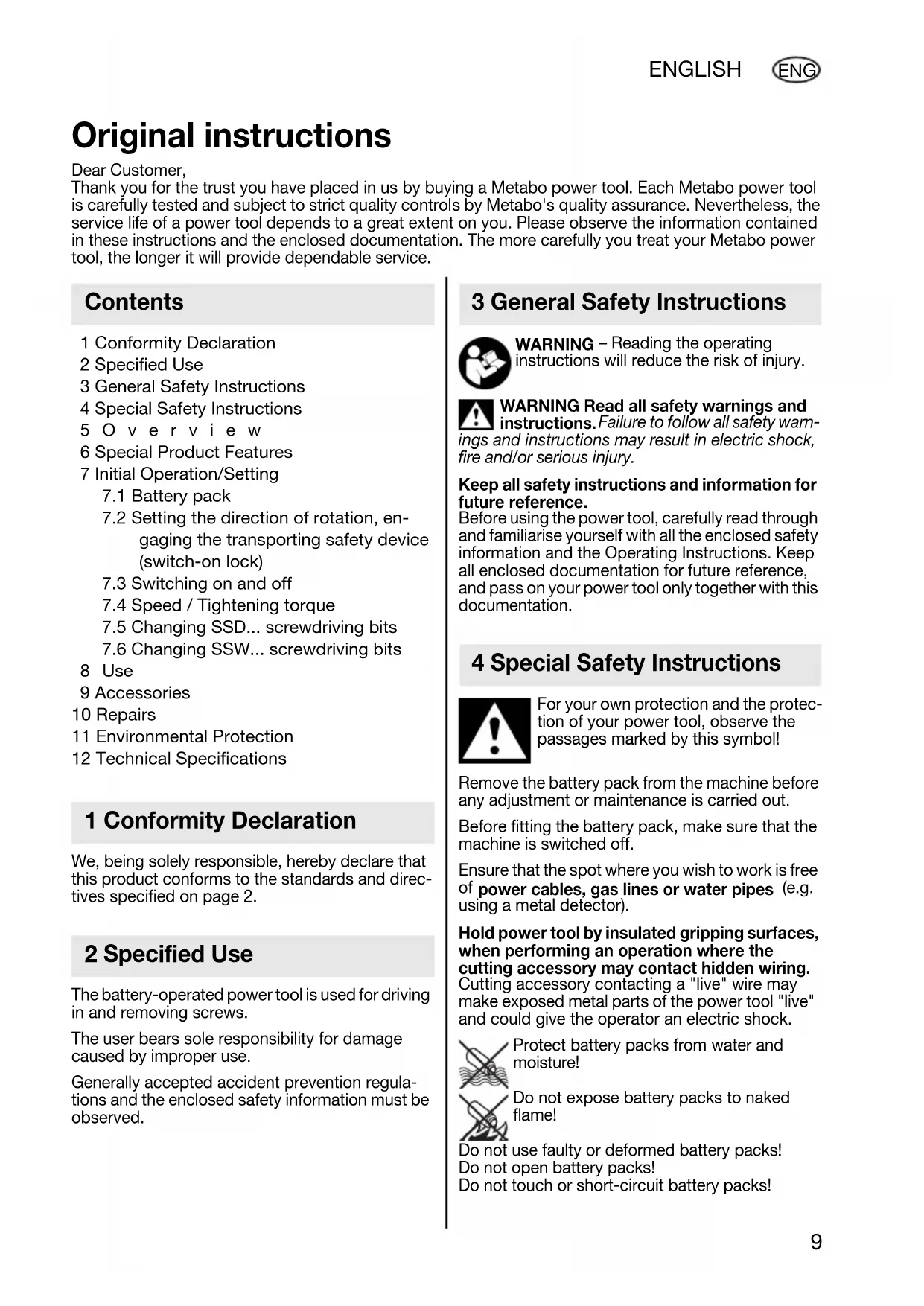

Original instructions

Dear Customer,

Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service.

Contents

1 Conformity Declaration
2 Specified Use
3 General Safety Instructions
4 Special Safety Instructions
5 O v e r v i e w
6 Special Product Features
7 Initial Operation/Setting

7.1 Battery pack
7.2 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)
7.3 Switching on and off
7.4 Speed / Tightening torque
7.5 Changing SSD... screwdriving bits
7.6 Changing SSW... screwdriving bits

8 Use
9 Accessories

10 Repairs
11 Environmental Protection
12 Technical Specifications

1 Conformity Declaration

We, being solely responsible, hereby declare that this product conforms to the standards and directives specified on page 2.

2 Specified Use

The battery-operated power tool is used for driving in and removing screws.

The user bears sole responsibility for damage caused by improper use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3 General Safety Instructions

WARNING - Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the power tool, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation.

4 Special Safety Instructions

For your own protection and the protection of your power tool, observe the passages marked by this symbol!

Remove the battery pack from the machine before any adjustment or maintenance is carried out.

Before fitting the battery pack, make sure that the machine is switched off.

Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Protect battery packs from water and moisture!

Do not expose battery packs to naked flame!

Do not use faulty or deformed battery packs!
Do not open battery packs!
Do not touch or short-circuit battery packs!

Slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks

out and comes into contact with your eyes, wash them with clean water and seek medical treatment immediately.

Only screwdriving bits suitable for the impact screwdriver must be used.

Take care when driving in long screws - risk of slipping.

Mount the machine on the screw only when it is switched off.

Wear ear protectors when working for long periods of time. High noise levels over a prolonged period of time may affect your hearing.

Materials that generate dusts or vapours that may be harmful to health (e.g. asbestos) must not be processed.

LED (6): Do not view LEDs directly through optical instruments, LED class 1M, classified as per DIN EN 60825-1: 2003, wavelength: 400-700 nm; 300~ s .

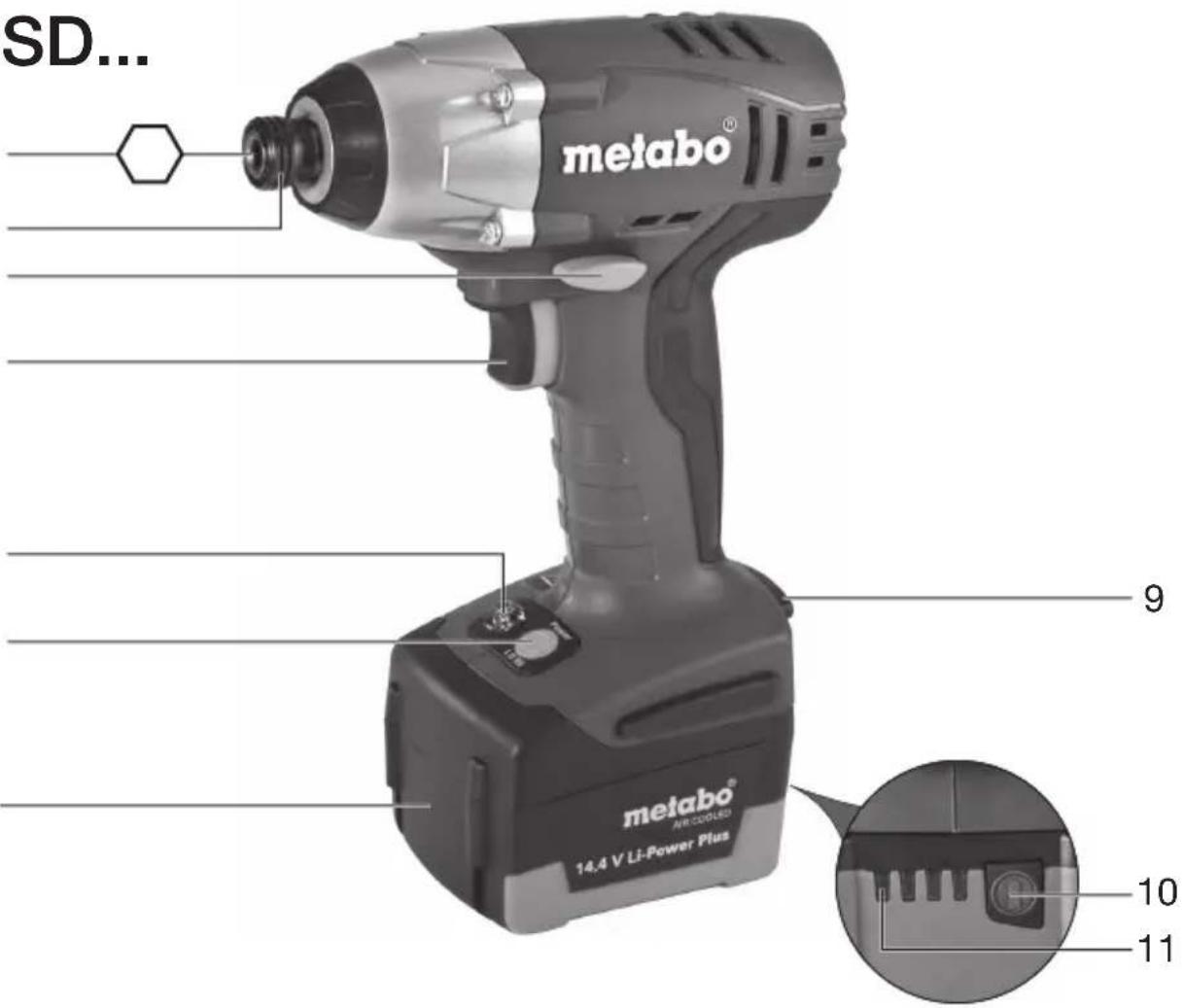

5 O v e r v i e w

See page 3 (please unfold).

1 Square attachment for sockets
2 Hexagon socket attachment for hexagon screwdriving bits
3 Locking sleeve*
4 Rotational direction switch / Transporting safety device
5 Trigger
6 LED light For working on dimly lit areas. The LED lights light up when the machine is switched on.
7 Button for speed/tightening torque preselection
8 Battery pack
9 Button for battery pack release
10 Capacity indicator button
11 Capacity and signal indicator * depending on the features / model

6 Special Product Features

The battery-powered impact screwdriver is characterised above all by low-recoil work at high torques. This hardly perceptible reaction force is

achieved by means of a rotary percussion mechanism designed for left and right rotation.

7 Initial Operation/Setting

Remove the battery pack from the machine before any adjustment or maintenance is

carried out. Before fitting the battery pack, make sure that the machine is switched off.

7.1 Battery pack

Charge the battery pack before use (8).

If performance diminishes, recharge the battery pack.

The ideal storage temperature is between 10^ and 40^ .

"Li-Power" li-ion battery packs have a capacity and signal indicator: (11)
- Press the (10) button, the LEDs indicate the charge level.
- If one LED is flashing, the battery pack is almost flat and must be recharged.

Removal:

Press the battery pack release (9) button and pull the battery pack (8) forwards.

Inserting:

Slide in the battery pack (8) until it engages.

7.2 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)

Do not actuate the rotation selector switch or engage the transportation lock (4) unless the motor has stopped completely!

Actuate the rotational direction switch / Engage the transportation lock (4)

R = Right rotation set (insert screws)

L = Left rotation set (remove screws)

0 = Central position: transportation lock setting (switch-on lock)

7.3 Switching on and off

To switch on: press the trigger switch (5).

Switching off: Release the trigger (5).

7.4 Speed / Tightening torque

The speed and tightening torque are connected directly. The lower the speed, the lower the tightening torque.

The tightening torque is influenced in two ways:

1) Preselect maximum tightening torque.

You can select one of three tightening torque settings by pressing the button (7). The maximum tightening torques are listed in the table on page 2 (Mmax..,l,Mmax..,ll,M_max..,III)

Button (7) lights up briefly to indicate which setting is selected. For example: if the button lights up twice, this means that setting II is selected.

2) Stepless adjustment of the tightening torque:

The speed and tightening torque can be adjusted stepplessly by pressing the trigger (5) firmly or lightly, thus adapting to working conditions.

Recommendation: determine the correct setting by carrying out trial screwdriving.

7.5 Changing SSD... screwdriving bits

Inserting screwdriving bit: Slide locking sleeve (3) forward and insert screwdriving bit as far as the stop. Release locking sleeve (3).

Pull on the screwdriver bit to check that it is correctly seated.

Removing screwdriving bit: Slide locking sleeve (3) forward and remove screwdriving bit.

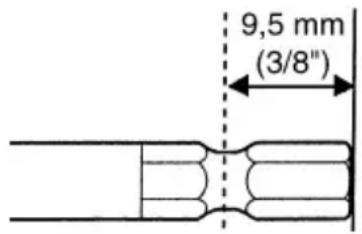

Only use screwdriving bits with such plug-in ends:

The screwdriving bit used must match the screw.

Damaged screwdriving bits must not be used.

7.6 Changing SSW... screwdriving bits

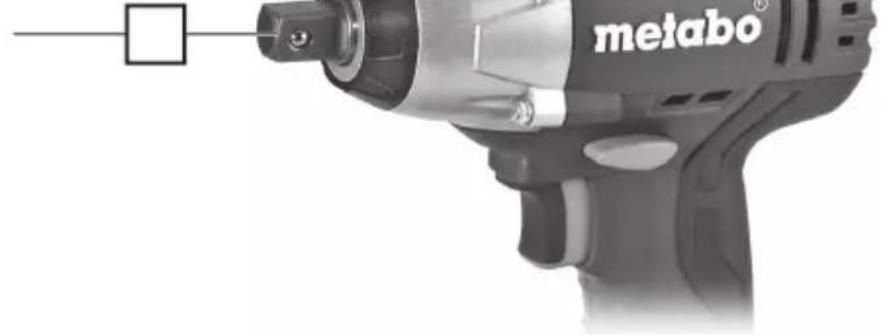

Inserting screwdriving bit: Insert the socket all the way into the square attachment (1).

Removing screwdriving bit: Pull the socket out of the square attachment (1).

The screwdriving bit used must match the screw.

Damaged screwdriving bits must not be used.

8 Use

Mount the machine on the screw, ensuring it is aligned straight.

The screwdriving process has two elements: inserting the screw and tightening the screw with the percussion mechanism.

The tightening torque depends on the impact duration.

With an impact duration of approx. 5 seconds, the maximum tightening torque has been reached.

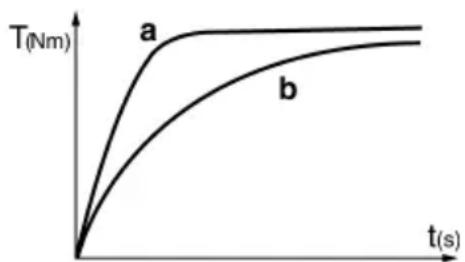

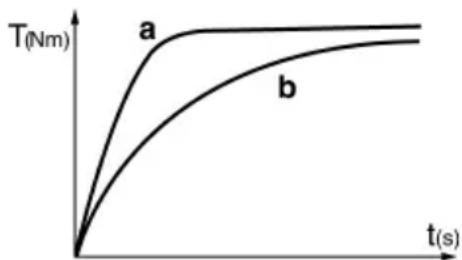

The torque curve depends on the type of application:

With a hard screwdriving application (screwcouplings in hard material such as metal), maximum tightening torque is already reached after a short impact duration (a).

With a soft screwdriving application (screwcouplings in soft material such as wood), a longer impact duration (b) is required.

Recommendation: determine the correct impact duration by carrying out trial screwdriving.

Caution! With small screws, maximum torque can be reached even below an impact duration of 0.5 seconds.

• This is why the duration of the screwdriving process must be monitored exactly.
• Select a suitable maximum tightening torque on button (7) (see chapter 7.4).
• Adjust the tightening torque by pressing firmly or lightly on the trigger (5), ensuring that the screw is not damaged or that the screw head does not tear off.

9 Accessories

Use only genuine Metabo accessories.

For dealers to select the correct accessory, they need to know the exact model designation of your tool.

See page 4.

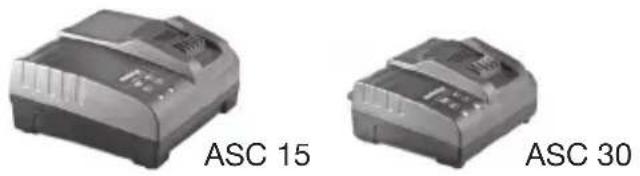

AChargers

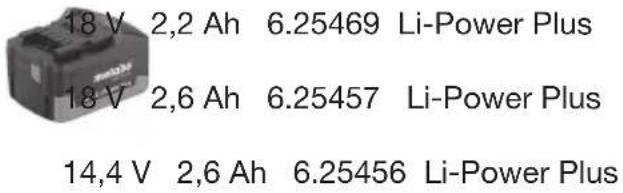

B Battery packs with different capacities: Use battery packs only with voltage suitable for your power tool.

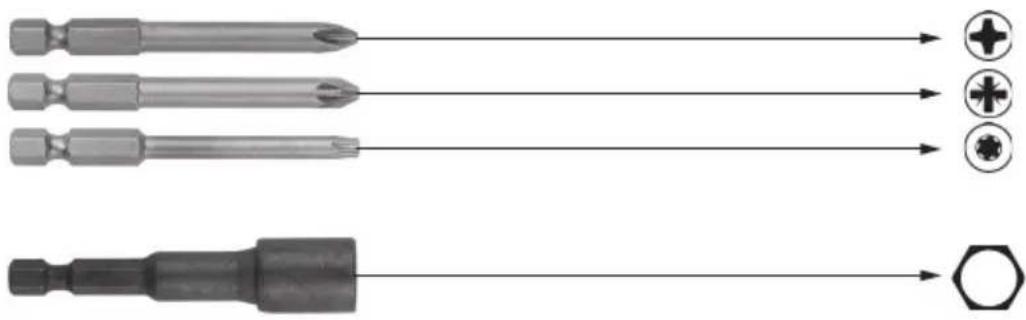

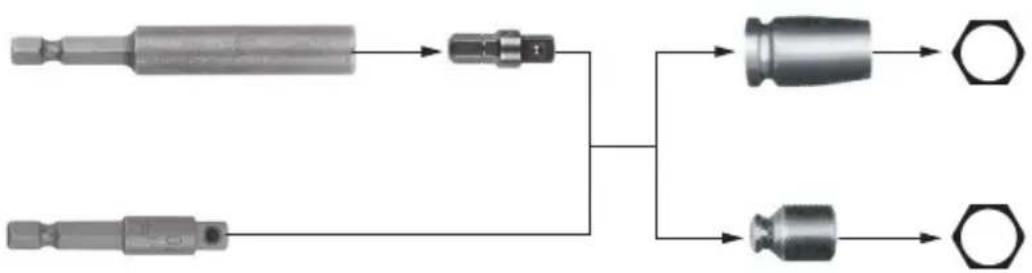

C Screwdriving bits

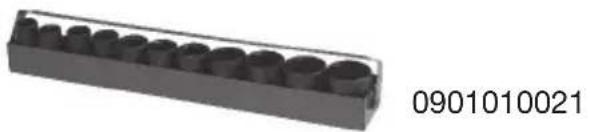

D Socket set 1/2"

10 Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.

You can download spare parts lists from www.metabo.com.

11 Environmental Protection

Metabo's packaging can be 100% recycled.

Scrap power tools and accessories contain large amounts of valuable resources and plastics that can be recycled.

These instructions are printed on chlorine-free bleached paper.

Battery packs must not be disposed of with regular waste.

Please return faulty or used battery packs to your Metabo dealer.

Do not allow battery packs to come into contact with water!

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline

2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

Before disposal, discharge the battery pack in the power tool. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).

12 Technical Specifications

Explanatory notes on the specifications on page 2.

Changes due to technological progress reserved.

U = Voltage of battery pack

n_0 = No-load speed

s = Impact frequency

H = Machine tool attachment

m = weight (with smallest battery pack)

M_max_I = Max. tightening torque (setting I)

M_max_II = Max. tightening torque (setting II)

M_.,III^max, = Max. tightening torque (setting III)

Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

a_h =Vibration emission value (screwdriving with impact)

K_h = Uncertainty (vibration)

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It is also suitable for a provisional estimate of the vibratory load.

The specified vibration level applies to the main applications of the power tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This can considerably increase the vibratory load over the entire working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Typical A-effective perceived sound levels:

L_pA =Sound pressure level

LA = Acoustic power level

K_pA^m , K_WA = Uncertainty(noise level)

Wear ear protectors!

Measured values determined in conformity with EN 60745.

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).
