MSH60, MSH601

EN

Retrofit insert seat heater

Installation and Operating Manual.....7

DE

Technical diagram showing exploded view of various electrical components with numbered parts labeled 1 to 15.

Technical diagram showing a mechanical assembly with intersecting lines and arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and cross marks, no readable text or symbols present.

Labeled photo of electronic devices including capacitors and a grid device with numbered parts

Interior view of a car seat with visible seats and side legs (no text or symbols)

Interior view of a car seat with visible cushion and side armrest (no text or symbols)

Close-up of a textured surface with a curved edge, possibly a material or material sample (no visible text or symbols)

Close-up of a white ergonomic chair with a flat seat and black top, no visible text or symbols

Person wearing gloves and a wristbelt, handling a rectangular object (no visible text or symbols)

Person using a handheld device on a white chair, no visible text or symbols

Close-up of hands operating a mechanical device with a tool, no visible text or symbols

Person installing or adjusting a panel on a dark surface, no visible text or symbols

Close-up of hands installing or adjusting a dark fabric or plastic sheet on a mechanical component (no visible text or symbols)

Close-up of a car's front panel showing a circular control knob with a white checkmark and 'W' symbol, no readable text or numbers present.

Medical imaging of a patient's abdomen with visible medical tubing and attached instruments (no text or symbols)

Interior view of a car showing two seats with black and gray shades, no visible text or symbols

17

ca. 20 mm

18

MSH60 +12 V (15) or +12 V (30) rt sw (31)

MSH601 +12 V (15) or +12 V (30) rt sw (31)

	EN	DE	FR	ES	PT	IT	NL	DA
sw	Black	Schwarz	Noir	Negro	Preto	Nero	Zwart	Sort
or	Orange	Orange	Orange	Naranja	Cor de laranja	Arancione	Oranje	Orange
rt	Red	Rot	Rouge	Rojo	Vermelho	Rosso	Rood	Rød

	SV	NO	FI	RU	PL	SK	CS	HU
sw	Svart	Svart	Musta	Черный	Czarny	Čierna	Černá	Fekete
or	Orange	Oransje	Oranssi	Оранжевый	Pomarańczowy	Oranžová	Oranžová	Narancs
rt	Röd	Rød	Punainen	Красный	Czerwony	Červená	Červená	Piros

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols....8
2 Safety and installation instructions ....8
3 Scope of delivery ..... 11
4 Accessories....11
5 Intended use ....12
6 Technical description .....12
7 Installing the seat heater....12
8 Using the seat heater ....15
9 Guarantee....16
10 Disposal....16
11 Technical data....16

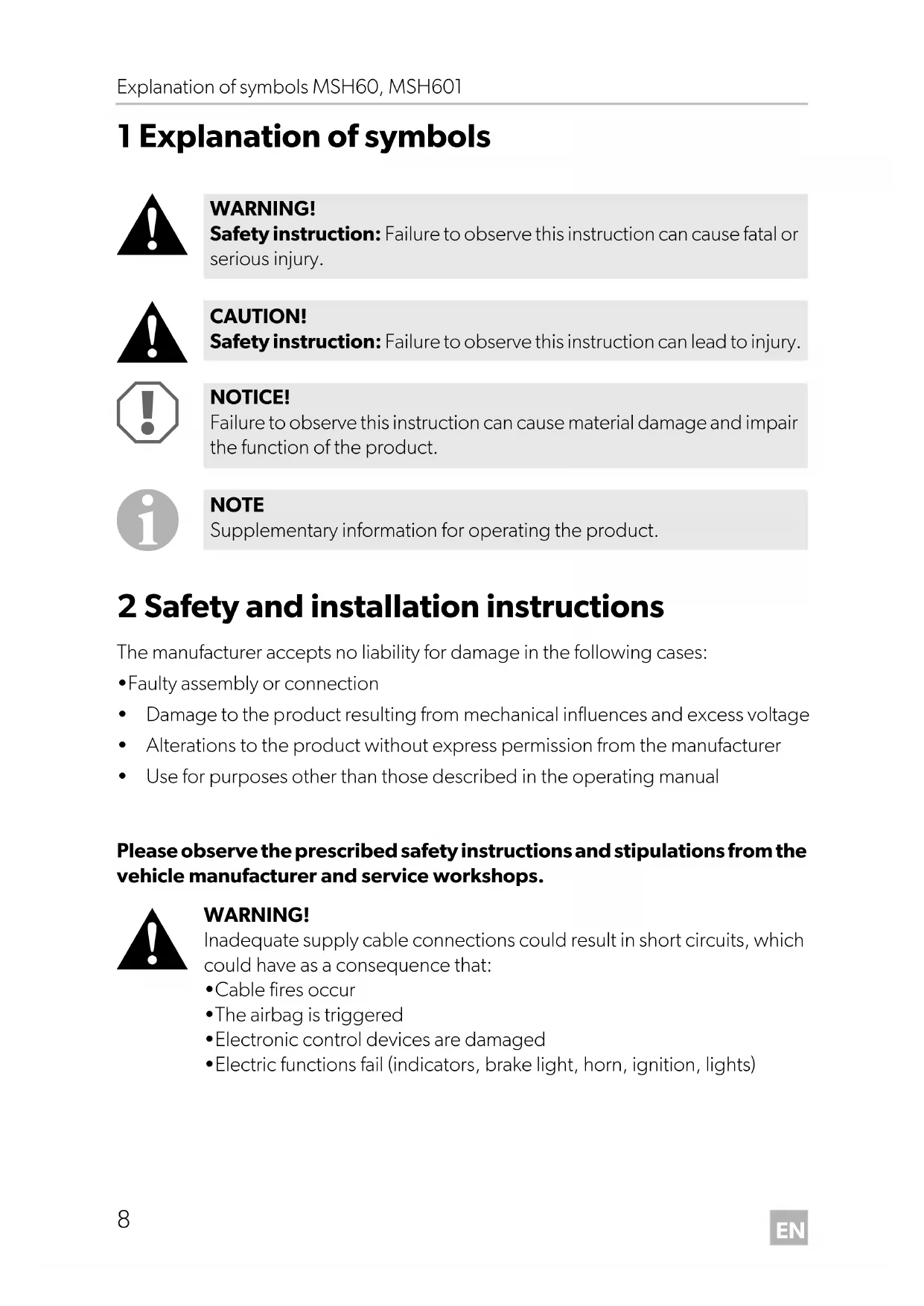

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 Safety and installation instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection

• Damage to the product resulting from mechanical influences and excess voltage
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops.

WARNING!

Inadequate supply cable connections could result in short circuits, which could have as a consequence that:

• Cable fires occur
  •The airbag is triggered
  • Electronic control devices are damaged
  • Electric functions fail (indicators, brake light, horn, ignition, lights)

NOTICE!

To prevent the risk of short circuits, always disconnect the negative terminal of the vehicle's electrical system before working on it. If the vehicle has an additional battery, its negative terminal should also be disconnected.

Please observe the following instructions:

- When working on the following cables, only use insulated cable lugs, plugs and flat push-on receptacles:

• 30 (direct supply from positive battery terminal)
• 15 (connected positive terminal, behind the battery)
• 31 (return line from the battery, earth)
• L (indicator lights left)
• R (indicator lights right)

Do not use terminal strips.

• Use a crimping tool to connect the cables.
• When connecting to cable 31 (earth), screw the cable

- to the vehicle's earth bolt with a cable lug and a gear disc or

- to the sheet-metal bodywork with a cable lug and a self-tapping screw.

Ensure that there is a good earth connection.

If you disconnect the negative terminal of the battery, all data stored in the volatile memories will be lost.

- The following data must be set again, depending on the vehicle equipment options:

• Radio code
• Vehicle clock
• Timer
• On-board computer
• Seat position

You can find instructions for making these settings in the appropriate operating instructions.

Observe the following installation instructions:

CAUTION!

- Secure the parts installed in the vehicle in such a way that they cannot become loose under any circumstances (sudden braking, accidents) and cause injuries to the occupants of the vehicle.

• Secure any parts of the system covered by the bodywork in such a manner that they cannot be come loose or damage other parts and cables or impair vehicle functions (steering, pedals, etc).
• Always follow the safety instructions of the vehicle manufacturer. Some work (e.g. on retention systems such as the AIRBAG etc.) may only be performed by qualified specialists.

NOTICE!

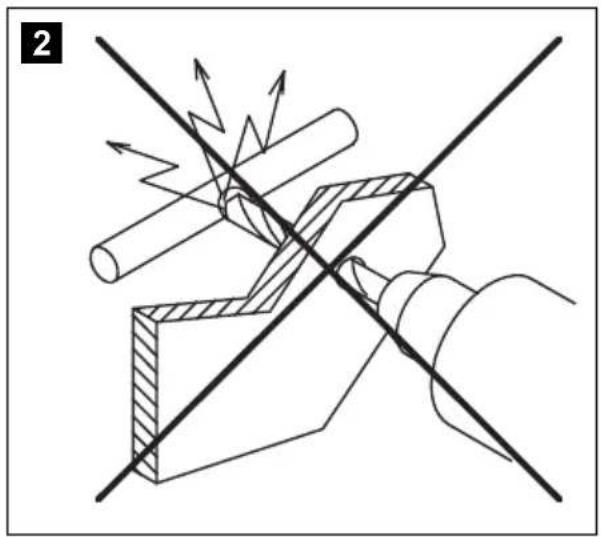

• To prevent damage when drilling, make sure there is sufficient space on the other side for the drill head to come out.
• Deburr all drill holes and treat them with a rust-protection agent.

Observe the following instructions when working with electrical parts:

NOTICE!

• When testing the voltage in electrical cables, only use a diode test lamp or a voltmeter. Test lamps with an illuminant take up voltages which are too high and which can damage the vehicle's electronic system.
• When making electrical connections, ensure that:

– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp edged ducts without protection.

• Insulate all connections.

- Secure the cables against mechanical wear with cable binders or insulating tape, for example to existing cables.

Observe the following instructions when using the seat heater:

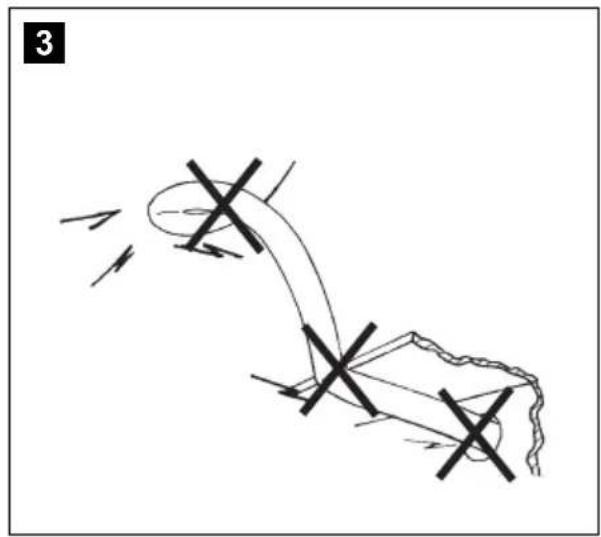

• Do not place any sharp or heavy objects on the seat, as the seat heater could otherwise be damaged.
• Persons with an impaired sensitivity to heat should only operate the seat heater at level 1.
• Do not place any heat insulating objects, such as blankets or coats, on the seat when the seat heater is switched on.

- The seat heater can be damaged by fluids spilt on the seat.

- Never switch the seat heater on when it is wet.

3 S c o p e o f d

MagicComfort MSH60

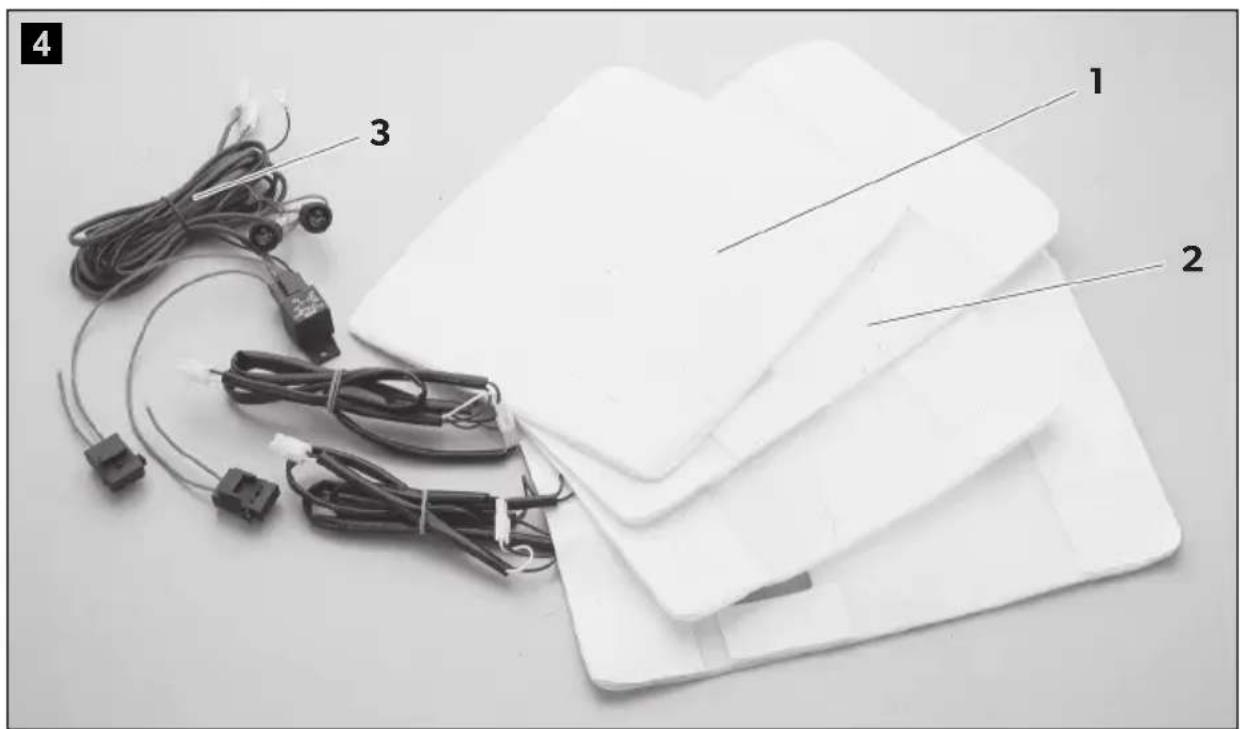

No. in fig. 4, page 4	Quantity Description Ref. no.
1 2 Backrest heating element 9101700028
2 2 Seat surface heating element 9101700027
3 1 Connection cable with relay and switch	9101700030
-1 Drill template
-4 Double-sided adhesive tape
-	1 Operating manual

MagicComfort MSH601

No. in fig. 4, page 4	Quantity Description Ref. no.
11	Backrest heating element 9101700028
21	Seat surface heating element 9101700027
31	Connection cable with relay and switch	9101700029
-1	Drill template
-2	Double-sided adhesive tape
-	1	Operating manual

4 A c c e s s o r i

Available as accessory (not included in scope of delivery):

Description	Ref. number
Switch	9101700033

5 Intended use

The seat heater MagicComfort MSH60 (ref. no. 9600000393) and MSH601 (ref. no. 9600000394) are designed for installation in the front vehicle seats.

NOTICE!

For vehicles equipped with side airbags in the seat backrests, seat occupancy detection or child seat detection, observe the vehicle manufacturer's specifications.

6 Technical description

The heating elements for the seat heater MagicComfort MSH60 and MagicComfort MSH601 can be installed in the driver's seat and in the passenger seat.

The shape of the seat is not altered by the heating elements.

The seat heater is operated using a switch.

7 Installing the seat heater

7.1 Tools required (fig. 1, page 3)

For installation and assembly you will need the following tools:

• Drill bit set (1)
• Drill (2)
• Screwdriver (3)
  • Set of ring or open-ended spanners (4)
• Measuring ruler (5)
• Hammer (6)
• Centre punch (7)

To make and test the electrical connection, the following tools are required:

• Diode test lamp (8) or voltmeter (9)
- Crimping tool (10)
• Insulating tape (11)
- Hot air blower (13)

• Soldering iron (14)
• Solder (15)
• Cable bushing sleeves (if necessary)

To fasten the cables you may require additional cable binders.

7.2 Installing the seat heater

The seat heater MagicComfort MSH60 includes heating elements for the driver's and passenger seats; the seat heater MagicComfort MSH601 only includes heating elements for the driver's or passenger seat.

Removing the seat

▶Secure the vehicle against rolling away.

NOTICE!

For vehicles with side air bags in the seat backrest, observe the manufacturer's instructions on removing the seats and the upholstery.

▶ Check the suitability for installation using these installation instructions and the manufacturer's information.
▶Remove the fastening screws from the vehicle seat.
▶ Lift the seat out of the vehicle.

Preparing the seat

▶Remove all plastic panelling from the seat to ensure the fastening of the cover fabric can be reached.

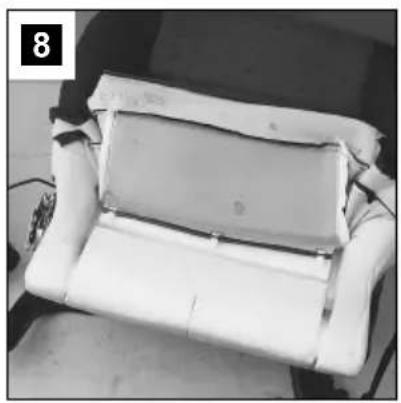

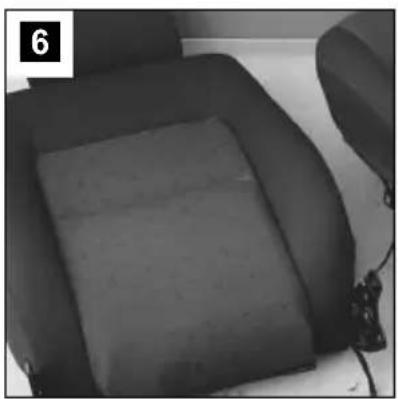

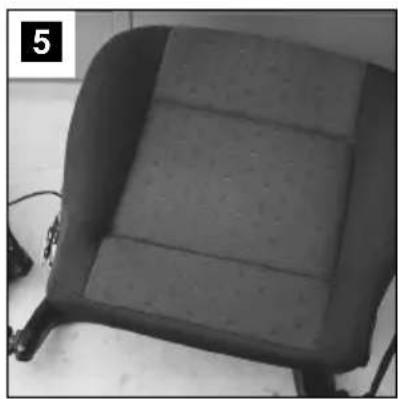

Separate the backrest from the seat (fig. 5, page 4 and fig. 6, page 4).
▶Open the seat cover on the seat surface.

The cover fabric is usually tucked into a seam on the frame with a wide cardboard strip or metal wire.

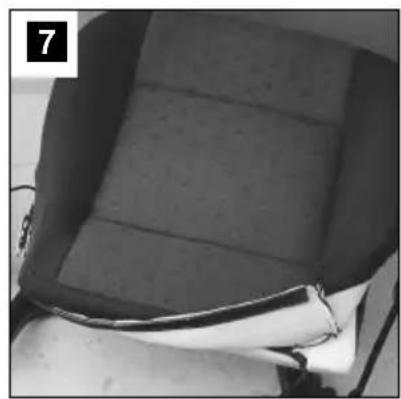

Remove the fasteners using a screwdriver and pliers (fig. 7, page 4 and fig. 8, page 5).

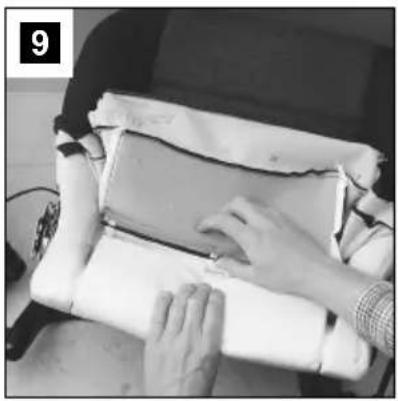

Remove any upholstery staples or cross braces (fig. 9, page 5).

Installing the heating element for the seat surface

NOTICE!

The heating cables must not be damaged or bent sharply. In case you need to make cuts in the heating element, pay attention to the routing of the heating cables.

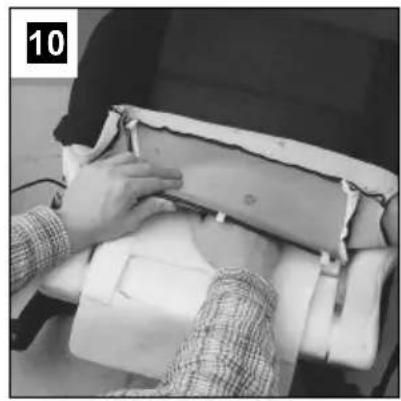

▶ Insert the heating element for the seat surface between the cover fabric and the foam core of the seat (fig. 10, page 5).

NOTE

To bridge the stitching recesses or the cross braces with which the seat cover is additionally secured to the foam core, a recess is provided on the heating element of the seat surface.

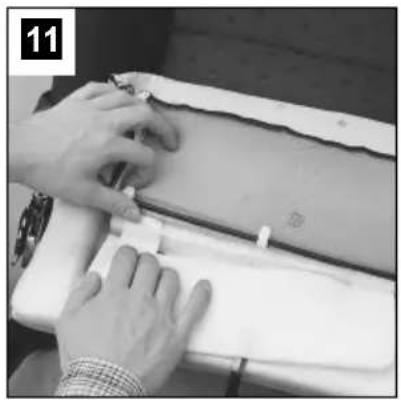

▶ Depending on the seat, guide this area through the stitching recess (fig. 11, page 5) or place this area through the recesses in the tunnel for the cross braces.
▶ Fasten the heating element using double-sided adhesive tape to prevent it sliding on the foam core.

Ensure that no creases or kinks form.

Installing the heating element for the backrest

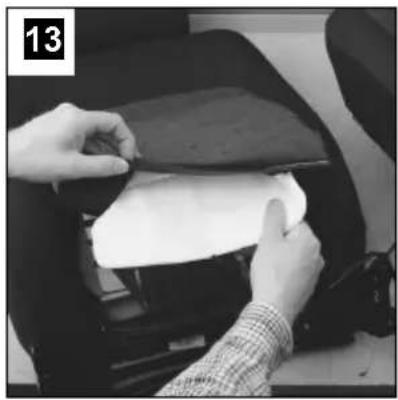

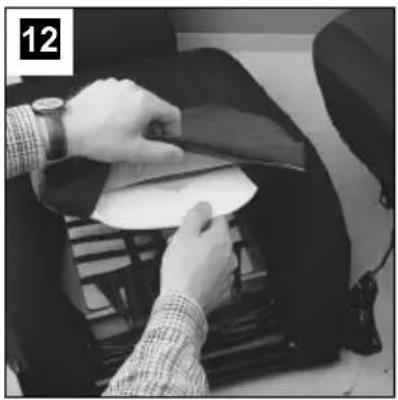

▶ Open the lower area of the backrest cover (fig. 12, page 5).
▶Push the heating element into the gap between the seat cover and the seat cushion (fig. 13, page 5).
▶Fasten the heating element using double-sided adhesive tape to prevent creases.

NOTE

The heating surface only needs to extend approx. 30 – 35 cm above the seat, as the driver, when sitting normally, leans against this area only. If the seats are equipped with side airbags, then there is a predetermined breaking point in the cover fabric. The seat cover must therefore not be pulled tightly or slip out of place.

Installing the seat

▶ Lift the seat into the vehicle.
▶Secure the vehicle seat with the fastening screws.

Electrical connection

The seat heater MagicComfort MSH60 has one switch each for the driver's and passenger seats, the seat heater MagicComfort MSH601 only one for the seat chosen.

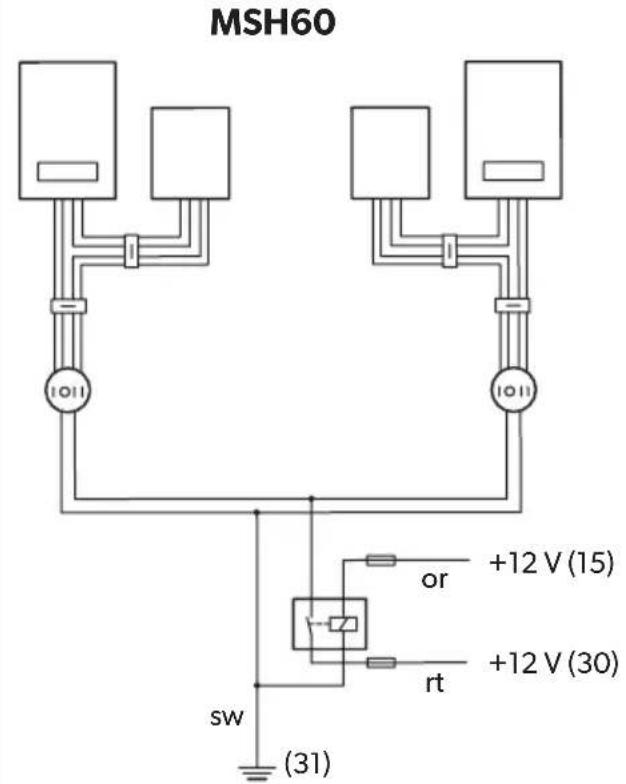

The complete circuit diagram can be found in fig. 18, page 6.

NOTICE!

Ensure it has been securely fitted, particularly in the area of the seat rails.

▶ Find a suitable place for installing the seat heater switch.
If possible, use the blanking plugs provided for this purpose.
Ensure that there is enough room behind the panel for the installation of the switch.
▶ Mark the switch cut-out using the template provided (fig. 17, page 5).
▶Cut out the marked area with an appropriate tool.

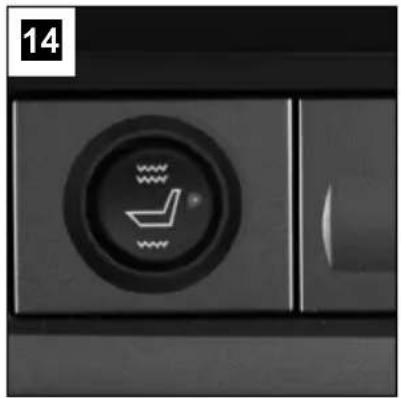

▶ Install the switch into the cut-out (fig. 14, page 5).

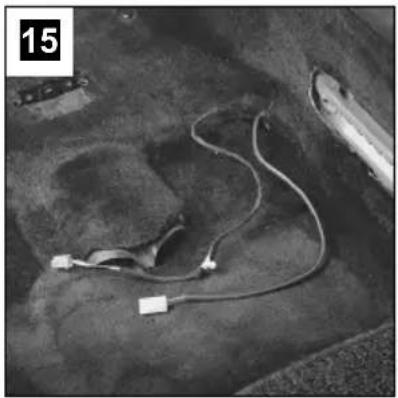

▶ Install the ready-made wiring harness so that the cables cannot bend or fray (fig. 15, page 5).

8 Using the seat heater

▶Switch on the seat heater using the corresponding switch (level or level).
▶ To switch the seat heater off: Put the corresponding switch into the middle position.

9 G u a r a n t e e

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please send the following items:

• Defect components
  • A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

10 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	MagicComfort MSH60 M	MagicComfort MSH601
Ref. no.: 9600000393 9600000394
Operating voltage: 12 V---
Current consumption:	Level I: 1.8 A per seatLevel II: 3.4 A per seat	Level I: 1.8 ALevel II: 3.4 A
Dimensions:	Seat element: 400 x 280 mmBackrest element: 300 x 280 mm

6 Description technique

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudorferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Dometic Branch Office Belgium

Zincstraat 3

B-1500 Halle

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Dometic Group Asia Pacific

Suites 2207-11 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47122 Forlì (FC)

[phone]

[phone]

Mail: [e-mail]

JAPAN

Dometic KK

Maekawa-Shibaura, Bldg. 2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

[phone]

Mail: [e-mail]

MEXICO

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juárez

Estado de México

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Dometic New Zealand Ltd.

Unite E, The Gate

373 Neilson Street

Penrose 1, Auckland

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

∅sterøyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL-02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way 06-140 Trade Hub 21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o. Sales Office Bratislava

Nádražná 34/A

900 28 Ivánka pri Dunaji

/ [phone]

Mail: [e-mail]

SOUTH AFRICA

Dometic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avalon Road

West Lake View Ext 11

Modderfontein 1645

Johannesburg

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

Dorset DT119LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
