USER MANUAL GE 345 VIKING

2002/96/EC, 2004/108/EC, 2006/95/EC

Thank you for deciding to purchase a quality appliance from VIKING.

This appliance is manufactured using the most up-to-date production techniques and comprehensive quality assurance procedures. Our aim is to ensure that you are 100% satisfied.

If you have any queries about your appliance please direct them to your retailer or directly to our marketing company.

I hope you will be completely satisfied with your VKING appliance

Signed

Nikolas Stihl

Managing Director

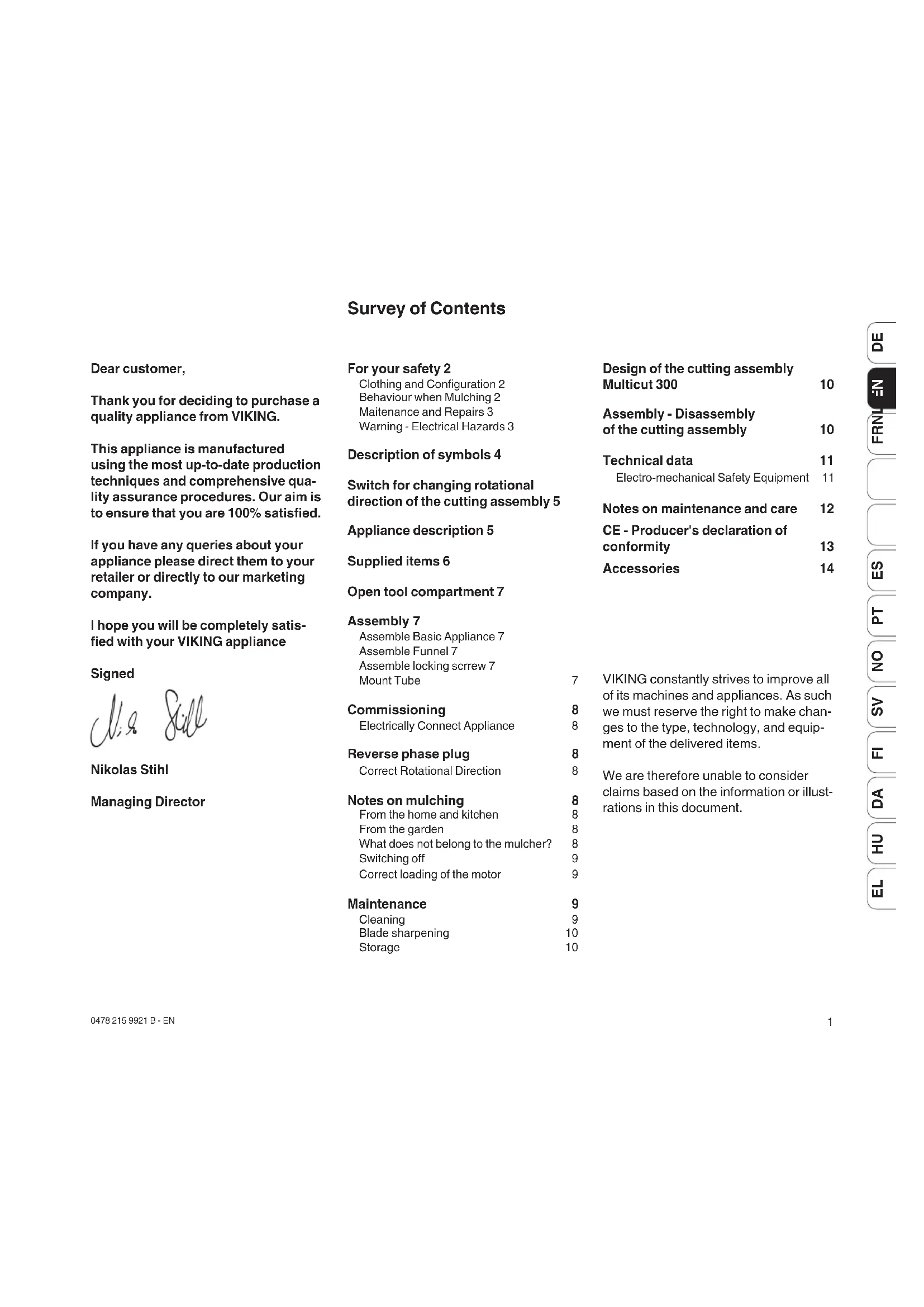

For your safety 2

Clothing and Configuration 2

Behaviour when Mulching 2

Maitenance and Repairs 3

Warning - Electrical Hazards 3

Description of symbols 4

Switch for changing rotational direction of the cutting assembly 5

Appliance description 5

Supplied items 6

Open tool compartment 7

Assembly 7

Assemble Basic Appliance 7

Assemble Funnel 7

Assemble locking screw 7

Mount Tube 7

Commissioning

Electrically Connect Appliance 8

Reverse phase plug

Correct Rotational Direction 8

Notes on mulching

From the home and kitchen 8

From the garden 8

What does not belong to the mulcher? 8

Switching off 9

Correct loading of the motor 9

Maintenance

Cleaning 9

Blade sharpening 10

Storage 10

Design of the cutting assembly Multicut 300 10

Assembly - Disassembly of the cutting assembly 10

Technical data 11

Electro-mechanical Safety Equipment 11

Notes on maintenance and care 12

CE - Producer's declaration of conformity 13

Accessories 14

VIKING constantly strives to improve all of its machines and appliances. As such we must reserve the right to make changes to the type, technology, and equipment of the delivered items.

We are therefore unable to consider claims based on the information or illustrations in this document.

For your safety

The accident prevention regulations are to be observed when working with the garden mulcher.

Read the whole instruction manual before using for the first time and keep in a safe place for future reference. Familiarise yourself

thoroughly with the appliance.

Viking mulchers are designed for private use and are suitable for the reduction of organic kitchen refuse as well as plant refuse.

The garden mulcher must not be used for materials or tasks other than those described in these service instructions.

This appliance may only be used in the configuration in which it is delivered or in one which is expressly permitted by VKING. In addition no changes may be made which could lead to an increased likelihood of accident.

• The user should be acquainted with the proper use of the appliance by either the vendor or some other competent person.
• The appliance should not be operated after the consumption of alcohol, medications which impair reactions, or drugs

• The user is responsible for the prevention of injury or damage to third parties while operating the mulcher. Never work while third parties, especially children, or animals are nearby. Juveniles under 16 years of age are not permitted to operate the mulcher.

• The Garden mulcher should only be passed on (lent) to persons who are familiar with the proper use of this appliance. The owner's manual should always accompany the mulcher.

• Please observe the regulations regarding permitted operation times for motor-driven gardening tools.

Clothing and configuration

• The user should wear suitable clothing when using the garden mulcher. This consists of close fitting working clothes, robust gloves and shoes fitted with non-slip soles. Safety goggles must always be used and ear protectors should be worn when mulching wood.

Behaviour when mulching

• The appliance is to be thoroughly inspected each time before it is commissioned to ensure that it is sealed in accordance with regulations. The appliance must be securely erected on ground which is level and stable. Only work in good lighting conditions. Assume a secure stance, and work in a quiet and considerate manner. Use the machine prudently to prevent the possibility of harming others.

• Never stand in front of the ejector either when the motor is switched on or when working. There must be no mulched material in the mulcher when it is switched on.

• Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
• Never put your face over the filling hopper or in front of the ejector and never place your hand in the filling hopper or the ejector slot while the appliance is running. There is a serious risk of injury to eyes, face and hands.
• Do not allow hands or any other part of the body or clothing inside the feeding funnel, discharge chute, or near any moving part.
• The cutting tools must be regularly checked for secure seating and damage. Ensure that all bolts are constantly tightened.
• When filling the mulcher take great care to ensure that no foreign objects like metal fragments, stones, plastic, etc. enter the mulch chamber, as this can lead to damage, and back-firing through the filling hopper. Blockages must be cleared for the same reason.

• Do not allow processed material to build up in the discharge zone: this may prevent proper discharge and can result in a kickback of material through the feed intake opening.

• Switch off the motor and disconnect the electrical supply before leaving the appliance unattended.

• Only attach or detach the mulcher container with the motor switched off. Never use a garden mulcher with damaged safety appliances.
• The safety appliances installed by the manufacturer must not be removed or circumvented. All moving parts must come to a complete standstill:
• before clearing obstructions or blockages in the ejector channel,
• before inspecting, cleaning, or working on the mulcher or opening the tube,
• before leaving the mulcher unattended.

• before the machine is transported.

• If the mulcher starts making unusual noises or severe vibrations, the machine must be inspected immediately
  Note that the cutting tool will run on for a few seconds after the motor is switched off.

• Avoid switching the appliance on repeatedly within a short period of time, particularly by "playing" with the on/off switch.
• Owing to the voltage fluctuations caused by this appliance during the run-up period, other devices connected to the same circuit may be subject to interference in the case of unsuitable power supply conditions.

In this case, appropriate steps should be taken (e.g. connection to a different circuit than the one used by the affected device, or operation of the appliance using a circuit with a lower impedance).

Maintenance and repairs

Remove the plug from the power socket before all work on the appliance.

Only perform the maintenance which are described in the Owner's Manual. All other procedures should be carried out by a specialist dealer.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING recommends the use of original VIKING tools, accessories and spare parts. Their properties are optimally adapted to the appliance and the user's requirements. When replacing the cutting tool, make sure you install the correct type of cutting tool. The electrical connection lead may only be repaired or re-newed by an approved electrician.

• If components or protective devices are removed as a result of mainte-nance work, they must be immedia-tely re-fitted (as per the regulations). To avoid injury, protective gloves must be worn when working on the cutting assembly.
• Re-new safety and warning notices on the appliance if they become illegible. Your VIKING supplier stocks replacement stickers.

Warning - electrical hazards

• The power supply wiring, the power supply socket, the on/off switch and the connection lead are critically important items for electrical safety. To avoid exposure to the danger of electrical shock; damaged cable, couplings, and plugs or connection leads prohibited by the regulations must not be used.
• Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
• For the above reason, regularly inspect the connection lead for signs of damage or ageing (brittleness).
• When working outside, only use extension cables which are protec-ted against the ingress of moisture (see chapter: Commissioning)
• Although the drive motor is splash proof, the garden mulcher must not be used in the rain or in wet conditions.
• Do not leave the appliance unprotected in the rain.
• Disconnect the electrical power supply by removing the plug from the power socket, do not simply tug on the connection lead.
• When operating the mulcher in the open, the power socket should be fitted with a residual current breaker (r.c.b), or should be connected to an adapter with a similar appliance (obligatory in Switzerland). More precise information can be obtained from your electrician.

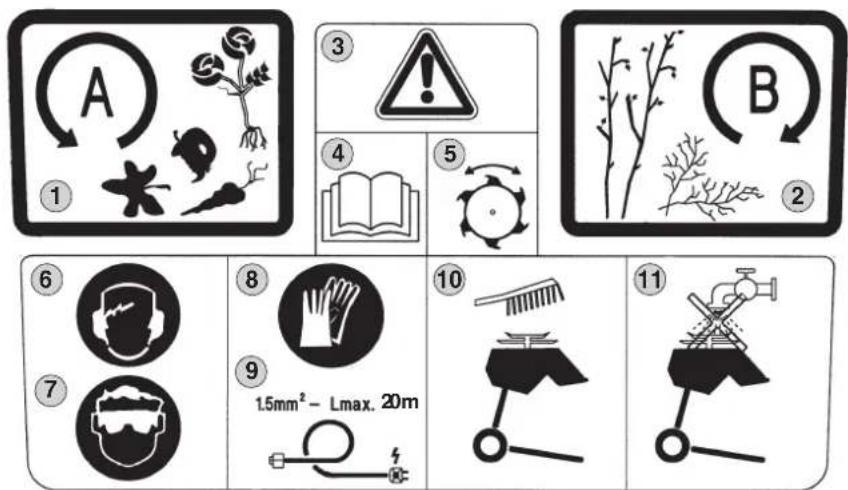

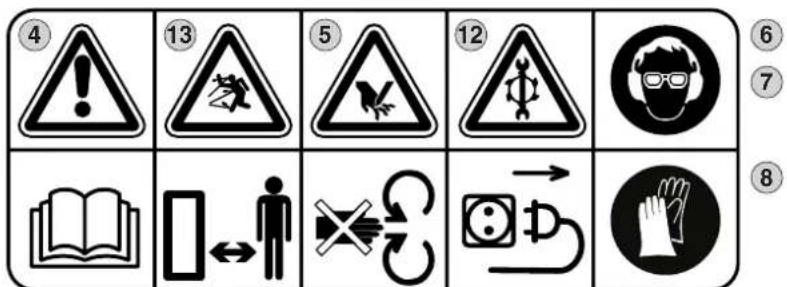

Discription of symbols

100552

1. Anti-clockwise rotation (All types of plant refuse)
2. Clockwise rotation (bushes, branches)
3. Caution!
4. Caution! Before commissioning, read owner's manual.
5. Caution! Rotating tool.
6. Wear ear protection.
7. Wear protective goggles.
8. Wear protective gloves.
9. The maximum permitted length of 1.5mm^2 cross sectional area cable is 20m
10. Clean the appliance using a brush.
11. The appliance must not be cleaned using a water jet, or pressure hose.
12. Before performing any work on the cutting tool, before carrying out maintenance and cleaning work, before checking whether the connection lead is entwined or damaged, or before leaving the mower unattended, switch off the motor and disconnect the plug.
13. Keep other people away from the dangerous area.

Switch for changing rotational direction of the cutting assembly

Switch Positions

Switch lever: left; A

Anti-clockwise rotating blade for all types of plant refuse.

Switch lever: right; B

Clockwise rotation of blade for bushes and branches.

Be careful: Do not feed in material containing earth or stones as this will prematurely blunt the cutting blades (see: Note on mulching).

Switch lever: centre

Motor stops within a few seconds.

Switch inhibitor (1)

Prohibits the immediate reversal of rotational direction.

NOTE: Allow the motor to come to a complete standstill before reversing the rotational direction.

Check the rotational direction for the GE365 model! (see: reverse phase plug)

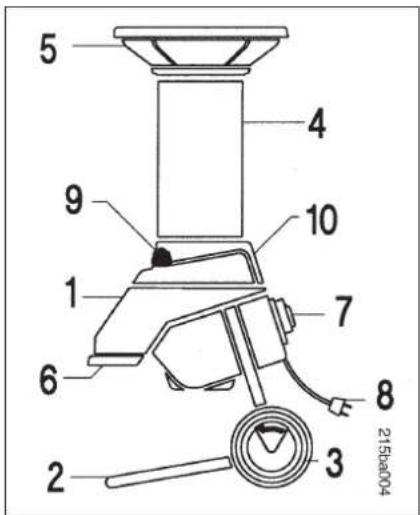

Appliance description

1 Basic appliance
2 Support foot
3 Wheels
4 Tube
5 Funnel
6 Ejector
7 Reversal switch
8 Power supply connection
9 Cover bolts
10 Cutter blades

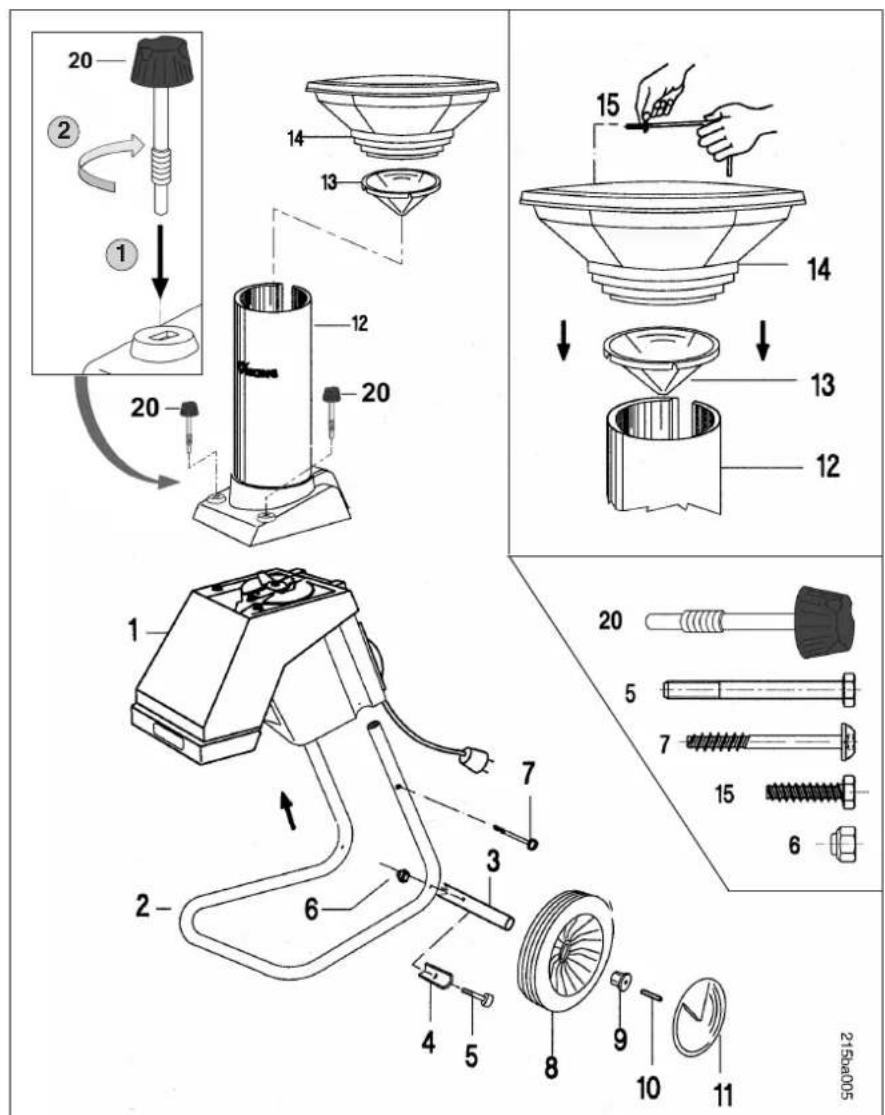

Supplied items

Pos.	Description
1 Basic appliance 1
2 Wheel foot 1
3 Wheel axle 1
4 Limit stop 2
5 Bolt M6x60 2
6 Nut M6 2
7 Bolt K50x50 2
8 Wheel 2
9 Plug 2
10 Pin 2
11 Wheel cap 2
12 Tube		1
13 Funnel rubber seal		1
14 Funnel		1
15 One way bolt K60x18		3
16	Screwdriver
17 Combination spanner		1
18 Assembly tool		1
19 Torx-spanner		1
20 Locking screw		2

No.

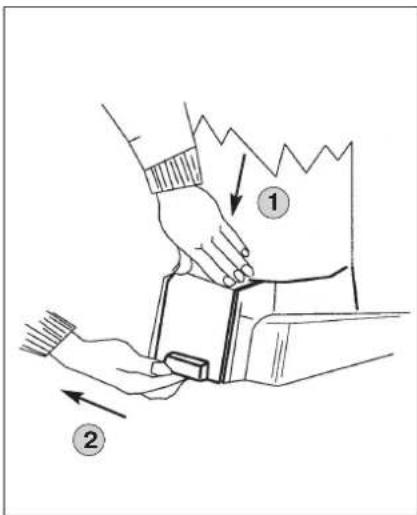

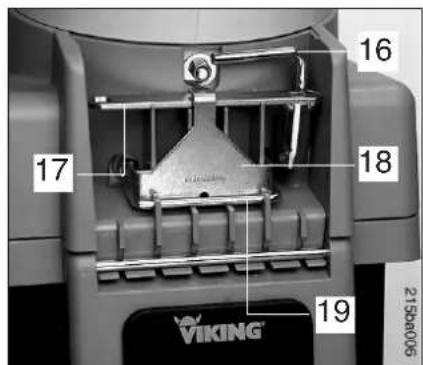

Open tool compartment

The tools which are required for assembly are in the tool compartment.

To open the tool compartment:

1 Press the lid down a little with one hand.
2 Pull the lid off with the other hand.

Assembly

Assemble basic appliance

Mount the basic appliance 1 on the support foot 2 and use the Torx-spanner 19 to firstly lightly tighten the bolts 7.

Then mount the wheel axle 3 and the limit stop 4 on the support foot 2 using the bolts 5 and the nuts 6 (combination spanner 17).

Now insert the wheels 8 and the plugs 9 on the wheel axle 13. Fix the plugs 9 by hammering in the pins 10.

Next press both of the wheel caps 11 on the wheels 8 and place the appliance on an even floor.

Subsequently tighten the bolts 7. (Torx-spanner 19)

Assemble funnel

Mount the funnel rubber seal 13 and the funnel 14 on the tube 12 and fasten these parts with the one-way bolts 15 using the screwdriver 16.

Assemble locking screw

1 Insert locking screw 20 in slot.
2 Fully screw in locking screw 20 while applying pressure.

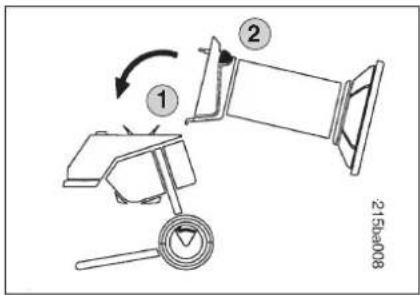

Mount tube

Suspend and then mount the tube 12 on the hinge in the basic appliance 1.
2 Tighten both cover bolts simultaneously.

Commissioning

3 × 1.5 ~mm^2 - Lmax. 20 ~m

Electically connect appliance.

The power supply connection lead must be protected with either a 10 or 16 ampere fuse (see Tech. Data).

Only cables which are not lighter than rubber insulated cables H07 RN-F DIN/VDE 0282 and which have a minimum cross sectional area of

1.5mm^2 for less than 20m or 2.5mm^2 for greater than 20m may be used as connection cables.

The coupling of the cable connection must be made from rubber or must be sheathed in rubber and in accordance with the standard DIN/VDE 0620. Alternating current models must use a 16 A CEE plug appliance and a 5 pole cable. The plug appliance must be splash proof.

Use of unsuitable extension cables causes power loss and can cause damage to the motor (refer to the chapter: "For Your Safety")

Reverse phase plug

Correct rotational direction

With the switch in position A the cutting assembly of this mulcher rotates anticlockwise when observed from above through the gutter of the cutting assembly.

Check the rotational direction of the alternating current model GE365. If the rotational direction is incorrect, reverse the motor poles using the reverse phase plug. (see above illus.)

Notes on mulching

What can be mulched?

From the home and kitchen

Fruit, vegetable waste, newspaper, packaging paper, corrugated cardboard, wood wool, decayed wood, thin wooden fruit boxes (without nails). Soften paper and cardboard in water before mulching.

From the garden

Tree and hedge cuttings, fruit canes, rose pruning, withered flowers (autumn clear out), vegetable refuse, leaves, potato vines, tomato plants, bean stalks, pea straws, grass cuttings, hay, straw, foliage, bushes, etc.

What does not belong in the mulcher?

Stone, glass, metal fragments, plastic, chemical cleaners, printed paper, (magazines and brochures), thick wood and hard wood. The rule of thumb is: If you wouldn't put it on the compost heap, don't put it in the mulcher.

Tree and hedge cuttings should be processed immediately while they are fresh, as the mulcher can then shred them more efficiently than when they are old.

Maintenance

Switching off

Only switch the motor off when the mulcher is completely empty. Other-wise the blades can become jammed when the appliance is re-started.

Correct loading of the motor

The garden mulcher may only be loaded so that the motor speed is not greatly reduced. If an overload should occur, the incorporated thermal overload switch will switch the motor off automatically.

Important: To avoid overheating the motor, the motor should be allowed to cool off for approx. 10 mins before it is re-started. If the mulcher is jammed, switch the motor off immediately and disconnect the electrical power supply. Then investigate and eliminate the cause of the breakdown. If the thermal overload switch trips repeatedly, the following causes could be present:

• unsuitable connecting lead (see: electrical power connection),
• circuit overload,
• appliance overload due to excessive material feed rate or blunt blades.

Cleaning

Clean the appliance thoroughly after use. Use the appliance sympathetically to avoid breakdowns and to prolong its lifetime. Use a commercially available product to protect the mulching tools and the mulch container (i.e. rapeseed oil) against corrosion.

The electric motors are splash proof and have a labyrinth seal with an additional seal ring on the tool shaft (see illus.). This should be regularly inspected (i.e. during blade sharpening).

Only use a brush to clean the appliance.

Never use a water jet or high pressure hose on motor components, seals, bearings, and electrical components (i.e. switches). It could result in expensive repairs!

The electric motors require no maintenance.

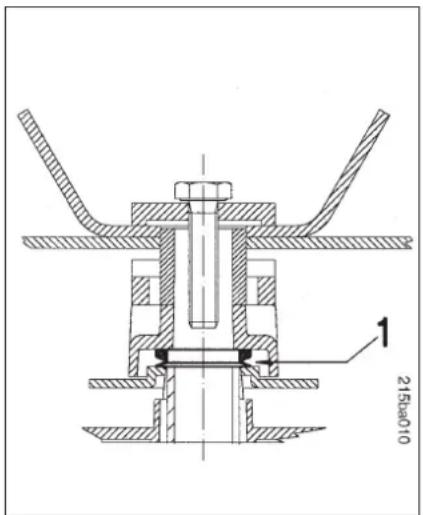

Motor seal with labyrinth seal and seal ring (1).

The seal ring is accessible after the cutting assembly and the blade mounting have been removed.

Important: The power supply must be disconnected before any maintenance or operation is performed on the mulching tools. Never touch any part of the cutting assembly while it is in motion, wait until it is at a complete standstill.

Design of cutting assembly Multicut 300

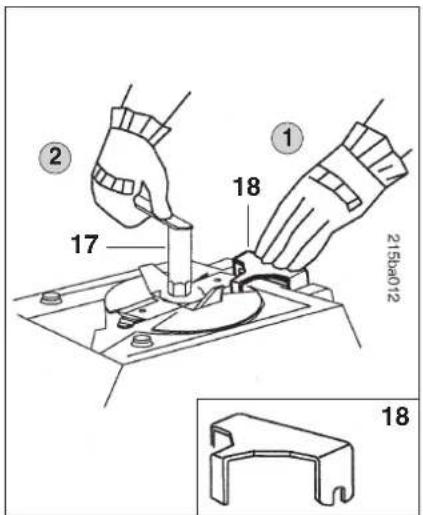

Assembly - Disassembly of the cutting assembly

Sharpening Cutting Assembly

If the cutting quality deteriorates slowly over time, the blades have probably been blunted.

When re-sharpening the cutting assembly the following points are to be observed:

Cool the blades during sharpening (i.e. with water). The blades must not become blue, or they will become less resistant to wear.
- Sharpen the blade evenly, to avoid vibrations resulting from imbalance.
- Inspect the blades for damage before installation: They must be re-newed if notches or cracks are visible, or if the cutting edge has already been ground back 3mm (grinding limit).

Storage

The storage room should be dry, free from dust, and inaccessible to children. If the appliance is defective, repair it prior to storage so that it is always in a condition that is safe to use.

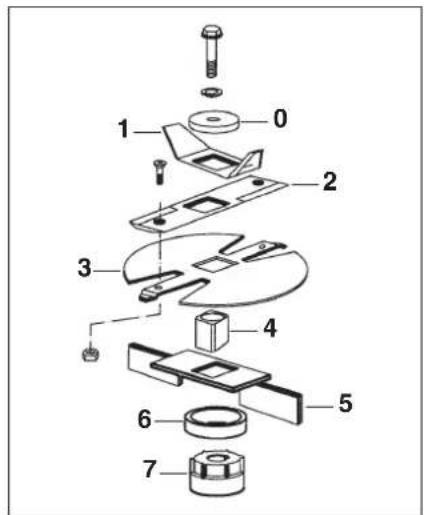

The components of the blade assembly must be offset at 90^ to one another (see illus.).

0 Clamping disc

1 Pre-mulcher
2 Combination blade
3 Multi-cut-disc
4 Square end
5 Ejector
6 Space pipe
7 Seal ring cover

VIKING recommends the use of original VKING tools, accessories and spare parts. Their properties are optimally adapted to the appliance and the user's requirements.

The installation must follow the illustrated procedure.
- Tighten all bolts!

Important:

Danger of injury!

Always wear gloves when working.

Technical data

• Directly driven by electric motor.
  Sealing of the mulch container from the motor using labyrinth and additional seal ring.
• Removable tube. Fastened with hinge and 2 cover bolts.

Electro-mechanical safety equipment

Both series have the following safety appliances fitted for your personal safety:

Motor stop. The motor can only be started when the tube is correctly locked in position. If it is open, the appliance switches off automatically.

Motor run-on brake. Reduces the run-on period between switching off and blade standstill to a few seconds.

Motor start up inhibitor. The appliance can only be started using the switch and not simply by plugging the connection lead into the power socket.

Electrical specifications

GE 345 GE 365

Supply voltage 230V 400V - 3

Power consumption 2.2kW3kW

Current consumption 10 A 4.8 A

Fusing min. (GB/AUS/NZ) 13/11/11 A anti-surge 10 A anti-surge

Frequency 50 Hz 50 Hz

Protective category

Method of protection Splash proofed Splash proofed

Special feature Change of rotational direction using reversal switch

In accordance with Guideline 2000/14/EU:

Guaranteed sound power level L_WA

108 dB 108 dB

In accordance with EN 13683:

Sound pressure level at workplace LpA

101 dB 101 dB

Dimensions and weight

Dimensions L/B/H cm 66/52/135 66/52/135

Weight in kg 31 33

Tighten Torque

Cutting Assembly 50Nm 50Nm

Notes on maintenance and care

Important information on maintenance and care of the product group

Electric garden shredders

Please always observe the following important information for the prevention of damage or excessive wear to your VKING appliance:

1. Wearing parts

Some parts of the VIKING appliance are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use.

These include:

• Blades
• Blade disc

2. Observance of the information in this instruction manual

The VIKING appliance must be used, maintained and stored with the care described in this instruction manual. Any damage caused by non-observation of the safety, operating and maintenance instructions are the sole responsibility of the user.

This applies in particular to:

• power lead with inadequate dimensions (cross section)
• incorrect electrical connection (voltage)
• product modifications not approved by VIKING
• the use of tools or accessories which are not approved or suitable for the appliance, or are of inferior quality.
• improper use of the product
• use of the product for sporting or competitive events
  resultant damage due to continued use of the product with defective components

3. Maintenance operations

All work listed in the section "Maintenance" must be performed regularly. If these maintenance operations cannot be carried out by the user himself, a specialist dealer must be commissioned to do it.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

If these operations are neglected, faults may arise which are the responsibility of the user.

These include:

• damage to the drive motor as a result of inadequate cleaning of the cooling air guide (inlet slots)
• corrosive and other resultant damage caused by incorrect storage
• damage to the appliance through the use of inferior-quality spare parts.
• damage due to untimely or inadequate maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.

CE - Producer's declaration of conformity

We,

VIKING GmbH

declare, that the machine

Shredding machine for plant trimmings with electric motor

Manufacturer's brand: VIKING

Type: GE 345

GE 365

Productionidentification: 6000

conforms to the following EC guidelines:

98/37/EC, 2000/14/EC, 2002/95/EC

2002/96/EC, 2004/108/EC, 2006/95/EC

The product has been developed and manufactured in conformance with the following standards:

EN 13683

EN 60335

Applicable conformity assessment

procedure:

Appendix V (2000/14/EC)

Storage of technical documentation:

VIKING GmbH

Product approval

Measured sound power level:

107 dB(A)

Guaranteed sound power level:

108 dB(A)

The year of manufacture appears on the

identification plate of the product.

Langkampfen, 02.01.2008

VIKING GmbH

Weighlofer

Development Manager

Accessories

Environmental protection

The appliance, its packaging and accessories are all produced from recyclable materials and must be disposed of accordingly.

By disposing of materials separately, and in an environmentally-friendly manner, valuable resources can be reused.

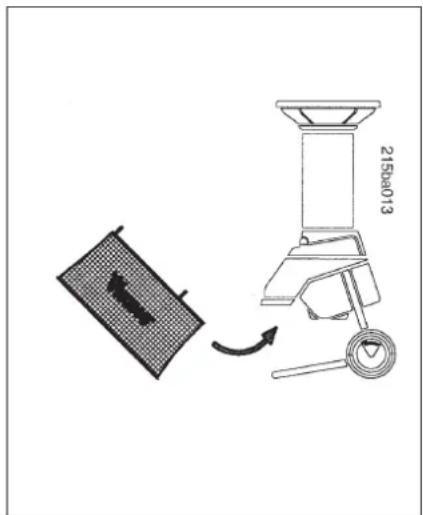

Mulch Container

Part No.: 6903 760 2520

(not included, available as an optional Accessory)

A very useful supplementary fitting is available upon request, which is hung directly on the mulcher ejector. The filled mulch container is convenient to carry and empty.

Capacity: 80 Litres

Sommaire

Chere cliente, cher client,

La directive 2000/14/CE:

2002/96/EC, 2004/108/EC, 2006/95/EC

2002/96/EC, 2004/108/EC, 2006/95/EC

2002/96/EC, 2004/108/EC, 2006/95/EC

2002/96/EC, 2004/108/EC, 2006/95/EC

Montering, demontering

av kniv 10

Tekniska data 11

Elektrisk/mekanisk sakerhetsutrustning 11

Anvisiningarforunderhal

och skötsel 12

2002/96/EC, 2004/108/EC, 2006/95/EC

2002/96/EC, 2004/108/EC, 2006/95/EC

erklaerer, at maskinen

Findelingsmaskine til planterester med elmotor

Fabrikat:VIKING

Type: GE 345

GE 365

Serienummer: 6000

2002/96/EC, 2004/108/EC, 2006/95/EC

Avoiyua epyaaleoohknc

2002/96/EC, 2004/108/EC

2006/95/EC

To npoiov oxeiaotnke kai

KATAOKEUAOTKE OUMCPWVA MTO

Tapakatw npotuio:

EN 13683

EN 60335

Epaipocmevniiaikacia aioynoaatotntac

Napapmtμa V (2000/14/EC)

ΦuaenTovTexivkovEyypaov:

VIKING GmbH

Eypln npoiovtoc

MeTpneEvn oTaOun nXnTiknc an6ooon:

107 dB(A)
