USER MANUAL PondoVario 3500 Pontec

EN Operating instructions

FR Notice d'emploi

Line drawing of a vacuum cleaner with a vertical tube and fan base (no text or symbols)

A

1 2 3 4 5 6 7 8

PondoVario 750/1000: 1, 2, 6, 8
PondoVario 1500/2500: 1, 3, 5, 6, 7, 8
PondoVario 3500: 1, 4, 5, 6, 7, 8
PVO0001

B
PondoVario 750/1000

1. 2. 3. click 4.

PVO0008

C
PondoVario 1500/2500/3500

1. 2. 3. click 4. 5.

PVO0002

PVO0003

PVO0009
PVO0004

PVO0005 1

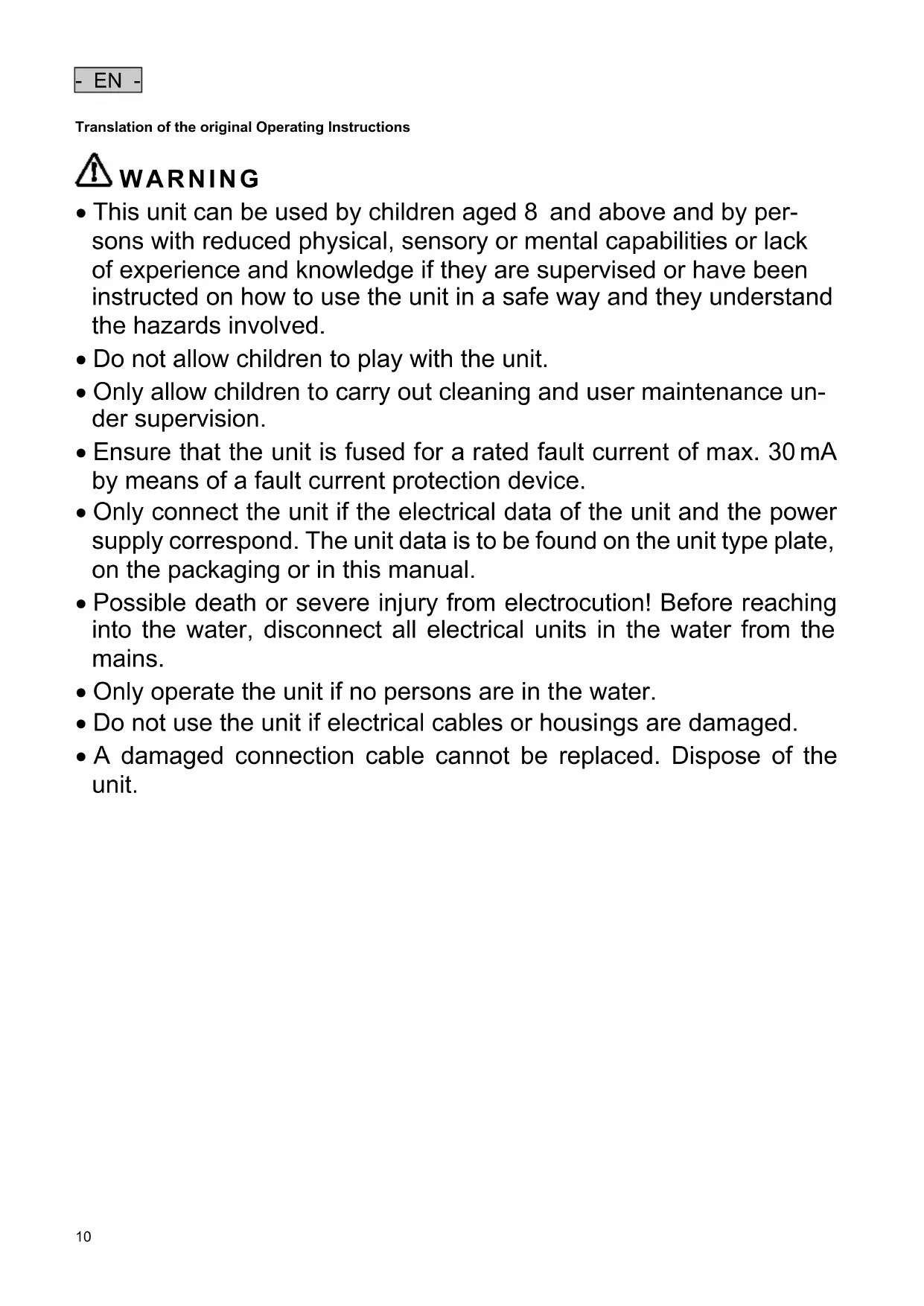

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water, disconnect all electrical units in the water from the mains.
• Only operate the unit if no persons are in the water.
• Do not use the unit if electrical cables or housings are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.

Safety information

Correct electrical installation

• Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
• A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations.
• For your own safety, please consult a qualified electrician.
• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Protect the plug connection from moisture.
• Only connect the unit to a correctly fitted socket.

Safe operation

• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Always keep magnets at least 0.2 m away from implanted devices.
• Keep the socket and power plug dry.
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Never carry out technical changes to the unit.
• Only carry out work on the unit described here.
• Only use original spare parts and accessories for the unit.

Information about these operating instructions

You made a good choice with the purchase of this product PondoVario 750 / 1000 / 1500 / 2500 / 3500.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Warnings used in these instructions

The warning information is categorised by signal words, which indicate the extent of the hazard.

WARNING

• Indicates a possibly hazardous situation.
  • Non-observance may lead to death or serious injuries.

CAUTION

• Indicates a possibly hazardous situation.
  • Non-observance may lead to slight or minor injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Cross-references used in these instructions

☐ A reference to a figure, e.g. figure A.
→ Reference to another section.

Product Description

PondoVario 750 / 1000 / 1500 / 2500 / 3500 is a fountain pump for garden ponds, ornamental fountains and (from PondoVario 1500) for small water courses.

• Temperature protection by built-in temperature monitor.
- Telescopic extension with various nozzles

PondoVario 1500/2500/3500

• Pivoting telescopic extension (ball joint).
  • Second, separately adjustable outlet.
• Removable fine-mesh filters for feeding a water course or filter

Delivery scope and unit configuration

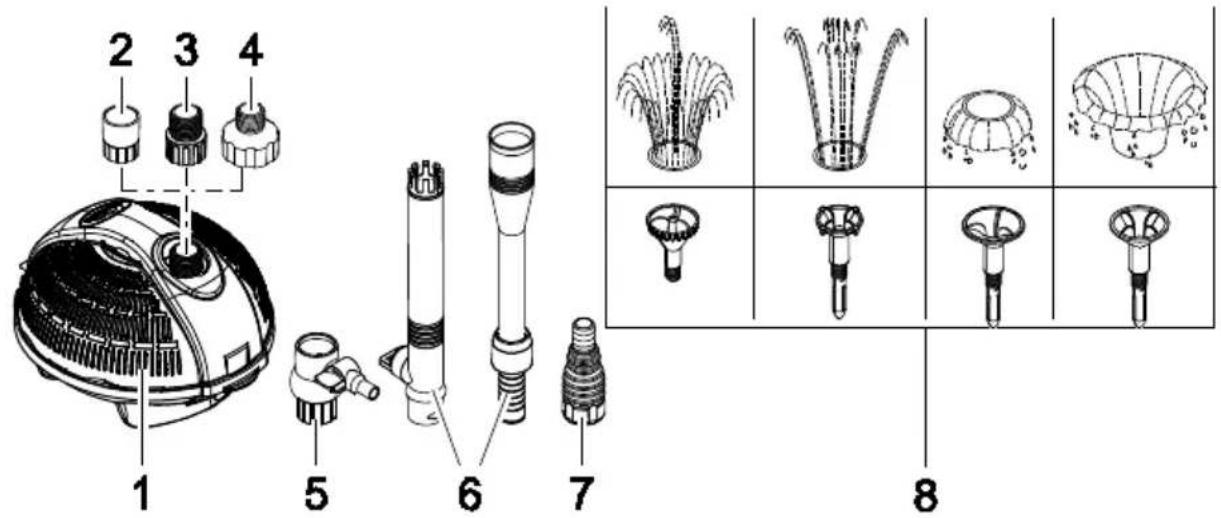

☐ A		Pondovario
		750/1000	1500/2500	3500
1	Filter housing with filter pump	1 x	1 x	1 x
2	Transition piece	1 x	-	-
3	Transition piece– Fastens the filter pump to the filter cover	-	1 x	-
4	Reduction element	-	-	1 x
5	Ball joint with adjustable outlet (∅ 9 mm)	-	1 x	1 x
6	Telescopic extension, two-part, consisting of an external and an internal pipe	1 x	1 x	1 x
7	Stepped hose connection	-	1 x	1 x
8	Nozzles	4 x	4 x	4 x

Intended use

PondoVario 750 / 1000 / 1500 / 2500 / 3500, referred to as "unit", may only be used as specified in the following:

• For pumping normal pond water for filters and water courses.
• Operate in accordance with instructions.
  The following restrictions apply to the unit:
• Do not use in swimming ponds.
• Never use the unit with fluids other than water.
• Never run the unit without water.
• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

Installation and connection

Use as a fountain pump

PondoVario 750/1000

How to proceed:

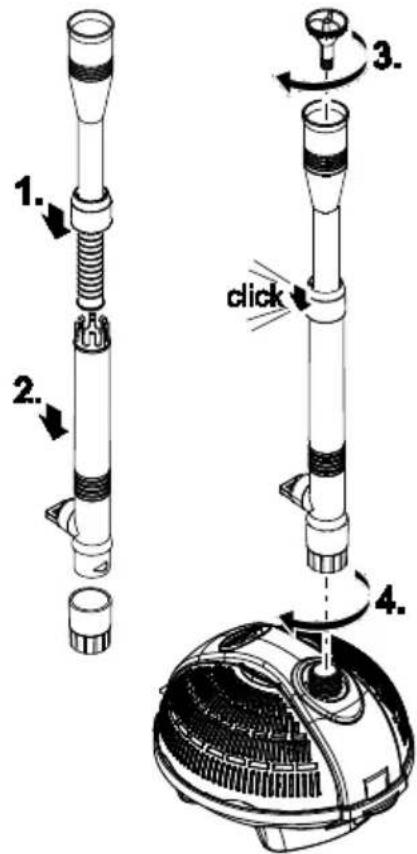

□ B

Assembling the telescopic extension: Insert the internal pipe into the external pipe and secure with the retaining collar. Insert the telescopic extension into the transition piece.

Insert and screw the desired nozzle into the telescopic extension.

Screw the telescopic extension with transition piece onto the pump and hand-tighten.

Install the unit in the pond in a horizontal position on firm, sludge-free ground and ensure that it is completely covered with water.

PondoVario 1500/2500/3500

How to proceed:

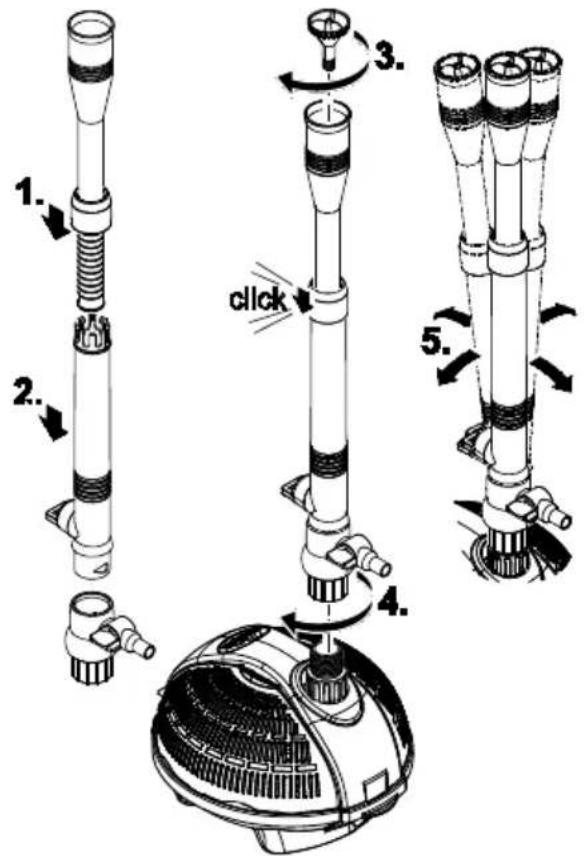

□ C

Assembling the telescopic extension: Insert the internal pipe into the external pipe and secure with the retaining collar.

Fit the telescopic extension onto the ball joint.

Ensure that the control valve on the telescopic extension and the outlet of the ball joint are aligned opposite each other so that water can exit from the outlet of the ball joint.

- Ensure that the control valve on the telescopic extension and the outlet of the ball joint are aligned opposite each other so that water can exit from the outlet of the ball joint.

- The adjustable outlet on the ball joint can be used for feeding a water course.

Insert and screw the desired nozzle into the telescopic extension.

Screw the ball joint onto the transition piece of the pump and hand-tighten.

- Vertically align the telescopic extension via the ball joint.

Install the unit in the pond in a horizontal position on firm, sludge-free ground and ensure that it is completely covered with water.

Use as a water course pump or filter pump

PondoVario 1500/2500/3500

How to proceed:

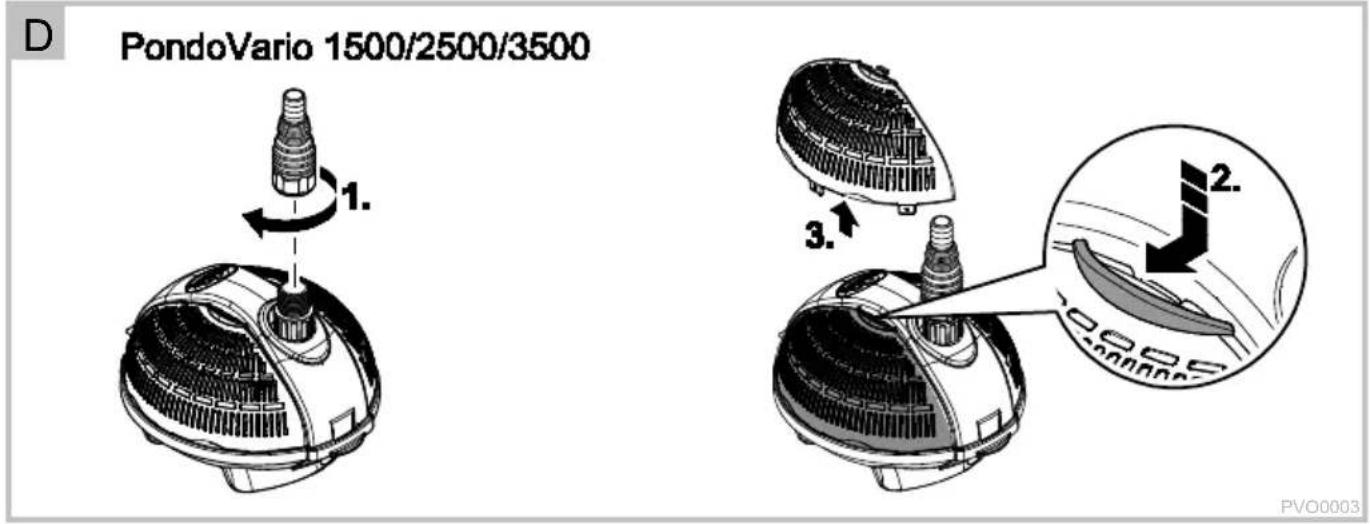

□D

Screw the stepped hose adapter onto the transition piece of the pump and hand-tighten.

Actuate the engagement hooks on the filter housing.

Remove the strainer casing.

Place the unit in the pond on a horizontal, firm and sludge-free base and ensure that it is completely covered by water.

Maximum installation depth: 2 m below the surface of the water.

Commissioning/start-up

NOTE

Never allow the pump to run dry. Otherwise the pump will be destroyed.

• Ensure that the pump is always flooded during operation.
• Regularly check the water level.

This is how to connect the power supply:

Switching on: Connect the unit to the mains. The unit switches on immediately.

Switching off: Disconnect the unit from the mains.

Use as a fountain pump

After installation and connection, adjust the shape of the fountain by changing the screw-in depth of the nozzles.

PondoVario 750/1000

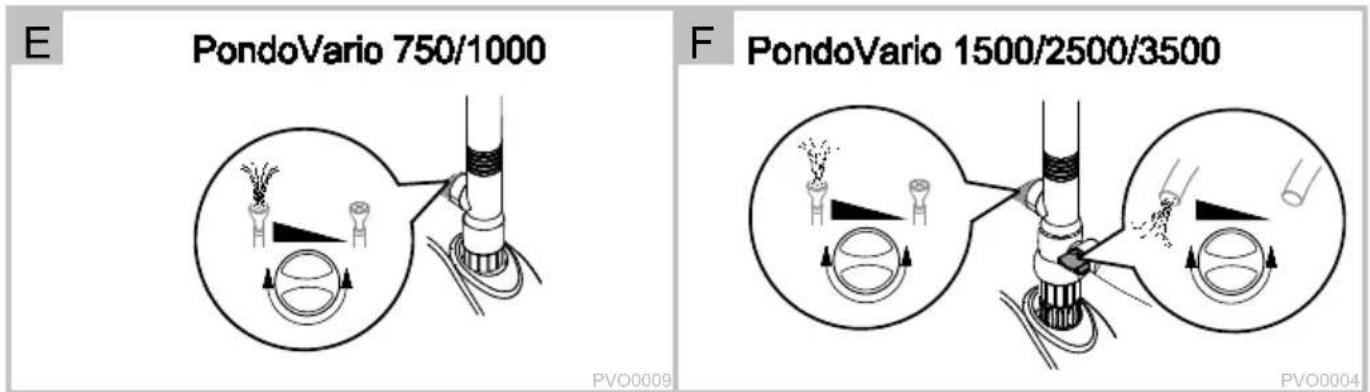

□ E

- Turn the control valve on the telescopic extension to achieve the desired spray pattern.

PondoVario 1500/2500/3500

□F

• Turn the control valve on the telescopic extension to achieve the desired spray pattern.
• If necessary, turn the control valve on the ball joint to achieve the desired flow rate.

Remedy of faults

Malfunction	Cause	Remedy
The unit is not operating	No mains voltage	Check mains voltage
Insufficient delivery rate	Impeller blocked	Clean impeller
	Strainer casing clogged	Clean strainer casing
	Excessive pressure losses in the hoses	Reduce hose length and connecting parts to a minimum, route hoses as straight as possible
Unit switches off after a short running period	Water temperature too high	Note maximum water temperature of +35 °C

Maintenance and cleaning

ATTENTION! Dangerous electrical voltage.

Possible consequences: Death or severe injury.

Protective measures:

• Electrical units and installations with a rated voltage of U > 12 V AC or U > 30 V DC located in the water: Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.

Recommendation regarding cleaning:

• Clean the unit as required but at least twice a year.

• When cleaning the pump, pay particular attention to the cleaning of the impeller unit and pump housing.

• Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function of the unit.

• Recommended cleaning agent for removing stubborn limescale deposits:
  – Vinegar- and chlorine-free household cleaning agent.
  • After cleaning, thoroughly rinse all parts in clean water.

Cleaning the pump

How to proceed:

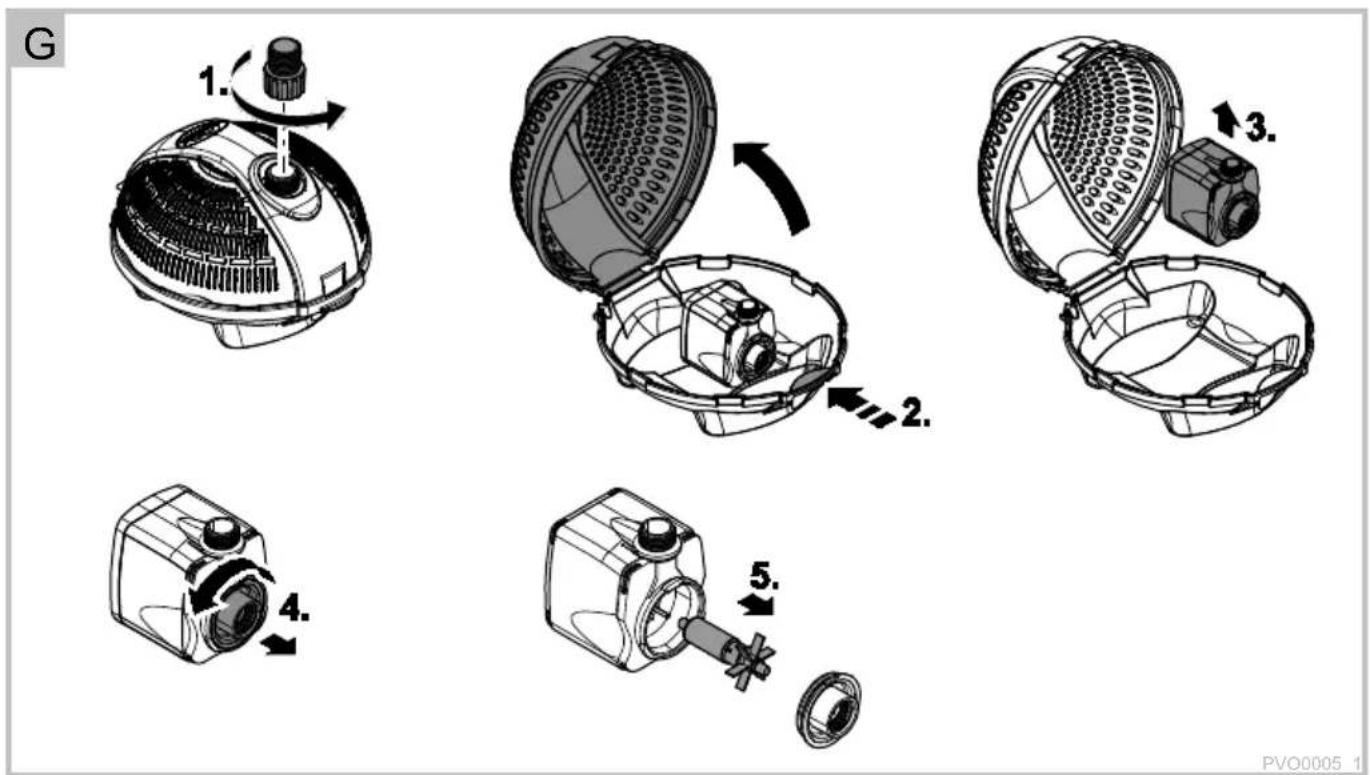

□ G

Unscrew the transition piece (with telescopic extension or stepped hose adapter) from the pump.

Actuate the engagement hooks on the filter housing and open the filter housing.

Unscrew the pump housing by turning counter-clockwise and remove (bayonet closing mechanism).

Pull out the impeller unit (magnetic resistance).

Rinse all parts.

Reassemble the unit in the reverse order.

Wear parts

- Impeller unit

Storage/Over-wintering

Remove the unit at temperatures below zero degrees centigrade. Thoroughly clean the unit, check for damage and store immersed in water in a frost-free environment. Do not immerse the plug!

Repair

Repair is not possible in the following cases. The pump has to be replaced.

• If there is no replacement part approved by PfG GmbH for a defective component.
• If an electric cable permanently connected to the pump becomes damaged or is shortened.

Disposal

NOTE

Do not dispose of this unit with domestic waste.

- Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.

Guarantee conditions

PfG grants a 3 year guarantee from the date of sale on proven material and manufacturing faults. Wear parts such as bulbs etc. are exempted from the guarantee. Prerequisite for our guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused, electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defective unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier. Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the final customer's claims against the dealer.
