USER MANUAL Traveller BabyGO

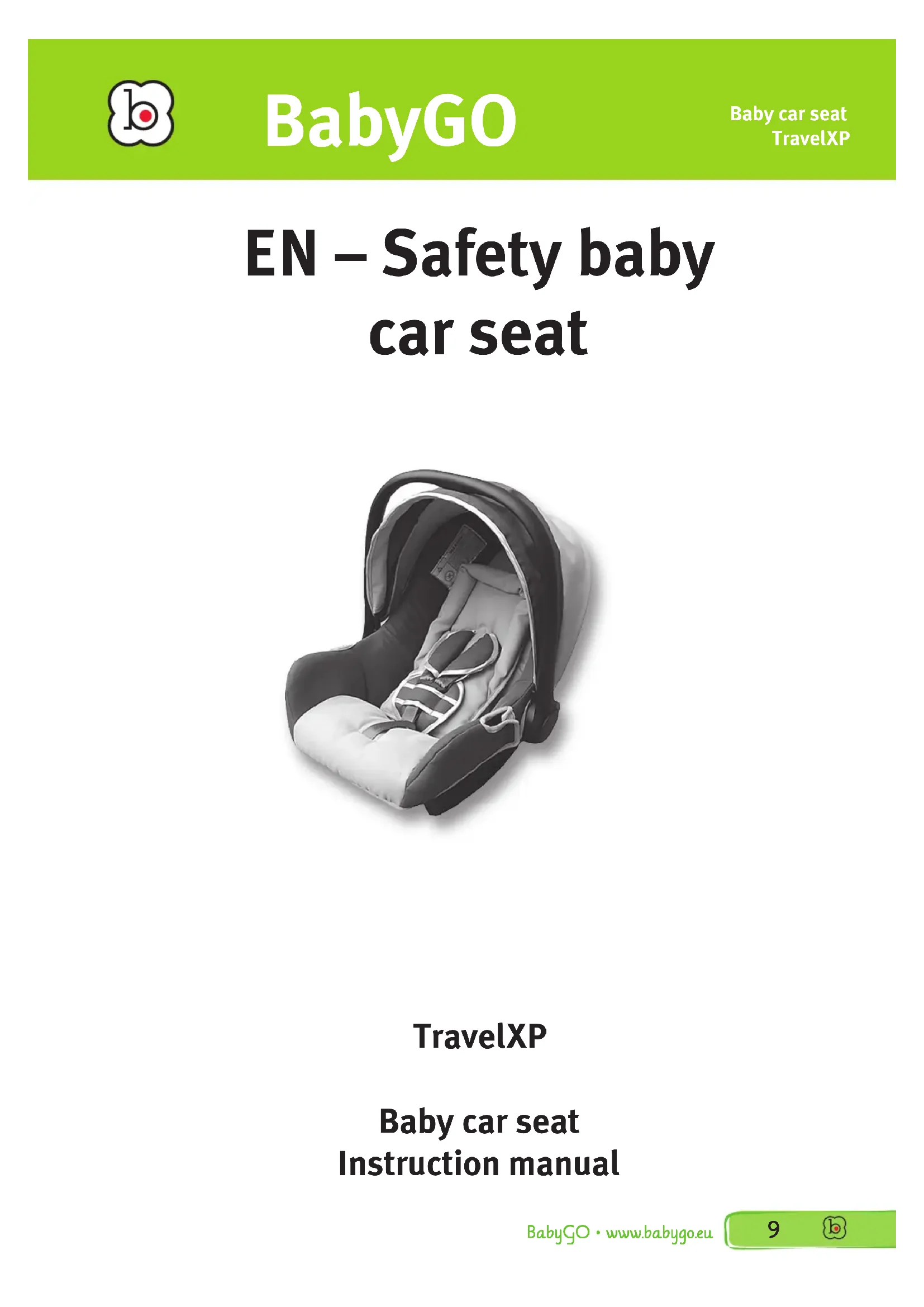

TravelXP - Baby car seat Instruction manual

EN - Safety baby car seat

TravelXP

Baby car seat Instruction manual

Dear Parents:

Congratulations on the purchase of our safety baby car seat. Safety, comfort and user-friendliness played an important role in our car seat, and our products are qualified by the ECE which is the highest standard. Your child's safety can only be guaranteed if this product is used according to these instructions. Therefore, please take time to read through this manual carefully.

Important : Read fi rst

• This product is suitable for children from birth to approximately 12 months (0 - 13kgs).
• Read this instruction manual carefully. Study the illustrations in this manual closely before and during installation.
• It is a safety product that is only safe when used according to the instructions given in this manual.
• To prevent your child from falling out of the seat. Always check to make sure the carrying handle is " clicked" into carrying positions before lifting the seat. Also make sure your child is always strapped securely with the harness belt.
• The correct rooting of the seat belt along the blue markings on the product is essential for your child's safety. Please see the installation section. Never thread the belt in any other way.
• Never use this product on a seat equipped with a front airbag.
• When installing with the seat belt, only use the car seat on forward facing seat that has been provided with an automatic or static 3--point belt. The belt provided has been approved according to the ECE R16 standard or similar.
• It may be used in the front seat and in the back seat. We strongly suggest to be used in the back seat. Always place the product rearward facing.
  Always secure your child with the harness belt. Even when the seat is not fitted in the car.
• The seat may become unsafe after an accident due to damage that is not immediately noticeable. It should therefore be replaced.
• We strongly advise against using a second-hand product, as you can never be sure of its history.
• In order to prevent damage to the cover, do not remove the logos or airbag sticker.

Instruction for use in the car

• Always check to make sure the seat fi ts in your car properly before purchasing it.

• The baby car seat must always be secured. Even when it not in use. An unsecured seat can injure other passengers in the car in the event of an emergency stop.

• If the car seat belt height is adjustable, adjust it to lower position.
• When installing the baby car seat on the passenger seat, put the car seat in the rearmost position. The backrest must be in fully upright and headrest down. When not using it, the passenger seat (and headrest) may be adjusted as required.

• Always cover the seat when the car is parked in the sun, as the plastic and metal parts can become very hot and cover may become discolored.

• Never hold a baby on your lap while driving. Due to the enormous forces released in an accident, it will be impossible to hold onto the baby. Always use a car seat, even for short trips.

• Never use the same seat belt to secure yourself and the child.

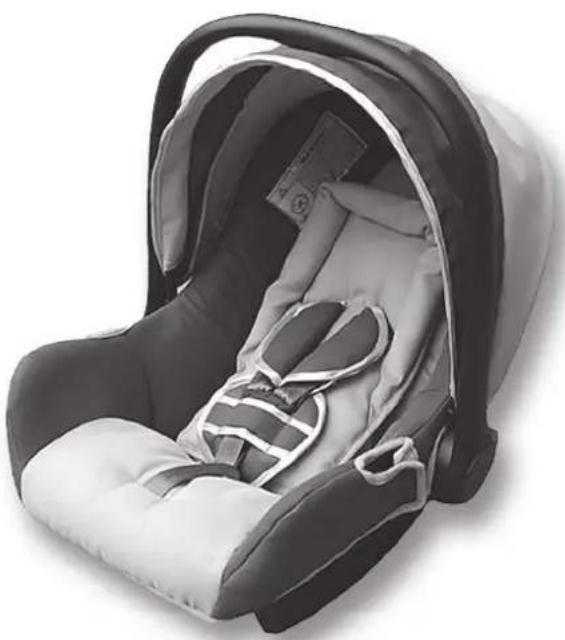

Components name

1. Shell
2. belt buckle
3. crotch strap with belt pad
4. shoulder belt with belt pad
5. slots to adjust shoulder belt
6. support pillow
7. carrying handle
8. push button for adjusting carrying handle
9. belt strap for adjusting shoulder belts easily with one
10. control button of quick adjuster
11. instruction and airbag warning sticker
12. sun canopy (built in)

Installing the safety baby car seat in your car

1. This product is suitable for installation in three-point seat belts which will be divided into hip and shoulder part, as shown in picture 1.

1. Place the baby car seat in a rearward facing position on the seat, therefore with the back forward facing. The carrying handle must be locked in an upright position, as shown in picture 2.

1. Thread the lap section of the seat belt across the front (foot end) between the shell and two belt hooks, as shown in picture 3.

1. Place the shoulder section of the seat belt around the car seat and slide it into the belt hook on the back, as shown in picture 4.

1. The retaining hook holds the seat belt in place, as shown in picture 5.

1. Insert the tongue section into the buckle. Make sure the seat belt is not twisted. Tighten it as much as possible. Check again to make sure the seat is thread through all three blue belt hooks, as shown in picture 6.

Installing and uninstalling the baby car seat in your stroller

1. Install baby car seat: First lake off the fabric cover from two side handrails. Adjust the back to the second position (150). Put the connectors on the each sides handrails till you hear "click". Then put the baby car seat on the stroller by connectors. (See picture)

1. Uninstall baby car seat: Press the red part on two connectors. Pull the baby car seat away from the connector. (See picture)

How to use the car seat

1. Loose the shoulder belts by pressing the quick adjuster button and pulling the shoulder belts towards you as shown in picture 7, then put down the crotch strap as shown in picture 8.

1. Join the buckle tongue sections together end insert them into the buckle as shown in picture 9.

1. Pull the shoulder belts tight using the quick adjuster belt strap on the front. The loop can be secured under shell rim.

1. Adjust the height of the shoulder belts, the shoulder belts should run through the slots located directly above the baby's shoulders as shown in picture 10.

Pull the shoulder belts through the slots in the shell and cover
- Place the shoulder belts back, at the required height and use the same slots in both shell and cover. Check to make sure the belts can be used properly and that they are not twisted.

1. Press the buttons on both sides of the carrying handle at the same time end then adjust the carrying handle to the desired position. The buttons will pop up again once the handle is in place. 1. carrying position/driving position 2. sleeping position/rocking position 3. sitting position as shown in picture 11. Removing the cover.

2. First remove the belt pads, open the rim at the sun canopy as far as possible. Then pull the buckle tongue sections and adjustment strap through the openings. To refill the cover, carry out the above instructions in reverse order.

Maintenance

• The seat can be cleaned with soap and lukewarm water. Do not use any abrasive detergents.
• The cover must be washed by hand (maximum 30 C). Do not use a dryer.
• The belt buckle can be cleaned using warm water. Do not lubricate.
• To ensure optimum and safe use of car safety seats, they should not be used for longer than 5 years after the date of purchases. Ageing of the plastic, for instance, under the influence of sunlight (UV), may quite unnoticeably reduce the qualities of the product.
• Once the child has grown out of the seat we therefore advise you to no longer use the car seat and to dispose of it in proper way.
